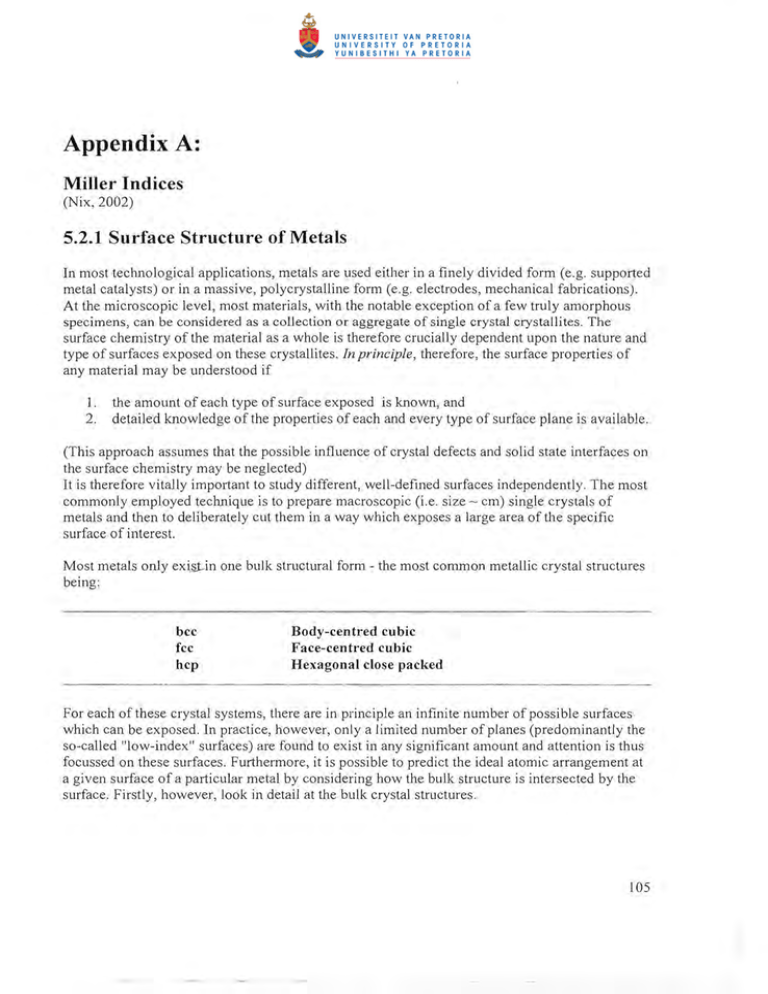

5.2.1 Surface Structure of Metals

In most technological applications, metals are used either in a finely divided form (e.g. supported metal catalysts) or in a massive, polycrystalline form (e .

g. electrodes, mechanical fabrications) .

At the microscopic level , most materials, with the notable exception of a few truly amorphous specimens, can be considered as a collection or aggregate of single crystal crystallites . The surface chemistry of the material as a whole is therefore crucially dependent upon the nature and type of surfaces exposed on these crystallites.

In principle, therefore, the surface properties of any material may be understood if

1 . the amount of each type of surface exposed is known, and

2. detailed knowledge of the properties of each and every type of surface plane is available.

(This approach assumes that the possible influence of crystal defects and solid state interfaces on the surface chemistry may be neglected)

It is therefore vitally important to study different, well-defined surfaces independently . The most commonly employed technique is to prepare macroscopic (i.e. size

~ cm) single crystals of metals and then to deliberately cut them in a way which exposes a large area of the specific surface of interest.

Most metals only exist _ in one bulk structural form - the most common metallic crystal structures being:

bcc fcc hcp

Body-centred cubic

Face-centred cubic

Hexagonal close packed

- - - - - - - - - - - - - -

- - -

- -

For each of these crystal systems, there are in principle an infinite number of possible surfaces which can be exposed. In practice, however, only a limited number of planes (predominantly the so-called "low-index" surfaces) are found to exist in any significant amount and attention is thus focussed on these surfaces. Furthermore, it is possible to predict the ideal atomic arrangement at a given surface of a particular metal by considering how the bulk structure is intersected by the surface . Firstly, however, look in detail at the bulk crystal structures.

105

I. The

hcp and fcc structures

The hcp andfcc structures are closely related: they are both based upon stacking layers of atoms, where the atoms are arranged in a close-packed hexagonal manner within the individual layer.

Figure AI. First layer of hcp and fcc structures

The atoms of the next layer of the structure will preferentially sit in some of the hollows in the first layer - this gives the closest approach of atoms in the two layers .

-

Figure A2. Second layer atoms of hcp and fcc structures

When it comes to deciding where the next layer of atoms should be positioned there are two choices - these differ only in the relative positions of atoms in the 1 st and 3rd layers.

106

In the structure on the left the atoms of the 3rd layer sit directly above those in the 1 st layer - this gives rise to the characteristic. ABABA. packing sequence of the hcp structure.

In the structure on the right of the last figure on the previous page the atoms of the 3rd layer are laterally offset from those in both the 1 st and 2nd layers, and it is not until the 4th layer that the sequence begins to repeat. This is the .

. ABCABC .. packing sequence of the fcc structure.

Because of their common origin , both of these structures share common features:

1. The atoms are close packed

2 . Each atom has 12 nearest neighbours ( i.e. CN

=

12 )

(a) fcc structure

Although it is not immediately obvious , the .. ABCABC.. packing sequence of the

fcc

structure gives rise to a three-dimensional structure with cubic symmetry ( hence the name! ).

fCY

S

I

J"IJ (' t

U re

Figure A3. The fcc structure

It is the cubic unit cell that is commonly used to illustrate this structure - but the fact that the origin of the structure lies in the packing _ of layers of hexagonal symmetry should not be forgotten .

Figure A4. Different layers hexagonally close packed

The above diagram shows the atoms of one of the hexagonal close-packed layers highlighted in shades of grey (except for the top right corner atom), and the atoms of another highlighted in black.

107

(b)

hcp structure

The ..ABABA.. packing sequence of the

hep structure gives rise to a three-dimensional unit cell structure whose symmetry is more immediately related to that of the hexagonally-close packed layers from which it is built, as illustrated in the diagram below.

Figure AS. The hcp structure

II. The bee structure

The bee structure has very little in common with the fcc structure - except the cubic nature of the unit. cell. Most importantly , it differs from the hep andfee structures in that it is not a close­ packed structure . bee structure

Figure

A6.

The bcc structure

The bulk co-ordination number of atoms in the bcc structure is 8

Rationale

Consider the atom at the centre of the unit cell as it i s conventionally drawn . The nearest neighbours of this atom are those at the corners of the cube which are all equidistant from the central atom . There are eight such corner atoms so the CN of the central atom (and all atoms in the structure) is eight.

Whereto from here?

An ordered surface may be obtained by cutting the three-dimensional bulk structure of a solid along a particular plane to expose the underlying array of atoms. The way in which this plane intersects the three-dimensional structure is very important and is defined by using Miller Indices this notation is commonly used by both surface scientists and crystallographers since an

ideal

108

surface of a particular orientation is nothing more than a lattice plane running through the 3D crystal with all the atoms removed from one side of the plane.

In order to see what surface atomic structures are formed on the various Miller index surfaces for each of the different crystal systems consider how the lattice planes bisect the three-dimensional atomic structure of the solid . As it might be expected, however, the various surfaces exhibit a wide range of:

1. Surface symmetry

2. Surface atom co-ordination, and most importantly this results in substantial differences in : 3) and 4)

3. Physical properties ( electronic characteristics etc. ), and

4. Surface chemical reactivity (catalytic activity, oxidation resistance etc.)

5.2.2 Surface Structure of fcc Metals

Many of the technologically most important metals possess the fcc structure : for example the catalytically important precious metals ( Pt, Rh, Pd ) all exhibit an fcc structure.

The low index faces of this system are the most commonly studied of surfaces: they exhibit a range of

1.

Surface symmetry

2. Surface atom co-ordination

3. Surface reactivity

I.

The fcc (100) surface

The (100) surface is that obtained by cutting the fcc metal parallel to the front surface of the fcc cubic unit cell - this exposes a surface (the atoms in the darkest colour) with an atomic arrangement of 4-fold symmetry

._

..

Figure A7. The fcc (100) surface

The diagram in figure A8 shows the conventional birds-eye view of the (100) surface - this is obtained by rotating the preceding diagram through 45° to give a view which emphasises the 4­ fold symmetry of the surface layer atoms.

109

Figure A8. Birds-eye view of the fcc(lOO) surface

The tops of the second layer of atoms are just visible through the holes in the first layer, but would not be accessible to molecules arriving from the gas phase. The co-ordination number of the atoms on the surface is 8.

There are several other points worthy of note:

1. All the surface atoms are equivalent

2. The surface is relatively smooth at the atomic scale

3. The surface offers various adsorption sites for molecules which have different local symmetries and lead to different co-ordination numbers:

• On-top sites ( CN=1 )

• Bridging sites , between two atoms ( CN=2 )

• Hollow sites, between four atoms ( CN=4 )

(In the above context, the CN is taken to be the number of surface metal atoms to which the adsorbed species would be directly bonded)

II

. The fcc(llO) surface fcc unit cell

(110) face

Figure A9. The fcc (110) surface

The (110) surface is obtained by cutting the fcc unit cell in a manner that intersects the x and y axes but not the z-axis - this exposes a surface with an atomic arrangement of 2-fold symmetry.

The next diagram shows the conventional birds-eye view of the (110) surface - emphasising the rectangular symmetry of the surface layer atoms. The diagram has been rotated such that the rows of atoms in the first atomic layer now run vertically, rather than horizontally as in the previous diagram.

110

Figure AIO. Atoms in topmost layer

It is clear from this view that the atoms of the topmost layer are much less closely packed than on the (100) surface - in one direction (along the rows) the atoms are in contact i.e. the distance between atoms is equal to twice the metallic (atomic) radius, but in the orthogonal direction there is a substantial gap between the rows.

This means that the atoms in the underlying second layer are also , to some extent, exposed at the surface

(110) surface plane e.g. Cu(110)

Figure All. The fcc (110) surface plane

The preceding diagram illustrates some of those second layer atoms, exposed at the bottom of the troughs.

In this case, the determination of co-ordination numbers requires a little more careful thought: one way to double-check the answer is to remember that the eN of atoms in the bulk of the fcc structure is 12, and then to subtract those which have been removed from above in forming the surface plane.

If one compares this co-ordination number

(eN =

7) with that obtained for the (100) surface, it is worth noting that the surface atoms on a more open ("rougher") surface have a lower eN this has important implications when it comes to the chemical reactivity of surfaces.

The fact that they are clearly exposed (visible) at the surface implies that they have a lower eN than they would in the bulk.

11 1

In summary, we can note that

1. All first layer surface atoms are equivalent, but second layer atoms are also exposed

2. The surface is atomically rough, and highly anisotropic

3. The surface offers a wide variety of possible adsorption sites, including:

• On-top sites ( CN=l )

• Short bridging sites between two atoms in a single row ( CN=2 )

• Long bridging sites between two atoms in adjacent rows ( CN=2 )

• Higher CN sites ( in the troughs)

III. The fcc (111) surface

The (111) surface is obtained by cutting the fcc metal in such a way that the surface plane intersects the

X-, y- and z- axes at the same value - this exposes a surface with an atomic arrangement of 3 -fold ( apparently 6-fold, hexagonal) symmetry. This layer of surface atoms actually corresponds to one of the close-packed layers on which the fcc structure is based.

fcc unit cell

(111) face

Figure A12. The fcc unit cell (111) face

The diagram below shows the conventional birds-eye view of the (111) surface - emphasising the hexagonal packing of the surface layer atoms. Since this is the most efficient way of packing atoms within a single layer, they are said to be "close-packed".

(111) surface plane e.g. Pt(l11)

Figure A13. The fcc (111) surface plane

The following features are worth noting;

1. All surface atoms are equivalent and have a relatively high eN

2. The surface is almost smooth at the atomic scale

112

3 . The surface offers the following adsorption:

• On-top sites ( CN=l )

• Bridging sites, between two atoms ( CN=2 )

• Hollow sites, between three atoms ( CN=3 )

IV. How do these surfaces intersect in irregular-shaped samples?

Flat surfaces of single crystal samples correspond to a single Miller Index plane and it was seen that, each individual surface has a well-defined atomic structure.

It is these flat surfaces that are used in most surface science investigations, but it is worth a brief aside to consider what type of surfaces exist for an irregular shaped sample (but one that is still based on a single crystal). Such samples can exhibit facets corresponding to a range of different Miller Index planes.

SUMMARY

Depending upon how an fcc single crystal is cleaved or cut, flat surfaces of macroscopic dimensions which exhibit a wide range of structural characteristics may be produced.

The single crystal surfaces discussed here ( (100), (110) & (Ill) ) represent only the most frequently studied surface planes of the fcc system - however, they are also the most commonly occurring surfaces on such metals and the knowledge gained from studies on this limited selection of surfaces goes a long way in propagating the development ofour understanding of the surface chemistry of these metals.

5.2.3 Surface Structure of hcp Metals

This important class of metallic structures includes metals such as Co , Zn , Ti & Ru.

The Miller Index notation used to describe the orientation of surface planes for all crystallographic systems is slightly more complex in this case since the crystal structure does not lend itself to description using a standard Cartesian set of axes- instead the notation is based upon three axes at 120 degrees in the close-packed plane, and one axis (the c-axis) perpendicular to these planes. This leads to a four-digit index structure; however , since the third of these is redundant it is sometimes left out!

I.

The hcp (0001) surface

This is the most straightforward of the hcp surfaces since it corresponds to a surface plane which intersects only the c-axis, being coplanar with the other 3 axes i .

e. it corresponds to the close packed planes of hexagonally arranged atoms that form the basis of the structure .

It is also sometimes referred to as the (001) surface.

113

(0001) surface plane e.g.

Ru(OOOl)

Figure A14.The hcp (0001) surface plane

This conventional plan view of the (000 1) surface shows the hexagonal packing of the surface layer atoms. This is very similar to the fcc(1II) surface.

We can summarise the characteristics of this surface by noting that:

1 . All the surface atoms are equivalent and have CN=9

2 . The surface is almost smooth at the atomic scale

3. The surface presents adsorption sites which are locally:

• On-top sites ( CN=I )

• Bridging sites, between two atoms ( CN=2 )

• Hollow sites, between three atoms ( CN=3 )

5.2.4 Surf

ac

e St

ru

c

t

ure of bcc Metals

A number of important metals ( e.g. Fe, W, Mo ) have the bcc structure. As a result of the low packing density of the bulk structure, the surfaces also tend to be of a rather open nature with surface atoms often exhibiting rather low co-ordination numbers.

I.

The bcc (100) surface

Figure A1S. The bcc unit cell (100) face bcc unit cell

(100) face

The (100) surface is obtained by cutting the metal parallel to the front surface of the bcc cubic unit cell - this exposes a relatively open surface with an atomic arrangement of 4-fold symmetry.

The diagram below shows a plan view of this (100) surface - the atoms of the second layer

(shown on left) are clearly visible , although probably inaccessible to any gas phase molecules other than smaller atoms or molecules like N2, H2 or ions that result during cutting.

114

bcc (100) surface plane e.g. Fe(lOO)

I~

Figure A16. The bcc(lOO) surface plane

The co-ordination number for the surface atoms is 4. The nearest neighbours are at a distance of

0.87a

.

The eN of metal atoms in the bulk of the solid is 8 for a bee metal and the second layer of atoms clearly have 4 nearest neighbours in the 1 st layer and another 4 in the 3rd layer.

II. The bcc (110) surface

The (110) surface is obtained by cutting the metal in a manner that intersects the x and y axes but creates a surface parallel to the z-axis - this exposes a surface that has a higher atom density than the (100) surface. bcc unit cell

(110) face

Figure A17. The bcc unit cell (110) face

Figure A

18

shows a plan view of the (110) surface - the atoms in the surface layer strictly form an array of rectangular symmetry , but the surface layer co-ordination of an individual atom is quite close to hexagonal.

... ...

...

...

...

... ...

...

... ...

... bcc(110) surface plane e.g. Fe(110)

Figure A18. The bcc(110) surface plane

115

The co-ordination number of the surface layer of atoms is 6 . Think in 3 dimensions.

Rationale

Each surface atom has four nearest neighbours in the 1 st layer ( the remaining two "near­ neighbours" in this surface layer being at a slightly greater distance ), but there are also two nearest neighbours in the layer immediately below .

III.

The bcc (111) surface

The (111) surface of bcc metals is similar to the (111) face of fcc metals only in that it exhibits a surface atomic arrangement exhibiting 3-fold symmetry - in other respects it is very different.

Top View: bcc(111) surface plane e.g. Fe(111)

Figure A19. Top view of the bcc(111) surface plane

In particular it is a very much more open surface with atoms in both the second and third layers clearly visible when the surface is viewed from above. This open structure is also clearly evident when the surface is viewed in cross-section as shown in figure A20 in which atoms of the various layers have been armotated.

Fifwre A20. Side View: bcc(111) surface DIane e.!!. Fe(111)

116
