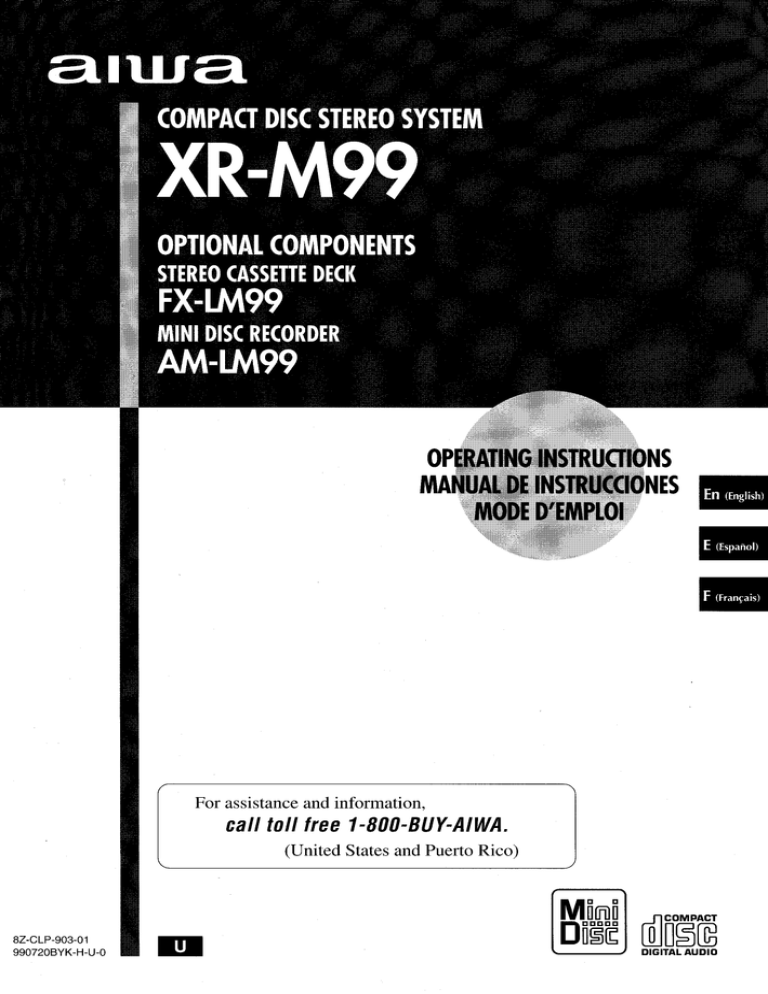

Aiwa XR-M99 User manual

Aiwa XR-M99 User manual
En (English)
E (Español)
3 (Francais)
call toll free 1-800-BUY-AIWA.
(United States and Puerto Rico)
For assistance and information, |
USE
DIGITAL AUDIO
8Z-CLP-903-01
990720BYK-H-U-0
IEEE ENGLISH НЛО
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
CAUTION
RISK OF ELECTRIC SHOCK
BO NOT OPEN
“CAUTION:TO REDUCE THE RISK OF
ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.”
Explanation of Graphical Symbols:
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the products en-
closure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and mainte-
nance (servicing) instructions in the literature
accompanying the appliance.
PRECAUTIONS
Read the Operating Instructions carefully and completely before
operating the unit. Be sure to keep the Operating Instructions for
future reference. All warnings and cautions in the Operating
Instructions and on the unit should be strictly followed, as well as
the safety suggestions below.
Installation
1
2
Water and moisture — Do not use this unit near water, such as
near a bathtub, washbowl, swimming pool, or the like.
Heat — Do not use this unit near sources of heat, including
heating vents, stoves, or other appliances that generate heat. -
It also should not be placed in temperatures less than 5°C
(41°F) or greater than 35°C (95°F).
Mounting surface — Place the unit on a flat, even surface.
Ventilation — The unit should be situated with adequate space
“around it so that proper heat ventilation is assured. Allow 10cm
(4 in.) clearance from the rear and the top of the unit, and 5 cm
(2 in.) from the each side.
- Do not place the unit on a bed, rug, or similar surface that may
block the ventilation openings.
- Do not install the unit in a bookcase, cabinet, or airtight rack
where ventilation may be impeded.
Objects and liquid entry — Take care that objects or liquids do
not get inside the unit through the ventilation openings.
Carts and stands — When placed or
mounted on a stand or cart, the unit
should be moved with care.
Quick stops, excessive force, and un- o
even surfaces may cause the unit or
cart to overturn or fall. AT
2 ENGLISH
1
1
2
Condensation — Moisture may form on the CD pickup lens
when:
- The unit is moved from a cold spot to a warm spot
- The heating system has just been turned on
- The unit is used in a very humid room
- The unit is cooled by an air conditioner
When this unit has condensation inside, it may not function
normally. Should this occur, leave the unit for a few hours, then
try to operate again.
Wall or ceiling mounting — The unit should not be mounted on
a wall or ceiling, unless specified in the Operating Instructions.
Electric Power
Power sources — Connect this unit only to power sources
specified in the Operating Instructions, and as marked on the
unit.
Polarization — As a safety feature, some units are equipped
with polarized AC power plugs which can only be inserted one
way into a power outlet. !fitis difficult or impossible to insertthe
AC power plug into an outlet, turn the plug over and try again.
If it still does not easily insert into the outlet, please call a
qualified service technician to service or replace the outlet. To
avoid defeating the safety feature of the polarized plug, do not
force it into a power outlet.
AC power cord
- When disconnecting the AC power cord, pull it out by the AC
power plug. Do not pull the cord itself.
- Never handle the AC power plug with wet hands, as this could
result in fire or shock.
- Power cords should be routed to avoid being severely bent,
pinched, or walked upon. Pay particular attention to the cord
from the unit to the power socket.
- Avoid overloading AC power plugs and extension cords
beyond their capacity, as this could result in fire or shock.
Extension cord — To help prevent electric shock, do not use a
polarized AC power plug with an extension cord, receptacle, or
other outlet unless the polarized plug can be completely in-
serted to prevent exposure of the blades of the plug.
When not in use — Unplug the AC power cord from the AC
outlet if the unit will not be used for several months or more.
Whenthe cordis plugged in, a small amount of current continues
to flow to the unit, even when the power is turned off.
Outdoor Antenna
Power lines — When connecting an outdoor antenna, make
sure it is located away from power lines.
Outdoor antenna grounding — Be sure the antenna system is
properly grounded to provide protection against unexpected
voltage surges or static electricity build-up. Article 810 of the
National Electrical Code, ANSI/NFPA 70, provides information
on proper grounding of the mast, supporting structure, and the
lead-in wire to the antenna discharge unit, as well as the size of
the grounding unit, connection to grounding terminals, and
requirements for grounding terminals.
Antenna Grounding According to the National Electrical Code
ANTENNA LEAD IN WIRE
ANTENNA DISCHARGE
UNIT
(NEC SECTION 810-20)
GROUNDING
| CONDUCTORS
(NEC SECTION 810-21)
ELECTRIC
SERVICE
POWER SERVICE GROUNDING
| «+ ELECTRODE SYSTEM
(NEC ART 250 PART H)
NEC-NATIONAL ELECTRICAL CODE
Maintenance
Clean the unit only as recommended in the Operating Instructions.
Damage Requiring Service |
Have the unit serviced by a qualified service technician if:
- The AC power cord or plug has been damaged
- Foreign objects or liquid have gotten inside the unit
- The unit has been exposed to rain or water
- The unit does not seem to operate normally
- The unit exhibits a marked change in performance
- The unit has been dropped, or the cabinet has been damaged
DO NOT ATTEMPT TO SERVICE THE UNIT YOURSELF.
Owner’s record
Foryour convenience, record the model number and serial number
(you will find them on the rear of your set) in the space provided
below. Please refer to them when you contact your Aiwa dealer in
case of difficulty.
Compact Disc Stereo System XR-M99
Mode! No.
MX-LM99
TX-LM99
“ Serial No. (Lot No.)
DX-LM99
SX-LM99
Optional Stereo Cassette Deck
Model No.
FX-LM99
Serial No. (Lot No.)
Optional Mini Disc Recorder
Model No.
AM-LM99
Serial No. (Lot No.)
TABLE OF CONTENTS
PRECAUTIONS …………….……………………svascevrsrenerarnerereneeaincaaennensenes 2
CHECK YOUR SYSTEM AND ACCESSORIES ныне. 4
HOW TO USE THIS MANUAL essen RER EEE 5
RECOMMENDED POSITIONING +... 5
PREPARATIONS
CONNECTIONS een nece e recen. 6
=1-1.10)-1-Mo]--1-7 yo] DT 8
SETTING THE CLOCK ............e.—e.eeeeerenoenreoeee aerea renace. 9
ECONOMIZING POWER ….…….………………rcrciieoncercnccerencencnnensennennenss 9
TURNING ON/OFF THE ILLUMINATION AND
DIMMING THE DISPLAY -...........eeeceeceessconercaneezaneneneeane 9
SOUND
ADJUSTING THE SOUND ….….….……..………………cccccacceseneensennens 10
RADIO RECEPTION
MANUAL TUNING ……………….……………ccccicrccenrenanenensennenneneenavensruns 11
PRESETTING STATIONS …..….…………..…….……………vreccsrseccenensensennens 12
“CD PLAYING
OPERATION ………………………………rscrocecencrreenensensensensenensenneenerses 13
USING THE OPTIONAL STEREO CASSETTE DECK
CONNECTIONS ...........ensracoeaaaocencaracaranrenenanaeeaenaereneneneas 15
TAPE PLAYBACK -........e.e..e..evacecvoneienenre merce enee rre. 16
BASIC RECORDING ..........—.....—m.eenennerceen reee eee 17
Al EDIT RECORDING ...........eemesmreacerennoecucenrnon arenero 18
PROGRAMMED EDIT RECORDING ………………..…..….……+…0…+. 19
USING THE OPTIONAL MINI DISC RECORDER
CONNECTIONS ............ereneccccoririerinanees rear en rene.
WHAT IS AN MD (MINI DISC)? ……………curesrrercerescacerseeneaeanes 21
MD PLAYING ………………ccccercacreceacenveneaeeneranenennnenseenensenneres 22
VARIOUS WAYS OF MD RECORDING ..............==m=eneeenn—e. 24
ABOUT THE INDEX MARK ...........—...enesricerrreronrrnan eric 24
RECORDING A WHOLE CD .......rreeeeernnacesdarenrenoerenanrecaeane 25
RECORDING ONLY ONE TRACK OF ACD eevee. 26
PROGRAMMED RECORDING OF A CD ……………………………. 27
RECORDING FROM A TAPE, A CD, THE RADIO OR
CONNECTED EQUIPMENT verres 28
EXTENDED (MONAURAL) RECORDING ………..….…+..200.0-- 29
REGISTERING THE DISC TITLE AND TRACK TITLE..... 30
DIVIDING A TRACK -............e.rveccesgenorernercenare nes e rieron 31
COMBINING TWO TRACKS ars EEE 32
CHANGING THE ORDER OF THE TRACKS ..........e.--.—..... 32
ERASING TRACKS ….………….…….……ciocascacreerecerennenenennennen sens 33
TIMER
TIMER PLAY AND TIMER RECORDING netter а. 34
SETTING THE SLEEP TIMER -...........e00=emenreeronrenaeene e. 35
OTHER CONNECTIONS
CONNECTING AUDIO/VIDEO EQUIPMENT 36
LISTENING TO EXTERNAL SOURCES -..........e..eeeeeeemon.s 37
GENERAL
CARE AND MAINTENANCE …………….….………rceorsereecsenseanenses 38
MD GUIDE MESSAGES -......r.reeeernaeeecacensnorercnareccaneaseanenemes 39
SPECIFICATIONS ST 40
TROUBLESHOOTING GUIDE -.........e-.....ee2enerennee. eens 41
PARTS INDEX ……………..……ruorserrerrenceneenceneneenresenesenensess 42
ENGLISH 3
CHECK YOUR SYSTEM AND ACCESSORIES
The XR-M99 Compact Disc Stereo System consists of the following items.
TX-LM99 Stereo Tuner |
SX-LM99 Speaker System
Remote control
MX-LM99 Stereo
Integrated Amplifier
SA
© © 000 AM antenna
FM antenna
Operating Instructions, etc.
OPTIONAL UNITS
The following two units are optionally available.
FX-LM99 Stereo Cassette Deck
This unit allows you to play back a tape and to record various
- sound sources onto a tape.
0000 7
4 ENGLISH
AM-LM99 Mini Disc Recorder
— This unit allows you to play back an MD and to record various
sound sources including an external digital audio equipment onto
o = a
=
оо
0000
HOW TO USE THIS MANUAL
This manual consists of the following 9 sections:
PREPARATIONS
Describes how to hook up the XR-M99 Compact Disc Stereo
System, how to turn on and off the system, and how to use the
remote control. This chapter also explains how to set the system's
clock, how to turn on and off the power economizing mode, and
how to change the brightness of the display.
SOUND
Describes how to adjust the playback sound to your preference.
RADIO RECEPTION
Explains how to use the TX-LM99 Stereo Tuner.
CD PLAYING
Explains how to use the DX-LM99 Compact Disc Player.
USING THE OPTIONAL STEREO CASSETTE DECK
This section describes how to connect the FX-LM99 optional
Stereo Cassette Deck to the system, and how to use it to playback
tapes and record onto tapes. |
USING THE OPTIONAL MINI DISC RECORDER
This section describes how to connect the AM-LM99 optional
Mini Disc Recorder to the system, and how to use it to playback
MDs, record onto MDs, and edit the recorded contents on MDs. _
TIMER |
Explains how to use the timer playback, timer recording, and
sleep timer functions of the system. |
~ OTHER CONNECTIONS
Describes how to connect and listen to external sound sources.
GENERAL |
This section contains the useful information such as “care and
maintenance,” “MD guide messages,’ “troubleshooting guide,” and
“parts index.”
For the users of the FX-LM99 Stereo Cassette Deck
First make connections referring to the “PREPARATIONS” section
and “USING THE OPTIONAL STEREO CASSETTE DECK”
section.
For the users of the AM-LM99 Mini Disc Recorder
~ First make connections referring to the “PREPARATIONS” section
and “USING THE OPTIONAL MINI DISC RECORDER” section.
RECOMMENDED POSITIONING
The XR-M99 Compact Disc Stereo System is designed to be
operated by placing each unit as illustrated below:
(a) Stereo Tuner
(® Stereo Integrated Amplifier
© Compact Disc Player |
Optional Stereo Cassette Deck or Mini Disc Recorder
Placing three units vertically
Placing the Compact Disc Player at the side of the
Stereo Integrated Amplifier
o
©
—
o
EIS 0... 07
ину”
0000
When the optional units are added
ENGLISH 5
CONNECTIONS
Before connecting the AC cord
The rated voltage of your unit shown on the rear panel of the
MX-LM99 Stereo Integrated Amplifier is 120V AC. Check that
the rated voltage matches your local voltage.
IMPORTANT | |
* Connect the speakers, antennas, and all optional equipment
first. Then connect the AC cord.
* Both speakers can be connected as L (Left) or R (Right).
When placing the Compact Disc Player at the side of the Stereo
Integrated Amplifier, make sure that the flat cable does not
obstruct the ventilation openings at the rear of the Stereo
Integrated Amplifier.
Always leave adequate clearance between the flat cable and the
ventilation openings. | |
Ventilation openings
1 Connect the Stereo Integrated Amplifier and the
Compact Disc Player to the Stereo Tuner.
Connect the flat cable of the Stereo Integrated Amplifier to
the FROM AMP terminal, and connect the flat cable of the
Compact Disc Player to the FROM CD terminal.
Push the connectors until they click into place.
Note that there is only one possible direction to plug in the
connectors.
Amplifier
``
N
\
N
``
N
Compact Disc
Player
Flat cable
2 Connect the speaker cords to the speakers.
Connect the cords with the white stripes to @ terminals and
the other cords to © terminals.
O ENGLISH
3 Connect the speaker cords to the Stereo
integrated Amplifier.
The cords with the white stripes should be connected to the
© terminals and the other cords to the @ terminals.
4 Connect the supplied antennas to the Stereo
Tuner. a
Connect the FM antenna to the FM 75 Q terminals and the
AM antenna to the AM LOOP terminals.
FM antenna
AM antenna
Do not short-circuit the @ and @ speaker cord leads; otherwise
the sound may become inaudible or the system may be turned
off.
If this happens, disconnect the AC cord from the AC outlet and
re-connect the speaker cords correctly. Connect then the AC
cord and turn the system on again. |
To stand the AM antenna on a surface
Fix the claw to the slot.
To position the antennas
FM feeder antenna: |
Extend this antenna horizontally in a T-shape and fix its ends to
the wall.
AM loop antenna:
Position to find the best direction.
— Connection diagram
FM antenna
Right speaker AM antenna | Left speaker
Stereo Tuner
Stereo Integrated
Amplifier
С
Compact Disc Player
to an AC outlet
AC cord
* Do not connect any speakers to the system other than the
supplied ones.
* Do not leave objects generating magnetism near the speakers.
* Do not bring the FM antenna near metal objects or curtain rails.
* Do not bring the AM antenna near other optional equipment,
the stereo system itself, the AC cord or speaker cords, since
noise will be picked up. |
* Do not unwind the AM antenna wire.
* Care should be taken so that the speaker and antenna cords
do not get into the ventilation openings on the rear of the Stereo
Integrated Amplifier. |
For better FM reception, use of an outdoor antenna is
CONNECTING AN OUTDOOR ANTENNA En
recommended.
Connect the outdoor antenna to the FM 75 Q terminals.
CONCERNING THE DISPLAY WINDOW"'S
DEMO DISPLAY
When the AC cord is plugged into an electrical outlet for the first ‘
time after purchase, a demo display will appear in the display CONNECTING OTHER EQUIPMENT
window of the Stereo Tuner. When the power is turned on, the |
demo display will end. When the power is turned off, the demo
display will appear again. Until the clockis set, the demo display
will appear whenever the power is turned off. (For setting the
clock, see page 9.)
To connect the FX-LM99 optional Stereo Cassette Deck
See page 15.
To connect the AM-LM99 optional Mini Disc Recorder
20.
When the clock is set See page
The demo display can be seen using the DEMO button on the
Stereo Tuner, either while the power is turned off or on. To end
the demo display, press the DEMO button again.
To connect other commercially available audio
equipment
See page 36.
ENGLISH /
BEFORE OPERATION
BAND —
JOG MODE
POWER —
PHONES —
VOLUME/ —
MULTI JOG
> -
TURNING THE SYSTEM ON
Press one of the following buttons.
The POWER button on the Stereo Integrated Amplifier or
on the remote control:
The system is turned on and enters the previously selected
function mode.
The BAND button on the Stereo Tuner:
The system is turned on and tuned in to the previously received
radio station.
The ®- button on the Compact Disc Player :
The system is turned on and the play of the loaded CD begins.
To turn the system off
Press the POWER button.
VOLUME/MULTI JOG dial
The VOLUME/MULTI JOG dial on the Stereo Integrated Amplifier
can be used when adjusting the volume and setting the clock.
It can also be used with the JOG MODE button as a convenient
dial to adjust the sound quality.
Detailed explanations are given on each related page.
USING THE HEADPHONES
Connect headphones with a stereo mini plug {(23.5mm, '/s inch)
to the PHONES jack on the Stereo Integrated Amplifier.
8 ENGLISH
USING THE REMOTE CONTROL
Inserting batteries
Detach the battery cover on the rear of the remote control and
insert two R6 (size AA) batteries.
When to replace the batteries |
The maximum operational distance between the remote control
and the system should be approximately 5 meters (16 feet). When
this distance decreases, replace the batteries with new ones.
To use the remote control
Some operations can be performed using the buttons on the
remote control only, or those on the main units only, while others
can be performed using the buttons on the main units as well as
on the remote control. This instructions manual clearly describes
the buttons available for each operation. |
* |f the remote control is not going to be used for an extended
period of time, remove the batteries to prevent possible
electrolyte leakage. |
The remote control may not operate correctly when:
- The line of sight between the remote control and the system
is exposed to intense light, such as direct sunlight.
- Other remote controls are used nearby (television, etc.)
FUNCTION
To use the FUNCTION button
Each time the FUNCTION button is pressed while power is on,
functions of the system is switched from one to another cyclically.
SETTING THE CLOCK
SET
TUNING
UP/DOWN
o ооо
VOLUME/
MULTI JOG
ENTER/
ILLUMINATION ен
1 Turn the system off.
2 Press one of the following buttons:
The SET button on the Stereo Tuner.
The ENTER/ILLUMINATION button on the
Stereo Integrated Amplifier.
The II button on the remote control.
The clock is displayed . (Or the clock becomes brighter.)
* When the power cord is plugged into an AC outlet for the
first time after purchase or when the clock setting is canceled
due to a power failure, the entire clock display flashes. Within
4 seconds, start setting the clock as described in step 3.
To switch to the 24-hour standard, press the CLEAR button
on the Stereo Tuner or the IM button on the remote control.
To restore the 12-hour standard, press the CLEAR or the M
button again.
3 While the clock is displayed brighter (for 4
seconds), start setting the time.
Turn the VOLUME/MULTI JOG dial to the right to advance
the time and turn it to the left to move the time back. The
speed with which the time changes varies according to how
fast you turn the VOLUME/MULTI JOG dial. You can also press
the TUNING UP/DOWN buttons on the Stereo Tuner or the
<4<4 or PP button on the remote control. Holding these
buttons down will vary the time in 10-minute units.
4 Press one of the following buttons:
The SET button on the Stereo Tuner.
The ENTER/ILLUMINATION button on the
Stereo Integrated Amplifier.
The II button on the remote control.
When the clock is set for the first time after purchase
Everything on the display will clear.
This is because the power economizing mode of the system 15
activated, and is not a malfunction.
“The power economizing mode can be canceled. See
“ECONOMIZING POWER” for details.
If the demo display appears when the system is turned off
and pressing the DEMO button on the Stereo Tuner makes
the clock flashing, this indicates that the clock has been
stopped due to a power failure or the disconnection of the AC
cord. The current time needs to be reset.
ENTER/
ILLUMINATIOIN
J
ECO—T1° особ
ECONOMIZING POWER
This system allows you to regulate its power consumption by
displaying nothing on the display while the power is off.
This is called the power economizing mode.
Turn the system on, and press the ECO button on the
Stereo Integrated Amplifier repeatedly to turn on or off
the power economizing mode.
Display ECO ON to turn on the power economizing mode.
Display ECO OFF to turn off the power economizing mode.
When the power economizing mode is set
Each time the system is turned off, “Eco Mode” is displayed for 4
seconds, and everything on the display will clear.
Only the red indicator above the POWER button on the Stereo
Integrated Amplifier lights to show that the power is supplied to
the system.
Standby power consumption
If the power economizing mode is activated : 1.9 W
If the power economizing mode is deactivated : 13.7 W
TURNING ON/OFF THE
ILLUMINATION AND DIMMING
THE DISPLAY
This system allows you to turn on and off the blue illumination of
each unit, and change the brightness of the display window
according to your preference.
Press the ENTER/ILLUMINATION button on the Stereo
Integrated Amplifier while the system is turned on.
Each press of this button changes the illumination and display
status as follows:
1) Brighter display with blue illumination turned on
e Brighter display with blue illumination turned off
3) Darker display with blue illumination turned off
If the power is turned off after changing the illumination and
display brightness, they return to the last status when the power
is turned on the next time.
The above operation is not possible when the ENTER/
ILLUMINATION button is used as the ENTER button, i.e. when
setting the clock, etc.
ENGLISH 9
ADJUSTING THE SOUND
VOLUME/ —
MULTI JOG
Q SURROUND
JOG MODE
ADJUSTING THE VOLUME
Turn the VOLUME/MULTI JOG dial on the Stereo
Integrated Amplifier, or press the VOL buttons on the
remote control.
The volume level is shown on the display for 4 seconds. It can be
set from O (minimum) to 30, and then MAX (maximum).
The volume remains memorized even after the power is turned
off. However, if the power is turned off when the volume is set to
more than 21, it is automatically set to 21 the next time the power
is turned on.
ENHANCING THE BASS SOUND
The T-BASS system enhances the realism of low-frequency :
sound.
Press the JOG MODE button repeatedly until “T-BASS” appears
on the display. Then, turn the VOLUME/MULTI JOG dial right or
left to select one of the three levels, or off position within 6
seconds. The T-BASS level does not change cyclically. .
(OFF)
a (Es mil
| T-BASS Es (T-BASS) var
Low frequency sound may be distorted when the T-BASS system
Is used for a disc or tape* in which low frequency sound is
originally emphasized. In this case, cancel the T-BASS system.
* Cassette tapes can be played back with this system when the
FX-LM99 optional Stereo Cassette Deck is connected.
ENHANCING THE TREBLE SOUND
The BBE system enhances the clarity of high-frequency sound.
Press the JOG MODE button repeatedly until “BBE” appears
on the display. Then, turn the VOLUME/MULTI JOG dial right
or left to select one of the three levels, or off position within 6
seconds. The BBE level does not change cyclically.
o >,
ES. a ETT
[BBE] yan 11111
10 ENGLISH
EQ (EQUALIZER)
This system provides the following three different equalization
curves.
ROCK: Powerful sound emphasizing treble and bass
POP: More presence in the vocals and midrange
JAZZ: Accented lower frequencies for jazz-type music
Press the JOG MODE button repeatedly until “EQ OFF” (or the
current EQ setting) appears on the display. Then, turn the
VOLUME/MULTI JOG dial right or left to select one of the three
kinds, or off position within 6 seconds.
The graphic curve corresponding to the selected equalization
mode will be displayed on the display.
When using the remote control, press the EQ button repeatedly.
Q SURROUND SYSTEM
The Q SURROUND system built into this unit uses only two
speakers at the left and right to create an atmosphere that sounds
as if you are surrounded by two front speakers and two rear
speakers.
To turn on the Q SURROUND system
Press the Q SURROUND button so that “Q-SUR ON” appears
on the > display.
To cancel the Q SURROUND effect
Press the Q SURROUND button again so that “Q-SUR OFF” is
displayed.
* The Q SURROUND system does not work in monaural mode.
* At higher volumes, turning Q SURROUND an may cause sound
distortion. In this case, turn the volume down.
SOUND ADJUSTMENT DURING
RECORDING
(When the FX-LM 99 optional Stereo Cassette Deck or the AM-
LM99 optional Mini Disc Recorder is connected)
The output volume and tone of the speakers or headphones may
be freely varied without affecting the level of the recording.
RADIO RECEPTION
MANUAL TUNING
— DISPLAY
MODE
BAND
TUNING — BAND
UP/DOWN
POWER — «>>
DISPLAY —
1 Press the BAND button on the Stereo Tuner or on
the remote control repeatedly to select the
desired band.
FM AM
If you press the button while the system is turned off, the
previously tuned station will be played (Direct Play Function).
2 Press the TUNING UP or DOWN button on the
Stereo Tuner or the << or »» button on the
remote control! to select a station.
Each time the button is pressed, the frequency changes.
When a station is received, “TUNE” is displayed for 2 seconds.
During FM stereo reception, ((1!]) is displayed.
[MED]
About the level indicator
The above dispiay automatically changes to the level indicator
after 4 seconds.
The level indicator shows an approximate playback sound level.
To search for a station quickly (Auto Search)
Keep the TUNING UP or DOWN button (or the << or >» button)
pressed until the tuner starts searching for a station. After tuning
in to a station, the search stops.
To stop the Auto Search manualiy, press the TUNING UP or
DOWN button (or the << or PP button).
* The Auto Search may not stop at stations with very weak signals.
When an FM stereo broadcast contains noise
Press the MODE button on the remote control.
“MONO” appears on the display.
Noise is reduced, although reception is monaural.
MONO
To restore stereo reception, repeat the above again.
To change the AM tuning interval
The default setting of the AM tuning interval is 10 kHz/step. If
you use this system in an area where the frequency allocation
system is 9 kHz/step, change the tuning interval.
Press the POWER button while pressing the BAND button on
the Stereo Tuner.
To reset the interval, repeat this procedure.
When the AM tuning interval is changed, all preset stations (see
“PRESETTING STATIONS”) are cleared. The preset stations
have to be set again.
To change the display
Press the DISPLAY button. With each press of the button, the
display changes in the following order.
@ Level indicator
@ Frequency of the tuned station
(Example: FM 90.00MHZ)
@ Remaining recordable time of MD*
(Example: Rem —48:07)
* Displayed for 4 seconds, only when the AM-LM99 optional Mini
Disc Recorder is connected and an MD is loaded into the Mini
Disc Recorder. |
ENGLISH 11
PRESETTING STATIONS
CLEAR
BAND — pass
PRESET ооо |
—H.- NS 3 Sr 0-910
Wi = oof BAND
SET т ea =o
TUNING —
UP/DOWN| S | 5 0 eo O! № n
The system can store a total of 32 preset stations. When a station
is stored, a preset number is assigned to the station. Use the
preset number to tune in to a preset station directly.
1 Press the BAND button on the Stereo Tuner or on
the remote control to select a band.
2 Press the TUNING UP or DOWN button on the
Stereo Tuner or the << or »» button on the
remote control to select a station.
3 Press the SET button on the Stereo Tuner or the
Il button on the remote control to store the
station. | |
A station is assigned a preset number, beginning from 1 in
consecutive order for each band.
Preset number
|
Frequency
4 Repeat steps 1, 2 and 3.
The next station will not be stored if 32 preset stations have
already been stored (“PRST FULL” will be displayed).
12 ENGLISH
PRESET NUMBER TUNING
1 Press the BAND button on the Stereo Tuner or on
the remote control to select a band.
2 Press the PRESET button on the Stereo Tuner or
the » button on the remote control.
Each time the button is pressed, the next ascending preset
number is selected. |
Tuning by preset number
1 Press the BAND button to select a band.
2 Press the numbered buttons on the remote control to select a
preset number: |
Example: |
— To select preset number 10, press the +10 and 0 buttons.
To select preset number 15, press the +10 and 5 buttons.
To clear a preset station
Select the preset number of the station to be cleared. Then, press
the CLEAR button and press the SET button within 4 seconds.
(When using the remote control, press the Il button and press
the II button within 4 seconds.)
The preset numbers of all other stations in the band with higher
numbers are also decreased by one.
If there is a long period of power failure or disconnection of AC
cord, the presetting of the stations is canceled. In this case, preset
again. —
OPERATION
DISPLAY
0-9 +10
DISPLAY = y FUNCTION
zZ
FUNCTION — «<q >>
UP/DOWN
и =
| » — 1
<< >> -
Ш
A OPEN/CLOSE
LOADING A DISC
1 Press the FUNCTION UP or DOWN button on the
Stereo Integrated Amplifier or the FUNCTION
button on the remote control repeatedly so that
“CD” appears.
2 Press the 2 OPEN/CLOSE button on the Compact
Disc Player to open the disc compartment. Load
a disc with the label side up, and close the disc
compartment by pressing the 4 OPEN/CLOSE
button.
4 OPEN/CLOSE
Music calender (only the first
20 tracks are displayed)
PLAYING A DISC
Load a disc.
Press the P button.
Play begins with the first track.
Number of track being played
Elapsed playing time
About the level indicator |
The above display automatically changes to the level indicator
after 4 seconds. |
The level indicator shows an approximate playback sound level.
- To remove the disc, press the 4 OPEN/CLOSE button.
To stop play, press the II button.
To pause play, press the H button. To resume play, press again.
To search for a particular point during playback, keep the
<< or PP button pressed and release the button at the desired
point. |
To skip to the beginning of a track during playback, press
the << or PP button repeatedly.
To start play when the power is off (Direct Play
Function)
Press the > button on the Compact Disc Player. The power is
turned on and play of the loaded disc begins.
To replace the disc before play, press the 4 OPEN/CLOSE button
to open the disc compartment.
Selecting a track with the remote control
Press the numbered buttons and the +10 button to select a track.
Example:
- To select the 25th track, press the +10, +10,and 5 buttons.
To select the 10th track, press the +10 and 0 buttons.
The selected track starts to play and play continues to the end of
that disc.
To change the display in stop mode
Press the DISPLAY button. With each press of the button, the -
display changes in the following order.
@ Total number of tracks and total playing time of the CD
(Example: CD 10Tr 58:31)
@ Remaining recordable time of MD*
— (Example: Rem —48:07)
* Displayed for 4 seconds, only when the AM-LM99 optional Mini
Disc Recorder is connected and an MD is loaded into the Mini
Disc Recorder.
To change the display in playback mode
Press the DISPLAY button. With each press of the button, the
display changes in the following order.
(1) Level indicator
@ Track number being played and elapsed playing time
— (Example: CD 3Tr 3:43)
© Remaining time of playback
| (Example: CD —26:15)
4) Remaining recordable time of MD*
— (Example: Rem —48:07)
* Displayed for 4 seconds, only when the AM-LM99 optional Mini
Disc Recorder is connected and an MD is loaded into the Mini
Disc Recorder.
* Do not use irregular shape CDs (example: heart-shaped,
octagonal ones). It may result in malfunction.
* When loading an 8-em (3-inch) disc, put it onto the inner circle
of the tray. |
* Do not place more than one compact disc on the disc tray.
ENGLISH 13
— MODE
— 0-9,+10
REPEAT
RANDOM/REPEAT PLAY
Use the remote control.
RANDOM play
All the tracks on the disc can be played randomly.
Press the MODE button repeatedly until “RANDOM”
lights up on the display. |
To cancel random play, press the MODE button repeatedly until
“the normal display appears and “RANDOM” disappears.
* Even if the «<< button is pressed, a previously played track
cannot be skipped. The unit returns to the beginning of the
current track only.
* When you select a track with the numbered buttons on the
remote contro! during the random play mode, the selected track
starts to play and the random play mode is canceled.
REPEAT play
A single track or all tracks can be played back repeatedly.
Press the REPEAT button repeatedly.
“1” lights up when the single track repeat play is selected,
and “+” lights up when the all tracks repeat play is selected.
To cancel repeat play, press the REPEAT button repeatedly until
“SZ” and “1” disappear.
To repeat random play
First press the MODE button to activate random play.
Then press the REPEAT button so that “S" lights up.
14 ENGLISH
PROGRAMMED PLAY
Up to 30 tracks can be programmed from the inserted disc.
Use the remote control.
1 In stop mode, press the MODE button repeatedly
until “PRGM” appears on the display.
If you press the » button before going to step : 2, the
programming mode is canceled and the first track of the CD
starts to play.
2 Press the numbered buttons and the +10 button
to program a track.
Example:
To select the 12th track, press the +10 and 2 buttons.
To select the 20th track, press the +10, +10 and O buttons.
Selected track Program number
number
Total number of Total playing time of
selected tracks the selected tracks
3 Repeat step 2 to program other tracks.
4 Press the P- button to start play.
To check the program
Each time the PP button is pressed in stop mode, a track number
and program number will be displayed.
To clear the program
Press the IM button in stop mode.
To add tracks to the program
Before playing, repeat step 2. The track will be programmed after
the last track.
To change the programmed tracks
Clear the program and repeat all the steps again.
* During the programmed play, the MODE and numbered buttons
do not function.
» Repeating programmed play is also possible.
* If the programmed time exceeds 99 minutes 59 seconds, or
the disc track number 31 or above is programmed, the display
shows --:-- as the total playing time.
USING THE OPTIONAL STEREO CASSETTE DECK
CONNECTIONS CONNECTING THE STEREO CASSETTE
DECK
Connect the Stereo Cassette Deck's flat cable to the FROM DECK
terminal on the rear of the Compact Disc Player.
CAUTION
Before connecting the Stereo Cassette Deck, disconnect the AC
cord from the AC outlet. | |
After making connections, re-connect the AC cord. afl Compact Disc
Player
IÍm—
Recommended positioning
Place the Stereo Cassette Deck on top of the Compact Disc
Player.
AM antenna
FM antenna
Right speaker Left speaker
Stereo Tuner
Stereo Integrated
Amplifier
Stereo Cassette Deck
Compact Disc Player
> to an AC outlet
AC cord
ENGLISH 15
"TAPE PLAYBACK
— DISPLAY
DISPLAY — | ео MODE
зоо
| == 11900
FUNCTION о
| сов FUNCTION
UPDOWN | = bo О o ef
ый q"
AEJECT 53
LOADING A TAPE
* You can select a reverse mode to play back one or both sides.
* Use Type I (normal) or Type II (high/CrO2) tapes for playback.
Be sure not to load a tape while the system is turned off.
Otherwise, the loaded tape might not be ejected even the system
is turned on.
1 Press the FUNCTION UP or DOWN button on the
Stereo Integrated Amplifier or the FUNCTION
button on the remote control repeatedly so that
“TAPE” appears.
2 Insert a tape with the exposed side facing to the
right and push it gently until it is loaded
automatically inside the Stereo Cassette Deck.
DL J
9
u
ca
O =
To select a reverse mode
Each time the MODE button on the remote control is pressed,
the reverse mode changes.
>>>
To play one side only, select =.
To play from front side to back side once only, select 13.
To play both sides repeatedly, select (2D.
10 ENGLISH
PLAYING BACK A TAPE
Load a tape.
Press the <> button to start play.
To start play with the remote control, press the »> button.
Playback side of the tape
The tape counter indicates the tape
running length. (It disappears when
no tape is inserted.)
>: The side facing upward is being played (forward).
<: The side facing downward is being played (reverse).
About the level indicator |
The above display automatically changes to the level indicator
after 4 seconds.
The level indicator shows an approximate playback sound level.
HH E
To stop play, press the IN button.
To pause play, press the H button. To resume play, press again.
To change the playback side, press the €» button in play or
pause mode.
To fast forward or rewind, press the << or PB button in stop
mode. Then press the № button to stop the tape.
To eject the tape, press the 4 EJECT button.
To start play when the power is off (Direct Play
Function)
Press the «> button. The power is turned on and play of the
loaded tape begins. | |
То set the tape counter to 0000
Press the IN button in stop mode.
The counter is also set to 0000 when the tape is ejected.
To change the display in stop mode
Press the DISPLAY button. With each press of the button, the
display changes in the following order.
> @ Tape counter
@ Remaining recordable time of MD*
(Example: Rem —48:07)
* Displayed for 4 seconds, only when the AM-LM99 optional Mini
Disc Recorder is connected and an MD is loaded into the Mini
Disc Recorder. |
To change the display in playback mode
Press the DISPLAY button. With each press of the button, the
display changes in the following order.
(D Level indicator
2) Tape counter
(Example: TAPE 0185)
© Remaining recordable time of MD*
(Example: Rem —48:07)
* Displayed for 4 seconds, only when the AM-LM99 optional Mini
Disc Recorder is connected and an MD is loaded into the Mini
Disc Recorder.
BASIC RECORDING
BAND
FUNCTION
UP/DOWN
E
Il
OREC
E
<< >>
Preparation
* Set the tape to the point where recording will start.
* Use Type I (normal) and Type II (high/CrO:) tapes for recording.
1 Load the tape to be recorded on into the deck.
Load the tape with the side to be recorded on first facing
upward and the exposed side facing to the right.
2 Press the FUNCTION UP or DOWN button on the
Stereo Integrated Amplifier or the FUNCTION
button on the remote control repeatediy so that
“TAPE” appears.
3 Press the MODE button on the remote control to
select the reverse mode.
To record on one side only, select *
To record on both sides, select Z) or CZ).
When recording from the rear of the tape, the tape stops at
the end of recording of the rear side, even if the reverse mode
15 5е! 10 22 or CZ). |
4 Press the FUNCTION UP or DOWN button on the
Stereo Integrated Amplifier or the FUNCTION
button on the remote control to select the source
to be recorded.
5 Prepare the source to be recorded.
To record from a radio broadcast, press the BAND button
to select the desired band and tune into a station.
To record from a CD, load the disc, then press the << or
>> button on the Compact Disc Player to seiect the track to
be recorded first.
To record from the connected equipment, prepare the
equipment for playback.
To record from an MD, load the disc, then press the «<< or
>)» button on the Mini Disc Recorder to select the track to
be recorded first.”
* Available only when the optional Mini Disc Recorder is
connected.
6 Press the @ REC button to start recording.
“TAPE[RIE8]” appears on the display.
When the selected source is CD or MD, playback and
recording start simultaneously.
When the selected source is connected equipment, start
playback.
To stop recording, press the Il button on the Stereo Cassette
Deck. When recording from a CD or an MD, press the IM button
on the Compact Disc Player or the Mini Disc Recorder to stop
playback.
To pause recording, press the II button. (Available only when
„the source is a radio broadcast or connected equipment.) To
resume recording, press again.
INSERTING BLANK SPACES
Insertion of a 4-second blank spaces may help you locate the
beginning of the track when the tape is played back on other
equipment. (Available only when the source is a radio broadcast
or connected equipment.)
1 Press the @ REC button during recording or while in
recording pause mode.
“TAPER” flashes for 4 seconds and the tape runs without
recording. After 4 seconds, the deck enters the recording
pause mode.
2 Press the ËI button to resume recording.
To insert a blank space of less than 4 seconds, press the
O REC button again while “TAPE RES" is flashing.
To insert blank spaces of more than 4 seconds, after the deck
enters recording pause mode, press the @ REC button again.
Each time the button is pressed, a 4-second blank space is added.
(About cassette tapes >
+ To prevent accidental erasure, break off the plastic tabs on
the cassette tape after recording with a screwdriver or other
pointed tool.
Type II tape me \ e . Tab for side A
detection AC
slot
To record on the tape again, cover the tab openings with
adhesive tape, etc. (On Type II tapes, take care not to cover
the Type II tape detection slot.)
“+ 120-minute or longer tapes are extremely thin and easily
deformed or damaged. They are not recommended.
* Take up any slack in the tape with a pencil or similar tool
before use. Slack tape may break or jam in the mechanism.
N : 7
To erase a recording
1 Insert the tape to be erased into the deck. |
2 Set the tape to the point where the erasure is to be started.
3 Press the FUNCTION UP or DOWN button on the Stereo
Integrated Amplifier or the FUNCTION button on the remote
control so that “AUX” or “D-IN” appears.
4 If an external equipment is connected to the system, turn the
equipment off.
5 Press the @ REC button to start the erasure.
ENGLISH 17
Al EDIT RECORDING
; = | — MODE
—0-9,+10
FUNCTION 1
UP/DOWN | = es Mi FUNCTION
The Al edit function enables CD recording without worrying about
tape length and track length. When a CD is inserted, the system
automatically calculates track lengths. If necessary, the order of
tracks is rearranged so that no track is cut short.
(Al: Artificial Intelligence)
Al edit recording will not start from a point halfway into the tape.
The tape must be recorded from the beginning of either side.
1 Insert the tape into the deck.
Insert the tape with the side to be recorded on first facing
upward.
2 Press the FUNCTION UP or DOWN button on the
Stereo Integrated Amplifier or the FUNCTION
button on the remote control repeatedly so that
“CD” appears. Then load the disc.
3 Press the MODE button on the remote control
repeatedly until “EDIT” lights up and “Al” flashes
on the display.
18 ENGLISH
4 Press the numbered buttons to designate the tape
length.
10 to 99 minutes can be specified.
Example: When using a 60-minute tape, press the 6 and 0
buttons.
In a few seconds, the microcomputer determines the tracks
to be recorded on each side of the tape.
* The << and > buttons on the Compact Disc Player or
the remote control are also available to designate the tape
length.
Tape side A
ы Tape length
Number of Remaining time of side À
programmed
tracks
5 Press the @ REC button to start recording.
The tape is rewound to the beginning of the side facing upward,
the lead segment is played through for 10 seconds, and
recording starts. When recording on the side facing upward
(side A) ends, recording on the opposite side (side B) starts.
To stop recording
Press the IN button on the Stereo Cassette Deck or the remote
control. Recording and CD play stop simultaneously.
To clear the edit program
Press the II button on the Compact Disc Player or the remote
control twice so that “EDIT” disappears on the display.
To check the order of the programmed track numbers
Before recording, press the MODE button to select side A or B,
and press the »>» button repeatediy.
Tape side
Program number
Track number Programmed track
numbers
Time on cassette tapes and editing time
The actual cassette recording time is usually a little longer than
the specified recording time printed on the label. This unit can
program tracks to use the extra time.
* Recording is inhibited if the erasure prevention tab on either
side of the tape is broken off.
* The Al edit function cannot be used with discs containing 31
tracks or more.
PROGRAMMED EDIT RECORDING
— MODE
—0-9,+10
FUNCTION |
UP/DOWN B| FUNCTION
и << >>
OREC
и
<< >> -
Programmed edit function enables CD recording while checking
the remaining time on each side of the tape as the tracks are
programmed. |
The programmed edit recording will not start from a point halfway
in the tape. The tape must be recorded from the beginning of
either side.
1 Insert the tape into the deck.
Insert the tape with the side to be recorded on first facing
upward.
2 Press the FUNCTION UP or DOWN button on the
Stereo Integrated Amplifier or the FUNCTION
button on the remote control repeatedly so that
“CD” appears. Then load the disc.
3 Press the MODE button on the remote control
repeatedly until “EDIT” lights up and “PRGM”
flashes on the display.
4 Press the numbered buttons to designate the tape
length.
10 to 99 minutes can be specified.
Example: When using a 60-minute tape, press the 6 and O
buttons. |
* The << and >>» buttons on the Compact Disc Player or
the remote control are also available to designate the tape
length.
Tape side À (front side)
Maximum recording time for
side À
5 Press the numbered buttons to program a track.
Example: To select the 10th track, press the numbered
buttons +10 and 0.
6 Repeat step 5 for the rest of the tracks for side À.
A track whose playing time is longer than the remaining time
cannot be programmed.
Selected track
Total number of
programmed tracks
Remaining time of side A
7 Press the MODE button to select side B and
program the tracks for side B.
After confirming B on the display, repeat step 5.
Tape side B (opposite side)
8 Press the O REC button to start recording.
The tape is rewound to the beginning of the side facing upward,
the lead segment is played through for 10 seconds, and
recording starts. When recording on the side facing upward
(A) ends, recording on the opposite side (B) starts.
To stop recording |
Press the IM button on the Stereo Cassette Deck or the remote
control. Recording and CD play stop simultaneously.
To check the order of the programmed track numbers
Before recording, press the MODE button to select side A or B,
and press the »» button repeatedly.
Programmed
Track number track numbers
Program number
To change the program of each side
Press the MODE button to select side A or B, and press the M
button to clear the program of the selected side. Then program
tracks again.
To clear the edit program
Press the IM button on the Compact Disc Player or the remote
control repeatedly so that “EDIT” disappears on the display.
Recording is inhibited if the erasure prevention tab on either side
‘of the tape is broken off.
ENGLISH 19
CONNECTIONS
For how to hook up the entire system, refer to page 6.
CAUTION
Before connecting the Mini Disc Recorder, disconnect the AC
cord from the AC outlet.
After making connections, re-connect the AC cord.
CONNECTING THE MINI DISC RECORDER
1 Connect the Mini Disc Recorder's flat cable to the
FROM MD terminal on the rear of the Stereo Tuner.
ен осины St ereo Tu ner
Flat Cable
Mini Disc
Recorder
[AN AM
2 Connect the Mini Disc Recorder's CD DIGITAL IN
jack and the Compact Disc Player's DIGITAL OUT
jack using the optical cable supplied with the Mini
Disc Recorder.
Before making connection, remove the dust cap from each
jack.
I | Mini Disc Recorder
Compact Disc Player
Optical cable
~ When the CD DIGITAL IN jack and the DIGITAL OUT jack are
not used, attach the supplied dust cap to each jack.
Recommended positioning
Place the Mini Disc Recorder on top of the Compact Disc Player.
FM antenna
Right speaker
\
20 ENGLISH
AC cord
x
AM antenna
Left speaker
Stereo Tuner
Stereo Integrated
Amplifier
Mini Disc Recorder
Compact Disc Player
to an AC outlet
WHAT IS AN MD (MINI DISC)?
An MD is only 64 mm (2 5/s inches) in diameter, about half the
size of a conventional CD. But MD can be used to store and play
back a full 74 minutes of data such as a CD. Unlike a CD, MD
comes in a plastic cartridge, so that it can be handled with ease.
~ The cartridge also protects the disc inside from shocks, dust
and scratches. Unlike cassette tapes, which can become
stretched or tangled, an MD is an excellent durable media.
TYPE OF MD
There are two types of MDs: “Optical discs” and “Magneto-optical
discs”. Both types use laser beams and optical pick-up technology
to read recorded data during playback.
Optical discs
These are playback only discs. Like CDs, they are used as
prerecorded music discs. You cannot record on or edit them.
1
The shutter covers
Label the opening only on
the non-labeled
side of the MD.
Recordable MO*! discs
These are recordable discs which can be recorded on again and
again, like cassette tapes. The recording method called magneto-
optical technology employs a laser and magnetism to record
signals. Therefore, the quality of recorded sound does not
deteriorate even after many playbacks and recordings.
e-f— The shutter covers
the opening on the
both sides of the MD.
*1 MO: An abbreviation of Magneto Optical
Ultra compact size made possible by ATRAC*?
technology
A newly developed digital audio compression technology called
the ATRAC system automatically extracts only the frequencies
that are actually audible to the human ear and cuts the
frequencies which are inaudible. This compresses the amount
of data to be recorded to 1/5 of the normal amount. The ATRAC
system is based upon studies carried out in the field of auditory
psychology and does not impair the quality of the audible sound.
*2 ATRAC: An abbreviation of Adaptive TRansform Acoustic
Coding
Quick random access
One of the great features of the MD is that you can search for -
desired tracks quickly. There are also quick and easy functions
for random playback in which the order of the tracks can be
rearranged at random, and for renumbering tracks which enables
them to be played in any order.
THE LIMITATIONS OF MD
Recording on the MD is performed differently from that of a |
cassette tape or a DAT. Therefore, the MD system is subject to |
the following restrictions. |
“TOC* Full” is displayed even if the recording time
does not reach the maximum recordable time of the
disc (60-minute or 74-minute). |
“TOC Full” is displayed when 254 tracks are already recorded |
on a disc, without respect of the recording time. |
*TOC: An abbreviation of Table Of Contents.
“TOC Full” is displayed even if a disc is not fully
recorded on.
If there are lots of emphasis data in a particular track, the unit
handles the data as index codes, and tracks are counted, in
addition, without respect of the time and number of tracks.
The remaining time on a disc is not increased even
after some short tracks have been erased.
When the remaining time on a disc is displayed, which may not
be increased even after erasing short tracks because the sections
less than eight seconds are not counted.
Certain tracks cannot be joined (the COMBINE function
does not function). |
» Tracks created by editing may not be joined.
> It is not possible to combine a track recorded in monaural and
a track recorded in stereo.
The total of the recorded time and the remaining time
on a disc does not match with the maximum recordable
time of the disc (60-minute or 74-minute).
Recording is performed by the minimum unit of one cluster (two
seconds). Even if the recorded section is shorter than two
seconds, a two-second space is needed in recording. Therefore,
the available time becomes shorter. If there are scratches on a
disc, the available time becomes shorter as well, because the
sections which are scratched are automatically erased. |
Track numbers may not be registered properly.
When recording from a CD through digital inputs (using the €
CD » MD (DIGITAL) button), small tracks may be created
depending on the contents of a CD.
When using the AUTO MARK function, track numbers may not
be registered properly depending on the contents of the CD.
Digital inputs may not be acceptable.
When digital recording is attempted from recorded material with
copyrights, digital dubbing cannot be performed to a recordable
MD from another MD recorded in digital, because of the built-in
record restriction function which complies with the SCMS*
standard.
* SCMS (Serial Copy Management System) is the standard to
restrict single digital dubbing between the digital audio system
thus protecting copyrights.
+
|||
=
MD
(prorecordec sound source)
Recording through analog
inputs
E |
= CF
E |
Digital dubbing
Digital
dubbing
ENGLISH 21
MD PLAYING
— DISPLAY
MODE
DISPLAY— y
— Sh 0-9,-10
FUNCTION = SF REPEAT
UP/DOWN | © y. "y FUNCTION
>= =>
>>
Disc drive p<,
<< >> TE
и A 11
AEJECT
INSERTING AN MD
1 Press the FUNCTION UP or DOWN button on the
Stereo Integrated Amplifier or the FUNCTION
button on the remote control repeatedly so that
“MD” appears.
2 Inserta disc into the disc drive fully with the label
side up and in the direction of the arrow.
“TOC READING” appears on the display while the Mini Disc
Recorder reads the data of the inserted disc. Then the
information contained in the disc appears.
Direction guide
Music calender (only the first
Eye catcher 20 tracks are displayed)
Total number of tracks Total playing time
22 ENGLISH
PLAYING AN MD
Insert an MD.
Press the > button.
Playback begins.
The inner circle of the eye catcher rotates.
cor,
Number of track being played Elapsed playing time
When an MD recorded in monaural is played back, “MONO”
appears.
About the level indicator
The above display automatically changes to the level indicator
after 4 seconds. |
The level indicator shows an approximate playback sound level.
To stop play, press the ll button.
To pause, press the II button. To resume play, press it again.
To search for a particular point during playback, keep the
<< or pP button pressed and release the button at the desired
point. |
To skip to the beginning of a track during playback, press
the << or PP button repeatedly. -
To eject a disc, press the £2 EJECT button.
Do not hold the disc when ejecting the disc.
The disc can be ejected by pressing the £ EJECT button even
when the unit is turned off.
Pull the disc out.
Selecting a track with the remote control
Press the numberd buttons and the +10 button to select a track.
Example: |
To select the 25th track, press the +10, +10 and 5 buttons.
To select the 10th track, press the +10 and O buttons. =
The selected track starts to play and play continues to the end of
that disc. | |
To start play when the power is off (Direct Play
Function) |
Press the » button on the Mini Disc Recorder. The power is
turned on and play of the inserted disc begins.
Pressing the 4 EJECT button while the power is off also turns
the system on and ejects the inserted MD.
To play a disc at the double speed
During play, keep the »» button on the Mini Disc Recorder pressed
for more than two seconds.
To resume normal play, press the » button again .
Stopping play with the IN button also releases the double-speed
playback mode.
To change the display in stop mode
Press the DISPLAY button. With each press of the button, the
display changes in the following order.
@ Total number of tracks and total playing time of the MD
(Example: MD 10Tr 58:31)
@ Disc title
(If the disc title is not registered, “No Title” is displayed.)
© Remaining recordable time of MD
(Example: Rem —48:07)
The remaining recordable time of MD changes automatically to
the total number of tracks and total playing time after 4 seconds.
To change the display in playback mode
Press the DISPLAY button. With each press of the button, the
display changes in the following order.
> (1 Level indicator
@ Track number being played and elapsed playing time
(Example: MD 3Tr 3:43)
©) Track title |
(If the track title is not registered, the track number is
| displayed.)
@ Remaining time of playback
(Example: MD —26:15)
* Nothing other than an MD should be inserted in the disc drive,
otherwise the disc may become scratched, causing a
malfunction or a safety hazard such as an electric shock.
* Do not attempt to insert another MD while a disc is already
inside the drive.
* Do not tilt the MD Deck with a disc inserted. Doing so may
cause malfunctions.
RANDOM/REPEAT PLAY
Use the remote control.
RANDOM play
All the tracks on the disc can be played randomly.
Press the MODE button repeatedly until “RANDOM”
lights up on the display.
To cancel random play, press the MODE button repeatedly until
the normal display appears and “RANDOM” disappears.
- Even if the << button is pressed, a previously played track
cannot be skipped. The unit returns to the beginning of the
current track only.
* When you select a track with the numbered buttons on the
remote control during the random play mode, the selected track
starts to play and the random play mode is canceled.
REPEAT play
A single track or all tracks can be played back repeatedly.
Press the REPEAT button repeatedly.
“> 1” lights up when the single track repeat play is selected,
and “>” lights up when the all tracks repeat play is selected.
To cancel repeat play, press the REPEAT button repeatediy until
“CG” and “1” disappear.
To repeat random play
First press the RANDOM button to activate random play.
Then press the REPEAT button so that “" lights up.
PROGRAMMED PLAY
Up to 30 tracks can be programmed from the inserted disc.
Use the remote control.
1 In stop mode, press the MODE button repeatedly
until “PRGM” appears on the display.
2 Press the numbered buttons and the +10 button
to program a track.
Example: nn
To select the 12th track, press the +10 and 2 buttons.
To select the 20th track, press the +10, +10 and O buttons.
Selected track number Program number
Total number of
selected tracks
Total playing time of
the selected tracks
3 Repeat step 2 to program other tracks.
4 Press the > button to start play.
To check the program
Each time the >» button is pressed in stop mode, a track number
and program number will be displayed.
To clear the program
Press the IM button in stop mode.
To add tracks to the program
Before playing, repeat step 2. The track will be programmed after
the last track.
To change the programmed tracks
Clear the program and repeat all the steps again.
* During the programmed play, the MODE and numbered buttons
do not function.
* Repeating programmed play is also possible.
* If the programmed time exceeds 255 minutes 59 seconds, or
the disc track number 31 or above is programmed, the display
shows --:-- as the total playing time.
ENGLISH 23
VARIOUS WAYS OF MD
RECORDING
Recording through digital inputs
Digital recording of CD audio signals to MDs gives recordings
with no degradation in sound quality. You can use any of the
following methods to record from CDs to MDs.
Record a complete CD onto an MD
* Record only one track from a CD
* Record your favorite CD tracks in any order
Recording through analog inputs
Recording through analog inputs from the tuner, cassette tape”
or the external equipment connected to the AUX IN jacks on the
rear of the Stereo Tuner can be made easily. Recording through
analog inputs from a CD is also possible.
* Available only when the FX-LM99 optional Stereo Cassette
Deck is connected. —
Extended recording
Twice as long as the time printed on the MD can be obtained by
using the monaural recording mode.
* Nothing other than an MD should be inserted in the disc drive,
otherwise the disc may become scratched, causing a
malfunction.
* Do not give a strong shock or disconnect the AC cord during
recording or a TOC* recording. Doing so may cause the errors
in the TOC recording and the contents cannot be played back.
* During recording, the outer circle of the eye catcher lights up in
red.
* TOC : An abbreviation of Table Of Contents
The TOC data functions as a coded index of the recorded material.
The Mini Disc Recorder records the TOC data such as a playing
time and recorded address on an MD.
( | E
To prevent accidential erasure of recorded material
Slide the record-protect tab as shown below.
Slide the tab so that it is completely locked.
To record
A
If a recording is attempted when the tab is set to the protected
position, “Protected” appears on the display. Move the protect-
tab to the original position.
\ J
24 ENGLISH
ABOUT THE INDEX MARK
You can easily select the desired tracks by registering index marks
during recording.
Choose the appropriate method to register index marks.
AUTO MARK FUNCTION
When recording from a CD using the 6 CD » MD
(DIGITAL) button |
The index mark information recorded on the CD is copied.
CD . | 2ndtrack 3rd track 4th track
MO 2nd track | 3rd track 4th track
A A A A
A Index mark
The auto mark function is applied in the following cases:
—When recording a whole CD onto an MD (page 25)
—When recording one track of a CD onto an MD (page 26)
—When performing programmed recording of a CD (page 27)
You cannot add the index marks using the time mark function
described below.
When recording CDs or other sources using the @
REC button
An index mark is registered automatically when a sound signal
is input after a blank section lasting more than 2 seconds.
Blank
Input
sound | de J
R di . ! 1
(MD) "9 | 2nd track | 3rd track 4th track
A A A A
A Index mark
TIME MARK FUNCTION
When recording CDs or other sources using the 6 REC button
(pages 28 and 29), you can optionally record index mark
information at an interval of 5 minutes.
This makes it easy to locate recorded radio broadcast material,
etc.
MANUAL MARK FUNCTION
Regardless of the source to be recorded and the button used to
start MD recording, you can record index mark information
anytime you want by pressing the ENTER/ILLUMINATION button
on the Stereo Integrated Amplifier.
RECORDING A WHOLE CD
— DISPLAY
DISPLAY — pn
o
ol 200
FUNCTION 5111000
— f осо
UP/DOWN | > odo [| La a FUNCTION
hn CN
Disc drive 1
O CDP>MD у —_.
| e
To check the recordable time of the MD
Press the FUNCTION UP or DOWN button on the Stereo .
Integrated Amplifier or the FUNCTION button on the remote
control to select a source other than MD.
Then press the DISPLAY button.
The recordable time on the MD is displayed.
1 Load a recordable MD into the disc drive with the
label side up and in the direction of the arrow.
Direction guide
2 Press the FUNCTION UP or DOWN button on the
Stereo Integrated Amplifier or the FUNCTION
button on the remote control repeatedly so that
“CD” appears.
3 Load the CD to be recorded.
A OPEN/CLOSE
4 Press the @ CD » MD (DIGITAL) button to start
recording.
Recording stops automatically when the music on the CD ends.
When recording stops, “TOC EDIT” is displayed and the contents
(TOC) of the recording are recorded on the MD.
To stop recording before the end of the CD
Press the IM button on the Mini Disc Recorder or on the remote
control. Recording to the MD stops, and the contents (TOC) of
the recording are recorded on the MD. |
To stop play of the CD, press the IM button on the Compact Disc
Player.
To record on a previously recorded MD
If there is an unrecorded section left on the MD, the new recording
automatically starts from where the previous recording finished.
If you want to start recording from the beginning of a previously
recorded MD, erase the previous recording completely. (See
page 33.) |
To change the display during recording
Press the DISPLAY button. With each press of the button, the
display changes in the following order.
> (1) Level indicator for CD
@ Track number and elapsed time of CD
(Example: CD 1Tr 1:23)
© Remaining playback time of CD
(Example: CD —32:37)
@ Recordable time on MD
(Example: MD —36:15)
— (6) Track number and elapsed recording time of MD
(Example: MD 5Tr 2:27)
When “LONG CD” is displayed
The remaining recordable time of the MD is shorter than the
total playing time of CD. |
If you press the 6 CD > MD (DIGITAL) button again, recording
will be made up to the limit of the recordable time of the MD.
ENGLISH 25
RECORDING ONLY ONE TRACK
OF ACD
DISPLAY + DISPLAY
FUNCTION 5
UP/DOWN > S FUNCTION
= Fei»
Disc drive |
— Ш
O COP-MD *
(DIGITAL
«чо |
>
HB
To check the recordable time of the MD
Press the FUNCTION UP or DOWN button on the Stereo
Integrated Amplifier or the FUNCTION button on the remote
control to select a source other than MD.
Then press the DISPLAY button.
The recordable time on the MD is displayed.
1 Load a recordable MD into the disc drive with the
label side up and in the direction of the arrow.
Direction guide
2 Press the FUNCTION UP or DOWN button on the
Stereo Integrated Amplifier or the FUNCTION
button on the remote control repeatedly so that
“CD” appears.
3 Load the CD to be recorded.
A OPEN/CLOSE
4 Play back the track to record. |
Press the numbered buttons on the remote control. Or select
the track with the << / »>» buttons and press the » button
on the Compact Disc Player.
20 ENGLISH
5 Press the @ CD >> MD (DIGITAL) button to start
recording.
recording starts.
Recording stops automatically when the track ends.
When recording stops, “TOC EDIT” is displayed and the contents
(TOC) of the recording are recorded on the MD.
To stop recording before the end of the track
Press the IN button on the Mini Disc Recorder or on the remote
control. Recording to the MD stops, and the contents (TOC) of
the recording are recorded on the MD.
To stop play of the CD, press the ll button on the Compact Disc
Player.
To record on a previously recorded MD
If there is an unrecorded section left on the MD, the new recording
automatically starts from where the previous recording finished.
If you want to start recording from the beginning of a previously
recorded MD, erase the previous recording completely. (See
page 33.)
To change the display during recording
Press the DISPLAY button. With each press of the button, the
display changes in the following order.
Level indicator for CD
Track number and elapsed time of CD
(Example: CD 1Tr 1:23)
© Recordable time on MD
DO
(Example: MD —36:15)
@ Track number and elapsed recording time of MD
(Example: MD 5Tr 2:27)
PROGRAMMED RECORDING OF
A CD
Up to 30 tracks can be programmed and recorded on an MD.
DISPLAY
DISPLAY — — MODE
FUNCTION pos
UP/DOWN НН FUNCTION
NE |
О
Disc drive J
Фсо> Мо Be
(DIGITAL)
N
To check the recordable time of the MD
Press the FUNCTION UP or DOWN button on the Stereo
Integrated Amplifier or the FUNCTION button on the remote
control to select a source other than MD.
Then press the DISPLAY button.
The recordable time on the MD is displayed.
1 Load a recordable MD into the disc drive with the
label side up and in the direction of the arrow.
Direction guide
2 Press the FUNCTION UP or DOWN button on the
Stereo Integrated Amplifier or the FUNCTION
button on the remote control repeatedly so that
“CD” appears.
3 Load the CD to be recorded.
4 OPEN/CLOSE
4 Press the MODE button on the remote control
repeatedly until “PRGM” flashes on the display.
5 Press the numbered button and the +10 button
to program a track to record.
Example:
To select the 12th track, press the +10 and 2 buttons.
To select the 20th track, press the +10, +10 and O buttons.
|
| о | Ц
Selected track number Program number
Total number of selected
tracks
Total playing time of the
selected tracks
6 Repeat step 5 to program other tracks.
7 Press the 6 CD »> MD (DIGITAL) button to start
recording.
Recording begins.
When the programmed tracks finish playing, the recording
stops automatically.
Then “TOC EDIT” is displayed and the contents (TOC) of the
recording are recorded to the MD.
To stop recording halfway
Press the Il button on the Mini Disc Recorder or on the remote
control. Recording to the MD stops, and the contents (TOC) of
the recording are recorded on the MD. |
To stop play of the CD, press the IN button on the Compact Disc
Player.
To record on a previously recorded MD
If there is an unrecorded section left on the MD, the new recording
automatically starts from where the previous recording finished.
If you want to start recording from the beginning of a previously
recorded MD, erase the previous recording completely. (See
page 33.)
To change the display during recording
Press the DISPLAY button. With each press of the button, the
display changes in the following order.
Level indicator for CD
Track number and elapsed time of CD
(Example: CD 1Tr 1:23)
(9 Recordable time on MD
(Example: MD —36:15)
Track number and elapsed recording time of MD
(Example: MD 5Tr 2:27)
DIS
©
ENGLISH 2 /
RECORDING FROM A TAPE, A
CD, THE RADIO OR CONNECTED
EQUIPMENT
BAND
VOLUME/
MULTI JOG
DISPLAY —
FUNCTION
UP/DOWN
ENTER/
ILLUMINATION ===
Disc drive—
MD MODE -
<< >> -
A
r ——— DISPLAY
+
MO
2/8 DPCOD j
BAND
— FUNCTION
@REC
Il
To check the recordable time of the MD
Press the FUNCTION UP or DOWN button on the Stereo
Integrated Amplifier or the FUNCTION button on the remote
control to select a source other than MD.
Then press the DISPLAY button.
The recordable time on the MD is dispiayed.
1 Load a recordable MD into the disc drive with the
label side up and in the direction of the arrow.
Direction guide
2 Press the FUNCTION UP or DOWN button on the
Stereo Integrated Amplifier or the FUNCTION
button on the remote control to select the source
to be recorded.
3 Prepare the source to be recorded.
To record form a radio broadcast, press the BAND button
to select the desired band and tune in to a station.
To record from a CD, load the disc, then press the << or
DD» button on the Compact Disc Player to select the track to
be recorded first.
To record from the connected equipment, prepare the
equipment for playback.
To record from a tape, load the tape.* |
* Available only when the FX-LM99 optional Stereo Cassette
Deck is connected.
4 Press the MD MODE button.
“Mark MODE?” is displayed for 10 seconds.
28 ENGLISH
5 Within 10 seconds, press the ENTER/
ILLUMINATION button and turn the VOLUME/
MULTI JOG dial to select an index mark mode.
To register index marks automatically at the beginning of each
track, select “Mark: AUTO?”, |
To register index marks every 5 minutes, select “Mark: TIME?”.
To record without registering index marks automatically, select
“Mark: OFF?”.
6 Within 10 seconds, press the ENTER/
ILLUMINATION button.
7 Press the @ REC button.
The Mini Disc Recorder enters the standby mode. Wait until
the source name selected at step 2 is displayed.
8 Press the II button on the Mini Disc Recorder or
on the remote control to start recording.
When recording from connected equipment, start playback
of the connected equipment. |
To stop recording
Press the IM button on the Mini Disc Recorder or on the remote
. control. When recording stops, “TOC EDIT” is displayed and the
contents (TOC) of the recording are recorded on the MD.
To add index marks during recording
Press the ENTER/ILLUMINATION button, and an index mark is
registered regardless of the index mark mode selected at step
5.
To record on a previously recorded MD
If there is an unrecorded section left on the MD, the new recording
automatically starts from where the previous recording finished.
If you want to start recording from the beginning of a previously
recorded MD, erase the previous recording completely. (See
page 33.)
To change the display during recording
Press the DISPLAY button. With each press of the button, the
display changes in the following order.
(D Level indicator for the source
@ Source
(Example: AUX)
@ Recordable time on MD
(Example: MD —36:15)
@ Track number and elapsed recording time of MD
However, see page 25 for the display when the source is a CD.
EXTENDED (MONAURAL)
RECORDING
Twice as long as the time printed on the MD can be obtained if
you select the monaural recording mode.
BAND
VOLUME/ —
MULTI JOG
DISPLAY —
FUNCTION —
UP/DOWN
ENTER/
ILLUMINATION-€
Disc drive =
MD MODE
| ой
BAND
++ FUNCTION
A
<< >>
OREC
Il
1 Load a recordable MD into the disc drive with the
label side up and in the direction of the arrow.
Direction guide
2 Press the FUNCTION UP or DOWN button on the
Stereo Integrated Amplifier or the FUNCTION
button on the remote control to select the source
to be recorded.
3 Prepare the source to be recorded.
To record form a radio broadcast, press the BAND button
to select the desired band and tune in to a station.
To record from a CD, load the disc, then press the «<< or
D>» button on the Compact Disc Player to select the track to
be recorded first.
To record from the connected equipment, prepare the
equipment for playback.
To record from a tape, load the tape.”
* Available only when the FX-LM99 optional Stereo Cassette
Deck is connected.
4 Press the MD MODE button twice.
“REC MODE?” is displayed for 10 seconds.
5 Within 10 seconds, press the ENTER/
ILLUMINATION button and turn the VOLUME/
MULTI JOG dial so that “REC:MONO?” is
displayed.
6 Within 10 seconds, press the ENTER/
ILLUMINATION button.
“MONO” flashes on the display.
7 Press the MD MODE button.
“Mark MODE?” is displayed for 10 seconds.
Mm
sme
8 Within 10 seconds, press the ENTER/ |
ILLUMINATION button and turn the VOLUME/ |
MULTI JOG dial to select an index mark mode.
To register index marks automatically at the beginning of each
track, select “Mark: AUTO?”.
To register index marks every 5 minutes, select “Mark: TIME?”.
To record without registering index marks automatically, select
“Mark: OFF?”.
9 Within 10 seconds, press the ENTER/
ILLUMINATION button.
10 Press the @ REC button.
The Mini Disc Recorder enters the standby mode. Wait until
the source name selected at step 2 is displayed.
11 Press the II button on the Mini Disc Recorder
to start recording.
When recording from connected equipment, start playback
of the connected equipment.
To stop recording
Press the IN button on the Mini Disc Recorder or on the remote
control. When recording stops, “TOC EDIT” is displayed and the
contents (TOC) of the recording are recorded on the MD.
To add index marks during recording
Press the ENTER/ILLUMINATION button, and an index mark is
registered regardless of the index mark mode selected at step
8. | |
To record on a previously recorded MD
If there is an unrecorded section left on the MD, the new recording
automatically starts from where the previous recording finished.
If you want to start recording from the beginning of a previously
recorded MD, erase the previous recording completely. (See
page 33.)
To cancel the extended recording mode
If “MONO” flashes on the display, proceed as follows to cancel
the extended (monaural) recording mode.
1 Press the MD MODE button twice, and within 10
seconds, press the ENTER/ILLUMINATION
button. a
“REC STEREO?” is displayed.
2 Within 10 seconds, press the ENTER/
ILLUMINATION button.
“MONO” disappears on the display.
ENGLISH 29
The succeeding pages (pages 30 to 33) describe
how to edit a recorded MD.
Editing an MD allows you to:
* register the disc title and track title (this page)
* divide a track into two tracks (page 31)
* combine two tracks (page 32)
* change the order of the tracks (page 32)
* erase tracks (page 33)
REGISTERING THE DISC TITLE
AND TRACK TITLE
You can register the titles of the discs and tracks.
The registered disc title and track titles can be displayed using
the DISPLAY button. See page 23 for detailed explanation.
VOLUME/ - \
MULTI JOG
FUNCTION
UP/DOWN =—0-9,+10
ENTER/ Q FUNCTION
ILLUMINATION—¢=2 >
> << >>
MD MODE Il
<< >> -
Il
1 Press the FUNCTION UP or DOWN button on the
Stereo Integrated Amplifier or the FUNCTION
button on the remote control repeatedly so that
“MD” appears, then load an MD to register the
disc or track title.
2 To register a disc title, press the MD MODE button
in stop mode.
“Disc title?” is displayed for 10 seconds.
To register a track titie, select a track to register
the title using the << or »» button, or the
numbered buttons on the remote control. Then
press the MD MODE button.
“Title?” is displayed for 10 seconds.
Example: When registering a title for the 3rd track
|
AR:
3 Within 10 seconds, press the ENTER/
ILLUMINATION button.
The system turns into character entry mode.
3O ENGLISH
4 Press the MD MODE button repeatedly to select
the kind of character.
Each time the MD MODE button is pressed, the kind of
character changes in the following order.
| Capital letters — Small letters — Numbers/
: (A) (a) symbols (0)
5 Turn the VOLUME/MULTI JOG dial to select a
desired character, then press the »»- button.
When you press the >» button, the selected character moves
one column to the left.
6 Repeat steps 4 and 5 to enter all the required
characters (up to 50 characters). |
If you leave the system without performing any operation for
one minute in steps 4 and 5, the character entry mode will be
canceled. If this happens, repeat from step 2.
7 Press the ENTER/ILLUMINATION button.
8 Remove the MD from the Mini Disc Recorder.
“TOC EDIT” is displayed and the entered title is registered.
To change a character
Press the << or PP button repeatedly until the character to be
changed flashes. Then enter the desired character again.
To delete characters :
Press the << or »P button repeatedly until the character to be
deleted flashes. Then press the II button.
To insert a space between the characters
Press the «<< or DP» button repeatedly until the part to be
entered as a space flashes. Then press the »- button.
To add a character between two characters
First, insert a space between two characters as described above.
Then change the space to the desired character by entering it.
DIVIDING A TRACK
* While “TOC EDIT” is displayed, do not disconnect the AC cord
or do not give a strong shock to the Mini Disc Recorder. If this
happens, the data of TOC will not be recorded properly and the You can divide a track into two tracks by registering an index
edited contents on a disc will not be able to be played. mark.
A title cannot be registered in the following cases:
—When a prerecorded disc is inserted (“PB DISC” appears on
Example
To divide the 3rd track into two tracks at 2 minutes 30 seconds:
the display.) |
—When the protect-tab on an inserted disc is moved to the 2 minutes 30 seconds
protected position (“Protected” appears on the display.) — Me
—During programmed play | | | 2nd track
7 — I
CHARACTERS THAT CAN BE REGISTERED .
Capital letters -
STUVWXYZ MULTI JOG |
. | FUNCTION-
Small letters UP/DOWN
[l(space) abcdefghijklmnopgqgrstuyv ENTER] ©
wxyz ILLUMINATION— > — FUNCTION
Numbers and symbols
| ” % ,
Li (space) 0123456789! # $ % & ' () * + MD EDIT— I
no x / ‚ < = > ? @ —
N J Il
1 Press the FUNCTION UP or DOWN button on the
Stereo Integrated Amplifier or the FUNCTION
button on the remote control repeatedly so that
“MD” appears, then load an MD.
2 During playback, press the II button at the point
where you want to divide the track.
The Mini Disc Recorder enters the playback pause mode.
3 Press the MD EDIT button so that “Divide” is
displayed. |
“Divide” is displayed for 10 seconds.
Example:
When dividing the 3rd track
E TS HH : Hi
4 Within 10 seconds, press the ENTER/
ILLUMINATION button.
The Mini Disc Recorder plays repeatedly the 2 seconds after
the point where you pressed the 1l button.
5 Adjust the point to be divided with the << or
>» button or the VOLUME/MULTI JOG dial
referring to the playback sound. |
6 Within 1 minute, press the ENTER/ILLUMINATION
button.
An index mark is registered and the track number advances
by one.
7 Remove the MD from the MD Deck.
“TOC EDIT"is displayed and the data concerning the contents
of the editing are registered.
* If the track had a title before the division, the title is assigned to
the first of the two divided tracks.
* A track cannot be divided when an inserted disc already
contains 254 tracks.
ENGLISH 31
COMBINING TWO TRACKS
You can combine two tracks by erasing the index mark in between.
Example |
To combine the 2nd track and the 3rd track by erasing the index
mark at the beginning of the 3rd track:
1st track
FUNCTION — |
UP/DOWN —0-9,+10
ENTER/ |
ILLUMINATION= = FUNCTION
<> << >>
MD EDIT—
1 Press the FUNCTION UP or DOWN button on the
Stereo Integrated Amplifier or the FUNCTION
button on the remote control repeatedly so that
“MD” appears, then load an MD. )
2 Select or play back the latter track of the two
tracks to be combined using the << or >>
button, or the numbered buttons on the remote
control.
Example:
To combine the 2nd and 3rd tracks, select or play back the
3rd track. |
3 Press the MD EDIT button repeatedly so that
“Combine” is displayed.
Example:
When combining the 2nd and 3rd tracks
4 Within 10 seconds, press the ENTER/
ILLUMINATION button.
The two tracks are combined.
The track numbers from this point forward are decreased by
1. |
5 Remove the MD from the Mini Disc Recorder.
“TOC EDIT” is displayed and the data concerning the contents
of the editing are registered.
* If both of the tracks are titled, the title of the lower numbered
track remains. If only one track is titled on the tracks to be
combined, this title remains.
* You cannot combine a track recorded in monaural and a track
recorded in stereo.
32 ENGLISH
CHANGING THE ORDER OF THE
TRACKS
You can change the order of tracks after completing a recording.
Example
To move the 3rd track to the 1st position
1sttrack 2ndtrack 3rd track
MULTI JOG
FUNCTION —
UP/DOWN
ENTER/
ILLUMINATION—€
<< >>
TT 0-9,+10
000 |! E FUNCTION
<< >>
MD EDIT—
1 Press the FUNCTION UP or DOWN button on the
Stereo Integrated Amplifier or the FUNCTION
button on the remote control repeatedly so that
“MD” appears, then load an MD.
2 Select or play back the track to be moved using
the << or »» button, or the numbered buttons
on the remote control.
3 Press the MD EDIT button repeatedly so that
“Move” is displayed.
Example:
When moving the 3rd track
4 Within 10 seconds, press the ENTER/
ILLUMINATION button.
5 Turn the VOLUME/MULTI JOG dial to select the
desired track number to move the track to.
Example: |
When moving to the 1st position
6 Within 10 seconds, press the ENTER/
ILLUMINATION button.
7 Remove the MD from the Mini Disc Recorder.
“TOC EDIT” is displayed and the data concerning the contents
of the editing are registered.
ERASING TRACKS
ERASING ALL TRACKS ON A DISC
FUNCTION
UP/DOWN
ENTER/ _
ILLUMINATION= FUNCTION
N
MD EDIT— — ll
If you erase all the tracks, you cannot retrieve them again.
1 Press the FUNCTION UP or DOWN button on the
Stereo Integrated Amplifier or the FUNCTION
button on the remote control repeatedly so that
“MD” appears, then load an MD. |
2 In stop mode, press the MD EDIT button
repeatedly until “Erase All?” is displayed.
a
3 Within 10 seconds, press the ENTER/
ILLUMINATION button.
The display changes to “Erase ?All?”.
Make sure that it is all right to erase all tracks.
To cancel erasing tracks, press the IN button.
4 Within 1 minute, press the ENTER/ILLUMINATION
button. |
“TOC EDIT” is displayed and all tracks on the inserted disc
are erased.
After completion of the erasure, “Blank Disc” is displayed.
ERASING A SINGLE TRACK
3 о
ооо
TA E
| o ofal
ENTER/ ei FUNCTION
a
MD EDIT
<< >>
1 Press the FUNCTION UP or DOWN button on the
Stereo Integrated Amplifier or the FUNCTION
button on the remote control repeatediy so that
“MD” appears, then load an MD.
2 Select or play back the track to be erased using
the << or >> bution, or the numbered buttons
on the remote control.
3 Press the MD EDIT button repeatedly so that
“Erase” is displayed.
Example:
When erasing the 3rd track
4 Within 10 seconds, press the ENTER/
ILLUMINATION button.
The display changes to “Erase ?”.
To cancel erasing the track, press the ll button.
5 Within 1 minute, press the ENTER/ILLUMINATION
button. |
The selected track is erased and all the succeeding track
numbers are decreased by 1.
“TOC EDIT” is displayed and the data concerning the contents
of the editing are registered.
ENGLISH 33
TIMER PLAY AND TIMER
RECORDING
VOLUME/
MULTI JOG
JOG MODE
FUNCTION—
UP/DOWN HH FUNCTION
POWER «>
POWER
ENTER/
ILLUMINATION
The system can be turned on at a specified time every day with
the built-in timer.
Make sure the clock is set correctly. (See page 9.)
Timer playback of a tape and timer recording onto a tape can be
performed only when the FX-LM99 optional Stereo Cassette Deck
is connected.
Timer playback of an MD and timer recording onto an MD can
be performed only when the AM-LM99 optional Mini Disc
Recorder is connected.
Preparation for timer recording
To record from a radio broadcast, press the BAND button to
select FM or AM.
* To record from connected equipment, press the FUNCTION
UP or DOWN button on the Stereo Integrated Amplifier or the
FUNCTION button on the remote control to select “AUX” or “D-
IN”
AUX : for the equipment connected to the AUX IN jacks on the
Stereo Tuner
D-IN : for the equipment connected to the AUX DIGITAL IN jack
on the Mini Disc Recorder | |
It is possible to change the band and select a station, or re-
select the connected equipment, that is, “D-IN” or “AUX,” at step
6 below.
1 Select the timer playback or the timer recording.
Press the JOG MODE button repeatedly so that “TIMER” is
displayed, and within 6 seconds, turn the VOLUME/MULTI
JOG dial to select the timer playback or the timer recording.
|
“TIMER © PLAY” for timer playback
“TIMER © REC” for timer recording
2 Within 6 seconds,
ILLUMINATION button.
Time and audio source display flash alternately.
press the ENTER/
34 ENGLISH
3 Set the timer-on time.
Turn the VOLUME/MULTI JOG dial to the right to advance
the time and turn it to the left to move the time back. The
speed with which the time changes varies according to how
fast you turn the VOLUME/MULTI JOG dial. You can also
press the TUNING UP/DOWN buttons on the Stereo Tuner or
the << or PP button on the remote control. Holding these
buttons down will vary the time in 10-minute units.
4 Select a source for timer play, or a source and a
recording destination (Tape or MD) for timer
recording.
When selecting timer play
Press the FUNCTION UP or DOWN button to select the
desired source and press the ENTER/ILLUMINATION button.
When selecting timer recording
Press the FUNCTION DOWN button to specify the source,
and press the FUNCTION UP button to specify the recording
destination, and then press the ENTER/ILLUMINATION
button.
The display will show one of the followings:
FM (or AM) > MD:when recording from a radio broadcast оп
an MD
FM (or AM) p> TP:when recording from a radio broadcast on
a tape
AUX (or D-IN) » MD:when recording from connected
equipment on an MD
AUX (or D-IN) > TP:when recording from connected
equipment on a tape
5 Select the duration for the timer-activated period
with the VOLUME/MULTI JOG dial, TUNING UP/
DOWN buttons or the << or P» button on the
remote control, and press the ENTER/
ILLUMINATION button.
The duration for the timer-activated period can be set between
5 and 240 minutes in 5-minute steps.
6 Prepare the source and the recording destination.
To listen to a CD, load the disc.
To listen to a radio broadcast, select the desired band and
tune in to a station.
To listen to a tape, load the tape into the Stereo Cassette
Deck.
- To listen to an MD, insert the MD into the Mini Disc Recorder.
To listen to the connected equipment, set the timer of the
connected source (with an external timer) and prepare for the
play.
To record from a radio broadcast on a tape or an MD,
select the desired band and tune in to a station and load the
tape or insert the MD.
To record from the connected equipment on a tape or an
MD, set the timer of the connected source (with an external
timer) and prepare for the play, then load the tape or insert
the MD.
7 Press the POWER button to turn the system off
after adjusting the volume and tone.
© or О remains on the display after the power is turned
off (timer standby mode).
Note, however, that everything on the display will clear if the
power economizing mode (see page 9) is activated. To confirm
the timer standby mode, turn on the system and press the
ECO button to deactivate the power economizing mode, i.e.,
select “ECO OFF” then turn off the system again.
When the timer-on time is reached, the unit turns on and
begins play (or recording) with the selected source.
If the volume level was set to higher than 21 when the power
was turned off, it is automatically set to 21 when the system
turns on by the timer.
However, when the power economizing mode (page 9) has
been turned on, sound will not be heard during timer recording.
To monitor the sound being recorded, deactivate the power
economizing mode.
To check the specified time and source
Press the JOG MODE button again and display the timer mode
you have selected, then press the ENTER/ILLUMINATION button.
The selected source name, the timer-on time and the duration
for the timer-activated period are displayed. Press the JOG MODE
button to return to the previous display.
To change the timer setting
Set the timer again from the beginning.
To cancel timer standby mode temporarily
Press the JOG MODE button to display the timer mode, then
turn the VOLUME/MULTI JOG dial to display “TIMER OFF.” And
then press the ENTER/ILLUMINATION button within 6 seconds.
To restore the timer standby mode, select “TIMER @ REC” or
“TIMER © PLAY” instead of “TIMER OFF”
Using the system while the timer is set
You can use the system normally after setting the timer.
Before turning off the power, repeat step 6 to prepare the source
and the recording destination, and adjust the volume and tone.
* Timer play and timer recording will not begin unless the power
is turned off.
+ Connected equipment cannot be turned on and off by the built-
in timer of this system. Use an external timer.
SETTING THE SLEEP TIMER
JOG MODE
VOLUME/ =
MULTI JOG
The system can be turned off automatically at a specified time.
1 Press the JOG MODE button repeatedly so that
“SLEEP OFF” is displayed.
2 Within 6 seconds, turn the VOLUME/MULTI JOG
dial or press the << or >> button on the remote
control to specify the time until the power is
turned off.
Each time the button is pressed, the time changes between 5
and 240 minutes in 5-minute steps.
Specified time
To check the time remaining until the power is turned
off |
Press the JOG MODE button repeatedly so that “SLEEP xx” (xx
is the time until the power is turned off.) is displayed. The
remaining time is displayed for 6 seconds. |
To cancel the sleep timer
Press the JOG MODE button repeatedly so that “SLEEP xx” is
displayed. Then turn the VOLUME/MULTI JOG dial or press the
<< or PP button on the remote control to display “SLEEP OFF”
The “SLEEP” on the display disappears.
ENGLISH 35
OTHER CONNECTIONS
CONNECTING AUDIO/VIDEO
EQUIPMENT
The Stereo Tuner is equipped with the AUX IN jacks.
The Stereo Integrated Amplifier is equipped with the SUPER
WOOFER jack.
The AM-LM99 optional Mini Disc Recorder is equipped with the
AUX DIGITAL IN jack.
These jacks allow you to connect commercially available audio/
video equipment to the system.
| | |
N
Integrated —— re
Amplifier
Stereo Tuner. > AUX IN
SUPER
Compact Dis Co
Player
Refer to the operating instructions of the connected equipment
for details.
* The connecting cords are not supplied. Obtain the necessary
connecting cords.
* Consult your local Aiwa dealer for optional equipment.
AUX IN JACKS
Analog sound signals can be input to the system through the
AUX IN jacks on the rear of the Stereo Tuner.
Use a cable with RCA phono plugs to connect audio equipment
(turntables, LD players, VCRs, TV, etc.).
Connect the red plug to the R jack, and the white plug to the L
jack.
When connecting a turntable
Use an Aiwa turntable equipped with a built-in equalizer amplifier.
Y SUPER WOOFER JACK
Connect an optional powered sub woofer with a built-in amplifier
to the jack. |
30 ENGLISH
AUX DIGITAL IN JACK
Optional Mini Disc Recorder
e J
|
AUX DIGITAL IN
Digital sound signals can be input to the AM-LM99 optional Mini
Disc Recorder through the AUX DIGITAL IN jack.
This system has a built-in sampling frequency rate converter,
which converts the sampling frequency rates that are different
from the MD sampling frequency rate (BS/CS tuner, DAT and
other digital signals) into a sampling frequency rate that can be
recorded on an MD.
Use an optical cable to connect digital audio source equipment
(DAT deck, MD player, etc.).
Remove the dust cap @ from AUX DIGITAL IN jack. Then,
connect an optical cable plug to AUX DIGITAL IN jack.
When AUX DIGITAL IN jack is not being used
Attach the supplied dust cap.
The sound input via this jack may be cut off while an MD is being
loaded or ejected.
LISTENING TO EXTERNAL
SOURCES
FUNCTION =
UP/DOWN
it~ FUNCTION
A
POWER +
TO PLAY EQUIPMENT CONNECTED TO
THE AUX IN JACKS
1 Press the FUNCTION UP or DOWN button on the
Stereo Integrated Amplifier or the FUNCTION
button on the remote control repeatedly so that
“AUX” is displayed.
2 Play the connected equipment.
To change a source name in the display window
Press the FUNCTION UP or DOWN button repeatedly until “AUX/
— D-IN” is displayed, and when “AUX/D-IN” is displayed, keep the
button pressed and press the POWER button on the Stereo
Integrated Amplifier.
This operation changes the displayed source name cyclically as
follows: |
Г AUX — VIDEO — TV |
TO PLAY EQUIPMENT CONNECTED TO
THE AUX DIGITAL IN JACK
1 Press the FUNCTION UP or DOWN button on the
Stereo Integrated Amplifier or the FUNCTION
button on the remote control repeatedly so that
“D-IN” is displayed.
2 Play the connected equipment.
ENGLISH 3/7
CARE AND MAINTENANCE
Occasional care and maintenance of the unit and the software
are needed to optimize the performance of your unit.
To clean the cabinet
Use a soft and dry cloth. |
If the surfaces are extremely dirty, use a soft cloth lightly
moistened with mild detergent solution. Do not use strong
solvents, such as alcohol, benzine or thinner as these could
damage the finish of the unit.
Care of the system |
* Do not give the system a strong shock, i.e., drop or hit.
* Do not use the system close to a strong magnetic field such as
a television. Doing so may cause malfunctions.
To clean the heads and tape paths of the optional
Stereo Cassette Deck
After every 10 hours of use, clean the heads and tape paths with
a commercially available head cleaning cassette.
Care of CDs |
* When a disc becomes dirty, wipe the disc from the center out
with a cleaning cloth.
* After playing a disc, store the disc in its case. Do not leave the
disc in places that are hot or humid.
38 ENGLISH
Care of tapes
* Store tapes in their cases after use.
* Do not leave tapes near magnets, motors, television sets, or
any source of magnetism. This will downgrade the sound quality
and cause noise.
* Do not expose tapes to direct sunlight, or leave them in a car
parked in direct sunlight.
Care of MDs |
Since MDs come in a cartridge which protects the discs inside
from fingerprints and dust, you do not have to be overly careful
when handling them. However, soiled or damaged cartridges can
lead to malfunctions in the unit. Observe the following tips when
handling MDs. |
* Кеер a cartridge in the attached case.
* Do not open the shutter of the cartridge to touch the disc directly.
If the disc inside becomes soiled, it is very difficult to clean.
The cartridge can also be damaged.
+ Close the shutter if it opens while handling or ejecting a disc.
Otherwise dust may enter inside or a disc may become
scratched.
Shutter
| (— Cartridge
MD GUIDE MESSAGES
the unit was subjected to a strong shock during
recording, or during recording or reading of the
TOC. |
Message Cause Solution
Blank Disc Nothing is recorded on the disc. —
Can't Edit Tracks are too short to be joined up. See “THE LIMITATIONS OF MD” on page 21.
The combine function was used while playing
back the first track.
The divide function is used at the beginning of the
track.
The combine function was used to join a track
recorded in monaural with a track recorded in
stereo.
Disc Error The disc is damaged by scratches. Replace the disc.
The unit received a strong shock during a TOC Do not subject the disc to strong shock during a
reading. TOC reading.
Disc Full There are not enough time to record remaining on Replace the disc with another recordable disc.
the disc.
Temp Over The temperature of the unit is too high. Leave the unit in a cool place for a while before
operating it again.
The surrounding temperature is too high or too Operate the unit at moderate room temperature.
low. |
PB Disc A prerecorded disc is attempted to edit. Replace the disc with a recordable one.
Protected The disc is record-protected. Slide the record-protect tab on the disc. (See page
24.)
TOC Full There are too many tracks or emphasis data to be Erase tracks. En
recorded or edited, or there is no room on the
disc.
Mecha Err Error occurred in the loading mechanism. Turn the power off and disconnect the AC cord
| (All functions are disabled.) once. Then turn it on again. |
If this message still appears, consult your local
| Aiwa dealer.
MD Error An error occurred in the MD unit of this unit. Contact an Aiwa service representative.
UTOC Error An error occurred in the TOC of the MD because Exchange the MD. |
Do not subject the unit to strong shocks during
recording, or during recording or reading of the
TOC.
ENGLISH 39
SPECIFICATIONS
STEREO TUNER TX-LM99
FM tuner section |
Tuning range
Usable sensitivity (IHF)
Antenna terminals
AM tuner section
Tuning range
8/.5 MHz to 108 MHz
13.2 dBf
75 ohms (unbalanced)
530 kHz to 1710 kHz (10 kHz step)
531 kHz to 1602 kHz (9 kHz step)
Usable sensitivity 350 HV/m
Antenna Loop antenna
Input
AUX IN 500 mV
General |
210 x 71 x 247 mm
(83%2 x 272 x 9% in.)
Weight ; 0.9 kg (2 Ibs)
Dimensions (W x H x D)
STEREO INTEGRATED AMPLIFIER MX-LM99
Amplifier section |
Power output 25 watts per channel RMS at 6
ohms, from 65 Hz to 10 kHz, with
no more than 1% Total Harmonic
| Distortion
Total harmonic distortion 0.08% (1W, 1 kHz, 6 ohms, DIN
AUDIO)
Outputs
SUPER WOOFER 1.4V
SPEAKERS Accept speakers of 6 ohms or
more
PHONES Stereo mini jack : accepts
headphones of 16 ohms or more
General
Power requirements 120 V AC, 60 Hz
Power consumption 67 W
Standby power consumption 1.9 W (power economizing mode
set to ON)
210 x 81 x 282.5 mm
(8/8 x 31/4 x 11!/s in.)
Weight 3.0 kg (6 Ibs 10 0z)
Dimensions (W x H x D)
COMPACT DISC PLAYER DX-LM99
Compact disc player section |
Laser | Semiconductor laser (A = 780 nm)
D-A converter 1 bit dual |
Signal-to-noise ratio 90 dB (1 kHz, O dB)
Harmonic distortion 0.05 % (1 kHz, 0 dB)
Wow and flatter Unmeasurable
Output
DIGITAL OUT
General |
Dimensions (W x H x D) 210 x 81 x 244.5 mm
| (8%a x 3/4 x 9% in.)
Weight 1.3 kg (2 lbs 14 07)
STEREO CASSETTE DECK FX-LM99
Cassette deck section
Track format
Frequency response
4 tracks, 2 channels stereo
CrO? tape: 50 Hz to 16000 Hz
Normal tape: 50 Hz to 15000 Hz
Signal-to-noise ratio | 60 dB (CrOz tape peak level)
Recording system AC bias
Heads Recording/playback head x 1
Erase head x 2
General
Dimensions (W x H x D) 210 x 71 x 243 mm
| (83% x 2’/8 x 9'/2 in.)
Weight 1.3 kg (2 Ibs 14 0z)
40 ENGLISH
MINI DISC RECORDER AM-LM99
MD recorder section
Scanning method Non-contact optical scanner
(Semiconductor laser application)
Magnetic polarity modulation
overwrite system
Approx. 400 to 900 rpm (CLV)
44.1 kHz
Stereo: 2 channels
Monaural: 1 channel
Recording system
Rotation speed
Sampling frequency
No. of channels
A-D D-A converter 1-bit
Frequency 20 to 20000 Hz +0.2 - —1.5 dB
Wow and flatter Unmeasurable
Input
AUX DIGITAL IN Sampling frequency: 48 kHz/32
kHz |
Optical input level: more than —21
dBm
General
Dimensions (W x H x D) 210 x 71 x 243 mm
(8% x 27/8 x 9/2 in.)
Weight | 1.3 kg (2 Ibs 14 07)
SPEAKER SYSTEM SX-LM99
Cabinet type 2 way, bass reflex (magnetic
| shieided type)
Speakers Woofer:
| 100 mm cone type x 2
Tweeter:
22 mm dome type
Impedance 6 ohms
Output sound pressure level 87 dB/W/m
152 x 301 x 202 mm
(6 x 12 1/4 x 8 in.)
Weight 3.8 Ка (8 165 6 ох)
Dimensions (W x H x D)
* Specifications and external appearance are subject to change
without notice.
* US AND FOREIGN PATENTS LICENSED FROM DOLBY
LABORATORIES LICENSING CORPORATION.
DBL SYSTEM
The word “BBE” and the “BBE symbol” are trademarks of BBE
Sound, Inc. |
Under license from BBE sound, Inc.
COPYRIGHT
Please check the laws on copyright relating to recordings from
discs, radio or external tape for the country in which the machine
IS being used.
NOTE
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of
the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on circuit different from
that to which the receiver is connected.
. —Consult the dealer or an experienced radio/TV technician
for help.
CAUTION
Modifications or adjustments to this product, which are not
expressly approved by the manufacturer, may void the user's
right or authority to operate this product.
TROUBLESHOOTING GUIDE
If the unit fails to perform as described in these Operating
Instructions, check the following guide.
GENERAL
There is no sound.
* 15 the AC cord connected properly?
* ls there a bad connection? (> page 6)
* Was an incorrect function button pressed?
The sound becomes inaudible or the unit is turned off
suddenly.
» There may be a short circuit in the speaker terminals.
— Disconnect the AC cord from the AC outlet and re-connect
the speaker cords correctly. Then connect the AC cord and
turn the unit on again.
Sound is emitted from one speaker only.
* 15 the other speaker disconnected?
An erroneous display or a malfunction occurs.
= Reset the unit as stated below.
STEREO TUNER
There is constant, wave-like static.
* Is the antenna connected properly? (— page 6)
* |5 the signal weak? |
— Connect an outdoor antenna.
The reception contains noise interferences or the sound is
distorted.
* ls the tuner picking up external noise or multipath distortion?
— Change the orientation of the antenna.
— Move the unit away from other electrical appliances.
To reset |
If an unusual condition occurs in the display window or the
cassette deck, reset the unit as follows.
1 Press the POWER button to turn off the power.
2 Press the POWER button to turn the power back on while
pressing the CLEAR button on the Stereo Tuner. Everything
stored in memory after purchase is canceled.
If the power cannot be turned off in step 1 because of a
malfunction, reset by disconnecting the AC cord and repeat
step 2.
COMPACT DISC PLAYER
The CD player does not play.
» Is the disc correctly inserted? (— page 13)
* Is the disc dirty? (> page 38)
* |s the lens affected by condensation?
— Wait approximately one hour and try again.
STEREO CASSETTE DECK
The tape does not run.
* 15 the deck in pause mode? (— page 16)
The sound is off-balance or not adequately high.
* ls the playback head dirty? (> page 38)
Recording is not possible.
* |s the erasure prevention tab on the tape broken off?
(> page 17)
* ls the recording head dirty? (> page 38)
Erasure is not possible.
* |5 the erasure head dirty? (— page 38)
* Is a metal tape being used?
High frequency sound is not emitted.
* ls the recording/playback head dirty? (> page 38)
MINI DISC RECORDER
The MD recorder cannot be operated
* 15 there a disc inside the Mini Disc Recorder?
— Insert a disc.
+ |s the lens affected by condensation?
— Wait approximately one hour and try again.
Sound is noisy | |
* |s the Mini Disc Recorder placed close to an object with a strong
magnetic field such as a television? |
+ Move the Mini Disc Recorder away from the television.
Sound is intermittent
* Is the Mini Disc Recorder placed on an unstable surface with a
lot of vibration?
— Place the Mini Disc Recorder on a stable surface with no
vibration.
Recording is not possible
* ls the digital recording attempted from the source other than
CD?
« Is a prerecorded disc inserted?
— Change to a recordable disc.
* ls the disc protected by the record-protected tab on the disc?
(— page 24)
ENGLISH 41
PARTS INDEX
MX-LM99 STEREO INTEGRATED AMPLIFIER
© ©
Y ato
© 3000
TX-LM99 STEREO TUNER
O POWER button
O ECO button
O VOLUME/MULTI JOG dial
O ENTER/ILLUMINATION button
© PHONES jack
© FUNCTION UP/DOWN buttons
© Q SURROUND button
O DISPLAY button
O JOG MODE button
со
A
, 9, 10, 28-32, 34, 35
, 28-34
O O O © 00
13, 16, 22, 34, 37
10
11, 13, 16, 23, 25-28
10, 34, 35
© DEMO button
7
O Display window
O BAND button 8,11
O PRESET button 12
— O SET button — 12
CLEAR button 12
O TUNING UP/DOWN buttons — 11
DX-LM99 COMPACT DISC PLAYER
O O O Disc compartment 13
O > PLAY button 8
© H STOP button 13
| | ) O «<<<, >>1I/>> SKIP/SEARCH buttons
= = | 13
| . ) Les © IN PAUSE button 13
Gol O4 OPEN/CLOSE button 13
peint AF
42 ENGLISH
REMOTE CONTROL
© DISPLAY button 11, 13, 16, 23, 25-28
EQ button 10
MODE button 11, 14, 16, 18, 19, 23
) O BAND button 11
O </ <<, >>I/>>- SKIP/SEARCH buttons
9,11, 13, 16, 22, 34, 35
II PAUSE button 9, 12, 13, 16, 22
E STOP button 12, 13, 16, 22
» PLAY button 12, 13, 16, 22
O POWER button | 8, 34
© Numbered buttons 12, 14, 18, 19, 23
© REPEAT button 14
O FUNCTION button 8
© VOL AN/M buttons 10
© Cassette insertion slot 16
© <> PLAY/DIR button 16
© MN STOP button 16
O <<, >> REW/FF buttons 16
O € REC button 17-19
O El PAUSE button 16
O 4 EJECT button 16
| о © Disc drive 22
© ? | O » PLAY/INSERT button 22
© № STOP button 22
@ MD MODE button 28, 29, 30
7 | MD EDIT button 31, 32, 33
| © «<< >> SKIP/SEARCH buttons
[o] 22
© ® SYNCHRO REC
CD » MD (DIGITAL) button 25-27
O REC button — 28,29
O II PAUSE/DELETE button 22
O O A EJECT button 22
ENGLISH 43
For assistance and information,
call toll free 1-800-BUY-AIWA
(United States and Puerto Rico)
E.
Hi
i i i
Printed in Japan | AIWA CO. y LTD.
Was this manual useful for you? yes no
