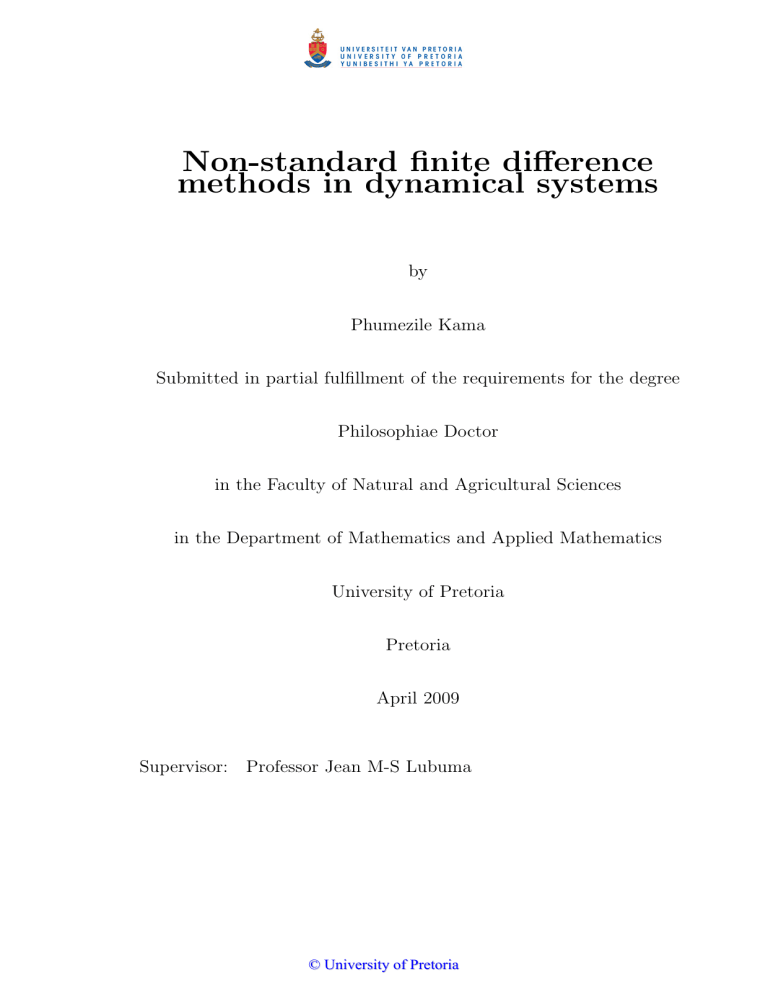

# Non-standard finite difference methods in dynamical systems

### Non-standard finite difference methods in dynamical systems

by

Phumezile Kama

Submitted in partial fulfillment of the requirements for the degree

Philosophiae Doctor in the Faculty of Natural and Agricultural Sciences in the Department of Mathematics and Applied Mathematics

University of Pretoria

Pretoria

April 2009

Supervisor: Professor Jean M-S Lubuma

© U n i i v e r r s s i i t t y o f f P r r e t t o r r i i a

### Table of Contents

Table of Contents

List of Tables

List of Figures

Acknowledgements

Declaration

Abstract

1 Introduction

2 Dynamical Systems 10

2.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.2 Continuous Dynamical Systems . . . . . . . . . . . . . . 11

2.2.1

Generalities . . . . . . . . . . . . . . . . . . . . . 11

2.2.2

Qualitative Properties . . . . . . . . . . . . . . . 18

2.3 Discrete Dynamical Systems . . . . . . . . . . . . . . . 27

2.3.1

Generalities . . . . . . . . . . . . . . . . . . . . . 27

2.3.2

Qualitative Properties . . . . . . . . . . . . . . . 29

3 Finite Difference Methods 33

3.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . 33

3.2 Basic Concepts . . . . . . . . . . . . . . . . . . . . . . . 34

3.3 Linear Multi-step Methods . . . . . . . . . . . . . . . . . 36

3.4 Runge-Kutta Methods . . . . . . . . . . . . . . . . . . . 38 viii ix

1 v vii ii iv ii

3.5 Absolute Stability . . . . . . . . . . . . . . . . . . . . . . 40

3.5.1

Linear Multi-step Methods . . . . . . . . . . . . . 42

3.5.2

Runge-Kutta Methods . . . . . . . . . . . . . . . 43

3.6 Numerical Methods as Dynamical Systems . . . . . . . . 46

3.7 Theta Methods . . . . . . . . . . . . . . . . . . . . . . . 49

4 Non-standard Finite Difference Methods 58

4.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . 58

4.2 Generalities . . . . . . . . . . . . . . . . . . . . . . . . . 59

4.3 Elementary Stable Schemes . . . . . . . . . . . . . . . . 65

4.4 Dissipative Non-standard Theta Methods . . . . . . . . . 76

4.5 Energy Preserving Discrete Schemes . . . . . . . . . . . . 84

5 Non-standard Finite Difference Schemes for Reaction-

Diffusion Equations 92

5.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . 92

5.2 The Fisher Equation . . . . . . . . . . . . . . . . . . . . 93

5.3 Theta Methods for Reaction-Diffusion Equations . . . . . 97

5.4 Explicit Scheme . . . . . . . . . . . . . . . . . . . . . . . 99

5.5 Coupled Spectral and Non-standard Methods . . . . . . 106

6 Conclusion

Bibliography

Summary

110

113

118 iii

### List of Tables

4.1

*Exact schemes of some ODE’s and PDE’s*

. . . . . . . . 62

4.2

*Non-standard finite difference schemes*

. . . . . . . . . . 64

4.3

*Comparison between standard and non-standard θ -methods*

73 iv

### List of Figures

1.1 Exact solution . . . . . . . . . . . . . . . . . . . . . . . .

4

1.2 Forward Euler method . . . . . . . . . . . . . . . . . . .

4

1.3 Runge-Kutta method . . . . . . . . . . . . . . . . . . . .

5

1.4 Non-standard method . . . . . . . . . . . . . . . . . . .

5

2.1 Proof of Theorem 2.2.21 . . . . . . . . . . . . . . . . . . 26

4.1 Region of elementary stability for

*θ ∈*

[0

*,*

4.2 Region of elementary stability for

*θ ∈*

[

1

2

*,*

1

2

) . . . . . . . . 72

1] . . . . . . . . 72

4.3 Exact solution for the logistic equation. . . . . . . . . . . 75

4.4 Standard Euler scheme for the logistic equation. . . . . . 75

4.5 Non-standard Euler scheme for the logistic equation. . . 75

4.6 Dissipative non-standard scheme . . . . . . . . . . . . . . 80

4.7 Further dissipative non-standard scheme . . . . . . . . . 80

4.8 Non-dissipative standard forward Euler scheme . . . . . 80

4.9 Dissipative non-standard scheme . . . . . . . . . . . . . 83

4.10 Another dissipative non-standard scheme . . . . . . . . 83

4.11 Nondissipative standard scheme . . . . . . . . . . . . . . 83

4.12 Discrete energy of the Duffing equation by standard (piecewise constant) and non-standard (constant) finite difference schemes . . . . . . . . . . . . . . . . . . . . . . . . 91

5.1 Phase plane trajectories for (5.2.5) - (5.2.6),

*c ≥*

2. . . . . 96

5.2 Travelling wave solution for the Fisher equation,

*c ≥*

2. . 96

5.3 Non-standard scheme not related to exact scheme. . . . . 104

5.4 Non-standard scheme related to exact scheme. . . . . . . 104 v

5.5 Non-standard scheme with

*φ*

(∆

*t*

) = ∆

*t*

. . . . . . . . . . . 105

5.6 Standard scheme. . . . . . . . . . . . . . . . . . . . . . . 105

5.7 Spectral non-standard scheme based on the exact scheme.109

5.8 Spectral standard scheme. . . . . . . . . . . . . . . . . . 109 vi

### Acknowledgements

I am indebted to Professor Jean M-S Lubuma, my supervisor, for introducing me to the theory of non-standard finite difference methods and for his constant support and guidance through the early period of chaos and confusion. This thesis would not have been possible without the tremendous efforts put forth by my supervisor who has devoted much of his precious time to read endless drafts, provided me with technical corrections, constructive feedback and countless suggestions for improvement of this work.

A special word of gratitude is extended to Professor R. Anguelov for his interest in the work and generating some of the figures in this thesis.

I would like to acknowledge the Numerical Analysis of Differential

Equations research group at the University of Pretoria for their joint work and friendly encouragement, which gave me a better perspective on my own results.

A hearty thank you goes to Dr TA Tshifhumulo, Dr GH Maluleke and Mr PWM Chin for proofreading this thesis.

I would like to thank the National Research Foundation of South

Africa for financial support.

Of course, I am grateful to my family, for their patience and

*love*

.

Without them this work would not have been fruitful.

### Dedication

To all who taught me over the years.

*”I humbly thank you; well, well, well.”*

Shakespeare,

*Hamlet*

(1623).

vii

### Declaration

I, the undersigned, hereby certify that the thesis submitted herewith for the degree Philosophiae Doctor to the University of Pretoria contains my own, independent work and has not been submitted for any degree at any other university.

Signature:

Phumezile Kama

Date: viii

### Abstract

This thesis analyses numerical methods used in finding solutions of differential equations. Numerical methods are viewed as discrete dynamical systems that give useful information on continuous dynamical systems defined by systems of (ordinary) differential equations. We analyse non-standard finite difference schemes that have no spurious fixed-points compared to the dynamical system under consideration, the linear stability/instability property of the fixed-points being the same for both the discrete and continuous systems. We obtain a sharper condition for the elementary stability of the schemes. For more complex dynamical systems which are dissipative, we design schemes that replicate this property.

Furthermore, we investigate the impact of the above analysis on the numerical solution of partial differential equations. We specifically focus on reaction-diffusion equations that arise in many fields of engineering and applied sciences. Often their solutions enjoy the following essential properties: Stability/instability of the fixed points for the space independent equation, the conservation of energy for the stationary equation, and boundedness and positivity.

We design new non-standard finite difference schemes which replicate these properties. Our construction make use of three strategies: the renormalization of the denominator of the discrete derivative, nonlocal approximation of the nonlinear terms and simple functional relation between step sizes. Numerical results that support the theory are provided.

ix

### Chapter 1

### Introduction

Our main interest in this thesis is the study of numerical methods for dynamical systems defined by (ordinary) differential equations. Problems as diverse as the simulation of planetary interactions, fluid flows

[10] and mechanics [43], chemical reactions [16],[40], biological pattern formulation [2], [18], [33] and economic markets can all be modelled as dynamical systems [41]. For further applications of dynamical systems see [44]. In most of the systems modelled, all rates of change are assumed to be time independent, which makes the corresponding system autonomous.

Dynamical systems are concerned primarily with making qualitative study about the behaviour of systems which evolve in time given knowledge about the initial state of the system itself. It is important to know and study essential qualitative properties of the systems or more precisely their dynamics. Such properties include among others: the type of fixed points, oscillatory solutions, monotonicity of solutions, conservation of energy, dissipativity or dispersion of solution, positivity and boundedness of solutions. Our standard reference for dynamical systems is Stuart and Humphries [41] while Lambert [22] will also be used for numerical methods for ordinary differential equations. The framework of the study will include a wide range of concrete linear and non-linear models such as: logistic equation, decay equation, Hamiltonian system in ordinary differential equations as well as the Fisher equation, the reaction-diffusion equation in partial differential equations.

1

2

Existence theory is extensively developed for differential equations.

However, most differential equations have no analytical solutions. As a result numerical methods are of fundamental importance in gaining understanding of dynamical systems. For contemporary numerical analysts, the understanding of differential equations from numerical methods is often limited to the study of their consistency, (zero-) stability and convergence. Unfortunately such classical numerical methods do not guarantee that the dynamics of the systems are replicated. This explains why we use the monograph [41] as our standard reference on dynamical systems, since it is one of a few classical books emphasizing the similar properties of the exact solutions that numerical schemes exhibit.

To be more explicit in this introduction, we consider the following differential equation

*dy dt*

=

*y*

2

(1

*− y*

)

*≡ f*

(

*y*

)

*.*

(1.0.1)

Equation (1.0.1) is an elementary model for combustion [34]. Despite the simple nature of (1.0.1), its solution cannot be written in a closed form. The solution is expressed in the implicit form

µ ¶ ln

*| y*

*| y |*

*−*

1

*|*

+

1

*y*

=

*t*

+

*C,*

(1.0.2) where

*C*

is a constant. This equation defines a dynamical system on

(

*−∞ ,*

+

*∞*

) with an asymptotically stable fixed point

*y*

= 1 and an unstable fixed point

*y*

= 0. Full analysis shows that the point

*y*

= 0 is attracting the solutions below it and repelling those above it. (The concepts used here will be made clear in the next chapter). All these properties that represent the exact solution of (1.0.2) are visualised in

Fig.1.1.

We employ for (1.0.1), the forward Euler method

*y n*

+1

*−*

∆

*t y n*

=

*y*

2

*n*

(1

*− y n*

)

*,*

(1.0.3)

3 and the Runge-Kutta method

*y n*

+1

*− y n*

∆

*t*

=

*y n*

+

∆

*t*

2

[

*f*

(

*y n*

) +

*f*

(

*y n*

+ ∆

*tf*

(

*y n*

))]

*.*

(1.0.4)

The two classical schemes (1.0.3) and (1.0.4) are consistent, zerostable and thus convergent. However, the discrepancy between the numerical solution by these methods and the exact solution is evident as can be seen in Figs.1.2 and 1.3. We use ∆

*t*

= 1

*.*

8 in both schemes.

Our aim is to design numerical schemes that give reliable simulations, which preserve as much as possible the intrinsic properties of the dynamical systems without any limitation on the value of time step size ∆

*t*

. We shall do this by considering the non-standard finite difference method which was introduced by RE Mickens [26] more than two decades ago. This approach takes advantage of specific properties of solutions of involved differential equations.

For the above mentioned combustion model (1.0.1), Fig.1.4 shows that the non-standard finite difference scheme

*y n*

+1

*− y*

1

*− e*

*−*

∆

*t n*

=

*y*

2

*n*

(1 +

*y n*

*−*

2

*y n*

+1

)

*,*

(1.0.5) proposed by Anguelov and Lubuma [8], displays better the properties of the exact solution.

1.5

1

0.5

0

−0.5

0 1 2 3 4

*t*

5 6

Figure 1.1: Exact solution

7 8

1.5

1

0.5

0

−0.5

−1

0 1 2 3 4

*t*

5 6

Figure 1.2: Forward Euler method

7 8

4

1.5

1

0.5

0

−0.5

−1

0 1 2 3 4

*t*

5 6

Figure 1.3: Runge-Kutta method

7 8

5

Figure 1.4: Non-standard method

6

Non-standard finite difference techniques developed by Mickens, have laid the foundation for designing methods that preserve the dynamics, especially the stability property of fixed points of the approximated differential system. The design of the non-standard finite difference method starts mostly with the concept of exact scheme. A major advantage of having an exact scheme for a differential equation is that questions related to the usual considerations of consistency, stability and convergence do not arise. It is to be noted that any method that is not standard could be considered non-standard. However, in this thesis when we talk about non-standard finite difference schemes, we consider those that are based on Mickens’ methodology and rules as explained in the survey paper [35].

Since the publication of the monograph [26], which is the first book on this exciting topic, several authors have contributed to the study of non-standard finite difference methods. Anguelov and Lubuma [7] provided some mathematical justification for the success of empirical procedures used so far. These authors have unambiguously defined non-standard finite difference methods using two of Mickens’ rules.

The edited volumes [17], [28] and [29] contain a wide range of applications of the non-standard finite difference methods, (for example, mathematical epidemiology, reaction-diffusion equations, non-smooth mechanics, singular perturbation problems, conservation law, etc). In addition to these, we mention the following works where the nonstandard finite difference schemes have shown great potential: [1], [6],

[7], [14] and [26].

For this thesis to be relatively self-contained, we dedicate considerable time to study classical concepts regarding dynamical systems and finite difference methods. In particular, the concept of absolute stability of linear multi-step and Runge-Kutta methods is sufficiently reviewed in view of the elementary stability which is the minimum qualitative property that non-standard finite difference methods must satisfy.

The comment made earlier about the reliable scheme (1.0.5) raises the following concerns which constitute the main focus of the thesis:

*•*

What is a non-standard finite difference method for a dynamical system?

7

*•*

How to construct a non-standard finite difference method for a dynamical system?

*•*

How powerful are non-standard finite difference methods compared to standard finite difference methods that are used for dynamical systems?

*•*

How can numerical methods be viewed as discrete dynamical systems of the continuous dynamical systems they approximate?

*•*

What is the impact of the non-standard finite difference method on concrete examples of dynamical system?

*•*

How does the study carry over to dynamical systems related to partial differential equations for dynamical systems, for example the reaction-diffusion equations?

This thesis elaborates, with extension in some cases, the author’s results in the following papers: [3], [4], [5] and [6].

The thesis is organized as follows: Chapter 2 deals with the review of basic concepts, definitions and notation relating to dynamical systems which we will be using throughout this thesis. Continuous dynamical systems defined by ordinary differential equations are presented in Section 2.2 and their discrete counterparts are discussed in Section 2.3. In each case, we present qualitative properties of dynamical systems that are of interest in our work. These include, inter alia, invariant sets, fixed points, hyperbolic fixed points, linear stability and dissipativity.

In Chapter 3 we introduce finite difference schemes for ordinary differential equations. In Section 3.2, consistency, zero-stability and convergence of finite difference methods are discussed. We give a short presentation of two classical methods, namely, the linear multi-step method in Section 3.3 and the Runge-Kutta method in Section 3.4.

The numerical methods are also required to behave asymptotically, like the solutions of the decay equation. This is the essence of the concept of absolute stability addressed in Section 3.5. In Section 3.6 we consider the numerical methods that define discrete dynamical systems. Finally,

8 the analysis in Section 3.7 is restricted to theta methods, which will be the focus for the rest of this thesis.

The first set of the author’s main contribution in this thesis appear in Chapter 4. Firstly, we extend the classical theta methods. In Section 4.2, we analyse non-standard finite difference schemes that have no spurious fixed-points compared to the dynamical system under consideration, the linear stability/instability property of the fixed-points being the same for both the discrete and continuous systems. We obtain a sharper condition for the elementary stability of the schemes, a topic discussed in Section 4.3. For more complex dynamical systems which are dissipative, we design schemes that replicate this property as presented in Section 4.4. Lastly, in Section 4.5, we consider a specific class of dynamical systems which is equivalent to the simplest model of Hamiltonian systems that occur in classical mechanics. We design a non-standard finite difference scheme that replicates the underlying principle of conservation of energy. Here we use Mickens’ rule about nonlocal approximation of nonlinear terms.

Chapter 5 is dedicated to a detailed analysis of the author’s results given in [6]. Our point of departure is the Fisher equation, in Section 5.2, which enjoys a positivity and boundedness property. Then we move to general reaction-diffusion equations for which we construct non-standard theta methods in Section 5.3. In Section 5.4, we design non-standard finite difference schemes which are elementary stable in the limit case of space independent variable and which are stable with respect to the principle of conversation of energy in the stationary case.

Furthermore, we show that our schemes replicate the positivity and boundedness properties under a more simpler functional relation between the time and space step sizes (compared to the literature).

As an alternative approach, Section 5.5 deals with approximations of the space variable by the spectral method, while the time variable is approximated via non-standard finite difference scheme. This results in what we call coupled spectral and non-standard methods which replicates the essential properties of the exact solutions.

In the last chapter, we provide concluding remarks, and a summary of our findings, a discussion on how our work fits in the literature and

9 possible extensions. Throughout the main chapters of the thesis, we provide numerical tests that support the theory and show superiority and reliability of our schemes compared to the classical ones.
