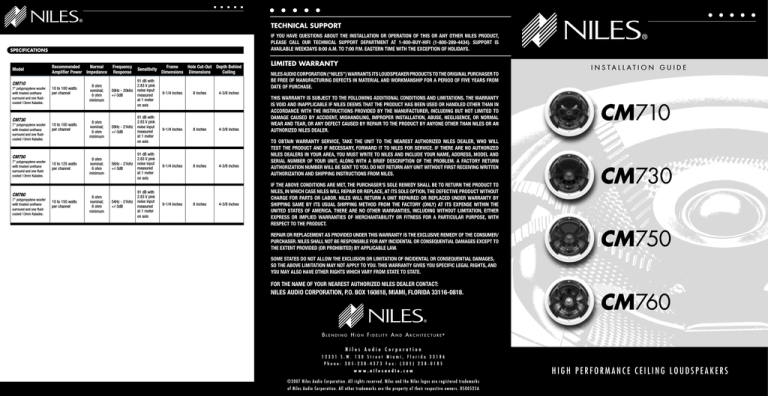

Niles CM750 Main / Stereo Speaker
TECHNICAL SUPPORT IF YOU HAVE QUESTIONS ABOUT THE INSTALLATION OR OPERATION OF THIS OR ANY OTHER NILES PRODUCT, PLEASE CALL OUR TECHNICAL SUPPORT DEPARTMENT AT 1-800-BUY-HIFI (1-800-289-4434). SUPPORT IS AVAILABLE WEEKDAYS 8:00 A.M. TO 7:00 P.M. EASTERN TIME WITH THE EXCEPTION OF HOLIDAYS. SPECIFICATIONS Model CM710 7" polypropylene woofer with treated urethane surround and one ﬂuidcooled 13mm Kaladex. CM730 7" polypropylene woofer with treated urethane surround and one ﬂuidcooled 13mm Kaladex. Recommended Normal Amplifier Power Impedance 10 to 100 watts per channel 10 to 100 watts per channel CM750 7" polypropylene woofer with treated urethane surround and one ﬂuidcooled 13mm Kaladex. 10 to 125 watts per channel CM760 7" polypropylene woofer with treated urethane surround and one ﬂuidcooled 13mm Kaladex. 10 to 150 watts per channel Frequency Response Sensitivity Frame Hole Cut-Out Depth Behind Dimensions Dimensions Ceiling 59Hz - 20kHz +/-3dB 91 dB with 2.83 V pink noise input measured at 1 meter on axis 9-1/4 inches 8 ohm nominal; 6 ohm minimum 59Hz - 21kHz +/-3dB 91 dB with 2.83 V pink noise input measured at 1 meter on axis 9-1/4 inches 8 ohm nominal; 6 ohm minimum 56Hz - 21kHz +/-3dB 91 dB with 2.83 V pink noise input measured at 1 meter on axis 9-1/4 inches 54Hz - 21kHz +/-3dB 91 dB with 2.83 V pink noise input measured at 1 meter on axis 8 ohm nominal; 6 ohm minimum 8 ohm nominal; 6 ohm minimum 9-1/4 inches 8 inches 8 inches 8 inches 8 inches 4-3/8 inches 4-3/8 inches 4-3/8 inches 4-3/8 inches LIMITED WARRANTY NILES AUDIO CORPORATION (“NILES”) WARRANTS ITS LOUDSPEAKER PRODUCTS TO THE ORIGINAL PURCHASER TO BE FREE OF MANUFACTURING DEFECTS IN MATERIAL AND WORKMANSHIP FOR A PERIOD OF FIVE YEARS FROM DATE OF PURCHASE. THIS WARRANTY IS SUBJECT TO THE FOLLOWING ADDITIONAL CONDITIONS AND LIMITATIONS. THE WARRANTY IS VOID AND INAPPLICABLE IF NILES DEEMS THAT THE PRODUCT HAS BEEN USED OR HANDLED OTHER THAN IN ACCORDANCE WITH THE INSTRUCTIONS PROVIDED BY THE MANUFACTURER, INCLUDING BUT NOT LIMITED TO DAMAGE CAUSED BY ACCIDENT, MISHANDLING, IMPROPER INSTALLATION, ABUSE, NEGLIGENCE, OR NORMAL WEAR AND TEAR, OR ANY DEFECT CAUSED BY REPAIR TO THE PRODUCT BY ANYONE OTHER THAN NILES OR AN AUTHORIZED NILES DEALER. TO OBTAIN WARRANTY SERVICE, TAKE THE UNIT TO THE NEAREST AUTHORIZED NILES DEALER, WHO WILL TEST THE PRODUCT AND IF NECESSARY, FORWARD IT TO NILES FOR SERVICE. IF THERE ARE NO AUTHORIZED NILES DEALERS IN YOUR AREA, YOU MUST WRITE TO NILES AND INCLUDE YOUR NAME, ADDRESS, MODEL AND SERIAL NUMBER OF YOUR UNIT, ALONG WITH A BRIEF DESCRIPTION OF THE PROBLEM. A FACTORY RETURN AUTHORIZATION NUMBER WILL BE SENT TO YOU. DO NOT RETURN ANY UNIT WITHOUT FIRST RECEIVING WRITTEN AUTHORIZATION AND SHIPPING INSTRUCTIONS FROM NILES. IF THE ABOVE CONDITIONS ARE MET, THE PURCHASER’S SOLE REMEDY SHALL BE TO RETURN THE PRODUCT TO NILES, IN WHICH CASE NILES WILL REPAIR OR REPLACE, AT ITS SOLE OPTION, THE DEFECTIVE PRODUCT WITHOUT CHARGE FOR PARTS OR LABOR. NILES WILL RETURN A UNIT REPAIRED OR REPLACED UNDER WARRANTY BY SHIPPING SAME BY ITS USUAL SHIPPING METHOD FROM THE FACTORY (ONLY) AT ITS EXPENSE WITHIN THE UNITED STATES OF AMERICA. THERE ARE NO OTHER WARRANTIES, INCLUDING WITHOUT LIMITATION, EITHER EXPRESS OR IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, WITH RESPECT TO THE PRODUCT. REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER/ PURCHASER. NILES SHALL NOT BE RESPONSIBLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES EXCEPT TO THE EXTENT PROVIDED (OR PROHIBITED) BY APPLICABLE LAW. I N S TA L L AT I O N G U I D E CM710 CM730 CM750 SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE. FOR THE NAME OF YOUR NEAREST AUTHORIZED NILES DEALER CONTACT: NILES AUDIO CORPORATION, P.O. BOX 160818, MIAMI, FLORIDA 33116-0818. CM760 BLENDING HIGH FIDELITY AND ARCHITECTURE® Niles Audio Corporation 1 2 3 3 1 S . W. 1 3 0 S t r e e t M i a m i , F l o r i d a 3 3 1 8 6 Phone: 305-238-4373 Fax: (305) 238-0185 www.nilesaudio.com ©200 7 Nile s Audio Cor po ra ti on . A ll r ig h ts re se r ve d. Ni le s an d th e Ni le s lo go s ar e re g ist er ed tra de m ark s of Nile s Audio Corporatio n . All ot h e r tr ade m ar ks ar e t h e pro pe rt y o f t h e ir r esp e cti ve o w n e rs. D S 0 0 5 2 5 A HIGH PERFORMANCE CEILING LOUDSPEAKERS CONGRATULATIONS! Thank you for choosing a CM710, CM730, CM750 or CM760 loudspeaker from Niles. With proper installation and operation, you will enjoy years of trouble-free use. Niles manufactures the industry’s most complete line of custom installation components and accessories for audio/video systems. To see the complete Niles product assortment, visit us on the Internet at: www.nilesaudio.com PACKAGE CONTENTS One pair of CM710, CM730, CM750 or CM760 loudspeakers; 1 pair of Aluminum MicroPerf® Grilles and 1 pair of cardboard paint mask/ hole cutout templates. INSTALLATION CONSIDERATIONS We recommend using the following tools and material to install your Niles CM loudspeaker: • Cordless drill with 1/4 – and 1/2inch drill bits and a 1-inch paddle drill bit (for drilling through studs) • Stiff wire, ﬁsh tape or glow rods for routing cables • Rubber gloves and protective eyewear • Keyhole or drywall saw • Phillips screwdriver set 3. Cut a foot-long piece of coat hanger. Bend the wire (creating a right angle) leaving 5-1/2” at one end (this allows for the extra width of the mounting dogs). Poke the “L-shaped” wire into the pilot hole and turn it in a complete circle and move it into the ceiling cavity to make sure you have approximately 4-3/8” of depth. If the wire’s movement is obstructed by anything, ﬁll the hole(s) with spackle and try another location. 7. Direct the tweeter. (CM730, CM750 & CM760 only) The tweeter is directed by gently pressing on the outer edge of the tweeter housing. It will move up to 20 degrees in any direction. For critical listening, direct the tweeter towards the user’s favorite listening position. For surround sound or low volume background listening, create more reﬂections and thus more ambiance by directing the tweeter towards the sidewalls. (See Figure 4) 4. If the coat hanger moves freely in a complete circle and you have sufﬁcient depth, hold the template up to the ceiling surface. The cardboard square with the circular hole is the template. The inner perforated circle within the larger circle that was removed in step 1 earlier is the paint mask. Keep it for painting the loudspeaker later. Outline the circular cutout on the ceiling surface lightly with a pencil. Drill the starting point of your cut with a 1/4” bit. 8. Set the Treble level control. (CM760 only) Listen to a well-recorded piece of music at the user’s favorite listening position. Listen for treble harshness or ringing, particularly when the loudspeakers are placed in a room without carpet. Use the -3dB Treble cut position to correct. Listen for dull or mufﬂed upper frequencies, particularly when the loudspeakers are installed in an area with thick carpet or fabric wall coverings. Use the +3dB Treble boost position to correct. (See Figure 5) 5. If you are cutting drywall use a sheetrock or keyhole saw, cut the hole with the saw at a 45° angle. That way the drywall section can be replaced cleanly if there is an unseen obstruction behind the wall. 9. Install the MicroPerf™ grille. Start by positioning one edge of the grille slightly inside the loudspeaker. Gently work around the loudspeaker a little at a time until the grille is fully seated. Don’t try to insert the grille fully in any one area, as this will make complete installation more difﬁcult. Don’t force the grille to ﬁt as you may damage the grille if you apply too much force. IMPORTANT: BE VERY CAREFUL NOT TO SAW THROUGH EXISTING WIRES, PIPES, OR STRUCTURE. IF YOU FEEL EXTRA RESISTANCE AS YOU ARE CUTTING, STOP. • Wire stripper NEW CONSTRUCTION INSTALLATION • Stud ﬁnder INSULATING THE WALL CAVITY • Cable ties If feasible, ﬁll the wall cavity with insulation at this point. • Pencil MOUNTING THE NEW CONSTRUCTION BRACKET Before starting the installation, please observe the following precautions: • Turn off all system power before making any connections • Make sure hands are clean before installation • Always wear protective eyewear when using tools • Wear gloves when working with ﬁberglass insulation RUNNING WIRES IN WALLS OR CEILINGS When running loudspeaker wire inside walls or ceilings, use special jacketed cable (a minimum of 18 to 16-gauge two-conductor CL-2 or CL-3 rated loudspeaker wire) to protect the wire and for ﬁre prevention. In some areas, conduit is also required. For a trouble-free installation, low-voltage wire such as loudspeaker wire must be run in accordance with the National Electrical Code and any applicable provisions of the local building code. If you are unsure of the correct installation techniques, wire jacket, or type of conduit to use, consult a professional audio/video installer, building contractor, or the local building and inspection department. SELECTING THE LOCATION FOR YOUR LOUDSPEAKERS The CM700 series loudspeakers are designed to be installed in any standard ceiling. There are two considerations for placing the loudspeaker; ease of running the cable to the loudspeaker and coverage of the loudspeaker. The best stereo effect will be achieved if both the loudspeakers are at equal distance from the listener and closer together than the listener is from the loudspeakers. Avoid installing the loudspeakers near corners to prevent a “boomy” or diffracted sound. The CM700 series loudspeakers will cover an area of a circle with a 16-foot diameter when mounted at an 8-foot height. (See Figure 1) EXISTING CONSTRUCTION INSTALLATION IMPORTANT: BEFORE YOU CUT INTO ANY WALL, REVIEW THE PRIOR SECTION ON LOUDSPEAKER PLACEMENT WHEN SELECTING THE LOCATION FOR YOUR LOUDSPEAKERS. 1. When determining the location of the loudspeaker cutout, keep in mind that the mounting dogs will extend 3/4” beyond the cutout. Make sure that you do not place the edge of the cutout directly next to a ceiling joist. Locate the joists using a stud sensor or by hand knocking. Use the supplied cutout template (remove the largest perforated circle and use cardboard square with hole as the template) to determine how large of a hole you will need to cut. These templates are packed with your loudspeakers between the styrofoam packing and the ends of the box. 2. Once you have determined a possible position for the cutout, drill a 1/8” pilot hole just barely through the ceiling (1/2” to 5/8” deep in most homes) in the center of your proposed loudspeaker location. BE VERY CAREFUL NOT TO DRILL THROUGH EXISTING WIRES, PIPES, OR STRUCTURE. IF YOU FEEL ANY EXTRA RESISTANCE AS YOU ARE DRILLING, STOP. The optional CM700 BKT can be used with the CM710, CM730, CM750 or CM760 loudspeakers. The hole saving bracket enables a faster and cleaner ﬁnal installation of the loudspeaker. It forces the drywall installer to cut out the loudspeaker hole for you and provides wire ties for the loudspeaker wire, reducing the risks of accidental loss or movement of the wire. In addition, it enables you to align your loudspeakers with other ceiling ﬁxtures with great accuracy since you can really see exactly where the loudspeaker will be. To install the bracket, ﬁrst pivot the long wing out until it stops, which will be in straight line with the short wing. The wings and brackets have centering lines to simplify placement of the loudspeakers. Screw one side of the assembled bracket with wings to the joist using one of the supplied screws. Level the bracket. Screw the other side of the bracket/wing assembly to the joist. Two screws on each side make for a very secure installation. Secure the wire to the bracket using bracket’s wire tie tab. The drywall installers will cut the drywall to the exact size of the bracket. (See Figure 2) 10. Connect the other end of each loudspeaker wire to the receiver (or ampliﬁer) carefully observing polarity. 11. Turn on the receiver or ampliﬁer and test all loudspeakers in the system. PAINTING THE GRILLE AND FRAME Each CM710, CM730, CM750 & CM760 loudspeaker and ﬂush-mount metal grille may be painted without the need for primer. 1. Install loudspeaker into ceiling or wall following the previous steps 1 - 7. 2. Remove the smallest perforated circle from the cardboard square template. This is the paint mask that protects the loudspeaker from paint. Gently press it into place inside the bafﬂe. 3. Paint the frame of the loudspeaker. 4. Paint the grille separately from the loudspeaker frame. For best results when painting the grille, use a spray gun or airless sprayer. Thin the paint to prevent clogging of the grille holes and apply several light coats instead of one heavy one. 5. Gently remove the paint mask after paint has dried by pressing in the tab in the center and carefully pulling out the mask with your ﬁnger. Be very careful not to poke the tweeter with your ﬁnger. 6. Finish installation of the loudspeaker following the previous steps 8 –10. CONCEALING LOUDSPEAKER WIRE FOR A FUTURE INSTALLATION Attach the loudspeaker wire in a loop between the ceiling joists and carefully mark the exact location of the wire on a set of plans. Ask the general contractor to inform the drywall installers that the loudspeaker wire loops are concealed for future installations. UNPACKING AND FINAL INSTALLATION 1. Remove the top piece of stryofoam from the box. You will ﬁnd two loudspeakers bagged in a lower portion of packing. Remove the loudspeaker from the bag. The metal grille is installed on the loudspeaker and will need to be removed. This is easily done by rotating the mounting ‘dogs’ out with your ﬁngers and pulling them towards the front of the loudspeaker. This will push the screw heads against the inside of the grille to work it out of the bafﬂe. (See Figure 3) 8' 4' 8' 2. At each loudspeaker location, route the wire to the input connectors, then separate the loudspeaker wire so that at least 2 inches of each conductor are free. Strip away 1/4 inch of insulation from each individual loudspeaker wire. 3. Press down each spring-loaded connector one at a time, insert the appropriate conductor and then release the connector. Check to be sure that the connector is making contact with stripped wire and not the wire jacket. Gently tug on the loudspeaker wire to make sure it is held in place. If not, repeat this procedure until it is. Figure 1. Typical placement for stereo listening. Figure 2. New construction bracket. IMPORTANT: OBSERVE CORRECT POLARITY: POSITIVE (+) GOES TO THE RED POST AND NEGATIVE (–) GOES TO THE BLACK POST. 4. Rotate dogs back to their original positions so that they do not protrude out from the diameter of the loudspeaker. 5. Insert the loudspeaker into the hole by carefully holding it with both hands and angling it slowly into the hole until the frame is ﬂush with the ceiling. Holding it in place carefully with one hand, (do not push against the woofer or tweeter) use a cordless drill to begin mounting the loudspeaker. 6. Tighten the four screws using a #2 Phillips bit. Use low torque and low speed or you may damage the loudspeaker. This should pull the frame and mounting dog together (sandwiching the drywall) so that the frame is absolutely ﬂush with the wall surface. There should be no gaps between the wall and the frame. IMPORTANT: DO NOT OVER TIGHTEN THE SCREWS! OVER TIGHTENING THEM MAY MAKE THE GRILLE DIFFICULT TO INSTALL TREBLE -3 Figure 3. Mounting “dog” rotation. Figure 4. Tweeter adjustment. 0 +3 Figure 5. Treble Level Control.
