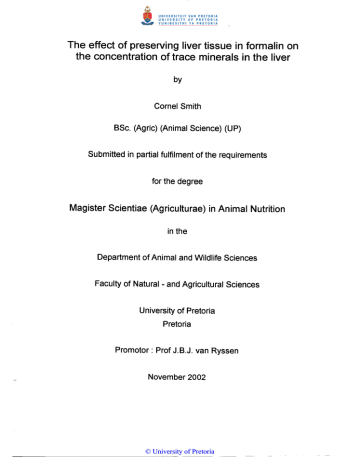

The effect of preserving liver tissue in formalin on

The effect of preserving liver tissue in formalin on

The effect of preserving liver tissue in formalin on the concentration of trace minerals in the liver

by

SSe. (Agric) (Animal Science) (UP)

Submitted in partial fulfilment of the requirements for the degree

Magister Scientiae (Agriculturae) in Animal Nutrition

Department of Animal and Wildlife Sciences

Faculty of Natural - and Agricultural Sciences

University of Pretoria

Pretoria

Promotor: Prof J.B.J. van Ryssen

© U n i i v e r r s s i i t t y o f f P r r e t t o r r i i a

I declare that this thesis for the degree Magister Scientiae (Agriculturae) at the University of Pretoria has not been submitted by me for a degree at any other university.

Acknowledgements

First, I would like to give thanks to my Heavenly Father.

"Commit thy way unto the Lord; trust also in him; and he shall bring it to pass.

11

Ps

37: 5

I wish to thank the following people without whom the successful completion of this study would not have been possible:

Prof J.B.J. van Ryssen, my promoter from the Department of Animal and

Wildlife Sciences at the University of Pretoria, for his guidance, interest, help and support which led to the successful completion of this study.

Mr E.B. Spreeth and Ms G. Smit from the Department of Animal and Wildlife

Science at the University of Pretoria for their assistance and advice with the laboratory procedures.

Mr R.J. Coertze and Prof H. Groeneveld for their assistance and advice concerning the statistical analysis of the data.

My parents, the Lotz's, the Nell's and especially Lisa Riback, Hester Hill and

Annelize van der Baan, for all their love, support, understanding and encouragement during my studies.

Table of contents

Chapter 1: Literaturestudy

1.1

Metabolismof trace elements

21

21

1.1.1 Absorption 21

1.1.2 Distributionof trace elementsbetweentissues and organs

21

1.1.3 Excretion 22

1.1.4 Animal reserves 22

1.2

The three important principalsof biochemicaldiagnosis: relationshipwith intake,time and function

1.2.1 Relationshipwith trace elementintake

1.2.2 Relationshipto time

1.2.3 Relationshipto function

23

23

25

25

1.3

Interpretationof biochemicalcriteriaof trace elementstatus

26

1.3.1 Copper 26

1.3.2

Cobalt

1.3.3

Selenium

1.3.4

Zinc

27

29

30

1.3.5

Manganese 30

1.3.6

Biochemical values used to assess the trace element nutrition of sheep

32

1.4

Traceelementdispersion within a liver

1.5

Formalin preservation

33

39

1.6

Prolongedstorage

1.7

Useof glass and plastic bottles for storage

1.8

Blenders used for homogenisation

49

55

57

1.9

Traceelementanalysis by atomic absorption spectrophotometry

57

1.10 Moisturecontent of fresh and formalinised livers 58

1.10.1 Dispersion of moisture within a fresh liver 58

1.10.2 Dispersion of moisture within a formalin-preserved liver

59

1.11 Evaluationof ethanol basedfixatives as a substitute for formalin

Chapter2: Materialsand methods

2.1

Introduction

2.2

Experimentalmaterial

2.3

Preparation

2.4

Laboratory analysis

2.5

Statistical analysis

60

61

61

61

61

63

66

Chapter3: Results 67

3.1 Manganese,Zn, Co, Cu and Se concentrationsin liver samples

3.1.1 Manganese

3.1.2 Zinc

67

68

3.1.3 Cobalt

3.1.4 Selenium

3.1.5

Copper

69

70

71

72

3.2 Manganese, Zn, Co, Cu and Se concentrations in formalin

3.2.1 Manganese

3.2.2 Zinc

3.2.3 Selenium

3.2.4 Cobalt

73

74

75

3.2.5 Copper

3.3 Dry matter

%

in formalinised and fresh liver

75

76

76

77

List of Figures

Figure 1.2.1 Schematic representation of the relationship between direct and indirect biochemical markers of trace element status in blood or tissues and the intake of the element at a fixed time 23

Figure 1.2.2 Schematic representation of the relationship between direct and biochemical markers of trace element status in blood or tissues and the duration of a dietary deficiency 24

Figure 1.4.1 Diagram of the area of the liver from which biopsies were taken

33

Figure 1.4.2 Distribution of copper throughout the liver of an eight week old pig 35

Figure 1.4.3 Distribution of copper throughout the liver in relation to the positions of the caudal, dorsal and ventral lobes for: new-born lambs (a) and (b), four-tooth ewes (c) and (d), and an aged ewe

(e)

35

Figure 1.4.4 Diagram of a sheep liver showing the sites from which samples were taken for analysis 38

Figure 1.6.1 Mean Pb concentrations of frozen and formalin-fixed livers and kidneys of 8 raccoons administered oral Pb acetate 53

Figure 3.1.1 Mean manganese concentration (mg/kg DM) in livers preserved in formalin for different periods of time 68

Figure 3.1.2 Mean zinc concentration

(mg/kg

OM) in livers preserved in formalin for different periods of time

69

Figure 3.1.3 Mean cobalt concentration

(mg/kg

OM) in livers preserved in formalin for different periods of time

70

Figure 3.1.4 Mean selenium concentration (ng/g OM) in livers preserved in formalin for different periods of time

71

Figure 3.1.5 Mean copper concentration

(mg/kg

OM) in livers preserved in formalin for different periods of time

72

Figure 3.2.1 Mean manganese concentration

(mg/l)

in formalin after one month, three months and six months of preservation of liver in formalin

74

Figure 3.2.2 Mean zinc concentration

(mg/l)

in formalin after one month, three months and six months of preservation of liver in formalin

75

Figure 3.2.3 Mean selenium concentration (ng/ml) in formalin after one month, three months and six months of preservation of liver in formalin

Figure 3.2.4 Mean cobalt concentration (mgll) in formalin after one month, three months and six months of preservation of liver in formalin

76

Figure 3.2.5 Mean copper concentration (mgll) in formalin after one month, three months and six months of preservation of liver in formalin

76

List of Tables

Table 1.1.1

Distribution of Cu, Fe, Mn, Mo, Se, and Zn between various organs and tissues of a 40 kg sheep with a 3 kg fleece

22

Table 1.3.1

Biochemical values used to assess the trace element nutrition of sheep

Table 1.4.1

The deviation of iron values in different parts of the liver

34

Table 1.4.2

Copper concentrations in samples taken at different depths from top surface

Table 1.4.3

The mean concentrations of copper, vitamin B12and zinc in six livers of sheep

Table 1.5.2

Mean (s.e.) concentrations of selenium in fresh, frozen and formalin-fixed porcine liver 0 - 28 days after collection

41

Table 1.5.3

Liver copper analysis on goats with neurological and other diseases

Table 1.5.4

Effects of fixation of liver tissue in formalin solution on weight and copper analysis 42

Table 1.5.5

The influence of the storage of liver tissue for

24 h in buffer or formalin on the iron content 44

Table 1.5.6

Influence of storage in different solutions on the iron content of liver (normal) tissue 45

Table 1.5.7

Influence of storage in different solutions on the iron content of liver (Secondary Hemochromatosis) tissue 45

Table 1.6.1

Comparison of mineral levels after six weeks and six months

49

Table 1.6.2

The mean results

± s.d. as founded by Bratton et al. (1984)

50

Table 1.6.3

Zn, Fe and Cu concentrations in frozen and formalin-fixed kidney and liver 51

Table 1.6.4

Tissue lead concentrations in frozen and formalin-fixed liver and kidney of eight raccoons administered oral lead acetate

53

Table 1.7.1

Trace element content of materials that are frequently used for construction of animal accommodation and for sample collection

55

Table 1.10.2

Dispersion of moisture within a formalin-preserved liver

59

59

Type analysis of 40 % formaldehyde solution (AC-grade)

62

Table 3.1.1

Mean (±s.e.) for Mn, Zn, Co, Cu (mg/kg) and Se (ng/g) concentration in livers after preservation in formalin over different time periods (DM basis) 67

Table 3.2.1

Determination of Se concentration in formalin that was wet ashed and formalin that was centrifuged from the same sample

73

Table 3.2.2

Mean (±s.e.) for manganese, zinc, cobalt, copper (mgll) and selenium (ng/ml) concentration in formalin after preservation of livers over different time periods 74

Table 3.3.1

Mean (±s.e.) for dry matter % in fresh and formalinised liver over different time periods 76

List of Abbreviations

mg/kg mg kg mg/I milligrams/kg milligram kilogram milligramsllitre litre g

ng/ml

Definition of terms

Deficient: Levels at which clinical or pathological signs of deficiency should be apparent (Underwood

&

Suttle, 1999).

Marginal: Levels at which subclinical effects may prevail, such as reduced immune response, or reduced growth rate

(Underwood

&

Suttle, 1999).

Adequate: Levels sufficient for optimum functioning of all body mechanisms with a small margin of reserve to counteract commonly encountered antagonistic conditions

(Underwood & Suttle, 1999).

High:

Toxic:

Levels well above normal but not necessarily toxic

(Underwood

&

Suttle, 1999).

Levels at which subclinical, clinical or pathological signs of toxicity would be expected to occur (Underwood

&

Suttle, 1999).

Normal: Used where deficiencies are unknown, indicates normal background levels (Underwood

&

Suttle, 1999).

Abstract

The effect of preserving liver tissue in formalin on the concentration of trace minerals in the liver

Animal and Wildlife Sciences,

Faculty of Nature and Agricultural Sciences,

University of Pretoria

Magister Scientiae (Agriculturae) (Animal Nutrition)

The concentrations of trace minerals (Mn, Cu, Co, Zn and Se) were examined after formalin preservation of 31 sheep and 5 impala livers over differing storing periods (one month, three months and six months). Under field conditions liver samples are often preserved in formalin until micro mineral analysis in the laboratory.

Analyses of trace minerals, expressed on dry basis, were done using atomic absorption spectrophotometry after wet ashing of the liver.

After one month of preserving of livers in formalin, the Mn concentration was significantly (P<O.05) lower than the concentration in fresh liver. It was found that at three months of preservation of livers in formalin the Zn and Co concentration were significantly (P<O.05) higher and the Mn and Cu concentration were significantly (P<O.05) lower compared to the concentration in fresh liver.

The Mn, Co and Cu concentrations were significantly (P<0.05) lower after six months of storage in formalin compared to fresh liver. The difference in the concentration between fresh liver and liver stored in formalin was small. It would not have any effect on the interpretation of the relative mineral concentration.

Mineral determinations using atomic absorption spectrophotometry was also done on the formalin in which the liver was preserved.

There was a significant (P<0.05) increase in the mineral concentrations from pure formalin to formalin in which liver was stored for all the time periods. This was probably due to leaching of the minerals.

An additional investigation was also done to determine if there was a difference between the dry matter % of fresh (90.73 % DM) and formalinised

(92.1 % DM) liver. The dry matter % increased significantly (P<0.05) from fresh liver to liver that was preserved in formalin for all the time periods.

Samevatting

Die invloed van die preservering van lewer weefsel in formalien op die konsentrasie van mikro-minerale in die lewer

Vee- en Wildkunde,

Fakulteit van Natuur- en landbouwetenskappe,

Universiteit van Pretoria

Die invloed van die preservering van 31 skaap en 5 impala lewers in formalien oor verskillende peri odes (een maand, drie maande en ses maande) op mikromineraal konsentrasies (Mn, Cu, Co Zn and Se) in die lewer, is ondersoek. Onder veldtoestande word lewer monsters algemeen gepreserveer in formalien tot wanneer dit in die laboratorium geanaliseer kan word.

Die mineraal bepalings, uitgedruk op In draa basis, is gedoen met behulp van atoom-absorpsie spektrofotometrie nadat nat verassing op die lewer gedoen is.

Die Mn konsentrasie was betekenisvol (P<0.05) laer in die lewers wat gepreserveer is in formalien vir een maand in vergelyking met die Mn konsentrasie in vars lewers. Na drie maande van preservering van lewers in formalien was die Zn en Co konsentrasies betekenisvol (P<0.05) hoar en die

Mn en Cu konsentrasies betekenisvol laer as die konsentrasies in vars lewer.

Die Mn, Co en Cu konsentrasies was betekenisvol (P<0.05) laer na ses maande van preservering van lewer in formalien. Die verskil in die konsentrasie tussen vars lewer en lewer wat in formalien gepreserveer is, was klein. Dit sal geen invloed he op die interpretasie (of die mineraalvlak toksies is en of daar "n tekort is) van die betrokke mineraal konsentrasie nie.

Mineraal bepalings op die forma lien waarin die lewer gepreserveer was, is ook gedoen deur middel van atoom-absorpsie spektrofotometrie.

Daar was "n betekenisvolle (P<0.05) toename in al die minerale konsentrasies vanaf suiwer formalien na formalien waarin lewer gepreserveer is vir al die tydperke.

Dit was moontlik a.g.v. loging van die minerale.

"n Verdere ondersoek is ook gedoen om te bepaal of daar "n verskil was tussen die droa materiaal % van vars lewer (90.37 % DM) en lewer wat gepreserveer was in formalien (92.1 % DM). Die droa materiaal % het betekenisvol toegeneem vanaf vars lewer na lewer wat in formalien gepreserveer is, vir al die tydperke.

Introduction

'Most of the trace minerals can be measured accurately some of the time.

Some of the trace minerals can be measured accurately most of the time.

Most of the trace minerals are not measured accurately most of the time.

I

(Mertz, 1987).

The liver has been analysed for trace minerals more often than any other internal organ, mainly since variations in dietary uptake are more readily reflected in the liver, which acts as the main storage organ for some of the minerals (Theron

et al., 1973).

It has received special attention as a sample source, because the liver is the body's metabolic centre, and most minerals are integral portions of metalloenzymes, which serve as catalysts for metabolic processes (Boyazoglu,

1976). Hepatic concentrations of trace minerals are commonly used to estimate trace mineral storage pools because dietary intake is rarely available and nutrient interactions affect availability or retention (Thomas et aI., 1994).

The liver is the main storage organ for copper and its copper concentration has been found to vary enormously (Widdowson & Dickerson, 1964). Low levels of the copper in the livers of cattle are the result of a primary deficiency, when the diet is inadequate, or a secondary (conditioned) deficiency, when the dietary intake is sufficient, but the utilization of the copper is impeded for example, by the interaction of molybdenum and sulphate (Ehret

et al., 1975).

Manganese is not concentrated in any particular organ or tissue. The concentrations in the liver are, however, higher than most other tissues and can be raised or lowered with varying manganese intake. The manganese storage capacity of the liver is limited when compared with the remarkable capacity of this organ to accumulate iron and copper (Widdowson &

Dickerson, 1964; Ehret

et al., 1975).

The capacity of the animal to store zinc in any of its organs other than bones, is extremely limited so that animals do not normally carry large reserves of zinc. However, as a zinc deficiency develops, there is usually, but not invariable, a small decline in the concentration of zinc in the liver and certain other tissues (Underwood, 1966). High dietary levels of zinc give rise to large increases in bovine liver zinc concentrations (Ehret et al., 1975).

Ehret et al. (1975) investigated the effect of formalin storage, over different time periods, on the copper, iron, manganese, zinc and magnesium concentrations in bovine livers. Theron et al. (1974) found no statistically significant differences for Cu, Fe, Mn, Zn and Mg concentrations after 22 days of formalin preservation.

The concentrations of Cu, Fe and Mg were also not affected by storage for six months in formalin, but statistically significant differences were detected in the concentrations of manganese and zinc after six months (Theron et aI., 1974).

Sullivan et al. (1993) found that tissue concentrations of Se and Cu remains unchanged by formalin-fixation and that the analysis of formalin-fixed tissues for diagnostic purposes can be recommended for Se and Cu.

Only a few studies have been done on this subject and under field conditions liver tissues are often preserved in formalin before trace mineral analysis in the laboratory. The aim of this investigation was to determine if the copper, cobalt, manganese, zinc and especially selenium concentrations in fresh and formalinised liver, from the same liver sample, differ significantly and if they are giving the same interpretation.

Chapter 1: Literature Study

1.1.1 Absorption

A major site for the absorption of the trace elements is the small intestine, with a net absorption of Cu, Fe, Mn and Zn from the large intestine also being reported (Grace & Clark, 1991).

The amount absorbed is influenced by the physiological status of the animal, mineral intake and dietary factors. During growth, pregnancy, and lactation, the demands for trace elements increases (Grace & Clark, 1991).

For many of the trace elements, such as Fe, Mn and Zn, the efficiency of absorption is inversely related to the mineral status of the animal, as homeostatic mechanisms operate to prevent the excessive absorption and tissue accumulation of the trace element. An exception is the liver, which acts as a store for Cu and vitamin

812

On the other hand there appears to be little control over the amount of Se absorbed, as blood and tissue Se levels reflect the intake of Se (Grace & Clark, 1991).

Dietary factors can greatly influence the absorption and utilization of trace elements. Interactions arise when elements of similar physical and chemical properties act as antagonists in biological systems. For example, when interactions occur between elements and lead to the formation of insoluble complexes (Grace & Clark, 1991).

1.1.2 Distribution of trace elements between tissues and organs

Trace elements are transported in the blood and stored in tissues in association with proteins and amino acids.

\to ~~~

q

IS L\

bpSbb<b~~X

Table 1.1.1

Distribution of Cu, Fe, Mn, Mo, Se, and Zn between various organs and tissues of a 40 kg sheep with a 3 kg fleece a

Body part

Brain

Lung

Heart

Cu

0.15

0.75

0.45

Spleen

Kidney

Pancreas

Liver

Blood

0.04

0.31

0.04

65.12

1.68

Digestive tract

2.13

Muscle

Bone

Skin

Wool

11.56

0.88

2.87

14.02

Fe

0.08

2.53

0.42

0.54

1.04

0.06

3.99

37.52

7.32

24.59

9.45

7.72

4.77

Mn

0.11

0.32

0.20

0.07

0.58

0.38

11.97

0.54

20.02

7.88

5.24

13.24

39.45

-

Mo

0.10

2.71

0.15

0.15

2.94

0.26

62.20

5.25

9.16

10.86

2.04

4.18

Se

0.46

2.63

0.99

0.48

6.55

0.46

4.40

8.57

10.08

33.51

7.30

7.16

17.41

Zn

0.07

0.46

0.16

0.09

0.16

0.05

1.55

1.64

2.48

32.15

11.88

2.87

46.44

1.1.3 Excretion

The major route of excretion for most trace elements is the faeces, with smaller amounts being lost via the urine. Many of the trace elements such as

Cu, Fe, Mn, and Zn are returned to the digestive tract via the saliva, bile, pancreatic juice and other intestinal secretions. The quantities of trace elements secreted in the digestive tract together with the amounts associated with the spent mucosal cells lining the gut, contribute to the faecal trace element endogenous loss (Grace & Clark, 1991).

1.1.4 Animal reserves

Animals have the ability to accumulate reserves of minerals during times of adequacy and to utilize these reserves during times of deficiency.

Reserves of Cu and vitamin

812 in liver, Se in muscle and liver and Ca and P in bone reduce the need to meet the daily requirements of these nutrients.

For other minerals, the animal has limited tissue reserves (e.g. Mn and Zn) or limited readily available reserves (e.g. Mg) and hence is at risk of transient deficiencies in these minerals (Judson & McFarlane, 1998).

1.2 The three important principals of biochemical diagnosis: relationship with intake, time and function t

A

Figure

1.2.1 Schematic representation of the relationship between a direct biochemical marker of trace element status in blood or tissues and the intake of the element at a fixed time. A and 8 denote alternative hypothetical points at which the animal's requirement for the element is just met (Suttle, 1986)

1.2.1

Relationship with trace element intake

The relationship between the tissue concentration of a 'direct' (Le. traceelement based) marker and the intake of the element will generally be sigmoidal in shape (Fig. 1.2.1) and the important point on the curve is the intake at which the animal's requirement for the trace element is passed.

For several markers of trace element status, the position on the X-axis at which the requirement is passed coincides with the end of the lower plateau of the response in marker concentration (A. Fig. 1.2.1). Under these conditions the marker is an excellent index of surfeit and the extent of body reserves but an insensitive index of a deficiency of the nutrient. If requirement is passed at

8 at the beginning of the upper plateau, however, the marker is a poor index of surfeit but a good index of deficiency. This first principal allows direct markers to be divided into 'storage' and 'non-storage' types, corresponding to

A and 8 respectively (Suttle, 1986).

Figure 1.2.2 Schematic representation of the relationship between direct and biochemical markers of trace element status in blood or tissues and the duration of a dietary deficiency (Suttle, 1983). Two types of response in blood components are indicated, rapid exponential and slow linear (Suttle, 1986)

1.2.2 Relationship to time

A second principal allows 'non-storage' criteria to be divided into indicators of acute and chronic deficiency. Two types of relationships can be distinguished, a rapid early decline in marker concentration followed by a plateau (c) and a slow linear rate of decline (d) (Fig. 1.2.2). Markers showing slow linear responses (d) will be good indices of chronic deficiency but bad indices of acute deficiency because they can't respond quickly enough. Conversely, the marker showing a rapid early decline (c) will be a good index of acute deficiency but a poor indicator for chronic deficiency if the low plateau is reached before functions are impaired. Those biochemical criteria which are based on metallo-enzyme or metallo-protein concentrations in erythrocytes are of type d because the marker is incorporated into the erythrocyte before its release into the bloodstream and thereafter its half-life is determined by that of the erythrocyte (150 days or more). Metallo-enzymes or metalloproteins in the plasma, which have short half-lives, provide markers of type c

(Suttle, 1986).

1.2.3 Relationship to function

The development of a deficiency can be divided into 4 phases, depletion, deficiency (marginal), dysfunction and disease (Fig. 1.2.2). During the depletion phase there is a loss of trace element from any storage sites such as the liver and the plasma concentrations of the trace element may remain constant. Eventually, however, there are departures from normality and concentrations of the nutrient in the circulation may decline during the second phase of marginal deficiency. It may be some time before the concentrations or activities of trace-element-containing enzymes in the tissues begin to decline and it is not until this happens that the phase of dysfunction is entered. There may be a further lag before the changes in cellular function are manifested as clinical signs of disease. Biochemical criteria can be divided, according to the phase during which they change, into indicators of marginal deficiency and dysfunction. Few 'direct' markers are reliable indicators of dysfunction and for this purpose indirect markers, that reflect metabolic disturbance, are often needed (Suttle, 1986).

1.3.1.

Copper

Low intakes of available Cu by ruminants are usually accompanied by an exponential decline in hepatic Cu reserves. Under severe Cu depletion, total liver copper declines by ± 50 % every 25 to 50 days (Bremmer & Mills, 1981).

While the rate of release of hepatic Cu is normally sufficient to maintain plasma Cu within the normal range until liver Cu falls below 30 mg Cu/kg OM

(dry matter), exceptions to this has been noted (Mills, 1987).

Copper is distributed evenly throughout the liver. It does not accumulate in the fetal liver of sheep to the same extent as in the fetal liver of cattle. Levels increase towards the end of gestation, and are equal to dams levels on a dry weight basis (Puis 1994).

Liver Cu concentrations are undoubtly a 'storage criterion' that indicates the state of depletion rather than deficiency (Suttle, 1986). There is no experimental basis for selecting a particular threshold for liver Cu concentration below which the performance and health of grazing livestock are likely to be impaired. There are probably wide bands (0.08 to 0.32 mmol

Cu/kg liver OM), which can coincide with the marginally deficient state.

Generally, Cu concentrations of below 20 - 30 mg Cu

I

kg liver OM and of <

0.5 mgll plasma are used to indicate a Cu deficiency (Van Ryssen, 1997).

Low levels of Cu in the livers of cattle are the result of a primary deficiency, when the diet is inadequate, or a secondary (conditioned) deficiency when the dietary intake is sufficient, but the utilization of the copper is impeded, for example by the interaction of molybdenum and sulphate (Ehret et al., 1975).

Copper concentrations in organs that do not store the element may be more helpful, decreasing only when the phase of dysfunction is approached. (Suttle,

1986; Van Ryssen, 1997).

An increase in the Cu concentrations in the kidney cortex above 0.4 mmollkg

OM indicates the likelihood of toxicity because values are normally kept within the narrow range of 0.2 to 0.3 mmollkg OM (Suttle, 1986; Wooliams et aI.,

1986). It is thus possible that concentrations below 0.2 mmol/kg OM in the kidney may be a more reliable indicator of dysfunction or disorder than some arbitrary selected liver Cu concentration (Suttle, 1986).

The short half-life of the principal cupro-protein in blood plasma, caeruloplasmin, makes it a good indicator of acute Cu deficiency, but the many reports of hypocuraemic animals with no impairment of health or growth show that hypocupreamia generally indicates marginal deficiency and not dysfunction (Suttle, 1986).

The concentration of superoxide dismutase in the erythrocytes might give information on the state of dysfunction because it continued to show a linear decline after plasma Cu had reached a minimal concentration during chronic

Cu deficiency in sheep and cattle (Suttle & McMurray, 1983; Suttle, 1986).

1.3.2

Cobalt

Cobalt is an essential trace element in the diet of ruminants. It is required for the synthesis of vitamin

812

(cobalamin) by ruminal microorganisms.

Vitamin

812 constitutes the essential functional core of enzymes involved in propionate utilization and methyltransfer processes (Mills, 1987).

The concentration of Co in the livers of sheep and cattle is sufficiently responsive to changes in Co intake to assist in diagnosing disorders in the field, provided that care is taken during analysis. The assay of Co in liver by

AAS is susceptible to interference from high Fe concentration (Puis 1994).

The liver usually has the highest concentrations of cobalt and is the principal storage organ for vitamin

812

(Smith, 1987).

Under experimental conditions, the relationship between Co and vitamin

812 in sheep liver has been studied (Andrews et al. 1959; Andrews et al. 1960).

They found that Co concentrations reflect vitamin

812 concentrations only within limits and have limited diagnostic value (Andrews et aI., 1959; Andrews

et al. 1960). The Co concentration in tissues is not of much value to indicate the vitamin

812 status of an animal (Van Ryssen, 1997). Studies of liver

Vitamin

812 concentrations of animals in various stages of Co deficiency and of the proportion of the total liver Co present as the vitamin indicate that vitamin

812 concentrations are a more sensitive and reliable criterion of adequacy. The relationship between liver Co and liver vitamin

812 is curvilinear with a wide scatter at high liver Co concentrations, but the two correlate linearly and well over the lower liver Co concentrations, which have diagnostic significance (Underwood & Suttle, 1999).

The concentration of Vitamin

812 in liver and plasma is useful but include inactive analogues of cobalamin. Most probably, liver vitamin

812, like serum vitamin

812 in the sheep, shows a storage type of response to Co supply and that neither is a sensitive index of deficiency (Suttle, 1983).

McMurray et al. (1986) suggested that the use of MMA increases the precision of diagnosing Co deficiency in ruminants, compared with the use of vitamin

812 analyses alone. Diagnosis is best made by the determination of both plasma

812 and MMA. Serum

812 levels drop below adequate some weeks before MMA levels increase (Puis 1994). A functional dimension can be introduced by reference either to the impaired metabolism of methylmalonic acid (MMA) (Gawthorne, 1968; Suttle, 1986) which is due to a deficiency of the adenosylcobalamin coenzyme which assists the isomerisation of MMA, or to whole body function as reflected by growth rate.

McMurry et al. (1986) have presented more extensive information that confirms the likelihood of abnormally high MMA concentrations in plasma increases when serum vitamin

812 values fall below 220 pmolli. Furthermore,

MMA increased before clinical signs of disease, like a reduction in body weight and photosensitization, were seen.

1.3.3.

Selenium

The common method of assessing Se status has been the analysis of whole blood since the principal Se-containing constituent of blood is the selenoenzyme, glutathione peroxidase (GPX), present in the erythrocytes.

Whole blood Se and erythrocyte glutathione peroxidase concentrations are normally highly correlated and can serve the same diagnostic purpose

(Anderson et al., 1979; Suttle, 1986). Selenium concentrations and GPX activities in tissues, such as muscle and liver, reflect dietary Se supply and may correlate well with concentrations in blood, depending on the duration of deprivation. Most of the Se in liver is in the storage form, GPX1, reductions in concentration thus reflect depletion more than deficiency (Underwood &

Suttle, 1999).

The range of Se concentrations in whole blood and liver, which is useful to indicate Se status of animals, is much wider than that of the commonly used

Se concentration in serum or plasma. The GPX activity in erythrocytes is useful, but the analytical technique is difficult to standardize among laboratories (Van Ryssen, 1997).

In the study of Van Ryssen et al. (1998) the liver showed the greatest reaction of all the tissues that have been investigated (whole blood, plasma, hart, liver, kidneys and muscle). It was concluded that changes in the bio-availability of

Se was best reflected in the liver (Van Ryssen et al., 1998).

The simple threshold Se values can not be used universally because adequacy will depend firstly, upon the extent to which vitamin E substitutes for

Se in providing protection from oxidant stress, and secondly, upon the severity of that stress (Suttle, 1986).

1.3.4 Zinc

Most Zn tissue concentrations are of little value in predicting the Zn status of animals (Van Ryssen, 1997; Underwood & Suttle, 1999). At a severe deficiency the Zn concentration in plasma will be < 0.4 mg Zn

II

(Van Ryssen,

1997). Fetal liver Zn is normally 40-80 ppm on a wet weight basis. Levels seem to decrease from 100-200 ppm at 80-90 days to 30-60 ppm on a wet weight basis at 130-140 days gestation (Puis 1994).

However, many factors other than the Zn intake can affect the plasma Zn concentration (stress, physiological stage of animal, infection and injuries).

Alkaline phosphatase activity in plasma can also be used to indicate a Zn deficiency, but its activity is also affected by other factors (Van Ryssen, 1997).

The capacity to store Zn in any of its organs other than bones is extremely limited so that animals do not normally carry large reserves of zinc. Liver Zn is elevated by Cu excess (Puis 1994). As the deficient state develops, there is usually a small decline in the Zn concentration of most soft tissues, but the fall can be greater in pancreas and porcine liver (Underwood & Suttle, 1999).

Maternal hepatic Zn may be an insensitive measure of Zn stores available for delivery to peripheral tissues. Either hepatic or plasma metallothionein has been suggested to better reflect Zn status than liver or plasma Zn levels and may be a better measure of Zn status through gestation (Graham et al.,

1994).

1.3.5 Manganese

Lambs are born with moderate liver stores from 1.0-2.0 ppm Mn on a wet weight basis. Manganese homeostasis may break down with prolonged excessive dietary intake leading to very high liver levels (Puis 1994).

Manganese deficiency is uncommon under farm conditions although an Mn deficient diet usually results in a lowering of the limited amount stored in the body, located mainly in the bones and to a smaller extent in the liver. The manganese concentrations in blood, bones, hair and liver decline only slightly in animals deprived of manganese. Liver manganese is frequently measured, because it is the richest of the tissues in manganese, but it showed no significant change in concentration, whereas heart and lung both showed significant depletion from far lower maximal concentrations.

Plasma Mn fell significantly from 2.74 - 1.85 nglml in animals deprived of manganese

(Underwood & Suttle, 1999).

The liver levels of Mn are useful but not exactly reliable indicators of Mn deficiency, except when the deficiency is severe (Underwood, 1966; Ehret et

al., 1975). The concentrations in the liver are higher than most other tissues and can be increased or decreased with varying Mn intake (Ehret et al.,

1975).

No reliable tissue analysis exists to indicate the Mn status of an animal (Van

Ryssen, 1997).

1.3.6 Biochemical values used to assess the trace element nutrition of sheep

Table 1.3.1

Biochemical values used to assess the trace element nutrition of sheep [1] (Caple & McDonald, 1983)

Mineral Indicator Nutritional status

Deficient Marginal Adequate

Cu

Se

Co

Plasma ceruloplasmin <5

(U/I)

Plasma Cu (mgCu/l) <0.3

<200 Erythrocyte Cu superoxide dismutase

(U/g Hb)

Liver Cu (mgCu/kg dry weight)

Blood gluthathione peroxidase (IJmole

NaDPH oxidized/min.lgHb)

<10

<20 (illthrift)

<30

(myopathy)[2]

<0.02

<0.2

Blood Se (mg/l)

Liver Se (mg/kg wet weight)

Serum

I

plasma vitamin B12 (lJg/l)[3]

Liver vitamin B12

(mg/kg wet weight)

<0.50

<0.1

5 to 40

0.3-0.5

200 to 450

10 to 50

<50

0.5-1.3

>550 lambs

>450 mature

0.02 to 0.05

>0.05

0.2 to 0.5

>0.5

0.5 to 1.0

0.1 to 0.2

40 to 90

50 to 700

Up to 550

1.0 to 10.0

>0.2

[1] Usually 5 to 10 sheep in each flock are sampled

[2] Where sheep have adequate vitamin E Le. plasma levels >1

mg/l

[3] Sheep with established rumen function

1.4. Trace element dispersion within a liver

Trace elements are not homogeneously dispersed throughout the liver. The lack of homogeneous dispersion of minerals within specific lobes as well as amongst the various lobes of bovine livers has been observed by Henderickx

& Van der Heyde (1961).

In the study done by Theron et al. (1974), analysis of variance of the trace element concentrations showed that the minerals were not homogeneously dispersed within the caudate lobe of the liver. In all cases, except Mn, significant improvement in dispersion was obtained after homogenization.

The anomalous behaviour of Mn may be attributed to the fact that the concentrations present approached the limit of detection by the method. A degree of homogenization appears to take place during storage. It is advantageous to store livers for a couple of weeks before analysing them since homogenization on a routine basis is not practical (Theron et al., 1974).

Chapman et al. (1963) found significant variations in Cu concentrations when they compared different sample sites of entire bovine livers.

They evaluated the liver biopsy technique for mineral nutrition studies with beef cattle and found that the range of differences in Cu and Fe concentrations in liver biopsies attributable to site of biopsy were relatively small.

Figure 1.4.1 Diagram of the area of the liver from which biopsies were taken

(Chapman et al., 1963)

The average Fe concentrations for the four sites ranged from 186 mglkg (site

A) to 203 mg/kg (site D). The differences between the four sites were not statistically significant.

The differences for average value for Cu, ranged from 223 to 258 mg/kg. Liver and biopsy site significantly affected the Cu concentration in the biopsies.

Cattle that are not deficient in Cu will usually have 150 to 250 mg/kg of Cu in their liver, as compared to 10 to 25 mg/kg for Cu-deficient cattle. When these differences are compared to the range of differences between biopsy sites it is quite evident that the latter differences, though statistically significant, were quite small as compared to those of cattle that are not deficient and those that are deficient in Cu (Chapman et al., 1963).

Van Eijk et al. (1974) measured the Fe concentration in human liver specimens. In 9 cases, in which the liver tissue was obtained via obduction, they investigated the possibility of differences in Fe content of the left, right or center pieces of the liver. The results are given in Table 1.4.1 below. As can be seen the differences in one liver are very small and are nearly within the standard error of the method. Therefore, the part of the liver from were tissue is obtained has a negligible influence on the results of the Fe concentration

(Van Eijk et al., 1974).

6

7

8

4

5

2

3

Table 1.4.1 The deviation of iron values in different parts of the liver (The data are given in mmoles Fe/100 g dry weight) (Van Eijk et al., 1974)

Liver

1

Left

1.49

2.6

1.99

1.68

0.57

1.41

1

3.45

Centre

1.34

2.52

2.39

1.82

0.68

1.58

0.58

2.17

Right

1.71

2.61

2.11

1.89

0.71

1.71

0.32

1.8

9

Mean value

1.08

1.7

1.15

1.58

1.36

1.58

Fig. 1.4.2 Distribution of copper throughout the liver of an 8 weeks old pig

(Hogan

et a/.,

1971)

Fig. 1.4.3 Distribution of copper throughout the liver in relation to the positions of the caudal, dorsal (right-hand side), and ventral (left-hand side) lobes for: new-born lambs (a) and (b), four-tooth ewes (c) and (d), and an aged ewe (e)

(Hogan

et a/.,

1971)

In the livers of pigs either given a Cu supplement there was no significant variation in Cu concentration according to the sight from which the sample was taken (Figure 1.4.2).

In two newborn lambs examined, there was a statistically significant trend towards increasing concentrations in samples between the dorsal (right) lobe to the ventral (left) lobe. Cu levels for samples taken from different parts of the livers of mature sheep are apparently more uniform than those from newborn animals.

Lamb (a): There is a highly significant trend from left to right. Mean values (for each set of vertical figures) across the diagram were 60, 57, 72, 102, 107 and

118 mg/kg.

Lamb (b): Although the copper figures are much lower than those for lamb (a), there is again a significant trend. Mean values were 18, 19, 22, 27, 25, 26, 28 and 28 mg/kg.

Sheep (c) and (d): Although in each case trends appear to exist, these are not statistically significant. Means were respectively 297

±

60 mg/kg and 225

±

36 mg/kg.

Aged ewes (e): There was no tendency for Cu values to increase from one side of the liver to the other. Mean values were 262, 258, 261, 269 and 253 mg/kg (Fig.1.4.3).

Table 1.4.2 Copper concentrations in samples taken at different depths from top surface (Hogan et aI., 1971)

Section

A

Sample

1

Cu (mg/kg)

47.3

2

3

39.8

55.8

B

C

4

5

6

7

8

9

10

11

12

13

42.3

43.2

44.2

44.5

49.2

48.3

42.5

43.2

43.7

38.2

Detailed examination did not reveal any serious variation in copper concentration according to the depth within the liver from which samples were taken.

It was found that, despite any variation in copper content that may be present, good agreement was obtained between the mean copper concentration for repeated biopsy samples of the same liver and that for replicated representative samples from the corresponding whole liver (Hogan et al.,

1971 ).

The distribution of copper within the livers of various animal species has been the subject of several investigations. No difference in copper concentration between the lobes of a pig liver was reported by Hogan et al. (1971); Cassidy

& Eva (1958) and Osborn et al., (1983). Although Osborn et al., (1983) claims a much larger within-lobe variation.

In rats, the median and right lobes appear to contain a higher concentration of

Cu than the omental and caudate lobes (Osborn et aI

.

, 1983).

Young lambs appear to accumulate more Cu in their ventral (left) lobe than their dorsal lobe, but this disparity is absent in older sheep (Osborn et aI

.

,

1983) .

Bingley & Dufty (1958); Osborn et al. (1983) reported an uneven distribution of copper in the livers of neonatal calves, with the caudate lobe having the highest concentration.

In contrast to copper, the hepatic distribution of other trace elements and vitamins has not been studied in any detail .

Osborn et al

.

(1983) examined the distribution of copper, vitamin B12and zinc in the livers of sheep (Osborn et

aI .

, 1983) .

Fig.1.4.4 Diagram of a sheep liver showing the sites from which samples were taken for analysis (Osborn et aI

.

, 1983)

3

4

5

6

Table 1.4.3 The mean concentrations of Cu, vitamin 8

12 and Zn in the six livers of sheep (Osborn et al., 1983)

1

2

Mean (range) :glg wet weight

Liver Cu

38.5(34-47)

19.9(17-24)

41.3(37-50)

56. 9( 45-81 )

49.5(44-63)

35.4(26-48)

Vitamin

812

0.29(0.14-0.50)

0.54(0.44-0.64)

0.29(0.25-0.36)

0.70(0.56-0.89)

0.39(0.30-0.47)

0.40(0.35-0.55)

Zn

47.3(38-62)

41(37-48)

44(41-81 )

45.6(38-58)

43.6(39-53)

42.6(38-48)

The concentration of Cu and vitamin

812 showed no consistent ordering of values in the liver. Although the values for Zn did show a consistency in ordering, the extreme values were not significantly different from the mean

(Osborn et al., 1983).

The results of this study, done with one-year-old sheep, confirm the studies of

Hogan et al. (1971) that the concentration of hepatic copper is uniform and that a biopsy sample should be representative of the whole liver. A similarly uniform distribution was found for vitamin

812 and Zn and thus reliable estimates of the animal's liver concentrations of these components from biopsy samples appears possible (Osborn et al., 1983).

1.5.

Formalin preservation

In the study done by Theron et al. (1974), random multiple samples were taken from the caudate lobe of a fresh liver and replicate determinations were carried out on them. Portions of the liver were preserved in formalin for 22 days, after which the analysis was repeated. The results of the analysis are given in Table 1.5.1. No statistically significant differences were noted for any of the five elements and it was concluded that formalin preservation up to 22 days did not affect the trace element levels (Theron et al., 1974).

Table 1.5.1 Comparison of fresh and formalin preserved livers (Theron

et a/.,

1974)

Fresh Mean

SD

Preserved Mean

Cu mg/kg

29.1

9.16

27.53

Fe mg/kg

121

39.2

Mn mg/kg

5.9

1.96

Zn mg/kg

20.8

7.41

Mg mg/kg

221

88.6

178

Results

SD

Variance t

Analysis

1.80

NS

NS

143

23.2

NS

NS

5.3

0.76

NS

NS

26.8

10.39

NS

NS

11.62

NS

NS

Sullivan

et a/.

(1993) studied the effect of formalin fixation on the concentration of Se in pig liver. Sometimes only formalin fixed tissue is available for testing and established normals for Se in formalin-fixed liver have not been available. Analysis of fresh, frozen, and formalin-fixed matched liver samples was done to provide these data for comparisons.

The Se concentrations were measured in the fresh, frozen and formalin-fixed cubes of liver (Table 1.5.2).

Table 1.5.2 Mean (s.e.) concentrations (mg/kg) of selenium in fresh, frozen and formalin-fixed porcine liver 0-28 days after collection (n

=

12 pigsltreatment group) (Sullivan et al., 1993)

No. of days after collection

Tissues

0 2

Fresh/

0.550

0.513

frozen

Formalin-

(0.034) (0.073)

0.453

fixed (0.077)

7

0.539

(0.109)

0.476

(0.071)

14

0.553

(0.037)

0.459

(0.034)

21

0.538

(0.026)

0.505

(0.035)

28

0.573

(0.037)

0.475

(0.035)

Eleven treatments were defined to include Se in fresh liver on day zero (one treatment) and in frozen and formalin-fixed liver on days 2,7, 14,21 and 28

(ten treatments). Testing of the contrasts between treatments revealed no statistically significant difference between values for Se in fresh and frozen liver, but the contrast of combined values for Se in fresh and frozen liver versus values for Se in formalin-fixed liver were highly significant (Sl:Jllivan et

al., 1993).

Comparison of the regression lines revealed that the concentration of Se in formalin-fixed liver was 86% of that in fresh/frozen liver across days 0-28. A slight positive increase in Se (0.001115 ppm/day) was present for both treatments over the test period (Sullivan et al., 1993).

Fresh Se

=

Formalin-fixed Se - (days fixed

*

0.001115 mg/kg/day)

0.86

The increase in Se in stored frozen and formalin-fixed liver, as reflected by the positive slope of the regression equation, is probably caused by dehydration from freeze-drying and formalin fixation, respectively. With loss of water, the reduced mass of the tissue cause a relative increase in Se, although total Se remains the same.

The significantly lower intercept concentration of Se in formalin-fixed tissue on day zero is attributed to leaching of Se into the formalin solution early in fixation. Similar effects from fixation have been observed with Cu and Zn in formalin-fixed liver (Sullivan et al., 1993).

Dehydration of tissue samples by freezing or formalin fixation and leaching of

Se from fixed tissue must be considered in interpreting data from stored samples. The calculated regression equations take those effects into consideration and provide for easy extrapolation from the Se concentration determined in formalin-fixed liver to the expected concentration in fresh liver

(Sullivan et al., 1993).

Table 1.5.3 Liver copper analysis on goats with neurological and other diseases (Summers et al., 1980)

Liver copper in mglkg (wet wt.)

Animal no.

Pathological diagnosis

4

5

6

9

10

11

VLG

VLG

VLG

Urolithiasis

Coccidiosis

Neonatal Sudden Death

Age

4 mo.

2mo.

2mo.

6mo.

2mo.

3wk.

Fresh

8.5

2.3

9

34.5

2.4

20.2

Fixed

7.0

1.8

5.7

22.6

3.6

12.8

Table 1.5.4 Effects of fixation of liver tissue in formalin solution on weight and copper analysis (Summers et al., 1980)

Procedure

Results

Weight of 1 g of liver tissue:

(a) Fresh

(b) Fixed for 7 days

(c) Fixed for 14 days

1.00 g

1.14 g

1.18 g

% Change

+14 %

+18 %

Cu analysis of 1 g of liver tissue

(a) Fresh

(b) Fixed for 7 days

(c) Fixed for 14 days

40.60 ppm

37.00 ppm

32.80 ppm

-9%

-19 %

Summers et al. (1980) investigated the consequences of performing Cu analysis on tissue specimens preserved in formalin. In almost all cases it was observed that levels were lower in the preserved tissues, whether from goats with neurological disease or otherwise. The repeatability of the assay was within 5% (data not shown), which was considered to be acceptable. The explanation for the lowered values following preservation were two-fold; firstly, imbibition of fluid by the tissue in preservative and secondly, loss of Cu into the solution. When specimens of the preserved tissue are taken for analysis, the weight of the imbibed fluid will have an effect of lowering the concentration of the assayed element per unit weight of tissue. While the tissue is bathed in fixative some Cu will be lost into the fluid medium. The explanation for the single case where the preserved level is higher is not known; possible it resulted from Cu contamination in that particular batch of fixative (Summers

et al., 1980).

Boskey et al. (1982) undertook a study to determine which measurements of cellular and matrix components are unchanged by formalin fixation of bone and other hard tissues.

The mineral composition of bone was not modified by brief (3 day) or more prolonged (11 day) exposure to neutral formalin (Boskey

et aI., 1982).

It is essential, however, that the formalin be buffered at neutral pH, since mineral dissolution would be expected in non-buffered, acidic, formic acid-rich formalin solution. Although the phosphate-buffered aqueous solution might be expected to alter the mineral composition by the adsorption of excess phosphate, the phosphate apparently suppressed mineral dissolution by shifting the equilibrium between hydroxyapatite mineral and calcium and phosphate ions to the left, leaving the composition unchanged (Boskey

et aI.,

1982).

It is apparent, then, that mineral parameters measured in formalin-fixed tissues can be compared with those measured in fresh-frozen tissues (Boskey et

a/.,

1982).

This study has only dealt with tissues fixed, or stored, for a relatively short period of time. Prolonged (> 1year) exposure to formalin is known to alter even relatively stable lipid composition of such tissues (Deierkauf & Heslinga,

1961). Thus one must anticipate that biochemical studies on tissues left in formalin for such long periods of time are questionable (Boskey

et a/.,

1982).

Van Eijk et a/. (1974) measured the Fe concentration in human liver specimens. Since liver tissues are often kept in formalin or Telly's solution before chemical analysis are performed, they investigated the influence of storage in saline, formalin, buffered formalin and Telly's solution for a period of 24 h. From the tables below we may conclude that during this period a substantial amount of Fe was lost. In Table 1.5.6 and Table 1.5.7, the analysis is given in 5 fold for one normal liver and for a liver of a patient with secondary hemochromatosis.

For reliable data it is better to determine the Fe content directly after obtaining the tissue (Van Eijk

et a/.,

1974).

6

7

8

4

5

2

3

Table 1.5.5 The influence of the storage of liver tissue for 24 h in buffer or formalin on the iron content (Fe content in mmoles Fe/100g dry weight)

(Van Eijk

et a/.,

1974)

Liver No.

(different livers)

After 5 min After 24 h

0.14 M

NaCI

0.14M

NaCI

After 24 h

4% formalin

After 24 h

4% formalin

After 24 h in Telly's solution

1 0.65

0.63

2.58

0.37

0.46

0.48

0.46

2.48

pH 7

0.29

0.33

0.55

0.24

2.59

2.16

1.57

1.51

3.45

1.08

2.30

2.00

1.30

1.51

2.89

0.96

2.51

1.07

1.45

3.24

1.13

1.84

1.67

1.52

1.27

2.30

0.78

2.56

1.19

1.40

3.16

1.07

Table 1.5.6 Influence of storage in different solutions on the iron content of liver (normal) tissue (All samples were taken from the same liver, iron values

3

4

1

2 in mmoles Fe/100g dry weight) (Van Eijk et al., 1974)

Normal

Liver

Sample

5min in

0.14 M

NaCI

24 h in

0.14 M

NaCI

24hin formalin

4%

24hin formalin

24hin formalin 4%

4% pH 7, pH8,

24hin

Telly solution phosphate bicarbonate buffer buffer

1.49

2.05

2.00

1.25

1.42

2.57

2.46

1.30

1.81

2.34

2.70

2.08

2.20

5

Mean

2.32

2.31

2.10

2.16±0.15

1.57

1.22

1.39±O.15

2.18

2.39

2.28

2.38±0.15

1.56

1.83

1.70

1.64±O.21

2.34

2.32

2.52

2.44±0.17

2.02

2.05

2.51

2.17±0.2

3

4

5

1

2

Table 1.5.7 Influence of storage in different solutions on the iron content of liver (Secondary Hemochromatosis) tissue (All samples were taken from the same liver, iron values in mmoles Fe/100g dry weight) (Van Eijk et a/., 1974)

Secondary

Hemochromatosis

Sample

5min in

0.14 M

NaCI

24hin formalin

4%

24hin

24hin formalin 4% Telly pH 8, solution

28.9

27.3

26.3

25.0

bicarbonate buffer

33.7

25.6

29.3

28.2

Mean Value

37.3

30.5

31.4

31.2±3.8

23.6

22.5

23.5

21.5

27.2

27.5

24.2±1.5

27.1±4.4

19.3

22.0

28.6

25.5±4.5

*Idiopathic hemochromatosis: Excessive Fe accumulation in the liver and other viscera and by fibrotic changes in the liver (Fairbanks et al., 1971).

The best way to keep liver with the lowest lost of Fe is storage in buffered formalin (Lillie et al., 1939). Storage in formalin buffer with bicarbonate gives the smallest loss of Fe. But on the other hand the loss of Fe in the medium is significant (Van Eijk et al., 1974).

Brown et al. (1979) did a study concerning the estimation of Pb levels in human lung and vertebra, with particular reference to formalin fixation.

Table

1.5.8

Mean Pb concentration (Jlg/g) in human lung

Reference

Sex

Barry (1975) M

F

Gibbs and Bogdanovic (1974)

?1

No. of donors

59

36

16

Jl9/g

wet

0.22

0.22

0.50

2

Jl9/g

dry

0.98

0.98

3.05

2

Jlg/g

ash

20

20

50

2

Gross et al. (1975)

Horiuchi et al. (1959)

Ophus and Mulius (1977)

?3

M

4

M'

4

42

,

47

146

0.36

2

0.36

0.30

0.10

2.16

2

1.17-

1.60

5

1.34

0.45

36

2

23.9

27

9.2

Schroeder and Tipson (1968)

Stringer et al. (1974)

F'

M, F

98

150

0.10

0.39

0.43

8.8

35/S

M

F

M, F

41

25

141

0.23

0.13

0.74

1.74

1.04

l1

0.57

l1

3.28

21.2

11.6

67/S

Tipson & Shafer (1964)

Numbers in block type are based on data in the reference indicated; numbers in italics have been calculated using respective mean ash contents of wet and dry lung of 1.1 % and 4.9% from Tipson

&

Shafer (1964) (Brown eta!., 1979).

1 right lungs only, 8 segments of each analysed separately

2 median level

31eftlungs only, 8 segments of each analysed separately

4 all segments of both lungs sampled

5figures based on levels in ashed and in wet tissue

6 multiple samples, anatomical location not specified

7 tissue fixed in formalin; 10 samples from right apex

8the corresponding median level is 47 Ilg/g ash

9samples Iyophilised to constant weight

There are three grounds on which the data of Ophus & Mylius (1977) are open to criticism. First, the data are presented as Pb levels in dry tissue, but

'dry' is not defined, although a common meaning is 24 h drying, or drying to constant weight, at 110°C (Brown et al., 1979).

In addition, dry weight is probably the least usual basis for expressing metal concentrations in human tissues, and this increases the difficulty of comparing the present results with data already in the literature.

Secondly, the selection of all samples from the apex of the right lung may not give results which are representative of the lungs as a whole, since there is evidence (Gibbs & Bogdanovic, 1974) that apical concentrations of several metals (including Pb) are higher (on an ash weight basis) than in other lung segments, and also that the ash content of "dry" lung varies between segments in no obviously systematic way (Brown et al., 1979).

The third criticism is probably the most serious, and relates to the analysis of tissues that have been fixed and/or stored in formalin. With such samples, leaching out of the metal(s) of interest is a distinct possibility and, as shown in the table above, the present data are lower than those from several of the major studies in this area. In particular, the mean levels (particularly for males) found by Stringer et al. (1974) are higher than those of Ophus &

Mylius (1977), although they are cited as agreeing because of the similar range of lead levels.

It should be noted that in Table 1.5.8

the conversions to other bases are only approximate, because of the different weight bases used by different authors to express lead concentrations (Brown et al., 1979).

Reference

Grandjean (1975)

Sex

M

Gross et al. (1975)

F

M

Horiuchi et al. (1959) M, F

Schroeder & Tipton M, F

(1968)

Waterloo M

F

No. of donors

81

38

45

36

53

Ilg/g

wet

0.88

0.69

4.42

5.28

?

Ilg/g

dry

10.0

?

Ilg/g

ash

1.63

1.32

4.65

3.97

8.2-10.2

1

29.1

29.1

512

122

61

6.56

5.0

12.1

9.6

35.0

29.2

Numbers in block type are based on data in the reference indicated; numbers in italics have been calculated using respective mean ash contents of wet and dry vertebra of 18.92 % and 35.07% for males, and of 17.31 and 33.22% for females. These figures are based on vertebral samples from 122 males and

61 females analysed in the laboratory at Waterloo (cf. Table 1 in Forbes et al.,

1976; Brown et al., 1979).

1figures based on levels in wet and in ashed tissue

2median level

A second case of a significant data set where there is a strong presumption of leaching of lead by formalin is in the vertebral lead levels reported by

Grandjean (1975). As shown in the table above, the mean lead concentration in vertebra samples from 81 males and 38 females is less than one fifth that reported in several other studies (Brown et aI., 1979).

Grandjean's (1975) concentration basis is "dry" vertebra, described as transfer (from the formalin) to concentrated alcohol, rinsing with ether and drying to constant weight in desiccators. This procedure is presumably less rigorous than 110 oC, so that the relative contribution of the weight basis and leaching to the decreased lead levels are again unclear.

However, it may be significant that the two studies reporting lower lead levels refer to the residents of Scandinavian countries (Norway and Denmark, respectively) (Brown

et a/.,

1979).

The difficulties arising from the lead levels published by Ophus & Mylius

(1977) in lung and by Grandjean (1975) in vertebra raise a number of matters relevant to all studies of trace element concentration in human tissues. First, the fixation of tissues in formalin, prior to trace element analysis, should be avoided because of the likelihood of loss by leaching. Secondly, meaningful comparisons among different studies are difficult to make unless standard conditions for the weight basis of expression of the results are used in preparing the tissues (Brown

et a/.,

1979).

1.6 Prolonged storage

In the study done by Theron

et a/.

(1974) the caudate lobe of a liver were stored in formalin, random samples being removed after 6 weeks, and again after 6 months. In each case multiple determinations were carried out.

Table 1.6.1 Comparison of mineral levels after six weeks and six months

(Theron

et a/.,

1974)

Storage

Period

No. of determinations

Cu Fe Mg Mn

Zn

6 weeks 30

Mean

S.D.

31

2.5

74

9.4

159

10.1

3.3

39.4

0.41

8.5

6 months 30 Mean

S.D.

31

4.5

78.2

154

10.9

22.2

3.7

33.9

0.45

3.1

t 0.0

1.56

1.17

3.08

3.18

At the 95

% limit of confidence the statistical difference lit" is significant if t>1.96.

The concentrations of Cu, Fe and Mg were not affected by prolonged storage in formalin. Statistically significant differences in the levels of manganese and zinc were detected after 6 months (Theron

et a/.,

1974).

The investigations into the effect of prolonged storage in formalin on manganese concentrations revealed a statistically significant increase

(P±O.05). This is, however, difficult to equate with the variations of individual animals. Groups from different farms sampled at the same time and therefore subjected to similar storage conditions showed extreme variation. This was well illustrated in a group from Farm 2 where the 19 animals had a mean of

3.65 mg/kg and varied from 2.0 to 9.2 mg/kg. Although this variation was extreme, the pattern of high and low within a group was constant. This was interpreted as indicating an inconsistent loss or gain of Mn due to storage in formalin and it was concluded that the various comparisons were valid (Ehret

et al., 1975).

Significant loss (P<0.05) loss of Zn content shown to occur during six weeks to six months storage in 10 % formalin (Ehret et al., 1975).

Bratton et al. (1984) did a study in order to establish guidelines for using fixed tissue from Pb exposed cattle as a means of estimating the level of Pb present in liver and kidney at the time of natural death or euthanasia.

Changes in the levels of Zn, Cu and Fe were also evaluated in these same tissues even though these elements were available to the calves only in recommended dietary amounts.

Metal concentrations in the 10 % phosphate buffered neutral formalin were measured prior to immersion of tissues and after 6 months of containing immersion tissues (Bratton et al. 1984).

Table 1.6.2 The mean results ± s.d. (in Ilg/dL) as found by Bratton et al.

(1984)

Before

After

Pb

<10

<10

Fe

<10

16 ±3

Cu

<10

43±3

Zn

3

24±9

Tissue concentrations of Zn, Fe and Cu are shown in Table 1.6.3. Cu and Zn had generally low correlations between the frozen and fixed concentrations

(R

2

< 0.50). Regression analysis did not appear useful in predicting values for these metals at the normal concentrations observed in this study. Copper levels tended to increase in the kidney when fixed and the trend was the same for both the wet weight and the dry weight analyses. The extensive washing process should have helped eliminate extraneous Cu contamination.

However the kidney Cu levels increased in tissue after six months in fixative while liver Cu concentrations decreased (Bratton et al., 1984).

The R

2 values for Fe (wet kidney 0.65, dry kidney 0.72, wet liver 0.63, and dry liver 0.76) indicate that this method of analysis might be useful in estimating and determining lower confidence bounds for frozen tissue Fe concentrations, given fixed tissue concentrations (Bratton et al., 1984).

Table 1.6.3 Zinc, Fe and Cu concentrations (mg/kg, x ± s.e.) in frozen and formalin-fixed kidney and liver (n=24) (Bratton et al., 1984)

Wet weight Dry weight

Element

Zn

Fe

Tissue

Kidney

38.76±2.28

Liver

Frozen

73. 10±5.02

Formalin

19.62±1.41

26.69±2.49

Frozen

201.96±11.6

303. 15±22.3

Formalin

104.46±8.5

135.19±14.7

211.41±18.5

Cu

Kidney

35.23±2.34

Liver

62.88±12.95

41.31±3.6

66.23±9.4

179.15±14.8

107.13±18.2

Kidney

6.72±O.55

Liver

143.07±7.85

17.56±1.11

85.67±6.56

30.91±2.13

555.38±29.6

294.2±40.4

97.84±6.63

403.32±31.2

Leaching of Cu appears to be a high probability as does contamination with

Cu. Copper levels in kidney were three times greater in the fixed kidney as compared to the frozen kidney while Cu levels in liver were decreased. This suggests that if tissues high in Cu are immersion fixed with tissues lower in

Cu, leaching and contamination present a problem. Leaching also appears to be a problem in Zn concentration of tissues (Bratton eta!., 1984).

Fixed tissue, especially liver, can be used to determine if Pb toxicosis is a valid diagnosis when the only specimen available is fixed tissue. The method of analysis (wet or dry weight) does not appear to matter, nor should there be concern about contamination or leaching of Pb in the samples. Similar conclusions cannot be drawn for Cu, Zn or Fe (Bratton et aI., 1984).

The preferred specimens for Pb analysis from animals that have died are frozen liver and kidney. These could be routinely obtained, but often this is not done in cases of Pb toxicosis, due to the usual absence of lesions highly suggestive of Pb toxicosis at necropsy. The analysis of formalin-fixed tissues is therefore often warranted (Hamir et a/., 1995).

The analysis of formalin-fixed tissues for diagnostic purposes has been recommended for Se and Cu, and tissue levels of both these elements remains unchanged by formalin-fixation (Sullivan

et al.,

1993; Thornburg

et

al., 1990).

However, Summers et al. (1980) found Cu concentrations of liver decreased progressively when the tissue was fixed in formalin for 14 days. They attributed the decreased concentration to imbibition of formalin into the tissue and also to leaching of the element into the fixative.

One report indicates that Pb is resistant to contamination or leaching from liver when preserved in formalin together with other tissues. However, the same investigation revealed Pb levels in the formalin-fixed kidney to be slightly lower than levels in the frozen kidney (Bratton et al., 1985).

Hamir et al. (1995) documented hepatic and renal Pb concentrations in raccoons that were given lead acetate per os and to compare these results to the concentration of Pb in corresponding formalin-fixed tissues at two time points (one month and 16 months of formalin fixation).

Table 1.6.4 Tissue lead concentrations in frozen and formalin-fixed liver and kidney of eight raccoons administered oral lead acetate (Hamir et al., 1995)

C

5

1

2

Liver lead concentration

24.58

39.09

10(59)

10(74)

Kidney lead concentration

B

3 1

(mg/kg, wet weight)

21.68

10(54)

(mg/kg, wet weight)

Formalin-fixed

Group Raccoon Lead Frozen

1mo.

16mo.

no.

dose*

A

1 0

Formalin-fixed

Frozen 1mo.

16mo.

12.97

<10(>23).·.

2.92(78) 12.97

<10(>23)

4.92(62)

2 0 11.13

<10(>10)

3.04(73)

15.87

<10(>37) 0.34(98)

8.1(63) 18.77

<10(>47)

2.18(88)

4

16.2(34) 18.77

<10(>47) 2.98(84)

16.2(22) 30.38

12.5(59)

13.4(56)

0

6

7

8

2

4

4

42

15(64)

76.83

37.5(51)

33.29

15.0(55)

32.0(24)

36.19

51.8(33) 30.38

29.4(12)

42

12.5(74) 22(39)

30(1 )

15(64)

17.6(42)

30.6(27)

*Lead acetate (mg/kg body weight) administered orally once a day (5 days/week) for 8 weeks.

:.Figures

in parentheses indicate percentage of lead leached into formalin or reduced due to imbibition .

~. <1<.:1·························_··········· ·· ···............................•.....................

:

I(kif!toy •

i

51; l' l...;vet

~

.~ ~~ ~

: f:1

••.

1::i

1:_

11'''1 fl rl

~ . ~~ ;, 1 t>

'OJ:

:

(l"

.' Y..

..:..

• j

••.

~ I

-< .

2.

\,'r

Ii

\,>1 .})~.

I~j,:·.~..

:< : .•

:j..,

•..,·.·...

w.: •.••.••.

-~,

'" rl

_..J. .....

~;$.

,-- ~",.

~;o:i:.-

WEli~I'l!)

.' .

a

",'

~~ll

'" ili n l

Figure 1.6.1 Mean Pb concentrations of frozen and formalin-fixed livers and kidneys of 8 raccoons administered oral Pb acetate (Hamir et al., 1995)

Compared to the corresponding frozen tissue at one month and at 16 months, the Pb levels were lower in formalin-fixed kidney and liver (Table 1.6.4; Figure

1.6.1). At each level and for each comparison the P-value was less than 0.05.

The observation contradicts a previously reported finding in which neither contamination nor leaching of Pb was observed from livers of calves given Pb acetate orally (Bratton et al., 1985). The apparent conflicting results of these two studies may be explained by our assumption that there may be species variation in binding of Pb to tissues of different animals (Hamir et al., 1995).

In more than 60 % of the instances (five out of eight), the Pb concentrations in formalin-fixed tissues at 16 months were higher than at one month (Figure

1.6.1). A likely explanation for this is that with prolonged formalin fixation, tissues appear to get dehydrated and, therefore, the concentration of tissuebound elements (including Pb) may increase (Hamir et al., 1995).

Table

1.7.1

Trace element content of materials that are frequently used for construction of animal accommodation and for sample collection (Mills &

Williams et al., 1971)

Approximate concentration

High

>500

Plastics·

Medium

Low

100-200

(Ilg/g)

200-500

Polyethylene

Fe

Cr, Cd

High density, white

High density, yellow

High density, natural

Zn,Cd

Cr, Cu

Sheet, grey

Tube, clear

Zn

Cd,Cu

Polyvinylchloride:

Fe

Sn

Perspex:

Cd

Clear

Black Cr, Cu

Cu

Sn,Pb

Black

Stainless steels

Mn, Zn

Phenolic resin:

Cr, Fe Cd

Cr to 20 %; Mn to 2%; Mo to 3.5%; Se to 0.6%; Pb to

0.34%

AlloysH

Aluminium alloysI

Cu to 8%; Zn to 13%

• Adapted from Scott (1970); Mills

&

Williams et al. (1971)

H British Standards Institution (1950, 1955)

I British Standards Institution (1963).

Table 1.7.1 illustrates the nature of trace element inclusions in plastic materials and in stainless steels frequently used as expedients to overcome this problem of contamination.

Under many circumstances the assumption is correct that these elements are sufficiently tightly bound in the matrix of the structural material to present no hazard. But this situation does not necessarily apply under humid conditions where food material or excreta can remain in contact with the plastic or metal, initiate attack thereon and act subsequently as a source of contamination

(Mills & Williams

etal., 1971).

The solubility of metal components of commonly used plastics is normally low, but appreciable quantities of metal may be brought into solution if the plastic remains in contact with alkaline solutions such as urine from which free ammonia is being generated. Thus, ammoniac solutions have become heavily contaminated with copper after a brief period of contact with clear polyvinylchloride tubing (Mills & Williams et al., 1971).

The nature of metallic inclusions may differ in products having the same designation but produced by different manufacturers. Accordingly, when working with elements for which the quantitative requirement is small such as

Se, Co and Cr, care has to be taken over the selection of structural materials and the choice should be based upon at least a semi-quantitative assessment of trace element content (Mills & Williams

et aI.,

1971).

During the study of Theron et al. (1974) portions of a liver were formalinpreserved in plastic and glass bottles for one year. After this period, analysis were performed on random non-homogenized multiple samples from each portion. No statistically significant differences were found for any of the metals, indicating that either type of bottle could be used (Theron et al., 1974).

Potential sources of contamination include the environment, containers, collection apparatus, and, probably most important, the chemist! Some aspects of container materials have been studied and recommendations for cleaning these have been made. Plastics are highly recommended, with

Teflon and polyethylene being the most favourable (Mertz, 1987).

1.8 Blenders used for homogenisation

In order to minimize the effects of the possible uneven distribution of trace elements in the liver, it is often necessary to homogenise the liver and take an analytical subsample. This subsampling can be very susceptible to contamination in that extensive homogenisation is often carried out in some type of blender open to the atmosphere (Mertz, 1987).

Commercial blenders with stainless-steel blades can be a very significant source of contamination of the metals contained in the blades. Stainless steel can contain 5 to 20% chromium, along with percentage amounts of nickel, cobalt and manganese, in addition of being a obvious source of iron. All of these metals can be abraded or dissolved from blades during a high speed blending process. The amount of chromium contamination introduced in blending a total diet composite homogenate has been shown to be directly proportional to the blending time (Mertz, 1987).

If the elements of interest are chromium, nickel, cobalt, manganese or iron, then alternate homogenization procedures using non-stainless steel blenders must be developed (Mertz, 1987).

1.9. Trace element analysis by atomic absorption spectrophotometry

Sample preparation, matrix interferences, flame stoichiometry and storage of solubilized samples are factors which can affect the accuracy and precision of trace metal analysis in bovine livers by atomic absorption spectrophotometry

(Theron et aI., 1973).

Kahnke (1966), using a wet ashing method, recovered

±

96% of added zinc, copper, manganese and iron in formalinised human tissue but reported a total loss for added magnesium.

Copper determinations in the air-acetylene flame are apparently free from interferences except those, which result from large amounts of solids in solution (Slavin, 1965).

In a reducing air-acetylene flame, the absorbance for Mn is reduced by phosphate, perchlorate, iron, nickel and cobalt. In an oxidising flame these interferences are minimised.

The interferences by boron, fluoride and phosphate in the determination of manganese can be suppressed by lanthanum (Schmidt, 1970).

Wet ashing of samples yielded significantly higher values for magnesium and zinc than the dry ashing method, while the reverse was found for manganese.

Copper and iron concentrations were unaffected by the method of liquefaction

(Theron et al., 1973).

1.10.1 Dispersion of moisture within a fresh liver

The possibility that moisture may not be homogeneously dispersed within a liver led to a comparison of moisture determinations, done on homogenized and non-homogenized samples taken from a fresh liver.

Mean s.d.

Non-homogenized

63.3

4.2

Homogenized

65

0.0

Variation in moisture content, which may be expected in fresh livers and hence the effect of this variation on mineral levels, is small when compared to proven biological variations. From this it may be concluded that trace element concentrations expressed on a wet basis are comparable for fresh livers.

1.10.2 Dispersion of moisture within a formalin-preserved liver

The dispersion of moisture within an individual liver after storage in formalin was investigated in the same manner as for the fresh liver. Table 1.10.3

indicates that the irregular dispersion of moisture within a formalinised liver is not significant.

By comparing Table 1.10.2 with Table 1.10.1 it may seem that moisture apparently becomes more homogeneously dispersed on storage.

Table 1.10.2 Dispersion of moisture within a formalin-preserved liver (Theron

et al., 1974)

Non-homogenized Homogenized

Mean

71.0

1.07

75.5

0.87

s.d.

F

=

1.53 F (5%)

=

3.87

Table 1.10.3 Moisture content of livers of various storage periods (Theron et

al., 1974)

Days stored

216

330

441

477

% Moisture

68.4

72.8

66.6

69.1

70

65.6

516

612

648

729

Mean s.d.

64.2

67.2

68.0

2.53

Livers may be stored for up to two years without affecting moisture content significantly. In the light of the above study, it concluded that mineral levels expressed on a wet basis are directly comparable for fresh and stored livers

(Theron et al., 1974).

1.11. Evaluation of ethanol-based fixatives as a substitute for formalin

Fixation is necessary to preserve tissues in a state that maintains its original condition as closely as possible. Formalin has been used as a histology tissue fixative for over a century. Formalin fixes tissue by forming cross-links with the amino acid lysine, in proteins. This cross-linking action prevents cellular distortion and loss of chemical activity in the tissue, thus maintaining cellular antigenicity.

The use of formalin as a fixative in the histology laboratory is a potential danger to laboratory workers. Formalin results in common complaints such as eye, nose and throat irritations, and less commonly neurological disorders such as bronchitis and neoplasia.

A substitute of formalin is needed in a society that is becoming increasingly work safe conscious. Ethanol-based fixatives were compared with formalin for their ability to preserve tissue and cellular morphology, to retain antigenicity, and to facilitate the diagnosis of complex pathological specimens

(Warmington et al., 2000). Ethanol-based fixative F13 (60% ethanol, 20 % methanol and 7% polyethelene glycol) was statistically significantly different from formalin, providing superior preservation of tissue morphology. In 20 surgical cases, F13 and formalin were equally able to fix tissue to allow accurate diagnoses (Warmington et al., 2000).

The effects of F13 on bacteria, bacterial spores, fungi, parasites and viruses in tissue are unknown. Formalin is known to render these pathogens nonviable yet research shows that ethanol-based fixatives do not have the same effect. If specimens are all treated as potentially infectious, as they currently should be, this problem should not cause infective risks (Warmington et al.,

2000). The cost effectiveness of F13 compared to formalin needs to be calculated. It is envisaged that the potential increase to worker safety and savings associated with the elimination of expensive fume extraction units necessary for formalin vapours should prove favorable for F13 introduction

(Warmington et al., 2000).

Chapter 2: Materials and methods

2.1 Introduction

The aim of this investigation was to determine if there was a difference in the

Zn, Cu, Mn, Co and Se concentrations between fresh liver and liver preserved in formalin for one month, three months and six months.

2.2 Experimental Material

Thirty-six fresh livers were obtained from three different trials done by students of the Department of Animal and Wildlife Sciences at the University of Pretoria. Thirty-one of the 36 livers were collected from sheep (ovine) and five livers were obtained from impala.

2.3 Preparation

The livers were removed after slaughtering and were stored in a fridge until sampling. From each fresh liver a block was sampled out of the middle. This block was divided into 16 pieces, which was randomly assigned to four sample groups. Liver in each sample group weighed about 20 g to 30 g.

These four sample groups were divided into the four treatments groups:

1. Treatment one (the control group) was oven dried immediately at 60°C for 48 hours.

2. Treatment two was preserved for one month in an acid washed plastic

(poli-ethylene) bottle with a screw top, containing four ml10% buffered formalin for each one gram of liver.

3. Treatment three was preserved for three months in an acid washed plastic (poli-ethylene) bottle with a screw top, containing four ml 10% buffered formalin for each one gram of liver.

4. Treatment four was preserved for six months in an acid washed plastic

(poli-ethylene) bottle with a screw top, containing four ml 10% buffered formalin for each one gram of liver.

Formalin

The formalin solution was prepared using Millonig 's buffered formalin solution method. The chemicals used were 428,6 g NaH2P04, 87,0 g NaOH, 121,4 g

C6H

1

206(glucose) and

2.5

I H2CO

40

% formalin. The dry chemicals were dissolved separately in 900 ml distilled water on a magnetic stirrer. The three solutions were added to the 2.51 formalin in a 251 container. The container was filled up to

25 ml with distilled water (Millonig 's buffered formalin solution method). The 40 % formaldehyde solution (AC-grade) that was used was obtained from Unilab® Saarchem (Pty) Ltd.

Assay (HCHO)

Methanol

Acidity (HCOOH)

Fe

Cu

Volume: 2.5 I

(w/v)

37%

7.5%

0.02%

0.0002%

0.001%

Three ml of formalin from each sample was wet ashed (digested in acid) and three ml of formalin was centrifuged. from the same sample, to see if there was a difference between the results obtained through atomic absorption spectrophotometry.

After no difference was found in the results, the mineral concentrations in formalin were determined using atomic absorption spectrophotometry after centrifugation of the formalin.

The volume of formalin was measured before the liver was added (four ml

10% buffered formalin for each one gram of liver) and again after the liver was removed from the formalin.

Sample preparation

The samples were removed after one month (Treatment two), three months

(Treatment three) and six months (Treatment four) respectively, after which they were blotted dry and dried at 60 °C for 48 hours.

The dry samples were milled with a Merck miller (Kika Labortechnik; Typ:

220-240 V, 50/60 Hz, 180 W, 20 000 r/min).

Dry matter determination:

The fresh wet liver samples were dried at 60 °C for 48 h after which it was milled. Formalinised liver samples were removed from the bottle after varying periods of storage, placed on filter paper to remove excess formalin and dried at 60 °C for 48 h.

A dry matter (OM) determination at 100

0

C for 24 h was also done on all of the samples. One g of each liver sample was dried in an oven at 100

0

C for

24 h.

2.4 Laboratory analyses:

After the samples were milled they were wet ashed. HN03 and HCL04 were used in the wet acid digestion process.

The Cu, Mn and Co concentrations were obtained using the Varian Spectr-

AA-50 (single beam) flame atomic absorption spectrometer after wet acid digestion.

The Se concentrations were determined using the hybrid generator method on a perkin-Elmer (Norwalk, Connecticut, USA)

AA

(atomic absorption spectrophotometer, model 2380). HN03, HCL04 and HCI were used during the digestion process of the samples.

Zinc concentrations were determined using the perkin-Elmer (Norwalk,

Connecticut, USA) AA (atomic absorption spectrophotometer, model 2380)

after wet ashing and dilution of the samples.

Wet ashing (acid digestion)

The samples were wet ashed before Cu, Co and Mn determination was done by using the Varian Spectr-AA-50 (single beam) flame atomic absorption spectrometer.

One g of each liver sample was digested in duplicate. With each rack of samples, which are digested, a beef liver control (0.1 g) (National Institute of standards and technology, 1577b; Gaithersburg, MD) was included. Three ml of formalin, from the respective formalin containers in which each of the liver samples were preserved, were acid digested.

While weighing in the samples, the block was switched on to warm up for approximately one hour before starting the digestion process. Twenty-five ml of HN0

3 was added to every tube before putting them on the block for 10 minutes after which it was removed and cooled down for five min. before adding 10 ml HCL04 and placing it on the block for a further 20 min.

The samples were cooled for 30 min. before diluting each test tube to 25 ml with distilled water. The samples were stored in acid washed glass bottles with screw tops until analysis.

Copper, cobalt and manganese determination by using the Varian

Spectr-AA-50 flame atomic absorption spectrometer.

The Varian Spectr-AA-50 (single beam) flame atomic absorption spectrometer combines minimal user setup and fast sample throughput. The instruments are controlled via a built-in keyboard and display. SpectrAA-50 features include an automatic monochromator, slit width and gas selection. Two fixed hollow cathode lamp positions with a manual selection lever is also included as well as an universal Mark 7 spray chamber/nebulizer with Mark VI-A burner.

The SpectrAA-50 was set according to the users guide. Lamp currents and slit-widths were substantially the same as recommended. A wavelength of

345.4 nm for Co, 327.4 nm vir Cu and 403.1 nm for Mn were used. An

acetylene, air and nitrous oxide fuel mixture were used.

Flame stoichiometry was optimised for each of the elements by calibrating with the standards described in the manufacturer's manual. A 'reslope' standard was chosen by highlighting the chosen standard and pressing the

'reslope' button.

Selenium and zinc determination

The Se concentrations were determined using the hybrid generator method on a perkin-Elmer (Norwalk, Connecticut, USA)

AA

(atomic absorption spectrophotometer, model 2380).

Zinc concentrations were also determined on a perkin-Elmer (Norwalk,

Conneticut, VSA)

AA

(atomic absorption spectrophothotometer, model 2380) after wet ashing and dilution of the samples.

All the glassware that was used for Se determination was left overnight in an acid bath (5% HN03 -solution) and rinsed with distilled water after it has been thoroughly washed. After drying the glassware, it was kept separately and used only for Se determination.

One ml Se standard (20, 50, 100 and 200

mg/kg)

and 0.1 g of the liver sample was weighed into acid-washed tubes. With each rack of samples, which are digested, a beef liver control (0.1 g) (National Institute of standards and technology, 1577b; Gaithersburg, MD) was included.

Five ml of the digestion acid mixture (one: four HCI04:HN03) was added into every test tube and the test tubes were placed on the programmable digestion block in the Varian extraction cabinet (Mulgrave, Australia) (model VGA-77).

The block is programmed so that the digestion process will carry on for 16 hours. The program was as follows:

Four hours at room temperature

One hour from room temperature to 100

0

C

One hour at 100

0

C

One hour from 100

0

C to 180

0

C

Six hours at 180

0

C

Two hours from 180

0

C to 130

0

C

One hour at 130

0

C

Hereafter the rack of test tubes was removed from the block and it was cooled down to room temperature. 2,5 ml of 20 % HCI was added to every test tube and the rack of test tubes was placed back on the block for another

40 minutes (conversion of Se VI to Se IV). During these 40 min., the AA was set according to the users guide. A wavelength of 196 mm and amperage of eight mAwas used.

An amount of 0.6 g Na (BH4) was mixed with 100 ml 0.5 % NaOH-solution and poured into the Na (BH4) bottle of the AA after it has been rinsed well with distilled water. Thereafter a 100 ml of 20 % HCI (6.4M) was poured into the other bottle of the hybrid generator. The rack with test tubes was removed from the block and cooled down to room temperature. The volume in the test tubes were made up to 20 ml with 20 % HCI for the standards and 10% HCI for the samples. The damp system was calibrated to deliver four ml per minute Na (BH4) and eight ml per minute HCI. The carrier gas (nitrogen or

Argon) had a flow rate of 400 ml per minute. After the AA has been set with the standards, the concentrations of the known controls was read and if the values of the controls corresponded with the known value, it was assumed that the wet ashing was done correctly and that the AA was set correctly.

Thereafter the samples' concentrations were read.

2.5 Statistical analysis

The data were analysed statistically using the Proc GLM of the SAS® System

(Edition 6) (SAS Institute, Inc., North Carolina, 1990).

The GLM procedure was used to show the differences between treatment one and the other treatments. The references that have been made regarding significance were based on testing against the P <0.05 level. There was a significant time effect.

Chapter 3: Results

Manganese, Zn, Co, Cu and Se concentrations were determined in both fresh liver samples and after the preservation in formalin for one month, three months and six months respectively.

The results are shown in Table 3.1.1 and graphically in Figure 3.1.1-3.1.5.

Table

3.1.1 Mean (±s.e.) for Mn, Zn, Co, Cu (mg/kg) and Se (ng/g) concentration in livers after preservation in formalin over different time periods

(OM basis; n=36)

Treatments Mn (mg/kg OM) Zn (mg/kg OM) Co (mg/kg OM) Cu (mg/kg OM) 5e (ng/g)

Fresh liver

12.5

a

± 0.306

Formalin

1 month

Formalin

3 months

9.6

b

± 0.243

8.0b ±0.212

168a ± 8.13

170 a ± 8.04

3.12 a ± 0.163

3.12 a± 0.163

181a ± 18.675

1363 a ± 99.6

180a ± 18.420

1344 a ± 75.6

203 b

± 10.34

3.71

b

± 0.198

172 b

± 18.518

1386a ± 81.~

Formalin

6 months

8.7

b

± 0.288

177a±5.71

2.56

b

± 0.075

149 b

± 14.498

1319a ± 75.8

a,D,C

Means (time 1,3 and 6 months) in the same column bearing different superscripts differ significantly (P< 0.05) compared to time 0 (n=36).

~

1:

~ c: o

()

::!:

o

10

~ g

8 c: o

3

Months

Figure

3.1.1

Mean manganese concentration

(mg/kg

DM) in livers preserved in formalin for different periods of time (Vertical bars represent standard error; n=36)

There was a significant decrease (P<O.05) in the Mn concentration from the control group to liver preserved in formalin for all the time periods (one month, three months and six months).

i'

200 o

~ g

150 c:: o

~ 100

C

~ c::

8

50

-

3

Months

Figure 3.1.2 Mean zinc concentration

(mg/kg

DM) in livers preserved in formalin for different periods of time (Vertical bars represent standard error; n=36)

There was a significant increase in the Zn concentration from the control group to liver preserved in formalin for three months. Liver preserved in formalin for six months had a significantly higher Zn concentration compared to the control.

The Zn concentration in the liver that was preserved in formalin for three months was significantly higher than the other treatments.

3

Months

Figure

3.1.3

Mean cobalt concentration

(mg/kg

DM) in livers preserved in formalin for different periods of time (Vertical bars represent standard error; n=36)

The concentration of Co in liver preserved in formalin for three months was significantly higher than the control.

There was a decrease in the Co concentration from the control group to liver preserved in formalin for six months.

1500

1450

~ 1400

l1350

g

1300

~

'E

1250

~ g

1200

()

1150

1100

3

Months

Figure 3.1.4 Mean selenium concentration (ng/g DM) in livers preserved in formalin for different periods of time (Vertical bars represent standard error; n=36)

Means of the Se concentration for every treatment was not significant different from the control.

i'

200

Cl

~

.[ 150 c: o

c:

~ 100

~ c:

8

50

3

Months

Figure

3.1.5

Mean copper concentration (mg/kg OM) in livers preserved in formalin for different periods of time (Vertical bars represent standard error; n=36)

There was a significant decrease in the Cu concentration from the control group to liver that was preserved in formalin for three months.

A decrease was also seen in the Cu concentration from the control to liver preserved in formalin for six months.

Table 3.2.1 Determination of Se concentration in formalin that was wet ashed and formalin that was centrifuged from the same sample

Sample no.

Amount analysed

Concentration in formalin that was

Concentration in formalin that was wetashed

(digested) centrifuged

194C

194C

142C

142C

3ml

3ml

3ml

3ml

1.1

1.1

0.9

1.0

1.0

1.1

0.9

0.9

214C

214C

3ml

3ml

1.1

1.1

1.0

1.0

156C

156C

200C

200C

135C

3ml

3ml

3ml

3ml

3ml

3ml

3ml

1.0

0.8

1.2

1.1

1.4

1.0

1.1

1.0

1.2

135C

139C

139C 3ml

1.6

1.0

1.1

1.6

1.3

1.1

1.0

No difference was seen in the Se concentration between formalin that was wet ashed (digested) and formalin that was centrifuged. Afterwards, the analysis (readings) was done directly on formalin that was centrifuged.

Table

3.2.2

Mean (±s.e.) for manganese, zinc, cobalt, copper (mg/l) and selenium (ng/ml) concentration in formalin after preservation of livers over different time periods (n=36)

reatment Mn (mg/l)

Pure

.053±Oa

n(mg/l)

.023±Oa

o(mg/l)

.003±0 a

u (mg/l)

.023±0 a

e (ng/ml)

.000±Oa

Formalin 1 month

. 129b±0.0033

Formalin 3 months

.128b±0.0058

Formalin 6 months

. 117b±0.0035

.4309 b±0.039

.4926 b±0.042

.032 b ±0.00997

.016 b ±0.00093

.449 b ±0.0538

.764 b ±0.08075

.419b±0.026

.408b±0.034

.4994 b±0.044

.011 b ±0.00053

.906 b ±0.09963

.467b±0.033

, ,e

Means (time 1, 3 and 6 months) in the same column bearing different superscripts diffe significantly (P< 0.05) compared to time 0 (n=36).

Q)

(.) c::

0

()

c:: c::

0

:;::

0.15

e!

0.1

0.05

0

0 1 2 3

Months

4

5 6

Figure

3.2.1

Mean Manganese concentration (mg/l) in formalin after one month, three months and six months of preservation of liver in formalin

(Vertical bars represent standard error; n=36)

There was a significant increase (P<0.0001) in the Mn concentration from the control (pure formalin) to formalin in which liver was preserved for all the time periods (one month, three months and six months).

c: o m

'E

0.4

~ 0.2

§

0

()

I I

3

Months

Figure 3.2.2 Mean Zn concentration (mg/l) in formalin after one month, three months and six months of preservation of liver in formalin (Vertical bars represent standard error; n=36)

There was a significant increase (P<0.0001) in the Zn concentration from the control (pure formalin) to formalin in which liver was preserved for all the time periods (one month, three months and six months).

Figure 3.2.3 Mean Se (ng/ml) concentration in formalin after one month, three months and six months of preservation of liver in formalin (Vertical bars represent standard error; n=36)

There was a significant increase (P<0.0001) in the Se concentration from the control (pure formalin) to formalin in which liver was preserved for all the time periods (one month, three months and six months).

0.06

0.04

0.02

o

3

Months

Figure 3.2.4 Mean Co concentration (mgll) in formalin after one month, three months and six months of preservation of liver in formalin (Vertical bars represent standard error; n=36)

There was a significant increase (P<0.05) in the Co concentration from the control (pure formalin) to formalin in which liver was preserved for all the time periods (one month, three months and six months).

c: o

+::

1.5

~ 1 c:

~ 0.5

§

0

C)

-

3

Months

Figure 3.2.5 Mean Cu concentration

(mg/l)

in formalin after one month, three months and six months of preservation of liver in formalin (Vertical bars represent standard error; n=36)

There was a significant increase (P<0.0001) in the Cu concentration from the control (pure formalin) to formalin in which liver was preserved for all the time periods (one month, three months and six months).

Table 3.3.1

Mean (±s.e.) for dry matter % in fresh and formalinised liver over different time periods

Treatments Dry matter (%)

Fresh liver

Liver in formalin for 1 month

Liver in formalin for 3 months

90.739±0.396

92.118±O.379

92.118±O.379

Liver in formalin for 6 months

92.118±0.379

a,b,c Means (time 1, 3 and 6 months) in the same column bearing different superscripts differ significantly (P< 0.05) compared to time 0 (n=36).

Liver preserved in formalin for all the time periods (one, three and six months) had a significantly higher dry matter % than fresh liver (P<0.05). No difference was seen in the dry matter % between liver preserved in formalin for one, three and six months.

Dry matter % in liver is normally ± 70 %. The dry matter %, which was statistically analysed to determine if there was a difference between fresh and formalinised liver, was done on the samples after they were dried for a second time at 100

0

C. The dry matter % at 100

0

C was ± 90 %; this is the values represented in Table 3.3.1.

The concentrations of Zn and Se were not significantly different between fresh liver and liver preserved in formalin for six months. The Mn, Co and Cu concentrations were lower (P < 0.05) after six months of preservation.

Theron et al. (1974) found that the concentrations of Cu, Fe and Mg were not affected by storage in formalin for 22 days, but detected statistically significant differences in the levels of Mn and Zn after six months.

No significant differences were found between the means of the four treatment groups for Se during this trail.

Co

(mg/kg

DM)

Deficient <0.0175

Marginal 0.0175-

0.0595

Adequate

0.0875-

0.2975

High

Toxic

0.2975-30.45

17.5-1050

Cu Mn Se Zn

(mg/kg

DM)

(mg/kg

DM) (mglkg DM)

(mg/kg

DM)

1.75-14

17.5-70

87.5-350

350-1750

875-3500

3.5-7.35

7-15.4

3.5-10.5

17.5-1330

0.035-3.5

0.525-0.875

0.875-5.25

7-35

52.5-105

70-105

105-262.5

350-1400

>1400

According to Puis (1994) the Co concentrations found during this trial for the four treatments (3.12,3.12,3.71,2.56

mg/kg

DM) could be categorized as being 'High'. The Cu concentrations (181,180,172,149

mg/kg

DM) found for the four treatments could be categorized as being 'Adequate'.

Manganese concentrations (12.5,9.6,8.0,8.7

mg/kg

DM) during this study were 'High' while Zn concentrations for the four treatments (168, 170, 203,

177 mg/kg

DM) could be categorized as being 'Adequate'. The Se concentrations found during this trial were 'Adequate' (1.363, 1.344, 1.386,

1.319 mg/kg).

Chapter 4: Discussion

When the effect of liver preservation was measured, no significant differences were found in the Cu, Co, Zn and Se concentrations between fresh liver and liver preserved in formalin for one month. There was, however, a significant decrease in the Mn concentration between fresh liver and liver preserved in formalin for one month.

The study done by Theron et al. (1974) was consistent with the results found in this trial for Cu and Zn, but not for Mn. Theron et al. (1974) took random, multiple samples from the caudate lobe of a fresh liver, as soon as possible after slaughtering, and carried out replicate determinations on them. Further portions of the liver were preserved in formalin for 22 days, after which the analysis was repeated. No statistically significant differences were noted for

Cu, Fe, Mn, Zn and Mg concentrations. Theron et al. (1974) concluded that formalin preservation up to 22 days did not affect the trace element levels of the liver.

In the current study, the concentrations of Zn and Co were significantly

(P<O.05) higher after three months of preservation of liver in formalin in comparison to these specific minerals in fresh liver.

The Mn and Cu concentrations were significantly (P<O.05) lower, after three months of preservation of liver in formalin, than the concentrations in fresh liver.

The mean concentration of the minerals (Cu, Co, Zn, Se and Mn) in liver preserved in formalin for three months was higher than the means of the other treatments. The discrepancy could be due to contamination although the standards and controls, which were analysed with each batch of samples, had the correct value.

The difference in the mineral concentrations between fresh liver and liver stored in formalin was negligible and would therefore not have any effect on the interpretation of the relative mineral concentration Le. if a mineral is toxic or deficient.

No data could be found for formalin, used to preserve liver, which was wet ashed (acid digested) and analysed for minerals using AAS. During this trial

AAS was done on the formalin, and it was found that the Mn, Zn, Cu, Co and

Se concentration increased significantly (P<0.05) from pure formalin to formalin in which liver was preserved for al the time periods (one month, three months and six months). The concentrations of the minerals in the formalin probably were higher due to leaching of the minerals or evaporation of formalin. Another possibility is that formalin's composition differs between batches, and that it influenced the mineral concentrations in the formalin.

The formalin solution that was used for preservation of the livers during this trial was prepared using the method of Millonig's buffered formalin solution.

A 40 % formaldehyde solution was used to make up the formalin solution that was used during this study. It was chemically pure, but contained 0.001 % Cu per 2.5 I (w/v), which could have lead to contamination of the liver that was preserved in the formalin.

Summers et al. (1980) investigated the consequences of performing Cu analysis on tissue specimens preserved in formalin. In almost all cases, it was observed that levels were lower in the preserved tissues. The explanation for the lowered values following preservation was two-fold; firstly, imbibition of fluid by the tissue in the preservative and secondly, loss of Cu into the solution. It was found that the weight of the imbibed fluid would have an effect of lowering the concentration of the assayed element per unit weight of preserved tissue (Summers et al., 1980).

The difference in the concentration between fresh liver and liver stored in formalin was small therefore it would not have any effect on the interpretation,

Le. if a mineral concentration is toxic or deficient, of the relative mineral concentration.

Theron et al. (1974) investigated the possibility that moisture may not be homogeneously dispersed within a liver. A comparison of moisture determinations was done on homogenized and non-homogenized samples taken from a fresh liver. The mean for the non-homogenized liver was 63.3 % with an s.d. of 4.2 while the mean for the homogenized sample was 65 % with an s.d. of zero within a fresh liver (Theron et al., 1974).

The dispersion of moisture within an individual liver after storage in formalin was investigated in the same manner as for the fresh liver. The irregular dispersion of moisture within a formalinised liver is not significant. Moisture apparently becomes more homogeneously dispersed on storage. The mean for the non-homogenized liver was 71.0 % with an s.d. of 1.07 while the mean for the homogenized sample was 75.5 % with an s.d. of 0.87 within a formalinpreserved liver (F

=

1.53 F (5%)

=

3.87) (Theron et al., 1974).

Theron et al. (1974) found that livers may be stored for up to two years without affecting moisture content significantly and concluded that mineral levels expressed on a wet basis are directly comparable for fresh and stored livers (Theron et al., 1974). During this trial, liver preserved in formalin (for one, three and six months) had a significantly higher DM % than fresh liver

(P<0.05), probably due to dehydration due to formalin fixation. No difference was seen in the dry matter % between liver preserved in formalin for one, three and six months. Although it is preferred that mineral concentrations should be expressed on a dry matter basis, it would probably not influence the interpretation of the mineral concentrations, if the mineral concentrations were expressed on a wet basis. It is recommended that the expression of mineral concentrations should be standardised for easier comparison between studies.

During this trial liver preserved in formalin for all the time periods had a significantly higher dry matter % than fresh liver (P<O.05) probably due to dehydration because of formalin fixation. Although it is preferred that mineral concentrations are expressed on a dry matter basis, it would not affect the interpretation of the mineral concentrations if the mineral concentrations were expressed on a wet basis. The results of diagnostic tests, for example liver mineral levels, can only be interpreted using established reference criteria that relate these mineral levels, or the mineral status of the animals to production responses, when they are supplemented with a specific trace element (Grace

& Clark, 1991).

Chapter 5: Conclusions

No statistically significant differences were noted for Cu, Co, Se and Zn concentrations for liver that was preserved in formalin for one month. It was concluded that formalin preservation up to one month did not affect the trace element levels except for Mn. The decrease in the Mn concentration was propably due to leaching.

The concentrations of Zn and Co were significantly (P<O.05) higher while the concentrations of Mn and Cu were significantly (P<O.05) lower, than in fresh liver, after three months of preservation of liver in formalin.

The concentrations of Zn and Se were not significantly (P<O.05) different between the fresh liver and liver that was preserved in formalin for six months.

The Mn, Co and Cu concentrations were statistically lower after six months preservation of liver in formalin.

Liver concentrations of Se remained unchanged by formalin-fixation, over all the time periods, the analysis of formalin-fixed liver for diagnostic purposes can be recommended for Se.

The Mn concentration decreased significantly after one month, three months as well as after six months of formalin preservation of liver compared to fresh liver.

The difference in the mineral concentrations between fresh liver and liver stored in formalin was small. It would not have any effect on the interpretation

(if a mineral is toxic or deficient) of the relative mineral concentration.

In this trial formalin was also analysed using AAS for all the minerals over the three time periods (one month, three months and six months).

There was a significant (P<O.05) increase in all the mineral (Cu, Co, Zn, Mn and Se) concentrations from pure formalin to formalin in which liver was stored over all the time periods (one month, three months and six months).

From the analysis of the formalin it would appear as if evaporation or leaching has taken place, which would both lead to an increase of the mineral concentrations in formalin. The formalin used to preserve the liver contained

Cu before it was used for preservation; this also has to be taken into consideration.

Liver preserved in formalin for all the time periods (one, three and six months) had a significantly higher dry matter % than fresh liver (P<O.05) probably due to dehydration because of formalin fixation. No difference was seen in the dry matter % between liver preserved in formalin for one, three and six months.

Although it is preferred that mineral concentrations are expressed on a dry matter basis, it would not affect the interpretation of the mineral concentrations if the mineral concentrations were expressed on a wet basis.

Recommendations

1) The dehydration of tissue samples by freezing or formalin fixation and the leaching of minerals from fixed tissue must be considered in interpreting data from stored samples. Regression equations must be calculated to take those effects into consideration and provide for easy extrapolation from the mineral concentration determined in formalinfixed liver to the expected concentration in fresh liver.

2) The formalin used for preservation must be buffered since mineral dissolution would be expected in non-buffered, acidic, formic acid-rich formalin solution.

3) Standard conditions for the weight basis of expression of the results must be used in preparing the tissues so that meaningful comparisons among different studies can be made. Results should rather be expressed on a dry weight basis.

4) Tissues with a high concentration of a certain mineral should not be stored in formalin with tissues with a lower concentration in the same mineral, because leaching and contamination can present a problem.

5) Alternative preservation solutions must be investigated. The cost effectiveness of F13, and other alternatives, must be compared to formalin.

6) Each new mixture of formalin should be analysed for the presence of the minerals that are being ana lysed and the samples' concentrations should be corrected accordingly.

Chapter 6: References

ANDERSON, P.H., BERRETI, S., PATIERSON, D.S.P. 1979. Veterinary

Record. 104: 235 (as cited by Suttle 1986).

ANDREWS, ED., HART, L.I., STEPHENSON, B.J. 1959. New Zealand

Journal of Agricultural Research. 2: 274 (as cited by Mitsioulis et al. 1995).

ANDREWS, ED., HART, L.I., STEPHENSON, B.J. 1960. New Zealand

Journal of Agricultural Research. 3: 364 (as cited by Mitsioulis et al. 1995).

BINGLEY, J.B. & DUFTY, J.H. 1972. Distribution of copper in the tissues of the bovine neonate and dam. Research in Veterinary Science. 13: 8-14

(as cited by Osborn et al. 1983).

BOSKEY, AL., COHEN, M.L., BULLOUGH, P.G. 1982. Hard tissue biochemistry: A comparison of fresh-frozen and formalin fixed tissue samples.

Calcified Tissue International. 34: 328-331.

BOYAZOGLU, P.A1976.

A review of mineral imbalances of grazing animals in Southern Africa. Journal of the South African Veterinary Association. 47:

129-132.

BRATION, G.R., ZMUDZKI, J., RICHARDSON, EW. 1984. Lead concentrations in fresh, frozen and formalin fixed tissues from lead poisoned calves: Guidelines for diagnosis. Veterinary and Human Toxicology. 27:

7 -10.

BREMMER, I. & MILLS, C.F. 1981. Absorption, transport and tissue storage of essential trace elements. Philosophical Transactions of the Royal Society

of London Series B Biological Sciences 294:75 (as cited by MILLS 1987).

BROWN, K.S., CHERRY, W.H., FORBES, W.F. 1979. Studies of traceelement levels in human tissue-VI. Concerning the estimation of lead levels in human lung and vertebra, with particular reference to formalin fixation.

Bulletin

of

Environmental Contamination and Toxicology.

22: 552-560.

CAPLE, I.W. & MCDONALD, J.W. 1983. Trace mineral nutrition.

Postgraduate Symposium, University of Sydney Proceedings

67

Sheep. 67:

235-242.

CASSIDY, I. & EVA, J.A. 1958. Variations in the concentrations of copper and iron within and between the lobes of pig livers.

Proceedings

of

the Nutritional

Society.

17 (as cited by Hogan

etal. 1971).

CHAPMAN, H.L., COX, D.H., HAINES, C.E., DAVIS, G.K. 1963. Evaluation of the liver biopsy technique for mineral nutrition studies with beef cattle.

Journal

of

Animal Science.

22: 733 -737.

DEIERKAUF, F.A. & HESLINGA, F.J.M. 1961. The action of formaldehyde on rat brain lipids.

Journal

of

Histochemistry and Cytochemistry.

8: 70 - 82.

EHRET, W.J. 1971. Causes of variation of copper, iron, manganese, zinc and magnesium levels in bovine livers.

M. Med. Vet. Thesis: University of

Pretoria.

EHRET, W.J., SANDROCK, K.C.W., BOYAZOGLU, P.A. 1975. Causes of variation of copper, iron, manganese, zinc and magnesium levels in bovine livers. 3. The effects of locality.

Journal

of

the South African Veterinary

Association.

46: 249-255.

FAIRBANKS, V.F., FAHEY, J.R., BEUTLER, E.1971. Clinical disorders of iron metabolism. Second Edition. Grune and Stratton Publishers.

FORBES, W.F., FINCH, A, ESTERBY, S.R., CHERRY, W.H. 1976. Studies of trace-metal levels in human tissues-III. The investigation of lead levels in rib and vertebra samples from Canadian residents. Trace substances in environmental health-XII. A Symposium, D.O. Hemphill, Ed., University of

Missouri, Columbia.

GAWTHORNE, J.M. 1968. Australian Journal of Biological Science. 21: 789

(as cited by Suttle 1986).

GIBBS, G.W. & BOGDANOVIC, E. 1974. Trace elements in lung and hair.

Recent advances in the assessment of the health effects of environmental pollution. A Symposium,

Vol. IV, Paris, Office Job Official Publications of the

European Committee. 2271-2283 (as cited by Brown et al. 1979)

GRACE, N.D. & CLARK, R.G. 1991. Trace element requirements, diagnosis and prevention of deficiencies in sheep and cattle. Physiological aspects of digestion and metabolism in ruminants. Proceedings of the

1 h international

symposium on ruminant physiology. 15: 321-346.

GRANDJEAN, P. 1975. Lead in Danes. Chapter 2 in Lead. TB. Griffin & JH

Knelson, Eds., Stuttgart and New York, Georg Thieme and Academic Press, p. 6-75. (as cited by Brown et al. 1979).

GRAHAM, TW., THURMOND, M.C., MOHR, F.C., HOLMBERG, C.A,

ANDERSON, M.L., KEEN, C.L. 1994. Relationships between maternal and fetal liver copper, iron, manganese, and zinc concentrations and fetal development in California Holstein dairy cows. Journal of Veterinary

Diagnostic Investigation. 6: 77-87.

HAMIR, AN., GALLIGAN, D.T, EBEL, J.G., MANZELL, KL., NIU, H.S.,

RUPPRECHT, C.E.1995. Lead concentrations in frozen and formalin-fixed tissues from raccoons (Procyon lotor) administered oral lead acetate. Journal

of Veterinary Diagnostic Investigation. 7: 580 - 582.

HENDERICKX, H. & VAN DER HEYDE, H. 1961. De verdeling van het koper in de lever van runderen. Vlaams Diergeneeskunde Tijdschrif. 30: 238.

HOGAN, K.G., MONEY, D.F.L., WALKER, R.S. 1971. The distribution of copper in the liver of pigs and sheep and its effect on the value of chemical analysis made on biopsy samples. New Zealand Journal of Agricultural

Research. 14: 132-41.

JANSEN VAN RENSBURG, C. 2000. The effects of organic and inorganic forms of selenium on the immune system of sheep. MSc. Agric thesis:

University of Pretoria.

JUDSON, G.J. & MCFARLANE, J.D. 1998. Mineral disorders in grazing livestock and the usefulness of soil and plant analysis in the assessment of these disorders. Australian Journal of Experimental Agriculture. 38: 707-723.

KAHNKE, M. 1966. Atomic absorption spectrophotometry applied to the determination of zinc in formalinized human tissue. Atomic Absorption

Newsletter. 5:7 (as cited by Ehret 1973).

LILLIE, R.D. 1939. American Journal Pathology. 15: 225. (as cited by Van Eijk

etal.1974).

McMURRAY, C.H., RICE, D.A., McLOUGHLIN, M., BLANCHFLOWER, W.J.

1986. In Proceedings of the 5

th

International Symposium on Trace Element

Metabolism in Man and Animals. Edited by C.F. Mills, I. Bremmer. J.K.

Chesters. Slough. Commonwealth Agricultural Bureaux (as cited by Suttle

1986).

MERTZ, W. 1987. Trace elements in human and animal nutrition - Fifth

Edition, Harcourt Brace Jovanovich Publishers, Volume 1, Chapter 3: Quality assurance for trace mineral analysis.

MILLS, C.F. & WILLIAMS, RB. 1971. Problems in the determination of the trace element requirements of animals. Proceedings of the Nutritional Society.

30: 83-90.

MILLS, C.F. 1987. Biochemical and physioliogical indicators of mineral status in animals: copper, cobalt and zinc. Journal of Animal Science.

65: 1702 -1711.

MITSIOULlS, A., BANSEMER, P.C., KOH, T.S. 1995. Relationship between vitamin B12and cobalt concentrations in bovine liver. Australian Veterinary

Journal 72: 2.

OPHUS, E.M. & MYLlUS, E.A. 1977. Bulletin of Environmental

Contamination

and Toxicology. 18: 734 (as cited by Brown et al. 1979).

OSBORN, P.J., BOND, G.C., MILLAR, K.R 1983. The distribution of copper, vitamin B12and zinc in the livers of sheep. New Zealand Veterinary Journal.

31: 144-145.

PULS, R 1994. Mineral levels in animal health. Second Edition. Sherpa

International Publishers. P.80, 105, 182,250,298.

SAS 1990. Statistical Analysis Systems Users' Guide (Version 6) Institute,

Inc., North Carolina.

SCHMIDT W. 1970. Determination of Mo, Zn, Mn, Cu and Fe in vitamin tablets. Beckman Flame news 4: 11 (as cited by Ehret 1973).

SLAVIN W. 1965. Applications of optical absorption spectroscopy to analytical biochemistry and toxicology. Occupational Health Review 17: 9 (as cited by

Ehret 1973).

SMITH, RM. 1987. Trace Elements in Human and Animal Nutrition: Cobalt,

edited

by

Mertz W, Academic Press, New York, p.143

STRINGER, C.A., ZINGARO, RA., CREECH, B., KOLAR, F.L. 1974.

Archives of Environmental

Health. 29: 268 (as cited by Brown et al. 1979).

SULLIVAN, J.M., PANDO, K.M., EVERSON, RJ., ROBINSON, F.R 1993.

The effect of formalin fixation on the concentration of selenium in porcine liver.

Journal of Veterinary Diagnostic Investigation. 5: 131-133.

SUMMERS, B.A., APPEL, M.J.G., GREISEN, H.A., EBEL, J.G.,

DELAHUNTA, J.R, DELAHUNTA, A. 1980. Studies on viral leukoencephalomyelitis and swayback in goats. The Cornell Veterinarian.

70:372-390.

SUTTLE, 1983. Nutritional Physiology of Farm Animals. Edited by J. A. F.

Rook. P. C. Thomas. London. Longman. p. 415 (as cited by Suttle 1986).

SUTTLE, N.F. 1986. Problems in the diagnosis and anticipation of trace element deficiencies in grazing livestock. The Veterinary record. 119:

148 -152.

SUTTLE, N.F. & McMURRAY, C.H. 1983. Research in Veterinary Science.

35: 47 (as cited by Suttle 1986).

THERON, P.F., RIMMER, R, NICHOLLS, H.A., EHRET W.J. 1973. Cause of variation in copper, iron, manganese, zinc and magnesium levels in bovine livers. 1: Determination of trace elements by atomic absorption spectrophotometry.

Journal of South African Veterinary Association. 44:

271-277.

THERON, P.F., RIMMER, R, NICHOLLS, H.A. 1974. Cause of variation in copper, iron, manganese, zinc and magnesium levels in bovine livers. 2:

The dispersion of trace metals in bovine livers and the effects of formalinized storage on mineral concentrations and moisture content. Journal of South

African Veterinary Association. 45: 73-76.

TIPTON, I.H. & SHAFER, J.J. 1964. Archives of Environmental Health. 8: 58

(as cited by Brown et al. 1979).

UNDERWOOD, E.J. 1966. The mineral nutrition of livestock. FAO.

Commonwealth Agric. Bureaux.

UNDERWOOD, E.J. & SUTTLE, N.F. 1999. The mineral nutrition of livestock.

Third Edition. CABI Publishing.

VAN EIJK, H.G., WIL TINK, W.F, BOS, G.R.E., GOOSSENS, J.P. 1974.

Measurement of the iron content in human liver specimens. Clinica Chimica

Acta. 50: 275 - 280.

VAN RYSSEN, J.B.J. 1997. Predicting the trace element status offarm animals. Proceedings 35

th

Congress SASAS.

VAN RYSSEN, J.B.J., VAN MALSEN, P.S.M., HARTMANN, F. 1998.

Contribution of dietary sulphur to the interaction between selenium and copper in sheep. Journal of Agricultural Science. 130: 107-114.

WARMINGTON, AR., WILKINSON, J.M., RILEY, C.B. 2000. Evaluation of ethanol-based fixatives as a substitute for formalin in diagnostic clinical laboratories. The Journal of Histotechnology. 23: 299-308.

WIDDOWSON, E.M. & DICKERSON, J.W.T. 1964. Chemical composition of the body. In: Mineral metabolism. Comar C.L., Brouner F (Eds.) New York,

Londen; Academic Press, Vol. 2. Part A

WOOLLIAMS, C., SUTTLE, N.F., WOOLLIAMS, J.A., JONES, D.G.,

WIENER, G. 1986. Animal Production (as cited by Suttle 1983).

Chapter 7: Appendix

Sample No.

159C

1590

159E

131C

1310

131E

161C

1610

2030

203E

144C

1440

144E

161E

170C

1700

178E

194C

1940

194E

196C

1960

196E

203C

117C

1170

117E

178C

1780

31.2

30.3

29.8

30.2

31.4

30.0

30.2

29.9

Liver mass (9)

21.1

16.8

23.3

31.2

29.8

29.6

34.8

33.5

32.2

30.8

30.7

29.5

30.6

30.5

29.9

30.1

29.5

33.7

30.3

30.7

31.4

Volume formalin (ml)

84.4

67.2

93.2

128.8

123.2

122.8

118

122.4

122

119.6

124.8

119.2

118.4

124.8

121.2

119.2

120.8

125.6

120

120.8

119.6

139.2

134

120.4

118

134.8

121.2

122.8

125.6

1420

142E

160C

1600

160E

139C

1390

139E

164C

170E

146C

1460

146E

135C

1350

135E

142C

214C

2140

214E

201C

2010

201E

212C

2120

212E

156C

1640

164E

171C

1710

171E

31.2

30.1

30.5

30.4

29.6

34

31.2

30.4

30.5

31.4

31.6

29.9

32

31.3

29.9

29.9

31.4

34.4

30.6

30.1

30.7

30.1

30.7

30.4

30.8

32

29.5

29.9

31.3

29.8

29

30.7

137.6

122.4

120.4

122.8

120.4

122.8

121.6

126.4

119.6

128

125.2

119.6

119.6

125.6

124.8

120.4

122

121.6

118.4

136

124.8

121.6

122

125.6

123.2

128

118

119.6

125.2

119.2

116

122.8

207E

199C

1990

199E

163C

1630

163E

145C

1450

145E

5C

50

5E

6C

60

6E

1840

184E

183C

1830

183E

207C

2070

1560

156E

200C

2000

200E

167C

1670

167E

184C

32.1

29.1

29

30.5

30.3

32.9

30.3

30

32.4

31.2

30.8

30.7

32.8

30.6

29

29.5

31

29.2

31.7

31.6

30.2

32.3

29.7

29

29.8

29.6

31.3

30.4

29.9

31.1

29.4

29.2

125.2

121.6

124.8

123.2

122.8

131.2

122.4

116

118

124

116.8

126.8

128.4

116.4

126.4

120.8

129.2

118.8

116

119.2

118.4

116

122

121.2

131.6

121.2

120

129.6

119.6

124.4

117.6

116.8

7C

70

7E

1C

10

1E

2C

20

2E

M26C

M260

M26E

M35C

M350

M35E

32.2

30.4

29.4

29.6

30.2

30.3

28.5

31.6

32

30.1

31.3

31.0

32.3

34.6

30.4

128

120.4

125.2

124

129.2

138.4

121.6

128.8

121.6

117.6

118.4

120.8

121.2

114

126.4

After the livers were removed from the formalin, the volume of formalin was measured to see if evaporation or possible absorption of formalin by liver, took place.

Sample No.

196C

1960

196E

203C

2030

203E

144C

159C

1590

159E

117C

1170

117E

178C

1780

178E

194C

1940

194E

1440

144E

131C

1310

131E

161C

1610

Volume formalin Volume formalin

Difference (ml) before (ml)

84.4

after (ml)

78

6.4

67.2

60 7.2

93.2

128.8

86 7.2

4.8

123.2

122.8

124

116

114

7.2

8.8

118

122.4

122

119.6

124.8

119.2

118.4

139.2

134

120.4

123

126

118

112

116

110

112

130

126

114

-5

-3.6

4

7.6

8.8

9.2

6.4

9.2

8

6.4

118

134.8

121.2

122.8

125.6

108

128

116

114

10

6.8

5.2

8.8

9.6

124.8

121.2

119.2

116

118

114

120.8

125.6

112

112

116

6.8

7.2

7.2

8.8

9.6

160C

1600

160E

139C

1390

139E

164C

1640

164E

171C

1710

171E

214C

2140

214E

201C

2010

201E

212C

146E

135C

1350

135E

142C

1420

142E

161E

170C

1700

170E

146C

1460

119.6

128

125.2

119.6

119.6

125.6

124.8

120.4

122

121.6

118.4

136

124.8

121.6

122

125.6

123.2

128

118

119.6

125.2

120

120.8

119.6

137.6

122.4

120.4

122.8

120.4

122.8

121.6

126.4

112

108

126

112

108

114

120

114

116

116

112

112

116

116

110

110

120

110

120

118

112

112

112

115

118

112

134

110

130

114

114

118

8

-13.2

9.6

7.6

8.4

6.4

4.8

8.4

10.8

6.6

8.4

9.6

8

7.2

7.6

5.6

9.6

8.8

8.4

10

9.6

10.4

8

5.6

7.2

12

8

9.6

5.2

10

12.8

13.6

1630

163E

145C

1450

145E

5C

50

5E

2070

207E

199C

1990

199E

163C

167C

1670

167E

184C

1840

184E

183C

1830

183E

207C

2120

212E

156C

1560

156E

200C

2000

200E

116

122

121.2

131.6

121.2

120

129.6

119.6

116

118

124

116.8

126.8

128.4

116.4

119.2

116

122.8

126.4

120.8

129.2

118.8

116

119.2

118.4

125.2

121.6

124.8

123.2

122.8

131.2

122.4

118

114

108

106

112

114

110

110

110

110

106

118

120

108

120

110

104

112

110

114

122

110

116

124

106

112

108

115

116

118

98

116

-1.6

18

6

7.2

9.6

11.2

4

5.6

13.6

6

8

12

8.8

11.8

12.4

7.2

7.6

16.8

17.2

10.8

17.2

12.4

9.2

10

4.8

6.4

12.8

9.2

8.8

12

7.2

8.4

1C

10

1E

2C

20

2E

M26C

7C

70

7E

6C

60

6E

M260

M26E

M35C

M350

M35E

124.4

117.6

116.8

128

120.4

125.2

124

129.2

138.4

121.6

128.8

121.6

117.6

118.4

120.8

121.2

114

126.4

122

122

124

130

118

126

120

114

110

122

112

110

110

110

110

112

108

114

3.2

2

5.2

8.4

3.6

2.8

11.6

7.6

8.4

4.4

3.6

6.8

6

8.4

10.8

9.2

6

12.4

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
