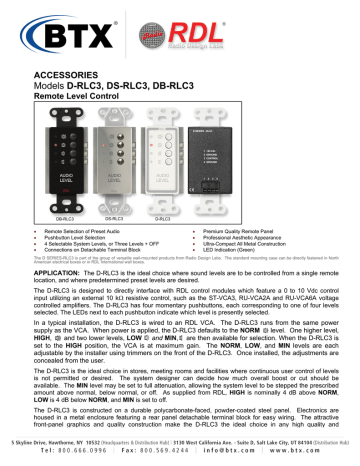

ACCESSORIES
Models D-RLC3, DS-RLC3, DB-RLC3
Remote Level Control
i




DB-RLC3
DS-RLC3
ii
D-RLC3
Remote Selection of Preset Audio
Pushbutton Level Selection
4 Selectable System Levels, or Three Levels + OFF
Connections on Detachable Terminal Block




Premium Quality Remote Panel
Professional Aesthetic Appearance
Ultra-Compact All Metal Construction
LED Indication (Green)
The D SERIES-RLC3 is part of the group of versatile wall-mounted products from Radio Design Labs. The standard mounting case can be directly fastened in North
American electrical boxes or in RDL International wall boxes.
APPLICATION: The D-RLC3 is the ideal choice where sound levels are to be controlled from a single remote
location, and where predetermined preset levels are desired.
The D-RLC3 is designed to directly interface with RDL control modules which feature a 0 to 10 Vdc control
input utilizing an external 10 k resistive control, such as the ST-VCA3, RU-VCA2A and RU-VCA6A voltage
controlled amplifiers. The D-RLC3 has four momentary pushbuttons, each corresponding to one of four levels
selected. The LEDs next to each pushbutton indicate which level is presently selected.
In a typical installation, the D-RLC3 is wired to an RDL VCA. The D-RLC3 runs from the same power
supply as the VCA. When power is applied, the D-RLC3 defaults to the NORM
level. One higher level,
HIGH,
and two lower levels, LOW
and MIN, are then available for selection. When the D-RLC3 is
set to the HIGH position, the VCA is at maximum gain. The NORM, LOW, and MIN levels are each
adjustable by the installer using trimmers on the front of the D-RLC3. Once installed, the adjustments are
concealed from the user.
The D-RLC3 is the ideal choice in stores, meeting rooms and facilities where continuous user control of levels
is not permitted or desired. The system designer can decide how much overall boost or cut should be
available. The MIN level may be set to full attenuation, allowing the system level to be stepped the prescribed
amount above normal, below normal, or off. As supplied from RDL, HIGH is nominally 4 dB above NORM,
LOW is 4 dB below NORM, and MIN is set to off.
The D-RLC3 is constructed on a durable polycarbonate-faced, powder-coated steel panel. Electronics are
housed in a metal enclosure featuring a rear panel detachable terminal block for easy wiring. The attractive
front-panel graphics and quality construction make the D-RLC3 the ideal choice in any high quality and
economical wall-mounted remote control installation.
RDL  659 6th St.  Prescott, AZ., USA 86301  (928) 443-9391  FAX (928) 443-9392  www.rdlnet.com
ACCESSORIES
Installation/Operation
Models D-RLC3, DS-RLC3, DB-RLC3
EN55103-1 E1-E5; EN55103-2 E1-E4; EN60065
Typical Performance reflects product at publication time exclusive of EMC
data, if any, supplied with product. Specifications are subject to change
without notice. This product is Professional Apparatus.
Remote Level Control
Mounting
The D SERIES–RLC3 should be mounted in an RDL WB-1U wall box or equivalent. The ambient operating environment must not exceed 40 degrees C.
TYPICAL PERFORMANCE
Interface:
Output:
Direct connection to RDL VCA modules using 0 to 10 Vdc control or
10 k resistive control (see ST-VCA3)
Selectable resistance (CTRL Terminal ) to ground in four steps:
D-RLC3 OUTPUT
HIGH:
NORM:
LOW:
MIN:
10 k
Adjustable
Adjustable
Adjustable
RDL VCA GAIN
0
-3
-5
-10
dB
dB
dB
dB
to -20 dB
to -35 dB
to OFF
Power Requirements:
Mounting:
24 Vdc @ 30 mA, Ground-referenced
Mounts in standard US electrical outlet box; cover plate available separately.
Dimensions:
Height: 4.1 in. (10.4 cm)
Depth: 1.6 in. (4.10 cm)
Width: 1.3 in. (3.30 cm)
891-5021L
Radio Design Labs Technical Support Centers
U.S.A. (800) 933-1780, (928) 778-3554; Fax: (928) 778-3506
Europe [NH Amsterdam] (++31) 20-6238 983; Fax: (++31) 20-6225-287
