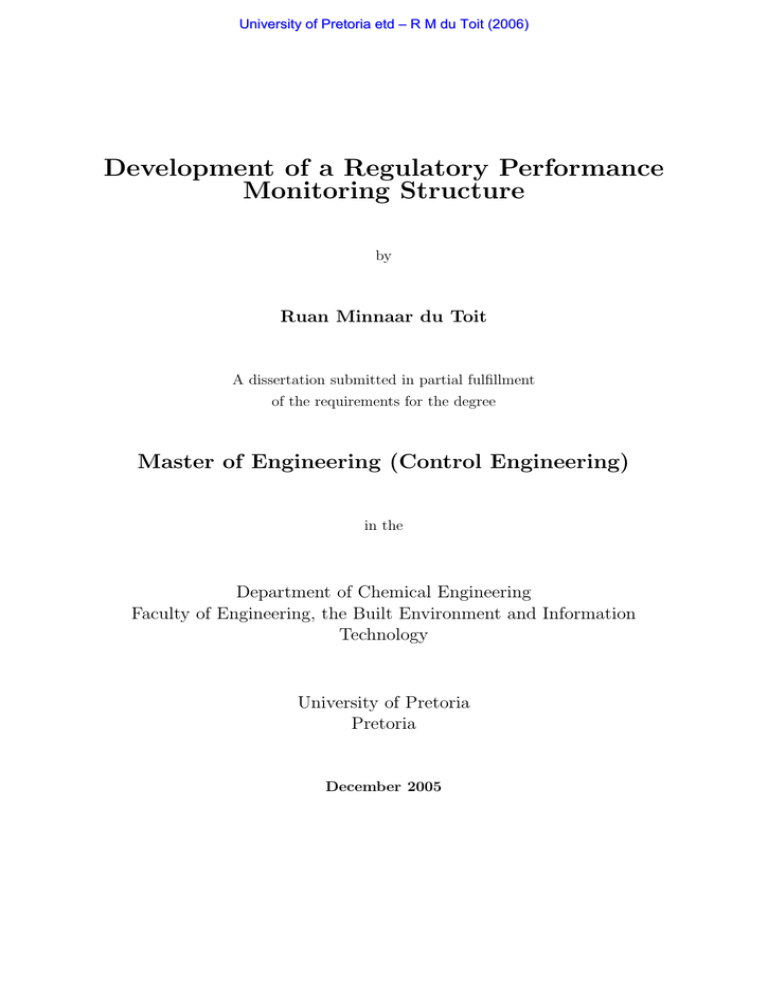

Development of a Regulatory Performance
Monitoring Structure
by
Ruan Minnaar du Toit
A dissertation submitted in partial fulfillment
of the requirements for the degree
Master of Engineering (Control Engineering)
in the
Department of Chemical Engineering
Faculty of Engineering, the Built Environment and Information
Technology
University of Pretoria
Pretoria
December 2005
University of Pretoria etd – R M du Toit (2006)
Development of a Regulatory Performance Monitoring Structure
Author:
Supervisor:
Department:
Degree:
Ruan Minnaar du Toit
Prof PL de Vaal
Department of Chemical Engineering
University of Pretoria
Master of Engineering (Control Engineering)
Synopsis
A number of factors have contributed to increased pressure on plant operating efficiency
in the chemical processing industry. These factors include more stringent environmental
and safety regulations, global economic pressures and downsizing of many support services
in order to save money. Control performance monitoring is a tool that is used to keep
automated control systems performing as optimally as possible. Various performance
metrics and methods exist to evaluate plant operation. In essence, however, they all refer
to the same principle which is to indicate how far a plant is operating from its inherent
optimum and what can be done to ensure that the gap between the optimum and the
current operation is as small as possible for the longest possible period.
Performance monitoring is, although well researched, not yet a generic, complete and
specific application. Current shortcomings of monitoring applications are that it is process or unit operation specific and that it provides a local indication of performance and
not a plant wide evaluation of how close the plant is operating to its inherent optimum.
Performance reports are usually in terms of statistical measures and graphics which are
usually abstract and vague. For high level decision making (on operation end economic
investment) simple and quantifiable measures are needed that are repeatable and transparent.
The focus of this project was to develop and implement a regulatory performance
monitoring structure for real-time application on an industrial pilot scale chemical process.
The structure was implemented by means of two graphical interfaces. The first provides a holistic plantwide indication of performance and indicates sources of poor performance in the regulatory control structure. The plantwide interface includes a proposed
plant wide performance index (P W I) that reduces operational efficiency to one specific
number. The second interface supplements the plantwide interface by providing statistical information on individual loop performance. The individual loop interface is a tool
to locate causes of poor performance in the regulatory control structure to aid controller
and plant maintenance.
Keywords: regulatory performance, statistical process control, plant wide control
i
University of Pretoria etd – R M du Toit (2006)
Acknowledgements
I would like to thank Professor Philip de Vaal for his guidance and insight, my family and
friends for their amazing support and also Fluor SA (PTY) LTD for providing financial
assistance.
ii
University of Pretoria etd – R M du Toit (2006)
CONTENTS
Synopsis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Acknowledgements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1 Introduction
1.1 Background . . . .
1.2 Problem statement
1.3 Research objectives
1.4 Method . . . . . .
1.4.1 The process
1.4.2 Performance
. . . . . . . . . . . .
. . . . . . . . . . . .
. . . . . . . . . . . .
. . . . . . . . . . . .
. . . . . . . . . . . .
monitoring structure
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
2 Background
2.1 Defining plant performance . . . . . . . . . . . . . . . . . . . . .
2.2 A general plant performance evaluation methodology . . . . . .
2.3 Performance and the plant control hierarchy . . . . . . . . . . .
2.4 Performance and plant operation . . . . . . . . . . . . . . . . .
2.5 Benefits of performance evaluation . . . . . . . . . . . . . . . .
2.6 Problems with implementing performance monitoring strategies
2.6.1 Data dimensionality . . . . . . . . . . . . . . . . . . . .
2.6.2 Multi-variable performance evaluation . . . . . . . . . .
2.6.3 Non-linear systems . . . . . . . . . . . . . . . . . . . . .
2.6.4 Performance evaluation of closed loop data . . . . . . . .
2.7 Origins of performance degradation . . . . . . . . . . . . . . . .
2.8 Performance monitoring and the general optimisation problem .
2.8.1 Representing the optimisation problem mathematically .
2.8.2 Relating performance monitoring to optimisation . . . .
iii
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
i
i
.
.
.
.
.
.
1
1
2
2
2
2
3
.
.
.
.
.
.
.
.
.
.
.
.
.
.
4
4
6
7
8
9
10
10
10
11
11
12
13
13
15
University of Pretoria etd – R M du Toit (2006)
3 Design stage applications
3.1 Operability indexes according to operating spaces . . . . . . . .
3.1.1 Steady-state operability . . . . . . . . . . . . . . . . . .
3.1.2 Dynamic operability . . . . . . . . . . . . . . . . . . . .
3.2 A performance index in terms of surge volumes . . . . . . . . .
3.3 Defining an operability framework to evaluate competing designs
4 Performance monitoring and evaluation tools
4.1 Controller performance concepts . . . . . . . .
4.1.1 Traditional methods . . . . . . . . . .
4.2 Statistical process control (SPC) . . . . . . . .
4.2.1 Control charts . . . . . . . . . . . . . .
4.2.2 Statistical distributions . . . . . . . . .
4.2.3 Correlation . . . . . . . . . . . . . . .
4.3 Frequency analysis . . . . . . . . . . . . . . .
4.3.1 Power spectrum analysis . . . . . . . .
4.3.2 Oscillation detection . . . . . . . . . .
4.4 Performance benchmarks . . . . . . . . . . . .
4.4.1 Minimum variance performance (MVC)
4.4.2 Extended benchmarking methods . . .
4.5 Principal component analysis (PCA) . . . . .
4.5.1 Linear principal component analysis . .
4.5.2 Extensions of linear PCA . . . . . . . .
4.6 Plant evaluation index . . . . . . . . . . . . .
5 The
5.1
5.2
5.3
5.4
process
Process Description . . . . . .
Regulatory control philosophy
Process instruments . . . . . .
Digital communication . . . .
5.4.1 Operating software . .
5.4.2 Data capturing . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
6 Structure implementation
6.1 Plant wide performance interface . . . .
6.1.1 Data acquisition . . . . . . . . . .
6.1.2 Periods of pure regulatory control
6.1.3 Plant wide Value Index . . . . . .
6.1.4 Sources of variability . . . . . . .
6.1.5 Plant wide performance report . .
iv
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
. . . . . . .
. . . . . . .
. . . . . . .
. . . . . . .
. . . . . . .
. . . . . . .
. . . . . . .
. . . . . . .
. . . . . . .
. . . . . . .
benchmark
. . . . . . .
. . . . . . .
. . . . . . .
. . . . . . .
. . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
16
16
17
19
19
20
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
21
21
22
23
23
29
34
39
39
41
44
44
50
54
54
55
56
.
.
.
.
.
.
61
61
61
62
63
64
65
.
.
.
.
.
.
68
70
71
72
74
75
76
University of Pretoria etd – R M du Toit (2006)
6.2
Single
6.2.1
6.2.2
6.2.3
6.2.4
6.2.5
6.2.6
6.2.7
loop performance interface . . . . .
Data acquisition . . . . . . . . . . .
Time series plots and distributions
Signal quality . . . . . . . . . . . .
Refining the evaluation period . . .
MVC benchmark index . . . . . . .
Evaluation type . . . . . . . . . . .
Report generating . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
77
78
78
79
79
79
80
82
7 Structure application
7.1 Evaluating a period of operation . . . . . . . . . . . . . . . . . . . . . . .
7.1.1 Plant wide evaluation . . . . . . . . . . . . . . . . . . . . . . . . .
7.1.2 Single loop evaluation . . . . . . . . . . . . . . . . . . . . . . . .
83
83
83
92
8 Conclusions and recommendations
108
8.1 Monitoring structure development . . . . . . . . . . . . . . . . . . . . . . 108
8.2 Monitoring structure application . . . . . . . . . . . . . . . . . . . . . . . 108
8.3 Future work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Bibliography
113
Appendices
114
A The process flow diagram
114
B The process information logged via OPC
115
C Plant wide evaluation report
117
D Single loop evaluation report
121
E Programming and files
126
v
University of Pretoria etd – R M du Toit (2006)
LIST OF FIGURES
2.1 Plant control hierarchy . . . . . . . . . . . . . . . . . . . . . . . .
2.2 Plant performance and operation diagram . . . . . . . . . . . . .
2.3 Mathematical representations of optimisation problems (Biegler &
mann, 2004). . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . .
. . . .
Gross. . . .
14
3.1
Controllability according to operating spaces (Georgakis et al., 2003). . .
17
4.1
4.2
4.3
4.4
4.5
Control Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
24
The V-mask control limits for a CUSUM chart (NIST-SEMATECH, 2005). 27
A typical normal distribution (Shunta, 1995). . . . . . . . . . . . . . . .
29
Comparing loop performance through distributions. . . . . . . . . . . . .
30
An example of an histogram of a control loop containing a valve that
exhibits stiction (Expertune, 2005). . . . . . . . . . . . . . . . . . . . . .
31
Skewed distributions together with their skewness and kurtosis values. . .
33
The cross correlation coefficient plot vs. the lag. . . . . . . . . . . . . . .
36
The lag plot for y for a sample lag of 1 (NIST-SEMATECH, 2005). . . .
38
The autocorrelation plot for a cyclic non-random dataset (NIST-SEMATECH,
2005). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
38
Power spectrum for cyclic dataset. . . . . . . . . . . . . . . . . . . . . . .
40
The oscillation detection algorithm of Hägglund (1995) . . . . . . . . . .
45
Power spectrum of the controlled variable or the control error. . . . . . .
48
The generalised minimum variance methodology (Grimble, 2002). . . . .
52
The trade off curve for the solution to the LQG problem with the benchmark condition E[u2t ] ≤ α and min{E[yt2 ]} (Huang & Shah, 1999). . . . .
53
4.6
4.7
4.8
4.9
4.10
4.11
4.12
4.13
4.14
7
9
5.1
Overview of the DeltaV T M system. . . . . . . . . . . . . . . . . . . . . .
64
6.1
The flow diagram of the implemented performance monitoring structure.
69
vi
University of Pretoria etd – R M du Toit (2006)
6.2
6.3
6.4
6.5
6.6
6.7
6.8
The
The
The
The
The
The
The
7.1
7.2
7.3
7.4
7.5
7.6
7.7
The unrefined data evaluation by the plant wide interface. . . . . . . . .
The plant wide interface evaluation for the period excluding shutdown. .
Plant wide regulatory assessment for the period from 15:31 to 16:40. . . .
Plant wide regulatory assessment for the period from 16:40 to 17:05. . . .
Plant wide regulatory assessment for the period from 17:06 to 18:24. . .
The single loop performance for T014 for the period it was on AUTO. . .
The single loop peformance for the top plate temperature, T001, over an
evaluation period of 15:26 to 18:22. . . . . . . . . . . . . . . . . . . . . .
The single loop assessment for T001 for the last period of evaluation. . .
The set-point change in level loop, L002, can be seen in the time series plot.
This set-point change caused the disturbance in the top plate temperature.
The distillate drum configuration on the distillation column set-up. . . .
The single loop evaluation of the distillate drum level controller, L002. .
The single loop evaluation of L002 from 15:31 to 16:16. . . . . . . . . . .
The single loop evaluation of L002 from 16:39 to 17:57. . . . . . . . . . .
The single loop evaluation of L002 from 15:33 to 16:13 with the cross
correlation coefficients. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
The single loop evaluation of L002 from 15:33 to 16:13 with the cross
correlation coefficients. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
The feed flow rate over the entire initial eavluation period. . . . . . . . .
The steam pressure supply to reboiler single loop evaluation. . . . . . . .
The single loop evaluation of the pressure supply to the reboiler with a
PSD evaluation plot for the period from 15:47 to 18:20. . . . . . . . . . .
The time series plot of the steam pressure for a 29 minute period from
16:48 to 17:17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.8
7.9
7.10
7.11
7.12
7.13
7.14
7.15
7.16
7.17
7.18
7.19
graphical user interface used for plant wide performance evaluation .
data log file pane. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
number of loops on auto as well as the cumulative set-point changes.
percentage time on AUTO for all control loops. . . . . . . . . . . . .
plant wide performance panel. . . . . . . . . . . . . . . . . . . . . .
Loop Performance axis in the plant wide interface. . . . . . . . . . .
graphical user interface used for single loop performance evaluation .
70
72
73
73
74
76
77
84
86
88
89
90
92
93
95
96
97
98
99
100
101
102
104
105
106
107
A.1 The Process Flow Diagram . . . . . . . . . . . . . . . . . . . . . . . . . .
114
C.1 Plant wide evaluation report - page 1 . . . . . . . . . . . . . . . . . . . .
C.2 Plant wide evaluation report - page 2 . . . . . . . . . . . . . . . . . . . .
C.3 Plant wide evaluation report - page 3 . . . . . . . . . . . . . . . . . . . .
118
119
120
D.1 Single loop evaluation report - page 1 . . . . . . . . . . . . . . . . . . . .
122
vii
University of Pretoria etd – R M du Toit (2006)
D.2 Single loop evaluation report - page 2 . . . . . . . . . . . . . . . . . . . .
D.3 Single loop evaluation report - page 3 . . . . . . . . . . . . . . . . . . . .
D.4 Single loop evaluation report - page 4 . . . . . . . . . . . . . . . . . . . .
viii
123
124
125
University of Pretoria etd – R M du Toit (2006)
LIST OF TABLES
5.1
Measuring device communication the distillation column. . . . . . . . . .
63
6.1
The user defined parameters for the Hägglund (1995) algorithm . . . . .
81
7.1
7.2
The loops in operation during the three operating periods . . . . . . . .
The MVC index for the three evaluation periods applied in the plant wide
analysis. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
The controller parameters for the distillate drum level controller, L002. .
87
94
103
B.1 The process variables logged in Matlab with their corresponding tag numbers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
116
7.3
ix
University of Pretoria etd – R M du Toit (2006)
NOMENCLATURE
P̄
Average of the steam inlet pressure
kP a
T̄
Average of the plate temperature
◦
∆t
Sample period for a discrete signal
sec
ŷ
Output prediction
-
x
The mean of a discrete variable x
-
a
Oscillation amplitude
-
C
A, B, C, G, F Coefficient polynomials in the backward shift operator
-
bot
Bottom plate
-
c
Simplified kurtosis or fourth moment around the data mean
-
Ci
The cumulative sum at time instant i
-
Cxyk
The cross correlation coefficient between the variables x and y for a lag of k
-
Cxy
Coherence for two variables x and y
-
Cov(x, y) The covariance between the discrete variables x and y
-
D
Deadtime
-
d
Load disturbance
-
E
Residual matrix
-
e
The control error
-
x
University of Pretoria etd – R M du Toit (2006)
F
Feed flow rate
kg/hr
F eedi A feed value factor for stream i
-
GR
Desired closed loop dynamic transfer function
-
h
The rise distance for construction of a V-mask
-
H2
The optimal norm that indicates minimum variance
-
J
Goal or cost function
-
k
The slope for construction of a V-mask line
-
k1
Constant used to construct control chart limits
-
kurtosis The fourth moment around the data mean
-
load
Load detection term (either 1 or 0)
-
m
Number of feeds into the plant
-
n
Number of product streams leaving the plant
-
n
The number of discrete samples taken
-
nlim
Number limiting the allowed oscillations
-
NN
Nominal operating state
-
OI
Operability index in terms of operating spaces
-
p
loading vector
-
Pc , Fc Weighting factors
-
Pxy
Cross power density for variables x and y
-
Pyy
Power density
-
PI
Performance Index
-
P rodi A product value factor for stream i
-
Q
Sum of the product flows
kg/hr
q
Number of utility streams entering the plant
q −1 or z −1 Backward shift operators
-
xi
University of Pretoria etd – R M du Toit (2006)
Rk
The autocorrelation coefficient for a lag of k
-
S
Standard deviation
-
s
Sensitivity factor
-
Shi
V-mask higher limit
-
Slo
V-mask lower limit
-
t
Score
-
ta
Starting instant for an evaluation period
-
tb
Ending instant for an evaluation period
-
Tu
Ultimate period of oscillation
-
Tsup
Supervision time for oscillation detection
-
top
Top plate
-
U
Cooling water flow rate
u
Process input
kg/hr
-
U P I Unit performance index
-
U tili A utility value factor for stream i
-
V
Volume of a surge tank
-
w
Any discrete variable used as a performance characteristic
-
wi
Weighting factor for the plant wide index
-
x
Random external disturbance
-
Y
The fast Fourier transform
-
y
Process output
-
Z
The Z-transformation for non-normal distributions
-
Zi
The exponentially weighted average at time instant i
-
Subscripts
act
Actual operating point
-
xii
University of Pretoria etd – R M du Toit (2006)
cap
Capability of the process
-
d
Calculated in the disturbance space
-
f bc
Deviation from minimum variance
-
k
The lag for correlation calculations
-
lim
Limiting bound on a variable
-
opt
Optimal operating point
-
tot
Calculated over the entire sample population
-
u
Calculated in the input space
-
user User specified
-
y
-
Calculated in the output space
Greek
γskew The result of the third moment about the data mean
-
λ
Constant used to calculate the EWMA
-
µ
Measure function to calculate the size of a space
-
ω
Frequency
-
ωu
Ultimate frequency
-
σi
Standard deviation of variable i
-
τ
Time constant in the LaPlace domain
τi
Controller integral time constant
-
υ
Controllability index in terms of surge volumes
-
unit of time
Abbreviations
AIS
Available input space
-
AOS Available output space
-
AP C Advanced process control
-
ARL The average run length
-
xiii
University of Pretoria etd – R M du Toit (2006)
CBA Cost benefit analysis
-
CU SU M Cumulative sum
-
CV
Controlled variable
-
CW
Cooling Water
DCS Distributed control system
-
DIS Desired input space
-
DOS Desired output space
-
DP
Differential pressure
-
EDS Expected disturbance space
-
EW M A Exponentially weighted moving average
-
F F T Fast Fourier transform
-
ISA Integral of the absolute error
-
ISE Integral of the error squared
-
LAN Local area network
LCL Lower control limit
-
LQG Linear quadratic control
-
M P C Model predictive control
-
MV
Manipulated variable
-
M V C Minimum variance control
-
OP C Object linking and editing for process control
P F D Process flow diagram
-
P ID Proportional integral derivative
-
P SD Power spectral density
-
P W I The plant wide evaluation index
-
T DS Tolerable disturbance space
-
U CL Upper control limit
-
xiv
University of Pretoria etd – R M du Toit (2006)
CHAPTER 1
Introduction
1.1
Background
Performance monitoring, assessment and operational diagnosis of chemical plants has
become one of the most active research areas in the field of process modelling and control
in recent years. The reason for this is due to the more stringent requirements on plants
to become more profitable. These requirements are due to many factors which include
more stringent environmental and safety regulations, global economic pressure to operate
as efficiently as possible and downsizing of many support services in order to save money.
Control performance monitoring/assessment (CPM/CPA) is a tool that is used to
keep automated control systems performing as optimally as possible. Performance monitoring exists under a number synonyms in industry and in literature which include loop
monitoring, loop auditing, loop management, performance assessment, etc. They all basically refer to the same principle which is to indicate how far a plant is operating from
its inherent optimum and what can be done to ensure that the gap between the inherent
optimum and the current operation is as small as possible over the longest possible period
of operation.
Recent advances in process control technology have made application of advanced
process control (APC) techniques as well as process modelling and characterisation more
sustainable and implementable. These advances have identified a need for more effective
performance evaluation systems to identify possibilities for APC and to sustain/maintain
successful APC implementations.
Performance evaluation techniques can be separated into two main areas of application:
• A real-time, on-line type evaluation of plant operation. This includes loop monitoring, early fault detection and justification of advanced control investments.
1
University of Pretoria etd – R M du Toit (2006)
CHAPTER 1. INTRODUCTION
2
• Performance evaluation in the design stage of a process to aid in decision making
on various process and control configurations. Performance measures in the design
stage of a process is a very handy tool to ensure more effective process and controller
design integration. Performance monitoring at the design stage of a process is
usually referred to as controllability analysis.
1.2
Problem statement
Performance monitoring is, although well researched, not yet a generic, complete and
specific application. Current shortcomings of monitoring applications are that it is process
or unit operation specific and that it provides a local indication of performance and not
a plant wide evaluation of how close the plant is operating to its inherent optimum.
Performance reports are usually in terms of statistical measures and graphics which are
usually quite abstract and vague. For high level decision making (on operation and
economic investment) simple and quantifiable measures are needed that are repeatable
and transparent.
1.3
Research objectives
The focus of this project is to develop and implement a performance monitoring structure
that functions as a real-time application for performance assessment of an industrial pilot
scale chemical process.
The performance structure will be transparent and generic so that it can be easily
interpreted to aid in the validation of changes to the general control structure or in the
validation of implementation of advanced control applications. It will therefore cater for
management level decision making of plant operation and investment as far as possible
on a plant wide scale.
1.4
1.4.1
Method
The process
The process consists of a 10-plate glass distillation column. It will separate binary mixtures of ethanol and water. The column is fully equipped with the latest in control
instruments that communicates with a distributed control system (DCS). The digital
communications are enabled by DeltaV operating software which allows for efficient data
capturing and application of various regulatory and advanced controller function blocks.
University of Pretoria etd – R M du Toit (2006)
CHAPTER 1. INTRODUCTION
1.4.2
3
Performance monitoring structure
The structure will comprise of data retrieval from the process through the OPC communication protocol. The retrieved data will then be reported and statistically manipulated
through the Matlab environment to deliver measures of performance. The performance
information will be interpreted through central graphical interfaces which will contain the
whole control structure. From the central interfaces report generation is possible that
will give a holistic summary of present operating performance.
University of Pretoria etd – R M du Toit (2006)
CHAPTER 2
Background
This chapter provides background on performance monitoring. It defines what
an effective plant performance evaluation system is and why there is a need
for effective plant performance monitoring. Problems with implementing and
maintaining the monitoring structure are also identified. Finally the similarities
between plant performance and the general optimisation problem are assessed.
2.1
Defining plant performance
Chemical plants have an inherent maximum throughput and operating efficiency that
are determined by the process design and equipment used. This inherent capability of a
plant is independent of the control system and it is important to note that poorly designed
plants cannot be compensated for by control systems. A control system’s purpose is to
ensure that the plant is operating as close to its inherent optimum as possible while
keeping operation stable, safe and within environmental constraints (Blevins, McMillan,
Wojsznis, and Brown, 2003).
A performance monitoring system should continuously evaluate product quality and
the production levels of a plant. The base of any performance monitoring system consists
of measurable plant data that are reworked (usually statistical) to provide a clear and
simple picture of the operating states of a plant. With the operating states known,
one needs a means of comparison to evaluate current performance. This is why most
performance systems have a certain performance benchmark that current operation is
compared with. The benchmark is an indication of the inherent optimum that is set by
the process design and equipment. With the states and operating regions known together
with the plant’s inherent optimum capability defined, operational problems and poorly
performing plant sections can be identified. A method of diagnosis is then necessary to
4
University of Pretoria etd – R M du Toit (2006)
CHAPTER 2. BACKGROUND
5
find the cause of bad performance (Perry and Green, 1998).
Current performance monitoring systems mostly provide an indication of current regulatory performance. This fits into the general loop monitoring approach that has been
well studied ((Mosca and Agnoloni, 2003), (Xia and Howell, 2003) and (Salsbury, 2004)).
Loop monitoring is a very effective methodology to locate loops that are not operating
to potential but is limited to a discrete part of the control system and fails to give an
overall plant performance indication. This is where advanced control techniques fit in.
Advanced control fits on top of the regulatory control level to make sure that the plant
as a whole is optimised and not just localised feedback loops. Advanced control can
in some cases replace the traditional regulatory feedback system, where inputs to final
control elements are written by considering a number of process variables and conditions. Performance monitoring definitely also covers advanced techniques, for instance
the accuracy of plant models that are used in control algorithms need to be determined.
Obviously the base layer and regulatory performance monitoring structures always need
to be in place. Advanced control is useless without a proper base layer system which is
functioning properly.
With the loop or plant efficiency known and causes of the poor performance located,
recommendations can be made to improve current plant operation. An efficient and
fixed plant performance structure will provide the platform for decision making with
a view to better plant performance. The monitoring and evaluation structure should
be a continuous and iterative procedure seeing that performance needs to be evaluated
constantly and if changes to the process are made, the performance structure should
be adapted to reflect the new system and the new improved operating states. A well
structured process monitoring structure is discussed in chapter 6.
The decisions that will be aided by a proper performance structure will be related to
changes to the process design, changes in the operating philosophy, capital investment
justification, etc. The structure should be of such a type as to be understandable by all
the parties involved in decision making of general plant operation. These parties include
management, operations and the engineering/design office. The structure should also be
completely generic and be applicable to any type of unit operation. The individual unit
operations combined can then give a general idea of where the plant is operating at and
where it is heading.
If plant performance can be defined in one sentence it will be something like the following:
An effective plant performance monitoring structure provides a generic, simple and complete illustration of how far a particular process is operating from its inherent capability,
with an ultimate aim of locating the cause of bad performance and adjusting the current
control system to bring the plant closer to its inherent capability which is determined by
the design of the process.
University of Pretoria etd – R M du Toit (2006)
CHAPTER 2. BACKGROUND
2.2
6
A general plant performance evaluation methodology
Although performance evaluation techniques are vast and based on numerous different
statistical and mathematical methods a clear methodology is apparent. A general universal methodology that illustrates the general method for determining plant performance
can be set-out as follows (Schäfer and Cinar, 2004) (Harris, Seppala, and Desborough,
1999) (Blevins, McMillan, Wojsznis, and Brown, 2003):
• Setting a benchmark - The first step is to obtain a benchmark of optimal operation
and control. The optimal base case is where the plant should be operating under
the design, safety and environmental constraints that apply.
• Current operation - After the optimal benchmark has been set-up, the current operating point of the plant is determined. This is done through field measurements that
are gathered and manipulated through statistical means to give a clear indication
of how the plant is operating.
• Comparison - The real plant operation is then compared with the benchmark to
determine the performance of the plant. It is in this step where the actual performance is determined and decisions are made as to whether the plant operation is
satisfactory.
• Diagnosis - If performance is not up to standard the causes for suboptimal performance are identified in this step. Possible improvements and solution methods are
proposed and evaluated. There should be a strong economic factor in this step to
aid the decision making.
• Implementation - The solutions as well as a post installation framework are implemented to determine what the real benefit of the changes are and how it compares
with the initial estimates that aided the decision making.
• Maintenance - This is where the initial success that may have been achieved is
made sustainable. For instance, the initial monitoring system should be adapted to
include the new methodologies and technologies.
This general methodology is what performance monitoring structures usually comprise
of to ensure that the plant is operating as close as possible to the inherent optimum. The
structure should automatically detect degradation in performance and locate the cause.
The cause should then be rectified by plant maintenance. A complete and detailed
performance structure is developed and implemented on a lab scale unit operation in
chapter 6 and 7.
University of Pretoria etd – R M du Toit (2006)
CHAPTER 2. BACKGROUND
2.3
7
Performance and the plant control hierarchy
A successful performance monitoring structure is an automated, continuous, active process that is functioning right through the control hierarchy of the process that it is
implemented on. This section explains what the function of performance monitoring is
at various levels of the control hierarchy. The general plant control hierarchy is shown in
figure 2.1.
Figure 2.1: Plant control hierarchy
From figure 2.1 it is apparent that plant instruments form the base or foundation
of the control system and is of prime importance for successful plant operation and
control. Without operational and accurate instruments there is no means to know what
the operating states of the plant are and no adjustments to process variables will be
possible. The monitoring structure’s role in this foundation level of control will firstly be
to automatically detect faulty measurement, final control element failure, etc. Then it
should localise the faulty instrument with a diagnosis of what the problem is, for instance
valve stiction.
The next level of operation is the base layer control system where regulatory control
University of Pretoria etd – R M du Toit (2006)
CHAPTER 2. BACKGROUND
8
is applied to compensate for load disturbances on the process. Normal feedback and
conventional control algorithms are used to adjust final control elements based on plant
measurements all within a distributed control system (DCS). The function of the performance structure will be to determine how effective the regulatory control system is
performing. This type of monitoring is traditionally referred to as loop monitoring. The
performance structure will typically be of use in this level to indicate which feedback
loops need retuning or indicate which loops are running on manual, etc.
The next level of operation is the advanced process control (APC) level. At this
level advanced control algorithms are implemented like for instance model predictive
control (MPC), feedforward control, internal model control, cascade control, etc. This
level was traditionally seen as the control level that writes set-points to the base layer
(DCS). Therefore it is imperative that levels beneath the APC level are fully functional
and working efficiently to ensure success of APC implementation. The performance
monitoring structure at this level is much the same as for the base layer in terms of
identifying poor performance but the causes of poor performance may be different. For
instance a badly tuned PID loop will give rise to bad performance in both the base layer
level and in the APC level, but an inaccurate model which is used in a MPC algorithm
will only be detected in the APC level.
The upper levels in the control hierarchy is where financial aspects of plant operation
are of main consideration. This is where, for instance, it is decided how operation should
change to satisfy changes in market demand. Approval of changes to plant design and
major capital investments happen at this level. Traditional cost benefit analysis (CBA)
is a tool that is used in this level. The one shortcoming in the control hierarchy has
been the lack of communication between the advanced control layer and its subsequent
lower levels and the top managerial layers. The reason being that it is difficult to relate
the performance measures used in the regulatory and supervisory levels to economic type
measures which the top decisions makers can understand. That is where the performance
monitoring structure should come in and aid in rectifying this communication breakdown.
The structure should provide a clear, simple and generic indication of how the plant is
performing. The structure should therefore provide a holistic indication of plantwide
performance and provide possible solutions to improve operation.
2.4
Performance and plant operation
Figure 2.2 shows how the general flow of information in daily operation happens and how
a performance monitoring structure fits into it (Perry & Green, 1998).
As can be seen from figure 2.2 the evaluation procedure is a closed loop that needs
to be executed on a continual basis to improve performance. Firstly data is gathered
from past periods of operation (historian) to obtain a benchmark. Next, current data
University of Pretoria etd – R M du Toit (2006)
CHAPTER 2. BACKGROUND
9
Product
Operational
Plant
Plant Data
Data
Historian
Plant
simulation/
modelling
Performance
Assessment
Performance
Monitoring
Design office
Performance
Diagnosis
Figure 2.2: Plant performance and operation diagram
is gathered from the plant and compared with the benchmark. After the comparison is
made, diagnosis can be performed to locate root causes of poor performance. When the
root causes have been identified the information is used to develop possible solutions to
the problem. This is done by means of plant modelling and simulation. If the root causes
cannot be eliminated by the normal control applications one should turn to APC or plant
design alterations.
2.5
Benefits of performance evaluation
There are a number of benefits to having a proper performance structure in place. The
benefits to operation originate from two main sources. The first is that the control
structure is optimised to enable closer operation to the process constraints (inherent
optimum). This will provide the following benefits for production:
• Increased throughput
• Better and more consistent product quality
• Reduced energy usage
• Reduced waste products
The second major source of benefit is enabling more efficient operational maintenance.
This will:
University of Pretoria etd – R M du Toit (2006)
CHAPTER 2. BACKGROUND
10
• prevent operator information overload
• lessen the workload on control and instrumentation technicians
• reduce dimensionality of optimisation problems
• provide specific fault detection
• better the planning of scheduled downtimes for maintenance
The result of an effective plant monitoring system will be a more efficient, safe and
profitable plant (Perry & Green, 1998).
2.6
Problems with implementing performance monitoring strategies
2.6.1
Data dimensionality
The number of control loops on processing facilities are large and the information available
for a single loop is substantial in itself. This makes extracting the right information from
datasets very difficult. It is impossible to evaluate each and every loop individually
seeing that the amount of information available is so much. The number of control and
instrumentation staff on a plant is usually also limited which makes loop maintenance
even more difficult.
Data capturing and storage is also a problem due to the sheer amount of data available
and the communication between the historian and the DCS system can sometimes be
lacking. This is due to data compression and filtering to preserve storage space which
can sometimes lead to loss of important data related to dynamic behaviour.
With advances in process control technology the amount of information that is available from the process has grown. This is not necessarily a good thing seeing that one can
get lost in the sheer amount of data. Commercial developers of performance monitoring
products should realise that more information is not necessarily a good thing. The more
information available the more time will be needed to retrieve and evaluate it.
The challenge to implement a successful performance monitoring structure is to reduce
the dimensionality of the plant information and to transform it into useful and applicable
information.
2.6.2
Multi-variable performance evaluation
Practically all data on a plant are interconnected. This means that when considering a
single loop’s performance, often a lot of interaction factors need to be considered to find
University of Pretoria etd – R M du Toit (2006)
CHAPTER 2. BACKGROUND
11
possible sources of performance degradation. That is why an integral part of a successful
performance monitoring structure should be some kind of multivariate analysis to give a
more holistic idea of where the plant is operating and how the variables interact.
There has been success in the application of univariate performance assessment research in recent times, but the application of multivariate assessment research technology
remains a hard task. There has been a reasonable amount of work published for the multivariable case but very little of the work has been successfully implemented in commercial
packages or in customer installations (Huang, Ding, and Thornhill, 2004). Multi-variate
systems show a definite difficulty if one needs to obtain a benchmark by means of the
minimum variance control (MVC) technique. For the univariate case the parameter that
is needed is an estimate of the dead-time which can be obtained from the closed loop
response without disturbing normal operation. For the multi-variate case this is not the
case. There needs to be more information known about the process than just the delays
between each input-output pair. This information is locked within the termed interactor
matrix which characterises the deadtime structure of the process. Some of the work done
in this area was done by Harris, Boudreau, and MacGregor (1996) and Huang and Shah
(1999).
2.6.3
Non-linear systems
Normal plants are non-linear but most of the techniques used to evaluate performance are
usually based on linear methods. These techniques work well if processes do not deviate
too much from their expected operating point.
Non-linear controllers are rarely found in industry mainly because of their complexity
as well as the difficulty in obtaining non-linear models. Performance monitoring methods
are more often than not based on obtaining some sort of control benchmark. Setting a
non-linear control benchmark will be just as complex as the implementation of non-linear
controllers and therefore not common practice in industry.
An example of a monitoring technique that was adjusted to compensate for nonlinearity is principal component analysis (PCA). Normal PCA is a linear technique that is
used to reduce process dimensionality and to visualise the dynamic movements of process
states for fault detection purposes. Researchers like Zhang, Martin, and Morris (1997)
have identified the need to adapt the linear PCA technique to a non-linear technique with
better results.
2.6.4
Performance evaluation of closed loop data
Numerous performance evaluation and monitoring techniques go along with dynamic
modelling and characterisation. Techniques to determine models are often intrusive to
University of Pretoria etd – R M du Toit (2006)
CHAPTER 2. BACKGROUND
12
normal operation. A successful performance monitoring structure should be able to function on normal closed loop data alone with no unnecessary plant tests. This is why
statistical process control (SPC) techniques are often employed seeing that most of the
methods are non-intrusive and provides performance assessment based on routine operating data.
Another indication of good performance monitoring structures are that they work
well over any period of evaluation. This means it works when pure regulatory control
conditions exist or when set-point changes occur. The latter is very difficult seeing that
when a set-point change is applied to a process it moves from one state to another, with
different control objectives to which the performance structure must adapt. To make a
performance structure independent of periods of operation is a definite implementation
difficulty.
2.7
Origins of performance degradation
The causes of bad performance are numerous and can be inherent to a particular control
loop itself, to the plant design, to interaction, etc. Some of the common causes of poor
performance are mentioned below:
• Field instruments - Field instruments form the basis of the monitoring structure
and should at all times be in operation and accurate. Without proper measurement
the control hierarchy will be ineffective. The performance structure should be able
to pick up measurement inaccuracies like calibration faults etc.
• Process design - The process design places an inherent limit on performance. It
determines an optimum operating state that cannot be improved by any control
system. It is of utmost importance to have a well designed process to ensure good
performance.
• Control system design - The control system design should always be considered
while the process design is performed and vice versa. This will ensure that the
states that were meant to be attained are actually obtained and kept there by the
control system in general plant operation.
• Loops not in normal mode - Often control loops and APC algorithms get implemented with wonderful results but are not maintained over time. The reason for this
is that the plant changes over time because of process parameter changes that cause
different operating conditions. The operator then sees that the control is not doing
its job and switches the control loops to MANUAL instead of going through the
right channels to fix the problem. The performance structure should cater for this
University of Pretoria etd – R M du Toit (2006)
CHAPTER 2. BACKGROUND
13
by detecting poorly tuned loops automatically and letting the correct maintenance
parties know about possible defects in the control structure.
• Manipulated variables - Manipulated variables are often a large source of variance
and poor performance. They can get saturated due to poorly tuned loops and inaccurate scaling. Also, if the controller is too aggressive, actuator wear is accelerated,
which causes valve stiction that hampers good control.
• Abnormal situations - When plants cross certain operating limits they may go
into abnormal modes such as trip conditions or shut down procedures, etc. If a
particular unit is in a start-up or a shut-down mode it not only means that the
particular unit’s performance is bad; it means that the other units downstream also
gets affected together with their performance. The performance structure should
be implemented as a tool to reduce the time the process spends in an abnormal
situation.
The performance structure should be able to detect bad performance and locate the
sources of poor performance mentioned above.
In the case of model predictive controllers the performance is obviously directly related
to the base layer performance. So the origins of performance degradation are the same
as were mentioned above. Model inaccuracy is however also a big issue with MPC and
model validation should form part of a performance monitoring structure.
2.8
Performance monitoring and the general optimisation problem
Performance monitoring and general optimisation of chemical processes are closely related. This is true for both design stage and on-line operation optimisation problems.
Design stage application of performance monitoring and evaluation is discussed in more
detail in chapter 3. The mathematical representation of optimisation problems can directly be related to performance evaluation type problems.
2.8.1
Representing the optimisation problem mathematically
Biegler and Grossmann (2004) have combined most types of optimisation problems in
one diagram that is shown in figure 2.3.
The mathematical representations that are shown in figure 2.3 can be divided into
problems that only contain discrete variables or problems that contain continuous variables or problems that have both. The representation pertaining to discrete systems is
University of Pretoria etd – R M du Toit (2006)
CHAPTER 2. BACKGROUND
14
Figure 2.3: Mathematical representations of optimisation problems (Biegler & Grossmann,
2004).
usually the mixed integer programming (MIP) approach. Continuous systems are represented by means of either linear programming (LP), non-linear programming (NLP)
or derivative free optimisation (DFO). The problems represented in figure 2.3 are independent of the solution method used to solve the actual problem (Biegler & Grossmann,
2004).
If there are both discrete and continuous variables in the problem formulation a combination of both MIP and LP is used. All the above-mentioned methods can be represented
in the algebraic form of the MIP problem. The general algebraic form of a MIP problem
is shown in equation 2.1 (Biegler & Grossmann, 2004).


 h(x, y) = 0
min Z = f (x, y) s.t.
g(x, y) ≤ 0


x ∈ X, y ∈ {0, 1}m
(2.1)
In equation 2.1, f (x, y) is the objective or cost function that needs to be minimised,
h(x, y) = 0 are the performance equations of the process that indicate production rate,
utility usage, etc. In other words h(x, y) are the equations that model the process. The
constraints on the optimisation problem are given by g(x, y) ≤ 0, which will determine
feasible solutions to the optimisation problem. The variables x and y are the process variables that need to be optimised. x refers to continuous variables (usually state variables),
while y refers to the discrete variables such as scheduling of equipment and seasonal operating changes. y is generally restricted to take values ranging between 0 and 1.
Equation 2.1 corresponds to the MINLP problem if the functions are non-linear and
University of Pretoria etd – R M du Toit (2006)
CHAPTER 2. BACKGROUND
15
there are both continuous and discrete variables, if the functions are linear, however, it
will become a MILP problem. If only continuous variables are present it is a LP or NLP
problem depending on whether the functions are linear or not. The general MIP form
given in equation 2.1 contains steady-state models. Important extensions on MIP are to
include dynamic models and to optimise the system dynamically as well as to include
uncertainty in the process models and optimisation constraints (Biegler & Grossmann,
2004).
2.8.2
Relating performance monitoring to optimisation
There are definite similarities between the general optimisation philosophy and a performance monitoring structure. They both have an ultimate goal of making changes to the
plant (control structure or process design) to minimise some objective function. The objective function can usually be related to more efficient production and therefore to more
profitable plants. This is not always the case seeing that optimisation and performance
are subject to constraints like regulations, design limitations, product demand, etc.
This is why a mathematical representation of performance evaluation will fit in nicely
into the MIP problem that is shown in equation 2.1. This mathematical representation
fits into the general process monitoring methodology where comparisons with the base
case are made as well as in the diagnosis and solution steps.
University of Pretoria etd – R M du Toit (2006)
CHAPTER 3
Design stage applications
Performance evaluation in design stage application is a handy tool to compare
competing process and/or control design configurations. The techniques that are
discussed in this chapter illustrate some of the current work that is being done
to consider and quantify the inherent limitations of particular process designs.
The foundation of performance in process design is to ensure proper control and
process design integration. The performance will indicate the inherent optimum of
a design and how easily this optimum will be maintained by the control system if
at all. The off-line type of measures discussed in this chapter also fits into the online performance structure seeing that these techniques can be applied to rectify
problems with performance highlighted by continuous on-line type performance
monitoring.
3.1
Operability indexes according to operating spaces
A novel technique to quantify controllability in terms of operating spaces has been proposed by numerous researchers and the basic technique is discussed in this section. The
publications include Georgakis, Uztürk, Subramanian, and Vinson (2003), Vinson and
Georgakis (2000), Uztürk and Georgakis (2002) and Subramanian and Georgakis (2001).
The operability measure quantifies the inherent ability of a process to move from one
steady state to another and to reject any of the expected disturbances in a timely fashion
with limited control action available. This measure should consequently be independent
of the controller type used.
The technique uses four operating spaces as a method to define an operability index.
The available inputs to any process can only vary over certain ranges. These ranges were
denoted the available input space (AIS). A corresponding available output space (AOS)
16
University of Pretoria etd – R M du Toit (2006)
CHAPTER 3. DESIGN STAGE APPLICATIONS
17
can then be determined using the AIS and the model of the process. However a desired
output space (DOS) also exists which represents the control needs and is defined at the
start of the design of a process. The union of the DOS and the AOS then indicate the
area that should be attainable with control while the areas that don’t coincide indicate
uncontrollable operating points. The operating space concept is illustrated in figure 3.1.
In figure 3.1 the grey area indicates the union of the DOS and AOS. This area indicates
F2
30
Product Concentration, x
0.65
DOS
0.6
20
AIS
10
30
50
0.55
70
F1
AOS
0.5
Attainable
Region
0.45
0.4
0.35
0.3
30
50
70
90
110
130
Product Flow, F
Figure 3.1: Controllability according to operating spaces (Georgakis et al., 2003).
the operating points that can be obtained by the control system by taking into account
the plant design (plant model).
3.1.1
Steady-state operability
If we consider all the predefined spaces as steady state operating regions we can calculate
both servo and regulatory operability indexes as follows.
The servo operability index
Firstly we define a servo operability index in the output space in equation 3.1 by using
the AOS obtained by using the entire AIS (all possible values of u) and the disturbances
at their nominal values (dN N ).
servo : OIy =
µ[AOSu (dN N ) ∩ DOS]
µ[DOS]
(3.1)
µ in equation 3.1 is a measure function to calculate the size of union of spaces.
If the
index is less than one the desired performance will not be met seeing that some desired
outputs will lie outside the attainable output region.
University of Pretoria etd – R M du Toit (2006)
CHAPTER 3. DESIGN STAGE APPLICATIONS
18
The servo operability index can also be calculated in the input spaces as is shown in
equation 3.2
µ[AIS ∩ DISy (dN )]
servo : OIu =
(3.2)
µ[DISy (dN N )]
In equation 3.2 the opposite route is followed to compute the OI. This time the DIS is
determined as a function of all the desired outputs in the DIS, with the disturbances at
their nominal values. Computing the OI in terms of the input spaces can be used for new
plants or existing ones where changes are being considered. The index is an indication of
the extent to which the desired inputs are covered by the available ones. If the index is
smaller than one, changes to the design of the plant need to be considered.
The regulatory operability index
Operability indexes to predict the regulatory operability of a process can also be defined.
Before regulatory operability can be defined we need to define another operating space
which is the expected disturbance space (EDS). The EDS is not only the space that
defines all external disturbances acting on the process but also contains all uncertainties
in the process model. The OI can now be defined as in equation 3.3 with DIS the input
space needed to compensate for all expected disturbances defined in the EDS and the
plant at its nominal set-point (y N N ).
regulatory : OIu =
µ[AIS ∩ DISd (y N )]
µ[DISd (y N N )]
(3.3)
Alternatively the regulatory OI can be determined by making use of a tolerable disturbance space (T DS) together with the range of expected disturbances (EDS). These
disturbance operating spaces can then be used as in equation 3.4 to calculate a regulatory
OI. The T DS is determined by finding the region of disturbances that can be compensated for by the available inputs (AIS) while the outputs remain at their nominal values
(y N N ).
µ[T DSu (y N N ) ∩ EDS]
regulatory : OId =
(3.4)
µ[EDS]
As was the case before, if the OI in equation 3.4 is smaller than one then some redesign
work is necessary.
The overall objective is to reject all expected disturbances and to reach all the setpoints in the DOS. First we need to define a union of the desired input spaces, each
calculated in the output space for all expected disturbances. Or equivalently we can
calculate a desired input space in the expected disturbance space for outputs. This total
University of Pretoria etd – R M du Toit (2006)
CHAPTER 3. DESIGN STAGE APPLICATIONS
19
DIS is mathematically represented by equation 3.5.
DIS =
[
yDOS
DISd (y) =
[
DISy (d)
(3.5)
dEDS
The DIS is therefore determined by compensating for regulatory and servo changes.
Now that we have defined a total DIS the total operability index can be calculated using
equation 3.6.
µ[AIS ∩ DIS]
OI =
(3.6)
µ[DIS]
Again, an OI near zero is bad while close to one is good.
3.1.2
Dynamic operability
A dynamic OI based on the steady-state concepts discussed in the above sections was
also formulated. This was done by first defining dynamic operating spaces and from these
spaces operability indexes are calculated (Georgakis et al., 2003).
3.2
A performance index in terms of surge volumes
A quantitative controllability index in terms of surge volumes was developed by Zheng
and Mahajanam (1999). This index describes a plant design in terms of a total surge
volume that would be needed to make a plant controllable. Conversely the volume can
be an excess capacity that can be taken away to still leave the plant controllable.
The controllability index, υ, was defined as follows by Zheng & Mahajanam (1999):
“Consider a continuous plant. Given a set of disturbances, a set of constraints, a set
of control objectives and a control system, the dynamic controllability index, υ, is defined
to be the smallest additional surge volume required to meet all the control objectives and
constraints dynamically for all of the disturbances.”
The basic idea behind the index is that it indicates the minimum surge capacity that is
needed to meet all the control objectives. The theory behind surge volumes is motivated
by Buckley (1964) and his dynamic process control concept that implies that poor product
quality control can be overcome by installing sufficiently large surge capacities. Although
this concept is very old it is still relevant seeing that surge volumes provide a universal
quantification of controllability. The surge volumes does not get implemented on the real
plant they are just a method of controllability assessment, especially seeing that modern
day plants try to reduce excess buffer capacities as much as possible.
Properties of υ
From the definition, the following properties were defined by Zheng & Mahajanam (1999):
University of Pretoria etd – R M du Toit (2006)
CHAPTER 3. DESIGN STAGE APPLICATIONS
20
• A process is controllable if and only if υ ≤ 0. If 0 < υ < ∞, then the process can
be made controllable by installing additional a surge volume of υ. If υ < 0, then a
surge volume of υ can be removed from the design without affecting controllability.
• υ is bounded if and only if the steady-state control problem is feasible and the
closed system is stable.
• If υ > 0, then the cost associated with achieving controllability equals the cost
associated with installing surge tanks with a total volume of υ (although some
surge capacity may also be removed). This method is a very rough method to
predict the cost of making a process controllable. Process design modifications and
controller cost should also be considered. This method can however be seen as an
estimate of the upper bound on the cost.
1
, where the time constant, τ , is
• The transfer function for a surge tank is, τ s+1
proportional to its volume, V . The proportionality constant depends on the process
variable variation that needs to be damped for instance product composition, or
flow rate.
To illustrate the above definitions and concepts of υ an illustrative example is given by
Zheng & Mahajanam (1999). This index is most useful in the later design stages to rank
different process and controller designs according to economics.
3.3
Defining an operability framework to evaluate
competing designs
Swartz (1996) has also used the philosophy of the integration of plant design and closed
loop performance. This philosophy was the main motivation for development a systematic
approach to evaluate competing designs.
University of Pretoria etd – R M du Toit (2006)
CHAPTER 4
Performance monitoring and evaluation tools
This chapter highlights the current state of the art of performance monitoring
technologies. The technologies are the tools that are used to generate the measures of how effective a plant is operating by indicating how close the plant is
from its inherent optimum. The inherent optimum is a defined benchmark for
comparative operation evaluation. Most of the current methods are based on
statistical manipulation of data.
The tools discussed indicate whether the process is operating sub-optimally and
provide suggestions as to the possible causes for this behaviour and how they are
to be corrected.
4.1
Controller performance concepts
The general concepts of controller performance are well known and the basic principle is
clear; the dynamic responses (CV’s) of the plant have to be maintained at their set-points
for as long as possible. This is achieved by the control system. This is done by making
controllers more aggressive, by making them change manipulated variables (MV’s) quickly
and with large steps based on what the deviation of the controlled variables (CV’s) from
the setpoints are. This is good for quick responses but usually makes responses much
more oscillatory and may lead to instability. The process and control system also become
much more sensitive to external disturbances and noise. So there is always a trade-off
between quick responses and oscillatory behaviour (instability). Controllers are therefore
always tuned on the conservative side as to leave a margin of robustness to cater for
uncertainty in inputs (disturbances, noise, etc.).
21
University of Pretoria etd – R M du Toit (2006)
CHAPTER 4. PERFORMANCE MONITORING AND EVALUATION TOOLS
4.1.1
22
Traditional methods
Traditional methods are well known and can be used successfully to indicate the speed
of responses. Most introductory literature to the field of process control mention these
methods (Stephanopolous (1984), Luyben (1990), Marlin (1995) and Seborg, Edgar, and
Mellichamp (2004)). Some of the methods that are commonly used include:
• Rise time
• Overshoot
• Settling time
• Integral of the error squared (ISE)
• Decay ratio, etc.
These methods work well but it is usually still the experience of the control engineer that
needed to interpret the measures in order to determine how well a controller is performing. In most cases all of the above measures have to be considered to provide enough
information to give an indication of a single controller’s performance. A reasonably sized
plant usually has thousands of controllers. To apply the above measures to each of
the controllers on a regular basis is a near-impossible task seeing that the measures do
not provide a straight quantitative value. Experienced control engineers need to do the
evaluation and they are usually limited in numbers on most plants.
The techniques that probably provide the best overall indication of controller performance are the error integral techniques (ISE) seeing that they cover both poles of the
general controller optimisation problem (robustness and speed of response). The reason
for this is because they consider the deviation of the CV from set-point over time. If
the standard deviation of a CV or control error is considered one sees that it is similar
to the error integral methods seeing that it is a quantity that provides an indication of
the deviation of a CV from its set-point over time. For instance if we have a very robust
process the CV is slow to reach set-point which will cause large standard deviation, while
a process that is quick and oscillatory will also have a large standard deviation. Therefore
the optimisation problem of minimising the standard deviation or variance is ideal seeing
that it finds the optimum between a too robust, slow response and a quick oscillatory
(unstable) process. That is why the current trend is to look at variance of CV’s as a
direct indication of controller performance. Some of the leading researchers in the field of
variance isolation and statistical process control include Harris (1989), Huang and Shah
(1999) and Thornhill, Oettinger, and Fedenczuk (1999).
University of Pretoria etd – R M du Toit (2006)
CHAPTER 4. PERFORMANCE MONITORING AND EVALUATION TOOLS
4.2
23
Statistical process control (SPC)
The main application of SPC is to improve the quality and productivity of a process.
This is achieved by a set of tools that is used to increase the capacity and stability of
a process by considering and reducing the process variability (do Carmo C. de Vargas,
Lopes, and Souza, 2004).
Variance in process variables has two sources, namely (Shunta, 1995):
• Common variance (inherent variance) - Frequent, short-term, random disturbances
that are inherent to the process. These types of disturbances can normally not be
compensated for by the control system and limit the control system to a certain
lower bound of variance that is the optimum. The variability can be reduced by
changing the processing equipment or making use of other control instruments. The
control system is not useless against these types of disturbances seeing that without
the control system there would have been much larger deviations, but the control
system cannot eliminate the variance completely.
• Special causes (controllable variance) - Regular load disturbances that are larger,
less frequent and more specific. These can normally be catered for by the control
system seeing that they are predictable. Examples of special causes are equipment
failures, raw material feed inconsistency, steam pressure fluctuations, catalyst decay,
etc.
Most of the techniques that are discussed in this section assume that the data are
normally distributed and are only useful if the data are random. This is not always the
case for signals that are captured. To cater for this, data are usually transformed by
fitting a curve (mostly linear) and using the residual data for further analysis purposes.
4.2.1
Control charts
Statistical process control charts are used to indicate changes or variations in the operation of a process. The chart consists of a graphical display of some quality characteristic
which is measured or calculated from a sample and then plotted against the sample number (Montgomery, 1985). Some process parameters can be estimated from the charts
and the process capacity can then be inferred from that. The charts could also indicate
possible changes to operation to reduce variability. The type of control chart that is used
is dependent on the process characteristic that is to be monitored and the way the sample
are gathered (do Carmo C. de Vargas, Lopes, and Souza, 2004).
Control charts can also be used as modelling tools to estimate certain process output parameters such as the mean, standard deviation, percentage nonconforming, etc.
(do Carmo C. de Vargas et al., 2004) (Montgomery, 1985).
University of Pretoria etd – R M du Toit (2006)
CHAPTER 4. PERFORMANCE MONITORING AND EVALUATION TOOLS
24
Sample quality characteristic
A control chart usually contains three horizontal lines that provide guidelines on the
quality of the characteristic to be monitored. One of the lines is known as the centre line
and is calculated as the average of the quality characteristic in the presence of common,
inherent variance. The centre line indicates the value from which the quality characteristic
should deviate as little as possible from. The two other lines indicate control bounds that
should not be violated by the quality characteristic. The lines are known as the upper
control limit (UCL) and the lower control limit (LCL). A typical example of a control
chart is shown in figure 4.1. The control limits can be used as a guide for controller
Upper Control Limit
Center Line
Lower Control Limit
Sample number or time
Figure 4.1: Control Chart
performance. If points lie outside the limits the process is said to be out of control and
investigation is necessary to find the cause of this violation. It does not mean however
that if no violations of the control limits occur that the system is in perfect control. If,
for instance, several consecutive samples lie above or below the centre line and do not
violate the limits, it usually means that the control is suboptimal and that there can be
some improvement. It can be concluded therefore that the system is performing optimally
when the quality characteristic will have a random distribution around the centre line
with no violations of the control limits (Montgomery, 1985).
Control chart application in the chemical processing industry and in the aforementioned monitoring structure has definite potential; especially seeing that it is a direct
representation of process variability. In the application of the chart the control limits will
University of Pretoria etd – R M du Toit (2006)
CHAPTER 4. PERFORMANCE MONITORING AND EVALUATION TOOLS
25
represent the area of allowable variance. The allowable variance is that which originates
from the plants inherent design. This is the variance that is uncontrollable. A control
chart is therefore a good indication of how far a plant is operating from its inherent
optimum by looking at the number of control limit violations.
From the above discussion it is clear that a number of factors need to be considered
in the design of a control chart, which include:
• The actual quality statistic to be sampled or calculated. This statistic is the value
to be plotted against sample number. This can for instance be the sum of the
product flows from the plant multiplied by their purity or the error signal of a PID
loop.
• The control limits that should not be violated.
• The sampling frequency. In other words, how often does one need to compare the
quality against the limit.
• The sample size, determined by how many samples should be taken to give an
appropriate representation of operation.
Modified Shewhart chart
Control charts can be represented by a general model that is shown in equations 4.1
to 4.3. This general model was first proposed by Shewhart (1931) and control charts that
are based on it are referred to as Shewhart control charts.
U CL = w + k1 σw
(4.1)
Center line = w
(4.2)
LCL = w − k1 σw
(4.3)
The equations that describe the general model are for a sample statistic w that measures
some quality characteristic, with a mean of w (target value) and a standard deviation of
σw . It has become a general standard in industry to use a value of 3 for the constant k
and is generally known as the 3σ limit (Montgomery, 1985) (NIST-SEMATECH, 2005).
The classical Shewhart approach is to compare samples to the target value and if the
absolute value of the difference is larger than a constant times the standard deviation the
process is said to be uncontrollable. The modified Shewhart chart takes exactly the same
approach with the only difference being that the samples are compared to the standard
University of Pretoria etd – R M du Toit (2006)
CHAPTER 4. PERFORMANCE MONITORING AND EVALUATION TOOLS
26
error of the time series of the process (Kramer and Schmid, 1997). The modified Shewhart
criterion is shown in equation 4.4.
|wt − w| > k1 σwt
(4.4)
The problem that can be identified with Shewhart type charts is that they consider
single samples. The control criteria are sample specific and do not consider past sample
values or sequences of sample values (do Carmo C. de Vargas et al., 2004). That is why
Shewhart type charts are almost always used in conjunction with other control charts
that are discussed in the subsequent sections.
Cumulative sum chart (CUSUM)
The formula that is used to calculate a CUSUM chart is shown in equation 4.5 (do Carmo
C. de Vargas et al., 2004).
i
X
(4.5)
Ci =
(xj − xtot )
j=1
The variable xj is the average of the variable that is being sampled at sampling instant
j, while xtot is the desired target value of the variable, x (almost always the mean of the
population). The reason for the mean of x being used at each sample point is that the
formula is usually applied in the manufacturing industry where more than one sample is
taken at each sampling instant. In the chemical process control environment continuous
single samples are taken, for example for measuring temperature. The average of x will
therefore only be the measured value at a particular time.
From equation 4.5 it is clear that if the cumulative sum, Ci , is near zero for large
samples, it means that the actual value is deviating around the desired value. If Ci is
increasing with samples it means that the process is moving away from xtot by increasing
and when Ci is decreasing with increasing samples, x is moving away from xtot negatively.
The normal horizontal control limits are not usually applied to CUSUM charts. The
method normally used is the V-mask. The V-mask can be applied visually or in tabular
form. Figure 4.2 shows the application of the V-mask to determine the control limits
(NIST-SEMATECH, 2005). As can be seen from figure 4.2 the two lines are plotted
with equal gradient magnitudes but opposite in sign. This causes a V-shaped plot that
is superimposed on the control chart. If any of the sample values lie outside the V the
system is said to be out of control. To plot the boundaries, two parameters are needed
together with the origin as the last sample value plotted. The two parameters that are
usually defined is the rise distance, h and slope of the bottom arm, k (see figure 4.2).
The graphical use of the V-mask has become outdated and the V-mask is almost
exclusively implemented in a tabular or spreadsheet format. To generate the table the
University of Pretoria etd – R M du Toit (2006)
CHAPTER 4. PERFORMANCE MONITORING AND EVALUATION TOOLS
27
Figure 4.2: The V-mask control limits for a CUSUM chart (NIST-SEMATECH, 2005).
same two parameters, h and k, are specified which can then be used to calculate the
quantities in equations 4.6 and 4.7.
Shi (i) = max(0, Shi (i − 1) + xi − µˆ0 − k)
(4.6)
Slo (i) = max(0, Slo (i − 1) + µ̂0 − k − xi )
(4.7)
For the first sample, Shi (0) and Slo (0) is taken as zero. The criterion then becomes, if
Shi (i) or Sl0 (i) exceeds h, the process is deemed to be out of control.
CUSUM charts have shown to be more sensitive to small changes in the sample value
mean compared to Shewhart type charts and of course it considers past sample instants
through the cumulative sum (NIST-SEMATECH, 2005).
Exponentially weighted moving average (EWMA)
As is the case with the CUSUM chart, the EWMA also considers past samples to judge
the control state. It applies an exponential weight to past samples and then combines all
the past weighted values including the most recent into one EWMA statistic. The unique
difference with the EWMA chart is that it applies less and less weight to sample values
that are more and more removed from the current sampling instant (NIST-SEMATECH,
2005).
The EWMA can be defined as in equation 4.8 and was first proposed by Roberts
University of Pretoria etd – R M du Toit (2006)
CHAPTER 4. PERFORMANCE MONITORING AND EVALUATION TOOLS
28
(1959) (do Carmo C. de Vargas et al., 2004).
Zi = λxi + (1 − λ)Zi−1
(4.8)
To start computing the average, Z0 needs to be specified and is usually chosen as the
process target SP, or the initial process variable average, x. λ is a constant between 0
and 1 that needs to be specified and is usually chosen to be in the region of 0.2 to 0.3.
Note that the closer λ is to 1 the less weight is applied to the past sample values. If λ is
equal to 1 the EWMA chart reduces to the classic Shewhart chart.
The centre line and the control limits are given by equations 4.9 to 4.11 (NISTSEMATECH, 2005).
r
U CL = x + Lσ
λ
[1 − (1 − λ)2i ]
2−λ
Center line = x
r
LCL = x − Lσ
λ
[1 − (1 − λ)2i ]
2−λ
(4.9)
(4.10)
(4.11)
Evaluation and interpretation of the control chart
The common technique to evaluate the performance of control charts is to compute a
measure called the average run length (ARL). The ARL is a measure of how long on
average we will plot samples before we detect a sample that violates the control limit
(NIST-SEMATECH, 2005) (Yang and Makis, 1997).
The ARL should be large if the quality statistic is on target and short if the mean is
deviating, in other words if a disturbance has occurred. The ARL can therefore be used
to make a decision as to what type of control chart to use for a process. The calculation
of the ARL is usually quite involved and different for each control chart type. Tables
and graphs (nomographs) are available to read of ARL values for specific chart types
(NIST-SEMATECH, 2005).
If we look at the ARL from a control loop evaluation point of view it seems like a good
measure of performance. Say that we assume the quality statistic is the deviation from
set-point (control error). If the ARL is large it will mean that the loop is performing
well and the control error does not violate the control limit frequently. It has to be
determined however what control chart will be the best for a PID control loop and when
this is established how complex is the ARL calculation.
University of Pretoria etd – R M du Toit (2006)
CHAPTER 4. PERFORMANCE MONITORING AND EVALUATION TOOLS
4.2.2
29
Statistical distributions
Normal distributions
When a data set is independent and not-correlated the standard deviation and mean of
the sample is always the same as the standard deviation and mean of the population
for big enough sample sizes. The frequency plot of these data sets are called Gaussian
or normal distributions. A normal distribution has the general shape that is shown in
figure 4.3 (Shunta, 1995). Figure 4.3 shows the average value of the sample, X, that is
Average
Frequency
68% of data
95% of data
−2σ
−1σ
X
1σ
2σ
Figure 4.3: A typical normal distribution (Shunta, 1995).
also the symmetry axis of the distribution. The standard deviation, σ, influence on the
shape is also shown.
We can make several qualitative assumptions on the quality of control by examining
the distribution of the control error or the CV of a normal PID regulatory control loop.
If the distribution is normally distributed as discussed above with the mean the setpoint for a CV distribution or zero for the control error, the system is under regulatory
control. The shape of the normal distribution can however give us further information
as to how well the regulatory loop is performing. Obviously the less variation in the
loop the better. So the ’thinner’ the distribution, the better the control. An example of
comparative analysis for different distributions for the same loop is shown in figure 4.4.
The value of reducing the variance is also pointed out in figure 4.4. Set-points can be
moved much closer to constraints due to the reduced variance. So the process throughput
can be increased, yield increased, waste reduced, etc. if the variability is reduced by still
keeping the process stable and in safe operation(Shunta, 1995).
A useful tool when working with normally distributed data is the confidence interval
approach which enables us to predict with a certain probability what the value of the
variable will be at a specific sampling instant. The method is to compute the Z value for
a certain value of the variable which shown in equation 4.12.
Zh =
xh − x
σx
(4.12)
University of Pretoria etd – R M du Toit (2006)
CHAPTER 4. PERFORMANCE MONITORING AND EVALUATION TOOLS
Controller
Algorithm 2
Controller
Algorithm 1
Controller
Algorithm 2
X2
X1
Time
Frequency
Variable, X
Constraint
30
Constraint
Worse
Better
X1
X2
Controller
Algorithm 1
Figure 4.4: Comparing loop performance through distributions.
Equation 4.12 can for example be used to calculate Zh and with probability tables found
in most statistical texts, the probability that the value at a specific sampling instant will
lie above or below the value xh can be determined.
When considering a real process there are various sources of variability that the control system is trying to compensate for. So we should be careful in assuming normality
for response data, especially seeing that most statistical measures are based on the assumption that the data is normally distributed. Distributions that are not completely
independent appear skewed or may have more than one peak. This usually indicates
that there is a problem with the regulatory control system and further investigation is
necessary. Non-normal distributions are briefly discussed in the next section.
Non-normal distributions
If a frequency plot of some variable that is under regulatory control, is a non-normal
distribution then this usually means that there is some sort of problem with the control
system. Possible causes for non-normal distributions are (Shunta, 1995):
• Presence of outliers - Outliers cause normal distributions to have heavier tails.
Outliers are not always real and engineering judgement should be used to determine
whether they represent real variability. If they are incidental incidents then they
need not be considered and can be filtered out. Real outliers on the other hand
need to be investigated.
• Measuring elements - Measuring elements cause problems when they are not calibrated for the current operating range or they do not have sufficient sensitivity
to measure the correct magnitudes of variable movement. Measuring sensitivity
problems will usually cause a distribution with a sharp drop off to the one side.
• Variable characteristics - The process variable may have a physical constraint like a
measurement of length or weight that cannot be negative, or a purity above 100%.
University of Pretoria etd – R M du Toit (2006)
CHAPTER 4. PERFORMANCE MONITORING AND EVALUATION TOOLS
31
Distributions that are affected by these limitations will have a fixed boundary on
the one side of the frequency plot.
• Nonlinearity - If a linear PID controller is used to control a nonlinear process the
resulting distribution plot will also be skew. The reason for this is that the controller
makes proportional changes to the MV depending on the error magnitude. So the
signal to the final control element will be the same in magnitude for positive and
negative error signals with equal magnitude. The process however, will not react
in the same manner. Say a nonlinear process is disturbed by moving a MV by a
positive change of magnitude, A. The output difference between the new steady
state and the current steady state is C. If the MV is moved in the opposite direction
with a value of −A the nonlinear process output steady state difference will not
be −C. This is the reason why linear controllers (PID) only work efficiently for
specific disturbances. Nonlinear processes are compensated for by inverting the
non-linear effect of the process through the measuring element to produce a linear
output from the measuring element. High purity distributions almost always have
skew distributions.
• Final control element - Valve stiction is also a source of non-normal distributions.
Valve stiction usually causes the CV to be on either side of the set-point and therefore produces a distribution that is shaped like an upside down bell. A histogram
of this type is shown in figure 4.5 (Expertune, 2005) .
Figure 4.5: An example of an histogram of a control loop containing a valve that exhibits
stiction (Expertune, 2005).
University of Pretoria etd – R M du Toit (2006)
CHAPTER 4. PERFORMANCE MONITORING AND EVALUATION TOOLS
32
There are several ways to quantify the amount of skewness of a distribution. The following three properties of frequency plots can be used as an initial indication of skewness
(Albright, Winston, and Zappe, 2002):
• Mean - The mean is the normal algebraic average of the data that have been sampled.
• Median - The median is the “middle” sample number of the population data that has
been arranged in ascending or descending order. The median is the middle sample
for odd numbered population sizes and the average of the two middle samples for
even numbered populations.
• Mode - The mode is the value interval that occurred the most frequent.
These three values are very close to each other for normal distributions, so if they differ by
substantial amounts one should suspect that the distribution is skew. A more commonly
used technique to test the skewness of data set is to take the third moment around the
mean. Equation 4.13 shows the third moment around the mean (Duval, 2005) (NISTSEMATECH, 2005).
Pn
(xi − x)3
skewness = i=1
(4.13)
(n − 1)σx3
If the skewness calculated in equation 4.13 is positive it means that the distribution
has a heavier tail to the right and if the skewness is negative the tail is heavier to the
left. A skewed distribution because of variable limitations like weight measurement that
cannot go negative will have a heavier tail to the right seeing that the measurement has
a lower bound. The skewness for any symmetrical (e.g. normal distribution) distribution
is near zero.
A simplified formula for calculation of the third moment is shown in equation 4.14.
Pn
(xi − x)3
γskew = Pni=1
3
( i=1 (xi − x)2 ) 2
(4.14)
Another handy statistic to measure the amount of deviation from a normal distribution is the kurtosis formula shown in equation 4.15.
Pn
kurtosis =
− x)4
−3
(n − 1)σx4
i=1 (xi
(4.15)
The reason for the second constant term of 3 is to standardise the formula to a
result of zero for standard normal distributions seeing that the first term equals 3 for
normal distributions. The kurtosis formula provides an indication of how the peaks in
University of Pretoria etd – R M du Toit (2006)
CHAPTER 4. PERFORMANCE MONITORING AND EVALUATION TOOLS
33
the distribution compares to the standard normal distribution. It can also be said that
the kurtosis gives an indication of how the gradients of a distribution’s side compare to
the normal distribution. If the kurtosis is positive it indicates a “peaked” distribution
while a negative kurtosis indicates a “flat” distribution.
A simplified formula for measuring the kurtosis is shown in equation 4.16.
Pn
(xi − x)4
c = Pni=1
( i=1 (xi − x)2 )2
(4.16)
To illustrate the use of the skewness measures some well known skew distributions
and their corresponding skewness and kurtosis values are shown in figure 4.6 (NISTSEMATECH, 2005). From figure 4.6 it is clear that for the normal distribution the value
Figure 4.6: Skewed distributions together with their skewness and kurtosis values.
for the skewness is near zero and the kurtosis (first term in equation 4.15) is near 3.
For the double exponential distribution the skewness is also near zero which makes sense
seeing that the plot is symmetric, but the slopes of the sides are not normal and the plot
seems peaked which is related in the larger positive kurtosis value of 5.9. The Cauchy
distribution shows elongated heavy tails and has a skewness and kurtosis of 69.99 and
6 693 respectively. The skewness was suspected to be near zero due to the symmetry but
in fact has a large positive value. The kurtosis is also very large. These extremely large
values are due to the heavy tails of the distribution. The last distribution shown is the
Weibull distribution which has a heavier right side. So we suspect the skewness value
to be positive. This is indeed the case with a value of 1.08. The kurtosis is 4.46 which
University of Pretoria etd – R M du Toit (2006)
CHAPTER 4. PERFORMANCE MONITORING AND EVALUATION TOOLS
34
indicates a slightly peaked distribution.
If the dataset is skew as well as the residuals of the data there are some transformation
techniques that exist to approximate a normal distribution. Various transformations exist
for various types of skewness. The power and logarithmic transforms are two examples
that are shown in equations 4.17 and 4.18 (Shunta, 1995).
T1 (x) = axp + b
(4.17)
T2 (x) = c log(x) + d
(4.18)
Now if we want to use the normal distribution probability tables mentioned in section 4.2.2
we can if the transformed distribution is normal by using equation 4.19.
Zh =
4.2.3
Ti (xh ) − Ti (x)
σTi (x)
(4.19)
Correlation
To quantify and measure the amount of interaction between two variables various statistical measures exist. Two popular measures that are commonly used are covariance and
correlation (Albright et al., 2002). Two variables are said to be correlated if a change in
one variable is reflected by a change in the other variable. In terms of control loop interaction, correlations are useful tools to determine the relative amount of interdependency
either between two loops, or the relative amount of variability that the loop causes with
its own control action.
Another functional aspect of determining correlated variables is that it identifies possibilities to infer variables from each other. It therefore means that only one of the
correlated variables has to be monitored to give a representation of all the other correlated ones. This reduces the dimensionality of the general control problem and simplifies
it especially seeing that normal control problems are of large dimensions. Inferred variables also enable us to choose which of the variables are to be monitored (Stapenhurst,
2005). The obvious choice are those variables that are inexpensive, easy and repeatable
(e.g. temperature measurement as an indication of concentration).
The covariance between two variables can be defined as in equation 4.20.
Pn
Cov(x, y) =
− x)(yi − y)
n−1
i=1 (xi
(4.20)
It is clear from equation 4.20 that the covariance of two variables is the average of the
product of the deviation of the variables from their mean. It can therefore illustrate to
us whether the variables are at respective sampling instants above or below their mean
University of Pretoria etd – R M du Toit (2006)
CHAPTER 4. PERFORMANCE MONITORING AND EVALUATION TOOLS
35
and by what magnitude. So variables that are completely random will have a covariance
close to zero. Variables that are both decreasing or both increasing will have a positive
covariance, while variables that are changing in opposite directions will have a negative
covariance. The problem with the covariance function is that it is not a dimensionless
entity. Therefore, if the numerical value of the two variables differ by a large amount
the magnitudes won’t contribute the same weight to the function result. Some sort of
scaling is necessary (Albright et al., 2002). This is why the covariance function is not a
commonly used function but rather the correlation function shown in equation 4.21.
Cxy =
Cov(x, y)
σx σy
(4.21)
As can be seen from equation 4.21 the correlation equation is scaled with the standard
deviations of the respective variables. The correlation function will always be between
−1 and 1. With 1 a perfect positive correlation with both variables changing in the same
direction at the same rate and −1 a perfect negative correlation with variables changing
in opposite directions while zero indicates no relationship at all.
Cross correlation
The correlation functions found in the process control field correspond directly to the
above discussion and is found in discussions on time series analysis. The result of the
correlation function in equation 4.21 is known as the cross correlation coefficient and is
a single value that describes the linear relationship between the variables for a specific
sample delay. (Box, Jenkins, and Reinsel, 1994) (NIST-SEMATECH, 2005) (Blevins,
McMillan, Wojsznis, and Brown, 2003)
The cross correlation function will be applied in this investigation as an indication of
the relationship between two particular process variables. The correlation coefficient for
a CV/MV pair will for example be calculated with equation 4.22.
CM V /CVk =
1
n
Pn−k
i=1
(M Vi − M V )(CVi+k − CV )
σM V σCV
(4.22)
The cross correlation coefficient in equation 4.22 contains an extra index, k, which
indicates what the sample time delay should be for comparison. In equation 4.22 the
MV sample at instant i is compared to the CV value at k time instants later, i + k. The
index k is known as the coefficient lag and causes comparison of the variables at different
sampling instants. The coefficient can be calculated for all time lags smaller than the
sample size, n, but this is unnecessary seeing that the effect of the MV on the CV will
only be seen for the time that the process takes to reach steady state. It can therefore be
estimated that the correlation coefficients should be calculated for all lags smaller than
University of Pretoria etd – R M du Toit (2006)
CHAPTER 4. PERFORMANCE MONITORING AND EVALUATION TOOLS
36
the longest time to steady state for the process. Variables usually only show correlation at
specific values for k if at all. To illustrate the complete correlation between variables the
cross correlation coefficient is plotted against the values for the lag. The figure will have
peaks for lags that show correlation. An example of a cross correlation coefficient plot is
shown in figure 4.7. The cross correlation coefficient can be calculated by considering any
Figure 4.7: The cross correlation coefficient plot vs. the lag.
two variables. Two main interaction characteristics can be observed from the correlation
plot. The first is the amount of delay involved before the one variable’s movement is
noticed in the other variable by considering the lag where peaks are observed and the
second is the “strength” of the interaction by considering the heights of the peaks.
If a CV/MV pair of the same feedback loop is considered the effect of that feedback
control algorithm is illustrated in the coefficient plot. Firstly the lag plot will give an
indication of how much deadtime is contained in the loop (peak occurs at the lag value
that estimates the deadtime) and secondly it indicates how much of the CV shifts/moves
are due to the MV in that loop. We can conclude that peaks close to 1 or −1 will
indicate strong control action while smaller peaks will indicate weaker control due to
external disturbances on the loop.
To give an indication of possible causes of interaction and variance in a particular
CV, the cross correlation can be done for CV/MV pairs that are not linked by feedback
or any other disturbance/CV pair that is suspected to have an effect on the CV. The
cross correlation function will indicate the strength of interaction and is a good way to
locate the cause of performance degradation. This is useful to identify opportunities for
advanced control applications like decoupling or model predictive control (MPC). The
obvious prerequisite for disturbance/CV cross correlation is that the disturbance has to
University of Pretoria etd – R M du Toit (2006)
CHAPTER 4. PERFORMANCE MONITORING AND EVALUATION TOOLS
37
be a measured variable.
The benefit of the cross correlation interaction analysis technique is that the calculations can be done under closed loop conditions with no process modelling necessary. An
estimate of the process deadtime would however be a handy parameter to know before the
correlation coefficient plot is performed seeing that it will provide an estimate of where
to expect peaks on the plot and therefore confirm whether the initial deadtime estimate
is correct.
Autocorrelation
Autocorrelation is a form of correlation that is another important function that should
be considered when doing statistical analyses. The difference between the cross correlation function and the autocorrelation function is that the autocorrelation considers a
single variable and the cross correlation two variables. A variable is autocorrelated when
a variable’s value at a specific time can be related from another value of the same variable at some other sample period. The auto-correlation is calculated with a coefficient
that is similar to the cross correlation coefficient and also varies between −1 and 1. The
coefficient is an indication of the randomness of a variable dataset. Random datasets
have a autocorrelation coefficient that is close to zero for all time lag coefficients. Most
statistical analysis techniques assume that the data are not autocorrelated and the coefficient plot is a useful tool to test for randomness in data. One method to calculate the
autocorrelation coefficient is shown in equation 4.23 (NIST-SEMATECH, 2005).
Pn−k
(yi − ȳ)(yi+k − ȳ)
Rk = i=1Pn
2
i=1 (yi − ȳ)
(4.23)
The coefficient in equation 4.23 is for a time lag of k time sample periods. To test
for randomness of data, consecutive samples (a time lag of k = 1) are sufficient. A
coefficient value of Rk = 0 will indicate a random dataset.
Another tool that is frequently used to check for randomness of data that is similar
to a autocorrelation is the a lag plot. The lag plot is a graphic that plots samples from
a univariate dataset that is separated by a constant sample difference. For example the
lag plot for dataset Y for a lag of 1 will be a plot of y(i) vs. y(i + 1). This will give
an indication of the randomness of the data as well as indicate outliers in data. An
example of a lag plot for a dataset that exhibits non-random cyclic nature and contains
a few outliers is shown in figure 4.8 (NIST-SEMATECH, 2005). The cyclic nature that
was picked up in the lag plot is also visible when the autocorrelation coefficient plot is
done in figure 4.9 (NIST-SEMATECH, 2005). As mentioned before, the autocorrelation coefficient tells us about the randomness of the data and if we look at this from a
process control point of view, it will tell us about the dependency of the data on time.
If we consider a controlled variable signal that is at set-point with only random noise
University of Pretoria etd – R M du Toit (2006)
CHAPTER 4. PERFORMANCE MONITORING AND EVALUATION TOOLS
38
Figure 4.8: The lag plot for y for a sample lag of 1 (NIST-SEMATECH, 2005).
Figure 4.9: The autocorrelation plot for a cyclic non-random dataset (NIST-SEMATECH,
2005).
University of Pretoria etd – R M du Toit (2006)
CHAPTER 4. PERFORMANCE MONITORING AND EVALUATION TOOLS
39
adding variance to the signal the autocorrelation coefficient will be zero. If the signal
is however transient or even oscillatory or unstable the coefficient will be non-zero. The
auto-correlation coefficient can therefore be used to determine whether the variance that
is contained in a signal is due to random noise or due to time dependent behaviour of
the process (load disturbances). Huang and Shah (1999) provided a typical example of
implementation of the autocorrelation function as a performance measure by considering
a control system for the Wood-Berry column. In literature they usually refer to a random
variable (autocorrelation zero) in statistical control.
The autocorrelation coefficient can be used as an early fault or disturbance detection
measure to determine whether a loop is deviating from set-point due to factors that is
not random noise. The autocorrelation is once again a useful measure seeing that it can
be applied to regular closed loop data.
4.3
4.3.1
Frequency analysis
Power spectrum analysis
The Fourier transform is a mathematical tool that is used to investigate the frequency
behaviour of a continuous function or a discrete set of sampled values. Seeing that the
monitoring structure developed in this study makes use of sampled signals in the discrete
domain the discrete Fourier transform will be implemented. Equations 4.24 and 4.25
show the discrete Fast Fourier transform (fft) for the sampled signal x.
Y (k) =
n
X
x(j)ωn(j−1)(k−1)
(4.24)
j=1
ωn = e
−2πi
n
(4.25)
The same type of “normalisation” or de-trending of data has to be performed as was
mentioned in the section on statistical control (section 4.2). This is typically done by
taking the difference between each sample and the first value or mean of the dataset.
Straight lines or polynomial fits are also used and the transform is then applied to the
residual of the curve fitted.
The magnitude plot of the Fourier transform gives an indication of the power of the
frequency components of the measured signal and can be calculated with equation 4.26.
The plot is referred to as the power spectral density (PSD).
Pyy =
Y × conjugate(Y )
Resolution
(4.26)
As can be seen from equation 4.26 the power density, Pyy is calculated by multiplying the
University of Pretoria etd – R M du Toit (2006)
CHAPTER 4. PERFORMANCE MONITORING AND EVALUATION TOOLS
40
FFT of the variable, Y , with its complex conjugate and dividing it with the resolution used
to perform the fft. The magnitude, Pyy , is then plotted against frequency to determine
frequency components. The region of interest in the plot is the low to medium frequency
range seeing that peaks in the high frequency range are usually related to noise. The
plot is done for all frequencies smaller than the sampling frequency because no useful
information with respect to process dynamics can be obtained for frequencies higher
than the sampling frequency. It is important to have a sampling frequency that is high
enough to capture all useful process dynamics for monitoring purposes.
The PSD will show if there is non-random oscillatory behaviour hidden in the noise
by showing large peaks at frequencies where oscillations are found while the height of the
peak is an indication of the amplitude (“power”) of the oscillation.
The example of the non-random cyclic behaviour that was detected by doing the lag
plot and the autocorrelation plots in section 4.2.3 is also shown in the spectrum plot in
figure 4.10 (NIST-SEMATECH, 2005).
Figure 4.10: Power spectrum for cyclic dataset.
Matlab has numerous built-in functions to compute a PSD. They all perform PSD
calculations but use different algorithms that differ according to the method of filtering,
execution, windowing, etc. The choice of a PSD calculation function depends on the
input vector that the PSD is performed for. In this investigation none of the standard
PSD functions will be used. The built-in f f t function of Matlab will be used to perform
the discrete fast Fourier transform of signals. If this function is used, one of the input
parameters to the function is the resolution. The f f t algorithm is executed in such a way
that it converges the quickest for resolutions that are factors of two. It is preferable to
choose a resolution that is a factor of two and greater than the length of the considered
signal vector. If the resolution is smaller than the signal vector it gets truncated and if
the resolution is larger the vector gets packed with zeros for the extra elements of the
vector. After the f f t has been calculated the PSD is calculated with equation 4.26.
University of Pretoria etd – R M du Toit (2006)
CHAPTER 4. PERFORMANCE MONITORING AND EVALUATION TOOLS
41
The power spectrum is also done from regular closed loop data and therefore very
functional to point out oscillatory behaviour in a loop on a continuous on-line basis
without disrupting normal operation. The power spectrum is a useful tool to help identify
possible performance shortcomings like over tuned loops or cyclic disturbances, etc.
The cross spectral density (usually denoted Pxy for signals x and y) is a function that
provides an indication of the relative power between two signals. It can be used to give an
indication of variable interaction. The function can be applied as another test together
with the cross correlation function to determine variable interaction.
The coherence function is a “normalised” function of the cross spectral density and
is given by equation 4.27.
|Pxy |2
(4.27)
Cxy =
Pxx Pyy
The coherence function cater for differing peak heights in the two individual power
densities. If the one peak is small relative to the other the interaction is not easily
detected in the cross spectrum density, however, dividing by the individual densities
provides a scaled function for better interaction detection.
4.3.2
Oscillation detection
Detecting oscillation is an important tool in a performance monitoring structure and
was briefly touched on in section 4.3.1. Oscillations in a loop is not only a source of
increased variance but is also related to increased MV movement that causes wear which
eventually relates to stiction and hysteresis. Oscillations usually have a negative effect on
operation seeing that it causes increased energy consumption, waste of raw material and
increased variance in production rates and quality. The frequency response techniques
discussed in section 4.3.1 are good methods to determine oscillatory behaviour but they
are computationally intensive if functional mathematical software is not available.
Faulty control valves and actuators are the most common causes of oscillatory behaviour in control systems while other causes include bad controller tuning and external
oscillations affecting the controller. Final control elements cause oscillations because of
stiction (stick-slip) motion of the element due to high friction because of wear (Hägglund,
1995). It is interesting to note that wear in final control elements is increased when a
loop is oscillatory and faulty final control elements is also a cause of oscillatory behaviour
to cause a snowball effect that can quickly get out of control. It is therefore important
to detect, diagnose and rectify oscillatory behaviour as soon as possible to minimise wear
on final control elements. Oscillatory behaviour is rectified by doing regular valve maintenance, controller retuning or using feedforward control. It is important to note that
controller retuning will not take away the oscillatory behaviour if it is a final control
element problem or external oscillatory disturbances (Hägglund, 1995).
University of Pretoria etd – R M du Toit (2006)
CHAPTER 4. PERFORMANCE MONITORING AND EVALUATION TOOLS
42
Detecting oscillatory behaviour by the frequency of control error sign changes
Hägglund (1995) proposed a robust and easy to use oscillation detection method that
can be applied to normal regulatory closed loop data. The procedure is based on a
simple principle of determining what the frequency of control error sign changes are,
which is directly related to oscillatory behaviour. The region of the frequencies that we
want to consider is those close to the cross over or ultimate frequency. These are the
oscillations that cannot be compensated for by the controller seeing that the frequency
of the disturbances is too fast and filtering can’t be used seeing that the frequency is too
low.
The first step in the procedure is to determine whether a disturbance has occurred
or not, in other words, to determine whether the CV has deviated from set-point significantly. This can be done by computing the integrated absolute error (IAE) shown in
equation 4.28.
Z
ti
|e(t)|dt
IAE =
(4.28)
ti−1
The integration interval is the time between control sign change instants, ti−1 and ti .
Equation 4.28 is for the error defined as the difference between the measured value and
the set-point for controllers with zero offset (PI controller). For controllers with an offset
(P controller) the error should be defined as the difference between the measurement and
the mean of the measurements.
The IAE is a functional method for determining significant disturbances seeing that
it incorporates the magnitude of the disturbance as well as its duration. So high frequency disturbances will have smaller IAE values than lower frequencies due to the small
integration interval for high frequencies and the larger interval for lower frequencies. So
instrument noise will normally have small IAE values which we don’t want to consider.
Disturbances of larger magnitude will have large IAE values while smaller disturbances
will have small IAE values. Now the question arises what value for the IAE is sufficient
to indicate that a disturbance has occurred.
Hägglund (1995) proposed that we consider the error to be a pure sine wave with
amplitude a and frequency ω. The half cycle of the sine wave will then represent a load
disturbance. The sine wave is therefore a series of load disturbances. From the definition
of the IAE, the limit in equation 4.29 was proposed.
Z
IAElim ≤
π
ω
|a sin(ωt)|dt
(4.29)
0
Seeing that we are only interested in disturbances that occur in the low to medium frequency ranges, frequencies up to the ultimate frequency, ωu should be detected. Hägglund
(1995) found that an appropriate value for the amplitude will be 1% of the value around
University of Pretoria etd – R M du Toit (2006)
CHAPTER 4. PERFORMANCE MONITORING AND EVALUATION TOOLS
43
which the oscillation is occurring. This will be 1% of the set-point for zero off-set controllers otherwise the average value of the CV. With the above values for the specified
parameters the IAElim become as in equation 4.30.
IAElim =
2a
2(0.01)(SP )
=
ω
ωu
(4.30)
If the ultimate frequency is not known the integral time constant of the controller, τi ,
should be used as an estimate of the ultimate frequency, ωi = 2π
. The estimated frequency
τi
will roughly be the same as the ultimate frequency if the controller is well tuned. The
load detection can now be performed by computing the IAE for a period between control
error sign changes and then to compare it with the IAElim . If the IAE is greater than
the limit a significant disturbance is said to be detected.
After defining the disturbance detection procedure the question arises, how do we
implement this load detection procedure to detect oscillatory behaviour? This is done
by defining an evaluation time, Tsup , in which the number of detected disturbances are
counted and if they exceed a certain amount, nlim , an oscillation is said to be present in
the loop. The evaluation time needs to be carefully chosen. Hägglund (1995) proposed a
lower limit on the evaluation time and is shown in equation 4.31
nlim Tu
(4.31)
2
Oscillations in real signals are often not pure sinusoids at their ultimate frequency but
rather ragged functions of lower frequencies than the ultimate. Therefore the evaluation
time needs to be much larger than the lower limit. Hägglund (1995) proposed evaluation
times of 50 times the ultimate period of oscillation, or, if the ultimate frequency is
unknown the integral time constant of the controller.
If the evaluation time principle is followed, as mentioned above, the disturbances
have to have a time stamp to keep track of how many disturbances have occurred in the
evaluation time. Hägglund (1995) proposed an exponentially weighted function that can
be implemented as a “counter” to determine the number of disturbances in the evaluation
time period. This function is shown in equation 4.32.
Tsup ≥
x = λx + load
(4.32)
Equation 4.32 is executed each time an error sign change occurs after the IAE has been
calculated for the error sign change interval. If the integral is big enough to signify a
disturbance the value for the parameter, load, is set equal to 1 else it is zero. λ is a
constant that is related to the evaluation time by equation 4.33.
λ=1−
∆t
Tsup
(4.33)
University of Pretoria etd – R M du Toit (2006)
CHAPTER 4. PERFORMANCE MONITORING AND EVALUATION TOOLS
44
Where ∆t is the sample period of the signal. The weight adds less and less significance to
disturbances that occurred further and further back in the past. The oscillation detection
algorithm is now complete and a final decision on oscillatory behaviour can be made by
considering the criterion in equation 4.34.
x > nlim
(4.34)
If the criterion in equation 4.34 is true then there is oscillatory behaviour for the proposed
evaluation time. As a summary of the oscillation detection algorithm of Hägglund (1995)
the diagram in figure 4.11 can be considered.
4.4
4.4.1
Performance benchmarks
Minimum variance performance (MVC) benchmark
Performance benchmarks are necessary to determine what the optimum operating state
of the process is. This optimum is the operating state containing the inherent variance
that cannot be compensated for by controllers. The operating optimum is then used as
a benchmark to do comparative evaluation of the current operation. Various methods
exist and most of the methods originate from the minimum variance theory that was
developed by the popular work done by Harris (1989).
Standard deviation is a common and understandable way to evaluate process variability as has been seen in the preceding performance evaluation methods. The MVC
benchmark tries to quantify the minimum variance of a process due to common causes
and is an inherent property of the process. The real total variance of the process (common
and special causes) is then calculated and compared to give an indication of performance.
Minimum variance control
The MVC benchmark concept was developed by Harris (1989) in his now classic article
on control loop performance assessment. The original MVC benchmarking method uses
closed loop data from a linear process under normal linear time invariant feedback control.
This means that no extra perturbations are necessary to determine performance; only
routine closed loop operating data is used. The method uses a univariate time series
model to estimate the number of whole periods of dead time which is used to calculate the
optimum capability of the controller. The MVC method for benchmarking is a completely
non-intrusive technique for performance assessment which is precisely the reason for its
popularity.
MVC can be expressed as the control law that minimises the cost function shown in
University of Pretoria etd – R M du Toit (2006)
CHAPTER 4. PERFORMANCE MONITORING AND EVALUATION TOOLS
45
Normal
Operation
Capture
control error
IAE
Calculation
Error sign
change
Disturbance Detection
Complete
Reset IAE = 0
Capture IAE
If IAE > IAElim
then load = 1
If IAE < IAElim
then load = 0
Disturbance
Detection
Disturbance count
X = γX + load
Oscillation Detection
Complete
continue count
If X < nlim
Non-Oscillatory
If X > nlim
Oscillatory
Oscillation
Detection
Oscillatory
Status
Figure 4.11: The oscillation detection algorithm of Hägglund (1995)
University of Pretoria etd – R M du Toit (2006)
CHAPTER 4. PERFORMANCE MONITORING AND EVALUATION TOOLS
46
equation 4.35 (Åström and Wittenmark, 1984).
Jmvc = Ey 2 (k)
(4.35)
y in equation 4.35 refers to the controlled variable or the process output. The scaling
should be chosen such that y = 0 when the process is at the desired set-point or steadystate. E is a weighting that penalises the deviations. As one can see from equation 4.35
the cost function is the equation that describes the deviation of the output from its desired
value and therefore contains the variance that is to be minimised by the controller.
Equation 4.35 only acts as an indication of the variance at one specific time instant,
k. To take a larger evaluation horizon into account the equation can be rewritten as in
equation 4.36.
n
1X 2
y (k)
(4.36)
Jmvc∞ = lim E
n→∞
n 1
n in equation 4.36 is the number of sampling instants of the horison over which the
variance is calculated.
The next step is to determine what the controller algorithm should be to achieve
the MVC objective. The formulation of the controller was done in accordance with a
document compiled by (Hong, 2005).
In order to determine what the controller algorithm should be, we consider a general controlled autoregressive moving average model of the closed loop response (equation 4.37).
A(q −1 )y(t) = q −D B(q −1 )u(t) + C(q −1 )x(t)
(4.37)
In equation 4.37 y is the output, u is the manipulated input. x is a random external disturbance on the control loop with standard deviation, σx and A,B and C are polynomials
in the backward shift operator q −1 shown in equations 4.38 to 4.40.
A(q −1 ) = 1 + a1 q −1 + ...ana q −na
(4.38)
B(q −1 ) = b0 + b1 q −1 + ...bnb q −nb
(4.39)
C(q −1 ) = 1 + c1 q −1 + ...cnc q −nc
(4.40)
Already we foresee that control won’t be completely free from variance seeing that the
manipulated variable takes D time instants to affect the process output, y.
The next step is to develop the controller algorithm that minimises the cost or goal
University of Pretoria etd – R M du Toit (2006)
CHAPTER 4. PERFORMANCE MONITORING AND EVALUATION TOOLS
47
function shown in equation 4.35. Let’s consider the controller in equation 4.41.
u(t) = −
G(q −1 )
y(t)
B(q −1 )F (q −1 )
(4.41)
G and F are also polynomials in the backward operator q −1 and are shown in equation 4.42
and 4.43.
G(q −1 ) = g0 + g1 q −1 + ...cng q −ng ;
ng = max(na − 1, nc − 1)
F (q −1 ) = 1 + f1 q −1 + ...fD−1 q −(D−1)
(4.42)
(4.43)
B is the same as for the closed loop model in equation 4.37. Now we specify the polynomials G and F to satisfy equation 4.44.
C = AF + q −D G
(4.44)
If we rearrange the closed loop model (equation 4.37) and use equation 4.44 for C the
following equation for y at time instant t + D can be formulated as in equation 4.45.
y(t + d) =
B(q −1 )F (q −1 )
G(q −1 )
u(t)
+
y(t) +F x(t + D)
C(q −1 )
C(q −1 )
{z
}
|
(4.45)
ŷ(t+D|t)
As can be seen from equation 4.45 the first two terms is the prediction of the output at
D time instants in the future based on the present and past knowledge of the variables u
and y. This prediction is represented as ŷ(t + D|t). The last term is however not known
as it lies in the future and is known as the output prediction error. This is the inherent
variance of the loop and can’t be compensated for by the controller algorithm. The first
two terms (ŷ(t + D|t)) are available and can be compensated for by the MV.
Now if we consider the objective function in equation 4.35 to be minimised for the value
of the output at D time instants in the future it can be represented as in equation 4.46.
2
J = Ey 2 (t + D) = E ŷ 2 (t + D|t) + σx2 (1 + f12 + ...FD−1
)
{z
} |
|
{z
}
controllable
(4.46)
uncontrollable
The reason why the objective function simplifies to a function of the predicted output and
the standard deviation of the disturbance alone is because the disturbance is assumed to
be an independent random variable. The task is now to minimise the cost function by
reducing the predicted output to zero (see equation 4.47) by changing the MV.
BF
G
u(t) + y(t) = 0
C
C
(4.47)
University of Pretoria etd – R M du Toit (2006)
CHAPTER 4. PERFORMANCE MONITORING AND EVALUATION TOOLS
48
The minimum variance controller that results is the same controller proposed at the start
of the of the analysis (equation (4.41)). We have therefore proved that the suggested
controller is the minimum variance controller for the proposed process model and the
polynomials can be solved recursively by solving for corresponding coefficients by using
equation 4.44.
If we consider the objective function in equation 4.46 it is clear that it consists of
two parts, one being the controllable variance part of the output signal and the other the
uncontrollable part because of the time delay of the process. The aim is now to determine
what the variance is of the uncontrollable part of the output which will be the theoretical
lower bound performance benchmark. Then we determine the normal variance of the
output signal and compare it to the benchmark. The application of the benchmarking
method is discussed in section 4.4.1.
Application of the minimum variance benchmark
For the application of the minimum variance benchmark it is useful to consider the power
spectral density of the normal output of a control loop shown in figure 4.12 (Clegg, Xia,
and Uduehi, 2005). The uncontrollable variance pointed out at frequencies higher than
ωd =
Controllable
2π
td
Uncontrollable
Figure 4.12: Power spectrum of the controlled variable or the control error.
the deadtime frequency, ωD , needs to be quantified. An estimation of this minimum
variance in one dead-time increment is shown in equation 4.48. It considers the mean
square successive difference of variable, x.
sP
Scap =
n
i=2 (xi
− xi−1 )2
2(n − 1)
(4.48)
Shunta (1995) refers to this quantity as the “capability standard deviation”. We will
make use of Scap as an indication of the inherent standard deviation that cannot be
compensated for by the control algorithm.
Now that we have defined the minimum variance we need the current operational
University of Pretoria etd – R M du Toit (2006)
CHAPTER 4. PERFORMANCE MONITORING AND EVALUATION TOOLS
49
variance which can be calculated with the standard deviation, Stot , of the output, x,
shown in equation 4.49.
sP
n
2
i=1 (xi − x)
Stot =
(4.49)
n−1
As was mentioned before if we are considering single loop performance, x, will typically
be the CV value or the control error. Stot is a quantified indication of what the current
operating condition for the control loop is. If the variable that is to be monitored is
not a regularly measured variable and is usually inferred (for example, concentration, via
temperature) the additive property of variance can be used. This property enables us to
use the independent variables to approximate the inferred variable variance if we know
what their corresponding mathematical relationship is (Shunta, 1995).
Since we now have calculated the real variance, Stot , as well as the capable variance,
Scap , we can perform a comparison between the two. Fellner’s formula can be used to
achieve this and is shown in equation 4.50.
s
Sf bc = Scap
Scap
2−
Stot
2
(4.50)
The variable Sf bc , is an indication of the standard deviation from minimum variance
control (Shunta, 1995).
To combine all the standard deviations mentioned above into one index that gives the
loop performance as a percentage of its full potential, equation 4.51 can be used (Blevins
et al., 2003).
Sf bc + s
(4.51)
P I = 100
Stot + s
In equation 4.51, s is a sensitivity factor that can be used to control how sensitive the P I
is to changes in the standard deviations. The closer the value is to 100% the better the
loop is performing. The P I should not be used as a stand-alone index but rather used to
compare periods of operation for possible fault detection, like poorly tuned parameters
or uncertain models used in MPC algorithms, etc.
To summarise the minimum variance benchmarking method we conclude that good
performance relative to minimum variance control indicates that process variability is
inherent and cannot be reduced by controller action except for APC techniques like
preventative feedforward (ff) control. This highlights the fact that a poorly designed
process can not be “fixed” by controller action and accentuates the need for proper control
and process integration in the design stages of a process. Poor performance relative to
minimum variance control indicates that the controller is limiting process performance.
It is important to note however that poor performance relative to minimum variance
is not necessarily a bad thing and when this occurs more advanced measures need to
be considered to confirm the initial suggestion. Remember that minimum variance is
University of Pretoria etd – R M du Toit (2006)
CHAPTER 4. PERFORMANCE MONITORING AND EVALUATION TOOLS
50
only concerned with control error variance reduction and does not consider control effort.
The minimum variance benchmark is still a handy tool to indicate what the global lower
bound on variance is and if controllers are operating close to minimum variance. Very
little can and should be done to improve operation by controller tuning if this is the case
(Huang & Shah, 1999).
4.4.2
Extended benchmarking methods
There exist numerous other benchmarking methods that will be shortly be discussed
in this section. Most of the methods proposed are used to cater for the fact that the
minimum variance benchmark is more often than not an unrealistic control state that
reduces output variance or the control error, but does not take into account what the
control effort is. The benchmarks that follow make the benchmark condition a much
more realistic and attainable state. The minimum variance benchmark was used as
a comparitive measure in this study, so the methods discussed here are for the sake of
completeness and future implementation on the considered process discussed in chapter 5.
Historical data
The basis for historical benchmarking is that the current operation is compared to periods
of operation when the plant was doing well. Researchers that have proposed methods for
this type of benchmarking include Huang & Shah (1999) and Gao et al. (2003).
User specified benchmark
The minimum variance or optimal H2 law is a global optimum for control loop assessment
and is not necessarily the most desirable in practice. It can be said that if a controller’s
performance is close to minimum variance then the controller is performing well and performance can’t be improved much, but when the controller is far from minimum variance
the controller is not necessarily performing badly and a higher level of performance assessment is necessary. If, for instance, we want to put some constraints on the controller
output, like specifying a minimum overshoot or a specific settling time, the minimum
variance case won’t necessarily be the appropriate benchmark. User-defined benchmarks
are implemented for these cases where there are some practical issues involved which
will prohibit the controller from achieving minimum variance. The way it is done is by
specifying a desired transfer function for the closed loop response that is to be achieved.
Let’s consider equation 4.52 given in the book by Huang & Shah (1999).
yt |user = (f0 + f1 q −1 + ... + fD−2 q −D+2 + fD−1 q −D+1 +q −D GR )dt
{z
}
|
F
(4.52)
University of Pretoria etd – R M du Toit (2006)
CHAPTER 4. PERFORMANCE MONITORING AND EVALUATION TOOLS
51
Where yt |user is the user specified benchmark output response and dt is the external
disturbance acting on the process. Equation 4.52 becomes the optimal minimum variance
response if the last term is zero. The last term includes the transfer function, GR , which
contains the desired properties specified by the user.
Since the user specified dynamics are available, the variance of the user specified
output can be compared with the actual current variance from the measured output.
The performance index in equation 4.53 can then be used to do comparative performance
analysis.
σ2
P Iuser = user
(4.53)
σy2
Extended prediction horizon
For the minimum variance benchmark an estimate of the deadtime is needed, but in some
cases it may be difficult or expensive to determine the deadtime. The deadtime is then
used as the prediction horizon which determines the amount of time the deviations in
the response is not affected by the controller (see equation 4.46). This is true for ideal
situations but controllers have dynamics and cannot reduce variance instantaneously and
exhibits some sort of dynamic behaviour before it settles out. The extended prediction
horizon caters for this non-ideal case. The extended prediction horizon is based on setting
an extended settling time (prediction) criterion for the closed loop response (Harris et al.,
1999). Thornhill, Oettinger, and Fedenczuk (1999) proposed the minimum variance index
is plotted for a number of deadtime intervals and then use the extended prediction horizon
as the time for the deadtime where the index settles out and does not vary rapidly. It
should be noted however that following methods like benchmarking on historical data and
extended horizons relies on engineering judgements and experience which is subjective
and not necessarily the optimum.
Generalised minimum variance
Minimum variance control usually goes along with aggressive control action which is
bad for input saturation considerations as well as MV movements and so forth. The
generalised minimum variance approach of Grimble (2002) penalises MV movements as
well as unrealistic control errors to yield a more realistic and practical benchmark for
performance assessment. Figure 4.13 shows a univariate feedback control loop together
with the performance assessment configuration to illustrate the assessment methodology
(Thornhill et al., 1999). From the figure it is clear that there are weighing factors, Pc
and Fc applied to the control error and control signal to lessen the aggressiveness of
the controller and to make the control more realistic. The general minimum variance
controller is then defined as the controller that minimises the objective function shown
University of Pretoria etd – R M du Toit (2006)
CHAPTER 4. PERFORMANCE MONITORING AND EVALUATION TOOLS
52
Figure 4.13: The generalised minimum variance methodology (Grimble, 2002).
in equation 4.54.
J = E{(Pc e(t) + Fc u(t))2 }
(4.54)
Linear quadratic control (LQG)
Similar to the general minimum variance technique, the LQG method of benchmarking is
also a higher level of performance measurement that incorporates the amount of control
effort in the performance evaluation. The method determines the minimum variance
of the process output if there is an upper limit on the variance of the process input.
Figure 4.14 (taken from Huang & Shah (1999)) provides a good indication of the LQG
optimisation problem. The cost function that is considered to obtain the trade off curve
is shown in equation 4.55.
J(λ) = E[yt2 ] + λE[u2t ]
(4.55)
If λ is varied in equation 4.14 various optimum solutions for E[yt2 ] and E[u2t ] can be
obtained. These solutions then represent trade-off curves that identify the achievable or
acceptable operating region. Let’s say we have an upper bound on the controller output
(process input) variance, α, then we can identify what the realistic minimum variance of
the controller input (process output) could be without violating the input constraint (see
figure 4.14). This realistic minimum variance of the process output could then be used
as a benchmark for comparative performance analysis.
The problem with LQG control is that it is a much more computationally intensive
University of Pretoria etd – R M du Toit (2006)
Variance
Controller input
CHAPTER 4. PERFORMANCE MONITORING AND EVALUATION TOOLS
53
Achievable
Region
min{E(yt 2)}
Variance
Controller output
Figure 4.14: The trade off curve for the solution to the LQG problem with the benchmark
condition E[u2t ] ≤ α and min{E[yt2 ]} (Huang & Shah, 1999).
algorithm when compared to the afore-mentioned minimum variance extensions. The
LQG technique as well as the general minimum variance technique are good options if
actuator wear and MV saturation is a problem for the controller. It should be kept in
mind that when implementing these techniques extra measurements are needed which
means more data acquisition and more instruments which has financial implications.
Optimal PID
The method is based on minimising the process output variance by considering PID
control only. To do this a disturbance model is necessary to calculate the controller
optimal controller parameters. Seeing that most controllers on a chemical processing
plant are PID controllers optimal parameters for them would be a great benefit, especially
seeing that they are actual achievable benchmarks. The plant models used to solve the
optimisation problems have to be accurate for the benchmarking to be realistic and this is
not always possible. The variance for the optimal PID loop may be attainable and more
functional than the minimum variance controller but seeing the ease of implementation
and non-intrusive nature of the MVC technique it may be preferred.
Various techniques exist to determine what the optimal PID parameters are and
some are discussed in the following literature Edgar and Ko (2004), Huang (2003) and
Skogestad (2003).
University of Pretoria etd – R M du Toit (2006)
CHAPTER 4. PERFORMANCE MONITORING AND EVALUATION TOOLS
4.5
54
Principal component analysis (PCA)
As mentioned before chemical processes are complex multidimensional systems that are
very difficult to visualise. Principal component analysis (PCA) is a multivariate statistical
technique to reduce the dimensionality of a particular dataset to such an extent that it
can be visualised on normal 2D or 3D plots. The PCA technique reduces the number of
variables to the minimum number that completely describes the process by identifying
the principal drivers that govern where the process is heading. By performing a PCA we
determine the true dimensionality of a process by considering only the variables (referred
to as the principal components) that originate from the analysis (Zhang, Martin, and
Morris, 1997). The common problem with performance analysis usually is that there is
enough data but the amount of data makes it difficult to extract the right information to
determine how the plant is performing. By performing a PCA we identify envelopes of
normal operation on the reduced dimensional plots. Malfunction or bad performance can
then be detected by plotting current operation on the reduced dimensional axes and then
determining where the current operation is relative to the normal operational envelope.
4.5.1
Linear principal component analysis
As was the case with the techniques discussed in section 4.2 data can vary a lot depending
on their units. To cater for this, the raw data are usually standardised to have all the
data in the same units. This can be done by dividing all the variables by their standard
deviation. Once the data is standardised it is projected on a lower dimensional subspace.
This reduces the number of variables which makes the analysis of plant information
easier. The general method of linear PCA is that a straight line is fitted through the
data and residuals of the data and then projected onto these linear combinations to reduce
dimensionality.
The linear combination that approximates the standardised raw original data represents the first principal component. The linear combination of the data that describes
the largest amount of variability in the data defines the principal components. If the
data is denoted by a matrix, x, with each column representing a single variable then the
variability can be represented by equation 4.56.
t1 = pT1 x
with
||p|| = 1
(4.56)
The loading vector is p1 and determines the direction of the linear approximation and
t1 , the score, is the coordinates of a point on the linear approximation.
The second principal component can then be calculated from the residual data matrix,
University of Pretoria etd – R M du Toit (2006)
CHAPTER 4. PERFORMANCE MONITORING AND EVALUATION TOOLS
55
E, calculated from equation 4.57.
E1 = X − pT1 t1
(4.57)
The second principal component can be calculated from equation 4.58 and represents
the linear combination that describes the largest amount of variability for the residual
matrix.
t2 = pT2 E1
(4.58)
The score, t2 , and the loading vector, p2 , have the same properties as for the first linear
approximation only now they refer to the residual linear approximation.
To calculate further principal components the procedure is continued by obtaining the
residual of the second approximation and then the residual of the third, etc. The number
of principal components will be equal to the number of variables in the original data set.
Usually not all the principal components are calculated seeing that the variance in the
data gets reduced each time a residual is analysed. This is because there are only a few
variables that are the principal drivers in the process.
4.5.2
Extensions of linear PCA
PCA is usually done by obtaining linear combinations of the raw dataset and then the
residuals. Various techniques have been developed to fit a non-linear curve through the
data. The analysis is then completed in the same manner as for the linear case. This
technique of non-linear fits is known as non-linear PCA. The shape of the principal curve
is determined by the particular dataset. The principal curve then serves as the one
dimensional approximation of the multi-dimensional dataset. Non-linear PCA is applied
to processes with extreme non-linear behaviour where a small number of linear principal
components is not a good representation of the process dimensionality. Zhang et al.
(1997) have illustrated the benefit of non-linear PCA techniques on a polymerisation
reactor.
PCA is performed on the assumption that the data is statistically independent of
time (not autocorrelated) and has a Gaussian distribution. This is definitely not always
the case for real chemical processes due to numerous reasons that include non-linearities,
instrument inaccuracy, etc. (see section 4.2.2). A technique called independent component analysis has been developed to cater for non-random datasets and is discussed by
the following researchers Lee, Yoo, and Lee (2004) and Kano, Hasebe, Hashimoto, and
Ohno (2004).
University of Pretoria etd – R M du Toit (2006)
CHAPTER 4. PERFORMANCE MONITORING AND EVALUATION TOOLS
4.6
56
Plant evaluation index
Almost all of the methods discussed in this chapter have been evaluation techniques for
single loop monitoring and evaluation. The problem is however that plant operation is
dependent on large numbers of loops. It is a near impossible task to evaluate each and
every loop individually. A holistic measure of plant operation is needed to provide a plant
wide indication of performance. A plant wide evaluation index (PWI) was developed to
attempt to quantify plant wide performance.
If we consider any processing plant there are four main value factors that influence
the value addition of plant operation. These value factors are:
• Quantity of unrefined feed entering the plant
• Quantity of valuable products that leave the plant
• Quality of the products
• Utilities and other processing costs which allow for controlled and efficient operation
In the optimisation of the plant’s operation we usually look to increase the throughput of
the plant as much as possible while still maintaining product quality and keeping within
the design limitations of the plant. The extra feed necessary to do this as well as the
increased utility usage reduces the value addition that is obtained from extra product.
From this line of reasoning we can formulate an optimisation problem as in equation 4.59.
JP W I = P roduct + Quality − F eed − U tility
(4.59)
For a plant to perform at its best the objective function in equation 4.59 needs to be
maximised which means that as much as possible product of good quality needs to be
produced by utilising as little as possible feed and utilities. Two problems arise from this
formulation of the optimisation problem.
The first is that the value factors need to be quantified in some way and if we use
normal process variables like for instance flow rate, the terms may not be consistent.
Suppose that the Feed term can be quantified by a flow rate while the Quality term can
be something like a concentration or a composition. If this is the case then we foresee
a problem because the terms do not contribute equally to the objective because of their
units.
An important fact to note is that equal weight contribution to the objective is not
necessarily the ultimate aim in the formulation of the objective function. This is because
different processes have different control philosophies. It might be important for a certain
processing facility to produce product at as high as possible a production rate, but the
constraints on the quality are reasonably relaxed. For example, the product may vary
University of Pretoria etd – R M du Toit (2006)
CHAPTER 4. PERFORMANCE MONITORING AND EVALUATION TOOLS
57
between 50% and 80% purity. This means that if the product is at 50% or at 80% it
doesn’t matter, it is adding the same value to production. For this case the Quality term
should add less weight to the objective when compared to the Product term.
The second problem is that the objective function does not compensate for constraints
that exist on a real plant. Constraints like safe operation, environmental limits, smooth
operation, stability, etc. need to be included in the optimisation problem. So the maximising of the objective in equation 4.59 is not sufficient for optimisation of the plant
operation.
One way to cater for the inconsistency problem is to add weights to the terms to
scale them in such a manner that they contribute the right amount of weight to the goal.
Doing this will provide us with a new weighted objective function shown in equation 4.60.
JP W I = w2 P roduct + w3 Quality − w4 U tility − w1 F eed
(4.60)
The question arises how do we determine the weights to transform the objective function
terms into some kind of universal value. One way to do this is to choose the weights in
terms of monetary ratios. The monetary weight is shown in equation 4.61.
cost
wi =
value f actor
$
kg/hr
(4.61)
The weight shown in equation 4.61 will be for instance for a feed of which the cost to
obtain is known and of which the flow rate is measured. The monetary weight is an
effective way to scale the value factors that are represented by variables like flow rate,
but for quality factors it is more difficult seeing that no real monetary value can be linked
to variables like concentration or conversion. One solution is to combine factors like for
instance the Product and Quality factors into one as in equation 4.62.
V alue f actor = Ci × W
(4.62)
A new value factor is therefore created in equation 4.62 that will represent the production rate of the key component, i, in the product stream, W . Ci is for instance the
concentration of component i in stream W .
From the above formulation of the objective function it is clear that some time scale
or evaluation period needs to be defined. We cannot use single measured variables from
the plant at some particular sampling instant seeing that it would in all likelihood not
be representative of the normal operation of the plant. An average that is representative of normal operation over the evaluation period needs to be defined. Numerous
averaging techniques exist of which some are briefly mentioned in terms of distributions
in section 4.2.2. There are various possibilities to represent a norm of data and is a
recommendation for future work that will continue on this study. The averaging method
University of Pretoria etd – R M du Toit (2006)
CHAPTER 4. PERFORMANCE MONITORING AND EVALUATION TOOLS
58
used in this investigation was to consider the value factors in terms of mass and energy
accumulation over a predefined evaluation period.
A typical form for the proposed objective function can then be represented as in
equation 4.63.
JP W I =
n
X
i=1
Z
tb
w1i
P rodi dt +
ta
n
X
i=1
w2i x̄i −
m
X
i=1
Z
tb
F eedi dt −
w3i
ta
q
X
i=1
Z
tb
w4i
U tili dt
ta
(4.63)
In equation 4.63 P rodi , F eedi and U tili represent a particular product, feed and
utility flow rate. n, m and q are the number of product, feed and utility flows entering
or leaving the process respectively. The period of evaluation is defined from ta to tb .
x̄i is the average composition of a key component in product stream i with the average
calculated over the evaluation period. w are weights that are assigned to scale the value
factors.
The question now arises how do we use this developed cost function in the general
performance monitoring structure? As was mentioned in section 2.8, the general optimisation problem and performance monitoring are closely related. If we consider the
objective function in equation 4.63 we want the objective maximised for best plant performance. So if we want to quantify performance we have to set a benchmark of optimal
performance and compare the actual operation for a particular evaluation period with
this benchmark.
In order to set a benchmark we have to decide on an optimal operating state for the
plant. Various methods can be used to do this, for instance, the design conditions of
the plant, plant simulations, historical operating values, etc. The method used in this
research was to solve the steady state mass balance for the process with optimal feed
flow rates and feed compositions specified. Each actual operating value factor can then
be compared with its optimum calculated from the plant model. The benefit of using
benchmarks to evaluate performance is that the optimal state does not have to be an
attainable state. We only need a constant reference point against which various periods
of operation can be measured. So if a full scale plant model is not available, operator
experience or any source of plant information can be used to set the benchmark. With
this said it is always better to have an attainable optimal state seeing that it gives a
tangible goal for process personnel to work to.
A single plant wide index (PWI) can be defined as a quantitative value for plant
performance. The way that it was formulated was by comparing each value factor with
its own benchmark value and making sure that the ratio of the two is between 0 and
1. The index can be defined as in equation 4.64 by utilising the objective function in
University of Pretoria etd – R M du Toit (2006)
CHAPTER 4. PERFORMANCE MONITORING AND EVALUATION TOOLS
59
equation 4.63.
R tb
X
n
n
X
P rodiact dt
x̄iact
t
P W I = 100 w1
+
+ w2
R tab
x̄
i
P
rod
dt
opt
i
opt
i=1 ta
i=1
R tb
R tb
q
m
X t U tiliopt dt X t F eediopt dt
a
+ w4
w3
R tb
R tab
i=1 ta U tiliact dt
i=1 ta F eediact dt
1 = w1 + w2 + w3 + w4
(4.64)
(4.65)
The variables and parameters used in equation 4.64 are as defined in equation 4.63. The
subscript opt refers to the optimum operating state that is predefined and act refers to
the actual operating state. The ratios of the values should all be less than one for normal
regulatory operation and by multiplying the ratios by weights that sum to 1 will mean
that the index will be between 0 and 100. It depends on the specified state but in almost
all normal operating cases the optimum state accumulation or average will be larger than
the actual if the value factor in the objective function (equation 4.63) is to be maximised.
If the value factor (ex. Utility) needs to be minimised the optimum accumulation or
average will be smaller than the actual. That is why factors that are to be minimised
have the optimum state as the numerator and the actual state as the denominator, while
factors that are to be maximised (ex. Product) have the actual state as the numerator
and the optimum state as the denominator. We have to consider each term carefully when
we are relating the value factor to its benchmark. For instance, the Quality value factor
act
in equation 4.64 ( x̄x̄opt
) is defined in terms of the purity of the required valuable product,
so if the composition is high the term will be close to 1. If we decided to define the value
factor in terms of impurities the term will be the inverse ( x̄x̄opt
) where a low composition
act
will be close to 1. The averaging method for x is however wrong if the optimum Quality
is not an absolute maximum or minimum value for x. In these cases the error squared or
integral of the absolute error (IAE) of x should be used.
If we look at equation 4.64 more closely we identify that the P W I in equation 4.64 is
very similar to the original objective function defined in equation 4.63. The only difference
is that the scaling for the objective function is done with the benchmark operating state.
An identified drawback of the P W I is that it does not cater for important differences
in the same value factors. For instance, if we add ten feeds to a plant it adds equal
weight to all of them by just normal summation. If we however have an extremely
expensive catalyst feed for instance that enters as a feed stream, we would want to place
more emphasis on its minimisation rather than something like a water feed stream to a
stripper. Weighting of the individual components of a value factor is possible where the
number of feed and product streams are few but can become troublesome for large scale
processing plants.
University of Pretoria etd – R M du Toit (2006)
CHAPTER 4. PERFORMANCE MONITORING AND EVALUATION TOOLS
60
The solution to this is to rather make the P W I a unit specific index. This is where
the plant is divided into smaller processing units like, for instance, a single distillation
column or maybe even a train or a reactor section, etc. This reduces the number of
components of the value factors. If this segmented approach is followed unit performance
indexes (U P I) can be standardised by evaluating the same unit specific value factors. A
set of specific value factors can then be used for a processing unit that falls in the reactor
category and another set for a separating unit like a distillation column. Obviously the
value factors will then become unit specific like for a distillation column the standard
Quality value factor may be the ratio of composition of a key variable in the distillate
and bottoms streams, while for a reactor it may be the percentage conversion of a certain
reactant, etc. The P W I can then still be calculated by weighting and summing the
individual U P I values to provide one number of plant wide performance. The actual
implementation and application of the P W I are shown and discussed in later chapters.
University of Pretoria etd – R M du Toit (2006)
CHAPTER 5
The process
This chapter provides insight to the process that the performance assessment
technique was applied to. The process setup is explained together with the operating software. Data transfer and storage is also discussed. If reference is made
to programs or files refer to appendix E for more detail.
5.1
Process Description
A process flow diagram (PFD) of the process that was used in the investigation is attached
in Appendix A. The process consists of a glass fractional distillation column with ten
plates and an option to feed on plate 3 or 6 from the bottom. The column will, for
purposes of this investigation only separate binary mixtures of ethanol and water.
The feed is sub-cooled and its temperature is dependent on the amount of cooling that
is provided by a bottoms cooler , HX-02. The column uses a total condenser, HX-03. A
total steam reboiler, HX-01, is used that provides a saturated vapour stream back into
the column.
The process is a closed system where the product streams (distillate and bottoms)
return back to the feed drum, DM-02, to be re-distilled. Material therefore cycles through
the rig without any take-off of streams except for sampling purposes.
The column uses two steam kettle boilers as heat source that provide medium pressure
steam to the column reboiler (about 1 M P a saturated).
5.2
Regulatory control philosophy
The control structure that is currently used was set-up to ensure good separation and
product of a good quality. The reason for this is to ensure good separation to illustrate
61
University of Pretoria etd – R M du Toit (2006)
CHAPTER 5. THE PROCESS
62
mass transfer principles for undergraduate students. Production rate is therefore not of
utmost importance. The control structure can be summarised as follows:
• Firstly, the feed flow to the column will be controlled at a certain rate. This
means that a constant flow of liquid enters the column. The feed temperature is
controlled with the bottoms cooler by adjusting the cooling water. This will only
work if bottoms flow rate is high enough, so the loop will typically only be set to
auto when the column is drawing off product.
• Then, to maintain the mass balance in the column, the level in the reboiler and the
reflux drum is kept constant by adjusting the bottoms and the top product flow
rates. This illustrates the fact that constant product flow rate will not always be
achieved.
• Quality control will then be done by controlling the bottom and top plate temperatures at specific set-points. The bottom plate temperature will be controlled by
means of a cascade controller to the steam pressure loop. The reason for the cascade
loop is cater for disturbances in the steam supply from the boilers. The reflux flow
rate back into the column will be used to control the top plate temperature. An
extra loop was implemented to keep the reflux temperature constant by adjusting
the cooling water flow to the condenser. This ensures that product of a constant
composition should be achieved. Composition which is inferred from temperature
is not always accurate, but sufficient especially seeing that a binary mixture is used.
The regulatory control strategy therefore ensures a constant feed flow and temperature. The levels in the system are kept constant to maintain mass balance. Quality
control is done by controlling the top and bottom plate temperatures.
5.3
Process instruments
Instrument communication forms an integral part of the performance evaluation structure. It forms the basis of data capturing and some recent technological advances have
made field value measurement extremely functional. These advances include SMART
instruments that have made instruments multi-functional in the sense that they can provide more information on the measurement than only the measured value alone. Some
of this multi-functionality include remote calibration, sensor health, etc. In order to take
full advantage of SMART instruments the right communication protocol needs to be implemented. HART and Foundation Fieldbus are two of these data transfer protocols.
HART uses the standard 4 − 20 mA analog signal with a digital signal superimposed on
it. This allows for conventional analog measurement and A/D conversion but the digital
signal superimposed on it provides the extra functional information of the measurement.
University of Pretoria etd – R M du Toit (2006)
CHAPTER 5. THE PROCESS
63
The advantage of the extra digital signal is that it provides two way communication with
the instrument. Foundation Fieldbus is similar to the HART technology except that all
communication is completely digital. When using Foundation Fieldbus, wiring costs are
reduced because numerous instruments are connected via the same wire.
Table 5.1 provides information on the measurement technology that is available on
the distillation column. It is important to know the capability of the instruments to help
with fault detection, diagnosis and maintenance. Al instruments in the column area are
intrinsically safe.
The measuring devices and their communication technology are shown in table 5.1.
Table 5.1: Measuring device communication the distillation column.
Process Variable
Tag
Temperature
Thermocouples
TT-02 to TT-09
Transmitters
TT-01, TT-10 to TT-19 Transmitters
flow meters
FT-01 to FT-08
Flow transmitters
PT-02
Pressure transmitter
PT-01
Pressure transmitter
LT-02
DP cell
LT-01
DP cell
Mass flow rate
Pressure
Level
Device
Communication
analog
Foundation Fieldbus
HART
analog
HART
HART
Foundation Fieldbus
HART
Foundation Fieldbus
As can be seen from table 5.1, regular analog, HART enabled and Foundation Fieldbus
instruments are available on the column.
5.4
Digital communication
The digital communication with the process consists of the DeltaV T M operating system
and hardware. The DeltaV T M system makes the process fully automated by providing the
link between field instruments and a computer workstation. All signal routing happens
by means of a central junction box which feeds data to and from the field as well as to and
from workstations. Figure 5.1 provides an overview of the DeltaV T M system (FischerRosemount, 2003). How the configuration in figure 5.1 works is that firstly the link to the
field happens through the I/O subsystem. This is where D/A or A/D conversion takes
place. The I/O subsystem then also communicates with a digital controller module. A
power supply is mounted on the same board to provide power to the controller modules
and I/O cards. The controller module is a digital controller that contains all the controller
information needed to operate the plant (algorithms, parameters, set-points, alarms, etc.).
It is therefore not necessary to have a computer workstation running to control the plant
seeing that all the control action is done via the controller module. The question is,
University of Pretoria etd – R M du Toit (2006)
CHAPTER 5. THE PROCESS
64
Workstation
User Interface
Primary Control
Network
Primary Hub
DeltaV Control
Network
Secondary
Control Network
Secondary Hub
I/O Subsystem
Junction Box
Controller Module
Power Supply
Field
Process
Figure 5.1: Overview of the DeltaV T M system.
how does the controller module obtain the control information? This is done via the
DeltaV T M control (secondary/primary) network by which information is downloaded to
the controller modules from multiple workstations. There are various workstation types
on the control network and this is discussed in section 5.4.1. Each type of workstation
has a different functionality together with a set of users with various access rights. Only
specific users on certain workstations have permission to download new information to
the controller.
5.4.1
Operating software
The workstations on the DeltaV T M control network have different functionalities depending on the software and licensing installed on the machine. The DeltaV T M network at
the University of Pretoria has three DeltaV T M workstations. The three stations as well
as their functionalities are:
• Professional plus station (PROplus - Configuration, operation and Database configuration.
• Application station - Run-time database plus user selected applications. For the
purpose of this investigation the 3rd party OPC application is important and is
discussed further in section 5.4.2. The application station is the only station that
is not only on the DeltaV T M control network but also on the local area network
University of Pretoria etd – R M du Toit (2006)
CHAPTER 5. THE PROCESS
65
(LAN) of the university.
• Operator station - For plant operation alone.
5.4.2
Data capturing
The application station has a data historian that runs continuously to capture data
according to time stamps. This allows users to access plant data at any time in the past
up to the present. The tags that are captured need to be activated and downloaded
on the PROplus station. The application station has third party OPC functionality
which enables an OPC server to run continuously. This is extremely functional seeing
that OPC clients that are not on the DeltaV T M control network can have access to the
plant operating data because the application station is on the university LAN. The only
application that is needed on the client machines is OPC remote which is distributed
with the DeltaV T M installation software.
Data for this investigation was captured from the OPC server, real-time and logged
on the OPC client machine by using the Matlab environment. Matlab is a technical
computing environment with OPC capability enabled by the OPC Toolbox. This is not
the optimal method for data capturing seeing that the data logging has to be triggered by
the client before data is available (not continuous). The OPC Toolbox is not designed to
replace continuous historians and a better method will be to obtain data directly from the
continuous historian via OPC (Mathworks, 2005). This is a recommendation for future
work on performance assessment of the distillation column.
Although the desired data capturing method was not applied, the OPC Toolbox
logging was sufficient to illustrate the performance interface functionality discussed in
chapter 6. It is important to identify the key variables to be logged in order to obtain all
applicable information with respect to process operation. The following variables were
identified as functional to performance assessment and their application in the assessment
interface is discussed in chapter 6.
• Controller set-points
• Actual CV values
• Controller outputs (valve position)
• Controller modes (auto/manual)
• Product flow rates
• Utility flow rates and temperatures
University of Pretoria etd – R M du Toit (2006)
CHAPTER 5. THE PROCESS
66
Table B.1 in the appendices shows all the tag names as well as the process variables they
represent. A template was created in the OPC Toolbox interface for convenience for other
Matlab users that want to connect to the column via OPC. The osf file is found on
the CD accompanying this document.
The tag names were assigned in the DeltaV T M environment upon commissioning
of the column. Problems were experienced with name space browsing within the OPC
toolbox graphical interface. The Matlab function getnamespace was used to retrieve
the server name space in the Matlab command line. The name space was then available
as a structure in the Matlab workspace. The structure is incredibly big with numerous
fields and substructures which contain the entire DeltaV T M control structure which made
browsing for tags very difficult seeing that one gets lost in the tree. To make the browsing
of the structure more functional it was converted to a xml file which has a tree format
similar to file system explorer software. This made browsing for tags easier seeing that
the user can track its position in the tree. A Matlab function called struct2xml was
used to convert the name space tree structure to an xml file (Sandrock, 2005). The
struct2xml function as well as the xml files are available on the CD that accompanies
this document. The xml file is very functional seeing that can be used to identify tags to
all possible variables that can be obtained from the OPC server. Numerous applications
can be used to view xml files. Microsoft Excel was used in this project.
It is possible to connect to the continuous historian by means of Microsoft Excel. This
is done by using the PI data server add-in that is included in the DeltaV T M product.
This allows data retrieval according to timestamps in the past. This is functional seeing
that the logging does not have to be triggered to record data, but seeing that all the
programming to analyse data was done in the more powerful Matlab environment this
method was not considered. Matlab does however allow for data importing from Excel
so it is a possible route that could be considered if direct Matlab-continuous historian
communication is not possible.
A problem was experienced with the data timestamps logged on the client machine.
Every sampling instant the client machine sends a data packet containing the tags which
need to be sampled, to the OPC server. The server then responds with another packet
containing the values of the tags. Every packet however contains its own timestamp that
is the same as the local time on that workstation. The result is that the same value
for a tag gets logged at two different times. If the client machine and the machine that
runs the server are at different times, two sets of exactly the same data is captured. To
cater for this, the time on both workstations (client and server) was synchronised with
a time server on campus. This ensured that sending and receiving of data happened
synchronously on both machines.
A detail that should be remembered when logging with the OPC toolbox is that data
only gets logged when the value of that tag changes from one sampling instant to the
University of Pretoria etd – R M du Toit (2006)
CHAPTER 5. THE PROCESS
67
next. So if during the period of logging the set-point of a controller for example does
not change the actual set-point value is not stored. This is not a problem for measured
process variables from the field like temperature or flow rate seeing that they change
regularly but set-points and controller modes are things that should be noted. This was
catered for by changing all the controller modes and then immediately turning them back
to their original state. This allows for a quick change in the set-point and obviously would
also be picked up in the mode value. It should be ensured that this changing of modes
is longer than the sampling period of the data logging, otherwise the change won’t be
recorded by the OPC client. If values have a quality string of value repeat it means that
the value hasn’t changed and the value takes on the last changed value. If there is no
previous value for the specific tag, the value takes on the NAN string which indicates
not a number.
University of Pretoria etd – R M du Toit (2006)
CHAPTER 6
Structure implementation
This chapter discusses the implementation of a performance monitoring structure
on the process discussed in chapter 5. The implementation was done with the
aid of two performance evaluation user interfaces. The structure comprises of the
following sequential approach:
• Data acquisition
• Plant wide assessment
• Single loop assessment
• Adaptation of the control philosophy
• Archiving
This chapter discusses the implementation of the performance monitoring structure and in chapter 7 the implemented structure is applied to real periods of
operation on the column.
The implementation programming is available on the CD that accompanies this
document. The files that are available on the CD are discussed in appendix E.
The performance structure was developed with an initial aim to make it completely
general, transparent and real-time. This meant that it could be used on any process and
should be understandable to all parties who take part in plant operation decisions. This
includes management, operations and the design office. This was partially achieved as
will be seen in the sections that follow. A good foundation has been set and work that is
to follow on this research will have a clear view of the procedures and structures that are
necessary to have an efficient performance monitoring, assessment and diagnosis system.
The structure implementation can be summarised by the flow diagram shown in figure 6.1. Two performance interfaces form the basis of the implemented performance
68
University of Pretoria etd – R M du Toit (2006)
CHAPTER 6. STRUCTURE IMPLEMENTATION
PLANT
Delta V
OPC server
OPC functionallity
Matlab
Data Logging
Plant-wide
Performance
Reduce
dimensionality
Individual
Loop Performance
Locate sources of
variance
Diagnosis
Identify feasible
solutions
Implementation
Figure 6.1: The flow diagram of the implemented performance monitoring structure.
69
University of Pretoria etd – R M du Toit (2006)
CHAPTER 6. STRUCTURE IMPLEMENTATION
70
Figure 6.2: The graphical user interface used for plant wide performance evaluation
structure. The first interface gives a holistic view of process operation and control system
performance and is discussed in section 6.1. After the plant wide interface is considered
possible problematic control loops should be evident and the individual loop assessment
interface (discussed in section 6.2) is then applied. Possible improvements in the control
structure should be clear after single loop assessment which can then be implemented.
6.1
Plant wide performance interface
The interface that was developed to give an overall plant wide idea of performance is
shown in figure 6.2. The interface has a sequential approach to its operation. First the
data log file should be located and loaded to make the process variable structure available
in the workspace. After the variables are loaded the Evaluate pushbutton is activated
which initiates calculations. The calculation results appear as two plots on two separate
axes and as a plant wide index (figure 6.2). The first results of the calculation is for an
evaluation period that has the same time span as the data that was logged. The whole
period is not necessarily a period of normal operation and periods of normal operation
University of Pretoria etd – R M du Toit (2006)
CHAPTER 6. STRUCTURE IMPLEMENTATION
71
need to be specified as evaluation periods. We define normal operation as periods where
as little as possible set-point changes occur with as many as possible control loops on
AUTO. These periods can be identified by considering the first plot which shows the
number of loops on AUTO as well as the cumulative number of set-point changes for
the considered evaluation period. The normal operating periods can then be isolated
and individually evaluated by using the Refine Time Interval pushbutton. Once the
evaluation period has been set we can look at specific sources of variability due to poor
performing loops. At the end of the evaluation a HTML plant wide performance report is
generated and archived. The single loop interface is then used to investigate the possible
poor performing loops identified by the plant wide interface. The individual sections in
the sequential approach are discussed in more detail in the sections that follow.
6.1.1
Data acquisition
The data logging procedure by means of the OPC toolbox has been discussed in section 5.4.2. This is definitely not the optimal way to retrieve data for analysis seeing that
it is not continuous. A method has to be devised to import data into Matlab directly
from the DeltaV continuous historian.
If data has been logged with the OPC toolbox it needs to be imported and reworked
into a format that can easily be manipulated by statistical methods into useful information. The way this was achieved was by importing the logged data as a structure with the
built-in function opcread. The imported structure was created with the following four
fields:
• ID - A vector of the tag names on the OPC server that was logged.
• V alue - A matrix of the actual values of the identified tags.
• Qual - A matrix of the signal quality of the identified tags.
• T stamp - A matrix of timestamps that identifies the sampling instants.
The ID field is a cell array which consists of a single column that contains strings of the
tag names provided by the OPC server identified in table B.1 in the appendices. The
V alue and T stamp fields are double arrays that have the same number of columns as the
number of tags while the rows indicate the sampling instants. The Qual field is a cell
array with the same dimensions as the V alue and T stamp fields. A specific variable’s
data can then easily be retrieved by recalling the sampling instants corresponding to the
column number that corresponds to the position of the tag in the ID field. The same
can be done to retrieve the variable values and signal quality.
The time stamp value is available as a serial date number which is the number of days
from the reference starting point of 1-Jan-0000. The serial date number is a standard
University of Pretoria etd – R M du Toit (2006)
CHAPTER 6. STRUCTURE IMPLEMENTATION
72
general way to represent time and used to prevent formatting errors when specifying dates
and times. The signal quality strings are part of the inherent diagnostic capabilities of
the plant instruments and software (SMART functionality). It provides the user with
extra information with respect to the measurements taken. The allows for extra measurement information like the read value lies outside its calibration range by indicating
in string format that the measurement was “high limited” or “low limited” depending
if the measurement is above or below its calibration limits. The OPC foundation has
a specific method to report this data so that it can be uniformly understood by OPC
enabled software. Refer to Mathworks (2005) for quality string definitions.
In the plantwide interface the following procedure is followed to create the structure
in the workspace. Firstly, the local hard drive is browsed to locate the ∗.olf file that
was created by logging the data in the OPC toolbox interface. Once the file is located
the load f ile pushbutton is clicked and the callback function then imports the structure
into the workspace. Now with the data in the workspace further analysis is possible.
Figure 6.3 shows the corresponding load file panel for data acquisition from the data log
file.
Figure 6.3: The data log file pane.
6.1.2
Periods of pure regulatory control
In order to evaluate regulatory performance a proper evaluation period needs to be identified. For regulatory control as little as possible set-point changes have to occur. Also, for
the column to be performing well in terms of disturbance rejection, as many as possible
of the loops defined in the base layer control philosophy need to be in operation. The way
periods of regulatory control are identified is by considering figure 6.4 in the plant wide
interface. From figure 6.4 we get an overview of how many SP changes have been made
as well as the number of loops that were on auto. The method that was used to detect
set-point changes was to consider the change for consecutive samples. If the change in
University of Pretoria etd – R M du Toit (2006)
CHAPTER 6. STRUCTURE IMPLEMENTATION
73
Figure 6.4: The number of loops on auto as well as the cumulative set-point changes.
set-point is larger than 1%, a SP change is said to have occurred. The cumulative sum of
the set-point changes are plotted, so when the set-point plot trend flattens out and does
not change according to time one knows that the column is operating under regulatory
control. Only the set-point changes for the loops that were actively functioning for more
than 50% of the time is plotted. Seeing that when the loop is set on MANUAL the SP
and the actual value is the same and will therefore mean lots of set-point changes. The
plots may look unrealistic because of large set-point change numbers being plotted. This
is not necessarily the case seeing that in periods of shut-down and start-up large variable
movement occurs and if the loop is on MANUAL the set-point moves will be large. The
refine time pushbutton should just be implemented to locate proper evaluation times.
The actual numeric percentage time on AUTO for the loops are reported in the Time on
AUTO panel shown in figure 6.5.
Figure 6.5: The percentage time on AUTO for all control loops.
University of Pretoria etd – R M du Toit (2006)
CHAPTER 6. STRUCTURE IMPLEMENTATION
74
The Refine Time Interval pushbutton can now be used to change the evaluation
period to the desired period of normal operation. By activating the Refine Time Interval
the mouse pointer becomes an active coordinate selector. The mouse pointer is then
moved to the starting time for the evaluation period and then clicked. After setting
the starting time the pointer still remains a coordinate selector and the end time can
then be specified. After the end time has been selected the time strings change to the
selected ones. The evaluation period has now been set and the Evaluate pushbutton can
be selected to perform calculations for this period of operation.
6.1.3
Plant wide Value Index
The plant wide index discussed in section 4.6 gives an overall impression of how well
the plant is performing. High values (close to 100) mean that the plant is performing
close to the specified optimum operating state. The panel that shows the plant wide
performance is shown in figure 6.6. As can be seen from figure 6.6 the optimal operating
Figure 6.6: The plant wide performance panel.
state can be specified by the user. The specified parameters do not always result in
an attainable steady operating state. This is not necessary seeing that the optimum
operating state can be used as a fictitious benchmark or reference and current operation
is only evaluated comparatively. To have a realistic optimum operating state, the steadystate mass balance needs to be solved for a specific feed and separation which is a fairly
simple task. This makes the plant wide index a very flexible as well as realistic measure of
overall performance. The index can be compared to historical values of the index to make
judgements on performance. It should be kept in mind that the historical comparisons
will only be useful if the benchmark optimum state is the same. Equation 6.1 was used
to calculate the index for the considered process.
R
R
R
Fact dt
Qact dt
Uopt dt P̄opt T̄botact T̄topopt
1
R
PWI =
+R
+R
+
+
+
100
6
Fopt dt
Qopt dt
Uact dt P̄act T̄botopt T̄topact
(6.1)
University of Pretoria etd – R M du Toit (2006)
CHAPTER 6. STRUCTURE IMPLEMENTATION
75
The time intervals for integrals in equation 6.1 are for the selected evaluation period.
In equation 6.1 F , Q and U represent the flow rates of the feed, products and cooling
water in kg/hr respectively. P̄ and T̄ refer to the average of the steam pressure and
plate temperature over the evaluation period. As can be seen from equation 6.1 equal
weights have been assigned to the terms. The subscripts opt and act refer to the optimal
and actual operating points respectively. The temperatures in equation 6.1 refer to the
bottom and top plate temperatures.
Seeing that the flow rate of the steam is not measured explicitly on the column the
steam pressure, P , was used as an indication of steam usage. There is also no on-line
composition measurement on the column. The bottom and top plate temperatures were
used as an indication of the quality of the separation. This method of inferred composition
is not very good especially when the column is in a transient state as well as when more
than two components are distilled.
6.1.4
Sources of variability
Now that we have identified a normal period of operation we can reduce the dimensionality
of the performance problem by identifying possible sources of process variability. Firstly
we have to identify possible problems with the data acquisition process. The Time on
AUTO pane can be used for this. Locate the loops that show data “not logged”. These
loops cannot be considered within the performance interfaces and need to be evaluated
through inspection of data on the continuous historian. The reason for the lack of logging
needs to be identified and rectified. Secondly identify loops that were not on AUTO for
the period of evaluation. Identify reasons for this by looking at information supplied in
the single loop interface as well as in the Delta V operating system configuration. After
the “not logged” loops and the MANUAL loops have been identified single loop analysis
of functioning control loops can be considered. This can be done with the aid of the
plots on the Loop Performance pane shown in figure 6.7. Figure 6.7 shows the MVC
benchmark index as well as the standard deviation of the CV for the loops that are on
AUTO for more than 50% of the evaluation time. Good tight control (good disturbance
rejection) will usually mean a large MVC index value and a small standard deviation
of the CV. By considering this fact possible poor loop performance can be identified. It
should be noted however that a poor performing loop according to the MVC index will not
necessarily mean bad plant performance. Historical values of the index should definitely
be considered to get a feel for what a good value for the index should be. On the other
hand if the MVC index is high (close to a 100) the loop is by default performing well.
The bar graph is a starting point for variance location and further analysis. In figure 6.7
it can be seen that all the loops seem to be doing well except for the level control on the
University of Pretoria etd – R M du Toit (2006)
CHAPTER 6. STRUCTURE IMPLEMENTATION
76
Figure 6.7: The Loop Performance axis in the plant wide interface.
reflux drum, loop L002. The single loop assessment interface should then be utilised first
for the suspected level loop to locate the source of variance and then for the other loops
that seem to be doing well (section 6.2).
6.1.5
Plant wide performance report
Reports in both the interfaces are automatically generated with the Matlab built-in
report generator tool. The report generation of the results in the plant wide interface is
activated by the Generate Report pushbutton. The callback function that is called by
the pushbutton creates a summary of the results in HTML format. An example of the
plant wide report is shown in appendix C.
The reporting function of the interface was added to help set up a data base of past
periods of operation. This is useful because most of the techniques and measures should
be compared with past periods of operation to aid evaluation.
The run-time for the automatic report generation is long (several minutes). This is
due to the variable availability in the workspace of Matlab. The current workspace
containing all the variables needed for evaluation first has to be saved. Then, when
the report script is executed, the file gets loaded and makes the variables available to
the report generator to insert it into the report. A recommendation for future work is
to investigate the possibility for the report generator to import variables directly from
the interface handles structure. This will cut out the saving and loading of the variable
structure which takes long due to the size of the datasets.
University of Pretoria etd – R M du Toit (2006)
CHAPTER 6. STRUCTURE IMPLEMENTATION
77
Figure 6.8: The graphical user interface used for single loop performance evaluation
6.2
Single loop performance interface
The single loop performance interface should be seen as a tool for locating and confirming
suspicions of variance in the control structure identified by the plant wide interface. The
loop performance interface is shown in figure 6.8. An important fact to note is that the
two interfaces operate independently from each other, which means that the plantwide
interface does not have to be activated or running for the single loop interface to work.
This enables single loop assessment of the data without even considering the plantwide
interface which is handy if the poor performing loops are known from a source other
than the plantwide interface. The single loop interface can however be launched from
the plant wide interface by activating the Single Loop Assessment pushbutton. To use
the single loop interface, much the same sequential approach is implemented than for
the plant wide interface. The ∗.olf log file first has to be loaded. The data are then
dimensionally reduced to only include the information of the loop under consideration.
This is done by clicking the Import Data pushbutton which displays a window of all the
University of Pretoria etd – R M du Toit (2006)
CHAPTER 6. STRUCTURE IMPLEMENTATION
78
loops that can be considered. When the loop information is available in the workspace
the Evaluate pushbutton can be clicked to perform the statistical analysis of the data
and to provide the results in the interface. Now once again periods of normal regulatory
control operation can be identified by locating periods where the loop was on AUTO
with as few as possible set-point changes. The evaluation period can be adjusted by the
Refine Time Interval pushbutton. After the time interval has been refined the Evaluate
pushbutton needs to be activated again to redo the calculation. A lot of information is
then available and discussed in the subsequent sections. After the single loop analysis
has been completed, a report can be generated and archived for future reference. The
various functions of the single loop interface are discussed in more detail in the sections
that follow.
6.2.1
Data acquisition
The data acquisition for the single loop interface is exactly the same as for the plant
wide interface case. The only difference is that only the data needed for the considered
loop is kept in the current directory to speed up calculation time. This is done by having
an extra callback function which is executed with the Import Data pushbutton. The
pushbutton opens a window with all the available loops on the column. When a loop is
selected the relevant data is extracted from the large structure containing all logged data
that was discussed in section 6.1.1. Calling the Import Data callback function creates a
smaller structure with only the relevant information. If one loop is evaluated and another
needs to be considered, the Import Data pushbutton is simply clicked again and the data
structure gets replaced by the new loop’s relevant data.
6.2.2
Time series plots and distributions
The CV Response pane shows the CV response versus time as well as a histogram of the
data. This is simple information that provides significant information on the performance
of the loop. The response provides an initial qualitative impression of the performance.
The traditional methods of performance monitoring discussed in section 4.1.1 can be applied to this time series plot. The actual value of the CV as well as the set-point is shown.
The histogram is a handy tool to detect some key characteristics of the control action.
For instance distributions that have tall, narrow peaks are associated with good control
while short, wide peaks show bad performance. Also skew distributions indicate characteristics like stiction of valves, non-linearities, constraints, etc. Examples of distributions
that are performing poorly are shown in chapter 7.
University of Pretoria etd – R M du Toit (2006)
CHAPTER 6. STRUCTURE IMPLEMENTATION
6.2.3
79
Signal quality
The signal quality strings that are logged in the OPC foundation format are summarised
in the signal quality pane in the interface. It displays the quality for the MV signal
(controller output) as well as the CV signal (controller input) for the considered loop.
The values are displayed as stacked bar plots with the length of the bars the percentage
of the samples that took on that specific quality status. It is used to identify whether
the data that was captured is accurate and trustworthy. Various labels are assigned to
samples and the user should refer to Mathworks (2005) for the explanations of the string
meanings. The OPC foundation has defined three statuses for defining quality. The first
is the major status display whether the measurement was bad, good, uncertain, etc. The
second provides an explanation for the major status which is something like measurement
failure, comm failure, etc. The last division provides an indication of how the previous
status info will limit the measurement value, like for instance high limited. A typical
signal quality string will be, Good: Non-specific (Low Limited). This will mean that the
instrument is limited to its calibration range or is saturated, etc.
6.2.4
Refining the evaluation period
As was the case in the plant wide interface the Refine time interval pushbutton is used to
identify periods where only load disturbances were acting on the process and the controller
was switched on AUTO. The percentage time the loop was on AUTO can be seen from
the time series plot and is also displayed as the actual number in the interface. Set-point
changes can also be located on the time series plot by considering the set-point trend.
It should be remembered however that the evaluation period is now for the considered
loop and other loops may be changing set-point and interacting with the considered loop.
It is therefore handy to consult the plantwide interface or HTML report to determine if
other loops were changing set-point or mode that may affect the performance of the loop
currently under consideration. The control loop interaction will show up on the cross
correlation plots in the single loop interface and it is important to know if the interaction
was operator induced or because of the control configuration. As was the case with the
plantwide interface the evaluation period can at any time be reset to the original time
span of the original data structure.
6.2.5
MVC benchmark index
The MVC benchmark index is a single quantity that indicates how well a particular
loop is performing. The value varies between 0 and 100 and it indicates how good the
control loop is to minimise controllable variance in the CV. The index compares current
operation to the optimal case of minimum variance control. It is however in most cases
University of Pretoria etd – R M du Toit (2006)
CHAPTER 6. STRUCTURE IMPLEMENTATION
80
not possible to reach this optimal case and the index is therefore small. This does not
mean the controller is performing badly; it may just be the best that it can do. That is
why the index should be compared to historical values for the loop. The theory behind
the index is discussed in section 4.4.1.
6.2.6
Evaluation type
A drop down list labelled, Plot Type, was added to the interface to reduce the amount
of information that gets displayed on the interface. This allows the user to choose what
plots need to be performed. It also reduces the computation time for evaluations seeing
that all the calculations are not done for the same evaluation executions. It currently has
three options which include:
• MV plot - Plot of the manipulated variable of the considered loop. This is useful
to identify excessive MV movements, MV saturation, etc.
• Power spectrum - Plot of the frequency distribution of the CV. This is implemented
in oscillation detection.
• Cross correlation coefficient - Plot of the correlation coefficient between the CV and
the MV of the same loop as well as the MV of some other specified loop.
The implementation of these plots are discussed in more detail in the following sections
MV Saturation
MV saturation is a common problem in normal feedback control structures. Two indicators of MV saturation are available in the interface. The first is to selected the MV plot
in the Plot Type drop down list and to then visually inspect the MV response vs. time.
The second indication is to consider the bar graph of the signal quality to see if the MV
signal was high or low limited during the evaluation period.
Oscillation detection
Two quantities are used to locate oscillations in the considered control loop. One is the
method proposed by Hägglund (1995) discussed in section 4.3.2. It was implemented
as a yes/no type indication of oscillatory behaviour. If, according to the algorithm, the
response is oscillatory the string Oscillatory is displayed and when the response is not, the
string Non-oscillatory gets displayed. A few user defined parameters need to be specified
to execute the algorithm. The default parameters for all the loops are shown in table 6.1.
These values are chosen and cannot be edited in the interface itself. It should be edited
in the Matlab m-file that contains the interface code. ωu is the ultimate frequency of
the CV and is obviously different for each control loop. This makes the method not as
University of Pretoria etd – R M du Toit (2006)
CHAPTER 6. STRUCTURE IMPLEMENTATION
81
Table 6.1: The user defined parameters for the Hägglund (1995) algorithm
Parameter
Value
units
a
ωu
nlim
0.01
10
10
seconds
-
accurate that it could be seeing that the ultimate frequency for a flow loop will be much
larger than for the temperature loops. Once again the result of the algorithm should be
considered for past periods of operation to get a feel for typical results for responses. To
make the Hägglund (1995) method loop specific is a recommendation for future work.
To compensate for inaccuracies of the Hägglund (1995) method the power spectral plot
of the CV is a handy tool (see section 4.3.1). The power spectrum shows the frequency
components of the signal. If large peaks occur in the low frequency range it indicates
that there is slow dynamic oscillating behaviour which is bad seeing that the controller
should be able to compensate for this. High frequency peaks are usually too quick for
the controller to react to and are deemed uncontrollable variance. To perform the power
spectrum calculation the FFT must be performed. Before the FFT was performed the
data was reworked to the residual values of the CV that was obtained by subtracting the
mean of the CV. Another important factor that should be considered when performing
the FFT is the resolution. The resolution should be large enough to cover the entire
specified frequency range.
For the PSD plots done in the interface it was decided to perform the FFT for a
resolution of 216 . This was found to provide sufficient resolution to gain the relevant
dynamic behaviour for most of the CV’s. Remember that the algorithm for the FFT
calculation is the quickest for resolutions that are in factors of 2. The useful frequency
range are for all frequencies smaller than the sampling frequency. The sampling frequency
for most of the data structures are 0.5 seconds. The plot was therefore performed for
frequencies up to 2 Hz.
Cross correlation plot
The last option in the Plot Type list is the cross correlation coefficient. This plot will provide an indication of two loops control interaction or interference. Two cross correlation
coefficients are calculated. The one is for the considered loops CV and its MV while the
other is for the considered CV and the MV of an other loop specified by the user. This is a
good way to locate controller interaction and to identify possibilities for advanced control
applications like decoupling or MPC. The correlation method is not complete however,
disturbance-CV and CV-CV correlations still need to be implemented. This will provide
information on what causes variance in the control loop. The auto-correlation coefficient
University of Pretoria etd – R M du Toit (2006)
CHAPTER 6. STRUCTURE IMPLEMENTATION
82
for a lag of one is also displayed as an explicit value in the interface. This value provides
an indication of the randomness of the CV signal. Values close to 0 indicate randomness.
If the auto-correlation coefficient is zero then the controller is performing excellently seeing that only random noise is contained in the CV. This means that all predictable trends
have been removed by the controller.
6.2.7
Report generating
Similar to the plant wide case a report can be generated for the single loop evaluation
case by activating the Generate Report pushbutton. The callback function that is called
by the pushbutton creates a summary of the single loop results in HTML format. An
example of the single loop assessment report is shown in appendix D.
The single loop report generator works on exactly the same method as for the plant
wide case and has the same problems with long run-times. Improvements can be made
with the single loop evaluation reporting seeing that it has not been optimally configured.
Information like signal quality is for instance not displayed in the report. Also the person
that does the interpretation of the interfaces should be able to add comments to the report
which is not currently catered for. The same can be said for the plant wide reporting.
University of Pretoria etd – R M du Toit (2006)
CHAPTER 7
Structure application
This chapter shows typical examples of how the implemented structure can be
applied to monitor process performance. All the data used for the illustrative
examples were obtained from the laboratory distillation column discussed in chapter 5.
7.1
Evaluating a period of operation
In this section the implemented performance structure will be applied to a period of
operation of the considered process. Data was captured for a period from 15:22 to 18:29
on 26 November 2005.
7.1.1
Plant wide evaluation
The unrefined evaluation of the data by the plant wide interface is shown in figure 7.1.
The first step in the evaluation methodology will be to locate logging issues as well as to
determine why some of the loops were not switched to AUTO at all. This is done in the
sections that follow.
Poor data acquisition
From the initial unrefined plant wide interface evaluation shown in figure 7.1 it is apparent
that not all the data from loop, L001 and T 010CAS, were logged. Reasons for this need
to be identified and rectified.
The T 010CAS loop is a cascade loop that controls the bottom plate temperature
by changing the set-point of the steam pressure loop, P 001. The reason for this loop
not being logged is that it has not been commissioned yet. This means the controller
83
University of Pretoria etd – R M du Toit (2006)
CHAPTER 7. STRUCTURE APPLICATION
Figure 7.1: The unrefined data evaluation by the plant wide interface.
84
University of Pretoria etd – R M du Toit (2006)
CHAPTER 7. STRUCTURE APPLICATION
85
function block has not been properly set-up on the DeltaV system. Tags have however
been created.
The boiler level loop, L001, was in operation for the evaluation period but was not
logged into Matlab. The problem was that the set-point did not change over the entire
period of evaluation. This was due to the logging nature of the OPC toolbox as mentioned
in section 5.4.2. So the SP was not logged seeing that the value didn’t change and no
previous value for the SP was logged in the specific data set. It should be noted that
all the set-points that need to be logged have to be changed and quickly set back to the
original value to enable logging.
Loops not in normal mode
As can be seen from the plant wide interface loops, T 013 and F 002, were on MANUAL
for the entire evaluation period. The reasons for this need to be identified and rectified
if necessary.
F 002 is the second feed to the column. It is not necessary for purpose of this investigation to use this feed seeing that it is more relevant to distillation configuration studies.
So the loop was switched to MANUAL and the valve closed. Flow loop F 002 is therefore
not a problem and we continue with the evaluation.
The feed temperature loop, T 013, is the temperature loop that can be used to control
feed temperature into the column. This loop was also set to MANUAL and the CW
valve closed seeing that this loop is not critical in the successful operation of the column.
This loop is there to fulfil a feedforward type action to dampen fluctuations in feed
temperature to ensure smoother operation. It was decided not to use this loop for now
seeing that other loops on the column are more critical to performance and first needed
to be optimised before advanced control applications like this feedforward loop need to
be considered.
Initial refinement of the evaluation period
To refine the evaluation period for the particular dataset the period of normal operation
pane shown in figure 7.1 can be considered. As one can see, the current evaluation period
(15:22 to 18:29) includes part of a shutdown period of the column seeing that the number
of set-point changes becomes large to the end of the period. This means that some of the
controllers that were on AUTO were set to MANUAL during shutdown and the set-point
followed the trend of the CV. If we refine the time interval to exclude the shutdown period
the plantwide interface provides an evaluation shown in figure 7.2. The evaluation period
is now from 15:31 to 18:24. The period now excludes a nine minute interval at the start
of the original time interval as well as the a five minute interval at the end. The nine
minute interval at the beginning won’t make a big difference to the overall performance
University of Pretoria etd – R M du Toit (2006)
CHAPTER 7. STRUCTURE APPLICATION
Figure 7.2: The plant wide interface evaluation for the period excluding shutdown.
86
University of Pretoria etd – R M du Toit (2006)
CHAPTER 7. STRUCTURE APPLICATION
87
of the plant seeing that no set-point changes occurred and the number of loops on AUTO
also was constant. So whatever happened in those 9 minutes was probably continuing
to happen in the period up to the first set-point change. The five minute interval at the
end however had an effect seeing that the P W I increased from 65.45 to 65.78 due to the
exclusion of only five minutes of shutdown that was originally included.
With the new evaluation period set, three distinct operating regions can be identified.
In the first period four loops were in operation and then went over to a period where five
loops were in operation and then back to the same loops that were originally operating.
Table 7.1 shows the loops that were in operation. Refer to the PFD in appendix A for
clarity on loop orientation. As can be seen from table 7.1, loop T014 was turned on
Table 7.1: The loops in operation during the three operating periods
Period
Loops in operation
Description
15:31 to 16:40
F001
T001
L002
P001
Feed flow loop
Top plate temperature
Distillate drum level
Steam pressure control
16:40 to 17:05
F001
T001
L002
P001
T014
Feed flow loop
Top plate temperature
Distillate drum level
Steam pressure control
Reflux temperature
17:05 to 18:24
F001
T001
L002
P001
Feed flow loop
Top plate temperature
Distillate drum level
Steam pressure control
AUTO for only 14% of the evaluation period. To determine why this is the case the
single loop interface needs to be considered and this is done in section 7.1.2.
Regulatory performance assessment
To do a plantwide regulatory performance evaluation, the three periods shown in table 7.1
will be considered as three separate periods. The plant wide performance interface for
the first period is shown in figure 7.3. As can be seen from figure 7.3, numerous set-point
changes occurred during the first evaluation period. The set-point changes occurred
for the top plate temperature loop as will be seen in the single loop evaluation of the
loop in section 7.1.2. Some of the set-point changes are due to outliers in the set-point
signal which need to be ignored. The P W I for the evaluation period was equal to
66.45. This value does not mean much at this stage seeing that this value has to be
University of Pretoria etd – R M du Toit (2006)
CHAPTER 7. STRUCTURE APPLICATION
Figure 7.3: Plant wide regulatory assessment for the period from 15:31 to 16:40.
88
University of Pretoria etd – R M du Toit (2006)
CHAPTER 7. STRUCTURE APPLICATION
89
compared to other evaluation periods. Useful information is displayed however in the
Loop Performance pane. We can see that the pressure and feed loops (P001 and F001)
looked as though they were performing well seeing that they have a small CV standard
deviation and a comparatively large MVC index. The temperature and level loops (T001
and L002) on the other hand seem suspicious seeing that their CV standard deviation is
larger and the MVC index for the temperature loop is very small. Further single loop
analysis is necessary but the initial feel is that loop L002 and T001 needs to be looked
at. The seemingly poor performance of the level and temperature loop may be due to
the non-regulatory period considered, this suspicion needs to be confirmed in the single
loop assessment.
Next we consider the middle period of operation where five loops were in operation.
The period is shown in figure 7.4. We can see that no set-point changes were made during
Figure 7.4: Plant wide regulatory assessment for the period from 16:40 to 17:05.
the evaluation period which makes it a pure regulatory control evaluation analysis. For
this period the P W I for the evaluation period is equal to 64.09. This is less than for
the initial period which means the plant performance has dropped for the second period.
Once again similar to the first period, P001 and F001 seem to be doing well if we consider
University of Pretoria etd – R M du Toit (2006)
CHAPTER 7. STRUCTURE APPLICATION
90
the Loop Performance pane. The top plate temperature, T001, also seems to be doing
well seeing that the variance of the CV is near zero. This adds to the suspicion that
the set-point changes that occurred in the loop for the first period was the source of
variance, especially seeing that no set-point changes occurred for this period. The reflux
temperature loop , T014, seem to be performing very poorly. The level loop, L002, seems
to be performing a little worse when compared to the first period.
For the third period the evaluation is shown in figure 7.5. As can be seen from
Figure 7.5: Plant wide regulatory assessment for the period from 17:06 to 18:24.
figure 7.5 only one set-point change occurred during the evaluation period. The P W I
for the period is 65.99 which is better than the second period but still not as good as the
first period. If the single loop performance is considered in the Loop Performance pane
we see once again that the feed flow and steam pressure seems to be doing well. The
top plate temperature, T001, perform reasonably but apparently worse than the second
period according to the MVC index. The distillate level is suspected to have performed
the worst in this period compared to the others.
In all the plots on the Normal operation pane there are some clear outliers. These
outliers occur due to the determination of the AUTO or MANUAL mode calculation.
University of Pretoria etd – R M du Toit (2006)
CHAPTER 7. STRUCTURE APPLICATION
91
The mode is determined by the difference of the CV and SP and if they are exactly
the same value (4 decimals) the loop is said to be on MANUAL. This method works
seeing that the SP tag value takes on the CV value if the loop is on MANUAL. The
outliers therefore occur if the loop is on AUTO and the CV and SP are exactly the same
at a sampling instant. This occurs very rarely as can be seen from figure 7.5 where it
occurred 5 times out of a sample set of 9349. These outliers can be removed by the
Remove Outliers pushbutton. The number of outliers small and would have a minuscule
effect on the calculations, so they were ignored.
Summary of plant wide results
Before the single loop interface is considered it is handy to summarise what insight
has been gained into the performance of the process for the initial evaluation period.
Possible problematic loops have been identified and their suboptimal performance need
to be confirmed by using the single loop interface. The following can be concluded from
the plant wide evaluation:
• The operation for the first evaluation period was the best according to the P W I.
• The reflux temperature loop, T014, performed badly for the periods on AUTO.
• The feed flow and steam pressure (F001 and P001) loops performed well for all the
three periods.
• The top plate temperature, T001, performed badly in the first period and well after
that.
• The level loop, L001, operated with large variance with best performance in the
first evaluation period.
• The source of bad performance for the loops, T001 and L001, may be due to loop
interaction of the two loops seeing that both loop MV’s feed from the distillate
drum.
• The first period of operation contained numerous set-point moves which could have
affected the accuracy of the plantwide performance analysis in the first period.
This information now aids as a starting point for individual loop assessment. If most of
the suspicions in the plantwide evaluation is confirmed by single loop assessment we have
successfully reduced the dimensionality of the performance problem seeing that we have
successfully identified problem cases by means of a plantwide evaluation.
University of Pretoria etd – R M du Toit (2006)
CHAPTER 7. STRUCTURE APPLICATION
7.1.2
92
Single loop evaluation
We now consider the serious cases picked up in the plant wide assessment first. As
mentioned before from the data acquisition analysis the T010CAS loop needs to be commissioned. This will improve bottoms product quality considerably. The boiler level loop,
L001, was evaluated through inspection of the data from the continuous historian. The
loop performed moderately with some MV saturation. These loops need to be considered
in more detail. The loops left on MANUAL are not critical in the column operation
and are not considered further. The worst performing loop identified by the plantwide
analysis is considered first.
Reflux temperature loop, T014
Feedback loop T014 was only in AUTO mode for 14% of the original evaluation time.
To find out why this was the case, the single loop interface for the period on AUTO
(figure 7.6) is considered. We immediately see from figure 7.6 that the loop is not at all
Figure 7.6: The single loop performance for T014 for the period it was on AUTO.
University of Pretoria etd – R M du Toit (2006)
CHAPTER 7. STRUCTURE APPLICATION
93
performing well. The control error is huge. The MVC benchmark index confirms this
with a very low value of 0.028. It is seen from the evaluation plot that the MV became
saturated which provides us with a clue as to why the performance is so bad. The MV is
saturated on the high side which means the valve on the cooling water line is fully open.
This is strange because the reflux temperature is too low and is below its set-point. The
valve therefore should not be opening, it should be closing. The controller gain therefore
has the wrong sign. The diagnosis is therefore that the controller tuning is insufficient
and needs to be retuned.
Top plate temperature, T001
To consider the loop performance of the top plate temperature the single loop interface
was implemented and is shown in figure 7.7. As can be seen from figure 7.7 the loop
Figure 7.7: The single loop peformance for the top plate temperature, T001, over an evaluation
period of 15:26 to 18:22.
performed well for the whole period of evaluation. The initial plant wide evaluation
University of Pretoria etd – R M du Toit (2006)
CHAPTER 7. STRUCTURE APPLICATION
94
showed that the performance may be bad in the initial period of 15:30 to 16:37. We can
now confirm that performance was not due to bad regulatory performance but rather due
to set-point changes made to the loop. This identifies what happened in the first period
of evaluation in the plant wide interface. The variance was therefore caused by set-point
movements. The set-point movements also caused some MV saturation, but saturation
during normal operation was not a problem. The MVC index also successfully located the
set-point influence. If we consider the index for the specific loop over the three periods
considered in the plant wide interface we get the result shown in table 7.2. From table 7.1
Table 7.2: The MVC index for the three evaluation periods applied in the plant wide analysis.
Evaluation period
MVC Index
15:27 to 18:37
16:39 to 17:05
17:05 to 18:20
0.17
11.13
4.14
it is clear that the loop performed best over the middle evaluation period and we know the
poor performance in the first period was due to set-point movements. We need to identify
why the last period of operation showed poorer performance according to the MVC index.
To identify this we consider the single loop evaluation for the last period which is shown
in figure 7.8. From figure 7.8 it is clear that some external disturbance affected the CV
during this period which is also reflected in the MVC benchmark in table 7.2. This
made the MV jump to a new state at around 18:00. Nothing seemingly changed in the
configuration of the loop. The operating conditions during the three operating periods
stayed relatively constant except for operator intervention through set-point changes. So
we suspect that a set-point change occurred somewhere in the plant which affected the
top plate temperature performance. This suspicion is confirmed by considering the last
evaluation period in the plant wide interface (figure 7.5) where we saw a set-point change
just before 18:00. The time from when the step disturbance occurred and when it was
noted in the in the top plate temperature is in the range of three minutes. So if we have
to locate the set-point disturbance source we consider the correlation coefficient plots at
a lag of three minutes. If we look at the process configuration on the PFD in figure A.1
we immediately should suspect the level loop, L002, seeing that both MV’s feed from
the reflux drum. To confirm that the set-point indeed did occur in distillate drum level
set-point we look at the L002 single loop evaluation in figure 7.9. It is clear from figure 7.9
that the set-point change did indeed occur in the distillate drum level controller. The
set-point was changed at 17:59 from a value of 80 to 65. The degradation in performance
was therefore due to a change in the set-point in the level loop that has interacted with
the temperature loop. The interaction happened when the level decreased the head for
the reflux flow decreased which meant a reduction in flow. To compensate for this the
University of Pretoria etd – R M du Toit (2006)
CHAPTER 7. STRUCTURE APPLICATION
Figure 7.8: The single loop assessment for T001 for the last period of evaluation.
95
University of Pretoria etd – R M du Toit (2006)
CHAPTER 7. STRUCTURE APPLICATION
96
Figure 7.9: The set-point change in level loop, L002, can be seen in the time series plot. This
set-point change caused the disturbance in the top plate temperature.
University of Pretoria etd – R M du Toit (2006)
CHAPTER 7. STRUCTURE APPLICATION
97
temperature valve was opened by the T001 controller to maintain temperature set-point
(see figure 7.8 for MV movement).
Distillate drum level, L002
It is handy to consider the actual distillate drum configuration in figure 7.10 while we
consider the level controller performance. Two important facts should be noted when we
Condensate
Distillate Drum
LI
002
Reflux
Top plate
temperature
TC
001
CV-003
LC
002
CV-004
Distillate
Figure 7.10: The distillate drum configuration on the distillation column set-up.
consider the configuration in figure 7.10. One is that the distillate drum level provides
the static head for flow back into the column as reflux, and for flow out of the system
as distillate product. This causes interaction of the temperature and level loops as was
noted in the previous section. The second important fact is the differential pressure
University of Pretoria etd – R M du Toit (2006)
CHAPTER 7. STRUCTURE APPLICATION
98
measurement ports over the drum. The ports are above and below the drum with the
distances on the figure representative of the actual distances on the rig. This means that
the changes in the differential pressure readings will not be linear with changes in the real
level. The shape of the drum is cylindrical confirming the non-linearity of the system.
All the controllers on the column are linear feedback controllers and their performance
are expected to bad for non-linear systems.
The single loop evaluation is shown in figure 7.11. From figure 7.11 we can start
Figure 7.11: The single loop evaluation of the distillate drum level controller, L002.
making a qualitative performance assessment. First we see a lot variance in the CV
which is not very good as was predicted by the plant wide assessment. Secondly we see
a lot of MV movement with considerable saturation. Thirdly we see that the dynamics
of the CV between 60% and a 100% is completely different from the dynamics between
0% and 60%. When the level measurement is between 60% and a 100%, the response is
slow and oscillating but when the level goes below 60%, it almost immediately drops to
empty and then quickly recovers again to 60%. This is due to the non-linearity caused
by the DP-cell port placement shown in figure 7.10. When the level changes quickly
University of Pretoria etd – R M du Toit (2006)
CHAPTER 7. STRUCTURE APPLICATION
99
(below 60%) it means that no level exists in the drum and level only exists in the pipe
that connects the drum at the bottom. The CV tracks the set-point well when no MV
saturation happens as can be seen from the first part of the evaluation period up to the
first set-point change.
Two periods of regulatory operation will now be considered. The first part is shown in
figure 7.12. The evaluation in figure 7.12 shows reasonable control with the CV settling
Figure 7.12: The single loop evaluation of L002 from 15:31 to 16:16.
nicely to the set-point. The distribution plot also shows a narrow tall peak which is a
good sign. The MV showed only minimal saturation. The MVC benchmark index was
14.79 for the period. If we compare this period of operation with the period shown in
figure 7.13 we clearly see that the performance has considerably deteriorated. The MVC
benchmark reflects this with a value of 7.11, half of the previous period.
The oscillation index in figure 7.13 shows “Non-Oscillatory” while the response shows
clear oscillations. This is due to the fact that the period of evaluation is too short. The
limit on the number of consecutive loads is 10 (section 6.2.6) and there is clearly only 6
loads that occurred with 7 control sign changes. Further investigation was done on why
University of Pretoria etd – R M du Toit (2006)
CHAPTER 7. STRUCTURE APPLICATION
Figure 7.13: The single loop evaluation of L002 from 16:39 to 17:57.
100
University of Pretoria etd – R M du Toit (2006)
CHAPTER 7. STRUCTURE APPLICATION
101
the performance degraded for the second period of evaluation (figure 7.13). The initial
thought was that loop interaction from set-point changes to the top plate temperature
loop was the cause, but seeing that the first part of operation actually contained all the
temperature set-point changes (see figure 7.7) this could not have been seeing that in the
period of set-point changes the performance was better than when no set-point changes
occurred in loop T001. This still doesn’t mean that the poor performance is not due to
interaction, consider the two evaluation periods again in figures 7.14 and 7.15.
Figure 7.14: The single loop evaluation of L002 from 15:33 to 16:13 with the cross correlation
coefficients.
The figures 7.14 and 7.15 show the correlation between the level and the distillate
valve position (green trend) as well as the level and the reflux valve position (blue trend).
From the figures it can clearly be noted that in the first evaluation period the interaction
of the temperature loop was minimal because the blue trend is close to zero for all
the considered lags. The second period shown in figure 7.15 has a lot of interaction.
Further investigation showed that a number of controller parameters have been used
during the evaluation periods. This is evident in the MV and CV time series plots shown
University of Pretoria etd – R M du Toit (2006)
CHAPTER 7. STRUCTURE APPLICATION
102
Figure 7.15: The single loop evaluation of L002 from 15:33 to 16:13 with the cross correlation
coefficients.
University of Pretoria etd – R M du Toit (2006)
CHAPTER 7. STRUCTURE APPLICATION
103
in figure 7.11. Table 7.3 shows the controller parameters that have been in operation.
From the controller parameters and the figures it can be seen that the addition of the
Table 7.3: The controller parameters for the distillate drum level controller, L002.
Period
15:22
16:33
17:05
17:35
to
to
to
to
16:33
17:05
17:35
18:30
Proportional Gain
Integral time (sec)
2
4
0.5
2
0
10
10
2
integral time to the control strategy has slowed down the controller action. The MV
didn’t move as quickly as without the integral time. This also increased the variable
interaction seeing that the effect of the MV on consecutive controller executions has been
reduced. It is recommended that the controller be properly tuned to make sure that the
distillate flow rate is the governing variable that determines level in the drum.
Feed flow rate, F001
The single loop evaluation of the feed flow rate is shown in figure 7.16. It can be seen from
the single loop evaluation that the performance of feed flow rate loop is very good. There
is some variance in the initial period when the set-point was 35 kg/hr but stabilised well
when the set-point was changed to 30 kg/hr. The initial set-point of 35 kg/hr may be
the reason why the P W I performed so well in the initial evaluation period considered in
section 6.1. At the end of the evaluation period there a short period where the column was
in shut down mode. This single loop evaluation confirms the predicted good performance
by the plant wide interface evaluation.
Steam pressure, P001
The single loop evaluation of the steam pressure loop is shown in figure 7.17. From
figure 7.17 we can see some oscillating behaviour but not large enough to be detected by
the Hägglund (1995) algorithm. The pressure stays close to the set-point for the entire
evaluation period. In the initial periods two instances occurred where the steam kettles
tripped and no steam supply was available to the reboiler. This occurred at the start of
the evaluation period and reasonable quality steam supply was delivered after that. The
oscillating nature of the supply is due to the on and off switching of the kettle. The kettle
produces steam semi-continuously. It boils-up for a certain amount of time then switches
off which makes the supply drop then when the pressure drops below a certain limit it
switches on again and so the process continues. The controller compensates for these
pressure changes in the supply and provides steam with minuscule deviations (±1 kP a)
University of Pretoria etd – R M du Toit (2006)
CHAPTER 7. STRUCTURE APPLICATION
Figure 7.16: The feed flow rate over the entire initial eavluation period.
104
University of Pretoria etd – R M du Toit (2006)
CHAPTER 7. STRUCTURE APPLICATION
Figure 7.17: The steam pressure supply to reboiler single loop evaluation.
105
University of Pretoria etd – R M du Toit (2006)
CHAPTER 7. STRUCTURE APPLICATION
106
to the reboiler which indicates good performance. Actuator wear may become a problem
for the steam valve seeing that it is constantly doing quick adjustments but they are
small, however.
Just to show the application of the power spectral density plot consider figure 7.18.
One can see several large peaks in the frequency region between 3 × 10−3 s−1 and 1.5 ×
Figure 7.18: The single loop evaluation of the pressure supply to the reboiler with a PSD
evaluation plot for the period from 15:47 to 18:20.
10−2 s−1 . This corresponds to a time period of 5.5 to 1.1 minutes. This is typically
periods of oscillation that we don’t want in the response but looking at the magnitudes
of the PSD as well as the actual deviations from set-point the oscillations can be tolerated.
To prove that the periods of oscillation provided by the PSD are correct, consider the
refined time period of the steam pressure time series plot in figure 7.19. From figure 7.19
we can see the period where dips in the steam pressure supply occur is roughly 4 minutes
apart which is in the range identified by the original PSD plot shown in figure 7.18.
University of Pretoria etd – R M du Toit (2006)
CHAPTER 7. STRUCTURE APPLICATION
107
Figure 7.19: The time series plot of the steam pressure for a 29 minute period from 16:48 to
17:17.
University of Pretoria etd – R M du Toit (2006)
CHAPTER 8
Conclusions and recommendations
This chapter is a summary of the project outputs and provides recommendations
on future work.
8.1
Monitoring structure development
A performance monitoring structure was developed and implemented on an industrial
standard lab scale distillation column. The process structure developed was based on a
generic methodology that can be applied to any processing facility. The structure consists
of a plant wide interface that is used to give a plant wide indication of performance and
indicates possible areas of improvement. A single loop evaluation interface is used to
investigate the identified sources of poor performance in the plant wide interface.
The structure should be used as a tool for normal regulatory performance assessment.
It indicates where sources of bad performance are located in the process as well as possible
causes for this. The structure is not a specific and direct indication of performance,
it is a tool that should be interpreted by a person familiar to the relevant processing
environment.
8.2
Monitoring structure application
The developed structure was applied to an industry representative lab-scale distillation
column. It was found that the structure can evaluate performance in a quantitative way
by performing comparative evaluation against previous periods of operation as well as
against optimal benchmarks. The data capturing method was found to be insufficient
due to its semi-continuous nature. The programming done was kept as generic as possible
but in some instances, like referencing to tag names, it is not.
108
University of Pretoria etd – R M du Toit (2006)
CHAPTER 8. CONCLUSIONS AND RECOMMENDATIONS
8.3
109
Future work
The following items have been identified as areas for possible future work:
• Data capturing - Data is available from the DeltaV continuous historian, so technically no other method of data capturing should be necessary. The problem is,
however, that no method exists to import data directly from the historian to the
Matlab environment. A means should be developed to retrieve data from the
continuous historian directly to replace the current data retrieval method used by
the performance interfaces. It should be remembered however that the continuous
historian compresses data and some dynamic behaviour may be lost.
• Automated monitoring - The performance structure developed could be adapted
into an automated evaluation structure. This will mean that the performance evaluation does not have to be triggered and is performed automatically.
• Multivariate analysis - Extra multivariate analysis techniques can be added to the
interface to supplement the cross correlation methods used in this research.
• Data filtering - No data filtering except for some scaling and de-trending was used
in this investigation. Filtering techniques should be investigated and implemented
to make calculations less computationally intensive.
• Non-linearity - Most of the techniques implemented are linear techniques and techniques for non-linear analysis should be looked at.
• Non-regulatory performance - The structure could be extended to include start-up
and shut-down performance evaluation.
• APC application - If APC techniques become part of the normal control philosophy
the performance structure should be extended to include this. This structure can
then aid in APC justification.
• Real time optimisation - Capability to write information back to the DCS to enable
changes to the control structure to improve performance on an automated basis
(especially on the regulatory level).
• Commercial software - There are a number of regulatory performance software
packages available on the market. They can be implemented on the process and
critically evaluated to show functionality and shortcomings.
University of Pretoria etd – R M du Toit (2006)
BIBLIOGRAPHY
Albright, S. C.; Winston, W. L. and Zappe, C. (2002) Data analysis and decision making
with Microsoft Excel, Duxbury, Pacific Grove.
Åström, K. J. and Wittenmark, B. (1984) Computer Controlled Systems, Prentice-Hall,
New York.
Biegler, L. T. and Grossmann, I. E. (2004) “Retrospective on optimization”, Computers
and Chemical Engineering, Article in Press.
Blevins, T. L.; McMillan, G. K.; Wojsznis, W. K. and Brown, M. W. (2003) Advanced
Control Unleashed, ISA, Research Triangle Park, N.C.
Box, G. E. P.; Jenkins, G. M. and Reinsel, G. C. (1994) Time series analysis: Forecasting
and control, Prentice Hall, third edition.
Buckley, P. S. (1964) Techniques of Process Control, Wiley and Sons, New York.
Clegg, A.; Xia, H. and Uduehi, D. “Controller benchmarking: From single loops to
plant-wide economic assessment”, Presentation - internet website: http://www.iscltd.com/benchmark/learning centre/ Date accessed: 30/12/05 (2005).
do Carmo C. de Vargas, V.; Lopes, L. F. D. and Souza, A. M. (2004) “Comparative study
of the performance of the cusum and ewma control charts”, Computers and Industrial
Engineering, 46, 707–724.
Duval, R. “Introductory quantitative methods (ps601) part I”, Presentation - internet website: www.polsci.wvu.edu/duval/PS601/Notes/601Notes.ppt Date accessed:
30/12/05 (2005).
Edgar, T. F. and Ko, B.-S. (2004) “PID control performance assessment: the single-loop
case”, American Institute of Chemical Engineering Journal, 50, 1211–1218.
110
University of Pretoria etd – R M du Toit (2006)
BIBLIOGRAPHY
111
Expertune “Advanced version loop optimization tools (required for DCS systems)”,
Internet website: http://www.expertune.com/advanced.html Date accessed: 30/12/05
(2005).
Fischer-Rosemount
(2003).
Installing your DeltaV
TM
Automation System, seventh edition
Gao, J.; Patwardhan, R. S.; Akamutso, K.; Hashimoto, Y.; Emoto, G.; Shah, S. L. and
Huang, B. (2003) “Performance evaluation of two industrial mpc controllers”, Control
Engineering Practice, (11), 1371–1387.
Georgakis, C.; Uztürk, D.; Subramanian, S. and Vinson, D. R. (2003) “On the operability
of continuous processes”, Control Engineering Practice, 11, 859–869.
Grimble, M. J. (2002) “Controller performance benchmarking and tuning using generalised minimum variance control”, Automatica, 38, 2111–2119.
Hägglund, T. (1995) “A control-loop performance monitor”, Control Engineering Practice, 3 (11), 1543–1551.
Harris, T. J.; Boudreau, F. and MacGregor, J. F. (1996) “Performance assessment of
multivariable feedback controllers”, Automatica, 32 (11), 1505–1518.
Harris, T. J. (1989) “Assessment of control loop performance”, Canadian Journal of
Chemical Engineering, 67, 856–861.
Harris, T. J.; Seppala, C. T. and Desborough, L. D. (1999) “A review of process monitoring and assessment techniques for univariate and multivariate control systems”,
Journal of Process Control, 9, 1–17.
Hong, X.
“Lecture notes: Minimum variance control”,
www.personal.reading.ac.uk/ sis01xh 28 December (2005).
Internet website:
Huang, B. (2003) “A pragmatic approach towards assessment of control loop performance”, International Journal of Adaptive Control and Signal Processing, 17, 489–608.
Huang, B.; Ding, S. X. and Thornhill, N. (2004) “Practical solutions to multivariate feedback control performance assessment problem: reduced a priori knowledge of interactor
matrices”, Journal of Process Control, Article in press.
Huang, B. and Shah, S. (1999) Performance assessment of control loops, Springer,
London.
Kano, M.; Hasebe, S.; Hashimoto and Ohno, H. (2004) “Evolution of multivariate statistical process control: application of independent component analysis and external
analysis”, Computers and chemical engineering, 28, 1157–1166.
University of Pretoria etd – R M du Toit (2006)
BIBLIOGRAPHY
112
Kramer, H. and Schmid, W. (1997) “Control charts for time series”, Nonlinear Analysis
Theory, Methods and Applications, 30 (7), 4007–4016.
Lee, J.-M.; Yoo, C. and Lee, I.-B. (2004) “Statistical process monitoring with independent
component analysis”, Journal of Process Control, 14, 467–485.
Luyben, W. L. (1990) Process modelling, simulation and control for chemical engineers,
McGraw-Hill, New York.
Marlin, T. E. (1995) Process Control, McGraw-Hill, New York.
Mathworks Matlab Help (Release 7 sp 2), January (2005).
Montgomery, D. C. (1985) Introduction to statistical quality control, John Wiley & Sons,
New York.
Mosca, E. and Agnoloni, T. (2003) “Closed-loop monitoring for early detection of performance losses in feedback-control systems”, Automatica, (39), 2071–2084.
NIST-SEMATECH
“e-Handbook of Statistical Methods”,
Internet website:
http://www.itl.nist.gov/div898/handbook/ Date accessed: 30/12/05 (2005).
Perry, R. H. and Green, D. W. (1998) Perry’s Chemical Engineers’ Handbook, McGrawHill, seventh edition.
Salsbury, T. I. (2004) “A practical method for assessing the performance of control loops
subject to random load changes”, Journal of Process Control, Article in Press.
Sandrock, C. “Matlab structure conversion to xml”, Personal communication, University of Pretoria (2005).
Schäfer, J. and Cinar, A. (2004) “Multivariable mpc system performance assessment,
monitoring, and diagnosis”, Journal of Process Control, 14, 113–129.
Seborg, D. E.; Edgar, T. F. and Mellichamp, D. A. (2004) Process Dynamics and Control,
Wiley, New York.
Shewhart, W. A. (1931) Economic control of manufactured product, Van Nostrand, New
York.
Shunta, J. P. (1995) Achieving world class manufacturing through process control,
Prentice-Hall, Englewood Cliffs, N.J.
Skogestad, S. (2003) “Simple analytic rules for model reduction and pid controller tuning”, Journal of Process Control, (13), 291–309.
University of Pretoria etd – R M du Toit (2006)
BIBLIOGRAPHY
113
Stapenhurst, T. (2005) Mastering statistical process control: A handbook for performance
improvement using cases, Elsevier, Burlington.
Stephanopolous, G. (1984) Chemical Process Control: An Introduction to Theory and
Practice, Prentice-Hall, Englewood Cliffs, N.J.
Subramanian, S. and Georgakis, C. (2001) “Steady-state operabilty characteristics of
idealized reactors”, Chemical Engineering Science, 56, 5111–5130.
Swartz, C. L. E. (1996) “A computational framework for dynamic operability assessment”, Computers and Chemical Engineering, 20 (4), 365–371.
Thornhill, N.; Oettinger, M. and Fedenczuk, P. (1999) “Refinery-wide control loop performance assessment”, Journal of Process Control, 9, 109–124.
Uztürk, D. and Georgakis, C. (2002) “Inherent dynamic operability of processes: General
definitions and analysis of siso cases”, Industrial and Engineering Chemistry Research,
41, 421–432.
Vinson, D. R. and Georgakis, C. (2000) “A new measure of process output controllability”, Journal of Process Control, 10, 185–194.
Xia, C. and Howell, J. (2003) “Loop status monitoring and fault location”, Journal of
Process Control, 13, 679–691.
Yang, J. and Makis, V. (1997) “On the performance of classical control charts applied
to process residuals”, Computers and Industrial Engineering, 33 (1-2), 121–124.
Zhang, J.; Martin, E. B. and Morris, A. J. (1997) “Process monitoring using non-linear
statistical techniques”, Chemical Engineering Journal, (67), 181–189.
Zheng, A. and Mahajanam, R. V. “A quantative controllability index and its applications”, University of Massachussetts (1999).
University of Pretoria etd – R M du Toit (2006)
APPENDIX A
The process flow diagram
Cooling water
FT-06
TT
-15
CV-07
HX-03
PT
02
TT
-14
FIC
02
TT
-01
2
DM-01
TT
-03
CV-02
FT-02
Drain
CC
-01
TT
-02
Feed:Plate 6
TT
-12
TT
-16
TC
-01
TT
-04
TC
-02
FIC
01
3
CV-03
TT
-06
1
TT
-07
Feed:Plate 3
FT-01
CV-01
CV-04
4
FT-04
FT-03
Cooling Water
FT-07
CV-08
TT
-17
TT
-08
PC
-01
DM-02
TT
-09
TT
-10
HX-02
6
TT
-18
PT
-01
To drain
Steam
Supply
CV-06
Drain
LC
-02
TT
-05
VL-01
TT
-13
LT
02
HX-01
LT
-01
TC
10
LC
-01
DM-03
CV-05
5
Process Flow Sheet
3rd Year Column
University of Pretoria
FT-08
PC-01
FT-05
Created By: J Labuschagne , R du Toit, N Mqadi, 20-08-2004
Figure A.1: The Process Flow Diagram
114
University of
Pretoria
Department of Chemical
Engineering
University of Pretoria etd – R M du Toit (2006)
APPENDIX B
The process information logged via OPC
115
University of Pretoria etd – R M du Toit (2006)
APPENDIX B. THE PROCESS INFORMATION LOGGED VIA OPC
116
Table B.1: The process variables logged in Matlab with their corresponding tag numbers.
Process Variable
Information
Tag number on server
Feed on plate 3
(PI controlled)
Actual flow rate
Set-point
Controller mode
Valve position
Actual flow rate
Set-point
Controller mode
Valve position
Actual pressure
Set-point
RLSA004F001/PID1/PV.CV
RLSA004F001/PID1/SP.CV
RLSA004F001/PID1/MODE.ACTUAL
RLSA004F001/PID1/OUT.CV
RLSA004F002/PID1/PV.CV
RLSA004F002/PID1/SP.CV
RLSA004F002/PID1/MODE.ACTUAL
RLSA004F002/PID1/OUT.CV
RLSA004P001/PID1/PV.CV
RLSA004P001/PID1/SP.CV
Controller mode
Valve position
Actual level
Set-point
Controller mode
Valve position
Actual level
Set-point
Controller mode
Valve position
Actual temperature
Set-point
Controller mode
Valve position
Actual temperature
Set-point
RLSA004P001/PID1/MODE.ACTUAL
RLSA004P001/PID1/OUT.CV
RLSA004L001/PID1/PV.CV
RLSA004L001/PID1/SP.CV
RLSA004L001/PID1/MODE.ACTUAL
RLSA004L001/PID1/OUT.CV
RLSA004L002/PID1/PV.CV
RLSA004L002/PID1/SP.CV
RLSA004L002/PID1/MODE.ACTUAL
RLSA004L002/PID1/OUT.CV
RLSA004T001/PID1/PV.CV
RLSA004T001/PID1/SP.CV
RLSA004T001/PID1/MODE.ACTUAL
RLSA004T001/PID1/OUT.CV
RLSA004T010CAS/PID1/PV.CV
RLSA004T010CAS/PID1/SP.CV
Controller mode
Valve position
Actual temperature
Set-point
Controller mode
Valve position
Actual temperature
Set-point
Controller mode
Valve position
Actual flow rate
Actual flow rate
Actual flow rate
Actual flow rate
Actual temperature
RLSA004T010CAS/PID1/MODE.ACTUAL
RLSA004T010CAS/PID1/OUT.CV
RLSA004T014/PID1/PV.CV
RLSA004T014/PID1/SP.CV
RLSA004T014/PID1/MODE.ACTUAL
RLSA004T014/PID1/OUT.CV
RLSA004T013/PID1/PV.CV
RLSA004T013/PID1/SP.CV
RLSA004T013/PID1/MODE.ACTUAL
RLSA004T013/PID1/OUT.CV
RLSA004F003/AI1/PV.CV
RLSA004F004/AI1/PV.CV
RLSA004F005/AI1/PV.CV
RLSA004F006/AI1/PV.CV
RLSA004T015/AI1/PV.CV
Actual temperature
RLSA004T016/AI1/PV.CV
Actual flow rate
Actual temperature
RLSA004F007/AI1/PV.CV
RLSA004T017/AI1/PV.CV
Actual temperature
RLSA004T017/AI1/PV.CV
Feed on plate 6
(PI controlled)
Steam supply pressure
(Primary cascade controlled)
Reboiler Level
(PI controlled)
Condenser Level
(PI controlled)
Top plate temperature
(PI controlled)
Bottom plate temperature
(Secondary cascade controlled)
Reflux temperature
(PI controlled)
Feed temperature
(PI controlled)
Reflux flow rate
Distillate flow rate
Bottoms flow rate
CW flow rate (condenser)
CW temperature (inlet
condenser)
CW temperature (outlet
condenser)
CW flow rate (feed cooler)
CW temperature (inlet
feed cooler)
CW temperature (outlet
feed cooler)
University of Pretoria etd – R M du Toit (2006)
APPENDIX C
Plant wide evaluation report
117
University of Pretoria etd – R M du Toit (2006)
APPENDIX C. PLANT WIDE EVALUATION REPORT
Plant Wide Performance Report
Ruan du Toit
13-Dec-2005 14:32:44
Table of Contents
1. Performance Plots
2. Plant wide Index
Chapter 1. Performance Plots
The evaluation period
Begin_time. 26-Nov-2005 17:08:00
End_time. 26-Nov-2005 17:55:00
Figure C.1: Plant wide evaluation report - page 1
118
University of Pretoria etd – R M du Toit (2006)
APPENDIX C. PLANT WIDE EVALUATION REPORT
Figure C.2: Plant wide evaluation report - page 2
119
University of Pretoria etd – R M du Toit (2006)
APPENDIX C. PLANT WIDE EVALUATION REPORT
Chapter 2. Plant wide Index
Plant_Wide_Index. 66.11
Figure C.3: Plant wide evaluation report - page 3
120
University of Pretoria etd – R M du Toit (2006)
APPENDIX D
Single loop evaluation report
121
University of Pretoria etd – R M du Toit (2006)
APPENDIX D. SINGLE LOOP EVALUATION REPORT
Single Loop Performance Report
Ruan du Toit
13-Dec-2005 17:05:44
Table of Contents
1. Single loop evaluation plots
2. Performance Metrics
List of Tables
1.1. Tag
Chapter 1. Single loop evaluation plots
Loop being evaluated
Table 1.1. Tag
RLSA004F001/PID1/PV.CV
Figure D.1: Single loop evaluation report - page 1
122
University of Pretoria etd – R M du Toit (2006)
APPENDIX D. SINGLE LOOP EVALUATION REPORT
Figure D.2: Single loop evaluation report - page 2
123
University of Pretoria etd – R M du Toit (2006)
APPENDIX D. SINGLE LOOP EVALUATION REPORT
Figure D.3: Single loop evaluation report - page 3
124
University of Pretoria etd – R M du Toit (2006)
APPENDIX D. SINGLE LOOP EVALUATION REPORT
Chapter 2. Performance Metrics
Oscillation. Non-oscillatory
Performance_Index. 4.9644
Figure D.4: Single loop evaluation report - page 4
125
University of Pretoria etd – R M du Toit (2006)
APPENDIX E
Programming and files
This appendix discusses the files that are used in the performance monitoring
structure. All the files discussed are available on the CD that accompanies this
dissertation.
• Column Tag Structure.mat - The Matlab structure that contains all the tags
on the column. This structure is used to identify tags to be logged.
• struct2xml.m - The Matlab M-file used to convert the Matlab structure to
xml format.
• Column Tags.xml - The xml file containing the column tag namespace. This file
was created by executing the struct2xml.m M-file.
• Tags interface.osf - The OPC Toolbox file that contains all the tags for data
logging via the OPC Toolbox. The tags are shown in table B.1.
• *.olf - Files with the .olf extension is operating data logged with the OPC Toolbox. The filenames are the dates on which the data were logged (for example
data 26 11 05 Run 05.olf ).
• auto corr coeff.m - Function that computes the auto correlation coefficient for a
lag of 1.
• corr coeff.m - Function that computes the cross correlation coefficient for various
lags.
• Data Dimen.m - Function that reshapes any two vectors to be of equal dimensions.
126
University of Pretoria etd – R M du Toit (2006)
APPENDIX E. PROGRAMMING AND FILES
127
• Data retrieve.m - Function that imports the OPC log file (∗.olf ) into the Matlab current directory.
• element removal.m - Function that removes specified elements from signal vectors.
• harris.m - Function that computes the minimum variance index according to Fellner’s formula.
• NAN removal.m - Function that removes elements that have the string value
N AN .
• opcread1.m - Function that imports creates the tag structure.
• oscil.m - Function that executes Hägglund’s algorithm for oscillation detection.
• perf gui.m - The M-file that launches the single loop performance interface.
• Plant wide GUI.m - The M-file that launches the plant wide performance interface.
• plantwide harris.m - Function that computes the minimum variance index for a
number of loops.
• Plots Data.m - Function that plots the relevant graphs for report generation.
• PowerSpec.m - Function that calculates the PSD.
• PW report.m - The report generation file used to generate the plantwide report
in html format.
• refine time.m - Function that sets the evaluation period.
• sigqual.m - Function that sets the quality strings to a format that can be plotted.
• Single loop report.m - The report generation file used to generate the single loop
performance report in html format.
• t auto.m - Function that calculates the percentage time a loop was on AUTO.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
