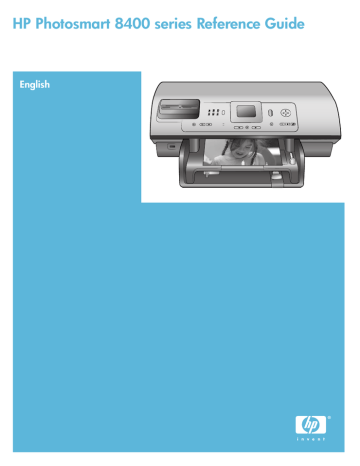

HP Photosmart 8400 series Reference Guide

English

Copyrights and trademarks

© Copyright 2004 Hewlett-Packard

Development Company, L.P.

The information contained herein is subject to change without notice.

Reproduction, adaptation or translation without prior written permission is prohibited, except as allowed under the copyright laws.

Notice

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

The Hewlett-Packard Development

Company, L.P. shall not be liable for incidental or consequential damages in connection with, or arising out of the furnishing, performance, or use of this document and the program material which it describes.

Trademarks

HP, the HP logo, and Photosmart are property of Hewlett-Packard

Development Company, L.P.

The Secure Digital logo is a trademark of the SD Association.

Microsoft and Windows are registered trademarks of Microsoft Corporation.

CompactFlash, CF, and the CF logo are trademarks of the CompactFlash

Association (CFA).

Memory Stick, Memory Stick Duo,

Memory Stick PRO, and Memory

Stick PRO Duo are trademarks or registered trademarks of Sony

Corporation.

MultiMediaCard is a trademark of

Infineon Technologies AG of

Germany, and is licensed to the

MMCA (MultiMediaCard Association).

Microdrive is a trademark of Hitachi

Global Storage Technologies.

SmartMedia is a trademark of

Toshiba Corporation.

xD-Picture Card is a trademark of Fuji

Photo Film Co., Ltd., Toshiba

Corporation, and Olympus Optical

Co., Ltd.

Mac, the Mac logo, and Macintosh are registered trademarks of Apple

Computer, Inc.

The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc.

and any use of such marks by

Hewlett-Packard Company is under license.

PictBridge and the PictBridge logo are trademarks of the Camera & Imaging

Products Association (CIPA).

Other brands and their products are trademarks or registered trademarks of their respective holders.

The embedded software in the printer is based in part on the work of the

Independent JPEG Group.

The copyrights to certain photos within this document are retained by the original owners.

Regulatory model identification number

SDGOA-0403

For regulatory identification purposes, the product is assigned a Regulatory

Model Number. The Regulatory

Model Number for the product is

SDGOA-0403. This regulatory number should not be confused with the marketing name (HP Photosmart

8400 series printer) or product number (Q3388A).

Safety information

Always follow basic safety precautions when using this product to reduce risk of injury from fire or electric shock.

Warning

To prevent fire or shock hazard, do not expose this product to rain or any type of moisture.

Read and understand all instructions in the

HP Photosmart 8400 series

Setup Guide.

Use only a grounded electrical outlet when connecting the unit to a power source. If you do not know whether the outlet is grounded, check with a qualified electrician.

Observe all warnings and instructions marked on the product.

Unplug this product from wall outlets before cleaning.

Do not install or use this product near water or when you are wet.

Install the product securely on a stable surface.

Install the product in a protected location where no one can step on or trip over the power cord, and where the power cord will not be damaged.

If the product does not operate normally, see the troubleshooting information in the onscreen HP Photosmart

Printer Help.

There are no operator serviceable parts inside. Refer servicing to qualified service personnel.

Use in a well-ventilated area.

Contents

1

Welcome ...............................................................................................................3

Find more information ............................................................................................3

What's in the box ...................................................................................................3

Printer overview .....................................................................................................4

Printer menu ..........................................................................................................7

Paper information ................................................................................................13

Print cartridge information ....................................................................................14

2

Printing with your new printer ..........................................................................17

Quick start ...........................................................................................................17

Printing without a computer .................................................................................18

Using memory cards .....................................................................................18

Supported file formats ...........................................................................18

Inserting memory cards .........................................................................18

Selecting photos ..................................................................................................19

Printing selected photos ......................................................................................20

Enhancing photos ................................................................................................20

Changing printer preferences ..............................................................................20

Getting connected ...............................................................................................20

Connecting to other devices .........................................................................20

Connecting through HP Instant Share ..........................................................21

Printing with a computer ......................................................................................24

3

Installing the software .......................................................................................27

Installation ...........................................................................................................27

Installation troubleshooting ..................................................................................28

a

Networking .........................................................................................................29

Networking basics (Windows and Macintosh) .....................................................29

Internet connection .......................................................................................30

Recommended network configurations ........................................................30

Ethernet network without Internet access ..............................................30

Ethernet network with Internet access by dial-up modem .....................30

Ethernet network with broadband Internet access provided by a router .....................................................................................................31

Connecting the printer to the network ..................................................................31

Installing the printer software on a Windows computer ........................................ 32

Installing the printer software on a Macintosh ......................................................33

Using the embedded web server .........................................................................34

Printing a network configuration page .................................................................. 35

b

Support and warranty ........................................................................................ 37

Customer Care ....................................................................................................37

Customer Care by phone .............................................................................37

Placing a call .........................................................................................38

Limited warranty statement ..................................................................................39

c

Specifications ....................................................................................................41

System requirements ...........................................................................................41

Printer specifications ...........................................................................................41

HP Photosmart 8400 series Reference Guide 1

Environmental statements ...................................................................................44

Protecting the environment ...........................................................................45

Ozone production .........................................................................................45

Energy consumption .....................................................................................45

Paper use .....................................................................................................45

Plastics .........................................................................................................45

Material safety data sheets ...........................................................................45

Recycling program ........................................................................................ 45

2 HP Photosmart 8400 series

1

Welcome

Thank you for purchasing an HP Photosmart 8400 series printer! With this new photo printer you can print beautiful photos, save photos to a computer, and create fun and easy projects with or without a computer. You can even connect it to a network.

Find more information

The printer comes with the following documentation:

Setup Guide: The HP Photosmart 8400 series Setup Guide explains how to set

up the printer.

User's Guide: The User's Guide describes the basic features of the printer,

explains how to use the printer without connecting a computer, and contains hardware troubleshooting information. It is available in online format on the User's

Guide CD.

Reference Guide: The HP Photosmart 8400 series Reference Guide is the book

you are reading. It provides basic information about the printer, including setup, operation, technical support, and warranty. For detailed instructions, see the

User's Guide CD.

HP Photosmart Printer Help: The onscreen HP Photosmart Printer Help

describes how to use the printer with a computer and contains software troubleshooting information.

After you have installed the HP Photosmart printer software on a computer, you can view the onscreen HP Photosmart Printer Help:

Windows PC: From the Start menu, select Programs (in Windows XP, select All

Programs) > HP > Photosmart 320, 370, 7400, 7800, 8100, 8400, 8700 series

> Photosmart Help.

Macintosh: Select Help > Mac Help in the Finder, then select Library >

HP Photosmart Printer Help.

What's in the box

The printer box contains the following items:

● The HP Photosmart 8400 series printer

● The HP Photosmart 8400 series Setup Guide

● The HP Photosmart 8400 series Reference Guide

● The HP Photosmart 8400 series printer software CD

● The User's Guide CD

● Paper sampler

● Photo paper storage bag

● Print cartridges

● Print cartridge protector

● A power supply (power supplies may vary in appearance or have an additional power cord)

Note

Contents may vary by country/region.

HP Photosmart 8400 series Reference Guide 3

4

Chapter 1

Printer overview

Front of printer

1.

Camera port

Use this port to connect a

PictBridge ™ digital camera to the printer, or to insert the optional HP Bluetooth ® wireless printer adapter.

2.

Out tray

Lift this tray to load small media or to clear front paper jams.

3.

Paper-width guide

Adjust this guide to fit close to the edge of the paper in the

Main tray.

4.

Main tray

Place plain paper, transparencies, envelopes, or other media in this tray for printing.

5.

Out tray extender

Lift the tab, then pull it towards you to extend the Out tray to catch the printed paper as it is ejected from the printer.

6.

Paper-length guide

Adjust this guide to fit close to the end of the paper in the

Main tray.

7.

Photo tray

Lift the Out tray to load small photo paper in the Photo tray.

8.

Photo tray slider

Push this slider away from you to engage the Photo tray.

9.

Top cover

Lift this cover to access the print cartridges and the print cartridge storage area, and to clear paper jams.

10. Printer screen

Use this screen to view your photos and menu options.

11. Memory card slots

Insert memory cards here.

HP Photosmart 8400 series

(continued)

HP Photosmart 8400 series Reference Guide

Back of printer

1.

Ethernet port

Use this port to connect the printer to a network.

2.

Power cord connection

Use this port to connect the power cord included with the printer.

3.

USB port

Use this port to connect the printer to a computer or to an

HP direct-printing digital camera.

4.

Rear access door

Remove this door to clear paper jams.

Control panel

1.

On

Press this button to turn on the printer or put it into power save mode.

2.

Save

Press this button to save photos from a memory card to a computer.

3.

HP Instant Share

Press this button to send a photo via e-mail or through the network (if connected). For more information, see

Connecting through HP Instant

Share

.

4.

Select Photos arrows

Use these arrows to scroll through the photos on a memory card.

5.

Select Photos

Use this button to select the currently displayed photo or video frame for printing.

6.

Cancel

Press this button to deselect photos, to exit a menu, or to stop an action you have requested.

7.

Zoom

Press this button to enter

Zoom mode and zoom in on

5

Chapter 1

(continued)

6

the currently displayed photo, and to exit 9-up view mode.

8.

Menu

Press this button to view the printer menu.

9.

Rotate

Press this button to rotate the currently displayed photo.

10. OK

Press this button to answer questions on the printer screen, to select menu options, to enter 9-up view mode, and to play a video.

11. Navigation arrows

Use these arrows to scroll through the printer menu options, position the crop box, and control the speed and direction of video playback.

12. Print

Press this button to print selected photos from the inserted memory card.

13. Layout

Press this button to select the print layout for your photos.

Indicator lights

1.

On light

On—the power is on

Off—the printer is in

power-save mode

2.

Paper tray lights

Photo tray light on—the

Photo tray is engaged

Main tray light on—the

Main tray is engaged

3.

Status light

On (Green)—the power is

on and the printer is not printing

Off—the printer is in

power-save mode

Flashing green—the

printer is busy printing

Flashing red—the printer

requires attention

HP Photosmart 8400 series

(continued)

4.

Print layout lights

Indicate the current print layout.

5.

Memory card light

On—the memory card is

inserted correctly

Off—no memory card is

inserted

Flashing—HP Instant

Share is being used or information is being transmitted between a memory card and the printer or computer

Printer menu

Press

Menu

to access the printer menu. If you are viewing a submenu, pressing

Menu

returns you to the main printer menu.

To navigate the printer menu:

● Press

Navigation

or to scroll through the menu options displayed on the printer screen. Menu items that are not accessible are grayed out.

● Press

OK

to open a menu or select an option.

● Press

Cancel

to exit the current menu.

Printer menu structure

Top level menu

Submenus/options

Print

Options

Print all

Print proof sheet

Scan proof sheet

Video action prints

Print range

Edit

Print index page

Print new

Remove red eye

Photo brightness

Additional submenus/options

Select beginning of range:

Select end of range:

Photo brightness:

(Press

Navigation

or to increase or decrease the photo brightness.)

HP Photosmart 8400 series Reference Guide 7

Chapter 1

Printer menu structure (continued)

Top level menu

Submenus/options

Add frame

Add color effect

8

Tools View 9-up

Slide show

Print quality

Network

Print sample page

Print test page

Additional submenus/options

Select pattern:

Select color:

Choose color effect:

● Black and white

● Sepia

● Antique

● Solarize

● Metallic

● Red filter

● Blue filter

● Green filter

● No effect (default)

The color effect does not affect frames created with the

Add frame

option.

Press

OK

to pause and unpause the slide show; press

Cancel

to stop the slide show.

Print quality:

● Best (default)

● Normal

Network:

● Print detailed report

Prints the network configuration page listing the printer device name, IP address, subnet mask, link speed, DNS, etc.

● Display summary

Displays the printer device name, IP address, and subnet mask on the printer screen.

● Restore defaults

Restores default networking settings.

HP Photosmart 8400 series

Printer menu structure (continued)

Top level menu

Submenus/options

Clean cartridges

Bluetooth

Align cartridges

Device address

Device name

Passkey

Accessibility

HP Photosmart 8400 series Reference Guide

Additional submenus/options

Continue to second level cleaning?

● Yes

● No

Continue to third level cleaning?

● Yes

● No

Device address:

(Some devices with Bluetooth wireless technology require you to enter the address of the device they are trying to locate.

This menu option shows the device address.)

Device name:

(You can select a device name for the printer that appears on other devices with Bluetooth wireless technology when they locate the printer.)

(Press

Navigation

to increase number by one; press

Navigation

to decrease the number. Press

OK

to move to next number.)

(You can assign a Bluetooth numerical passkey to the printer that users of devices with

Bluetooth wireless technology trying to locate the printer must enter before they can print, if the printer Bluetooth

Security level

is set to

High

. The default passkey is 0000.)

Accessibility:

● Visible to all

● Not visible

When

Accessibility

is set to

Not visible

, only devices

9

Chapter 1

10

Printer menu structure (continued)

Top level menu

Help

Submenus/options

Security level

Reset Bluetooth options

Memory cards

Cartridges

Photo sizes

Paper loading

Additional submenus/options

that know the device address can print to it.

(You can set the Bluetoothequipped printer to be visible or invisible to other devices with

Bluetooth wireless technology by changing this accessibility option.)

Security Level:

● High

(The printer does require users of other devices with

Bluetooth wireless technology to enter the printer passkey)

● Low

(The printer does not require users of other devices with Bluetooth wireless technology to enter the printer passkey)

Reset Bluetooth options:

● Yes

● No

Memory Card Help:

(Select to see information about supported memory cards)

Print Cartridge Help:

(Press

Navigation

or to scroll through the HP print cartridges available for the printer, then press

OK

to see how to insert the cartridge)

Photo Sizes Help:

(Press

Navigation

or to scroll through the available photo sizes)

Paper Loading Help:

(Press

Navigation

or to scroll through information on loading paper)

HP Photosmart 8400 series

Printer menu structure (continued)

Top level menu

Submenus/options

Paper jams

Camera connect

Preferences SmartFocus

Digital Flash

Date/time

Colorspace

Passport photo mode

Additional submenus/options

Paper Jam Help:

(Select to see how to remove a paper jam)

Camera Connect Help:

(Select to see where to connect a PictBridge compatible digital camera to the printer)

Turn SmartFocus:

● On (default)

● Off

Turn Digital Flash:

● On

● Off (default)

Date/time stamp:

● Date/time

● Date only

● Off (default)

Choose colorspace:

● sRGB

● Adobe RGB

● Auto-select (default)

The Auto-select default tells the printer to use the Adobe RGB colorspace, if available. The printer defaults to sRGB if

Adobe RGB is not available.

Turn passport photo mode:

● On

● Off (default)

Select Size:

If you select

On

, the printer prompts you to select the passport photo size. Passport mode tells the printer to print all photos in the selected size.

Each page contains one photo.

However, if you specify several copies of the same photo, they

HP Photosmart 8400 series Reference Guide 11

Chapter 1

Printer menu structure (continued)

Top level menu

Submenus/options

Tray select

Paper detect

Preview animation

Video enhancement

Restore defaults

Language

Additional submenus/options

all appear on the same page (if enough space is available).

You must let photos printed in passport photo mode dry for a week before they are laminated.

Select which paper tray to use:

● Front (default when rear tray not installed)

● Rear

● Ask each time (default when rear tray is installed)

Auto paper detect:

● On (default)

● Off

Turn preview animation:

● On (default)

● Off

Turn video print enhancement:

● On

● Off (default)

Restore original factory preferences:

● Yes

● No

Restores factory settings for all menu items except

Select language

and

Select country/ region

(under

Language

in

Preferences

menu) and

Bluetooth settings (under

Bluetooth

in the main printer menu). This setting does not affect HP Instant Share or

Network defaults.

Select language:

Select country/region:

12 HP Photosmart 8400 series

Paper information

You can print photos and documents on a wide variety of paper sizes, from 76 x 127 mm (3 x 5 inches) up to 216 x 356 mm (8.5 x 14 inches), as well as on 216 mm (8.5

inch-wide) banner paper.

Paper type

● Letter or A4 paper

● Transparencies

● 20 x 25 cm (8 x

10 inch) photo paper

How to load

1.

Raise the Out tray.

2.

Load plain paper, photo paper, or transparencies print-side down. Check that the stack of paper is no higher than the top of the paper-length guide.

3.

Pull the Photo tray slider towards you until it stops.

The Main light illuminates, meaning that paper from the Main tray will be used for the next print job.

4.

Lower the Out tray.

Tray to load

Main tray

1 Out tray

2 Paper-width guide

3 Paper-length guide

4 Photo tray slider

Photo tray

● 10 x 15 cm (4 x

6 inch) photo paper

● Index cards

● Hagaki cards

● L-size cards

1.

Raise the Out tray.

2.

Load paper print-side down. If you are using tabbed paper, insert the paper so the tab feeds in last.

3.

Lower the Out tray.

4.

Push the Photo tray slider away from you until it stops. The Photo light illuminates, meaning that paper from the Photo tray will be used for the next print job.

1 Out tray

2 Paper-width guide

3 Paper-length guide

1 Photo tray slider

HP Photosmart 8400 series Reference Guide 13

Chapter 1

(continued)

Paper type

● 13 x 18 cm (5 x

7 inch) photo paper

● Envelopes

How to load

1.

Remove the Out tray by pushing in the buttons on each side and pulling the tray towards you.

2.

Load photo paper printside down.

Load envelopes with the front-side down and with the flap on the left. Tuck the flaps inside the envelopes to avoid paper jams.

3.

Replace the Out tray.

4.

Pull the Photo tray slider towards you until it stops.

The Main light illuminates, meaning that paper from the Main tray will be used for the next print job.

Tray to load

Main input tray

1 Out tray

1 Paper-length guide

2 Paper-width guide

Print cartridge information

The HP Photosmart 8400 series printer can print color and black-and-white photos.

HP provides different types of print cartridges so you can choose the best cartridges for your project. The cartridge numbers you can use in this printer also appear on the back cover.

For optimum printing results, HP recommends using only HP print cartridges. Inserting a cartridge that is not in this table may invalidate the printer warranty.

Use the correct print cartridges

To print… Insert this print cartridge in the left stall

Full-color photos HP Photo #348

Black-and-white photos

Sepia or antique photos

Text and colored line drawings

HP Photo #348

HP Photo #348

HP Photo #348

Insert this print cartridge in the middle stall

HP Tri-color #343 or #344

HP Tri-color #343 or #344

HP Tri-color #343 or #344

HP Tri-color #343 or #344

Insert this print cartridge in the right stall

HP Gray Photo

#100

HP Gray Photo

#100

HP Gray Photo

#100

HP Black #339

14 HP Photosmart 8400 series

Caution

Check that you are using the correct print cartridges. Also, note that

HP does not recommend modifying or refilling HP cartridges. Damage that results from modifying or refilling HP cartridges is not covered by the

HP warranty.

For best print quality, HP recommends that you install all retail print cartridges before the date stamped on the box.

Insert or replace the print cartridges

Prepare the printer and cartridges

1.

Make sure the power is on and you have removed the cardboard from inside the printer.

2.

Lift the main cover of the printer.

3.

Remove the bright pink tape from all cartridges.

Do not touch the ink nozzles or the copper-colored contacts, and do not re-tape the cartridges.

Remove the pink tape

Do not touch here

Insert the cartridges

1.

If you are replacing a cartridge, push down and pull outward on the cartridge stall cover to open it and then pull the cartridge out.

2.

Match the symbol on the cartridge label to the correct stall. Hold the cartridge with the label on top and slide it at a slight upward angle into the stall so the copper-colored contacts go in first. Push the cartridge until it snaps into place.

3.

Close the cartridge stall cover.

4.

Repeat the previous steps to install the other cartridges, if necessary.

5.

When you are finished installing cartridges, close the main cover.

HP Photosmart 8400 series Reference Guide 15

Chapter 1

Insert or replace the print cartridges (continued)

You must install all three cartridges in order for the printer to work as intended.

Tip

Ink-backup printing mode lets you keep printing even if one of the cartridges fails or runs out of ink. Remove the cartridge and close the main cover to enter ink-backup printing mode. The printer continues to print, but at a slower speed and with inferior print quality. A message reminds you that the printer is in ink-backup printing mode.

Replace the cartridge as soon as possible.

The idle screen of the printer displays three icons showing the approximate ink level for each cartridge (100%, 75%, 50%, 25%, and nearly empty). Ink-level icons do not appear if any of the installed cartridges are not genuine HP cartridges.

Each time you install or replace a print cartridge, a message prompts you to print an alignment page.

This ensures high-quality prints.

Align the cartridges

1.

Load paper in the In tray.

2.

Follow the onscreen instructions to complete the cartridge alignment.

When you are not using a print cartridge

Whenever you remove a print cartridge from the printer, store it in a print cartridge protector, if available. The cartridge protector keeps the ink from drying out. Storing the cartridge improperly can cause the cartridge to malfunction.

➔ To insert a cartridge into the cartridge protector, slide the cartridge into the protector at a slight angle and snap it securely into place.

Once you have inserted a cartridge into the cartridge protector, place it in the storage area located in the printer under the top cover.

16 HP Photosmart 8400 series

2

Printing with your new printer

It's easy to print high-quality photos for yourself, family, and friends. This section provides you with a quick start to printing, as well as detailed instructions on using memory cards, selecting photos, and more.

Quick start

Printing photos is as easy as 1–2–3! Here's how you do it.

Step 1: Getting ready to print

Inserting a print cartridge

Loading paper

1.

Install the print cartridges.

See

Print cartridge information .

a.

Unpack a print cartridge and remove the tape.

Do not touch the copper-colored contacts or ink nozzles.

b.

Open the top of the printer.

c.

Match the symbol on the cartridge label to the correct stall. Hold the cartridge with the label on top and slide it at a slight upward angle into the stall so the copper-colored contacts go in first. Push the cartridge until it snaps into place.

d.

Repeat for each print cartridge you need to install.

2.

Load photo paper.

See

Paper information .

a.

Raise the Out tray.

b.

Load paper print-side down. If you are using tabbed paper, insert the paper so the tab feeds in last.

c.

Lower the Out tray.

d.

Push the Photo tray slider away from you until it stops. The Photo light illuminates, meaning that paper from the Photo tray will be used for the next print job.

If you do not want to print on small media, as shown here, load photo paper in the Main tray instead.

Step 2: Selecting photos

1.

Insert a memory card that has photos on it.

Inserting a memory card

HP Photosmart 8400 series Reference Guide 17

Chapter 2

(continued)

Step 2: Selecting photos

Selecting a photo

Caution

Inserting a memory card incorrectly can damage the card and the printer. For more information on memory cards, see

Using memory cards

.

2.

Press

Select Photos

or to scroll through the photos on the card.

3.

Press

Select Photos

to select a photo that you want to print. A check mark appears in the left corner of the photo on the printer screen.

For more information about selecting photos, see

Selecting photos .

Step 3: Printing

➔ Press

Print

to print the selected photos.

Printing photos

Printing without a computer

The HP Photosmart 8400 series printer lets you print amazing photos without even going near a computer.

Using memory cards

After you have taken pictures with a digital camera, you can remove the memory card from the camera and insert it into the printer to view and print your photos. The printer can read the following types of memory cards: CompactFlash

, Memory Sticks,

Microdrive ™ , MultiMediaCard ™ , Secure Digital ™ , SmartMedia ™ , and xD-Picture Card ™ .

Caution

Using any other type of memory card may damage the memory card and the printer.

To learn about other ways of transferring photos from a digital camera to the printer,

see Connecting to other devices .

Supported file formats

The printer can recognize and print the following file formats directly from the memory card: JPEG, uncompressed TIFF, AVI (JPEG compression), QuickTime (JPEG compression), and MPEG-1. If a digital camera saves photos and video clips in other file formats, save the files to a computer and print them using a software application.

For more information, see the onscreen HP Photosmart Printer Help.

18 HP Photosmart 8400 series

Inserting memory cards

After you take pictures with a digital camera, remove the memory card from the camera and insert it into the printer.

Caution

Do not pull out a memory card while the Memory Card light is flashing. A flashing light means that the printer is accessing the memory card.

Removing a memory card while it is being accessed may damage the printer and the memory card or corrupt the information on the memory card.

1 SmartMedia, xD-Picture Card

2 CompactFlash, Microdrive

3 Memory Sticks

4 MultiMediaCard, Secure Digital

To insert a memory card

1.

Remove any memory cards that are already inserted into any of the memory card slots. You can have only one card inserted at a time.

2.

Find the correct slot for your memory card.

3.

Insert the memory card into the slot with the copper-colored contacts down or the metal pinholes facing toward the printer.

4.

Gently push the memory card into the printer until it stops.

The printer reads the memory card and then displays the first photo on the card.

If you used your digital camera to select photos on the card, the printer asks you if you want to print the camera-selected photos.

Selecting photos

You can select one or more photos to print using the printer control panel.

Select a photo

1.

Insert a memory card.

2.

Press

Select Photos

or to navigate to the photo you want to print.

Tip

To move quickly through the photos, press and hold

Select Photos

or .

3.

Press

Select Photos

to select the photo currently on the printer screen.

A check mark appears on the bottom left corner of the printer screen to indicate that the photo is selected for printing. Press

Select Photos

repeatedly to print

HP Photosmart 8400 series Reference Guide 19

Chapter 2 more than one copy of the photo. A number indicating how many copies are to be printed appears next to the check mark. Press

Cancel

to decrease the number of copies by one.

4.

To select additional photos, repeat these steps.

Deselect a photo

1.

Press

Select Photos

or to navigate to the photo you want to deselect.

2.

Press

Cancel

.

Deselecting photos does not delete them from the memory card.

Printing selected photos

You can print photos from a memory card or directly from a PictBridge or HP directprinting digital camera. You can print selected photos, all photos, photos selected on a proof sheet, or a range of photos. For instructions, see the User's Guide available in online format on the User's Guide CD.

Enhancing photos

The printer provides a variety of tools and effects that let you enhance your photos or use them in creative ways. You can add color effects, remove red eye, and add a decorative frame. The settings do not change your original photo. They only affect printing. For instructions, see the User's Guide available in online format on the User's

Guide CD.

Changing printer preferences

Change the printer default settings to your own personal preferences by using the printer menu on the printer control panel. Printer preferences are global settings. They apply to every photo you print. For a complete list of available preferences and their default settings, see

Printer menu . For instructions on changing printer preferences,

see the User's Guide available in online format on the User's Guide CD.

Getting connected

Use the printer to stay connected to other devices and people.

Connecting to other devices

This printer offers several ways of connecting to computers or other devices. Each connection type lets you do different things.

Connection type and what you need

USB

● A Universal Serial Bus (USB) 1.1 or

2.0 full-speed compliant cable 3 meters (10 feet) or less in length.

For instructions about connecting

This lets you...

● Print from a computer to the printer.

See

Printing with a computer

.

● Save photos from a memory card inserted in the printer to a computer where you can enhance or organize them in the HP Image Zone software.

20 HP Photosmart 8400 series

(continued)

Connection type and what you need

the printer with a USB cable, see the Setup Guide.

● A computer with Internet access (to use HP Instant Share).

Network

A CAT-5 Ethernet cable with RJ-45 plug.

Connect your printer to the network by connecting the cable to the Ethernet port on the rear of the printer. For more information, see

Connecting the printer to the network .

PictBridge

A PictBridge-compatible digital camera and a USB cable.

Connect the camera to the camera port on the front of the printer.

Bluetooth

The optional HP Bluetooth wireless printer adapter.

If the printer came with this accessory or you have purchased it separately, see the accompanying documentation and the onscreen Help for instructions.

This lets you...

● Share photos through HP Instant

Share.

● Print directly from an

HP Photosmart direct-printing digital camera to the printer. For more information, see

Printing without a computer and the camera

documentation.

● Print from any computer on the

network to the printer. See Printing with a computer .

● Save photos from a memory card inserted in the printer to any computer on the network and then enhance or organize them in the

HP Image Zone software.

● Share photos through HP Instant

Share.

● Send photos to or receive them from other HP Instant Share-ready printers on the network.

Print directly from a PictBridgecompatible digital camera to the printer.

For more information, see

Printing without a computer

and the camera documentation.

Print from any device with Bluetooth wireless technology to the printer.

If you connect the optional HP Bluetooth wireless printer adapter to the printer through the camera port, be sure to set the Bluetooth printer menu options as needed. See

Printer menu .

The adapter is not compatible with the

Macintosh.

Connecting through HP Instant Share

Use HP Instant Share to share photos with friends and relatives using e-mail, online albums, or an online photo finishing service. You can even send a photo to another compatible networked printer. Your printer must be connected through a USB cable to a computer with Internet access or be on a network and have all the HP software installed. If you try to use HP Instant Share and do not have all the required software

HP Photosmart 8400 series Reference Guide 21

Chapter 2 installed or configured, a message prompts you through the required steps. You must have the following to use HP Instant Share with the printer:

USB connection

● The printer set up and connected to a computer through a USB cable

● Access to the Internet through the computer to which the printer is connected

● An HP Passport user ID and password

● The printer software installed on the computer

Make sure you select the Typical install when you install the printer software. HP Instant Share does not function with a Minimum install.

Network connection

● A functional local area network (LAN)

● The printer set up and connected to the LAN

See

Networking .

● Direct access to the Internet through the network

● An HP Passport user ID and password

● The printer software installed on the computer

Make sure you select the Typical install when you install the printer software. HP Instant Share does not function with a Minimum install.

Setting up HP Instant Share

You can set up HP Instant Share, create a list of HP Instant Share destinations, manage a list of approved or blocked senders, and obtain an HP Passport user ID and password as follows:

Windows: Double-click the HP Instant Share Setup icon on the desktop of a

computer where you installed the printer software. Follow the onscreen instructions. If a Help button appears on an HP Instant Share Setup screen, press it for more information. You can run it again at any time if you need to modify your list of HP Instant Share destinations. HP Instant Share Setup is also available through the Settings drop-down menu in HP Director.

Macintosh: In the Finder navigate to Applications > Hewlett-Packard >

Photosmart > Utilities, then double-click HP Instant Share Setup. Follow the

onscreen instructions. This application runs automatically when you first install the printer software. You can run it again at any time if you need to modify your list of HP Instant Share destinations.

To set HP Instant Share options

1.

Press

HP Instant Share

.

2.

Select

HP Instant Share options

, then press

OK

.

3.

Select one of the following options, then press

OK

:

Receive options

:

Receive from allowed senders

tells the printer to receive only collections that have been sent by approved senders.

Receive from any unblocked sender

tells the printer to receive all collections.

Auto checking

:

22 HP Photosmart 8400 series

This is on by default. If you do not want the printer to check for HP Instant

Share collections automatically, select

Off

.

On

makes the printer check for HP Instant Share collections at regular intervals.

Off

keeps the printer from checking for collections.

Remove collections

lets you select received collections you want removed.

Device name

displays the network name of the printer.

Reset HP Instant Share

resets all HP Instant Share options to the defaults.

This means you have to go through HP Instant Share set up again to register the printer with the HP Instant Share service.

To use HP Instant Share (USB) to send photos

1.

Insert a memory card and select some photos.

2.

Press

HP Instant Share

.

3.

Follow the instructions on your computer to share the selected photos with others.

See the onscreen Image Zone Help for information about using HP Instant Share.

To use HP Instant Share (network) to send photos

1.

Insert a memory card and select some photos.

2.

Press

HP Instant Share

.

3.

Select a destination, then press

OK

.

4.

Select

Send photos

, then press

OK

.

If the destination is an e-mail address, the printer sends an e-mail message with a link to the photo on the HP Instant Share website. If the destination is a compatible networked printer, an icon appears on the printer screen to notify the user that the photo is available. For more information, see the onscreen

HP Image Zone Help.

To use HP Instant Share (network) to receive photos

1.

Press

HP Instant Share

.

2.

Select

Receive

, then press

OK

.

3.

Select a received HP Instant Share collection (message with photos), then press

OK

.

The first photo included with that message appears on the printer screen. You can navigate, select, and print HP Instant Share photos in the same manner as you do with photos on a memory card or attached digital camera. If you insert a memory card or connect a digital camera while viewing HP Instant Share photos, the HP Instant Share session ends, and the normal viewing of photos from the card or camera begins.

Your printer also checks at regular intervals to see if new photos have been received. An HP Instant Share received icon (an envelope) appears on the printer screen to notify you that HP Instant Share photo is available for viewing on the printer.

4.

Choose one of the following, then press

OK

:

View

to view the received photo on the printer screen.

Remove

to delete the received photo.

HP Photosmart 8400 series Reference Guide 23

Chapter 2

Printing with a computer

All HP photo printers come with the HP Image Zone software, which helps you do more with your photos than ever before. Use it to get creative with your pictures: edit them, share them, and create fun projects such as greeting cards. The HP Image

Zone is only installed if you choose the Typical installation option. The Macintosh supports only a subset of the features of the HP Image Zone, as noted in the following table.

Software feature

Take control of printing

Harness the power of the

HP Photosmart printer driver. This software gives you full control over how your photos print. You can:

● Produce draft-quality prints to save on ink and photo media

● Learn how to get the most out of the printer and your digital photos

● Use advanced color settings to produce the highest-quality prints

HP Instant Share

Use HP Instant Share to share photos with family and friends. HP Instant

Share lets you easily:

● E-mail images using HP Instant

Share without large file attachments

● Create online albums to share, organize, and store photos

● Order professionally processed prints online (availability varies by country/region)

Where to find information

Windows: In the onscreen Help, click

HP Photosmart Printer Help. In the

print dialog box itself, right-click any option and click the What's This? box to learn more about that option.

Macintosh: Select Help > Mac Help in

the Finder, then select Library >

HP Photosmart Printer Help.

For more information about using

HP Instant Share with your specific printer model, see

Connecting through

HP Instant Share .

Windows: In the onscreen Help, click

Use the HP Image Zone, then click

Share your images using HP Instant

Share.

To use HP Instant Share on Windows, start HP Image Zone, select one or more photos, then click the HP Instant

Share tab.

Macintosh: Start HP Instant Share, then

follow the onscreen instructions.

To use HP Instant Share on a

Macintosh, press and hold on

HP Photosmart Menu in the Dock, then

select HP Instant Share from the popup menu.

24 HP Photosmart 8400 series

(continued)

Software feature

Creative projects

Think outside the photo album. The

HP Image Zone lets you use your digital photos for creative projects such as:

● Iron-on transfers

● Banners

● Greeting cards

Organize your photos

Where to find information

Windows: In the onscreen Help, click

Use the HP Image Zone, then click

Create projects.

To do creative projects on Windows, start HP Image Zone, select one or more photos, then click the Projects tab.

Macintosh: To do creative projects on a

Macintosh, press and hold on the active

HP Photosmart Menu in the Dock, then

select HP Image Print from the pop-up menu. Select a creative printing option from the Print Style drop down menu.

Onscreen instructions appear in the

HP Image Print window. Also available

in HP Image Edit.

In the onscreen Help, click Use the

HP Image Zone, then click Manage

your images.

To organize your photos on Windows, start HP Image Zone, then click the My

Images tab.

Macintosh: This feature is not available

on the Macintosh in the printer software.

We recommend using iPhoto 2.0 or later.

The HP Image Zone helps you keep on top of your digital photos and video clips by letting you:

● Organize your photos in albums

● Search through your photos by date, keywords, and more

● Index images automatically

Edit and enhance your photos

The HP Image Zone lets you:

● Do manual color correction and make other adjustments to improve your photos before you print them

● Add text and other graphics

● Resize your digital photos

Windows: In the onscreen Help, click

Use the HP Image Zone, then click Edit

your images.

To edit photos on Windows, start

HP Image Zone, select one or more photos, then click the Edit tab.

Macintosh: To edit photos on a

Macintosh, press and hold on the active

HP Photosmart Menu in the Dock, then

select HP Image Edit from the pop-up menu.

HP Photosmart 8400 series Reference Guide 25

Chapter 2

26 HP Photosmart 8400 series

3

Installing the software

The printer comes with optional software you can install on a computer. This section describes the installation and includes installation troubleshooting tips.

Installation

After using the Setup Guide instructions to setup the printer hardware, use the instructions in this section to install the software.

Windows users Macintosh users

Important: Do not connect the USB

cable until you are prompted.

HP Image Zone software and full printer functionality is installed automatically when you choose the Typical

installation of your HP software.

1.

Insert the HP Photosmart CD into your computer's CD-ROM drive.

2.

Click Next and follow the onscreen instructions. If instructions do not appear, locate and double-click the

setup.exe file on the CD.

Note

If the Found New Hardware screen appears, click Cancel, unplug the USB cable, and restart the installation.

3.

Choose between a USB or network connection. If you choose a network connection, follow the instructions in

Networking

. If you choose a USB connection, continue to the next step.

4.

When prompted, connect one end of the USB cable to the USB port on the back of the printer, and connect the other end to the USB port on your computer.

5.

Follow the onscreen instructions until the installation is finished and your computer restarts. When the

Congratulations page appears, click

Print a demo page.

Important: Do not connect the USB

cable until you are prompted.

Note

If you want to connect the printer to a network instead of to a single computer, use the installation instructions in

Networking .

1.

Insert the HP Photosmart CD into your computer's CD-ROM drive.

2.

Double-click the HP Photosmart

CD icon.

3.

Double-click the HP Photosmart

Install icon. Follow the onscreen

instructions to install the printer software, choosing USB as the connection type.

4.

When prompted, connect one end of the USB cable to the USB port on the back of the printer, and connect the other end to the USB port on your computer.

5.

Select the printer in the Print dialog box. If the printer does not appear in the list, click Edit Printer List to add the printer.

To change a USB-connected printer to a networked printer, see

To change a

USB connected printer to a network connection .

HP Photosmart 8400 series Reference Guide 27

Chapter 3

Installation troubleshooting

If the printer software did not install successfully or if the printer and computer are not communicating properly after software installation, check this page for possible solutions. If you still need help, check the printer documentation or contact Customer

Care. Check all cable connections between the printer and computer, and ensure you are using the most recent version of the printer software.

The Found New Hardware Wizard opens but doesn't recognize the printer.

You may have connected the USB cable before completing the software installation.

Disconnect the USB cable and restart the software installation. Connect the USB cable when prompted during software installation.

The computer stops responding during software installation.

This may mean that virus protection software or another software program is running in the background and slowing down the installation process. Wait while the software finishes copying files; this may take several minutes. If, after several minutes, the computer is still not responding, restart the computer, pause or disable any active virus protection software, quit all other software programs, and then reinstall the printer software.

Note

Your virus protection software will turn back on automatically when you restart the computer.

The System Requirements dialog box appears during installation.

A component of the computer system does not meet minimum system requirements.

Ugrade the component to the minimum system requirement and then reinstall the printer software.

The System Requirements check indicates that the computer is running an outdated version of Internet Explorer.

Press Ctrl + Shift on the keyboard and click Cancel in the System Requirements dialog box to bypass the block and complete the software installation. You must update Internet Explorer immediately after installing the HP Photosmart software, or the HP software will not work properly.

Note

You do not have to reinstall the HP software after updating Internet

Explorer.

The computer could not read the HP Photosmart CD.

Make sure the CD isn’t dirty or scratched. If other CDs work but the HP Photosmart

CD does not, you may have a damaged CD. You can download the printer software from www.hp.com/support . If other CDs don’t work, you may need to service the CD-

ROM drive.

28 HP Photosmart 8400 series

a

Networking

The instructions below describe how to install the HP Photosmart 8400 series printer in an ethernet (wired) network. A wired setup allows the printer to communicate to computers through a router, hub, or switch. Broadband Internet access is required in order to take full advantage of the printer feature set.

Note

For USB installation, see the setup instructions that came in the box.

Once you set up the printer on a network, the printer screen displays one of two ethernet connection icons to indicate the status of the connection:

1 Ethernet connection active icon

2 Ethernet connection inactive icon

Before proceeding with this section, make sure you have already set up your wired network. See the documentation that came with your network hardware. Also make sure you have set up the printer as described in the setup instructions that came in the box.

Networking basics (Windows and Macintosh)

Networking lets networked devices, such as computers and printers, communicate with each other. A wired or ethernet network is the most common type of network in offices and in homes.

The network adapter in the printer itself supports both 10 Mbps and 100 Mbps ethernet networks.

To connect the printer to a network, you need a CAT-5 ethernet cable equipped with a RJ-45 plug. This is not the same as a USB cable.

Caution

Although the RJ-45 plug of a CAT-5 cable resembles a common telephone plug, it is not the same. Never use a regular phone wire to connect the printer to an ethernet network. You can damage the printer and other network devices by doing so.

The following illustration shows an example of the printer networked with several computers through a network hub, switch, or router. A cable or DSL modem links the hub and all the networked devices to broadband Internet access.

HP Photosmart 8400 series Reference Guide 29

Appendix a

30

1 Cable or DSL modem connecting the networked devices to broadband Internet access

2 A network access point (hub, switch, or router) into which all the devices are connected through ethernet cables

Networked devices connect to each other through a central device. The most common types include:

Hubs: A simple, inexpensive network device that lets several computers communicate with each other or share a common printer. Hubs are passive. They only provide a way for communication to flow between other devices.

Switches: Switches are similar to hubs, but can examine the information sent between devices and forward the information only to the proper device. They can lessen bandwidth usage on a network and help keep it running more efficiently.

Routers: Routers or gateways connect both devices and networks. A common use is to connect several home computers on a network to the Internet. Routers often also include a built-in firewall that can help protect a home network from unauthorized access.

Note

For specific information about setting up and configuring the hardware on your network, see the documentation that came with the hardware.

Internet connection

If your network is connected to the Internet through a router or gateway, it is recommended that you use a router or gateway that supports Dynamic Host Configuration Protocol (DHCP). A gateway with DHCP support manages a pool of reserved IP addresses that it assigns dynamically as needed. See the documentation that came with the router or gateway.

Recommended network configurations

The following network configurations support the printer. Determine the type of network

configuration you have, then see Connecting the printer to the network

and

Installing the printer software on a Windows computer or

Installing the printer software on a Macintosh for instructions

on connecting your printer to the network and then installing the software.

Ethernet network without Internet access

The computers and printer communicate with each other, forming a simple network, through a hub. None of the networked devices has access to the Internet. Some printer features, such as sharing photos directly from the printer over the Internet using HP Instant Share, do not work in this configuration.

Ethernet network with Internet access by dial-up modem

The computers and printer communicate with each other, forming a simple network, through a hub. One of the computers has access to the Internet through a modem and dial-up account.

HP Photosmart 8400 series

None of the other networked devices, including the printer, have direct access to the Internet.

Some printer features, such as sharing photos directly from the printer over the Internet using

HP Instant Share, do not work in this configuration.

Ethernet network with broadband Internet access provided by a router

The printer is connected to a router that acts as a gateway between the user network and the

Internet. The full feature set of the printer, including sharing photos over the Internet, is available without even having a computer available or connected to the network. This is the ideal network configuration.

Connecting the printer to the network

To connect the printer to a wired network, you need the following:

● A network access point such as a hub, router, or switch with an open port

● A CAT-5 ethernet cable with RJ-45 plug

● Broadband Internet access (only if you want to access HP Instant Share directly from the device. For more information, see

Getting connected

).

Note 1

You should not connect the printer directly to a computer using an ethernet cable. Peer-to-peer networking is not supported.

Note 2

After you connect the printer to the network as described in this section, you must install the printer software. See

Installing the printer software on a Windows computer

or

Installing the printer software on a Macintosh .

To connect the printer to the network

1.

Connect the ethernet cable to the back of the printer.

2.

Connect the ethernet cable to an empty port on the hub, router, or switch.

HP Photosmart 8400 series Reference Guide 31

Appendix a

After you finish connecting the printer to the network, install the printer software. You cannot print from a computer until you do the software installation.

Installing the printer software on a Windows computer

Installing the printer software on a Macintosh

Installing the printer software on a Windows computer

Note

Set up the printer as indicated in the setup instructions that came in the box.

32

Installation time can range from 20 minutes (Windows XP) to 1 hour (Windows 98), the amount of available hard drive space, and the processor speed of the computer. Make sure you have already connected the printer to the network with an ethernet cable before you begin the installation.

Note

The printer software must be installed as described in this section on every networked computer from which you want to print to the Photosmart 8400 series printer.

After the installation, printing is identical to printing through a USB connection.

Tip

Do not use the Windows Add Printer control panel utility to install the printer software. You must use the HP installer to install the printer on a network properly.

To install the printer software

1.

Print a network configuration page. You may need the information included in this report if the installer cannot detect the printer.

See

Printing a network configuration page .

2.

Insert the HP Photosmart printer software CD into the computer's CD-ROM drive.

3.

Click Next and follow the instructions provided by the Installer to check and prepare the system, and install drivers, plug-ins, and software. This takes several minutes.

4.

At the Connection Type screen, select Through the network, then click Next.

The Searching screen appears as the Setup program searches for the printer on the network.

If the Printer Found screen appears, do this:

a.

Verify that the printer description is correct. (Use the configuration page to verify the printer name and hardware address. See

Printing a network configuration page

.) b.

If the printer description is correct, select Yes, install this printer, then click Next.

If more than one printer is found on the network, select HP Photosmart 8400 series as the device to configure and install, then click Next. If you have more than one

HP Photosmart 8400 series printer on your network, use the Hardware Address (MAC) item listed in the network configuration page to identify the specific HP Photosmart

8400 series printer you want to install.

If the Check Cable Connection screen appears, do this:

a.

Follow the onscreen instructions, then select Specify a printer by address, then click

Next.

HP Photosmart 8400 series

b.

On the Specify Printer screen, enter the Hardware Address (MAC) number listed in the network configuration page in the Hardware Address (MAC) box.

Example: 02bad065cb97

MAC stands for Media Access Control, a hardware address that identifies the printer on the network.

c.

Enter the IP Address listed in the network configuration page in the IP Address box , then click Next.

Example: 169.254.203.151

d.

When the Printer Found screen appears, select Yes, install this printer, then click

Next.

e.

In the Confirm Settings screen, click Next.

f.

Follow the onscreen instructions.

5.

When prompted, click Finish to exit the installation.

Installing the printer software on a Macintosh

Note

Set up the printer as indicated in the setup instructions that came in the box.

Installation time can take 3-4 minutes depending on your operating system, the amount of available hard drive space, and the processor speed of the Macintosh. Make sure you have already connected the printer to the network with an ethernet cable before you begin the installation. If you have already installed this printer on a USB connection, you do not have to follow these instructions to do a network installation. Instead, see

To change a USB connected printer to a network connection .

Note

The printer software must be installed as described in this section on every networked computer from which you want to print to the Photosmart 8400 series printer.

After the installation, printing is identical to printing to a printer connected by a USB cable.

To install the printer software

1.

Insert the HP Photosmart printer software CD into the Macintosh CD-ROM drive.

2.

Double-click the CD icon on the desktop.

3.

Double-click the Installer icon.

The Authenticate dialog appears.

4.

Enter the Name and Password used to administer your Macintosh, then click OK.

5.

Follow the onscreen instructions.

6.

When the HP Photosmart Install window appears, choose Easy Install, then click Install.

7.

In the Select Printer window, click the Network tab. The installer searches for any printers on the network.

If the printer is found, do this:

a.

Select the HP Photosmart 8400 series printer in the Select Printer window, then click

Utilities.

b.

Follow the onscreen instructions to register the printer.

If the printer is not found, do this:

a.

Print a network configuration page and locate the IP Address entry listed on the page.

b.

Make sure the printer is connected by the correct type of CAT-5 ethernet cable to the

network. See Connecting the printer to the network .

c.

Click Find, enter the IP Address, then click Save.

d.

Select the HP Photosmart 8400 series printer in the Select Printer window, then click

Utilities.

e.

Follow the onscreen instructions to register the printer.

HP Photosmart 8400 series Reference Guide 33

Appendix a

Note

Some browsers may not work with the online registration. If you encounter problems, either try another browser or skip this step.

8.

Select the printer in the Print dialog box. If the printer does not appear in the list, select Edit

Printer List to add the printer.

9.

In the Printer List window, click Add.

10. Select Rendezvous from the drop-down list.

11. Select the printer from the list, then click Add.

That's it. You're done!

To change a USB connected printer to a network connection

1.

Connect the printer to the network. See

Connecting the printer to the network .

2.

Print a network configuration page and locate the IP Address entry.

3.

Open a web browser and enter the IP Address to access the embedded web server in the printer. For more information on the embedded web server, see

Using the embedded web server .

4.

Click the Networking tab.

5.

Click mDNS in the Applications area on the left.

6.

Enter a unique name (63 characters or less) in the mDNS Service Name box.

7.

Click Apply.

8.

Select the printer in the Print dialog box. If the printer does not appear in the list, select Edit

Printer List to add the printer.

9.

In the Printer List window, click Add.

10. Select Rendezvous from the drop-down list.

11. Select the printer from the list, then click Add.

Using the embedded web server

The embedded web server in the printer provides a simple way to manage the networked printer.

Using any web browser from either a Windows or Macintosh computer, you can communicate with the printer over the network to:

● Check printer status and estimated ink levels

● View network statistics

● Adjust the printer network configuration such as specifying a proxy server, setting a DNS name, or manually entering an IP address

● Restrict access to configuration pages

● Order supplies

● Go to the HP website for support

To access the embedded web server home page

1.

Print a network configuration page. See

Printing a network configuration page .

2.

Enter the printer IP address indicated on the network configuration page into the address box of your browser.

Example IP address: 10.0.0.81

The home page for the embedded web server appears.

For information about network terms and the embedded web server that is not covered in this guide, access the embedded web server help.

To access help for the embedded web server

1.

Go to the embedded web server home page. See

To access the embedded web server home page

.

2.

Click Help in the Other Links area of the home page.

34 HP Photosmart 8400 series

Printing a network configuration page

You can print a network configuration page from the printer without even being connected to a computer. The configuration page provides useful information regarding the printer IP address, network statistics, and other network settings. You can also display a summary of select network settings on the printer itself.

To print a detailed network configuration page

1.

Press

Menu

on the printer.

2.

Select

Tools

, then press

OK

.

3.

Select

Network

, then press

OK

.

4.

Select

Print detailed report

, then press

OK

.

To view a summary of network settings

1.

Press

Menu

on the printer.

2.

Select

Tools

, then press

OK

.

3.

Select

Network

, then press

OK

.

4.

Select

Display summary

, then press

OK

.

HP Photosmart 8400 series Reference Guide 35

Appendix a

36 HP Photosmart 8400 series

b

Support and warranty

This section contains information about technical support and the printer warranty.

Customer Care

If you have a problem, follow these steps:

1.

Check the documentation that came with the printer.

Setup Guide: The HP Photosmart 8400 series Setup Guide explains how to set up the printer.

User's Guide: The User's Guide describes the basic features of the printer, explains how to use the printer without connecting a computer, and contains hardware troubleshooting information. It is available in online format on the User's Guide CD.

HP Photosmart Printer Help: The onscreen HP Photosmart Printer Help describes how to use the printer with a computer and contains software troubleshooting information.

Reference Guide: The HP Photosmart 8400 series Reference Guide is the book you are reading. It provides basic information about the printer, including setup, operation, technical support, and warranty. For detailed instructions, see the User’s Guide CD.

HP Photosmart Printer Help: The onscreen HP Photosmart Printer Help describes how to use the printer with a computer and contains software troubleshooting information. See

Installing the software .

2.

If you are unable to solve the problem using the information in the documentation, visit www.hp.com/support to do the following:

– Access online support pages

– Send HP an e-mail message for answers to your questions

– Connect with an HP technician by using online chat

– Check for software updates

Support options and availability vary by product, country/region, and language.

3.

For Europe only: Contact your local point of purchase. If the printer has a hardware failure, you will be asked to bring the printer to where you purchased it. Service is free during the printer limited warranty period. After the warranty period, you will be quoted a service charge.

4.

If you are unable to solve the problem using the onscreen Help or HP websites, call

Customer Care using the number for your country/region. For a list of country/region phone numbers, see the following section.

Customer Care by phone

While the printer is under warranty, you can obtain free phone support. For more information,

see Limited warranty statement

, or go to www.hp.com/support to check the duration of your free support.

After the free phone support period, you can obtain help from HP at an additional cost. Contact your HP dealer or call the support phone number for your country/region for support options.

To receive HP support by phone, call the appropriate support phone number for your location.

Standard phone company charges apply.

Western Europe: Customers in Austria, Belgium, Denmark, Spain, France, Germany, Ireland,

Italy, Netherlands, Norway, Portugal, Finland, Sweden, Switzerland, and the United Kingdom should go to www.hp.com/support to access phone support numbers in their country/region.

HP Photosmart 8400 series Reference Guide 37

Appendix b

38

Placing a call

Call Customer Care while you are near the computer and printer. Be prepared to provide the following information:

● Printer model number (located on the front of the printer).

● Printer serial number (located on the bottom of the printer).

HP Photosmart 8400 series

● Computer operating system.

● Version of printer driver:

Windows PC: To see the printer driver version, right-click the HP icon in the Windows taskbar and select About.

Macintosh: To see the printer driver version, use the Print dialog box.

● Messages displayed on the printer screen or on the computer monitor.

● Answers to the following questions:

– Has the situation you are calling about happened before? Can you recreate the situation?

– Did you install any new hardware or software on your computer around the time that the situation occurred?

Limited warranty statement

The limited warranty statement is included separately in the box.

HP Photosmart 8400 series Reference Guide 39

Appendix b

40 HP Photosmart 8400 series

c

Specifications

This section lists the minimum system requirements for installation of the HP Photosmart printer software, and provides selected printer specifications.

For a complete list of printer specifications and system requirements, see the onscreen

HP Photosmart Printer Help. For information about viewing the onscreen HP Photosmart Printer

Help, see

Find more information .

System requirements

Component

Operating system

Processor

RAM

Free disk space

Video display

CD-ROM drive

Connectivity

Browser

Windows PC minimum

Microsoft

®

Windows 98, 2000

Professional, ME, XP Home, and XP Professional

Intel ® Pentium ® II (or equivalent) or higher

64 MB (128 MB recommended)

500 MB

800 x 600, 16-bit or higher

4x

USB: Microsoft Windows 98,

2000 Professional, ME, XP

Home, and XP Professional

Ethernet: using the Ethernet port

PictBridge: using front camera port

Bluetooth: using optional

HP Bluetooth Wireless

Adapter

Microsoft Internet Explorer

5.5 or later

Macintosh minimum

Mac

®

OS X 10.1 through 10.3

G3 or greater

Mac OS 10.1 through 10.3:

128 MB

500 MB

800 x 600, 16-bit or higher

4x

USB: Front and back ports

(Mac OS X 10.1 through 10.3)

Ethernet: using the Ethernet port

PictBridge: using front camera port

Printer specifications

Category

Connectivity

Specifications

USB: Microsoft Windows 98, 2000 Professional, ME, XP

Home, and XP Professional; Mac OS X 10.1 through 10.3

Ethernet

HP Photosmart 8400 series Reference Guide 41

Appendix c

(continued)

Category

Environmental specifications

Image file formats

Media sizes

Media specifications

Media sizes, standard

Specifications

Recommended during operation: 15–30° C (59–86° F),

20–80% RH

Maximum during operation: 5–40° C (41–104° F), 15–

80% RH

Storage temperature range: -30–65° C (22–149° F)

JPEG Baseline

TIFF 24-bit RGB uncompressed interleaved

TIFF 24-bit YCbCr uncompressed interleaved

TIFF 24-bit RGB packbits interleaved

TIFF 8-bit gray uncompressed/packbits

TIFF 8-bit palette color uncompressed/packbits

TIFF 1-bit uncompressed/packbits/1D Huffman

Photo paper 10 x 15 cm (4 x 6 inches)

Photo paper with tab 10 x 15 cm with 1.25 cm tab (4 x 6 inches with 0.5 inch tab)

Index cards 10 x 15 cm (4 x 6 inches)

Hagaki cards 100 x 148 mm (3.9 x 5.8 inches)

A6 cards 105 x 148 mm (4.1 x 5.8 inches)

L-size cards 90 x 127 mm (3.5 x 5 inches)

L-size cards with tab 90 x 127 mm with 12.5 mm tab (3.5

x 5 inches with 0.5 inch tab)

Recommended maximum length: 356 mm (14 inches)

Recommended maximum thickness: 292 µm (11.5 mil)

Photo paper

76 x 76 mm to 216 x 356 mm (3 x 3 inches to 8.5 x 14 inches)

Plain paper

Letter, 216 x 280 mm (8.5 x 11 inches)

Legal, 216 x 356 mm (8.5 x 14 inches)

Executive, 190 x 2540 mm (7.5 x 10 inches)

A4, 210 x 297 mm (8.27 x 11.7 inches)

A5, 148 x 210 mm (5.8 x 8.3 inches)

B5, 176 x 250 mm (6.9 x 9.8 inches)

Cards

Hagaki, 100 x 148 mm (3.94 x 5.83 inches)

L-size, 90 x 127 mm (3.5 x 5 inches)

L-size with tab, 90 x 127 mm with 12.5 mm tab (3.5 x 5 inches with 0.5 inch tab)

Index, 76 x 127 mm, 10 x 15 cm, and 127 x 203 mm (3 x

5 inches, 4 x 6 inches, and 5 x 8 inches)

A6, 105 x 148.5 mm (4.13 x 5.85 inches)

42 HP Photosmart 8400 series

(continued)

Category

Media types

Memory cards

Memory card-supported file formats

Paper trays

Paper tray capacity

Specifications

Envelopes

No. 9, 98.4 x 225.4 mm (3.875 x 8.875 inches)

No. 10, 105 x 240 mm (4.125 x 9.5 inches)

A2 Invitation, 110 x 146 mm (4.375 x 5.75 inches)

DL, 110 x 220 mm (4.33 x 8.66 inches)

C6, 114 x 162 mm (4.5 x 6.4 inches)

Custom

76 x 127 mm to 216 x 356 mm (3 x 5 inches to 8.5 x 14 inches)

Transparencies and label sheets

Letter, 216 x 280 mm (8.5 x 11 inches)

A4, 210 x 297 mm (8.27 x 11.7 inches)

Paper (plain, inkjet, photo, and banner)

Envelopes

Transparencies

Labels

Cards (index, greeting, Hagaki, A6, L-size)

Iron-on transfers

CompactFlash Type I and II

Microdrive

MultiMediaCard

Secure Digital

SmartMedia

Memory Sticks xD-Picture Card

Printing: See Image file formats earlier in table

Saving: All file formats

Main tray

76 x 127 mm to 216 x 356 mm (3 x 5 inches to 8.5 x 14 inches)

Photo tray

10 x 15 cm (4 x 6 inch) and Hagaki

Out tray

All supported sizes

Main tray

100 sheets of plain paper

14 envelopes

20–40 cards (depending on thickness)

20 sheets of banner paper

HP Photosmart 8400 series Reference Guide 43

Appendix c

(continued)

Category

Power consumption

Power cord model number

Print cartridges

USB support

Network support

Video file formats

Specifications

30 sheets of labels

25 transparencies, iron-on transfers, or photo paper

Photo tray

25 sheets of photo paper

Out tray

50 sheets of plain paper

20 sheets of photo paper, banner paper, or transparencies

10 cards or envelopes

25 sheets of labels or iron-on transfers

Printing: 15–45 W

Idle: 5 W

Off: 2 W

Q0950-4476

HP Gray Photo (C9368A)

HP Color Photo (C9369E)

HP Tri-color (C8766E or C9363E)

HP Black (C8767E)

Microsoft Windows 98, 2000 Professional, ME, XP

Home, and XP Professional

Mac OS X 10.1 through 10.3

HP recommends that the USB cable be less than 3 meters (10 feet) in length

Microsoft Windows 98, 2000 Professional, ME, XP

Home, and XP Professional

Mac OS X 10.1 through 10.3

An RJ-45 Ethernet cable

Motion JPEG AVI

Motion-JPEG QuickTime

MPEG-1

Environmental statements

Hewlett-Packard Company is committed to providing quality products in an environmentally sound manner.

44 HP Photosmart 8400 series

Protecting the environment

This printer has been designed with several attributes to minimize impact on our environment.

For more information, go to HP's Commitment to the Environment website at www.hp.com/hpinfo/ globalcitizenship/environment/ .

Ozone production

This product generates no appreciable ozone gas (O

3

).

Energy consumption

Energy usage drops significantly while in ENERGY STAR ® mode, which saves natural resources and saves money without affecting the high performance of this product. This product qualifies for ENERGY STAR, which is a voluntary program established to encourage the development of energy-efficient office products.

ENERGY STAR is a U.S. registered mark of the U.S. EPA. As an ENERGY

STAR partner, Hewlett-Packard Company has determined that this product meets the ENERGY STAR guidelines for energy efficiency. For more information, go to www.energystar.gov

.

Paper use

This product is suited for the use of recycled paper according to DIN 19309.

Plastics

Plastic parts over 24 grams (0.88 ounces) are marked according to international standards that enhance the ability to identify plastics for recycling purposes at the end of the printer life.

Material safety data sheets

Material Safety Data Sheets (MSDS) can be obtained from the HP website at www.hp.com/go/ msds . Customers without Internet access should contact Customer Care.

Recycling program

HP offers an increasing number of product return and recycling programs in many countries, and partners with some of the largest electronics recycling centers throughout the world.

HP conserves resources by reselling some of its most popular products.

This HP product contains lead in the solder, which may require special handling at the end of its life.

HP Photosmart 8400 series Reference Guide 45

Appendix c

46 HP Photosmart 8400 series

Regulatory notices

Hewlett-Packard Company

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

This device may not cause harmful interference, and

This device must accept any interference received, including interference that may cause undesired operation.

Pursuant to Part 15.21 of the FCC Rules, any changes or modifications to this equipment not expressly approved by Hewlett-

Packard Company may cause harmful interference, and void your authority to operate this equipment. Use of a shielded data cable is required to comply with the Class B limits of Part 15 of the FCC Rules.

For further information, contact: Hewlett-Packard Company, Manager of Corporate Product Regulations, 3000 Hanover

Street, Palo Alto, CA 94304, (650) 857-1501.

Note

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the

FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, can cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and the receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

LED indicator statement

The display LEDs meet the requirements of EN 60825-1.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
