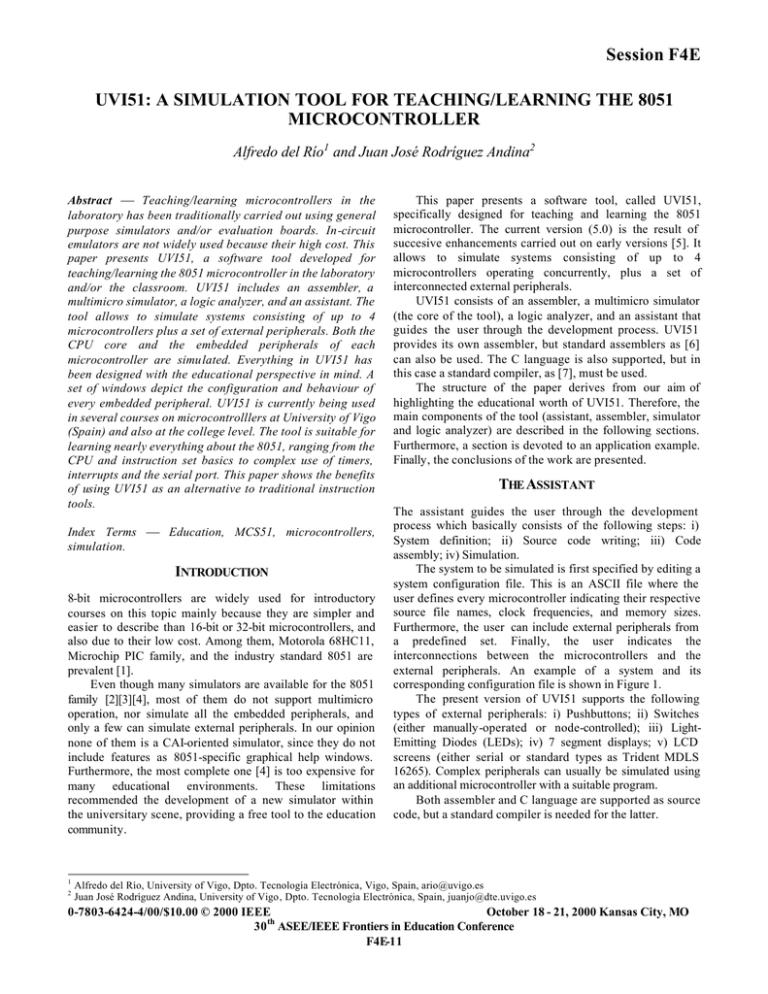

UVI51: A SIMULATION TOOL FOR TEACHING/LEARNING THE 8051
MICROCONTROLLER
Alfredo del Río1 and Juan José Rodríguez Andina2
Abstract  Teaching/learning microcontrollers in the
laboratory has been traditionally carried out using general
purpose simulators and/or evaluation boards. In-circuit
emulators are not widely used because their high cost. This
paper presents UVI51, a software tool developed for
teaching/learning the 8051 microcontroller in the laboratory
and/or the classroom. UVI51 includes an assembler, a
multimicro simulator, a logic analyzer, and an assistant. The
tool allows to simulate systems consisting of up to 4
microcontrollers plus a set of external peripherals. Both the
CPU core and the embedded peripherals of each
microcontroller are simulated. Everything in UVI51 has
been designed with the educational perspective in mind. A
set of windows depict the configuration and behaviour of
every embedded peripheral. UVI51 is currently being used
in several courses on microcontrolllers at University of Vigo
(Spain) and also at the college level. The tool is suitable for
learning nearly everything about the 8051, ranging from the
CPU and instruction set basics to complex use of timers,
interrupts and the serial port. This paper shows the benefits
of using UVI51 as an alternative to traditional instruction
tools.
Index Terms  Education, MCS51, microcontrollers,
simulation.
INTRODUCTION
8-bit microcontrollers are widely used for introductory
courses on this topic mainly because they are simpler and
easier to describe than 16-bit or 32-bit microcontrollers, and
also due to their low cost. Among them, Motorola 68HC11,
Microchip PIC family, and the industry standard 8051 are
prevalent [1].
Even though many simulators are available for the 8051
family [2][3][4], most of them do not support multimicro
operation, nor simulate all the embedded peripherals, and
only a few can simulate external peripherals. In our opinion
none of them is a CAI-oriented simulator, since they do not
include features as 8051-specific graphical help windows.
Furthermore, the most complete one [4] is too expensive for
many educational environments. These limitations
recommended the development of a new simulator within
the universitary scene, providing a free tool to the education
community.
1
2
This paper presents a software tool, called UVI51,
specifically designed for teaching and learning the 8051
microcontroller. The current version (5.0) is the result of
succesive enhancements carried out on early versions [5]. It
allows to simulate systems consisting of up to 4
microcontrollers operating concurrently, plus a set of
interconnected external peripherals.
UVI51 consists of an assembler, a multimicro simulator
(the core of the tool), a logic analyzer, and an assistant that
guides the user through the development process. UVI51
provides its own assembler, but standard assemblers as [6]
can also be used. The C language is also supported, but in
this case a standard compiler, as [7], must be used.
The structure of the paper derives from our aim of
highlighting the educational worth of UVI51. Therefore, the
main components of the tool (assistant, assembler, simulator
and logic analyzer) are described in the following sections.
Furthermore, a section is devoted to an application example.
Finally, the conclusions of the work are presented.
THE ASSISTANT
The assistant guides the user through the development
process which basically consists of the following steps: i)
System definition; ii) Source code writing; iii) Code
assembly; iv) Simulation.
The system to be simulated is first specified by editing a
system configuration file. This is an ASCII file where the
user defines every microcontroller indicating their respective
source file names, clock frequencies, and memory sizes.
Furthermore, the user can include external peripherals from
a predefined set. Finally, the user indicates the
interconnections between the microcontrollers and the
external peripherals. An example of a system and its
corresponding configuration file is shown in Figure 1.
The present version of UVI51 supports the following
types of external peripherals: i) Pushbuttons; ii) Switches
(either manually-operated or node-controlled); iii) LightEmitting Diodes (LEDs); iv) 7 segment displays; v) LCD
screens (either serial or standard types as Trident MDLS
16265). Complex peripherals can usually be simulated using
an additional microcontroller with a suitable program.
Both assembler and C language are supported as source
code, but a standard compiler is needed for the latter.
Alfredo del Río, University of Vigo, Dpto. Tecnología Electrónica, Vigo, Spain, [email protected]
Juan José Rodríguez Andina, University of Vigo, Dpto. Tecnología Electrónica, Spain, [email protected]
0-7803-6424-4/00/$10.00 © 2000 IEEE
October 18 - 21, 2000 Kansas City, MO
30 th ASEE/IEEE Frontiers in Education Conference
F4E-11
Session F4E
Micro 0
myprog
start
expressions are accepted. It does not support
macroinstructions. If some of these features are needed, a
commercial asembler compatible with Intel´s asm51 can be
used.
UVI51 assembler makes use of the same syntax as
Intel's asm51, with a few exceptions. In addition, conditional
assembly is supported. Computable expressions can be used
wherever a numeric value is allowed.
Vdd
P1.0
1
P1.1
flash
THE SIMULATOR
Umyprog.src 12 256 1024
P10=2
P11=3
Kstart 2 0 1
Lflash 1 3 2
FIGURE. 1
SYSTEM BLOCK DIAGRAM AND I TS CORRESPONDING CONFIGURATION
FILE .
THE ASSEMBLER
UVI51 includes an assembler that eliminates the need for a
third-party assembler. The assembler generates executable
code directly, in Intel-Hex format; therefore no relocatable
The simulator is the core of UVI51. Its main features are: i)
Multimicro capability; ii) Embedded and external
peripherals simulation; iii) Trace into, step over and
continuous simulation; iv) Unlimited breakpoints; v)
Additional breakpoint by value; vi) Chronograms
generation; vii) Graphic user interface; viii) Help windows
for every embedded peripheral; ix) External peripherals
window.
The simulator main window is shown in Figure 2. The
upper part, called the system window, includes a bar of
pusbuttons used to control system operation. For example,
the RESET button is used to reset all the microcontrollers in
the system. The external peripherals are also shown in this
area, each type with its own picture. Their connections are
depicted using node numbers or labels.
FIGURE. 2
SIMULATOR MAIN W INDOW .
0-7803-6424-4/00/$10.00 © 2000 IEEE
October 18 - 21, 2000 Kansas City, MO
30 th ASEE/IEEE Frontiers in Education Conference
F4E-12
Session F4E
The lower part of the main window is called the
microcontroller window. Even though the tool can simulate
up to 4 microcontrollers concurrently, only one can be
displayed at a time. A bar of buttons is used to control the
simulation of the displayed microcontroller. For example,
the RESET button is used to reset only the displayed
microcontroller and the STEP button is used to execute one
instruction of the displayed microcontroller. The other
microcontrollers in the system will execute the number of
instructions needed to keep synchronism.
All the embedded peripherals are simulated. The
microcontroller window includes a set of subwindows that
show the current state of a part of the microcontroller: the
CPU core, internal and external RAM, timers/counters, etc.
In addition, a program window is used to show the code that
is being executed.
Additional windows depicting further details of each
embedded peripheral are available. These windows can be
opened by clicking the corresponding Info buttons. The state
of the peripherals is shown using a graphical style similar to
that used in manufacturers' handbooks. This ensures a fast
recognition by the students. When in single step mode, these
windows are interactive, so that the user can change control
bits and see the effects of such changes on the peripheral
configuration. As an example, the timers/counters graphic
window is shown in Figure 3.
FIGURE. 4
SERIAL P ORT GRAPHIC W INDOW .
THE LOGIC ANALYZER
If an external peripheral of type logic analyzer has been
defined in the system configuration file, the simulator writes,
when running, the chronograms of every node in the system
to a file. Once the simulation is terminated, the user can
inspect the chronograms by invoking the logic analyzer from
the assistant.
All the nodes in the system are available for inspection.
Chronograms can also be shown in the form of buses. Time
scales and a time cursor are included to allow time
measurements. The cursor can also be used as a reference to
align chronograms. Zoom in / zoom out and find pattern
utilities are also available. Figure 5 shows the logic analyzer
window.
FIGURE. 3
T IMERS/COUNTERS GRAPHIC W INDOW .
Special attention has been paid to achieve a very
realistic simulation of the serial port operation, but only
modes 1 and 3 can be simulated in the current version of the
tool. Serial port simulation is performed at logic level in the
TxD and RxD signals, with the real timing given by the baud
rate that the timer 1 provides. In this way, a simulation of a
serial port connected to a software UART can be performed.
The 8051 serial port multiprocessor mode can also be
simulated. The serial port graphic window, shown in Figure
4, indicates the current mode, baud rate, and the transmitting
and receiving state.
FIGURE. 5
LOGIC ANALYZER W INDOW .
AN APPLICATION EXAMPLE
This section describes an intermediate level example to be
developed by the students. This example is specified in the
following terms.
0-7803-6424-4/00/$10.00 © 2000 IEEE
October 18 - 21, 2000 Kansas City, MO
30 th ASEE/IEEE Frontiers in Education Conference
F4E-13
Session F4E
“Design a system consisting of two 8051
microcontrollers interconnected via an asynchronous serial
link, intended to generate pulse bursts. The first
microcontroller, called terminal must be connected to a 12
key matrix keyboard and to a standard 2 lines by 16
characters LCD screen. When terminal starts from reset, it
has to show in the LCD screen the message “Pulses?” and to
wait for the user to introduce from the keyboard a number
between 1 and 127. Then, terminal has to show the message
“Period?” so that the user can introduce pulse duration in
tenths of miliseconds in the range 1 to 127. When both
parameters have been introduced, terminal has to send their
values to the second microcontroller, called pulse generator.
Pulse generator must generate a pulse burst in response
to each message received via the serial link. The numb er of
pulses and their duration must agree with the received
parameters. The idle level of the output pulses must be high.
The time between consecutive pulses of a same burst must
be equal to pulse duration. Moreover, pulse generator must
answer either with an acknowledge (ACK) or not
acknowledge (NAK) message to terminal before the burst
starts. The NAK message indicates a bad format or a number
out of range.
Both microcontrollers must operate at 12 MHz. The
serial link must operate at 10417 bits per second with an 8bit data format and without a parity bit. Messages are to be
sent as ascii codes.”
The block diagram in Figure 6 shows the system
hardware structure. The matrix keyboard is connected to the
terminal P1 port. The LCD screen is connected using a 4-bit
data bus and the 3 standard control signals RS, RW and E.
The terminal TxD and RxD pins are connected to the
pulse generator RxD and TxD pins. In a real application
these connections could be made through RS232C buffers,
an ASK radio link or any other suitable channel. In order to
test system response to an eventual link fail, the simulation
must provide a way to open the link between the terminal
TxD pin and the pulse generator RxD pin. This is the reason
why the BRK switch is included.
The students begin their work writing the suitable
configuration file.
The system configuration file asigns a program called
terminal.src to the first microcontroller. The second one is
assigned a program called pulsegen.src. All the external
peripherals are defined: Twelve pushbuttons (keyboard), one
LCD screen, three LEDs, and a switch. The external
peripherals are shown by the simulator as depicted in Figure
7.
The next step is to write the source code file for each
microcontroller. The best option is to start writing the code
for terminal, and debug it until the right signals are obtained
in its TxD pin. The students can verify all the signals using
the logic analyzer, as shown in Figure 8. These include
keyboard scan signals and the LCD screen interface.
Once terminal is operating properly, the students write
the source code file called pulsegen.src. This program can be
easily debugged using the keyboard conected to terminal to
send the convenient requests.
Micro 0
terminal
KEYBOARD
1
4
7
<-
2 3
5 6
8 9
0 Ent
P3.4
P3.5
P1.0
P1.1 P3.6
P1.2 P2.7
P1.3 P2.6
P1.6 P2.5
P1.5 P2.4
P1.4 P3.1
P3.0
Micro 1
pulsegen
RS
RW
E
LCD SCREEN
Vdd
P1.0
1
PULSE
DB7
Vdd
DB6
DB5
BRK
DB4
TX0
RX1 P3.0
RX0
P3.1
Vdd
1
TX0
Vdd
1
RX1
FIGURE. 6
BLOCK DIAGRAM FOR THE P ROPOSED EXAMPLE .
0-7803-6424-4/00/$10.00 © 2000 IEEE
October 18 - 21, 2000 Kansas City, MO
30 th ASEE/IEEE Frontiers in Education Conference
F4E-14
Session F4E
FIGURE. 7
SIMULATOR P ERIPHERALS W INDOW FOR THE P ROPOSED EXAMPLE .
Finally, the switch placed between terminal’s TxD and
pulse generator’s RxD can be left open before a request is
sent by terminal. Since pulse generator does not receive any
request, it does not generate any pulse and does not answer
to terminal. Terminal must detect this situation as a time-out
and show a suitable message in the LCD screen.
Once the whole system is operative, students can
introduce new specifications or refinements in order to learn
more about keyborad scanning, LCD screen control, serial
links, use of timers, serial ports, interrupts, etc.
CONCLUSION
A software tool for teaching/learning the 8051
microcontroller, called UVI51, has been presented. It can be
used in the classroom when describing the microcontroller
architecture, the instruction set or the embedded peripherals
operation, and also in the laboratory to write and test
application programs. A copy of UVI51 can be delivered to
the students, so they can make some home-work before they
enter the laboratory.
UVI51 is being used in introductory courses on
microcontrollers. Students instruction is complemented with
the use of a low-cost in-circuit emulator, based on the
downloadable flash versions of the 8051 family [8]. The user
can request the download process from the UVI51 assistant.
The results of the application of our approach to education
have been excellent both in terms of student motivation and
scores.
FIGURE. 8
LOGIC ANALYZER CHRONOGRAMS.
0-7803-6424-4/00/$10.00 © 2000 IEEE
October 18 - 21, 2000 Kansas City, MO
30 th ASEE/IEEE Frontiers in Education Conference
F4E-15
Session F4E
The simulator operates at instruction level, but our work
is being oriented to develope a new version operating at
machine-cycle or clock-cycle level. This will aid in two
aditional improvements, at the expense of decreasing
performance: i) Timer 2 and new serial port modes
simulation for the 8052 microcontroller; ii) External bus
detailed simulation. Other possible improvements include
undo and save/load state capabilities.
The current version of UVI51 runs under MSDOS and
is available, free, in the web site http://www.dte.uvigo.es. In
the near future, versions running under Microsoft Windows
and LINUX will be developed.
[2]
Avocet Systems, AVS High-Level Simulator/Debugger,
http://www.avocetsystems.com/.
[3]
Keil Software, dScope Simulator/Debugger, http://www.keil.com/.
[4]
Virtual Micro Design, Universal Microprocessor Program Simulator
(UMPS), http://www.vmdesign.com/.
[5]
Rodriguez Andina, J.J., del Río, A., "Aplicación de un simulador al
desarrollo de prácticas con microcontroladores," Proc. of the 2nd
Conference on Tecnologías Aplicadas a la Enseñanza de la
Electrónica, Vol. III, Sept. 1996, pp. 42-46 (in Spanish).
[6]
Intel Corp., MCS-51 Macro Assembler Manual (V2.2). 1986.
[7]
IAR Systems, Micro Series 8051 C-Compiler Manual (V4.10A/DOS).
1991.
REFERENCES
[8]
Atmel Corporation, 8051 Flash Microcontroller Data Book, Dec.
1997. http://www.atmel.com/atmel/products/prod20.htm.
[1]
Nunnally, C.E. , "Teaching Microcontrollers," Proc. of the 26th
Frontiers in Education Annual Conference, Vol 1, Nov. 1996, pp.
434-436.
0-7803-6424-4/00/$10.00 © 2000 IEEE
October 18 - 21, 2000 Kansas City, MO
30 th ASEE/IEEE Frontiers in Education Conference
F4E-16
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
