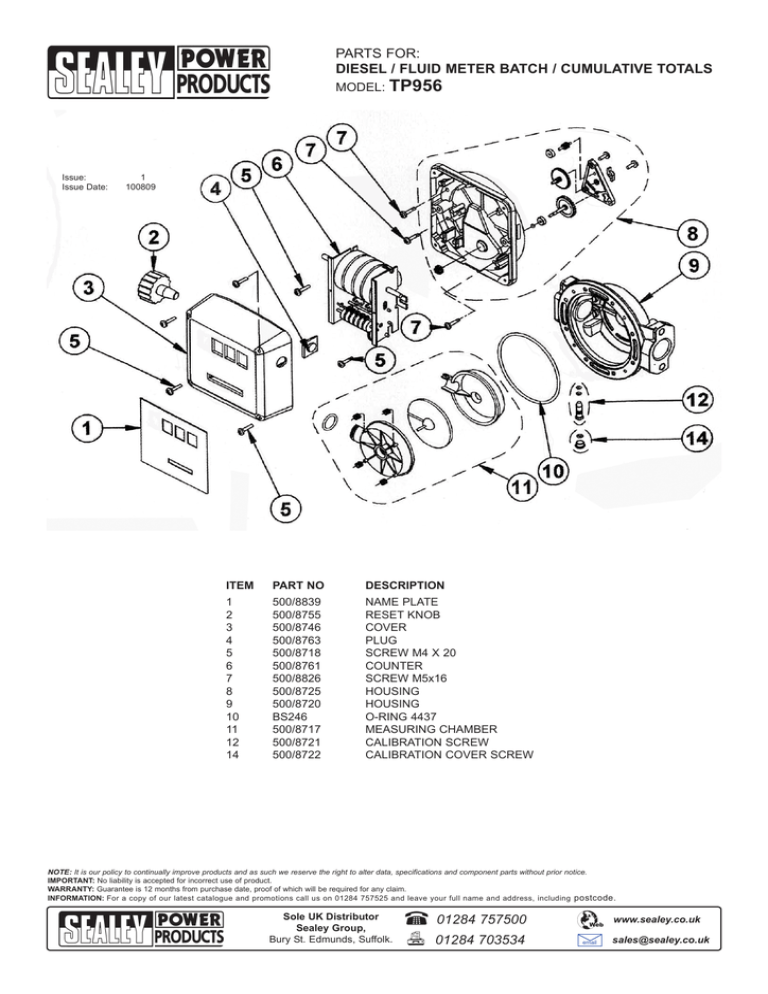

TP956 PARTS FOR: DIESEL / FLUID METER BATCH / CUMULATIVE TOTALS MODEL:

TP956 PARTS FOR: DIESEL / FLUID METER BATCH / CUMULATIVE TOTALS MODEL:
PARTS FOR:
DIESEL / FLUID METER BATCH / CUMULATIVE TOTALS
MODEL:
Issue:
Issue Date:
TP956
1
100809
ITEM
PART NO
DESCRIPTION
1
2
3
4
5
6
7
8
9
10
11
12
14
500/8839
500/8755
500/8746
500/8763
500/8718
500/8761
500/8826
500/8725
500/8720
BS246
500/8717
500/8721
500/8722
NAME PLATE
RESET KNOB
COVER
PLUG
SCREW M4 X 20
COUNTER
SCREW M5x16
HOUSING
HOUSING
O-RING 4437
MEASURING CHAMBER
CALIBRATION SCREW
CALIBRATION COVER SCREW
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
IMPORTANT: No liability is accepted for incorrect use of product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.
INFORMATION: For a copy of our latest catalogue and promotions call us on 01284 757525 and leave your full name and address, including postcode.
Sole UK Distributor
Sealey Group,
Bury St. Edmunds, Suffolk.
01284 757500
01284 703534
Web
email
www.sealey.co.uk
[email protected]
