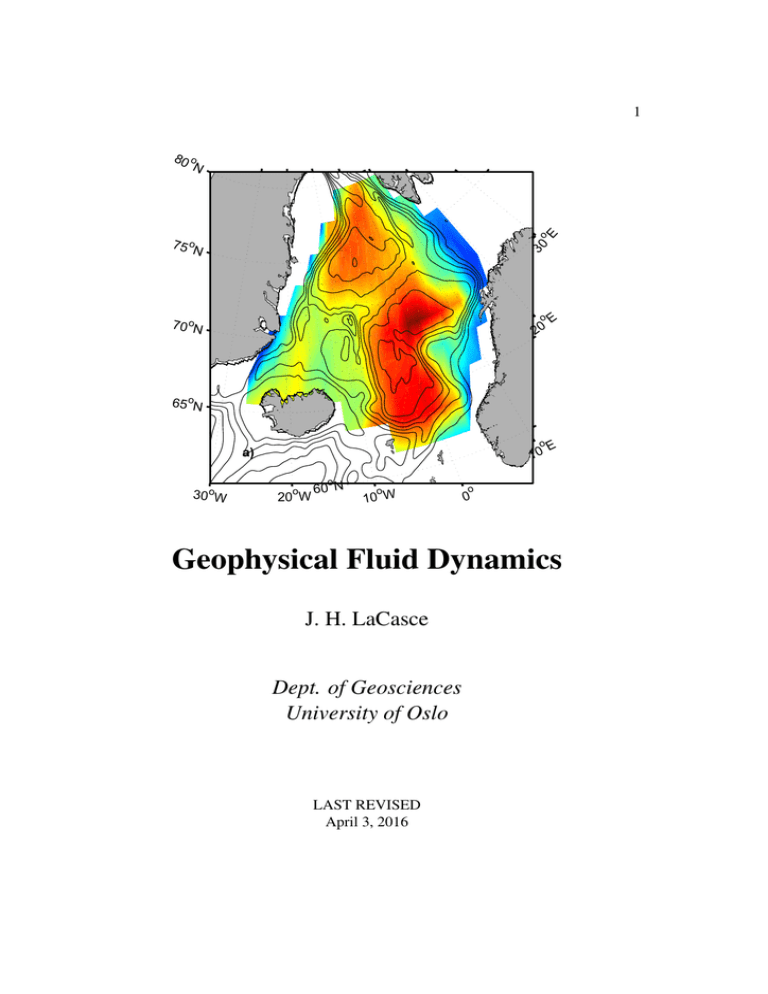

Geophysical Fluid Dynamics J. H. LaCasce Dept. of Geosciences University of Oslo

Geophysical Fluid Dynamics J. H. LaCasce Dept. of Geosciences University of Oslo
1
75 oN
30
o
E
80 o
N
70 oN
20
o
E
o
E
65 oN
a)
30 oW
10
o
20 W
o
60 N
o
10 W
o
0
Geophysical Fluid Dynamics
J. H. LaCasce
Dept. of Geosciences
University of Oslo
LAST REVISED
April 3, 2016
2
Contents
1
2
3
Equations
1.1 Derivatives . . . . . . . .
1.2 Continuity equation . . . .
1.3 Momentum equations . . .
1.4 Equations of state . . . . .
1.5 Thermodynamic equations
1.6 Exercises . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
9
9
11
13
21
22
30
Basic balances
2.1 Hydrostatic balance . . . . . . . . . . .
2.2 Horizontal momentum balances . . . .
2.2.1 Geostrophic flow . . . . . . . .
2.2.2 Cyclostrophic flow . . . . . . .
2.2.3 Inertial flow . . . . . . . . . . .
2.2.4 Gradient wind . . . . . . . . . .
2.3 The f-plane and β-plane approximations
2.4 Incompressibility . . . . . . . . . . . .
2.4.1 The Boussinesq approximation .
2.4.2 Pressure coordinates . . . . . .
2.5 Thermal wind . . . . . . . . . . . . . .
2.6 Boundary layers . . . . . . . . . . . . .
2.6.1 Surface Ekman layer . . . . . .
2.6.2 Bottom Ekman layer . . . . . .
2.7 Summary of synoptic scale balances . .
2.8 Exercises . . . . . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
33
33
37
39
42
43
45
47
49
49
50
53
58
59
61
67
68
Shallow water flows
3.1 Fundamentals . . . . . . . . . .
3.1.1 Assumptions . . . . . .
3.1.2 Shallow water equations
3.2 Material conserved quantities . .
3.2.1 Volume . . . . . . . . .
3.2.2 Vorticity . . . . . . . . .
3.2.3 Potential vorticity . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
71
71
71
74
77
77
78
79
.
.
.
.
.
.
.
3
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
CONTENTS
4
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
. 80
. 81
. 82
. 82
. 83
. 85
. 89
. 93
. 96
. 99
. 100
. 101
. 103
Synoptic scale barotropic flows
4.1 The Quasi-geostrophic equations . . . . . .
4.1.1 The QGPV equation with forcing .
4.1.2 The rigid lid assumption . . . . . .
4.2 Geostrophic contours . . . . . . . . . . . .
4.3 Linear wave equation . . . . . . . . . . . .
4.4 Barotropic Rossby waves . . . . . . . . . .
4.4.1 Wave solution . . . . . . . . . . . .
4.4.2 Westward propagation: mechanism
4.4.3 Observations of Rossby waves . . .
4.4.4 Group Velocity . . . . . . . . . . .
4.4.5 Rossby wave reflection . . . . . . .
4.5 Spin down . . . . . . . . . . . . . . . . . .
4.6 Mountain waves . . . . . . . . . . . . . . .
4.7 The Gulf Stream . . . . . . . . . . . . . .
4.8 Closed ocean basins . . . . . . . . . . . . .
4.9 Barotropic instability . . . . . . . . . . . .
4.9.1 Rayleigh-Kuo criterion . . . . . . .
4.9.2 Examples . . . . . . . . . . . . . .
4.10 Exercises . . . . . . . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
107
107
113
115
116
120
122
122
125
126
128
132
136
137
144
153
159
162
166
171
.
.
.
.
.
.
.
.
177
177
178
180
182
183
184
189
191
3.3
3.4
3.5
3.6
3.7
3.8
3.9
4
5
3.2.4 Kelvin’s theorem . . . .
Integral conserved quantities . .
3.3.1 Mass . . . . . . . . . .
3.3.2 Circulation . . . . . . .
3.3.3 Energy . . . . . . . . .
Linear wave equation . . . . . .
Gravity waves . . . . . . . . . .
Gravity waves with rotation . . .
Geostrophic adjustment . . . . .
Kelvin waves . . . . . . . . . .
3.8.1 Boundary-trapped waves
3.8.2 Equatorial waves . . . .
Exercises . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
Synoptic scale baroclinic flows
5.1 Vorticity equation . . . . . . . . . . . . . . . . . . . . .
5.2 Density Equation . . . . . . . . . . . . . . . . . . . . .
5.3 QG Potential vorticity . . . . . . . . . . . . . . . . . . .
5.4 Boundary conditions . . . . . . . . . . . . . . . . . . .
5.5 Baroclinic Rossby waves . . . . . . . . . . . . . . . . .
5.5.1 Baroclinic modes with constant stratification . .
5.5.2 Baroclinic modes with exponential stratification .
5.5.3 Baroclinic modes with actual stratification . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
CONTENTS
5
5.5.4 Observations of Baroclinic Rossby waves
Mountain waves . . . . . . . . . . . . . . . . . .
Topographic waves . . . . . . . . . . . . . . . .
Baroclinic instability . . . . . . . . . . . . . . .
5.8.1 Basic mechanism . . . . . . . . . . . . .
5.8.2 Charney-Stern criterion . . . . . . . . . .
5.9 The Eady model . . . . . . . . . . . . . . . . . .
5.10 Exercises . . . . . . . . . . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
192
195
200
203
203
204
210
224
Appendices
6.1 Appendix A: Fourier wave modes . . . . .
6.2 Appendix B: Kelvin’s theorem . . . . . . .
6.3 Appendix C: Rossby wave energetics . . . .
6.4 Appendix D: Fjørtoft’s criterion . . . . . .
6.5 Appendix E: QGPV in pressure coordinates
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
231
231
234
237
239
240
5.6
5.7
5.8
6
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
6
CONTENTS
Preface
The dynamics of the atmosphere and ocean are largely nonlinear. Nonlinearity is the reason these systems are chaotic and hence unpredictable.
However much of what we understand about the systems comes from the
study of the linear equations of motion. These are mathematically tractable
(unlike, for the most part, their nonlinear counterparts), meaning we can
derive solutions. These solutions include gravity waves, Rossby waves
and storm formation—all of which are observed. So the linear dynamics
informs our understanding of the actual systems.
These notes are intended as a one to two semester introduction to the dynamics of the atmosphere and ocean. The target audience is the advanced
undergraduate or beginning graduate student. The philosophy is to obtain
simplified equations and then use those to study specific atmospheric or
oceanic flows. Some of the latter examples come from research done 50
years ago, but others are from much more recent work.
Thanks to the people in Oslo who over the years have suggested changes
and improvements. Particular thanks to Jan Erik Weber, Pal Erik Isachsen, Lise Seland Graff, Anita Ager-Wick, Magnus Drivdal, Hanne Beatte
Skattor, Sigmund Guttu, Rafael Escobar Lovdahl, Liv Denstad, Ada Gjermundsen and (others).
7
8
CONTENTS
Chapter 1
Equations
The motion in the atmosphere and ocean is governed by a set of equations,
the Navier-Stokes equations. These are used to produce our forecasts, both
for the weather and ocean currents. While there are details about these
equations which are uncertain (for example, how we represent processes
smaller than the grid size of our models), they are for the most part accepted as fact. Let’s consider how these equations come about.
1.1
Derivatives
A fundamental aspect is how various fields (temperature, wind, density)
change in time and space. Thus we must first specify how to take derivatives.
Consider a scalar, ψ, which varies in both time and space, i.e. ψ =
ψ(x, y, z, t). This could be the wind speed in the east-west direction, or
the ocean density. By the chain rule, the total change in the ψ is:
dψ =
∂
∂
∂
∂
ψ dt +
ψ dx + ψ dy + ψ dz
∂t
∂x
∂y
∂z
so:
9
(1.1)
CHAPTER 1. EQUATIONS
10
∂
∂
∂
∂
dψ
= ψ+u ψ+v ψ+w ψ
dt
∂t
∂x
∂y
∂z
(1.2)
or, in short form:
∂
dψ
= ψ + ~u · ∇ψ
dt
∂t
(1.3)
Here (u, v, w) are the components of the velocity in the (x, y, z) directions.
On the left side, the derivative is a total derivative. That implies that ψ on
the left side is only a function of time. This is the case when ψ is observed following the flow. If you measure temperature while riding in a
balloon, moving with the winds, you would only record changes in time.
We call this the Lagrangian formulation. The derivatives on the right side
instead are partial derivatives. These are relevant for an observer at a fixed
location. This person records temperature as a function of time, but her information also depends on her position. An observer at a different location
will generally obtain a different result (depending on how far away she is).
We call the right side the Eulerian formulation.
Most numerical models are based on the Eulerian formulation, albeit
with some using Lagrangian or semi-Lagrangian representations of advection. But derivations are often simpler in the Lagrangian form. In particular, we will consider changes occuring to a fluid parcel moving with
the flow. The parcel is an infinitesimal element. However, it nevertheless
contains a large and fixed number of molecules. So it is small in the fluid
sense, but large in molecular terms. This permits us to think of the fluid as
a continuum, rather than as a set of discrete molecules, as in a gas.
1.2. CONTINUITY EQUATION
11
δy
δz
[ ρu + δ ρu ] δyδz
δx
ρu δyδz
x
δx
δx
x + δx
Figure 1.1: A infinitesimal element of fluid, with volume δV .
1.2
Continuity equation
Because the fluid parcel has a fixed number of molecules, its mass is conserved following the motion. So:
d
d
M = ρ δV = 0
dt
dt
(1.4)
if M is the mass, ρ is the parcel’s density and δV is its volume. If the
parcel has sides δx, δy and δz, then we can write:
d
d
d
d
d
M = δxδyδz ρ + ρδyδz δx + ρδxδz δy + ρδxδy δz
dt
dt
dt
dt
dt
(1.5)
using the chain rule. Dividing through by M , we get:
1 d
d
ρ d
ρ d
ρ d
M = ρ+
δx +
δy +
δz = 0
M dt
dt
δx dt
δy dt
δz dt
The time derivatives can move through the δ terms so for example:
d
d
δx = δ x = δu
dt
dt
Thus the relative change in mass is:
(1.6)
CHAPTER 1. EQUATIONS
12
d
δu
δv
δw
1 d
M = ρ+ρ +ρ +ρ
=0
M dt
dt
δx
δy
δz
In the limit that δ → 0, this is:
1 d
d
∂u
∂v
∂w
M = ρ+ρ
+ρ +ρ
=0
M dt
dt
∂x
∂y
∂z
(1.7)
(1.8)
So we have:
dρ
+ ρ(∇ · ~u) = 0
dt
(1.9)
which is continuity equation in its Lagrangian form. This states the density
of a parcel advected by the flow will change if the flow is divergent, i.e. if:
∇ · ~u 6= 0
(1.10)
The divergence determines whether the box shrinks or grows. If the box
expands, the density must decrease to preserve the box’s mass.
The continuity equation can also be written in its Eulerian form, using
the definition of the Lagrangian derivative:
∂ρ
∂ρ
+ ~u · ∇ρ + ρ(∇ · ~u) =
+ ∇ · (ρ~u) = 0
∂t
∂t
(1.11)
This pertains to a fixed volume, whose sides aren’t changing. This
version implies that the density will change if there is a net density flux
through the sides of the volume.
1.3. MOMENTUM EQUATIONS
1.3
13
Momentum equations
The continuity equation pertains to mass. Now consider the fluid velocities. We can derive expressions for these using Newton’s second law:
F~ = m~a
(1.12)
The forces acting on our fluid parcel are:
• pressure gradients: ρ1 ∇p
• gravity: ~g
• friction: F~
Consider the pressure first. The force acting on the left side of the box
is:
Fl = pA = p(x) δy deltaz
while the force on the right side is:
Fr = p(x + δx) δy deltaz
Thus the net force acting in the x-direction is:
Fl − Fr = [p(x) − p(x + δx)] δy deltaz
Since the parcel is small, we can expand the pressure on the right side in a
Taylor series:
p(x + δx) = p(x) +
∂p
δx + ...
∂x
CHAPTER 1. EQUATIONS
14
The higher order terms are small and we neglect them. Thus the net force
is:
Fl − Fr = −
∂p
δx δy deltaz
∂x
So Newton’s law states:
m
du
∂p
du
= ρ(δx δy deltaz)
= − δx δy deltaz
dt
dt
∂x
(1.13)
Cancelling the volumes on both sides, we get:
ρ
∂p
du
=−
dt
∂x
(1.14)
Pressure gradients in the other directions have the same effect, so we can
write:
ρ
d~u
= −∇p
dt
(1.15)
Thus a pressure gradient produces an acceleration down the gradient (from
high to low pressure). We’ll examine this more closely later.
The gravitational force acts in the vertical direction:
m
dw
= −mg
dt
(1.16)
dw
= −g
dt
(1.17)
or just:
We can add this to the vector momentum equation (after dividing that
through by the density):
1.3. MOMENTUM EQUATIONS
d~u
1
= − ∇p − g k̂
dt
ρ
15
(1.18)
Lastly there is the friction. At small scales, friction is due to molecular
collisions, by which kinetic energy is converted to heat. At larger scales
though, the friction is usually represented as due to the action of eddies
which are unresolved in the flow. In much of what follows we neglect
friction. Where it is important is in the vertical boundary layers, at the
bottom of the atmosphere and ocean and at the surface of the ocean. We
consider this further in section (2.6). We won’t specify the friction yet, but
just represent it as a vector, F~ . Thus we have:
1
1
d
~u = − ∇p − g k̂ + F~
dt
ρ
ρ
(1.19)
This is the momentum equation in Lagrangian form. Under the influence
of the forcing terms the fluid parcel will accelerate.
This equation pertains to motion in a non-rotating (fixed) frame. There
are additional acceleration terms which come about due to the earth’s rotation. As opposed to the real forces shown in (1.19), rotation introduces
apparent forces. A stationary parcel on the earth will rotate with the planet.
From the perspective of an observer in space, the parcel is traveling in circles, completing a circuit once a day. Since circular motion represents an
acceleration (the velocity is changing direction), there must be a corresponding force.
Consider such a stationary parcel, on a rotating sphere, represented by
~ (Fig. 1.2). During the time, δt, the vector rotates through an
a vector, A
angle:
CHAPTER 1. EQUATIONS
16
Ω
δΘ
Α
δΑ
γ
γ
Figure 1.2: The effect of rotation on a vector, A, which is otherwise stationary. The vector
rotates through an angle, δΘ, in a time δt.
δΘ = Ωδt
(1.20)
where:
Ω=
2π
sec−1
86400
is the Earth’s rotation rate (one day is 86,400 sec). The change in A is δA,
the arc-length:
~ = |A|sin(γ)δΘ
~
~
~ × A)
~ δt
δA
= Ω|A|sin(γ)δt
= (Ω
(1.21)
So we can write:
limδ→0
~
~
dA
δA
~ ×A
~
=
=Ω
δt
dt
(1.22)
~ is not stationary but changing in the rotating frame, one can show
If A
that:
(
~
~
dA
dA
~ ×A
~
)F = ( )R + Ω
dt
dt
(1.23)
1.3. MOMENTUM EQUATIONS
17
The F here refers to the fixed frame (space) and R to the rotating one
~ = ~r, the position vector, then:
(earth). If A
d~r
~ × ~r
)F ≡ ~uF = ~uR + Ω
(1.24)
dt
So the velocity in the fixed frame is just that in the rotating frame plus the
(
velocity associated with the rotation.
~ is velocity in the fixed frame, ~uF . Then:
Now consider that A
d~uF
d~uF
~ × ~uF
)F = (
)R + Ω
dt
dt
Substituting in the previous expression for uF , we get:
(
d
d~uF
~ × ~r])R + Ω
~ × [~uR + Ω
~ × ~r]
)F = ( [~uR + Ω
dt
dt
Collecting terms:
(
(1.25)
(1.26)
d~uF
d~uR
~ × ~uR + Ω
~ ×Ω
~ × ~r
)F = (
) R + 2Ω
(1.27)
dt
dt
We’ve picked up two additional terms: the Coriolis and centrifugal ac(
celerations. These are the apparent forces which stem from the Earth’s
~ = 0. Note that the centrifugal acceleration derotation. Both vanish if Ω
pends only on the position of the fluid parcel; the Coriolis term on the other
hand depends on its velocity.
Plugging this expression into the momentum equation, we obtain:
(
d~uR
d~uF
~ × ~uR + Ω
~ ×Ω
~ × ~r = − 1 ∇p + ~g + 1 F~ (1.28)
)F = (
) R + 2Ω
dt
dt
ρ
ρ
This is the momentum equation for motion in a rotating frame.1
1
In a frame with a constant rotation rate, to be specific. Allowing for variations in the rotation rate
introduces an additional term.
CHAPTER 1. EQUATIONS
18
Let’s examine the centrifugal acceleration further. This acts perpendicular to the axis of rotation (Fig. 1.3). As such it projects onto both the radial and the N-S directions. So a parcel in the Northern Hemisphere would
accelerate upward and southward. However these accelerations are balanced by gravity, which acts to pull the parcel toward the center and northward. The latter (which is not intuitive!) occurs because rotation changes
the shape of the earth itself, making it ellipsoidal rather than spherical. The
change in shape results in an exact cancellation of the N-S component of
the centrifugal force.
Ω
R
2
ΩR
g*
g
Figure 1.3: The centrifugal force and the deformed earth. Here is g is the gravitational
vector for a spherical earth, and g ∗ is that for the actual earth. The latter is an oblate
spheroid.
The radial acceleration too is overcome by gravity. If this weren’t true,
the atmosphere would fly off the earth. So the centrifugal force effectively
modifies gravity, reducing it over what it would be if the earth were stationary. So the centrifugal acceleration causes no change in the velocity of
a fluid parcel. As such, we can absorb it into gravity:
1.3. MOMENTUM EQUATIONS
19
~ ×Ω
~ × ~r
g′ = g − Ω
(1.29)
This correction is rather small (see the exercises) so we can ignore it. We
will drop the prime on g hereafter.
Thus the momentum equation can be written:
(
d~uR
~ × ~uR = − 1 ∇p + ~g + 1 F~
) R + 2Ω
dt
ρ
ρ
(1.30)
There is only one rotational term then, the Coriolis acceleration.
Hereafter we will focus on the dynamics in a region of the ocean or
atmosphere. The proper coordinates for geophysical motion are spherical coordinates, but Cartesian coordinates simplify things greatly. So we
imagine a fluid region in a plane, with the vertical coordinate parallel to
the earth’s radial coordinate and the (x, y) coordinates oriented east-west
and north-south, respectively (Fig. 1.4). For now, we assume the plane is
centered at a middle latitude, θ, for example 45 N.
Ω
Ωsinθ
Ωcosθ
θ
Figure 1.4: We examine the dynamics of a rectangular region of ocean or atmosphere
centered at latitude θ.
CHAPTER 1. EQUATIONS
20
There are three spatial directions and each has a corresponding momentum equation. We define the local coordinates (x, y, z) such that:
dx = Re cos(θ) dφ,
dy = Re dθ,
dz = dr
where φ is the longitude, Re is the earth’s radius and r is the radial coordinate; x is the east-west coordinate, y the north-south coordinate and z the
vertical coordinate. We define the corresponding velocities:
u≡
dx
,
dt
v≡
dy
,
dt
w≡
dz
dt
The momentum equations determine the accelerations in (x,y,z).
~ projects onto both the y and z directions (Fig.
The rotation vector Ω
1.4). Thus the Coriolis acceleration is:
~ × ~u = (0, 2Ωcosθ, 2Ωsinθ) × (u, v, w) =
2Ω
2Ω(w cosθ − v sinθ, u sinθ, −u cosθ)
(1.31)
So the Coriolis acceleration acts in all three directions.
An important point is that because the Coriolis forces acts perpendicular
to the motion, it does no work—it doesn’t change the speed of a fluid
parcel, just its direction of motion. Despite this, the Coriolis force is one
of the dominant terms at synoptic (weather) scales.
Collecting terms, we have:
1.4. EQUATIONS OF STATE
21
1 ∂p 1
du
+ 2Ωw cosθ − 2Ωv sinθ = −
+ Fx
dt
ρ ∂x ρ
dv
1 ∂p 1
+ 2Ωu sinθ = −
+ Fy
dt
ρ ∂y ρ
dw
1 ∂p
1
− 2Ωu cosθ = −
− g + Fz
dt
ρ ∂z
ρ
(1.32)
(1.33)
(1.34)
These are the momentum equations in their Lagrangian form.2
1.4
Equations of state
With the continuity and momentum equations, we have four equations. But
there are 6 unknowns— the pressure, the three components of the velocity,
the density and the temperature. In fact there are additional variables as
well: the humidity in the atmosphere and the salinity in the ocean. But
even neglecting those, we will require two additional equations to close
the system.
One of these is an “equation of state” which relates the density to the
temperature and, for the ocean, the salinity. In the atmosphere, the density
and temperature are linked via the Ideal Gas Law:
p = ρRT
(1.35)
where R = 287 Jkg −1 K −1 is the gas constant for dry air. The density and
temperature of the gas thus determine its pressure. The Ideal Gas law is
2
If we had used spherical coordinates instead, we would have several additional curvature terms. We’ll
see an example in sec. (2.2), when we examine the momentum equation in cylindrical coordinates.
CHAPTER 1. EQUATIONS
22
applicable for a dry gas (one with zero humidity), but a similar equation
applies in the presence of moisture if one replaces the temperature with the
“virtual temperature”.3 For our purposes, it will suffice to consider a dry
gas.
In the ocean, both salinity and temperature affect the density. The dependence is expressed:
ρ = ρ(T, S) = ρc (1 − αT (T − Tref ) + αS (S − Sref )) + h.o.t. (1.36)
where ρc is a constant, T and S are the temperature and salinity (and
Tref and Sref are reference values) and where h.o.t. means “higher order terms”. Increasing the temperature or decreasing the salinity reduces
the water density. An important point is that the temperature and salinity
corrections are much less than one, so that the density is dominated by the
first term, ρc , a constant. We will exploit this later on.
1.5
Thermodynamic equations
We require one additional equation. This is the thermodynamic energy
equation, which expresses how the fluid responds to heating. The equation
derives from the First Law of Thermodynamics, which states that the heat
added to a volume minus the work done by the volume equals the change
in its internal energy.
Consider the volume shown in Fig. (1.5). Gas is enclosed in a chamber
to the left of a sliding piston. Heat is applied to the gas and it can then
3
See, e.g. Holton, An Introduction to Dynamic Meteorology.
1.5. THERMODYNAMIC EQUATIONS
23
expand, pushing the piston.
q
F
The heat added equals the change in the internal energy and of the gas
plus the work done on the piston.
dq = de + dw
(1.37)
The work is the product of the force and the distance moved by the piston.
For a small displacement, dx, this is:
dw = F dx = p A dx = p dV
(1.38)
If the volume increases, i.e. if dV > 0, the gas is doing the work; if the
volume decreases, the gas is compressed and is being worked upon.
Let’s assume the volume has a unit mass, so that:
ρV = 1
(1.39)
1
dV = d( )
ρ
(1.40)
Then:
CHAPTER 1. EQUATIONS
24
So we have:
1
dq = de + p d( )
ρ
(1.41)
Now if we add heat to the volume, the gas’ temperature will rise. If
the volume is kept constant, the temperature increase is proportional to the
heat added:
dqv = cv dT
(1.42)
where cv is the specific heat at constant volume. One can determine cv in
the lab, by heating a gas in a fixed volume and measuring the temperature
change. With a constant volume, the change in the gas’ energy equals the
heat added to it, so:
dqv = dev = cv dT
(1.43)
What if the volume isn’t constant? In fact, the internal energy still only
depends on temperature (for an ideal gas). This is Joule’s Law. So even if
V changes, we have:
de = cv dT
(1.44)
1
dq = cv dT + p d ( )
ρ
(1.45)
Thus we can write:
If we divide through by dt, we obtain the theromdynamic energy equation:
dq
d 1
dT
= cv
+p ( )
dt
dt
dt ρ
(1.46)
1.5. THERMODYNAMIC EQUATIONS
25
Thus the rate of change of the temperature and density depend on the rate
at which the gas is heated.
We can derive another version of the equation. Imagine instead we keep
the pressure of the gas constant. That is, we allow the piston to move but
in such a way that the force on the piston remains the same. If we add heat,
the temperature will increase, but it will do so at a different rate than if the
volume is held constant. So we write:
dqp = cp dT
(1.47)
where cp is the specific heat at constant pressure. We expect that cp is
greater than cv because it requires more heat to raise the gas’ temperature
if the gas is also doing work on the piston.
Now, we can rewrite the work term thus:
1
p
1
p d( ) = d( ) − dp
ρ
ρ
ρ
(1.48)
p
1
dq = cv dT + d( ) − dp
ρ
ρ
(1.49)
So:
We can rewrite the second term on the RHS using the the ideal gas law:
p
d( ) = R dT
ρ
(1.50)
1
dq = (cv + R) dT − dp
ρ
(1.51)
Substituting this in, we have:
Now if the pressure is held constant, we have:
CHAPTER 1. EQUATIONS
26
dqp = (cv + R) dT
(1.52)
So:
cp = cv + R
So the specific heat at constant pressure is indeed larger than that at constant volume. For dry air, measurements yield:
cv = 717Jkg −1 K −1 ,
cp = 1004Jkg −1 K −1
(1.53)
So:
R = 287 Jkg −1 K −1
(1.54)
as noted in sec. (1.4).
Thus we can also write:
1
(1.55)
dq = cp dT − dp
ρ
Dividing by dt, we obtain the second version of the thermodynamic energy
equation. So the two versions of the equation are:
d 1
dq
dT
+p ( ) =
dt
dt ρ
dt
dT
1 dp
dq
cp
−( )
=
dt
ρ dt
dt
cv
Either one can be used, depending on the situation.
(1.56)
(1.57)
1.5. THERMODYNAMIC EQUATIONS
27
However, it will be convenient to use a third version of the equation.
This pertains to the potential temperature. As one moves upward in atmosphere, both the temperature and pressure change. So if you are ascending
in a balloon and taking measurements, you have to keep track of both the
pressure and temperature. Put another way, it is not enough to label an air
parcel by its temperature. A parcel with a temperature of 1C could be at
the ground (at high latitudes) or at a great height (at low latitudes).
The potential temperature conveniently accounts for the change with
temperature due to pressure. One can label a parcel by its potential temperature and that will suffice. Imagine we have a parcel of air at some
height. We then move that parcel back to the surface without heating it
and measure the temperature. This is its potential temperature.
From above, we have that:
cp dT −
1
dp = dq
ρ
(1.58)
If there is zero heating, dq = 0, we have:
cp dT −
1
RT
dp = cp dT −
dp = 0
ρ
p
(1.59)
again using the ideal gas law. We can rewrite this thus:
cp dlnT − R dlnp = 0
(1.60)
cp lnT − R lnp = const.
(1.61)
So:
This implies:
CHAPTER 1. EQUATIONS
28
cp lnT − R lnp = cp lnθ − R lnps
(1.62)
where θ and ps are the temperature and pressure at a chosen reference level,
which we take to be the surface. So:
θ=T(
ps R/cp
)
p
(1.63)
This defines the potential temperature. It is linearly proportional to the
actual temperature, but also depends on the pressure. The potential temperature increases with altitude, because the pressure decreases going up.
In the ocean, the potential temperature increases from the bottom, because
the pressure likewise decreases moving towards the sea surface.
An important point is that if there is no heating, an air parcel conserves
its potential temperature. So without heating, the potential temperature is
like a label for the parcel. In a similar vein, surfaces of constant potential
temperature (also known as an isentropic surface or an adiabat) are of
special interest. A parcel on an adiabat must remain there if there is no
heating.
The advantage is that we can write the thermodynamic energy equation
in terms of only one variable. Including heating, this is:
cp
1 dq
d(lnθ)
=
dt
T dt
(1.64)
1.5. THERMODYNAMIC EQUATIONS
29
Figure 1.5: The potential temperature and temperature in the lower atmosphere. Courtesy
of NASA/GSFC.
This is simpler than equations (1.56-1.57) because it doesn’t involve the
pressure.
The potential temperature and temperature in the atmosphere are plotted
in Fig. (1.5). The temperature decreases almost linearly with height near
the earth’s surface, in the troposphere. At about 8 km, the temperature
begins to rise again, in the stratosphere. In contrast, the potential temperature rises monotonically with height. This makes it a better variable for
studying atmospheric motion.
The corresponding thermodynamic relation in the ocean is:
d
σθ = J
dt
(1.65)
where σθ is the potential density and J is the applied forcing. In analogy to
CHAPTER 1. EQUATIONS
30
the potential temperature, the potential density is the density of a fluid parcel if raised adiabatically to a reference pressure (usually 100 kPa). As will
be seen, the pressure increases with depth in the ocean, and this increases
the density on a parcel. The potential density corrects for this. Furthermore, the forcing term, J, includes changes to either the temperature or
the salinity. So J can also represent fresh water input, for example from
melting ice.
A typical profile of potential density is shown in Fig. (1.6). The temperature (left panel) is warmest near the surface (although in this example,
not very warm!). It decreases with depth until about 5000 m, but then
increases again below that. The latter is due to the increase in pressure.
The potential temperature on the other hand decreases monotonically with
depth. The potential density, σθ (right panel), increases monotonically with
depth.
For our purposes, it will suffice to assume that the density itself is conserved in the absence of thermodynamic forcing, i.e.:
d
ρ=0
dt
1.6
(1.66)
Exercises
1.1. There are two observers, one at a weather station and another passing
overhead in a balloon. The observer on the ground notices the temperature is falling at rate of 1o C/day, while the balloonist observes the
temperature rising at the same rate. If the balloon is moving east at
10 m/sec, what can you conclude about the temperature field?
1.2. Derive the continuity equation in a different way, by considering a
1.6. EXERCISES
31
Figure 1.6: The temperature and potential temperature (left panel) and the potential density, σθ (right panel), plotted vs. depth. The additional density, σT , is an alternate form
of the potential density. The data come from the Kermadec trench in the Pacific and are
described by Warren (1973). Courtesy of Ocean World at Texas A&M University.
balloon advected by the flow. The balloon has a fixed mass, i.e. it
contains a fixed number of molecules (of, say, helium). Imagine the
balloon is cubic, with sides δx, δy and δz. The balloon’s volume is
then:
V = δx δy δz
and its mass is ρV . If the mass is conserved following the flow, so is
this quantity:
1 d
M =0
(1.67)
M dt
Use this to re-derive the continuity equation (1.11), in the limit δ → 0.
1.3. A car is driving eastward at 50 km/hr, at 60 N. What is the car’s speed
CHAPTER 1. EQUATIONS
32
when viewed from space?
1.4. How much does rotation alter gravity? Calculate the centrifugal acceleration at the equator. How large is this compared to g = 9.8
m/sec2 ?
1.5. Consider a train moving east at 50 km/hr in Oslo, Norway. What is the
Coriolis acceleration acting on the train? Which direction is it pointing? How big is the acceleration compared to gravity? Now imagine
the train is driving the same speed and direction, but in Wellington,
New Zealand. What is the Coriolis acceleration?
Chapter 2
Basic balances
The equations of motion presented above can be used to model both winds
and ocean currents. When we run numerical models for weather prediction, we are solving equations like these. But these are nonlinear partial
differential equations, with no known analytical solutions. As such, it can
be difficult to uncover the wide range of flow phenomena encompassed
by the equations. However, not all the terms in the equations are equally
important at different scales. By neglecting the smaller terms, we can often greatly simplify the equations, in the best cases allowing us to obtain
analytical solutions.
2.1
Hydrostatic balance
The momentum equations (1.32-1.34) have a particularly simple form if
the fluid is at rest (u = v = w = 0). Neglecting friction (which is reasonable if the fluid is at rest), we have:
0=−
1 ∂p
ρ ∂x
0=−
1 ∂p
ρ ∂y
33
CHAPTER 2. BASIC BALANCES
34
1 ∂p
−g
(2.1)
ρ ∂z
Thus there can be no pressure gradients in the horizontal direction. But in
0=−
the vertical direction the pressure gradient is non-zero and is balanced by
gravity.
Figure 2.1: The hydrostatic balance.
To understand this, consider a layer of fluid at rest in a container (Fig.
2.1). The fluid is in a cylinder with area of A. The region in the middle of
the cylinder has a mass:
m = ρV = ρA dz
and a weight, mg. The fluid underneath exerts a pressure upwards on the
element, p(z), while the fluid over exerts a pressure downwards, p(z + dz).
The corresponding forces are the pressures times the area, A. Since the
fluid is at rest, the forces must sum to zero:
p(z)A − p(z + dz)A − mg = 0
or
2.1. HYDROSTATIC BALANCE
35
p(z + dz) − p(z) = −
mg
= −ρg dz
A
Letting the height go to zero, we obtain:
∂p
= −ρg
∂z
(2.2)
This is the hydrostatic balance. The term derives from the words “hydro”
(water) and “static” (not moving). The hydrostatic balance is what permits
the atmosphere not to collapse to a thin layer at the surface.
It turns out that the atmosphere and ocean are very nearly in hydrostatic
balance. There are exceptions, for example in strongly convecting regions.
But on the whole, and certainly on large scales, the system is nearly in
hydrostatic balance.1
Thus we can separate the pressure and density into static and dynamic
components:
p(x, y, z, t) = p0 (z) + p′ (x, y, z, t)
ρ(x, y, z, t) = ρ0 (z) + ρ′ (x, y, z, t)
(2.3)
The static components are only functions of z, so that they have no horizontal gradient. As such, they cannot cause acceleration in the horizontal
velocities. The dynamic components are generally much smaller than the
static components, so that:
|p′ | ≪ |p0 |,
|ρ′ | ≪ |ρ0 |
(2.4)
Using this, one can remove the static parts from the equations of motion.
We can write:
1
The same is true in many celestial bodies. The hydrostatic balance favors a spherical shape, which is
often observed.
CHAPTER 2. BASIC BALANCES
36
−
1
∂
1 ∂
p−g =−
(p0 + p′ ) − g
′
ρ ∂z
ρ0 + ρ ∂z
ρ′ ∂
∂
1
≈ − (1 − ) ( p0 + p′ ) − g
ρ0
ρ0 ∂z
∂z
ρ′
∂
1
= − (1 − ) (−ρ0 g + p′ ) − g
ρ0
ρ0
∂z
1 ∂ ′ ρ′
ρ′ ∂ ′
=g−
p − g+ 2 p −g
ρ0 ∂z
ρ0
ρ0 ∂z
1 ∂ ′ ρ′
p − g
≈−
ρ0 ∂z
ρ0
(2.5)
The static terms by definition obey the hydrostatic balance, so we can sub∂
stitute −ρ0 g for − ∂z
p0 in the third line. We also neglect the term pro-
portional to the product of the dynamical variables, p′ ρ′ , in the last line
because this is much smaller than the other terms.
Significantly, the perturbation pressure and density are also nearly in
hydrostatic balance:
∂ ′
p ≈ −ρ′ g
∂z
(2.6)
At weather scales, the balance is accurate to about 1 percent. So even
for the dynamic portion of the flow, it is reasonable to assume hydrostatic
balance.
The hydrostatic approximation is so good that it is used in most numerical models instead of the full vertical momentum equation. Models
which use the latter are rarer and are called “non-hydrostatic” models. The
catch is that we no longer have a prognostic equation for w. In hydrostatic
models, w must be deduced in other ways.
In some texts, the following substitution is made:
2.2. HORIZONTAL MOMENTUM BALANCES
37
ρ′
− g≡b
ρ0
where b is the buoyancy. However, in other texts the density form is retained. We’ll do that here, and also drop the primes. But keep in mind that
the pressure that we are focused on is the dynamic portion, linked to the
motion.
2.2
Horizontal momentum balances
uθ
ur
Figure 2.2: Circular flow.
Likewise in the horizontal momentum equations, not all the terms are
equally important. To see which ones matter, we’ll use the technique of
scaling. To illustrate this, we’ll employ a perfectly circular flow, as shown
in Fig. (2.2). Consider the momentum equation in cylindrical coordinates
for the velocity in the radial direction:2
u2
1 ∂
d
ur − θ + 2Ωcos(θ)w − 2Ωsin(θ)uθ = −
p
dt
r
ρ ∂r
2
See for example Batchelor, Fluid Mechanics.
(2.7)
CHAPTER 2. BASIC BALANCES
38
The term u2θ /r is called the cyclostrophic term. It is a curvature term like
those found with spherical coordinates.
As the flow is purely circular, the radial velocity, ur , is zero. Then we
have:
1 ∂
u2θ
+ 2Ωcos(θ)w − 2Ωsin(θ)uθ =
p
r
ρ ∂r
U2
R
U
2ΩR
2ΩW
W
U
2ΩU
1
(2.8)
△p
ρR
△p
2ρΩU R
In the second line, we estimate each of the terms by assuming typical
scales, for example U for the azimuthal velocity and △p for the pressure
drop across the circular storm. We assume we are at mid-latitudes, so that
cos(θ) and sin(θ) are order one quantities (and not vanishing, as at the
equator or at the poles). In the third line, we have divided through by the
scale of the third term, the term with the vertical component of the Coriolis
parameter.
The first point is that the second term is nearly always small in the atmosphere and ocean, where vertical velocities are much smaller than horizontal ones. In the ocean, the horizontal velocities are typically of order
10 cm/sec, while the vertical velocities are measured in meters per day—
roughly four orders of magnitude smaller. So we can neglect this term.
Hereafter we focus solely on the vertical component, which we define thus:
f = 2Ωsin(θ)
2.2. HORIZONTAL MOMENTUM BALANCES
39
That leaves the first and third terms on the LHS. Their relative sizes are
dictated by the dimensionless parameter:
U
U
=
2ΩR f R
This is known as the the Rossby number. We can categorize the flows in
ǫ≡
term of this.
2.2.1 Geostrophic flow
If ǫ ≪ 1, the cyclostrophic term is much smaller than the Coriolis term.
Then the latter must be balanced by the pressure term on the RHS.
△p
≈1
ρf U R
If this weren’t the case, we wouldn’t have any flow. Assuming this is true,
we have:
1 ∂
p
(2.9)
ρ ∂r
This is known as geostrophic balance. This occurs at synoptic (weather)
f uθ =
scales in the atmosphere and ocean.
Consider the atmosphere. At large scales, a typical scale for the horizontal wind is 10 m/sec. The Coriolis parameter, f , is typically about 10−4
sec−1 , and storms are of order 1000 km across. So the Rossby number is:
10
= 0.1
10−4 (106 )
In the ocean, the velocity scale is of order 10 cm/sec, as noted. The
ǫ=
length scale of ocean “storms”, like Gulf Stream rings, is about 100 km.
So the Rossby number is:
CHAPTER 2. BASIC BALANCES
40
0.1
= 0.01
10−4 (105 )
Thus in both systems, the weather scales are approximately in geostrophic
ǫ=
balance. Written in Cartesian coordinates, this is:
1 ∂
p
ρ ∂x
1 ∂
p
fu = −
ρ ∂y
If we know the pressure field, we can deduce the velocities.
−f v = −
L
(2.10)
(2.11)
− p/ ρ
u
fu
H
Figure 2.3: The geostrophic balance.
Consider the flow in Fig. (2.3). The pressure is high to the south and
low to the north. In the absence of rotation, this pressure difference would
force the air to move north. But under the geostrophic balance, the air
flows parallel to the pressure contours. Because
∂
∂y p
< 0, we have that
u > 0 (eastward), from (2.11). The Coriolis force is acting to the right
of the motion, exactly balancing the pressure gradient force. Furthermore,
because the two forces are balanced, the motion is constant in time.
If the pressure gradient changes in space, so will the geostrophic velocity. In Fig. (2.4), the flow accelerates into a region with more closely-
2.2. HORIZONTAL MOMENTUM BALANCES
41
packed pressure contours, then decelerates exiting the region.
L
H
Figure 2.4: Geostrophic flow with non-constant pressure gradients.
As a result of the geostrophic relations, we can use pressure maps to
estimate the winds, as in Fig. (2.5). This shows the surface pressure off
the west coast of the US, with observed (green) and geostrophic (blue)
wind vectors. First note that the geostrophic wind estimate agrees fairly
well with the observed values. Note too that the wind is counter-clockwise
or cyclonic around the low pressure system. Had this been a high pressure
system, we would have seen clockwise or anti-cyclonic flow.
Figure 2.5: A low pressure system of the west coast of the United States. The green
vectors are observed winds and the blue are geostrophic. Courtesy of the University of
Washington.
CHAPTER 2. BASIC BALANCES
42
Since f = 2Ωsinθ, the Coriolis force varies with latitude. It is strongest
at high latitudes and weaker at low latitudes. Note too that it is negative in
the southern hemisphere. Thus the flow in Fig. (2.3) would be westward,
with the Coriolis force acting to the left. In addition, the Coriolis force is
identically zero at the equator. In fact, the geostrophic balance cannot hold
there and one must invoke other terms in the momentum equations.
2.2.2 Cyclostrophic flow
Figure 2.6: A tornado in Oaklahoma in 2010. Courtesy of livescience.com.
Now consider the circular flow in the limit ǫ ≫ 1. For example, a
tornado (Fig. 2.6) at mid-latitudes has:
f = 10−4 sec−1 ,
U ≈ 30m/s,
R ≈ 300m,
So ǫ = 1000. Then the cyclostrophic term dominates over the Coriolis
term. Thus we might have instead divided the scaling parameters by 2ΩU ,
but rather by U 2 /R. Then we would have:
1
2ΩR
U
△p
ρU 2
2.2. HORIZONTAL MOMENTUM BALANCES
43
Now the second term, which is just 1/ǫ, is very small (0.001 for the tornado). We expect, moreover, that:
△p
≈1
ρU 2
In this case, we have the cyclostrophic balance:
u2θ
1 ∂
=
p
(2.12)
r
ρ ∂r
Notice that this is a non-rotating balance, because f doesn’t enter—we
would have the same balance at the equator. The pressure gradient now is
balanced by the centrifugal acceleration.
We can solve for the velocity after multiplying by r and then taking the
square root:
uθ = ±
s
r ∂
p
ρ ∂r
(2.13)
There are two interesting points about this. One is that only low pressure
systems are permitted, because we require
∂
∂r p
> 0 to have a real solu-
tion. Second, either sign of the circulation is allowed. So our tornado
can have either cyclonic (counter-clockwise) or anti-cyclonic (clockwise)
winds. Both cyclonic and anti-cyclonic tornadoes are in fact observed, but
the former is much more common.
2.2.3 Inertial flow
There is a third possibility, that there is no radial pressure gradient at all.
This is called inertial flow. Then:
u2θ
+ f uθ = 0
r
→
uθ = −f r
(2.14)
CHAPTER 2. BASIC BALANCES
44
This corresponds to circular motion in “solid body rotation” (with the velocity increasing linearly from the center, as it would with a solid). The
velocity is negative, implying the rotation is clockwise (anti-cyclonic) in
the Northern Hemisphere. The time for a parcel to complete a full circle
is:
2π
0.5 day
2πr
=
=
,
uθ
f
|sinθ|
(2.15)
The time is known as the “inertial period”. “Inertial oscillations” are fairly
rare in the atmosphere but are frequently seen at the ocean surface, being
excited by the wind and other forcing.
An example is shown in Fig. (2.7), of a pair of drifting buoys at the
surface of the Gulf of Mexico. The pair is slowly separating, but simultaneously executing roughly large, anticyclonic loops. The inertial period at
this latitude is nearly one day.
550
540
530
520
510
500
490
480
80
100
120
140
160
180
200
Figure 2.7: A pair of drifting buoys on the surface in the Gulf of Mexico, deployed as part
of the GLAD experiment (courtesy Univ. Miami).
2.2. HORIZONTAL MOMENTUM BALANCES
45
2.2.4 Gradient wind
The last possibility is that ǫ = 1, in which case all three terms in (2.8) are
important. This is the gradient wind balance. We can then solve for uθ
using the quadratic formula:
1
1
4r ∂ 1/2
1
1
4
uθ = − f r ± (f 2 r2 +
p) = − f r ± f r(1 +
ug )1/2 (2.16)
2
2
ρ ∂r
2
2
fr
after substituting in the definition of the geostrophic velocity.
The gradient wind solution actually contains all the previous solutions.
If the pressure gradient is zero, the velocity is equal to −f r, as with inertial
osciallations. If ug ≪ f r, then one of the roots is uθ = ug . And if f = 0,
the cyclostrophic solution is recovered.
Because the term in the square root must be positive, we see that:
f 2 r 2 + 4 r f ug ≥ 0
(2.17)
or:
fr
(2.18)
4
Thus while there is no limit on how large ug can be, it cannot be less
ug ≥ −
than −f r/4. This means that anticyclones are limited in strength while
cyclones aren’t. Thus the strongest storms must be cyclonic under gradient
wind.
The gradient wind balance, being a three-way balance of forces, has
other implications. For a low pressure system, the gradient wind velocity
is actually less than the geostrophic velocity, because there are two terms
now balancing the same pressure gradient (left panel of Fig. 2.8). For
CHAPTER 2. BASIC BALANCES
46
a high pressure system on the other hand, the gradient wind velocity is
greater than the geostrophic, because the Coriolis term now opposes the
cyclostrophic term (right panel of Fig. 2.8). The asymmetry occurs because the cyclostrophic term always acts outward.
L
H
fv
−∆p / ρ
fv
v−2
r
2
v
−
r
−∆p / ρ
Figure 2.8: The balance of terms under the gradient wind approximation for a low (left)
and high (right) pressure system.
Likewise, the cyclostrophic term can actually oppose both the other
terms, in the case of a low pressure system (Fig. 2.9). This implies that the
winds are anti-cyclonic, so that the Coriolis acceleration is toward the center of the storm. Such clockwise low pressure systems, called anomalous
lows, are fairly rare but occur occasionally at lower latitudes.
L
fv − p /
∆ ρ
2
v
−
r
Figure 2.9: An anomalous low pressure system.
2.3. THE F-PLANE AND β -PLANE APPROXIMATIONS
47
The gradient wind estimate thus differs from the geostrophic estimate.
The difference is typically small however for weather systems, about 10 %
at mid-latitudes. To see this, we rewrite (2.8) thus:
u2θ
1 ∂
+ f uθ =
p = f ug
r
ρ ∂r
(2.19)
uθ
ug
=1+
=1+ǫ
uθ
fr
(2.20)
Then:
Thus if ǫ = 0.1, the gradient wind estimate differs from the geostrophic
value by 10 %. This is why the geostrophic winds in Fig. (2.5) differ
slightly from the observed winds. At low latitudes, where ǫ can be 1-10,
the gradient wind estimate is more accurate.
2.3
The f-plane and β-plane approximations
One further simplification is needed. Our momentum equations are in
Cartesian coordinates, but the Coriolis term, f , is in spherical coordinates.
We could write it as a sinusoidal function of y, but solutions are much
easier to obtain if we linearize f . To do this, we focus on a limited range
of latitudes, centered about a latitude, θ0 . Taylor-expanding f about this
latitude, we obtain:
df
1 d2 f
f (θ) = f (θ0 ) + (θ0 ) (θ − θ0 ) +
(θ0 ) (θ − θ0 )2 + ...
2
dθ
2 dθ
(2.21)
The subsequent terms are small if the range of latitudes is limited. Retaining the first two terms, we can write:
CHAPTER 2. BASIC BALANCES
48
f = f0 + βy
where:
f0 = 2Ωsin(θ0 ),
β=
1 df
2Ω
cos(θ0 )
(θ0 ) =
Re dθ
Re
and
y = Re (θ − θ0 )
The Taylor expansion is valid when the second term is much smaller than
the first. This requires:
βL
≪1
f0
where L is the north-south extent of the domain (in distance, not degrees).
So:
L≪
2Ωsin(θ)
f0
= Re tan(θ0 ) ≈ Re
=
β
2Ωcos(θ)/Re
(2.22)
So L must be much smaller than the earth’s radius, which is roughly 6600
km.
Two approximations are made hereafter. Retaining only the first term,
f0 , is called the f-plane approximation. This is appropriate for a small
domain, e.g. with L on the order of a hundred kilometers or less. For
larger domains, we retain the first two terms, the β-plane approximation.
This assumes a domains of up to a couple of thousand kilometers in N-S
extent.
2.4. INCOMPRESSIBILITY
2.4
49
Incompressibility
The next simplification comes with the continuity equation (1.9). This is a
nonlinear relation, involving products of the density, ρ, and the velocities.
However, we can obtain a simpler, linear relation in both the atmosphere
and ocean. This involves two approximations, one for each system.
2.4.1 The Boussinesq approximation
In the ocean, the density changes are very small. In particular, the terms
involving the temperature and salinity in the equation of state (1.36) are
typically much less than one. So if we write:
ρ = ρc + ρ′ (x, y, z, t)
the perturbation, ρ′ , is much less than ρc . As such, the continuity equation
(1.9) is:
dρ′
+ ρc (∇ · ~u) ≈ ρc (∇ · ~u) = 0
dt
(2.23)
∇ · ~u = 0
(2.24)
This implies that:
So the velocities are incompressible. This implies that in the ocean, not
only is density conserved but also volume. If one has a box full of water
with a movable lid, it is almost impossible to press down the lid. Water
does compress at great depths in the ocean, but there the pressure is enormous.
There is a further benefit of the Boussinesq approximation. With this,
the geostrophic relations can be written:
CHAPTER 2. BASIC BALANCES
50
1 ∂
p
ρc f ∂x
1 ∂
p
= −
ρc f ∂y
vg =
(2.25)
ug
(2.26)
Thus the geostrophic relations are now linear. Under the f or β-plane approximations, the f in the denominator would be replaced by f0 , meaning
that the velocities can be written thus:
vg =
∂
ψ,
∂x
ug = −
∂
ψ
∂y
where:
p
ρc f 0
is the geostrophic streamfunction. Then the velocities are exactly parallel
ψ≡
to the ψ contours.
One further point is that the geostrophic velocities, defined this way, are
horizontally non-divergent:
∂
∂
1 ∂
∂ 1 ∂
∂
ug + v g =
(−
p) + (
p) = 0
∂x
∂y
∂x ρc f0 ∂y
∂y ρc f ∂x
(2.27)
We’ll exploit this later on.
2.4.2 Pressure coordinates
We cannot responsibly use the Boussinesq approximation with the atmosphere, except possibly in the planetary boundary layer (this is often done,
for example, when considering the surface boundary layers, as in sec. 2.6).
But it is possible to achieve the same simplifications if we change the vertical coordinate to pressure instead of height.
2.4. INCOMPRESSIBILITY
51
We do this by exploiting the hydrostatic balance. Consider a pressure
surface in two dimensions, (x, z). Applying the chain rule, we have:
∂p
∂p
△x+
△z =0
∂x
∂z
on the surface. Substituting the hydrostatic relation, we get:
△p(x, z) =
∂p
△ x − ρg △ z = 0
∂x
(2.28)
(2.29)
so that:
∂p
△z
|z = ρg
|p
(2.30)
∂x
△x
The left-hand side is the pressure gradient in x along a surface of constant
height (hence the z subscript). The right-hand side is proportional to the
height gradient along a surface of constant pressure—i.e. how much the
pressure surface tilts in x. The gradient on the RHS thus has a p subscript,
indicating pressure coordinates.
If we furthermore define the geopotential:
Φ = gz
(2.31)
∂Φ
∂p
|z = ρ |p
∂x
∂x
(2.32)
then we have:
This alteration removes the density from momentum equation, because:
1
− ∇p|z → −∇Φ|p
ρ
So the geostrophic balance in pressure coordinates is simply:
CHAPTER 2. BASIC BALANCES
52
1 ∂
Φ
(2.33)
f0 ∂x
1 ∂
Φ
(2.34)
ug = −
f0 ∂y
(again, using the β-plane approximation). As with the Boussinesq approxvg =
imation, the terms on the RHS are linear. So in pressure coordinates too,
the geostrophic velocities can be expressed in terms of a streamfunction.
Here:
Φ
f0
But the real advantage comes with the continuity equation. Consider
ψ=
our Lagrangian box, filled with a fixed number of molecules. The box has
a volume:
δp
(2.35)
ρg
after substituting from the hydrostatic balance. Note that the volume is
δV = δx δy δz = −δx δy
positive because δp is negative, with increasing height. The mass of the
box is:
1
δM = ρ δV = − δx δy δp
g
Conservation of mass implies:
−g d
δxδyδp
1 d
δM =
(−
)=0
δM dt
δxδyδp dt
g
(2.36)
1 dx
1 dy
1 dp
δ( ) +
δ( ) +
δ( ) = 0
δx dt
δy dt
δp dt
(2.37)
Rearranging:
2.5. THERMAL WIND
53
If we let δ → 0, we get:
∂u ∂v ∂ω
+
+
=0
∂x ∂y ∂p
(2.38)
where ω is the velocity perpendicular to the pressure surface (just as w is
perpendicular to a z-surface). As with the Boussinesq approximation, the
flow is incompressible in pressure coordinates.
The hydrostatic equation also takes a different form under pressure coordinates. It can be written:
RT
dΦ
=−
dp
p
(2.39)
after invoking the Ideal Gas Law.
Pressure coordinates simplifies the equations considerably, but they are
nonetheless awkward to work with in theoretical models. The lower boundary in the atmosphere (the earth’s surface) is most naturally represented in
z-coordinates, e.g. as z = 0. As the pressure varies at the earth surface,
it is less obvious what boundary value to use for p. So we will use zcoodinates primarily hereafter. But the solutions in p-coordinates are often
very similar.3
2.5
Thermal wind
A familiar aspect of most synoptic scale flows is that lateral temperature
(or density) gradients are found where there is strong vertical shear in the
velocity. An example is shown in Fig. (2.10). This is a cross section of
3
An alternative is to use log-pressure coordinates. These involve a coordinate change from pressure to
a z-like coordinate, called z ∗ . However, z ∗ generally differs only slightly from z, so we will focus on the
latter.
CHAPTER 2. BASIC BALANCES
54
Figure 2.10: A cross section of the ocean temperature in the core of the Gulf Stream.
temperature in the core of the Gulf Stream. At any given depth, the temperature increases going left to right. The Gulf Stream current (illustrated
by the dark contours) overlies the region of the strongest temperature gradients. The velocities increase going up to the surface, exceeding values
of 1 m/sec (a large value in the ocean).
This relation between lateral density contrasts and vertical shear is a
consequence of the combined geostrophic and hydrostatic balances. Take,
for instance, the z-derivative of the geostrophic balance for v:
1 ∂ ∂p
g ∂ρ
∂vg
=
=−
∂z
f0 ρc ∂x ∂z
f0 ρc ∂x
(2.40)
after using (2.2). Likewise:
∂ug
g ∂ρ
=
∂z
f0 ρc ∂y
(2.41)
So the vertical shear is proportional to the lateral gradients in the density.
2.5. THERMAL WIND
55
The corresponding relations for the atmosphere derive from the equations in pressure coordinates. Taking the p-derivative of the geostrophic
relations, for example in the x-direction, yields:
∂vg
1 ∂ ∂Φ
R ∂T
=
=−
(2.42)
∂p
f0 ∂x ∂p
pf0 ∂x
after using (2.39). The p passes through the x-derivative because it is constant on an isobaric (p) surface, i.e. they are independent variables. Likewise:
R ∂T
∂ug
=
(2.43)
∂p
pf0 ∂y
after using the hydrostatic relation (2.39). Thus the vertical shear is proportional to the lateral gradients in the temperature.
Cold
δ u/ δ z
Warm
Figure 2.11: The thermal wind shear associated with a temperature gradient in the ydirection.
In the ocean, the thermal wind is parallel to the density contours with
the heavy fluid on the left. In the atmosphere, the wind is parallel to temperature contours with the cold air on the left. Notice the similarity to the
geostrophic flow, which is parallel to the pressure contours with the low
pressure on the left.
CHAPTER 2. BASIC BALANCES
56
Consider Fig. (2.11). There is a temperature gradient in y, so the thermal wind is oriented in the x-direction. The temperature is decreasing to
the north, so ∂T /∂y is negative. From (2.43) we have then that ∂ug /∂p is
also negative. This implies that ∂ug /∂z is positive, because the pressure
decreases going up. So the zonal velocity is increasing going up, i.e. with
the warm air to the right.
Φ1+ δ Φ
vT
Φ1
v2
v1
Warm
T + δT
T
Cold
Figure 2.12: Thermal wind between two layers (1 and 2). The geopotential height contours for the lower layer, Φ1 , are the dashed lines and the temperature contours are the
solid lines.
Using thermal wind, we can derive the geostrophic velocities on a nearby
pressure surface if we know the velocities on another pressure surface and
the temperature in the layer between the two. Consider Fig. (2.12). The
geopotential lines for the lower surface of the layer are indicated by dashed
lines. The wind at this level is parallel to these lines, with the larger values
2.5. THERMAL WIND
57
of Φ1 to the right. The temperature contours are the solid lines, with the
temperature increasing to the right. The thermal wind vector is parallel
to these contours, with the larger temperatures on the right. We add the
vectors v1 and vT to obtain the vector v2 , which is the wind at the upper
surface. This is to the northwest, advecting the warm air towards the cold.
Notice that the wind vector turns clockwise with height. This is called
veering and is typical of warm advection. Cold advection produces counterclockwise turning, called backing.
Thus the geostrophic wind is parallel to the geopotential contours with
larger values to the right of the wind (in the Northern Hemisphere). The
thermal wind on the other hand is parallel to the mean temperature contours, with larger values to the right. Recall though that the thermal wind
is not an actual wind, but the difference between the lower and upper level
winds.
The thermal wind relations are routinely used to estimate ocean currents
from density measurement made from ships. Ships collect hydrographic
measurements of temperature and salinity, and these are used to determine
ρ(x, y, z, t), from the equation of state (1.36). Then the thermal wind relations are integrated upward from chosen level to determine (u, v) above
the level, for example:
ug (x, y, z) − ug (x, y, z0 ) =
Z
z
z0
1 ∂ρ(x, y, z)
dz
ρc f 0
∂y
(2.44)
If (u, v, z0 ) is set to zero at the lower level, it is known as a “level of no
motion”.
CHAPTER 2. BASIC BALANCES
58
2.6
Boundary layers
So far we have ignored friction. However, without friction there would
be nothing to remove energy supplied by the sun (to the atmosphere) or
by the winds (to the ocean) and the velocities would accelerate to infinity.
Where friction is important is in boundary layers at the earth’s surface in
the atmosphere, and at the surface and bottom of the ocean. How do these
layers affect the interior motion?
Let’s assume synoptic scale motion in the interior of fluid, in geostrophic
balance. We’ll assume moreover the velocity is depth-invariant in the interior. In the bottom boundary layers, the velocity must come to zero, to
satisfy the no-slip condition on the ground. At the ocean surface on the
other hand, the stress exerted by the wind will drive flow. In both surface
and bottom layers, friction permits the smooth variation of the velocities
to the interior values.
We will represent friction as the gradient of a stress. Moreover, since
the boundary layers have a much smaller vertical than horizontal extent, we
will approximate the stress as a vertical derivative. Perhaps the simplest
boundary layer model possible includes the geostrophic relations (2.25)
and (2.26) with the vertical stress terms:
−f0 v = −
f0 u = −
1 ∂
∂ τx
p +
ρc ∂x
∂z ρc
1 ∂
∂ τy
p +
ρc ∂y
∂z ρc
(2.45)
(2.46)
where τx and τy are stresses acting in the x and y directions. Thus friction
breaks the geostrophic balance in the boundary layers.
We can rewrite these relations thus:
2.6. BOUNDARY LAYERS
59
∂ τx
(2.47)
∂z ρc
∂ τy
(2.48)
f0 (u − ug ) = f0 ua =
∂z ρc
where (ua , va ) are the ageostrophic velocities (the departures from purely
−f0 (v − vg ) = −f0 va =
geostrophic flow). Thus the ageostrophic velocities in the boundary layer
are proportional to the stresses; if we know the frictional stresses, we can
find these velocities.
We are mainly concerned with how the boundary layer affects the motion in the interior. As seen later on, it is the vertical velocity from the
boundary layers which forces the flow in the interior.
2.6.1 Surface Ekman layer
Consider the boundary layer at the ocean surface first. This case was first
considered in a paper by Ekman (1905), which in turn was motivated by
some observations by Fridtjof Nansen. Nansen noticed that icebergs in
the Arctic drift to the right of the wind. Ekman’s model explains why.
Hereafter, we refer to the boundary layers as “Ekman layers”, following
his derivation.
Let’s say the surface is at z = 0 and that the Ekman layer extends down
to z = −δe (which we take to be constant). To obtain w, we use the
continuity equation (2.24):
∂
∂
∂
∂
∂
w = − u − v = − ua − v a
(2.49)
∂z
∂x
∂y
∂x
∂y
The horizontal divergence involves only the ageostrophic velocities because the geostrophic velocities are horizontally non-divergent (sec. 2.4.1).
Integrating this over the layer yields:
CHAPTER 2. BASIC BALANCES
60
Z
w(0) − w(−δe ) = −
0
(
−δe
∂
∂
ua + va ) dz
∂x
∂y
(2.50)
Since there is no flow out of the ocean surface, we can write w(0) = 0.
Then we have, at the base of the layer:
w(−δe ) =
∂
∂
Us + Vs
∂x
∂y
(2.51)
where (Us , Vs ) are the horizontal ageostrophic transports in the surface
layer:
Us ≡
Z
0
ua dz,
−δe
Vs ≡
Z
0
va dz
(2.52)
−δe
We obtain these by integrating (2.47) and (2.48) vertically.
The stress at the surface (z = 0) is due to the wind:
~τ w = (τxw , τyw )
The stress at the base of the Ekman layer is zero—because the stress only
acts in the layer itself. So we obtain:
τyw
,
Us =
ρc f 0
τxw
Vs = −
ρc f 0
Thus the transport in the layer is 90 degrees to the right of the wind
stress. If the wind is blowing to the north, the transport is to the east. This
explains the ice drift noticed by Nansen.
To get the vertical velocity, we take the divergence of these transports:
∂ τyw
∂
1
τxw
w(δe ) =
k̂ · ∇ × ~τ w
+ (−
)=
∂x ρc f0 ∂y ρc f0
ρc f 0
(2.53)
2.6. BOUNDARY LAYERS
61
So the vertical velocity is proportional to the curl of the wind stress. It is
the curl, not the stress itself, which is most important for the interior flow
in the ocean at synoptic scales.
Notice we make no assumptions about the stress in the surface layer
itself. By integrating over the layer, we only need to know the stress at
the surface. So the result (2.53) is independent of the stress distribution,
τ (z)/ρc , in the layer.
2.6.2 Bottom Ekman layer
Then there is the bottom boundary layer, which exists in both the ocean
and atmosphere. Let’s assume the bottom is flat and that the Ekman layer
goes from z = 0 to z = δe . The integral of the continuity equation is:
w(δe ) − w(0) = w(δe ) = −(
∂
∂
UB + VB )
∂x
∂y
(2.54)
where now UB , VB are the integrated (ageostrophic) transports in the bottom layer. Note the vertical velocity vanishes at the bottom of the layer—
there is no flow into the bottom surface.
Again we integrate (2.47) and (2.48) to find the transports. However,
we don’t know the stress at the bottom. All we know is that the bottom
boundary isn’t moving.
This problem was also solved fby Ekman (1905). Ekman’s solution
requires that we parametrize the stress in the boundary layer. To do this,
we make a typical assumption that the stress is proportional to the velocity
shear:
~τ
∂
= Az ~u
ρc
∂z
(2.55)
CHAPTER 2. BASIC BALANCES
62
where Az , is a mixing coefficient. Thus the stress acts down the gradient of
the velocity. If the vertical shear is large, the stress is large and vice versa.
Generally, Az varies with height, and often in a non-trivial way, but in such
cases it is difficult to find analytical solutions.
So we’ll assume Az is constant. Again, we take the interior flow to be
in geostrophic balance with velocities (ug , vg ). The boundary layer’s role
is to bring the velocities to rest at the lower boundary. Substituting the
parametrized stresses (2.55) into the boundary layer equations (2.47-2.48)
yields:
−f0 va = Az
∂2
ua
∂z 2
∂2
f0 ua = Az 2 va
∂z
(2.56)
(2.57)
Because the geostrophic velocity is independent of height, it doesn’t contribute to the RHS. If we define a variable χ thus:
χ ≡ ua + iva
(2.58)
we can combine the two equations into one:
f0
∂2
χ
χ
=
i
∂z 2
Az
(2.59)
The general solution to this is:
z
z
z
z
χ = A exp( ) exp(i ) + B exp(− ) exp(−i )
δe
δe
δe
δe
(2.60)
The scale, δe , is the layer depth that we assumed before. Now we see that
this is related to the mixing coefficient, Az :
2.6. BOUNDARY LAYERS
63
2Az 1/2
)
(2.61)
f0
Thus the Ekman depth is determined by the mixing coefficient and by the
δe = (
Coriolis parameter.
To proceed, we need boundary conditions. The solutions should decay moving upward, into the interior of the fluid, as the boundary layer
solutions should be confined to the boundary layer. Thus we can set:
A=0
From the definition of χ, we have:
z
z
ua = Re{χ} = Re{B} exp(− ) cos( )
δe
δe
z
z
+Im{B} exp(− ) sin( )
δe
δe
(2.62)
and:
z
z
va = Im{χ} = −Re{B} exp(− ) sin( )
δe
δe
z
z
+Im{B} exp(− ) cos( )
(2.63)
δe
δe
Thus there are two unknowns. To determine these, we evaluate the velocities at z = 0. To satisfy the no-slip condition, we require:
ua = −ug ,
va = −vg
at z = 0
Then the total velocity will vanish. So we must have:
Re{B} = −ug
and:
CHAPTER 2. BASIC BALANCES
64
0.4
0.8
0.3
0.6
0.2
z
1
u(z)
0.4
0.1
v(z)
0.2
0
-0.2
0
-0.1
0
0.2
0.4
0.6
0.8
1
1.2
1.4
0
0.2
0.4
0.6
0.8
1
1.2
1.4
Figure 2.13: The Ekman velocities for a case with vg = 0. In the left panel are the
velocities as a function of height. In the right panel are the velocity vectors, looking down
from above.
Im{B} = −vg
The resulting total velocities, the sum of geostrophic and ageostrophic
parts, are shown in the left panel iof Fig. (2.13) for a case with vg = 0.
Outside the boundary layer, the velocity reverts to (ug , 0). Both velocities go to zero at the bottom, to satisfy the no-slip condition. But above
that, both increase somewhat as well. This reflects the decaying/sinusoidal
nature of the solutions.
The figure masks the actual behavior of the velocities, which is seen
more clearly in the right panel. This shows the velocity vectors when
viewed from above. Outside the layer, the vector is parallel with the xaxis. As one descends into the layer, the vectors veer to the left. They first
increase slightly in magnitude and then decrease smoothly to zero. The
result is a curving Ekman spiral.
If one solves the same problem in the surface layer, one also finds a solution which spirals with depth. But since it is the stress which is matched
2.6. BOUNDARY LAYERS
65
at the surface, the vectors spiral to the right. That’s why the depth-averaged
velocity is to the right in the surface layer. In the bottom layer, the transport
is to the left.
Strictly speaking, the integrals are over the depth of the layer. But as
the ageostrophic velocities decay with height, we can just as well integrate
them to infinity. So, we have:
Ua = −ug
Z
∞
0
z
z
exp(− ) cos( ) dz − vg
δe
δe
Z
∞
0
z
z
exp(− ) sin( ) dz
δe
δe
δe
= − (ug + vg )
2
(2.64)
(using a standard table of integrals). Likewise:
V a = ug
Z
∞
0
z
z
exp(− ) sin( ) dz − vg
δe
δe
=
Z
∞
0
z
z
exp(− ) cos( ) dz
δe
δe
δe
(ug − vg )
2
(2.65)
where (ug , vg ) are the velocities in the interior. Thus for the case shown in
Fig. (2.13), the transport is:
δe
(Ua , Va ) = − (−ug , ug )
2
So this is 135◦ to the left of the geostrophic velocity.
What about the stress at the bottom? From the definition above, we
have τ /ρc = Auz . Only the ageostrophic velocity varies with height, by
assumption. It can be shown (see exercises) that the stress is 90 degrees to
the left of the transport in the layer. So the transport in the layer is again
90◦ to the right of the stress, just as in the surface layer.
CHAPTER 2. BASIC BALANCES
66
But the primary factor of interest for the interior flow is the vertical
velocity at the top of the Ekman layer, as this will be seen to force the
interior flow. This is:
∂
∂
Ua − Va
∂x
∂y
δe ∂ug ∂vg
δe ∂ug ∂vg
(
+
) + (−
+
)
2 ∂x
∂x
2
∂y
∂y
δe ∂ug ∂vg
δe ∂vg ∂vg
(−
+
) + (−
+
)
2
∂y
∂x
2
∂y
∂y
δe ∂vg ∂ug
(
−
)
2 ∂x
∂y
δe
∇ × ~ug
2
δe
ζg
2
w(δe ) = −
=
=
=
=
=
(2.66)
(2.67)
(2.68)
(2.69)
(2.70)
(2.71)
Thus the vertical velocity at the top of a bottom Ekman layer is proportional to the relative vorticity in the interior. So there is intense updrafting
beneath a strong cyclonic vortex.
These two results represent a tremendous simplification. We can include the boundary layers without actually worrying about what is happening in the layers themselves. We will see that the bottom layers cause
relative vorticity to decay in time (sec. 4.5), and the stress at the ocean surface forces the ocean. We will include these two effects and then neglect
explicit friction hereafter.
2.7. SUMMARY OF SYNOPTIC SCALE BALANCES
2.7
67
Summary of synoptic scale balances
We have a set of simplified equations, one for the ocean and one for the
atmosphere, which are applicable at synoptic scales.
Equation
Geostrophic u
Geostrophic v
Hydrostatic
Thermal u
Thermal v
Continuity
Boussinesq
1 ∂p
f0 u = −
ρc ∂y
1 ∂p
f0 v =
ρc ∂x
∂p
= −ρg
∂z
∂u
g ∂ρ
f0
=
∂z
ρc ∂y
g ∂ρ
∂v
=−
f0
∂z
ρc ∂x
∂u ∂v ∂w
+
+
=0
∂x ∂y
∂z
p-coordinates
∂Φ
f0 u = −
∂y
∂Φ
f0 v =
∂x
∂Φ
RT
=−
∂p
p
R ∂T
∂u
f0
=
∂p
pf ∂y
R ∂T
∂v
f0
=−
∂p
pf ∂x
∂u ∂v ∂ω
+
+
=0
∂x ∂y ∂p
(2.72)
(2.73)
(2.74)
(2.75)
(2.76)
(2.77)
(2.78)
For the ocean, we make the Boussinesq approximation and neglect density variations, except in the hydrostatic relation. For the atmosphere, we
use pressure coordinates. The similarity between the resulting equations
is striking. These equations are all linear, so they are much easier to work
with than the full equations of motion.
Lastly we have the frictional boundary layers. We have Ekman layers at
the base of the atmosphere and ocean, and these produce a vertical velocity
proportional to the relative vorticity in the interior of the respective fluid.
At the surface of the ocean we have an additional frictional layer, in which
the vertical velocity is proportional to the curl of the wind stress. We’ll see
later how these layers interact with the interior flow.
CHAPTER 2. BASIC BALANCES
68
2.8
Exercises
2.1. Assuming θ = 45N , so that f = 10−4 sec−1 , and that g ≈ 10m/sec2 :
a) Assume the pressure decreases by 0.5 Pa over 1 km to the east but
does not change to the north. Which way is the geostrophic wind
blowing? If the density of air is 1 kg/m3 , what is the wind speed?
Note 1 Pa=1 kg/(m sec2 ).
b) If the temperature of air was 10 C throughout the atmosphere
and the surface pressure was 1000 hPa, what would the pressure at
a height of 1 km be? Note 1 hPa=100 Pa.
c) The temperature decreases by 1/5 deg C over 1 km to the north
but doesn’t change to the east. What is the wind shear (in magnitude
and direction)? Assume the mean surface temperture is 20C. Is this
veering or backing?
Hint: Use the pressure coordinate version of thermal wind and then
convert the pressure derivative to a z-derivative.
2.2. The talk show host David Letterman once called a man in South
America to ask whether the water swirled clockwise when flowing
out the drain in his bathtub. Is there a preferred tendency in a bathtub,
due to rotation?
Assume the bathtub is 1.5 m long and that typical velocities in the
water are about 1 cm/sec. The bathtub is at 45 N. Explain whether or
not there is a preferred sense of rotation, and if yes, what sign?
2.3. Derive (2.39), using the Ideal Gas Law.
2.4. Say the temperature at the South Pole is -20C and it’s 40C at the Equa-
2.8. EXERCISES
69
tor. Assuming the average wind speed is zero at the Earth’s surface
(1000 hPa), what is the mean zonal speed at 250 hPa at 45S?
Assume the temperature gradient is constant with latitude and pressure. Use the thermal wind relations in pressure coordinates and integrate them with respect to pressure to find the velocity difference
between the surface and 250 hPa.
2.5. Thermal wind on Venus
We know (from various space missions) that the surface density on
Venus is 67 kg/m3 and the height of the troposphere is 65 km. Also,
the Venetian day is 116.5 times longer than our day(!) We want to
estimate the wind velocity at the top of the tropopause.
a) Write down the thermal wind equation for the zonal wind, u, in
pressure coordinates.
b) Convert the pressure derivative to a z-derivative by assuming the
density decays exponentially with height, with an e-folding scale (the
scale height) equal to half the height of the tropopause.
c) If the temperature gradient in the northern hemisphere is -1.087 x
10−4 degrees/km, what is the zonal velocity at the tropopause? Assume the temperature gradient doesn’t change with height and that
the velocity at the surface is zero. Note R = 287 J/(kg K).
2.6. Stress in the bottom Ekman layer
Derive the stress in the bottom Ekman layer. Show that it is 135◦ to
the right of the geostrophic velocity. As such it is 90◦ to the left of
the Ekman transport.
70
CHAPTER 2. BASIC BALANCES
Chapter 3
Shallow water flows
Now we’ll consider a somewhat simpler system. The shallow water equations are based on a thin layer of fluid with a constant density. In this case,
the flow doesn’t vary in the vertical and so is effectively two dimensional.
That makes it a simpler system to work with. However, all the phenomena
which are present here are also found in fully 3D flows. So it’s a system
worth studying.
3.1
Fundamentals
3.1.1 Assumptions
The shallow water equations involve two assumptions:
• The density is constant
• The aspect ratio is small
Having a constant density is a not realistic assumption for the atmosphere,
but it is reasonable for the ocean whose density is dominated by the constant term, ρc .
As noted in section (2.4), the flow in the ocean and atmosphere is approximately incompressible (if the coordinates are changed, in the latter
71
CHAPTER 3. SHALLOW WATER FLOWS
72
case). However, with a constant density, the flow is exactly incompressible, following from the continuity equation (1.9):
∇ · ~u =
∂
∂
∂
u+ v+ w =0
∂x
∂y
∂z
(3.1)
Scaling this, and assuming all three terms are equal in size, we infer:
W = δU
where δ is the aspect ratio, the ratio of the fluid depth to its width. For
example, if the region of interest is 5000 km wide and 5 km deep, the
aspect ratio is:
δ≡
5
D
=
= 0.001 .
L
5000
The aspect ratio is this small for basin-scale oceanic motion, and roughly
this small for weather systems in the troposphere. So the vertical velocity
is much smaller than the horizontal, as noted above.
The fluid is sketched in Figure (3.1). It has a free surface, given by
η(x, y, t). The lower boundary, at z = −H(x, y), is rough, with mountains
and valleys. The fluid has a mean depth (with an undisturbed surface)
denoted D0 . This would be on the order of 4 km for the ocean.
The small aspect ratio guarantees that the vertical momentum equation
reduces to the hydrostatic relation (sec. 2.1). This, with a constant density,
yields another important simplification: that the pressure gradients driving the horizontal flow don’t vary with depth. To see this, integrate the
hydrostatic balance to the surface from a depth, z:
3.1. FUNDAMENTALS
73
z=n(x,y,t)
D0
z=−H(x,y)
Figure 3.1: The layer of homogeneous fluid in the region shown in figure (1.4). The layer
has a mean depth, D0 , and a surface elevation, η(x, y, t). The bottom is variable and lies
at z = −H(x, y).
p(η) − p(z) = −
Z
η
z
ρc g dz = −ρc g(η − z)
(3.2)
Rearranging, and taking the horizontal gradient:
∇p(z) = ∇p(η) + ρc g∇η
(3.3)
The first term on the right hand side is the gradient of the the pressure at
the surface, while the second is related to gradients in the surface height.
Both can vary in (x, y, t) but not in z. Thus the pressure gradient terms in
the x and y momentum equations likewise do not vary in the vertical. That
implies that if the horizontal flow has no vertical shear initially, it remains
so (in the absence of other forcing, like friction).1 Thus we can assume
the horizontal velocities do not vary with depth. Such velocities are called
barotropic. This is a tremendous simplification, because the formerly 3-D
motion is now 2-D. The fluid thus moves in columns, because verticallyaligned fluid parcels remain aligned.
Generally, the surface height contribution in (3.3) is much greater than
the surface pressure term. So the pressure gradients driving the flow will be
1
This is similar to, but not exactly equivalent to, the Taylor-Proudman theorem.
CHAPTER 3. SHALLOW WATER FLOWS
74
assumed to come solely from surface height variations. So the horizontal
momentum equations (1.32) and (1.33) become:
∂
dH
u + 2Ωcos(θ)w − 2Ωsin(θ)v = −g η
dt
∂x
dH
∂
v + 2Ωsin(θ)u = −g η
dt
∂y
(3.4)
Note that we now neglect friction, which can disrupt the vertical alignment
of the fluid columns. We have also written the Lagrangian derivative as:
∂
∂
∂
dH
≡
+u
+v
dt
∂t
∂x
∂y
The “H” signifies “horizontal”, because the vertical advection term has
now vanished.
Furthermore, we can neglect the horizontal Coriolis acceleration because:
2Ωcos(θ)w
∝δ≪1
2Ωsin(θ)v
3.1.2 Shallow water equations
We are then left with the shallow water momentum equations;
∂
∂
dH
∂
∂
u + u u + v u − fv =
u − f v = −g η
∂t
∂x
∂y
dt
∂x
∂
∂
∂
dH
∂
v + u v + v v + fu =
v + f u = −g η
∂t
∂x
∂y
dt
∂y
(3.5)
Again, f = 2Ωsin(θ) is the vertical part of the rotation vector.
These have three unknowns, u, v and η—so the system is not closed.
The incompressibility condition (3.1) provides a third equation, but this
3.1. FUNDAMENTALS
75
is in terms of u, v and w. However we can eliminate w in favor of η by
integrating over the depth of the fluid:
Z
η
(
−H
∂
∂
u + v) dz + w(η) − w(−H) = 0
∂x
∂y
(3.6)
Because the horizontal velocities are barotropic, they move through the
integral:
(η + H)(
∂
∂
u + v) + w(η) − w(−H) = 0
∂x
∂y
(3.7)
We require the vertical velocities at the upper and lower boundaries.
We get these by noting that a fluid parcel on the boundary stays on the
boundary. For a parcel on the upper surface:
z=η
(3.8)
If we take the derivative of this, we get:
dz
∂
dη
dH η
= ( + ~u · ∇)z = w(η) =
=
dt
∂t
dt
dt
(3.9)
The derivative on the RHS is the horizontal one because η = η(x, y, t). A
similar relation applies at the lower boundary, at z = −H:
w(−H) = −
dH H
dt
(3.10)
The horizontal derivative here occurs because H = H(x, y). Of course
the lower boundary isn’t moving, but the term is non-zero because of the
advective component, i.e.:
dH H
= ~uH · ∇H
dt
(3.11)
CHAPTER 3. SHALLOW WATER FLOWS
76
Putting these into the continuity equation, we get:
∂
∂
dH
(η + H) + (η + H)( u + v) = 0
dt
∂x
∂y
(3.12)
This is the Lagrangian form of the continuity equation. In Eulerian terms,
this is:
∂
η + ∇ · [~u(η + H)] = 0
∂t
(3.13)
This provides us with our third equation, involving u, v and η. Now we
have a closed system.
To summarize, the shallow water equations are:
∂
dH
u − f v = −g η
dt
∂x
dH
∂
v + f u = −g η
dt
∂y
∂
∂
dH
(η + H) + (η + H)( u + v) = 0
dt
∂x
∂y
(3.14)
(3.15)
(3.16)
These constitute the shallow water system. They have several conserved
quantities, which will be important in understanding the subsequent examples. There are two types of conservation statement: one which applies
to fluid parcels and another which applies when integrated over the whole
fluid volume.
3.2. MATERIAL CONSERVED QUANTITIES
3.2
77
Material conserved quantities
3.2.1 Volume
Equation (3.16) is a statement of mass conservation. If we imagine a fixed
volume of fluid, the second term on the RHS represents the flux divergence
through the sides of the volume. If there is a convergence or divergence,
the height of the volume must increase or decrease.
Because the depth, H, is fixed in time, we can rewrite the continuity
equation thus:
(
∂
dH
+ ~u · ∇)D + D∇ · ~u =
D + D∇ · ~u = 0
∂t
dt
(3.17)
where:
D =H +η
is the total fluid depth. As noted before, there is no vertical shear in shallow
water flows and the fluid moves in columns. So the height of the column
changes in response to divergence.
Now consider an infinitesimal area of fluid with sides δx and δy. Then
the time change in the area is:
δA
δx
δy
= δy + δx = δy δu + δx δv
δt
δt
δt
So the relative change in area is equal to the divergence:
1 δA δu δv
=
+
.
δA δt
δx δy
Using this in (3.17), we obtain:
A
dH
dH
dH
D+D A=
V =0
dt
dt
dt
(3.18)
(3.19)
(3.20)
CHAPTER 3. SHALLOW WATER FLOWS
78
Thus the volume of the column is conserved by the motion.
3.2.2 Vorticity
The vorticity is the curl of the velocity, i.e ∇ × ~u. This plays a central role
in geophysical flows in general. The vorticity is a vector, with components:
∂
∂
∂
w− v=
w
∂y
∂z
∂y
∂
∂
∂
ζy =
u−
w=− w
∂z
∂x
∂x
∂
∂
v− u
ζz =
∂x
∂y
Again, there is no vertical shear. Using our scalings, we have:
ζx =
(3.21)
W
δU
δU
U
| = O| |, ζy = O| |, ζz = O| |
L
L
L
L
So the horizontal components are much smaller than the vertical and we
ζx = O|
can ignore them. The velocities in shallow water dynamics are primarily
horizontal, so the most important part of the curl is in the vertical.
We obtain an equation for the vertical vorticity, ζz , by cross-differentiating
the shallow water momentum equations (3.14) and (3.15); specifically, we
take the x derivative of the second equation and subtract the y derivative
of the first. The result is:
∂
∂
∂
∂
∂
∂
ζ + u ζ + v ζ + (f + ζ)( u + v) + v f = 0
∂t
∂x
∂y
∂x
∂y
∂y
(3.22)
We have dropped the z subscript on ζ because we will not consider the
other components further. Note too that we treat f as a function of y because it varies with latitude, i.e.:
3.2. MATERIAL CONSERVED QUANTITIES
79
y
)
Re
Furthermore, because f does not vary in time or in x, we can re-write the
f = 2Ωsin(θ) = 2Ωsin(
equation thus:
dH
∂
∂
(ζ + f ) = −(f + ζ)( u + v)
dt
∂x
∂y
(3.23)
This is the shallow water vorticity equation in its Lagrangian form. This
states that the absolute vorticity (the sum of ζ and f ) on a parcel can only
change if there is horizontal divergence.
Notice the Coriolis parameter, f , on equal footing with the vorticity.
Thus we refer to f as the “planetary” vorticity, and ζ the “relative” vorticity. The planetary vorticity comes about because the Earth is rotating, as
explored in one of the exercises.
3.2.3 Potential vorticity
The absolute vorticity is not conserved following a fluid column but changes
in response to divergence. However we can remove the divergence by using the continuity equation (3.16). We get:
∂
∂
ζ + f dH
dH
(ζ + f ) = −(ζ + f )( u + v) = (
) (η + H)
dt
∂x
∂y
η + H dt
Rearranging, we have:
1 dH
1 dH
(ζ + f ) −
(H + η) = 0
ζ + f dt
H + η dt
(3.24)
CHAPTER 3. SHALLOW WATER FLOWS
80
This implies:
dH ζ + f
(
)=0
dt D
(3.25)
where again D = H + η is the total depth of the fluid.
This is an important relation. The ratio of the absolute vorticity and the
fluid depth is conserved following a fluid column. The ratio is called the
potential vorticity (PV), and it is of fundamental importance in geophysical fluid dynamics. It is closely related to a more general quantity derived
originally by Ertel (1942) and bearing his name (“the Ertel potential vorticity”). There are numerous examples of how PV conservation affects
motion in rotating fluids.
An example is shown in Fig. (3.2). A cylinder of fluid is shown at the
left, with zero vorticity. It moves to the right (as a cylinder, because there
is no vertical shear), up over the hill. As it gets shorter, the relative vorticity must decrease, because h is also decreasing. So the vortex becomes
anticyclonic over the hill. This effect is seen in the atmosphere, when air
moves over a mountain range—the compression of the fluid column generates negative vorticity.
3.2.4 Kelvin’s theorem
As the volume is conserved for a fluid column, we have that:
AD = const.
3.3. INTEGRAL CONSERVED QUANTITIES
81
Figure 3.2: An example of the conservation of potential vorticity. The fluid column at left,
with no vorticity initially, is “squashed” as it moves up over the hill, thereby acquiring
negative vorticity.
following the motion. So the conservation of PV (3.25) immediately implies:
dH
[(ζ + f )A] = 0
dt
(3.26)
This is Kelvin’s circulation theorem, stating the product of the absolute
vorticity and the parcel area is conserved in the absence of friction. The
same result can be derived directly from integrating the momentum equation around the edge of the parcel, after invoking Stoke’s theorem. The
details are given in Appendix B.
3.3
Integral conserved quantities
There are additional conservation statements which apply in a volumeintegrated sense. In this case, a quantity might vary locally, but when
integrated over an entire region, like an enclosed basin, the quantity is
conserved in the absence of forcing or dissipation.
CHAPTER 3. SHALLOW WATER FLOWS
82
The region can have any shape. Let’s assume that it has a boundary
curve which we denote Γ. The only condition we will impose is that there
be no flow through this boundary, i.e.
~u · n̂ = 0
on Γ
This would be the case, for example, in an ocean basin or an enclosed sea.
In fact, the same conservations statements will apply in periodic domains,
i.e. domains which wrap around (like the atmosphere in the x-direction).
For simplicity though, we’ll focus here on the no-normal flow case.
3.3.1 Mass
The simplest example is that the total mass is conserved in the basin. Integrating the continuity equation (3.16) over the area enclosed by Γ, we
get:
ZZ
ZZ
∂
η dA +
∇ · [~uH (η + H)] dA = 0
∂t
The second term can be re-written using Gauss’ theorem:
ZZ
∇ · [~uH (η + H)] dA =
I
(3.27)
(η + H) ~uH · n̂ dl = 0
This vanishes because of no-normal flow on Γ.
So the area-integrated surface height vanishes. This means positive surface deviations in one region of the basin must be offset by negative deviations in other regions.
3.3.2 Circulation
Now consider the integral of the Eulerian version of the vorticity equation
(3.23):
3.3. INTEGRAL CONSERVED QUANTITIES
∂
(ζ + f ) dA +
∂t
ZZ
ZZ
83
∇ · (~uH (f + ζ)) dA = 0
(3.28)
Again the second term vanishes following application of Gauss’ theorem:
ZZ
∇ · (~uH (f + ζ)) dA =
I
(f + ζ) ~u · n̂ dl = 0
So the absolute circulation, the integrated absolute vorticity, is conserved
in the basin:
ZZ
∂
(ζ + f ) dA = 0
(3.29)
∂t
This is just the basin-average version of Kelvin’s circulation theorem of
section (3.2.4).
Because f doesn’t vary in time, this also implies:
∂
∂t
ZZ
∂
ζ dA =
∂t
ZZ
∇ × ~u dA = 0
(3.30)
If we now use Stokes’ theorem, we can write:
∂
∂t
I
~u · d~l = 0
(3.31)
This is the total circulation in the basin. It is also constant in the absence
of forcing.
3.3.3 Energy
In addition, the total energy is conserved. If we take the dot product of the
momentum equation with ~u, we obtain:
∂1 2
1
|~u| + ~u · ∇( |~u|2 ) = −g~u · ∇η
∂t 2
2
(3.32)
CHAPTER 3. SHALLOW WATER FLOWS
84
The first term is the time change of the kinetic energy:
1
1
K ≡ (u2 + v 2 ) = |~u|2
2
2
So the kinetic energy changes locally due to the advection of kinetic energy
and also when the pressure gradients are correlated with the velocity (the
so-called pressure-work term). Note that the Coriolis force has dropped
out, because it acts perpendicular to the velocity:
~u · (f k̂ × ~u) = 0
(3.33)
As such, the Coriolis force does no work on the flow. It just affects the
direction of the flow.
Rearranging the kinetic energy equation and multiplying by the total
depth, D, we get:
∂
DK + D~u · ∇(K + gη) = 0
∂t
(3.34)
Now if we multiply the shallow water continuity equation (3.16) by (K +
gη), we get:
(K + gη)
∂
η + (K + gη)∇ · (D~u) = 0
∂t
Adding the two equations together (and noting that
∂
∂t D
=
∂
(DK + P ) + ∇ · [D~u(K + gη)] = 0
∂t
where:
1
P = gη 2
2
(3.35)
∂
∂t η),
we have:
(3.36)
3.4. LINEAR WAVE EQUATION
85
is the potential energy. Equation (3.36) states that the total energy changes
locally by the flux divergence term. If we integrate this over the basin, the
latter vanishes so that:
∂
∂t
ZZ
(DK + P ) dA = 0
(3.37)
So the total energy is conserved (in the absence of forcing and friction).
3.4
Linear wave equation
The three shallow water equations (3.14, 3.15, 3.16) are nonlinear as each
has terms which involve products of the unknowns u, v and η. As such,
they are difficult to solve analytically. However, solutions are possible if
we linearize the equations.
To do this, we make several additional assumptions. First, the height deviations are assumed to be much smaller than the stationary (non-changing)
water depth, i.e.
|η| ≪ H(x, y)
Then the nonlinear terms in the continuity equation (3.16) are removed.
The assumption is reasonable e.g. in the deep ocean, where the depth is of
order 4 km while the height deviations are on the 1 meter scale.
Second, we assume the temporal changes in the velocity are greater
than those due to advection, or
U
U2
≫
T
L
which implies that
CHAPTER 3. SHALLOW WATER FLOWS
86
T ≪
L
U
So the time scales are short compared to the advective time scale, L/U .
Note that this can nearly always be achieved by assuming the velocities
are weak enough. If the lateral scale is 100 km and the velocity scale is 10
cm/sec, the time scale must be less than 106 sec, or about 10 days. Longer
time scales require weaker velocities and/or larger scales.
Making these approximations, the shallow water equations are approximately:
∂
∂
u − f v = −g η
∂t
∂x
(3.38)
∂
∂
v + f u = −g η
∂t
∂y
(3.39)
∂
∂
∂
η+
(Hu) + (Hv) = 0
∂t
∂x
∂y
(3.40)
Note that H remains in the parentheses in (3.40) because the bottom depth
can vary in space, i.e. H = H(x, y).
Linearizing is really a matter of convenience. We make the assumptions necessary to omit the nonlinear terms. Nevertheless, many observed
phenomena—like gravity waves—are often nearly linear. So this exercise
is valuable.
The equations are linear, which means we can solve them. In fact, these
constitute the Laplace Tidal Equations, which we solve numerically when
forecasting the tides. From our perspective though, they’re still not easy to
work with, since we have three unknowns (u, v and η). So we will now
reduce the system to a single unknown.
3.4. LINEAR WAVE EQUATION
87
We can do this if we assume that the rotation rate, f , is constant. This
is known as the “f -plane approximation”, and it applies if the area under
consideration is small. To see this, we expand f in a Taylor series:
f = 2Ωsin(θ) ≡ 2Ω[ sin(θ0 ) + (θ − θ0 )cos(θ0 ) + O|(θ − θ0 )2 |] (3.41)
Here θ0 is the central latitude of our plane of fluid. We see that the f -plane
approximation applies when we can neglect all but the first term in the
expansion, sin(θ0 ).
Under the f -plane approximation, we can reduce (3.38-3.40) to a single
equation. First we rewrite the equations in terms of the transports (U, V ) ≡
(Hu, Hv):
∂
∂
U − f V = −gH η
∂t
∂x
∂
∂
V + f U = −gH η
∂t
∂y
∂
∂
∂
η+
U+ V =0
∂t
∂x
∂y
Then we derive equations for the divergence and vorticity:
(3.42)
(3.43)
(3.44)
∂
χ − f ζ = −g∇ · (H∇η)
(3.45)
∂t
∂
ζ + f χ = −gJ(H, η)
(3.46)
∂t
∂
∂
∂
∂
where χ ≡ ( ∂x
U + ∂y
V ) is the transport divergence, ζ ≡ ( ∂x
V − ∂y
U ) is
the transport vorticity. We use the Jacobian function:
∂ ∂
∂ ∂
a b−
b a
(3.47)
∂x ∂y
∂x ∂y
to simplify the expression. We can eliminate the vorticity by taking the
J(a, b) ≡
time derivative of (3.45) and substituting in from (3.46). The result is:
CHAPTER 3. SHALLOW WATER FLOWS
88
∂2
∂
( 2 + f 2 ) χ = −g ∇ · (H ∇η) − f g J(H, η)
∂t
∂t
From (3.44) we have:
(3.48)
∂
η+χ=0
(3.49)
∂t
which we can use to eliminate the divergence from (3.48). This leaves a
single equation for the sea surface height:
∂2
∂
{( 2 + f 2 ) η − ∇ · (c20 ∇η)} − f g J(H, η) = 0
∂t ∂t
The term c0 =
√
(3.50)
gH has the units of a velocity, and we will see later this
is related to the speed of free gravity waves. If the fluid depth is 4000 m,
c0 = 200 m/sec.
So we have one equation with a single unknown: η. The problem is that
if the topography, H, is complex, the solutions may be very hard to obtain
analytically.
Equation (3.50) is more tractable if we assume the bottom is flat. Then
the Jacobian term vanishes, leaving:
∂2
∂
{( 2 + f02 ) η − c20 ∇2 η} = 0
∂t ∂t
(3.51)
This can easily be solved for η. Then, given the surface height, η, we can
determine the velocities, u and v from the momentum equations.
3.5. GRAVITY WAVES
3.5
89
Gravity waves
First let’s examine the solutions with no rotation. These are gravity waves,
the type of wave you see on the surface of the ocean at the beach. With
f0 = 0, equation (3.51) reduces to:
∂ ∂2
{ 2 η − c20 ∇2 η} = 0
∂t ∂t
(3.52)
This equation has three time derivatives and so admits three solutions. One
is a steady solution in which η does not vary with time—if η = η(x, y),
equation (3.52) is trivially satisfied. This is referred to as the “geostrophic
mode”, and we’ll take this up later.
The other two solutions are time-varying and come from solving the
portion of the equation in the braces. This is a second-order wave equation,
and we can obtain a general solution if we use a Fourier representation of
the surface height:
η(x, y, t) =
ZZZ
∞
η̂(k, l, ω) eikx+ily−iωt dk dk dω
−∞
Here, k and l are wavenumbers. They are related to the wavelength, as
√
follows. The total wavenumber is κ = k 2 + l2 . Then the wavelength is
given by:
λ=
2π
κ
(3.53)
The constant ω is the frequency. This is related to the period of the
wave, which is like a wavelength in time:
T =
2π
ω
(3.54)
CHAPTER 3. SHALLOW WATER FLOWS
90
Since the wave equation is linear, we can study the response for a single
Fourier mode (because linear equations allow a superposition of solutions).
So we can write:
η = Re{η̂(k, l, ω) eikx+ily−iωt }
The Re{} operator here implies taking the real part. Thus, for example:
Re{eiθ } = cos(θ)
Substituting the wave mode into equation (3.52), we get:
(−ω 2 + c20 κ2 ) η̂ = 0
(3.55)
where κ ≡ (k 2 + l2 )1/2 is the modulus of the wavevector. So either η̂ = 0,
in which case we have no solution at all, or:
ω = ±c0 κ
(3.56)
This is referred to as the gravity wave dispersion relation. It relates
the wave frequency and its wavenumber. This shows that short wavelength (large wavenumber) waves have higher frequencies. So short gravity waves will have shorter periods than long waves.
How quickly do the waves move? Consider the wave solution in (x, t)
(ignoring variations in y):
η = Re{η̂(k, ω) eikx−iωt } = Re{η̂(k, ω) eiθ }
where
θ = kx − ωt
3.5. GRAVITY WAVES
91
is the phase of the wave. For simplicity, let’s take η̂(k, ω) = 1. Then we
have:
η = cos(θ)
Consider a crest of the wave, for example at θ = 2π. This moves,
because θ is a function of time. It’s position is given by:
θ = 2π = kx − ωt
Solving for the position, x, we get:
x=
2π ω
+ t
k
k
So if ω and k are both positive, the crest progresses to the right, toward
larger x. The rate at which it moves is given by:
dx
ω
=c=
dt
k
(3.57)
This is the phase speed of the wave.
From the dispersion relation, we see that:
c = ±c0 = ±
p
gH
(3.58)
So the waves can propagate to the left or the right. Moreover, all waves
propagate at the same speed, regardless of the wavelength. We say then
that the waves are “non-dispersive”. This is because an initial disturbance,
which is generally composed of different wavelengths, will not separate
into long and short waves. Any initial condition will produce waves moving with speed c0 .
Consider the wave equation in one dimension:
CHAPTER 3. SHALLOW WATER FLOWS
92
2
∂2
2 ∂
η − c0 2 η = 0
∂t2
∂x
(3.59)
All solutions to this equation have the form:
η = Fl (x + c0 t) + Fr (x − c0 t)
because, substituting into (3.59) yields:
c20 (Fl′′ + Fr′′ ) − c20 (Fl′′ + Fr′′ ) = 0
where the prime indicates differentiation with respect to the argument of
the function. The function Fl represents a wave which propagates to the
left, towards negative x, while Fr propagates to the right. It doesn’t matter
what Fl and Fr look like—they can be sinusoidal or top-hat shaped. But
all propagate with a phase speed c0 .
Figure 3.3: An surface height anomaly with a “top hat” distribution. The anomaly splits
into two equal anomalies, one propagating left and one going right, both at the gravity
wave speed, c0 .
Because there are two unknown functions, we require two sets of conditions to determine the full solution. For instance, consider the case when
η(t = 0) = F(x),
∂
η(t = 0) = 0
∂t
3.6. GRAVITY WAVES WITH ROTATION
93
This means the height has a certain shape at t = 0, for example a top hat
shape (Fig. 3.3), and the initial wave is not moving. Then we must have:
1
Fl = Fr = F(x)
2
So the disturbance splits in two, with half propagating to the left and half
to the right, both moving with speed c0 .
3.6
Gravity waves with rotation
Now consider what happens when f0 6= 0. If we ignore the steady solution,
the linearized shallow water equation (3.51) is:
∂2
( 2 + f02 ) η − c20 ∇2 η = 0
∂t
(3.60)
Using a wave-like (Fourier) solution for η, as before, we obtain the following dispersion relation:
q
ω = ± (f02 + c20 κ2 )
(3.61)
This is the dispersion relation for “Poincaré waves”, which are gravity
waves with rotation. For large wavenumbers (small waves), this is approximately:
ω = ±c0 κ
(3.62)
which is the same as the dispersion relation for non-rotating gravity waves.
However, in the other limit, as κ → 0, the relation is:
ω = ±f0
(3.63)
So the frequency asymptotes to the inertial frequency, f0 , for large waves.
CHAPTER 3. SHALLOW WATER FLOWS
94
6
4
ω/f0
2
0
−2
−4
−6
0
0.5
1
1.5
2
2.5
c0 κ/f0
3
3.5
4
4.5
5
Figure 3.4: The gravity wave dispersion relations for non-rotating (dashed) and constant
rotation (solid) cases. Note the frequency and wavenumber have been normalized.
We plot the non-rotating and rotating dispersion relations in Fig. (3.4).
The rotating and non-rotating frequencies are similar when:
√
2π
gH
≡ LD
(3.64)
λ=
≪
κ
f0
The scale, LD , is called the Rossby deformation radius.2 At wavelengths
small compared to the deformation radius, rotation is unimportant; the
waves essentially do not “feel” the earth’s rotation.
At scales larger than the deformation radius, the frequency asymptotes
to f . In this case, gravity is unimportant because we would obtain the
same result if we had ignored the pressure gradient terms in the momentum
equations. These waves are called “inertial oscillations” and are discussed
further in sec. (2.2.3). They have a period proportional to the inverse of
the Coriolis parameter.
We defined the phase speed as the ratio of the frequency to the wave
2
More correctly, this is the barotropic or “external” deformation radius. Later we’ll see the baroclinic
deformation radius.
3.6. GRAVITY WAVES WITH ROTATION
95
number. As we saw, non-rotating gravity waves have the same phase
speed regardless of their wavenumber and are thus non-dispersive. Rotation causes the gravity waves to disperse. To see this, let’s consider a
1-D wave, i.e. one with no y-variation. Then:
q
ω = ± f02 + c20 k 2
(3.65)
The phase speed then (in the x-direction) is:
p
r
f02 + c20 k 2
f0 2
cx = ±
= ±c0 1 + (
)
k
c0 k
(3.66)
In the short wave (large k) limit, the waves are approximately non-dispersive
and traveling at speed, ±c0 . But the larger waves propagate faster. So an
arbitrary initial disturbance will break into sinusoidal components, with
the larger wavelengths moving away fastest.
As noted, rotation becomes important at scales larger than the deformation radius. But how big is the deformation radius? Using typical values
and a latitude of 45 degrees, the deformation radius is:
√
gH
≈
f0
√
10 ∗ 4000
= 2000 km
10−4
which is a rather large scale, corresponding to about 20 degrees of latitude.
At such scales, our assumption of a constant Coriolis parameter is certainly
not correct. So a more proper treatment of the large wave limit in such deep
water would have to take the variation of f into account. Of course if the
depth is less, the deformation radius will be smaller; this is the case for
example in bays and shallow seas.
CHAPTER 3. SHALLOW WATER FLOWS
96
3.7
Geostrophic adjustment
We noted earlier that the linear shallow water equation (3.50) admits three
solutions; two are propagating waves and one is independent of time. This
third solution is trivial in the absence of rotation. But with rotation, the
solution, known as the “geostrophic mode”, plays a central role in the atmosphere and ocean. To illustrate this mode, we consider an initial value
problem for gravity waves, first without and then with rotation.
We consider again the one-dimensional problem, for simplicity. We
assume the initial sea surface has a front (a discontinuity) at x = 0:
η(x, t = 0) = η0 sgn(x)
where the sgn(x) function is 1 if x > 0 and and −1 if x < 0. This could
represent, for example, the initial sea surface deviation generated by an
earthquake. Without rotation, the solution follows from section (3.5):
η(x, t) =
η0
η0
sgn(x − c0 t) + sgn(x + c0 t)
2
2
The discontinuity thus splits into two fronts, one propagating to the left
and one to the right (Fig.3.5). The height in the wake of the two fronts is
zero (since 1 + (-1) =0). There is no motion here.
co
co
Figure 3.5: The evolution of a sea surface discontinuity in the absence of rotation.
The case with rotation is different because of the geostrophic mode.
As noted in section (3.2.3), shallow water flows must conserve potential
3.7. GEOSTROPHIC ADJUSTMENT
97
vorticity in the absence of forcing. This in fact will not allow a flat final
state. If the PV is conserved, then from (3.25) we have:
ζ + f0
= const.
H +η
Let’s assume there is no motion in the initial state. Then we have:
v x + f0
f0
=
H + η0 sgn(x)
H +η
where vx =
∂
∂x v
(3.67)
(the vorticity is just vx because the front is one-dimensional).
The initial PV is on the left and final PV on the right. The relation obviously cannot be satisfied if the final surface height is flat (η = 0).
But we can use this to solve for η. Cross-differentiating and re-arranging,
we get:
[H + η0 sgn(x)] vx − f0 η = −f0 η0 sgn(x)
(3.68)
To be consistent with the linearization of the equations, we can assume
the initial interface displacement is much smaller than the total depth, i.e.
|η0 | ≪ H.
We imagine that the final surface height has some shape, but does not
change in time. Without time dependence, the x-momentum equation reduces to:
f0 v = gηx
(3.69)
So the final surface height is in geostrophic balance with a flow into the
page. As long as the final surface height is tilted, it will have an associated
flow (perpendicular to the initial front). With these two changes, we get:
CHAPTER 3. SHALLOW WATER FLOWS
98
where again, LD =
√
ηxx −
η0
1
η
=
−
sgn(x)
L2D
L2D
(3.70)
gH/f0 is the deformation radius.
Equation (3.70) is an ordinary differential equation. We will solve it
separately for x > 0 and x < 0. For x > 0, we have:
η0
1
η=− 2
2
LD
LD
The solution for this which decays as x → ∞ is:
ηxx −
η = A exp(−x/LD ) + η0
(3.71)
(3.72)
The corresponding solution for x < 0 which decays as x → −∞ is:
η = B exp(x/LD ) − η0
(3.73)
We thus have two unknowns, A and B. We find them by matching η and
ηx at x = 0. That way the height and the velocity, v, will be continuous at
x = 0. The result is:
x
)) x ≥ 0
LD
x
= −η0 (1 − exp( )) x < 0
(3.74)
LD
The final state is plotted in Fig. (3.6). Recall that without rotation, the
η = η0 (1 − exp(−
final state was flat, with no motion. With rotation, the initial front slumps,
but does not vanish. Associated with this tilted height is a meridional jet,
centered at x = 0:
v=
|x|
gη0
exp(− )
f 0 LD
LD
(3.75)
3.8. KELVIN WAVES
99
1
0.8
0.6
0.4
0.2
0
−0.2
−0.4
−0.6
η(t=0)
η(t=∞)
v
−0.8
−1
−2
−1.5
−1
−0.5
0
0.5
1
1.5
2
Figure 3.6: The sea surface height after geostrophic adjustment, beginning with a discontinuity, with rotation. The red curve shows the final interface shape and the blue curve the
meridional velocity, v.
The flow is directed into the page. Thus the final state with rotation is one
in motion, in which the tilted interface is supported by the Coriolis force
acting on a meridional jet.
How does the system adjust from the initial front to the final jet? Notice
that we figured out what the final interface looked like without considering
gravity waves at all(!)—we only used the conservation of PV. However,
gravity waves are important. After the initial front is allowed to slump,
gravity waves radiate away, to plus and minus infinity. Just enough waves
are shed to adjust the interface height to its final state. So the waves mediate the geostrophic adjustment.
3.8
Kelvin waves
So far we have examined wave properties without worrying about boundaries. Boundaries can cause waves to reflect, changing their direction of
propagation. But in the presence of rotation, boundaries can also support
gravity waves which are trapped there; these are called Kelvin waves.
CHAPTER 3. SHALLOW WATER FLOWS
100
3.8.1 Boundary-trapped waves
The simplest example of a Kelvin wave occurs with an infinitely long wall.
Let’s assume this is parallel to the x-axis and lies at y = 0. The wall
permits no normal flow, so we have v = 0 at y = 0. In fact, we can obtain
solutions which have v = 0 everywhere. Because our linear wave equation
(3.50) is expressed in terms of η, it is preferable to go back to the linearized
shallow water equations (3.38-3.40) and set v = 0 there. This yields:
∂
∂
u = −g η
∂t
∂x
∂
f0 u = −g η
∂y
∂
∂
η+
Hu = 0
∂t
∂x
(3.76)
(3.77)
(3.78)
An equation for η can be derived with only the x-momentum and continuity equations:
2
∂2
2 ∂
η − c0 2 η = 0
∂t2
∂x
(3.79)
Notice that this is just the linearized shallow water equation (3.50) in one
dimension without rotation. Indeed, rotation drops out of the x-momentum
equation because v = 0. So we expect that Kelvin waves will be nondispersive and propagate with a phase speed, c0 . Furthermore, from section
(3.5), we know the general solution to equation (3.79) involves two waves,
one propagating towards negative x and one towards positive x:
η(x, y, t) = Fl (x + c0 t, y) + Fr (x − c0 t, y)
We allow for structure in the y-direction and this remains to be determined.
3.8. KELVIN WAVES
101
In fact, this is where rotation enters. From the x-momentum equation,
(3.76), we can derive the velocity component parallel to the wall:
u=−
g
(Fl − Fr )
c0
Substituting this into the y-momentum equation, (3.77), we obtain:
∂
f0
Fl = Fl ,
∂y
c0
∂
f0
Fr = − Fr
∂y
c0
The solutions are exponentials, with an e-folding scale of
√
gH/f = LD ,
the deformation radius:
Fl ∝ exp(y/LD ),
Fr ∝ exp(−y/LD )
We choose the solution which decays away from the wall (is trapped
there) rather than one which grows indefinitely. Which solution depends
on the where the wall is. If the wall covers the region y > 0, then the only
solution decaying (in the negative y-direction) is Fl . If the wall covers the
region y < 0, only Fr is decaying. Thus, in both cases, the Kelvin wave
propagates at the gravity wave speed with the wall to its right.
Note that the decay is also affected by the sign of f . If we are in the
southern hemisphere, where f < 0, the Kelvin waves necessarily propagate with the wall to their left.
3.8.2 Equatorial waves
Kelvin waves also occur at the equator, where f vanishes. To consider this
case, we use the β-plane approximation (2.3) centered on the equator, so
that f0 = 0. Thus:
CHAPTER 3. SHALLOW WATER FLOWS
102
f = βy
(3.80)
Assuming there is no flow perpendicular to the equator (v = 0), the
linearized shallow water equations are:
∂
∂
u = −g η
∂t
∂x
∂
βyu = −g η
∂y
∂
∂
η+
Hu = 0
∂t
∂x
(3.81)
(3.82)
(3.83)
The first and third equations are the same as previously, and yield the nonrotating gravity wave equation:
2
∂2
2 ∂
η
−
c
η=0
0
∂t2
∂x2
(3.84)
So again, the surface height can be expressed in terms of left-going and
right-going solutions:
η(x, y, t) = Fl (x + c0 t, y) + Fr (x − c0 t, y)
and the velocity, u, can be written:
u=−
g
(Fl − Fr )
c0
Plugging this into the second equation yields:
∂
βy
Fl ,
Fl =
∂y
c0
∂
βy
Fr = − Fr
∂y
c0
The solutions in this case are Gaussian functions:
3.9. EXERCISES
103
Fl ∝ exp(y 2 /L2B ),
Fr ∝ exp(−y 2 /L2B )
where:
2c0 1/2
)
β
The leftward solution grows moving away from the equator, so we reject
LB = (
it. The rightward solution decays away into both hemispheres, and has a
scale of LB . This is approximately:
2(200) 1/2
) ≈ 4500 km
2 × 10−11
Equatorial Kelvin waves exist in both the atmosphere and ocean. In the
LB ≈ (
ocean, the waves are an important part of the adjustment process which
occurs prior to an El Nino.
3.9
Exercises
3.1. The surface pressure in the atmosphere is due to the weight of all the
air in the atmospheric column above the surface. Use the hydrostatic
relation to estimate how large the surface pressure is. Assume that the
atmospheric density decays exponentially with height:
ρ(z) = ρs exp(−z/H)
where ρs = 1.2 kg/m3 and the scale height, H = 8.6 km. Assume
too that the pressure at z = ∞ is zero.
3.2. Let η = 0. Imagine a column of fluid at 30N, with H=200 m and with
no vorticity. That column is moved north, to 60N, where the depth is
CHAPTER 3. SHALLOW WATER FLOWS
104
300 m. What is the final vorticity of the column?
3.3. Imagine that a fluid parcel is moving into a region where there is a
constant horizontal divergence, i.e.:
∂
∂
u + v = D = const.
∂x
∂y
(3.85)
Solve the vorticity equation, assuming D > 0. What can you conclude about the parcel’s vorticity at long times? Now consider D < 0
(convergent flow). What happens? Consider two cases, one where the
absolute vorticity is initially positive and a second where it is negative. Note that the storm initially should have a small Rossby number.
3.4. Consider again a region where the horizontal divergence is constant
and equal to - 0.5 day−1 . Use the vorticity equation to deduce what
the vorticity on a parcel will be after 2 days if:
a) ζ(t = 0) = f /2
b) ζ(t = 0) = −f /2
c) ζ(t = 0) = −2f
Are these reasonable values of vorticity? Explain why or why not.
3.5. Planetary vorticity. Imagine looking down on the North Pole. The
earth spinning in solid body rotation, because every point is rotating
with the same frequency, 2π rad/day. This implies that the azimuthal
velocity at any point is just Ωr. Write the vorticity in cylindrical
coordinates. For a solid body rotating at a frequency ω, vr = 0 and
vθ = ωr. Use this to show that ζ = 2Ω.
3.9. EXERCISES
105
The analogy carries over to a local region, centered at latitude θ,
where the vertical component of the rotation is 2Ωsin(θ), the planet’s
vorticity at this latitude.
3.6. Derive equation (3.50).
3.7. A meteor strikes the surface of the ocean, causing a disturbance at the
surface at x = 0. We’ll model this as:
∂
2
(3.86)
η(x, 0) = −2c0 xe−x
∂t
Where is it safer to view the waves, at x = L or x = −L (L ≫ 1)?
2
η(x, 0) = e−x ;
3.8. Consider a wave with a wavelength of 10 km in a lake 200 m deep.
How accurate would you be if you used the non-rotating phase speed,
c0 , to estimate the wave’s speed?
3.9. A meteor strikes the surface of the ocean again, causing a depression
in the surface at x = 0. This time we will take rotation into account.
If the initial depression has the form:
η(x, 0) = −Ae−c|x|
(3.87)
what will the final, adjusted state be, after the gravity waves have
radiated away?
3.10. Assume there is an initial depression along a wall at y = 0 with:
η(x, 0, 0) = exp(−x2 , y)
(3.88)
Describe the solution at later times if we are in the Southern Hemisphere. How does this compare to the non-rotating case?
CHAPTER 3. SHALLOW WATER FLOWS
106
3.11. Use scaling to figure out how big the ageostrophic velocities typically are. Use z-coordinates and assume the Boussinesq approximation. First show the horizontal divergence of the ageostrophic velocities is the same size as the vertical derivative of the vertical velocity.
Then scale the result. Use typical oceanic values for W , L and D (see
exercise 3.1). Does the result make sense with regards to the Rossby
number?
Chapter 4
Synoptic scale barotropic flows
Up to this point, we’ve focused mostly on phenomena with short time
scales like gravity waves. Kelvin waves are gravity waves and thus also
have short time scales, despite their large spatial scales. From now on,
we’ll examine large scale flows with longer time scales. We will employ a
modified set of equations, designed with these scales in mind.
4.1
The Quasi-geostrophic equations
The quasi-geostrophic system of equations was originally developed by
Jules Charney, Arnt Eliassen and others for weather prediction. As suggested in the name, the equations pertain to motions which are nearly in
geostrophic balance, i.e. for which the Rossby number is small. They
pertain then to weather systems in the atmosphere and ocean eddies.
An advantage of the QG system is that it filters out gravity waves. This
is similar in spirit to the geostrophic adjustment problem (sec. 3.7). There
we derived the final state, in geostrophic balance, without taking account
of the gravity waves which were radiated away. QG similiarly focuses
on the “slow modes” while ignoring the “fast modes”. As such, the QG
system can be used with a larger time step, when using numerical models.
107
CHAPTER 4. SYNOPTIC SCALE BAROTROPIC FLOWS
108
The QG system is rigorously derived by a perturbation expansion in the
Rossby number (see Pedlosky, 1987). But we will derive the main results
heuristially. The primary assumptions are:
• The Rossby number, ǫ, is small
• |ζ|/f0 = O|ǫ|
• |βL|/f0 = O|ǫ|
• |hb |/D0 = O|ǫ|
• |η|/D0 = O|ǫ|
The expression O|ǫ| means “of the order of ǫ”. The second assumption
follows from the first. If you note that the vorticity scales as U/L, then:
U
|ζ|
∝
=ǫ
f0
f0 L
Thus the relative vorticity is much smaller than f0 if ǫ is small.
The third assumption says that the change in f over the domain is much
less than f0 itself. So we are obviously not at the equator, where f0 = 0.
The fourth and fifth assumptions imply that the bottom topography and
the surface elevation are both much less than the total depth. We write:
H = D0 − h b + η
where D0 is the (constant) average depth in the fluid. Then both hb and η
are much smaller.
An important point here is that all the small terms are assumed to be
roughly the same size. We don’t take |hb |/D0 to scale like ǫ2 , for example.
The reason we do this is that all these terms enter into the dynamics. If the
topography were this week, it wouldn’t affect the flow much.
4.1. THE QUASI-GEOSTROPHIC EQUATIONS
109
Let’s consider how these assumptions alter the shallow water vorticity
equation (3.23):
∂
∂
dH
(ζ + f ) = −(f + ζ)( u + v)
dt
∂x
∂y
(4.1)
With a small Rossby number, the velocities are nearly geostrophic, so we
can replace the Lagrangian derivative thus:
dH
dt
→
∂
dg
∂
∂
+ ug
+ vg
≡
∂t
∂x
∂y
dt
The new Lagrangian derivative then is following the geostrophic flow,
rather than the total horizontal flow.
Similarly, the vorticity is replaced by its geostrophic counterpart:
ζ → ζg
Thus the LHS of the equation becomes:
dg
ζg + βvg
dt
On the RHS, the term:
(f + ζ) → f0
This is because:
(f + ζ) = f0 + βy + ζg
and the two last terms are much smaller than f0 , by assumption.
Lastly, we have the horizontal divergence:
CHAPTER 4. SYNOPTIC SCALE BAROTROPIC FLOWS
110
∂
∂
∂
∂
∂
∂
u + v = ( ug + v g ) + ( u a + v a )
∂x
∂y
∂x
∂y
∂x
∂y
But the geostrophic velocities are non-divergent (sec. 2.4.1). So this is:
=
∂
∂
∂
ua + v a = − w
∂x
∂y
∂z
Collecting all the terms, we have:
(
∂
∂
∂
∂
+ ug
+ vg )(ζg + βy) = f0 w
∂t
∂x
∂y
∂z
(4.2)
This is the quasi-geostrophic vorticity equation. Though we used the shallow water vorticity equation to derive this, the exact same result is obtained
for baroclinic flows, i.e. flows with vertical shear. So this is a very useful
relation. The equation in fact has two unknowns. The geostrophic velocities and vorticity can be derived from the surface height, but there is also
the vertical velocity. With baroclinic flows, this can be eliminated by using
the QG density equation.
For shallow water flows though we can eliminate w by simply integrating (4.2) from the bottom to the surface:
Z
η
−H
dg
(ζg + βy) dz = f0 (w(η) − w(−H))
dt
(4.3)
Because the horizontal velocities don’t vary with height, they pass through
the integral, so the LHS is simply:
(η + H)
dg
dg
dg
(ζg + βy) = (η + D0 − hb ) (ζg + βy) ≈ D0 (ζg + βy)
dt
dt
dt
4.1. THE QUASI-GEOSTROPHIC EQUATIONS
111
after using the last two assumptions above.
On the RHS, we have the vertical velocities at the upper and lower
surface. Following the arguments in sec. (3.1.2), we can write:
w(η) =
d
dg
η→ η
dt
dt
and:
w(−H) = −
dg
dg
d
H → − (D0 − hb ) = hb
dt
dt
dt
The D0 term drops out because it is constant.
Collecting terms, the integrated vorticity equation becomes:
dg
f0 d g
dg
[ η − hb ]
(ζg + βy) =
dt
D0 dt
dt
or:
(
∂
f0
f0
∂
∂
η+
hb ) = 0
+ ug
+ vg )(ζg + βy −
∂t
∂x
∂y
D0
D0
(4.4)
This is the barotropic QG potential vorticity equation, without forcing.
The great advantage of this is that it has only one unknown: the pressure.
From the geostrophic relations, we have:
ug = −
g ∂
η,
f0 ∂y
vg =
g ∂
η
f0 ∂x
(4.5)
The relative vorticity can also be expressed solely in terms of the pressure:
ζg =
∂
g
∂
v − u = ∇2 η
∂x
∂y
f0
We can simplify this somewhat by defining a streamfunction:
(4.6)
CHAPTER 4. SYNOPTIC SCALE BAROTROPIC FLOWS
112
ψ=
gη
f0
(4.7)
Then we have:
ug = −
∂
ψ,
∂y
vg =
∂
ψ,
∂x
ζ g = ∇2 ψ
(4.8)
Using these, the potential vorticity equation is:
(
∂
f2
f0
∂
∂
hb ) = 0
+ ug
+ vg )(∇2 ψ − 02 ψ + βy +
∂t
∂x
∂y
c0
D0
(4.9)
with:
ug = −
∂
∂
ψ, vg =
ψ
∂y
∂x
Having a single equation with one unknown is an enormous simplification
and is a major reason we use the quasi-geostrophic system for studying
geophysical fluid dynamics.
Like the name suggests, the QGPV equation is closely related to the
shallow water PV equation (sec. 3.2.3). In fact, we can derive the QGPV
equation directly from the shallow water equation (3.25), under the assumptions given above. Replacing the velocities and vorticity with their
geostrophic counterparts, the equation is:
dg ζg + f0 + βy
=0
dt D0 + η − hb
With the assumptions above, the PV can be approximated:
(4.10)
4.1. THE QUASI-GEOSTROPHIC EQUATIONS
ζg + f0 + βy
f0 1 + ζ/f0 + βy/f0
=
(
)
D0 + η − h b
D0 1 + η/D0 − hb /D0
ζ
βy
η
hb
f0
(1 + +
)(1 −
+
)
≈
D0
f0
f0
D 0 D0
f0
ζ
βy f0 η f0 hb
≈
+
+
− 2 + 2
D0 D0 D0
D0
D0
113
(4.11)
(4.12)
(4.13)
The last four terms are all order Rossby number compared to the first term.
Moreover, the terms we’ve dropped involve the products of the small terms
and are hence of order Rossby number squared. Substituting this into
(4.10) yields:
f0
f0
dg
η+
hb ) = 0
(4.14)
(ζg + βy −
dt
D0
D0
after dropping the constant term, f0 /D0 , and multiplying through by the
constant, D0 . This is just the QGPV equation (4.4) again.
4.1.1 The QGPV equation with forcing
Without friction, the QGPV is conserved following the geostrophic flow.
This is a powerful constraint, as seen hereafter. But forcing and dissipation
can cause the PV to change, and it is important to include their effects.
As noted in Chapter 1, friction is unimportant for synoptic scale motion,
but it is important is in the boundary layers. As we saw in section (2.6), the
ageostrophic flow in these layers can generate vertical velocities which in
turn can influence motion in the interior. We cannot simply include Ekman
layers in our barotropic formalism, because the vertical shear in the layers
is not zero. What we can do is to assume that the interior of the fluid is
barotropic and that that is sandwiched between two Ekman layers, one on
the upper boundary and one on the lower.
CHAPTER 4. SYNOPTIC SCALE BAROTROPIC FLOWS
114
We can include these Ekman layer by adding two additional terms on
the RHS of the integrated vorticity equation (4.4), thus:
dg
f0
f0
f0
η+
h) =
[we (z1 ) − we (z0 )]
(ζ + βy −
dt
D0
D0
D0
(4.15)
The first term on the RHS is the vertical velocity associated with the boundary layer on the upper surface and the second term is that with the layer on
the lower surface.
In the atmosphere, we would set the vertical velocity at the top boundary
to zero (there is no Ekman layer on the tropopause). The ocean is different
though, because the wind is causing divergence at the upper surface. So
we include the wind stress term from (2.53):
1
k̂ · ∇ × τ w
(4.16)
ρc f 0
The bottom Ekman layer exists in both the atmosphere and ocean. This
we (z1 ) =
exerts a drag proportional to the relative vorticity. From (2.71), we have:
δ
we (z0 ) = ζg
(4.17)
2
The Ekman layers thus affect the motion in the interior when there is vorticity.
Combining the terms, we arrive at the full QG barotropic PV equation:
1
f0
f2
dg
h) =
(∇2 ψ − 02 ψ + βy +
k̂ · ∇ × ~τw − r∇2 ψ
dt
c0
D0
ρc D 0
(4.18)
The constant, r, is called the “Ekman drag coefficient” and is defined:
r=
f0 δ
2D0
4.1. THE QUASI-GEOSTROPHIC EQUATIONS
115
An important point here is that the forcing terms exert themselves over
the entire depth of the fluid, because there is no vertical shear.
4.1.2 The rigid lid assumption
Having a moveable free surface is obviously important for gravity waves,
but it is less important for synoptic scale flows. Since we have filtered out
the faster modes, by assuming the flows are geostrophically balanced, we
no longer really require the moveable surface.
So replace it with a “rigid lid”, a flat surface where the vertical velocity
vanishes. It might seem that this would remove all flows in the barotropic
system, but it doesn’t—this is because the lid can support pressure differences in the fluid.
The changes with a rigid lid are relatively minor. First, we omit the
second term in the potential vorticity in (4.18). So the equation becomes:
1
f0
dg
k̂ · ∇ × ~τw − r∇2 ψ
h) =
(∇2 ψ + βy +
dt
D0
ρc D 0
(4.19)
This is the QGPV equation we’ll use hereafter.
Second, we recognize that the streamfunction (and hence the horizontal velocities) are defined in terms of the pressure rather than the surface
height. So we have:
ψ≡
p
ρc f 0
(4.20)
CHAPTER 4. SYNOPTIC SCALE BAROTROPIC FLOWS
116
4.2
Geostrophic contours
The PV equation (4.19) states that the PV is conserved on fluid parcels,
where the PV is:
f0
h
D0
This is a strong constraint. The PV is comprised of a time-varying porq = ∇2 ψ + βy +
tion (the vorticity) and a time-independent part (due to β and the bottom
topography). So we can rewrite equation (4.9) this way:
dg 2
∇ ψ + ~ug · ∇qs = 0
dt
(4.21)
where the function:
f0
h
D0
defines the geostrophic contours, the stationary (unchanging) part of the
qs ≡ βy +
potential vorticity.
If a parcel crosses the geostrophic contours, its relative vorticity must
change to conserve the total PV. Consider the example in figure (4.1). Here
there is no topography, so the contours are just latitude lines (qs = βy).
Northward motion is accompanied by a decrease in relative vorticity: as
y increases, ζg must decrease. If the parcel has zero vorticity initially, it
acquires negative vorticity (clockwise circulation) in the northern hemisphere. Southward motion likewise generates positive vorticity. This is
just Kelvin’s theorem again.
Topography generally distorts the geostrophic contours. If it is large
enough, it can overwhelm the βy term locally, even causing closed contours (near mountains or basins). But the same principle holds, as shown
in Fig. (4.2). Motion towards larger values of qs generates negative vorticity and motion to lower values of qs generates positive vorticity.
4.2. GEOSTROPHIC CONTOURS
117
Figure 4.1: The change in relative vorticity due to northward or southward motion relative
to βy.
If the flow is steady, then (4.19) is just:
~ug · ∇(ζg + qs ) = 0
(4.22)
Thus for a steady flow the geostrophic flow is parallel to the total PV
contours, q = ζg + qs . If the relative vorticity is weak, so that ζg ≪ qs ,
then:
~ug · ∇qs = 0
(4.23)
So the flow follows the geostrophic contours.
Take the case again of no topography. Then:
~ug · ∇βy = βvg = 0
(4.24)
So the steady flow is purely zonal. This is because meridional motion
necessarily implies a changing relative vorticity. An example are the Jet
Streams in the atmosphere. These is approximately zonal flows.
Alternately if the region is small enough so that we can ignore changes
in the Coriolis parameter, then:
~ug · ∇h = 0
(4.25)
118
CHAPTER 4. SYNOPTIC SCALE BAROTROPIC FLOWS
Figure 4.2: The change in relative vorticity due to motion across geostrophic contours
with topography.
(after dropping the constant f0 /D0 factor). Then the flow follows the topographic contours. This is why many major currents in the ocean are
parallel to the isobaths.
Whether such steady flows actually exist depends in addition on the
boundary conditions. The atmosphere is a re-entrant domain, so a zonal
wind can simply wrap around the earth (Fig. 4.3, left). But most ocean
basins have lateral boundaries (continents), and these block the flow. As
such, steady, along-contour flows in a basin can occur only where topography causes the contours to close (Fig. 4.3, right). This can happen in
basins.
Consider Fig. (4.4). This is a plot of the mean surface velocities, derived from surface drifters, in and near the Lofoten Basin off the west coast
of Norway. The strong current on the right hand side is the Norwegian Atlantic Current, which flows in from the North Atlantic and proceeds toward
Svalbard. Notice how this follows the continental slope (the steep topog-
4.2. GEOSTROPHIC CONTOURS
119
Figure 4.3: Steady, along-geostrophic contour flow in the atmosphere (left) and in the
ocean (right).
raphy between the continental shelf and deeper ocean). In the basin itself,
the flow is more variable, but there is a strong, clockwise circulation in the
deepest part of the basin, where the topographic contours are closed. Thus
both closed and open geostrophic contour flows are seen here.
If the relative vorticity is not small compared to qs , the flow will deviate from the latter contours. This can be seen for example with the Gulf
Stream, which crosses topographic contours as it leaves the east coast of
the U.S. If the relative vorticity is much stronger than qs , then we have:
~ug · ∇ζg ≈ 0
(4.26)
as a condition for a steady flow. Then the flow follows contours of constant vorticity. An example is flow in a vortex. The vorticity contours are
circular or ellipsoidal and the streamlines have the same shape. The vortex
persists for long times precisely because it is near a steady state.
We will return to the qs contours repeatedly hereafter. Often these are
the key to understanding how a particular system evolves in time.
120
CHAPTER 4. SYNOPTIC SCALE BAROTROPIC FLOWS
Figure 4.4: Mean velocities estimated from surface drifters in the Lofoten Basin west of
Norway. The color contours indicate the water depth. Note the strong flow along the
continental margin and the clockwise flow in the center of the basin, near 2◦ E. From
Koszalka et al. (2010).
4.3
Linear wave equation
As in sec. (3.4), we will linearize the equation, to facilitate analytical
solutions. We assume the motion is weak, and this allows us to neglect
terms which are quadratic in the streamfunction.
~ = (U, V ). Note that this can vary in
Suppose we have a mean flow, U
space. So we can write:
u = U + u′ ,
v = V + v′
We assume the perturbations are weak, so that:
|u′ | ≪ |U |,
|v ′ | ≪ |V |
Both the mean and the perturbation velocities have vorticity:
4.3. LINEAR WAVE EQUATION
121
∂
∂ ′
∂
∂
V − U, ζ ′ =
v − u′
∂x
∂y
∂x
∂y
Only the latter varies in time. The mean vorticity in turn affects the geostrophic
Z≡
contours:
f0
h
D0
This will become important with regards to the stability of the mean flow.
qs = Z + βy +
Substituting these into the PV equation (4.19), we get:
∂ ′
∂
∂
~ ·∇qs +u′ ∂ qs +v ′ ∂ qs = 0 (4.27)
ζ +(U +u′ ) ζ ′ +(V +v ′ ) ζ ′ +U
∂t
∂x
∂y
∂x
∂y
We can separate out the terms in (4.27) with respective to perturbation
velocities. The only term with no primed terms is:
~ · ∇qs = 0
U
(4.28)
Thus the mean flow must be parallel to the mean PV contours, as inferred
in sec. (4.2). If this were not the case, the mean flow would have to evolve
in time.
Collecting terms with one perturbation quantity yields:
∂
∂
∂
∂
∂ ′
ζ + U ζ ′ + V ζ ′ + u′ q s + v ′ q s = 0
∂t
∂x
∂y
∂x
∂y
(4.29)
This is the linearized QGPV equation for barotropic flows. We’ll use this
in the next few examples. For simplicity, we’ll drop the primes hereafter,
but keep in mind that it is the perturbation fields which we’re interested in.
CHAPTER 4. SYNOPTIC SCALE BAROTROPIC FLOWS
122
4.4
Barotropic Rossby waves
~ = U î, without bottom topography.
Consider a constant mean flow, U
Then:
qs = βy
The mean flow doesn’t contribute to qs because it has no shear and hence
no vorticity. Moreover, the mean flow, which is purely zonal, is parallel to
qs , which is only a function of y. So the linear PV equation is simply:
∂
∂ ′
ζ + U ζ ′ + βv ′ = 0
∂t
∂x
(4.30)
Or, written in terms of the geostrophic streamfunction:
(
∂
∂
∂
+ U )∇2 ψ + β ψ = 0
∂t
∂x
∂x
(4.31)
This is the barotropic Rossby wave equation.
4.4.1 Wave solution
To solve this, we use a wave solution. Because the coefficients in the
wave equation are constants, we can use a general plane wave solution
(Appendix A):
ψ = Re{ψ̂eikx+ily−iωt }
(4.32)
4.4. BAROTROPIC ROSSBY WAVES
123
where Re{} signifies the real part (we will drop this hereafter, but remember it in the end). Substituting this in yields:
(−iω + ikU )(−k 2 − l2 ) ψ̂eikx+ily−iωt + iβk ψ̂eikx+ily−iωt = 0
(4.33)
Notice that both the wave amplitude and the exponential term drop out.
This is typical of linear wave problems: we get no information about the
amplitude from the equation itself (that requires specifying initial conditions). Solving for ω, we get:
ω = kU −
βk
k 2 + l2
(4.34)
This is the Rossby wave dispersion relation. It relates the frequency of
the wave to its wavenumbers. The corresponding phase speed (in the xdirection) is:
ω
β
β
≡
U
−
=U− 2
k
k + l2
κ2
where κ = (k 2 + l2 )1/2 is the total wavenumber.
cx =
(4.35)
There are a number of interesting features about this. First, the phase
speed depends on the wavenumbers, so the waves are dispersive. The
largest speeds occur when k and l are small, corresponding to long wavelengths. Thus large waves move faster than small waves.
Second, all waves propagate westward relative to the mean velocity, U .
If U = 0, c < 0 for all (k, l). This is a distinctive feature of Rossby waves.
Satellite observations of Rossby waves in the Pacific Ocean show that the
waves, originating off of California and Mexico, sweep westward toward
Asia (as seen hereafter).
CHAPTER 4. SYNOPTIC SCALE BAROTROPIC FLOWS
124
The phase speed also has a meridional component, and this can be either
towards the north or south:
cy =
Uk
βk
ω
=
−
l
l
l(k 2 + l2 )
(4.36)
The sign of cy thus depends on the signs of k and l. So Rossby waves can
propagate northwest, southwest or west—but not east.
With a mean flow, the waves can be swept eastward, producing the
appearance of eastward propagation. This happens frequently in the atmosphere, where the mean westerlies advect Rossby waves (pressure systems)
eastward. If
β
κ > κs ≡ ( )1/2
U
the wave moves eastward. Longer waves move westward, opposite to the
mean flow, and short waves are advected eastward. If κ = κs , the wave
is stationary and the crests don’t move at all—the wave is propagating
west at exactly the same speed that the background flow is going east.
Stationary waves can only occur if the mean flow is eastward, because the
waves propagate westward.
Example: How big is the stationary wave if the mean flow is 20 m/sec
to the east? Assume we are at 45 degrees N and that k = l.
At 45N:
β=
1
4π
cos(45) = 1.63 × 10−11 m−1 sec−1
6
6.3 × 10 86400
so:
κs =
1.63 × 10−11 m−1 sec−1 1/2
β
=(
) = 9.03 × 10−7 m−1
U
20 m/sec
4.4. BAROTROPIC ROSSBY WAVES
125
Assuming λx = λy , we have that:
√
2 2π
κs =
λs
so:
λs = 9.84 × 106 m ≈ 9000 km
Remember that this is a wavelength, so it includes positive and negative
pressure anomalies. But it still is larger than our typical storm scale of
1000 km.
4.4.2 Westward propagation: mechanism
−
y=0
+
Figure 4.5: Relative vorticity induced in a Rossby wave. Fluid advected northwards
acquires negative vorticity and fluid advected southwards positive vorticity.
We have discussed how motion across the mean PV contours, qs , induces relative vorticity. The same is true with a Rossby wave. Fluid
parcels which are advected north in the wave acquire negative vorticity,
while those advected south acquire positive vorticity (Fig. 4.5). Thus one
can think of a Rossby wave as a string of negative and positive vorticity
anomalies (Fig. 4.6).
Now the negative anomalies to the north will act on the positive anomalies to the south, and vice versa. Consider the two positive anomalies
126
CHAPTER 4. SYNOPTIC SCALE BAROTROPIC FLOWS
Figure 4.6: The Rossby wave as a string of vorticity anomalies. The cyclone in the right
hand circle advects the negative anomaly to the southwest, while the left cyclone advects
it toward the northwest. The net effect is westward motion.
shown in Fig. (4.6). The right one advects the negative anomaly between
them southwest, while the left one advects it northwest. Adding the two
velocities together, the net effect is a westward drift for the anomaly. Similar reasoning suggests the positive anomalies are advected westward by
the negative anomalies.
4.4.3 Observations of Rossby waves
What does a Rossby wave look like? In the atmosphere, Rossby waves
are superimposed on the Jet Stream, giving the latter a meandering aspect
(Fig. 4.7). The meanders tend to propagate downstream. These have
meaning for the weather. Since the temperatures to the north are colder,
the temperature in a trough is colder than in a crest.
In addition, the meanders often grow in amplitude and break. This leads
to regions of anomalous temperature and vorticity, as for example in a socalled “cut-off” or “blocking” high pressure. Such instability is considered
later on.
In the ocean, the mean zonal flow in regions is near zero (U = 0), so the
observed phase propagation is generally westward. Westward phase propgation is clearly visible in satellite measurements of sea surface height. An
4.4. BAROTROPIC ROSSBY WAVES
127
Figure 4.7: An example of Rossby waves in the atmosphere. The Jet Stream, flowing eastward, is superimposed over westward-propagating Rossby waves. Courtesy of NASA.
example is shown in Fig. (5.4), from the Pacific. In the upper panel is the
sea surface height anomaly1 from April, 1993. The corresponding field
from July is shown in the lower panel. There is a large positive anomaly
(red) off the Americas in April, surrounded by a (blue) negative anomaly.
The latter is indicated by the white curve. In July the anomalies have all
shifted westward. The waves are basin scale, covering 1000s of kilometers.
The authors took cuts in the fields at various latitudes to construct timelongitude plots or “Hovmuller” diagrams (Fig. 4.9). Time is increasing
on the y-axis, so the tilt towards the upper left is consistent with westward
phase propagation. The tilt can be used to deduce the phase speed, which
are on the order of cm/sec. Interestingly the speeds are strongly dependent
on the latitude, being fastest at 21N and slowest at 39N. To explain this
1
The stationary part of the surface height, due to mean flows and also irregularities in the graviational
field, have been removed.
128
CHAPTER 4. SYNOPTIC SCALE BAROTROPIC FLOWS
Figure 4.8: from sea surface height in the North Pacific. From Chelton and Schlax (1996).
variation, we will need to take stratification into account, as discussed later
on. In addition, the waves are more pronounced west of 150-180 W. The
reason for this however is still unknown.
4.4.4 Group Velocity
Thus Rossby waves propagate westward. But this actually poses a problem. Say we are in an ocean basin, with no mean flow (U = 0). If there is
a disturbance on the eastern wall, Rossby waves will propagate westward
into the interior. Thus changes on the eastern wall are communicated to the
rest of the basin by Rossby waves. Because they propagate westward, the
whole basin will soon know about these changes. But say the disturbance
4.4. BAROTROPIC ROSSBY WAVES
129
Figure 4.9: Three Hovmuller diagrams constructed from sea surface height in the North
Pacific. From Chelton and Schlax (1996).
is on the west wall. If the waves can go only toward the wall, the energy
would necessarily be trapped there. How do we reconcile this?
The answer is that the phase velocity tells us only about the motion of
the crests and troughs—it does not tell us how the energy is moving. To
see how energy moves, it helps to consider a packet of waves with different
wavelengths. If the Rossby waves were initiated by a localized source, say
a meteor crashing into the ocean, they would start out as a wave packet.
Wave packets have both a phase velocity and a “group velocity”. The
latter tells us about the movement of packet itself, and this reflects how the
CHAPTER 4. SYNOPTIC SCALE BAROTROPIC FLOWS
130
energy is moving. It is possible to have a packet of Rossby waves which
are moving eastwards, while the crests of the waves in the packet move
westward.
Consider the simplest example, of two waves with different wavelengths
and frequencies, but the same (unit) amplitude:
ψ = cos(k1 x + l1 y − ω1 t) + cos(k2 x + l2 y − ω2 t)
(4.37)
Imagine that k1 and k2 are almost equal to k, one slightly larger and the
other slightly smaller. We’ll suppose the same for l1 and l2 and ω1 and ω2 .
Then we can write:
ψ = cos[(k + δk)x + (l + δl)y − (ω + δω)t]
+cos[(k − δk)x + (l − δl)y − (ω − δω)t]
(4.38)
From the cosine identity:
cos(a ± b) = cos(a)cos(b) ∓ sin(a)sin(b)
(4.39)
So we can rewrite the streamfunction as:
ψ = 2 cos(δkx + δly − δωt) cos(kx + ly − ωt)
(4.40)
The combination of waves has two components: a plane wave (like we
considered before) multiplied by a carrier wave, which has a longer wavelength and lower frequency. The carrier wave has a phase speed of:
cx =
and
∂ω
δω
≈
≡ cgx
δk
∂k
(4.41)
4.4. BAROTROPIC ROSSBY WAVES
cy =
131
∂ω
δω
≈
≡ cgy
δl
∂l
(4.42)
The phase speed of the carrier wave is the group velocity, because this is
the speed at which the group (in this case two waves) moves. While the
phase velocity of a wave is the ratio of the frequency and the wavenumber,
the group velocity is the derivative of the frequency by the wavenumber.
This is illustrated in Fig. (4.10). This shows two waves, cos(1.05x)
and cos(0.095x). Their sum yields the wave packet in the lower panel.
The smaller ripples propagate with the phase speed, c = ω/k = ω/1,
westward. But the larger scale undulations move with the group velocity,
and this can be either west or east.
cos(0.95x) and cos(1.05x)
1
0.5
0
−0.5
−1
0
20
40
60
80
100
120
80
100
120
cos(x)cos(.05x)
1
0.5
0
−0.5
−1
0
20
40
60
Figure 4.10: A wave packet of two waves with nearly the same wavelength.
The group velocity concept applies to any type of wave. For Rossby
CHAPTER 4. SYNOPTIC SCALE BAROTROPIC FLOWS
132
waves, we take derivatives of the Rossby wave dispersion relation for ω.
This yields:
cgx
k 2 − l2
∂ω
,
=β 2
=
∂k
(k + l2 )2
cgy =
∂ω
2βkl
= 2
∂l
(k + l2 )2
(4.43)
Consider for example the group velocity in the zonal direction, cgx .
The sign of this depends on the relative sizes of the zonal and meridional
wavenumbers. If
k>l
the wave packet has a positive (eastward) zonal velocity. Then the energy
is moving in the opposite direction to the phase speed. This answers the
question about the disturbance on the west wall. Energy can indeed spread
eastward into the interior, if the zonal wavelength is shorter than the meridional one. Note that for such waves, the phase speed is still westward. So
the crests will move toward the west wall while energy is carried eastward!
Another interesting aspect is that the group velocity in the y-direction
is always in the opposite direction to the phase speed in y, because:
2l2
cgy
=− 2
< 0.
cy
k + l2
So northward propagating waves have southward energy flux!
(4.44)
The group velocity can also be derived by considering the energy equation for the wave. This is shown in Appendix B.
4.4.5 Rossby wave reflection
A good illustration of these Rossby wave properties is the case of a wave
reflecting off a solid boundary. Consider what happens to a westward
4.4. BAROTROPIC ROSSBY WAVES
133
propagating plane Rossby wave which encounters a straight wall, oriented
along x = 0. The incident wave can be written:
ψi = Ai eiki x+ili y−iωi t
where:
ωi =
−βki
ki2 + li2
The incident wave has a westward group velocity, so that
ki < l i
Let’s assume too that the group velocity has a northward component (so
that the wave is generated somewhere to the south). As such, the phase
velocity is oriented toward the southwest.
The wall will produce a reflected wave. If this weren’t the case, all the
energy would have to be absorbed by the wall. We assume instead that all
the energy is reflected. The reflected wave is:
ψr = Ar eikr x+ilr y−iωr t
The total streamfunction is the sum of the incident and reflected waves:
ψ = ψi + ψr
(4.45)
In order for there to be no flow into the wall, we require that the zonal
velocity vanish at x = 0, or:
u=−
∂
ψ=0
∂y
at x = 0
(4.46)
CHAPTER 4. SYNOPTIC SCALE BAROTROPIC FLOWS
134
This implies:
−ili Ai eili y−iωi t − ilr Ar eilr y−iωr t = 0
(4.47)
In order for this condition to hold at all times, the frequencies must be
equal:
ωi = ωr = ω
(4.48)
Likewise, if it holds for all values of y along the wall, the meridional
wavenumbers must also be equal:
li = lr = l
(4.49)
Note that because the frequency and meridional wavenumbers are preserved on reflection, the meridional phase velocity, cy = ω/l, remains
unchanged. Thus (4.47) becomes:
il Ai eily−iωt + il Ar eily−iωt = 0
(4.50)
Ai = −Ar ≡ A
(4.51)
which implies:
So the amplitude of the wave is preserved, but the phase is changed by
180◦ .
Now let’s go back to the dispersion relations. Because the frequencies
are equal, we have:
ω=
−βkr
−βki
=
.
2
ki + l 2
kr2 + l2
(4.52)
4.4. BAROTROPIC ROSSBY WAVES
135
This is possible because the dispersion relation is quadratic in k and thus
admits two different values of k. Solving the Rossby dispersion relation
for k, we get:
β
±
k=−
2ω
p
β 2 − 4ω 2 l2
2ω
(4.53)
The incident wave has a smaller value of k because it has a westward group
velocity; so it is the additive root. The reflected wave thus comes from the
difference of the two terms.
This implies the zonal wavenumber increases on reflection, by an amount:
|kr − ki | = 2
r
β2
− l2
2
4ω
(4.54)
So if the incident waves are long, the reflected waves are short.
We can also show that the meridional velocity, v, increases upon reflection and also that the mean energy (Appendix B) increases on reflection.
The reflected wave is more energetic because the energy is squeezed into
a shorter wave. However, the flux of energy is conserved; the amount of
energy going in equals that going out. So energy does not accumulate at
the wall.
Thus Rossby waves change their character on reflection. Interestingly,
the change depends on the orientation of the boundary. A tilted boundary
(e.g. northwest) will produce different results. In fact, the case with a
zonally-oriented boundary (lying, say, along y = 0) is singular; you must
introduce other dynamics, like friction, to solve the problem.
CHAPTER 4. SYNOPTIC SCALE BAROTROPIC FLOWS
136
cg i
cp r
cg r
cp i
Figure 4.11: A plane Rossby wave reflecting at a western wall. The incident wave is
shown by the solid lines and the reflected wave by the dashed lines. The phase velocities
are indicated by the solid arrows and the group velocities by the dashed arrows. Note the
wavelength in y doesn’t change, but the reflected wavelength in x is much shorter. Note
too the reflected wave has a phase speed directed toward the wall, but a group velocity
away from the wall.
4.5
Spin down
Both the atmosphere and ocean have a bottom boundary layer. Bottom
friction damps the velocities, causing the winds to slow. The simplest
example of this is with no bottom topography and a constant f . Then the
barotropic vorticity equation is:
dg
ζ = −rζ
dt
(4.55)
4.6. MOUNTAIN WAVES
137
This is a nonlinear equation. However it is easily solved in the Lagrangian
frame. Following a parcel, we have that:
ζ(t) = ζ(0)e−rt
(4.56)
So the vorticity decreases exponentially. The e-folding time scale is known
as the Ekman spin-down time:
Te = r−1 =
2D0
f0 δ
(4.57)
Typical atmospheric values are:
D0 = 10km, f0 = 10−4 sec−1 , δ = 1km
So:
Te ≈ 2.3 days
If all the forcing (including the sun) were suddenly switched off, the winds
would slow down, over this time scale. After about a week or so, the winds
would be weak.
If we assume that the barotropic layer does not extend all the way to
the tropopause but lies nearer the ground, the spin-down time will be even
shorter. This is actually what happens in the stratified atmosphere, with
the winds near the ground spinning down but the winds aloft being less
affected. So bottom friction favors flows intensified further up. The same
is true in the ocean.
4.6
Mountain waves
Barotropic Rossby waves have been used to study the mean surface pressure distribution in the atmosphere. This is the pressure field you get when
CHAPTER 4. SYNOPTIC SCALE BAROTROPIC FLOWS
138
averaging over long periods of time (e.g. years). The central idea is that
the mean wind, U , blowing over topography can excite stationary waves
(cx = 0). As demonstrated by Charney and Eliassen (1949), one can find
a reasonable first estimate of the observed distribution using the linear,
barotropic vorticity equation.
We begin with the vorticity equation without forcing:
f0
dg
h) = 0
(ζ + βy +
dt
D0
(4.58)
(we’ll add friction later on). We linearize about a mean zonal flow:
u = U + u′ ,
v = v′,
ζ = ζ′
We will also assume the topography is weak:
h = h′
Then the Rossby wave equation has one additional term:
(
∂
∂
∂ f0 ′
h =0
+ U )ζ ′ + βv ′ + U
∂t
∂x
∂x D0
(4.59)
Substituting in the streamfunction, we have:
(
∂
∂
f0 ∂
∂
+ U )∇2 ψ + β ψ = − U h′
∂t
∂x
∂x
D0 ∂x
(4.60)
We put the topographic term on the RHS because it does not involve the
streamfunction, and so acts instead like a forcing term. The winds blowing
over the mountains generate the response.
The homogeneous solution to this equation are the Rossby waves discussed earlier. These are called “free Rossby waves”. If we were to suddenly “turn on” the wind, we would excite free waves. The particular
solution, or the “forced wave”, is the part generated by the topographic
4.6. MOUNTAIN WAVES
139
term on the RHS. This is the portion of the flow that remains after the free
waves have propagated away.
Thus the forced wave is what determines the time mean flow. To find it,
we ignore the time derivative:
∂ 2
∂
f0 ∂
∇ ψ + β ψ = − U h′
(4.61)
∂x
∂x
D0 ∂x
All the terms involve a derivative in x, so we can simply integrate the
U
equation once in x to get rid of that. We will also ignore the constant of
integration.2
In line with our previous derivations, we write the topography as a sum
of Fourier modes:
XX
h′ (x, y) = Re{
h0 (k, l) eikx+ily }
(4.62)
h′ = h0 eikx+ily
(4.63)
k
l
and for simplicity, we focus on the response to a single wave mode:
We can always construct the response to more complicated topography by
adding the solutions for different (k, l), because the Rossby wave equation
is linear (see exercise 2.7). We’ll also use a single wave expression for ψ:
ψ = Aeikx+ily
(4.64)
Substituting these into the wave yields:
(U (−k 2 − l2 ) + β) A = −
2
f0 h0
U
D0
(4.65)
This would add a constant to the streamfunction. The latter would have no effect on the velocity field
(why?).
CHAPTER 4. SYNOPTIC SCALE BAROTROPIC FLOWS
140
or:
A=
f0 h0
f0 h0
=
2
D0 (κ − β/U ) D0 (κ2 − κ2s )
(4.66)
where:
β
κs ≡ ( )1/2
U
is the wavenumber of the stationary Rossby wave with a background velocity, U (sec. 4.4.1). So the forced solution is:
ψ=
f0 h0
eikx+ily
2
2
D0 (κ − κs )
(4.67)
The pressure field thus resembles the topography. If the wavenumber
of the topography, κ, is greater than the stationary wavenumber, the amplitude is positive. Then the forced wave is in phase with the topography.
If the topographic wavenumber is smaller, the atmospheric wave is 180◦
out of phase with the topography. The latter case applies to large scale
topography, for which the wavenumber is small. So there are negative
pressures over mountains and positive pressures over valleys. With small
scale topography, the pressure over the mountains will instead be positive.
What happens though when κ = κS ? Then the streamfunction is infinite! This is typical with forced oscillations. If the forcing is at the natural
frequency of the system, the response is infinite (we say the response is
resonant). Having infinite winds is not realistic, so we must add additional
dynamics to correct for this. In particular, we can add friction.
So we return to the barotropic vorticity equation, but with a bottom
Ekman layer:
4.6. MOUNTAIN WAVES
141
dg
f0
h) = −rζ
(ζ + βy +
dt
D0
Linearizing as before, we obtain:
U
∂
f0 ∂
∂ 2
∇ ψ + β ψ = − U h′ − r∇2 ψ
∂x
∂x
D0 ∂x
(4.68)
(4.69)
or:
∂
f0 ∂ ′
∂
+ r)∇2 ψ + β ψ =
h
(4.70)
∂x
∂x
D0 ∂x
Using the wave expressions for the topography and streamfunction, we
(U
get:
ikf0 U
h0
D0
after cancelling the exponential terms. Solving for A, we get:
[(ikU + r)(−k 2 − l2 ) + ikβ] A = −
A=
D0
(κ2
where:
f0 h0
− κ2s − iR)
(4.71)
(4.72)
rκ2
(4.73)
kU
The difference from before is that now the wave amplitude is complex.
R≡
The result is similar to that without friction, except for the additional
term in the denominator. This term does two things. First, it removes the
singularity. At κ = κs , we have:
A=i
f0 h0
D0 R
(4.74)
So the response is no longer infinite. It is however still greatest at this
wavenumber; having κ 6= κs produces a weaker amplitude.
CHAPTER 4. SYNOPTIC SCALE BAROTROPIC FLOWS
142
Second, friction causes a phase shift in the pressure field relative to
the topography. Consider the response at κ = κS . Then the amplitude is
purely imaginary, as seen above. Using the relation:
i = eiπ/2
we can write:
ψ = Aeikx+ily =
f0 h0 ikx+iπ/2+ily
e
D0 R
(4.75)
So the streamfunction is 90◦ out of phase with the mountains. Plotting
the streamfunction, we find that the low pressure is downstream of the
mountain and the high pressure is upstream.
For non-resonant waves, the phase shift depends on the difference between κ and κs . The larger the difference, the more aligned the pressure
field is with the topography (either in phase, or 180◦ out of phase).
We summarize the results with sinusoidal topography and Ekman friction graphically in Fig. (4.12). When the topographic wavenumber is much
less than κs , the pressure field is aligned but anti-correlated with the topography. When the wavenumber is much greater than κs , the pressure is
aligned and correlated. When κ = κs , the pressure is 90
◦
out of phase
with the mountains.
Charney and Eliassen (1949) applied this approach using actual atmospheric fields. But instead of using sinusoidal topography, they took the
observed topographic profile at 45 N. The result of their calculation is
shown in Fig. (4.13). The topography (left panel) has two large maxima,
from the Himalayas and the Rocky Mountains. Their solutions, using three
different friction parameters, is compared with the observed mean pressure
4.6. MOUNTAIN WAVES
143
L
H
H
κ << κ s
L
H
L
H
κ=κ s
H
L
L
κ >> κ s
Figure 4.12: The mean pressure distribution over a sinusoidal mountain range. The topographic wavenumber is less than (upper), greater than (bottom) and equal to (middle) the
stationary wavenumber.
at 500 mb in the right panel. The model pressure exhibits much of the same
structure as the observed. Both have low pressure regions downwind of the
mountains.
The agreement between the model and observations is surprisingly good,
given the simplicity of the model. In fact, it is probably too good. Charney
and Eliassen used a meridional channel for their calculation (as one would
do with a QG β-plane), but if one does the calculation on a sphere, the
Rossby waves can disperse meridionally and the amplitude is decreased
(Held, 1983). Nevertheless, the relative success of the model demonstrates
the utility of Rossby wave dynamics in understanding the low frequency
CHAPTER 4. SYNOPTIC SCALE BAROTROPIC FLOWS
144
Figure 4.13: Charney and Eliassen’s (1949) solution of the barotropic mountain wave
problem at 45N. The topographic profile is shown in the left panel (their Fig. 3). The
mean pressure at 500 mb is shown in the right panel (their Fig. 4) as the solid line. The
dashed lines indicate the theoretical solutions, using three different values of friction.
atmospheric response.
4.7
The Gulf Stream
The next example is one of the most famous in dynamical oceanography. It
was known at least since the mid 1700’s, when Benjamin Franklin mapped
the principal currents of the North Atlantic (Fig. 4.14), that the Gulf
Stream is an intense current which lies on the western side of the basin,
near North America. The same is true of the Kuroshio Current, on the
western side of the North Pacific, the Agulhas Current on the western side
of the Indian Ocean, and numerous other examples. Why do these currents
lie in the west? A plausible answer came from a work by Stommel (1948),
based on the barotropic vorticity equation. We will consider this problem,
which also illustrates the technique of boundary layer analysis.
We retain the β-effect and bottom Ekman drag, but neglect topography
(the bottom is flat). We also include the surface Ekman layer, to allow for
4.7. THE GULF STREAM
145
Figure 4.14: Benjamin Franklin’s map of the Gulf Stream. From Wikipedia.
wind forcing. The result is:
dg
dg
1
∇ × ~τw − rζ
(ζ + βy) = ζ + βv =
dt
dt
ρ0 D 0
(4.76)
We will search for steady solutions, as with the mountain waves. Moreover, we will not linearize about a mean flow—it is the mean flow itself
we’re after. So we neglect the first term in the equation entirely. Using the
streamfunction, we get:
β
1
∂
∇ × ~τw − r∇2 ψ
ψ=
∂x
ρ0 D 0
(4.77)
For our “ocean”, we will assume a square basin. The dimensions of
the basin aren’t important, so we will just use the region x = [0, L] and
y = [0, L] (L might be 5000 km).
It is important to consider the geostrophic contours in this case:
146
CHAPTER 4. SYNOPTIC SCALE BAROTROPIC FLOWS
qs = βy
(4.78)
which are just latitude lines. In this case, all the geostrophic contours
intersect the basin walls. From the discussion in sec. (4.2), we know that
there can be no steady flows without forcing, because such a flow would
be purely zonal and would have to continue through the walls. However,
with forcing there can be steady flow; we will see that this flow crosses the
geostrophic contours.
Solutions to (4.77) can be obtained in a general form, once the wind
stress is specified. But Stommel used a more elegant method. The main
idea is as follows. Since the vorticity equation is linear, we can express the
solution as the sum of two components:
ψ = ψI + ψB
(4.79)
The first part, ψI , is that driven by the wind forcing. We assume that this
part is present in the whole domain. We assume moreover that the friction
is weak, and does not affect this interior component. Then the interior
component is governed by:
β
1
∂
∇ × ~τ
ψI =
∂x
ρ0 D 0
(4.80)
This is the Sverdrup relation, after H. U. Sverdrup. It is perhaps the most
important dynamical balance in oceanography. It states that vertical flow
from the base of the surface Ekman layer, due to the wind stress curl, drives
meridional motion. This is the motion across the geostrophic contours,
mentioned above.
4.7. THE GULF STREAM
147
We can solve (4.80) if we know the wind stress and the boundary conditions. For the wind stress, Stommel assumed:
~τ = −
L
πy
cos( ) î
π
L
The wind is purely zonal, with a cosine dependence. The winds in the
northern half of the domain are eastward, and they are westward in the
southern half. This roughly resembles the situation over the subtropical
North Atlantic. Thus the wind stress curl is:
∇ × ~τ = −
πy
∂ x
τ = −sin( )
∂y
L
Again, this is the vertical component of the curl. From the Sverdrup relation, this produces southward flow over the whole basin, with the largest
velocities occurring at the mid-basin (y = L/2). We then integrate the
Sverdrup relation (4.80) to obtain the streamfunction in the interior.
However, we can do this in two ways, either by integrating from the
western wall or to the eastern wall (the reason why these produce different
results will become clear). Let’s do the latter case first. Then:
Z
L
x
∂
πy
1
sin( )(L − x) (4.81)
ψI dx = ψI (L, y) − ψI (x, y) = −
∂x
βρ0 D0
L
To evaluate this, we need to know the value of the streamfunction on the
eastern wall, ψI (L, y).
Now ψI must be a constant. If it weren’t, there would be flow into the
wall, because:
u(L, y) = −
∂
ψI (L, y)
∂y
(4.82)
CHAPTER 4. SYNOPTIC SCALE BAROTROPIC FLOWS
148
But what is the constant? We can simply take this to be zero, because using
any other constant would not change the velocity field. So we have:
ψI (x, y) =
πy
1
sin( )(L − x)
βρ0 D0
L
(4.83)
Notice though that this solution has flow into the western wall, because:
uI (0, y) = −
πy
∂
π
cos( ) 6= 0
ψI (0, y) = −
∂y
βρ0 D0
L
(4.84)
This can’t occur.
To fix the flow at the western wall, we use the second component of
the flow, ψB . Let’s go back to the vorticity equation, with the interior and
boundary streamfunctions substituted in:
β
∂
∂
1
∇ × ~τw − r∇2 ψB
ψI + β ψB =
∂x
∂x
ρ0 D 0
(4.85)
We have ignored the term r∇2 ψI ; specifically, we assume this term is much
smaller than r∇2 ψB . The reason is that ψB has rapid variations near the
wall, so the second derivative will be much larger than that of ψI , which
has a large scale structure. Using (4.80), the vorticity equation reduces to:
β
∂
ψB = −r∇2 ψB
∂x
(4.86)
ψB is assumed to be vanishingly small in the interior. But it will not be
small in a boundary layer. We expect that boundary layer to occur in a
narrow region near the western wall, because ψB must cancel the zonal
interior flow at the wall.
This boundary layer will be narrow in the x-direction. The changes in
y on the other hand should be more gradual, as we expect the boundary
4.7. THE GULF STREAM
149
layer to cover the entire west wall. Thus the derivatives in x will be much
greater than in y. So we have:
β
∂
∂2
ψB = −r∇2 ψB ≈ −r 2 ψB
∂x
∂x
(4.87)
This has a general solution:
ψB = Aexp(−
βx
)+B
r
In order for the boundary correction to vanish in the interior, the constant B must be zero. We then determine A by making the zonal flow
vanish at the west wall (at x = 0). This again implies that the streamfunction is constant. That constant must be zero, because we took it to be
zero on the east wall. If it were a different constant, then ψ would have to
change along the northern and southern walls, meaning v =
∂
∂x ψ
would be
non-zero. Thus we demand:
ψI (0, y) + ψB (0, y) = 0
(4.88)
πy
L
sin( )
βρ0 D0
L
(4.89)
Thus:
A=−
So the total solution is:
ψ=
πy
βx
1
sin( ) [L − x − Lexp(− )]
βρ0 D0
L
r
(4.90)
We examine the character of this solution below. But first let’s see what
would have happened if we integrated the Sverdrup relation (4.80) from
the western wall instead of to the eastern. Then we would get:
CHAPTER 4. SYNOPTIC SCALE BAROTROPIC FLOWS
150
β
Z
x
0
πy
∂
ψ dx = βψ(x, y) − βψ(0, y) = −x sin( )
∂x
L
(4.91)
Setting ψ(0, y) = 0, we get:
πy
x
sin( )
(4.92)
βρ0 D0
L
This solution has flow into the eastern wall, implying we must have a
ψ(x, y) = −
boundary layer there. Again the boundary layer should have more rapid
variation in x than in y, so the appropriate boundary layer equation is
(4.87), with a solution:
βx
)+B
r
We take B to be zero again, so the solution vanishes in the interior.
ψB = Aexp(−
But does it? To satisfy the zero flow condition at x = L, we have:
ψI (L, y) + ψB (L, y) = 0
(4.93)
or:
πy
βL
L
sin( ) + Aexp(− ) = 0
βρ0 D0
L
r
Solving for A, we get:
−
βL
L
πy
exp( ) sin( )
βρ0 D0
r
L
So the total solution in this case is:
A=
ψ=
πy
1
β(L − x)
sin( ) [−x + Lexp(
)]
βρ0 D0
L
r
(4.94)
(4.95)
(4.96)
4.7. THE GULF STREAM
151
Now there is a problem. The exponential term in this case does not decrease moving away from the eastern wall. Rather, it grows exponentially.
So the boundary layer solution isn’t confined to the eastern wall! Thus
we reject the possibility of an eastern boundary layer. The boundary layer
must lie on the western wall. This is why, Stommel concluded, the Gulf
Stream lies on the western boundary of the North Atlantic.
Another explanation for the western intensification was proposed by
Pedlosky (1965). Recall that Rossby waves propagate to the west as long
waves, and reflect off the western wall as short waves. The short waves
move more slowly, with the result that the energy is intensified in the region
near the west wall (sec. 4.4.5). Pedlosky showed that in the limit of low
frequencies (long period waves), the Rossby wave solution converges to
the Stommel solution. So western intensification occurs because Rossby
waves propagate to the west.
Let’s look at the (correct) Stommel solution. Shown in figure (4.15) is
the Sverdrup solution (upper panel) and two full solutions with different r
(lower panels). The Sverdrup solution has southward flow over the whole
basin. So the mean flow crosses the geostrophic contours, as suggested
earlier. There is, in addition, an eastward drift in the north and a westward
drift in the south.
With the larger friction coefficient, the Stommel solution has a broad,
northward-flowing western boundary current. With the friction coefficient
10 times smaller, the boundary current is ten times narrower and the northward flow is roughly ten times stronger. This is the Stommel analogue of
the Gulf Stream.
Consider what is happening to a fluid parcel in this solution. The parcel’s potential vorticity decreases in the interior, due to the negative wind
CHAPTER 4. SYNOPTIC SCALE BAROTROPIC FLOWS
152
Sverdrup solution with curl(τ) = −sin(π y)
1
0.8
0.8
0.6
0.6
0.4
0.4
0.2
0.2
0
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
0
Stommel solution with r=0.1
1
0.4
0.35
0.8
0.3
0.6
0.25
0.2
0.4
0.15
0.1
0.2
0.05
0
0
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
with r=0.01
1
0.8
0.7
0.8
0.6
0.5
0.6
0.4
0.4
0.3
0.2
0.2
0.1
0
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
0
Figure 4.15: Solutions of Stommel’s model for two different values of the friction coefficient, r.
4.8. CLOSED OCEAN BASINS
153
stress curl, which causes the parcel to drift southward. We know the parcel
needs to return to the north to complete its circuit, but to do that it must
somehow acquire vorticity. Bottom friction permits the parcel to acquire
vorticity in the western layer. You can show that if the parcel were in an
eastern boundary layer, it’s vorticity would decrease going northward. So
the parcel would not be able to re-enter the northern interior.
The Stommel boundary layer is like the bottom Ekman layer (sec. 2.6),
in several ways. In the Ekman layer, friction, which acts only in a boundary layer, brings the velocity to zero to satisfy the no-slip condition. This
yields a strong vertical shear in the velocities. In the Stommel layer, friction acts to satisfy the no-normal flow condition and causes strong lateral
shear. Both types of boundary layer also are passive, in that they do not
force the interior motion; they simply modify the behavior near the boundaries.
Shortly after Stommel’s (1948) paper came another (Munk, 1950) appeared which also modelled the barotropic North Atlantic. The model is
similar, except that Munk used lateral friction rather than bottom friction.
The lateral friction was meant to represent horizontal stirring by oceanic
eddies. Munk’s model is considered in one of the exercises.
4.8
Closed ocean basins
Next we consider an example with bottom topography. As discussed in
sec. (4.2), topography can cause the geostrophic contours to close on themselves. This is an entirely different situation because mean flows can exist
on the closed contours (they do not encounter boundaries; Fig. 4.3). Such
mean flows can be excited by wind-forcing and can be very strong.
CHAPTER 4. SYNOPTIC SCALE BAROTROPIC FLOWS
154
75 oN
30
o
E
80 o
N
70 oN
20
o
E
o
E
65 oN
a)
30 oW
10
o
20 W
o
60 N
o
10 W
o
0
Figure 4.16: Geostrophic contours (solid lines) in the Nordic seas. Superimposed are
contours showing the first EOF of sea surface height derived from satellite measurements.
The latter shows strong variability localized in regions of closed qs contours. From Isachsen et al. (2003).
There are several regions with closed geostrophic contours in the Nordic
Seas (Fig. 4.16), specifically in three basins: the Norwegian, Lofoten and
Greenland gyres. The topography is thus steep enough here as to overwhelm the β-effect. Isachsen et al. (2003) examined how wind-forcing
could excite flow in these gyres.
This time we take equation (4.19) with wind forcing and bottom topography:
dg
1
f0
h) =
∇ × ~τ − rζ
(ζ + βy +
dt
D0
ρ0 D 0
(4.97)
We will linearize the equation, without a mean flow. We can write the
result this way:
4.8. CLOSED OCEAN BASINS
155
1
∂
∇ × ~τ − rζ
ζ + ~u · ∇qs =
∂t
ρ0 D 0
(4.98)
where:
f0
h
D0
defines the geostrophic contours (sec.4.2). Recall that these are the soqs ≡ βy +
called “f/H” contours in the shallow water system. As noted, the qs contours can close on themselves if the topography is strong enough to overwhelm the βy contribution to qs (Fig. 4.3). This is the case in the Nordic
Seas (Fig. 4.16).
As in the Gulf Stream model, we will assume the bottom friction coefficient, r, is small. In addition, we will assume that the wind forcing and the
time derivative terms are as small as the bottom friction term (of order r).
Thus the first, third and fourth terms in equation (4.98) are of comparable
size. We can indicate this by writing the equation this way:
1
∂
∇ × ~τ ′ − rζ
(4.99)
ζ + ~u · ∇qs = r
′
∂t
ρ0 D 0
where t′ = rt and τ ′ = τ /r are the small variables normalized by r, so
r
that they are order one.
Now we use a perturbation expansion and expand the variables in r.
For example, the vorticity is:
ζ = ζ0 + rζ1 + r2 ζ2 + ...
Likewise, the velocity is:
~u = ~u0 + r~u1 + r2~u2 + ...
CHAPTER 4. SYNOPTIC SCALE BAROTROPIC FLOWS
156
We plug this into the vorticity equation and then collect terms which are
multiplied by the same factor of r. The largest terms are those multiplied
by one. These are just:
~u0 · ∇qs = 0
(4.100)
So the first order component follows the qs contours. In other words, the
first order streamfunction is everywhere parallel to the qs contours. Once
we plot the qs contours, we know what the flow looks like.
But this only tells us the direction of ~uo , not its strength or structure
(how it varies from contour to contour). To find that out, we go to the next
order in r:
∂
1
∇ × ~τ ′ − ζ0
(4.101)
ζ
+
~
u
·
∇q
=
0
1
s
′
∂t
ρ0 D 0
This equation tells us how the zeroth order field changes in time. However,
there is a problem. In order to solve for the zeroth order field, we need to
know the first order field because of the term with u1 . But it is possible to
eliminate this, as follows. First, we can rewrite the advective term thus:
~u1 · ∇qs = ∇ · (~u1 qs ) − qs (∇ · ~u1 )
(4.102)
The second term on the RHS vanishes by incompressibility. In particular:
∇ · ~u = 0
(4.103)
This implies that the velocity is incompressible at each order. So the vorticity equation becomes:
∂
1
∇ × ~τ ′ − rζ0
ζ
+
∇
·
(~
u
q
)
=
0
1
s
′
∂t
ρ0 D 0
(4.104)
4.8. CLOSED OCEAN BASINS
157
Now, we can eliminate the second term if we integrate the equation over
an area bounded by a closed qs contour. This follows from Gauss’s Law,
which states:
ZZ
Thus:
ZZ
~ dx dy =
∇·A
∇ · (~uqs ) dA =
I
I
~ · n̂ dl
A
(4.105)
I
(4.106)
qs~u · n̂ dl = qs
~u · n̂ dl = 0
We can take the qs outside the line integral because qs is constant on the
bounding contour. The closed integral of ~u · n̂ vanishes because of incompressibility:
I
~u · n̂ dl =
ZZ
∇ · ~u dA = 0
Thus the integral of (4.107) in a region bounded by a qs contour is:
∂
∂t′
ZZ
1
ζ0 dxdy =
ρ0 D 0
ZZ
′
∇ × ~τ dxdy −
ZZ
ζ0 dxdy
(4.107)
Notice this contains only zeroth order terms. We can rewrite (4.107) by
exploiting Stoke’s Law, which states:
ZZ
~ dx dy =
∇×A
So (4.107) can be rewritten:
I
~
~ · dl
A
(4.108)
I
I
I
∂
1
~ =
~ − ~u · dl
~
~u · dl
~τ ′ · dl
(4.109)
∂t′
ρ0 D 0
We have dropped the zero subscripts, since this is the only component we
will consider. In terms of the real time and wind stress, this is:
CHAPTER 4. SYNOPTIC SCALE BAROTROPIC FLOWS
158
I
I
I
1
∂
~ − r ~u · dl
~
~ =
~τ · dl
(4.110)
~u · dl
∂t
ρ0 D 0
Isachsen et al. (2003) solved (4.110) by decomposing the velocity into
Fourier components in time:
~u(x, y, t) =
X
ũ(x, y, ω) eiωt
Then it is easy to solve (4.110) for the velocity integrated around the contour:
I
1
1
~ =
~
~u · dl
~τ · dl
(4.111)
r + iω ρ0 D0
Note the solution is actually for the integral of the velocity around the
I
contour (rather than the velocity at every point). We can divide by the
length of the contour to get the average velocity on the contour:
H
~
~
~τ · dl
~u · dl
1
1
H
H
=
(4.112)
< u >≡
r + iω ρ0 D0
dl
dl
Isachsen et al. (2003) derived a similar relation using the shallow water
H
equations. Their expression is somewhat more complicated but has the
same meaning. They tested this prediction using various types of data from
the Nordic Seas. One example is shown in figure (4.16). This shows the
principal Empirical Orthogonal Function (EOF) of the sea surface height
variability measured from satellite. The EOF shows that there are regions
with spatially coherent upward and downward sea surface motion. These
regions are exactly where the qs contours are closed. This height variability
reflects strong gyres which are aligned with the qs contours.
Isachsen et al. took wind data, the actual bottom topography and an
approximate value of the bottom drag to predict the transport in the three
4.9. BAROTROPIC INSTABILITY
159
50
0
a)
Lofoten
r = 0.73
b)
Norwegian
r = 0.76
c)
Greenland
r = 0.88
−50
∆SLA (mm)
50
0
−50
50
0
−50
Jan93 Jan94 Jan95 Jan96 Jan97 Jan98 Jan99 Jan00 Jan01
Figure 4.17: Time series of observed (thin line) and predicted (thick line) sea surface
height displacements between the outer rim and the center of each of the principal gyres
in the Nordic seas. The linear bottom drag coefficient was R = 5 × 10−4 m/sec. From
Isachsen et al. (2003).
gyres (corresponding to the Norwegian, Lofoten and Greenland basins).
The results are shown in figure (4.17). The simple model does astonishingly well, predicting the intensification and weakening of the gyres in all
three basins.
4.9
Barotropic instability
Many of the “mean” flows in the atmosphere and ocean, like the Jet and
Gulf Streams, are not steady at all. They meander and generate eddies
(storms). The reason is that these flows are unstable. If the flow is perturbed slightly, for instance by a slight change in heating or wind forcing,
the perturbation will grow, extracting energy from the mean flow. These
perturbations then develop into mature storms, both in the atmosphere and
160
CHAPTER 4. SYNOPTIC SCALE BAROTROPIC FLOWS
ocean.
We’ll first study instability in the barotropic context. In this we ignore
forcing and dissipation, and focus exclusively on the interaction between
the mean flow and the perturbations. A constant mean flow, like we used
when deriving the dispersion relation for free Rossby waves, is stable. But
a mean flow which is sheared can be unstable. To illustrate this, we examine a mean flow which varies in y. We will see that wave solutions exist in
this case too, but that they can grow in time.
The barotropic vorticity equation with a flat bottom and no forcing or
bottom drag is:
dg
(ζ + βy) = 0
(4.113)
dt
We again linearize the equation assuming a zonal flow, but we now allow
this to vary in y, i.e. U = U (y). As a result, the mean flow now has
vorticity:
ζ=−
∂
U
∂y
(4.114)
So the PV equation is now:
dg ′
∂
(ζ − U + βy) = 0
(4.115)
dt
∂y
Because the mean flow is time independent, its vorticity doesn’t change
in time and as such, the mean vorticity alters the geostrophic contours:
∂
U
(4.116)
∂y
This implies the mean flow will affect the way Rossby waves propagate in
qs = βy −
the system.
4.9. BAROTROPIC INSTABILITY
161
The linearized version of the vorticity equation is:
∂
∂
∂
+ U )ζ ′ + v ′ qs = 0
∂t
∂x
∂y
Written in terms of the streamfunction, this is:
(
(
∂
∂
∂ψ
∂
+ U )∇2 ψ + ( qs )
=0
∂t
∂x
∂y ∂x
(4.117)
(4.118)
Now because the mean flow varies in y, we have to be careful about
our choice of wave solutions. We can in any case assume a sinusoidal
dependence in x and t. The form we will use is:
ψ = Re{ψ̂(y) eik(x−ct) }
(4.119)
As we know, the amplitude can be complex, i.e.:
ψ̂ = ψ̂r + iψ̂i
But now the phase speed, c, also can be complex. If you assume the phase
speed is purely real, the problem turns out to be inconsistent. So we can
write:
c = cr + ici
(4.120)
This is an important change. With a complex c, we have:
eik(x−ct) = eik(x−(cr +ici ) t) = eik(x−cr t)+kci t
(4.121)
So the argument of the exponential has both real and imaginary parts. The
real part determines how the phases change, as before. But the imaginary
part can change the amplitude of the wave. In particular, if ci > 0, the
162
CHAPTER 4. SYNOPTIC SCALE BAROTROPIC FLOWS
wave amplitude will grow exponentially in time. If this happens, we say
the flow is barotropically unstable. Then the wave solution grows in time,
eventually becoming as strong as the background flow itself.
If we substitute the wave solution into (4.118), we get:
∂
∂2
(−ikc + ikU )(−k ψ̂ + 2 ψ̂) + ik ψ̂ qs = 0
∂y
∂y
2
(4.122)
Cancelling the ik yields:
∂2
∂
(U − c) ( 2 ψ̂ − k 2 ψ̂) + ψ̂ qs = 0
∂y
∂y
(4.123)
This is known as the “Rayleigh equation”. The solution of this determines
which waves are unstable. However, because U and qs are functions of y,
this is not trivial to solve.
One alternative is to solve (4.123) numerically. If you know U (y), you
could put that into the equation and crank out a solution; if the solution has
growing waves, the mean flow is unstable. But then imagine you want to
examine a slightly different flow. Then you would have to start again and
solve the equation all over. What would be nice is if we could figure out a
way to determine if the flow is unstable without actually solving (4.123).
It turns out this is possible.
4.9.1 Rayleigh-Kuo criterion
We do this as follows. First we divide (4.123) by U − c:
∂2
ψ̂ ∂
( 2 ψ̂ − k 2 ψ̂) +
qs = 0
∂y
U − c ∂y
(4.124)
4.9. BAROTROPIC INSTABILITY
163
This assumes that U 6= c anywhere in the flow.3 Then we multiply by the
complex conjugate of the streamfunction:
ψ̂ ∗ = ψ̂r − iψ̂i
This yields:
∂2
|ψ̂|2 ∂
∂2
∂2
∂2
2
2
(ψ̂r 2 ψ̂r + ψ̂i 2 ψ̂i )+i(ψ̂r 2 ψ̂i − ψ̂i 2 ψ̂r )−k |ψ̂| +
qs = 0
∂y
∂y
∂y
∂y
U − c ∂y
(4.125)
The denominator in the last term is complex. We write it in a more convenient form this way:
U − cr + ici
1
1
=
=
U − c U − cr − ici
|U − c|2
Now the denominator is purely real. So we have:
(ψ̂r
∂2
∂2
∂2
∂2
ψ̂
+
ψ̂
ψ̂
)
+
i(
ψ̂
ψ̂
−
ψ̂
ψ̂r ) − k 2 |ψ̂|2
r
i
i
r
i
i
2
2
2
2
∂y
∂y
∂y
∂y
|ψ̂|2 ∂
+(U − cr + ici )
qs = 0
(4.126)
|U − c|2 ∂y
This equation has both real and imaginary parts, and each must separately
equal zero.
Consider the imaginary part of (4.126):
∂2
|ψ̂|2 ∂
∂2
qs = 0
(ψ̂r 2 ψ̂i − ψ̂i 2 ψ̂r ) + ci
∂y
∂y
|U − c|2 ∂y
(4.127)
Let’s integrate this in y, over a region from y = [0, L]:
3
When U = c at some point, the flow is said to have a critical layer. Then the analysis is more involved
than that here.
CHAPTER 4. SYNOPTIC SCALE BAROTROPIC FLOWS
164
Z
L
0
∂2
∂2
(ψ̂i 2 ψ̂r − ψ̂r 2 ψ̂i ) dy = ci
∂y
∂y
We can rewrite the first terms by noting:
Z
L
0
|ψ̂|2 ∂
qs dy
|U − c|2 ∂y
(4.128)
∂2
∂
∂
∂
∂
∂
∂
∂2
∂
ψ̂i 2 ψ̂r − ψ̂r 2 ψ̂i =
(ψ̂i ψ̂r − ψ̂r ψ̂i ) − ψ̂i ψ̂r + ψ̂r ψ̂i
∂y
∂y
∂y ∂y
∂y
∂y ∂y
∂y ∂y
∂
∂
∂
(ψ̂i ψ̂r − ψ̂r ψ̂i )
∂y ∂y
∂y
Substituting this into the LHS of (4.128), we get:
=
Z
L
0
∂
∂
∂
∂
∂
(ψ̂i ψ̂r − ψ̂r ψ̂i ) dy = (ψ̂i ψ̂r − ψ̂r ψ̂i ) |L0
∂y ∂y
∂y
∂y
∂y
(4.129)
(4.130)
Now, to evaluate this, we need the boundary conditions on ψ at y = 0
and y = L. If the flow is confined to a channel, then the normal flow
vanishes at the northern and southern walls. This implies that the streamfunction is constant on those walls, and we can take the constant to be zero.
Thus:
ψ̂(0) = ψ̂(L) = 0
Then (4.130) vanishes. Alternately we could simply choose y = 0 and
y = L to be latitudes where the perturbation vanishes (i.e. far away from
the mean flow). Then this would vanish also. Furthermore, if we said the
flow was periodic in y, it would also vanish because the streamfunction
and its y-derivative would be the same at y = 0 and L.
Either way, the equation for the imaginary part reduces to:
ci
Z
L
0
|ψ̂|2 ∂
qs dy = 0
|U − c|2 ∂y
(4.131)
4.9. BAROTROPIC INSTABILITY
165
In order for this to be true, either ci or the integral must be zero. If ci = 0,
the wave amplitude is not growing and the wave is stable. For unstable
waves, ci > 0. Then the integral must vanish to satisfy the equation. The
squared terms in the integrand are always greater than zero, so a necessary
condition for instability is that:
∂
qs = 0
∂y
(4.132)
Thus the meridional gradient of the background PV must change sign
somewhere in the domain. This is the Rayleigh-Kuo criterion. Thus we
require:
∂2
∂
qs = β − 2 U = 0
∂y
∂y
(4.133)
somewhere in the domain.
Think about what this means. If U = 0, then qs = βy and we have
Rossby waves, all of which propagate westward. With a background flow,
the waves need not propagate westward. If β −
∂2
∂y 2 U
= 0 somewhere, the
mean PV gradient vanishes and the Rossby waves are stationary. So the
wave holds its position in the mean flow, extracting energy from it. In this
way, the wave grows in time.
The Rayleigh-Kuo criterion is a necessary condition for instability. So
instability requires that this condition be met. But it is not a sufficient
condition—it doesn’t guarantee that a jet will be unstable. However, the
opposite case is a sufficient condition; if the gradient does not change sign,
the jet must be stable.
As noted, the Rayleigh-Kuo condition is useful because we don’t actually need to solve for the unstable waves to see if the jet is unstable. Such
CHAPTER 4. SYNOPTIC SCALE BAROTROPIC FLOWS
166
a solution is often very involved.
We can derive another stability criterion, following Fjørtoft (1950), by
taking the real part of (4.126). The result is similar to the Rayleigh-Kuo
criterion, but a little more specific. Some flows which are unstable by the
Rayleigh criterion may be stable by Fjørtoft’s. However this is fairly rare.
Details are given in Appendix C.
β − 0.04 U
U(y)
β − 0.1 U
yy
yy
1
1
1
0.9
0.9
0.9
0.8
0.8
0.8
0.7
0.7
0.7
0.6
0.6
0.6
0.5
0.5
0.5
0.4
0.4
0.4
0.3
0.3
0.3
0.2
0.2
0.2
0.1
0.1
0.1
0
−0.5
0
0.5
1
1.5
0
−1
0
1
2
3
0
−5
0
5
10
Figure 4.18: A westerly Gaussian jet (left panel). The middle and right panels show
∂2
β − ∂y
2 u for the jet with amplitudes of 0.04 and 0.1, respectively. Only the latter satisfies
Rayleigh’s criterion for instability.
4.9.2 Examples
Let’s consider some examples of barotropically unstable flows. Consider
a westerly jet with a Gaussian profile (Kuo, 1949):
y − y0 2
)]
L
Shown in the two right panels of Fig. (4.18) is β −
U = U0 exp[−(
(4.134)
∂2
∂y 2 U
for two jet am-
plitudes, U0 . We take β = L = 1, for simplicity. With U0 = 0.04, the PV
4.9. BAROTROPIC INSTABILITY
167
β − 0.04 Uyy
U(y)
β − 0.1 Uyy
1
1
1
0.9
0.9
0.9
0.8
0.8
0.8
0.7
0.7
0.7
0.6
0.6
0.6
0.5
0.5
0.5
0.4
0.4
0.4
0.3
0.3
0.3
0.2
0.2
0.2
0.1
0.1
0.1
0
−1.5
−1
−0.5
0
0.5
0
−1
0
1
2
0
−5
0
5
Figure 4.19: An easterly Gaussian jet (left panel). The middle and right panels show
∂2
β − ∂y
2 u for the jet, with amplitudes of 0.04 and 0.1. Note that both satisfy Rayleigh’s
criterion for instability.
gradient is positive everywhere, so the jet is stable. With U0 = 0.1, the PV
gradient changes sign both to the north and south of the jet maximum. So
this jet may be unstable.
Now consider an easterly jet (Fig. 4.19), with U0 < 0. With both
amplitudes, β −
∂2
∂y 2 U
is negative at the centers of the jets. So the jet is
unstable with both amplitudes. This is a general result: easterly jets are
more unstable than westerly jets.
An example of an evolving barotropic instability is shown in Fig. (4.20).
This derives from a numerical simulation of a jet with a Gaussian profile
of relative vorticity. So:
ζ=−
∂
2
2
U = Ae−y /L
∂y
In this simulation, β = 0, so the PV gradient is:
(4.135)
168
CHAPTER 4. SYNOPTIC SCALE BAROTROPIC FLOWS
2y
∂2
∂
2
2
qs = − 2 U = − 2 Ae−y /L
∂y
∂y
L
(4.136)
This is zero at y = 0 and so satisfies Rayleigh’s criterion. We see in the
simulation that the jet is unstable, wrapping up into vortices. These have
positive vorticity, like the jet itself.
Figure 4.20: Barotropic instability of a jet with a Gaussian profile in relative vorticity.
Courtesy of G. Hakim, Univ. of Washington.
An example of barotropic instability in the atmosphere is seen in Fig.
(4.21). This shows three infrared satellite images of water vapor above
the US. Note in particular the dark band which stretches over the western
US in into Canada. This is a filament of air, near the tropopause. We
see that the filament is rolling up into vortices, much like in the numerical
4.9. BAROTROPIC INSTABILITY
169
simulation in (4.20).
Figure 4.21: Barotropic instability of filaments on the tropopause, observed from water
vapor infrared satellite imagery. The images were taken on the 11th of October, 2005, at
22:45 pm, 3:15 am and 9:45 am, respectively. Courtesy of G. Hakim, Univ. of Washington.
Barotropic instability also occurs in the ocean. Consider the following
example, from the southern Indian and Atlantic Oceans (Figs. 4.22-4.24).
Shown in (4.22) is a Stommel-like solution for the region. Africa is represented by a barrier attached to the northern wall, and the island to its
east represents Madagascar. The wind stress curl is indicated in the right
panel; this is negative in the north, positive in the middle and negative in
the south.
In the southern part of the domain, the flow is eastward. This represents the Antarctic Circumpolar Current (the largest ocean current in the
world). In the “Indian ocean”, the flow is to the west, towards Madagas-
CHAPTER 4. SYNOPTIC SCALE BAROTROPIC FLOWS
170
car. This corresponds to the South Equatorial Current, which impinges on
Madagascar. There are western boundary currents to the east of Africa and
Madagascar. The boundary currents east of Madagascar flow westward
toward Africa in two jets, to the north and south of the Island. Similarly,
the western boundary current leaves South Africa to flow west and join the
flow in the South Atlantic.
1
0.9
0.8
0.7
y
0.6
0.5
0.4
0.3
0.2
0.1
0
0
0.5
1
1.5
x
2
2.5
3
−1
0
∇×τ
1
Figure 4.22: A Stommel-like solution for the Indian Ocean. The curl of the wind stress is
indicated in the right panel. From LaCasce and Isachsen (2007).
Shown in Fig. (4.23) is the PV gradient for this solution, in the region
near South Africa and Madagascar. Clearly the gradient is dominated by
the separated jets. Moreover, the gradient changes sign several times in
each of the jets. So we would expect the jets might be unstable, by the
Rayleigh-Kuo criterion.
A snapshot from a numerical solution of the barotropic flow is shown in
Fig. (4.24). In this simulation, the mean observed winds were used to drive
the ocean, which was allowed to spin-up to a statistically steady state. The
4.10. EXERCISES
171
0.8
0.75
0.7
0.65
y
0.6
0.55
0.5
0.45
0.4
0.35
0.3
0.6
0.8
1
1.2
1.4
1.6
1.8
2
2.2
x
Figure 4.23: The PV gradient for the solution in Fig. (4.22). The gradient changes sign
rapidly in the three jet regions. From LaCasce and Isachsen (2007).
figure shows a snapshot of the sea surface height, after the model has spun
up. We see that all three of the eastward jets have become unstable and are
generating eddies (of both signs). The eddies drift westward, linking up
with the boundary currents to their west.
Barotropic instability occurs when the lateral shear in a current is too
large. The unstable waves extract energy from the mean flow, reducing the
shear by mixing momentum laterally. However, in the atmosphere baroclinic instability is more important, in terms of storm formation. Under
baroclinic instability, the waves act to reduce the vertical shear of the mean
flow. In order to study that, we have to take account of density changes.
4.10
Exercises
4.1. Barotropic Rossby waves
a) Write down the expression for the Rossby wave phase speed, given
a constant mean velocity, U .
CHAPTER 4. SYNOPTIC SCALE BAROTROPIC FLOWS
172
−5
−10
−15
Lat
−20
−25
−30
−35
−40
−45
0
10
20
30
40
50
Lon
Figure 4.24: The sea surface height from a barotropic numerical simulation of the southern Indian and Atlantic Oceans. From LaCasce and Isachsen (2007).
b) Let U = 0 and β = 1. Consider the following wave:
ψ = Acos(5.1x + 2y − ω1 t)
(4.137)
What is the frequency ω1 ? What is the phase speed in the x−direction,
cx ? What is the group velocity in the x-direction, cgx ?
c) Now let the wave be the sum of two waves:
ψ = Acos(5.1x + 2y − ω1 t) + Acos(4.9x + 2y − ω2 t)
(4.138)
4.10. EXERCISES
173
What is the group velocity in the x-direction of this wave?
4.2. Bottom topography, like the β-effect, can support Rossby-like waves,
called topographic waves. To see this, use the linearized version of
the barotropic PV equation (4.9) with β=0 (a constant Coriolis parameter). Assume the depth is given by:
H = H0 − αx
(4.139)
Derive the phase speed (in the y-direction) for the waves, assuming no
background flow (U = V = 0). Which way do the waves propagate,
relative to the shallower water? What if α < 0? What about in the
southern hemisphere?
4.3. We solved the Rossby wave problem on an infinite plane. Now consider what happens if there are solid walls. Start with the linear vorticity equation, with no mean flow (U = 0). Assume the variations
in y are weak, so that you can approximate the vorticity by
∂
∂x v.
For
the boundary conditions, let ψ = 0 at x = 0 and x = L—this ensures
that there is no flow into the walls. What are the solutions for ω and
k?
Hint 1: Assume ψ = A(x)cos(kx − ωt)
Hint 2: Impose the boundary conditions on A.
Hint 3: The coefficients of the sine and cosine terms should both be
zero.
Hint 4: The solutions are quantized (have discrete values).
4.4. Barotropic topographic waves in a channel
CHAPTER 4. SYNOPTIC SCALE BAROTROPIC FLOWS
174
Consider barotropic waves in a channel, with walls at y = 0 and
y = L. The total depth is given by:
H = H0 + αy
Assume that the Coriolis parameter is constant and that there is no
forcing.
a) Simplify the barotropic PV equation, assuming no mean flow (U =
0).
b) Propose a wave solution.
c) Solve the equation and derive the dispersion relation.
d) What is the phase speed in the x-direction?
e) Re-do the problem with bottom friction. How does friction modify
the amplitude of the wave?
4.5. Barotropic planetary-topographic waves
Consider barotropic waves. The total depth is given by:
H = H0 − αx
Assume the waves are on the β-plane and that there is no forcing.
a) Simplify the barotropic PV equation, assuming no mean flow (U =
0).
b) Propose a wave solution.
c) Solve the equation and derive the dispersion relation.
4.10. EXERCISES
175
d) What is the phase speed in the x-direction? What about in the
y-direction? Which way are they going?
e) (Hard): How would you rotate the coordinate system, so that the
new x-direction is parallel to the qs contours?
f) Which way will the waves propagate in the new coordinate system?
If you don’t have the solution to (e), use your intuition.
4.6. Consider Rossby waves incident on a northern wall, i.e. oriented eastwest, located at y = 0. Proceed as before, with one incident and one
reflected wave. What can you say about the reflected wave?
Hint: there are two possibilities, depending on the sign of lr .
4.7. Consider Rossby waves with an isolated mountain range. A purely
sinusoidal mountain range is not very realistic. A more typical case
is one where the mountain is localized. Consider a mountain “range”
centered at x = 0 with:
h(x, y) = h0 e−x
2
/L2
(4.140)
Because the range doesn’t vary in y, we can write ψ = ψ(x).
Write the wave equation, without friction. Transform the streamfunction and the mountain using the Fourier cosine transform. Then solve
for the transform of ψ, and write the expression for ψ(x) using the inverse transform (it’s not necessary to evaluate the inverse transform).
Where do you expect the largest contribution to the integral to occur
(which values of k)?
4.8. Is there really western intensification? To convince ourselves of this,
we can solve the Stommel problem in 1-D, as follows. Let the wind
CHAPTER 4. SYNOPTIC SCALE BAROTROPIC FLOWS
176
stress be given by:
~τ = y î
(4.141)
Write the vorticity equation following Stommel (linear, U=V=0, steady).
Ignore variations in y, leaving a 1-D equation. Assume the domain
goes from x = 0 to x = L, as before. Solve it.
Note that you should have two constants of integration. This will
allow you to satisfy the boundary conditions ψ = 0 at x = 0 and x =
L. Plot the meridional velocity v(x). Assume that (βρ0 D0 )−1 = 1
and L(rρ0 D)−1 = 10. Where is the jet?
4.9. Barotropic instability. We have a region with 0 ≤ x < 1 and −1 ≤
y < 1. Consider the following velocity profiles:
a) U = 1 − y 2
b) U = exp(−y 2 )
c) U = sin(πy)
d) U = 61 y 3 + 65 y
Which profiles are unstable by the Rayleigh-Kuo criterion if β = 0?
How large must β be to stabilize all the profiles? Note that the terms
here have been non-dimensionalized, so that β can be any number
(e.g. an integer).
Chapter 5
Synoptic scale baroclinic flows
We will now examine what happens with vertical shear. In this case the
winds at higher levels need not be parallel to or of equal strength with those
at lower levels. Baroclinic flows are inherently more three dimensional
than barotropic ones. Nevertheless, we will see that we get the same type of
solutions with baroclinic flows as with barotropic ones. We have baroclinic
Rossby waves and baroclinic instability. These phenomena involve some
modifications though, as seen hereafter.
5.1
Vorticity equation
Consider the vorticity equation (4.2):
(
∂ψ ∂
∂ψ ∂
∂
∂
−
+
)(∇2 ψ + f ) = f0 w
∂t ∂y ∂x ∂y ∂x
∂z
(5.1)
This equation was derived from the shallow water equations. However,
at synoptic scales, the vertical advection of momentum is much weaker
than horizontal advection. As such, the horizontal momentum equations
are quasi-horizontal, meaning we can neglect the terms with w in them.
Cross-differentiating the momentum equations and then invoking incompressibility produces the same vorticity equation above. So this equation
177
CHAPTER 5. SYNOPTIC SCALE BAROCLINIC FLOWS
178
works equally well with baroclinic flows as barotropic ones at synoptic
scales.
For atmospheric flows, we use the pressure coordinate version of the
vorticity equation. This is nearly the same:
(
∂ψ ∂
∂ψ ∂
∂
∂
−
+
)(∇2 ψ + f ) = f0 ω
∂t ∂y ∂x ∂y ∂x
∂p
(5.2)
These equations have two unknowns, ψ and w or ω. With a barotropic
flow, one can eliminate w or ω by integrating over the depth of the fluid.
Then the vertical velocity only enters at the upper and lower boundaries.
But for baroclinic flows, in which u and v can vary with height, we require
a second equation to close the system.
5.2
Density Equation
For this, we use the equation for the fluid density (temperature). In the
atmosphere, we have the thermodynamic equation (1.64):
cp
J
d(lnθ)
=
dt
T
(5.3)
With zero heating, J = 0, implying:
dθ
=0
dt
(5.4)
i.e. the potential temperature is conserved. This equation can be rewritten in terms of ψ and ω and then combined with the pressure coordinate
version of the vorticity equation (Appendix F).
To illustrate this, we’ll do the derivation in z-coordinates. The corresponding thermodynamic equation for the ocean is:
∂
dρ
= ρ +~·∇ρ = 0
dt
∂t
(5.5)
5.2. DENSITY EQUATION
179
Here the velocity here is the full velocity, not just the geostrophic one.
With the hydrostatic approximation, we can decompose the pressure
and density into static and moving parts:
p = p0 (z) + p′ (x, y, z, t), ρ = ρ0 (z) + ρ′ (x, y, z, t)
As before, we assume the dynamic parts are much smaller:
|ρ′ | ≪ ρ0 ,
|p′ | ≪ p0
(5.6)
Furthermore, both the static and dynamic parts are separately in hydrostatic
balance:
∂ ′
∂
p0 = −ρ0 g,
p = −ρ′ g
∂z
∂z
Inserting these into the simplied density equation yields:
(
∂
∂
∂
∂
+ ug
+ v g ) ρ′ + w ρ0 = 0
∂t
∂x
∂y
∂z
(5.7)
(5.8)
Note we approximate the horizontal velocities by their geostrophic components. We also neglect the term involving the vertical advection of the
perturbation density, as this is smaller than the advection of background
density. With hydrostatic balance, we have:
∂
∂
∂ ∂p′
∂
+ vg )
− gw ρ0 = 0
( + ug
∂t
∂x
∂y ∂z
∂z
(5.9)
after multiplying through by −g. Lastly, we can substitute in the geostrophic
streamfunction defined in (4.20) to get:
(
∂
∂ψ ∂
∂ψ ∂ ∂ψ N 2
w=0
−
+
)
+
∂t ∂y ∂x ∂x ∂y ∂z
f0
(5.10)
This is the quasi-geostrophic density equation. Here N 2 is the BruntVaisala frequency:
180
CHAPTER 5. SYNOPTIC SCALE BAROCLINIC FLOWS
g dρ0
(5.11)
ρc dz
The Brunt-Vaisala frequency is a measure of the stratification in z-coordinates.
N2 = −
It reflect the frequency of oscillation of parcels in a stably stratified fluid
which are displaced up or down (see problem 3.1).
Consider what the density equation means. If there is vertical motion
in the presence of background stratification, the perturbation density will
change. For example, if the background density decreases going up (as it
must for a stably stratified fluid), a rising parcel has:
∂
w ρ0 < 0
∂z
This implies that the pertubation density must increase in time. So as the
parcel rises, it becomes heavier relative to the background density.
There is an interesting parallel here. The vorticity equation implies that
meridional motion changes the parcels vorticity. Here we see that vertical
motion affects its density. The two effects are intimately linked when you
have baroclinic instability (sec. 5.8).
5.3
QG Potential vorticity
We now have two equations with two unknowns. It is straightforward to
combine them to produce a single equation with only one unknown, by
eliminating w from (4.2) and (5.10). First we multiply (5.10) by f02 /N 2
and take the derivative with respect to z:
∂ f02 ∂ ∂ψ
∂
f02 ∂ψ
∂
( 2
) + [~ug · ∇( 2
)] = −f0 w
∂z N ∂t ∂z
∂z
N ∂z
∂z
The second term can be expanded thus:
f02 ∂ψ
∂ f02 ∂ψ
∂
) + ~ug · ∇( ( 2
))
( ~ug ) · ∇( 2
∂z
N ∂z
∂z N ∂z
(5.12)
5.3. QG POTENTIAL VORTICITY
181
The first term vanishes. You can see this by writing the velocity in terms
of the streamfunction:
∂ ∂ψ ∂ ∂ψ
∂ ∂ψ ∂ ∂ψ
f02
[−
(
)
(
)
+
( ) ( )] = 0
N 2 ∂z ∂y ∂x ∂z
∂z ∂x ∂y ∂z
(5.13)
The physical reason for this is that the the geostrophic velocity is parallel
∂
~ug ) and the gradient of
to the pressure; thus the dot product between ( ∂z
∂
∂z ψ
must be zero. So (5.12) reduces to:
∂
∂ f02 ∂ψ
∂
( + ~ug · ∇) [ ( 2
)] = −f0 w
∂t
∂z N ∂z
∂z
If we combine this with (4.2), we get:
(
∂ f 2 ∂ψ
∂
+ ~ug · ∇) [∇2 ψ + ( 02
) + βy] = 0
∂t
∂z N ∂z
(5.14)
This is the quasi-geostrophic potential vorticity (QGPV) equation. It has
only one unknown, ψ. The equation implies that the potential vorticity:
∂ f02 ∂ψ
) + βy
(5.15)
q=∇ ψ+ ( 2
∂z N ∂z
is conserved following a parcel moving with the geostrophic flow. This
2
is a powerful constraint. The flow evolves in such a way that q is only
redistributed, not changed.
The first term in the QGPV is the QG relative vorticity and the third
term is the planetary vorticity, as seen before. The second term is new;
this is the stretching vorticity. This is related to vertical gradients in the
density.
The QGPV equation can be used to model synoptic scale flows. If one
to solve this numerically, it would require several steps. First, the QGPV
CHAPTER 5. SYNOPTIC SCALE BAROCLINIC FLOWS
182
equation is advanced in time to obtain the PV at the next time step. Then
the PV is inverted to obtain the streamfunction. From this, we can obtain
the velocities and then advance the QGPV equation again. However, the
inversion step is often non-trivial. Doing this requires boundary conditions. We consider these next.
5.4
Boundary conditions
Notice the QGPV equation (5.14) doesn’t contain any Ekman or topographic terms. This is because the PV equation pertains to the interior.
In the barotropic case, we introduced those terms by integrating between
the lower and upper boundaries. But here, we must treat the boundary
conditions separately.
We obtain these using the density equation (5.10) at the boundaries. We
can rewrite the relation slightly this way:
f0 dg ∂ψ
= −w
N 2 dt ∂z
(5.16)
The vertical velocity at the boundary can come from either pumping from
an Ekman layer or flow over topography. Thus for the lower boundary, we
have:
δ
f0 dg ∂ψ
|zb = −ug · ∇h − ∇2 ψ
2
N dt ∂z
2
(5.17)
where the velocities and streamfunction are evaluated at the bottom boundary, which we take to be at z = zb .
The upper boundary condition is similar. For the ocean, with the ocean
surface at z = zu , we have:
f0 dg ∂ψ
1
∇ × ~τw
|
=
−
zu
N 2 dt ∂z
ρc f 0
(5.18)
5.5. BAROCLINIC ROSSBY WAVES
183
The upper boundary condition for the atmosphere depends on the application. If we are considering the entire atmosphere, we could demand that
the amplitude of the motion decay as z → ∞, or that the energy flux is
directed upwards. However, we will primarily be interested in motion in
the troposphere. Then we can treat the tropopause as a surface, either rigid
or freely moving. If it is a rigid surface, we would have simply:
1 dg ∂ψ
|zu = 0
N 2 dt ∂z ∗
(5.19)
at z = zu . A free surface is only slightly more complicated, but the rigid
upper surface will suffice for what follows.
5.5
Baroclinic Rossby waves
Let’s look at some specific solutions. We begin with seeing how stratification alters the Rossby wave solutions.
First we linearize the PV equation (5.14) assuming a constant background flow:
∂
∂ f02 ∂ψ
∂
∂
2
)] + β ψ = 0
( + U ) [∇ ψ + ( 2
∂t
∂x
∂z N ∂z
∂x
(5.20)
Assume for simplicity that the domain lies between two rigid, flat surfaces.
With the ocean in mind, we’ll take the boundaries at z = 0 and z = −D
(the result is the same with positive z). We’ll also neglect Ekman layers on
those surfaces. So the linearized boundary condition on each surface is:
(
∂ ∂ψ
∂
+U )
=0
∂t
∂x ∂z
(5.21)
This implies that the density (or temperature) doesn’t change on parcels
advected by the mean flow along the boundary. So the density is constant
CHAPTER 5. SYNOPTIC SCALE BAROCLINIC FLOWS
184
on the boundaries, and we take the constant to be zero:
∂ψ
=0
∂z
(5.22)
The coefficients in the PV equation do not vary with time or in (x, y),
but the Brunt-Vaisala frequency, N , can vary in z. So an appropriate choice
of wave solution would be:
ψ = Re{ψ̂(z)ei(kx+ly−ωt) }
(5.23)
Substituting this into the PV equation, we get:
∂ f02 ∂ ψ̂
)] + iβk ψ̂ = 0
(−iω + ikU )[−(k + l )ψ̂ + ( 2
∂z N ∂z
2
or:
2
∂ f02 ∂ ψ̂
( 2
) + λ2 ψ̂ = 0
∂z N ∂z
(5.24)
(5.25)
where:
βk
(5.26)
Uk − ω
Equation (5.25) determines the vertical structure, ψ̂(z), of the Rossby
λ2 ≡ −k 2 − l2 +
waves. With the boundary conditions (5.22), this constitutes an eigenvalue
or “Sturm-Liouville” problem. Only specific values of λ will be permitted.
In order to find the dispersion relation for the waves, we must first solve
for the vertical structure.
5.5.1 Baroclinic modes with constant stratification
To illustrate, consider the simplest case, with N 2 = const. Then we have:
∂2
N 2 λ2
ψ̂ = 0
ψ̂
+
∂z 2
f02
(5.27)
This has a general solution:
ψ̂ = Acos(
N λz
N λz
) + Bsin(
)
f0
f0
(5.28)
5.5. BAROCLINIC ROSSBY WAVES
In order to satisfy
∂
∂z ψ̂
185
= 0 on the upper boundary (at z = 0), we
require that B = 0. But in addition, it must work on the lower boundary,
at z = −D. So either A = 0 (so that we have no wave at all) or:
sin(
N λD
)=0
f0
(5.29)
For this to be true:
N λD
= nπ
(5.30)
f0
where n = 0, 1, 2... is an integer. In other words, only specific combinations of of the parameters will work. Solving for λ, we get:
λ2 =
n2
n2 π 2 f02
=
N 2D2
L2D
(5.31)
Here,
ND
πf0
is the baroclinic deformation radius. Combining this with the definition of
LD =
λ2 , we get:
n2
βk
2
2
≡
−k
−
l
+
L2D
Uk − ω
Solving for ω, we obtain:
ω ≡ ωn = U k −
βk
k 2 + l2 + n2 /L2D
(5.32)
(5.33)
This is the dispersion relation for baroclinic Rossby waves. In fact, we
have an infinite number of relations, one for each value of n. And for each
n, we have a different vertical struture. The wave structure corresponding
to each is given by:
ψ = Acos(kx + ly − ωn t) cos(
These are the baroclinic Rossby waves.
nπz
)
D
(5.34)
CHAPTER 5. SYNOPTIC SCALE BAROCLINIC FLOWS
186
Consider first the case with n = 0. Then the dispersion relation is:
ω0 = U k −
βk
k 2 + l2
(5.35)
This is just the dispersion relation for the barotropic Rossby wave obtained
earlier (sec. 4.4). The wave solution with n = 0 is
ψ0 = Acos(kx + ly − ωn t)
(5.36)
This doesn’t vary in the vertical, exactly like the barotropic case we considered before. So the barotropic mode exists, even though there is stratification. All the properties that we derived before apply to this wave as
well.
With n = 1, the streamfunction is:
ψ1 = Acos(kx + ly − ωn t)cos(
πz
)
D
(5.37)
This is the first baroclinic mode. The streamfunction (and thus the velocities) change sign in the vertical. Thus if the velocity is eastward near the
upper boundary, it is westward near the bottom. There is also a “zerocrossing” at z = −D/2, where the velocities vanish. The waves have an
associated density perturbation as well:
ρ1 ∝
∂
nπ
πz
ψ1 = − Acos(kx + ly − ωn t)sin( )
∂z
D
D
(5.38)
So the density perturbation is largest at the mid-depth, where the horizontal
velocities vanish. In the ocean, first mode baroclinic Rossby waves cause
large deviations in the thermocline, which is the subsurface maximum in
the density gradient.
5.5. BAROCLINIC ROSSBY WAVES
187
We have assumed the surface and bottom are flat, and our solution has
no density perturbations on those surfaces. However, if we had allowed
the upper surface to move, we would have found that the first baroclinic
mode has an associated surface deflection. Moreover, this deflection is of
the opposite in sign to the density perturbation at mid-depth. If the density
contours are pressed down at mid-depth, the surface rises. This means one
can observe baroclinic Rossby waves by satellite.
The dispersion relation for the first mode is:
ω1 = U k −
βk
k 2 + l2 + 1/L2D
(5.39)
The corresponding zonal phase speed is:
c1 =
β
ω1
=U− 2
k
k + l2 + 1/L2D
(5.40)
So the first mode wave also propagates westward relative to the mean flow.
But the phase speed is slower than that of the barotropic Rossby wave.
However, if the wavelength is much smaller than the deformation radius
(so that k 2 + l2 ≫ 1/L2d ), then:
c1 ≈ U −
β
k 2 + l2
(5.41)
So small scale baroclinic waves have a phase speed like that of a barotropic
wave of the same size.
If on the other hand the wave is much larger than the deformation radius,
then:
βN 2 D2
c1 ≈ U −
=U− 2 2
(5.42)
π f0
This means the large waves are non-dispersive, because the phase speed
βL2D
is independent of the wavenumber. This phase speed, known as the “long
wave speed”, is a strong function of latitude, varying inversely with the
CHAPTER 5. SYNOPTIC SCALE BAROCLINIC FLOWS
188
square of the Coriolis parameter. Where f0 is small—at low latitudes—the
long baroclinic waves move faster.
Baroclinic Rossby phase speeds
2
1.8
1.6
1.4
1.2
c
n=0
n=1
1
0.8
0.6
0.4
n=2
0.2
0
n=3
0
0.5
1
1.5
2
2.5
3
k
Figure 5.1: Rossby phase speeds as a function of wavenumber for the first four modes.
The phase speeds from the first four modes are plotted as a function of
wavenumber in Fig. (5.1). Here we plot the function:
cn =
1
2k 2 + n2
(5.43)
(note that the actual c is the negative of this). We have set β = LD = 1 and
k = l and assumed the mean flow is zero. The barotropic mode (n = 0)
has a phase speed which increases without bound as the wavenumber goes
to zero. This is actually a consequence of having a rigid lid at the surface;
if we had a free (moving) surface, the wave would have a finite phase speed
at k = 0. The first baroclinic mode (n = 1) has a constant phase speed
at low k, equal to c = 1. This is the long wave speed with LD = 1. The
5.5. BAROCLINIC ROSSBY WAVES
189
second and third baroclinic modes (n = 2, 3) also have long wave speeds,
but these are four and nine times smaller than the first baroclinic long wave
speed.
5.5.2 Baroclinic modes with exponential stratification
In the preceding section, we assumed a constant Brunt-Vaisala frequency,
N . This implies the density has linear profile in the vertical. In reality,
the oceanic density varies strongly with z. In many locations, the BruntVaisala frequency exhibits a nearly exponential dependence on depth, with
larger values near the surface and smaller ones at depth.
An exponential profile can also be solved analytically. Assume:
N 2 = N02 eαz
(5.44)
Substituting (5.44) into (5.25) yields:
dψ̂ N02 λ2 αz
d2 ψ̂
−
α
+
e ψ̂ = 0
dz 2
dz
f02
(5.45)
Making the substitution ζ = eαz/2 , we obtain:
ζ2
dψ̂ 4N02 λ2 2
d2 ψ̂
−
ζ
+ 2 2 ζ ψ̂ = 0
dζ 2
dζ
α f0
(5.46)
This is a Bessel-type equation. The solution which satisfies the upper
boundary condition (at z = 0) is:
ψ̂ = Aeαz/2 [Y0 (2γ)J1 (2γeαz/2 ) − J0 (2γ)Y1 (2γeαz/2 )]
(5.47)
where γ = N0 λ/(αf0 ). If we then impose the bottom boundary condition,
we get:
J0 (2γ)Y0 (2γe−αH/2 ) − Y0 (2γ)J0 (2γe−αH/2 ) = 0
(5.48)
CHAPTER 5. SYNOPTIC SCALE BAROCLINIC FLOWS
0
0
−0.1
−0.1
−0.2
−0.2
−0.3
−0.3
−0.4
−0.4
z
z
190
−0.5
−0.6
−0.5
−0.6
Mode 1
Mode 2
Mode 3
Mode 4
BT
N2
−0.7
−0.8
−0.9
−1
−1.5
−1
−0.5
0
0.5
1
1.5
2
2.5
3
−0.7
Mode 1
Mode 2
Mode 3
BT
N2
−0.8
−0.9
3.5
−1
−1.5
−1
−0.5
0
0.5
1
1.5
2
2.5
3
3.5
0
−0.1
−0.2
−0.3
z
−0.4
−0.5
−0.6
−0.7
Mode 1
Mode 2
Mode 3
BT
N2
−0.8
−0.9
−1
−1.5
−1
−0.5
0
0.5
1
1.5
2
2.5
3
3.5
Figure 5.2: The baroclinic modes with N =const. (upper left panel) and with exponential
N . In the upper right panel, α−1 = H/2, and in the lower left, α−1 = H/10. In all cases,
H = 1. From LaCasce (2012).
Equation (5.48), a transcendental equation, admits only certain discrete
values, γn . In other words, γn is quantized, just as it was with constant
stratification. Once γn is found, the wave frequencies can be determined
from the dispersion relation as before. Equation (5.48) is more difficult to
solve than with constant stratification, but it’s possible to do this numerically. Notice though that γ = 0 is also a solution of (5.48)—so there is
also a barotropic mode in this case as well.
Some examples of the wave vertical structure, ψ̂(z), are shown in Fig.
(5.2). In the upper left panel are the cosine modes, with constant N 2 . In
the upper right panel are the modes with exponential stratification, for the
case where α−1 , the e-folding depth of the stratification, is equal to half the
total depth. In the lower right panel are the modes with the e-folding depth
equal to 1/10th the water depth. In all cases, there is a depth-independent
5.5. BAROCLINIC ROSSBY WAVES
191
barotropic mode plus an infinite set of baroclinic modes. And in all cases,
the first baroclinic mode has one zero crossing, the second mode has two,
and so forth. But unlike the cosine modes, the exponential modes have
their largest amplitudes near the surface. So the Rossby wave velocities
and density perturbations are likewise surface-intensified.
5.5.3 Baroclinic modes with actual stratification
In most cases though, the stratification has a more complicated dependence
on depth. An example is shown in the left panel of Fig. (5.3), from a location in the ocean off the west coast of Oregon in the U.S (Kundu et al.,
1974). Below about 10 m depth N 2 decreases approximately exponentially. But above that it also decreases, toward the surface. We refer to
this weakly stratified upper region as the mixed layer. It is here that surface cooling and wind-induced turbulent mixing stir the waters, making
the stratification more homogeneous. This is a common phenomenon in
the world ocean.
With profiles of N 2 like this, it is necessary to solve equation (5.25)
numerically. The authors did this, and the result is shown in the right
panel of Fig. (5.3). Below 10 m, the modes resemble those obtained with
exponential stratification. The baroclinic modes have larger amplitudes
near the surface, and the zero crossings are also higher up in the water
column. Where they differ though is in the upper 10 m. Here the modes
flatten out, indicating weaker vertical shear. So the flow in the mixed layer
is more barotropic than below. Note though that there is still a barotropic
mode. This is always present under the condition of a vanishing density
perturbation on the boundaries.
It can be shown that the the eigenfunctions obtained from the Sturm-
192
CHAPTER 5. SYNOPTIC SCALE BAROCLINIC FLOWS
Figure 5.3: The Brunt-Vaisala frequency (left panel) and the corresponding vertical modes
(right panel) from a location on the continental shelf off Oregon. From Kundu et al.
(1974).
Liouville problem form a complete basis. That means that we can express
an arbitrary function in terms of them, if that function is continuous. So
oceanic currents can be decomposed into vertical modes. Wunsch (1997)
studied currents using a large collection of current meters deployed all over
the world. He found that the variability projects largely onto the barotropic
and first baroclinic modes. So these two modes are the most important for
time-varying motion.
5.5.4 Observations of Baroclinic Rossby waves
As noted, baroclinic Rossby waves can be seen by satellite. Satellite altimeters measure the sea surface height elevation, and because Rossby
waves also have a surface signature, then can be observed. Shown in Fig.
5.5. BAROCLINIC ROSSBY WAVES
193
Figure 5.4: Sea surface height anomalies at two successive times. Westward phase propagation is clear at low latitudes, with the largest speeds occurring near the equator. From
Chelton and Schlax (1996).
(5.4) are two sea surface height fields from 1993. There are large scale
anomalies in the surface elevation, and these migrate westward in time.
The speed of propagation moreover increases towards the equator, which
is evident from a bending of the leading wave front (indicated by the white
contours).
One can use satellite date like this to deduce the phase speed. Sections
of sea surface height at fixed latitudes are used to construct Hovmuller
diagrams (sec. 4.4.1), and then the phase speed is determined from the tilt
of the phase lines. This was done by Chelton and Schlax (1996), from the
194
CHAPTER 5. SYNOPTIC SCALE BAROCLINIC FLOWS
Figure 5.5: Westward phase speeds deduced from the motion of sea surface height anomalies, compared with the value predicted by the long wave phase speed given in (5.42).
The lower panel shows the ratio of observed to predicted phase speed. Note the observed
speeds are roughly twice as fast at high latitudes. From Chelton and Schlax (1996).
Hovmuller diagrams shown in Fig. (4.9); the resulting phase speeds are
plotted against latitude in Fig. (5.5). The observations are plotted over a
curve showing the long wave speed for the first baroclinic mode.
There is reasonable agreement at most latitudes. The agreement is very
good below about 20 degrees of latitude; at higher latitudes there is a systematic discrepancy, with the observed waves moving perhaps twice as fast
as predicted. There are a number of theories which have tried to explain
this.1 For our purposes though, we see that the simple theory does surprisingly well at predicting the observed sea surface height propagation.
1
See for example LaCasce and Pedlosky (2004) and Isachsen et al. (2007).
5.6. MOUNTAIN WAVES
5.6
195
Mountain waves
In sec. (4.6), we saw how a mean wind blowing over mountains could
excite standing Rossby waves. Now we will consider what happens in the
baroclinic case.
We consider the potential vorticity equation (5.14), without forcing:
∂ f 2 ∂ψ
dg 2
[∇ ψ + ( 02
) + βy] = 0
dt
∂z N ∂z
(5.49)
As before, we consider a steady flow forced by a mean zonal wind:
∂
∂ f02 ∂ψ
∂
2
)] + β ψ = 0
U [∇ ψ + ( 2
∂x
∂z N ∂z
∂x
(5.50)
Note that even though the Rossby waves will be baroclinic, the mean flow
is assumed to be barotropic (otherwise there would be an additional term
involving the mean shear). We will again assume that the stratification
parameter, N 2 , is constant, for simplicity.
With a constant N 2 , all the coefficients in the vorticity equation are
constant. But given that we have a boundary in z, it’s still wise to leave the
z-dependence undetermined. So our wave solution is:
ψ = ψ̂(z)eikx+ily
(5.51)
Substituting this into (5.50) yields:
ikU [−(k 2 + l2 )ψ̂ −
f02
ψ̂zz ] + ikβ ψ̂ = 0
N2
(5.52)
Rearranging, we get:
ψ̂zz + m2 ψ̂ = 0
where:
(5.53)
CHAPTER 5. SYNOPTIC SCALE BAROCLINIC FLOWS
196
r
N β
− k 2 − l2
(5.54)
f0 U
There are actually four possibilites for the vertical structure; m can be
m=±
positive or negative, and real or imaginary. The latter depends on the term
in the square root; if this is positive, m is real and we have wave-like
solutions. But if it is negative, m is imaginary and the vertical dependence
is exponential in the vertical.
Consider the second case first. Then we can write:
r
β
N
k 2 + l2 −
m = ±imi ≡ ±i
f0
U
(5.55)
as the term in the root is positive. The streamfunction is thus:
ψ = (Aemi z + Be−mi z )eikx+ily
(5.56)
The first term in the parentheses grows with height. This is not realistic, as
the velocities would become extremely large at great heights in the atmosphere. So we conclude that A = 0 and that all wave solutions are trapped
at the surface.
Then there is the first case, where the term in the root in (5.54) is positive. Then we have:
ψ = (Aeimz + Be−imz )eikx+ily
(5.57)
The solution is thus wave-like in the vertical, meaning the waves can effectively propagate upward to infinity, leaving the troposphere and entering
the stratosphere and beyond. But which term do we take, the positive or
the negative exponent?
To find out, we examine the group velocity in the vertical direction.
The dispersion relation for baroclinic Rossby waves with a mean flow and
5.6. MOUNTAIN WAVES
197
a wave-like structure in the vertical is:
ω = Uk −
βk
k 2 + l2 + m2 f02 /N 2
(5.58)
(sec. 5.5). The corresponding vertical group velocity is:
cgz
2βkmf02
∂ω
=
=
∂m N 2 (k 2 + l2 + m2 f02 /N 2 )2
(5.59)
This is positive if the product km is positive. Thus if k is positive, we
require that m also be positive. So we could write:
ψ = Aeikx+ily+imz
(5.60)
where:
r
N β
m = sgn(k)
− k 2 − l2
f0 U
Here sgn(k) is +1 if k is positive and -1 if it is negative.
(5.61)
Thus the character of the solution in the vertical depends on the sign of
the argument of the root in (5.54). This is positive when:
β
> k 2 + l2
U
(5.62)
This implies that the mean flow, U , must be positive, or eastward. Rewriting the relation, we have:
0<U <
β
≡ Us
k 2 + l2
(5.63)
So while U must be positive, neither can it be too strong. It must, in
particular, be less than Us , the speed at which the barotropic Rossby wave
is stationary (sec. 4.4.1).
Why is the mean flow limited by speed of the barotropic wave? As we
saw in the previous section, the barotropic mode is the fastest of all the
Rossby modes. So upward propagating waves are possible only when the
198
CHAPTER 5. SYNOPTIC SCALE BAROCLINIC FLOWS
Figure 5.6: The geopotential height at 10 hPa on February 11 and 16, 1979. The polar
vortex is being perturbed by a disturbance over the Pacific. From Holton, An Introduction
to Dynamic Meteorology.
mean speed is slow enough so that one of the baroclinic Rossby modes is
stationary.
Notice that we have not said anything about the lower boundary, where
the waves are forced. In fact, the form of the mountains determines the
structure of the stationary waves. But the general condition above applies
to all types of mountain. If the mean flow is westerly and not too strong,
the waves generated over the mountains can extend upward indefinitely.
Upward propagating Rossby waves are important in the stratosphere,
and can greatly disturb the flow there. They can even change the usual
5.6. MOUNTAIN WAVES
199
Figure 5.7: The geopotential height at 10 hPa on February 21, 1979 (following Fig. 5.6).
The polar vortex has split in two, appearing now as a mode 2 Rossby wave. From Holton,
An Introduction to Dynamic Meteorology.
equator-to-pole temperature difference, a stratospheric warming event.
Consider Figs. (5.6) and (5.7). In the first panel of Fig. (5.6), we see
the polar vortex over the Arctic. This is a region of persistent low pressure (with a correspondingly low tropopause height). In the second panel,
a high pressure is developing over the North Pacific. This high intensifies, eventually causing the polar vortex has split in two, making a mode
2 planetary wave (Fig. 5.7). The wave has a corresponding temperature
perturbation, and in regions the air actually warms moving from south to
north.
Stratospheric warming events occur only in the wintertime. Charney
CHAPTER 5. SYNOPTIC SCALE BAROCLINIC FLOWS
200
and Drazin (1961) used the above theory to explain which this happens. In
the wintertime, the winds are westerly (U > 0), so that upward propagation
is possible. But in the summertime, the stratospheric winds are easterly
(U < 0), preventing upward propagation. So Rossby waves only alter the
stratospheric circulation in the wintertime.
5.7
Topographic waves
In an earlier problem, we found that a sloping bottom can support Rossby
waves, just like the β-effect. The waves propagate with shallow water to
their right (or “west”, when facing “north” up the slope). Topographic
waves exist with stratification too, and it is useful to examine their structure.
We’ll use the potential vorticity equation, linearized with zero mean
flow (U = 0) and on the f -plane (β = 0). We’ll also assume that the
Brunt-Vaisala frequency, N , is constant. Then we have:
f02 ∂ 2
∂
2
(∇ ψ + 2 2 ψ) = 0
(5.64)
∂t
N ∂z
Thus the potential vorticity in the interior of the fluid does not change in
time; it is simply constant. We can take this constant to be zero.
For the bottom boundary condition, we will assume a linear topographic
slope. This can be in any direction, but we will say the depth is decreasing
toward the north:
D = D0 − αy
(5.65)
so that h = αy. In fact, this is a general choice because with f =const., the
system is rotationally invariant (why?). With this topography, the bottom
5.7. TOPOGRAPHIC WAVES
201
boundary condition (5.17) becomes:
dg ∂ψ
N2
w=
+
dt ∂z
f0
dg ∂ψ
N2
ug · ∇h =
+
dt ∂z
f0
dg ∂ψ N 2
αv = 0
+
dt ∂z
f0
(5.66)
Let’s assume further that the bottom is at z = 0. We won’t worry about the
upper boundary, as the waves will be trapped near the lower one.
To see that, assume a solution which is wave-like in x and y:
ψ = Re{ψ̂(z)eikx+ily−iωt }
(5.67)
Under the condition that the PV is zero, we have:
f02 ∂ 2
(−k − l )ψ̂ + 2 2 ψ̂ = 0
N ∂z
(5.68)
N 2 κ2
∂2
ψ̂ = 0
ψ̂ −
∂z 2
f02
(5.69)
2
2
or
where κ = (k 2 + l2 )1/2 is again the total wavenumber. This equation only
has exponential solutions. The one that decays going up from the bottom
boundary has:
ψ̂(z) = Ae−N κz/|f0 |
(5.70)
This is the vertical structure of the topographic waves. It implies the waves
have a vertical e-folding scale of:
202
CHAPTER 5. SYNOPTIC SCALE BAROCLINIC FLOWS
|f0 |λ
|f0 |
=
N κ 2πN
if λ is the wavelength of the wave. Thus the vertical scale of the wave deH∝
pends on its horizontal scale. Larger waves extend further into the interior.
Note too that we have a continuum of waves, not a discrete set like we did
with the baroclinic modes (sec. 5.5).
Notice that we would have obtained the same result with the mountain
waves in the previous section. If we take (5.54) and set β = 0, we get:
iN κ
N
(−k 2 − l2 )1/2 = ±
(5.71)
f0
f0
So with β = 0, we obtain only exponential solutions in the vertical. The
m=±
wave-like solutions require an interior PV gradient.
Now we can apply the bottom boundary condition. We linearize (5.66)
with zero mean flow and write v in terms of the streamfunction:
∂ ∂
N 2 α ∂ψ
ψ+
=0
∂t ∂z
f0 ∂x
Substituting in the wave expression for ψ, we get:
so that:
ωN κ
N 2 αk
−
A=0
A−
|f0 |
f0
N αk
sgn(f0 )
κ
where sgn(f0 ) is +1 if f > 0 and -1 if f < 0.
ω=−
(5.72)
(5.73)
(5.74)
This is the dispersion relation for stratified topographic waves. The
phase speed in the x-direction (along the isobaths, the lines of constant
depth) is:
5.8. BAROCLINIC INSTABILITY
cx = −
203
Nα
sgn(f0 )
κ
(5.75)
This then is “westward” in the Northern Hemisphere, i.e. with the shallow water on the right. As with planetary waves, the fastest waves are
the largest ones (with small κ). These are also the waves the penetrate
the highest into the water column. Thus the waves which are closest to
barotropic are the fastest.
Topographic waves are often observed in the ocean, particularly over
the continental slope. Observations suggest that disturbances originating
at the equator propagate north (with shallow water on the right) past California towards Canada. At the same time, waves also propagate south
(with the shallow water on the left) past Peru.
5.8
Baroclinic instability
Now we return to instability. As discussed before, solar heating of the
earth’s surface causes a temperature gradient, with a warmer equator and
colder poles. This north-south temperature gradient is accompanied by a
vertically sheared flow in the east-west direction. The flow is weak near
the surface and increases moving upward in the troposphere.
5.8.1 Basic mechanism
The isotherms look (crudely) as sketched in Fig. (5.8). The temperature
decreases to the north, and also increases going up. Thus the parcel A is
colder (and heavier) than parcel C, which is directly above it. The air is
stably stratified, because exchanging A and C would increase the potential
energy.
CHAPTER 5. SYNOPTIC SCALE BAROCLINIC FLOWS
204
warm
C
B
A
S
cold
N
Figure 5.8: Slantwise convection. The slanted isotherms are accompanied by a thermal
wind shear. The parcel A is colder, and thus heavier, than parcel C, implying static stability. But A is lighter than B. So A and B can be interchanged, releasing potential energy.
However, because the isotherms tilt, there is a parcel B which is above
A and heavier. So A and B can be exchanged, releasing potential energy. This is often referred to as “slantwise” convection, and it is the basis
for baroclinic instability. Baroclinic instability simultaneously reduces the
vertical shear while decreasing the north-south temperature gradient. In
effect, it causes the temperature contours to slump back to a more horizontal configuration, which reduces the thermal wind shear while decreasing
the meridional temperature difference.
Baroclinic instability is extremely important. For one, it allows us to
live at high latitudes—without it, the poles would be much colder than the
equator.
5.8.2 Charney-Stern criterion
We can derive conditions for baroclinic instability, just as we did to obtain
the Rayleigh-Kuo criterion for barotropic instability. We begin, as always,
with the PV equation (5.14):
5.8. BAROCLINIC INSTABILITY
205
∂ f02 ∂ψ
dg 2
[∇ ψ + ( 2
) + βy] = 0
dt
∂z N ∂z
(5.76)
We linearize this about a mean flow, U , which varies in both the y and zdirections. Doing this is the same thing if we had writen the streamfunction
as:
ψ = Ψ(y, z) + ψ ′ (x, y, z, t)
(5.77)
where the primed streamfunction is much smaller than the mean streamfunction. The mean streamfunction has an associated zonal flow:
U (y, z) = −
∂
Ψ
∂y
(5.78)
Note it has no meridional flow (V ) because Ψ is independent of x. Using
this, we see the mean PV is:
∂ f02 ∂Ψ
∂2
Ψ+ ( 2
) + βy
∂y 2
∂z N ∂z
(5.79)
So the full linearized PV equation is:
∂
∂
∂ f02 ∂ψ
∂
∂
2
( + U )[∇ ψ + ( 2
)] + ( qs ) ψ = 0
∂t
∂x
∂z N ∂z
∂y ∂x
(5.80)
where:
∂
∂2
∂ f 2 ∂U
qs = β − 2 U − ( 02
)
∂y
∂y
∂z N ∂z
(5.81)
We saw the first two terms before, in the barotropic case. The third term
however is new. It comes about because the mean velocity (and hence the
mean streamfunction) varies in z.
CHAPTER 5. SYNOPTIC SCALE BAROCLINIC FLOWS
206
In addition, we need the boundary conditions. We will assume flat
boundaries and no Ekman layers, to make this simple. Thus we use (5.19),
linearized about the mean flow:
∂
∂ ∂ψ
∂ ∂Ψ
dg ∂ψ
=( +U )
+v
dt ∂z
∂t
∂x ∂z
∂y ∂z
=(
∂ ∂ψ
∂U
∂
+U )
−v
=0
∂t
∂x ∂z
∂z
(5.82)
We’ll assume that we have boundaries at the ground, at z = 0, and an
upper level, z = D. The latter could be the tropopause. Alternatively, we
could have no upper boundary at all, as with the mountain waves. But we
will use an upper boundary in the Eady model in the next section, so it’s
useful to include that now.
Because U is potentially a function of both y and z, we can only assume
a wave structure in (x, t). So we use a Fourier solution with the following
form:
ψ = ψ̂(y, z)eik(x−ct)
(5.83)
Substituting into the PV equation (5.80), we get:
(U − c)[−k 2 ψ̂ +
∂2
∂ f02 ∂ ψ̂
∂
ψ̂
+
(
)]
+
(
qs )ψ̂ = 0
∂y 2
∂z N 2 ∂z
∂y
(5.84)
after canceling the factor of k. Similarly, the boundary conditions are:
(U − c)
∂
∂
ψ̂ − ( U )ψ̂ = 0
∂z
∂z
(5.85)
We now do as we did in sec. (4.9.1): we divide (5.84) by U − c and
then multiply by the complex conjugate of ψ̂:
5.8. BAROCLINIC INSTABILITY
207
∂ f02 ∂ ψ̂
1
∂
∂2
)] − k 2 |ψ̂|2 +
( qs )|ψ̂|2 = 0
(5.86)
ψ̂ [ 2 ψ̂ + ( 2
∂y
∂z N ∂z
U − c ∂y
We then separate real and imaginary parts. The imaginary part of the equa∗
tion is:
∂2
∂ f02 ∂ ψ̂i
∂ f02 ∂ ψ̂r
∂2
) − ψ̂i ( 2
)
ψ̂r 2 ψ̂i − ψ̂i 2 ψ̂r + ψ̂r ( 2
∂y
∂y
∂z N ∂z
∂z N ∂z
ci
∂
+
(
qs )|ψ̂|2 = 0
(5.87)
2
|U − c| ∂y
We have again used:
1
U − cr + ici
1
=
=
U − c U − cr − ici
|U − c|2
As we did previously, we use a channel domain and demand that ψ̂ = 0
at the north and south walls, at y = 0 and y = L. We integrate the PV
equation in y and then invoke integration by parts. Doing this yields, for
the first two terms on the LHS:
L
Z L
∂2
∂
∂
∂2
∂
(ψ̂i 2 ψ̂r − ψ̂r 2 ψ̂i ) dy = ψ̂i ψ̂r |L0 −
ψ̂i ψ̂r dy
∂y
∂y
∂y
∂y
0
0 ∂y
Z L
∂
∂
∂
ψ̂r ψ̂i dy = 0
(5.88)
−ψ̂r ψ̂i |L0 +
∂y
∂y
0 ∂y
We can similarly integrate the PV equation in the vertical, from z = 0 to
Z
z = D, and again integrate by parts. This leaves:
f02 ∂ ψ̂i D
f02 ∂ ψ̂r D
ψ̂r 2
| − ψ̂i 2
|
(5.89)
N ∂z 0
N ∂z 0
(because the leftover integrals are the same and cancel each other). We
then evaluate these two terms using the boundary condition. We rewrite
that as:
CHAPTER 5. SYNOPTIC SCALE BAROCLINIC FLOWS
208
The real part of this is:
∂
ψ̂
∂
ψ̂ = ( U )
∂z
∂z U − c
∂
∂
(U − cr )ψ̂r
ci ψ̂i
ψ̂r = ( U )[
−
]
∂z
∂z
|U − c|2
|U − c|2
and the imaginary part is:
∂
(U − cr )ψ̂i
ci ψ̂r
∂
ψ̂i = ( U )[
+
]
∂z
∂z
|U − c|2
|U − c|2
If we substitute these into (5.89), we get:
(5.90)
(5.91)
(5.92)
f02 ∂
ci ψ̂i2
ci ψ̂r2
f02 ∂
D
( U)
|0 + 2 ( U )
|D
=
2
2
2
2
2
N ∂z (U − cr ) + ci
N ∂z (U − cr ) + ci 0
f02 ∂
ciˆ|ψ|2
(
U
)
|D
2
2
2
N ∂z (U − cr ) + ci 0
So the doubly-integrated (5.89) reduces to:
ci [
Z
0
LZ D
0
∂
|ψ̂|2
(
qs ) dz dy +
|U − c|2 ∂y
Z
L
0
(5.93)
f02 ˆ|ψ|2
∂
(
U ) |D
0 dy ] = 0
2
2
N |U − c| ∂z
(5.94)
This is the Charney-Stern criterion for instability. In order to have instability, ci > 0 and that requires that the term in brackets vanish.
Note that the first term is identical to the one we got for the RayleighKuo criterion (4.131). In that case we had:
∂2
∂
qs = β − 2 U
∂y
∂y
For instability, we required that
main.
∂
∂y qs
(5.95)
had to be zero somewhere in the do-
5.8. BAROCLINIC INSTABILITY
209
The baroclinic condition is similar, except that now the background PV
is given by (5.81), so:
∂2
∂ f02 ∂U
∂
qs = β − 2 U − ( 2
)=0
∂y
∂y
∂z N ∂z
So now the vertical shear can also cause the PV gradient to vanish.
In addition, the boundary contributions also come into play. In fact we
have four possibilities:
•
∂
∂y qs
vanishes in the interior, with
•
∂
∂z U
at the upper boundary has the opposite sign as
•
∂
∂z U
at the lower boundary has the same sign as
•
∂
∂z U
∂
has the same sign on the boundaries, with ∂y
qs = 0 in the interior
∂
∂z U
= 0 on the boundaries
∂
∂y qs
∂
∂y qs
The first condition is the Rayleigh-Kuo criterion. This is the only condition
in the baroclinic case too if the vertical shear vanishes at the boundaries.
Note that from the thermal wind balance:
∂
∂
U∝
T
∂z
∂y
So having zero vertical shear at the boundaries implies the temperature is
constant on them. So the boundaries are important if there is a temperature
gradient on them.
The fourth condition applies when the PV (and hence the gradient) is
zero in the interior. Then the two boundaries can interact to produce instability. This is Eady’s (1949) model of baroclinic instability, which we
consider in the next section.
CHAPTER 5. SYNOPTIC SCALE BAROCLINIC FLOWS
210
In the atmosphere, the mean relative vorticity is generally smaller than
the β-effect. So the interior gradient is positive (and approximately equal
to β). Then the main effect is for the lower boundary to cancel the interior term. This is what happens in Charney’s (1947) model of baroclinic
instability.
It is also possible to construct a model with zero shear at the boundaries
and where the gradient of the interior PV vanishes because of the vertical
gradient. This is what happens in Phillip’s (1954) model of instability. His
model has two fluid layers, with the flow in each layer being barotropic.
Thus the shear at the upper and lower boundaries is zero. But because
there are two layers, the PV in each layer can be different. If the PV in
the layers is of opposite sign, then they can potentially sum to zero. Then
Philip’s model is unstable.
As with the Rayleigh-Kuo criterion, the Charney-Stern criteria represent a necessary condition for instability but not a sufficient one. So satisfying one of the conditions above indicates instability may occur. Note that
only one needs to be satisfied. But if none of the conditions are satisfied,
the flow is stable.
5.9
The Eady model
The simplest model of baroclinic instability with continuous stratification is that of Eady (1949). This came out two years after Charney’s
(1947) model, which also has continuous stratification and the β-effect—
something not included in the Eady model. But the Eady model is comparatively simple, and illustrates the major aspects.
The configuration for the Eady model is shown in Fig. (5.9). We will
5.9. THE EADY MODEL
211
The Eady Model
U=Λ z
y=L
y=0
Figure 5.9: The configuration for the Eady model.
make the following assumptions:
• A constant Coriolis parameter (β = 0)
• Uniform stratification (N 2 = const.)
• The mean velocity has a constant shear, so U = Λz
• The motion occurs between two rigid plates, at z = 0 and z = D
• The motion occurs in a channel, with v = 0 on the walls at y = 0, L
The uniform stratification assumption is reasonable for the troposphere
but less so for the ocean (where the stratification is greater near the surface, as we have seen). The rigid plate assumption is also unrealistic, but
simplifies the boundary conditions.
From the Charney-Stern criteria, we see that the model can be unstable
because the vertical shear is the same on the two boundaries. The interior
PV on the other hand is zero, so this cannot contribute to the instability.
We will see that the interior in the Eady model is basically passive. It is
CHAPTER 5. SYNOPTIC SCALE BAROCLINIC FLOWS
212
the interaction between temperature anomalies on the boundaries which
are important.
We will use a wave solution with the following form:
ψ = ψ̂(z)sin(
nπy ik(x−ct)
)e
Ly
The sin term satisfies the boundary conditions on the channel walls because:
v=
∂
ψ=0
∂x
→
ik ψ̂ = 0
(5.96)
which implies that ψ̂ = 0. Note too that k = mπ/Lx ; it is quantized to
satisfy periodicity in x.
The linearized PV equation for the Eady model is:
(
∂
∂
f 2 ∂2
+ U )(∇2 ψ + 02 2 ψ) = 0
∂t
∂x
N ∂z
(5.97)
Because there is no β term, the PV is constant on air parcels advected by
the mean flow. Inserting the wave solution in yields:
f02 ∂ 2
n2 π 2
(U − c)[(−(k + 2 )ψ̂ + 2 2 ψ̂] = 0
L
N ∂z
2
(5.98)
So either the phase speed equals the mean velocity or the PV itself is zero.
The former case defines what is known as a critical layer; we won’t be
concerned with that at the moment. So we assume instead the PV is zero.
This implies:
∂2
ψ̂ = α2 ψ̂
2
∂z
where
(5.99)
5.9. THE EADY MODEL
213
α≡
Nκ
f0
and where κ = (k 2 + (nπ/L)2 )1/2 is the total horizontal wavenumber. This
is exactly the same as in the topographic wave problem in (5.7). Equation
(5.99) determines the vertical structure of the waves.
First, let’s consider what happens when the vertical scale factor, α, is
large. This is the case when the waves are short, because κ is then large. In
this case the solutions to (5.99) are exponentials which decay away from
the boundaries:
ψ̂ = Ae−αz ,
ψ̂ = Beα(z−D)
(5.100)
near z = 0 and z = D, respectively. The waves are thus trapped on each
boundary and have a vertical structure like topographic waves.
To see how the waves behave, we use the boundary condition. This is:
(
∂
∂ ∂ψ ∂ψ dU
+U )
−
=0
∂t
∂x ∂z
∂x dz
(5.101)
(see eq. (5.82)). Inserting the wave solution and the mean shear, this is
simply:
(Λz − c)
∂ψ
− Λψ̂ = 0
∂z
(5.102)
after cancelling the factor of ik. At z = 0, this is:
(αc − Λ)A = 0
(5.103)
after inserting the vertical dependence at the lower boundary. At z = D,
we have:
214
CHAPTER 5. SYNOPTIC SCALE BAROCLINIC FLOWS
[α(ΛD − c) − Λ]B = 0
(5.104)
To have non-trivial solutions, A and B are non-zero. So we require:
c=
Λ
,
α
c = ΛD −
Λ
α
(5.105)
at z = 0, D respectively.
First we notice that the phase speeds are real—so there is no instability.
The waves are simply propagating on each boundary. In the limit that α is
large (the decay from the boundaries is rapid), these are:
c ≈ 0,
c ≈ ΛD
(5.106)
So the phase speeds are equal to the mean velocities on the boundaries.
Thus the waves are just swept along by the background flow.
If α is not so large, the boundary waves propagate at speeds different
than the mean flow.
The solution is shown in Fig. (5.10). We have two waves, each advected
by the mean flow at its respective boundary and each decaying exponentially away from the boundary. These waves are independent because they
decay so rapidly with height; they do not interact with each other.
Now let’s look at the case where α is not so large, so that the waves
extend further into the interior. Then we would write for the wave solution:
ψ̂ = Aeαz + Be−αz
(5.107)
This applies over the whole interior, including both boundaries. Plugging
into the boundary equation (5.102) we get, at z = 0:
5.9. THE EADY MODEL
215
1
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
0
1
2
3
4
5
6
Figure 5.10: The Eady streamfunction in the limit of large α.
(−cα − Λ)A + (αc − Λ)B = 0
(5.108)
while at the upper boundary, at z = D, we get:
(α(ΛD − c) − Λ)eαD A + (−α(ΛD − c) − Λ)e−αD B = 0
(5.109)
We can rewrite these equations in matrix form as follows:
cα + Λ
−cα + Λ
αD
(−αc + Λ(αD − 1))e
(αc − Λ(αD + 1))e−αD
A
B
0
=
0
(5.110)
Note we multiplied the first equation through by −1. Because this system
is homogeneous, solutions exist only if the determinant of the coefficients
vanishes. Multiplying this out, we get:
c2 α2 (−eαD + e−αD ) + cα(Λ − ΛαD − Λ)e−αD + cα(ΛαD − Λ + Λ)eαD −
CHAPTER 5. SYNOPTIC SCALE BAROCLINIC FLOWS
216
Λ2 (αD + 1)e−αD − Λ2 (αD − 1)eαD = 0
(5.111)
or:
−2c2 α2 sinh(αD) + 2cα2 ΛDsinh(αD) − 2Λ2 αDcosh(αD)
+2Λ2 sinh(αD) = 0
(5.112)
Dividing through by −2α2 sinh(αD):
Λ2 D
Λ2
c − ΛDc +
coth(αD) − 2 = 0
α
α
This quadratic equation has the solutions:
2
4
4
ΛD ΛD
±
[1 −
coth(αD) + 2 2 ]1/2
2
2
αD
αD
We can rewrite the part in the square root using the identity:
c=
(5.113)
(5.114)
x
x
1
cothx = [tanh + coth ]
2
2
2
Then, pulling in a factor of αD/2, the solution is:
ΛD Λ α2 D2 αD
αD
αD
αD
c=
± [
−
coth(
)−
tanh(
) + 1]1/2
2
α 4
2
2
2
2
ΛD Λ αD
αD αD
αD 1/2
=
± [(
− coth[
])(
− tanh[
])]
(5.115)
2
α 2
2
2
2
Now for all x, x > tanh(x); so the second factor in the root is always
positive. Thus if:
αD
αD
> coth[
]
(5.116)
2
2
the term inside the root is positive. Then we have two phase speeds, both
of which are real. This occurs when α is large. In particular, if α ≫
(2/D)coth(αD/2), these phase speeds are:
5.9. THE EADY MODEL
217
12
10
8
x
coth(x)
6
4
2
0
0
1
2
3
4
5
6
7
8
9
10
x
Figure 5.11: x and coth(x).
c = 0,
ΛD
(5.117)
So we recover the trapped-wave solutions that we derived first.
If, on the other hand:
αD
αD
< coth[
]
2
2
(5.118)
the term inside the root of (5.115) is negative. In Fig. (5.11), we plot x
and coth(x). You can see that x is less for small values of x. Thus the
condition for instability is met when α is small. Since we have:
N 2 n2 π 2 1/2
α = (k + 2 )
f0
L
this occurs when the wavenumbers, k and n, are small. Thus large waves
are more unstable.
When this condition is met, we can write the phase speed as:
CHAPTER 5. SYNOPTIC SCALE BAROCLINIC FLOWS
218
c=
ΛD
± ici
2
(5.119)
where
Λ
αD
αD αD
αD 1/2
[(coth[
]−
)(
− tanh[
])]
α
2
2
2
2
Putting this into the wave expression, we have that:
ci =
ψ ∝ eik(x−ct) = eik(x−ΛDt/2)∓kci t
(5.120)
Thus at each wavenumber there is a growing wave and a decaying wave.
The growth rate is equal to kci .
The real part of the phase speed is:
ΛD
(5.121)
2
This is how fast the wave is propagating. We see that the speed is equal
cr =
to the mean flow speed at the midpoint in the vertical. So it is moving
slower than the mean flow speed at the upper boundary and faster than that
at the lower boundary. We call the midpoint, where the speeds are equal,
the steering level.
The growth rate is just kci . This is plotted in Fig. (5.12) for the n = 1
mode in the y-direction. We use the following parameters:
N = 0.01 sec−1 ,
f0 = 10−4 sec−1 ,
D = 104 m,
Λ = 0.005 sec−1 ,
L = 2 × 106 m
This shear parameter yields a velocity of 50 m/sec at the tropopause height
(10 km), similar to the peak velocity in the Jet Stream. For these values,
5.9. THE EADY MODEL
219
−6
9
x 10
8
7
6
k ci
5
4
3
2
1
0
0
0.5
1
1.5
2
k
2.5
3
−6
x 10
Figure 5.12: The Eady growth rate as a function of the wavenumber, k.
the Eady model yields complex phase speeds, indicating the troposphere
is baroclinically unstable.
The growth rate increases from zero as k increases, reaches a maximum
value and then goes to zero. For k larger than a critical value, the waves
are stable. Thus there is a short wave cut-off for the instability. The shorter
the waves are, the more trapped they are at the boundaries and thus less
able to interact with each other.
The growth rate is a maximum at k = 1.25 × 10−6 m, corresponding
to a wavelength of 2π/k = 5027 km. The wave with this size will grow
faster than any other. If we begin with a random collection of waves, this
one will dominate the field after a period of time.
The distance from a trough to a crest is one-fourth of a wavelength,
or roughly 1250 km for this wave. So this is the scale we’d expect for
storms. The maximum value of kci is 8.46 ×10−6 sec−1 , or equivalently
1/1.4 day −1 . Thus the growth time for the instability is on the order of a
CHAPTER 5. SYNOPTIC SCALE BAROCLINIC FLOWS
z
220
1
1
0.9
0.9
0.8
0.8
0.7
0.7
0.6
0.6
0.5
0.5
0.4
0.4
0.3
0.3
0.2
0.2
0.1
0.1
0
0
0.2
0.4
0.6
0.8
1
0
0
0.5
Amplitude
1
1.5
2
2.5
Phase
Figure 5.13: The amplitude (left) and phase (right) of the Eady streamfunction vs. height.
day. So both the length and time scales in the Eady model are consistent
with observations of storm development in the troposphere.
Using values typical of oceanic conditions:
N = 0.0005 sec−1 ,
f0 = 10−4 sec−1 ,
D = 5 × 103 m,
Λ = 0.0001 sec−1 ,
L = 2 × 106 m
we get a maximum wavelength of about 100 km, or a quarter wavelength
of 25 km. Because the deformation radius is so much less in the ocean, the
“storms” are correspondingly smaller. The growth times are also roughly
ten times longer than in the troposphere. But these values should be taken
as very approximate, because N in the ocean varies greatly between the
surface and bottom.
Let’s see what the unstable waves look like. To plot them, we rewrite
the solution slightly. From the condition at the lower boundary, we have:
5.9. THE EADY MODEL
221
(cα + Λ)A + (−cα + Λ)B = 0
So the wave solution can be written:
cα + Λ −αz
nπy ik(x−ct)
e ]sin(
)e
cα − Λ
L
Rearranging slightly, we get:
ψ = A[eαz +
ψ = A[cosh(αz) −
nπy ik(x−ct)
Λ
sinh(αz)]sin(
)e
cα
L
(5.122)
We have absorbed the αc into the unknown A. Because c is complex, the
second term in the brackets will affect the phase of the wave. To take this
into account, we rewrite the streamfunction thus:
ψ = AΦ(z)sin(
nπy
)cos[k(x − cr t) + γ(z)]ekci t
L
(5.123)
where
Φ(z) = [(cosh(αz) −
ci Λ
cr Λ
2
sinh(αz))
+
(
sinh(αz))2 ]1/2
2
2
|c| α
|c| α
is the magnitude of the amplitude and
ci Λsinh(αz)
]
|c|2 αcosh(αz) − cr Λsinh(αz)
is its phase. These are plotted in Fig. (5.13). The amplitude is greatest
γ = tan−1 [
near the boundaries. But it is not negligible in the interior, falling to only
about 0.5 at the mid-level. Rather than two separate waves, we have one
which spans the depth of the fluid. Also, the phase changes with height.
So the streamlines tilt in the vertical.
CHAPTER 5. SYNOPTIC SCALE BAROCLINIC FLOWS
222
We see this in Fig. (5.14), which shows the streamfunction, temperature, meridional and vertical velocity for the most unstable wave. The
streamfunction extends between the upper and lower boundaries, and the
streamlines tilt to the west going upward. This means the wave is tilted
against the mean shear. You get the impression the wave is working against
the mean flow, trying to reduce its shear (which it is). The meridional velocity (third panel) is similar, albeit shifted by 90 degrees. The temperature
on the other hand tilts toward the east with height, and so is offset from the
meridional velocity.
We can also derive the vertical velocity for the Eady wave. Inverting
the linearized temperature equation, we have:
w=−
∂ ∂ψ
f0 ∂ψ
f0 ∂
(
+
Λz
)
+
Λ
N 2 ∂t
∂x ∂z
N 2 ∂x
(5.124)
This is shown in the bottom panel for the most unstable wave. There is
generally downward motion when the flow is toward the south and upward
motion when toward the north. This fits exactly with our expectations for
slantwise convection, illustrated in Fig. (5.8). Fluid parcels which are
higher up and to the north are being exchanged with parcels lower down to
the south. So the Eady model captures most of the important elements of
baroclinic instability.
However, the Eady model lacks an interior PV gradient (it has no βeffect). Though this greatly simplifies the derivation, the atmosphere possesses such gradients, and it is reasonable to ask how they alter the instability. Interior gradients are considered in both the the Charney (1947) and
Phillips (1954) models. Details are given by Pedlosky (1987) and by Vallis
(2006).
5.9. THE EADY MODEL
223
10000
8000
ψ
6000
4000
2000
0
0
0.5
1
1.5
2
2.5
3
3.5
4
4.5
5
6
x 10
10000
8000
T
6000
4000
2000
0
0
0.5
1
1.5
2
2.5
3
3.5
4
4.5
5
6
x 10
10000
8000
v
6000
4000
2000
0
0
0.5
1
1.5
2
2.5
3
3.5
4
4.5
5
6
x 10
10000
8000
w
6000
4000
2000
0
0
0.5
1
1.5
2
2.5
3
3.5
4
4.5
5
6
x 10
Figure 5.14: The streamfunction (upper), temperature (second), meridional velocity
(third) and vertical velocity for the most unstable wave in the Eady problem.
CHAPTER 5. SYNOPTIC SCALE BAROCLINIC FLOWS
224
5.10
Exercises
5.1. Consider a fluid parcel which is displaced from its initial vertical position, z0 , a distance δz. Assume we have a mean background stratification for which:
∂
p = −ρ0 g
∂z
Substitute this into the vertical momentum equation to find:
ρ0 − ρ
dw
= g(
)
dt
ρ
Estimate ρ0 at z0 + δz by Taylor-expanding about z0 . Assume the
parcel conserves its density from z0 . Then use the vertical momentum
equation to show that:
d2 (δz)
= −N 2 δz
2
dt
and define N 2 . This is known as the Brunt-Vaisala frequency. What
happens if N 2 > 0? What if it is negative?
5.2. Baroclinic Rossby waves.
a) What is the phase velocity for a long first baroclinic Rossby wave
in the ocean at 10N? Assume that N = 0.01 sec−1 and that the ocean
depth is 5 km.
b) What about at 30N?
c) What is the group velocity for long first baroclinic Rossby waves?
d) What do you think would happen to a long wave if it encountered
a western wall?
5.3. Topographic waves vs. Eady waves
5.10. EXERCISES
225
Consider a wave which exists at the lower boundary of a fluid, at
z = 0. Assume the region is small enough to neglect β and let N and
ρc be constant. Also let the upper boundary be at z = ∞.
a) Write the expression for the PV. Substitute in a wave solution of
the form:
ψ = A(z)eikx+ily−iωt
(5.125)
Assuming the PV is zero, solve for the vertical dependence of A(z).
b) Assume there is a topographic slope, such that h = αy. Find the
phase speed of the wave, assuming a constant zonal mean flow, U.
c) Now assume the bottom is flat, but that the mean velocity is sheared
U = Λz. Find the phase speed for the wave.
d) Compare the two results. In particular, what does the shear have to
be in (c) so that the phase speed is the same as in (b)?
5.4. A rough bottom.
We solved for the baroclinic modes assuming the the upper and lower
boundaries were flat surfaces, with w = 0. As a result, the waves
have non-zero flow at the bottom. But if the lower boundary is rough,
a better condition is to assume that the horizontal velocity vanishes,
i.e. u = v = 0.
Find the modes with this boundary condition, assuming no mean flow
(U = V = 0). Compare the solutions to those with a flat bottom.
What happens to the barotropic mode? The derivation is slightly simpler if you have the bottom at z = 0 and the surface at z = D.
CHAPTER 5. SYNOPTIC SCALE BAROCLINIC FLOWS
226
5.5. Mountain waves.
Suppose that a stationary linear Rossby wave is forced by flow over
sinusoidal topography with height h(x) = h0 cos(kx). Show that the
lower boundary condition on the streamfunction can be expressed as:
∂
hN 2
ψ=−
∂z
f0
(5.126)
Using this, and assuming that the energy flux is upward, solve for
ψ(x, z). What is the position of the crests relative to the mountain
tops?
5.6. Topographic waves.
Say we are in a region where there is a steep topographic slope rising
to the east, as off the west coast of Norway. The bottom decreases by
1 km over a distance of about 20 km. Say there is a southward flow
of 10 cm/sec over the slope (which is constant with depth). Several
fishermen have seen topographic waves which span the entire slope.
But they disagree about which way they are propagating—north or
south. Solve the problem for them, given that N ≈ 10f0 and that we
are at 60N.
5.7. Instability and the Charney-Stern relation.
Consider a region with −1 ≤ y < 1 and 0 ≤ z ≤ D. We have the
following velocity profiles:
a) U = Acos( πz
D)
b) U = Az + B
5.10. EXERCISES
227
c) U = z(1 − y 2 )
Which profiles are stable or unstable if β = 0 and N 2 = const.?
What if β 6= 0?
(Note the terms have been non-dimensionalized, so β can be any
number, e.g. 1, 3.423, .5, etc.).
5.8. Eady waves.
a) Consider a mean flow U = −Bz over a flat surface at z = 0 with
no Ekman layer and no upper surface. Assume that β = 0 and that
N = const.. Find the phase speed of a perturbation wave on the
lower surface.
b) Consider a mean flow with U = Bz 2 . What is the phase speed of
the wave at z = 0 now? Assume that β = Bf02 /N 2 , so that there
still is no PV gradient in the interior. What is the mean temperature
gradient on the surface?
c) Now imagine a sloping bottom with zero mean flow. How is the
slope oriented and how steep is it so that the topographic waves are
propagating at the same speed as the waves in (a) and (b)?
5.9. Consider a barotropic flow over the continental slope in the ocean.
There is no forcing and no Ekman layer, and β = 0. The water depth
is given by:
H = D − αx
(5.127)
The flow is confined to a channel, with walls at x = 0 and x = L
(Fig. 5.15). There are no walls at the northern and southern ends;
CHAPTER 5. SYNOPTIC SCALE BAROCLINIC FLOWS
228
assume that the flow is periodic in the y-direction.
H = D − αx
x=L
y
x=0
x
Figure 5.15: A channel with a bottom slope.
a) What is the PV equation governing the dynamics in this case? What
are the boundary conditions?
b) Linearize the equation, assuming no mean flow. What is an appropriate wave solution? Substitute the wave solution to find a dispersion
relation.
c) Now assume there is a mean flow, V = V (x) ĵ (which follows the
bottom topgraphy). Linearize the equation in (a) assuming this mean
flow. What are the qs contours?
d) Write down an appropriate wave solution for this case. Note that
V (x) can be any function of x. Substitute this into the PV equation.
Then multiply the equation by the complex conjugate of the wave
amplitude, and derive a condition for the stability of V .
5.10. Eady heat fluxes.
5.10. EXERCISES
229
Eady waves can flux heat. To see this, we calculate the correlation
between the northward velocity and the temperature:
Z
1 L ∂ψ ∂ψ
∂ψ ∂ψ
≡
dx
vT ∝
∂x ∂z
L 0 ∂x ∂z
where L is the wavelength of the wave. Calculate this for the Eady
wave and show that it is positive; this implies that the Eady waves
transport warm air northward. You will also find that the heat flux is
independent of height.
• Hint: use the form of the streamfunction given in (5.123).
• Hint:
• Hint:
Z
L
0
sin(k(x − ct)) cos(k(x − ct)) dx = 0
d
x2
xdy/dz − ydx/dz
xdy/dz − ydx/dz
−1 y
tan
= 2
(
)=
2
2
dz
x x +y
x
x2 + y 2
• Hint: The final result will be proportional to ci . Note that ci is
positive for a growing wave.
5.11. Eady momentum fluxes.
Unstable waves can flux momentum. The zonal momentum flux is
defined as:
Z
∂ψ ∂ψ
1 L ∂ψ ∂ψ
uv ∝ −
≡−
dx
∂y ∂x
L 0 ∂y ∂x
Calculate this for the Eady model. Why do you think you get the
answer you do?
CHAPTER 5. SYNOPTIC SCALE BAROCLINIC FLOWS
230
5.12. An Eady model with β
Consider a mean flow in a channel 0 ≤ y ≤ L and 0 ≤ z ≤ 1 with:
U=
βN 2
z(z − 1)
2f02
Assume N 2 = const. and that β 6= 0.
a) What is the mean PV (qs )?
b) Is the flow stable or unstable by the Charney-Stern criterion?
c) Linearize the PV equation for this mean flow.
d) Propose a wave solution and solve for the vertical structure of the
waves.
e) Linearize the temperature equation for this mean flow.
f) Use the temperature equation to find two equations for the two
unknown wave amplitudes.
g) Solve for phase speed, c. Does this agree with your result in (a)?
Chapter 6
Appendices
6.1
Appendix A: Fourier wave modes
In many of the examples in the text, we use solutions derived from the
Fourier transform. The Fourier transform is very useful; we can represent
any continuous function f (x) in this way. More details are given in any
one of a number of different texts.1
Say we have a function, f (x). We can write this as a sum of Fourier
components thus:
f (x) =
where:
Z
∞
fˆ(k) eikx dk
(6.1)
−∞
eikx = cos(kx) + isin(kx)
(6.2)
is a complex number. The Fourier amplitude, fˆ(k), is also typically complex:
fˆ(k) = fˆr + ifˆi
1
(6.3)
See, for example, Arfken, Mathematical Methods for Physicists or Boas, Mathematical Methods in the
Physical Sciences.
231
CHAPTER 6. APPENDICES
232
We can obtain the amplitude by taking the inverse relation of the above:
1
fˆ(k) =
2π
Z
∞
fˆ(k) e−ikx dx
(6.4)
−∞
In all the examples in the text, the equations we will solve are linear. A
linear equation can be solved via a superposition of solutions: if f1 (x) is a
solution to the equation and f2 (x) is another solution, then f1 (x) + f2 (x)
is also a solution. In practice, this means we can examine a single Fourier
mode. Then in effect we find solutions which apply to all Fourier modes.
Moreover, since we can represent general continuous functions in terms of
Fourier modes, we are solving the equation at once for almost any solution.
Thus we will use solutions like:
ψ = Re{ψ̂(k, l, ω)eikx+ily−iωt }
(6.5)
Note we have implicitly performed three transformations—in x, y and in
t. But we only write one wave component (we don’t carry the infinite
integrals along). Notice too that we use negative ω instead of positive—this
is frequently done to distinguish the transform in time (but is not actually
necessary). Here k and l are the wavenumbers in the x and y directions,
and ω is the wave frequency.
As noted in sec. (3.5), the wave solution has an associated wavelength
and phase speed. The wave above is two-dimensional, so its wavelength is
defined:
λ=
where:
2π
κ
(6.6)
6.1. APPENDIX A: FOURIER WAVE MODES
233
κ = (k 2 + l2 )1/2
(6.7)
is the total wavenumber. Note that the wavelength is always a positive
number, while the wavenumbers k and l can be positive or negative. The
phase speed is velocity of the crests of the wave. This is defined as:
~c =
ω~κ
κ2
(6.8)
In most of the examples in the text, we’re interested in the motion of
crests in the x-direction (parallel to latitude lines). This velocity is given
by:
cx =
ω
k
(6.9)
The exact choice of Fourier component depends on the application. The
form written above is appropriate for an infinite plane, where there are no
specific boundary conditions. We will use this one frequently.
However, there are other possibilities. A typical choice for the atmosphere is a periodic channel, because the mid-latitude atmosphere is reentrant in the x-direction but limited in the y-direction. So we would have
solid walls, say at y = 0 and at y = Ly , and periodic conditions in x. The
boundary condition at the walls is v = 0. This implies that
∂
∂x ψ
= 0, so
that ψ must be constant on the wall. In most of the subsequent examples,
we’ll take the constant to be zero. The periodic condition on the other hand
demands that ψ be the same at the two limits, for instance at x = 0 and
x = Lx .
So a good choice of wave solution would be:
CHAPTER 6. APPENDICES
234
ψ = Re{ψ̂(n, m, ω) einπx/Lx −iωt sin(
mπy
)}
Ly
(6.10)
This has an integral number of waves in both the x and y directions. But the
streamfunction vanishes at y = 0 and y = Ly , whereas the streamfunction
is merely the same at x = 0 and x = Lx —it is not zero. We will use a
channel solution for example in the Eady problem in sec. (5.9).
Another possibility is to have solid wall boundaries in both directions,
as in an ocean basin. An example of this is a Rossby wave in a basin,
which has the form:
ψ ∝ A(x, t)sin(
nπx
mπy
)sin(
)
Lx
Ly
(6.11)
The two last factors guarantee that the streamfunction vanish at the lateral
walls.
In general, the choice of wave solution is dictated both by the equation
and the boundary conditions. If, for example, the equation has coefficients
which vary only in z, or if there are boundaries in the vertical direction, we
would use something like:
ψ = Re{ψ̂(z)eikx+ily−iωt }
6.2
(6.12)
Appendix B: Kelvin’s theorem
The vorticity equation can be derived in an elegant way. This is based on
the circulation, which is the integral of the vorticity over a closed area:
Γ≡
ZZ
ζ~ · n̂ dA
(6.13)
6.2. APPENDIX B: KELVIN’S THEOREM
235
where n̂ is the normal vector to the area. From Stoke’s theorem, the circulation is equivalent to the integral of the velocity around the circumference:
Γ=
ZZ
(∇ × ~u) · n̂ dA =
I
~
~u · dl
(6.14)
Thus we can derive an equation for the circulation if we integrate the momentum equations around a closed circuit. For this, we will use the momentum equations in vector form. The derivation is somewhat easier if we
work with the fixed frame velocity:
1
d
~uF = − ∇p + ~g + F~
dt
ρ
(6.15)
If we integrate around a closed area, we get:
d
ΓF = −
dt
I
∇p ~
· dl +
ρ
I
~ +
~g · dl
I
~
F~ · dl
(6.16)
The gravity term vanishes because it can be written in terms of a potential
(the geopotential):
~g = −g k̂ =
∂
(−gz) ≡ ∇Φ
∂z
(6.17)
and because the closed integral of a potential vanishes:
So:
I
~ =
∇Φ · dl
d
ΓF = −
dt
I
I
dΦ = 0
dp
+
ρ
I
~
F~ · dl
Now the circulation, ΓF , has two components:
(6.18)
(6.19)
CHAPTER 6. APPENDICES
236
ΓF =
I
~ =
~uF · dl
ZZ
∇ × ~uF · n̂ dA =
ZZ
~ · n̂ dA
(ζ~ + 2Ω)
(6.20)
As noted above, the most important components of the vorticity are in the
vertical. So a natural choice is to take an area which is in the horizontal,
with n̂ = k̂. Then:
ΓF =
ZZ
(ζ + f ) dA
(6.21)
Putting this back in the circulation equation, we get:
d
dt
ZZ
(ζ + f ) dA = −
I
dp
+
ρ
I
~
F~ · dl
(6.22)
Now, the first term on the RHS of (6.22) is zero under the Boussinesq
approximation because:
I
1
dp
=
ρ
ρc
I
dp = 0
It is also zero if we use pressure coordinates because:
I
dp
|z →
ρ
I
dΦ|p = 0
I
~
F~ · dl
Thus, in both cases, we have:
d
Γa =
dt
(6.23)
So the absolute circulation can only change under the action of friction. If
F~ = 0, the absolute circulation is conserved on the parcel. This is Kelvin’s
theorem.
6.3. APPENDIX C: ROSSBY WAVE ENERGETICS
6.3
237
Appendix C: Rossby wave energetics
Another way to derive the group velocity is via the energy equation for the
waves. For this, we first need the energy equation for the wave. As the
wave is barotropic, it has only kinetic energy. This is:
1
∂ψ
∂ψ
1
1
E = (u2 + v 2 ) = [(− )2 + ( )2 ] = |∇ψ|2
2
2
∂y
∂x
2
To derive an energy equation, we multiply the wave equation (4.31) by ψ.
The result, after some rearranging, is:
∂ 1
∂
1
( |∇ψ|2 ) + ∇ · [−ψ∇ ψ − îβ ψ 2 ] = 0
∂t 2
∂t
2
We can also write this as:
(6.24)
∂
~=0
E+∇·S
(6.25)
∂t
So the kinetic energy changes in response to the divergence of an energy
flux, given by:
~ ≡ −ψ∇ ∂ ψ − îβ 1 ψ 2
S
∂t
2
The energy equation is thus like the continuity equation, as the density also
changes in response to a divergence in the velocity. Here the kinetic energy
~
changes if there is a divergence in S.
Let’s apply this to the wave. We have
k 2 + l2 2 2
A sin (kx + ly − ωt)
(6.26)
2
So the energy varies sinusoidally in time. Let’s average this over one wave
E=
period:
CHAPTER 6. APPENDICES
238
< E >≡
Z
2π/ω
E dt =
0
1 2
(k + l2 ) A2
4
(6.27)
~ on the other hand is:
The flux, S,
2
~ = −(k î+lĵ) ω A2 cos2 (kx+ly −ωt)− îβ A cos2 (kx+ly −ωt) (6.28)
S
2
which has a time average:
A2
A2 k 2 − l2
β
2βkl
< S >=
[−ω(k î + lĵ) − î] =
[β 2
î
+
ĵ]
2
2
4 k + l2
k 2 + l2
(6.29)
Rewriting this slightly:
k 2 − l2
2βkl
< S >= [β 2
î
+
ĵ] E ≡ ~cg < E >
(k + l2 )2
(k 2 + l2 )2
(6.30)
So the mean flux is the product of the mean energy and the group velocity,
~cg . It is straightforward to show that the latter is the same as:
cg =
∂ω
∂ω
î +
ĵ
∂k
∂l
(6.31)
Since cg only depends on the wavenumbers, we can write:
∂
< E > + ~cg · ∇ < E >= 0
∂t
(6.32)
We could write this in Lagrangian form then:
dc
< E >= 0
dt
where:
(6.33)
6.4. APPENDIX D: FJØRTOFT’S CRITERION
239
dc
∂
=
+ ~cg · ∇
(6.34)
dt ∂t
In words, this means that the energy is conserved when moving at the
group velocity. The group velocity then is the relevant velocity to consider
when talking about the energy of the wave.
6.4
Appendix D: Fjørtoft’s criterion
This is an alternate condition for barotropic instability, derived by Fjørtoft
(1950). This follows from taking the real part of (4.126):
|ψ̂|2 ∂
∂2
∂2
2
2
qs = 0
(ψ̂r 2 ψ̂r + ψ̂i 2 ψ̂i ) − k |ψ̂| + (U − cr )
∂y
∂y
|U − c|2 ∂y
(6.35)
If we again integrate in y and rearrange, we get:
L
|ψ̂|2 ∂
(U − cr )
qs =
|U − c|2 ∂y
0
Z L
Z L
∂2
∂2
−
(ψ̂r 2 ψ̂r + ψ̂i 2 ψ̂i )dy +
k 2 |ψ̂|2 dy
(6.36)
∂y
∂y
0
0
We can use integration by parts again, on the first term on the RHS. For
Z
instance,
Z L
∂
∂
∂2
L
( ψ̂r )2 dy
(6.37)
ψ̂r 2 ψ̂r dy = ψ̂r ψ̂r |0 −
∂y
∂y
∂y
0
0
The first term on the RHS vanishes because of the boundary condition. So
Z
L
(6.35) can be written:
Z
L
0
|ψ̂|2 ∂
(U − cr )
qs dy =
|U − c|2 ∂y
Z
L
(
0
∂
∂
ψ̂r )2 + ( ψ̂i )2 + k 2 |ψ̂|2 dy
∂y
∂y
(6.38)
CHAPTER 6. APPENDICES
240
The RHS is always positive. Now from Rayleigh’s criterion, we know that:
Z
So we conclude that:
L
0
|ψ̂|2 ∂
qs dy = 0
|U − c|2 ∂y
(6.39)
L
|ψ̂|2 ∂
qs > 0
(6.40)
(U − cr )
|U − c|2 ∂y
0
We don’t know what cr is, but the condition states essentially that this
Z
integral must be positive for any real constant, cr .
To test this, we can just pick a value for cr . The usual procedure is to
pick some value of the velocity, U ; call that Us . A frequent choice is to use
the value of U at the point where
∂
∂y qs
vanishes; Then we must have that:
∂
qs > 0
∂y
somewhere in the domain. If this fails, the flow is stable.
(U − Us )
(6.41)
Fjørtoft’s criterion is also a necessary condition for instability. It represents an additional constraint to Rayleigh’s criterion. Sometimes a flow
will satisfy the Rayleigh criterion but not Fjørtoft’s—then the flow is stable. Interestingly, it’s possible to show that Fjørtoft’s criterion requires the
flow have a relative vorticity maximum somewhere in the domain interior,
not just on the boundaries.
6.5
Appendix E: QGPV in pressure coordinates
The PV equation in pressure coordinates is very similar to that in z-coordinates.
First off, the vorticity equation is given by:
∂u ∂v
dH
(ζ + f ) = −(ζ + f )(
+ )
dt
∂x ∂y
(6.42)
6.5. APPENDIX E: QGPV IN PRESSURE COORDINATES
241
Using the incompressibility condition (2.38), we rewrite this as:
dH
∂ω
(ζ + f ) = (ζ + f )
dt
∂p
The quasi-geostrophic version of this is:
(6.43)
∂ω
dg
(ζ + f ) = f0
dt
∂p
(6.44)
where ζ = ∇2 Φ/f0 .
To eliminate ω, we use the potential temperature equation (1.64). For
simplicity we assume no heating, so the equation is simply:
dθ
=0
dt
(6.45)
We assume:
θtot (x, y, p, t) = θ0 (p) + θ(x, y, p, t) ,
|θ| ≪ |θ0 |
where θtot is the full temperature, θ0 is the “static” temperature and θ is the
“dynamic” temperature. Substituting these in, we get:
∂θ
∂θ
∂
∂θ
+u
+v
+ w θ0 = 0
(6.46)
∂t
∂x
∂y
∂p
We neglect the term ω∂θ/∂p because it is much less than the term with θ0 .
The geopotential is also dominated by a static component:
Φtot = Φ0 (p) + Φ(x, y, p, t) , |Φ| ≪ |Φ0 |
(6.47)
Then the hydrostatic relation (2.39) yields:
dΦ0 dΦ
RT0 RT ′
dΦtot
=
+
=−
−
dp
dp
dp
p
p
(6.48)
CHAPTER 6. APPENDICES
242
and where:
Ttot = T0 (p) + T (x, y, p, t) , |T | ≪ |T0 |
(6.49)
Equating the static and dynamic parts, we find:
RT ′
dΦ
=−
dp
p
(6.50)
Now we need to rewrite the hydrostatic relation in terms of the potential
temperature. From the definition of potential temperature, we have:
θ=T(
ps R/cp
,
)
p
θ0 = T 0 (
ps R/cp
)
p
where again we have equated the dynamic and static parts. Thus:
θ
T
=
θ0
T0
(6.51)
1 dΦ
Rθ
RT
=−
=−
T0 dp
pT0
pθ0
(6.52)
So:
So, dividing equation (6.46) by θ0 , we get:
∂
∂
∂ θ′
∂
+ v ) + ω lnθ0 = 0
( +u
∂t
∂x
∂y θ0
∂p
(6.53)
Finally, using (6.52) and approximating the horizontal velocities by their
geostrophic values, we obtain the QG temperature equation:
(
The parameter:
∂
∂
∂ ∂Φ
+ ug
+ vg )
+ σω = 0
∂t
∂x
∂y ∂p
(6.54)
6.5. APPENDIX E: QGPV IN PRESSURE COORDINATES
243
RT0 ∂
ln(θ0 )
p ∂p
reflects the static stratification and is proportional to the Brunt-Vaisala freσ(p) = −
quency (sec. 5.2). We can write this entirely in terms of Φ and ω:
1 ∂ ∂
1 ∂ ∂ ∂Φ
∂
−
Φ
+
Φ )
+ ωσ = 0
(6.55)
∂t f0 ∂y ∂x f0 ∂x ∂y ∂p
As in sec. (5.3), we can combine the vorticity equation (6.44) and the
(
temperature equation (6.55) to yield a PV equation. In pressure coordinates, this is:
(
∂
∂ f0 ∂Φ
1 ∂ ∂
1 ∂ ∂ 1 2
−
Φ
+
Φ )[ ∇ Φ+ (
) + βy] = 0 (6.56)
∂t f0 ∂y ∂x f0 ∂x ∂y f0
∂p σ ∂p
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
