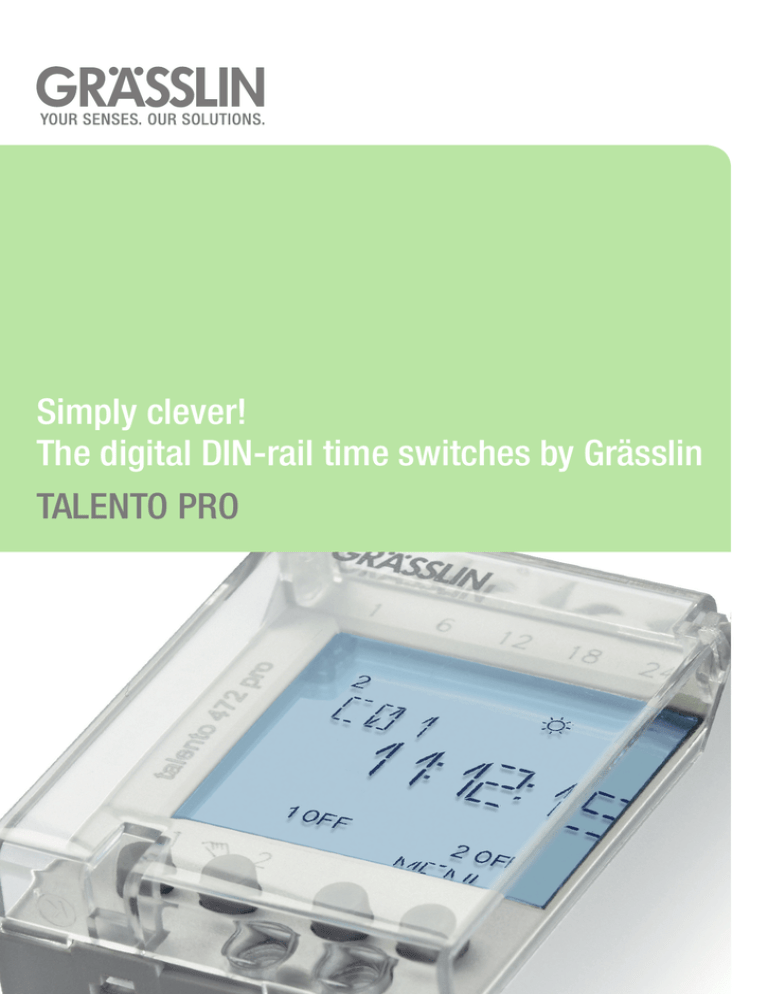

Simply clever! The digital DIN-rail time switches by Grässlin TaleNTo pro

Simply clever! The digital DIN-rail time switches by Grässlin TaleNTo pro

Simply clever!

The digital DIN-rail time switches by Grässlin

TaleNTo pro

Trends and developments on the market.

MaxIMuM eNerGy effIcIeNcy aT low efforTS

In a saturated fast-moving market, the trend towards a sustainable ecological awareness becomes more and more apparent. On the condition that we keep our comfortable and high standard of living, the thought of an efficient use of our resources has now become established in many minds. As manufacturer of control units for time, temperature and light, we need to address the current requirements in order to supply the market with solution-oriented products. Our goal is to control complex applications using simple and user-friendly products in order to maximize energy efficiency.

More than 50 years of experience in the area of time switches, light and temperature control make Grässlin a reliable partner. When developing the new digital DIN-rail time switch series, we focused on satisfying the current needs of our customers with useful functions and flexible programming options. The perfect solution for intelligent building management.

The new digital DIN-rail time switches talento pro introduce themselves.

ThIS IS uS …

We belong to the product family of digital DIN-rail time switches and our developers divided us into two categories, standard and medium. We are happy to welcome the new astronomic time switches talento 751/752 pro in our Standard product range in addition to the traditional weekly time switches talento 371/372 pro. Furthermore, the annual time switches talento 881/882 have joined our Medium series additionally to the weekly time switches talento 471/472 and the astro time switches 791/792. We are represented in the

Standard series as well as in the Medium series with a single and a dual-channel time switch.

It is very important to us to be operated easily and without problems. For this purpose, special attention was paid to a clear, menu guided programming. The user is led step-bystep through the menu. To make programming even more convenient, we have a blue background illumination and a large, well-structured display. We are supported by flexible, soft operating buttons. The display and the operating buttons are protected by a transparent cover. Additionally, our programs can be protected from unpleasant manipulations by means of a pin code. The users may configure the desired switching period to meet their needs by combining any number of days of the week in blocks. Of course, automatic summertime/wintertime changeover was configured in our software to avoid annoying re-programming. You may select from 14 languages and a 12 or 24-hour display.

In the process of our development, particular attention was paid to the easily replaceable batteries. Our complete product range is equipped with an exchangeable battery compartment at the front of the time switches. From now on, the batteries can be replaced and disposed of in an environmentally friendly way without having to dismount the time switches, simply by pulling out the battery compartment. In addition, we have been equipped with a zero crossing which allows a relay-protecting switching and a high lamp load. Our whole family can be operated with several voltages and has a non-volatile memory (EEPROM), which prevents deletion of the programs when there is a power failure or the battery is being replaced.

All in all – we are...

... juST clever!

our

highlights

what we offer

• Improved readability through large, well-structured display

• Convenient programming through blue backlight illumination

• Comfortable change of batteries without dismount of time switch

• High flexibility through additional astro program

• Useful service-message-function of operating hours counter

New

what´s inside

• Weekly, annual and Astro program

• Holiday program

• 70, 100 and 400 memory locations

• Free weekday block formation

• New Astro function: Possibility either entering longitude and latitude or selection from a list of stored countries or cities

• Nighttime switch-off (Astro program)

• Automatic summertime/wintertime changeover

• Fix ON/OFF

• Override function

• Countdown function

• Puls and cycle function

• External input for override, countdown or pulse counter

• Random mode

• IR interface for program transfer

• PIN code protection

• PC-supported program creation

• Program transfer via hand-held programming device

• Low energy consumption in stand-by-mode

applications features

&

what we control

• Street lighting

• Advertising signs

• Shop window lighting

• Looking systems in buildings

• Pumps control for pool and spa

• Seasonal programming of temperature- and ventilation control

• Devices, motors and pumps control

• Sun blinds and shutters control

• Control of school and church bells

• And many more…

TaleNTo pro STaNDarD

The Standard series talento 371/372 pro; talento 751/752 pro

Dutiful weekly time switches talento 371/372 pro

The weekly time switches talento 371/372 pro have a memory capacity of 70 spaces and are fitted with a holiday program. The talento 371 pro equipped with one channel as well as the dual-channel time switch talento 372 pro can be switched to fix ON/OFF or the Override function can be activated. Besides these standard functions, the devices have been additionally provided with an operating hours counter with a service message function.

The users may configure the desired switching period to meet their needs by combining any number of days of the week in blocks. Additionally, an automatic summertime/wintertime changeover was configured. You may select from 14 languages and a 12 or 24-hour display.

Ingenious astronomic time switches talento 751/752 pro

With the talento 751/752 pro, an astronomic time switch was incorporated in the Standard product family. The Astro program has been developed especially for an efficient control of shop window, object, street, parking lot and advertisement lighting. The astronomic time switches are available as one-channel switch talento 751 pro or as dual-channel switch talento 752 pro. The users may define their location either by entering longitude and latitude or by selecting a place from a list of stored countries and cities so that the switching commands are ideally adapted to the local light conditions. At the same time, the switches have a night switch-off function, which makes the control of the light sources even more energy-saving and environmentally-friendly.

TaleNTo pro MeDIuM

The Medium series talento 471/472 pro; talento 791/792 pro; talento 881/882 pro communicative weekly time switches talento 471/472 pro

The Medium series was extended to a memory capacity of 100 spaces. Besides the functions of the Standard program such as integrated operating hours counter with service function, holiday program and manual switch for Fix ON/OFF or Override function, the Medium version sets itself apart by a software supported programming on the PC. The weekly program can be entered conveniently at your desk and transferred to the devices by means of the manual programming device talento taxxi via an infrared interface. Programming becomes even easier due to the public holidays saved in the programming. The free block formation of weekdays continues even in the one-channel time switch talento 471 pro and the dual-channel version talento 472 pro.

Additionally, the time switches have an external input. It can be assigned a button to activate the Override, Countdown, Cycle or Pulse counter functions. As an additional option, the weekly time switches provide a Random function. This function moves the time of the switching command about 30 minutes maximum and simulates thus presence at home by irregular switching on and off of the application to be controlled.

flexible

Multitalented astro time switches talento 791/792 pro

The single-channel time switch talento 791 pro as well as the dual-channel time switch talento

792 pro have an additional weekly time switch besides the Astro program. The astro function together with the weekly program features date-based programming, which distinguishes it from the standard version. Depending on the requirements, the users may select between astro and weekly program and easily control season-based requirements also by dates. Furthermore, these devices have an additional night switch-off function to adapt the switches even more precisely to individual requirements. The program is created conveniently on the PC by entering the longitude or latitude or by means of the list of coordinates or the list of cities / countries and transferred to the device by means of the manual programming device talento taxxi. Its advantage is the individual and flexible use which is offered by an optimum energy-efficient control.

annual time switches talento 881/882 pro

The annual time switches talento 881/882 pro have a weekly, astro and annual program and can be used in multiple ways. They have a memory capacity of 400 spaces, in contrast to the weekly and astronomic time switches (with 100 memory spaces each). The annual time switches have all functions from the talento 471/472 pro and the talento 791/792 pro. These devices have to be programmed just once to control complex applications easily throughout the whole year. The location is entered in the astro programs for talento 881/882 pro by entering coordinates or selecting the place from a list of stored countries and cities. With the astro program, it is possible to control all applications also by dates. Like all products from the Medium family, the annual time switch programs can be created conveniently on a PC and transferred to the time switches by means of the hand-held transmission device. The option to enter the program manually via the operating buttons of the time switch is also available.

TaleNTo pro

Description of the different functions astro function

The Astro program makes it possible to control daylight-based applications precisely and energy-efficiently. The switchings are adapted exactly to the seasonal light conditions. The users can determine the local sunrise and sunset times by entering the longitude or latitude or by selecting a city or country from a stored list of countries / cities. It is possible to control shop window, object, advertisement, street and car park lighting with high precision and optimum efficiency by means of the precise adjustment of the switching commands to the local conditions and the nighttime switch-off option.

annual function

The annual time switch has been designed for complex and demanding applications. The advantage of the annual function is that the date-dependent switching commands only need to be programmed once. The public holidays and a clearly arranged calendar stored in the software make programming easier. A wide range of applications are controlled with a single program over a period of one or several years according to need. The memory capacity of

400 spaces offers a variety of possibilities to cover even special requirements.

operating hours counter with service message function

The operating hours counter with service message function offers the advantage to constantly control time-controlled machines, devices or pumps in order to carry out required maintenance work at regular intervals. While the operating hours counter registers the time of use of the application, the service message function is designed to inform the user about pending maintenance work. This function allows potential safety risks to be easily avoided in a time-saving way.

Software talento dialog

All time switches from the Medium series are easy to program on the PC by means of the software talento dialog. The software is distinguished by a well-structured and user-friendly menu guidance. The weekly, Astro and annual programs can be easily entered from the desk and subsequently transferred to the hand-held transmission device via a USB interface.

The data transfer from the hand-held transmission device talento taxxi to the devices is done via an infrared interface.

The programs can be easily transferred to several devices.

holiday function

Specifically for the holiday period, a special holiday function has been integrated into the software. The function makes it possible to interrupt programmed switching commands for a defined time period and to adapt them to short-time modifications. The user defines the time period himself by entering the desired date and modifies the switching program according to his requirements. The holiday function enables an even more precise and efficient control of applications.

TaleNTo pro

application example – In the commercial sector

control for ventilation systems weekly time switch talento 371/372 pro

The time of use of the ventilation system is registered automatically by the integrated operating hours counter which, after a defined number of hours, shows the desired maintenance message by means of the service message function.

car park lighting astro time switch talento 791/792 pro

With these time switches, the user can choose b etween a date-related astro program and a weekly program. The illumination time is reduced to the actually necessary period by means of the daylightdependent switching of the astro function, while the weekly program can meet individual requirements when needed.

recess bell annual time switch talento 881/882 pro

The annual program stored for complex bell systems can be interrupted for a defined period and adapted to the briefly changed situation, depending on use, by means of the holiday program or the public holiday function stored in the annual program.

pump control for wells weekly time switch talento 471/472 pro

Besides the conventional ON/OFF program, the weekly time switches offer an additional cycle function. This function is particularly important for the use of pump controls. The cycle program is started by a single switching command in order to activate the water pump at regular intervals.

object illumination astro time switch talento

751/752 pro

Besides the daylight-dependent switching of the Astro program, the fix oN/off function of this time switch proves to be a useful method to react flexibly to short-term requirements.

This function is used to interrupt the timer program after the activation of the fix oN/off function and to adapt the illumination status spontaneously to the current situation.

Door locking system weekly time switch talento 371/372 pro

The free block formation of weekdays function makes it possible to adapt the program exactly to the desired switching times of the door locking system. The possibility to secure the buttons with a pIN code eliminates the risk of a program manipulation.

TaleNTo pro

application example – private area

entry, garden and pool lighting astro time switch talento 751/752 pro

The lights are controlled according to the daylight by e ntering longitude and latitude or by selecting from a list of cities or countries in the astro program and adapt their illumination time to the local conditions.

Shutter / blind control weekly time switch talento 471/472 pro

With the weekly time switches, the user has the possibility to activate shutters or blinds outside the existing switching program by using the random function in order to simulate presence at home during absence. By activating the random function, the switching command is carried out at irregular intervals offset by 30 minutes maximum.

control of air-conditioning systems weekly time switch talento 371/372 plus

In order to render the control of air-conditioning systems flexible, in addition to the standard programming, the time switches have been equipped with an override function. This function triggers a premature switching command in order to return to the usual program at the next switching command. By means of this function, the user can react to situations changed at short notice and return quickly and unproblematically to his individual comfortable temperature.

pump control for irrigation systems annual time switch talento 881/882 pro

The annual time switches are equipped with a weekly, astro and annual program that enable the user to control the irrigation period as needed related to the date by using the astro program or the weekly or annual program. The Astro program has a night switch-off function in order to activate an additional switching command if necessary.

TaleNTo pro STaNDarD

overview features

talento 371/372 pro

Memory spaces

Keybords

Summer/winter time changeover

Data transmission (taxxi)

Backlight

PIN-Code

Hour counter with service function

External input:

– Override ON / OFF

– Countdown

– Pulse counter

Random generator

12/24h time setting

Weekly program

– ON/OFF

– Pulse

– Cycle

Annual program

– ON/OFF

– Pulse

– Cycle

Holiday program

– ON/OFF

– Pulse

– Cycle

– OFF

Astro program

Shortest switching time

Programmable

Block formation of weekdays

Manual switch

Switching state display

Sealable

70

4 touch buttons automatic / free selectable / OFF

1 min.

every minute free assignment automatic / override / fix ON/OFF

talento 751/752 pro

70

4 touch buttons automatic / free selectable / OFF

1 min.

every minute free assignment automatic / override / fix ON/OFF

Dimensional drawings / circuit diagrams

talento 371/372 pro talento 751/752 pro

35

44

60

5

CH2

6 7 L

45 85

1

CH1

2 3 N

TaleNTo pro MeDIuM

overview features

Memory spaces

Keyboards

Summer/winter time changeover

Data transmission (taxxi)

Backlight

PIN-Code

Hour counter with service function

External input:

– Override ON / OFF

– Countdown

– Pulse counter

Random generator

12/24h time setting

Weekly program

– ON/OFF

– Pulse

– Cycle

Annual program

– ON/OFF

– Pulse

– Cycle

Holiday program

– ON/OFF

– Pulse

– Cycle

– OFF

Astro program

Shortest switching time

Programmable

Block formation of weekdays

Manual switch

Switching state display

Sealable

talento 471/472 pro

100

4 touch buttons automatic / free selectable / OFF

1 sec.

every minute free assignment automatic / override / fix ON/OFF

talento 791/792 pro

100

4 touch buttons automatic / free selectable / OFF

talento 881/882 pro

400

4 touch buttons automatic / free selectable / OFF

1 sec.

every minute free assignment automatic / override / fix ON/OFF

1 sec.

every minute free assignment automatic / override / fix ON/OFF

Dimensional drawings / circuit diagrams

talento 471/472 pro, talento 881/882 pro talento 791/792 pro

35

44

60

5

CH2

6 S L

45 85

1

CH1

2 3 N

TaleNTo pro STaNDarD

Technical data

talento 371/372 pro talento 751/752 pro

Dimensions H x W x D (mm)

Width in TE

Distributor cut-out (mm)

Installation type

Weight (g) approx.

Connection voltage

Frequency

Power consumption at 230 V~ (AC)

Switch contacts

Switching output

Opening width

Lamp type

– Resistive

– Inductive

– Incandescent

– Fluorescent

Uncorrected

Serial corrected

Parallel corrected

Lead-lag (duo)

– Halogen lamp load

– Compact fluorescent lamp

– Uncorrected mercury discharge lamp

– Parallel corr. mercury discharge lamp

– Uncorrected sodium discharge lamp

– Parallel corr. sodium discharge lamp

– Energy saving lamps 230 V

Rated load AC1/AC15

Min. switching load

DC Switching capacity (24V-/50V-/220V-)

Housing and insulation material

Ambient temperature

Protection class (EN60730-1)

Type of protection (EN60529)

Approval

Accuracy

Time basis

Power reserve

Max. terminal capacity

Connection type

45 x 35 x 60

2 modules

46 x 36

DIN rail approx. 170

110 – 230 V AC

1 changeover contact

2 changeover contact

50/60 Hz

1 VA

1 changeover contact

2 changeover contact zero cross switching, potential-free and phase-independent

< 3 mm

16 A, 250 V, cos

φ = 1

10 A, 250 V, cos

φ = 0,6

2600 W

1000 VA

1000 VA

730 VA (80

µF)

1000 VA

2600 W

22x7 W, 18x11 W, 16x15 W, 16x20 W, 14x23 W

4x125 W, 2x250 W, 1x700 W

6x50 W (20 mF), 4x125 W (10 mF), 2x250 W (18 mF), 1x400 W (25 mF), 1x700 W

(40 mF)

2x250 W, 1x400 W

2x150 W (20 mF), 1x250 W (32 mF), 1x400 W (45 mF)

37x7 W, 30x11 W, 26x15 W, 26x20 W, 11x23 W

4000 VA / 750 VA

300 mW

800 mA / 300 mA / 150 mA high-temperature resistant, self-extinguishing thermoplastic

-10°C ... +55°C

II

IP 20 (outside enclosure) none typ ± 0,5 sec./day at +20° C quartz

3 years from factory at +20°C (Replaceable battery CR2032)

1 - 4 mm

2

Captive ± screw terminal

TaleNTo pro MeDIuM

Technical data

talento 471/472 pro talento 791/792 pro talento 881/882 pro

Dimensions H x W x D (mm)

Width in TE

Distributor cut-out (mm)

Installation type

Weight (g) approx.

Connection voltage

Frequency

Power consumption at 230 V~ (AC)

Switch contacts

Switching output

Opening width

Lamp type

– Resistive

– Inductive

– Incandescent

– Fluorescent

Uncorrected

Serial corrected

Parallel corrected

Lead-lag (duo)

– Halogen lamp load

– Compact fluorescent lamp

– Uncorrected mercury discharge lamp

– Parallel corr. mercury discharge lamp

– Uncorrected sodium discharge lamp

– Parallel corr. sodium discharge lamp

– Energy saving lamps 230 V

Rated load AC1/AC15

Min. switching load

DC Switching capacity (24V-/50V-/220V-)

Housing and insulation material

Ambient temperature

Protection class (EN60730-1)

Type of protection (EN60529)

Approval

Accuracy

Time basis

Power reserve

Max. terminal capacity

Connection type

1 changeover contact

45 x 35 x 60

2 modules

46 x 36

DIN rail approx. 170

24 V AC,DC / 110 – 230 V AC

50/60 Hz

1 VA

1 changeover contact +

1 changeover contact

1 normally open 1 normally open zero cross switching, potential-free and phase-independent

< 3 mm

1 changeover contact +

1 changeover contact

16 A, 250 V, cos

φ = 1

10 A, 250 V, cos

φ = 0,6

2600 W

1000 VA

1000 VA

730 VA (80

µF)

1000 VA

2600 W

22x7 W, 18x11 W, 16x15 W, 16x20 W, 14x23 W

4x125 W, 2x250 W, 1x700 W

6x50 W (20 mF), 4x125 W (10 mF), 2x250 W (18 mF), 1x400 W (25 mF), 1x700 W (40 mF)

2x250 W, 1x400 W

2x150 W (20 mF), 1x250 W (32 mF), 1x400 W (45 mF)

37x7 W, 30x11 W, 26x15 W, 26x20 W, 11x23 W

4000 VA / 750 VA

300 mW

800 mA / 300 mA / 150 mA high-temperature resistant, self-extinguishing thermoplastic

-10°C ... +55°C

II

IP 20 (outside enclosure) none typ ± 0,3 sec./day at +20° C quartz

10 years from factory at +20°C (Replaceable battery CR2450)

1 - 4 mm

2

Captive ± screw terminal

1 changeover contact +

1 normally open

E-Marken

Partner

Grässlin GmbH

Bundesstraße 36

D-78112 St. Georgen

Tel: +49 (0) 7724 / 933-0

Fax: +49 (0) 7724 / 933-240 www.graesslin.de

[email protected]

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
