425 series Electro-mechanical Programmers

425 series Electro-mechanical Programmers

Horstmann.

Together, we’re in control.

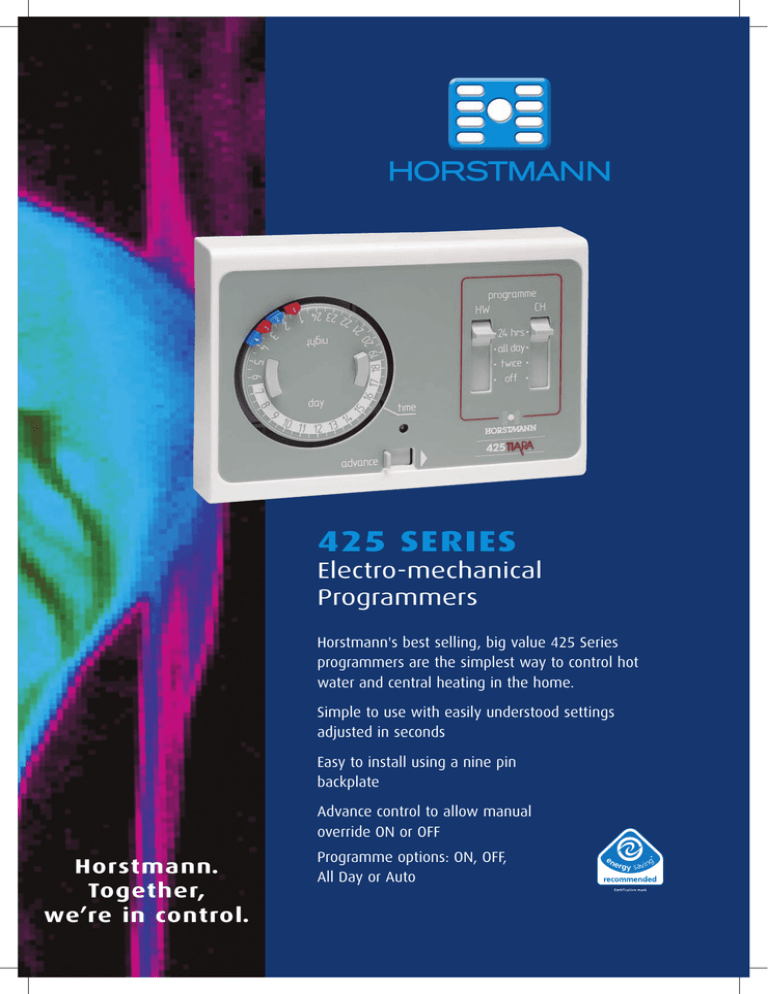

425 series

Electro-mechanical

Programmers

Horstmann's best selling, big value 425 Series programmers are the simplest way to control hot water and central heating in the home.

Simple to use with easily understood settings adjusted in seconds

Easy to install using a nine pin backplate

Advance control to allow manual override ON or OFF

Programme options: ON, OFF,

All Day or Auto

ener

gy savin g

Horstmann.

Together, we’re in control.

sPeCiFiCaTiON

425 Tiara & DiaDem

CONTACT rATiNg

Double circuit 6 (2.5) Amps

230V AC

CONTACT TyPE

Micro-disconnection changeover

Voltage free (Tiara only)

MOTOr

Synchronous 230V 50Hz

Double insulated

POWEr CONSuMPTiON

2.5W

DirT PrOTECTiON

Normal situations

MOiSTurE PrOTECTiON

Ordinary

ENClOSurE PrOTECTiON iP 20

MAxiMuM OPErATiNg TEMPErATurE

+55°C

DiAl SETTiNg

2 ON, 2 OFF tappets

Min. ON/OFF period 45 mins

DiMENSiONS

152mm x 107mm x 39mm

MOuNTiNg

9 Pin wall fixing plate

425 COrONeT

CONTACT rATiNg

Single circuit 13 (6) A 230V AC

CONTACT TyPE

Micro-disconnection changeover

Voltage free

MOTOr

Synchronous 230V 50Hz

Double insulated

POWEr CONSuMPTiON

2.5W

DirT PrOTECTiON

Normal situations

MOiSTurE PrOTECTiON

Ordinary

ENClOSurE PrOTECTiON iP 20

MAxiMuM OPErATiNg TEMPErATurE

+55°C

DiAl SETTiNg

2 ON, 2 OFF tappets

Min. ON/OFF period 45 mins

DiMENSiONS

152mm x 107mm x 39mm

MOuNTiNg

9 Pin wall fixing plate

425 DiaDem

This twin circuit, hot water and central heating programmer, with indicator lights, has

16 programmes available for fully pumped systems, including independent programming of heating and hot water and 10 programmes for gravity HW/pumped CH systems.

The Diadem is ideal for gravity systems and fully pumped systems with zone valves.

425 Tiara

The Tiara has all the capability and features of the 425 Diadem, but without the indicator lights.

The Tiara is ideally suited for both gravity systems and fully pumped systems with either mid-position or zone valves.

425 COrONeT

A single circuit timeswitch for straightforward, accurate time control.

The 425 Coronet is particularly suitable for combi boiler systems, warm air systems and extra zone control.

425 Diadem

425 Tiara

425 Coronet

Horstmann Controls limited, South Bristol Business Park, roman Farm road, Bristol BS4 1uP.

Tel: 0117 978 8700 Fax: 0117 978 8701 E-mail: [email protected] Web: www.horstmann.co.uk

A division of Horstmann group ltd. registered office: Pri House, Moorside road, Winnall Trading Estate, Winchester, Hampshire SO23 7rx. registered in England No. 457553

©March 2009: Horstmann group ltd: All rights reserved. The company reserves the right to alter product specifications without notice.

Horstmann.

Together, we’re in control.

ChannelPlus Xl seRIes 2

Electronic Programmers

Electronic programmers that offer up to four independent channels and feature a clearly read display and ease of programming.

1, 2, 3 or 4 channels

24 hour or 7 day

Back-lit LCD display

Preset clock

Automatic Winter/Summer time changes

Simplified menu driven programming

5 year warranty

ener

gy savin g

sPeCIFICaTIOn

ConTACT RATing

3 (1) Amps 230V AC

ConTACT TyPE

Micro-disconnection changeover

Voltage free (not H37XL)

Type 1 Control

SuPPLy

230V 50Hz oPERATing TEMPERATuRE RAngE

0°C to +40°C

BATTERy TyPE

Lithium

CASE MATERiAL

Thermoplastic, flame retardent

DiMEnSionS

101mm x 163mm x 37mm

DiSPLAy

Back-lit liquid crystal

CLoCk

24 hour or 12 hour AM/PM

DiSPLAyED TiME ADjuSTMEnTS

1 minute steps

SWiTCHED TiME ADjuSTMEnTS

10 minute steps

PRogRAMME oPTionS on, oFF, All Day, Auto and Holiday oPERATing PERioDS PER DAy

3 for each channel oVERRiDE (EACH CHAnnEL)

1 or 2 hour boost

1 or 2 hour extension to on period instant advance

MounTing

9 pin wall fixing plate

DouBLE inSuLATED yes

EnCLoSuRE PRoTECTion iP 30

PoLLuTion DEgREE 2

Horstmann.

Together, we’re in control.

ChannelPlus h47Xl

Programmer with 7 day setting over four independent channels. Designed for use with fully pumped central heating systems using four separate zone valves in addition to many other applications.

ChannelPlus h37Xl

Programmer with 7 day setting over three independent channels. Designed for use with fully pumped central heating systems using three separate zone valves. Meets zoning requirements of Part L1 of the Building Regulations.

ChannelPlus h37VXl

The same as the H37XL but with volt free contacts.

ChannelPlus h27zXl

Two channel with 7 day programming and independent timing of Zone 1 and Zone 2.

ChannelPlus h27Xl

Two channel with 7 day programming and independent timing of heating and hot water.

ChannelPlus h21Xl

Two channel with 24 hour programming and independent timing of heating and hot water.

ChannelPlus h17Xl

Single channel time switch with full 7 day programming.

ChannelPlus h11Xl

Single cha nnel time switch with 24 hour programming.

Voltage free contacts make both the H11 and

H17 units ideal for combi boilers.

Horstmann Controls Limited, South Bristol Business Park, Roman Farm Road, Bristol BS4 1uP.

Tel: 0117 978 8700 Fax: 0117 978 8701 E-mail: [email protected] Web: www.horstmann.co.uk

A division of Horstmann group Ltd. Registered office: PRi House, Moorside Road, Winnall Trading Estate, Winchester, Hampshire So23 7RX.

Registered in England no. 457553

©March 2009: Horstmann group Ltd: All rights reserved. The company reserves the right to alter product specifications without notice.

Horstmann.

Together, we’re in control.

ChannelPlus h37Xl seRIes 2

Electronic Programmer

A three channel programmer giving independent timing of each channel on a 7 day programme.

Ideal for the control of two heating zones as well as hot water.

Unique 3 channel programming

Back-lit LCD display

Preset clock

Automatic Winter/Summer time change

Simplified menu driven programming

Full 7 day operation

Volt free version

5 year warranty

ener

gy savin g

Horstmann.

Together, we’re in control.

sPeCIFICaTIOn

ContACt rAtIng

3 (1) Amps 230AV AC

ContACt tyPE

sPeCIFICaTIOn

type 1 control

ChannelPlus h37Xl

Programmer with 7 day setting over 3 independent channels (e.g. zones 1, 2 and 3 or hot water, heating 1 and 2).

Designed for use with fully pumped central heating systems using three separate 2 port zone valves.

Part L1 of the Building regulations requires properties above 150 sq m floor space to have two separate heating zones. this is an ideal application for the H37XL.

Also available:

ChannelPlus h37VXl

the same as the H37XL but with volt free contacts.

3 Zone Heating System with H37xl

HCT2

CYLINDER

STAT

CYLINDER

F222

HW ZONE VALVE

HRT3 ROOM STAT

H37XL

230V SUPPLY

PROGRAMMER

PUMP

THERMOPLUS

XL TRV

F222

CH ZONE VALVE 2

HRT3 ROOM STAT

TRV

TRV

F222

CH ZONE

VALVE 1

TRV

BOILER

Horstmann Controls Limited, South Bristol Business Park, roman Farm road, Bristol BS4 1UP.

tel: 0117 978 8700 Fax: 0117 978 8701 E-mail: [email protected] Web: www.horstmann.co.uk

A division of Horstmann group Ltd. registered office: PrI House, Moorside road, Winnall trading Estate, Winchester, Hampshire So23 7rX. registered in England no. 457553

©March 2009: Horstmann group Ltd: All rights reserved. the company reserves the right to alter product specifications without notice.

Horstmann.

Together, we’re in control.

ChannelPlus h47Xl series 2

Electronic Programmer

A 4 channel version of the ChannelPlus programmer for larger dwellings, featuring zone control of Hot

Water and Heating as well as many other zoning applications including Underfloor Heating.

Back-lit LCD display

Preset clock

Automatic Winter/Summer time change

Simplified menu driven programming

Full 7 day operation over 4 independent channels

5 year warranty

ener

gy savin g

Horstmann.

Together, we’re in control.

DISPLAY SHOWING ZONES 1,2,3 and 4

ChannelPlus h47Xl

A user friendly 4 channel programmer designed for domestic use, providing advanced, easily programmed features.

The latest Building Regulations Domestic

Heating Compliance Guide requires heating zones that exceed 150 sq m to have independent time and temperature control as well as separate hot water zones.

These currently apply to new build domestic dwellings.

sPeCiFiCaTiOn

CONTACT RATING

3 (1) Amps 230V AC

CONTACT TYPE

Micro-disconnection changeover

Type 1 control

SUPPLY

230V 50Hz

OPERATING TEMPERATURE RANGE

0°C to +40°C

BATTERY TYPE

Lithium

CASE MATERIAL

Thermoplastic, flame retardent

DIMENSIONS

101mm x 163mm x 37mm

DISPLAY

Back-lit liquid crystal

CLOCk

24 hour or 12 hour AM/PM

DISPLAYED TIME ADjUSTMENTS

1 minute steps

SWITCHED TIME ADjUSTMENTS

10 minute steps

PROGRAMME OPTIONS

ON, OFF, All Day, Auto, Holiday

OPERATING PERIODS PER DAY

Three for each channel

OVERRIDE (EACH CHANNEL)

1 or 2 hour boost

1 or 2 hour extension to ON period

Instant advance

MOUNTING

9 pin wall fixing plate

DOUBLE INSULATED

Yes

ENCLOSURE PROTECTION

IP 30

Pollution Degree 2

E

MAINS SUPPLY

N

L

The display can be configured by use of the menu button to show different headings for each channel.

N L

4 Zone Heating System with H47XL

ZONE 1

1

ON

2

ZONE 2

3

ON

ZONE 3

4

ON

5

ZONE 4

6

ON

N

CALL

C

ROOM

STAT

N

CALL

C

ROOM

STAT

N

CALL

C

ROOM

STAT

CALL

C

CYLINDER

STAT

ZONE 1

VALVE

ZONE 2

VALVE

ZONE 3

VALVE

ZONE 4

VALVE

N L

WARNING

This diagram is schematic and should be used as a guide only.

Please ensure that all installations comply with the current IEE regulations.

When used to control mains voltage, (as diagram shows), Terminals

L, 2 and 5 must be electrically linked by of a suitable piece of sleeved conductor. If the ChannelPlus H47XL is being used to control low voltage systems then these links MUST NOT be fitted.

Horstmann Controls Limited, South Bristol Business Park, Roman Farm Road, Bristol BS4 1UP.

Tel: 0117 978 8700 Fax: 0117 978 8701 E-mail: [email protected] Web: www.horstmann.co.uk

A division of Horstmann Group Ltd. Registered office: PRI House, Moorside Road, Winnall Trading Estate, Winchester, Hampshire SO23 7RX.

Registered in England No. 457553

©March 2009: Horstmann Group Ltd: All rights reserved. The company reserves the right to alter product specifications without notice.

Horstmann.

Together, we’re in control.

CentaurPlus

Electronic Programmers

The CentaurPlus range of single and two channel heating programmers offers leading edge technology at an affordable price. Using the six terminal wall plate, CentaurPlus can be a straightforward plug in replacement for many other manufacturer's models.

24 hour and 7 day options

Up to 3 ON/OFFs a day

Hot water boost and central heating advance

Programme options: ON, OFF, All Day or Auto

Mains powered with battery back-up

ener

gy savin g

Horstmann.

Together, we’re in control.

sPeCIFICatIOn

CONTACT rATiNg

3 (1) Amps 230V AC

CONTACT TyPE

Micro-disconnection changeover

Voltage free

(C11 and C17 only)

SUPPly

230V AC 50Hz only

Polution Degree 2

ClASS A SOFTWArE

Type 1 control

OPErATiNg TEMPErATUrE rANgE

O°C to +40°C

BATTEry liFE

10 months continuous operation

(minimum)

CASE MATEriAl

Thermoplastic, flame retardant

DiMENSiONS

84mm x 150mm x 29mm

ClOCk

12 hour AM/PM

DiSPlAyED TiME ADjUSTMENTS

1 minute steps

SWiTCHED TiME ADjUSTMENTS

10 minute steps

OPErATiNg PEriODS PEr DAy

C11 and C17 - 3 per day

C21 and C27 - 3 per day for CH and 3 per day for HW

Separate programmes possible for each day of the week (C17 and C27)

OVErriDE

C11 and C17 - 1 hour boost, 1 hour extension to On period, instant advance.

C21 and C27 - 1 hour boost (HW only), 1 hour extension to On period

(HW only), instant advance (CH only)

MOUNTiNg industry standard 6 terminal plug in wall plate

CentaurPlus C27

Two channel 7 day programmer allowing independent time control of central heating and hot water.

CentaurPlus C21

Simple, low cost 24 hour version of the C27.

CentaurPlus C17

Single channel, 7 day time control suitable for combi boiler applications, an extra heating zone, or the pump on a solid fuel boiler.

CentaurPlus C11

Simple, low cost 24 hour version of the C17.

CentaurPlus C27

CentaurPlus C21

CentaurPlus C17

CentaurPlus C11

Horstmann Controls limited, South Bristol Business Park, roman Farm road, Bristol BS4 1UP.

Tel: 0117 978 8700 Fax: 0117 978 8701 E-mail: [email protected] Web: www.horstmann.co.uk

A division of Horstmann group ltd. registered office: Pri House, Moorside road, Winnall Trading Estate, Winchester, Hampshire SO23 7rX. registered in England No. 457553

©March 2009: Horstmann group ltd: All rights reserved. The company reserves the right to alter product specifications without notice.

Horstmann.

Together, we’re in control.

ServicePluS

Service Interval Programmers

A range of programmers and timeswitches developed to facilitate compliance with the Gas Safety (Installation and

Use) Regulations 1998. Although not intended to replace the normal servicing regime, it can act as a supplementary aid to enabling compliance.

Automatically shuts down system once service period is overdue

Service period set by installer using unique key code

Service interval 12 month safety check clock

Facilitates compliance with

Gas Safety Regulation 36

Building Regs Part L compliant

ener

gy savin g

SPeciFicATiON

CONTACT RATING

3(1) Amps 230V AC

CONTACT TYPE

Micro-disconnection

Voltage free (S11, S17 only) with optional mains switched supply

SUPPLY

230V AC 50Hz only

Pollution Degree 2

CLASS A SOFTWARE

Type 1 Control

OPERATING TEMPERATURE RANGE

0°C to +40°C

BATTERY LIFE

Minimum 10 months continuous operation

CASE MATERIAL

Thermoplastic flame retardant

DIMENSIONS

Width 84mm x Height 150mm x Depth 29mm

DISPLAY

Liquid crystal

CLOCK

12 hour AM/PM

DISPLAYED TIME ADJUSTMENTS

1 minute steps

SWITCHED TIME ADJUSTMENTS

10 minute steps

OPERATING PERIODS PER DAY

S11 and S17

- 3 per day

S21 and S27

- 3 per day for CH and HW

S17 and S27

- separate programmes possible for each day of the week

OVERRIDE

S11 and S17

- 1 hour boost, 1 hour extension to ON period

Instant advance

S21 and S27

- 1 hour boost (HW only), 1 hour extension to ON period (HW only), instant advance (CH only)

MOUNTING

Industry standard 6 terminal plug in wall plate

Horstmann.

Together, we’re in control.

ServicePlus S27

ServicePlus S21

ServicePlus S17

ServicePlus S27

SERVICE INTERVAL 7 DAY PROGRAMMER

These programmers have industry standard wiring connections, making them ideal replacements for many existing programmers. Featuring up to 3 ON/OFFs a day,

Hot Water boost and Central Heating advance. Both Hot

Water and Central Heating outputs are overridden by the internal service schedule. Programme options: ON, OFF,

ALL DAY or AUTO. Mains powered with battery back-up.

ServicePlus S21

24 HOUR VERSION OF S27

ServicePlus S17

SERVICE INTERVAL 7 DAY TIMESWITCH

These timeswitches have standard volt free contacts making them ideal for combi boiler installations, whilst also supplying the mains voltage connection, allowing complete control of hot water production.

Featuring up to 3 ON/OFFs a day and boost and advance facilities. Both outputs are controlled by the internal service schedule. Programme options: ON, OFF,

ALL DAY or AUTO. Mains powered with battery back-up.

ServicePlus S11

24 HOUR VERSION OF S17

S11 and S17 timeswitches also include a unique mains switching circuit to disconnect combi boilers.

ServicePlus S11

Wiring connections

N L 1 2 3 4

230V 50HZ BOILER

MAINS

SUPPLY

BOILER

SWITCHED

SUPPLY

ServicePlus S11/S17

N L

230V 50HZ

1

HW

OFF

2

CH

OFF

3

HW

ON

4

CH

ON

ServicePlus S21/S27

Horstmann Controls Limited, South Bristol Business Park, Roman Farm Road, Bristol BS4 1UP.

Tel: 0117 978 8700 Fax: 0117 978 8701 E-mail: [email protected] Web: www.horstmann.co.uk

A division of Horstmann Group Ltd. Registered office: PRI House, Moorside Road, Winnall Trading Estate, Winchester, Hampshire SO23 7RX.

Registered in England No. 457553

©March 2009: Horstmann Group Ltd: All rights reserved. The company reserves the right to alter product specifications without notice.

Horstmann.

Together, we’re in control.

zonePlus seRIes 2

Motorised Valves

A range of motorised valves that combine proven electronic controls technology with the latest

Horstmann design features, for easy installation and maintenance.

There are four models within the range:

22mm & 28mm 2 port spring return valves

22mm & 28mm 3 port mid-position valves

Horstmann.

Together, we’re in control.

zonePlus F322

3 port 22mm mid-position valve and

zonePlus F328

3 port 28mm mid-position valve

A

F322m 55

F328m 60

B

110

120

C

91

91

D

139

143 zonePlus F222

2 port 22mm spring return zone valve and

zonePlus F228

2 port 28mm spring return zone valve (both with auxiliary switch).

sPeCIFICATIon

CONTACT AND CABLE RATING

5 AMps 230V AC

MOTOR pOWER sUppLY

230V AV 50Hz

MOTOR pOWER CONsUMpTION

<6.5W

LEAD sUppLIED

1 Metre, 5 core – industry standard colours used

EARTH CONNECTION REQUIRED

MAXIMUM AMBIENT TEMpERATURE

+5OºC

MAXIMUM FLUID TEMpERATURE

+80ºC

MAXIMUM DIFFERENTIAL pREssURE

1 Bar

MAXIMUM sTATIC pREssURE

21 Bar

MATERIALs:

Ball: ethylene propylene dio mono (epdm)

Cover: thermoplastic

Valve body: brass pIpE FITTING sIZE

F222m & F322m – 22mm compression

F228m & F328m – 28mm compression

ACTUATOR

Energised – power open

De-energised – spring return closed

OVERRIDE LEVER

A

F222m 55

F228m 60

B

110

120

C

91

91

D

112

114

Hot water cylinder

1

Zone valve

Cylinderstat

Pump

Wiring centre

Zone valve

Timer

Mains

plumbing Data

Roomstat

fully pumped system

Hot water Hot water

using F222 or F228

position valve

valves.

Roomstat

Hot water cylinder

2

Wiring centre

Cylinderstat

Mid position valve

Timer Roomstat

Mains

Pump

Boiler Boiler

Radiators Radiators Radiators Radiators

valves.

Horstmann Controls Limited, south Bristol Business park, Roman Farm Road, Bristol Bs4 1Up.

Tel: 0117 978 8700 Fax: 0117 978 8701 E-mail: [email protected] Web: www.horstmann.co.uk

A division of Horstmann Group Ltd. Registered office: pRI House, Moorside Road, Winnall Trading Estate, Winchester, Hampshire sO23 7RX.

Registered in England No. 457553

©March 2009: Horstmann Group Ltd: All rights reserved. The company reserves the right to alter product specifications without notice.

Horstmann.

Together, we’re in control.

ThermoPlus As1 & As2

Programmable Room Thermostats

The ThermoPlus AS1 (mains powered) and AS2 (battery powered) are programmable thermostats, designed to provide an economical but comfortable pattern of heating without the need for complex adjustments by the user.

Simple three button operation

LED Warm/Cool display

Preset clock with battery back-up

Automatic Summer/Winter time changes

5 Preset heating profiles, 6th custom heating profile

Back lit LCD display

Audible and tactile feedback

ener

gy savin g

sPeCIFICATIoN

CONTACT RATING ASR-RF

3(1) Amps 230-240V AC

CONTACT TYPE

Micro disconnection

Voltage free

SUPPLY

AS1 - 230V AC 50Hz

AS2 - 3 x AA(LR6) batteries

OPERATING TEMPERATURE RANGE

0°C to +40°C

BATTERY TYPE

Lithium battery

DOUBLE INSULATED

Yes

Pollution Degree 2

ENCLOSURE PROTECTION

IP 30

TEMPERATURE CONTROL RANGE

+5°C to +30°C

STANDBY TEMPERATURE

+5°C to +10°C

CASE MATERIAL

Thermoplastic flame retardant

DIMENSIONS

Width 120mm x Height 90mm x Depth 32mm

DISPLAY

Liquid crystal, back lit

CLOCK

24 hour

DISPLAYED TIME ADJUSTMENTS

1 minute steps

SWITCHED TIME ADJUSTMENTS

15 minute steps

PROGRAMME SETTINGS

Auto, Standby

OPERATING PERIODS PER DAY

Warm - 3 per day

OVERRIDE

Instant Warm/Cool

MOUNTING

AS1 - Industry standard

6 pin backplate

AS2 - Standard wall box fixing

Horstmann.

Together, we’re in control.

AS1 flap closed:

Normal operating position

AS2 flap closed:

Normal operating position

ThermoPlus As1 & As2

For day-to-day use only 3 buttons are needed.

The centre ‘Warm/Cool’ button, complete with

Braille markings, changes the temperature state and the ‘+’ and ‘-’ buttons provide fine user adjustment as well as audible feedback. Each adjustment is immediately reflected in changes to the bright red and blue LED display.

The warm and cool temperature settings can be easily adjusted by the user and, if required, a custom programme can be set to override the standard profile set by the installer. Under the flap the blue standby button will put the control into a

‘frost protection’ mode until re-activated.

The built-in clock is programmed to the correct time during manufacture and a built-in calendar will automatically adjust for summer and winter time changes, so there’s never any need for user adjustment.

AS1 is mains powered for applications where a permanent mains supply is readily available.

AS2 is battery powered for applications where no mains supply is readily available to operate the unit or an existing thermostat is being replaced. Additional features include 3 standard

AA batteries, 2 years+ battery life and separate clock power back-up. Battery life is conserved by means of an 8 second auto power down mode to all indicator lights.

AS1 flap open:

For installer set-up

Horstmann Controls Limited, South Bristol Business Park, Roman Farm Road, Bristol BS4 1UP.

Tel: 0117 978 8700 Fax: 0117 978 8701 E-mail: [email protected] Web: www.horstmann.co.uk

A division of Horstmann Group Ltd. Registered office: PRI House, Moorside Road, Winnall Trading Estate, Winchester, Hampshire SO23 7RX.

Registered in England No. 457553

©March 2009: Horstmann Group Ltd: All rights reserved. The company reserves the right to alter product specifications without notice.

Horstmann.

Together, we’re in control.

ThermoPlus PrT1

Mains Powered Programmable

Room Thermostat

One of a range of ThermoPlus programmable thermostats, designed to provide an economical but comfortable pattern of heating without the need for complex adjustments by the user. With built in hypothermia protection the PRT1 is designed specifically for vulnerable and older users.

Hypothermia protection

Simple 3 button operation

LED Warm/Cool display

Preset clock with battery back-up

Automatic Summer/Winter time changes

5 Preset heating profiles

ener

gy savin g

sPeCIFICATIoN

CONTACT RATING

3(1) Amps 230-240V AC

CONTACT TYPE

Micro disconnection

Voltage free

SUPPLY

230-240V AC 50Hz

OPERATING TEMPERATURE RANGE

0°C to +40°C

BATTERY TYPE

Lithium

DOUBLE INSULATED

Yes

POLLUTION DEGREE 2

ENCLOSURE PROTECTION

IP 30

TEMPERATURE CONTROL RANGE

+15°C to +30°C

STANDBY TEMPERATURE

+5°C to +10°C

CASE MATERIAL

Thermoplastic flame retardant

DIMENSIONS

Width 120mm x Height 90mm x

Depth 32mm

DISPLAY

Liquid crystal

CLOCK

24 hour

DISPLAYED TIME ADJUSTMENTS

1 minute steps

SWITCHED TIME ADJUSTMENTS

15 minute steps

PROGRAMME SETTINGS

Auto, Standby

OPERATING PERIODS PER DAY

Warm - 3 per day

OVERRIDE

Instant warm/cool

MOUNTING

Industry standard backplate

Horstmann.

Together, we’re in control.

Flap closed:

Normal operating position

ThermoPlus PrT1

For day-to-day use only 3 buttons are needed. The centre ‘WARM/COOL’ button, complete with Braille markings, changes the temperature state and the

‘+’ and ‘-’ buttons provide fine user adjustment as well as audible feedback. Each adjustment is immediately reflected in changes to the bright red and blue LED display.

Using a variety of pre-installed heating profiles, that can be easily set up by the installer, and a minimum cool setting of 15°C, the ThermoPlus aims to provide maximum comfort to the user and protection from hypothermia. Under the flap the blue standby button will put the control into a ‘frost protection’ mode until re-activated.

The built-in clock is programmed to the correct time during manufacture and a built-in calendar will automatically adjust for summer and winter time changes, so there’s never any need for user adjustment. And, as the PRT1 is mains operated, there are no batteries to change.

Flap open:

For installer set-up

Wiring connections

N L 1

230V 50HZ

2

COM

3 4

ON

Horstmann Controls Limited, South Bristol Business Park, Roman Farm Road, Bristol BS4 1UP.

Tel: 0117 978 8700 Fax: 0117 978 8701 E-mail: [email protected] Web: www.horstmann.co.uk

A division of Horstmann Group Ltd. Registered office: PRI House, Moorside Road, Winnall Trading Estate, Winchester, Hampshire SO23 7RX.

Registered in England No. 457553

©March 2009: Horstmann Group Ltd: All rights reserved. The company reserves the right to alter product specifications without notice.

Horstmann.

Together, we’re in control.

ThermoPlus As2-rF

Wireless Programmable Room Thermostat

The ThermoPlus AS2-RF is an intelligent wireless programmable thermostat, which transmits control signals to an RF receiver unit via Z Wave mesh radio technology. It is designed to be easy to install and easy to use. Perfect where installing additional wiring is difficult and where a straightforward easy to use programmable thermostat is required.

Wireless Radio Frequency connection

Preset clock with battery back-up

Automatic Summer/Winter time changes

Back lit LCD display

LED Warm/Cool display

Simple 3 button operation

ener

gy savin g

sPeCIFICATIoN

OPERATING FREQUENCY

868Mhz

AS2-RF - Battery

ASR-RF - Mains

CONTACT RATING ASR-RF

3(1) Amps 230-240V AC

CONTACT TYPE

Micro dis-connection

Voltage free

SUPPLY

230-240V AC 50Hz

OPERATING TEMPERATURE RANGE

0°C to +40°C

BATTERY TYPE

Lithium + 3AA (AS2-RF)

DOUBLE INSULATED

Yes

Pollution Degree 2

ENCLOSURE PROTECTION

IP 30

TEMPERATURE CONTROL RANGE

+5°C to +30°C

STANDBY TEMPERATURE

+5°C to +10°C

CASE MATERIAL

Thermoplastic flame retardant

DIMENSIONS

Width 120mm x Height 90mm x Depth 32mm

DISPLAY

Liquid crystal, back lit

CLOCK

24 hour

DISPLAYED TIME ADJUSTMENTS

1 minute steps

SWITCHED TIME ADJUSTMENTS

15 minute steps

PROGRAMME SETTINGS

Auto, Standby

OPERATING PERIODS PER DAY

Warm - 3 per day

OVERRIDE

Instant warm/cool

MOUNTING

Industry standard backplate

Horstmann.

Together, we’re in control.

ASR-RF receiver located near boiler.

ThermoPlus As2-rF

ASR-RF is a mains powered receiver for connecting where a mains supply is readily available.

AS2-RF thermostat transmits via Z Wave mesh radio technology and is capable of operation in most domestic houses with an operating range of approximately 30 metres. Ideal for controlling combi boilers, it can be mounted in any suitable location without the need to disturb existing wiring or décor. Operates from

3 standard AA batteries, with 2 years+ life and separate clock battery.

For day-to-day use only 3 buttons are needed.

The centre ‘Warm/Cool’ button changes the temperature state and the ‘+’ and ‘-’ buttons provide fine user adjustment as well as audible feedback. Each adjustment is immediately reflected in changes to the bright red and blue LED display.

The built-in clock is programmed to the correct time during manufacture and a built-in calendar will automatically adjust for summer and winter time changes, so there’s never any need for user adjustment.

AS2-RF Control unit installed in normal thermostat location

ASR-RF wiring connections

N L 1

230V 50HZ

2

COM

3

OFF

4

ON

Horstmann Controls Limited, South Bristol Business Park, Roman Farm Road, Bristol BS4 1UP.

Tel: 0117 978 8700 Fax: 0117 978 8701 E-mail: [email protected] Web: www.horstmann.co.uk

A division of Horstmann Group Ltd. Registered office: PRI House, Moorside Road, Winnall Trading Estate, Winchester, Hampshire SO23 7RX.

Registered in England No. 457553

©March 2009: Horstmann Group Ltd: All rights reserved. The company reserves the right to alter product specifications without notice.

Horstmann.

Together, we’re in control.

CentaurStat

Electronic Programmable

Thermostat

Compact and stylish, CentaurStat is a single channel, 7 day time and temperature control suitable for combi boiler applications and conventional systems.

Increased comfort with reduced energy use

Choice of user displays

6 different target temperatures each day

Indicator warning when batteries are low

Battery power means no extra wiring

The ideal control for combi boilers

TPI temperature control

ener

gy savin g

Horstmann.

Together, we’re in control.

SPeCIFICatIOn

ConTaCT raTIng

8(3) amps 230V aC

ConTaCT TyPE

Micro-disconnection changeover

SuPPly

3 x aa size alkaline primary cells oPEraTIng TEMPEraTurE rangE

0°C to +40°C

BaTTEry lIfE

In excess of 2 years

DouBlE InSulaTED yes

PolluTIon DEgrEE 2 normal situations

EnCloSurE ProTECTIon

IP 30

TEMPEraTurE lEVElS

CentaurStat 1: 6 per 24 hours

CentaurStat 7: 6 for workdays and 6 for restdays

TEMPEraTurE SETTIng rangE off +5°C to +30°C

TEMPEraTurE DIffErEnTIal

(hySTErSIS) aT 4°C PEr hour

<0.5°C

TEMPEraTurE MEaSurEMEnT aCCuraCy aT +20°C

Conventional wet central heating systems: +19.75°C to +20.75°C

Electric heating up to 8 amps

+19.5°C to +21.5°C

DIMEnSIonS

Width 142mm, height 71mm, Depth

30mm

DISPlay

Target temperature indication with 12 hour aM/PM clock or actual temperature

CentaurStat 7: Day of week indication

SWITCh TIME aDjuSTMEnT

10 minute steps oVErrIDE

Temporary temperature override until next preset period. Temperature lock, permanent temperature override until reset

MounTIng

Directly to a wall or onto a single or double gang steel flush wiring box to

BS4662 by means of a patress

the CentaurStat FamIly

The CentaurStat Programmable Thermostat is the ideal energy saving control for use with combi boilers to give a comprehensive time and temperature programme to suit every householders requirements. on conventional fully pumped systems with stored hot water, CentaurStats can be used by leaving the existing programmer in place to time the hot water. With the central heating programmed to 'on Constant', control of the heating is passed to the CentaurStat.

CentaurStats also provide zone control over extra heating zones and the control of solid fuel heating systems. The TPI temperature control provides a very close switching differential of

0.5°C while ensuring that boiler cycling is kept to a minimum.

CentaurStat offers the user a choice of display options to monitor time and temperature settings.

once programmed, only plus and minus buttons are needed to adjust the temperature.

horstmann Controls limited, South Bristol Business Park, roman farm road, Bristol BS4 1uP.

Tel: 0117 978 8700 fax: 0117 978 8701 E-mail: [email protected] Web: www.horstmann.co.uk

a division of horstmann group ltd. registered office: PrI house, Moorside road, Winnall Trading Estate, Winchester, hampshire So23 7rX. registered in England no. 457553

©March 2009: horstmann group ltd: all rights reserved. The company reserves the right to alter product specifications without notice.

Horstmann.

Together, we’re in control.

DRT 1 & DRT 2

Digital Room Thermostats

Battery powered

Replaces existing thermostat with no additional wiring

Energy saving

ROOM THERMOSTAT - DRT 1

Ideal for combi boilers with built in time control

Upgrades to existing stats on a gravity system

Ideal temperature control for mutliple zone systems

PROGRAMMABLE THERMOSTAT - DRT 2

Ideal for combi boilers

Upgrades to existing stats on a fully pumped system

SPECIFICATION

ROOM THERMOSTAT

TYPE DRT 1

OpERatIng vOltagE

230v 50/60Hz

SwItcH cURREnt at 250v ac

5 (3) amps Maximum cOntact cOnfIgURatIOn

SpDt tEMpERatURE RangE

+5°c to +35°c

SwItcHIng DIffEREntIal approx. 1°c

BattERY lIfE

In excess of 2 years

Ip 30

ROOM THERMOSTAT

TYPE DRT 2

pROgRaMMES

4 weekday

2 Saturday

2 Sunday

OpERatIng vOltagE

230v 50/60Hz

SwItcH cURREnt at 250v ac

5 (3) amps Maximum cOntact cOnfIgURatIOn

SpDt tEMpERatURE RangE

+5°c to +35°c

SwItcHIng DIffEREntIal approx. 1°c

BattERY lIfE

In excess of 2 years

Ip 30

Horstmann.

Together, we’re in control.

ROOM THERMOSTAT

Model DRT 1

with an adjustable temperature range of between 5°c to 35°c, the Horstmann DRt1 is suitable for all central heating systems, its simple 2 wire connections and battery powered operation allows the DRt1 to be used on mains or low voltage switching.

Dimensions Shown in mm

28 73.5

PROGRAMMABLE THERMOSTAT

Model DRT 2

the Horstmann DRt2 programmable room thermostat has all the features of the DRt1, whilst offering flexible programming. this allows the user to set different temperature levels at different times of the day to suit the daily routine of the household.

(4 time and temperature programmes Monday to friday, 2 time and temperature programmes for each of the weekend days.)

Dimensions Shown in mm

28 73.5

Both the Horstmann DRt1 and DRt2 thermostats are fully compatible with Horstmann valves and programmers.

Horstmann controls limited, South Bristol Business park, Roman farm Road, Bristol BS4 1Up.

tel: 0117 978 8700 fax: 0117 978 8701 E-mail: [email protected] web: www.horstmann.co.uk

a division of Horstmann group ltd. Registered office: pRI House, Moorside Road, winnall trading Estate, winchester, Hampshire SO23 7RX.

Registered in England no. 457553

©March 2009: Horstmann group ltd: all rights reserved. the company reserves the right to alter product specifications without notice.

Horstmann.

Together, we’re in control.

CYLINDER AND ROOM

THERMOSTATS

CYLINDER THERMOSTAT Model HCT 2

Adjustable temperature range 0°C to 90°C

16 Amp changeover (S.P.D.T.) contacts

Switching differential of approximately 3°C

Bimetallic sensor system

ROOM THERMOSTAT Model HRT 3

Adjustable temperature range 5°C to 35°C

10 Amp (S.P.S.T) contacts

Ventilated enclosure

Bimetalic sensor system with accelerator resistor

ener

gy savin g

Horstmann.

Together, we’re in control.

CYLINDER THERMOSTAT

Model HCT 2

with an adjustable temperature range of between 0°C to 90°C, the Horstmann cylinder thermostat is suitable for mounting on either domestic hot water cylinders or large heating pipes.

A bimetallic sensor system ensures precise hot water temperature control. each unit is supplied with a strap and buckle, for easy installation.

Dimensions Shown in mm

SPECIFICATION

CYLINDER THERMOSTAT

TYPE HCT 2

OPerATing VOlTAge

220/240V 50/60Hz

SwiTCH CurrenT AT 250V AC

16 Amps Maximum

COnTACT COnfigurATiOn

SPDT

TeMPerATure rAnge

0°C to +90°C

SwiTCHing DifferenTiAl

Approx. +3°C

SenSOr SySTeM

Bimetallic enClOSure PrOTeCTiOn iP 40

ROOM THERMOSTAT

TYPE HRT 3

COnTACT COnfigurATiOn

SPST

TeMPerATure rAnge

+5°C to +35°C

SwiTCHing CurrenT AT 250V AC

10 Amps maximum

SwiTCHing DifferenTiAl

Approx. +0.5°C

SenSOr SySTeM

Bimetallic enClOSure PrOTeCTiOn iP 20

ROOM THERMOSTAT

Model HRT 3

good looking and reliable, the Horstmann room thermostat is suitable for all central heating systems which respond to a 230V mains electrical on/off signal*.

A bimetallic sensor ensures excellent response to temperature changes and a simple rotating dial allows setting between 5°C to 35°C.

units can be mounted directly onto the wall using the built-in patress.

*A mains neutral connection is also required.

Dimensions Shown in mm

Both the Horstmann room thermostat and cylinder thermostat are fully compatible with

Horstmann's motorised valves and central heating programmers.

Horstmann Controls limited, South Bristol Business Park, roman farm road, Bristol BS4 1uP.

Tel: 0117 978 8700 fax: 0117 978 8701 e-mail: [email protected] web: www.horstmann.co.uk

A division of Horstmann group ltd. registered office: Pri House, Moorside road, winnall Trading estate, winchester, Hampshire SO23 7rX. registered in england no. 457553

©March 2009: Horstmann group ltd: All rights reserved. The company reserves the right to alter product specifications without notice.

Horstmann.

Together, we’re in control.

Economy 7 Quartz

Immersion Heater Control

Designed for use with Economy 7 off peak rate overnight electricity, the Economy 7 Quartz is the standard by which all other water heating controls are judged and is the all-time best seller in water heating controls.

Quartz controlled to within 10 minutes a year

Rechargeable battery keeps time during power interruptions

Summer and winter time settings instantly visible

Large terminals and back box for easy installation

Indicator lights show whether on-peak or off-peak power is being used

Up to 60 minute boost means extra hot water at any time

Industry standard wall box and connections

Horstmann.

Together, we’re in control.

SPEcIFIcatIon

ConTACT RATIng

13 Amps 230V AC Suitable for immersion heaters up to 3 kW

ConTACT TypE

Micro-disconnection on control

Disconnection to immersion heater(s) on double-pole rocker switches

SUppLy

230V 50Hz poLLUTIon DEgREE 2

MoISTURE pRoTECTIon ordinary

EnCLoSURE pRoTECTIon

Ip 30

SHoCk pRoTECTIon

Class 1

LIVE pARTS

Enclosed opERATIng TEMpERATURE RAngE

0°C to +35°C

BATTERy RESERVE

150 hours pRogRAMME SETTIngS

-off pEAk

Adjustable between 4 1/2 and 7 hours

-BooST

Economy 7 Quartz: 0-60 minutes

E7 Quartz 2 Hour: 0-120 minutes

DIMEnSIonS:

170mm wide x 115mm high x 56mm deep

(excluding knobs)

BEAB AppRoVED

Economy 7 Quartz

A proven, reliable and accurate unit, the

Economy 7 Quartz is easy to install and set, providing a tankful of hot water to start each day utilising Economy 7 off peak rate overnight electricity. The manual boost timer provides extra hot water in the day time – should it be needed.

E7 Quartz 2 Hour

The E7 Quartz 2 hour model has the same specification as the Economy 7 Quartz but with 0 - 120 minutes boost timer.

Single immersion heater

Dual immersion heater

Twin immersion heaters

Horstmann Controls Limited, South Bristol Business park, Roman farm Road, Bristol BS4 1Up.

Tel: 0117 978 8700 fax: 0117 978 8701 E-mail: [email protected] Web: www.horstmann.co.uk

A division of Horstmann group Ltd. Registered office: pRI House, Moorside Road, Winnall Trading Estate, Winchester, Hampshire So23 7RX.

Registered in England no. 457553

©March 2009: Horstmann group Ltd: All rights reserved. The company reserves the right to alter product specifications without notice.

Horstmann.

Together, we’re in control.

ElEctronic 7

SEriES 3

Immersion Heater Control

Where hot water is heated by off peak electricity it is important that the immersion heater controller offers ease of use coupled with the most efficient performance.

Which is where the upgraded Horstmann Electronic 7

Series 3 controller comes into its own.

Compatible with most cheap rate or off peak tariff structures

Fully interchangeable with all past and present

Horstmann Economy 7 controllers

Built in clock – automatic Summer/Winter hour change

Up to three off peak settings per 24 hours

Programmable and manual boost

Suitable for use with single, dual or twin element immersion heaters

Horstmann.

Together, we’re in control.

SPEciFicAtion

ContaCt ratIng

13 amps 230V aC Suitable for immersion heaters up to 3 kW

ContaCt tyPE

Micro-disconnection on control

Disconnection to immersion heater(s) on double-pole rocker switch type 1 control type 1B disconnection

SUPPly

230V 50Hz

ProtECtIon DEgrEE 2 normal situations

MoIStUrE ProtECtIon ordinary

ClaSS a SoFtWarE

EnCloSUrE ProtECtIon

IP 30

SHoCk ProtECtIon

Class 1 lIVE PartS

Enclosed

IMPUlSE ratIng = 4000V oPEratIng tEMPEratUrE rangE

0°C to +35°C

BattEry rESErVE approximately 2 years total power disconnection

PrograMME SEttIngS

-oFF PEak

Up to 3 on/off time periods

-BooSt

Programmable automatic boost and one hour manual boost

DIMEnSIonS:

170mm wide x 115mm high x 60mm deep

(excluding rocker switch)

DISPlay aM/PM indication

Winter/Summer indication

BEaB aPProVED

ElEctronic 7 SEriES 3

the Electronic 7 is designed to control one or two 3kW immersion heaters, utilising off peak electricity tariffs to provide a tank full of hot water each morning. additional off peak settings are available to take advantage of the latest off peak tariff arrangements.

a boost button is provided to top up the hot water if supplies are running low and an automatic boost setting to provide a pre programmed daily boost is also available.

the Electronic 7 Series 3 is interchangeable with previous Economy 7 controllers using the standard size Economy 7 wall box and plug in connectors.

a two year battery reserve provides more than the total number of hours of power interruption the typical home will have in

200 years.

Single immersion heater

Dual immersion heater twin immersion heaters

Horstmann Controls limited, South Bristol Business Park, roman Farm road, Bristol BS4 1UP.

tel: 0117 978 8700 Fax: 0117 978 8701 E-mail: [email protected] Web: www.horstmann.co.uk

a division of Horstmann group ltd. registered office: PrI House, Moorside road, Winnall trading Estate, Winchester, Hampshire So23 7rX. registered in England no. 457553

©March 2009: Horstmann group ltd: all rights reserved. the company reserves the right to alter product specifications without notice.

Horstmann.

Together, we’re in control.

ElEctrisavEr

Electronic Timer

The Electrisaver is a simple push button electronic timer that saves energy by remembering to switch off when you forget.

Suitable for loads up to 3 kW

The perfect boiler override or extension timer for central heating systems anywhere

Flush or surface mounting

Wiring is simple with easy access terminals

Horstmann.

Together, we’re in control.

sPEciFicatiON

ConTaCT raTing

13 amps 230V aC

Suitable for loads up to 3 kW

Supply

230V 50Hz polluTion dEgrEE 2

EnCloSurE proTECTion ip 30

SHoCk proTECTion

Class 1 liVE parTS

Enclosed

MaxiMuM opEraTing TEMpEraTurE

+35°C

MiniMuM opEraTing TEMpEraTurE

0°C diMEnSionS

Height: 87mm

Width: 87mm depth: 16mm flush mounted

51mm surface mounted

TiME pEriod

Model E15 - 15,30 or 60 mins

Model E30 - 30, 60 or 120 mins

MounTing

Single gang moulded box

(Min. 35mm deep, not supplied)

ElEctrisavEr

Two models offer preset time periods ranging from 15 minutes to 60 minutes or 30 minutes to 120 minutes. Simply press the boost button and walk away.

Suitable for loads up to 3 kW (including immersion heaters) in shops, offices, schools, church halls and all around the home.

applications include: panel heaters, heated mirrors, immersion heaters and towel rails.

Schematic wiring diagram

Supply

{

NEUTRAL

LIVE

N in

L in

L out

L

N

applianCE

Horstmann Controls limited, South Bristol Business park, roman Farm road, Bristol BS4 1up.

Tel: 0117 978 8700 Fax: 0117 978 8701 E-mail: [email protected] Web: www.horstmann.co.uk

a division of Horstmann group ltd. registered office: pri House, Moorside road, Winnall Trading Estate, Winchester, Hampshire So23 7rx. registered in England no. 457553

©March 2009: Horstmann group ltd: all rights reserved. The company reserves the right to alter product specifications without notice.

Horstmann.

Together, we’re in control.

E7BX & BX2000

Water Heating Boost Controls

These simple controls are intended for use where cheap overnight heating of water is controlled by the Electricity

Company's Radio Teleswitch, Radio Telemeter or tariff time switch.

E7BX

Designed to accept wiring from both 24 hour and off peak circuits

Adjustable 0 - 120 minute run-back boost timer

Simple to install and use

BX2000

Makes the most effective use of the latest cheap-rate tariff structures, electronically

1 hour or 2 hour boost

Always gives priority to off-peak supply

SPECIFICATION

CoNTACT RATINg

13 Amps 230V AC Suitable for immersion heaters up to 3 kW

Type 1 Control

CoNTACT TypE

BX2000: Disconnection to immersion heater(s) on double-pole switch

E7BX: Disconnection to “off peak” immersion heater on double-pole switch

Supply

230V 50/60Hz polluTIoN DEgREE 2

ENCloSuRE pRoTECTIoN

Ip 30

SHoCk pRoTECTIoN

Class 1 lIVE pARTS

Enclosed opERATINg TEMpERATuRE

RANgE

0°C to +35°C

TIMER BooST DuRATIoN

(E7BX only)

0 - 120 minutes

TIME pERIoD

(BX2000 only)

1 or 2 hours

DIMENSIoNS-

E7BX: 170mm wide x 115mm high x

56mm deep (excluding knobs)

BX2000: 170mm wide x 115mm high x 62mm deep (excluding rocker switches)

MouNTINg BoX MATERIAl

Thermoplastic, flame retardant

BRITISH STANDARDS

BX2000 and E7BX:

Designed to meet BS-EN 60730-2-7

BEAB AppRoVED (E7BX only)

Horstmann.

Together, we’re in control.

E7BX

Simple to install and use

Boost period adjustable between 0 and 120 minutes

Neon indicator shows when boost timer is running

Can be used with one or two immersion heaters

Suits earth-leakage circuit breaker installations

Single immersion heater

Two immersion heaters

Immersion heater circuit

Double pole isolator

BX2000

Automatically cancels any boost that has been selected prior to the off-peak supply becoming available

Indicator lights show when 'boost' or 'off-peak' are operational

Incorporates two double pole switches: one for 24 hour supply: one for off-peak (cheap rate) supply

Accepts all incoming and outgoing wiring for single, dual or two separate 3 kW immersion heater applications

Single immersion heater Two immersion heaters

Horstmann Controls limited, South Bristol Business park, Roman Farm Road, Bristol BS4 1up.

Tel: 0117 978 8700 Fax: 0117 978 8701 E-mail: [email protected] Web: www.horstmann.co.uk

A division of Horstmann group ltd. Registered office: pRI House, Moorside Road, Winnall Trading Estate, Winchester, Hampshire So23 7RX.

Registered in England No. 457553

©March 2009: Horstmann group ltd: All rights reserved. The company reserves the right to alter product specifications without notice.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
