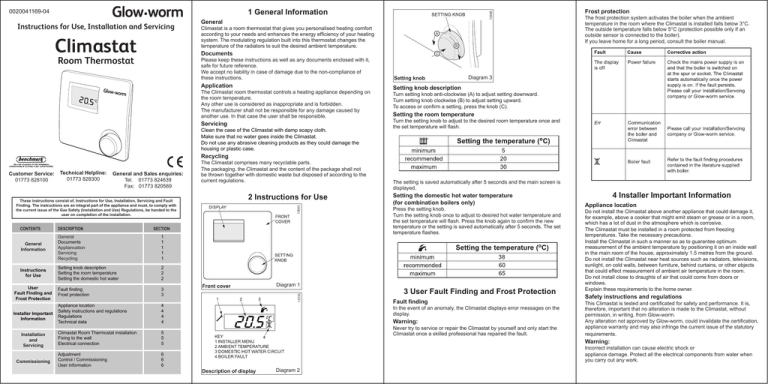

1 General Information
0020041169-04
General
Instructions for Use, Installation and Servicing
Climastat is a room thermostat that gives you personalised heating comfort
according to your needs and enhances the energy efficiency of your heating
system. The modulating regulation built into this thermostat changes the
temperature of the radiators to suit the desired ambient temperature.
Climastat
Frost protection
The frost protection system activates the boiler when the ambient
temperature in the room where the Climastat is installed falls below 3°C.
The outside temperature falls below 5°C (protection possible only if an
outside sensor is connected to the boiler).
If you leave home for a long period, consult the boiler manual.
Documents
Room Thermostat
Please keep these instructions as well as any documents enclosed with it,
safe for future reference.
We accept no liability in case of damage due to the non-compliance of
these instructions.
Application
The Climastat room thermostat controls a heating appliance depending on
the room temperature.
Any other use is considered as inappropriate and is forbidden.
The manufacturer shall not be responsible for any damage caused by
another use. In that case the user shall be responsible.
Servicing
Clean the case of the Climastat with damp soapy cloth.
Make sure that no water goes inside the Climastat.
Do not use any abrasive cleaning products as they could damage the
housing or plastic case.
Setting knob
Diagram 3
Setting knob description
Turn setting knob anti-clockwise (A) to adjust setting downward.
Turn setting knob clockwise (B) to adjust setting upward.
To access or confirm a setting, press the knob (C).
Setting the room temperature
Turn the setting knob to adjust to the desired room temperature once and
the set temperature will flash.
Recycling
Customer Service:
01773 828100
Technical Helpline:
01773 828300
General and Sales enquiries:
Tel. 01773 824639
Fax: 01773 820569
The Climastat comprises many recyclable parts.
The packaging, the Climastat and the content of the package shall not
be thrown together with domestic waste but disposed of according to the
current regulations.
2 Instructions for Use
General
Information
Instructions
for Use
User
Fault Finding and
Frost Protection
Installer Important
Information
Installation
and
Servicing
Commissioning
DESCRIPTION
SECTION
General
1
Documents
1
Appliancation
1
Servicing
1
Recycling
1
Setting knob description
2
Setting the room temperature
2
Setting the domestic hot water
2
Fault finding
Frost protection
3
3
Appliance location
Safety instructions and regulations Regulations
Technical data
4
4
4
4
Climastat Room Thermostat installation
Fixing to the wall
Electrical connection
5
5
5
Adjustment
Control / Commissioning
User information
6
6
6
Front cover
Diagram 1
13735
CONTENTS
13543
These instructions consist of, Instructions for Use, Installation, Servicing and Fault
Finding. The instructions are an integral part of the appliance and must, to comply with
the current issue of the Gas Safety (Installation and Use) Regulations, be handed to the
user on completion of the installation.
The setting is saved automatically after 5 seconds and the main screen is
displayed.
Setting the domestic hot water temperature (for combination boilers only)
Press the setting knob.
Turn the setting knob once to adjust to desired hot water temperature and
the set temperature will flash. Press the knob again to confirm the new
temperature or the setting is saved automatically after 5 seconds. The set
temperature flashes.
3 User Fault Finding and Frost Protection
Fault finding
In the event of an anomaly, the Climastat displays error messages on the
display.
Warning:
Never try to service or repair the Climastat by yourself and only start the
Climastat once a skilled professional has repaired the fault.
4 Installer Important Information
Appliance location
Do not install the Climastat above another appliance that could damage it,
for example, above a cooker that might emit steam or grease or in a room,
which has a lot of dust in the atmosphere which is corrosive.
The Climastat must be installed in a room protected from freezing
temperatures. Take the necessary precautions.
Install the Climastat in such a manner so as to guarantee optimum
measurement of the ambient temperature by positioning it on an inside wall
in the main room of the house, approximately 1.5 metres from the ground.
Do not install the Climastat near heat sources such as radiators, televisions,
sunlight, on cold walls, between furniture, behind curtains, or other objects
that could effect measurement of ambient air temperature in the room.
Do not install close to draughts of air that could come from doors or
windows.
Explain these requirements to the home owner.
Safety instructions and regulations
This Climastat is tested and certificated for safety and performance. It is,
therefore, important that no alteration is made to the Climastat, without
permission, in writing, from Glow-worm.
Any alteration not approved by Glow-worm, could invalidate the certification,
appliance warranty and may also infringe the current issue of the statutory
requirements.
Warning:
Incorrect installation can cause electric shock or
appliance damage. Protect all the electrical components from water when
you carry out any work.
Description of display
Diagram 2
C
Put the boiler into operation.
Diagram 7
13586
Climastat cable connection
B
Setting knob
A
Diagram 5
Fixing to the wall
13580
Fit the Climastat back box to the wall, refer to diagram 6.
Choose the location of the Climastat. See section “Appliance location”.
Installation Menu Adjustments
1. Press the setting knob for 10 seconds to access the setting menu.
2. When “0” appears, turn the setting knob up to “96” on the display.
3. Confirm by pressing the setting knob.
N.B. If outdoor sensor is attached, the menu option “1” is not available.
If outdoor sensor is not attached, menu option “2” is not available.
When first menu “1” appears, press knob to select menu “2”.
Press the setting knob to go to next menu (see table 1).
The settings in both menus can be changed by turning the knob.
To confirm all settings, press setting knob for 5 seconds.
The display will return to normal setting after 1 minute or after pressing the
setting knob for 5 seconds.
Menu
Title
Action / Information
Selecting
appliance
mode
Choose a value :
0 = non modulating On/Off mode (factory
setting) Utilises user defined flow temp setpoint,
NOT factory default, if different.
1 = modulating automatic calculation of the
heating setting. Note: Must NOT be put in
modulating mode if used on heating only
appliance that indirectly heats domestic hot
water via an external cylinder/store.
Selecting the
heating
curve (*)
Choose a value between 0.2 and 4. (factory
setting : 1.2)
Refer to the manual for the outside sensor
connected to the boiler to carry out this
adjustment. Comment: the adjustments made
to the outside sensor on the boiler will no
longer be active.
13549
1
96
80
2
Climastat back box fitting
Diagram 6
Electrical connection
80
96
23
30
Dimensions
6 Commissioning
• As supplied the operating mode of this control is ON/OFF as per a
conventional room thermostat ( the boiler will modulate to achieve the flow
temperature selected on the boiler as per conventional boiler operation).
• The modulating operating mode must be selected before this control will
modulate the temperatures of the radiators to achieve the room temperature
set point.
• The modulating operating mode must not be selected if this control is used
with a heating only appliance that heats DHW via an external cylinder/store.
Remove the front cover from the Climastat respecting the order of
operations (A) to (C), refer to diagram 5.
C
IMPORTANT
Warning: Isolate the boiler from the electrical supply.
A skilled professional should make the electrical connections.
Use a 2 core connection cable that complies with the specifications given in.
(“Technical data”).
Important: If the cable is greater than 10 metres, separately insulate EBUS
and high voltage cables to avoid electrical interference.
Route the cable between the Climastat room thermostat and the electrical
cartridge on the boiler. Connect the cable to the terminal connection in the
Climastat. Polarity is not important, refer to diagram 7.
Connect the cable to the EBUS connection in the electrical cartridge at the
boiler. Polarity is not important, refer to diagram 8.
13583
Technical data
Climastat Room Thermostat installation
13579
When installing and commissioning the control, the regulations below shall
be observed in their current version.
The electrical installation must be installed by a competent person and in
accordance with the relevant standards.
All wiring to current I.E.E. wiring regulations.
In GB, this is BS 7671.
In IE, this is the current edition of ETCI rules.
Where no specific instructions are given, reference should be made to the
relevant British Standard Code of Practice.
Where no British Standard exists, materials and equipment should be fit for
their purpose and of suitable quality and workmanship.
The installation of this appliance must be carried out by a competent
person in accordance with the rules in force in the countries of destination.
Manufacturer’s instructions must not be taken as overriding statutory
requirements.
13581
5 Installation and Servicing
Regulations
If outdoor sensor is attached, menu option "1" is not available.
If outdoor sensor is not attached, menu option "2" is not available.
Table 1
Control / Commissioning
Start the Climastat according to the indications of the operating instructions
and check whether it runs.
Check the whole control and safety devices, their setting and their
operation.
User information
Explain to the user the Climastat operating principles and demonstrate.
Look at the operating instructions together and answer any questions.
Give the user all the manuals and documents concerning the appliance and
tell the user to keep them near the Climastat / Boiler.
Diagram 4
Boiler cable connection
Diagram 8
