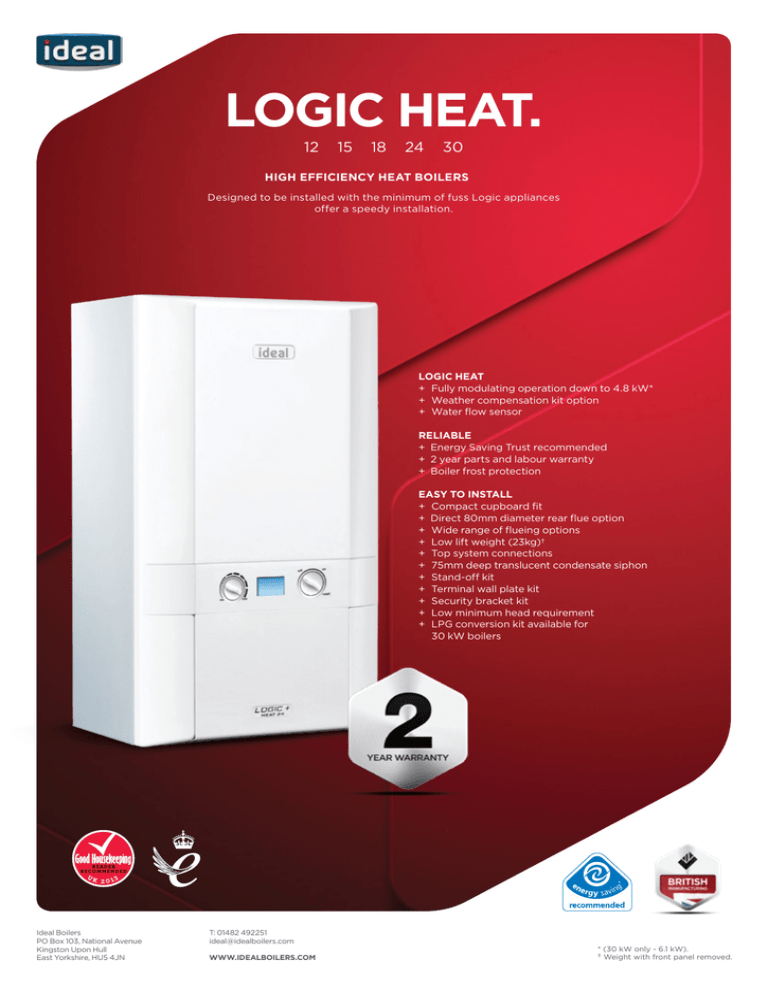

HIGH EFFICIENCY HEAT BOILERS
Designed to be installed with the minimum of fuss Logic appliances
offer a speedy installation.
LOGIC HEAT
+ Fully modulating operation down to 4.8 kW*
+ Weather compensation kit option
+ Water flow sensor
RELIABLE
+ Energy Saving Trust recommended
+ 2 year parts and labour warranty
+ Boiler frost protection
EASY TO INSTALL
+ Compact cupboard fit
+ Direct 80mm diameter rear flue option
+ Wide range of flueing options
+ Low lift weight (23kg)†
+ Top system connections
+ 75mm deep translucent condensate siphon
+ Stand-off kit
+ Terminal wall plate kit
+ Security bracket kit
+ Low minimum head requirement
+ LPG conversion kit available for
30 kW boilers
Ideal Boilers
PO Box 103, National Avenue
Kingston Upon Hull
East Yorkshire, HU5 4JN
T: 01482 492251
[email protected]
WWW.IDEALBOILERS.COM
* (30 kW only - 6.1 kW).
† Weight with front panel removed.
LOGIC HEAT
CLEARANCES & DIMENSIONS.
Logic
heat
2.5
from case
2.5
278
278
395
Direct
rear
flue
terminal
165**
Flue
terminal
700
100*
400
Note: The minimum front clearance when built-in to a cupboard is 5mm from the cupboard door but 450mm overall clearance with the cupboard door open is required for
servicing. *Bottom clearance after installation can be reduced to 5mm. However, 100mm is required for servicing. ** Rear flue option - top clearance 100mm.
FLUE LENGTHS.
2.5
Logic+
system
2.5
from case
395
165 HEAT 12
278
HEAT 15
Max horizontal
HEAT 18
HEAT 24
HEAT 30
9m
8m
Max vertical
7.5m
Powered vertical
22m
Flue
terminal
Available Kits High Level Flue Outlet Kit and Direct Rear Flue Kit (55/80)
700
TECHNICAL SPECIFICATIONS.
HEAT 12
Height
Width
HEAT 15
HEAT 18
HEAT 24
HEAT 30
700
100*
395
400
Depth
278
Weight
28.7
Max installation weight (Kg)
23.0
CH output (kW) min/max @ 70°C
4.8 - 12.0
4.8 - 15.0
4.8 - 18.0
4.8 - 24.2
6.1 - 30.3
CH output (kW) min/max @ 40°C
5.1 - 13.0
5.1 - 15.9
5.1 - 19.1
5.1 - 25.6
6.4 - 31.0
DHW output (kW) max
n/a
DHW flow rate l/min. 35°C rise
n/a
SEDBUK rating (2005) %
91.2
91.1
91
91
91.1
SEDBUK rating (2009) %
89.4
89.3
89.2
89.5
89.6
No
Yes
NOx classification
Adjustable to LPG
CLASS 5
No
No
No
