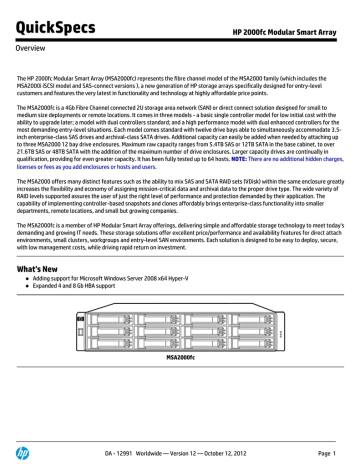

QuickSpecs

Overview

HP 2000fc Modular Smart Array

The HP 2000fc Modular Smart Array (MSA2000fc) represents the fibre channel model of the MSA2000 family (which includes the

MSA2000i iSCSI model and SAS-connect versions ), a new generation of HP storage arrays specifically designed for entry-level customers and features the very latest in functionality and technology at highly affordable price points.

The MSA2000fc is a 4Gb Fibre Channel connected 2U storage area network (SAN) or direct connect solution designed for small to medium size deployments or remote locations. It comes in three models - a basic single controller model for low initial cost with the ability to upgrade later; a model with dual controllers standard; and a high performance model with dual enhanced controllers for the most demanding entry-level situations. Each model comes standard with twelve drive bays able to simultaneously accommodate 3.5inch enterprise-class SAS drives and archival-class SATA drives. Additional capacity can easily be added when needed by attaching up to three MSA2000 12 bay drive enclosures. Maximum raw capacity ranges from 5.4TB SAS or 12TB SATA in the base cabinet, to over

21.6TB SAS or 48TB SATA with the addition of the maximum number of drive enclosures. Larger capacity drives are continually in qualification, providing for even greater capacity. It has been fully tested up to 64 hosts. NOTE: There are no additional hidden charges, licenses or fees as you add enclosures or hosts and users.

The MSA2000 offers many distinct features such as the ability to mix SAS and SATA RAID sets (VDisk) within the same enclosure greatly increases the flexibility and economy of assigning mission-critical data and archival data to the proper drive type. The wide variety of

RAID levels supported assures the user of just the right level of performance and protection demanded by their application. The capability of implementing controller-based snapshots and clones affordably brings enterprise-class functionality into smaller departments, remote locations, and small but growing companies.

The MSA2000fc is a member of HP Modular Smart Array offerings, delivering simple and affordable storage technology to meet today's demanding and growing IT needs. These storage solutions offer excellent price/performance and availability features for direct attach environments, small clusters, workgroups and entry-level SAN environments. Each solution is designed to be easy to deploy, secure, with low management costs, while driving rapid return on investment.

What's New

Adding support for Microsoft Windows Server 2008 x64 Hyper-V

Expanded 4 and 8 Gb HBA support

MSA2000fc

DA - 12991 Worldwide — Version 12 — October 12, 2012 Page 1

QuickSpecs

Overview

Models

HP MSA2000fc Modular

Smart Array

HP 2000fc Modular Smart Array

HP 2012fc Single Controller Modular Smart Array

HP 2012fc Dual Controller Modular Smart Array

HP 2212fc Dual Enhanced Controller Modular Smart Array

HP 2000fc Modular Smart Array Controller (for the 2012fc)

HP MSA2000 Single I/O 3.5 in 12 Drive Enclosure (w/ two .6m SAS cables)

HP MSA2000 Dual I/O 3.5 inch 12 Drive Enclosure (w/ two .6m SAS cables)

HP MSA2000 Drive Enclosure I/O Module

AJ742A

AJ743A

AJ745A

AJ744A

AJ749A

AJ750A

AJ751A

DA - 12991 Worldwide — Version 12 — October 12, 2012 Page 2

QuickSpecs

Features and Benefits

HP 2000fc Modular Smart Array

Key Features

Highly efficient consolidation and sharing of storage geared to departmental and small to medium business requirements

Flexibility in drives (MSA2000 family-specific) Cost efficient plus high-availability choices

Enterprise-class SAS or archival-class SATA drives as the need and budget dictate

Dual-ported SAS drives for enterprise needs

Large capacity SATA drives for inexpensive archival storage

Able to mix SAS and SATA drives within the same drive enclosure

Choose either single or dual controller array models

Choice of low cost single I/O or high-availability dual I/O drive enclosure models

Customer Benefits

The HP 2000 Modular Smart Array family manages growing storage requirements across multiple HP ProLiant servers for customers who need a centralized dedicated storage solution for applications. SANs allow for controlled, cost-effective growth and increased protection of data.

Its ease of management allows a department or small company to effectively handle growing storage requirements with a minimum of complexity.

The MSA2000fc extends the benefits of shared storage resources (e.g. SAN) to first time implementers on a limited budget

The modular design allows the user to start relatively small but supports future growth to hundreds of users and up to 21.6TB

of SAS or 48TB of SATA storage

The optional controller-based snapshot and clone capability of the MSA2000 family allows the smaller departmental user or company to implement functionality once only available to much larger firms with expensive arrays.

HP MSA2000fc Models At a Glance:

High performance Modular Smart Array controller(s), each with two 4Gb Fibre Channel ports

Single and dual controller models

Dual Enhanced Controller model with more powerful processor (700MHz Pentium II vs. Celeron 566 MHz), ideal for video streaming and large file writes, especially true for small block sizes

Standard model performance is measured at greater than 90K IOPs from cache and 865MB/s sustained throughput from disk.

The Dual Enhanced controller model measures at greater than 120,000 IOPs from cache and 1,150 MB/s throughput from disk.

1 GB transportable cache per controller - battery-free cache backup with super capacitors and compact flash

256 LUNs with 16TB LUNs supported

2U rack mount chassis combining both the controller and disk shelf

Twelve 3.5 inch dual-ported SAS or SATA drive bays (supports mixing of drive types in a single shelf)

Supports expansion to 3 additional enclosures for a total of 48 disks

Redundant power supplies and fans are standard

RAID levels 0, 1, 3, 5, 6, 10, 50

Non-disruptive on-line controller code upgrade (requires dual controllers w/ multi-pathing software)

Heterogeneous support for 32-bit and 64-bit Windows, Red Hat and SuSE

Qualified and certified for Windows and Linux clustering

Optional controller-based snapshot and clone functionality

DA - 12991 Worldwide — Version 12 — October 12, 2012 Page 3

QuickSpecs

Family Information

HP 2000fc Modular Smart Array

Capacity (raw)

Minimum / with maximum additional drive enclosures

5.4TB SAS or 12TB SATA w/ 3 drive enclosures:

21.6TB SAS or 48TB SATA

Controller Cache

1 GB per controller

5.4TB SAS or 12TB SATA w/ 3 drive enclosures:

21.6TB SAS or 48TB SATA

5.4TB SAS or 12TB SATA w/ 3 drive enclosures

21.6TB SAS or 48 TB SATA

1 GB per controller 1 GB per controller

Host connect

MSA2000 has 1 or 2 controllers, EVA has 2 controllers standard

Maximum Drives

Maximum host supported

MSA2000fc

Two 4Gb

Fibre Channel ports per controller

48

64

MSA2000i

Two 1GbE iSCSI ports per controller

48

16

MSA2000sa

Two 3Gb

SAS ports per controller

48

4

EVA4400

5.4TB FC or 12TB FATA w/ 8 drive enclosures

43TB FC or 96 TB FATA

2 GB per controller

Two 4Gb

Fibre Channel ports per controller

96

512

Snapshot, remote replication

Use for Storage

Snapshot, clone Snapshot, clone Snapshot, clone Snapshot, clone, remote data replication

Primary Storage with SAS

Secondary with SATA

Primary Storage with SAS

Secondary with SATA

Primary Storage with SAS

Secondary with SATA

Primary Storage with FC

Secondary with FATA

NOTE: maximum available storage capacity depends on the RAID level being implemented, and is based on maximum number of LUNs and LUN size.

Product Technology 4Gb Fibre Channel technology

Modular Chassis

Drives available

Scalability

Two host ports per controller, shipped with SFPs. the MSA2000 controller can run in either point-to-point or FCAL (loop). The default is FCAL which is used in

Direct Connect, particularly with two controllers. The PtP (fabric) mode is used with almost all switches.

2U, 12 Large Form Factor drive bays, accommodating SAS and SATA. Comes standard with one or two controllers.

Serial Attached SCSI (SAS) enterprise-class drives designed for high volume,

24x7 usage. Serial-ATA (SATA) are usually reserved for archival of data as they are both relatively inexpensive and are available in very large capacities. The

MSA2000 family of arrays can accommodate both SAS and SATA drives within the same enclosure making it ideal to have both business-critical, high activity files on SAS drives while using snapshot or clone capability to keep back-up data on the less expensive drives.

SAS drive performance can be approximately 30%greater than SATA performance on sequential host IO. SAS performance excels in sequential lower latency response time and random IO per second transaction performance due to higher rpm disk speeds yielding lower seek times. SAS random performance is greater than 2x SATA.

NOTE: MSA2 3.5" Large Form Factor (LFF) drives are for use only in the

MSA2000 family.

Up to 5.4TB SAS or 12TB SATA, expandable to 21.6TB SAS or 48TB SATA with the addition of a maximum of three MSA2000 3.5 inch Drive Enclosures.

LUNs

The MSA2000 family of arrays supports 256 LUNs and LUN sizes up to 16TB.

The arrays support LUN expansion and deletion of any LUN.

RAID 0, 1, 3, 5, 6, 10, 50.

In addition to the usual RAID levels, the MSA2000 family features several important additional levels. RAID 6 is the highest level of RAID protection. It allocates two sets of parity data across drives and allows simultaneous write operations. It can withstand two simultaneous drive failures without downtime

DA - 12991 Worldwide — Version 12 — October 12, 2012 Page 4

QuickSpecs

Family Information

Performance

HP 2000fc Modular Smart Array

or data loss. RAID 10 is mirroring and striping without parity. It is the most popular of the multiple RAID levels, allowing large arrays with high performance in most cases and superior fault tolerance. RAID 50 combines the block striping and parity of RAID 5 with the straight block striping of RAID 0, yielding higher performance than RAID 5 through the addition of RAID 0, particularly during writes.

Performance numbers are a guideline as established by tests in a lab environment. Forty-eight 300GB 15K SAS drives were used in dual controller configurations of four vDisks with 12 physical drives per vDisk.

Each vDisk presented a single volume of maximum capacity according to RAID level.

Number and type of applications, number of hosts will affect overall performance.

Workload

MSA2212fc

Enhanced

MSA2012fc MSA2012sa MSA2012i

Host Connect

4Gb Fibre

Channel

4Gb Fibre

Channel

MSA2000 RAID 10 Performance Results (rounded)

3Gb SAS 1GbE Ethernet

Random Reads

IOPs

Random Writes

IOPs

11,200

7,800

10,600

5,000

Random Mix

IOPs 60/40 read/write

8,900 6,700

Sequential

Reads MB

Sequential

Writes MBs

1000

470

650

330

MSA2000 RAID 5 Performance Results (rounded)

10,600

4,900

6,800

700

350

8200

4,500

6,100

300

260

Random Reads

IOPs

Random Writes

IOPs

Sequential

Reads MBs

10,700

2,400

1,000

10,200

1,700

670

Sequential

Writes MBs

Random Mix

IOPs 60/40 read/write

580

3,500

380

5,700

MSA2000 RAID 6 Performance Results (rounded)

Random Reads

IOPs

Random Writes

IOPs

Sequential

Reads MBs

10,700

1,700

1,000

10,100

1,200

680

10,200

2,000

700

380

3,300

10,100

1,400

700

7,800

1,600

300

270

3,200

7,800

1,200

300

DA - 12991 Worldwide — Version 12 — October 12, 2012 Page 5

QuickSpecs

Family Information

Overview

Server Compatibility

Industry Standard X86 servers support

OS Support

Oracle

Web Browser support

HP 2000fc Modular Smart Array

Sequential

Writes MBs

Random Mix

IOPs 60/40 read/write

580

4,200

380

2,650

380

2,750

270

2,560

Configuration and

Management Tools

Hot Plug Expansion and

Replacement Support

Snapshot and Clone

HP MSA Storage Management Utility (SMU). Management access, out-of-band:

WEB GUI, CLI. Interface Types: Mini DB9 RS232, 10/100 Ethernet Protocols

Supported SNMP, SSL, SSH, SMTP, HTTP, Telnet

The MSA2000fc supports hot plug expansion and replacement of redundant controllers, enclosures, fans, power supplies, and I/O modules for simple, fast installation and maintenance.

Optional controller based functionality. Offers higher levels of data protection, enabling an almost instant recovery from data failure or corruption. Offers alternative development testing of 'offline' production data and the ability to backup snapped/cloned data.

The MSA2000fc comes integrated with web browser based software for storage and RAID management, setup, configuration and troubleshooting. This reduces the cost of ownership by reducing the training and technical expertise necessary to install and maintain your HP storage solution.

Supports most HP ProLiant servers including

HP ProLiant DL, ML

HP ProLiant c-Class Blade Servers

Supports most multi-vendor industry standard 32-bit Intel and AMD based (x86) servers. HP requires the Third-Party Server to be logo'd and listed on the Microsoft Windows Server Catalog.

Refer to the Microsoft website: http://www.microsoft.com/windows/catalog/server/

HP Division recommends that the Third-Party Server Vendor is an active member of TSANet. Refer to the TSANet website for details: www.tsanet.com

Microsoft Windows Server 2008 IA32 (Standard, Enterprise, Datacenter)

Microsoft Windows Server 2008 x64 (Standard, Enterprise, Datacenter)

Microsoft Windows 2003 and 2003 R2

Microsoft Windows 2003 X64

Red Hat Linux 4 & 5 (32/64)

SuSE SLES 9 & 10 (32/64)

VMware ESX 3.0.1, 3.0.2, 3.5

Microsoft Windows Server 2008 x64 Hyper-V

Integrated Citrix XenServer HP Enterprise. Citrix Xen Enterprise 4.1.0-7846 (AMD64, EMT64)

Supported with Oracle single instance and cluster configurations for Oracle 9i, 10g, and 11g

Windows 2008 is supported with Single Instance but not RAC. This functionality is not yet supported by Oracle.

RHEL5 Kernel Versions Including Oracle Enterprise Linux, OEL

NOTE: snapshot functionality is not supported with ASM.

MSA2000fc supports target based management, and includes a Web interface and a telnet interface, and requires a web browser for management. Only Microsoft Internet Explorer V6.X and above, and

Mozilla Firefox 1.0.7 or later are supported

DA - 12991 Worldwide — Version 12 — October 12, 2012 Page 6

QuickSpecs

Optional Software

HP 2000fc Modular Smart Array

MSA2000 Snapshot and

Volume Copy Software

Path failover (MPIO)

HP Storage Mirroring

Product Features

Data Protection

Snapshots create up to 64 point-in-time pictures of data

Volume Copies create up to 128 point-in-time copies of data

Recovery is instant - revert data from any previous Snapshot or Volume Copy

Backup 'snapped' data to disk, virtual tape, or physical tape without a backup window

Data Testing

Snap or clone data to test the performance of a software application on 'offline' production data

Snap or clone data to test how a software patch or enhancement will function on 'offline; production data

HP 2000 Modular Smart Array Snapshot 64 Software LTU

HP 2000 Modular Smart Array Snapshot 8 Software LTU

T5512A

T5513A

HP 2000 Modular Smart Array Snapshot 8 to 64 Upgrade Software LTU

HP 2000 Modular Smart Array Volume Copy Software LTU

T5515A

T5514A

MPIO Basic Failover for Windows provides a single multi-path solution for HP MSA2000fc Modular Smart

Array on HP ProLiant servers by providing basic path failover. Supports Windows 2003, Windows 2003 R2, and Windows 2003 X64 operating systems.

HP MPIO Full Featured DSM for MSA2000fc v2.2.0.22

Microsoft Windows 2008: Microsoft MPIO is bundled with Windows Server 2008 and must be installed as an operating system feature.

Failover support for Linux is with Device Mapper 4.0.

Xen: Inbox Device Mapper

HP Storage Mirroring Software provides host-based, continuous replication for customers seeking a lowcost alternative to fabric or array-based replication. Patented replication and failover technology continuously captures byte-level data changes as they happen and replicates those changes to one or more target servers at any location without geographic limitations. By replicating only the bytes that change, Storage Mirroring Software uses the absolute minimum bandwidth on your existing LAN or WAN to replicate your data. Storage Mirroring also provides server failover where a production server can automatically be ‘replaced’ by the storage mirroring server in the event of failure. Couple Storage

Mirroring with MSA2000 Snapshots and/or Volume Copy to achieve an Enterprise class data protection strategy creating different data recovery points using continuous data protection with Storage Mirroring and point-in-time data protection with Snapshots and/or Volume Copy.

Storage Mirroring Software supports:

Any DAS, NAS, and SAN storage device.

Any Windows ProLiant server including all ML, DL, and BL platforms

Many Windows platforms including Windows Server 2000, Windows Server 2003, Windows Server

2003 R2, Windows Storage Server 2003, Windows Storage Server 2003 R2, 64bit Windows, and

Windows on Itanium

For more information visit http://h18006.www1.hp.com/products/storage/software/sm/index.html

HP Storage Mirroring Software Windows Server Edition 1 LTU T5438A

HP Storage Mirroring Software Windows Enterprise Server Edition 1 LTU

HP Storage Mirroring Software Windows NAS Edition 1 LTU

T5440A

T5442A

DA - 12991 Worldwide — Version 12 — October 12, 2012 Page 7

QuickSpecs

Optional Software

HP ProLiant Storage

Server gateways:

Add more value to your

MSA array

HP 2000fc Modular Smart Array

HP Storage Mirroring Software for AiO Edition 1 LTU

HP Storage Mirroring Software for 5 Virtual Machines 1 LTU

HP Storage Mirroring SW Linux 1 LTU

T5446A

T5444A

T5448A

HP Storage Mirroring Virtual Infrastructure 1 LTU

NOTE: For more information visit http://h18006.www1.hp.com/products/storage/software/sm/index.html

T5450A

Stretch your MSA2000 array investment by adding file & print services, iSCSI connectivity, and management hosting with a ProLiant Storage Server gateway platform. HP ProLiant Storage Servers are optimized file and print server solutions that are built on industry-standard HP ProLiant servers and come with either Microsoft Windows Storage Server 2003 R2 or Windows Unified Data Storage Server 2003 operating system pre-installed. Since they're Windows-based, network integration is easy, your tools and data protection applications run right on the box, and management has a familiar look and feel. Like many

Network Attached Storage (NAS) devices, they support heterogeneous file serving environments and are pre-configured to install in minutes.

A DL380 G5 x64 SAN Storage Server is a file/iSCSI gateway that adds IP-based services to your Fibre

Channel array or SAN. So it not only enhances your MSA investment with file and print services, but it helps you save even more by enabling tiered (Fibre Channel and iSCSI) block access for application servers. All of your important client and server data can be managed, scaled, and protected on a single MSA2000 array.

NOTE: For more information visit: http://www.hp.com/go/storageservers

HP ProLiant DL380 G5 Base Storage Server

NOTE: Microsoft Windows Storage Server 2003 R2 Standard x64 Edition O/S with file/print services on a 2U rack form factor platform. For more information, go to: http://h18006.www1.hp.com/products/quickspecs/12559_div/12559_div.html

HP ProLiant DL380 G5 SAN Gateway Storage Server

NOTE: Microsoft Windows Unified Data Storage Server 2003 Enterprise x64 Edition O/S with file/print, iSCSI, and cluster services on a 2U rack form factor platform. For more information, go to: http://h18006.www1.hp.com/products/quickspecs/12559_div/12559_div.html

HP ProLiant SB460c SAN Gateway Storage Server

NOTE: Microsoft Windows Unified Data Storage Server 2003 Enterprise x64 Edition O/S with file/print, iSCSI, and cluster services on a blade form factor platform. For more information, go to: http://h18006.www1.hp.com/products/quickspecs/13114_div/13114_div.html

Fibre Channel HBA options for DL380 G5 Storage Servers

HP FC2142SR 4Gb PCIe HBA

HP FC2242SR Dual Channel 4 Gb PCIe HBA

HP FC1142SR 4Gb PCIe HBA

HP FC1242SR Dual Channel 4 Gb PCIe HBA

HP 81Q PCI-e FC HBA

HP 82Q 8Gb Dual Port PCI-e FC HBA

HP 81E 8Gb SP PCI-e FC HBA

HP 82E 8Gb Dual-port PCI-e FC HBA

Fibre Channel HBA options for the SB460c SAN Gateway Storage Server

Emulex LPe1105 FC Dual Channel 4Gb, PCI-E-to-Fibre Channel Host Bus Adapter

AG815B

AG771B

AN583A

A8002A

A8003A

AE311A

AE312A

AK344A

AJ764A

AJ762A

AJ763A

403621-B21

DA - 12991 Worldwide — Version 12 — October 12, 2012 Page 8

QuickSpecs

Optional Software

QLogic QMH2462 4Gb FC HBA for HP c-Class BladeSystem

HP 2000fc Modular Smart Array

403619-B21

DA - 12991 Worldwide — Version 12 — October 12, 2012 Page 9

QuickSpecs

Service and Support, HP Care Pack, and Warranty Information

Warranty

HP 2000fc Modular Smart Array

Three-year limited warranty

Three years parts exchange

Next Business day delivery

Enclosures, Hard drives, and Options for the MSA2000fc carry their own warranty. Refer to HP's Limited

Warranty Statement for more information.

The MSA2000fc has been designed with customer self repairable parts to minimize repair time and provide greater flexibility in performing defective parts replacement. Please refer to HP's limited warranty

Statement and parts replacement instructions for further details.

http://h18006.www1.hp.com/products/storageworks/warranty.html

Products included in various Kits carry their own individual warranties.

NOTE: The warranty of the hard drive options purchased with the MSA2000fc product is different for SAS hard drives versus SATA hard drives. SAS hard drive options have a three year warranty and SATA hard drives options have a one year warranty.

Warranty Upgrade

Options

Software Product

Services

Response - Upgrade on-site response from next business day to same day 4-hour response or 6

Hour Call To Repair

Coverage - Extend hours of coverage from next business day to 9 hours x 5 days to 24 hours x 7 days

Duration Select duration of coverage for a period of 1, 3, 4 or 5 years

HP Care Pack Information

HP Care Pack is defined as an upgrade to the product warranty attribute, available for a specific duration and hours of coverage.

HP Care Pack is not available for less than the product's warranty duration.

HP Care Pack is available for sale anytime during the warranty period for most products, but the commencement date will be the same as the Warranty Start Date (delivery date to end user customer). Proof of purchase may be required.

HP Care Pack services are prepaid.

For additional information on Product Services and HP Care Pack, as well as orderable part numbers, please refer to the URL: http://www.hp.com/hps/carepack/ .

If you have specific questions about availability or how to obtain services contact your local HP representative. Contact information for your local area can be found at: http://welcome.hp.com/country/us/en/contact_us.html

Product support provides the customer access to HP's experienced technical support resources, as well as access to HP's Information Services database for support on a variety of multivendor/multiplatform software products. Product support includes escalation and problem coordination with the appropriate engineering group. HP Services offer a variety of options to allow you to tailor your product service to meet the needs of your organization. Basic warranty on products can be uplifted from day one to ensure you receive the service you need when you need it.

DA - 12991 Worldwide — Version 12 — October 12, 2012 Page 10

QuickSpecs

HP 2000fc Modular Smart Array

Service and Support, HP Care Pack, and Warranty Information

Warranty and Support

HP warrants only that the software media will be free of physical defects for a period of ninety (90) days from delivery.

The following services are offered as HP Care Pack Services at the time of software product order:

Software Technical Support 24 x 7 (1, 3, 4, and 5 years) is available 24 hours per day, Monday through Sunday, including holidays (includes phone-in software technical support 24 x 7 and software product and documentation updates).

HP Care Pack services must be ordered with the product and are prepaid.

For tailored support contracts based on personalized statement of work contact your local support center via: http://www.hp.com/support .

For additional software product services information for HP Care Pack services, as well as orderable part numbers, please refer to the URLs listed below:

All storage services: http://www.hp.com/services/storage.

All HP Care Pack Services: http://www.hp.com/hps/carepack/storage/cp_networked.html

.

Software Support HP Care Pack Services: http://www.hp.com/hps/carepack/software/cp_storage.html

.

Installation and Startup Services: http://www.hp.com/hps/storage/ns_implementation.html

.

If you have specific service questions contact your local HP representative. Contact information for your local area can be found at: http://welcome.hp.com/country/us/en/contact_us.html

Maintenance releases, bug fixes and software patches are available at: http://welcome.hp.com/country/us/en/support.html

.

Hardware Product

Services

Installation services that include basic installation and Array Installation and Startup

On-site maintenance (includes warranty support)

Response time upgrades during the warranty period

Post-warranty coverage or warranty extension

RAID setup and performance consulting via statement of work

Migration service consulting via statement of work

Environmental, Mission Critical Services

For product services information for HP Care Pack services, as well as orderable part numbers, please refer to the URLs listed below:

All storage services: http://www.hp.com/services/storage.

All HP Care Pack Services: http://www.hp.com/hps/carepack/storage/cp_networked.html

.

Installation and Startup Services: http://www.hp.com/hps/storage/ns_implementation.html

.

If you have specific service questions contact your local HP representative. Contact information for your local area can be found at: http://welcome.hp.com/country/us/en/contact_us.html

Array Installation and

Startup Services

The HP installation and startup for HP MSA Disk Arrays service package provides installation and configuration of HP MSA Disk Array products. Service highlights include:

Service planning

Installation and Startup provides installation and configuration of the MSA2000fc. This includes:

Service planning

Service deployment

Installation Verification Testing (IVT) required for this service

Customer orientation session

Please contact your local HP sales organization for further details

Installation & Startup Care Packs: Flex - HA114A1 #5J0; Fixed: UA868E

DA - 12991 Worldwide — Version 12 — October 12, 2012 Page 11

QuickSpecs

Service and Support, HP Care Pack, and Warranty Information

Support Services via HP Authorized Commercial Resellers - Flex Care Packs

Support Description

Support - 1 Yr Next Day Hardware

Support - 3 Yr Next Day Hardware

Support - 4 Yr Next Day Hardware

Support - 5 Yr, Next Day Hardware

Support - 1 Yr 4 hr 13x5 Hardware

Support - 3 Yr, 4 hr 13x5 Hardware

Support - 4 Yr, 4 hr 13x5 Hardware

Support - 5 Yr, 4 hr 13x5 Hardware

Support - 1 Yr, 4 hr 24x7 Hardware

Support - 3 Yr, 4 hr 24x7 Hardware

Support - 4 Yr, 4 hr 24x7 Hardware

Support - 5 Yr, 4 hr 24x7 Hardware

Support - 1 Yr, 6 hr, CTR

Support - 3 Yr, 6 hr, CTR

Support - 4 Yr, 6 hr, CTR

Support - 5 Yr, 6 hr, CTR

Support - 1 Yr, Support Plus

Support - 3 Yr, Support Plus

Support - 4 Yr, Support Plus

Support - 5 Yr Support Plus

Support - 1 Yr, Support Plus 24

Support - 3 Yr, Support Plus 24

Support - 4 Yr, Support Plus 24

Support - 5 Yr, Support Plus 24

Support - 1 Yr, Proactive 24 Service

Support - 3 Yr, Proactive 24 Service

Support - 4 Yr, Proactive 24 Service

Support - 5 Yr, Proactive 24 Service

Support - 1 Yr, Critical Service

Support - 3 Yr, Critical Service

Support - 4 Yr, Critical Service

Support - 5 Yr, Critical Service

HP 2000fc Modular Smart Array

Array SKUs: AJ742A, AJ743A, AJ745A

Care Pack

HA109A1#9CJ

HA109A3#9CJ

HA109A4#9CJ

HA109A5#9CJ

HA110A1#9CJ

HA110A3#9CJ

HA110A4#9CJ

HA110A5#9CJ

HA111A1#9CJ

HA111A3#9CJ

HA111A4#9CJ

HA111A5#9CJ

HA112A1#9CJ

HA112A3#9CJ

HA112A4#9CJ

HA112A5#9CJ

HA101A1#9CJ

HA101A3#9CJ

HA101A4#9CJ

HA101A5#9CJ

HA103A1#9CJ

HA103A3#9CJ

HA103A4#9CJ

HA103A5#9CJ

HA104A1#9CJ

HA104A3#9CJ

HA104A4#9CJ

HA104A5#9CJ

HA105A1#9CJ

HA105A3#9CJ

HA105A4#9CJ

HA105A5#9CJ

DA - 12991 Worldwide — Version 12 — October 12, 2012 Page 12

QuickSpecs

Service and Support, HP Care Pack, and Warranty Information

Support Services via HP Authorized Commercial Resellers - Flex Care Packs

Support Description

Support - 1 Yr Next Day Hardware

Support - 3 Yr Next Day Hardware

Support - 4 Yr Next Day Hardware

Support - 5 Yr, Next Day Hardware

Support - 1 Yr 4 hr 13x5 Hardware

Support - 3 Yr, 4 hr 13x5 Hardware

Support - 4 Yr, 4 hr 13x5 Hardware

Support - 5 Yr, 4 hr 13x5 Hardware

Support - 1 Yr, 4 hr 24x7 Hardware

Support - 3 Yr, 4 hr 24x7 Hardware

Support - 4 Yr, 4 hr 24x7 Hardware

Support - 5 Yr, 4 hr 24x7 Hardware

Support - 1 Yr, 6 hr, CTR

Support - 3 Yr, 6 hr, CTR

Support - 4 Yr, 6 hr, CTR

Support - 5 Yr, 6 hr, CTR

Support - 1 Yr, Support Plus

Support - 3 Yr, Support Plus

Support - 4 Yr, Support Plus

Support - 5 Yr Support Plus

Support - 1 Yr, Support Plus 24

Support - 3 Yr, Support Plus 24

Support - 4 Yr, Support Plus 24

Support - 5 Yr, Support Plus 24

Support - 1 Yr, Proactive 24 Service

Support - 3 Yr, Proactive 24 Service

Support - 4 Yr, Proactive 24 Service

Support - 5 Yr, Proactive 24 Service

Support - 1 Yr, Critical Service

Support - 3 Yr, Critical Service

Support - 4 Yr, Critical Service

Support - 5 Yr, Critical Service

HP 2000fc Modular Smart Array

Drive Enclosure SKUs: AJ749A, AJ750A

Care Pack

HA109A1#9CL

HA109A3#9CL

HA109A4#9CL

HA109A5#9CL

HA110A1#9CL

HA110A3#9CL

HA110A4#9CL

HA110A5#9CL

HA111A1#9CL

HA111A3#9CL

HA111A4#9CL

HA111A5#9CL

HA112A1#9CL

HA112A3#9CL

HA112A4#9CL

HA112A5#9CL

HA101A1#9CL

HA101A3#9CL

HA101A4#9CL

HA101A5#9CL

HA103A1#9CL

HA103A3#9CL

HA103A4#9CL

HA103A5#9CL

HA104A1#9CL

HA104A3#9CL

HA104A4#9CL

HA104A5#9CL

HA105A1#9CL

HA105A3#9CL

HA105A4#9CL

HA105A5#9CL

DA - 12991 Worldwide — Version 12 — October 12, 2012 Page 13

QuickSpecs

HP 2000fc Modular Smart Array

Service and Support, HP Care Pack, and Warranty Information

Support Services via HP Authorized Commercial

Resellers - Flex Care Packs

Support Description

Support - 1 Yr, 9X5, Software Technical Support

Support - 3 Yr, 9X5, Software Technical Support

Support - 4 Yr, 9X5, Software Technical Support

Support - 5 Yr, 9X5, Software Technical Support

Support - 1 Yr, 24x7, Software Technical Support

Support - 3 Yr, 24x7, Software Technical Support

Support - 4 Yr, 24x7, Software Technical Support

Support - 5 Yr, 24x7, Software Technical Support

Support - 1 Yr, Support Plus

Support - 3 Yr, Support Plus

Support - 4 Yr, Support Plus

Support - 5 Yr, Support Plus

Support - 1 Yr, Support Plus 24

Support - 3 Yr, Support Plus 24

Support - 4 Yr, Support Plus 24

Support - 5 Yr, Support Plus 24

Support - 1 Yr, Proactive 24

Support - 3 Yr, Proactive 24

Support - 4 Yr, Proactive 24

Support - 5 Yr, Proactive 24

Support - 1 Yr, Critical Services

Support - 3 Yr, Critical Services

Support - 4 Yr, Critical Services

Support - 5 Yr, Critical Services

T5512A

Care Pack

HA106A1#9CM

HA106A3#9CM

HA106A4#9CM

HA106A5#9CM

HA107A1#9CM

HA107A3#9CM

HA107A4#9CM

HA107A5#9CM

HA109A1#9CM

HA109A3#9CM

HA109A4#9CM

HA109A5#9CM

HA110A1#9CM

HA110A3#9CM

HA110A4#9CM

HA110A5#9CM

HA111A1#9CM

HA111A3#9CM

HA111A4#9CM

HA111A5#9CM

HA112A1#9CM

HA112A3#9CM

HA112A4#9CM

HA112A5#9CM

Software SKUs:

T5513A

Care Pack

HA106A1#9CN

HA106A3#9CN

HA106A4#9CN

HA106A5#9CN

HA107A1#9CN

HA107A3#9CN

HA107A4#9CN

HA107A5#9CN

HA109A1#9CN

HA109A3#9CN

HA109A4#9CN

HA109A5#9CN

HA110A1#9CN

HA110A3#9CN

HA110A4#9CN

HA110A5#9CN

HA111A1#9CN

HA111A3#9CN

HA111A4#9CN

HA111A5#9CN

HA112A1#9CN

HA112A3#9CN

HA112A4#9CN

HA112A5#9CN

T5514A

Care Pack

HA106A1#9CQ

HA106A3#9CQ

HA106A4#9CQ

HA106A5#9CQ

HA107A1#9CQ

HA107A3#9CQ

HA107A4#9CQ

HA107A5#9CQ

HA109A1#9CQ

HA109A3#9CQ

HA109A4#9CQ

HA109A5#9CQ

HA110A1#9CQ

HA110A3#9CQ

HA110A4#9CQ

HA110A5#9CQ

HA111A1#9CQ

HA111A3#9CQ

HA111A4#9CQ

HA111A5#9CQ

HA112A1#9CQ

HA112A3#9CQ

HA112A4#9CQ

HA112A5#9CQ

T5515A

Care Pack

HA106A1#9CP

HA106A3#9CP

HA106A4#9CP

HA106A5#9CP

HA107A1#9CP

HA107A3#9CP

HA107A4#9CP

HA107A5#9CP

HA109A1#9CP

HA109A3#9CP

HA109A4#9CP

HA109A5#9CP

HA110A1#9CP

HA110A3#9CP

HA110A4#9CP

HA110A5#9CP

HA111A1#9CP

HA111A3#9CP

HA111A4#9CP

HA111A5#9CP

HA112A1#9CP

HA112A3#9CP

HA112A4#9CP

HA112A5#9CP

DA - 12991 Worldwide — Version 12 — October 12, 2012 Page 14

QuickSpecs

HP 2000fc Modular Smart Array

Service and Support, HP Care Pack, and Warranty Information

Support Services via HP Authorized Commercial Resellers - Fixed Care Packs Array SKUs: AJ742A, AJ743A, AJ745A

Support Description Fixed Care Pack Part

Number

HP 1y NBD 9x5 MSA2000 Array HWSupp

HP 1y 4 hr 13x5 MSA2000 Array HWSupp

HP 1y 4h 24x7 MSA2000 Array HWSupp

HP 1y 6h CTR MSA2000 Array HWSupp

HP 3y NBD 9x5 MSA2000 Array HWSupp

HP 3y 4h 13x5 MSA2000 Array HWSupp

HP 3y 4h 24x7 MSA2000 Array HWSupp

HP 3y 6h CTR MSA2000 Array HWSupp

HP 3y 4h 13x5 w/DMR MSA2000 Array HWSupp

HP 3y 4h 24x7 w/DMR MSA2000 Array HWSupp

HP 3y 6h CTR w/DMR MSA2000 Array HWSupp

HP 4y NBD 9x5 MSA2000 Array HWSupp

HP 4y 4h 13x5 MSA2000 Array HWSupp

HP 4y 4h 24x7 MSA2000 Array HWSupp

HP 4y 6h CTR MSA2000 Array HWSupp

HP 5y NBD 9x5 MSA2000 Array HWSupp

HP 5y 4h 13x5 MSA2000 Array HWSupp

HP 5y 4h 24x7 MSA2000 Array HWSupp

HP 5y 6h CTR MSA2000 Array HWSupp

HP 5y 4h13x5 w/DMR MSA2000 Array HWSup

HP 5y 4h 24x7 w/DMR MSA2000 Array HWSupp

HP 5y 6h CTR w/DMR MSA2000 Array HWSupp

HP 1Y PW NBD MSA2000 Array HWSupp

HP 1Y PW 4H 13x5 MSA2000 Array HWSupp

HP 1Y PW 4H 24x7 MSA2000 Array HWSupp

HP 1Y PW 6H CTR MSA2000 Array HWSupp

UJ677E

UJ678E

UJ679E

UJ680E

UJ681E

UJ682E

UJ683E

UJ684E

UJ669E

UJ670E

UJ671E

UJ672E

UJ673E

UJ674E

UJ675E

UJ676E

UJ685E

UJ686E

UJ687E

UJ688E

UJ689E

UJ690E

UK193PE

UK194PE

UK195PE

UK196PE

DA - 12991 Worldwide — Version 12 — October 12, 2012 Page 15

QuickSpecs

HP 2000fc Modular Smart Array

Service and Support, HP Care Pack, and Warranty Information

Support Services via HP Authorized Commercial Resellers - Fixed Care Packs Drive Enclosure SKUs: AJ749A, AJ750A

Support Description Fixed Care Pack Part

Number

HP 1y NBD 9x5 MSA2000 Enclosure HWSupp

HP 1y 4h 13x5 MSA2000 Enclosure HWSupp

HP 1y 4h 24x7 MSA2000 Enclosure HWSupp

HP 1y 6h CTR MSA2000 Enclosure HWSupp

HP 3y NBD 9x5 MSA2000 Enclosure HWSupp

HP 3y 4h 13x5 MSA2000 Enclosure HWSupp

HP 3y 4h 24x7 MSA2000 Enclosure HWSupp

HP 3y 6h CTR MSA2000 Enclosure HWSupp

HP 3y 4h 13x5 w/DMR MSA2000 Encl HWSup

HP 3y 4h 24x7 w/DMR MSA2000 Encl HWSup

HP 3y 6h CTR w/DMR MSA2000 Encl HWSupp

HP 4y NBD 9x5 MSA2000 Enclosure HWSupp

HP 4y 4h 13x5 MSA2000 Enclosure HWSupp

HP 4y 4h 24x7 MSA2000 Enclosure HWSupp

HP 4y 6h CTR MSA2000 Enclosure HWSupp

HP 5y NBD 9x5 MSA2000 Enclosure HWSupp

HP 5y 4h 13x5 MSA2000 Enclosure HWSup

HP 5y 4h 24x7 MSA2000 Enclosure HWSupp

HP 5y 6h CTR MSA2000 Enclosure HWSupp

HP 5y 4h13x5 w/DMR MSA2000 Enclosure HWSupp

HP 5y 4h 24x7 w/DMR MSA2000 Encl HWSup

HP 5y 6h CTR w/DMR MSA2000 Encl HWSup

HP 1Y PW NBD MSA2000 Enclosure HWSupp

HP 1Y PW 4H 13x5 MSA2000 Encl HWSup

HP 1Y PW 4H 24x7 MSA2000 Encl HWSup

HP 1Y PW 6H CTR MSA2000 Encl HWSupp

NOTE: DMR is not available in Europe

UK239E

UK240E

UK241E

UK242E

UK243E

UK244E

UK245PE

UK246PE

UK247PE

UK248PE

UK231E

UK232E

UK233E

UK234E

UK235E

UK236E

UK237E

UK238E

UK223E

UK224E

UK225E

UK226E

UK227E

UK228E

UK229E

UK230E

Support Services via HP Authorized Commercial Resellers - Fixed Care Packs Software SKUs: T5512A, T5513A, T5514A, T5515A

Support Description

HP 3y 24x7 MSA2000 Snpsht64 SW Support

HP 3y 24x7 MSA2000 Snpsht8 SW Support

HP 3y 24x7 MSA2000 Snpsht8-64 SW Supp

HP 3y 24x7 MSA2000 Vol Copy SW Supp

Fixed Care Pack Part

Number

UK249E

UK250E

UK251E

UK252E

DA - 12991 Worldwide — Version 12 — October 12, 2012 Page 16

QuickSpecs

Configuration Information

1. Expansion Port

2. Ethernet Port

3. CLI Port

Dual Controller MSA2000fc

4. Service Port

5. Fibre Channel Ports

6. Power Switch

HP 2000fc Modular Smart Array

1. Service Port

2. Unit Locator

3. Power Switch

4. DC Voltage / Fan Fault

MSA2000 Dual I/O 3.5" 12 Drive Enclosure

5. AC Power Good

6. SAS In Port

7. SAS Out Port

DA - 12991 Worldwide — Version 12 — October 12, 2012 Page 17

QuickSpecs

HP 2000fc Modular Smart Array

Configuration Information

Configure to Order Program Information

HP introduces the new Configure to Order program for the MSA2000 family The MSA2000 models and options may or may not be factory installed in a rack with add-on controllers, switches, hubs, MSA2000 disk enclosures and hard drives. The MSA2000 arrays may be integrated with ProLiant servers or as standalone storage.

Description Product #

HP 2012fc Single Controller Modular Smart Array

HP 2012fc Dual Controller Modular Smart Array

HP 2000fc Modular Smart Array Controller (for 2012fc Single Controller model)

HP 2212fc DC Enhanced Modular Smart Array

HP MSA2000 3.5in Single I/O 12 Drive Encl

HP MSA2000 3.5in Dual I/O 12 Drive Encl

HP MSA2000 Drive Enclosure I/O Module

HP MSA2 146GB 3G 15K 3.5 inch SAS HDD

HP MSA2 300GB 3G 15K 3.5 inch SAS HDD

HP MSA2 450GB 3G 15K 3.5 inch SAS HDD

HP MSA2 500GB 7.2K 3.5 inch SATA HDD

HP MSA2 750GB 7.2K 3.5 inch SATA HDD

HP MSA2 1TB 7.2K 3.5 inch SATA HDD

AJ742A#0D1

AJ743A#0D1

AJ744A#0D1

AJ745A#0D1

AJ749A#0D1

AJ750A#0D1

AJ751A#0D1

AJ735A#0D1

AJ736A#0D1

AJ737A#0D1

AJ738A#0D1

AJ739A#0D1

AJ740A#0D1

Step 1 - MSA2000fc - Base Configuration

Select one:

Model Name

MSA2012fc

MSA2012fc

MSA2212fc

Model Description:

HP 2012fc Dual Controller Modular Smart Array

HP 2012fc Single Controller Modular Smart Array

HP 2212fc Dual Enhanced Controller Modular Smart Array

Part Number

AJ743A

AJ742A

AJ745A

Step 2 - Options

Select each option with quantities specified.

NOTE: SATA drives are designed for archival or reference data. They should not be used in a heavy or intense I/O environment. Those situations require the use of enterprise-class SAS drives. MSA2 3.5” drives are for use only with MSA2000 products.

Step 2a - Options

Description with Parts Shipped: Quantity Part Number

The base controller chassis with one or two controllers has twelve drive bays for both SAS and/or SATA drives. For additional twelve additional drive bays purchase an MSA2000 3.5" Disk Enclosure. You may attach a total of three Drive Enclosures for a total of fortyeight drive bays. Single controller arrays support Single I/O Disk Enclosures, dual controller arrays support Dual I/O Disk Enclosures.

Step 2b - SAS and SATA Drive Options

NOTE: MSA2000 3.5" drives are for use only with MSA2000 products.

HP MSA2 146GB 3G 15K 3.5 inch Dual-port SAS HDD AJ735A

DA - 12991 Worldwide — Version 12 — October 12, 2012 Page 18

QuickSpecs

HP 2000fc Modular Smart Array

Configuration Information

HP MSA2 300GB 3G 15K 3.5 inch Dual-port SAS HDD

HP MSA2 450GB 3G 15K 3.5 inch Dual-port SAS HDD

HP MSA2 500GB 7.2K 3.5 inch SATA HDD

HP MSA2 750GB 7.2K 3.5 inch SATA HDD

HP MSA2 1TB 7.2K 3.5 inch SATA HDD

AJ736A

AJ737A

AJ738A

AJ739A

AJ740A

Step 2c - Drive Enclosure Options

Should you want a drive enclosure, the model you choose depends on which array model it attaches to. If it is a single controller array, then choose the JBOD designated as "Single I/O". If it is attaching to a dual controller array then choose the "Dual I/O" JBOD

HP MSA2000 Single I/O 3.5 in 12 Drive Enclosure AJ749A

HP MSA2000 Dual I/O 3.5 inch 12 Drive Enclosure

SAS Cables

AJ750A

HP Ext SAS 1m Cable

HP Ext SAS 2m Cable

HP Ext SAS 4m Cable

389665-B21

389668-B21

389671-B21

Step 3 - Other MSA2000fc Options

Description

HP 2000fc Modular Smart Array Controller

(for future upgrading of a single controller Fibre Channel array to a dual controller model)

HP MSA2000 Drive Enclosure I/O Module

(for future upgrading of a single I/O 3.5" Disk Enclosure to a dual controller model)

Choose optional Power Cord for Non-U.S. Configurations

NOTE: Shipped standard with all units.

Power Cord, 220/240 VAC, (US/Canada/Mexico)

Power Cord, (Australia/China/New Zealand)

Power Cord, (Central Europe)

Power Cord, (United Kingdom/Hong Kong)

Power Cord, (Switzerland)

Power Cord, (Italy)

Power Cord, (Denmark)

Power Cord, (Japan)

Power Cord, (South East Asia/India)

Quantity

Step 4 - Choose Supported Options For Fibre Channel Infrastructure

Fibre Channel

Host Bus Adapters

Model

FC2242SR

FC2142SR

FC2243

FC2143

Description

4Gb PCI-E Dual Channel HBA for Windows and Linux

4Gb PCI-E for Windows and Linux

4Gb PCI-X Dual Channel for Windows and Linux

4Gb PCI-X 2.0 for Windows and Linux

2

2

2

2

2

2

2

2

2

Part Number

AJ744A

AJ751A

227099-001

227098-001

157215-001

157216-001

157219-001

157217-001

157218-001

139867-001

157220-001

Part Number

A8003A

A8002A

AD168A

AD167A

DA - 12991 Worldwide — Version 12 — October 12, 2012 Page 19

QuickSpecs

HP 2000fc Modular Smart Array

Configuration Information

FC1243

FC1242SR

FC1142SR

FC1243

FC1143

Bladeserver HBA

Bladeserver HBA

81E

82E

81Q

82Q

HP Dual Channel 4Gb PCI-X 2.0 HBA

HP 81Q PCIe 8Gb Fibre Channel HBA

HP 82Q PCIe Dual Channel 8Gb HBA

HP 81E PCIe 8Gb Fibre Channel HBA

HP 82E PCIe Dual Channel 8Gb HBA

4Gb PCI-E Dual Channel HBA for Windows and Linux

4Gb PCI Express HBA for Windows and Linux

4Gb PCI-X 2.0 Dual Channel for Windows and Linux

4Gb PCI-X 2.0 for Windows and Linux

Lpe1105-HP 4Gb FC HBA for HP c-Class BladeSystem

(future Linux support)

QMH2462 4Gb FC HBA for HP c-Class BladeSystem

Windows and Linux

8Gb, PCIe to Fibre Channel Host Bus Adapter for Windows,

Windows Server, and Linux.

8Gb, PCIe to Fibre Channel Host Bus Adapter for Windows,

Windows Server, and Linux

8Gb, PCIe to Fibre Channel Host Bus Adapter for Windows,

Windows Server, and Linux

8Gb, Dual Channel PCIe to Fibre Channel Host Bus Adapter for Windows, Windows Server, and Linux

Fibre Channel Switches

Brocade 4/12 SAN Switch for HP c-Class Blade System, Base

Brocade 4/24 SAN Switch for HP c-Class Blade System, Full Fabric

Brocade 4/24 SAN Switch for HP c-Class Blade System, Power Pack

HP 4/8 Base SAN Switch

HP 4/16 SAN Switch

HP 4/16 SAN Switch Power Pack

HP 4/8 SAN Switch

HP 4/32B Base SAN Switch

HP 4/32B Full SAN Switch

HP 4/32B Power Pack SAN Switch

HP 8/8 Base SAN Switch

HP 8/8 SAN Switch

HP 8/24 Base SAN Switch

HP 8/40 Base SAN Switch

HP 8/40 Power Pack SAN Switch

Brocade 8/12c SAN Switch for HP BladeSystem c-Class

Brocade 8/24c SAN Switch for HP BladeSystem c-Class

Brocade 8/24c SAN Switch for HP BladeSystem c-Class Power Pack+

8 Gb Simple SAN Connection (restrictions apply)

AE369A

AK344A

AJ764A

AJ762A

AJ763A

AE312A

AE311A

AE369A

AB429A

403621-B21

403619-B21

AJ762A

AJ763A

AK344A

AJ764A

AG756A

AG757A

AG758A

AM866A

AM867A

AM868A

AM869A

AM870A

AE370A

AE372A

AE371A

A7984A

A7985A

A7987A

A8000A

AJ820A

AJ821A

AJ822A

DA - 12991 Worldwide — Version 12 — October 12, 2012 Page 20

QuickSpecs

HP 2000fc Modular Smart Array

Configuration Information

Fibre Channel Cables

HP 8/20q Fibre Channel Switch (16 switch ports active)

HP 8Gb Simple SAN Connection Kit (8 switch ports active)

Cisco MDS 9124 8-ports Active Fabric Switch

Cisco MDS 9124 16-ports Active Fabric Switch

Cisco MDS 9124 24-ports Active Fabric Switch

Cisco MDS 9124e 12-port Fabric Switch for HP c-Class BladeSystem

Cisco MDS 9124e 24-port Fabric Switch for HP c-Class BladeSystem

Cisco MDS 9134 24-ports Active Fabric Switch

Cisco MDS 9134 32-ports Active Fabric Switch

Cisco MDS 9134 26-ports Active w/kit for 48 port solution

Cisco MDS 9134 34-ports Active w/kit for 64 port solution

MDS 9222i Multiservice Modular Switch w/0 SFPs

Cisco MDS 9216i w/o Ethernet SFP switch

Cisco MDS 9216i

2 m LC-LC Multi-Mode Fibre Channel Cable

5 m LC-LC Multi-Mode Fibre Channel Cable

15 m LC-LC Multi-Mode Fibre Channel Cable

30 m LC-LC Multi-Mode Fibre Channel Cable

50 m LC-LC Multi-Mode Fibre Channel Cable

2 m LC-SC Multi-Mode Fibre Channel Cable

5 m LC-SC Multi-Mode Fibre Channel Cable

15 m LC-SC Multi-Mode Fibre Channel Cable

30 m LC-SC Multi-Mode Fibre Channel Cable

50 m LC-SC Multi-Mode Fibre Channel Cable

221692-B21

221692-B22

221692-B23

221692-B26

221692-B27

221691-B21

221691-B22

221691-B23

221691-B26

221691-B27

AK242A

AK241A

AG646A

AG647A

AG648A

AG641A

AG642A

AG874A

AG875A

AJ732A

AJ733A

AG851A

AE390A

AE390A

Step 5 - Choose Rack Options

Select each required option with quantities specified.

Rack Cabinet, Customer Assembled

5642 – 5000 Series rack

14U rack

HP S10614 Rack with Shock Pallet

Rack Cabinets 10622 G2

10622 G2 Universal Rack w/Shock Pallet

10622 G2 Universal Rack w/Standard Pallet

Rack Cabinets under 10636 G2

10636 G2 (36U) Rack Cabinet – Pallet

10636 G2 (36U) Rack Cabinet – Shock Pallet

358254-B21

292302-B22

AF022A

AF021A

AF011A

AF012A

DA - 12991 Worldwide — Version 12 — October 12, 2012 Page 21

QuickSpecs

Configuration Information

10636 G2 (36U) Rack Cabinet – Crated

10636 G2 (36U) Rack Cabinet, with Extension - Shock Pallet

Rack Cabinets 10642 G2

10642 G2 (42U) Rack Cabinet – Pallet

10642 G2 (42U) Rack Cabinet – Shock Pallet

10642 G2 (42U) Rack Cabinet – Crated

10642 G2 (42U) Rack Cabinet, with Extension - Shock Pallet

Modular Cooling System G2 (MCS G2)

MCS G2 10642 G2 Expansion Rack

Rack Cabinets 10842 G2

10842 G2 Universal Rack w/Shock Pallet

10842 G2 Universal Rack w/Standard Pallet

Rack Cabinets 10647 G2

10647 Rack G2 Pallet

HP 2000fc Modular Smart Array

AF013A

AF014A

AF001A

AF002A

AF003A

AF004A

AF025A

AF026A

AF042A

AF041A

AF031A

DA - 12991 Worldwide — Version 12 — October 12, 2012 Page 22

QuickSpecs

Technical Specifications

HP 2000fc Modular Smart Array

MSA2000fc POWER REQUIREMENTS

Input Power Requirements 100-240VAC, 50/60 Hz, 4.5-1.9A

Max Input Power 475W maximum continuous

Heat Dissipation 1622 BTU/hour

TEMPERATURE AND HUMIDITY RANGES

Operating Temperature 41° F to 104° F (5° C to 40° C)

Shipping Temperature -40° F to 158° F (-40° C to 70° C) meters

NOTE: Derate 2° C for every km, up to 3000

Operating Humidity 10% to 90% RH @ 104° F (40° C), non-condensing

Non-Operating Humidity Up to 93% RH @ 104° F (40° C), non-condensing

DECLARED ACOUSTIC NOISE LEVELS

Sound Power

Sound Pressure

<6.03B Sound Power

<55dBA Sound Pressure

SHOCK AND VIBRATION

Shock, Operational 5.0G, 10ms, half sine

Shock, Non-Operational 15G 11ms, half sine

Vibration, Operational 0.21Grms Random 5Hz to 500Hz flat spectrum/feed forward

Vibration, Non-Operational 0.5G 1 octave/minute 5Hz to 500Hz to 5 Hz sine sweep

0.5Grms Random 20Hz to-1000Hz flat spectrum

PHYSICAL

Height 3.5 in (8.9 cm)

Depth (excluding cables) 23.7 in (60.2 cm)

Width 17.6 in (44.7 cm)

Chassis Weight 44 lbs (19.96 kg)

Modular SAN Array 2000fc User Interface

Controller

RAID Support

Cache Memory

- Status and activity provided via management interfaces Status Indicators on front of Controller

0, 1, 3, 5, 6, 10, 50

Cache Backup

1GB Read/Write. ECC protection with backup to Flash memory (indefinite backup)

ECC protection with back up to flash memory (indefinite backup)

Upgradeable Firmware

- yes - partner firmware update (PFU)

Disk Drive and Enclosure

Protocol Support

3Gb SAS - Serial Attached SCSI / 3 Gb SATA II

Expansion Port

One 4X SAS connector (SFF8470) Expand up to 3 more disk enclosures

DA - 12991 Worldwide — Version 12 — October 12, 2012 Page 23

QuickSpecs

HP 2000fc Modular Smart Array

Technical Specifications

Regulatory Safety

Electromagnetic

Compatibility

RoHS and WEEE

Country Approvals

UL 60950-1:2003 (USA)

CAN/CSA-C22.2 No.60950-1-03 (Canada)

EN 60950-1 :2001 + A11 (European Union)

IEC 60950-1 :2001 (International)

CFR 47 Part 15 Subpart B (U.S.A., Class A)

ICES-003 Issue 4 (Canada, Class A)

EN 55022 :98 +A1 +A2 (European Union, Class A)

EN61000-3-2:2000+A1,+A2,+A14 (Harmonics)

EN 61000-3-3 :2001 (Flicker)

EN 55024 :1998 +A1 (European Union, Immunity)

CISPR 22 :2005 (International, Class A)

CISPR 24 :97 (International, Immunity)

RoHS-5 Compliance , China RoHS, WEEE

Australia/New Zealand, Canada, China (PRC), European Union, Germany (GS

Mark), Japan, South Korea, Taiwan, United States

© Copyright 2011 Hewlett-Packard Development Company, L.P.

The information contained herein is subject to change without notice.

Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel is a US registered trademark of Intel

Corporation. Unix is a registered trademark of The Open Group.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

DA - 12991 Worldwide — Version 12 — October 12, 2012 Page 24

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
