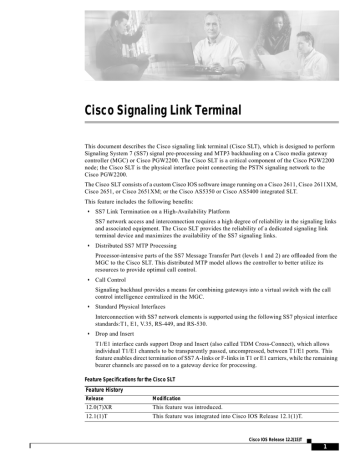

This document describes the Cisco signaling link terminal (Cisco SLT), which is designed to perform
Signaling System 7 (SS7) signal pre-processing and MTP3 backhauling on a Cisco media gateway
controller (MGC) or Cisco PGW2200. The Cisco SLT is a critical component of the Cisco PGW2200
node; the Cisco SLT is the physical interface point connecting the PSTN signaling network to the
Cisco PGW2200.
The Cisco SLT consists of a custom Cisco IOS software image running on a Cisco 2611, Cisco 2611XM,
Cisco 2651, or Cisco 2651XM; or the Cisco AS5350 or Cisco AS5400 integrated SLT.
This feature includes the following benefits:
•
SS7 Link Termination on a High-Availability Platform
SS7 network access and interconnection requires a high degree of reliability in the signaling links
and associated equipment. The Cisco SLT provides the reliability of a dedicated signaling link
terminal device and maximizes the availability of the SS7 signaling links.
•
Distributed SS7 MTP Processing
Processor-intensive parts of the SS7 Message Transfer Part (levels 1 and 2) are offloaded from the
MGC to the Cisco SLT. This distributed MTP model allows the controller to better utilize its
resources to provide optimal call control.
•
Call Control
Signaling backhaul provides a means for combining gateways into a virtual switch with the call
control intelligence centralized in the MGC.
•
Standard Physical Interfaces
Interconnection with SS7 network elements is supported using the following SS7 physical interface
standards:T1, E1, V.35, RS-449, and RS-530.
•
Drop and Insert
T1/E1 interface cards support Drop and Insert (also called TDM Cross-Connect), which allows
individual T1/E1 channels to be transparently passed, uncompressed, between T1/E1 ports. This
feature enables direct termination of SS7 A-links or F-links in T1 or E1 carriers, while the remaining
bearer channels are passed on to a gateway device for processing.
Feature Specifications for the Cisco SLT
Feature History
Release
Modification
12.0(7)XR
This feature was introduced.
12.1(1)T
This feature was integrated into Cisco IOS Release 12.1(1)T.
Cisco IOS Release 12.2(15)T
1
Cisco Signaling Link Terminal
Contents
12.2(15)T
Support was added for the Cisco 2611XM and Cisco 2651XM SLT; and
Cisco AS5350 and Cisco AS5400 integrated SLT.
Supported Platforms
For platforms supported in Cisco IOS Release 12.1(1)T and 12.2(15)T, consult Cisco Feature
Navigator.
Finding Support Information for Platforms and Cisco IOS Software Images
Use Cisco Feature Navigator to find information about platform support and Cisco IOS software image
support. Access Cisco Feature Navigator at http://www.cisco.com/go/fn. You must have an account on
Cisco.com. If you do not have an account or have forgotten your username or password, click Cancel at
the login dialog box and follow the instructions that appear.
Contents
•
Prerequisites for Configuring the Cisco SLT, page 2
•
Restrictions for the Cisco SLT feature, page 4
•
Information About the Cisco SLT, page 4
•
How to Configure the Cisco SLT, page 9
•
Configuration Examples for the Cisco SLT, page 30
•
Additional References, page 37
•
Command Reference, page 40
•
Glossary, page 125
Prerequisites for Configuring the Cisco SLT
The Cisco SLT consists of a custom Cisco IOS software image running on a Cisco 2611, Cisco 2651,
Cisco 2611XM, or Cisco 2651XM. For information about the Cisco AS5350 and Cisco AS5400 SLTs,
refer to the Integrated Signaling Link Terminal feature document on Cisco.com.
Note
The Cisco SLT requires a minimum of 64 MB of DRAM beginning with Cisco IOS Release 12.2(15)T
and later releases.
The router must be equipped with at least one of the following interface cards:
•
1-port T1 multiflex trunk interface (VWIC-1MFT-T1)
•
1-port E1 multiflex trunk interface (VWIC-1MFT-E1)
•
2-port T1 multiflex trunk interface (VWIC-2MFT-T1)
•
2-port E1 multiflex trunk interface (VWIC-2MFT-E1)
•
2-port T1 multiflex trunk interface with Drop and Insert (VWIC-2MFT-T1-DI)
•
2-port E1 multiflex trunk interface with Drop and Insert (VWIC-2MFT-E1-DI)
•
1-port high-speed serial interface (WIC-1T)
•
2-port high-speed serial interface (WIC-2T)
Cisco IOS Release 12.2(15)T
2
Cisco Signaling Link Terminal
Prerequisites for Configuring the Cisco SLT
Although only two MTP 2 links can be terminated using the Cisco SLT, the two MTP 2 links can be
terminated by using both ports of a 2-port VWIC/WIC, or two links can be terminated across two
VWIC/WICs, one on each.
The following minimum hardware is required:
•
For 2T WICs, an individual cable from the following list is needed for each interface being used for
link termination:
– RS-449: CAB-SS-449FC RS-449 cable, DCE female to smart serial, 10 feet; CAB-SS-449MT
RS-449 cable, DTE male to smart serial, 10 feet
– RS-530: CAB-SS-530AMT RS-530 cable, DTE Male to smart serial, 10 feet (no female RS-530
available)
– V.35: CAB-SS-V35FC V.35 cable, DCE female to smart serial, 10 feet; CAB-SS-V35MT V.35
cable, DTE male to smart serial, 10 feet
•
For 1T WICs, an individual cable from the following list is needed for each interface being used for
link termination:
– RS-449: CAB-449MT RS-449 cable, DTE, male, 10 Feet; CAB-449FC RS-449 cable, DCE,
female, 10 feet
– RS-530: CAB-530MT RS-530 cable, DTE, male, 10 feet (no female RS-530 available)
– V.35: CAB-V35MT V.35 cable, DTE, male, 10 feet; CAB-V35FC V.35 cable, DCE, female, 10
feet
•
For a T1/E1 VWIC, a T1/E1 cable with RJ-45 connector is required
•
Cable connectors—RS-449, RS-530, V.35, and gender—depend upon your preference and
requirements
•
The power source (48V or AC)—depends on your preference and requirements
The Cisco SLT ships standard with the following:
•
Internal power supply as specified by the Cisco SLT product number (TC-SLT xxx-DC or
TC-SLT-xxxx-AC)
•
Cisco IOS SLT feature set (release specified by customer)
•
Minimum recommended DRAM and Flash to support a Cisco SLT feature set:
– Cisco 2611 and Cisco 2651—64 MB DRAM and 16 MB Flash
– Cisco 2611XM and Cisco 2651XM—64 MB DRAM and 16 MB Flash
•
Power cord (customer-specified option)
•
Network Equipment Building Systems (NEBS) European Telecommunication Standards Institute
(ETSI) compliance kit including 23/24” rack mounts, grounding lug kit, shielded LAN cables and
bezel removal kit (for additional unit depth reduction)
•
Configuration documentation
•
Reference documentation (on CD-ROM)
•
Auxiliary cable
•
Console cable
Optional items include the following:
•
One or two interface cards (one card is mandatory)
•
64 MB DRAM memory upgrade
Cisco IOS Release 12.2(15)T
3
Cisco Signaling Link Terminal
Restrictions for the Cisco SLT feature
Note
•
Serial transition cables
•
Spare memory for inventory purposes
If you are using a Cisco 2611, DRAM may be increased by ordering MEM2600-32D= in either a
quantity of 1 or 2 to replace one or both existing DRAM Dual In-line Memory Modules (DIMMs). Flash
can be increased in a Cisco 2611 equipped with 4MB or 8MB of Flash by ordering Cisco part number
MEM2600-16FS= to replace the existing Flash SIMM.
Restrictions for the Cisco SLT feature
•
Only the following Interface Cards are supported. No other cards, or Cisco 2600 or Cisco 3600
series network modules, are supported.
– 1-port T1 multiflex trunk interface (VWIC-1MFT-T1)
– 1-port E1 multiflex trunk interface (VWIC-1MFT-E1)
– 2-port T1 multiflex trunk interface (VWIC-2MFT-T1)
– 2-port E1 multiflex trunk interface (VWIC-2MFT-E1)
– 2-port T1 multiflex trunk interface with Drop and Insert (VWIC-2MFT-T1-DI)
– 2-port E1 multiflex trunk interface with Drop and Insert (VWIC-2MFT-E1-DI)
– 1-port high-speed serial interface (WIC-1T)
– 2-port high-speed serial interface (WIC-2T)
•
Only SS7 serial interfaces and protocols are supported. There is no support for HDLC, PPP, Frame
Relay, ATM, X.25, or other non-SS7 serial WAN protocols.
•
Only two SS7 signaling links are supported on the Cisco 2611- and Cisco 2611XM-based SLT.
•
Up to four SS7 signaling A-links are supported on the Cisco 2651- and Cisco 2651XM-based SLT.
•
Up to four SS7 signaling links are supported on the Cisco AS5350- and Cisco AS5400-based
integrated SLT.
•
Only one SS7 signaling link is supported per T1 or E1 port.
Information About the Cisco SLT
Before you configure the Cisco Signaling Link Terminal feature, you should understand the following
concepts:
•
Cisco SLT, page 5
•
Cisco Session Manager, page 6
•
Interface Card, page 6
•
Cisco 2611 and Cisco 2651 SLT, page 7
•
Cisco 2611XM and Cisco 2651XM SLT, page 7
•
Cisco AS5350 and Cisco AS5400 Integrated SLT, page 7
Cisco IOS Release 12.2(15)T
4
Cisco Signaling Link Terminal
Information About the Cisco SLT
Cisco SLT
As part of a complete Cisco Systems end-to-end solution, the Cisco SLT enables Service Providers to
reliably transport SS7 protocols across an IP network. The Cisco SLT uses the Cisco Internetworking
Operating System SS7 Cisco SLT feature set, providing reliable interoperability with the MGC.
The Cisco SLT uses Cisco Reliable User Datagram Protocol (RUDP) to backhaul, or transport,
upper-layer SS7 protocols across an IP network. Figure 1 shows a typical Cisco SLT network.
Figure 1
Cisco SLT Network
SLT 2600
VSC
MTP3/RUDP/IP
IP
SS7
PSTN
NAS
Voice packet
network
(IP/ATM)
52603
MGCP
The Cisco SLT supports the following:
•
Message Transfer Part Level 3 (MTP 3)
•
Integrated Service Digital Network User Part (ISUP)
•
Signaling Connection Control Part (SCCP)
•
Transaction Capabilities Application Part (TCAP)
•
Advanced Intelligent Network (AIN)
•
Intelligent Network Application Part (INAP)
The Cisco SLT supports the following Message Transfer Part level 1 (MTP 1) functions:
•
Terminate up to two 64-Kbps or 56-Kbps SS7 signaling links
•
T1, E1, V.35, RS-449, or RS-530 physical interfaces to the SS7 network
The Cisco SLT supports the following Message Transfer Part level 2 (MTP 2) functions:
•
Link State Control (LSC)-Provides the overall coordination of the session.
•
Initial Alignment Control (IAC)-Provides the link alignment processing.
•
Transmission control-Provides the transmit flow control and processing.
•
Reception control-Provides the receive flow control and processing.
•
Congestion control-Provides congestion onset and abatement processing.
•
Signal Unit Error Rate Monitor (SUERM)-Provides monitoring of signal unit events.
•
Signal unit delimitation-Detecting individual signal units
•
Signal unit alignment-Enforcing signal unit encoding rules and bit patterns
•
Error detection-Detecting bit errors in signal units by using the cyclic redundancy check (CRC) field
•
Error correction-Using positive and negative acknowledgments and re-transmitting errored signal
units
Cisco IOS Release 12.2(15)T
5
Cisco Signaling Link Terminal
Information About the Cisco SLT
•
Alignment Error Rate Monitor (AERM)-Provides monitoring of link alignment errors.
Cisco Session Manager
The session manager software manages the communication sessions with the Cisco MGC. When the
Cisco SLT is used with a redundant pair of controllers, the session manager maintains separate
communication sessions with each controller in the pair. The session between the Cisco SLT and the
active controller transports the SS7 traffic, while the session between the Cisco SLT and the standby
controller provides backup.
The session manager uses RUDP to communicate between the Cisco SLT and the controller. RUDP is a
simple, connection-oriented, packet-based transport protocol that is Cisco-proprietary and based on RFC
908 (Reliable Data Protocol) and RFC 1151(version 2 of the Reliable Data Protocol).
RUDP helps establish a reliable connection between a client and a server and provides flow and
congestion control. The term client refers to the peer that initiates the connection and the term server
refers to the peer that listened for the connection. At each end, the connection is made using the IP
address of the peer and a specified User Datagram Protocol (UDP) port.
In combination with this application specific version of the Cisco IOS, the Cisco SLT hardware
component leverages the widely deployed Cisco 2611 Multiservice Access Router. The Cisco 2611 has
an RISC CPU architecture providing high performance routing. The Cisco 2600 series routers meet
service provider's critical physical requirements for equipment depth fitting right alongside transmission
equipment on standard 12 inch deep with a 1 Rack-unit height. NEBs compliance is assured by using the
NEBs/ETSI Kit included with the TC -SLT. Common Language Equipment Identification (CLEI) coding
is provided for easy identification and tracking of central-office equipment. Internal DC, or AC power
supplies or a redundant AC power supply adapter options are available.
Specifically, when used for Cisco SLT applications, the modular Cisco 2611 dual Ethernet port router
can be configured with dual serial as well as the Multiflex interface cards with integrated E1 DSUs or
T1 CSU/DSUs WAN interface cards. These interface cards permit fast servicing as Field Replaceable
Units (FRUs). For additional flexibility the Multiflex interface cards may also be ordered with a
dual-port Drop and Insert capability.
Interface Card
When used with the Cisco 2611, Cisco 2611XM, Cisco 2651, or Cisco 2651XM, the T1/E1 Multiflex
interface cards provide a highly manageable and reliable one-box solution for Central Offices. These
Multiflex cards offer the following features:
•
Single or dual port, T1 or E1 functionality
•
E1 versions support both balanced and unbalanced modes
•
Physical layer alarm forwarding between the two E1/T1 ports on dual-port cards
•
Drop and Insert (also called TDM Cross-Connect) between the T1/E1 ports on dual-port cards, used
to hairpin bearer channels to a media gateway device and allowing the interchange of time-division
multiplexing (TDM) slots between the ports on a two-port card
•
Shared between Cisco 2600 and Cisco 3600 series for common inventory sparing for various
network applications
For additional information about the T1/E1 multiflex trunk interface cards, see Cisco WAN Interface
Cards Hardware Installation Guide.
Cisco IOS Release 12.2(15)T
6
Cisco Signaling Link Terminal
Information About the Cisco SLT
The dual-port serial WAN interface cards feature the Cisco compact high-density Smart Serial connector
to support a wide variety of electrical interfaces when used with the appropriate transition cables. Ports
on each card can be configured individually to support a variety of synchronous or asynchronous
protocols. The high-speed WIC-2T supports port speeds up to 2.048 Mbps.
The single serial port WIC-1T supports synchronous-only connections using the Cisco 5-in-1 connector.
It should be noted this card does not use the same transition cables as the WIC-2T.
Cisco 2611 and Cisco 2651 SLT
The Cisco SLT is supported on legacy Cisco 2611 and Cisco 2651 platforms. Refer to the End of Sale
Announcement for Cisco 2600 (Non XM) VPN Bundles document on Cisco.com.
Cisco 2611XM and Cisco 2651XM SLT
The Cisco 2600XM multiservice routers are based on the current Cisco 2600 platform architecture and
extend system performance by increasing default platform memory. The new XM functionality provides
the same proven technology of the current Cisco 2600 Series platforms, including Cisco IOS software
mainline feature support and the modularity of Network Modules (NMs), WAN Interface Cards (WICs)
and Advanced Integration Modules (AIMs).
The Cisco 2611XM and Cisco 2651XM support FastEthernet interfaces and contain a common
motherboard across the Cisco 2600XM product line. The Cisco 2600XM uses Synchronous Dynamic
RAM (SDRAM) memory, rather than the older extended data output (EDO) memory that was used in
the Cisco 2611 and Cisco 2651 platforms, which allows improvement in packet throughput.
Current Cisco SLT software automatically downloads the correct SS7 micropatch to migrate from the
Cisco 2600-based SLT to the Cisco 2600XM-based SLT. The Cisco 2611XM and Cisco 2651XM use the
same Motorola MPC860 processor as the Cisco 2611 and Cisco 2651 platforms and run at the same
processor clock speeds.
The existing supported Cisco IOS software image for Cisco SLTs (c2600-ipss7-mz) operates on the
Cisco 2611XM and Cisco 2651XM with no user changes required.
The Cisco 2611XM and Cisco 2651XM platforms are backwards compatible with the following
Cisco SLT features:
•
56K CSU Support for the Cisco Signaling Link Terminal
•
Cisco Signaling Link Terminal Dual Ethernet
•
G.732 Support for the Integrated Signaling Link Terminal
•
Integrated Signaling Link Terminal
•
Multiple OPC Support for the Signaling Link Terminal
•
SS7 Four-Link Support for Cisco Signaling Link Terminal
Cisco AS5350 and Cisco AS5400 Integrated SLT
The integrated SLT pulls existing Cisco distributed MTP SS7 signaling architecture
functionality—previously available only on Cisco 2600-based SLTs—directly onto a single
Cisco AS5350 or Cisco AS5400 gateway. Like the Cisco 2600-based SLT, the integrated SLT on a
Cisco AS5350 or Cisco AS5400 backhauls upper-layer SS7 protocols across an IP network using RUDP,
terminating the MTP1 and MTP2 layers of the SS7 protocol stack at the MGC or Cisco PGW2200.
Cisco IOS Release 12.2(15)T
7
Cisco Signaling Link Terminal
Information About the Cisco SLT
Using the 2-, 4-, or 8-PRI dial feature card (DFC) or the CT3 (28-PRI) DFC card, the integrated
Cisco SLT is designed for small points of presence (POPs) that require only one or two network access
servers (NASs) or Voice-Over-IP (VoIP) gateways as part of a dial or VoIP solution.
When the Integrated SLT feature is implemented, a Cisco AS5350 or Cisco AS5400 functions as an SS7
signaling data link terminal and as a NAS, voice gateway, or both when universal ports are used. Figure 2
shows a typical integrated SLT configuration.
Figure 2
Integrated SLT Architecture
Integrated
SLT
Signaling
network
SS7 signaling link
Bearer channels
NAS or
gateways
Data or
H.323 network
(bearers)
62787
PSTN
Q.931+ or MGCP via
UPD/RLM
and SS7 via
R-UDP/SM
backhaul
Bearer channels
The existing supported Cisco IOS software image for Cisco SLTs (c2600-ipss7-mz) operates on the
Cisco 2611XM and Cisco 2651XM with no user changes required.
For more information about the integrated Cisco SLT, refer to the Integrated Signaling Link Terminal
feature document on Cisco.com.
Cisco IOS Release 12.2(15)T
8
Cisco Signaling Link Terminal
How to Configure the Cisco SLT
How to Configure the Cisco SLT
To configure the Cisco SLT for the Cisco 2611, complete the following:
•
Configuring the Basic Parameters, page 9
•
Configuring the Physical Interfaces, page 11
Note
For serial WICs, no particular configuration is required, except to ensure that the interfaces are
not shut down.
•
Configuring Drop and Insert, page 19
•
Configuring the Serial Interfaces, page 21
•
Configuring the Ethernet Interface, page 22
•
Configuring the Fast Ethernet Interface, page 23
•
Configuring the Session Manager and RUDP, page 25
•
Configuring the MTP2 Variant, page 27
•
Configuring the Media Gateway Controller, page 29
Note
With Cisco SLT, the SS7 MTP 2 protocol is the only serial protocol supported. Therefore, you
cannot configure serial interfaces for other protocols, such as HDLC, PPP, X.25, LAPB, and
Frame Relay.
Note
The encapsulation interface configuration command is not supported on the Cisco SLT image.
Also, all other commands related to non-SS7 serial protocols are not supported.
Note
We recommend that you take MTP 2 links out of service at the Cisco MGC before issuing
Cisco SLT commands.
Configuring the Basic Parameters
To configure the basic parameters of the Cisco SLT, complete the following steps;
SUMMARY STEPS
1.
Power on the Cisco SLT.
2.
Enter y (yes) to begin the configuration.
3.
Enter y (yes) to enter basic management setup.
4.
Enter the host name for the router.
5.
Enter the enable secret password.
6.
Enter an enable password that is different from the enable secret password.
7.
Enter the virtual terminal password.
Cisco IOS Release 12.2(15)T
9
Cisco Signaling Link Terminal
How to Configure the Cisco SLT
8.
Enter the interface name used to connect to the management network.
9.
Configure the SNMP parameters.
10. Configure the Ethernet interface or configure the Fast Ethernet interface (see the “Configuring the
Fast Ethernet Interface” section on page 23).
11. Specify the IP address and the subnet mask for the interface.
12. Save configuration to NVRAM and exit the initial configuration mode.
DETAILED STEPS
Step 1
Command or Action
Purpose
Power ON the Cisco SLT
Turns on the Cisco 2611 router.
Note
Step 2
Enter y (yes) to begin the configuration.
Example:
Decide to begin the initial configuration in initial
configuration mode by entering yes.
•
Would you like to enter the initial
configuration dialog? [yes/no]: y
Step 3
Enter y (yes) to enter basic management setup.
Example:
Would you like to enter basic management setup?
[yes/no]: y
Configuring global parameters:
Enter the host name for the router.
At any point you may enter a question mark for help.
Use Ctrl-C to abort configuration dialog at any prompt.
Default settings are in square brackets.
Decide to begin basic management setup by entering yes.
•
Step 4
Do not press any keys until the system messages
stop. Any keys pressed during this time are
interpreted as the first command, which may cause
the Cisco SLT to power off and start over. It takes a
few minutes for these messages to stop.
Basic management setup provides only enough
connectivity for management of the system. Extended
setup asks you to configure each interface on the
system.
Initiates configuration of global parameters.
Enter host name [Router]: router_name
Step 5
Enter the enable secret password.
Example:
Protects access to privileged EXEC and configuration
modes.
•
Enter enable secret: enable_secret
Step 6
Enter an enable password that is different from the
enable secret password.
This password becomes encrypted in the configuration
and cannot be seen when viewing the configuration.
Protects access when you do not specify an enable secret
password.
•
Example:
This password is not encrypted and can be seen when
viewing the configuration.
Enter enable password: enable_password
Step 7
Enter the virtual terminal password.
Example:
Enter virtual terminal password: vt_password
Cisco IOS Release 12.2(15)T
10
Prevents unauthenticated access to the Cisco SLT through
ports other than the console port.
•
The virtual terminal password is used to protect access
to the router over a network interface.
Cisco Signaling Link Terminal
How to Configure the Cisco SLT
Step 8
Command or Action
Purpose
Enter the interface name used to connect to the
management network.
Selects the interface name.
Example:
•
The interface name is found from the information in the
current interface summary output.
•
Any interface listed with OK? value “NO” does not
have a valid configuration and cannot, therefore, be
used.
Ethernet 0/0
Step 9
Configure the SNMP parameters.
Decide to configure the SNMP parameters by entering yes.
Example:
Configure SNMP Network Management? [yes]: yes
Community string [public]:
Step 10
Configure the Ethernet interface.
Decide to configure the Ethernet interface by entering yes.
Example:
Configuring interface Ethernet0/0:
Configure IP on this interface? [yes]: y
Step 11
Specify the IP address and the subnet mask for the
interface.
Specifies the IP address and the subnet mask for the
interface.
Example:
IP address for this interface: 10.1.1.5
Subnet mask for this interface [255.0.0.0]:
255.255.0.0
Step 12
Save configuration to NVRAM and exit the initial
configuration mode.
Decide to save the configuration to NVRAM from three
choices in the configuration command script output:
•
0—Go to the Cisco IOS command prompt without
saving this configuration.
•
1—Return back to the setup without saving this
configuration.
•
2—Save this configuration to NVRAM and exit.
Example:
Save this configuration to nvram and exit
Enter your selection [2]: 2
This completes the basic Cisco SLT configuration.
Configuring the Physical Interfaces
The following section contains information about how to configure T1 or E1 multiflex trunk interfaces
for the Cisco SLT.
Cisco SLT T1/E1 Multiflex Trunk Interfaces Overview
The T1/E1 multiflex trunk interface cards are dual-mode T1 or E1 interfaces in a VWIC (Voice/WAN
Interface card) form for voice, data, and integrated voice and data applications. They support the SS7
Cisco SLT function, as do serial WICs.
The T1/E1 VWIC supports the following T1/E1 functionality:
Cisco IOS Release 12.2(15)T
11
Cisco Signaling Link Terminal
How to Configure the Cisco SLT
•
Single or dual port, structured or unstructured T1/E1 functionality
•
Drop and Insert (also called TDM Cross-Connect) between the T1/E1 ports on dual-port cards, used
to hairpin bearer channels to a media gateway device and allowing the interchange of time-division
multiplexing (TDM) slots between the ports on a two-port card
•
Physical layer alarm forwarding feature between the two E1/T1 ports on dual-port cards
For additional information about the T1/E1 multiflex trunk interface cards, refer to the Cisco WAN
Interface Cards Hardware Installation Guide.
Configuring T1/E1 Multiflex Trunk Interfaces
The following steps show how to configure T1/E1 multiflex trunk interfaces.
Note
For serial WICs, no particular configuration is required, except to ensure that the interfaces are not shut
down.
For information about configuring other types of WICs, refer to the Cisco WAN Interface Cards
Hardware Installation Guide.
SUMMARY STEPS
1.
enable
2.
configure terminal
3.
controller {T1 | E1} 0/port
4.
framing {sf | esf}
5.
linecode {ami | b8zs | hdb3}
6.
line-termination {75-ohm | 120-ohm}
7.
cablelength long {gain26 | gain36} {-15db | -22.5db | -7.5db | 0db}
8.
cablelength short {133 | 266 | 399 | 533 | 655}
9.
channel-group channel-group-number timeslots range
10. exit
DETAILED STEPS
Command or Action
Step 1 enable
Purpose
Enables privileged EXEC mode.
•
Enter your password if prompted.
Example:
Router> enable
Step 2 configure terminal
Example:
Router# configure terminal
Cisco IOS Release 12.2(15)T
12
Enters global configuration mode.
Cisco Signaling Link Terminal
How to Configure the Cisco SLT
Step 3 controller {T1 | E1} 0/port
Example:
Enters controller configuration mode for the T1 controller
at the specified slot/port location.
•
Router(config)# controller {T1 | E1} 0/port
Step 4 framing {sf | esf}
Sets T1 or E1 Extended SuperFrame (ESF) framing.
•
For T1, framing is usually set to the most common ESF
format.
•
For E1, set the framing to CRC4.
Example:
Router(config-controller)# framing esf
The value for slot is always 0, and the port value is
from 0 to 3.
or
Router(config-controller)# framing crc4
Step 5 linecode {ami | b8zs | hdb3}
Sets the T1 or E1 line code type.
•
For T1, set the line coding to the most common binary
zero 0 substitution (B8ZS).
•
For E1, set the line coding to high density binary 3
(HDB3).
•
These are the most common settings. Refer to the
Wide Area Network Configuration Guide for more
information.
•
The ami keyword specifies AMI as the linecode type.
Valid for both T1 and E1 interfaces.
Example:
Router(config-controller)# linecode b8zs
or
Router(config-controller)# linecode hdb3
Step 6 line-termination {75-ohm | 120-ohm}
(E1 only) Enters a line-termination value.
•
This command specifies the impedance (amount of
wire resistance and reactivity to current) for the E1
interface termination. Impedance levels are maintained
to avoid data corruption over long-distance links.
•
Specify 120-ohm to match the balanced 120-ohm
interface. This is the default.
•
75-ohm is for an unbalanced BNC 75-ohm interface.
Example:
Router(config-controller)# line-termination
{75-ohm | 120-ohm}
Cisco IOS Release 12.2(15)T
13
Cisco Signaling Link Terminal
How to Configure the Cisco SLT
Step 7 cablelength long {gain26 | gain36} {-15db |
-22.5db | -7.5db | 0db}
Example:
(T1 interfaces only) Configures transmit and receive levels
for a cable length (line build-out) longer than 655 feet for
a T1 trunk with a CSU interface.
•
Router(config-controller)# cablelength long
{gain26 | gain36} {-15db | -22.5db | -7.5db |
0db}
Configurable cable lengths are as follows:
– gain26 specifies the decibel pulse gain at 26. This
is the default pulse gain.
– gain36 specifies the decibel pulse gain at 36.
– -15db specifies the decibel pulse rate at -15
decibels.
– -22.5db specifies the decibel pulse rate at -22.5
decibels.
– -7.5db specifies the decibel pulse rate at -7.5
decibels.
– 0db specifies the decibel pulse rate at 0 decibels.
This is the default pulse rate.
•
Step 8 cablelength short {133 | 266 | 399 | 533 | 655}
Example:
Router(config-controller)# cablelength short
{133 | 266 | 399 | 533 | 655}
Default receive sensitivity value appearing in the CLI
is 26; the hardware is fixed at 36. If you do not set the
cable length, the system defaults to cablelength long
gain26 0db.
(T1 interfaces only) Configures transmit attenuation for a
cable length (line build-out) of 655 feet or shorter for a T1
trunk with a DSX-1 interface.
•
Configurable cable lengths are as follows:
– 133 specifies a cable length from 0-133 feet.
– 266 specifies a cable length from 134-266 feet.
– 399 specifies a cable length from 267-399 feet.
– 533 specifies a cable length from 400-533 feet.
– 655 specifies a cable length from 534-655 feet.
•
Cisco IOS Release 12.2(15)T
14
Default transmit attenuation is set for a cable length of
0 to 133 feet.
Cisco Signaling Link Terminal
How to Configure the Cisco SLT
Step 9 channel-group channel-group-number timeslots
Specifies the channel group and time slots to be mapped.
range
•
Only channel group 0 can be configured. Generally,
only one time slot is configured when you are using the
Cisco SLT feature. For example, time slot 24 is used
for a T1 interface, and time slot 16 is used for an E1
interface.
•
The channel-group command creates a virtual serial
interface. It is numbered slot/port:subinterface, as
follows:
Example:
Router(config-controller)# channel-group 0
timeslots 24
or
Router(config-controller)# channel-group 0
timeslots 16
– slot is the slot location of the WIC/VWIC where
the channel group was created (always 0).
– port is the WIC/VWIC port address (0 to 3).
– subinterface is the channel group number (always
0).
•
Step 10 exit
Return to Step 2 if your router has other T1/E1
interfaces that you need to configure.
Exits controller configuration mode.
Example:
Router(config-controller)# exit
Verifying T1/E1 Multiflex Trunk Interface Configuration
To verify the initial T1/E1 trunk interface configuration, follow these steps.
SUMMARY STEPS
1.
enable
2.
show controllers t1
3.
show controllers e1
4.
show interface serial 0/0:0
5.
show controllers serial
DETAILED STEPS
Step 1
Command or Action
Purpose
enable
Enables privileged EXEC mode.
•
Enter your password if prompted.
Example:
Router> enable
Step 2
show controllers t1
Example:
Displays information about the T1 links or to displays the
hardware and software driver information for the T1
controller.
Router# show controllers t1
Cisco IOS Release 12.2(15)T
15
Cisco Signaling Link Terminal
How to Configure the Cisco SLT
Step 3
Command or Action
Purpose
show controllers e1
Displays information about the E1 links or to displays the
hardware and software driver information for the E1
controller.
Example:
Router# show controllers e1
Step 4
show interface serial slot/port:subinterface
Displays information about channel groups configured as
virtual serial interfaces.
Example:
Router# show interface serial 0/0:0
Step 5
show controllers serial slot/port:subinterface
Displays information that is specific to the interface
hardware.
Example:
Router# show controllers serial 0/0:0
The following is sample output from the show controllers e1 command. Important information appears
in bold:
Router# show controllers e1
E1 0/2 is up.
Applique type is Channelized E1 - balanced
Cablelength is Unknown
No alarms detected.
Version info Firmware: 19990702, FPGA: 6
Framing is CRC4, Line Code is HDB3, Clock Source is Line.
Data in current interval (599 seconds elapsed):
0 Line Code Violations, 0 Path Code Violations
0 Slip Secs, 0 Fr Loss Secs, 0 Line Err Secs, 0 Degraded Mins
0 Errored Secs, 0 Bursty Err Secs, 0 Severely Err Secs, 0 Unavail Secs
Total Data (last 10 15 minute intervals):
435334 Line Code Violations, 1 Path Code Violations,
8 Slip Secs, 69 Fr Loss Secs, 9 Line Err Secs, 0 Degraded Mins,
8 Errored Secs, 0 Bursty Err Secs, 0 Severely Err Secs, 69 Unavail Secs
E1 0/3 is down.
Applique type is Channelized E1 - balanced
Cablelength is Unknown
Far End Block Errors Detected
Receiver has loss of signal.
Version info Firmware: 19990702, FPGA: 6
Framing is CRC4, Line Code is HDB3, Clock Source is Line.
Data in current interval (602 seconds elapsed):
0 Line Code Violations, 0 Path Code Violations
0 Slip Secs, 602 Fr Loss Secs, 0 Line Err Secs, 0 Degraded Mins
0 Errored Secs, 0 Bursty Err Secs, 0 Severely Err Secs, 603 Unavail Secs
Total Data (last 10 15 minute intervals):
0 Line Code Violations, 0 Path Code Violations,
0 Slip Secs, 9000 Fr Loss Secs, 0 Line Err Secs, 0 Degraded Mins,
0 Errored Secs, 0 Bursty Err Secs, 0 Severely Err Secs, 9000 Unavail Secs
The following is sample output from the show controllers t1 command. Important information is shown
in bold:
Router# show controllers t1
T1 0/0 is up.
Applique type is Channelized T1
Cablelength is short 133
No alarms detected.
Version info Firmware: 19990702, FPGA: 6
Cisco IOS Release 12.2(15)T
16
Cisco Signaling Link Terminal
How to Configure the Cisco SLT
Framing is ESF, Line Code is B8ZS, Clock Source is Line.
Data in current interval (608 seconds elapsed):
136066 Line Code Violations, 778727 Path Code Violations
567 Slip Secs, 0 Fr Loss Secs, 608 Line Err Secs, 0 Degraded Mins
0 Errored Secs, 0 Bursty Err Secs, 0 Severely Err Secs, 608 Unavail Secs
Total Data (last 10 15 minute intervals):
4286812 Line Code Violations, 11478885 Path Code Violations,
7734 Slip Secs, 69 Fr Loss Secs, 8996 Line Err Secs, 0 Degraded Mins,
0 Errored Secs, 0 Bursty Err Secs, 0 Severely Err Secs, 9000 Unavail Secs
To find out about channel groups configured as virtual serial interfaces, enter the show interface serial
slot/port:subinterface command. Important information is shown in bold in the following sample output:
Router# show interface serial 0/0:0
Serial0/0:0 is reset, line protocol is down
Hardware is PowerQUICC Serial
MTU 1500 bytes, BW 56 Kbit, DLY 20000 usec,
reliability 253/255, txload 1/255, rxload 1/255
Encapsulation SS7 MTP2, loopback not set
Keepalive set (10 sec)
Last input never, output 00:12:22, output hang never
Last clearing of "show interface" counters never
Input queue: 0/75/0 (size/max/drops); Total output drops: 0
Queueing strategy: weighted fair
Output queue: 0/1000/64/0 (size/max total/threshold/drops)
Conversations 0/0/256 (active/max active/max total)
Reserved Conversations 0/0 (allocated/max allocated)
5 minute input rate 0 bits/sec, 0 packets/sec
5 minute output rate 0 bits/sec, 0 packets/sec
0 packets input, 0 bytes, 0 no buffer
Received 0 broadcasts, 0 runts, 0 giants, 0 throttles
1437 input errors, 2 CRC, 31 frame, 0 overrun, 0 ignored, 1404 abort
128055 packets output, 512220 bytes, 0 underruns
0 output errors, 0 collisions, 2 interface resets
0 output buffer failures, 0 output buffers swapped out
1 carrier transitions
Timeslot(s) Used:1, Transmitter delay is 0 flags
The following sample output shows information about the virtual serial interface:
Router# show controllers serial 0/2:0
Interface Serial0/2:0
Hardware is PowerQUICC MPC860idb at 0x81143590, driver data structure at 0x81145
474
SCC Registers:
General [GSMR]=0x2:0x00000033, Protocol-specific [PSMR]=0x8
Events [SCCE]=0x0200, Mask [SCCM]=0x001F, Status [SCCS]=0x02
Transmit on Demand [TODR]=0x0, Data Sync [DSR]=0x7E7E
Interrupt Registers:
Config [CICR]=0x00367F80, Pending [CIPR]=0x04000246
Mask
[CIMR]=0x60240000, In-srv [CISR]=0x00000000
Command register [CR]=0xD40
Port A [PADIR]=0x00F0, [PAPAR]=0x25F0
[PAODR]=0x0000, [PADAT]=0x5A4F
Port B [PBDIR]=0x0000F, [PBPAR]=0x0000E
[PBODR]=0x00000, [PBDAT]=0x37FFD
Port C [PCDIR]=0x00C, [PCPAR]=0xA00
[PCSO]=0x000, [PCDAT]=0x5F2, [PCINT]=0xFFF
Receive Ring
rmd(68012930): status 9000 length 6 address 2DA22E4
rmd(68012938): status 9000 length 6 address 2DA3AA4
rmd(68012940): status 9000 length 6 address 2DA1E24
Cisco IOS Release 12.2(15)T
17
Cisco Signaling Link Terminal
How to Configure the Cisco SLT
rmd(68012948): status 9000 length 6 address
rmd(68012950): status 9000 length 6 address
rmd(68012958): status 9000 length 6 address
rmd(68012960): status 9000 length 6 address
rmd(68012968): status 9000 length 6 address
rmd(68012970): status 9000 length 6 address
rmd(68012978): status 9000 length 6 address
rmd(68012980): status 9000 length 6 address
rmd(68012988): status 9000 length 6 address
rmd(68012990): status 9000 length 6 address
rmd(68012998): status 9000 length 6 address
rmd(680129A0): status 9000 length 6 address
rmd(680129A8): status B000 length 6 address
Transmit Ring
tmd(680129B0): status DC00 length 4 address
tmd(680129B8): status DC00 length 4 address
tmd(680129C0): status DC00 length 4 address
tmd(680129C8): status DC00 length 4 address
tmd(680129D0): status DC00 length 4 address
tmd(680129D8): status DC00 length 4 address
tmd(680129E0): status DC00 length 4 address
tmd(680129E8): status DC00 length 4 address
tmd(680129F0): status DC00 length 4 address
tmd(680129F8): status CE00 length 4 address
tmd(68012A00): status DC00 length 4 address
tmd(68012A08): status DC00 length 4 address
tmd(68012A10): status DC00 length 4 address
tmd(68012A18): status DC00 length 4 address
tmd(68012A20): status DC00 length 4 address
tmd(68012A28): status FC00 length 4 address
SPI Mode [SPMODE]=0xF70, Events [SPIE]=0x0
Mask [SPIM]=0x0, Command [SPCOM]=0x0
SI Mode [SIMODE]=0x80408040, Global [SIGMR]=0xE
Cmnd [SICMR]=0x0, Stat [SISTR]=0x0
SI Clock Route [SICR]=0x00004040
SCC GENERAL PARAMETER RAM (at
Rx BD Base [RBASE]=0x2930, Fn
Tx BD Base [TBASE]=0x29B0, Fn
Max Rx Buff Len [MRBLR]=1548
Rx State [RSTATE]=0x0, BD Ptr
Tx State [TSTATE]=0x188920A3,
2DA27A4
2DA5724
2DA14A4
2DA5264
2DA4684
2DA4424
2DA1964
2DA4B44
2DA60A4
2DA2544
2DA3124
2DA0FE4
2DA3844
2AD9EA8
2AD7568
2ADA428
2ADA6E8
2AD7DA8
2AD5468
2AD8328
2AD85E8
2AD5CA8
2AD8B68
2AD8E28
2AD64E8
2AD67A8
2AD9668
2AD9928
2AD6FE8
0x68013D00)
Code [RFCR]=0x18
Code [TFCR]=0x18
[RBPTR]=0x2970
BD Ptr [TBPTR]=0x2A08
SCC SS7 PARAMETER RAM (at 0x68013D38)
CRC Preset [C_PRES]=0xFFFF, Mask [C_MASK]=0xF0B8
Error-free SUs [EFSUC] = 22927
Max frm len [MFLR] = 278
Erm [ERM] = 0x0,N [NOCTETS] = 16, N_cnt [NOCTETS_CNT] = 12, T [ERM_THRESH] = 64,
D [ERM_EFSUS] = 256, D_cnt [ERM_EFSUS_CNT] = 97
SS7 options [SS7_OPT] = 0x10F
Filter masks [MASK1] = 0xFFFFFFFF, [MASK2] = 0xFF
buffer size 1524
PQUICC SCC specific errors:
0 input aborts on receiving flag sequence
0 throttles, 0 enables
0 overruns
0 transmitter underruns
0 transmitter CTS losts
Cisco IOS Release 12.2(15)T
18
Cisco Signaling Link Terminal
How to Configure the Cisco SLT
Configuring Drop and Insert
To configure Drop and Insert (the TDM cross-connect function), complete the following steps.
SUMMARY STEPS
1.
enable
2.
configure terminal
3.
controller {T1 | E1} 0/port
4.
tdm-group tdm-group-no timeslots timeslot-list
5.
no shutdown
6.
exit
7.
connect id T1 slot/port tdm-group-number-1 T1 slot/port tdm-group-number-2
8.
exit
DETAILED STEPS
Command or Action
Step 1 enable
Purpose
Enables privileged EXEC mode.
•
Enter your password if prompted.
Example:
Router> enable
Step 2 configure terminal
Enters global configuration mode.
Example:
Router# configure terminal
Step 3 controller {T1 | E1} 0/port
Example:
Router(config)# controller T1 0/2
Enters controller configuration mode for the T1
controller at the specified slot/port location.
•
The value for slot is always 0, and the port
value is from 0 to 3.
Cisco IOS Release 12.2(15)T
19
Cisco Signaling Link Terminal
How to Configure the Cisco SLT
Command or Action
Step 4 tdm-group tdm-group-number timeslots timeslot-list
Example:
Router(config-controller)# tdm-group 1 timeslots 24
Step 5 no shutdown
Purpose
Creates TDM channel groups for the
Drop-and-Insert function with a two-port T1 or E1
multiflex trunk interface card.
•
You must set up a TDM group for each
interface that you wish to cross-connect.
•
The tdm-group-number argument identifies
the channel group. Valid values are from 1 to
31.
•
The group numbers for controller groups must
be unique. For example, a TDM group should
not have the same ID number as a channel
group.
•
The timeslot-list argument can be a single
number, numbers separated by commas, or a
pair of numbers separated by a hyphen to
indicate a range of time slots. For T1,
allowable values are from 1 to 24. For E1,
allowable values are from 1 to 15 and 17 to 31.
Activates the controller.
•
Repeat Steps 3 and 4 for the second interface.
Example:
Router(config-controller)# no shutdown
Step 6 exit
Exits controller configuration mode.
Example:
Router(config-controller)# exit
Step 7 connect id T1 slot/port tdm-group-number-1 T1 slot/port
tdm-group-number-2
Example:
•
The id argument is a name for the connection.
Router(config)# connect id T1 0/port tdm-group-number-1
T1 slot/port tdm-group-number-2
•
Identify each T1 controller by its slot/port
location. The slot value is always 0; the port
value can be from 0 to 3.
•
The tdm-group-number-1 and
tdm-group-number-2 arguments identify the
TDM group numbers (from 1 to 31) on the
specified controller. The groups were set up in
Step 3 above.
Step 8 exit
Exits global configuration mode and completes the
configuration.
Example:
Router(config)# exit
Cisco IOS Release 12.2(15)T
20
Sets up the connection between two T1 or E1 TDM
groups of timeslots on the trunk interfaces—for
Drop and Insert.
Cisco Signaling Link Terminal
How to Configure the Cisco SLT
Configuring the Serial Interfaces
The following steps show how to configure 1T and 2T serial interfaces.
SUMMARY STEPS
1.
enable
2.
configure terminal
3.
interface serial slot/port
4.
no shutdown
5.
end
DETAILED STEPS
Step 1
Command or Action
Purpose
enable
Enables privileged EXEC mode.
•
Enter your password if prompted.
Example:
Router> enable
Step 2
configure terminal
Enters global configuration mode.
Example:
Router# configure terminal
Step 3
interface serial slot/port
Enters interface configuration mode for the serial interface.
Example:
Router(config)# interface serial 0/2
Step 4
no shutdown
Activates the interface.
Example:
Router(config-if)# no shutdown
Step 5
end
Exits interface configuration mode and completes the
configuration.
Example:
Router(config-if)# end
Cisco IOS Release 12.2(15)T
21
Cisco Signaling Link Terminal
How to Configure the Cisco SLT
Configuring the Ethernet Interface
The Cisco SLT uses the built-in Ethernet interface for connection to the IP network that backhauls SS7
MSUs between the Cisco 2611 router and the MGC. Follow the steps below to configure the Ethernet
interface.
SUMMARY STEPS
1.
enable
2.
configure terminal
3.
interface Ethernet 0/0
4.
ip address ip-address-mask [secondary]
5.
no shutdown
6.
exit
DETAILED STEPS
Step 1
Command or Action
Purpose
enable
Enables privileged EXEC mode.
•
Enter your password if prompted.
Example:
Router> enable
Step 2
configure terminal
Enters global configuration mode.
Example:
Router# configure terminal
Step 3
Router(config)# interface Ethernet 0/0
Enters interface configuration mode for the built-in
Ethernet interface.
Step 4
ip address ip-address-mask [secondary]
Assigns an IP address and subnet mask to the interface.
•
The ip-address-mask argument specifies the IP address
and mask for the associated IP subnet
•
The optional secondary keyword specifies that the
configured address is a secondary IP address. If this
keyword is omitted, the configured address is the
primary IP address.
Example:
Router(config-if)# ip address 10.10.11.1
255.255.255.0
Step 5
Router(config-if)# no shutdown
Activates the interface.
Step 6
Router(config-if)# exit
Exits to global configuration mode.
Verifying the Ethernet Interface Configuration
To verify the Ethernet interface configuration, enter the show interface ethernet 0/0 privileged EXEC
command. The following text is sample output from the command:
Router# show interface ethernet 0/0
Ethernet0/0 is up, line protocol is up
Hardware is AmdP2, address is 0050.7337.5100 (bia 0050.7337.5100)
Cisco IOS Release 12.2(15)T
22
Cisco Signaling Link Terminal
How to Configure the Cisco SLT
Internet address is 255.251.111.6/24
MTU 1500 bytes, BW 10000 Kbit, DLY 1000 usec,
reliability 255/255, txload 1/255, rxload 1/255
Encapsulation ARPA, loopback not set
Keepalive set (10 sec)
ARP type: ARPA, ARP Timeout 04:00:00
Last input 00:00:00, output 00:00:00, output hang never
Last clearing of "show interface" counters 10:00:36
Queueing strategy: fifo
Output queue 0/40, 0 drops; input queue -196/75, 0 drops
5 minute input rate 3000 bits/sec, 5 packets/sec
5 minute output rate 2000 bits/sec, 4 packets/sec
45891 packets input, 3234949 bytes, 0 no buffer
Received 1593 broadcasts, 0 runts, 0 giants, 0 throttles
0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored
0 input packets with dribble condition detected
61546 packets output, 3728838 bytes, 0 underruns(518/2091/0)
0 output errors, 2609 collisions, 3 interface resets
0 babbles, 0 late collision, 875 deferred
0 lost carrier, 0 no carrier
0 output buffer failures, 0 output buffers swapped out
Configuring the Fast Ethernet Interface
The Cisco 2611XM, Cisco 2651, and Cisco 2651XM SLTs use the built-in Fast Ethernet interface to
connect to the IP network that backhauls SS7 Message Signal Units (MSUs) between the Cisco SLT and
the media gateway controller or Cisco PGW2200. The Cisco 2611XM, Cisco 2651, and Cisco 2651XM
routers have two Fast Ethernet ports which need to be configured instead of the two Ethernet interface
ports found on the Cisco 2611-based Cisco SLT.
To configure the Fast Ethernet interface, use the following commands.
SUMMARY STEPS
Step 1
1.
enable
2.
configure terminal
3.
interface fastethernet 0/0
4.
ip address ip-address subnet-mask
5.
no shutdown
6.
exit
Command
Purpose
enable
Enables privileged EXEC mode.
•
Enter your password if prompted.
Example:
Router> enable
Step 2
configure terminal
Enters global configuration mode.
Example:
Router# configure terminal
Cisco IOS Release 12.2(15)T
23
Cisco Signaling Link Terminal
How to Configure the Cisco SLT
Step 3
Command
Purpose
interface fastethernet 0/0
Enters interface configuration mode for the built-in Fast
Ethernet interface.
Example:
Router(config)# interface fastethernet 0/0
Step 4
ip address ip-address address-number
Assigns an IP address and subnet mask to the interface.
Example:
Router(config-if)# ip address 10.30.18.41
255.255.255.0
Step 5
Activates the interface.
no shutdown
Example:
Router(config-if)# no shutdown
Step 6
Exits back to global configuration mode.
exit
Example:
Router(config-if)# exit
Verifying the Fast Ethernet Interface Configuration
To verify the Fast Ethernet interface configuration, enter the show interface fastethernet privileged
EXEC command. The following example shows statistics for port 0/0:
SLT-2651# sh interface fastethernet 0/0
FastEthernet0/0 is up, line protocol is up
Hardware is AmdFE, address is 0003.e38d.db20 (bia 0003.e38d.db20)
Description:This port used for Signalling Backhaul
Internet address is 10.30.18.41/24
MTU 1500 bytes, BW 100000 Kbit, DLY 100 usec,
reliability 255/255, txload 1/255, rxload 1/255
Encapsulation ARPA, loopback not set
Keepalive set (10 sec)
Full-duplex, 100Mb/s, 100BaseTX/FX
ARP type:ARPA, ARP Timeout 04:00:00
Last input 00:00:00, output 00:00:00, output hang never
Last clearing of "show interface" counters never
Queueing strategy:fifo
Output queue 0/40, 0 drops; input queue 0/75, 0 drops
5 minute input rate 0 bits/sec, 0 packets/sec
5 minute output rate 0 bits/sec, 0 packets/sec
775355 packets input, 55085581 bytes
Received 7194 broadcasts, 0 runts, 0 giants, 0 throttles
0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored
0 watchdog
0 input packets with dribble condition detected
716414 packets output, 56748158 bytes, 0 underruns(0/0/0)
0 output errors, 0 collisions, 1 interface resets
0 babbles, 0 late collision, 0 deferred
0 lost carrier, 0 no carrier
0 output buffer failures, 0 output buffers swapped out
Cisco IOS Release 12.2(15)T
24
Cisco Signaling Link Terminal
How to Configure the Cisco SLT
Configuring the Session Manager and RUDP
The session manager and the RUDP are responsible for managing the communication sessions with the
MGCs. Regardless of the number of SS7 links that the MGC activates on the Cisco 2611, the router
maintains only one session manager session with each of the MGC devices.
Note
You must reboot the router after setting a new session configuration or after changing existing session
configuration. Do not change session timers unless instructed to do so by Cisco technical support.
Changing timers may result in service interruption or outage.
To configure the session for establishing communications with the Cisco MGC, use the following
commands. You can define just one session or as many as two sessions.
SUMMARY STEPS
1.
enable
2.
configure terminal
3.
ss7 set failover-timer ft-value
4.
ss7 session session-id address destination-address destinaion-port local-address local-port
[session-set session-number]
5.
ss7 session session-id address destination-address destinaion-port local-address local-port
[session-set session-number]
6.
exit
7.
copy system:running-config nvram:startup-config
8.
reload
DETAILED STEPS
Step 1
Command or Action
Purpose
enable
Enables privileged EXEC mode.
•
Enter your password if prompted.
Example:
Router> enable
Step 2
configure terminal
Enters global configuration mode.
Example:
Router# configure terminal
Cisco IOS Release 12.2(15)T
25
Cisco Signaling Link Terminal
How to Configure the Cisco SLT
Step 3
Command or Action
Purpose
ss7 set failover-timer ft-value
Independently selects failover-timer values for each session
set and specifies the amount of time that the SS7 session
manager waits for the active session to recover or for the
standby Cisco MGC to indicate that the Cisco SLT should
switch traffic to the standby session
Example:
Router(config)# ss7 set failover-timer 5
Step 4
ss7 session session-id address
destination-address destinaion-port
local-address local-port [session-set
session-number]
Example:
Router(config)# ss7 session-0 address
10.10.11.1 255.255.255.0
Step 5
ss7 session session-id address
destination-address destinaion-port
local-address local-port [session-set
session-number]
•
If the timer expires without a recovery of the original
session or an active message from the standby
Cisco MGC, the signaling links are taken out of
service.
•
Valid values range from 1 to 10. Default is 3.
Configures the address pairs and ports for the first session
manager session, using the following syntax:
•
The session set session number argument is either 1 or
0.
•
Specify the remote four-part IP address and the remote
port first, then the local IP address and UDP port.
•
There are two possible sessions: One for the active
Cisco MGC and one for the standby Cisco MGC.
Configures the address pairs and UDP ports for the second
session manager session.
•
Example:
You can specify any UDP port not used by another
protocol defined in RFC 1700 or otherwise used within
your network.
Router(config)# ss7 session-1 address
10.10.11.1 255.255.255.0
Step 6
Exit configuration mode.
exit
Example:
Router(config)# exit
Step 7
copy system:running-config nvram:startup-config
Saves the new configuration as the startup configuration.
Example:
Router# copy system:running-config
nvram:startup-config
Step 8
Reloads the router.
reload
•
Example:
The router must be reloaded any time you delete a
session or modify any of the parameters of a session.
Router# reload
Verifying the Session Manager and RUDP Configuration
To verify the session manager and RUDP configuration, use the following commands
Cisco IOS Release 12.2(15)T
26
Cisco Signaling Link Terminal
How to Configure the Cisco SLT
SUMMARY STEPS
1.
enable
2.
show ss7 sm session
3.
show ss7 sm set
4.
show ss7 sm stats
DETAILED STEPS
Step 1
Command or Action
Purpose
enable
Enables privileged EXEC mode.
•
Enter your password if prompted.
Example:
Router> enable
Step 2
show ss7 sm session
Displays information about an SS7 session manager
session.
•
Example:
(Optional) You can specify a session number of 0 or 1.
Router# show ss7 sm session
Step 3
show ss7 sm set
Displays information about the failover timer setting.
Example:
Router# show ss7 sm set
Step 4
show ss7 sm stats
Displays information about session manager statistics.
•
(Optional) You can specify a session number of 1 or 2.
Example:
Router# show ss7 sm stats
Configuring the MTP2 Variant
SS7 MTP2 supports four variants: Telcordia (formerly Bellcore), ITU, NTT (Japan), and TTC (Japan
Telecom). The parameters under one variant have different meanings, purposes, and ranges in another.
See the following command references for the appropriate MTP 2 variant commands and the parameters:
Note
•
ss7 mtp2-variant bellcore
•
ss7 mtp2-variant itu
•
ss7 mtp2-variant ntt
•
ss7 mtp2-variant ttc
Parameters that are not configured will remain at the default values.
The channel to be configured must be out of service at the MGC before the variant or the variant
configuration can be changed.
Cisco IOS Release 12.2(15)T
27
Cisco Signaling Link Terminal
How to Configure the Cisco SLT
Note
Once the variant configuration changes have been made, the router must be reloaded to apply the
changes.
SUMMARY STEPS
1.
enable
2.
configure terminal
3.
memory-size iomem i/o-memory-percentage
4.
ss7 mtp2-variant bellcore 2
5.
T3 30000
6.
unacked-MSUs 16
7.
T7 50000
8.
exit
9.
end
10. copy running-config startup-config
DETAILED STEPS
Step 1
Command or Action
Purpose
enable
Enables privileged EXEC mode.
•
Enter your password if prompted.
Example:
Router> enable
Step 2
configure terminal
Enters global configuration mode.
Example:
Router# configure terminal
Step 3
mem iomem i/o-memory-percentage
Example:
Sets the amount of DRAM to be used for I/O memory to 40
percent.
•
The values permitted are 10, 15, 20, 25, 30, 40, and 50
percent. A minimum of 4 MB of memory is required for
I/O memory.
•
If you do not set the I/O memory to at least 40 percent,
there will not be enough memory for the SS7 MTP2
signaling.
Router(config)# mem iomem 40
Step 4
ss7 mtp2-variant Bellcore 2
Example:
Router(config)# ss7 mtp2-variant Bellcore 2
Cisco IOS Release 12.2(15)T
28
Configures the MTP2 variant Telcordia (formerly Bellcore)
for channel 2.
•
Enters Bellcore variant configuration mode.
Cisco Signaling Link Terminal
How to Configure the Cisco SLT
Step 5
Command or Action
Purpose
T3 30000
Sets the aligned timer to 30,000 milliseconds.
•
Example:
Valid values range from 1000 to 65535. Default is
11500.
Router(config-Bellcore)# T3 30000
Step 6
Sets the maximum number of MSUs waiting for
acknowledgment to 16.
unacked-MSUs 16
•
Example:
Valid values range from 16 to 127. Default is 127.
Router(config-Bellcore)# unacked-MSUs 16
Step 7
Sets the excessive delay timer to 50,000 milliseconds.
T7 50000
•
Valid values range from 500 to 65535. Default is 1000.
Example:
Router(config-Bellcore)# T7 50000
Step 8
Exits Bellcore variant configuration mode.
exit
Example:
Router(config-Bellcore)# exit
Step 9
Exits global configuration mode.
end
Example:
Router(config)# end
Step 10
copy running-config startup-config
Saves the running configuration to startup configuration.
Example:
Router# copy running-config startup-config
Configuring the Media Gateway Controller
The MGC provides call control. Once the Cisco SLT is configured, you must configure the point codes,
linksets, SS7 signaling links, and the associated MTP 2 parameters on the MGC.
Each SS7 link defined on the MGC is considered a logical channel, and each logical channel corresponds
to a physical interface on the Cisco 2611. You can define two SS7 links (logical channels) from the MGC
to a Cisco 2600 series router. The logical channels defined on the TCS map to the physical serial
interfaces on the router from right to left, as follows:
•
Numbering for an interface in the first slot always starts with channel 0.
•
Numbering for an interface in the second slot always starts with channel 2.
•
If a slot is empty, these rules still apply.
Table 1shows some examples of how different signaling termination channels might map to interface
positions.
For more information about configuring the MGC software, refer to the Cisco Media Gateway
Controllers documentation on Cisco.com.
Cisco IOS Release 12.2(15)T
29
Cisco Signaling Link Terminal
Configuration Examples for the Cisco SLT
Table 1
Examples of Logical Channels and Physical Interfaces
Logical
Channel
Cisco 2600 Series Physical Interface
Two 2-Port WICs
1-Port WIC on Right, 2-Port
on Left
Two 2-Port WICs
2-Port WIC on Right, 1-Port
on Left
Assigned to port in first
(right) slot: Serial 0/0
Not used: Serial 0/0
Not used: Serial 0/0
Not used: Serial 0/1
Assigned to second port in
first (right) slot: Serial 0/1
Assigned to first port in
second (left) slot: Serial
0/2
Assigned to first port in
second (left) slot: Serial
0/2
0
Not used: Serial 0/0
1
Assigned to second port in
first (right) slot: Serial 0/1
2
Not used: Serial 0/2
3
Assigned to second port in Not used: Serial 0/2
second (left) slot: Serial
0/3
Assigned to first port in
second (left) slot: Serial
0/1
Assigned to second port in
second (left) slot: Serial
0/3
Troubleshooting Tips
The following are the show and clear commands that you can use to maintain the Cisco SLT
Command
Purpose
clear rudpv0 statistics
Clears the counters that track RUDP statistics.
clear ss7 sm stats
Clear the counters that track session manager statistics.
show rudpv0 failures
Shows RUDP failure statistics.
show rudpv0 statistics
Shows RUDP performance statistics.
show ss7 mtp2 ccb
Shows channel control block information.
show ss7 mtp2 state
Shows MTP 2 state machine information.
show ss7 mtp2 stats
Shows MTP 2 operational statistics.
show ss7 mtp2 timer
Shows MTP 2 timer settings.
show ss7 mtp2 variant
Shows MTP 2 Telcordia (formerly Bellcore) protocol variant
information.
show ss7 sm session
Shows session configuration for timers, addresses, and ports.
show ss7 sm set
Shows the setting of the failover timer.
show ss7 sm stats
Shows session manager performance statistics.
Configuration Examples for the Cisco SLT
This section provides the following configuration examples:
•
Basic Cisco SLT Configuration Parameters Example, page 31
Cisco IOS Release 12.2(15)T
30
Cisco Signaling Link Terminal
Configuration Examples for the Cisco SLT
•
Cisco SLT T1 Configuration Example, page 32
•
Cisco SLT E1 with Drop and Insert Configuration Example, page 34
•
Session Manager and RUDP Configuration Example, page 36
Basic Cisco SLT Configuration Parameters Example
The following is an example of the initial configuration dialog system prompt. In this example, y (yes)
has been entered in order to begin the configuration process:
Would you like to enter the initial configuration dialog? [yes/no]: y
Basic management setup provides only enough connectivity for management of the system. The
following is an example of an extended setup prompt that asks you to configure each interface on the
system. In this example, y (yes) has been entered to begin basic management setup:
Would you like to enter basic management setup? [yes/no]: y
Configuring global parameters:
The following is an example a host name system prompt. In this example, the host name is for the Cisco
2611 router:
Enter host name [Router]: 2611_name
The following is an example of the enable secret password system prompt. The enable secret is a
password used to protect access to privileged EXEC and configuration modes. This password becomes
encrypted in the configuration and cannot be seen when viewing the configuration:
Enter enable secret: enable_secret
The following is an example of the enable password that is different from the enable secret password.
This password is not encrypted and can be seen when viewing the configuration. The enable password
is used when you do not specify an enable secret password.
Enter enable password: enable_password
The following is an example of the virtual terminal password, which prevents unauthenticated access to
the Cisco SLT through ports other than the console port. The virtual terminal password is used to protect
access to the router over a network interface.
Enter virtual terminal password: vt_password
The following is an example of how to answer the configure the SNMP parameters system prompt:
Configure SNMP Network Management? [yes]: yes
Community string [public]:
The following is an example of the interface name used to connect to the management network:
Current interface summary
Controller Timeslots D-Channel Configurable modes Status
T1 0/2
24
23
pri/channelized
Administratively up
T1 0/3
24
23
pri/channelized
Administratively up
Any interface listed with OK? value "NO" does not have a valid configuration
Interface
Ethernet0/0
Serial0/0
Ethernet0/1
IP-Address
unassigned
unassigned
unassigned
OK?
NO
NO
NO
Method
unset
unset
unset
Status Protocol
up up
down
up
down
down
Cisco IOS Release 12.2(15)T
31
Cisco Signaling Link Terminal
Configuration Examples for the Cisco SLT
Serial0/1
unassigned
NO
unset
down
down
Enter interface name used to connect to the management network from the above interface
summary: Ethernet0/0
The following is an example of how to configure the Ethernet interface:
Configuring interface Ethernet0/0:
Configure IP on this interface? [yes]: y
The following is an example of how to specify the IP address and the subnet mask for the interface:
IP address for this interface: 10.1.1.5
Subnet mask for this interface [255.0.0.0]: 255.255.0.0
Class A network is 10.0.0.0, 16 subnet bits; mask is /16
The following is an example of how to save the configuration to NVRAM and exit the initial
configuration mode.
The following configuration command script was created:
hostname aladdin
enable secret 5 $1$0gLU$vLK1YHrMcianH5oVWFJNP/
enable password lablab
line vty 0 4
password lab
no snmp-server
!
no ip routing
!
interface Ethernet0/0
no shutdown
ip address 10.1.1.5 255.255.0.0
!
interface Serial0/0
shutdown
no ip address
!
interface Ethernet0/1
shutdown
no ip address
!
interface Serial0/1
shutdown
no ip address
!
end
[0] Go to the IOS command prompt without saving this config.
[1] Return back to the setup without saving this config.
[2] Save this configuration to nvram and exit.
Enter your selection [2]: 2
Building configuration...
Use the enabled mode 'configure' command to modify this configuration.
Press RETURN to get started!
Cisco SLT T1 Configuration Example
The following example shows the configuration of the Cisco SLT with a T1 interface card.
version 12.0
no service pad
Cisco IOS Release 12.2(15)T
32
Cisco Signaling Link Terminal
Configuration Examples for the Cisco SLT
service timestamps debug datetime msec
service timestamps log datetime msec localtime
no service password-encryption
!
hostname Router_T1
!
logging buffered 4096 debugging
!
ip subnet-zero
!
Extended SuperFrame (ESF) framing and binary-8 zero substitution (B8ZS) are configured on the T1
0/0 controller. For these settings, the defaults are usually sufficient and only need to be changed because
the service provider requires it.
Because this is a short-haul link, the cable length is specified as short.
controller T1 0/0
framing esf
linecode b8zs
cablelength short 133
The channel-group controller configuration command creates a channel group 0 that occupies a single
time slot.
channel-group 0 timeslots 24
!
controller T1 0/1
framing esf
tdm-group 2 timeslots 1-23
!
process-max-time 200
!
Ethernet 0/0 provides the IP connection for backhauling SS7 information between the Cisco 2600 series
router and the MGC.
interface Ethernet0/0
ip address 255.1.1.6
no ip directed-broadcast
no ip mroute-cache
no cdp enable
!
The channel-group command creates a logical serial interface that corresponds to the slot and port
location of the T1 interface, and to the channel group number of 0.
interface Serial0/0:0
no ip address
no ip directed-broadcast
!
interface Ethernet0/1
no ip address
no ip directed-broadcast
no ip mroute-cache
!
ip classless
no ip http server
!
The SS7 commands all use the default settings. This is especially important for the session timers, which
should not be changed except at the instruction of Cisco technical assistance. Two sessions are
configured here.
ss7 set failover-timer 3
Cisco IOS Release 12.2(15)T
33
Cisco Signaling Link Terminal
Configuration Examples for the Cisco SLT
ss7 session-0 address 255.1.0.2 8060 255.1.1.6 8060
ss7 session-0 retrans_t 600
ss7 session-0 cumack_t 300
ss7 session-0 kp_t 2000
ss7 session-0 m_retrans 2
ss7 session-0 m_cumack 3
ss7 session-0 m_outseq 3
ss7 session-0 m_rcvnum 32
ss7 session-1 address 255.1.0.1 8061 255.1.1.6 8061
ss7 session-1 retrans_t 600
ss7 session-1 cumack_t 300
ss7 session-1 kp_t 2000
ss7 session-1 m_retrans 2
ss7 session-1 m_cumack 3
ss7 session-1 m_outseq 3
ss7 session-1 m_rcvnum 32
!
line con 0
exec-timeout 0 0
transport input none
line aux 0
line vty 0 4
exec-timeout 0 0
password lab
login
!
end
The ss7 mtp2-variant command determines the MTP 2 variant on each channel.
ss7
ss7
ss7
ss7
mtp2-variant
mtp2-variant
mtp2-variant
mtp2-variant
NTT 0
NTT 1
Bellcore 2
Bellcore 3
Cisco SLT E1 with Drop and Insert Configuration Example
The following example shows configuration of the Cisco SLT with an E1 voice/WAN interface card that
has Drop-and-Insert capabilities.
version 12.0
no service pad
service timestamps debug datetime msec
service timestamps log datetime msec localtime
no service password-encryption
!
hostname Router_E1
!
logging buffered 4096 debugging
!
ip subnet-zero
!
The channel-group controller configuration commands create channel groups 0, each of which occupies
a single time slot. The TDM groups use the rest of the time slots.
!
controller E1 0/0
channel-group 0 timeslots 16
tdm-group 1 timeslots 1-15,17-31
!
controller E1 0/1
Cisco IOS Release 12.2(15)T
34
Cisco Signaling Link Terminal
Configuration Examples for the Cisco SLT
clock source internal
tdm-group 1 timeslots 1-15,17-31
!
controller E1 0/2
channel-group 0 timeslots 16
!
controller E1 0/3
!
process-max-time 200
!
Ethernet 0/0 provides the IP connection for backhauling SS7 information between the Cisco 2600 series
router and the MGC.
interface Ethernet0/0
ip address 10.1.1.6
no ip directed-broadcast
no ip mroute-cache
no cdp enable
!
The channel-group command creates two logical serial interfaces that correspond to the slot and port
locations of the E1 interfaces, and to the channel group number of 0.
interface Serial0/0:0
no ip address
no ip directed-broadcast
no keepalive
!
interface Ethernet0/1
no ip address
no ip directed-broadcast
no ip mroute-cache
!
interface Serial0/2:0
no ip address
no ip directed-broadcast
no keepalive
!
ip classless
no ip http server
!
The connect command links the two VWIC ports for Drop and Insert.
connect my_connection E1 0/0 1 E1 0/1 1
!
The SS7 commands all use the default settings. This is especially important for the session timers, which
should not be changed except at the direction of Cisco technical assistance. Two sessions are configured
here.
ss7
ss7
ss7
ss7
ss7
ss7
ss7
ss7
ss7
ss7
ss7
ss7
ss7
set failover-timer 3
session-0 address 10.1.0.2 8060 10.1.1.6 8060
session-0 retrans_t 600
session-0 cumack_t 300
session-0 kp_t 2000
session-0 m_retrans 2
session-0 m_cumack 3
session-0 m_outseq 3
session-0 m_rcvnum 32
session-1 address 10.1.0.1 8061 10.1.1.6 8061
session-1 retrans_t 600
session-1 cumack_t 300
session-1 kp_t 2000
Cisco IOS Release 12.2(15)T
35
Cisco Signaling Link Terminal
Configuration Examples for the Cisco SLT
ss7 session-1 m_retrans 2
ss7 session-1 m_cumack 3
ss7 session-1 m_outseq 3
ss7 session-1 m_rcvnum 32
!
line con 0
exec-timeout 0 0
transport input none
line aux 0
line vty 0 4
exec-timeout 0 0
password lab
login
!
end
The ss7 mtp2-variant command determines the MTP 2 variant on each channel.
ss7
ss7
ss7
ss7
mtp2-variant
mtp2-variant
mtp2-variant
mtp2-variant
NTT 0
NTT 1
Bellcore 2
Bellcore 3
Session Manager and RUDP Configuration Example
The following example shows information about an SS7 session manager session:
Router# show ss7 sm session
Session[0]: Remote Host 255.251.250.252:8060, Local Host 255.251.251.252:8060
retrans_t = 600
cumack_t = 300
kp_t
= 2000
m_retrans = 2
m_cumack = 3
m_outseq = 3
m_rcvnum = 32
Session[1]: Remote Host 255.251.250.253:8060, Local Host 255.251.251.252:8061
retrans_t = 600
cumack_t = 300
kp_t
= 2000
m_retrans = 2
m_cumack = 3
m_outseq = 3
m_rcvnum = 32
The following example shows information about the failover timer setting:
Router# show ss7 sm set
Session Manager Set
failover timer = 3 seconds
The following example shows session manager statistics:
Router# show ss7 sm stats
-------------------- Session Manager
Session Manager state
Session Manager Up count
Session Manager Down count
Cisco IOS Release 12.2(15)T
36
--------------------
= SESSION SET STATE-ACTIVE
= 1
= 0
Cisco Signaling Link Terminal
Additional References
lost control packet count
lost PDU count
failover timer expire count
invalid_connection_id_count
Session[0] statistics
Session Down count
Open Retry count
=
=
=
=
0
0
0
0
SM SESSION STATE-STANDBY:
= 0
= 0
Total Pkts receive count
Active Pkts receive count
Standby Pkts receive count
PDU Pkts receive count
Unknown Pkts receive count
=
=
=
=
=
1
0
1
0
0
Pkts send count
Pkts requeue count
-Pkts window full count
-Pkts resource unavail count
-Pkts enqueue fail count
PDUs dropped (Large)
PDUs dropped (Empty)
=
=
=
=
=
=
=
0
0
0
0
0
0
0
RUDP Not Ready Errs
RUDP Connection Not Open
RUDP Invalid Conn Handle
RUDP Unknown Errors
RUDP Unknown Signal
NonActive Receive count
=
=
=
=
=
=
0
0
0
0
0
0
Session[1] statistics
Session Down count
Open Retry count
SM SESSION STATE-ACTIVE:
= 0
= 0
Total Pkts receive count
Active Pkts receive count
Standby Pkts receive count
PDU Pkts receive count
Unknown Pkts receive count
=
=
=
=
=
2440
1
0
2439
0
Pkts send count
Pkts requeue count
-Pkts window full count
-Pkts resource unavail count
-Pkts enqueue fail count
PDUs dropped (Large)
PDUs dropped (Empty)
=
=
=
=
=
=
=
2905
0
0
0
0
0
0
RUDP Not Ready Errs
RUDP Connection Not Open
RUDP Invalid Conn Handle
RUDP Unknown Errors
RUDP Unknown Signal
NonActive Receive count
=
=
=
=
=
=
0
0
0
0
0
0
Additional References
For additional information related to the Cisco SLT feature, refer to the following references:
•
Related Documents, page 38
Cisco IOS Release 12.2(15)T
37
Cisco Signaling Link Terminal
Additional References
•
Standards, page 39
•
MIBs, page 39
•
RFCs, page 40
•
Technical Assistance, page 40
Related Documents
For additional information on how to install and configure a Cisco 2600 and for information about the
VWIC interfaces, refer to the following documentation on Cisco.com.
Related Topic
Document Title
Cisco 2600 series software
Cisco 2600 Series Configuration Notes
Cisco IOS software on the Cisco 2600 series
Cisco IOS Release Notes
Cisco SLT documentation
Cisco Signaling Link Terminal
How to configure your Cisco router or access server to Cisco IOS Voice, Video, and Fax Configuration Guide, Release
support voice, video, and fax applications
12.2 T
How to use Cisco IOS commands to support voice,
video, and fax applications
Cisco IOS Voice, Video, and Fax Command Reference, Release
12.2 T
How to install WAN and voice interface cards on the
Cisco 2600 series
Cisco WAN Interface Cards Hardware Installation Guide.
Cisco 2600 series hardware
Hardware installation documents for Cisco 2600 series
How to configure the Cisco 2600 series
Software configuration documents for Cisco 2600 series
How to set up and cable the Cisco 2600 series
Quick Start Guide Cisco 2600 Series Cabling and Setup
Cisco IOS Release 12.2(15)T
38
Cisco Signaling Link Terminal
Additional References
Standards
Standards
Title
No new or modified standards are supported by this
—
feature, and support for existing standards has not been
modified by this feature.
MIBs
MIBs
MIBs Link
No new or modified MIBs are supported by this
feature, and support for existing MIBs has not been
modified by this feature.
To obtain lists of supported MIBs by platform and Cisco IOS
release, and to download MIB modules, go to the Cisco MIB website
on Cisco.com at the following URL:
http://www.cisco.com/public/sw-center/netmgmt/cmtk/mibs.shtml
To locate and download MIBs for selected platforms, Cisco IOS releases, and feature sets, use
Cisco MIB Locator found at the following URL:
http://tools.cisco.com/ITDIT/MIBS/servlet/index
If Cisco MIB Locator does not support the MIB information that you need, you can also obtain a list of
supported MIBs and download MIBs from the Cisco MIBs page at the following URL:
http://www.cisco.com/public/sw-center/netmgmt/cmtk/mibs.shtml
To access Cisco MIB Locator, you must have an account on Cisco.com. If you have forgotten or lost your
account information, send a blank e-mail to cco[email protected] An automatic check will verify
that your e-mail address is registered with Cisco.com. If the check is successful, account details with a
new random password will be e-mailed to you. Qualified users can establish an account on Cisco.com
by following the directions found at this URL:
http://www.cisco.com/register
Cisco IOS Release 12.2(15)T
39
Cisco Signaling Link Terminal
Command Reference
RFCs
RFCs
Title
No new or modified RFCs are supported by this
feature, and support for existing RFCs has not been
modified by this feature.
—
Technical Assistance
Description
Link
Technical Assistance Center (TAC) home page,
containing 30,000 pages of searchable technical
content, including links to products, technologies,
solutions, technical tips, and tools. Registered
Cisco.com users can log in from this page to access
even more content.
http://www.cisco.com/public/support/tac/home.shtml
Command Reference
This section documents modified commands. All other commands used with this feature are documented
in the Cisco IOS Release 12.2(xx) command reference publications.
•
clear rudpv0 statistics
•
clear ss7 sm stats
•
debug rudpv0 application
•
debug rudpv0 performance
•
debug rudpv0 retransmit
•
debug rudpv0 segment
•
debug rudpv0 signal
•
debug rudpv0 timer
•
debug ss7 mtp2 aerm
•
debug ss7 mtp2 backhaul
•
debug ss7 mtp2 cong
•
debug ss7 mtp2 iac
•
debug ss7 mtp2 lsc
•
debug ss7 mtp2 msu
•
debug ss7 mtp2 packet
•
debug ss7 mtp2 rcv
•
debug ss7 mtp2 suerm
•
debug ss7 mtp2 timer
•
debug ss7 mtp2 txc
Cisco IOS Release 12.2(15)T
40
Cisco Signaling Link Terminal
Command Reference
•
debug ss7 sm session
•
debug ss7 sm set
•
debug ss7 sm timer
•
forward-alarms
•
line-termination
•
loopback (E1 controller)*
•
loopback (T1 controller)*
•
show rudpv0 failures
•
show rudpv0 statistics
•
show ss7 mtp2 ccb
•
show ss7 mtp2 state
•
show ss7 mtp2 stats
•
show ss7 mtp2 timer
•
show ss7 mtp2 variant
•
show ss7 sm session
•
show ss7 sm set
•
show ss7 sm stats
•
ss7 mtp2-variant bellcore
•
ss7 mtp2-variant itu
•
ss7 mtp2-variant ntt
•
ss7 mtp2-variant ttc
•
ss7 session
•
ss7 session cumack_t
•
ss7 session kp_t
•
ss7 session m_cumack
•
ss7 session m_outseq
•
ss7 session m_rcvnum
•
ss7 session m_retrans
•
ss7 session retrans_t
•
ss7 set failover-timer
Cisco IOS Release 12.2(15)T
41
Cisco Signaling Link Terminal
clear rudpv0 statistics
clear rudpv0 statistics
To clear the counters that track RUDP statistics, enter the clear rudpv0 statistics command in privileged
EXEC mode.
clear rudpv0 statistics
Syntax Description
This command has no arguments or keywords.
Defaults
The statistical information accumulates.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(15)T
Support was added for the Cisco 2611XM, Cisco 2651XM, Cisco AS5350,
and Cisco AS5400 signaling link terminal (SLT).
Examples
The following example shows how to clear RUDP statistics on a Cisco 2611 (Cisco SLT):
clear rudpv0 statistics
Related Commands
Command
Description
show rudpv0 failures
Displays RUDP information about failed connections and the
reasons for them.
show rudpv0 statistics
Displays RUDP information about number of packets sent, received,
and so forth.
Cisco IOS Release 12.2(15)T
42
Cisco Signaling Link Terminal
clear ss7 sm stats
clear ss7 sm stats
To clear the counters that track session manager statistics, use the clear ss7 sm stats command in
privileged EXEC mode.
clear ss7 sm stats
Syntax Description
This command has no arguments or keywords.
Defaults
The statistical information accumulates
Command Modes
Privileged EXEC
Command History
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(15)T
Support was added for the Cisco 2611XM, Cisco 2651XM, Cisco AS5350, and
Cisco AS5400 signaling link terminal (SLT).
Examples
The following example shows how to clear session manager statistics on a Cisco 2611:
clear ss7 sm stats
Related Commands
Command
Description
show ss7 sm stats
Displays session manager information about number of packets queued,
received, and so forth.
Cisco IOS Release 12.2(15)T
43
Cisco Signaling Link Terminal
debug rudpv0 application
debug rudpv0 application
To enable SS7 Reliable User Datagram Protocol (RUDP) application debugging, enter the debug
rudpv0 application privileged EXEC command. The no form of this command disables debugging
output.
debug rudpv0 application
no debug rudpv0 application
Warning
Use this command only for testing problems in a controlled environment. This command can generate
significant amounts of output. If there is any significant amount of traffic flow when you issue the
command, the processor may slow down so much that RUDP connections fail.
Syntax Description
This command has no arguments or keywords.
Command History
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(15)T
Support was added for the Cisco 2611XM, Cisco 2651XM, Cisco AS5350,
and Cisco AS5400 signaling link terminal (SLT).
Usage Guidelines
The output for this command shows the sequence numbers of segments as they are being passed to the upper
layer protocol.
Examples
The following is an example of debug rudpv0 application command output:
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
1
1
1
1
1
1
1
1
1
1
00:41:09.387:
00:41:09.395:
00:41:13.722:
00:41:23.631:
00:41:37.225:
00:41:37.225:
00:41:37.225:
00:41:39.404:
00:41:39.444:
00:41:48.632:
Cisco IOS Release 12.2(15)T
44
Turning
Send to
Send to
Send to
Send to
Send to
Send to
Send to
Send to
Send to
application debugging on
appl, seq 204
appl, seq 205
appl, seq 206
appl, seq 207
appl, seq 208
appl, seq 209
appl, seq 210
appl, seq 211
appl, seq 212
Cisco Signaling Link Terminal
debug rudpv0 performance
debug rudpv0 performance
To view information about sent and received SS7 Reliable User Datagram Protocol (RUDP) packets,
enter the debug rudpv0 performance privileged EXEC command. The no form of this command
disables debugging output.
debug rudpv0 performance
no debug rudpv0 performance
Syntax Description
This command has no arguments or keywords.
Command History
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(15)T
Support was added for the Cisco 2611XM, Cisco 2651XM, Cisco AS5350,
and Cisco AS5400 signaling link terminal (SLT).
Usage Guidelines
The output for this command shows the average number of segments that are sent and received per
second for all RUDP connections combined. The “Sent” and “Rcvd” counts report the total number of
segments (both internal RUDP segments and data segments) averaged over the time since the last issue
of the clear rudpv0 statistics command or the last reboot.
The “Data Bytes” and packet counts are averaged only over the number of segments when there is actual
data traffic flowing. For example, sent keepalive segments do not affect these counts.
Examples
The following is an example of debug rudpv0 performance command output:
Router# debug rudpv0 performance
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
01:12:34.065:
01:12:41.817:
01:12:41.817:
01:12:41.817:
01:12:41.817:
01:12:41.817:
01:12:51.846:
01:12:51.846:
01:12:51.846:
01:12:51.846:
01:12:51.846:
01:13:01.874:
01:13:01.874:
01:13:01.874:
01:13:01.874:
01:13:01.874:
01:13:11.907:
01:13:11.907:
01:13:11.907:
01:13:11.907:
01:13:11.907:
Turning performance debugging on
Sent: Pkts 1,
Rcvd: Pkts 1,
Discarded: 0,
Data Bytes 118, Data Pkts 1
Data Bytes 47, Data Pkts 1
Retransmitted 0
Sent: Pkts 1,
Rcvd: Pkts 1,
Discarded: 0,
Data Bytes 118, Data Pkts 1
Data Bytes 47, Data Pkts 1
Retransmitted 0
Sent: Pkts 1,
Rcvd: Pkts 1,
Discarded: 0,
Data Bytes 118, Data Pkts 1
Data Bytes 47, Data Pkts 1
Retransmitted 0
Sent: Pkts 1,
Rcvd: Pkts 1,
Discarded: 0,
Data Bytes 118, Data Pkts 1
Data Bytes 47, Data Pkts 1
Retransmitted 0
Cisco IOS Release 12.2(15)T
45
Cisco Signaling Link Terminal
debug rudpv0 performance
*Mar
*Mar
*Mar
1 01:13:21.931:
1 01:13:21.931: Sent: Pkts 1,
1 01:13:21.931: Rcvd: Pkts 1,
Cisco IOS Release 12.2(15)T
46
Data Bytes 118, Data Pkts 1
Data Bytes 47, Data Pkts 1
Cisco Signaling Link Terminal
debug rudpv0 retransmit
debug rudpv0 retransmit
To show information about SS7 Reliable User Datagram Protocol (RUDP) retransmit timer performance,
enter the debug rudpv0 retransmit privileged EXEC command. The no form of this command disables
debugging output.
debug rudpv0 retransmit
no debug rudpv0 retransmit
Warning
Use this command only for testing problems in a controlled environment. This command can generate
significant amounts of output. If there is any significant amount of traffic flow when you issue the
command, the processor may slow down so much that RUDP connections fail.
Syntax Description
This command has no arguments or keywords.
Command History
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(15)T
Support was added for the Cisco 2611XM, Cisco 2651XM, Cisco AS5350,
and Cisco AS5400 signaling link terminal (SLT).
Usage Guidelines
The output for this command shows internal RUDP events that are involved in retransmitting segments.
Examples
The following is an example of debug rudpv0 retransmit command output:
Router# debug rudpv0 retransmit
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
01:14:21.405:
01:14:21.633:
01:14:22.647:
01:14:23.636:
01:14:23.636:
01:14:25.640:
01:14:25.644:
01:14:27.639:
01:14:27.643:
01:14:29.642:
01:14:29.646:
01:14:31.645:
01:14:31.649:
01:14:33.649:
01:14:33.653:
01:14:35.648:
01:14:35.652:
01:14:37.203:
01:14:37.655:
01:14:39.210:
01:14:39.659:
Turning
Retrans
Retrans
Retrans
Retrans
Retrans
Retrans
Retrans
Retrans
Retrans
Retrans
Retrans
Retrans
Retrans
Retrans
Retrans
Retrans
Retrans
Retrans
Retrans
Retrans
retransmit/softreset debugging on
timer, set to ack 67
timer, set to ack 45
timer, set to ack 46
timer, set to ack 68
timer, set to ack 47
timer, set to ack 69
timer, set to ack 48
timer, set to ack 70
timer, set to ack 49
timer, set to ack 71
timer, set to ack 50
timer, set to ack 72
timer, set to ack 51
timer, set to ack 73
timer, set to ack 52
timer, set to ack 74
timer, set to ack 53
timer, set to ack 75
timer, set to ack 56
timer, set to ack 76
Cisco IOS Release 12.2(15)T
47
Cisco Signaling Link Terminal
debug rudpv0 retransmit
*Mar
*Mar
1 01:14:41.209: Retrans timer, set to ack 57
1 01:14:41.662: Retrans timer, set to ack 77
Cisco IOS Release 12.2(15)T
48
Cisco Signaling Link Terminal
debug rudpv0 segment
debug rudpv0 segment
To show information about segments being sent and received by the SS7 Reliable User Datagram
Protocol (RUDP), enter the debug rudpv0 segment privileged EXEC command. The no form of this
command disables debugging output.
debug rudpv0 segment
no debug rudpv0 segment
Warning
Use this command only for testing problems in a controlled environment. This command can generate
significant amounts of output. If there is any significant amount of traffic flow when you issue the
command, the processor may slow down so much that RUDP connections fail.
Syntax Description
This command has no arguments or keywords.
Command History
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(15)T
Support was added for the Cisco 2611XM, Cisco 2651XM, Cisco AS5350,
and Cisco AS5400 signaling link terminal (SLT).
Usage Guidelines
The output for this command shows segments that are being sent and received by the RUDP and the
control bits that are set in those segments. The number in parentheses is the length of the segment.
Examples
The following is an example of debug rudpv0 segment command output:
Router# debug rudpv0 segment
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
01:16:57.981:
01:16:58.005:
01:16:58.642:
01:16:58.895:
01:16:59.808:
01:17:00.105:
01:17:00.646:
01:17:00.898:
01:17:01.812:
01:17:02.108:
01:17:02.645:
01:17:02.897:
01:17:03.811:
01:17:04.107:
01:17:04.648:
01:17:04.897:
01:17:05.814:
01:17:06.107:
01:17:06.652:
Turning segment
RUDP: Rcvd ACK
RUDP: Send NUL
RUDP: Rcvd ACK
RUDP: Send NUL
RUDP: Rcvd ACK
RUDP: Send NUL
RUDP: Rcvd ACK
RUDP: Send NUL
RUDP: Rcvd ACK
RUDP: Send NUL
RUDP: Rcvd ACK
RUDP: Send NUL
RUDP: Rcvd ACK
RUDP: Send NUL
RUDP: Rcvd ACK
RUDP: Send NUL
RUDP: Rcvd ACK
RUDP: Send NUL
debugging on
30..145 (4),
ACK 143..155 (4),
156..143 (4),
ACK 146..29 (4),
30..146 (4),
ACK 144..155 (4),
156..144 (4),
ACK 147..29 (4),
30..147 (4),
ACK 145..155 (4),
156..145 (4),
ACK 148..29 (4),
30..148 (4),
ACK 146..155 (4),
156..146 (4),
ACK 149..29 (4),
30..149 (4),
ACK 147..155 (4),
Cisco IOS Release 12.2(15)T
49
Cisco Signaling Link Terminal
debug rudpv0 segment
*Mar
*Mar
*Mar
*Mar
*Mar
1
1
1
1
1
01:17:06.896:
01:17:07.188:
01:17:07.192:
01:17:07.192:
01:17:07.196:
Cisco IOS Release 12.2(15)T
50
RUDP:
RUDP:
RUDP:
RUDP:
RUDP:
Rcvd
Rcvd
Rcvd
Rcvd
Send
ACK
ACK
ACK
ACK
ACK
156..147
156..147
157..147
158..147
148..158
(4),
(24),
(24),
(24),
(136),
Cisco Signaling Link Terminal
debug rudpv0 signal
debug rudpv0 signal
To enable SS7 Reliable User Datagram Protocol (RUDP) signaling debugging, enter the debug rudpv0
signal privileged EXEC command. The no form of this command disables debugging output.
debug rudpv0 signal
no debug rudpv0 signal
Syntax Description
This command has no arguments or keywords.
Command History
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(15)T
Support was added for the Cisco 2611XM, Cisco 2651XM, Cisco AS5350,
and Cisco AS5400 signaling link terminal (SLT).
Usage Guidelines
The output for this command shows the signals that the RUDP is sending to the upper-layer protocol.
Examples
The following is an example of debug rudpv0 signal command output:
Router# debug rudpv0 signal
*Mar
*Mar
*Mar
*Mar
*Mar
1
1
1
1
1
00:00:35.093:Turning signal debugging on
00:02:29.060:Sent CONN_RESET_SIG to connID 811BE94C
00:02:30.061:Sent CONN_OPEN_SIG to connID 811BE94C
00:04:11.195:Sent CONN_RESET_SIG to connID 811BEB24
00:04:15.202:Sent CONN_OPEN_SIG to connID 811BEB24
Cisco IOS Release 12.2(15)T
51
Cisco Signaling Link Terminal
debug rudpv0 timer
debug rudpv0 timer
To see SS7 Reliable User Datagram Protocol (RUDP) timer delay setting and start and stops, enter the
debug rudpv0 timer privileged EXEC command. The no form of this command disables debugging
output.
debug rudpv0 timer
no debug rudpv0 timer
Warning
Use this command only for testing problems in a controlled environment. This command can generate
significant amounts of output. If there is any significant amount of traffic flow when you issue the
command, the processor may slow down so much that RUDP connections fail. This command is
recommended for field support personnel only, and is not recommended for use without prior
recommendation from Cisco.
Syntax Description
This command has no arguments or keywords.
Command History
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(15)T
Support was added for the Cisco 2611XM, Cisco 2651XM, Cisco AS5350,
and Cisco AS5400 signaling link terminal (SLT).
Usage Guidelines
The output for this command shows the timers that RUDP starts and stops, as well as those that expire.
Examples
The following is an example of debug rudpv0 timer command output showing the configured delays
for active timers used in the specified connections (connection ID 81164054 and so on):
Router# debug rudpv0 timer
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
1
1
1
1
1
1
1
1
1
1
1
1
1
01:19:46.842:
01:19:47.479:
01:19:47.479:
01:19:47.479:
01:19:47.479:
01:19:47.700:
01:19:47.992:
01:19:47.992:
01:19:47.992:
01:19:47.992:
01:19:48.196:
01:19:48.629:
01:19:48.629:
Cisco IOS Release 12.2(15)T
52
Turning timer debugging on
Timer Keepalive (NullSeg) triggered for conn
Starting Retrans timer for connP = 81164054,
Stopping SentList timer for connP = 81164054
Starting NullSeg timer for connP = 81164054,
Stopping Retrans timer for connP = 81164054
Timer Keepalive (NullSeg) triggered for conn
Starting Retrans timer for connP = 8116422C,
Stopping SentList timer for connP = 8116422C
Starting NullSeg timer for connP = 8116422C,
Stopping Retrans timer for connP = 8116422C
Starting Retrans timer for connP = 81164054,
Stopping SentList timer for connP = 81164054
= 81164054
delay = 600
delay = 2000
= 8116422C
delay = 600
delay = 2000
delay = 600
Cisco Signaling Link Terminal
debug ss7 mtp2 aerm
debug ss7 mtp2 aerm
To display SS7 MTP 2 Alignment Error Rate Monitor (AERM) events and state transitions, enter the
debug ss7 mtp2 aerm privileged EXEC command. The no form of this command disables debugging
output.
debug ss7 mtp2 aerm [channel]
no debug ss7 mtp2 aerm
Syntax Description
channel
Defaults
If you do not specify a channel number, the command displays information for channel 0.
Command History
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(15)T
Support was added for the Cisco 2611XM, Cisco 2651XM, Cisco AS5350,
and Cisco AS5400 signaling link terminal (SLT).
Examples
Enters a logical channel number. Valid values are from 0 to 3.
The following is an example of debug ss7 mtp2 aerm command output. See the MTP 2 specification
for details:
Router# debug ss7 mtp2 aerm 0
*Mar
*Mar
8 08:59:30.991:itu2AERM_Start chnl=0 MTP2AERM_IDLE
8 08:59:35.070:itu2AERM_Stop chnl=0 MTP2AERM_MONITORING
Cisco IOS Release 12.2(15)T
53
Cisco Signaling Link Terminal
debug ss7 mtp2 backhaul
debug ss7 mtp2 backhaul
To display SS7 MTP 2 events and messages received from the media gateway controller (MGC) and sent
to the MGC, enter the debug ss7 mtp2 backhaul privileged EXEC command. The no form of this
command disables debugging output.
debug ss7 mtp2 backhaul [channel]
no debug ss7 mtp2 backhaul
Syntax Description
channel
Defaults
If you do not specify a channel number, the command displays information for channel 0.
Command History
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(15)T
Support was added for the Cisco 2611XM, Cisco 2651XM, Cisco AS5350,
and Cisco AS5400 signaling link terminal (SLT).
Enters a logical channel number. Valid values are from 0 to 3.
Usage Guidelines
This command helps debug communications between the MGC and the Cisco 2611.
Examples
The following is an example of debug ss7 mtp2 backhaul command output for channel 0:
Router# debug ss7 mtp2 backhaul 0
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
03:08:04.433:
03:08:04.433:
03:08:08.721:
03:08:10.311:
03:08:10.311:
03:08:20.440:
03:08:20.444:
03:08:24.719:
03:08:36.438:
03:08:36.438:
03:08:40.312:
03:08:40.312:
03:08:40.721:
03:08:52.444:
03:08:52.444:
03:08:56.719:
03:09:08.438:
03:09:08.438:
MTP2:
MTP2:
MTP2:
MTP2:
MTP2:
MTP2:
MTP2:
MTP2:
MTP2:
MTP2:
MTP2:
MTP2:
MTP2:
MTP2:
MTP2:
MTP2:
MTP2:
MTP2:
send
send
rcvd
rcvd
send
send
send
rcvd
send
send
rcvd
send
rcvd
send
send
rcvd
send
send
Disc Ind ch=0 reason=0x14-T2 expired waiting for SIO
LSC Ind ch=0 event=0x8-lost link alignment cause=0x0
Conn Req - Normal ch=0
Statistics Req-Send&Reset
ch=0
Stats Cfm ch=0
Disc Ind ch=0 reason=0x14-T2 expired waiting for SIO
LSC Ind ch=0 event=0x8-lost link alignment cause=0x0
Conn Req - Normal ch=0
Disc Ind ch=0 reason=0x14-T2 expired waiting for SIO
LSC Ind ch=0 event=0x8-lost link alignment cause=0x0
Statistics Req-Send&Reset
ch=0
Stats Cfm ch=0
Conn Req - Normal ch=0
Disc Ind ch=0 reason=0x14-T2 expired waiting for SIO
LSC Ind ch=0 event=0x8-lost link alignment cause=0x0
Conn Req - Normal ch=0
Disc Ind ch=0 reason=0x14-T2 expired waiting for SIO
LSC Ind ch=0 event=0x8-lost link alignment cause=0x0
The following tables explain codes that appear in the command output.
Cisco IOS Release 12.2(15)T
54
Cisco Signaling Link Terminal
debug ss7 mtp2 backhaul
.
Table 2
Backhaul Debug Event Codes
Event Code
Explanation
0x0
local processor outage
0x1
Local processor outage recovered
0x2
Entered a congested state
0x3
Exited a congested state
0x4
Physical layer up
0x5
Physical layer down
0x7
Protocol error (see cause code)
0x8
Link alignment lost
0x9
Retransmit buffer full
0xa
Retransmit buffer no longer full
0xb
Negative acknowledgment received from far
end
0xc
Remote entered congestion
0xd
Remote exited congestion
0xe
Remote entered processor outage
0xf
Remote exited processor outage
Table 3
Backhaul Debug Cause Codes
Cause Code
Explanation
0x0
Cause unknown - default
0x1
Management initiated
0x2
Abnormal BSN (Backward Sequence
Number)
0x3
Abnormal FIB (Forward Indicator Bit)
0x4
Congestion discard
Table 4
Backhaul Debug Reason Codes
Cause Code
Explanation
0x0
Layer management request
0x1
SUERM (Signal Unit Error Monitor) failure
0x2
Excessively long alignment period
0x3
T7 timer expired
0x4
Physical interface failure
0x5
Two or three invalid BSNs
0x6
Two or three invalid FIBs
Cisco IOS Release 12.2(15)T
55
Cisco Signaling Link Terminal
debug ss7 mtp2 backhaul
Table 4
Backhaul Debug Reason Codes (continued)
Cause Code
Explanation
0x7
LSSU (Link Status Signal Unit) condition
0x8
Excessive MTP 2 congestion
0x13
SIOs (Service Information Octets) received in
Link State Control (LSC)
0x14
Timer T2 expired waiting for SIO
0x15
Timer T3 expired waiting for SIE/SIN
0x16
SIO received in initial alignment control
(IAC)
0x17
Proving period failure
0x18
Timer T1 expired waiting for FISU (Fill-In
Signal Unit)
0x19
SIN received in the in-service state
0x20
CTS lost
0x25
No resources
Cisco IOS Release 12.2(15)T
56
Cisco Signaling Link Terminal
debug ss7 mtp2 cong
debug ss7 mtp2 cong
To display information about SS7 MTP 2 congestion state machine events and transitions, enter the
debug mtp2 cong privileged EXEC command. The no form of this command disables debugging output.
debug ss7 mtp2 cong [channel]
no debug mtp2 cong
Syntax Description
channel
Defaults
If you do not specify a channel number, the command displays information for channel 0.
Command History
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(15)T
Support was added for the Cisco 2611XM, Cisco 2651XM, Cisco AS5350,
and Cisco AS5400 signaling link terminal (SLT).
Examples
Enters a logical channel number. Valid values are from 0 to 3.
The following is an example of debug ss7 mtp2 cong command output. See the MTP 2 specification for
details:
Router# debug ss7 mtp2 cong 0
*Mar 8 09:10:56.219:itu2CongestionOnset chnl=0 MTP2CONGESTION_IDLE
*Mar 8 09:10:59.332:itu2CongestionAbatement chnl=0
MTP2CONGESTION_ACTIVE
*Mar 8 09:11:01.143:itu2CongestionAbatement chnl=0 MTP2CONGESTION_IDLE
Cisco IOS Release 12.2(15)T
57
Cisco Signaling Link Terminal
debug ss7 mtp2 iac
debug ss7 mtp2 iac
To display information about SS7 MTP 2 initial alignment control (IAC) events and transitions, enter the
debug ss7 mtp2 iac privileged EXEC command. The no form of this command disables debugging
output.
debug ss7 mtp2 iac [channel]
no debug mtp2 iac
Syntax Description
channel
Defaults
If you do not specify a channel number, the command displays information for channel 0.
Command History
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(15)T
Support was added for the Cisco 2611XM, Cisco 2651XM, Cisco AS5350,
and Cisco AS5400 signaling link terminal (SLT).
Examples
Enters a logical channel number. Valid values are from 0 to 3.
The following is an example of debug ss7 mtp2 iac command output. See the MTP 2 specification for
details:
Router# debug ss7 mtp2 iac 0
*Mar
*Mar
*Mar
*Mar
*Mar
8
8
8
8
8
09:17:58.367:itu2IAC_Start chnl=0 MTP2IAC_IDLE
09:17:58.739:itu2IAC_Rcvd_SIO chnl=0 MTP2IAC_NOT_ALIGNED
09:17:58.739:itu2IAC_Rcvd_SIN chnl=0 MTP2IAC_ALIGNED
09:17:58.739:itu2IAC_Rcvd_SIN chnl=0 MTP2IAC_PROVING
09:18:02.814:itu2IAC_T4_TMO
chnl=0 MTP2IAC_PROVING
Cisco IOS Release 12.2(15)T
58
Cisco Signaling Link Terminal
debug ss7 mtp2 lsc
debug ss7 mtp2 lsc
To display information about SS7 MTP 2 Link State Control (LSC) events and transitions, enter the
debug ss7 mtp2 lsc privileged EXEC command. The no form of this command disables debugging
output.
debug ss7 mtp2 lsc [channel]
no debug mtp2 lsc
Syntax Description
channel
Defaults
If you do not specify a channel number, the command displays information for channel 0.
Command History
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(15)T
Support was added for the Cisco 2611XM, Cisco 2651XM, Cisco AS5350,
and Cisco AS5400 signaling link terminal (SLT).
Examples
Enters a logical channel number. Valid values are from 0 to 3.
The following is an example of debug ss7 mtp2 lsc command output. See the MTP 2 specification for
details:
Router# debug ss7 mtp2 lsc 0
*Mar 8 09:20:21.105:itu2LSC_Rcvd_SIOS chnl=0 MTP2LSC_INSERVICE
*Mar 8 09:20:21.121:itu2LSC_Retrieve_BSNT chnl=0 MTP2LSC_OOS
*Mar 8 09:20:22.058:itu2LSC_SetEmergency chnl=0 MTP2LSC_OOS
*Mar 8 09:20:22.058:itu2LSC_Start chnl=0 MTP2LSC_OOS
*Mar 8 09:20:33.785:itu2LSC_AlignmentNotPossible chnl=0
MTP2LSC_INITIAL_ALIGNMENT
*Mar 8 09:20:38.758:itu2LSC_SetEmergency chnl=0 MTP2LSC_OOS
*Mar 8 09:20:38.758:itu2LSC_Start chnl=0 MTP2LSC_OOS
*Mar 8 09:20:44.315:itu2LSC_Rcvd_SIO chnl=0 MTP2LSC_INITIAL_ALIGNMENT
*Mar 8 09:20:44.315:itu2LSC_Rcvd_SIO chnl=0 MTP2LSC_INITIAL_ALIGNMENT
*Mar 8 09:20:44.319:itu2LSC_Rcvd_SIE chnl=0 MTP2LSC_INITIAL_ALIGNMENT
*Mar 8 09:20:44.319:itu2LSC_Rcvd_SIE chnl=0 MTP2LSC_INITIAL_ALIGNMENT
*Mar 8 09:20:48.397:itu2LSC_AlignmentComplete chnl=0
MTP2LSC_INITIAL_ALIGNMENT
Cisco IOS Release 12.2(15)T
59
Cisco Signaling Link Terminal
debug ss7 mtp2 msu
debug ss7 mtp2 msu
To trace backhaul SS7 MTP 2 Message Signaling Units (MSUs), enter the debug ss7 mtp2 msu
command during a low-traffic period. The no form of this command disables debugging output.
debug ss7 mtp2 msu [channel]
no debug mtp2 msu
Syntax Description
channel
Defaults
If you do not specify a channel number, the command displays information for channel 0.
Command History
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(15)T
Support was added for the Cisco 2611XM, Cisco 2651XM, Cisco AS5350,
and Cisco AS5400 signaling link terminal (SLT).
Usage Guidelines
Enters a logical channel number. Valid values are from 0 to 3.
MSUs carry addressed signaling information for call setup and tear down and SS7 network management.
The output for this command can slow traffic under busy conditions, so enter it when there is low traffic.
Examples
The following is an example of debug ss7 mtp2 msu command output for channel 2:
Router# debug ss7 mtp2 msu 2
*Mar
*Mar
1 01:01:12.447: MTP2: send MSU Ind
1 01:01:12.455: MTP2: rcvd MSU Req
Cisco IOS Release 12.2(15)T
60
ch=2
ch=2
len=25
len=252
Cisco Signaling Link Terminal
debug ss7 mtp2 packet
debug ss7 mtp2 packet
To display debug messages for SS7 MTP 2 packets, enter the debug ss7 mtp2 packet privileged EXEC
privileged EXEC command. The no form of this command disables debugging output.
debug ss7 mtp2 packet [channel] [all]
no debug ss7 mtp2 packet
Warning
Syntax Description
Use this command only for testing problems in a controlled environment. This command can generate
significant amounts of output. If there is any significant amount of traffic flow when you issue the
command, the processor may slow down so much that RUDP connections fail. This command is
recommended for field support personnel only, and is not recommended for use without prior
recommendation from Cisco
channel
Enters a logical channel number. Valid values are from 0 to 3.
all
Enter a logical channel number. Valid values are from 0 to 3.
Defaults
If you do not specify a channel number or enter the all keyword, the command displays information for
channel 0.
Command History
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(15)T
Support was added for the Cisco 2611XM, Cisco 2651XM, Cisco AS5350,
and Cisco AS5400 signaling link terminal (SLT).
Examples
The following is an example of debug ss7 mtp2 packet command output for channel 0:
Router# debug ss7 mtp2 packet 0
*Mar 1 00:53:00.052: MTP2 incoming trace enabled on channel 0.
*Mar 1 00:53:00.052: MTP2 outgoing trace enabled on channel 0.
*Mar 1 00:53:07.220: ---- Incoming Rudp msg (20 bytes) ---SM_msg_type
0x00008000
protocol_type 0x0001
msg_ID
0x0001
msg_type
0x0044
channel_ID
0x0000
bearer_ID
0x0000
length
0x0004
data
0x00000001
*Mar 1 00:53:07.224: ---- Outgoing Rudp msg (132 bytes) ---SM_msg_type
0x00008000
protocol_type 0x0001
msg_ID
0x0001
Cisco IOS Release 12.2(15)T
61
Cisco Signaling Link Terminal
debug ss7 mtp2 packet
msg_type
channel_ID
bearer_ID
length
data
0x0045
0x0000
0x0000
0x0074
0x0000001E
0x00000000
0x00000000
0x00000002
0x00000002
0x00000000
0x00000000
0x000000ED
0x00000000
0x00000000
0x00000000
0x00000000
0x00000000
0x0032A2A7
0x00000000
0x00000000
0x00000000
0x00000000
0x00008317
0x00000008
0x0000061C
0x00000006
0x00000000
0x00000000
0x00000000
0x00000000
0x009B5C97
0x000000BF
0x00000000
*Mar 1 00:53:11.343: ---- Outgoing Rudp msg (41 bytes) ---SM_msg_type
0x00008000
protocol_type 0x0001
msg_ID
0x0000
msg_type
0x0011
channel_ID
0x0000
bearer_ID
0x0000
length
0x0019
data
0x8201190A 0x03190A00 0x11F01122 0x33445566
0x778899AA 0xBBCCDDEE
*Mar 1 00:53:11.351: ---- Incoming Rudp msg (41 bytes) ---SM_msg_type
0x00008000
protocol_type 0x0001
msg_ID
0x0001
msg_type
0x0010
channel_ID
0x0000
bearer_ID
0x0000
length
0x0019
data
0xB203190A 0x01190A00 0x21F01122 0x33445566
0x778899AA 0xBBCCDDEE
*Mar 1 00:53:13.739: ---- Incoming Rudp msg (27 bytes) ---SM_msg_type
0x00008000
protocol_type 0x0001
msg_ID
0x0001
msg_type
0x0010
channel_ID
0x0000
bearer_ID
0x0000
length
0x000B
data
0x9503190A 0x01190A00
Cisco IOS Release 12.2(15)T
62
Cisco Signaling Link Terminal
debug ss7 mtp2 rcv
debug ss7 mtp2 rcv
To display information about SS7 MTP 2 receiver state machine events and transitions, enter the
debug ss7 mtp2 rcv privileged EXEC command. The no form of this command disables debugging
output.
debug ss7 mtp2 rcv [channel]
no debug mtp2 rcv
Warning
Use this command only for testing problems in a controlled environment. This command can generate
significant amounts of output. If there is any significant amount of traffic flow when you issue the
command, the processor may slow down so much that RUDP connections fail. This command is
recommended for field support personnel only, and is not recommended for use without prior
recommendation from Cisco.
Syntax Description
channel
Defaults
If you do not specify a channel number, the command displays information for channel 0.
Command History
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(15)T
Support was added for the Cisco 2611XM, Cisco 2651XM, Cisco AS5350,
and Cisco AS5400 signaling link terminal (SLT).
Examples
Enters a logical channel number. Valid values are from 0 to 3.
The following is an example of debug ss7 mtp2 rcv command output. See the MTP 2 specification for
details:
Router# debug ss7 mtp2 rcv 0
*Mar
*Mar
*Mar
8 09:22:35.160:itu2RC_Stop chnl=0 MTP2RC_INSERVICE
8 09:22:35.164:itu2RC_Start chnl=0 MTP2RC_IDLE
8 09:22:52.565:BSNR not in window
bsnr=2 bibr=0x80
fsnr=66 fibr=0x80 fsnf=0 fsnl=127
fsnt=127
8 09:22:52.569:BSNR not in window
bsnr=2 bibr=0x80
fsnr=66 fibr=0x80
fsnt=127
fsnx=0
*Mar
*Mar
*Mar
*Mar
fsnf=0
fsnl=127
fsnx=0
8 09:22:52.569:AbnormalBSN_flag == TRUE
8 09:22:52.569:itu2RC_Stop chnl=0 MTP2RC_INSERVICE
8 09:22:57.561:itu2RC_Start chnl=0 MTP2RC_IDLE
Cisco IOS Release 12.2(15)T
63
Cisco Signaling Link Terminal
debug ss7 mtp2 suerm
debug ss7 mtp2 suerm
To display information about SS7 MTP 2 Signal Unit Error Rate Monitor (SUERM) state machine events
and transitions, enter the debug ss7 mtp2 suerm privileged EXEC command. The no form of this
command disables debugging output.
debug ss7 mtp2 suerm [channel]
no debug mtp2 suerm
Syntax Description
channel
Defaults
If you do not specify a channel number, the command displays information for channel 0.
Command History
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(15)T
Support was added for the Cisco 2611XM, Cisco 2651XM, Cisco AS5350,
and Cisco AS5400 signaling link terminal (SLT).
Examples
Enters a logical channel number. Valid values are from 0 to 3.
The following is an example of debug ss7 mtp2 suerm command output. See the MTP 2 specification
for details:
Router# debug ss7 mtp2 suerm 0
*Mar
*Mar
8 09:33:51.108:itu2SUERM_Stop chnl=0 MTP2SUERM_MONITORING
8 09:34:00.155:itu2SUERM_Start chnl=0 MTP2SUERM_IDLE
Cisco IOS Release 12.2(15)T
64
Cisco Signaling Link Terminal
debug ss7 mtp2 timer
debug ss7 mtp2 timer
To display information about SS7 Message Transfer Part level 2 (MTP 2) timer starts and stops, enter
the debug ss7 mtp2 timer privileged EXEC command. The no form of this command disables
debugging output.
debug ss7 mtp2 timer [channel]
no debug mtp2 timer
Warning
Use this command only for testing problems in a controlled environment. This command can generate
significant amounts of output. If there is any significant amount of traffic flow when you issue the
command, the processor may slow down so much that RUDP connections fail. This command is
recommended for field support personnel only, and is not recommended for use without prior
recommendation from Cisco.
Syntax Description
channel
Defaults
If you do not specify a channel number, the command displays information for channel 0.
Command History
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(15)T
Support was added for the Cisco 2611XM, Cisco 2651XM, Cisco AS5350,
and Cisco AS5400 signaling link terminal (SLT).
Examples
Enters a logical channel number. Valid values are from 0 to 3.
The following is an example of debug ss7 mtp2 timer command output for channel 0:
Router# debug ss7 mtp2 timer 0
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
1
1
1
1
1
1
1
1
1
1
1
1
01:08:13.738:
01:08:13.762:
01:08:13.786:
01:08:13.810:
01:08:43.819:
01:08:43.843:
01:08:48.603:
01:08:48.627:
01:09:13.784:
01:09:13.808:
01:09:13.885:
01:09:13.909:
Timer
Timer
Timer
Timer
Timer
Timer
Timer
Timer
Timer
Timer
Timer
Timer
T7
T7
T7
T7
T7
T7
T7
T7
T7
T7
T7
T7
(ex
(ex
(ex
(ex
(ex
(ex
(ex
(ex
(ex
(ex
(ex
(ex
delay)
delay)
delay)
delay)
delay)
delay)
delay)
delay)
delay)
delay)
delay)
delay)
Start
Stop
Start
Stop
Start
Stop
Start
Stop
Start
Stop
Start
Stop
chnl=0
chnl=0
chnl=0
chnl=0
chnl=0
chnl=0
chnl=0
chnl=0
chnl=0
chnl=0
chnl=0
chnl=0
Cisco IOS Release 12.2(15)T
65
Cisco Signaling Link Terminal
debug ss7 mtp2 txc
debug ss7 mtp2 txc
To display information about SS7 MTP 2 transmit state machine events and transitions, enter the
debug ss7 mtp2 txc privileged EXEC command. The no form of this command disables debugging
output.
debug ss7 mtp2 txc [channel]
no debug mtp2 txc
Warning
Use this command only for testing problems in a controlled environment. This command can generate
significant amounts of output. If there is any significant amount of traffic flow when you issue the
command, the processor may slow down so much that RUDP connections fail. This command is
recommended for field support personnel only, and is not recommended for use without prior
recommendation from Cisco.
Syntax Description
channel
Defaults
If you do not specify a channel number, the command displays information for channel 0.
Command History
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(15)T
Support was added for the Cisco 2611XM, Cisco 2651XM, Cisco AS5350,
and Cisco AS5400 signaling link terminal (SLT).
Examples
Enters a logical channel number. Valid values are from 0 to 3.
The following is an example of debug ss7 mtp2 txc command output for channel 2. The transmission
control is functioning and updating Backward Sequence Numbers (BSNs). See the MTP 2 specification
for details:
Router# debug ss7 mtp2 txc 2
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
*Mar
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
01:10:13.831:
01:10:13.831:
01:10:13.831:
01:10:13.839:
01:10:13.863:
01:10:13.863:
01:10:23.603:
01:10:23.627:
01:10:23.627:
01:10:23.631:
01:10:23.631:
01:10:23.635:
01:10:43.900:
01:10:43.900:
01:10:43.900:
01:10:43.908:
Cisco IOS Release 12.2(15)T
66
itu2TXC_bsn_update chnl=2 MTP2TXC_INSERVICE
itu2TXC_bsn_update chnl=2 MTP2TXC_INSERVICE
itu2TXC_bsn_update chnl=2 MTP2TXC_INSERVICE
itu2TXC_PDU2xmit chnl=2 MTP2TXC_INSERVICE
itu2TXC_bsn_update chnl=2 MTP2TXC_INSERVICE
itu2TXC_bsn_update chnl=2 MTP2TXC_INSERVICE
itu2TXC_PDU2xmit chnl=2 MTP2TXC_INSERVICE
itu2TXC_bsn_update chnl=2 MTP2TXC_INSERVICE
itu2TXC_bsn_update chnl=2 MTP2TXC_INSERVICE
itu2TXC_bsn_update chnl=2 MTP2TXC_INSERVICE
itu2TXC_bsn_update chnl=2 MTP2TXC_INSERVICE
itu2TXC_bsn_update chnl=2 MTP2TXC_INSERVICE
itu2TXC_bsn_update chnl=2 MTP2TXC_INSERVICE
itu2TXC_bsn_update chnl=2 MTP2TXC_INSERVICE
itu2TXC_bsn_update chnl=2 MTP2TXC_INSERVICE
itu2TXC_PDU2xmit chnl=2 MTP2TXC_INSERVICE
Cisco Signaling Link Terminal
debug ss7 mtp2 txc
*Mar
*Mar
1 01:10:43.928: itu2TXC_bsn_update
1 01:10:43.932: itu2TXC_bsn_update
chnl=2
chnl=2
MTP2TXC_INSERVICE
MTP2TXC_INSERVIC
Cisco IOS Release 12.2(15)T
67
Cisco Signaling Link Terminal
debug ss7 sm session
debug ss7 sm session
To display debugging information for an SS7 session manager session, enter the debug ss7 sm session
privileged EXEC command. The no form of this command disables debugging output.
debug ss7 sm session [session]
no debug ss7 sm session
Syntax Description
channel
Defaults
If you do not specify a channel number, the command displays information for channel 0.
Command History
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(15)T
Support was added for the Cisco 2611XM, Cisco 2651XM, Cisco AS5350,
and Cisco AS5400 signaling link terminal (SLT).
Enters a logical channel number. Valid values are from 0 to 3.
Usage Guidelines
Use this command to watch the session manager and RUDP sessions. The session manager is responsible
for establishing the RUDP connectivity to the media gateway controller (MGC).
Examples
The following is an example of debug ss7 sm session command output for session 0. The session
manager has established the connection (RUDP_CONN_OPEN_SIG):
Router# debug ss7 sm session-0
*Mar
*Mar
*Mar
*Mar
8
8
8
8
09:37:52.119:SM:rudp signal RUDP_SOFT_RESET_SIG, session = 0
09:37:58.129:SM:rudp signal RUDP_CONN_RESET_SIG, session = 0
09:37:58.129:SM:Opening session[0] to 10.5.0.4:8060
09:37:58.137:SM:rudp signal RUDP_CONN_OPEN_SIG, session = 0
Cisco IOS Release 12.2(15)T
68
Cisco Signaling Link Terminal
debug ss7 sm set
debug ss7 sm set
To display debugging information for the SS7 session manager failover timer, enter the
debug ss7 sm set privileged EXEC privileged EXEC command. The no form of this command disables
debugging output.
debug ss7 sm set
no debug ss7 sm set
Syntax Description
This command has no arguments or keywords.
Command History
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(15)T
Support was added for the Cisco 2611XM, Cisco 2651XM, Cisco AS5350,
and Cisco AS5400 signaling link terminal (SLT).
Usage Guidelines
Use this command to watch the session manager progression for the set, which is the aggregation of the
two RUDP sessions. **What should the user be looking for?**
Examples
The following is an example of debug ss7 sm set command output. The session manager connection is
up (SM_UP):
Router# debug ss7 sm set
*Mar 6 12:37:10.176:SESSION SET STATE-INACTIVE
Active session = 1
*Mar 6 12:37:10.176:Session[0]:SM SESSION STATE-OPENING | Session[1]:
SM SESSION STATE-STANDBY
*Mar 6 12:37:10.176:Event:0x02-SM EVENT-ACTIVE on Session 1
*Mar 6 12:37:10.176:SM:SM_UP sent to MTP2
Cisco IOS Release 12.2(15)T
69
Cisco Signaling Link Terminal
debug ss7 sm timer
debug ss7 sm timer
To enable SS7 session manager timer debugging, enter the debug rudp timer privileged EXEC
privileged EXEC command. The no form of this command disables debugging output.
debug ss7 sm timer
no ss7 sm timer
Warning
Use this command only for testing problems in a controlled environment. This command can generate
significant amounts of output. If there is any significant amount of traffic flow when you issue the
command, the processor may slow down so much that RUDP connections fail. This command is
recommended for field support personnel only, and is not recommended for use without prior
recommendation from Cisco.
Syntax Description
This command has no arguments or keywords.
Command History
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(15)T
Support was added for the Cisco 2611XM, Cisco 2651XM, Cisco AS5350,
and Cisco AS5400 signaling link terminal (SLT).
Usage Guidelines
Examples
Use this command to watch the session manager timer progressions.
The following is an example of debug ss7 sm timer command output:
Router# debug ss7 sm timer
*Mar
*Mar
*Mar
6 12:38:30.483:SM:Open Timer is stoped for Session=0
6 12:38:30.483:SM:Open Timer is started for Session=0
6 12:41:56.141:SM:Fail-Over Timer is stopped
Cisco IOS Release 12.2(15)T
70
Cisco Signaling Link Terminal
forward-alarms
forward-alarms
To turn on alarm forwarding so that alarms that arrive on one T1/E1 port are sent to the other port on
dual-mode multiflex trunk interface cards, use the forward-alarms command in controller configuration
mode on the one port. To reset to the default so that no alarms are forwarded, use the no form of this
command.
forward-alarms
no forward-alarms
Syntax Description
This command has no arguments or keywords.
Defaults
Alarm forwarding is disabled
Command Modes
Controller configuration
Command History
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(15)T
Support was added for the Cisco 2611XM, Cisco 2651XM, Cisco AS5350,
and Cisco AS5400 signaling link terminal (SLT).
Usage Guidelines
When you enter this command, physical-layer alarms on the configured port are forwarded to the other
port on dual-port cards, simulating a one-way repeater operations. The system forwards RAIs (remote
alarm indications, or Yellow Alarms), alarm indication signals (AIS, or Blue Alarms), losses of frame
(LOF alarms, or Red Alarms), and losses of signaling (LOS alarms, or Red Alarms).
Examples
The following example turns on alarm forwarding on controller E1 0/0 of a Cisco 2600 series:
controller e1 0/0
forward-alarms
Cisco IOS Release 12.2(15)T
71
Cisco Signaling Link Terminal
line-termination
line-termination
To set the line termination on an E1 controller, enter the line-termination controller configuration
command. Use the no form of this command to restore the default value.
line-termination {75-ohm | 120-ohm}
no line-termination
Syntax Description
120-ohm
Matches the unbalanced twisted-pair 120-ohm interface.
75-ohm
Matches the balanced BNC 75-ohm interface.
Defaults
120-ohm
Command Modes
Controller configuration
Command History
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(15)T
Support was added for the Cisco 2611XM, Cisco 2651XM, Cisco AS5350,
and Cisco AS5400 signaling link terminal (SLT).
Usage Guidelines
This command applies to E1 controllers only.
Examples
The following example shows how to set controller E1 0/0 to a line-termination of 75-ohm:
Router(config)# controller e1 0/0
Router(config-controller)# line-termination 75-ohm
Cisco IOS Release 12.2(15)T
72
Cisco Signaling Link Terminal
loopback (E1 controller)
loopback (E1 controller)
To set the loopback method for testing the E1 interface, enter the loopback controller configuration
command. Use the no form of this command to restore the default value.
loopback {diag | local {line | payload}}
no loopback
Syntax Description
diag
Places the interface into local diagnostic loopback mode.
local
Places the interface into local loopback mode.
line
Places the interface into external loopback mode at the line level.
payload
Places the interface into external loopback mode at the payload level.
Defaults
No loopback is configured.
Command Modes
Controller configuration
Command History
Release
Modification
11.3 MA
This command was introduced as a controller configuration command for the
Cisco MC3810.
12.0(5)T and
12.0(7)XR
This command was introduced as an ATM interface configuration command for
the Cisco 2600 and 3600 series.
12.0(5)XE
This command was introduced as an ATM interface configuration command for
the Cisco 7200 series and Cisco 7500 series.
12.1(1)T
This command was modified as a controller configuration command for the
Cisco 2600 series.
12.2(15)T
Support was added for the Cisco 2611XM, Cisco 2651XM, Cisco AS5350, and
Cisco AS5400 signaling link terminal (SLT).
Usage Guidelines
You can use a loopback test on lines to detect and distinguish equipment malfunctions caused either by
line and Channel Service Unit/Digital Service Unit (CSU/DSU) or by the interface. If correct data
transmission is not possible when an interface is in loopback mode, the interface is the source of the
problem.
Examples
The following example shows how to set the payload loopback method on controller E1 0/0:
Router(config)# controller e1 0/0
Router(config-controller)# loopback local payload
Cisco IOS Release 12.2(15)T
73
Cisco Signaling Link Terminal
loopback (T1 controller)
loopback (T1 controller)
To set the loopback method for testing the T1 interface, enter the loopback controller configuration
command. Use the no form of this command to restore the default value.
loopback {diagnostic | local {payload | line} | remote {iboc | esf {payload | line}}
no loopback
Syntax Description
diagnostic
Loops the outgoing transmit signal back to the receive signal
line
Places the interface into external loopback mode at the line level.
local
Places the interface into local loopback mode.
payload
Places the interface into external loopback mode at the payload level.
remote
Keeps the local end of the connection in remote loopback mode.
iboc
Sends an in band bit oriented code to the far-end to cause it to go into line
loopback.
esf
Specifies extended super frame as the T1 or E1 frame type.
Defaults
No loopback is configured.
Command Modes
Controller configuration
Command History
Release
Modification
11.3 MA
This command was introduced as a controller configuration command for the
Cisco MC3810.
12.0(5)T and
12.0(7)XR
This command was introduced as an ATM interface configuration command for
the Cisco 2600 and Cisco 3600 series.
12.0(5)XE
This command was introduced as an ATM interface configuration command for
the Cisco 7200 and Cisco 7500 series.
12.1(1)T
This command was introduced as a controller configuration command for the
Cisco 2600 series.
12.2(15)T
Support was added for the Cisco 2611XM, Cisco 2651XM, Cisco AS5350, and
Cisco AS5400 signaling link terminal (SLT).
Usage Guidelines
You can use a loopback test on lines to detect and distinguish equipment malfunctions caused either by
line and Channel Service Unit/Digital Service Unit (CSU/DSU) or by the interface. If correct data
transmission is not possible when an interface is in loopback mode, the interface is the source of the
problem.
Examples
The following example shows how to set the diagnostic loopback method on controller T1 0/0:
Cisco IOS Release 12.2(15)T
74
Cisco Signaling Link Terminal
loopback (T1 controller)
Router(config)# controller t1 0/0
Router(config-controller)# loopback diagnostic
Cisco IOS Release 12.2(15)T
75
Cisco Signaling Link Terminal
show rudpv0 failures
show rudpv0 failures
To display SS7 Reliable User Datagram Protocol (RUDP) failure statistics, enter the
show rudpv0 failures command in privileged EXEC mode.
show rudpv0 failures
Syntax Description
This command has no arguments or keywords.
Command History
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(15)T
Support was added for the Cisco 2611XM, Cisco 2651XM, Cisco AS5350, and
Cisco AS5400 signaling link terminal (SLT).
Examples
The following is sample output from this command showing displaying RUDP failures.
Router# show rudpv0 failures
**** RUDP Failure Stats ****
CreateBufHdrsFailure
CreateConnRecsFailure
CreateEventsFailure
0
0
0
NotReadyFailures
OptionNotSupportedFailures
OptionRequiredFailures
GetConnRecFailures
InvalidConnFailures
EventUnavailFailures
0
0
0
0
0
0
EmptyBufferSendFailures
BufferTooLargeFailures
ConnNotOpenFailures
SendWindowFullFailures
GetBufHdrSendFailures
0
0
0
0
0
GetDataBufFailures
GetBufHdrFailures
0
0
SendEackFailures
SendAckFailures
SendSynFailures
SendRstFailures
SendNullFailures
0
0
0
0
0
TimerNullFailures
FailedRetransmits
IncomingPktsDropped
UnknownRudpEvents
0
0
0
0
Cisco IOS Release 12.2(15)T
76
Cisco Signaling Link Terminal
show rudpv0 failures
Related Commands
Command
Description
clear rudpv0 statistics
Resets the counters for the statistics generated by the show rudpv0
failures command to 0.
show rudpv0 statistics
Displays RUDP information about number of packets sent,
received, and so forth. The clear rudpv0 statistics command resets
counters for these statistics to 0.
Cisco IOS Release 12.2(15)T
77
Cisco Signaling Link Terminal
show rudpv0 statistics
show rudpv0 statistics
To display SS7 Reliable User Datagram Protocol (RUDP) internal statistics, use the
show rudpv0 statistics command in privileged EXEC command.
show rudpv0 statistics
Syntax Description
This commands has no arguments or keywords.
Command History
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(15)T
Support was added for the Cisco 2611XM, Cisco 2651XM, Cisco AS5350, and
Cisco AS5400 signaling link terminal (SLT).
Usage Guidelines
Because statistics counters are continually updated, the cumulative total may not be exactly equal to
individual connection counters. After a connection is reset, previous statistics are lost, so the current
connection statistics reflect only instances of the RUDP connection since the last reset.
Cumulative statistics reflect counts since the router was rebooted or since the clear rudpv0 statistics
command was used.
Examples
The following is sample output from this command displaying RUDP statistics and states for two
connections. The fields are self-explanatory.
Router# show rudpv0 statistics
*** RUDP Internal Stats ****
Connection ID: 811641AC,
Current State: OPEN
RcvdInSeq
RcvdOutOfSeq
1
0
SoftResets
SoftResetsRcvd
0
0
TotalPacketsSent
TotalPacketsReceived
TotalDataBytesSent
TotalDataBytesReceived
TotalDataPacketsSent
TotalDataPacketsReceived
TotalPacketsRetrans
TotalPacketsDiscarded
4828
4826
0
4
0
1
0
0
Connection ID: 81163FD4,
Current State: OPEN
RcvdInSeq
RcvdOutOfSeq
2265
0
Cisco IOS Release 12.2(15)T
78
Cisco Signaling Link Terminal
show rudpv0 statistics
SoftResets
SoftResetsRcvd
0
0
TotalPacketsSent
TotalPacketsReceived
TotalDataBytesSent
TotalDataBytesReceived
TotalDataPacketsSent
TotalDataPacketsReceived
TotalPacketsRetrans
TotalPacketsDiscarded
7863
6755
173690
56121
2695
2265
0
0
Cumulative RudpV0 Statistics
Related Commands
RcvdInSeq
RcvdOutOfSeq
2266
0
SoftResets
SoftResetsRcvd
0
0
TotalPacketsSent
TotalPacketsReceived
TotalDataBytesSent
TotalDataBytesReceived
TotalDataPacketsSent
TotalDataPacketsReceived
TotalPacketsRetrans
TotalPacketsDiscarded
12691
11581
173690
56125
2695
2266
0
0
Command
Description
clear rudpv0 statistics
Resets the counters for the statistics generated by the show rudpv0
statistics command to 0.
show rudpv0 failures
Displays RUDP information about failed connections and the
reasons for them. The clear rudpv0 statistics command resets
counters for these statistics to 0.
Cisco IOS Release 12.2(15)T
79
Cisco Signaling Link Terminal
show ss7 mtp2 ccb
show ss7 mtp2 ccb
To display Signaling System 7 (SS7) Message Transfer Part level 2 (MTP2) call-control block (CCB)
information, use the show ss7 mtp2 ccb command in privileged EXEC mode.
show ss7 mtp2 ccb [channel]
Syntax Description
channel
Defaults
Channel 0. The default is set when you first configure the MTP2 variant. The link must be out of service
when you change the variant.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(15)T
Support was added for the Cisco 2611XM, Cisco 2651XM, Cisco AS5350, and
Cisco AS5400 signaling link terminal (SLT).
(Optional) Specific channel. Range is from 0 to 3. Default is 0.
Usage Guidelines
The application and meaning of the output is dependent on the MTP2 variant. For example, Japanese
Nippon Telephone and Telegraph Cellular System (NTT) and the Japanese Telecommunications
Technology Committee (TTC) support only emergency alignment.
Examples
The following is sample output from this command:
Router# show ss7 mtp2 ccb 0
SS7 MTP2 Internal Channel Control Block Info for channel 0
Protocol version for channel 0 is Japan NTT Q.703 Version 1-1
ModuloSeqNumber
= 128
(0x80 )
MaxSeqNumber
= 127
(0x7F )
Unacked-MSUs (MaxInRTB)
= 40
(0x28 )
MaxProvingAttempts
= 5
(0x5
)
error_control
= Basic
LSSU_Len
= 1
(0x1
)
MSU_Len
= 272
(0x110 )
SUERM-threshold
SUERM-number-octets
SUERM-number-SUs
= 64
= 16
= 256
(0x40 )
(0x10 )
(0x100 )
Tie-AERM-Emergency
Tin-AERM-Normal
= 1
= 1
(0x1
(0x1
MSU_FISU_Accepted_flag
= FALSE
Cisco IOS Release 12.2(15)T
80
)
)
Cisco Signaling Link Terminal
show ss7 mtp2 ccb
LSSU_available
AbnormalBSN_flag
AbnormalBSN_flag
UnreasonableBSN
UnreasonableFSN
Abnormal_FIBR_flag
congestionDiscard
=
=
=
=
=
=
=
TRUE
FALSE
FALSE
FALSE
FALSE
FALSE
TRUE
ThisIsA_MSU
local_processor_outage
remote_processor_outage
= FALSE
= FALSE
= FALSE
provingEmergencyFlag
RemoteProvingEmergencyFlag
further_proving_required
ForceRetransmitFlag
RetransmissionFlag
=
=
=
=
=
link_present
Debug Mask
= FALSE
= 0x0
FALSE
FALSE
FALSE
FALSE
FALSE
Cisco IOS Release 12.2(15)T
81
Cisco Signaling Link Terminal
show ss7 mtp2 state
show ss7 mtp2 state
To display internal Signaling System 7 (SS7) Message Transfer Part level 2 (MTP2) state-machine
information, use the show ss7 mtp2 state command in privileged EXEC mode.
show ss7 mtp2 state [channel]
Syntax Description
channel
Defaults
Information for all channels is displayed.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(15)T
Support was added for the Cisco 2611XM, Cisco 2651XM, Cisco AS5350, and
Cisco AS5400 signaling link terminal (SLT).
Examples
(Optional) Specific channel. Range is from 0 to 3.
The following is sample output from this command displaying MTP2 state machine information for two
different channels:
Router# show ss7 mtp2 state 0
SS7 MTP2 states for channel 0
Protocol version for channel 0 is Japan NTT Q.703 Version 1-1
MTP2LSC_OOS
MTP2IAC_IDLE
MTP2TXC_INSERVICE
MTP2RC_IDLE
MTP2SUERM_IDLE
MTP2AERM_IDLE
MTP2CONGESTION_IDLE
Congestion Backhaul = Abate
Remote Processor Outage = FALSE
Router# show ss7 mtp2 state 1
SS7 MTP2 states for channel 1
Protocol version for channel 1 is Japan NTT Q.703 Version 1-1
MTP2LSC_OOS
MTP2IAC_IDLE
MTP2TXC_INSERVICE
MTP2RC_IDLE
MTP2SUERM_IDLE
MTP2AERM_IDLE
MTP2CONGESTION_IDLE
Congestion Backhaul = Abate
Remote Processor Outage = FALSE
Cisco IOS Release 12.2(15)T
82
Cisco Signaling Link Terminal
show ss7 mtp2 state
Table 5 describes significant fields shown in this output.
Table 5
show ss7 mtp2 state Field Descriptions
State
Description
Possible Values
MTP2LSC
Overall status of the link.
OOS—Link is out of service.
INITIAL_ALIGNMENT—Link is in a
transitional link alignment state.
ALIGNED_READY—Link is in a
transitional link alignment state.
ALIGNED_NOT_READY—Link is in
a transitional link alignment state.
INSERVICE—Link is in service.
PROCESSOR_OUTAGE—There is an
outage in the local processor. This state
implies that the link has been aligned.
POWER_OFF—It is possible you don’t
have the I/O memory set to at least 40
percent. There may not be enough
memory for the SS7 MTP2 signaling.
MTP2IAC
Status of the initial alignment
control state machine.
IDLE—State machine is idle. It is not
aligning the link.
NOT_ALIGNED—State machine has
begun the alignment process.
ALIGNED— Link has exchanged the
alignment handshake with the remote
device.
PROVING—Link alignment is being
proven. This is a waiting period before
the LSC state changes to INSERVICE.
MTP2TXC
Status of the transmission
control state machine.
IDLE—State machine is inactive.
INSERVICE—State machine is the
active transmitter.
MTP2RC
Status of the receive control state IDLE—State machine is inactive.
machine.
INSERVICE—State machine is the
active receiver.
MTP2SUERM
Status of the signal unit error
monitor (SUERM).
IDLE—State machine is inactive.
MONITORING—SUERM is active.
SUERM uses a leaky-bucket algorithm
to track link errors while the link is in
service. If the number of link errors
reaches the threshold, the link is taken
out of service.
Cisco IOS Release 12.2(15)T
83
Cisco Signaling Link Terminal
show ss7 mtp2 state
Table 5
show ss7 mtp2 state Field Descriptions (continued)
State
Description
Possible Values
MTP2AERM
Status of the alignment error rate IDLE—State machine is inactive.
monitor state machine (AERM). MONITORING—Alignment error
monitor is active. This is part of the
alignment process.
MTP2CONGESTION
Status of the congestion control
state machine.
IDLE—State machine is inactive. No
congestion is detected; normal traffic
flow.
ACTIVE—Congestion has been
declared. The Cisco 2600 series router
is sending SIBs every T5, which
indicates that the remote end should
stop sending new MSUs until the local
Cisco 2600 series router can catch up.
Congestion Backhaul
Congestion status of the
backhaul link between the
Cisco SLT and the MGC.
Abate—Link between the Cisco 2600
series router and the MGC is not under
congestion.
Onset—Link between the Cisco 2600
series router and the MGC is under
congestion. and the MGC should stop
sending new MSUs until the local
Cisco 2600 series router can catch up.
Remote Processor
Outage
Processor outage status of the
remote.
TRUE indicates that the remote is in
processor outage.
FALSE indicates that the remote has
not declared processor outage.
Cisco IOS Release 12.2(15)T
84
Cisco Signaling Link Terminal
show ss7 mtp2 stats
show ss7 mtp2 stats
To display Signaling System 7 (SS7) Message Transfer Part level 2 (MTP2) operational statistics, use
the show ss7 mtp2 stats command in privileged EXEC mode.
show ss7 mtp2 stats [channel]
Syntax Description
channel
Defaults
Information for all channels is displayed.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(15)T
Support was added for the Cisco 2611XM, Cisco 2651XM, Cisco AS5350, and
Cisco AS5400 signaling link terminal (SLT).
Examples
(Optional) Specific channel. Range is from 0 to 3.
The following is sample output from this command showing operations and maintenance (OM) statistics
for MTP2 channel 0:
Router# show ss7 mtp2 stats 0
SS7 MTP2 Statistics for channel 0
Protocol version for channel 0 is Japan NTT Q.703 Version 1-1
OMIACAlignAttemptCount = 0
OMIACAlignFailCount
= 0
OMIACAlignCompleteCount = 0
OMMSU_TO_XMIT_Count
OMMSU_XMIT_Count
OMMSU_RE_XMIT_Count
OMMSU_RCV_Count
OMMSU_Posted_Count
OMMSU_too_long
=
=
=
=
=
=
0
0
0
0
0
0
OMFISU_XMIT_Count
OMFISU_RCV_Count
= 0
= 0
OMLSSU_XMIT_Count
OMLSSU_XMIT_SINCount
OMLSSU_XMIT_SIECount
OMLSSU_XMIT_SIOCount
OMLSSU_XMIT_SIOSCount
OMLSSU_XMIT_SIPOCount
OMLSSU_XMIT_SIBCount
=
=
=
=
=
=
=
OMLSSU_RCV_Count
= 0
17
0
0
0
17
0
0
Cisco IOS Release 12.2(15)T
85
Cisco Signaling Link Terminal
show ss7 mtp2 stats
OMLSSU_RCV_SINCount
OMLSSU_RCV_SIECount
OMLSSU_RCV_SIOCount
OMLSSU_RCV_SIOSCount
OMLSSU_RCV_SIPOCount
OMLSSU_RCV_SIBCount
OMLSSU_RCV_InvalidCount
=
=
=
=
=
=
=
0
0
0
0
0
0
0
OMRemote_PO_Count
= 0
OMRemote_Congestion_Cnt = 0
OMtimeINSV (secs)
OMtimeNotINSV (secs)
OMMSUBytesTransmitted
OMMSUBytesReceived
=
=
=
=
0
9550
0
0
OMTransmitReqCount
OMPDU_notAcceptedCount
OMPDU_NACK_Count
OMunreasonableFSN_rcvd
OMunreasonableBSN_rcvd
=
=
=
=
=
33
0
0
0
0
OMT1_TMO_Count
OMT2_TMO_Count
OMT3_TMO_Count
OMT4_TMO_Count
OMT5_TMO_Count
OMT6_TMO_Count
OMT7_TMO_Count
OMT8_TMO_Count
OMTA_TMO_Count
OMTF_TMO_Count
OMTO_TMO_Count
OMTS_TMO_Count
OMLostTimerCount
=
=
=
=
=
=
=
=
=
=
=
=
=
0
0
0
0
0
0
0
0
0
0
0
477218
0
OMOMLostBackHaulMsgs
= 0
OMAERMCount
OMAERMFailCount
OMSUERMCount
OMSUERMFailCount
OMCongestionCount
OMCongestionBackhaulCnt
=
=
=
=
=
=
0
0
0
0
0
0
Table 6 describes significant fields shown in this output.
Table 6
show ss7 mtp2 stats Field Descriptions
Field
Description
OMIACAlignAttemptCount
Counts for Initial Alignment Control (IAC) attempts.
OMIACAlignFailCount
OMIACAlignCompleteCount
OMMSU_TO_XMIT_Count
Cisco IOS Release 12.2(15)T
86
Related to the results of the show ss7 sm stats command’s
PDU_pkts_recieve_count statistic. The number shown in
OMMSU_TO_XMIT_Count is less than the
PDU_pkts_recieve_count because OMMSU_TO_XMIT_Count
shows the number of PDUs going out on the link, while the
PDU_pkts_recieve_count includes PDUs that are internal to MTP2.
Cisco Signaling Link Terminal
show ss7 mtp2 stats
Table 6
show ss7 mtp2 stats Field Descriptions (continued)
Field
Description
OMMSU_RCV_Count
Related to the results of the show ss7 sm stats command’s
packets_send_count.
OMLSSU_XMIT_Count
Number of times that MTP 2 has posted the specific Link Status
Signal Unit (LSSU) to MTP 1. They do not show the number of
LSSUs actually sent over the link.
OMLSSU_XMIT_SINCount
OMLSSU_XMIT_SIECount
OMLSSU_XMIT_SIOCount
OMLSSU_XMIT_SIOSCount
OMLSSU_XMIT_SIPOCount
OMLSSU_XMIT_SIBCount
OMLSSU_RCV_Count
OMLSSU_RCV_SINCount
Number of LSSUs received by MTP 2 from MTP 1. Because of
MTP 1 filtering, this is not the same as the actual LSSUs sent over
the link.
OMLSSU_RCV_SIECount
OMLSSU_RCV_SIOCount
OMLSSU_RCV_SIOSCount
OMLSSU_RCV_SIPOCount
OMLSSU_RCV_SIBCount
OMLSSU_RCV_InvalidCount
OMT1_TMO_Count
Information about timers in use.
OMT2_TMO_Count
OMT3_TMO_Count
OMT4_TMO_Count
OMT5_TMO_Count
OMT6_TMO_Count
OMT7_TMO_Count
OMT8_TMO_Count
OMTA_TMO_Count
OMTF_TMO_Count
OMTO_TMO_Count
OMTA_TMO_Count
OMLostTimerCount
OMLostBackhaulMsgs
How many messages received from the MGC have been lost
because of a lack of resources in the Cisco 2600 series router. This
count is related to the results of the show ss7 sm stats command’s
PDU_pkts_recieve_count statistic. For example, if the MGC sends
100 MSUs and the Cisco 2600 series router only has 65 free buffers,
35 MSUs might be lost.
Cisco IOS Release 12.2(15)T
87
Cisco Signaling Link Terminal
show ss7 mtp2 timer
show ss7 mtp2 timer
To display durations of the Signaling System 7 (SS7) Message Transfer Part level 2 (MTP2)
state-machine timers, use the show ss7 mtp2 timer command in privileged EXEC mode.
show ss7 mtp2 timer [channel]
Note
The eight timers whose status is displayed using this command are set on the media gateway controller
(MGC) using MML commands. The timers are then downloaded from the controller to the Cisco
signaling link terminal (SLT).
Syntax Description
channel
Defaults
Information for all sessions is displayed.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(15)T
Support was added for the Cisco 2611XM, Cisco 2651XM, Cisco AS5350, and
Cisco AS5400 signaling link terminal (SLT).
Usage Guidelines
Note
Examples
(Optional) Specific channel. Range is from 0 to 3.
MTP2 uses eight different timers on each link. Throughout the link-state transitions, multiple timers are
active. An in-service MTP2 link requires timers that are constantly started, stopped, and restarted. Use
this command to display the configured timer durations.
All MTP2 configuration parameters are set at the Cisco SLT command-line interface. MGC parameter
data files are no longer used to configure the Cisco SLT.
The following is sample output from this command displaying timer information for channel 0:
Router# show ss7 mtp2 timer 0
SS7 MTP2 Timers for channel 0 in milliseconds
Protocol version for channel 0 is Japan NTT Q.703 Version 1-1
T1 aligned/ready = 15000
T2 not aligned = 5000
T3 aligned = 3000
T4 Emergency Proving = 3000
T4 Normal Proving = 3000
T5 sending SIB = 200
Cisco IOS Release 12.2(15)T
88
Cisco Signaling Link Terminal
show ss7 mtp2 timer
T6 remote cong
T7 excess ack delay
T8 errored int mon
TA SIE timer = 20
TF FISU timer
TO SIO timer
TS SIOS timer
= 3000
= 2000
= 0
= 20
= 20
= 20
Cisco IOS Release 12.2(15)T
89
Cisco Signaling Link Terminal
show ss7 mtp2 variant
show ss7 mtp2 variant
To display information about the Signaling System 7 (SS7) Message Transfer Part level 2 (MTP2)
protocol variant, use the show ss7 mtp2 variant command in privileged EXEC mode.
show ss7 mtp2 variant [channel]
Syntax Description
channel
Defaults
Information for all channels is displayed.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(11)T
This command was implemented on the Cisco AS5350 and Cisco AS5400.
12.2(15)T
Support was added for the Cisco 2611XM and Cisco 2651XM signaling link
terminal (SLT).
Usage Guidelines
(Optional) Specific channel. Range is from 0 to 3.
This command can take an optional channel ID at the end (for example, show ss7 mtp2 variant 0). If
the optional channel ID is omitted, the command displays the SS7 variant for all configured SS7 links.
Each country specifies its own variant of SS7, and the Cisco SLT supports several variants of the MTP2
protocol. The selected variant can affect the MTP2 statistics displayed by various commands. The
Cisco SLT support the following variants:
•
Telcordia Technologies (formerly Bellcore)
•
ITU: International Telecommunication Union
•
NTT: Japanese Nippon Telephone and Telegraph Cellular System
•
TTC: Japanese Telecommunications Technology Committee
Each channel can be configured to any one of the protocol variants. When you change from one variant
to another, for example from Bellcore to NTT, the MTP2 parameters default to those specified by NTT.
You can then change the defaults as required.
Cisco IOS Release 12.2(15)T
90
Cisco Signaling Link Terminal
show ss7 mtp2 variant
Examples
The following is sample output from this command showing protocol-variant information for channel 1:
Router# show ss7 mtp2 variant 1
Protocol version for channel 1 is Bellcore GR-246-Core Issue 2, Dec 1997
The following is sample output showing the SS7 variant for the SS7 link whose channel ID is 2:
Router# show ss7 mtp2 variant 2
Protocol version for channel 2 is Bellcore GR-246-Core Issue 2, Dec 1997
The following is sample output showing the SS7 variant for all configured links:
Router# show ss7 mtp2 variant
Protocol
Protocol
Protocol
Protocol
version
version
version
version
for
for
for
for
channel
channel
channel
channel
0
1
2
3
is
is
is
is
Bellcore
Bellcore
Bellcore
Bellcore
GR-246-Core
GR-246-Core
GR-246-Core
GR-246-Core
Issue
Issue
Issue
Issue
2,
2,
2,
2,
Dec
Dec
Dec
Dec
1997
1997
1997
1997
In each case, all SS7 links are clearly provisioned to use the Bellcore variant (refer to the ss7 mtp2
variant bellcore command).
Command output shows that the MTP2 variant is being used for each of the SS7 links and that the
Bellcore version is implemented; it also shows where the links are identified by their assigned
channel IDs.
Related Commands
Command
Description
show controllers serial
Displays information about the virtual serial interface.
show ss7 mtp1 channel-id
Displays information for a given session channel ID.
show ss7 mtp2 ccb
Displays SS7 MTP 2 CCB information.
show ss7 mtp2 state
Displays internal SS7 MTP 2 state machine information.
show ss7 mtp2 stats
Displays SS7 MTP 2 operational statistics.
show ss7 mtp2 timers
Displays durations of the SS7 MTP 2 state machine timers.
show ss7 sm session
Displays information about SS7 session manager session.
show ss7 sm set
Displays information about the SS7 failover timer.
show ss7 mtp2 ccb
Displays SS7 MTP 2 CCB information.
show ss7 mtp2 state
Displays internal SS7 MTP 2 state machine information.
show ss7 mtp2 stats
Displays SS7 MTP 2 operational statistics.
ss7 mtp2 variant bellcore
Configures the device for Telcordia Technologies (formerly
Bellcore) standards.
Cisco IOS Release 12.2(15)T
91
Cisco Signaling Link Terminal
show ss7 sm session
show ss7 sm session
To display information about a Signaling System 7 (SS7) session manager session, use the
show ss7 sm session command in privileged EXEC mode.
show ss7 sm session [session]
Syntax Description
session
Defaults
Information for all sessions is displayed.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(11)T
This command was integrated into Cisco IOS Release 12.2(11)T. Support for up
to four session manager sessions was added.
12.2(15)T
Support was added for the Cisco 2611XM, Cisco 2651XM, Cisco AS5350, and
Cisco AS5400 signaling link terminal (SLT).
Usage Guidelines
(Optional) Session. Range is from 0 to 3.
If no sessions are configured, the message “No Session is configured” appears.
Support for up to four session manager sessions was added in Cisco IOS Release 12.2(11)T. session
manager sessions are now numbered from 0 to 3. The Cisco Signalling Link Terminal Dual Ethernet
feature changes the command-line-interface syntax and adds sessions 2 and 3.
Examples
The following is sample output from this command displaying session information for both sessions:
Router# show ss7 sm session
Session[0]: Remote Host 255.255.251.254:8060, Local Host 255.255.255.254:8060
retrans_t = 600
cumack_t = 300
kp_t
= 2000
m_retrans = 2
m_cumack = 3
m_outseq = 3
m_rcvnum = 32
Session[1]: Remote Host 255.255.251.255:8061, Local Host 255.255.255.254:8061
retrans_t = 600
cumack_t = 300
kp_t
= 2000
m_retrans = 2
m_cumack = 3
Cisco IOS Release 12.2(15)T
92
Cisco Signaling Link Terminal
show ss7 sm session
m_outseq
m_rcvnum
= 3
= 32
Table 7 describes significant fields shown in this output.
Table 7
Related Commands
show ss7 sm session Field Descriptions
Field
Description
Remote Host, Local Host
IP address and port number for the session.
retrans_t
Retransmission timer value.
cumack_t
Cumulative acknowledgment timer value.
m_cumack
Maximum number of segments that can be received before the
RUDP sends an acknowledgment.
m_outseq
Maximum number of out-of-sequence segments that can be
received before the RUDP sends an extended acknowledgment.
m_rcvnum
Maximum number of segments that the remote end can send before
receiving an acknowledgment.
Command
Description
ss7 session
Establishes a session.
ss7 session retrans_t
Sets the retransmission timer.
ss7 session m_rcvnum
Sets the maximum number of segments that the remote end can send
before receiving an acknowledgment.
ss7 session m_outseq
Sets the maximum number of out-of-sequence segments that can be
received before the RUDP sends an extended acknowledgment.
ss7 session m_cumack
Sets the maximum number of segments that can be received before
the RUDP sends an acknowledgment.
ss7 session cumack_t
Sets the cumulative acknowledgment timer.
Cisco IOS Release 12.2(15)T
93
Cisco Signaling Link Terminal
show ss7 sm set
show ss7 sm set
To display information about the Signaling System 7 (SS7) session set state, failover timer, member
sessions, and SS7 links that belong to an SS7 session set or range of SS7 session sets, use the
show ss7 sm set command in privileged EXEC mode.
show ss7 sm set [ss-id-range]
Syntax Description
ss-id-range
Command Modes
Privileged EXEC
Command History
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(15)T
The ss-id-range argument was added. This command previously displayed only
the failover-timer value and had no arguments.
(Optional) Displays the SS7 session set ID, state, member sessions, and SS7
links that belong to an SS7 session set or range of SS7 session sets.
Support was added for the Cisco 2611XM, Cisco 2651XM, Cisco AS5350, and
Cisco AS5400 signaling link terminal (SLT).
Usage Guidelines
This command is available on all Cisco Signaling Link Terminal (SLT) platforms.
If the optional ss-id-range argument is omitted, information is displayed for all SS7 session sets. The
following are valid SS7 session set ranges. The default is 3 seconds.
Examples
1
Selects SS7 session set 1.
0, 2, 3
Selects SS7 session sets 0, 2, and 3.
0-2
Selects SS7 session sets 0, 1, and 2.
0, 2-3
Selects SS7 session sets 0, 2, and 3.
0, 2
Selects SS7 session sets 0 and 2.
The following is sample output from this command displaying failover timer information; the failover
timer is set to the default of 3 seconds:
Router# show ss7 sm set
Session Manager Set
failover timer = 3 seconds
Cisco IOS Release 12.2(15)T
94
Cisco Signaling Link Terminal
show ss7 sm set
The following example displays the SS7 session set state, failover-timer, member sessions, and SS7 links
that belong to a range of SS7 session sets:
Router# show ss7 sm set
Session-set:0
State
= ACTIVE
Failover-timer = 5 secs.
2 Sessions:
session 0 session-state
session 1 session-state
3 SS7 Links:
7/0 (ser.)
chan-id
7/0:0 (dig.) chan-id
7/0:2 (dig.) chan-id
Session-set:1
State
= IDLE
Failover-timer = 5 secs.
0 Sessions:
0 SS7 Links:
Session-set:2
State
= ACTIVE
Failover-timer = 5 secs.
2 Sessions:
session 2 session-state
session 3 session-state
1 SS7 Links:
7/0:1 (dig.) chan-id
Session-set:3
State
= IDLE
Failover-timer = 5 secs.
0 Sessions:
0 SS7 Links:
ACTIVE
STANDBY
0
1
3
variant Bellcore
variant Bellcore
variant Bellcore
ACTIVE
STANDBY
2
remote-host 172.16.0.0:5555
remote-host 172.31.255.255:4444
link-state INSERVICE
link-state INSERVICE
link-state INITIAL_ALIGNMENT
remote-host 172.16.0.0:6666
remote-host 172.31.255.255:7777
variant Bellcore
link-state INSERVICE
Cisco IOS Release 12.2(15)T
95
Cisco Signaling Link Terminal
show ss7 sm set
Table 8 describes significant fields in this output.
Table 8
show ss7 sm set Field Descriptions
Field
Description
Session-set:0
One of four SS7 session sets is configured.
State
The session is ACTIVE.
Failover-timer
The number of seconds is set to 5.
2 Sessions:
3 SS7 Links:
Session 0—session state is ACTIVE and connected to port 5555 of remote-host
172.16.0.0
•
Session 1—session state is STANDBY and connected to port 4444 of
remote-host 172.31.255.255
•
SS7 link at serial interface 7/0 has channel ID 0 and current MTP2 link state of
INSERVICE.
•
SS7 link at serial interface 7/0:0 has channel ID 1 and current MTP2 link state of
INSERVICE.
•
SS7 link at serial interface 7/0:2 has channel ID 3 and current MTP2 link state of
INITIAL_ALIGNMENT.
Session-set:1
One of four SS7 session sets is configured.
State
The session is IDLE.
Failover-timer
The number is set to 5 seconds.
0 Sessions:
No sessions are configured.
0 SS7 Links:
No SS7 links are configured.
Session-set:2
One of four SS7 session sets is configured.
State
The session is ACTIVE.
Failover-timer
The number is set to 5 seconds.
2 Sessions:
•
Session 2 is ACTIVE and connected to port 6666 of remote host 172.16.0.0
•
Session 3 is STANDBY and connected to port 7777 of remote host
172.31.255.255.
1 SS7 Links:
SS7 link at serial interface 7/0:1 has channel ID 2 and current MTP2 link state of
INSERVICE.
Session-set:3
One of four SS7 session sets is configured.
State
The session is IDLE.
Failover-timer
The number is set to 5 seconds.
0 Sessions:
No sessions are configured.
0 SS7 Links:
No SS7 links are configured.
Cisco IOS Release 12.2(15)T
96
•
Cisco Signaling Link Terminal
show ss7 sm set
Related Commands
Command
Description
ss7 session
Creates a Reliable User Datagram Protocol (RUDP) session and
explicitly adds an RUDP session to a Signaling System 7 (SS7)
session set.
ss7 set
Independently selects failover-timer values for each session set and
specifies the amount of time that the SS7 session manager waits for
the active session to recover or for the standby media gateway
controller (MGC) to indicate that the Cisco Signaling Link Terminal
(SLT) should switch traffic to the standby session.
ss7 set failover timer
Specifies the amount of time that the session manager waits for the
session to recover before declaring the session inactive.
Cisco IOS Release 12.2(15)T
97
Cisco Signaling Link Terminal
show ss7 sm stats
show ss7 sm stats
To display Signaling System 7 (SS7) session manager session statistics, use the show ss7 sm stats
command in privileged EXEC mode.
show ss7 sm stats
Syntax Description
There are no arguments or keywords for this command.
Defaults
The command shows information for both sessions.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(15)T
Support was added for the Cisco 2611XM, Cisco 2651XM, Cisco AS5350, and
Cisco AS5400 signaling link terminal (SLT).
Usage Guidelines
If no sessions are configured, the message “No Session is configured” appears.
Examples
The following is sample output from this command displaying SS7 session manager statistics. The fields
are self-explanatory and show information about the session state, protocol data units (PDUs) packets
sent and received, and SS7 Reliable User Datagram Protocol (RUDP) performance:
Router# show ss7 sm stats
-------------------- Session Manager
Session
Session
Session
lost
Manager state
Manager Up count
Manager Down count
control packet count
lost PDU count
failover timer expire count
invalid_connection_id_count
Session[0] statistics
Session Down count
Open Retry count
Cisco IOS Release 12.2(15)T
SESSION SET STATE-ACTIVE
1
0
0
0
0
0
SM SESSION STATE-STANDBY:
= 0
= 0
Total Pkts receive count
Active Pkts receive count
Standby Pkts receive count
PDU Pkts receive count
Unknown Pkts receive count
98
=
=
=
=
=
=
=
--------------------
=
=
=
=
=
1
0
1
0
0
Cisco Signaling Link Terminal
show ss7 sm stats
Pkts send count
= 0
Pkts requeue count
=
-Pkts window full count
=
-Pkts resource unavail count =
-Pkts enqueue fail count
=
PDUs dropped (Large)
=
PDUs dropped (Empty)
=
RUDP Not Ready Errs
RUDP Connection Not Open
RUDP Invalid Conn Handle
RUDP Unknown Errors
RUDP Unknown Signal
NonActive Receive count
Session[1] statistics
Session Down count
Open Retry count
Related Commands
=
=
=
=
=
=
0
0
0
0
0
0
0
0
0
0
0
0
SM SESSION STATE-ACTIVE:
= 0
= 0
Total Pkts receive count
Active Pkts receive count
Standby Pkts receive count
PDU Pkts receive count
Unknown Pkts receive count
=
=
=
=
=
2440
1
0
2439
0
Pkts send count
Pkts requeue count
-Pkts window full count
-Pkts resource unavail count
-Pkts enqueue fail count
PDUs dropped (Large)
PDUs dropped (Empty)
=
=
=
=
=
=
=
2905
0
0
0
0
0
0
RUDP Not Ready Errs
RUDP Connection Not Open
RUDP Invalid Conn Handle
RUDP Unknown Errors
RUDP Unknown Signal
NonActive Receive count
=
=
=
=
=
=
0
0
0
0
0
0
Command
Description
clear ss7 sm-stats
Clears the counters that track session manager statistics for the
show ss7 sm stats command.
ss7 session
Establishes a session.
Cisco IOS Release 12.2(15)T
99
Cisco Signaling Link Terminal
ss7 mtp2-variant bellcore
ss7 mtp2-variant bellcore
To configure the router for Telcordia Technologies (formerly Bellcore) standards, use the
ss7 mtp2-variant bellcore command in global configuration mode.
ss7 mtp2-variant bellcore [channel] [parameters]
Syntax Description
channel
(Optional) Channel. Range is from 0 to 3.
parameters
(Optional) Particular Bellcore standard. See Table 9 for descriptions, defaults,
and ranges.
Defaults
Bellcore is the default variant if no other is configured.
Command Modes
Global configuration
Command History
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(15)T
Support was added for the Cisco 2611XM, Cisco 2651XM, Cisco AS5350, and
Cisco AS5400 signaling link terminal (SLT).
Usage Guidelines
Note
This MTP2 variant has timers and parameters that can be configured using the values listed in Table 9.
To restore the designated default, use the no or the default form of the command (see example below).
Timer durations are converted to 10-millisecond units. For example, a T1 value of 1005 is converted to
100, which results in an actual timeout duration of 1000 ms. This is true for all timers and all variants.
Table 9
Bellcore (Telcordia Technologies) Parameters and Values
Parameter
Description
Default
Range
T1
Aligned/ready timer duration
(milliseconds)
13000
1000 to 65535
T2
Not aligned timer (milliseconds)
11500
1000 to 65535
T3
Aligned timer (milliseconds)
11500
1000 to 65535
T4-Emergency-Proving
Emergency proving timer (milliseconds)
600
1000 to 65535
T4-Normal-Proving
Normal proving period (milliseconds)
2300
1000 to 65535
T5
Sending SIB timer (milliseconds)
100
80 to 65535
T6
Remote congestion timer (milliseconds)
6000
1000 to 65535
T7
Excessive delay timer (milliseconds)
1000
500 to 65535
Cisco IOS Release 12.2(15)T
100
Cisco Signaling Link Terminal
ss7 mtp2-variant bellcore
Table 9
Examples
Bellcore (Telcordia Technologies) Parameters and Values (continued)
Parameter
Description
Default
Range
lssu-len
1- or 2-byte LSSU format
1
1 to 2
unacked-MSUs
Maximum number of MSUs waiting ACK
127
16 to 127
proving-attempts
Maximum number of attempts to prove
alignment
5
3 to 8
SUERM-threshold
SUERM error-rate threshold
64
32 to 128
SUERM-number-octets
SUERM octet-counting mode
16
8 to 32
SUERM-number-signalunits
Signal units (good or bad) needed to dec
ERM
256
128 to 512
Tie-AERM-Emergency
AERM emergency error-rate threshold
1
1 to 8
Tie-AERM-Normal
AERM normal error-rate threshold
4
1 to 8
The following example sets the aligned/ready timer duration on channel 0 to 30,000 ms:
ss7 mtp2-variant bellcore 0 T1 30000
The following example restores the aligned/ready timer default value of 13,000 ms:
ss7 mtp2-variant bellcore 0 no T1
Related Commands
Command
Description
ss7 mtp2-variant itu
Specifies the MTP2-variant as ITU.
ss7 mtp2-variant ntt
Specifies the MTP2-variant as NTT.
ss7 mtp2-variant ttc
Specifies the MTP2-variant as TTC.
Cisco IOS Release 12.2(15)T
101
Cisco Signaling Link Terminal
ss7 mtp2-variant itu
ss7 mtp2-variant itu
To configure the router for ITU (International Telecom United) standards, use the ss7 mtp2-variant itu
command in global configuration mode.
ss7 mtp-variant itu [channel] [parameters]
Syntax Description
channel
Channel. Range is from 0 to 3.
parameters
(Optional) Particular Bellcore standard. See Table 10 for descriptions,
defaults, and ranges.
Defaults
Bellcore
Command Modes
Global configuration
Command History
Usage Guidelines
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(15)T
Support was added for the Cisco 2611XM, Cisco 2651XM,
Cisco AS5350, and Cisco AS5400 signaling link terminal (SLT).
The ITU MTP2 variant has timers and parameters that can be configured using the values listed in
Table 10. To restore the designated default, use the no or the default form of the command (see the
example below).
Table 10
ITU (White) Parameters and Values
Parameter
Description
Default
Range
T1
Aligned/ready timer duration
(milliseconds)
40000
1000 to 65535
T2
Not aligned timer (milliseconds)
5000
1000 to 65535
T3
Aligned timer (milliseconds)
1000
1000 to 65535
T4-Emergency-Proving
Emergency proving timer (milliseconds)
500
1000 to 65535
T4-Normal-Proving
Normal proving timer (milliseconds)
8200
1000 to 65535
T5
Sending SIB timer (milliseconds)
100
80 to 65535
T6
Remote congestion timer (milliseconds)
6000
1000 to 65535
T7
Excessive delay timer (milliseconds)
1000
1000 to 65535
lssu-len
1- or 2-byte LSSU format
1
1 to 2
Cisco IOS Release 12.2(15)T
102
Cisco Signaling Link Terminal
ss7 mtp2-variant itu
Table 10
ITU (White) Parameters and Values (continued)
Parameter
Description
Default
Range
msu-len
unacked-MSUs
Maximum number of MSUs waiting ACK 127
16 to 127
proving-attempts
Maximum number of attempts to prove
alignment
5
3 to 8
SUERM-threshold
SUERM error rate threshold
64
32 to 128
SUERM-number-octets
SUERM octet counting mode
16
8 to 32
Signal units (good or bad) needed to dec
ERM
256
128 to 512
Tie-AERM-Emergency
AERM emergency error-rate threshold
1
1 to 8
Tin-AERM-Normal
AERM normal error-rate threshold
4
1 to 8
SUERM-number-signal-u
nits
Examples
The following example sets the emergency proving period on channel 1 to 10,000 ms:
ss7 mtp2-variant itu 1
t4-Emergency-Proving 10000
The following example restores the emergency proving period default value of 5,000 ms:
ss7 mtp2-variant itu 1
default t4-Emergency-Proving
Related Commands
Command
Description
ss7 mtp2-variant bellcore
Specifies the MTP2-variant as Bellcore.
ss7 mtp2-variant ntt
Specifies the MTP2-variant as NTT.
ss7 mtp2-variant ttc
Specifies the MTP2-variant as TTC.
Cisco IOS Release 12.2(15)T
103
Cisco Signaling Link Terminal
ss7 mtp2-variant ntt
ss7 mtp2-variant ntt
To configure the router for NTT (Japan) standards, use the ss7 mtp2-variant ntt command in global
configuration mode.
ss7 mtp-variant ntt [channel] [parameters]
Syntax Description
channel
Channel. Range is from 0 to 3.
parameters
(Optional) Particular Bellcore standard. See Table 11 for descriptions, defaults, and
ranges.
Defaults
Bellcore
Command Modes
Global configuration
Command History
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(15)T
Support was added for the Cisco 2611XM, Cisco 2651XM, Cisco AS5350, and
Cisco AS5400 signaling link terminal (SLT).
Usage Guidelines
The NTT MTP2 variant has timers and parameters that can be configured using the values listed in
Table 11. To restore the designated default, use the no or the default form of the command (see the
example below).
Table 11
NTT Parameters and Values
Parameter
Description
Default
Range
T1
Aligned/ready timer duration
(milliseconds)
15000
1000 to 65535
T2
Not aligned timer (milliseconds)
5000
1000 to 65535
T3
Aligned timer (milliseconds)
3000
1000 to 65535
T4-EmergencyProving
Emergency proving timer (milliseconds)
3000
1000 to 65535
T5
Sending SIB timer (milliseconds)
200
80 to 65535
T6
Remote congestion timer (milliseconds)
2000
1000 to 65535
T7
Excessive delay timer (milliseconds)
3000
1000 to 65535
TA
SIE interval timer (milliseconds)
20
10 to 500
TF
FISU interval timer (milliseconds)
20
10 to 500
TO
SIO interval timer (milliseconds)
20
10 to 500
Cisco IOS Release 12.2(15)T
104
Cisco Signaling Link Terminal
ss7 mtp2-variant ntt
Table 11
Examples
NTT Parameters and Values (continued)
Parameter
Description
Default
Range
TS
SIOS interval timer (milliseconds)
20
10 to 500
unacked-MSUs
Maximum number of MSUs waiting ACK
40
16 to 40
proving-attempts
Maximum number of attempts to prove
alignment
5
3 to 8
SUERM-threshold
SUERM error rate threshold
64
32 to 128
SUERM-number-oc
tets
SUERM octet counting mode
16
8 to 32
Signal units (good or bad) needed to dec
SUERM-number-sig ERM
nal-units
256
128 to 512
Tie-AERM-Emerge
ncy
1
1 to 8
AERM emergency error-rate threshold
The following example sets the SUERM error rate threshold on channel 2 to 100:
ss7 mtp2-variant ntt 2
SUERM-threshold 100
The following example restores the SUERM error rate threshold default value of 64:
ss7 mtp2-variant ntt 2
no SUERM-threshold
Related Commands
Command
Description
ss7 mtp2-variant bellcore
Specifies the MTP2-variant as Bellcore.
ss7 mtp2-variant itu
Specifies the MTP2-variant as ITU.
ss7 mtp2-variant ttc
Specifies the MTP2-variant as TTC.
Cisco IOS Release 12.2(15)T
105
Cisco Signaling Link Terminal
ss7 mtp2-variant ttc
ss7 mtp2-variant ttc
To configure the router for TTC (Japan Telecom) standards, use the ss7 mtp2-variant ttc command in
global configuration mode.
ss7 mtp-variant ttc [channel] [parameters]
Syntax Description
channel
Channel. Range is from 0 to 3.
parameters
(Optional) Particular Bellcore standard. See Table 12 for descriptions, defaults, and
ranges.
Defaults
Bellcore
Command Modes
Global configuration
Command History
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(15)T
Support was added for the Cisco 2611XM, Cisco 2651XM, Cisco AS5350, and
Cisco AS5400 signaling link terminal (SLT).
Usage Guidelines
The TTC MTP2 variant has timers and parameters that can be configured using the values listed in
Table 12. To restore the designated default, use the no or the default form of the command (see the
example below).
Table 12
TTC Parameters and Values
Parameter
Description
Default
Range
T1
Aligned/ready timer duration
(milliseconds)
15000
1000 to 65535
T2
Not aligned timer (milliseconds)
5000
1000 to 65535
T3
Aligned timer (milliseconds)
3000
1000 to 65535
T4-Emergency-Proving
Emergency proving timer (milliseconds)
3000
1000 to 65535
T5
Sending SIB timer (milliseconds)
200
80 to 65535
T6
Remote congestion timer (milliseconds)
2000
1000 to 65535
T7
Excessive delay timer (milliseconds)
3000
1000 to 65535
TA
SIE interval timer (milliseconds)
20
10 to 500
TF
FISU interval timer (milliseconds)
20
10 to 500
TO
SIO interval timer (milliseconds)
20
10 to 500
Cisco IOS Release 12.2(15)T
106
Cisco Signaling Link Terminal
ss7 mtp2-variant ttc
Table 12
TTC Parameters and Values (continued)
Parameter
Description
Default
Range
TS
SIOS interval timer (milliseconds)
20
10 to 500
unacked-MSUs
Maximum number of MSUs waiting ACK
40
16 to 40
proving-attempts
Maximum number of attempts to prove
alignment
5
3 to 8
SUERM-threshold
SUERM error rate threshold
64
32 to 128
SUERM-number-octets
SUERM octet counting mode
16
8 to 32
Signal units (good or bad) needed to dec
ERM
256
128 to 512
AERM emergency error-rate threshold
1
1 to 8
SUERM-number-signal
-units
Tie-AERM-Emergency
Examples
The following example sets the maximum number of proving attempts for channel 3 to 3:
ss7 mtp2-variant ttc 3
proving-attempts 3
The following example restores the maximum number of proving attempts to the default value:
ss7 mtp2-variant ttc 3
default proving-attempts
Related Commands
Command
Description
ss7 mtp2-variant bellcore
Specifies the MTP2-variant as Bellcore.
ss7 mtp2-variant itu
Specifies the MTP2-variant as ITU.
ss7 mtp2-variant ntt
Specifies the MTP2-variant as NTT.
Cisco IOS Release 12.2(15)T
107
Cisco Signaling Link Terminal
ss7 session
ss7 session
To create a Reliable User Datagram Protocol (RUDP) session and explicitly add an RUDP session to a
Signaling System 7 (SS7) session set, use the ss7 session command in global configuration mode. To
delete the session, use the no form of this command.
ss7 session session-id address destination-address destination-port local-address local-port
[session-set session-number]
no ss7 session session-id
Syntax Description
session-id
SS7 session number. Valid values are 0 and 1. You must enter a hyphen with
no space following it after the session keyword.
address
Specifies the SS7 session IP address.
destination-address
destination-address The local IP address of the router in four-part dotted-decimal format.
The local IP address for both sessions, 0 and 1, must be the same.
destination-port
The number of the local UDP port on which the router expects to receive
messages from the media gateway controller (MGC). Specify any UDP port
that is not used by another protocol as defined in RFC 1700 and that is not
otherwise used in your network.
The local UDP port must be different for session 0 and session 1.
Valid port ranges are from 1024 to 9999.
local-address
The remote IP address of the MGC in four-part dotted-decimal format.
local-port
The number of the remote UDP port on which the MGC is configured to listen.
This UDP port cannot be used by another protocol as defined in RFC 1700 and
cannot be otherwise used in the network. Valid port ranges are from 1024 to
9999.
session-set
session-number
(Optional) Assigns an SS7 session to an SS7 session set.
Defaults
No session is configured.
Command Modes
Global configuration
Command History
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(15)T
The session-set keyword and the session-number argument were added.
Support was added for the Cisco 2611XM, Cisco 2651XM, Cisco AS5350,
and Cisco AS5400 signaling link terminal (SLT).
Cisco IOS Release 12.2(15)T
108
Cisco Signaling Link Terminal
ss7 session
Usage Guidelines
For the Cisco 2600-based SLT, you can configure a maximum of four sessions, two for each Cisco SLT.
In a redundant VSC configuration, session 0 and session 2 are configured to one VSC, and session 1 and
session 3 are configured to the other. Session 0/1 and session 2/3 run to the Cisco SLT.
The VSC must be configured to send messages to the local port, and it must be configured to listen on
the remote port. You must also reload the router whenever you remove a session or change the
parameters of a session.
This command replaces the ss7 session-0 address and ss7 session-1 address commands, which contain
hard-coded session numbers. The new command is used for the new dual Ethernet capability.
The new CLI supports both single and dual Ethernet configuration by being backward compatible with
the previous session-0 and session-1 commands so that you can configure a single Ethernet instead of
two, if needed.
For the Cisco AS5350 and Cisco AS5400-based SLT, you can configure a maximum of two sessions, one
for each signaling link. In a redundant MGC configuration, session 0 is configured to one MGC and
session 1 is configured to the other.
The MGC must be configured to send messages to the local port, and the MGC must be configured to
listen on the remote port.
You must reload the router whenever you remove a session or change the parameters of a session.
By default, each RUDP session must belong to SS7 session set 0. This allows backward compatibility
with existing SS7 configurations.
If the session-set keyword is omitted, the session is added to the default SS7 session set 0. This allows
backward compatibility with older configurations. Entering the no form of the command is still sufficient
to remove the session ID for that RUDP session.
If you want to change the SS7 session set to which a session belongs, you have to remove the entire
session first. This is intended to preserve connection and recovery logic.
Examples
The following example sets up two sessions on a Cisco 2611 and creates session set 2:
ss7 session-0 address 172.16.1.0 7000 172.16.0.0 7000 session-set 2
ss7 session-1 address 172.17.1.0 7002 172.16.0.0 7001 session-set 2
Note
Related Commands
The example above shows how the local IP addresses in session-0 and session-1 must be the same.
Command
Description
ss7 session cumack_t
Sets the cumulative acknowledgment timer.
ss7 session k_pt
Sets the null segment (keepalive) timer.
ss7 session m_cumack
Sets the maximum number of segments that can be received before
the RUDP sends an acknowledgment.
ss7 session m_outseq
Sets the maximum number of out-of-sequence segments that can be
received before the RUDP sends an extended acknowledgment.
ss7 session m_retrans
Sets the maximum number of times that the RUDP attempts to
resend a segment before declaring the connection invalid.
ss7 session retrans_t
Sets the retransmission timer.
ss7 session m_rcvnum
Sets the maximum number of segments that the remote end can send
before receiving an acknowledgment.
Cisco IOS Release 12.2(15)T
109
Cisco Signaling Link Terminal
ss7 session cumack_t
ss7 session cumack_t
To set the Reliable User Datagram Protocol (RUDP) cumulative acknowledgment timer for a specific
SS7 signaling link session, use the ss7 session cumack_t command in global configuration mode. To
reset to the default, use the no form of this command.
ss7 session- session number cumack_t milliseconds
no ss7 session- session number cumack_t
Caution
Syntax Description
Use the default setting. Do not change session timers unless instructed to do so by Cisco technical
support. Changing timers may result in service interruption or outage.
session-number
SS7 session number. Valid values are 0 and 1. You must enter the hyphen, with no
space following it, after the session keyword.
milliseconds
Interval, in milliseconds, that the RUDP waits before it sends an acknowledgment
after receiving a segment. Range is from 100 to 65535. The value should be less
than the value configured for the retransmission timer by using the ss7 session
session number retrans_t command.
Defaults
300 ms
Command Modes
Global configuration
Command History
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(15)T
Support was added for the Cisco 2611XM, Cisco 2651XM, Cisco AS5350, and
Cisco AS5400 signaling link terminal (SLT).
Usage Guidelines
The cumulative acknowledgment timer determines when the receiver sends an acknowledgment. If the
timer is not already running, it is initialized when a valid data, null, or reset segment is received. When
the cumulative acknowledgment timer expires, the last in-sequence segment is acknowledged. The
RUDP typically tries to “piggyback” acknowledgments on data segments being sent. However, if no data
segment is sent in this period of time, it sends a standalone acknowledgment.
Examples
The following example sets up two sessions and sets the cumulative acknowledgment timer to 320 ms
for each one:
ss7 session-0 address 255.255.255.251 7000 255.255.255.254 7000
ss7 session-0 cumack_t 320
ss7 session-1 address 255.255.255.253 7002 255.255.255.254 7001
Cisco IOS Release 12.2(15)T
110
Cisco Signaling Link Terminal
ss7 session cumack_t
ss7 session-1 cumack_t 320
Related Commands
Command
Description
ss7 session retrans_t
Sets the retransmission timer.
ss7 session m_retrans
Sets the maximum number of times that the RUDP attempts to
resend a segment before declaring the connection invalid.
ss7 session m_rcvnum
Sets the maximum number of segments that the remote end can send
before receiving an acknowledgment.
ss7 session m_outseq
Sets the maximum number of out-of-sequence segments that can be
received before the RUDP sends an extended acknowledgment.
ss7 session m_cumack
Sets the maximum number of segments that can be received before
the RUDP sends an acknowledgment.
ss7 session k_pt
Sets the null segment (keepalive) timer.
show ss7
Displays the SS7 configuration.
Cisco IOS Release 12.2(15)T
111
Cisco Signaling Link Terminal
ss7 session kp_t
ss7 session kp_t
To set the null segment (keepalive) timer for a specific SS7 signaling link session, use the
ss7 session kp_t command in global configuration mode. To reset to the default, use the no form of this
command.
ss7 session- session number kp_t milliseconds
no ss7 session- session number kp_t
Caution
Syntax Description
Use the default setting. Do not change session timers unless instructed to do so by Cisco technical
support. Changing timers may result in service interruption or outage.
session-number
SS7 session number. Valid values are 0 and 1. You must enter the hyphen, with no
space following it, after the session keyword.
milliseconds
Interval, in milliseconds, that the Reliable User Datagram Protocol (RUDP) waits
before sending a keepalive to verify that the connection is still active. Valid values
are 0 and from100 to 65535. Default is 2000.
Defaults
2000 ms
Command Modes
Global configuration
Command History
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(15)T
Support was added for the Cisco 2611XM, Cisco 2651XM, Cisco AS5350, and
Cisco AS5400 signaling link terminal (SLT).
Usage Guidelines
The null segment timer determines when a null segment (keepalive) is sent by the client Cisco 2600
series router. On the client, the timer starts when the connection is established and is reset each time a
data segment is sent. If the null segment timer expires, the client sends a keepalive to the server to verify
that the connection is still functional. On the server, the timer restarts each time a data or null segment
is received from the client.
The value of the server’s null segment timer is twice the value configured for the client. If no segments
are received by the server in this period of time, the connection is no longer valid.
To disable keepalive, set this parameter to 0.
Examples
The following example sets up two sessions and sets a keepalive of 1,800 ms for each one:
Cisco IOS Release 12.2(15)T
112
Cisco Signaling Link Terminal
ss7 session kp_t
ss7
ss7
ss7
ss7
Related Commands
session-0
session-0
session-1
session-1
address 255.255.255.251 7000 255.255.255.254 7000
kp_t 1800
address 255.255.255.253 7002 255.255.255.254 7001
kp_t 1800
Command
Description
ss7 session retrans_t
Sets the retransmission timer.
ss7 session m_retrans
Sets the maximum number of times that the RUDP attempts to
resend a segment before declaring the connection invalid.
ss7 session m_rcvnum
Sets the maximum number of segments that the remote end can send
before receiving an acknowledgment.
ss7 session m_outseq
Sets the maximum number of out-of-sequence segments that can be
received before the RUDP sends an extended acknowledgment.
ss7 session m_cumack
Sets the maximum number of segments that can be received before
the RUDP sends an acknowledgment.
ss7 session cumack_t
Sets the cumulative acknowledgment timer.
show ss7
Displays the SS7 configuration.
Cisco IOS Release 12.2(15)T
113
Cisco Signaling Link Terminal
ss7 session m_cumack
ss7 session m_cumack
To set the maximum number of segments that can be received before the Reliable User Datagram
Protocol (RUDP) sends an acknowledgment in a specific SS7 signaling link session, use the
ss7 session m_cumack command in global configuration mode. To reset to the default, use the no form
of this command.
ss7 session-session number m_cumack segments
no ss7 session-session number m_cumack
Caution
Syntax Description
Use the default setting. Do not change session timers unless instructed to do so by Cisco technical
support. Changing timers may result in service interruption or outage.
session-number
SS7 session number. Valid values are 0 and 1. You must enter the hyphen, with no
space following it, after the session keyword.
segments
Maximum number of segments that can be received before the RUDP sends an
acknowledgment. Range is from 0 to 255. Default is 3.
Defaults
3 segments
Command Modes
Global configuration
Command History
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(15)T
Support was added for the Cisco 2611XM, Cisco 2651XM, Cisco AS5350, and
Cisco AS5400 signaling link terminal (SLT).
Usage Guidelines
The cumulative acknowledgment counter records the number of unacknowledged, in-sequence data,
null, or reset segments received without a data, null, or reset segment being sent to the transmitter. If this
counter reaches the configured maximum, the receiver sends a standalone acknowledgment (a standalone
acknowledgment is a segment that contains only acknowledgment information). The standalone
acknowledgment contains the sequence number of the last data, null, or reset segment received.
If you set this parameter to 0, an acknowledgment is sent immediately after a data, null, or reset segment
is received.
Cisco IOS Release 12.2(15)T
114
Cisco Signaling Link Terminal
ss7 session m_cumack
Examples
The following example sets up two sessions and in each session sets a maximum of two segments for
receipt before acknowledgment:
ss7
ss7
ss7
ss7
Related Commands
session-0
session-0
session-1
session-1
address 255.255.255.251 7000 255.255.255.254 7001
m_cumack 2
address 255.255.255.253 7002 255.255.255.254 7000
m_cumack 2
Command
Description
ss7 session retrans_t
Sets the retransmission timer.
ss7 session m_retrans
Sets the maximum number of times that the RUDP attempts to
resend a segment before declaring the connection invalid.
ss7 session m_rcvnum
Sets the maximum number of segments that the remote end can send
before receiving an acknowledgment.
ss7 session m_outseq
Sets the maximum number of out-of-sequence segments that can be
received before the RUDP sends an extended acknowledgment.
ss7 session k_pt
Sets the null segment (keepalive) timer.
ss7 session cumack_t
Sets the cumulative acknowledgment timer.
show ss7
Displays the SS7 configuration.
Cisco IOS Release 12.2(15)T
115
Cisco Signaling Link Terminal
ss7 session m_outseq
ss7 session m_outseq
To set the maximum number of out-of-sequence segments that can be received before the Reliable User
Datagram Protocol (RUDP) sends an extended acknowledgment in a specific SS7 signaling link session,
use the ss7 session m_outseq command in global configuration mode. To reset to the default, use the no
form of this command.
ss7 session-session number m_outseq segments
no ss7 session-session number m_outseq
Caution
Syntax Description
Use the default setting. Do not change session timers unless instructed to do so by Cisco technical
support. Changing timers may result in service interruption or outage.
session-number
SS7 session number. Valid values are 0 and 1. You must enter the hyphen, with no
space following it, after the session keyword.
segments
Maximum number of out-of-sequence segments that can be received before the
RUDP sends an extended acknowledgment. If the specified number of segments
are received out of sequence, an Extended Acknowledgment segment is sent to
inform the sender which segments are missing. Range is from 0 to 255. Default
is 3.
Defaults
3 segments
Command Modes
Global configuration
Command History
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(15)T
Support was added for the Cisco 2611XM, Cisco 2651XM, Cisco AS5350, and
Cisco AS5400 signaling link terminal (SLT).
Usage Guidelines
The out-of-sequence acknowledgment counter records the number of data segments that have arrived out
of sequence. If this counter reaches the configured maximum, the receiver sends an extended
acknowledgment segment that contains the sequence numbers of the out-of-sequence data, null, and
reset segments received. When the transmitter receives the extended acknowledgment segment, it
retransmits the missing data segments.
If you set this parameter to 0, an acknowledgment is sent immediately after an out-of-sequence segment
is received.
Cisco IOS Release 12.2(15)T
116
Cisco Signaling Link Terminal
ss7 session m_outseq
Examples
The following example sets up two sessions and sets a maximum number of four out-of-sequence
segments for each session:
ss7
ss7
ss7
ss7
Related Commands
session-0
session-0
session-1
session-1
address 255.255.255.251 7000 255.255.255.254 7001
m_outseq 4
address 255.255.255.253 7002 255.255.255.254 7000
m_outseq 4
Command
Description
ss7 session retrans_t
Sets the retransmission timer.
ss7 session m_retrans
Sets the maximum number of times that the RUDP attempts to
resend a segment before declaring the connection invalid.
ss7 session m_rcvnum
Sets the maximum number of segments that the remote end can send
before receiving an acknowledgment.
ss7 session m_cumack
Sets the maximum number of segments that can be received before
the RUDP sends an acknowledgment.
ss7 session k_pt
Sets the null segment (keepalive) timer.
ss7 session cumack_t
Sets the cumulative acknowledgment timer.
show ss7
Displays the SS7 configuration.
Cisco IOS Release 12.2(15)T
117
Cisco Signaling Link Terminal
ss7 session m_rcvnum
ss7 session m_rcvnum
To set the maximum number of segments that the remote end can send before receiving an
acknowledgment in a specific SS7 signaling link session, use the ss7 session m_rcvnum command in
global configuration mode. To reset to the default, use the no form of this command.
ss7 session-session number m_rcvnum segments
no ss7 session-session number m_rcvnum
Caution
Syntax Description
Use the default setting. Do not change session timers unless instructed to do so by Cisco technical
support. Changing timers may result in service interruption or outage.
session-number
SS7 session number. Valid values are 0 and 1. You must enter the hyphen, with no
space following it, after the session keyword.
segments
Maximum number of segments that the remote (Cisco IOS software) end can send
before receiving an acknowledgment. Range is from 1 to 64. Default is 32.
Defaults
32 segments
Command Modes
Global configuration
Command History
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(15)T
Support was added for the Cisco 2611XM, Cisco 2651XM, Cisco AS5350, and
Cisco AS5400 signaling link terminal (SLT).
Usage Guidelines
The outstanding segments counter is the maximum number of segments that the Cisco IOS software end
of the connection can send without getting an acknowledgment from the receiver. The receiver uses the
counter for flow control.
Examples
The following example sets up two sessions and for each session sets a maximum of 36 segments for
receipt before an acknowledgment:
ss7
ss7
ss7
ss7
session-0
session-0
session-1
session-1
Cisco IOS Release 12.2(15)T
118
address 255.255.255.251 7000 255.255.255.254 7001
m_rcvnum 36
address 255.255.255.253 7002 255.255.255.254 7000
m_rcvnum 36
Cisco Signaling Link Terminal
ss7 session m_rcvnum
Related Commands
Command
Description
ss7 session retrans_t
Sets the retransmission timer.
ss7 session m_retrans
Sets the maximum number of times that the Reliable User Datagram
Protocol (RUDP) attempts to resend a segment before declaring the
connection invalid.
ss7 session m_outseq
Sets the maximum number of out-of-sequence segments that can be
received before the RUDP sends an extended acknowledgment.
ss7 session m_cumack
Sets the maximum number of segments that can be received before
the RUDP sends an acknowledgment.
ss7 session k_pt
Sets the null segment (keepalive) timer.
ss7 session cumack_t
Sets the cumulative acknowledgment timer.
show ss7
Displays the SS7 configuration.
Cisco IOS Release 12.2(15)T
119
Cisco Signaling Link Terminal
ss7 session m_retrans
ss7 session m_retrans
To set the maximum number of times that the Reliable User Datagram Protocol (RUDP) attempts to
resend a segment before declaring the connection invalid in a specific SS7 signaling link session, use the
ss7 session m_retrans command in global configuration mode. To reset to the default, use the no form
of this command.
ss7 session-session number m_retrans number
no ss7 session-session number m_retrans
Caution
Syntax Description
Use the default setting. Do not change session timers unless instructed to do so by Cisco technical
support. Changing timers may result in service interruption or outage.
session-number
SS7 session number. Valid values are 0 and 1. You must enter the hyphen, with no
space following it, after the session keyword.
number
Maximum number of times that the RRUDP attempts to resend a segment before
declaring the connection broken. Range is from 0 to 255. Default is 2.
Defaults
2 times
Command Modes
Global configuration
Command History
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(15)T
Support was added for the Cisco 2611XM, Cisco 2651XM,
Cisco AS5350, and Cisco AS5400 signaling link terminal (SLT).
Usage Guidelines
The retransmission counter is the number of times a segment has been retransmitted. If this counter
reaches the configured maximum, the transmitter resets the connection and informs the upper-layer
protocol.
If you set this parameter to 0, the RUDP attempts to resend the segment continuously.
Examples
The following example sets up two sessions and for each session sets a maximum number of three times
to resend before a session becomes invalid:
ss7
ss7
ss7
ss7
session-0
session-0
session-1
session-1
Cisco IOS Release 12.2(15)T
120
address 255.255.255.251 7000 255.255.255.254 7001
m_retrans 3
address 255.255.255.253 7002 255.255.255.254 7000
m_retrans 3
Cisco Signaling Link Terminal
ss7 session m_retrans
Related Commands
Command
Description
ss7 session retrans_t
Sets the retransmission timer.
ss7 session m_rcvnum
Sets the maximum number of segments that the remote end can send
before receiving an acknowledgment.
ss7 session m_outseq
Sets the maximum number of out-of-sequence segments that can be
received before the RUDP sends an extended acknowledgment.
ss7 session m_cumack
Sets the maximum number of segments that can be received before
the RUDP sends an acknowledgment.
ss7 session k_pt
Sets the null segment (keepalive) timer.
ss7 session cumack_t
Sets the cumulative acknowledgment timer.
show ss7
Displays the SS7 configuration.
Cisco IOS Release 12.2(15)T
121
Cisco Signaling Link Terminal
ss7 session retrans_t
ss7 session retrans_t
To set the amount of time that the Reliable User Datagram Protocol (RUDP) waits to receive an
acknowledgment for a segment in a specific SS7 signaling link session, use the ss7 session retrans_t
command in global configuration mode. If the RUDP does not receive the acknowledgment in this time
period, the RUDP retransmits the segment. To reset to the default, use the no form of this command.
ss7 session-session number retrans_t milliseconds
no ss7 session-session number retrans_t
Caution
Syntax Description
Use the default setting. Do not change session timers unless instructed to do so by Cisco technical
support. Changing timers may result in service interruption or outage.
session-number
SS7 session number. Valid values are 0 and 1. You must enter the hyphen,
with no space following it, after the session keyword.
milliseconds
Amount of time, in milliseconds, that the RUDP waits to receive an
acknowledgment for a segment. Range is from 100 to 65535. Default is 600.
Defaults
600 ms
Command Modes
Global configuration
Command History
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(15)T
Support was added for the Cisco 2611XM, Cisco 2651XM,
Cisco AS5350, and Cisco AS5400 signaling link terminal (SLT).
Usage Guidelines
The retransmission timer is used to determine whether a packet must be retransmitted and is initialized
each time a data, null, or reset segment is sent. If an acknowledgment for the segment is not received by
the time the retransmission timer expires, all segments that have been transmitted—but not
acknowledged—are retransmitted.
This value should be greater than the value configured for the cumulative acknowledgment timer by
using the ss7 session cumack_t command.
Examples
The following example sets up two sessions and specifies 550 ms as the time to wait for an
acknowledgment for each session:
ss7 session-0 address 255.255.255.251 7000 255.255.255.254 7001
ss7 session-0 retrans_t 550
Cisco IOS Release 12.2(15)T
122
Cisco Signaling Link Terminal
ss7 session retrans_t
ss7 session-1 address 255.255.255.253 7002 255.255.255.254 7000
ss7 session-1 retrans_t 550
Related Commands
Command
Description
show ss7
Displays the SS7 configuration.
ss7 session m_retrans
Sets the maximum number of times that the RUDP attempts to
resend a segment before declaring the connection invalid.
ss7 session m_rcvnum
Sets the maximum number of segments that the remote end can send
before receiving an acknowledgment.
ss7 session m_outseq
Sets the maximum number of out-of-sequence segments that can be
received before the RUDP sends an extended acknowledgment.
ss7 session m_cumack
Sets the maximum number of segments that can be received before
the RUDP sends an acknowledgment.
ss7 session k_pt
Sets the null segment (keepalive) timer.
ss7 session cumack_t
Sets the cumulative acknowledgment timer.
Cisco IOS Release 12.2(15)T
123
Cisco Signaling Link Terminal
ss7 set failover-timer
ss7 set failover-timer
To specify the amount of time that the SS7 session manager waits for the active session to recover or for
the standby media gateway controller (MGC) to indicate that the SLT should switch traffic to the standby
session, use the ss7 set failover-timer command in global configuration mode. To reset ti the default,
use the no form of this command.
ss7 set failover-timer [seconds]
no ss7 set failover-timer
Syntax Description
seconds
Defaults
3 seconds
Command Modes
Global configuration
Command History
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(15)T
Support was added for the Cisco 2611XM, Cisco 2651XM,
Cisco AS5350, and Cisco AS5400 signaling link terminal (SLT).
Time, in seconds, that the session manager waits for a session to recover. Range is
from 1 to 10. Default is 3.
Usage Guidelines
This command specifies the number of seconds that the session manager waits for the active session to
recover or for the standby MGC to indicate that the SLT should switch traffic to the standby session and
to make that session the active session. If the timer expires without a recovery of the original session or
an active message from the standby MGC, the signaling links are taken out of service.
Examples
The following example sets the failover timer to 4 seconds:
ss7 set failover-timer 4
Related Commands
Command
Description
show ss7 sm set
Displays the current failover timer setting.
ss7 session
Establishes a session.
Cisco IOS Release 12.2(15)T
124
Cisco Signaling Link Terminal
Glossary
Glossary
AIM—Advanced Integration Modules.
AIN—Advanced Intelligent Network.
AERM—Alignment Error Rate Monitor. SS7 MTP 2 function that provides monitoring of link
alignment errors.
AIS—Alarm Indication Signal. In a T1 transmission, an all-ones signal transmitted instead of the normal
signal to maintain transmission continuity and to indicate to the receiving terminal that there is a
transmission fault that is located either at, or upstream from, the transmitting terminal.
AMI—Alternate Mark Inversion. Line-code type used on T1 and E1 circuits. In AMI, zeros are
represented by 01 during each bit cell, and ones are represented by 11 or 00, alternately, during each bit
cell. AMI requires that the sending device maintain ones density. Ones density is not maintained
independently of the data stream. Sometimes called binary coded alternate mark inversion. Compare
with B8ZS.
B8ZS—binary 8-zero substitution. Line-code type, used on T1 and E1 circuits, in which a special code
is substituted whenever 8 consecutive zeros are sent over the link. This code is then interpreted at the
remote end of the connection. This technique guarantees ones density independent of the data stream.
Sometimes called bipolar 8-zero substitution. Compare with AMI.
BER—bit error rate. Ratio of received bits that contain errors.
BIB—Backward Indicator Bit. Part of an SS7 MSU that when toggled signals a negative
acknowledgment by the remote signaling point.
BISDN—Broadband ISDN. ITU-T communication standards designed to handle high-bandwidth
applications such as video. BISDN currently uses ATM technology over SONET-based transmission
circuits to provide data rates from 155 to 622 Mbps and more.
BSN—Backward Sequence Number. Part of SS7 MSU that acknowledges the receipt of signal units by
the remote signaling point, contains the sequence number of the signal unit being acknowledged.
CEPT—European Conference of Postal and Telecommunications Administrations.
CCB—Channel Control Block.
CRC—cyclic redundancy check. Error-checking technique in which the frame recipient calculates a
remainder by dividing frame contents by a prime binary divisor and compares the calculated remainder
to a value stored in the frame by the sending node.
CCS—common channel signaling. Signaling system used in telephone networks that separates signaling
information from user data. A specified channel is exclusively designated to carry signaling information
for all other channels in the system. See also SS7.
CSU—channel service unit. Digital interface device that connects end-user equipment to the local
digital telephone loop. Often referred to together with DSU, as CSU/DSU.
DIMM—Dual In-line Memory Module.
DSP—digital signal processor.
DSU—data service unit. Device used in digital transmission that adapts the physical interface on a DTE
device to a transmission facility such as T1 or E1. The DSU is also responsible for such functions as
signal timing. Often referred to together with CSU, as CSU/DSU.
E1—Wide-area digital transmission scheme used predominantly in Europe that carries data at a rate of
2.048 Mbps. E1 lines can be leased for private use from common carriers.
Cisco IOS Release 12.2(15)T
125
Cisco Signaling Link Terminal
Glossary
ESF—Extended Super Frame. Framing type used on T1 circuits that consists of 24 frames of 192 bits
each, with the 193rd bit providing timing and other functions. ESF is an enhanced version of SF.
FDL—Facility Data Link. A 4-Kbps channel, provided by the Extended SuperFrame (ESF) T1 framing
format. The FDL performs outside the payload capacity and allows a service provider to check error
statistics on terminating equipment, without intrusion.
FISU—Fill-In Signal Unit. SS7 message that is transmitted in both directions whenever other signal
units are not present. Provides a CRC checksum for use by both signaling endpoints.
FSN—Forward Sequence Number. Part of an SS7 MSU that contains the sequence number of the signal
unit.
HDB3—high density binary 3. Zero suppression line coding used on E1 links.
HDLC—High-Level Data Link Control. Bit-oriented synchronous data link layer protocol developed by
ISO. Derived from SDLC, HDLC specifies a data encapsulation method on synchronous serial links
using frame characters and checksums.
IAC—Initial Alignment Control. SS7 MTP 2 function that provides the link alignment processing.
INAP—Intelligent Network Application Part. SS7 architectural protocol layer.
ISDN—Integrated Services Digital Network. Communication protocol, offered by telephone
companies, that permits telephone networks to carry data, voice, and other source traffic.
ISUP—ISDN User Part. SS7 protocol layer that defines the protocol used to prepare, manage, and
release trunks that carry voice and data between calling and called parties.
LOF—loss of frame. Red alarm.
LOS—loss of signal. Red alarm.
LSC—Link State Control. SS7 MTP 2 function that provides the overall coordination of a session.
LSSU—SS7 message that carries one or two octets (8-bit bytes) of link status information between
signaling points at either end of a link, used to control link alignment and to provide the status of a
signaling point (such as a local processor outage) to the remote signaling point.
MIB—Management Information Base.
MSU—Message Signal Unit. SS7 message that carries call control, database traffic, network
management, and network maintenance data in the signaling information field (SIF).
MTP—SS7 protocol layer consisting of three levels.
MTP 1—Message Transfer Part Level 1. SS7 architectural level that defines the physical, electrical, and
functional characteristics of the digital signaling link.
MTP 2—Message Transfer Part Level 2. SS7 data link layer protocol. SS7 architectural level that
exercises flow control, message sequence validation, error checking, and retransmission.
MTP 3—Message Transfer Part Level 2. SS7 architectural level that provides messages between
signaling points in the network, helping control traffic when congestion or failures occur.
PDU—protocol data unit.
RAI—Remote Alarm Indication. Yellow alarm.
RTB—ReTransmit Buffer.
RUDP—Reliable User Datagram Protocol. Cisco proprietary signaling backhaul protocol.
SCCP—Signaling Connection Control Part. SS7 protocol level that provides connectionless and
connection-oriented network services, and addressing services. Is the transport layer for TCAP-based
services.
Cisco IOS Release 12.2(15)T
126
Cisco Signaling Link Terminal
Glossary
SF—SuperFrame. Common framing type used on T1 circuits. SF consists of 12 frames of 192 bits each,
with the 193rd bit providing error checking and other functions. SF is superseded by ESF, but is still
widely used. Also called D4 framing.
SIF—signaling information field. Part of the MSU that carries call control information.
SLT—signaling link terminal for SS7.
SS7—Signaling System 7. Signaling System 7. Standard CCS system used with BISDN and ISDN.
Developed by Bellcore (now Telcordia).
SIO—Service Information Octet. Field of an SS7 MSU that contains a four-bit subservice field and a
four-bit service indicator.
SUERM—Signal Unit Error Rate Monitor. SS7 MTP 2 function that provides monitoring of signal unit
events.
T1—Digital WAN carrier facility. T1 transmits DS-1-formatted data at 1.544 Mbps through the
telephone-switching network, using AMI or B8ZS coding. Compare with E1.
TCAP—Transaction Capabilities Applications Part. SS7 protocol layer that helps exchange non-circuit
related data between applications across the network. Handles queries such as verification of a caller’s
Personal Identification Number (PIN) for telephony billing purposes.
WAN—Wide-area network.
WIC—WAN interface card.
Note
Refer to the Internetworking Terms and Acronyms for terms not included in this glossary.
Cisco IOS Release 12.2(15)T
127
Cisco Signaling Link Terminal
Glossary
Cisco IOS Release 12.2(15)T
128
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
