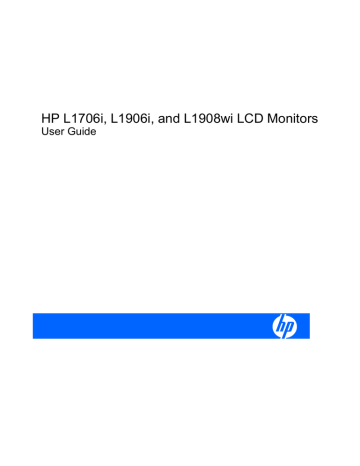

HP L1706i, L1906i, and L1908wi LCD Monitors User Guide

HP L1706i, L1906i, and L1908wi LCD Monitors User Guide

HP L1706i, L1906i, and L1908wi LCD Monitors

User Guide

© 2007, 2008 Hewlett-Packard Development

Company, L.P.

Microsoft, Windows, and Windows Vista are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.

All other product names mentioned herein may be trademarks of their respective companies.

Hewlett-Packard Company shall not be liable for technical or editorial errors or omissions contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material. The information in this document is provided “as is” without warranty of any kind, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, and is subject to change without notice. The warranties for

Hewlett-Packard products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty.

This document contains proprietary information that is protected by copyright. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of

Hewlett-Packard Company.

Third Edition (January 2008)

Document Part Number: 448556-003

About This Guide

This guide provides information on setting up the monitor, installing drivers, using the on-screen display menu, troubleshooting and technical specifications.

WARNING!

Text set off in this manner indicates that failure to follow directions could result in bodily harm or loss of life.

CAUTION:

Text set off in this manner indicates that failure to follow directions could result in damage to equipment or loss of information.

NOTE:

Text set off in this manner provides important supplemental information.

iii

iv About This Guide

Table of contents

1 Product Features

HP LCD Monitors with Integrated Work Center .................................................................................... 1

2 Safety and Maintenance Guidelines

Important Safety Information ................................................................................................................ 3

Maintenance Guidelines ....................................................................................................................... 3

Cleaning the Monitor ............................................................................................................ 4

Shipping the Monitor ............................................................................................................ 4

3 Setting Up the Monitor

Installing the Monitor on the Stand ....................................................................................................... 5

Installing an HP Ultra-slim Desktop (USDT) on the Stand ................................................................... 7

Installing an HP Thin Client on the Stand ........................................................................................... 11

Adjusting the Monitor .......................................................................................................................... 15

Turning on the Monitor ....................................................................................................................... 16

Removing the Computer from the Stand ............................................................................................ 17

Removing the Monitor from the Stand ................................................................................................ 18

Monitor Mounting Alternatives ............................................................................................................ 18

Locating the Rating Labels ................................................................................................................. 19

4 Operating the Monitor

Software and Utilities .......................................................................................................................... 20

The Information File ........................................................................................................... 20

The Image Color Matching File .......................................................................................... 20

Installing the .INF and .ICM Files ....................................................................................................... 21

Installing from the CD ........................................................................................................ 21

Downloading from the Worldwide Web .............................................................................. 21

Front Panel Controls .......................................................................................................................... 22

Adjusting the Monitor Settings ............................................................................................................ 22

Using the On-Screen Display Menu .................................................................................. 22

OSD Menu Selections ....................................................................................... 23

Adjusting Screen Quality ................................................................................... 26

Optimizing Digital Conversion ........................................................................... 26

Using the HP Display Assistant Utility ............................................................................... 27

Identifying Monitor Conditions ............................................................................................................ 27

Sleep Timer Mode .............................................................................................................................. 28

HP Display LiteSaver ......................................................................................................................... 29

Installing the HP Display LiteSaver Software .................................................................... 29

v

sRGB Support .................................................................................................................................... 30

Changing the Color Temperature ...................................................................................... 30

Installing the sRGB ICM File for Microsoft Windows 2000 and Windows XP .................... 30

Installing the sRGB ICM File for Microsoft Windows Vista ................................................ 31

Appendix A Troubleshooting

Solving Common Problems ................................................................................................................ 32

Using the Worldwide Web .................................................................................................................. 33

Preparing to Call Technical Support ................................................................................................... 33

Appendix B Technical Specifications

L1706i Model ...................................................................................................................................... 34

L1906i Model ...................................................................................................................................... 35

L1908wi Model ................................................................................................................................... 36

Recognizing Preset Display Resolutions ............................................................................................ 37

L1706i and L1906i Models ................................................................................................. 37

L1908wi Model ................................................................................................................... 37

Entering User Modes .......................................................................................................................... 38

Energy Saver Feature ........................................................................................................................ 38

Appendix C Agency Regulatory Notices

Federal Communications Commission Notice ................................................................................... 39

Modifications ...................................................................................................................... 39

Cables ................................................................................................................................ 39

Declaration of Conformity for Products Marked with the FCC Logo (United States Only) ................. 39

Canadian Notice ................................................................................................................................. 40

Avis Canadien .................................................................................................................................... 40

European Union Regulatory Notice .................................................................................................... 40

German Ergonomics Notice ............................................................................................................... 41

Japanese Notice ................................................................................................................................. 41

Korean Notice ..................................................................................................................................... 41

Power Cord Set Requirements ........................................................................................................... 41

Japanese Power Cord Requirements ................................................................................ 41

Product Environmental Notices .......................................................................................................... 42

ENERGY STAR Compliance ............................................................................................. 42

Materials Disposal ............................................................................................................. 42

Disposal of Waste Equipment by Users in Private Household in the European

Union ................................................................................................................................. 42

Restriction of Hazardous Substances (RoHS) ................................................................... 43

Appendix D LCD Monitor Quality and Pixel Policy

vi

1 Product Features

HP LCD Monitors with Integrated Work Center

The flat panel monitors have an active matrix, thin-film transistor (TFT), liquid crystal display (LCD). The monitor models include:

● L1706i model, 17-inch (43.2 cm) viewable area display with 1280 x 1024 resolution, plus full-screen support for lower resolutions

L1906i model, 19-inch (48.3 cm) viewable area display with 1280 x 1024 resolution, plus full-screen support for lower resolutions

L1908wi model, 19-inch (48.3 cm) viewable area display with 1440 × 900 resolution, plus full-screen support for lower resolutions; includes custom scaling for maximum image size while preserving original aspect ratio

Wide viewing angle to allow viewing from a sitting or standing position, or moving side-to-side

Tilt, swivel, and height adjustment capabilities

Integrated Work Center stand that integrates the monitor with an HP Ultra-slim Desktop (USDT)

PC or Thin Client on a single stand for the convenience of an "all-in-one" form factor

HP Quick Release for flexible and easy monitor panel removal and mounting solutions

Power cable and VGA signal cable included

Accepts an optional mounted HP speaker bar

Plug and play capability if supported by the system

● On-Screen Display (OSD) adjustments in several languages for easy setup and screen optimization

Software and documentation CD that includes software, monitor drivers, an information file (INF),

Image Color Matching file (ICM), and product documentation

Energy Saver feature for Energy Star compliance

AssetControl (available with select models)

● Compliant with the following regulated specifications:

European Union CE Directives

Swedish MPR II 1990

HP LCD Monitors with Integrated Work Center 1

Swedish TCO Requirements

◦ Energy Star

2 Chapter 1 Product Features

2 Safety and Maintenance Guidelines

Important Safety Information

A power cord is included with the monitor. If another cord is used, use only a power source and connection appropriate for this monitor. For information on the correct power cord set to use with the

monitor, refer to Power Cord Set Requirements on page 41 in Appendix C.

WARNING!

To reduce the risk of electric shock or damage to the equipment:

• Do not disable the power cord grounding feature. The grounding plug is an important safety feature.

• Plug the power cord into a grounded (earthed) electrical outlet that is easily accessible at all times.

• Disconnect power from the product by unplugging the power cord from the electrical outlet.

For your safety, do not place anything on power cords or cables. Arrange them so that no one may accidentally step on or trip over them. Do not pull on a cord or cable. When unplugging from the electrical outlet, grasp the cord by the plug.

To reduce the risk of serious injury, read the Safety and Comfort Guide. It describes proper workstation, setup, posture, and health and work habits for computer users, and provides important electrical and mechanical safety information. This guide is located on the Web at http://www.hp.com/ergo and/or on the documentation CD, if one is included with the monitor.

CAUTION:

For the protection of the monitor, as well as the computer, connect all power cords for the computer and its peripheral devices (such as a monitor, printer, scanner) to some form of surge protection device such as a power strip or Uninterruptible Power Supply (UPS). Not all power strips provide surge protection; the power strips must be specifically labeled as having this ability. Use a power strip whose manufacturer offers a Damage Replacement Policy so you can replace the equipment, if surge protection fails.

Maintenance Guidelines

To enhance the performance and extend the life of the monitor:

Do not open the monitor cabinet or attempt to service this product yourself. Adjust only those controls that are covered in the operating instructions. If the monitor is not operating properly or has been dropped or damaged, contact an authorized HP dealer, reseller, or service provider.

● Use only a power source and connection appropriate for this monitor, as indicated on the label/ back plate of the monitor.

Be sure the total ampere rating of the products connected to the outlet does not exceed the current rating of the electrical outlet, and the total ampere rating of the products connected to the cord does

Important Safety Information 3

not exceed the rating of the cord. Look on the power label to determine the ampere rating (AMPS or A) for each device.

Install the monitor near an outlet that you can easily reach. Disconnect the monitor by grasping the plug firmly and pulling it from the outlet. Never disconnect the monitor by pulling the cord.

Turn the monitor off when not in use. You can substantially increase the life expectancy of the monitor by using a screen saver program and turning off the monitor when not in use.

Slots and openings in the cabinet are provided for ventilation. These openings must not be blocked or covered. Never push objects of any kind into cabinet slots or other openings.

Do not drop the monitor or place it on an unstable surface.

Do not allow anything to rest on the power cord. Do not walk on the cord.

Keep the monitor in a well-ventilated area, away from excessive light, heat or moisture.

Cleaning the Monitor

1.

Turn off the monitor and the computer.

2.

Unplug the monitor from the wall outlet.

3.

Clean the monitor plastics with a clean cloth dampened with water.

4.

Clean the monitor screen with an antistatic screen cleaner.

CAUTION:

Do not use benzene, thinner, ammonia, or any other volatile substances to clean the monitor or the screen. These chemicals may damage the cabinet finish as well as the screen.

Shipping the Monitor

Keep the original packing box in a storage area. You may need it later if you move or ship the monitor.

4 Chapter 2 Safety and Maintenance Guidelines

3 Setting Up the Monitor

To set up the monitor, ensure that the power is turned off to the monitor, computer system, and other attached devices, then follow the instructions below.

Installing the Monitor on the Stand

CAUTION:

Do not touch the surface of the LCD panel. Pressure on the panel may cause nonuniformity of color or disorientation of the liquid crystals. If this occurs the screen will not recover to its normal condition.

1.

Place the monitor panel face down on a dry, soft cloth and connect the VGA cable and power cable to the monitor.

Figure 3-1

Connecting VGA and Power Cables to the Monitor

Installing the Monitor on the Stand 5

2.

Place the stand on a desktop or table and push the neck on the stand down to its lowest position.

Slide the monitor all the way onto the stand so that the Quick Release mounting device emits an audible click and is locked in place.

Figure 3-2

Installing the Monitor on the Stand

3.

Route the monitor VGA and power cables through the cable guides at the bottom corners of the mounting panel.

Figure 3-3

Routing Monitor VGA and Power Cables

4.

To install an HP USDT computer on the rear of the stand, follow the procedure in

Installing an HP

Ultra-slim Desktop (USDT) on the Stand on page 7

. To install an HP Thin Client computer on

the rear of the stand, follow the procedure in Installing an HP Thin Client on the Stand on page 11 .

6 Chapter 3 Setting Up the Monitor

Installing an HP Ultra-slim Desktop (USDT) on the Stand

You can install an HP USDT or Thin Client computer on the rear side of the stand. This section provides instructions on installing the USDT.

1.

On the rear of the stand, remove the two screws (1) from the top of the computer mounting bracket and lift the bracket off the stand (2).

Figure 3-4

Removing the Computer Mounting Bracket

Installing an HP Ultra-slim Desktop (USDT) on the Stand 7

2.

Use the four screws provided to install the computer mounting bracket on the USDT computer.

NOTE:

There are two sets of screw holes on the computer mounting bracket. Use the four holes that are offset to install the USDT.

Be sure to install the computer mounting bracket on the USDT so that the rear ports on the USDT are toward the right when viewed from the rear of the monitor stand. (The rear ports should be toward the left when viewed from the front of the monitor.)

Figure 3-5

Installing the Computer Mounting Bracket on the USDT

3.

Slide the computer mounting bracket/USDT computer onto the stand (1) and reinstall the two screws on top of the bracket (2).

Figure 3-6

Sliding the USDT onto the Stand

4.

Thread the VGA cable from the monitor, along with the circular end of the computer power cable and any other cables that will connect to the rear of the computer (such as keyboard and mouse

8 Chapter 3 Setting Up the Monitor

cables), up through the bottom hole of the USDT computer's port cover (1) and then connect the cables to the rear of the computer (2).

5.

Plug the computer and monitor power cables into an electrical wall outlet (3).

Figure 3-7

Connecting the Cables

6.

Insert the hooks on the port cover into the slots on the rear of the USDT chassis and slide the port cover down so that it locks in place.

Figure 3-8

Installing the Port Cover

Installing an HP Ultra-slim Desktop (USDT) on the Stand 9

7.

Slide the power supply tray out from the base of the stand (1) and place the USDT power supply into the tray (2). Route any loose cables through the cables guides on the sides of the tray (3).

Figure 3-9

Installing the Power Supply

8.

Be sure the final configuration has the USDT properly oriented, as shown in the illustration below.

Figure 3-10

Proper Assembly of Integrated Work Center

WARNING!

To reduce the risk of electric shock or damage to the equipment:

• Do not disable the power cord grounding plug. The grounding plug is an important safety feature.

• Plug the power cord into a grounded (earthed) electrical outlet that is easily accessible at all times.

• Disconnect power from the equipment by unplugging the power cord from the electrical outlet.

For your safety, do not place anything on power cords or cables. Arrange them so that no one may accidentally step on or trip over them. Do not pull on a cord or cable. When unplugging from the electrical outlet, grasp the cord by the plug.

10 Chapter 3 Setting Up the Monitor

Installing an HP Thin Client on the Stand

You can install an HP USDT or Thin Client computer on the rear side of the stand. This section provides instructions on installing the Thin Client.

1.

On the rear of the stand, remove the two screws (1) from the top of the computer mounting bracket and lift the bracket off the stand (2).

Figure 3-11

Removing the Computer Mounting Bracket

2.

Remove the HP logo panel from the right side of the Thin Client to access the screw holes for the computer mounting bracket.

Figure 3-12

Removing the HP Logo Panel

Installing an HP Thin Client on the Stand 11

3.

Use the four screws provided to install the computer mounting bracket on the Thin Client computer.

NOTE:

There are two sets of screw holes on the computer mounting bracket. Use the four holes that are centered on the bracket to install the Thin Client.

Be sure to install the computer mounting bracket on the Thin Client so that the rear ports on the

Thin Client are facing down and the feet on the Thin Client are facing outwards.

Figure 3-13

Installing the Computer Mounting Bracket on the Thin Client

4.

Slide the computer mounting bracket/Thin Client computer onto the stand (1) and reinstall the two screws on top of the bracket (2).

Figure 3-14

Sliding the Thin Client onto the Stand

12 Chapter 3 Setting Up the Monitor

5.

Connect the Thin Client power cable and peripheral device cables, such as keyboard and mouse cables, to the rear of the computer (1), then plug the computer and monitor power cables into an electrical wall outlet (2).

Figure 3-15

Connecting the Cables

6.

Slide the power supply tray out from the base of the stand (1) and place the Thin Client power supply into the tray (2). Route any loose cables through the cables guides on the sides of the tray

(3).

Figure 3-16

Installing the Power Supply

Installing an HP Thin Client on the Stand 13

7.

Be sure the final configuration has the Thin Client properly oriented, as shown in the illustration below.

Figure 3-17

Proper Assembly of Integrated Work Center

WARNING!

To reduce the risk of electric shock or damage to the equipment:

• Do not disable the power cord grounding plug. The grounding plug is an important safety feature.

• Plug the power cord into a grounded (earthed) electrical outlet that is easily accessible at all times.

• Disconnect power from the equipment by unplugging the power cord from the electrical outlet.

For your safety, do not place anything on power cords or cables. Arrange them so that no one may accidentally step on or trip over them. Do not pull on a cord or cable. When unplugging from the electrical outlet, grasp the cord by the plug.

14 Chapter 3 Setting Up the Monitor

Adjusting the Monitor

NOTE:

Your monitor model may look different than the model in the following illustrations.

1.

Tilt the monitor's panel forward or backward to set it to a comfortable eye level.

Figure 3-18

Tilting the Monitor

2.

Swivel the monitor base to the left or right for the best viewing angle.

Figure 3-19

Swiveling the Monitor

Adjusting the Monitor 15

3.

Adjust the monitor's height so that it is parallel to your eye height for a comfortable viewing position.

CAUTION:

To prevent damage to the monitor, be sure not to lower it onto objects in the tray at the base of the stand.

If an optional speaker bar is installed, exercise caution when moving the display head to the lower end of the height-adjustment range. Contact with the stand could result in scratched paint or other cosmetic damage to either the stand or the speaker bar.

Figure 3-20

Adjusting the Height

Turning on the Monitor

1.

Press the power button on the computer to turn it on.

2.

Press the power button on the front of the monitor to turn it on.

CAUTION:

Burn-in image damage may occur on monitors that display the same static image on screen for a prolonged period of time.* To avoid burn-in image damage on the monitor screen, you should always activate a screen saver application or turn off the monitor when it is not in use for a prolonged period of time. Image retention is a condition that may occur on all LCD screens.

* A prolonged period of time is 12 or more consecutive hours of non-use.

NOTE:

On some models, if pressing the monitor power button has no effect, the Power Button Lockout feature may be enabled. To disable the feature, press and hold the monitor power button for 10 seconds.

16 Chapter 3 Setting Up the Monitor

Removing the Computer from the Stand

CAUTION:

Before beginning to disassemble the computer, be sure the computer is turned off and all cables are disconnected.

1.

Turn off power to the computer and unplug the power cable from the electrical wall outlet.

2.

On the USDT assembled integrated work center, remove the port cover by pulling back the retention lever inside the bottom port cover opening then slide the cover up and off the computer.

3.

Disconnect all the cables from the rear of the computer.

4.

Remove the two screws from the top of the computer mounting bracket (1) and slide the computer up and off the stand (2).

Figure 3-21

Removing the Computer from the Stand (USDT Computer Shown)

Removing the Computer from the Stand 17

Removing the Monitor from the Stand

You can remove the monitor panel from the stand to mount the panel on a wall, a swing arm, or other mounting fixture.

CAUTION:

Before beginning to disassemble the monitor, be sure the monitor is turned off and the power and signal cables are both disconnected.

1.

Disconnect and remove the signal and power cables from the back of the monitor.

2.

Adjust the monitor height to its highest position.

3.

Press the Quick Release lever all the way to the left or right (1) then slide the monitor up and off the stand (2).

Figure 3-22

Removing the Monitor from the Stand

Monitor Mounting Alternatives

The HP Quick Release can be removed from the monitor stand and installed on a mounting fixture. This allows you to quickly and securely mount the monitor panel onto a swing arm, wall, desk or other mounting fixture.

1.

Remove the monitor panel from the stand. Refer to

Removing the Monitor from the Stand on page 18 .

2.

Remove the HP Quick Release from the monitor stand by removing the four screws that secure the HP Quick Release to the stand.

3.

Install the HP Quick Release onto the mounting fixture or wall then slide the monitor all the way down onto the HP Quick Release so that it clicks and locks in place.

CAUTION:

The Quick Release is designed to support a maximum of up to 24 lbs. (10.9 kg). If you are mounting to a wall, HP recommends that you consult with a qualified engineering, architectural, or construction professional to determine the appropriate type and quantity of mounting fasteners required for the application and to ensure that the mounting solution is properly installed to support applied loads.

18 Chapter 3 Setting Up the Monitor

If mounting the monitor using another manufacturer’s solution, use the screws previously removed from the monitor stand to mount the display to a swing arm or other mounting fixture. Consult the documentation included with the mounting fixture for additional instructions.

CAUTION:

This monitor supports the VESA industry-standard 100mm mounting holes. To attach a third-party mounting solution to the monitor, four 4mm, 0.7 pitch, and 10mm long screws are required

(not provided with the monitor). Longer screws should not be used because they may damage the monitor. It is important to verify that the manufacturer’s mounting solution is compliant with the VESA standard and is rated to support the weight of the monitor display panel. For best performance, it is important to use the power and video cables provided with the monitor.

Locating the Rating Labels

The rating labels on the monitor provide the spare part number, product number, and serial number.

You may need these numbers when contacting HP about the monitor model. The rating labels are located on the rear panel of the monitor display head.

Figure 3-23

Locating the Rating Labels

NOTE:

The rating labels on some models may look different than the rating labels shown above.

Locating the Rating Labels 19

4 Operating the Monitor

Software and Utilities

The CD that comes with the monitor contains files you can install on the computer:

● an .INF (Information) file

● an .ICM (Image Color Matching) file

● auto-adjustment pattern utility

● additional software for the monitor model

NOTE:

If the monitor does not include a CD, the .INF and .ICM files can be downloaded from the HP monitors support Web site. See

Downloading from the Worldwide Web on page 21

.

The Information File

The .INF file defines monitor resources used by Microsoft Windows operating systems to ensure monitor compatibility with the computer’s graphics adapter.

This monitor is Microsoft Windows Plug and Play compatible and the monitor will work correctly without installing the .INF file. Monitor Plug and Play compatibility requires that the computer’s graphic card is

VESA DDC2b-compliant and that the monitor connects directly to the graphics card. Plug and Play does not work through separate BNC type connectors or through distribution buffers/boxes.

The Image Color Matching File

The .ICM files are data files that are used in conjunction with graphics programs to provide consistent color matching from monitor screen to printer, or from scanner to monitor screen. The .ICM file contains a monitor color system profile. This file is activated from within graphics programs that support this feature.

NOTE:

The ICM color profile is written in accordance with the International Color Consortium (ICC)

Profile Format specification.

20 Chapter 4 Operating the Monitor

Installing the .INF and .ICM Files

After you determine that you need to update, you can install the .INF and .ICM files from the CD or download them.

Installing from the CD

To install the .INF and .ICM files on the computer from the CD:

1.

Insert the CD in the computer CD-ROM drive. The CD menu is displayed.

2.

View the Monitor Driver Software Readme file.

3.

Select Install Monitor Driver Software.

4.

Follow the on-screen instructions.

5.

Ensure that the proper resolution and refresh rates appear in the Windows Display control panel.

NOTE:

You may need to install the digitally signed monitor .INF and .ICM files manually from the CD in the event of an installation error. Refer to the Monitor Driver Software Readme file on the CD.

Downloading from the Worldwide Web

To download the latest version of .INF and .ICM files from the HP monitors support Web site:

1.

Refer to http://www.hp.com/support and select the country region.

2.

Follow the links for the monitor to the support page and download page.

3.

Ensure the system meets the requirements.

4.

Download the software by following the instructions.

Installing the .INF and .ICM Files 21

Front Panel Controls

Table 4-1 Monitor Front Panel Controls

Control Function

Menu Opens, selects or exits the OSD menu.

Minus

Plus

Power LED

Power

If the OSD menu is on, press to navigate backward through the OSD menu and decrease adjustment levels.

● If the OSD menu is inactive, press to activate the auto adjustment feature to optimize the screen image.

Navigates forward through the OSD menu and increases adjustment levels.

Green = Fully powered.

Amber = Sleep mode.

Flashing Amber = Sleep Timer mode.

Turns the monitor on or off.

Adjusting the Monitor Settings

The monitor settings can be adjusted from the On-Screen Display (OSD) menu or from the HP Display

Assistant utility.

Using the On-Screen Display Menu

Use the On-Screen Display (OSD) to adjust the screen image based on your viewing preferences. To access the OSD, do the following:

1.

If the monitor is not already on, press the Power button to turn on the monitor.

2.

To access the OSD Menu, press the Menu button on the monitor’s front panel.

3.

To navigate through the OSD Menu, press the + (Plus) button on the monitor’s front panel to scroll up, or the − (Minus) button to scroll in reverse.

4.

To select an item from the OSD Menu, use the + or – buttons to scroll to and highlight your selection, then press the Menu button to select that function.

5.

Adjust the item using the + or – buttons on the front panel to adjust the scale.

6.

After adjusting the function, select Save and Return, or Cancel if you don’t want to save the setting, then select Exit from the Main Menu.

NOTE:

If the buttons remain untouched for 10 seconds while displaying a menu, new adjustments will be discarded and the settings will revert to previous settings and exit the menu.

22 Chapter 4 Operating the Monitor

OSD Menu Selections

The following tables list the On-Screen Display (OSD) menu selections and their functional descriptions.

After changing an OSD menu item, and if the menu screen has these options, you may choose to:

Cancel—to return to the previous menu level.

Save and Return—to save all changes and return to the OSD Main Menu screen. This Save and

Return option is only active if you change a menu item.

Reset—to change back to the previous setting.

Figure 4-1

OSD Main Menu

Table 4-2 OSD Main Menu

Icon Main Menu Submenu

Brightness Adjustable scale

Adjustable scale Contrast

Image Control

Auto Adjustment

Horizontal Position

Vertical Position

Description

Adjusts the brightness level of the screen. The factory default range is 90.

Adjusts the contrast level of the screen. The factory default range is 80.

Adjusts the screen image.

Automatically adjusts the screen image.

Adjusts the position of the screen image left and right.

Adjusts the position of the screen image up and down.

Adjusting the Monitor Settings 23

Table 4-2 OSD Main Menu (continued)

Icon Main Menu Submenu

Custom Scaling (select models)

Color

Clock

Clock Phase

Description

Selects the method on how displayed information on the monitor will be formatted. Select:

Fill to Screen - image fills the entire screen and may look distorted or elongated because of non-proportional scaling of height and width

Fill to Aspect Ratio - image is sized to fit the screen and maintains proportional image

Minimizes any vertical bars or strips visible on the screen background. Adjusting the Clock will also change the horizontal screen image.

Adjusts the focus of the display. This adjustment allows you to remove any horizontal noise and clear or sharpen the image of characters.

Selects the screen color. The factory default is 6500 K.

Language

Management

9300 K

6500 K

Custom Color sRGB

Power Saver

Power On Recall

Changes to slightly blueish white.

Changes to slightly reddish white.

Selects and adjusts your own color scales:

● R—sets your own red color levels

G—sets your own green color levels

● B—sets your own blue color levels

Sets your screen colors to adapt to the color standards used in the image technology industry.

Selects the language in which the OSD menu is displayed. The factory default is English.

Selects the power management features of the monitor.

NOTE:

On some models, the OSD Control menu listed below is included in the Management menu.

Enables the power saving feature. Select:

● On

Off

The factory default is On.

Restores power to the monitor following an unexpected removal of power. Select:

● On

Off

The factory default is On.

24 Chapter 4 Operating the Monitor

Table 4-2 OSD Main Menu (continued)

Icon Main Menu

OSD Control

Information

Submenu Description

Mode Display Displays the resolution, refresh rate and frequency information on the screen each time the OSD Main Menu is accessed. Select:

On

Off

Power-On Status

Display (select models)

Depending on monitor model, factory default is On or Off.

Displays the operating status of the monitor each time the monitor is powered on. Select the location to display the status to:

Top

● Middle

Bottom

● Off

The factory default is Top.

DDC/CI Support (select models)

Allows the computer to control some OSD menu features such as brightness, contrast and color temperature. Set to:

● On

Off

Sleep Timer

The factory default is On.

Bezel Power LED (select models)

Turns off the power LED on the front panel of the monitor. The factory default is On.

Provides the timer adjustment menu options:

Set Current Time—sets the current time in hours and minutes

Set Sleep Time—sets the time you want to place the monitor in sleep mode

Set on Time—sets the time you want the monitor to wake up from sleep mode

Timer—sets the Sleep Timer feature On or Off. The default setting is Off

● Sleep Now—immediately sets the monitor to enter sleep mode

Adjusts the position of the OSD menu on the screen.

NOTE:

On some models, the OSD Control menu is included in the Management menu.

Horizontal OSD Position Changes the viewing position of the OSD menu to the left or right area of the screen. The factory default range is 50.

Vertical OSD Position Changes the viewing position of the OSD menu to the top or bottom area of the screen. The factory default range is 50.

OSD Timeout Sets the time duration in seconds that the OSD is visible after the last button is pressed. The factory default is 30 seconds.

Selects and displays important information about the monitor.

Adjusting the Monitor Settings 25

Table 4-2 OSD Main Menu (continued)

Icon Main Menu

Factory Reset

Exit

Submenu Description

Current Settings Provides the current input video mode.

Recommended Settings Provides the recommended resolution mode and refresh rate for the monitor.

Serial Number

Total Hours

Backlight Hours

Reports the serial number of the monitor. The serial number is needed if contacting HP technical support.

Reports the total hours of monitor operation.

Reports the total hours of backlight operation.

Returns all OSD menu settings to the factory default setting, except the Language setting.

Exits the OSD menu screen.

Adjusting Screen Quality

Allow the monitor to warm up for 20 minutes before performing the following procedures.

The Auto-Adjustment feature automatically fine-tunes the image quality each time a new video mode is displayed. If additional image quality improvement is desired, run the Auto-Adjust software on the CD and press the – (Minus) button on the monitor front panel to manually activate the Auto-Adjustment function.

For more precise adjustments, use the HP Display Assistant utility or run the Adjustment Pattern provided on the CD and use the Clock and Clock Phase controls (accessible from the OSD menu) as described in the following section.

Optimizing Digital Conversion

Two controls in the on-screen display can be adjusted to improve image performance: Clock and Clock

Phase.

NOTE:

The Clock must first be set correctly since the Clock Phase settings are dependent on the main

Clock setting. Use these controls only when the auto-adjustment function does not provide a satisfactory image.

Clock—Increases/decreases the value to minimize any vertical bars or stripes visible on the screen background.

Clock Phase—Increases/decreases the value to minimize video distortion or video jitter.

NOTE:

When using the controls, you will obtain the best results by using the auto-adjustment pattern software utility provided on the CD.

When adjusting the Clock and Clock Phase values, if the monitor images become distorted, continue adjusting the values until the distortion disappears. To restore the factory settings, select Yes from the

Factory Reset menu in the on-screen display.

26 Chapter 4 Operating the Monitor

Using the HP Display Assistant Utility

HP Display Assistant, included on the software and documentation CD, is a software utility that guides you through the tuning process with easy to understand instructions and background patterns designed for each monitor control. It provides:

Accurate screen calibration through the use of step-by-step instruction Wizards to obtain the best overall image quality

Software control of the monitor image and color settings to eliminate dependence on the monitor’s front panel buttons and On-Screen Display (OSD) menu

Defined preset display settings for each individual user in a multi-user environment

Multiple preset display settings for a single user based on content and ambient lighting

Asset Management and Power Management capabilities that include remote control for individual or a group of displays on the domain from a centralized console application

The HP Display Assistant Utility has two modes of operation: Wizard and OSD mode. The preferred method of use is Wizard mode, which takes you through a step-by-step process to accurately calibrate the monitor. This method relies on a sequence of steps that will obtain the best display results when completed.

NOTE:

Refer to the HP Display Assistant user guide or online help for additional information about the software.

Identifying Monitor Conditions

Special messages will appear on the monitor screen when identifying the following monitor conditions:

Input Signal Out of Range—Change resolution setting to 1280 x 1024 – 60Hz—Indicates the monitor does not support the input signal because the resolution and/or refresh rate are set higher than the monitor supports.

Input Signal Out of Range—Change resolution setting to 1440 x 900 – 60Hz—Indicates the monitor does not support the input signal because the resolution and/or refresh rate are set higher than the monitor supports (model L1908wi).

No Input Signal—Indicates the monitor is not receiving a video signal from the PC on the monitor video input connector. Check to determine if the PC or input signal source is off or in the power saving mode.

Auto Adjustment is in Progress—Indicates the auto-adjustment function is active.

Monitor Going to Sleep—Indicates the screen display is entering a sleep mode.

Check Video Cable—Indicates the video cable is not properly connected to the computer.

Identifying Monitor Conditions 27

OSD Lockout—The OSD can be enabled or disabled by pressing and holding the Menu button on the front panel for 10 seconds. If the OSD is locked, the warning message OSD Lockout displays for ten seconds.

If the OSD is locked, press and hold the Menu button for 10 seconds to unlock the OSD.

If the OSD is unlocked, press and hold the Menu button for 10 seconds to lock the OSD.

Power Button Lockout—Indicates the power button is locked. If the power button is locked, the warning message Power Button Lockout displays.

If the power button is locked, press and hold the power button for 10 seconds to unlock the power button function.

If the power button is unlocked, press and hold the power button for 10 seconds to lock out the power button function.

Sleep Timer Mode

The Sleep Timer mode is an energy-saving feature that enables you to set a time for the monitor to power on and off at the same time every day. This also extends the life of the backlight bulbs in the monitor. The Sleep Timer has five settings:

Set Current Time

Set Sleep Time

● Set On Time

Timer: On/Off

Sleep Now

To set the timer:

1.

Press the Menu button on the monitor front panel to display the Main Menu.

2.

Scroll down and highlight Management.

3.

Press the Menu button to select Management.

4.

Scroll down and highlight and select Sleep Timer > Set Current Time.

NOTE:

You must set the current local time before you reset the time for Sleep Time or On

Time. Note that the time is displayed in a 24–hour clock format. For example, 1:15 p.m. is displayed as 13 hours 15 minutes.

5.

Press the Menu button once to enter the adjustment mode for hours.

6.

Press the − (Minus) or + (Plus) button to adjust the hour.

7.

Press the Menu button again to enter the time for minutes.

8.

Press the − (Minus) or + (Plus) button to adjust the minutes.

9.

Press the Menu button to lock in the time chosen.

10.

After setting the current time, the highlight automatically skips to Set Sleep Time. Repeat steps 6 through 9 to set Sleep Time.

28 Chapter 4 Operating the Monitor

11.

If you do not want to set Sleep Time, press the Menu button twice, then select Save and

Return to exit the menu.

12.

After setting Sleep Time, the highlight automatically skips to Set On Time. Repeat steps 6 through

9 to set On Time.

13.

Set the Timer mode to On to activate the Sleep Timer settings.

14.

When you are finished, select Save and Return to exit the menu.

The fifth selection, Sleep Now, turns the monitor backlights off immediately and stays in sleep mode until the next On Time activates or a monitor button is pressed.

HP Display LiteSaver

HP Display LiteSaver is a software application, available on the CD, that increases monitor life and saves energy. It allows you to place the monitor into its low power sleep mode at predefined times by shutting down or reducing power to most internal circuits. This helps protect the LCD panel against image retention. Image retention can occur when the monitor is left on while displaying the same image for an extended period of time, leaving a shadow of the image on the screen.

Installing the HP Display LiteSaver Software

1.

Insert the CD in the computer CD-ROM Drive. The CD menu is displayed.

2.

Select Install HP Display LiteSaver Software.

3.

After installing the software, click the HP Display LiteSaver icon in the Windows system tray or right-click the icon and select Configure from the pop-up menu.

4.

Select the following options to configure the HP Display LiteSaver features:

Table 4-3 HP Display LiteSaver Configuration Options

Select This Option To Do This

Enable Display LiteSaver

Display Off

Display On

Activity Extension

Show 1 minute Display Off Notice

Status

OK

Cancel

Enables the HP Display LiteSaver functions; deselect to disable the HP Display

LiteSaver.

Sets the time when the monitor automatically turns off. This does not affect screen saver operation, which has priority over the HP Display LiteSaver.

Sets the time when the monitor automatically turns on. This does not affect screen saver operation, which has priority over the HP Display LiteSaver.

Sets the time in minutes before the monitor turns off if there is any keyboard or mouse activity after the Display Off time is reached. If the keyboard or mouse is used, then

HP Display LiteSaver waits until the set amount of time before turning the display off again. Set to 0 to disable. If disabled, the monitor will turn off as soon as the

Display Off time is reached, regardless of keyboard or mouse activity.

Displays a popup message in the system tray 1 minute before the monitor is turned off by HP Display LiteSaver.

Shows the time until the monitor is next due to be turned off by HP Display LiteSaver.

Stores the current settings and minimizes HP Display LiteSaver to the System Tray.

Restores the previous settings and minimizes HP Display LiteSaver to the System

Tray. HP Display LiteSaver will continue to run.

HP Display LiteSaver 29

Table 4-3 HP Display LiteSaver Configuration Options (continued)

Select This Option To Do This

Help

Exit

Opens the online help file.

Exits and closes the HP Display LiteSaver. It will no longer control the monitor power until it is next run.

View HP Display LiteSaver Readme on the CD for additional information on how to configure HP Display

LiteSaver.

sRGB Support

The monitor is designed to support sRGB for color management, which adapts to the color standards used in the image technology industry.

To take advantage of the sRGB support, you need to change the monitor’s color temperature to sRGB and install the sRGB color profile (ICM) file.

NOTE:

The sRGB color temperature preset improves the color accuracy of sRGB images on the computer monitor, but some color variation may still occur.

Changing the Color Temperature

1.

Press the Menu button on the front panel of the monitor to launch the Main Menu of the OSD.

2.

Select Color and press the Menu button.

3.

Select sRGB and press the Menu button.

4.

Select Save and Return and press the Menu button to exit the menu.

Installing the sRGB ICM File for Microsoft Windows 2000 and Windows XP

NOTE:

To complete the following procedure, you must be logged in as an administrator or a member of the administrator’s group. If the computer is connected to a network, network policy settings may prevent you from completing this procedure. The sRGB ICM file does not support Windows 95 and

Windows NT operating systems.

1.

Click the Display icon in the Control Panel.

2.

In the Display Properties windows, select the Settings tab, then click the Advanced button.

3.

Select the Color Management tab, then click the Add button to open the Add Profile

Association dialog box.

4.

Select the sRGB Color Space Profile.icm file, then click the Add button.

5.

To activate a color profile for the monitor, you must set it as the Default Monitor Profile. Select

sRGB Color Space Profile, then click the Set as Default button.

6.

Click Apply or OK.

30 Chapter 4 Operating the Monitor

Installing the sRGB ICM File for Microsoft Windows Vista

1.

Click Appearance and Personalization icon in the Control Panel.

2.

Click Personalization.

3.

Click Display Settings.

4.

Click the Advanced Settings button.

5.

Click the Color Management tab, then click the Color Management button.

6.

Click the Advanced tab, then click the Change System Defaults button.

7.

On the Devices tab, click the Add button.

8.

Select the sRGB Color Space Profile.icm file, then click the OK button

9.

To activate a color profile for the monitor, you must set it as the Default Monitor Profile. Select

sRGB Color Space Profile, then click the Set as Default button.

sRGB Support 31

A Troubleshooting

Solving Common Problems

The following table lists possible problems, the possible cause of each problem, and the recommended solutions.

Problem Possible Cause Solution

Screen is blank.

Image appears blurred, indistinct, or too dark.

Image is not centered

Check Video Cable is displayed on screen.

Power cord is disconnected.

Power switch on front panel of the monitor is turned off.

Connect the power cord.

Press the front panel power button.

Master power switch on rear panel of the monitor is turned Off.

Video cable is improperly connected.

Turn the master power switch to On.

Screen blanking is active.

Press any key on the keyboard or move the mouse to inactivate the screen blanking utility.

Brightness and contrast are too low. Press the −(Minus) button on the front panel. If this does not correct the image, press the Menu button to open the

OSD Menu, and adjust the brightness and contrast scales as needed.

Position may need adjustment.

Connect the video cable properly. Refer to Chapter 3,

Setting Up the Monitor on page 5

for more information.

Monitor video cable is disconnected.

Press the Menu button to access the OSD menu. Select

Image Control/Horizontal Position or Vertical Position to adjust the horizontal or vertical position of the image.

Connect the VGA signal cable from the computer to the

VGA connector on the monitor. Be sure that the computer power is off while connecting the video cable.

Input Signal Out of Range.

Change Settings to 1280 x

1024 @ 60Hz (17” and 19”

4:3 models) OR Input

Signal Out of Range.

Change Settings to 1440 x

900 @ 60Hz (19” wide panel models) is displayed on screen.

Video resolution and/or refresh rate are set higher than what the monitor supports.

Restart the computer and enter Safe Mode. Change the settings to a supported setting (see

Recognizing Preset

Display Resolutions on page 37 ). Restart the computer

so that the new settings take effect.

HP Display LiteSaver doesn't turn off the monitor screen.

The Activity Extension time has not elapsed.

The default Activity Extension value is set to 10 minutes.

The HP Display LiteSaver will wait to detect no input or movement from the keyboard or mouse for 10 consecutive minutes after the Display Off time has passed, before the monitor enters into low-power mode. For example, if the

Display Off time is set to 5 minutes from the current time and the Activity Extension is set to 10 minutes, the HP

32 Appendix A Troubleshooting

Problem Possible Cause Solution

Display LiteSaver will not actually turn off the display until

10 minutes of inactivity has elapsed, even though the

Display Off time is 5 minutes from now.

The HP Display LiteSaver may not be compatible with the computer system. Some notebook computers are not compatible and the monitor power can not be controlled.

Confirm that the HP Display LiteSaver is compatible with the system.

1.

Right-click on the HP Display LiteSaver icon in the system tray.

2.

Select Power Off Display from the menu.

The monitor screen should turn off if the system is compatible. To turn the monitor back on, wait 5 seconds and move the mouse.

NOTE:

If the monitor did not turn off, then the computer graphics driver is not compatible with the HP Display

LiteSaver software.

The monitor is off but it did not seem to enter into a lowpower sleep mode.

The monitor's power saving control is disabled.

Check the monitor's OSD menu setting for power saving enable/disable controls. The control should be set to enable to allow the monitor to enter into low-power modes.

OSD Lockout is displayed.

The monitor's OSD Lockout function is enabled.

Press and hold the Menu button for 10 seconds to disable the OSD Lockout function.

Power Button Lockout is displayed.

The monitor's Power Button

Lockout function is enabled.

Press and hold the power button for 10 seconds to unlock the power button function.

Using the Worldwide Web

For the online access to technical support information, self-solve tools, online assistance, community forums of IT experts, broad multi-vendor knowledge , monitoring and diagnostic tools, go to http://www.hp.com/support

Preparing to Call Technical Support

If you cannot solve a problem using the troubleshooting tips in this section, you may need to call technical support. Have the following information available when you call:

The monitor

Monitor model number

Serial number for the monitor

Purchase date on invoice

Conditions under which the problem occurred

Error messages received

Hardware configuration

Hardware and software you are using

Using the Worldwide Web 33

B Technical Specifications

NOTE:

All performance specifications are provided by the component manufacturers. Performance specifications represent the highest specification of all HP's component manufacturers' typical level specifications for performance and actual performance may vary either higher or lower.

L1706i Model

Table B-1 L1706i Specifications

Display

Type

Viewable Image Size

Tilt

Swivel

Maximum Weight (Unpacked)

Dimensions (include pedestal )

Height

Depth

Width

Maximum Graphic Resolution

Optimum Graphic Resolution

Text Mode

Dot Pitch

Horizontal Frequency

Vertical Refresh Rate (analog mode)

Environmental Requirements

Temperature

17.0 inches

TFT LCD

17−inch diagonal

−5 to 20°

−90 to 90°

14.84 lbs

19.5 inches

10.3 inches

14.7 inches

1280 × 1024 (75 Hz) analog input

1280 × 1024 (60 Hz) analog input

720 × 400

0.264 (H) × 0.264 (W) mm

30 to 83 kHz

50 to 76 Hz

41 to 95° F

−4 to 140° F

Operating Temperature

Storage Temperature

Relative Humidity

Power Source

20 to 80%

100 — 240 VAC, 50/60 Hz

43.18 cm

43.18 cm

6.73 kg

497 mm

262 mm

374 mm

5 to 35° C

−20 to 60° C

34 Appendix B Technical Specifications

Table B-1 L1706i Specifications (continued)

Altitude:

Operating

0 to 12,000 feet

Storage

0 to 40,000 feet

Power Consumption (maximum)

Input Terminals

<37 watts typical

One VGA connector with cable included.

0 to 3657.6 m

0 to 12192 m

L1906i Model

Table B-2 L1906i Specifications

Display

Type

Viewable Image Size

Tilt

Swivel

Maximum Weight (Unpacked)

Dimensions (include pedestal )

Height

Depth

Width

Maximum Graphic Resolution

Optimum Graphic Resolution

Text Mode

Dot Pitch

Horizontal Frequency

Vertical Refresh Rate (analog mode)

Environmental Requirements Temperature

Operating Temperature

Storage Temperature

Relative Humidity

Power Source

Altitude:

Operating

Storage

Power Consumption (maximum)

Input Terminals

19.0 inches

TFT LCD

19−inch diagonal

−5 to 20°

−90 to 90°

15.81 lbs

20.1 inches

10.3 inches

16.6 inches

1280 × 1024 (75 Hz) analog input

1280 × 1024 (60 Hz) analog input

720 × 400

0.294 (H) × 0.294 (W) mm

30 to 83 kHz

50 to 76 Hz

41 to 95° F

−4 to 140° F

20 to 80%

100 — 240 VAC, 50/60 Hz

0 to 12,000 feet

0 to 40,000 feet

<37 watts

One VGA connector with cable included.

48.3 cm

48.3 cm

7.17 kg

511 mm

262 mm

421 mm

5 to 35° C

−20 to +60° C

0 to 3657.6 m

0 to 12192 m

L1906i Model 35

L1908wi Model

Table B-3 L1908wi Specifications

Display

Type

Viewable Image Size

Tilt

Swivel

Maximum Weight (Unpacked)

Dimensions (include base)

Height

Depth

Width

Maximum Graphic Resolution

Optimum Graphic Resolution

Text Mode

Dot Pitch

Horizontal Frequency

Vertical Refresh Rate

Environmental Requirements Temperature

Operating Temperature

Storage Temperature

Relative Humidity

Power Source

Altitude:

Operating

Storage

Power Consumption (maximum)

Input Terminal

19 inches wide screen

TFT LCD

19–inch diagonal

−5 to 20°

−90 to 90°

16.53 lbs.

14.06 inches

10.24 inches

17.56 inches

1440 x 900 (75 Hz) analog input

1440 x 900 (60Hz) analog input

720 × 400

0.2835 (H) × 0.2835 (W) mm

24 to 83 kHz

50 to 76 Hz

48.3 cm

48.3 cm

7.5 kg

35.7 cm

26.02 cm

44.6 cm

41 to 104° F

-29 to 140° F

20 to 80%

100 – 240 VAC, 50/60 Hz

0 to 12,000 feet

0 to 40,000 feet

<50 watts

One VGA connector with cable included

5 to 40° C

-33 to 60° C

0 to 3657.6 m

0 to 12192 m

36 Appendix B Technical Specifications

Recognizing Preset Display Resolutions

The display resolutions listed below are the most commonly used modes and are set as factory defaults.

This monitor automatically recognized these preset modes and they will appear properly sized and centered on the screen.

L1706i and L1906i Models

Table B-4 Factory Preset Modes

Preset

1

Pixel Format

640 × 480

10

11

12

13

14

15

6

7

8

9

2

3

4

5

640 × 480

640 × 480

720 × 400

800 × 600

800 × 600

800 × 600

832 × 624

1024 × 768

1024 × 768

1024 × 768

1152 × 870

1152 × 900

1280 × 1024

1280 × 1024

56.5

60.0

68.7

71.7

64.0

80.0

48.1

46.9

49.7

48.4

Horz Freq (kHz)

31.5

37.9

37.5

31.5

37.9

70.0

75.0

75.0

76.0

60.0

75.0

72.0

75.0

75.0

60.0

Vert Freq (Hz)

60.0

73.0

75.0

70.0

60.0

L1908wi Model

Table B-5 Factory Preset Modes

Preset Pixel Format

3

4

1

2

5

6

7

640 × 480

640 × 480

720 × 400

800 × 600

800 × 600

832 × 624

1024 × 768

Horz Freq (kHz)

31.5

37.5

31.5

37.9

46.9

49.7

48.4

Vert Freq (Hz)

59.9

75.0

70.1

60.3

75.0

74.5

60.0

Recognizing Preset Display Resolutions 37

Table B-5 Factory Preset Modes (continued)

8 1024 × 768 60.0

9

10

11

12

13

14

15

16

1152 × 720

1152 × 870

1152 × 900

1280 × 768

1280 × 960

1280 × 1024

1280 × 1024

1440 x 900

44.9

68.7

61.8

47.4

60.0

64.0

80.0

55.9

75.0

60.0

75.1

66.0

60.0

60.0

60.0

75.0

59.9

Entering User Modes

The video controller signal may occasionally call for a mode that is not preset if:

● You are not using a standard graphics adapter.

You are not using a preset mode.

It this occurs, you may need to readjust the parameters of the monitor screen by using the on-screen display or HP Display Assistant software. Your changes can be made to any or all of these modes and saved in memory. The monitor automatically stores the new setting, then recognizes the new mode just as it does a preset mode. In addition to the 15 factory present modes, there are four user modes that can be entered and stored.

Energy Saver Feature

When the monitor is in its normal operating mode, the monitor uses less than 40 watts of power and the

Power light is green.

The monitor also supports a reduced power state. The reduced power state will be entered into if the monitor detects the absence of either the horizontal sync signal and/or the vertical sync signal. Upon detecting the absence of these signals, the monitor screen is blanked, the backlight is turned off, and the power light is turned amber. When the monitor is in the reduced power state, the monitor will utilize less than 2 watts of power. There is a brief warm up period before the monitor will return to its normal operating mode.

Refer to the computer manual for instructions on setting energy saver features (sometimes called power management features).

NOTE:

The above power saver feature only works when connected to computers that have energy saver features.

By selecting the settings in the monitor's Energy Saver utility, you can also program the monitor to enter into the reduced power state at a predetermined time. When the monitor's Energy Saver utility causes the monitor to enter the reduced power state, the power light blinks amber.

38 Appendix B Technical Specifications

C Agency Regulatory Notices

Federal Communications Commission Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

● Reorient or relocate the receiving antenna.

Increase the separation between the equipment and the receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio or television technician for help.

Modifications

The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Hewlett Packard Company may void the user's authority to operate the equipment.

Cables

Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods to maintain compliance with FCC Rules and Regulations.

Declaration of Conformity for Products Marked with the

FCC Logo (United States Only)

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1.

This device may not cause harmful interference.

2.

This device must accept any interference received, including interference that may cause undesired operation.

For questions regarding the product, contact:

Federal Communications Commission Notice 39

Hewlett Packard Company

P. O. Box 692000, Mail Stop 530113

Houston, Texas 77269-2000

Or, call 1-800-HP-INVENT (1-800 474-6836)

For questions regarding this FCC declaration, contact:

Hewlett Packard Company

P. O. Box 692000, Mail Stop 510101

Houston, Texas 77269-2000

Or, call (281) 514-3333

To identify this product, refer to the Part, Series, or Model number found on the product.

Canadian Notice

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment

Regulations.

Avis Canadien

Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.

European Union Regulatory Notice

This product complies with the following EU Directives:

Low Voltage Directive 2006/95/EC

● EMC Directive 2004/108/EC

Compliance with these directives implies conformity to applicable harmonized European standards

(European Norms) which are listed on the EU Declaration of Conformity issued by Hewlett-Packard for this product or product family.

This compliance is indicated by the following conformity marking placed on the product:

This marking is valid for non-Telecom products and EU harmonized Telecom products (e.g. Bluetooth)

This marking is valid for EU nonharmonized Telecom products.

*Notified body number (used only if applicable — refer to the product label).

40 Appendix C Agency Regulatory Notices

Hewlett-Packard GmbH, HQ-TRE, Herrenberger Strasse 140, 71034 Boeblingen, Germany

German Ergonomics Notice

HP products which bear the “GS” approval mark, when forming part of a system comprising HP brand computers, keyboards and monitors that bear the “GS” approval mark, meet the applicable ergonomic requirements. The installation guides included with the products provide configuration information.

Japanese Notice

Korean Notice

Power Cord Set Requirements

The monitor power supply is provided with Automatic Line Switching (ALS). This feature allows the monitor to operate on input voltages between 100–120V or 200–240V.

The power cord set (flexible cord or wall plug) received with the monitor meets the requirements for use in the country where you purchased the equipment.

If you need to obtain a power cord for a different country, you should purchase a power cord that is approved for use in that country.

The power cord must be rated for the product and for the voltage and current marked on the product's electrical ratings label. The voltage and current rating of the cord should be greater than the voltage and current rating marked on the product. In addition, the cross-sectional area of the wire must be a minimum of 0.75 mm² or 18 AWG, and the length of the cord must be between 6 feet (1.8 m) and 12 feet (3.6 m).

If you have questions about the type of power cord to use, contact an authorized HP service provider.

A power cord should be routed so that it is not likely to be walked on or pinched by items placed upon it or against it. Particular attention should be paid to the plug, electrical outlet, and the point where the cord exits from the product.

Japanese Power Cord Requirements

For use in Japan, use only the power cord received with this product.

German Ergonomics Notice 41

CAUTION:

Do not use the power cord received with this product on any other products.

Product Environmental Notices

ENERGY STAR Compliance

Monitors that are marked with the ENERGY STAR Logo meet the requirements of the U.S.

Environmental Protection Agency (EPA) ENERGY STAR program. As an ENERGY STAR Partner,

Hewlett Packard Company has determined that this product meets the ENERGY STAR guidelines for energy efficiency. Specific details on using the Energy Saving features can be found in the energy saver or power management section of the computer manual.

Materials Disposal

This HP product contains mercury in the fluorescent lamp in the display LCD that might require special handling at end-of-life.

Disposal of this material can be regulated because of environmental considerations. For disposal or recycling information, contact the local authorities or the Electronic Industries Alliance (EIA) http://www.eiae.org

.

Disposal of Waste Equipment by Users in Private Household in the

European Union

This symbol on the product or on its packaging indicates that this product must not be disposed of with your household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling or waste electrical and electronic equipment.

The separate collection and recycling of the waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact the local city office, the household waste disposal service or the shop where you purchased the product.

42 Appendix C Agency Regulatory Notices

Restriction of Hazardous Substances (RoHS)

A Japanese regulatory requirement, defined by specification JIS C 0950, 2005, mandates that manufacturers provide Material Content Declarations for certain categories of electronic products offered for sale after July 1, 2006. To view the JIS C 0950 material declaration for this product, visit http://www.hp.com/go/jisc0950 .

11363-2006

11363-2006

Product Environmental Notices 43

D LCD Monitor Quality and Pixel Policy

The TFT monitor uses high-precision technology, manufactured according to HP standards, to guarantee trouble-free performance. Nevertheless, the display may have cosmetic imperfections that appear as small bright or dark spots. This is common to all LCD displays used in products supplied by all vendors and is not specific to the HP LCD. These imperfections are caused by one or more defective pixels or sub-pixels.

A pixel consists of one red, one green, and one blue sub-pixel.

A defective whole pixel is always turned on (a bright spot on a dark background), or it is always off

(a dark spot on a bright background). The first is the more visible of the two.

A defective sub-pixel (dot defect) is less visible than a defective whole pixel and is small and only visible on a specific background.

To locate defective pixels, the monitor should be viewed under normal operating conditions, in normal operating mode at a supported resolution and refresh rate, from a distance of approximately 50 cm (20 in).

HP expects that, over time, the industry will continue to improve its ability to produce LCDs with fewer cosmetic imperfections and HP will adjust guidelines as improvements are made.

44 Appendix D LCD Monitor Quality and Pixel Policy

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
