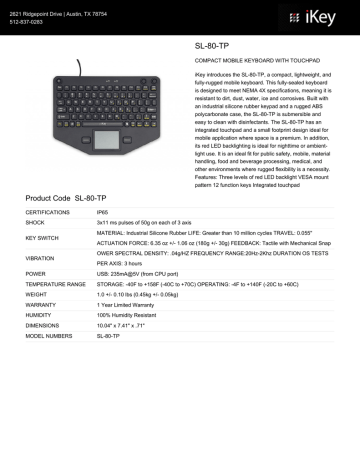

SL-80-TP
2621 Ridgepoint Drive | Austin, TX 78754
512-837-0283
SL-80-TP
COMPACT MOBILE KEYBOARD WITH TOUCHPAD
iKey introduces the SL-80-TP, a compact, lightweight, and
fully-rugged mobile keyboard. This fully-sealed keyboard
is designed to meet NEMA 4X specifications, meaning it is
resistant to dirt, dust, water, ice and corrosives. Built with
an industrial silicone rubber keypad and a rugged ABS
polycarbonate case, the SL-80-TP is submersible and
easy to clean with disinfectants. The SL-80-TP has an
integrated touchpad and a small footprint design ideal for
mobile application where space is a premium. In addition,
its red LED backlighting is ideal for nighttime or ambientlight use. It is an ideal fit for public safety, mobile, material
handling, food and beverage processing, medical, and
other environments where rugged flexibility is a necessity.
Features: Three levels of red LED backlight VESA mount
pattern 12 function keys Integrated touchpad
Product Code SL-80-TP
CERTIFICATIONS
IP65
SHOCK
3x11 ms pulses of 50g on each of 3 axis
MATERIAL: Industrial Silicone Rubber LIFE: Greater than 10 million cycles TRAVEL: 0.055"
KEY SWITCH
ACTUATION FORCE: 6.35 oz +/- 1.06 oz (180g +/- 30g) FEEDBACK: Tactile with Mechanical Snap
OWER SPECTRAL DENSITY: .04g/HZ FREQUENCY RANGE:20Hz-2Khz DURATION OS TESTS
VIBRATION
PER AXIS: 3 hours
POWER
USB: [email protected] (from CPU port)
TEMPERATURE RANGE
STORAGE: -40F to +158F (-40C to +70C) OPERATING: -4F to +140F (-20C to +60C)
WEIGHT
1.0 +/- 0.10 lbs (0.45kg +/- 0.05kg)
WARRANTY
1 Year Limited Warranty
HUMIDITY
100% Humidity Resistant
DIMENSIONS
10.04" x 7.41" x .71"
MODEL NUMBERS
SL-80-TP
