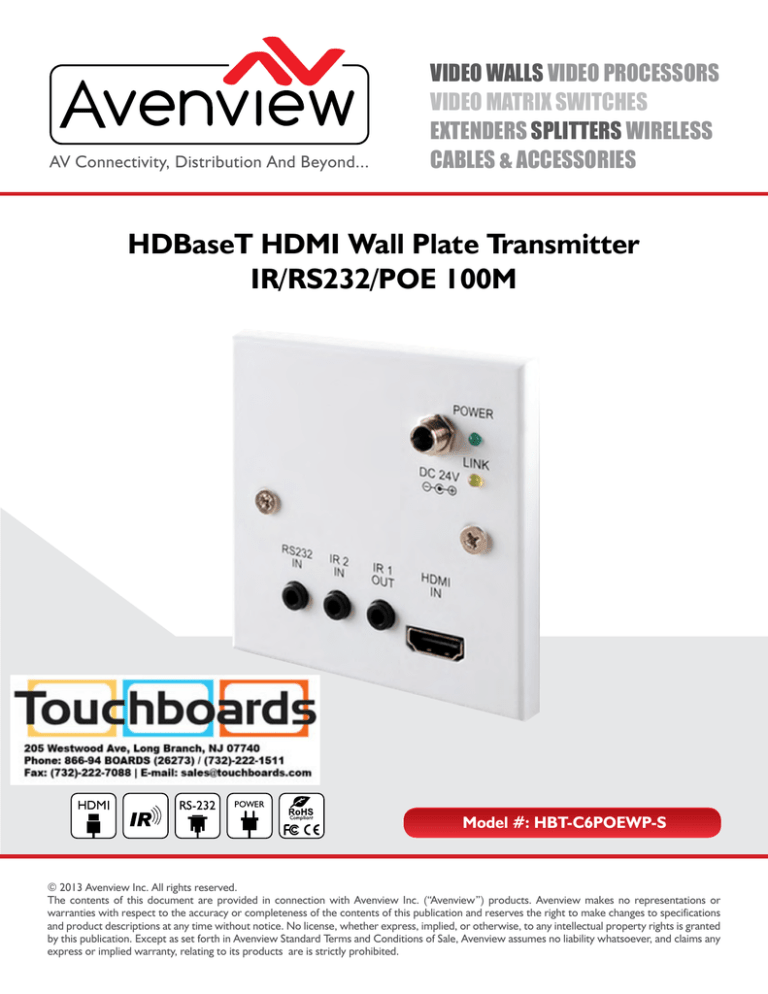

HDBaseT HDMI Wall Plate Transmitter

IR/RS232/POE 100M

Model #: HBT-C6POEWP-S

© 2013 Avenview Inc. All rights reserved.

The contents of this document are provided in connection with Avenview Inc. (“Avenview”) products. Avenview makes no representations or warranties with respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to specifications and product descriptions at any time without notice. No license, whether express, implied, or otherwise, to any intellectual property rights is granted by this publication. Except as set forth in Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and claims any express or implied warranty, relating to its products are is strictly prohibited.

Product Application & Market Sectors

Corporate House Of Worship

Military Residential

Education

Medical

Industrial

Aviation www.avenview.com

TABLE OF CONTENTS

1. GETTING STARTED ..........................................................................................................................1

1.1 IMPORTANT SAFEGUARDS ..............................................................................................................1

1.2 SAFETY INSTRUCTIONS ..................................................................................................................1

1.3 REGULATORY NOTICES FEDERAL COMMUNICATIONS COMMISSION (FCC) ........................... 2

2. INTRODUCTION ..............................................................................................................................3

2.1 PACKAGE CONTENTS .....................................................................................................................4

2.2 BEFORE INSTALLATION ...................................................................................................................5

2.2 CABLE SPECIFICATIONS ..................................................................................................................5

2.3 APPLICATION DIAGRAM ..................................................................................................................6

2.4 PANEL DESCRIPTION .......................................................................................................................7

2.4.1 INPUT PANEL (HBT-C6POEWP-S) FRONT PANEL ........................................................................7

2.4.2 INPUT PANEL (HBT-C6POEWP-S) Rear Panel ........................................................................7

3. INSTALLATION (HBT-C6POEWP-S) .................................................................................................8

4. IR CABLE DEFINITION ......................................................................................................................9

5. GENERAL TROUBLESHOOTING ...................................................................................................10

6. SPECIFICATIONS .............................................................................................................................11

NOTICE .................................................................................................................................12

www.avenview.com

Page 3

1. GETTING STARTED

SECTION 1

: GETTING STARTED

1.1

IMPORTANT SAFEGUARDS

Please read all of these instructions carefully before you use the device. Save this manual for future reference.

What the warranty does not cover

• Any product, on which the serial number has been defaced, modified or removed.

• Damage, deterioration or malfunction resulting from:

• Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to follow instructions supplied with the product.

• Repair or attempted repair by anyone not authorized by us.

• Any damage of the product due to shipment.

• Removal or installation of the product.

• External causes to the product, such as electric power fluctuation or failure.

• Use of supplies or parts not meeting our specifications.

• Normal wear and tear.

• Any other causes which does not relate to a product defect.

• Removal, installation, and set-up service charges.

1.2

SAFETY INSTRUCTIONS

The HBT-C6POEWP-S HDBaseT HDMI Wall plate Transmitter has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipments, the HBT-C6POEWP-S should be used with care. Read the following safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.

!

Do not dismantle the housing or modify the module.

!

!

!

Dismantling the housing or modifying the module may result in electrical shock or burn.

Refer all servicing to qualified service personnel.

Do not attempt to service this product yourself as opening or removing housing may expose you to dangerous voltage or other hazards

!

!

!

Keep the module away from liquids.

Spillage into the housing may result in fire, electrical shock, or equipment damage. If an object or liquid falls or spills on to the housing, unplug the module immediately.

Have the module checked by a qualified service engineer before using it again.

!

Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before cleaning.

www.avenview.com

Page 1

1.3

REGULATORY NOTICES FEDERAL COMMUNICATIONS COMMISSION (FCC)

This equipment has been tested and found to comply with Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

Any changes or modifications made to this equipment may void the user’s authority to operate this equipment.

Warning symbols Description

ONLY USE THE PROVIDED POWER CABLE OR POWER

ADAPTER SUPPLIED. DO NOT TAMPER WITH THE

ELECTRICAL PARTS. THIS MAY RESULT IN ELECTRICAL

SHOCK OR BURN.

DO NOT TAMPER WITH THE UNIT. DOING SO WILL

VOID THE WARRANTY AND CONTINUED USE OF THE

PRODUCT.

THE VIDEO BOARDS ARE VERY SENSITIVE TO STATIC.

PLEASE ENSURE IF RACK MOUNTED OR INSTALLED ON A

SURFACE, IT SHOULD BE IN A GROUNDED ENVIROMENT.

www.avenview.com

Page 2

2.

INTRODUCTION

The Avenview HBT-C6POEWP-S HDBaseT HDMI wall plate transmitter was developed to simplify the install and also create a clean seamless look with the decor. Transmission of HDMI signal over Single CAT5e/6 of uncompressed audio/video, data control through the built-in RS-232 and IR ports. No need to power the receiving unit because the TX wall plate supplies Power on Ethernet (PoE) over the CAT5/6 to the HBT-C6POEWP-R Receiver wall plate extending all signals up to 100m to the display screen. With this unique wall plate design integration within your solution has never been this simple.

Video Signals -

Supports Full HD 1080p up to 3D, 2K (2160 x 1440), UHD (3840 x 2160)

Audio Signals -

Pass-through up to LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio

Data Signals -

RS-232 and bi directional IR IN and IR OUT ports

The HBT-C6POEWP-S includes one unit: A 2 Gang Wall plate HDBaseT HDMI Transmitter with one (1) HDMI Input and one

(1) HDBaseT RJ45 module Output.

- HDMI 1.4 with 3D, 4k x 2k support, HDCP & DVI Compliant

- HDCP repeater and CEC bypass

- Transmit uncompressed data signals over a single CAT6 or CAT5e cable Up to 100M/328ft

- Video: Uncompressed video 1080p, 60Hz, 36bits

- Audio up to 7.1CH & Dolby TrueHD, DTS-HD

- HDBaseT 4Play™ convergence: HDMI, POE & Control (IR & RS232)

This system was tested with CAT6A (625MHz), 4-Pair, U/UTP-Unshielded cable, so if using Category cables of another type, results may vary.

- The PoE function is designed for powering compatible Receiver units only. The non-PoE Receivers has to be powered with a power supply. Receivers (Rx) from different manufactures would not be compatible. Displaying HDMI 4Kx2K resolution would require the standard 4Kx2K HDMI cable and display for accurate results.

www.avenview.com

Page 3

2.1

PACKAGE CONTENTS

Before you start the installation of the HDMI Extender, please check the package contents.

1

HDM-C6VWIP-SET X 1 X 1

IR EXTENDER

IR BLASTER

3.5 TO RS-232 FEMALE CABLE

2

3.5 TO RS-232 MALE CABLE

POWER ADAPTER24/1.25A

USER’S MANUAL

www.avenview.com

Page 4

2.2

BEFORE INSTALLATION

• Put the product in a level and stable location. If the product falls, it may cause damage or malfunction to components within the casing.

• Do not place the product in temperatures under 0˚C or over 50˚C. High humidity may also cause the unit to malfunction.

• Use the DC power adapter with correct specifications supplied with the unit. If the improper power supply is used, this may result in malfunction of the unit and may cause fire.

• Do not twist or pull by force the ends of the UTP cable. It will cause malfunction.

2.3

CABLE SPECIFICATIONS

We highly recommend achieving best results with our HBT-C6POEWP-S you acquire a high quality 26 or 24 AWG HDMI cable with the below specifications to maintain signal integrity and distances.

Features

• Length: 5m (16ft) to 15m (50ft)

• Bandwidth: 10.2 Gbps data transfer rate

• Supports Resolution: Up to 3840x2160 @ 24Hz and 4096x2160 @ 24Hz, 1080p @ 24Hz / 50/60Hz/3D

• Conductor gauge: 26 / 24 AWG

• Deep Color

• 3D Capable

• CEC

• Ethernet Channel

• Audio Return Channel

• Connector 1: HDMI (Type A) Male

• Connector 2: HDMI (Type A) Male

www.avenview.com

Page 5

2.4

APPLICATION DIAGRAM www.avenview.com

Page 6

2.5

PANEL DESCRIPTION

2.5.1 INPUT PANEL (HBT-C6POEWP-S) Front Panel

7 5

6

1 2 3 4

1. RS-232 IN: Connect using the 3.5mm jack to RS232 Cable to devices that sends RS232 Commands

2. IR 2 IN: Connect the IR Receiver cable included to receive IR Signal.

3. IR 1 OUT: Connect the IR blaster cable included to transmit IR Signal

4. HDMI IN: Connect with HDMI male cable to input source audio/video signal.

5. Power LED: Green LED will illuminate when the supplied power supply is attached.

6. LINK LED: Yellow LED will illuminate when input and output signal is detected over the CAT5/6 cable when attached

7. DC 24V: Secured 24VDC Terminal to attach the supplied power adapter

2.5.2 INPUT PANEL (HBT-C6POEWP-S) Rear Panel

8. CAT5/6 OUT: Connect to a compatible Receiver unit to transmit all signals

www.avenview.com

Page 7

-

-

-

-

-

-

-

-

-

3.

INSTALLATION (HBT-C6POEWP-S)

To setup Avenview HBT-C6POEWP-S please follow these steps for connecting to a device:

1. Power off sources such as using Laptop/PC DVD player at Podium or where installed.

2. Connect HDMI video Source to the HDMI INPUT- up to with Full HD, 3D and 4k x 2k support

3. Connect CAT 5/6 OUT to a compatible HBT-C6POEWP-R (Rx) CAT 5/6 IN and HDMI cable to HDMI Displays

4. Plug in 24V/1.25A DC power adapter to the screw terminal HBT-C6POEWP-S- Green LED illuminate

5. Power on HDMI Source and HDMI Display

6. When the Input is connected and turned on the corresponding Yellow LED will light on the LINK LED when signal is detected and transmitting.

Attaching the Wall Plate Transmitter to a Drywall or Commercial New Construction

www.avenview.com

Page 8

-

4. IR CABLE DEFINITION

-

-

IR Sockets

IR BLASTER: plug in the IR blaster to the HBT-C6POE-R to emit all IR command signals received from the IR Extender plugged into the Rx (Monitor Side) to control the devices corresponding to the IR signals. Example: Set Top Box or DVD player (The

Source).

IR EXTENDER: plug in the IR Extender into the (RX) Receiver (Monitor Side) to receive all IR command signals from the IR remote controls of the corresponding source.

Example: Set Top Box or DVD player (IR Remote Control).

NOTE: Incorrect placement of IR Blaster and IR Extender into the extender may result in the failure of the IR extenders.

Please check carefully before plugging in the IR extender to the respective IR sockets.

It is clearly marked and IR IN: IR EXTENDER /IR OUT: IR BLASTER

WARRANTY WILL NOT COVER THE DAMAGE.

www.avenview.com

Page 9

5. GENERAL TROUBLESHOOTING

PROBLEM

NO IMAGE

EDID ISSUE

SET-TOP BOX

NO PICTURE

NO INFRARED

COMMUNICATION

END-TO-END

TESTING

PASSIVE

MONITORING:

POSSIBLE SOLUTION

• Check if connection to the source and the display are correct.

• Ensure that display device supports 480p, 720p and 1080p [email protected] resolution

• Terminated to 568B standard with Shielded Ends Recommended

• High Quality CAT5/6/7 Cable helps signal transmission

• Please use the supplied power supply-DC 24V 2.7A

• Check LED Link light see (Section 3 Panel Description)

• Check LED Sync light see (Section 3 Panel Description)

• EDID MODE-: The unit will detect the 1st CAT5e/6/7 output’s EDID. When obtained a (4K2K) Ultra HD 3840x2160 EDID the signal is transmitted.

• If the 1st CAT5e/6/7 output is without a Ultra HD 3840x2160 EDID the unit will detect all output’s EDID and Transmit the signal that all outputs can accept.

• HDBaseT and HDMI 1.3 standards support CLOCK STRETCHING for i2c buss protocol

• Example set top boxes like Scientific Atlantic results no picture. This can be resolved by swapping out the box for a newer version that supports HDMI 1.3 not HDMI 1.2

• Ensure the UTP cable is run within the wall away from EMI and High Voltage power

Lines.

• Please check manual of device to ensure proper placement of IR Blaster on IR EYE.

• Some LED /Plasma TV have EMI interference with the IR Extender, please place the IR

Rx 3-6” away from Screen

RECOMMENDED TEST

HDBaseT system, a final end-to-end test of all the A/V components should take place. These tests include checking the HDMI stream at the far end (sink end), the clock rate, frame compare, video pattern, audio, EDID and HDCP with Quantum 780 (recommended)

Passive monitoring enables an integrator to view the HDCP transactions, EDID exchange, as well as the connection events between the actual devices in the network.

Note:

Addional info on Guidelines to Test & Troubleshoot HDBaseT Systems

Can be retreived from our website under the category Downloads for this product HBT-C6POEWP-S

www.avenview.com

Page 10

SECTION 7

: SPECIFICATIONS

6.

SPECIFICATIONS

UNITS

UNIT DESCRIPTION

HDMI COMPLIANCE

HDCP

VIDEO BANDWIDTH

SUPPORTED RESOLUTIONS

CEC SUPPORT

CAT5/6/7 CABLE

AUDIO SUPPORT

INPUT TMDS SIGNAL

INPUT DDC SIGNAL

ESD PROTECTION

INPUT

OUTPUT

HDMI CONNECTOR

LED

IR FREQUENCY

DIMENSIONS (L X W X H)

WEIGHT

Item

POWER SUPPLY

POWER CONSUMPTION

ENVIRONMENTAL

OPERATING TEMPERATURE

STORAGE TEMPERATURE

RELATIVE HUMIDITY

Description

HBT-C6POEWP-S

HDBaseT HDMI Wall Plate Transmitter

YES HDBaseT

Yes

Single-link 300MHz [9Gbps]

480i / 480p / 720p / 1080i / 1080p60 /

[email protected] Up to Ultra HD ([email protected]/25/30Hz)

4K2K-([email protected])

ALLOWS CEC BYPASS

4K2K: ([email protected]) ~ 75meter (250feet) (CAT6e) / 100meter (330feet)

(CAT6a)

FULL HD: (1080p) ~ 100meter (330feet) (CAT6e) /110meter (360feet)

(CAT6a)

LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio

1.2 Volts (peak-to-peak)

5 Volts (peak-to-peak, TTL)

Human body model — ±8kV (air-gap discharge)

& ±4kV (contact discharge)

1x 3.5mm IR Extender

1x 3.5mm RS232

1x HDMI

1x CAT5/6

1x 3.5mm IR

Type A (19 pin female)

GREEN/YELLOW LED

30~50kHz

3.4” x 3.8” x 1.2”

87 mm (L)×97mm (W)×31 mm (H)

0.4lbs

200g

24V / 1.25A DC

(US/EU standards, CE/FCC/UL certified)

3 Watt (max)

32˚ ~ 104˚F (0˚ to 40˚C)

-4˚ ~ 140˚F (-20˚ ~ 60˚C)

20~90% RH (non-condensing)

www.avenview.com

Page 11

NOTICE

1. All HDMI over CATx transmission distances are measured using Belden CAT6A (625MHz),

4-Pair,UTP-Unshielded, Riser-CMR, Premise Horizontal Cable, 23 AWG Solid Bare Copper

Conductors, Polyolefin Insulation, Patented Double-H spline, Ripcord, PVC Jacket using

Quantum 980 signal HDMI Video Generator Module with Video Pattern Testing and shielded ends.

2. The transmission length is largely affected by the type of category cables, also the type of HDMI sources, and the type of HDMI display. The testing result shows solid UTP cables (usually in the form of 300m or 1000ft bulk cable) can transmit a lot longer signals than stranded UTP cables

(usually in the form of patch cords). Shielded STP connectors are better suit than unshielded

UTP connectors. A solid UTP CAT6A cable shows longer transmission length than solid UTP

CAT5E/6E cable.

3. EIA/TIA-568-B termination (T568B) for category cables is recommended.

4. To reduce the interference among the unshielded twisted pairs of wires in category cable, you can use shielded STP cables with shielded connector to improve EMI problems, which occurs in poor wiring environments with unplanned cable runs situated away from EMI interference.

5. Because the quality of the category cables has the major effects in how long transmission distance will be made and how good is the received signal on the display, the actual transmission length is subject to high quality category cables. For resolution greater than 1080i or 1280x1024, a solid CAT6E 250MHz cable is the only viable choice.

www.avenview.com

Page 12

AV Connectivity, Distribution And Beyond...

TECHNICAL SUPPORT

USA Head Office

Avenview Corp.

275 Woodward Avenue

Kenmore, NY 14217

Phone: 1.716.218.4100

Fax: 1.866.387.8764

Email: [email protected]

Canada Sales

Avenview

151 Esna Park Drive, Units 11 & 12

Markham, ON, L3R 3B1

Phone: 1.905.907.0525

Fax: 1.866.387.8764

Email: [email protected]

Avenview Europe

Avenview Europe

Demkaweg 11

3555 HW Utrecht

Netherlands

Phone: +31(0)85.2100.613

Email: [email protected]

Avenview Hong Kong

Unit 8, 6/F., Kwai Cheong Centre,

50 Kwai Cheong Road,

Kwai Chung, N.T.

Hong Kong

Phone: 852.3575.9585

Email: [email protected]

Disclaimer

While every precaution has been taken in the preparation of this document, Avenview Inc. assumes no liability with respect to the operation or use of

Avenview hardware, software or other products and documentation described herein, for any act or omission of Avenview concerning such products or this documentation, for any interruption of service, loss or interruption of business, loss of anticipatory profits, or for punitive, incidental or consequential damages in connection with the furnishing, performance, or use of the Avenview hardware, software, or other products and documentation provided herein.

Avenview Inc. reserves the right to make changes without further notice to a product or system described herein to improve reliability, function or design.

With respect to Avenview products which this document relates, Avenview disclaims all express or implied warranties regarding such products, including but not limited to, the implied warranties of merchantability, fitness for a particular purpose, and non-infringement.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
