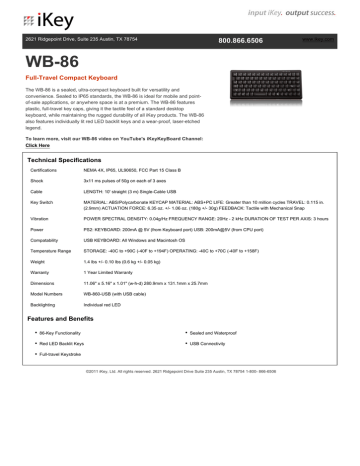

WB-86
Full-Travel Compact Keyboard
The WB-86 is a sealed, ultra-compact keyboard built for versatility and
convenience. Sealed to IP65 standards, the WB-86 is ideal for mobile and pointof-sale applications, or anywhere space is at a premium. The WB-86 features
plastic, full-travel key caps, giving it the tactile feel of a standard desktop
keyboard, while maintaining the rugged durability of all iKey products. The WB-86
also features individually lit red LED backlit keys and a wear-proof, laser-etched
legend.
To learn more, visit our WB-86 video on YouTube's iKeyKeyBoard Channel:
Click Here
Technical Specifications
Certifications
NEMA 4X, IP65, UL90650, FCC Part 15 Class B
Shock
3x11 ms pulses of 50g on each of 3 axes
Cable
LENGTH: 10' straight (3 m) Single-Cable USB
Key Switch
MATERIAL: ABS/Polycarbonate KEYCAP MATERIAL: ABS+PC LIFE: Greater than 10 million cycles TRAVEL: 0.115 in.
(2.9mm) ACTUATION FORCE: 6.35 oz. +/- 1.06 oz. (180g +/- 30g) FEEDBACK: Tactile with Mechanical Snap
Vibration
POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours
Power
PS2: KEYBOARD: 200mA @ 5V (from Keyboard port) USB: [email protected] (from CPU port)
Compatability
USB KEYBOARD: All Windows and Macintosh OS
Temperature Range
STORAGE: -40C to +90C (-40F to +194F) OPERATING: -40C to +70C (-40F to +158F)
Weight
1.4 lbs +/- 0.10 lbs (0.6 kg +/- 0.05 kg)
Warranty
1 Year Limited Warranty
Dimensions
11.06" x 5.16" x 1.01" (w-h-d) 280.9mm x 131.1mm x 25.7mm
Model Numbers
WB-860-USB (with USB cable)
Backlighting
Individual red LED
Features and Benefits
86-Key Functionality
Sealed and Waterproof
Red LED Backlit Keys
USB Connectivity
Full-travel Keystroke
©2011 iKey, Ltd. All rights reserved. 2621 Ridgepoint Drive Suite 235 Austin, TX 78754 1-800- 866-6506
