1 Gbps SFP Shortwave Transceiver PL-XPL-00-S13

1 Gbps SFP Shortwave Transceiver PL-XPL-00-S13

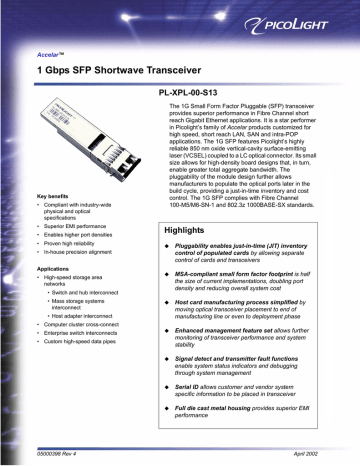

Accelar™
1 Gbps SFP Shortwave Transceiver
PL-XPL-00-S13
The 1G Small Form Factor Pluggable (SFP) transceiver
provides superior performance in Fibre Channel short
reach Gigabit Ethernet applications. It is a star performer
in Picolight’s family of Accelar products customized for
high speed, short reach LAN, SAN and intra-POP
applications. The 1G SFP features Picolight’s highly
reliable 850 nm oxide vertical-cavity surface-emitting
laser (VCSEL) coupled to a LC optical connector. Its small
size allows for high-density board designs that, in turn,
enable greater total aggregate bandwidth. The
pluggability of the module design further allows
manufacturers to populate the optical ports later in the
build cycle, providing a just-in-time inventory and cost
control. The 1G SFP complies with Fibre Channel
100-M5/M6-SN-1 and 802.3z 1000BASE-SX standards.
Key benefits
• Compliant with industry-wide
physical and optical
specifications
• Superior EMI performance
• Enables higher port densities
• Proven high reliability
Highlights
!
Pluggability enables just-in-time (JIT) inventory
control of populated cards by allowing separate
control of cards and transceivers
!
MSA-compliant small form factor footprint is half
the size of current implementations, doubling port
density and reducing overall system cost
!
Host card manufacturing process simplified by
moving optical transceiver placement to end of
manufacturing line or even to deployment phase
!
Enhanced management feature set allows further
monitoring of transceiver performance and system
stability
!
Signal detect and transmitter fault functions
enable system status indicators and debugging
through system management
!
Serial ID allows customer and vendor system
specific information to be placed in transceiver
!
Full die cast metal housing provides superior EMI
performance
• In-house precision alignment
Applications
• High-speed storage area
networks
• Switch and hub interconnect
• Mass storage systems
interconnect
• Host adapter interconnect
• Computer cluster cross-connect
• Enterprise switch interconnects
• Custom high-speed data pipes
05000398 Rev 4
April 2002
1 Gbps SFP Shortwave Transceiver
PL-XPL-00-S13 features
• Utilizes a Picolight high reliability, high
speed, 850 nm, oxide VCSEL
• Hot pluggable
• SFP MSA compliant
• Compliant with Fibre Channel 100M5/M6-SN-I
86
2.1
.53
55
• 802.3z 1000BASE-SX compliant
• Low power consumption (< 700 mW)
• High quality LC optical connector
• Single +3.3 V power supply
• Bit error rate < 1x10-12
• Up to 860 m on enhanced bandwidth
50/125 µm multimode fiber @ 1.062
& 1.25 Gbps
• Up to 300 m on enhanced bandwidth
62.5/125 µm multimode fiber @
1.0625 Gbps
• OC transmit disable, signal detect
and transmitter fault functions
• CDRH and IEC 60825-1 Class 1 laser
eye safe
• FCC Class B compliant
• ESD Class 2 per MIL-STD 883
Method 3015
• UL-94 V-0 certified
• Internal AC Coupling on Both
Transmit and Receive Data Signals
.467 11.86
• 0οC to 70οC operating range
.54
5
13
.84
The PL-XPL-00-S13 transceiver is a cost effective, gigabit
serial optical transceiver that is compliant with the Fibre
Channel, 100-M5/M6-SN-I and Gigabit Ethernet 1000BASE-SX
standards. This transceiver features a Picolight, high reliability,
850 nm, High Speed, Oxide VCSEL Laser coupled to a LC
optical connector. This transceiver meets Class 1 laser eye
safety requirements. The PL-XPL-00-S13 has GBIC
functionality in 1/2 the width. The transceiver complies with the
new Small Form Factor Pluggable Multisource Agreement
(SFP-MSA).
• Supplied with Dust Cover
Ordering information
Part Number:
Description:
Contact Information:
PL-XPL-00-S13-05
1 Gbps, No Rate-Select, 850 nm, Transceiver
Picolight Incorporated
4665 Nautilus Court South
Boulder, CO 80301
Tel: 303.530.3189
E-mail: [email protected]
Web site: www.picolight.com
April 2002
Page 2 of 15
05000398 Rev 4
1 Gbps SFP Shortwave Transceiver
Section 1
Functional description
The PL-XPL-00-S13 850 nm VCSEL Gigabit Transceiver is designed to transmit and receive 8B/10B
encoded serial optical data over 50/125 µm or 62.5/125 µm optical fiber.
Transmitter
The transmitter converts 8B/10B encoded serial PECL electrical data into serial optical data meeting
the requirements of Fibre Channel 100-M5/M6-SN-I and IEEE 802.3z 1000 Base-5x specifications.
Transmit data lines (TD+ & TD-) are internally AC coupled with 100 Ω differential termination.
An open collector compatible Transmit Disable (TDis) is provided. This pin is internally terminated with
a 10 kΩ resistor to Vcct. A logic “1,” or no connection on this pin will disable the laser from transmitting.
A logic “0” on this pin provides normal operation.
The transmitter has an internal PIN monitor diode that is used to ensure constant optical power output
across supply voltage and temperature variations.
An open collector compatible Transmit Fault (TFault) is provided. The Transmit Fault signal must be
pulled high on the host board for proper operation. A logic “1” output from this pin indicates that a
transmitter fault has occurred, or the transceiver is not fully seated and the transmitter is not
functioning. A logic “0” on this pin indicates normal operation.
Receiver
The receiver converts 8B/10B encoded serial optical data into serial PECL electrical data. Receive
data lines (RD+ & RD-) are internally AC coupled with 100 Ω differential source impedance, and must
be terminated with a 100 Ω differential load.
An open collector compatible Loss of Signal is provided. The LOS must be pulled high on the host
board for proper operation. A logic “0” indicates that light has been detected at the input to the receiver
(see Section 3.4 Optical characteristic, Loss of Signal Assert/Deassert Time on page 8). A logic “1”
output indicates that insufficient light has been detected for proper operation.
Power supply filtering is recommended for both the transmitter and receiver. Filtering should be placed
on the host assembly as close to the Vcc pins as possible for optimal performance.
Recommended “Application Schematics” are shown in Figure 2 on page 5.
See also Picolight Optical Transceiver User Guide. Document number 16000041, Application Notes
on Grounding, Shielding and Filtering.
05000398 Rev 4
Page 3 of 15
April 2002
1 Gbps SFP Shortwave Transceiver
Figure 1 Block diagram
16 Transmitter Power Supply
10K Ω
3 Transmitter Disable In
TDis
Vcc_T
Optical
TX
18 Transmitter
Positive Data In
TD+
50 Ω
TRANSMITTER
(VCSEL DRIVER)
50 Ω
TDT_Gnd
19 Transmitter
Negative Data In
T_Fault
2 Transmitter Fault Out
1, 17, 20 Transmitter
Signal Ground
EEPROM
SCL
5 MOD_DEF(1) Serial ID Clock
SDA
4 MOD_DEF(2) Serial ID Data
6 MOD_DEF(0)
15 Receiver Power Supply
Vcc_R
Optical
RX
50 Ω
Vcc_R
RD-
PREAMP
RECEIVER
(POST-AMP)
RD+
R_Gnd
Rate
Sel
R_Gnd
50 Ω
12 Receiver Negative
Data Out
13 Receiver Positive
Data Out
LOS
8 Loss of Signal Out
7 Not Connected
9, 10, 11, 14 Receiver
Signal Ground
April 2002
Page 4 of 15
05000398 Rev 4
1 Gbps SFP Shortwave Transceiver
Section 2
Application schematics
Recommended connections to the PL-XPL-00-S13 transceiver are shown in Figure 2 below.
Figure 2
Recommended application schematic for the PL-XPL-00-S13 transceiver
10K Ω
R1
50Ω
Receiver (Tx Fault)
Open Collector
Driver (Tx Disable)
Z = 100 Ω
PSFF Host Connector
10K Ω
VeeT 20
1 VeeT
Open Collector
Bidirectional
{Mod_Def(2)}
R2
50Ω
Open Collector
Bidirectional
{Mod_Def(1)}
PECL
Driver (TX DATA)
10K Ω
10K Ω
Receiver
{Mod_Def(0)}
Do Not Connect
2 Tx Fault
TD- 19
3 Tx Disable
TD+ 18
4 MOD_DEF(2)
VeeT 17
5 MOD_DEF(1)
VccT 16
6 MOD_DEF(0)
VccR 15
7
VeeR 14
8 LOS
RD+ 13
9 VeeR
RD- 12
10 VeeR
VeeR 11
C3
0.1 µ F
C4
L1
1µH
L2
1µH
C2
C1
0.1 µF
10 µF
0.1µ F
Z = 100 Ω
10K Ω
+5V
Vcc
Input
R3
50 Ω
PECL
Receiver
(RX DATA)
Receiver (LOS)
R4
50 Ω
Notes
!
Power supply filtering components should be placed as close to the Vcc pins of the host connector as
possible for optimal performance.
!!
PECL driver and receiver will require biasing networks. Please consult application notes from suppliers
of these components.
!!!
MOD_DEF(2) and MOD_DEF(1) should be bi-directional open collector connections in order to
implement serial ID (MOD_DEF[0,1,1]) PL-XPL-00-S13 transceiver.
*
Transmission lines should be 100 Ω differential traces. It is recommended that the termination resistor for
the PECL Receiver (R3 + R4) be placed beyond the input pins of the PECL Receiver. Series Source
Termination Resistors on the PECL Driver (R1+R2) should be placed as close to the driver output pins as
possible.
05000398 Rev 4
Page 5 of 15
April 2002
1 Gbps SFP Shortwave Transceiver
Section 3
Technical data
Technical data related to the 1 Gbps SFP Shortwave Transceiver includes:
3.1
•
Section 3.1
Pin function definitions below
•
Section 3.2
Absolute maximum ratings on page 7
•
Section 3.3
Electrical characteristics on page 8
•
Section 3.4
Optical characteristic on page 9
•
Section 3.5
Link length on page 9
•
Section 3.6
Regulatory compliance on page 10
•
Section 3.7
PCB layout on page 11
•
Section 3.8
Front panel opening on page 12
•
Section 3.9
Module outline on page 12
•
Section 3.10
Transceiver belly-to-belly mounting on page 13
Pin function definitions
Figure 3
Transceiver pin descriptions
1
2
Towards
Bezel
TX Disable
4
MOD-DEF(2)
6
19
TD+
18
VeeT
17
VccT
16
VccR
15
VeeR
14
RD+
13
RD-
12
VeeR
11
MOD-DEF(1)
MOD-DEF(0)
7
NC
8
LOS
9
VeeR
10
20
TXFault
3
5
VeeT
TD-
VeeT
Towards
ASIC
VeeR
Table 1 Transceiver pin descriptions
Pin
Number
Symbol
Name
Description
Receiver
8
LOS
Loss of Signal Out (OC)
Sufficient optical signal for potential BER < 1x10-12 = Logic “0”
Insufficient optical signal for potential BER < 1x10-12 = Logic “1”
This pin is open collector compatible, and should be pulled up to Host Vcc
with a 10 kΩ resistor.
9, 10,
11, 14
VeeR
Receiver Signal Ground
These pins should be connected to signal ground on the host board.
12
RD-
Receiver Negative DATA
Out (PECL)
Light on = Logic “0” Output
Receiver DATA output is internally AC coupled and series terminated with a
50 Ω resistor.
April 2002
Page 6 of 15
05000398 Rev 4
1 Gbps SFP Shortwave Transceiver
Table 1 Transceiver pin descriptions (continued)
Pin
Number
Symbol
Name
Description
13
RD+
Receiver Positive DATA
Out (PECL)
Light on = Logic “1” Output
Receiver DATA output is internally AC coupled and series terminated with a
50 Ω resistor.
15
VccR
Receiver Power Supply
This pin should be connected to a filtered +3.3V power supply on the host
board. See Specification notes on page 10 for filtering suggestions.
7
NC
NC
No connection inside the module.
Transmitter
3
TX Disable
Transmitter Disable In
(LVTTL)
Logic “1” Input (or no connection) = Laser off
Logic “0” Input = Laser on
This pin is internally pulled up to VccT with a 10 kΩ resistor.
1, 17,
20
VeeT
Transmitter Signal
Ground
These pins should be connected to signal ground on the host board.
2
TX Fault
Transmitter Fault Out
(OC)
Logic “1” Output = Laser Fault (Laser off before t_fault)
Logic “0” Output = Normal Operation
This pin is open collector compatible, and should be pulled up to Host Vcc
with a 10 kΩ resistor.
16
VccT
Transmitter Power
Supply
This pin should be connected to a filtered +3.3V power supply on the host
board. See Application schematics on page 5 for filtering suggestions.
18
TD+
Transmitter Positive
DATA In (PECL)
Logic “1” Input = Light on
Transmitter DATA inputs are internally AC coupled and terminated with a
differential 100 Ω resistor.
19
TD-
Transmitter Negative
DATA In (PECL)
Logic “0” Input = Light on
Transmitter DATA inputs are internally AC coupled and terminated with a
differential 100 Ω resistor.
Module Definition
6, 5, 4
3.2
MOD_DEF
(0:2)
Module Definition
Identifiers
Serial ID implemented (See Annex A)
Module Definition pins should be pulled up to Host Vcc with 10 kΩ resistors.
Absolute maximum ratings
Parameter
Symbol
Ratings
Unit
Storage Temperature
Tst
-40 to +100
°C
Operating Case Temperature
Tc
0 to +70
°C
Power Supply Voltage
Vcc
0 to +3.6
V
Transmitter Differential Input Voltage
VD
2.0
V
Relative Humidity
RH
5 to 95
%
05000398 Rev 4
Page 7 of 15
April 2002
1 Gbps SFP Shortwave Transceiver
3.3
Electrical characteristics
(TC = 0°C to 70°C, Vcc = 3.15V to 3.45V unless specified otherwise)
Parameter
Supply Voltage
Symbol
Min
Typical
Max
Unit
Vcc
3.15
3.3
3.45
V
1.0
1.25
1.30
Gbps
45
70
mA
800
2000
mVp-p
300
ps
30
ps
Data Rate
Notes1
BER < 1x10-12
Transmitter
Supply Current
Data Input Voltage Swing
ICCT
VTDp-p
Data Input Rise/Fall Time
600
60
Data Input Skew
Differential, peak to peak, 3
20% - 80%, Differential, 4
Data Input Deterministic Jitter
DJ
0.10
UI
±K28.5 pattern, 1
Data Input Total Jitter
TJ
0.24
UI
27-1 pattern, BER < 1x10-12, 1
Transmit Disable Voltage Level
VIH
Vcc -1.0
Vcc
V
VIL
0
0.8
V
TTD
10
µs
Laser output disabled after TTD
if input level is VIH; Laser output
enabled after TTEN if input level
is VIL
TTEN
1
ms
Transmit Disable/Enable Assert
Time
Transmit Fault Output Voltage
Level
VOH
Vcc -1.0
Vcc
V
VOL
0
0.5
V
Transmit Fault Assert and Reset
Times
TFault
100
µs
Transmit fault level is VOH and
Laser output disabled TFault
after laser fault.
µs
Transmitter fault is VOL and
Laser output restored TINI after
transmitter disable is asserted
for TReset, then disabled.
300
ms
After Hot Plug or Vcc ≥ 3.15V
125
mA
900
mVp-p
Data Output Rise/Fall Time
300
ps
20% - 80%, Differential
Data Output Skew
100
ps
RLOAD = 100 Ω, Differential
Initialization Time
TReset
10
TINI
Receiver
Supply Current
ICCR
Data Output Voltage Swing
80
600
RLOAD = 100 Ω, Differential
Data Output Deterministic Jitter
Added
DJ
0.38
UI
±K28.5 pattern, 1
Data Output Total Jitter
TJ
0.65
UI
27-1 pattern, BER < 1x10-12,1
LOS output level VOL TLOSD
after light input > LOSD, 2
LOS output level VOH TLOSA
after light input < LOSA, 2
Loss of Signal Voltage Level
Loss of Signal Assert/Deassert
Time
VOH
Vcc -1.0
Vcc
V
VOL
0
0.5
V
TLOSA
100
µs
TLOSD
100
µs
1. See Specification notes on page 10 for referenced notes.
April 2002
Page 8 of 15
05000398 Rev 4
1 Gbps SFP Shortwave Transceiver
3.4
Optical characteristic
(TC = 0°C to 70°C, Vcc = 3.15V to 3.45V unless specified otherwise)
Parameter
Symbol
Min.
Typical
Max
Unit
850
860
nm
0.5
0.85
nm
-6.0
-1.8
dBm
Notes1
Transmitter
Wavelength
λp
RMS Spectral Width
∆λ
830
-9.5
Average Optical Power
PAVG
Optical Output Rise/Fall Time
trise/fall
200
ps
20% - 80%
Deterministic Jitter Added
DJ
0.20
UI
±K28.5 pattern,1
Total Jitter Added
TJ
0.43
UI
27-1 pattern, BER<1x10-12, 1
-118
dB/Hz
860
nm
Relative Intensity Noise
RIN
-125
1GHz, 12 dB reflection
Receiver
λ
830
Pm
0
Sensitivity (OMA)
S
31
18
µWp-p
Equivalent to -17dBm @ 9dB
ER
Stressed Sensitivity (OMA)
SS
67
49
µWp-p
Equivalent to -13.65dBm @
9dB ER
Loss of Signal Assert/Deassert
Level
LOSD
-27
-21
-17
dBm
LOSA
-29
-23
-18
dBm
LOS Hysteresis
LOSDLOSA
0.5
6
dB
optical
1.0
MHz
-3 dB, P<-16 dBm
1400
MHz
-3 dB, P<-16 dBm
Wavelength
Maximum Input Power
Low Frequency Cutoff
Optical Modulation Bandwidth
850
dBm
FC
BW1
Optical Return Loss
0.3
700
12
Chatter Free Operation
Chatter Free Operation
dB
1. See Specification notes on page 10 for referenced notes.
3.5
Link length
(TC = 0°C to 70°C, Vcc = 3.15V to 3.45V unless specified otherwise)
Data Rate / Standard
Fiber Type
Modal Bandwidth @ 850 nm
(MHz*km)
Distance Range
(m)
Notes1
1.0625 GBd
Fibre Channel
100-M5-SN-I
100-M6-SN-I
62.5/125 µm MMF
200
2 to 300
6
50/125 µm MMF
500
2 to 500
6
50/125 µm MMF
2200
2 to 860
6,7
1.25 GBd
IEEE 802.3z
1000BASE-SX
62.5/125 µm MMF
200
2 to 275
6
50/125 µm MMF
500
2 to 550
6
50/125 µm MMF
2000
2 to 860
6,7
1. See Specification notes on page 10 for referenced notes.
05000398 Rev 4
Page 9 of 15
April 2002
1 Gbps SFP Shortwave Transceiver
Specification notes
1. UI (Unit Interval): one UI is equal to one bit time. For example, 1.125 Gbits/s corresponds to a
UI of 880ps.
2. For LOSA and LOSD definitions see Loss of Signal Assert/Deassert Level in Section
3.4 Optical characteristic on page 9.
3. SERDES typically supply 1600 mVp-p (differential). Therefore, attenuation of the transmitted
signal may be necessary to meet the maximum data input voltage swing specification. It is
recommended that series 50 Ω source terminating resistors be placed as close to the
SERDES output as possible to attenuate the signal, improve EMI, and improve signal integrity.
4. Measured with stressed eye pattern as per FC-PI (Fibre Channel) using the worst case
specifications.
5. For optical modulation bandwidth, sensitivity, and stressed sensitivity specifications, see
Section 3.4 Optical characteristic on page 9.
6. Distances, shown in the “Link Length” table, are the distances specified in Fibre Channel and
IEEE 802.3z standards. “Link Length” distances are calculated for worst case fiber and
transceiver characteristics based on the optical and electrical specifications shown in this
document using techniques utilized in IEEE 802.3z (Gigabit Ethernet). In the nominal case,
longer distances are achievable.
7. New Bandwidth Enhanced MMF.
3.6
Regulatory compliance
The PL-XPL-00-S13 complies with common ESD, EMI, Immunity, and Component recognition
requirements and specification (see details in Table 2 on page 10).
ESD, EMI, and Immunity are dependent on the overall system design. Information included herein is
intended as a figure of merit for designers to use as a basis for design decisions.
Table 2
Regulatory compliance
Feature
Test Method
Performance
Laser Eye Safety
U.S. 21CFR (J) 1040.10 & 1040.11
IEC 60825-1 1988
IEC 60825-2 1997
CDRH compliant and Class 1 laser safe.
Accession #9922782
TUV Certificate #
Electrostatic Discharge (ESD)
to electrical pins
MIL-STD 883C; Method 3015.4
Class 1 (> 1 kV)
Electrostatic Discharge (ESD)
to optical connector
IEC 61000-4-2: 1999
Withstand discharges of 15 kV using a “Human Body
Model” probe
Electromagnetic Interference
(EMI)
FCC Part 15 Subpart J Class B
CISPR 22: 1997
EN 55022: 1998 Class B
VCCI Class I
Noise frequency range: 30 MHz to 10 GHz. Good system
EMI design practice required to achieve Class B margins.
Immunity
IEC 61000-4-3: 1998
Field strength of 3 V/m RMS, from 10 MHz to 1 GHz. No
effect on transceiver performance is detectable between
these limits.
Component
UL 1950
CSA C22.2 #950
IEC 60950: 1999
UL File #
CSA File #
TUV Certificate #
April 2002
Page 10 of 15
05000398 Rev 4
1 Gbps SFP Shortwave Transceiver
PCB layout
Board layout
1.359
NOTES:
1.182
1. DATUM AND BASIC DIMENSIONS
ESTABLISHED BY CUSTOMER
2. PADS AND VIAS ARE CHASSIS GROUND,
19 PLACES
3. THRU HOLES, PLATING OPTIONAL
2X .197
2X .394
3X .280
2X .098
2X
S
12X .197
A
2X .283
B
.145
.067
.224
D
A
CROSSED-HATCHED AREA DENOTES
COMPONENT AND TRACE KEEP-OUT
(EXCEPT CHASSIS GROUND)
18X
1.055
9X
G
1.626
.189
.067
.470
.436
.338
.470
1
C
THIS AREA DENOTES
COMPONENT KEEP-OUT
(TRACES ALLOWED)
.079
.640
2
.004 A B
2X .098
11X .561
.033±.002
.378
Figure 4
.334
3.7
.041±.004 2
.004 L A C
.037±.002
.004 L
3
A C
1.665
NOTE: UNLESS SPECIFIED, TOLERANCES ARE .005
Figure 5
Detail layout
10X .126
2X .035
10X .197
G
G
S
G
.470
.415
9X .031
9X .031
.378
.430
G
G
G
G
3
G
S
G
2X .061±.002
.004 L C D
20X .020±.001
.002 C D
16X .079±.002
.002 L C D
NOTE: UNLESS SPECIFIED, TOLERANCES ARE .005
DETAIL A
SCALE 7 : 1
05000398 Rev 4
Page 11 of 15
April 2002
1 Gbps SFP Shortwave Transceiver
3.8
Front panel opening
Figure 6
B
.400±.004 10.160±0.10
.020 [0.51] A B C
A
CL
.184 4.67
C
.616±.020 15.63±0.51
.640 16.26
RECOMMENDED MINIMUM PITCH
.137±.012 3.48±0.30
.277 7.04
.600±.004 15.240±0.10
+1.52
+.060
1.067
.042
- 0.25
- .010
NOTE: UNLESS SPECIDIED, TOLERANCES ARE
3.9
.005 [ 0.13]
Module outline
Figure 7
2.185 55.50
.545 13.84
.530 13.46
.079 2.01
.040 1.01
.516 13.11
.070 1.78
1.750 44.45
.079 2.01
.354 8.99
.098 2.49
1.395 35.43
1.645 41.78
NOTE: UNLESS SPECIFIED, TOLERANCES ARE .005 (0.127)
April 2002
Page 12 of 15
05000398 Rev 4
1 Gbps SFP Shortwave Transceiver
3.10 Transceiver belly-to-belly mounting
Figure 8
6X .600±.004
4X .640±.004
.042
.135
.063
6X .409±.004
.138
Section 4
Related information
Other information related to the 1 Gbps SFP Shortwave Transceiver includes:
4.1
•
Section 4.1
Annex A - Serial ID operation below
•
Section 4.2
Package and handling instructions on page 14
•
Section 4.3
ESD Discharge (ESD) on page 14
•
Section 4.4
Eye safety on page 15
Annex A - Serial ID operation
The PL-XPL-00-S13 is equipped with a 2-wire serial EEPROM that is used to store information about
the module. See Section IV, “Module Definition Interface and Data Field Description” of the SFP-MSA
Pin Definitions and Host Board Layout document. The information is accessed through the
MOD_DEF(1), and MOD_DEF(2) connector pins of the module.
05000398 Rev 4
Page 13 of 15
April 2002
1 Gbps SFP Shortwave Transceiver
Reading the data
The specification for this EEPROM (ATMEL AT24CO1A Type) contains all the timing and addressing
information required for accessing the data.
MOD_DEF(0), pin 6 on the PL-XPL-00-S13 transceiver, is connected to Logic 0 (Ground) on the
transceiver.
MOD_DEF(1), pin 5 on the PL-XPL-00-S13 transceiver, is connected to the SCL pin of the
EEPROM.
MOD_DEF(2), pin 4 on the PL-XPL-00-S13 module, is connected to the SDA pin of the
EEPROM.
The EEPROM WP pin is internally tied to Vcc with no external access, permanently protecting the data
stored within. Any write commands will be ignored.
The device address pins, A0, A1, and A2, are connected to the ground, fixing the device address used
to read data [10100001], any other device addresses will be ignored.
Decoding the data
The information stored in the EEPROM including organization is defined in the Small Form-Factor
Pluggable Multisource (SFP-MSA) Pin Definitions and Host Board Layout document, dated 3/13/00,
Section IV.
4.2
Package and handling instructions
Process plug
The PL-XPL-00-S13 is supplied with a dust cover. This plug protects the transceiver’s optics during
standard manufacturing processes by preventing contamination from air borne particles.
Note:
It is recommended that the dust cover remain in the transceiver whenever an optical
fiber connector is not inserted.
Recommended cleaning and de-greasing chemicals
Picolight recommends the use of methyl, isopropyl and isobutyl alcohols for cleaning.
Do not use halogenated hydrocarbons (e.g. trichloroethane, ketones such as acetone, chloroform,
ethyl acetate, MEK, methylene chloride, methylene dichloride, phenol, N-methylpyrolldone).
Flammability
The PL-XPL-00-S13 housing is made of cast zinc.
4.3
ESD Discharge (ESD)
Handling
Normal ESD precautions are required during the handling of this module. This transceiver is shipped in
ESD protective packaging. It should be removed from the packaging and handled only in an ESD
protected environment utilizing standard grounded benches, floor mats, and wrist straps.
April 2002
Page 14 of 15
05000398 Rev 4
1 Gbps SFP Shortwave Transceiver
Test and operation
In most applications, the optical connector will protrude through the system chassis and be subjected
to the same ESD environment as the system. Once properly installed in the system, this transceiver
should meet and exceed common ESD testing practices and fulfill system ESD requirements.
Typical of optical transceivers, this module’s receiver contains a highly sensitive optical detector and
amplifier which may become temporarily saturated during an ESD strike. This could result in a short
burst of bit errors. Such an event might require that the application re-acquire synchronization at the
higher layers (e.g. Serializer/Deserializer chip).
4.4
Eye safety
The PL-XPL-00-S13 is an international Class 1 laser product per IEC 825-1: 1993, and per CDRH, 21
CFR 1040 Laser Safety Requirements. The PL-XPL-00-S13 is an eye safe device when operated
within the limits of this specification.
Operating this product in a manner inconsistent with intended usage and specification may result in
hazardous radiation exposure.
CAUTION!
Tampering with this laser based product or operating this product outside the limits of this specification
may be considered an act of “manufacturing,” and will require, under law, recertification of the modified
product with the U.S. Food and Drug Administration (21 CFR 1040).
CAUTION!
The use of optical instruments with this product will increase eye hazard. At the normal operating
current, optical output power with an unaided eye can be as much as 30 uW at a wavelength of 850
nm. Approximately ten times this power level could be collected with an eye loupe. Under a failure
condition, this level could increase by a factor of two.
Published by ©Picolight Incorporated. All rights reserved.
Information in this document is provided in connection with Picolight Incorporated (“Picolight”) products. These materials are provided by Picolight as
a service to its customers and may be used for informational purposes only. Picolight assumes no responsibility for errors or omissions in these
materials. Picolight may make changes to pricing, specifications, and product descriptions at any time, without notice. Picolight makes no commitment
to update this information and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future changes to its specification
and product descriptions. No license, expressed or implied, to any intellectual property rights is granted by this document. Except as provided in
Picolight’s Terms and Conditions of Sale for such products, Picolight assumes no liability whatsoever.
THESE MATERIALS ARE PROVIDED “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, RELATING TO SALE
AND/OR USE OF PICOLIGHT PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE,
CONSEQUENTIAL OR INCIDENTAL DAMAGES, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER
INTELLECTUAL PROPERTY RIGHT. PICOLIGHT FURTHER DOES NOT WARRANT THE ACCURACY OR COMPLETENESS OF THE
INFORMATION, TEXT, GRAPHICS OR OTHER ITEMS CONTAINED WITHIN THESE MATERIALS. PICOLIGHT SHALL NOT BE LIABLE FOR ANY
SPECIAL, INDIRECT INCIDENTAL, OR CONSEQUENTAL DAMAGES, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR LOST
PROFITS, WHICH MAY RESULT FROM THE USE OF THESE MATERIALS.
05000398 Rev 4
Page 15 of 15
April 2002
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
