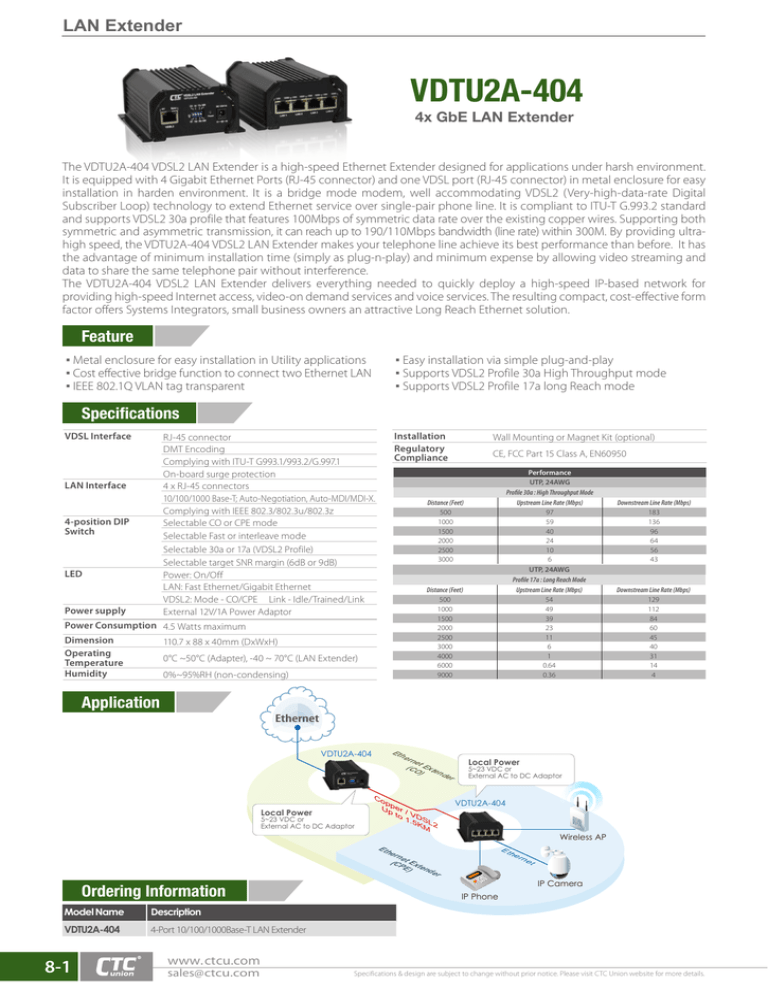

VDTU2A-404 LAN Extender

VDTU2A-404 LAN Extender
LAN Extender
VDTU2A-404
4x GbE LAN Extender
The VDTU2A-404 VDSL2 LAN Extender is a high-speed Ethernet Extender designed for applications under harsh environment.
It is equipped with 4 Gigabit Ethernet Ports (RJ-45 connector) and one VDSL port (RJ-45 connector) in metal enclosure for easy
installation in harden environment. It is a bridge mode modem, well accommodating VDSL2 (Very-high-data-rate Digital
Subscriber Loop) technology to extend Ethernet service over single-pair phone line. It is compliant to ITU-T G.993.2 standard
and supports VDSL2 30a profile that features 100Mbps of symmetric data rate over the existing copper wires. Supporting both
symmetric and asymmetric transmission, it can reach up to 190/110Mbps bandwidth (line rate) within 300M. By providing ultrahigh speed, the VDTU2A-404 VDSL2 LAN Extender makes your telephone line achieve its best performance than before. It has
the advantage of minimum installation time (simply as plug-n-play) and minimum expense by allowing video streaming and
data to share the same telephone pair without interference.
The VDTU2A-404 VDSL2 LAN Extender delivers everything needed to quickly deploy a high-speed IP-based network for
providing high-speed Internet access, video-on demand services and voice services. The resulting compact, cost-effective form
factor offers Systems Integrators, small business owners an attractive Long Reach Ethernet solution.
Feature
▪▪Metal enclosure for easy installation in Utility applications
▪▪Cost effective bridge function to connect two Ethernet LAN
▪▪IEEE 802.1Q VLAN tag transparent
▪▪Easy installation via simple plug-and-play
▪▪Supports VDSL2 Profile 30a High Throughput mode
▪▪Supports VDSL2 Profile 17a long Reach mode
Specifications
VDSL Interface
Installation
Regulatory
Compliance
RJ-45 connector
DMT Encoding
Complying with ITU-T G993.1/993.2/G.997.1
On-board surge protection
4 x RJ-45 connectors
10/100/1000 Base-T; Auto-Negotiation, Auto-MDI/MDI-X.
Complying with IEEE 802.3/802.3u/802.3z
Selectable CO or CPE mode
Selectable Fast or interleave mode
Selectable 30a or 17a (VDSL2 Profile)
Selectable target SNR margin (6dB or 9dB)
Power: On/Off
LAN: Fast Ethernet/Gigabit Ethernet
VDSL2: Mode - CO/CPE Link - Idle/Trained/Link
External 12V/1A Power Adaptor
LAN Interface
4-position DIP
Switch
LED
Power supply
Wall Mounting or Magnet Kit (optional)
CE, FCC Part 15 Class A, EN60950
Performance
UTP, 24AWG
Profile 30a : High Throughput Mode
Upstream Line Rate (Mbps)
97
59
40
24
10
6
UTP, 24AWG
Profile 17a : Long Reach Mode
Upstream Line Rate (Mbps)
54
49
39
23
11
6
1
0.64
0.36
Distance (Feet)
500
1000
1500
2000
2500
3000
Distance (Feet)
500
1000
1500
2000
2500
3000
4000
6000
9000
Power Consumption 4.5 Watts maximum
Dimension
110.7 x 88 x 40mm (DxWxH)
Operating
0°C ~50°C (Adapter), -40 ~ 70°C (LAN Extender)
Temperature
Humidity
0%~95%RH (non-condensing)
Downstream Line Rate (Mbps)
183
136
96
64
56
43
Downstream Line Rate (Mbps)
129
112
84
60
45
40
31
14
4
Application
Ethernet
Eth
VDTU2A-404
ern
e
(COt Exte
nde
)
Local Power
r
Co
Local Power
5~23 VDC or
External AC to DC Adaptor
pp
Up er
to / VD
1. SL
5K 2
M
5~23 VDC or
External AC to DC Adaptor
VDTU2A-404
Wireless AP
Eth
Eth
ern
(CPet Ext
E) end
e
r
Ordering Information
Model Name
Description
VDTU2A-404
4-Port 10/100/1000Base-T LAN Extender
8-1
ern
et
IP Camera
IP Phone
www.ctcu.com
[email protected]
Specifications & design are subject to change without prior notice. Please visit CTC Union website for more details.
LAN Extender
VDTU2A-304
4x 10/100Base-TX LAN Extender
8
Feature
▪▪ Cost effective bridge function to connect two Ethernet LAN
▪▪ Easy installation via simple plug-and-play
▪▪ Selectable CPE and CO mode : Two working modes are built in
the same unit, which keep the flexibility of installation and easy
provision of service but lower inventory of service provider.
▪▪ Selectable fast and interleaved mode: Fast mode guarantees a
minimum end to end latency less than 1 mS. Interleaved mode
provides impulse noises protection for any impulse noise with
duration less than 250uS. Interleaved mode has a maximum end
to end latency of 10mS.
▪▪ Selectable target band plan : VDSL2 defines multiple band plans
and configuration modes to allow asymmetric and symmetric
services in same binder for data transmission.
▪▪ Asymmetric is selected that provides better downstream
performance. Symmetric is selected that provides better
upstream performance.
▪▪ Selectable target SNR margin: It has the ability to select fixed SNR
margin value on 9 dB or 6db. The systems will maintain the SNR
margin at their value across all usable loop length. The higher SNR
value gets better line quality, but lower performance.
Specifications
Standards
Compliant with ITU VDSL2 standard G.993.2 Annex A,
Annex B and Annex C
Supports VDSL2 profile : 8a, 8b, 8c, 8d, 12a, 12b and 17a
Band plan profile: symmetric (Plan 997) and asymmetric
(Plan 998)
Supports fast and interleaved mode
Target SNR Margin : Selectable
Built-in POTS splitter to share voice and data (Optional)
Management Web-based GUI for quick setup, configuration and
management
Firmware upgradable from Web
LAN
Filtering functions for MAC/IP/Port
QoS for Port/VLAN/DSCP/TCP-UDP Port number
Port Based VLAN & IEEE 802.1q VLAN Tagging
Port configuration for Bandwidth/Duplex/Speed/Flow
control/Broadcast storm
Interfaces
Indicators
Ethernet : 4x RJ-45 connectors for Ethernet 10/100Mbps
ports with Auto-MDI/MDIX
VDSL : 1x RJ-11 connector for VDSL2 port
Phone : 1x RJ-11 connector for POTS Splitter (Optional)
General : PWR and SYS
WAN (VDSL2) : CO, CPE, LINK and ALM
LAN (Ethernet) : 1, 2, 3, 4 LNK/ ACT
General : PWR and SYS
WAN (VDSL2) : CO, CPE, LINK and ALM
LAN (Ethernet) : 1, 2, 3, 4 LNK/ ACT
Input : AC 90~240V/50 ~ 60Hz ; Output : DC 12V/1A
Power
Power
consumption 9 watts maximum
Environment Temperature : 0 ~ 45°C
Humidity : 0% ~ 95% (non-condensing)
Dimensions 131.5 x 180 x 36.5 mm (D x W x H)
Weight
300g
Application
Video
Internet
Data
VDTU2A-304
VDTU2A-304
Ethernet
F MC Rack
VDTU2A-301
VDTU2A-304
Voice
VDTU2A-304
Ordering Information
Model Name
Description
VDTU2A-304/US
4-port 10/100Base-TX LAN Extender with splitter 600 ohm
VDTU2A-404
Specifications & design are subject to change without prior notice. Please visit CTC Union website for more details.
www.ctcu.com
[email protected]
8-2
LAN Extender
The VDTU2A-304 LAN Extender is a long reach Ethernet extender with four Ethernet ports and two phone jacks, in which one
is for VDSL2 connection and the other is for POTS (Plain Old Telephone Service) connection. It has built-in POTS splitter to share
the existing phone line with POTS eliminating the need for replacing the existing copper wiring. It is ideal for use as an Ethernet
extender to an existing Ethernet network. While accommodating VDSL2 (Very-high-data-rate Digital Subscribe Loop)
technology to extend Ethernet service over single-pair phone line, VDTU2A-304 can reach up to 100/75 Mbps bandwidth (line
rate) within 300M or 40/10 Mbps bandwidth (line rate) for 1 Km long-range connections. By providing ultra-high speed,
VDTU2A-304 LAN Extender makes your telephone line achieve its best performance ever. It has the advantage of minimum
installation time (simple as plug-n-play) and minimum expense by allowing video streaming and data to share the same
telephone pair without interference. VDTU2A-304 delivers everything needed to quickly deploy a high-speed IP-based network
for providing high-speed Internet access, video-on demand services and voice services. The resulting compact, cost-effective
form factor offers systems integrators and small business owners an attractive long reach Ethernet solution.
LAN Extender
VDTU2A-301
10/100Base-TX LAN Extender
The VDTU2A-301 is our lowest cost LAN extension solution using the G993.1/993.2 VDSL2 technology and providing up to
100Mbps throughput with only a single copper wire pair. A LAN extender is a device that forwards traffic between LANs
transparently to higher network-layer protocols over distances that far exceed the distance limitations of standard Ethernet. A
LAN is a high-speed data network (usually employing Ethernet technology) that connects computer workstations, printers,
servers, and other devices. Designed specifically for LAN to LAN extension and supporting both symmetrical and asymmetrical
transmission at up to 100/75Mbps within 300 meters or 10/10Mbps rate at 1000 meters, this is a perfect solution to extend a
LAN to an adjacent building, garage or any location outside of the 100 meter reach of Ethernet UTP.
Feature
▪▪ Cost effective bridge function to connect two Ethernet LANs
▪▪ 100/75Mbps @ 300m (980 Ft)
▪▪ 10/10Mbps @ 1km (3300 Ft)
▪▪ Supports flow control via Pause frame or back pressure
▪▪ 802.1Q VLAN tag transparent
▪▪ Selectable CPE and CO mode via DIP switch
▪▪ Selectable fast and interleaved mode
▪▪ Selectable target band plan
▪▪ Selectable target SNR margin 9dB or 6dB
Specifications
LAN Interface
Complies with IEEE 802.3 10Base-T and
802.3u 100Base-TX
Connector : RJ45
MTU : 1536 Bytes
VDSL2 Interface Complies with ITU-T G993.1/993.2/ G997.1
Connector : RJ45
DMT encoding
On-board surge protection
4-position DIP
Selectable CO or CPE mode
Switch
Selectable fast or interleave mode ( Impulse noise
protection)
Selectable Band plan (Symmetric or Asymmetric)
Selectable target SNR margin (6dB or 9dB)
Indicator
LAN : Act/Link, 10/100Mbps, Half/Full duplex
VDSL : CO/CPE, Idle/Trained/Link, Power
Standard
ITU-T G.993.1, 993.2, IEEE802.3, 802.3u
Power
DC 12V via AC switching adapter
Power
Consumption
Dimensions
Weight
Temperature
Humidity
Certification
MTBF
Emission
Immunity
Application
Rack to Standalone Solution
4.2W
97 x 73 x 23mm (D x W x H)
80g
0 ~ 50°C (Operating), -10 ~ 70°C (Storage)
10 ~ 90% non-condensing
CE, FCC, RoHS compliant
50,000 hrs
EN 55022: 2006 + A1:2007, Class B
AS/NZS CISPR 22: 2006, Class B
EN 61000-3-2: 2006 + A1: 2009 + A2: 2009, Class A
EN 61000-3-3: 2008
EN 55024: 1998 + A1: 2001 + A2:2003
IEC 61000-4-2: 2008 ED.2.0
IEC 61000-4-3: 2006+A1: 2007 ED.3.0
IEC 61000-4-4: 2004+A1: 2010 ED.2.0
IEC 61000-4-5: 2005 ED.2.0
IEC 61000-4-6: 2008 ED.3.0
IEC 61000-4-8: 2009 ED.2.0
IEC 61000-4-11: 2004 ED.2.0
VDTU2A-301
FMC Rack
Ethernet
Ethernet
VDTU2A-301
1Km
Ethernet
1Km
Ethernet
VDTU2A-301
Standalone to Standalone Solution
1Km
Ethernet
VDTU2A-301
VDTU2A-301
VDTU2A – □□□
Example: VDTU2A – 301
Ordering Information
Model Name
Description
VDTU2A-301
1x 10/100Base-TX LAN Extender
Chassis
FMC-CH17-AC/DC/AD 2U, 17-slot FMC converter Chassis with AC, DC or AD Power
8-3
Ethernet
Power Type
FMC-CH17 – □□
– AD
Example: FMC-CH17
www.ctcu.com
[email protected]
Specifications & design are subject to change without prior notice. Please visit CTC Union website for more details.
