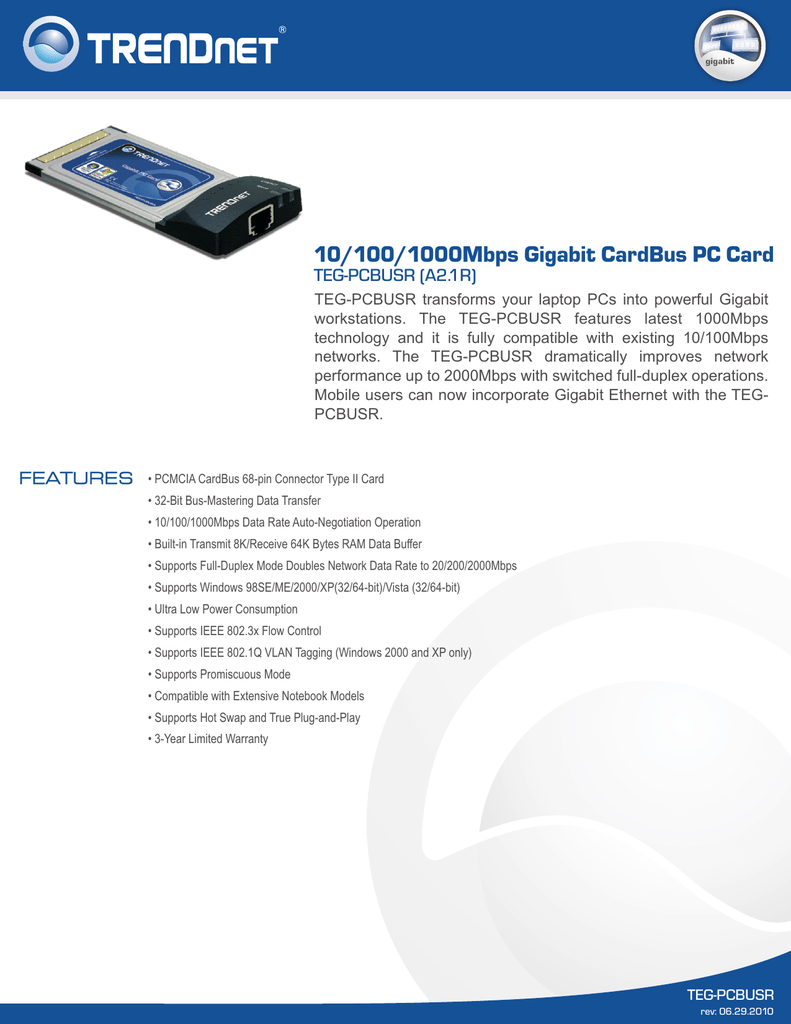

Trendnet TEG-PCBUSR Gigabit PC Card Datasheet

gigabit
10/100/1000Mbps Gigabit CardBus PC Card
TEG-PCBUSR (A2.1R)
TEG-PCBUSR transforms your laptop PCs into powerful Gigabit
workstations. The TEG-PCBUSR features latest 1000Mbps
technology and it is fully compatible with existing 10/100Mbps
networks. The TEG-PCBUSR dramatically improves network
performance up to 2000Mbps with switched full-duplex operations.
Mobile users can now incorporate Gigabit Ethernet with the TEGPCBUSR.
FEATURES
• PCMCIA CardBus 68-pin Connector Type II Card
• 32-Bit Bus-Mastering Data Transfer
• 10/100/1000Mbps Data Rate Auto-Negotiation Operation
• Built-in Transmit 8K/Receive 64K Bytes RAM Data Buffer
• Supports Full-Duplex Mode Doubles Network Data Rate to 20/200/2000Mbps
• Supports Windows 98SE/ME/2000/XP(32/64-bit)/Vista (32/64-bit)
• Ultra Low Power Consumption
• Supports IEEE 802.3x Flow Control
• Supports IEEE 802.1Q VLAN Tagging (Windows 2000 and XP only)
• Supports Promiscuous Mode
• Compatible with Extensive Notebook Models
• Supports Hot Swap and True Plug-and-Play
• 3-Year Limited Warranty
TEG-PCBUSR
rev: 06.29.2010
10/100/1000Mbps Gigabit CardBus PC Card
TEG-PCBUSR (A2.1R)
SPECIFICATIONS
Hardware
• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
Standards
• IEEE 802.3ab 1000Base-T Gigabit
• ANSI/IEEE 802.3 Auto-Negotiation
• PCMCIA 2.x
• Ethernet: UTP/STP Cat. 3, 4, 5
Network Media
• Fast Ethernet: UTP/STP Cat. 5, 5E
• Gigabit: UTP/STP Cat. 5E, 6
Protocol
• CSMA/CD
Interface
• 32-Bit CardBus Type II
Dimension
• 120 x 53 x 3mm (4.7 x 2 x 0.1 inches)
Power Consumption
• 3.3V DC
Diagnostic LED
Supported Drivers
• Link/Activity, Speed
• Windows 98SE/ME/2000/XP(32/64-bit)/Vista (32/64-bit)
• Ethernet: 10Mbps/20Mbps (Half/Full-Duplex)
Data Rate
• Fast Ethernet: 100Mbps/200Mbps (Half/Full-Duplex)
Temperature
• Operating: 0° ~ 40° C (32° ~ 104° F) , Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity
• Operating: 10%~90% (Non-Condensing) , Storage: 5%~90% (Non-Condensing)
Certification
• FCC, CE
• Gigabit: 2000Mbps(Full Duplex)
NETWORKING SOLUTIONS
PACKAGE CONTENTS
• TEG-PCBUSR
32-Bit Gigabit CardBus PC Card
(TEG-PCBUSR)
• Multi-Language Quick Installation Guide
• Driver & User's Guide CD-ROM
RELATED PRODUCTS
5-Port 10/100/1000Mbps
Copper Gigabit Switch
(TEG-S50TXE)
32-bit 10/100/1000Mbps
Copper Gigabit PCI Adapter
(TEG-PCITXR)
32-bit 10/100/1000Mbps
Copper Gigabit PCI Adapter
(TEG-PCITXR)
TEG-PCITXR
Gigabit PCI Adapter
TU2-ETG
USB to Gigabit Ethernet Adapter
TEG-S8
8-Port Gigabit Switch
ORDERING INFORMATION
20675 Manhattan Place,Torrance, CA 90501 USA
Tel: 1-310-961-5500
Fax: 1-310-961-5511
Web: www.trendnet.com
Email: [email protected]
To Order Please Call:
1-888-326-6061
