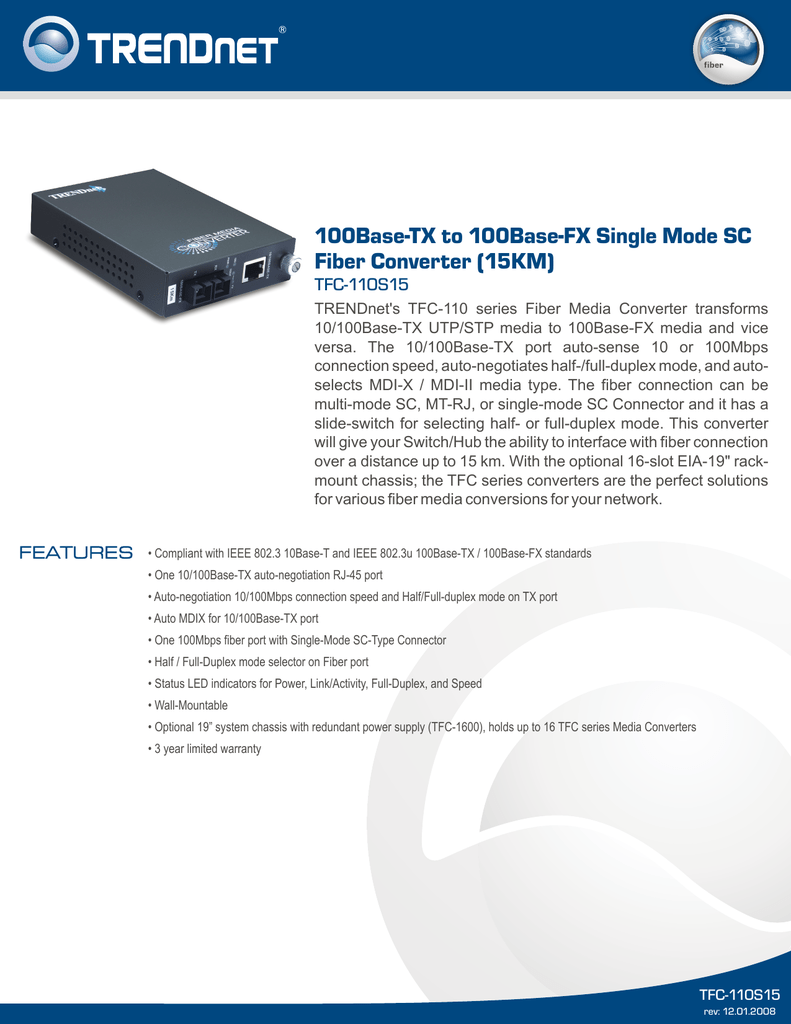

Trendnet TFC-110S15 100Base-TX to 100Base-FX Single Mode SC Fiber Converter Datasheet

fiber
100Base-TX to 100Base-FX Single Mode SC
Fiber Converter (15KM)
TFC-110S15
TRENDnet's TFC-110 series Fiber Media Converter transforms
10/100Base-TX UTP/STP media to 100Base-FX media and vice
versa. The 10/100Base-TX port auto-sense 10 or 100Mbps
connection speed, auto-negotiates half-/full-duplex mode, and autoselects MDI-X / MDI-II media type. The fiber connection can be
multi-mode SC, MT-RJ, or single-mode SC Connector and it has a
slide-switch for selecting half- or full-duplex mode. This converter
will give your Switch/Hub the ability to interface with fiber connection
over a distance up to 15 km. With the optional 16-slot EIA-19" rackmount chassis; the TFC series converters are the perfect solutions
for various fiber media conversions for your network.
FEATURES
• Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX / 100Base-FX standards
• One 10/100Base-TX auto-negotiation RJ-45 port
• Auto-negotiation 10/100Mbps connection speed and Half/Full-duplex mode on TX port
• Auto MDIX for 10/100Base-TX port
• One 100Mbps fiber port with Single-Mode SC-Type Connector
• Half / Full-Duplex mode selector on Fiber port
• Status LED indicators for Power, Link/Activity, Full-Duplex, and Speed
• Wall-Mountable
• Optional 19” system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters
• 3 year limited warranty
TFC-110S15
rev: 12.01.2008
100Base-TX to 100Base-FX Single Mode SC Fiber Converter (15KM)
TFC-110S15
SPECIFICATIONS
Hardware
Standards
• IEEE802.3 10Base-T, IEEE 802.3u 100Base-TX and 100Base-FX
Supported Frame Size
• Standard Ethernet up to 1522-Byte
Network Media
• 100Base-TX: Cat. 5, EIA/TIA-568 100-ohm UTP/STP, up to 100 meters.
• 100Base-FX: Single-Mode fiber optic cable 9/125 or 10/125 µm, up to 100 Km.
Wavelength
• 1300nm
Protocol
• CSMA/CD
Ports
Data Transfer Rate
• 1 x 10/100Base-TX and 1 x 100Base-FX
Diagnostic LEDs
• Power, Link/Activity, Full-Duplex, and Speed
Power Adapter
• 7.5VDC, 1.5A (7.2 watts max.)
Temperature
• Operating: 0° ~ 40° C (32° ~ 104° F) ; Storage: -25° ~ 70° C (-13° ~ 158° F)
Humidity
• Operating: 10% ~ 90% ; Storage: 5% ~ 90% (non-condensing)
• 100Mbps (Half-Duplex), 200Mbps (Full-Duplex)
