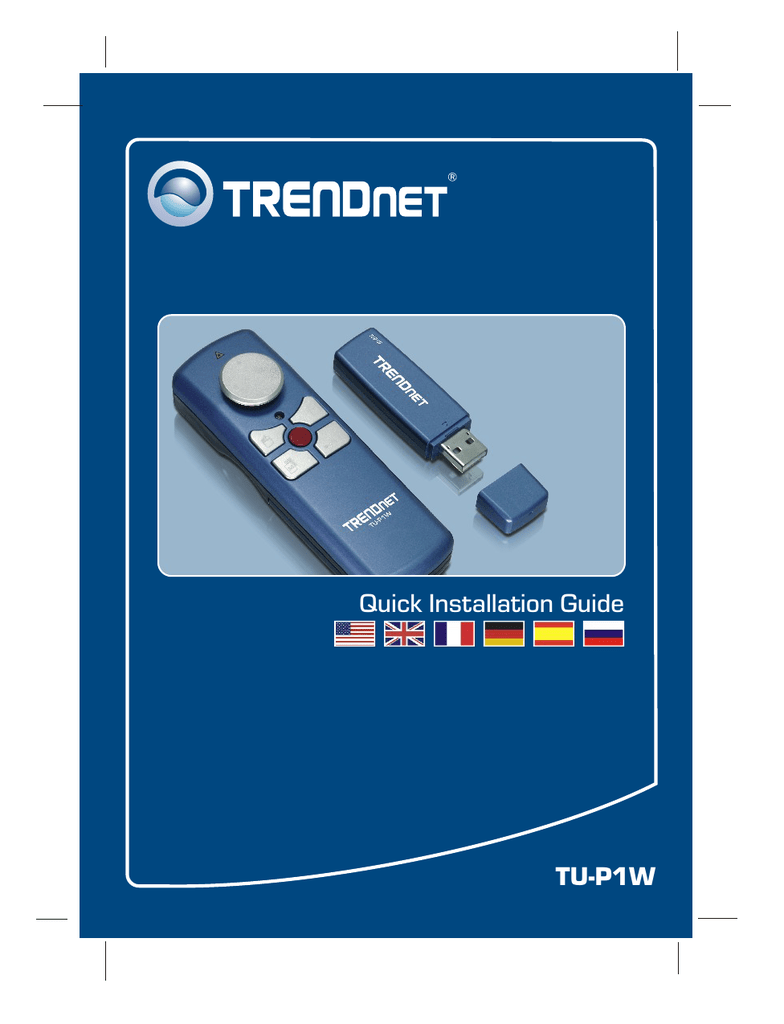

Trendnet TU-P1W Wireless Presenter Quick Installation Guide

Quick Installation Guide
TU-P1W
Table ofofContents
Table
Contents
Español .....................................................................................................
1. Antes de iniciar ..................................................................................
2. Cómo se instala ................................................................................
3. Función del producto .........................................................................
1
1
2
3
Troubleshooting ........................................................................................ 4
Version 07.24.2006
1. Antes de iniciar
Contenidos del paquete
Proyector TU-P1W
Recibidor TU-P1W para USB
2 baterías AAA de 1,5V
Guía de instalación rápida
Requisitos del sistema
USB 1.0, 1.1 o superior
CPU: Pentium de 300 MHz o superior
Memoria: 256MB de RAM o más
Windows 2003 Server/XP/2000/ME/98SE
Reproductor de Windows Media o PowerPoint
Aplicación
Receiver
2.4GHz Wireless
Presenter
(TU-P1W)
Notebook
Projector
ADVERTENCIA: NO APUNTE DIRECTAMENTE HACIA LAS PERSONAS CON EL
INDICADOR LÁSER.
1
Español
2. Cómo se instala
1. Conecte el recibidor USB a un
puerto USB disponible de su
ordenador.
2. Para Windows 2003 Server/ XP/
2000/ME, el controlador se
instalará automáticamente
Nota: Para Windows 98SE, refiérase por favor a la sección Resolución de
problemas.
3. Inserte las baterías en el Proyector.
La instalación ha sido completada
Para obtener información más detallada sobre la configuración así como de las
configuraciones avanzadas del TU-P1W , por favor consulte la sección de
resolución de problemas en el sitio Web de Trendnet en
http://www.trendnet.com.
2
Español
3. Función del producto
ADVERTENCIA: NO APUNTE DIRECTAMENTE HACIA LAS PERSONAS CON EL
INDICADOR LÁSER.
Botón
Modalidad
PowerPoint
Reproductor
Windows Media
“Movimiento del Ratón
+
Activa/Desactiva el indicador láser
Púlselo durante 3 segundos
Indicador láser
Repág, Avpág
Repág, Avpág
Reproducir/ESC en la
presentación de diapositivas.
Púlselo dos veces.
Reproducir/Pausar en
Media Player
Púlselo dos veces.
Pantalla negra On/Off
Púlselo durante 1 segundo
Silencio On/Off
Púlselo durante 1 segundo
Botón izquierdo del ratón, botón derecho del ratón
Conmutador de modos (PowerPoint/ Reproductor Windows
Media)
Púlselo hasta que el LED verde encienda.
+
Restablece el dispositivo
Mantenga ambos botones pulsados hasta que el LED verde
parpadee. Entonces, inserte el sujetapapeles en el orificio del
recibidor USB y luego suéltelo.
Modo de espera
El proyector se apaga y el indicador láser se deshabilita
automáticamente. Pulse cualquier botón para reactivar el
dispositivo
3
Español
Troubleshooting
Q1: Windows is unable to recognize the USB receiver. What should I do?
A1: First, make sure your computer meets the minimum requirements as specified in Section
1 of this quick installation guide. Second, connect the USB receiver to a different USB port
on the computer.
Q2: I am unable to control Windows Media Player or PowerPoint. What should I do?
A2: You are in the incorrect mode. Press on Switch Mode key until the LED lights green.
Q3: All functions on the device stopped working. What should I do?
A3: First, you must be within 15 meters of the computer. Second, the device goes into sleep
mode after 10 minutes. The Presenter shuts down and the laser pointer automatically
deactivates. Press any button to wake the device. Use the Laser Pointer hotkey to activate
the laser pointer (see section 3). Third, the batteries may be running low. Try replacing the
batteries.
Q4: How do I install this device on Windows 98SE?
A4: After you plug the USB receiver into an available USB port, follow the
directions below:
1) When Windows detects the USB Human Interface Device, click Next.
2) Select Search for the best driver for your device (Recommended, then click Next.
3) Select only Specify a location, type in C:\WINDOWS and then click Next.
4) When Windows find the driver, click Next.
5) If prompted for it, put in your Windows 98SE CD, and then click OK.
6) Click Finish.
7) Windows will detect another USB Human Interface device. Repeat the steps
above to complete the installation.
If you still encounter problems or have any questions regarding the TU-P1W, please contact
TRENDnet's Technical Support Department
Certifications
This equipment has been tested and found to comply with FCC and CE Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received. Including interference that may cause
undesired operation.
Waste electrical and electronic products must not
be disposed of with household waste. Please
recycle where facilities exist. Check with you Local
Authority or Retailer for recycling advice.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE
CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS
COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
4
