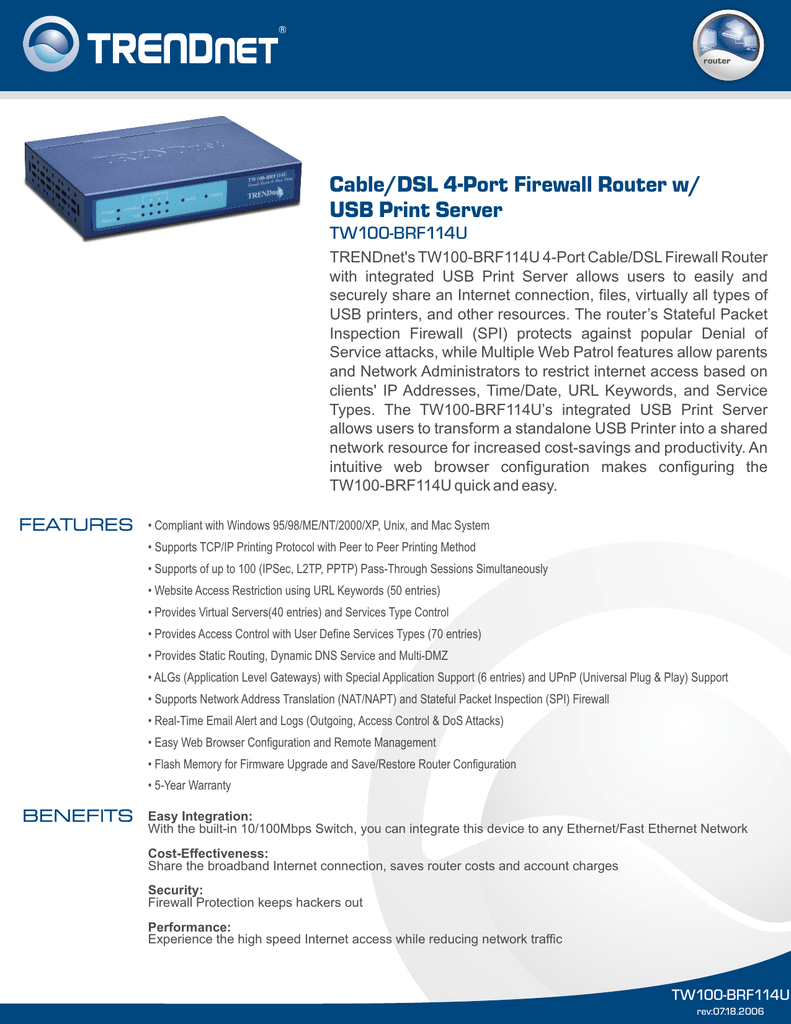

Trendnet TW100-BRF114U Cable/DSL 4-Port Firewall Router Datasheet

Cable/DSL 4-Port Firewall Router w/
USB Print Server
TW100-BRF114U
TRENDnet's TW100-BRF114U 4-Port Cable/DSL Firewall Router
with integrated USB Print Server allows users to easily and
securely share an Internet connection, files, virtually all types of
USB printers, and other resources. The router’s Stateful Packet
Inspection Firewall (SPI) protects against popular Denial of
Service attacks, while Multiple Web Patrol features allow parents
and Network Administrators to restrict internet access based on
clients' IP Addresses, Time/Date, URL Keywords, and Service
Types. The TW100-BRF114U’s integrated USB Print Server
allows users to transform a standalone USB Printer into a shared
network resource for increased cost-savings and productivity. An
intuitive web browser configuration makes configuring the
TW100-BRF114U quick and easy.
FEATURES
• Compliant with Windows 95/98/ME/NT/2000/XP, Unix, and Mac System
• Supports TCP/IP Printing Protocol with Peer to Peer Printing Method
• Supports of up to 100 (IPSec, L2TP, PPTP) Pass-Through Sessions Simultaneously
• Website Access Restriction using URL Keywords (50 entries)
• Provides Virtual Servers(40 entries) and Services Type Control
• Provides Access Control with User Define Services Types (70 entries)
• Provides Static Routing, Dynamic DNS Service and Multi-DMZ
• ALGs (Application Level Gateways) with Special Application Support (6 entries) and UPnP (Universal Plug & Play) Support
• Supports Network Address Translation (NAT/NAPT) and Stateful Packet Inspection (SPI) Firewall
• Real-Time Email Alert and Logs (Outgoing, Access Control & DoS Attacks)
• Easy Web Browser Configuration and Remote Management
• Flash Memory for Firmware Upgrade and Save/Restore Router Configuration
• 5-Year Warranty
BENEFITS
Easy Integration:
With the built-in 10/100Mbps Switch, you can integrate this device to any Ethernet/Fast Ethernet Network
Cost-Effectiveness:
Share the broadband Internet connection, saves router costs and account charges
Security:
Firewall Protection keeps hackers out
Performance:
Experience the high speed Internet access while reducing network traffic
TW100-BRF114U
rev:07.18.2006
Cable/DSL 4-Port Firewall Router w/ USB Print Server
TW100-BRF114U
SPECIFICATIONS
Hardware
Standards
• IEEE 802.3 (10-Base T), 802.3u (100-Base TX)
Protocols
• NAT, PPPoE, HTTP, DHCP, TCP/IP, UDP, PAP, CHAP, RIP1, RIP2, DDNS
WAN
• 1 x 10/100Mbps Port (Internet)
LAN
Printer Port
• 4 x 10/100Mbps Auto-MDIX Ports
LED Indicators
• Unit: Power, Status, WAN
LAN Ports
Power Adapter
Dimensions (L x W x H)
• Link/Act, 100
Weights
• 0.36 kg (12.8 oz.)
Temperature
• Operating: 0° to 40° C (32° to 104° F) ; Storage: -10° to 70° C (14° to 158° F)
Humidity
• Operating: 0° % ~ 80° % (non-condensing) ; Storage: 0°% ~ 95°% (non-condensing)
Certifications
• CE, VCCI
• 1 x USB 1.1 Port
• 12V DC, 800mA
• 141 x 100 x 27 mm (5.5x 3.9 x 1.06 inches)
Router
Firewall
• NAT Firewall, SPI Firewall
Security
• URL Filter, Access Control, Password Protection, Email Alert and Logs
VPN Pass-Through
• IPSec, PPTP, L2TP (100 Sessions)
Print Server
Protocol
• TCP/IP
Printing Method
• PTP (Peer-to-Peer) over TCP/IP, LPD
NETWORKING SOLUTIONS
RELATED PRODUCTS
Cable/DSL 4-Port Firewall Router with USB Print Server
(TW100-BRF114U)
USB Printer
TW100-BRF114
Cable/DSL 4-Port Firewall Router
TW100-BRV204
Cable/DSL VPN Firewall Router
TW100-BRV304
Cable/DSL Advanced VPN Firewall Router
TW100-S4W1CA
DSL/Cable Broadband Router with 4-Port Switch
Workstations with
Fast Ethernet Card
(TE100-PCIWN)
Internet
Cable/DSL
Modem
Server with
Fast Ethernet Card
(TE100-PCIWN)
ORDERING INFORMATION
100Mbps
3135 Kashiwa Street,Torrance, CA 90505 USA
Tel: 1-310-891-1100
Fax: 1-310-891-1111
Web: www.trendnet.com
Email: [email protected]
To Order Please Call:
1-888-326-6061
TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet
products and is subject to change at any time, without notice. For the most recent product information please visit http://www.trendnet.com.
Copyright © TRENDnet. All Rights Reserved.
