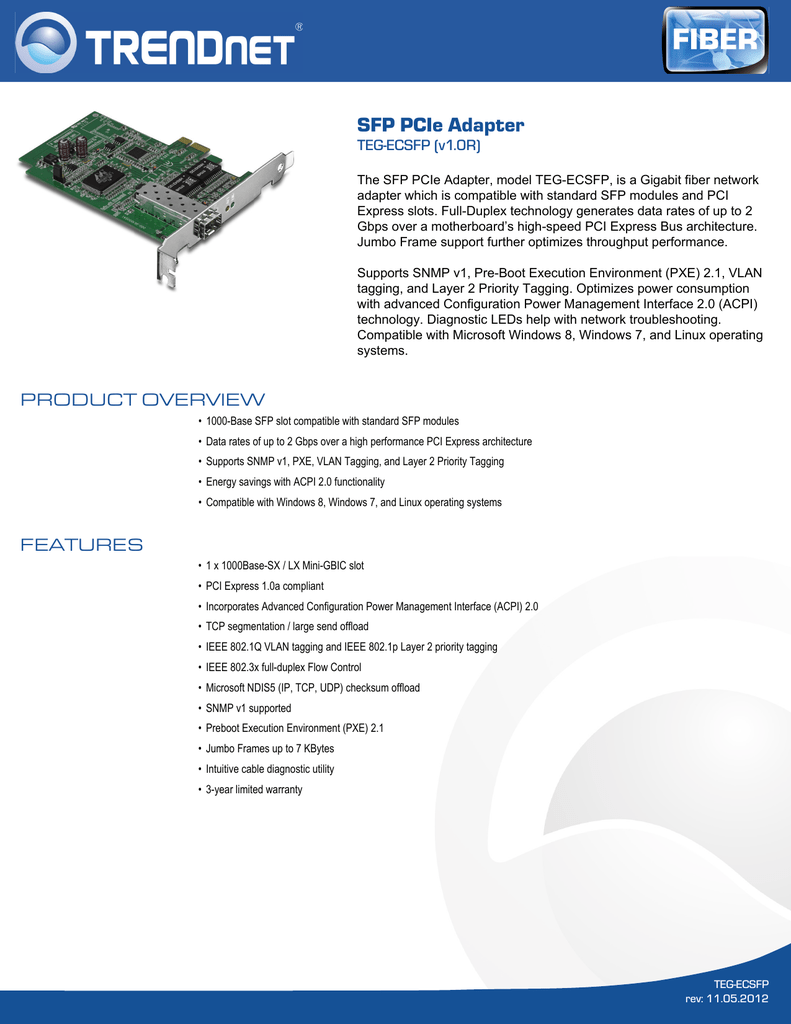

Trendnet TEG-ECSFP SFP PCIe Adapter Datasheet

SFP PCIe Adapter
TEG-ECSFP (v1.0R)
The SFP PCIe Adapter, model TEG-ECSFP, is a Gigabit fiber network
adapter which is compatible with standard SFP modules and PCI
Express slots. Full-Duplex technology generates data rates of up to 2
Gbps over a motherboard’s high-speed PCI Express Bus architecture.
Jumbo Frame support further optimizes throughput performance.
Supports SNMP v1, Pre-Boot Execution Environment (PXE) 2.1, VLAN
tagging, and Layer 2 Priority Tagging. Optimizes power consumption
with advanced Configuration Power Management Interface 2.0 (ACPI)
technology. Diagnostic LEDs help with network troubleshooting.
Compatible with Microsoft Windows 8, Windows 7, and Linux operating
systems.
PRODUCT OVERVIEW
• 1000-Base SFP slot compatible with standard SFP modules
• Data rates of up to 2 Gbps over a high performance PCI Express architecture
• Supports SNMP v1, PXE, VLAN Tagging, and Layer 2 Priority Tagging
• Energy savings with ACPI 2.0 functionality
• Compatible with Windows 8, Windows 7, and Linux operating systems
FEATURES
• 1 x 1000Base-SX / LX Mini-GBIC slot
• PCI Express 1.0a compliant
• Incorporates Advanced Configuration Power Management Interface (ACPI) 2.0
• TCP segmentation / large send offload
• IEEE 802.1Q VLAN tagging and IEEE 802.1p Layer 2 priority tagging
• IEEE 802.3x full-duplex Flow Control
• Microsoft NDIS5 (IP, TCP, UDP) checksum offload
• SNMP v1 supported
• Preboot Execution Environment (PXE) 2.1
• Jumbo Frames up to 7 KBytes
• Intuitive cable diagnostic utility
• 3-year limited warranty
TEG-ECSFP
rev: 11.05.2012
SFP PCIe Adapter
TEG-ECSFP (v1.0R)
SPECIFICATIONS
HARDWARE
Standards
• IEEE 802.3z 1000Base-SX / LX
• IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p
Network Media
• 1000Base-SX: Multi-mode fiber optic cable 50/125 µm, up to 550 m
Multi-mode fiber optic cable 62.5/125 µm, up to 220 m
• 1000Base-LX: Single-mode fiber optic cable 9/125 µm, up to 80 km (TEG-MGBS80)
Protocol
• SNMP v1
Interface
• PCI Express, Mini-GBIC slot
Power Consumption
• 2.3 watts (max.)
Diagnostic LED
• Link, Activity
Supported OS
• Windows XP (32/64-bit), Vista (32/64-bit), Windows 7 (32/64-bit), Windows 8 (32/64-bit)
• Windows Server 2003, Server 2008
• Linux Kernel 2.4.x / 2.6.x
Jumbo Frames
• Up to 7 KBytes
Data Rate
• 2000 Mbps (full-duplex)
Dimension
• 117 x 124 x 85 mm (4.6 x 4.9 x 3.3 in.)
Weight
• 65 g (2.4 oz)
Temperature
• Operating: 0°C ~ 45°C (32°F ~ 113°F)
• Storage: -10°C ~ 70°C (14°F ~ 158°F)
Humidity
• Max 95% (non-condensing)
Certifications
• CE, FCC
NETWORKING SOLUTIONS
PACKAGE CONTENTS
TEG-ECSFP
Multi-Language Quick Installation Guide
CD-ROM (Drivers & User’s Guide)
RELATED PRODUCTS
TEG-MGBSX
Mini-GBIC Multi-Mode SX Module
TEG-MGBS10
Mini-GBIC Single-Mode LC Module
TEG-448WS
48-Port Gigabit Web Smart Switch w/ 4 Shared MiniGBIC Slots
CONTACT INFORMATION
20675 Manhattan Place,Torrance, CA 90501 USA
Tel: 1-310-961-5500
Fax: 1-310-961-5511
Web: www.trendnet.com
Email: [email protected]
1-888-326-6061
TEG-ECSFP
rev: 11.05.2012
