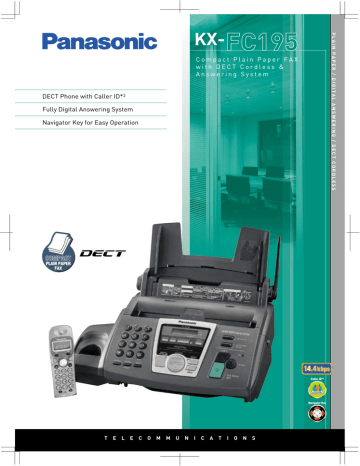

FC195 KX-
PLAIN PAPER / DIGITAL ANSWERING / DECT CORDLESS
KX-FC195
Compact Plain Paper FAX
with DECT Cordless &
Answering System
DECT Phone with Caller ID*3
Fully Digital Answering System
Navigator Key for Easy Operation
Caller ID*3
Navigator Key
T
E
L
E
C
O
M
M
U
N
I
C
A
T
I
O
N
S
KX-FC195
Compact Plain Paper FAX with
DECT Cordless & Answering System
컄
PLAIN PAPER
컄 DIGITAL ANSWERING
컄
DECT CORDLESS
DECT Phone with Caller ID*3
Fully Digital Answering System
Navigator Key for Easy Operation
Caller ID*3
Navigator Key
T
E
L
E
C
O
M
M
U
N
I
C
A
T
I
O
N
S
KX-FC195
DECT Phone
The KX-FC195 comes equipped with a sophisticated
DECT phone for longer range and a sound quality.
Features include caller ID compatibility, multiple
handset support up to 6 handsets, multiple base
operation for up to 4 different bases, navigator key for
easy operation, and more.
Advanced
Communication Tool
with DECT Phone
Convenience
Fully Digital Answering System
The KX-FC195 answers all your calls, records messages
and receives faxes while you are away. The digital system
makes operation virtually silent and instantaneous.
Digital Duplex Speakerphone
Digital compression technology helps to reduce annoying
echo, drop-out or clipping. You can enjoy clear, natural, two
way conversations on the digital speakerphone.
Other Features
Advanced Features
Navigator Key for Easy
Operation
28-Page Document
Memory*1*2
The navigator key lets you
easily control the volume and
ringer level, as well as the
phone directory & dialer, Caller
ID memory and other advanced
functions.
The KX-FC195 can store up to
28 pages in its built-in
memory. Ideal for
broadcasting multi-page
documents to multiple
locations.
Caller ID Ready*3
Voice Time/Day Stamp
The caller’s name and phone
number can be displayed on the
LCD of the handset. So, you can
see at a glance in remote
location who’s calling before
you answer the phone.
Each recorded incoming
message is automatically
accompanied by a time and day
announcement (time/day
stamp).
쐽 High-speed fax transmission
(14.4 kbps)
쐽 Quick scan capability
쐽 Enhanced copier functions
쐽 Sequential broadcasting
(20 locations)
쐽 64-level halftone resolution
쐽 Fax/voice pager call (not available
for G)
쐽 10-page document feeder
쐽 50-sheet paper tray
쐽 Variable message playback speed
(fast/slow)
쐽 100-station directory dialing
쐽 Electronic volume control
쐽 Automatic fax/phone switching
KX-FC195 Specifications
Facsimile
Compatibility:
Paper Handling:
Scanning Width:
Resolution:
Halftone:
Modem Speed:
Transmission Speed:
Compression System:
Document Memory:
Print Method:
Ink Film:
Paper Capacity:
Document Feeder:
ITU-T G3
A4
208 mm
Standard/fine/super fine/photo
64 levels
14.4 kbps with automatic fallback
Approx. 8 seconds per page*1 in ECM-MMR mode
MH, MR, MMR
Max. 28 pages*1*2
Thermal transfer on plain paper
50 m (10 m film included)
Max. 50 sheets
Max. 10 sheets
DECT Cordless Phone
Duplex Frequency Bands:
Channel Number:
Phone Directory:
Display:
Caller ID:
1.88-1.9 GHz
120 channels
20 telephone numbers
12-digit multifunction LCD
Compatible with FSK*3
Integrated Telephone System
Dial Mode:
Tone (DTMF)/pulse (Tone only for E/G/AL)
Dialing Memory:
100 telephone numbers
Power Source:
Dimensions (H x W x D):
Base:
Handset:
Weight:
Base:
Handset:
AC 220-240 V, 50 Hz (50/60 Hz for PD/RU/AL)
19.5 cm x 38.0 cm x 32.0 cm
3.3 cm x 14.2 cm x 4.2 cm
3.3 kg
0.12 kg
*1
Based on ITU-T No. 1 test chart.
Max. 28 pages for out-of-paper reception. Max. 25 page for memory transmission.
ECM is not activated.
*3 Subscription to compatible Caller ID services required. See your dealer for detail.
*2
Optional Accessories
KX-FA55X Replacement Film x 2 (2 x 50 m rolls)
Full Digital Answering System
Recording capacity:
Max. 18 minutes in total
Incoming Message:
1..9 min/VOX
Global Web Sites: http://www.panasonic.co.jp/global
Design and specifications are subject to change without notice. 0M0403SK-FC195-CID-LT.EU
