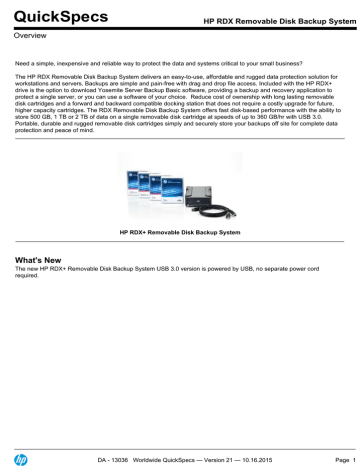

QuickSpecs
HP RDX Removable Disk Backup System
Overview
Need a simple, inexpensive and reliable way to protect the data and systems critical to your small business?
The HP RDX Removable Disk Backup System delivers an easy-to-use, affordable and rugged data protection solution for
workstations and servers. Backups are simple and pain-free with drag and drop file access. Included with the HP RDX+
drive is the option to download Yosemite Server Backup Basic software, providing a backup and recovery application to
protect a single server, or you can use a software of your choice. Reduce cost of ownership with long lasting removable
disk cartridges and a forward and backward compatible docking station that does not require a costly upgrade for future,
higher capacity cartridges. The RDX Removable Disk Backup System offers fast disk-based performance with the ability to
store 500 GB, 1 TB or 2 TB of data on a single removable disk cartridge at speeds of up to 360 GB/hr with USB 3.0.
Portable, durable and rugged removable disk cartridges simply and securely store your backups off site for complete data
protection and peace of mind.
HP RDX+ Removable Disk Backup System
What's New
The new HP RDX+ Removable Disk Backup System USB 3.0 version is powered by USB, no separate power cord
required.
DA - 13036 Worldwide QuickSpecs — Version 21 — 10.16.2015
Page 1
QuickSpecs
HP RDX Removable Disk Backup System
Features
Key Features
Drag and drop file backup and restore
Ability to operate in a “fixed disk” mode or using the software of your choice (the option to download Yosemite Server
Backup Basic with encryption is also available)
Up to 360 GB/hour* transfer rate (uncompressed data) - * Where 1KB = 1,000 Bytes
Fast disk based random access file retrieval
Choice of 500 GB, 1 TB or 2 TB capacity removable disk cartridges (interchangeable in any HP RDX/RDX+ docking
station)
Compatibility with leading ISV backup software applications
Disk cartridges designed for long usage life - over 5,000 load/unload insertions
Compatible with future higher capacity cartridges and mobile 2.5 inch Hard Disk Drive technology roadmap
Portable, durable and shock proof cartridges
Easy to install (USB 3.0 plug and play) external docking station for removable cartridges
HP RDX docking stations easily connect externally as a tabletop. By inserting a removable disk cartridge into the
docking station, the cartridge automatically appears as a letter drive in Windows Explorer with no extra steps or
formatting.
Broad compatibility with a wide range of servers and operating systems
•
Supporting tools -- HP LT&T available as a download with the drive to make installation, performance tuning
and trouble-shooting even easier
Customer Benefits
The simple way to
protect your business
data
Drag and drop file access makes backup as easy and convenient as the click of a mouse
Use with software of your choice or in fixed-disk mode
Less time spent on backups with fast disk based file transfer/retrieval performance
Flexibility to meet budget and capacity requirements with choice of cartridge capacities
Usage model fits traditional backup architecture (e.g. ISV software) if required
Reduces total cost of
protecting your
business data
Long usage life span of cartridges lowers media replacement costs
No need to replace docking station when future higher capacity cartridges are available
Simply and securely
store backups off-site
for complete data
protection
Portable/durable disk cartridges enable easy off site archiving and disaster recovery
Rugged cartridge protects data from drops, ESD and harsh environmental conditions for
secure archiving/transportation/archiving
Plug and play USB dock allows flexible media rotation and easy future scalability
DA - 13036 Worldwide QuickSpecs — Version 21 — 10.16.2015
Page 2
QuickSpecs
HP RDX Removable Disk Backup System
Product Highlights
Product Highlights
Combines the best of
tape and disk
The HP RDX Removable Disk Backup System is based on removable disk technology that
handles and operates like a traditional tape drive and media, yet has all of the advantages of diskto-disk backup. The HP RDX Removable Disk Backup System allows backups to be
accomplished with standard ISV backup applications, fixed disk mode, or data can be dragged
and dropped directly to the rugged removable storage media. To the host computer, the HP RDX
Removable Disk Cartridge appears as a Windows drive letter with the high performance benefits
of a disk based backup system.
Easy to implement and Many small business customers have limited time, knowledge, experience or desire to dedicate to
use
backup and therefore currently have no or very rudimentary backup processes in place. The HP
RDX Removable Disk Backup System offers these customers a complete backup solution that is
simple to implement and easy to use.
Installation is an easy and quick process of connecting the industry standard form factor HP RDX
Removable Disk Backup System USB docking station or externally as a tabletop.
Backing up is a simple matter of inserting a removable disk cartridge into the docking station. The
cartridge will automatically show up as a letter drive in Windows explorer with no extra formatting
or extra steps required. Simply select the files that need to be protected and drag them into the
removable drive folder. To restore files, just reverse the process.
Included with the HP RDX+ drive is the option to download Yosemite Server Backup Basic
software, providing an encrypted backup and recovery application to protect a single server. HP
RDX+ (and RDX) USB 3.0 Removable Disk Backup Systems can also operate in a “Fixed Disk”
mode. This allows Windows Operating Systems to view HP RDX/RDX+ USB 3.0 drives as a valid
disk target, allowing the drives to be used with integrated Windows Backup Applications (rather
than requiring third party software). Details of operation can be found in the HP RDX Utility
software.
Fast backup and
restore
Staff productivity and thus customer service can be negatively impacted by the lengthening
backup window and restore/recovery times associated with optical backup solutions. The HP RDX
Removable Disk Backup System provides a backup solution that backs up and retrieves data
quickly and reliably thus optimizing application availability and staff productivity.
Data can be backed up to HP RDX Removable Disk Cartridges at hard drive speeds (up to 360
GB/hour). HP RDX Removable Disk Cartridges are randomly accessed and read so critical single
files and selected file stores can be restored in seconds instead of hours.
DA - 13036 Worldwide QuickSpecs — Version 21 — 10.16.2015
Page 3
QuickSpecs
HP RDX Removable Disk Backup System
Product Highlights
Affordable cost of
ownership
Many small business customers have limited IT budget available for data protection with business
owners wanting to reduce IT capital and operational expenditure and protect IT investments to
optimize business profitability. The HP RDX Removable Disk Backup System provides a
complete backup solution that has low initial acquisition costs and low on-going media and
upgrade costs.
Total cost of ownership is lowered by the fact that HP RDX Removable Disk Cartridges are
specified for 5,000 insertion/removal cycles, so HP RDX Removable Disk Cartridges will not wear
out (and therefore need to be replaced) over the typical life cycle of the solution. Upgrade and
obsolescence costs are also reduced and investment protection guaranteed by the fact that HP
RDX Removable Disk Backup System docking stations are compatible with all current and future
higher capacity HP RDX Removable Disk Cartridges. Customers will not need to purchase a new
docking station when next generation higher capacity HP RDX Removable Disk Cartridges are
released. Similarly, today's HP RDX Removable Disk Cartridges are compatible with all current
and future HP RDX and HP RDX docking stations. Customer's existing HP RDX Removable Disk
Cartridges will work with next generation HP RDX docking stations when they are released.
Removability and
portability
To ensure complete data protection against all types of data loss - including on-site system/site
destruction or natural disaster - small businesses need the ability to remove their backup and
archive data off-site. The HP RDX Removable Disk Backup System provides a backup solution
that enables on-site backup data to be removed, stored and rotated off-site in an easy, safe and
secure way.
HP RDX Removable Disk Cartridges are portable (palm size), durable (2.5 inch disk drive
features include ramp loading heads, fluid dynamic bearings, inactive state spin down) and
rugged. The robust HP RDX Removable Disk Cartridge is also designed to protect data from
potentially damaging Electrostatic Discharge (ESD) and as well as prolonged exposure to heat,
dust and other environmental contaminants.
Reliability
The HP RDX Removable Disk Backup System provides a docking station specified for more than
10,000 loads and unloads and an HP RDX cartridge specified for over 5,000 load and unloads
and long life expectancy.
Easy scalability and
expandability
Many growing small businesses are experiencing storage capacity growth that is outstripping the
capacity/performance of current optical backup solutions. The HP RDX Removable Disk Backup
System provides a backup solution that scales easily as capacity needs grow. Adding capacity is
a simple matter of adding cartridges to an existing HP RDX Removable Disk Backup System USB
docking station. The HP RDX Removable Disk Backup System docking Station will work with all
current as well future higher capacity cartridges as they are introduced. The product's roadmap
leverages the industry standard mobile 2.5" hard disk drive roadmaps with new higher capacity
cartridges expected to be introduced regularly.
DA - 13036 Worldwide QuickSpecs — Version 21 — 10.16.2015
Page 4
QuickSpecs
HP RDX Removable Disk Backup System
Compatibility
Compatibility
The HP extensive compatibility testing program assures that your HP RDX Removable Disk
Backup System works with leading servers, operating systems, and backup applications. For the
latest list of servers, workstations, operating systems, and backup software that support the HP
RDX Removable Disk Backup System, check the HP RDX Removable Disk Backup System
compatibility pages on our web site at: http://www.hp.com/storage/spock.
USB 3.0 is backwards compatible with USB 2.0; however if the host device does not have a USB
3.0 port, the user will not be able to experience the full transfer rate performance that their RDX
USB 3.0 system offers. HP recommends the following controller for a user who currently only has
USB 2.0: Startech 2 port PCI Express SuperSpeed USB 3.0 card. HP USB 3.0 controllers do not
support this product.
HP Server and
Workstation
Compatibility
The HP RDX Removable Disk Backup System is compatible with HP ProLiant servers and HP
workstations. HP RDX Removable Disk Backup System is supported on the following classes of
HP systems:
HP Personal Workstations
For details of which HP RDX Removable Disk Backup System models work with which systems,
including third-party systems, visit: http://www.hp.com/go/connect or
http://www.hp.com/storage/spock for the latest hardware compatibility information.
NOTE: HP recommends that no more than one HP RDX Removable Disk Backup System be
connected to a system at a time.
OS Support
Microsoft® Windows®, Linux (various distributions)
NOTE: Please visit: http://www.hp.com/go/connect or http://www.hp.com/storage/spock for the
latest compatibility information.
Backup Software
Support
Yosemite Server Backup Basic Software, HP Data Protector Express, CA BrightStor ARCServe
Backup, Symantec Backup Exec, and other backup applications that support removable disk
media
NOTE: Please visit: http://www.hp.com/storage/spock for the latest compatibility information.
DA - 13036 Worldwide QuickSpecs — Version 21 — 10.16.2015
Page 5
QuickSpecs
HP RDX Removable Disk Backup System
Service and Support, HP Care Pack, and Warranty Information
Warranty and Services Hewlett-Packard provides a 3-year, next-day, parts exchange, limited warranty for the HP
Included with the
RDX/HP RDX+ Removable Disk Backup System, plus 9x5 phone support for the duration of the
Product
warranty.
HP warrants only that the Storage software media will be free of physical defects for a period of
ninety (90) days from delivery.
For more information about HP's Global Limited Warranty and Technical Support, visit:
www.hp.com/storage/warranty
HP Care Pack
Information
For increased uptime, productivity and ROI -HP Care Pack packaged services for Storage
These days, you need to get the most out of your storage investment-you can't afford not to.
When you buy HP storage products and solutions, it's also a good time to think about what levels
of service and support you may need. To help take the worry out of deploying, designing,
maintaining, and managing your environment, we've designed a portfolio of service options that
are as flexible, reliable and scalable as your storage. Unlike storage-only vendors, we take a
holistic approach to your entire environment, bridging storage, servers, blades, software and
network infrastructures with our HP Care Pack packaged services for Storage.
Protect your business beyond the warranty
When it comes to robustness and reliability, standard warranties on today's computing equipment
have matured just as the technologies have matured. Good news on some fronts-but also a
source of potential problems and subsequent consequences that come from depending on
standard warranties alone. Standard warranty protects against product defects and some causes
of downtime- but not the business. By using a standard approach to warranty uplifts, such as HP
Care Pack Services, you can reduce downtime risks and be more certain of operational
consistency for both mission-critical and standard business computing. Simply put, HP Care Pack
Services normalize the warranty of combined products - helping you proactively guard against
unplanned downtime.
Extending warranties with HP Care Pack Services
For cost-effective upgrading or extending your standard warranty, HP Care Pack Services offer a
suite of standard reactive hardware and software support services that are sold separately, or
combined as with our Support Plus and Support Plus 24 services. The portfolio also provides a
combination of proactive and reactive services, such as Proactive 24 Service and Critical Service.
In addition, with HP Proactive Select we offer an innovative approach to service delivery that
gives you the flexibility to acquire the specific proactive services you need today, then add
services as your needs evolve. HP Proactive Select offers a broad set of technical or per-event
type service options - including server, storage, and network, SAN device, and software,
environment, installation and education services. Services that you can mix and match depending
on your specific requirements, from preliminary planning and equipment delivery to installation,
configuration, integration, and testing, through every level of ongoing support. Our HP Care Pack
packaged services for Storage assures help when you need it most. And for many products, postwarranty HP Care Pack Services are available when your original warranty has expired.
HP Storage Services: Offering reliability, flexibility and value-just like your storage
HP Storage Services offers a full spectrum of customer care, from technology support to complex
migrations to complete completely managed services. HP Factory Express provides
customization, integration and deployment services for turnkey solutions. HP Education offers
flexible, comprehensive training on storage networking, disk storage systems, and storage
software to help your IT staff get the most out of your investments. And HP Financial solutions
extend innovative financing and asset management programs to cost-effective buy, manage and
eventually retire your older equipment.
HP Storage Services, the trusted business technology experts who manage your technology in
DA - 13036 Worldwide QuickSpecs — Version 21 — 10.16.2015
Page 6
QuickSpecs
HP RDX Removable Disk Backup System
Service and Support, HP Care Pack, and Warranty Information
action, because when technology works, business works. http://www.hp.com/services/storage
NOTE: Care Pack Services availability may vary by product and country.
HP Care Pack Services are sold by HP and HP Authorized Service Partners:
Services for customers purchasing from HP or an enterprise reseller are quoted using HP
order configuration tools.
Customers purchasing from a commercial reseller can find HP Care Pack Services at
http://www.hp.com/go/lookuptool
Recommended
Support
For a higher return on your storage investment, HP Support Plus 24 provides integrated hardware
and software support services designed specifically for your technology. Available 24x7, this 3year combined reactive support option delivers onsite hardware support and over-the-phone
software support around-the-clock. Leverage the full strength of HP Technology Services customers can trust the services professionals at HP to work collaboratively with them, putting our
strategic and technical know-how to work across their entire infrastructure.
Improve uptime with responsive hardware and software services
Enjoy consistent service coverage across geographically dispersed sites
Update HP party software at a predictable cost
Increase customer satisfaction-with no interoperability gaps
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6638EN.pdf
Recommended
Deployment
HP Installation Service.
For smooth startup and better business outcomes, HP Hardware Installation - this service
provides initial hardware installation of your product into your technology environment (system
configuration is not included).
Service Features:
Installation in accordance with your business's configuration requirements
The ability to achieve more effective data management
http://h71028.www7.hp.com/ERC/downloads/5981-9356EN.pdf
DA - 13036 Worldwide QuickSpecs — Version 21 — 10.16.2015
Page 7
QuickSpecs
HP RDX Removable Disk Backup System
Service and Support, HP Care Pack, and Warranty Information
Related HP Care Pack Services that will enhance your HP product
experience
Related Services
For customers who need to improve IT performance and manageability through the use of cost
effective flexible proactive services:
Proactive Select - increased flexibility, minimal complexity -- Select what works for you - your
package
Delivery planning + Proactive Service Credits
Credits are used to redeem proactive services
Three 'predefined' service credit levels - 30, 60,180 credits
Additional credits available
Available in 1,3, 4 & 5 year packages
Reactive
Utilize existing reactive services products - ranging from Next Day, through 24x7, to 6 Hour
Call to Repair
http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA2-3842ENN.pdf
eSupport
HP eSupport is a portfolio of technology-based services that assist you with managing your
business environment - from the desktop to the data center.
Support Portal
The HP support portal provides one-stop access to the information, tools and services you need
to manage the daily operations of your IT environment.
Features include:
Access to self-solve tools (including search technical knowledge base)
Efficient logging and tracking of support cases
Collaboration with other business and IT professionals
Download of patches and drivers
Access to diagnostic tools
Proactive notification of relevant information
Access to certain features of the support portal requires an HP service agreement. To access the
support portal, visit: http://www.hp.com/support
Customer Technical
Training
Consider education as an integral part of your strategy to get the best return on investment for
your HP storage solution. HP offers a variety of training courses on storage software, networking,
archiving and disk storage systems. Our classes are available in many delivery modalities from
traditional instructor-led courses at one of our 80 training centers worldwide to on-site training
customized to your needs or online. http://www.hp.com/learn/storage
HP Services Awards
HP Services continues to be recognized for service and support excellence by customers,
partners, industry organizations and publications around the world. Recent honors and award
reflect our services team's dedications, technical expertise, professionalism and uncompromising
commitment to customer satisfaction. For a list of all our awards, please visit
http://h20219.www2.hp.com/services/cache/433028-0-0-225-121.html
DA - 13036 Worldwide QuickSpecs — Version 21 — 10.16.2015
Page 8
QuickSpecs
HP RDX Removable Disk Backup System
Service and Support, HP Care Pack, and Warranty Information
Additional Services
Information
For more information about HP Care Pack Services for Storage, please visit:
http://www.hp.com/services/storage
If you have specific questions, contact your local HP representative. Contact information for a
representative in your area can be found at "Contact HP" http://www.hp.com
DA - 13036 Worldwide QuickSpecs — Version 21 — 10.16.2015
Page 9
QuickSpecs
HP RDX Removable Disk Backup System
Kit Contents
Model Name
Part Number
HP RDX500 USB3.0 Internal Disk Backup System
RDX Internal Docking Station, installation poster, internal USB cable, HP RDX 500 GB Removable
Disk Cartridge
NOTE: 0D1 will appear after this part number on your sales order if factory integration is indicated.
B7B64A
HP RDX1000 USB3.0 Internal Disk Backup System
RDX Internal Docking Station, installation poster, nternal USB cable, HP RDX 1 TB Removable Disk
Cartridge
NOTE: 0D1 will appear after this part number on your sales order if factory integration is indicated.
B7B67A
HP RDX 2TB USB3.0 Internal Disk Backup Systems
RDX Internal Docking Station, installation poster, internal USB cable, HP RDX 2 TB Removable Disk
Cartridge
NOTE: 0D1 will appear after this part number on your sales order if factory integration is indicated.
E7X52A
HP RDX1000 USB3.0 Gen8 DL Server Module
RDX Removable Disk Backup System DL Server Module, installation poster/flyer, internal USB
cable, power cable, HP RDX 1TB GB Removable Disk Cartridge
NOTE: 0D1 will appear after this part number on your sales order if factory integration is indicated.
B7B70A
HP RDX USB 3.0 Gen8 DL Server Module Docking Station
RDX Removable Disk Backup System DL Server Module, installation poster/flyer, internal USB
cable, power cable. Is backwards and forwards compatible with any RDX capacity media.
C8S08A
HP RDX USB 3.0 Internal Docking Station
RDX Removable Disk Backup System Internal Docking Station installation poster/flyer, internal USB
cable, power cable. Is backwards and forwards compatible with any RDX capacity media.
C8S06A
HP RDX+500 USB3.0 External Disk Backup System
RDX+ External Docking Station, installation poster, external USB Y-cable, HP RDX 500 GB
Removable Disk Cartridge
B7B66B
HP RDX+1TB USB3.0 External Disk Backup System
RDX+ External Docking Station, installation poster, external USB Y-cable, HP RDX 1TB Removable
Disk Cartridge
B7B69B
HP RDX+ 2TB USB3.0 External Disk Backup Systems
RDX+ External Docking Station, installation poster, external USB Y-cable, HP RDX 2TB Removable
Disk Cartridge
E7X53B
HP RDX+ USB 3.0 External Docking Station
RDX+ Removable Disk Backup System External Docking Station installation poster/flyer, external
USB Y-cable. Is backwards and forwards compatible with any RDX capacity media.
C8S07B
DA - 13036 Worldwide QuickSpecs — Version 21 — 10.16.2015
Page 10
QuickSpecs
HP RDX Removable Disk Backup System
Kit Contents
HP StoreEver 1U USB Rack-mount Kit
NOTE: 1U USB Rack-Mount Kit holds up to two internal HP RDX/HP RDX+ Removable Disk
Backup Systems
NOTE: Please refer to the following web page for further information:
http://h18006.www1.hp.com/products/storageworks/1urackmount/index.html
A8007B
Media
HP RDX 500GB Removable Disk Cartridge
HP RDX 1TB Removable Disk Cartridge
HP RDX 2TB Removable Disk Cartridge
DA - 13036 Worldwide QuickSpecs — Version 21 — 10.16.2015
Q2042A
Q2044A
Q2046A
Page 11
QuickSpecs
HP RDX Removable Disk Backup System
Technical Specifications
Physical (HxWxD)
External Dock
Physical (HxWxD)
Removable Disk Cartridge
Shipping (HxWxD)
Internal/External
Shipping (HxWxD)
Removable Disk Cartridge
HP RDX 500
HP RDX 1TB
HP RDX 2TB
2.04 x 4.32 x 7.00 2.04 x 4.32 x 7.00 2.04 x 4.32 x 7.00
in (including
in (including
in (including
bezel)
bezel)
bezel)
(5.18 x 10.98 x
(5.18 x 10.98 x
(5.18 x 10.98 x
17.75 cm
17.75 cm
17.75 cm
(including bezel)) (including bezel)) (including bezel))
0.92 x 3.39 x 4.68 0.92 x 3.39 x 4.68 0.92 x 3.39 x 4.68
in
in
in
(2.34 x 8.66 x
(2.34 x 8.66 x
(2.34 x 8.66 x
11.9 cm)
11.9 cm)
11.9 cm)
8.07 x 7.87 x
8.07 x 7.87 x
8.07 x 7.87 x
15.75 in
15.75 in
15.75 in
(20.5 x 20.0 x 40 (20.5 x 20.0 x 40 (20.5 x 20.0 x 40
cm)
cm)
cm)
3.35 x 5.32 x 7.99 3.35 x 5.32 x 7.99 3.35 x 5.32 x 7.99
in
in
in
(8.50 x 13.5 x
(8.50 x 13.5 x
(8.50 x 13.5 x
20.3 cm)
20.3 cm)
20.3 cm)
Out of box, External Dock
1.19 Ib (540 g)
1.19 Ib (540 g)
1.19 Ib (540 g)
Out of box, Removable Disk
Cartridge
External Dock
Shipping, Removable Disk
Cartridge
0.41 lb (188 g)
0.41 lb (188g)
0.56 lb (255g)
Orientation
Internal Dock
External Dock
Capacity
Performance
Native
Compressed
(assumes 2:1
application based
data compression)
Average sustained
transfer rate,
native
Average sustained
transfer rate,
compressed
(assumes 2:1
application based
data compression)
Burst transfer
rate(USB)
Data access time
Supported file
systems
3.58 lb (1.63 kg)
0.81 lb (367 g)
3.58 lb (1.63 kg) 5.07 lb (2.30Kg)
0.81 lb (367 g)
0.96 lb (435g)
Horizontal +/90 degrees
Horizontal +/90 degrees
500 GB
Horizontal +/90 degrees
Horizontal +/90 degrees
1 TB
N/A
N/A
N/A
N/A
2 TB
1 TB
2 TB
4 TB
100MBs
100MBs
100MBs
200MBs
200MBs
200MBs
600MBs
600MBs
600MBs
12 milliseconds
12
12 milliseconds
milliseconds
FAT32, NTFS, FAT32, NTFS, FAT32, NTFS,
ext2, ext3
ext2, ext3
ext2, ext3
DA - 13036 Worldwide QuickSpecs — Version 21 — 10.16.2015
Page 12
QuickSpecs
HP RDX Removable Disk Backup System
Technical Specifications
Reliability
Media
MTBF (Dock)
MTBF (cartridge)
Uncorrected Error
Rate
Docking Station
Load/Unload
cycles
Cartridge
Load/Unload
cycles
Compatibility
Interface
Interface type
USB connector
Power
Specifications
Power
requirements,
Internal
550,000 hours
@100% duty
cycle
500,000 hours
1 error per 1014
bits read
10,000
(minimum)
550,000 hours 550,000 hours
@100% duty
@100% duty
cycle
cycle
500,000 hours 500,000 hours
1 error per
1 error per 1014
1014 bits read
bits read
10,000
10,000
(minimum)
(minimum)
5,000
(minimum)
5,000
(minimum)
5,000 (minimum)
Backwards and
forwards
compatibility to
any
current/future
RDX removable
disk cartridge
Backwards
and forwards
compatibility to
any
current/future
RDX
removable disk
cartridge
USB 3.0
USB standard
series B
receptacle
+5V ± 5% (100
mV Max ripple)
@ 1.1 A
+12V ± 10%
(150 mV Max
ripple) @ 0.4 A
100 to 240
VAC, 50-60
Hz, autoranging
6.6W/20 W
(typical)/
(peak)
Backwards and
forwards
compatibility to
any
current/future
RDX removable
disk cartridge
Power
requirements,
External
USB 3.0
USB standard
series B
receptacle
+5V ± 5% (100
mV Max ripple)
@ 1.1 A
+12V ± 10%
(150 mV Max
ripple) @ 0.4 A
100 to 240
VAC, 50-60 Hz,
auto-ranging
Power
consumption
6.6W/20 W
(typical)/ (peak)
USB 3.0
USB standard
series B
receptacle
+5V ± 5% (100
mV Max ripple)
@ 1.1 A
+12V ± 10%
(150 mV Max
ripple) @ 0.4 A
100 to 240 VAC,
50-60 Hz, autoranging
6.6W/20 W
(typical)/ (peak)
DA - 13036 Worldwide QuickSpecs — Version 21 — 10.16.2015
Page 13
QuickSpecs
HP RDX Removable Disk Backup System
Technical Specifications
Dimensions
Form Factor
Physical (HxWxD)
External Dock
HP RDX+ Docking
Station
Half-height, 5¼ in
(internal module)
HP RDX+ 500
HP RDX+ 1TB
Half-height, 5¼ in
(internal module)
Half-height, 5¼
in (internal
module)
2.04 x 4.32 x 7.00 in 2.04 x 4.32 x 7.00
(including bezel)
in (including bezel)
(5.18 x 10.98 x 17.75
(5.18 x 10.98 x
cm (including bezel)) 17.75 cm (including
bezel))
Physical (HxWxD)
Removable Disk
Cartridge
0.92 x 3.39 x 4.68 in 0.92 x 3.39 x 4.68
(2.34 x 8.66 x 11.9 cm)
in
(2.34 x 8.66 x 11.9
cm)
Shipping (HxWxD) 8.07 x 7.87 x 15.75 in 8.07 x 7.87 x 15.75
External
(20.5 x 20.0 x 40 cm)
in
(20.5 x 20.0 x 40
cm)
Shipping (HxWxD)
3.35 x 5.32 x 7.99 in 3.35 x 5.32 x 7.99
Removable Disk
(8.50 x 13.5 x 20.3 cm)
in
Cartridge
(8.50 x 13.5 x 20.3
cm)
HP RDX+ 2TB
Half-height, 5¼
in
(internal
module)
2.04 x 4.32 x
2.04 x 4.32 x
7.00 in
7.00 in
(including bezel) (including bezel)
(5.18 x 10.98 x (5.18 x 10.98 x
17.75 cm
17.75 cm
(including
(including
bezel))
bezel))
0.92 x 3.39 x
0.92 x 3.39 x
4.68 in
4.68 in
(2.34 x 8.66 x
(2.34 x 8.66 x
11.9 cm)
11.9 cm)
8.07 x 7.87 x
8.07 x 7.87 x
15.75 in
15.75 in
(20.5 x 20.0 x 40 (20.5 x 20.0 x 40
cm)
cm)
3.35 x 5.32 x
3.35 x 5.32 x
7.99 in
7.99 in
(8.50 x 13.5 x
(8.50 x 13.5 x
20.3 cm)
20.3 cm)
Weight
Out of box, External
Dock
Out of box,
Removable Disk
Cartridge
1.19 Ib (540 g)
1.19 Ib (540 g)
1.19 Ib (540 g)
1.19 Ib (540 g)
0.38 lb (173 g)
0.41 lb (188 g)
0.41 lb (188g)
0.56 lb (255g)
External Dock
Shipping, Removable
Disk Cartridge
3.5 lb (1.59 kg)
0.77 lb (349 g)
3.58 lb (1.63 kg)
0.81 lb (367 g)
3.58 lb (1.63 kg) 5.07 lb (2.30Kg)
0.81 lb (367 g) 0.96 lb (435g)
Horizontal +/- 90
degrees
N/A
Horizontal +/- 90
degrees
500 GB
Horizontal +/- 90 Horizontal +/- 90
degrees
degrees
1 TB
2 TB
N/A
1 TB
2 TB
4 TB
N/A
100MBs
100MBs
100MBs
N/A
200MBs
200MBs
200MBs
Orientation
External Dock
Capacity
Performance
Native
Compressed
(assumes 2:1 application
based data
compression)
Average sustained
transfer rate, native
Average sustained
transfer rate,
compressed
(assumes 2:1 application
based data
compression)
DA - 13036 Worldwide QuickSpecs — Version 21 — 10.16.2015
Page 14
QuickSpecs
HP RDX Removable Disk Backup System
Technical Specifications
Burst transfer
rate(USB)
Data access time
Supported file systems
N/A
600MBs
600MBs
N/A
N/A
12 milliseconds
12 milliseconds
FAT32, NTFS, ext2, FAT32, NTFS,
ext3
ext2, ext3
Reliability
MTBF (Dock)
550,000 hours @100%
550,000 hours
550,000 hours
duty cycle
@100% duty cycle @100% duty
cycle
MTBF (cartridge)
N/A
500,000 hours
500,000 hours
14
Uncorrected Error Rate
N/A
1 error per 10 bits 1 error per 1014
read
bits read
Media
Docking Station
10,000 (minimum)
10,000 (minimum)
10,000
Load/Unload cycles
(minimum)
Cartridge Load/Unload
N/A
5,000 (minimum) 5,000 (minimum)
cycles
Compatibility
Backwards and
Backwards and
Backwards and
forwards compatibility
forwards
forwards
to any current/future compatibility to any compatibility to
RDX removable disk current/future RDX
any
cartridge
removable disk
current/future
cartridge
RDX removable
disk cartridge
Interface
Interface type
USB 3.0
USB 3.0
USB 3.0
USB connector
USB standard series B
USB standard
USB standard
receptacle
series B receptacle
series B
receptacle
Power
Power requirements, +5V ± 5% (100mV Max +5V ± 5% (100 mV +5V ± 5% (100
Specifications Internal
ripple) @1.1A
Max ripple) @ 1.1 A mV Max ripple)
+12V ± 10% (150mV +12V ± 10% (150
@ 1.1 A
Max ripple) @0.4A
mV Max ripple) @
+12V ± 10%
0.4 A
(150 mV Max
ripple) @ 0.4 A
Power requirements, 100 to 240 VAC, 50-60 100 to 240 VAC, 100 to 240 VAC,
External
Hz, auto-ranging
50-60 Hz, auto50-60 Hz, autoranging
ranging
Power consumption
5.0W/3.6 W/1.2W
5.0W/3.6 W/1.2W
5.0W/3.6
(Max)/Average/Idle) (Max/ Average/Idle)
W/1.2W
(Max/
Average/Idle))
Environmental Temperature range
Specifications Relative humidity
(all models)
Altitude
600MBs
12 milliseconds
FAT32, NTFS,
ext2, ext3
550,000 hours
@100% duty
cycle
500,000 hours
1 error per 1014
bits read
10,000
(minimum)
5,000
(minimum)
Backwards and
forwards
compatibility to
any
current/future
RDX removable
disk cartridge
USB 3.0
USB standard
series B
receptacle
+5V ± 5% (100
mV Max ripple)
@ 1.1 A
+12V ± 10%
(150 mV Max
ripple) @ 0.4 A
100 to 240 VAC,
50-60 Hz, autoranging
5.0W/3.6
W/1.2W
(Max/
Average/Idle)
Vibration
Shock: Cartridge nonoperating drop shock
Standards Compliance cURus Recognized (UL60950), TÜV EN60950 (IEC 60950), FCC and CE Declaration of
(all models)
Conformity, C-TICK Approved (AS/NZS CISPR22), VCCI Approved, RRL Approved, BSMI
Approved, GOSH Approved
DA - 13036 Worldwide QuickSpecs — Version 21 — 10.16.2015
Page 15
QuickSpecs
HP RDX Removable Disk Backup System
Technical Specifications
Front Panel LED
Eject Button/Power
Indicators and buttons LED (on docking
(all models)
station)
Off
Green
Blinking Green
Amber
No Power
Power is on and unit is working correctly
Unit is ejecting the cartridge
Unit has detected a fault. For more
information run a diagnostic application
Blinking Amber
Host computer is accessing the media, and
the user has pressed the eject button. The
unit will eject the cartridge after the host
access completes
Activity LED (on
Green
Cartridge is ready
cartridge)
Blinking Green
Activity (Reading, writing, seeking)
Amber
Unit has detected a fault. For more
information run a diagnostic application
Emergency Eject Hole Emergency Eject Hole to eject the cartridge
DA - 13036 Worldwide QuickSpecs — Version 21 — 10.16.2015
Page 16
QuickSpecs
HP RDX Removable Disk Backup System
Summary of Changes
Date
16-Oct-2015
05-Jun-2015
Version History
From Version 20 to 21
From Version 19 to 20
Action
Added
Description of Change:
Added mention of Yosemite Backup software + Fixed Disk
Mode. Added new picture of RDX+ system.
Removed
Removed DL erver Backup Modules. Removed RDX
External Disk Backup Systems. Removed RDX docking
Station. Removed mention of CDP software. Removed
320 GB cartridges and systems. Removed mention of
any CD’s in kit contents.
Changed
Modified to have RDX+ be a version.
Added
Added all previous SKUs that were incorrectly deleted.
Added RDX+ SKUs, removed all RDX system and RDX
Docking station SKUs.
Changed the picture from fist page.
Changes made to Overview, What's New, Features and
Technical Specifications sections.
Changes made to Overview, What's New, Features and
Kit Contents sections.
Change made to Kit Content titles in Kit Content section.
Correction made to the North America and Canada
versions only.
Change made to the URL in Service and Support, HP
Care Pack and Warranty Information section.
Change made to the URL in Service and Support, HP
Care Pack and Warranty Information section.
Changes were made in Compatibility section.
Changes made throughout the QuickSpec.
Mentions of StorageWorks were removed.
HP RDX 1TB Removable Disk Backup System was added
and HP RDX 750GB Removable Disk Backup System
was removed
01-Jun-2015
From Version 18 to 19
Changed
15-Sep-2014
31-Mar-2014
From Version 17 to 18
From Version 16 to 17
Changed
Changed
25-Mar-2013
From Version 15 to 16
Changed
26-Nov-2012
13-Nov-2012
From Version 14 to 15
From Version 13 to 14
Changed
Changed
12-Oct-2012
From Version 12 to 13
Changed
21-Sep-2012
From Version 11 to 12
Changed
14-Sep-2012
13-Aug-2012
08-Jun-2011
15-Nov-2010
From Version 10 to 11
From Version 9 to 10
From Version 8 to 9
From Version 7 to 8
Changed
Changed
Removed
Changed
HP ProLiant DL385 G7 Server was added
27-Sep-2010
From Version 6 to 7
Changed
16-Feb-2010
05-Jun-2009
From Version 5 to 6
From Version 4 to 5
Changed
Changed
01-Apr-2009
From Version 3 to 4
Added
30-Mar-2009
From Version 2 to 3
Changed
17-Nov-2008
From Version 1 to 2
Added
Changed
www.hp.com/storage/spock was added to Compatibility
Kit Contents models were completely revised, Product
descriptions were revised in Media and Models were
removed from the Overview.
Changes made throughout the entire QuickSpec.
Updated the Out of box, Removable Disk Cartridge
Weight and Shipping, Removable Disk Cartridge Weight
for the HP RDX 500 and HP RDX DL380 G6 server
module in the Technical Specifications section.
Added "including the HP ProLiant DL380 G6 servers" to
the Compatibility section.
Revised the Introduction and What's New sections. Other
updates made throughout the QuickSpec.
Added Model numbers AP724A, AP725A, AP726A
Changes made throughout the entire QuickSpec.
DA - 13036 Worldwide QuickSpecs — Version 21 — 10.16.2015
Page 17
QuickSpecs
HP RDX Removable Disk Backup System
Summary of Changes
© Copyright 2015 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel is a US registered trademark of Intel
Corporation.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such
products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for
technical or editorial errors or omissions contained herein.
For RDX+ drives and media, 1 GB = 1 billion bytes. Actual formatted capacity is less.
DA - 13036 Worldwide QuickSpecs — Version 21 — 10.16.2015
Page 18
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
