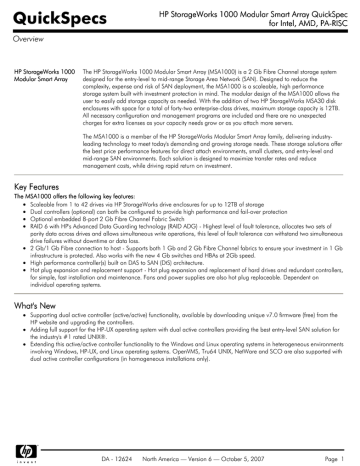

QuickSpecs
QuickSpecs
HP StorageWorks 1000 Modular Smart Array QuickSpec
for Intel, AMD, PA-RISC
Overview
HP StorageWorks 1000
Modular Smart Array
The HP StorageWorks 1000 Modular Smart Array (MSA1000) is a 2 Gb Fibre Channel storage system
designed for the entry-level to mid-range Storage Area Network (SAN). Designed to reduce the
complexity, expense and risk of SAN deployment, the MSA1000 is a scaleable, high performance
storage system built with investment protection in mind. The modular design of the MSA1000 allows the
user to easily add storage capacity as needed. With the addition of two HP StorageWorks MSA30 disk
enclosures with space for a total of forty-two enterprise-class drives, maximum storage capacity is 12TB.
All necessary configuration and management programs are included and there are no unexpected
charges for extra licenses as your capacity needs grow or as you attach more servers.
The MSA1000 is a member of the HP StorageWorks Modular Smart Array family, delivering industryleading technology to meet today's demanding and growing storage needs. These storage solutions offer
the best price performance features for direct attach environments, small clusters, and entry-level and
mid-range SAN environments. Each solution is designed to maximize transfer rates and reduce
management costs, while driving rapid return on investment.
Key Features
The MSA1000 offers the following key features:
Scaleable from 1 to 42 drives via HP StorageWorks drive enclosures for up to 12TB of storage
Dual controllers (optional) can both be configured to provide high performance and fail-over protection
Optional embedded 8-port 2 Gb Fibre Channel Fabric Switch
RAID 6 with HP's Advanced Data Guarding technology (RAID ADG) - Highest level of fault tolerance, allocates two sets of
parity data across drives and allows simultaneous write operations, this level of fault tolerance can withstand two simultaneous
drive failures without downtime or data loss.
2 Gb/1 Gb Fibre connection to host - Supports both 1 Gb and 2 Gb Fibre Channel fabrics to ensure your investment in 1 Gb
infrastructure is protected. Also works with the new 4 Gb switches and HBAs at 2Gb speed.
High performance controller(s) built on DAS to SAN (DtS) architecture.
Hot plug expansion and replacement support - Hot plug expansion and replacement of hard drives and redundant controllers,
for simple, fast installation and maintenance. Fans and power supplies are also hot plug replaceable. Dependent on
individual operating systems.
What's New
Supporting dual active controller (active/active) functionality, available by downloading unique v7.0 firmware (free) from the
HP website and upgrading the controllers.
Adding full support for the HP-UX operating system with dual active controllers providing the best entry-level SAN solution for
the industry's #1 rated UNIX®.
Extending this active/active controller functionality to the Windows and Linux operating systems in heterogeneous environments
involving Windows, HP-UX, and Linux operating systems. OpenVMS, Tru64 UNIX, NetWare and SCO are also supported with
dual active controller configurations (in homogeneous installations only).
DA - 12624
North America — Version 6 — October 5, 2007
Page 1
QuickSpecs
HP StorageWorks 1000 Modular Smart Array QuickSpec
for Intel, AMD, PA-RISC
MSA1000 Highlights
High Levels of
Performance, Scalability,
and Functionality
DtS Architecture
(Direct Attach to SAN)
Data Migration
Performance – The MSA1000 and its components have been designed using standard 2 Gb
interconnects and Fibre Channel technology. Performance is rated at a transmission rate of up to
30,000 IOPs from cache and bandwidth of up to 200 MB per second. With dual controller
active/active configurations, performance increases to >41,000 IOP/s from cache and 367MB/s
throughput. Performance can be substantially impacted by number of users and type of
application.
Modular Chassis – The modular design of the MSA1000 cabinet supports up to fourteen 1"
Universal hard drives, redundant controllers, 2 Gb embedded fabric switches or hubs, fans and
power supplies in a 4U rackmount cabinet.
Scalability – The MSA1000 is easily expanded. The MSA1000 cabinet scales to 4 TB using
fourteen 300 GB, 1" HP Ultra320 Universal hard drives. By simply adding additional
StorageWorks disk Enclosures (two enclosures max), the MSA1000 scales to 12 TB using forty-two
300 GB 1" HP Universal hard drives - all within 10U of rack space.
MSA SAN Switch 2/8 – The optional MSA SAN Switch 2/8, which can be installed within the
MSA1000 cabinet, offers 2 Gb full fabric performance at an attractive price. A second MSA SAN
Switch 2/8 can be installed for redundancy. There are seven pluggable ports available (four SFPs
are included). The eighth port is directed internally to the controller.
MSA Hub 2/3 – Not available for use with OpenVMS or Tru64 UNIX operating systems. The
optional MSA Hub 2/3, which can be installed within the MSA 1000, offers 2 Gb performance.
With two ports accessible by the user, the MSA Hub 2/3 is the ideal interconnect for low-cost 2node clustering or simply attaching two servers. A second MSA Hub 2/3 along with a second
controller can be installed for redundancy. This hub ships with two SFPs included. Now supports
2Gb and 4Gb HBAs.
Hot Plug Expansion and Replacement Support – The MSA1000 supports hot plug expansion and
replacement of hard drives, redundant controllers, fabric switches or hubs for simple, fast
installation and maintenance. Fans and power supplies are also hot plug replaceable.
RAID 6 with HP's Advanced Data Guarding technology (RAID ADG) – This is the highest level of
fault tolerance. It allocates two sets of parity data across drives and allows simultaneous write
operations. This level of fault tolerance can withstand two simultaneous drive failures without
downtime or data loss.
DtS (Direct Attach to SAN) architecture is an exclusive MSA1000 feature that provides a quick and easy
way to migrate stored data, disks and enclosures protected by most U320 SCSI Smart Array controllers to
a MSA1000 storage system.
Data that is currently stored on 1" Universal Ultra320 disk drives using recent HP Smart Array controllers,
as well as data on a RA4100 or an MSA500 can easily be migrated to the MSA1000. Simply remove the
drives from the older systems and insert them into the MSA1000. All configuration information and data
will be preserved allowing migration to be completed in minutes, not hours or days. Refer to the
MSA1000 DtS Data Migration White Paper for a list of compatible Smart Array controllers and further
details.
DA - 12624
North America — Version 6 — October 5, 2007
Page 2
QuickSpecs
HP StorageWorks 1000 Modular Smart Array QuickSpec
for Intel, AMD, PA-RISC
MSA1000 Highlights
Broad Server, Operating The modular and scalable design of the MSA1000 provides an extremely flexible platform. You can buy
System and FC
what you need today and purchase additional capacity and performance as your data storage needs
Interconnect Support
grow, instead of making a large up-front investment. Additional drives, controllers, cache, fabric switches
and storage enclosures can easily be added, as your storage needs change.
Fabric Support for 1, 2, and 4 Gb Infrastructure – The MSA1000 supports 1, 2, and 4 Gb FC
fabrics to ensure that your investment in your current or future infrastructure is protected.
Optional embedded interconnects – Both the MSA SAN Switch 2/8 and the MSA Hub 2/3
requires no rack space as they are installed in the MSA1000's chassis. This not only saves valuable
rack space (up to 2U saved) but also eliminates some of the cabling needed with external
interconnects. The MSA SAN Switch 2/8 ships with 4 SFPs installed and the MSA Hub 2/3 ships
with 2 SFPs.
Universal Hard Drive – Since the MSA1000 supports HP Universal 1" Ultra2, Ultra3 and Ultra320
drives, your investment in SCSI technology is protected and cost is minimized as you add new
drives.
Pre-Failure Warranty – Drives installed in an MSA1000 and monitored under Insight Manager are
supported by a Pre-Failure (replacement) Warranty.
NOTE: Pre-Failure Warranty allows for the replacement of designated drives in an MSA1000
before they actually fail when using Insight Manger on ProLiant servers.
NOTE: Some operating systems may not support all of these features.
Multi-platform Intel®, AMD® Opteron, PA-RISC and Alpha based Server Support – The
MSA1000 offers Multi-platform server support to allow a broad range of servers to take advantage
of the MSA1000's scalability, flexibility and connectivity, and supports ACU and Insight Manager.
When used with a ProLiant server, the MSA1000 also provides unparalleled integration with the
MSA1000 Support CD and Pre-Failure Warranty support.
SCO UnixWare support – SCO OpenServer 6.0.0, SCO UnixWare 7.1.3 with Maintenance Pack
3 and 7.1.4 are supported.
Integrated Configuration and Management Tools – The MSA1000 utilizes a standard, integrated
set of management and utility software. These tools consistently lower the cost of ownership by
reducing training and technical expertise necessary to install and maintain the MSA1000.
The MSA1000 comes with/supports the following configuration and management tools depending on
what operating system:
Configuration
Provides a graphical view of HP drive array configurations
(solution chosen as
Easy to use Wizards for configuration
appropriate for operating
ACU supports on-line configuration
system)
Web Based ACU supports On-Line, Remote Web Based and Off-line
configuration
Management/Health
Insight Manager (IM)
(solution chosen as
EMS Used in conjunction with HP-UX servers
appropriate for operating
Array Diagnostics Utility (ADU) This utility collects information about
system)
the array controllers in the system and generates a list of potential
problems it has identified
HP StorageWorks Modular Smart Array SMI-S Provider for Windows
2000/Windows Server 2003
ACU/ADU Bootable Utility
The MSA1000 Support Software CD is a bootable media that enables
(solution chosen as
a server to boot into a Linux shell and launch the ACU allowing
appropriate for operating
configuration of the storage or generate a diagnostic report without
system)
requiring a pre-installed operating system or drivers.
DA - 12624
North America — Version 6 — October 5, 2007
Page 3
QuickSpecs
HP StorageWorks 1000 Modular Smart Array QuickSpec
for Intel, AMD, PA-RISC
Models
HP StorageWorks
1000 Modular Smart
Array
MSA1000, with 256 MB cache
MSA1000 Controller, with 256 MB cache
256 MB Cache Module upgrade for Controller
MSA Fibre Channel I/O Module
MSA Hub 2/3 (integrated) ships with 2 SFPs installed
MSA SAN Switch 2/8 (integrated) ships with 4 SFPs installed
2 Gb SFP SW Transceiver Kit
MSA1000 additional
Modular Smart Array 30 (MSA30) drive enclosure, single bus
drive enclosures
Modular Smart Array 30 (MSA30) drive enclosure, dual bus
MSA1000 SAN Starter
HP StorageWorks MSA1000 SAN Starter G2 Kit (Windows, NetWare or Linux
G2 Kit
compatible)
(w/ PCI-E HBAs)
NOTE: Includes (1) MSA1000 (1) MSA SAN Switch 2/8, (2) FC1142SR 4Gb PCI-E
HBAs + cables
MSA1000 SAN Starter Kit HP StorageWorks MSA1000 SAN Starter Kit HA Bundle
High Availability G2
NOTE: Includes (1) redundant controller; (1) HP MSA SAN Switch 2/8 (4) SFP
Bundle
transceivers (2) FC1142SR 4Gb PCI-E HBAs + cables. Designed as an upgrade for
(w/ PCI-E HBAs)
the MSA1000 SAN Starter G2 Kit. Software is required to enable path failover. This
can be Industry Standard (MPIO for Windows, QLogic for Linux) or optional Secure
Path (available for most Windows, Linux and NetWare versions)
Secure Path Workgroup HP StorageWorks Secure Path v4.0C for Windows Workgroup Edition
Editions
HP StorageWorks Secure Path v3.0C for NetWare Workgroup Edition
(active/passive
Secure Path v3.0C for Linux Workgroup Edition
configurations only)
ProLiant Cluster Starter Kit for the Entry Level SAN for Windows 2000 and Windows
2003 (dual server, single path)
ProLiant Cluster HA/F200 for Entry Level SAN, Windows 2000 and Windows 2003
(dual server, redundant path)
MSA1000 Small Business HP StorageWorks MSA1000 Small Business SAN G2 Kit (Windows and Linux
SAN G2 Kit
compatible)
NOTE: Includes (1) MSA1000; (1) 4/10q FC Switch; (4) SFP transceivers; (2) HP
QLE220 FC HBAs (PN AG527A) + cables.
NOTE: Factory Racking and Configure-to-Order is not available for this kit.The
MSA1000 Small Business G2 Kit is not designed to connect to any other
StorageWorks SAN or interconnect. See the MSA1000 Small Business link at
http://www.hp.com/go/msa1000 for additional details
HP StorageWorks MSA1000 Small Business HA Upgrade G2 Kit for Windows and
Linux
NOTE: Includes (1) redundant controller; (1) Fibre Channel I/O Module (1) 4/10q
FC Switch; (2) HP QLE220 FC HBAs (PN AG527A); (4) SFP transceivers and cables.
NOTE: Factory Racking and Configure-to-Order is not available for this kit.
HP QLE220 4/2 Gb, 32-Bit/133 MHz PCI-e Fibre Channel Host Bus Adapter
NOTE: This is a single channel HBA for Windows 2003 and Linux, ONLY for use with
the MSA1000 Small Business SAN G2 Kit
HP QLE220 4/2 Gb, 32-Bit/133 MHz PCI-e Fibre Channel Host Bus Adapter
NOTE: This sku is only used when being included in an HP factory integrated order
including ProLiant servers. Windows 2003 and Linux ONLY.
DA - 12624
North America — Version 6 — October 5, 2007
201723-B22
218231-B22
254786-B21
218960-B21
286763-B21
288247-B21
A7446B
302969-B21
302970-B21
353803-B23
397079-B22
213076-B26
222411-B22
T3581A
364023-B22
364026-B22
AG525A
AG526A
AG527A
AG527A#0D1
Page 4
QuickSpecs
HP StorageWorks 1000 Modular Smart Array QuickSpec
for Intel, AMD, PA-RISC
Models
DA - 12624
North America — Version 6 — October 5, 2007
Page 5
QuickSpecs
HP StorageWorks 1000 Modular Smart Array QuickSpec
for Intel, AMD, PA-RISC
MSA1000 Components
With the following components, your storage capacity and performance can be scaled to new levels:
HP StorageWorks
The 4U cabinet houses up to fourteen 1" Universal hot pluggable Ultra2, Ultra3, and/or Ultra320 drives.
Modular Smart Array
Each MSA1000 includes the following standard components: (1) MSA1000 Controller, (1) MSA Fibre
1000
Channel I/O Module with a single SFP, dual hot pluggable fans/power supplies and power cables,
documentation and a support software CD.
The modular design of the MSA1000 makes it possible to add redundant controllers, redundant single
port Fibre Channel I/O Modules, 3-port hub, or embedded fabric switch and storage expansion
enclosures. Additional storage enclosures may be added without power cycling the MSA1000.
MSA1000 Controller
The MSA1000 Controller is an integrated RAID controller with an LCD/LED status display and 256 MB
read/write battery-backed cache (expandable to 512 MB per controller). One MSA1000 Controller is
included with the MSA1000; a redundant MSA1000 Controller is an option. Purchase of Secure Path
software or use of various industry standard MPIO solutions is a requirement if a second controller is
chosen.
Key Features
Redundant controller support with mirrored cache
Fabric, Private Loop & Public Loop Support
Auto Negotiated F, FL & L Port Login
RAID 0, 1, 1+0, 5 and ADG
2 Gb/1 Gb Frequency Agile
Primary and Secondary Inter-Controller Link (ICL)
Host based configuration via ACU (OS dependent)
Optionally configurable with Command Line Interface (CLI)
Remote configuration and monitoring via ACU (offline and remote) &
Insight Manager (OS dependent)
MSA1000 Controller
Selective Storage Presentation:
Presentation allows multiple hosts to access a single
Management Features
MSA1000 storage system. Host access can be defined all the way
down to a logical volume level.
Online RAID Level Migration:
Migration allows for online post-configuration
change to RAID level without destroying data or volume information.
Online Capacity Expansion:
Expansion lets you add storage to an operational
MSA1000-reducing expensive server downtime.
Global Online Spare:
Spare reduces the risk of data loss by facilitating
automatic rebuilds after a drive failure.
Fault Tolerance
Several fault tolerant configurations which keep data available and servers
running while drives are being replaced are supported including:
RAID 6 with Advanced Data Guarding:
Guarding Allocates the equivalent of
two parity drives across multiple drives and allows simultaneous write
operations.
Distributed Data Guarding (RAID 5): Allocates parity data across
multiple drives and allows simultaneous write operations.
Drive Mirroring (RAID 1, (1+0 Striped Mirroring)): Allocates half of
the drive array to data and the other half to mirrored data, providing
two copies of every file.
DA - 12624
North America — Version 6 — October 5, 2007
Page 6
QuickSpecs
HP StorageWorks 1000 Modular Smart Array QuickSpec
for Intel, AMD, PA-RISC
MSA1000 Components
Fault Recovery
Minimizes downtime, reconstructs data, and facilitates a quick recovery from
drive failure:
Online Spares:
Spares If a failure occurs, recovery begins with an online
spare and data is reconstructed automatically. Multiple online spares
can be assigned per array and used across multiple arrays. It is also
possible to assign different online spares across different arrays.
Array Accelerator:
Accelerator Onboard, battery-backed cache memory protects
data in the event of a power failure. In the unlikely event of a controller
failure, the battery-backed cache will save critical user data.
MSA Fibre Channel I/O
Module
Provides a single 2 Gb Fibre Channel connection per controller from the host side into the MSA1000.
The MSA Fibre Channel I/O Module includes one 2 Gb, Short Wave, Small-Form-Factor-pluggable
Transceiver (SFP). A second MSA Fibre Channel I/O Module can be installed for redundancy when a
redundant controller is used.
The single I/O module can be used in a direct connect configuration (no switch or hub) in Windows,
Linux, NetWare, SCO and HP-UX only.
MSA SAN Switch 2/8
(embedded)
The optional MSA SAN Switch 2/8 offers low price per port and full scalability, doing so while taking zero
rack space, even in a redundant configuration. This second generation integrated switch option offers the
customer more ports than our previous offering and is a full member of the HP SAN Switch family,
assuring interoperability from the smallest to the largest SAN configuration. The HP StorageWorks MSA
SAN Switch 2/8 can be used by the true entry-level customer looking for a very inexpensive switch based
on cost per port. This same switch can be attractive to the larger customer who must have the
interoperability with their other external B-Series SAN switch products from HP and especially appreciates
the rack space saving characteristics.
(The MSA SAN Switch 2/8 replaced the obsolete MSA Fabric Switch 6 option.)
Key Features
Eight 2 Gb ports: 1 to controller, 7 user accessible
Product ships with 4 SFPs installed
No E-port restriction, accepts all optional software
Interoperates with external HP B-Series SAN Switch 2 and 4 Gb
switches
Configuration and management methodology common with SAN
Switch product line, same methods as installed base of 40,000+ HP 1
and 2Gb SAN Switches
DA - 12624
North America — Version 6 — October 5, 2007
Page 7
QuickSpecs
HP StorageWorks 1000 Modular Smart Array QuickSpec
for Intel, AMD, PA-RISC
MSA1000 Components
MSA Hub 2/3 (embedded) The HP StorageWorks MSA Hub 2/3 is a low-cost interconnect designed for clustering or low cost, high
Active/passive
speed attachment of two servers to the MSA1000. The MSA Hub 2/3 is a 3-port Fibre Channel
configurations only
Arbitrated Loop hub that is mounted on a blade that easily installs inside the MSA1000 storage unit,
saving valuable rack space. Two of these hubs may be installed for redundancy within the MSA1000.
The MSA Hub 2/3 is not cascadable. It is not certified for Alpha environments.
The hub presents the user with two SFP ports for simple direct attachment to two single or clustered
servers without having to purchase an external interconnect device. It offers the most cost-effective
solution for a user to enable a clustered server environment.
High Performance:
Performance supports MSA1000 with a 2 Gb interconnect capable of up to 200 MB
throughput
Low Cost:
Cost supports the entry-level SAN array with the most cost effective option for 2-node
clustering
Compact:
Compact installs in the MSA1000, replacing the I/O module, saving valuable rack space
Complete:
Complete comes with two SW SFPs - no need for further investment
Only supported with active/passive firmware
Not qualified with servers utilizing Tru64 UNIX or OpenVMS operating systems.
2/4 Gb Small Form
Factor pluggable (SFP)
SW Transceiver Kit
2/4 Gb Small-Form-Factor-pluggable (SFP) SW Transceivers are industry standard connection devices,
which hot plug into 2 or 4 Gb infrastructure components such as 2 or 4 Gb Fabric Switches. HP
StorageWorks 2/4 Gb SFP SW Transceivers support distances up to 300 meters at 2 Gb and 500 meters
at 1 Gb using multi-mode fiber optic cable.
Multi-Mode Fibre Channel Multi-Mode Fibre Channel cables provide a thin, flexible cabling solution that is immune to
Cables
electromagnetic interference. HP offers cables to connect the MSA1000 to 4 Gb, 2 Gb and 1 Gb Fibre
Channel infrastructures. LC to LC cables are used when connecting the MSA1000 to 2 or 4 Gb Fibre
Channel components because both connections will utilize small form factor transceivers. LC to SC
cables are used when connecting the MSA1000 to 1 Gb Fibre Channel components. 1 Gb components
use the larger GBIC style transceivers.
DA - 12624
North America — Version 6 — October 5, 2007
Page 8
QuickSpecs
HP StorageWorks 1000 Modular Smart Array QuickSpec
for Intel, AMD, PA-RISC
Software Components
The MSA1000 utilizes a single, consistent set of utility software for storage and RAID management, setup, configuration and
troubleshooting. This consistency reduces the cost of ownership by reducing the training and technical expertise necessary to install
and maintain your HP storage solution.
Array Configuration Utility
Provides a graphical view of HP drive array configurations
(solution chosen as
Easy to use Wizards for configuration
appropriate for operating
ACU supports on-line configuration
system)
Web Based ACU supports On-Line, Remote Web Based and Off-line configuration
Runs online on Microsoft Windows 2000 and 2003
Selective Storage
Presentation (SSP)
Built-in to MSA1000 Controller firmware and controlled via ACU
Allows setting of access rights to the MSA1000 storage by hosts
Access control can be set up to a logical volume level using the Array Controller Utility
Insight Manager
(solution chosen as
appropriate for operating
system)
Powerful storage, server and server option management tool
Monitor storage from a remote central location
Browser based System Insight Manager provides full access from anywhere on the Intranet,
eliminating the need for a dedicated Insight Manager management console
OS Support for Single
controller or dual
controller active/passive
configurations
Microsoft Windows Enterprise Edition 2003 (32 & 64-bit) R2
Microsoft Windows Standard Edition 2003 (32 & 64-bit) R2
Microsoft Windows 2000 Server Edition (32 & 64-bit)
Microsoft Windows 2000 Advanced Server (sp4) (32 & 64-bit)
HP-UX 11.11, 11.23 and 11.31
Red Hat Linux Enterprise Advanced Server and Enterprise Linux 3.0, 4.0, and 5.0 (32-bit & 64-bit)
SuSE Linux SLES8, SLES9, and SLES 10 (32 & 64-bit)
Netware 6.5.
Tru64 UNIX or OpenVMS supported in homogeneous environments only (no hub support).
SCO OpenServer 6.0.0, SCO UnixWare 7.1.3 and UnixWare 7.1.4
Please refer to compatibility matrix at http://www.hp.com/go/msa1000 for complete configuration
support.
OS Support for
Dual controller
active/active firmware
(requires 2nd controller
and free firmware
download)
Optional controller firmware is available for downloading at no cost from the HP MSA1500 Web Site
that enables both controllers to operate in an active/active mode. The following are the only operating
systems that have been tested and are supported with active/active functionality in a homogeneous
configuration only. Dual active (active/active) controller support is heterogeneous with Windows, HP-UX,
and Linux environments.
Microsoft Windows Standard and Enterprise Editions 2003 (32 & 64-bit) R2
Microsoft Windows 2000 Server and Advanced Server (SP4) Editions (32 & 64-bit)
HP-UX 11.11, 11.23, and 11.31
Red Hat Linux Enterprise Linux 3, 4, and 5 (32-bit & 64-bit)
SuSE Linux SLES8, SLES9, SLES 10 (32 & 64-bit)
Tru64 UNIX or OpenVMS supported in homogeneous environments only (no hub support).
NetWare 6.5
SCO
NOTE: HP Secure Path is not supported on active/active controller configurations. Industry standard
failover methodology is employed.
DA - 12624
North America — Version 6 — October 5, 2007
Page 9
QuickSpecs
HP StorageWorks 1000 Modular Smart Array QuickSpec
for Intel, AMD, PA-RISC
Software Components
HP-UX support
The MSA1000 for HP-UX only supports active/active dual controller configurations or single controller
configurations. Two controller, active/passive configurations are not supported. HP-UX support is
heterogeneous with Windows and Linux. Command Line Interface (CLI) is used for configuration and
Event Monitoring Service (EMS) for monitoring. Root/Boot/Dump/Swap/Install is also supported.
Command Line Interface (ACU/CLI) is used for configuration and Event Monitoring Service (EMS)
for monitoring.
Root/Boot/Dump/Swap/Install is supported.
PV Links is supported for multi (HBA) path / single controller (2 HBAs) configurations.
Fabric and direct Connect are supported
HP-UX 11.11, 11.23, and 11.31 PA-RISC and Itanium
SCO UnixWare and
OpenServer
HP's MSA1000 SAN solution is available today to run on SCO UnixWare 7.1.3 and 7.1.4 and SCO
OpenServer 6.0.0. The MSA1000 with a single controller or dual/active controllers may be connected to
a ProLiant server with SCO UnixWare in one of the below described manners:
Direct Attach
Through an internal switch
Software Certifications
Microsoft Cluster Server Certification
HP Serviceguard for Linux & HP-UX
Hewlett Packard Data Protector
VERITAS Backup Exec and NetBackup
Legato NetWorker for Windows
SteelEye LifeKeeper for Linux Certification
Please refer to compatibility matrix at http://www.hp.com/go/msa1000 for complete configuration
support.
DA - 12624
North America — Version 6 — October 5, 2007
Page 10
QuickSpecs
HP StorageWorks 1000 Modular Smart Array QuickSpec
for Intel, AMD, PA-RISC
Optional Software
HP StorageWorks Secure
Path
(only for use with dual
controller active/passive
configurations)
Secure Path is not supported with dual active (active/active) controller configurations. Industry standard
MPIO solutions are employed for those situations.
HP StorageWorks Secure Path is a family of high availability multi-pathing software products providing
continuous data access from the HP RAID Array to host servers running the Windows Server 2003,
Windows 2000, Linux and NetWare operating systems.
Redundant hardware, advanced RAID technology and Secure Path's automated failover capability are
used to enhance fault tolerance and availability. Secure Path effectively eliminates controllers, disk drives,
interconnect hardware and host bus adapters as single points of failure in the storage subsystem.
The attachment of non-Secure Path (single HBA) servers to an MSA1000 with dual controllers
(active/passive) that has servers with Secure Path (dual HBA) attached is supported where the operating
systems are Windows or NetWare. Users must realize that in event of a controller fail-over (failure of
active controller) the single path servers will lose access to their data on the MSA1000.
NEW – Secure Path can now support up to an 8-node cluster in Windows Server 2003.
NOTE: If Secure Path for Linux is used on any node or cluster attached to an MSA1000, all nodes must
also have Secure Path installed, regardless of operating systems.
NOTE: refer to http://www.hp.com/go/securepath for the latest Secure Path parameters.
Key Features
Maintains connections to storage
Monitors I/O paths and alerts on significant events
Used in
Stand alone Configurations
Cluster configurations
SAN configurations
MSA1000 utilization of
HP supports additional high availability multi-pathing capabilities within various operating systems and
Industry Standard fail-over through third-party vendors, providing continuous data access from HP's RAID MSA1000 to host servers.
solutions
Options are available for servers running the Windows and Linux operating systems. More information
and the explanation of restrictions are available at
http://h18006.www1.hp.com/products/sanworks/multipathoptions/index.html
Microsoft Windows 2000 and 2003 (32 bit EE and 64 bit EE only)can utilize the HP MPIO Basic
Failover v1.3 for MSA Arrays, a DSM available for free download at the above site. MSAs in
active/active configurations use the Full Featured MPIO.
Linux industry standard failover for the MSA1000 is available at no charge within the HBA device
driver from QLogic (A/A or A/P) or Emulex (active/active only).
HP-UX utilizes PV-Links. NetWare, OpenVMS, Tru64 UNIX, and NetWare use path fail-over
methods intrinsic to the OSes.
DA - 12624
North America — Version 6 — October 5, 2007
Page 11
QuickSpecs
HP StorageWorks 1000 Modular Smart Array QuickSpec
for Intel, AMD, PA-RISC
Optional Software
MSA1000 clustering
Clustering is rapidly gaining in popularity as users desire a high level of data availability. Many of the old
cluster restrictions that were the product of both hardware and operating systems have been overcome.
While there still remain configuration limits, the result is a new high degree of flexibility both in number of
clusters, mixing clusters with single nodes, and the integration of dissimilar operating systems.
For example you may mix three Microsoft (Windows Server 2003 or Windows 2000) clusters and other
individual servers, even doing so in a heterogeneous server operating system environment. Windows
Server 2003 allows a single cluster of up to eight nodes.
Single-path (single controller, non-Secure Path) NetWare clustering has been successfully tested up to a
12-node cluster. NetWare clusters employing Secure Path (dual controller, dual HBAs) are limited to six
nodes. Multiple NetWare clusters (and single servers) may have concurrent access with no limitation
inherent to the MSA1000. Likewise up to a 16-node Linux cluster (single controller, non-Secure Path)
utilizing SteelEye LifeKeeper for Linux clustering software has been tested and is supported. Presently a
Linux/Secure Path configuration is limited to a two-node cluster. Refer to
http://www.hp.com/go/securepath for any restriction on Linux with Secure Path.
The MSA1000 has the ability to be configured with thirty-two LUNs. Best practices would dictate
generally no more than sixteen servers accessing a single MSA1000. More commonly, users have had an
average of five to eight nodes. This can be any combination of hosts or clusters with different operating
systems while holding fast to the guidelines and limits described in the above paragraphs. Performance
within these guidelines is heavily dependent on the actual number of end users and types of applications
being employed.
For more information, click on the link: http://www.hp.com/solutions/ha.
ProLiant Cluster F200 for
the Entry Level SAN
(Microsoft)
The ProLiant Cluster F200 for the Entry Level SAN is designed to assist in simplifying the
configuration of cluster solutions that provide high levels of data and applications availability in
the Microsoft Windows Operating System environment through clustering to provide no-singlepoint-of-failure. The ProLiant Cluster F200 for the Entry Level SAN supports a two-node cluster
based on Microsoft Windows 2000 Advanced Server and two to eight-nodes cluster based on
Microsoft Windows Server 2003 Enterprise Edition operating system, the StorageWorks Modular
Smart Array 1000 (MSA1000) and MSA1500 cs, or Raid Array RA4100 and ProLiant Servers. This
solution also supports StorageWorks Secure Path management software.
HP ProLiant Cluster HA/F200 for Entry Level SAN (Microsoft)
364026-B22
HP Serviceguard for Linux HP Serviceguard is a high availability solution that leverages the strength of HP's experience in the HA
business, bringing the best-in-class mission critical technologies to the Linux environment and ProLiant
and Integrity servers. HP Serviceguard provides critical applications the high availability that enterprise
customers require for 24x7 business operations. It is designed to protect applications from a wide variety
of software and hardware failures, monitoring the health of each server (node) and quickly responding to
failures including system processes, system memory, LAN media and adapters, and application
processes. Serviceguard enables customers to cluster HP ProLiant and Integrity server families with shared
storage from HP Modular Smart Array 1000 to HP StorageWorks XP disk arrays in a 2-node SCSI or 2 to
16-node Fibre Channel configuration.
Please refer to the HP ProLiant High Availability web site under Linux clustering for ProLiant for the latest
information on Serviceguard for Linux: http://www.hp.com/go/sglx
For general Serviceguard information (HP-UX and Linux), please refer to:
http://www.hp.com/go/serviceguard
HP Serviceguard for Linux ProLiant Cluster, A.11.18 (2 license version)
305199-B27
HP Serviceguard for Linux, A.11.18 (single license version)
307754-B27
HP Serviceguard for Linux ProLiant Cluster, A.11.16 (2 license version)
305199-B26
HP Serviceguard for Linux, A.11.16 (single license version)
307754-B26
DA - 12624
North America — Version 6 — October 5, 2007
Page 12
QuickSpecs
HP StorageWorks 1000 Modular Smart Array QuickSpec
for Intel, AMD, PA-RISC
Optional Software
HP Serviceguard
For HP-UX
HP Serviceguard for HP-UX 11i v2 and 11i v3
T1905CA
HP ProLiant Clusters for
NetWare
HP supports a broad range of solutions for NetWare Cluster services including configurations featuring
the MSA1000 and optionally with HP StorageWorks Secure Path. These solutions provide high
availability and maximum resource utilization for NetWare environments from small file sharing
implementations to enterprise business computing. Single-path (single controller, non-Secure Path)
NetWare clusters of up to 12-nodes have been successfully tested. Presently 2-node NetWare clusters
with Secure Path have been tested and approved with larger NetWare cluster testing planned. Multiple
NetWare clusters are allowed.
NOTE: Refer to http://www.hp.com/go/securepath for the latest Secure Path for NetWare parameters.
HP ProLiant Parallel
Database Clusters for
Oracle on MSA1000
The HP Parallel Database Clusters (PDC) for Windows and Linux provide the industry's leading platform
for deployment of Oracle 9i Real Application Clusters. The PDC is a multi-node (up to six in Microsoft
environments and up to four with Linux)) shared-storage clustering environment that enables industry
standard Windows and Linux platforms to deliver performance previously limited to very large SMP (16 to
32 processor) environments. Every server node in the cluster has concurrent read-write access to the
common shared database residing on the MSA1000 storage SAN. The multi-node architecture is
inherently highly available, loss of any single node results in some degradation of performance but the
database remains active and accessible. When optimally integrated with Oracle load balancing and
transparent application reconnect features, clients are completely insulated from the loss of a server
resource or an Oracle instance failure on a node. To complement the high availability of the server
cluster in a Windows environment, the Parallel Database Cluster integrates HP StorageWorks Secure
Path for fully redundant access to the database in the even of any failure in SAN connectivity. Secure Path
for Linux will be available at a later date. Combined, the Oracle clustering technology and HP platform
technology deliver cost effective and highly available enterprise solutions for database applications.
For more specific information concerning configuration, interconnect options, and dual path software
refer to the HP/Oracle site at
http://h18000.www1.hp.com/solutions/enterprise/highavailability/oracle/index.html.
Key Features
Support for Windows 2000 and Windows Server 2003
Virtualization – multiple storage arrays can be consolidated into a pool of disk space for individual
or clustered systems to use. Multiple virtual disks, up to 2 terabyte in size, can be created from a
pool for users and their applications. Existing storage units with production data can be imported
into a pool. The data partition is preserved as a virtual disk and unused capacity is added to the
pool.
Online volume growth – Enables easy, non-disruptive growth for Windows 2000 or and Windows
Server 2003 with zero downtime. Allows a system administrator to grow an existing volume on
virtual disks and Windows 2000 basic disk. The system will remain online, and the data on the
volume will remain intact.
Snapshots – Instant, point-in-time snapshots for backup, online restore, testing or data mining.
Enable instant creation of multipurpose virtual replicas of production data without the requirement
of a physical copy Snapshots identical to ordinary physical disks, with both read and write
capability. Snapshots can remain online for restore operations, testing, and data mining. Full
interoperability with the Windows Server 2003 Volume Shadow-copy Service (VSS).
E-mail notification – customization of events for servers under your span of control.
Enhanced pool deletion – delete a pool that contains snapshots and virtual disks or delete a
virtual disk that contains snapshots with the DELTREE command.
Interoperability with StorageWorks Storage Mirroring
DA - 12624
North America — Version 6 — October 5, 2007
Page 13
QuickSpecs
HP StorageWorks 1000 Modular Smart Array QuickSpec
for Intel, AMD, PA-RISC
Optional Software
Enhanced policy descriptions – the policy key descriptions have been updated for easier
identification.
Please refer to the Optional Software section of this document or visit http://www.hp.com/go/msa1000
for additional details.
HP StorageWorks Storage OpenView Storage Mirroring is designed to take small-medium enterprises beyond periodic backup to
Mirroring
provide continuous data protection with minimal data loss and immediate recovery from any disaster or
system outage. Utilizing patented STAR technology, OV Storage Mirroring captures byte-level changes as
they happen and replicates those changes to one or more target servers at any location in the exact
sequence sent by the source. Advanced features put you in control of bandwidth usage, queue data
changes for replication during off-peak hours, enable e-mail, pager or wireless notification when
changes occur and scales organically to meet the need of your environment. OV Storage Mirroring is the
core component to the following solutions: disaster recovery, remote availability, centralized backup,
serverless backup, data distribution, mining and server/storage migration.
Supports Microsoft Windows 2000/NT/2003servers
One-to-one failover/fail back solution for MS-Exchange, MS-SQL and Oracle providing automatic
failover and near instantaneous access to replicated data or use replicated data or rebuild your
local server.
Server Groups – enables the "grouping" of servers on the management console (GUI) allowing
focus on only those servers under your span of control
Continuous, asynchronous byte-level replication with intelligent data compression captures
changes as they occur, ensures sequence of data mirrored on target, and provides userconfigurable compression levels to ensure efficient usage of network resources.
One-to-many and many-to-one host configurations allowing multiple production servers to use the
same target server
For more information visit http://h18006.www1.hp.com/products/storage/software/sm/index.html
Server Compatibility
All ProLiant x86 and x86_64 servers are fully supported unless noted below.
NOTE: New model testing is ongoing.
ProLiant x86 servers
BL20p G4, BL30p, BL45p G2, DL140 G2, DL320 G5, DL360, DL360 G2, DL360 G3, DL360 G5,
DL380, DL380 G2, DL380 G3, DL380 G5, DL560, DL580, DL580 G2, G3, G4, ML370 G4, ML370
G5, ML530, ML530 G2, ML570 G3, ML570 G4
ProLiant AMD Opteron servers
BL25p, BL25p (Dual Core), BL35p, BL35p (Dual Core), BL45p, BL45p (Dual Core), DL145, DL145 G2
(Dual Core), DL365, DL385, DL385 (Dual Core), DL385 G2, DL585, DL585 G2 (Dual Core) (DL145G1 not supported in Boot-From-SAN environment)
ProLiant INTEL EM64T servers
BL20p G3, BL20p G4, BL460c, BL480c, DL360 G4p, DL360 G4, DL360 G5, DL380 G4, DL380 G5,
DL580 G3, DL580 G4, ML350 G4p, ML350 G5, ML370 G4, ML370 G5, ML570 G3, ML570 G4
Integrity IA64 (Itanium) servers
rx1600, rx1620, rx2600, rx2620, rx4610, rx36xx, rx4640, rx5670, rx66xx, rx7620, rx8620, rx8800,
rx9610, zx2000, zx6000, Integrity Superdome
NOTE: BL60P (FC Mezzanine Card, FC passthru or internal McData/Brocade FC 4Gb Switch Cube)
HP-UX specific servers
rp24xx, rp34x0, rp4440, rp54xx, rp740x, rp7410, rp7420, rp8400, rp8420, SD16000, SD32-128A,
DA - 12624
North America — Version 6 — October 5, 2007
Page 14
QuickSpecs
HP StorageWorks 1000 Modular Smart Array QuickSpec
for Intel, AMD, PA-RISC
Optional Software
SD32/64000, C3xxx, B2000, J5xxx, J6000, J7xxx, K-class
Supported Alpha servers
DS10, DS15, DS20, DS20E, DS25, ES40, ES45, ES47 (PCI-X), ES80 (PCI-X), GS60, GS60E, GS80,
GS140, GS160, GS320, GS1280 (PCI-X)
NOTE: Certification of new ProLiant and Integrity server models is ongoing. Not all OSes are supported
on all models. Supports most multi-vendor industry standard 32-bit Intel-based (x86) and Opteron
servers.
DA - 12624
North America — Version 6 — October 5, 2007
Page 15
HP StorageWorks 1000 Modular Smart Array QuickSpec
for Intel, AMD, PA-RISC
QuickSpecs
Configure to Order Program Information
HP introduces the new Configure to Order program on a limited basis. It is not yet available in all areas. The MSA1000 and its
options may or may not be factory installed in a rack with add-on controllers, switches, hubs, MSA30 enclosures and hard drives.
The MSA1000 may be integrated with 64-bit Integrity and PA-RISC servers or ProLiant or as standalone storage.
Configure to Order
Products Approved for CTO
Modular Smart Array 1000
HP MSA1000 Controller 256 cache ALL
256 MB Cache Upgrade
2 Gb FC Port Kit
MSA SAN Switch 2/8 ALL
MSA1000 Embedded 3-port Hub
MSA30 U320 Enclosure, single bus
300 GB Pluggable Ultra320 Universal Hard Drive, 10,000 rpm (1")
146 GB 10K U320 Pluggable Hard Drive
72 GB 10K U320 Pluggable Hard Drive
146.8 GB Pluggable Ultra320 Universal Hard Drive, 15,000 rpm (1")
72 GB 15K U320 Pluggable Hard Drive
36 GB 15K U320 Pluggable Hard Drive
2m LC-LC multimode FC cable
5m LC-LC multimode FC cable
15M LC-LC multimode FC cable
30M LC-LC multimode FC cable
50M LC-LC multimode FC cable
42U EVA cab 60Hz
42U EVA cab 50Hz
36U EVA cab 60Hz
36U EVA cab 50Hz
22U EVA cab 60Hz
22U EVA cab 50Hz
HP9000 Std Rack System E25
HP Rack System/E, 33U, quartz color
HP Rack System/E, 33U, graphite color
HP Rack System/E, 41U, quartz color
HP Rack System/E, 41U, graphite color
HP Modular Cooling System
NOTE: The purchase of HP Modular Cooling System includes 10642 G2
rack and MCS unit attached.
Rack 10642 42U Shock ALL
Rack 10636 36U Shock ALL
DA - 12624
North America — Version 6 — October 5, 2007
CTO SKUs
201723-B22 #0D1
218231-B22 #0D1
254786-B21 #0D1
218960-B21 #0D1
288247-B21 #0D1
286763-B21 #0D1
302969-B21 #0D1
350964-B22 #0D1
286716-B22 #0D1
286714-B22 #0D1
347708-B22 #0D1
286778-B22 #0D1
286776-B22 #0D1
221692-B21 #0D1
221692-B22 #0D1
221692-B23 #0D1
221692-B26 #0D1
221692-B27 #0D1
338042-B21
338043-B21
338044-B21
338045-B21
338046-B21
338047-B21
A4900A
A4901A
A4901D
A4902A
A4902D
AF098A
245161-B22
245162-B22
Page 16
QuickSpecs
HP StorageWorks 1000 Modular Smart Array QuickSpec
for Intel, AMD, PA-RISC
Service and Support, HP Care Pack, and Warranty Information
Warranty
Three-year Limited Warranty for MSA1000, Fibre Channel Cables and SFP Transceivers
3 years parts exchange
1 year labor
1 year on-site
Next business day response
Options for the MSA1000 carry their own warranty. Refer to HP's Limited Warranty Statement for further
details. In countries where available, your HP Limited Warranty includes Customer Self Repair warranty
services. Please refer to HP's Limited Warranty Statement for further details:
http://h18006.www1.hp.com/products/storageworks/warranty.html
Products included in various Kits carry their own individual warranties.
Warranty Upgrade
Options
Response – Upgrade on-site response from next business day to same day 4 hours
Coverage – Extend hours of coverage from 9 hours x 5 days to 24 hours x 7 days
Duration – Select duration of coverage for a period of 1, 3, or 5 years
Storage Service Packages
HP Care Pack is defined as an upgrade to the product warranty attribute, available for a specific
duration and hours of coverage.
HP Care Pack is not available for less than the product's warranty duration.
HP Care Pack is available for sale anytime during the warranty period for most products, but the
commencement date will be the same as the Warranty Start Date (delivery date to end user
customer). Proof of purchase may be required.
HP Care Pack services are prepaid.
For additional information on Product Services and HP Care Pack, as well as orderable part numbers,
please refer to the URL: http://www.hp.com/hps/carepack/.
If you have specific questions about availability or how to obtain services contact your local HP
representative. Contact information for your local area can be found at:
http://www.hp.com/services.
Software Product Services Software product services
Product support provides the customer access to HP's experienced technical support
resources, as well as access to HP's Information Services database for support on a variety of multivendor/multiplatform software products. Product support includes escalation and problem coordination
with the appropriate engineering group. HP Services offer a variety of options to allow you to tailor your
product service to meet the needs of your organization. Basic warranty on products can be uplifted from
day one to ensure you receive the service you need when you need it.
DA - 12624
North America — Version 6 — October 5, 2007
Page 17
QuickSpecs
HP StorageWorks 1000 Modular Smart Array QuickSpec
for Intel, AMD, PA-RISC
Service and Support, HP Care Pack, and Warranty Information
Warranty and support
HP warrants only that the software media will be free of physical defects for a period of ninety (90) days
from delivery.
The following services are offered as HP Care Pack Services at the time of software product order:
Software Technical Support 24 x 7 (1 and 3 years) is available 24 hours per day, Monday through
Sunday, including holidays (includes phone-in software technical support 24 x 7 and software
product and documentation updates).
Installation Service (software installation) and Installation and Startup Service (software installation,
configuration, startup testing and knowledge transfer).
HP Care Pack services must be ordered with the product and are prepaid.
For tailored support contracts based on personalized statement of work contact your local support
center via http://www.HP.com/support.
Secure Path software services
Software product services included with Secure Path: One year of Software Technical Support 24 x
7 HP Care Pack Services (includes phone-in software technical support 24 x 7 and software
product and documentation updates).
HP Care Pack services are available to upgrade the one year of Software Technical Support 24 x
7 included with the Secure Path product to 3 full years.
Installation service (software installation)
For additional software product services information for North American HP Care Pack services, as well
as orderable part numbers, please refer to the URLs listed below:
All storage services: http://www.hp.com/hps/storage/.
All HP Care Pack Services: http://www.hp.com/hps/carepack/storage/cp_networked.html.
Software Support HP Care Pack Services: http://www.hp.com/hps/carepack/software/cp_storage.html.
Installation and Startup Services: http://www.hp.com/hps/storage/ns_implementation.html.
If you have specific service questions contact your local HP representative. Contact information for your
local area can be found at: http://www.compaq.com/support.
Maintenance releases, bug fixes and software patches are available at:
http://www.compaq.com/support/sanworks.
Array Installation and
Startup Services
The HP Installation and startup for HP StorageWorks Disk Arrays service package provides installation
and configuration of HP StorageWorks Disk Array products. Service highlights include:
Installation and Startup provides, installation, LUN Disk Design and configuration of the MSA 1000
which includes
Service Planning
Service Deployment
Installation Verification Testing (IVT) required for this service
Customer Orientation session
Service Deployment includes the deployment of the MSA disc array into a new or pre-existing SAN which
may consist of switch, hub or SCSI bridge technology. Installation includes the customization of up to
four host servers, eight host bus adapters (hba's) and up to four high availability software licenses.
NOTE: Refer to Step 7 in the Configuration Information section below for all Service, Warranty Plans, Installation and Startup
Services available for the MSA1000
DA - 12624
North America — Version 6 — October 5, 2007
Page 18
QuickSpecs
HP StorageWorks 1000 Modular Smart Array QuickSpec
for Intel, AMD, PA-RISC
Configuration Information
Step 1 – Order Required Items
HP StorageWorks Modular Smart Array 1000
Includes:
(1) MSA1000 Controller with 256 MB cache
(1) MSA Fibre Channel I/O Module with 2 Gb SFP SW Transceiver
Redundant Hot Pluggable Power Supply/blower assemblies
Universal Rack mounting Kit
MSA1000 Support CD & Documentation
Serial cable
(2) Power cables
201723-B22
NOTE: Fibre Channel cables are ordered separately.
Step 2 – Choose Optional Non-Redundant MSA1000 System Options
MSA SAN Switch 2/8 (integrated) (Includes four SFPs)
MSA Hub 2/3 (integrated) (Includes two 2 Gb SFP transceivers) for use with 2Gb
HBAs
NOTE: The MSA SAN Switch 2/8 has a total of eight Fibre Channel ports. There are
seven ports accessible by the user and the eighth is internal to the controller. Four
SFPs are shipped installed in the Switch.
288247-B21
286763-B21
The MSA Hub 2/3 has two external Fibre Channel ports, both of which already have
transceivers installed. (Not supported with active/active firmware or Tru64 UNIX or
OpenVMS).
DA - 12624
North America — Version 6 — October 5, 2007
Page 19
QuickSpecs
HP StorageWorks 1000 Modular Smart Array QuickSpec
for Intel, AMD, PA-RISC
Configuration Information
Step 3 – Choose Redundant MSA1000 System Options
MSA1000 Controller
256 MB Cache Modules for Controller (one additional for each controller)
HP StorageWorks Secure Path (appropriate model for the operating system) or choose
an industry standard failover solution where available
NOTE: Redundant configurations require two Host Adapters per server, an additional
controller and an I/O module, an MSA SAN Switch 2/8 or an MSA Hub 2/3 (for
Windows or NetWare), and Secure Path or industry standard fail-over software for
each server. An industry standard fail-over solution such as Microsoft's MPIO for
Windows or the QLogic or Emulex solution for Linux may be employed in place of
Secure Path. For Microsoft ProLiant Clusters, Secure Path software can be substituted
with the ProLiant Clusters HA/F200 kit.
218231-B22
254786-B21
Mixing of the MSA Fibre Channel I/O Modular and the MSA SAN Switch 2/8 or the
MSA Hub 2/3 is not supported. When configuring the MSA1000 for redundant
controllers use either two MSA Fibre Channel I/O Modules, two MSA Hub 2/3s, or
two MSA SAN Switch 2/8s.
DA - 12624
North America — Version 6 — October 5, 2007
Page 20
HP StorageWorks 1000 Modular Smart Array QuickSpec
for Intel, AMD, PA-RISC
QuickSpecs
Configuration Information
Choose an interface
matching your original
MSA Fibre Channel I/O Module (Includes one 2 Gb SFP transceiver)
MSA SAN Switch 2/8 (integrated) (Includes four 2 Gb SFP transceivers)
MSA Hub 2/3 (integrated) (Includes two 2 Gb SFP transceivers)
218960-B21
288247-B21
286763-B21
Step 4 – Choose Supported Options For 2 Gb or 1 Gb Infrastructure
4 Gb Fibre Channel
Transceiver (SFP)
4 Gb SFP SW Transceiver Kit
2 and 4Gb Fibre Channel HP StorageWorks MSA SAN Switch 2/8 (embedded option for MSA1000 only)
Fabric "B-Series" family of NOTE: Includes four 4Gb SFP transceivers.
switches
HP StorageWorks 4/8 Base SAN Switch 8 port 4Gb/s switch with zero e-ports
HP StorageWorks 4/8 SAN Switch 4Gb/s with full fabric
HP StorageWorks 4/16 SAN Switch
HP StorageWorks 4/16 SAN Switch Power Pack
HP StorageWorks 4/32B SAN Switch Power Pack
HP StorageWorks 4/32B Full SAN Switch
HP StorageWorks 4/32B Base SAN Switch
HP StorageWorks 4/8 4 port upgrade license
4/64 SAN Switch Power Pack 4/64 SAN Switch with 32 active ports
4/64 SAN Switch with 64 active ports
HP StorageWorks Full Fabric license
HP StorageWorks B-Series 8-31 port Power Pack License
4/64 SAN Switch with 32 active ports
DA - 12624
North America — Version 6 — October 5, 2007
A7446B
288247-B21
A7984A
A8000A
A7985A
A7987A
AG758A
AG757A
AG756A
T4260A
AE496A
AG457A
T4261A
T3573A
AE495A
Page 21
QuickSpecs
HP StorageWorks 1000 Modular Smart Array QuickSpec
for Intel, AMD, PA-RISC
Configuration Information
16 port upgrade license for 4/64 SAN Switch (base model) and Power Pack model
StorageWorks 4/256 SAN Director
StorageWorks 4/256 SAN Director Power Pack
HP StorageWorks SAN Director 4/16 Blade
HP StorageWorks SAN Director 4/32 Blade
HP StorageWorks SAN Director 4/48 Blade
HP StorageWorks Multi-Protocol Router Blade for B-series
HP StorageWorks B-Series iSCSI Blade
HP StorageWorks B-Series MP Router Blade
Power Pack Software Upgrade Bundle
HP StorageWorks B-Series MP Router Blade
Power Pack Software Upgrade Bundle
T4411A
A7988A
A7989A
A7990A
A7991A
AG561A
AG461A
AG671A
AG461A
330882-B21
AG461A
330882-B21
StorageWorks SAN Director Blade
Brocade 4Gb SAN Switch for HP p-Class BladeSystem, Base
Brocade 4Gb SAN Switch for HP p-Class BladeSystem, Full Fabric
Brocade 4Gb SAN Switch for HP p-Class BladeSystem, Power Pack
Brocade 4/12 SAN Switch (1) 4Gb SAN Switch; 12 ports enabled for any
combination (internal and external); two (2) short wave 4Gb SFPs
Brocade 4/24 SAN Switch (1) 4Gb SAN Switch; 24 ports enabled (16 internal, 8
external); four (4) short wave 4Gb SFPs
Brocade 4/24 SAN Switch Power Pack (1) 4Gb SAN Switch; 24 ports enabled (16
internal, 8 external); four (4) short wave 4Gb SFPs
AD504A
A7533A
A7534A
A7535A
AE370A
2 and 4Gb Fibre Channel MDS 9124 8-ports Active Fabric Switch
Fabric "C-Series" family of MDS 9124 16-ports Active Fabric Switch
switches
MDS 9124 24-ports Active Fabric Switch
Cisco MDS 9513 4Gb Director
Cisco MDS 9506 4Gb Director w/Supervisor 2
Cisco MDS 9216i w/0 1Gb Ethernet SFPs
Cisco MDS 9509 4Gb Director w/Supervisor 2
MDS9124e Fabric Switch for HP c-Class Bladesystem; 12 ports active
MDS9124e Fabric Switch for HP c-Class Bladesystem; 24 ports active
2 Gb Fibre Channel
Integrated Hub
MSA Hub 2/3 (integrated option, comes with two SFPs)supports single controller or
active/passive configurations only
NOTE: Not for use with ProLiant Blade servers, Tru64 UNIX or OpenVMS.
DA - 12624
North America — Version 6 — October 5, 2007
AE372A
AE371A
AG646A
AG647A
AG648A
AE376A
AE388A
AE390A
AE389A
AG641A
AG642A
286763-B21
Page 22
QuickSpecs
HP StorageWorks 1000 Modular Smart Array QuickSpec
for Intel, AMD, PA-RISC
Configuration Information
2 Gb Fibre Channel
HBAs
4 Gb Fibre Channel
HBAs
HBA for Small Business
G2 Kit
Host adapter Q2300 2Gb 64-bit PCI-X for Linux, Integrity servers
Host adapter 2Gb PCI-X Dual channel for HP-UX and Linux, Integrity servers
HP-UX HBA: PCI 2GB Fibre Channel Adapter
HP PCI-X 2-port 2Gb Fibre Channel and 2-port 1Gb Ethernet / Windows
HP-UX HBA: PCI-X 2Gb Fibre Channel/1000Base-T
HP-UX HBA: PCI-X 2Gb Fibre Channel/1000Base-SX
FCA2684 PCI-X Single Channel 2Gb Host Adapter for OpenVMS & Tru64 UNIX
AlphaServers
FCA2684DC PCI-X Dual Channel 2Gb Host Adapter for OpenVMS & Tru64 UNIX
AlphaServers
HP StorageWorks FC2142SR HBA 4Gb PCI-e for Windows, Linux
HP StorageWorks FC2242SR DC HBA 4Gb PCI-e for Windows, Linux
HP StorageWorks FC1142 4Gb PCI-e HBA for Windows, Linux
HP StorageWorks FC1242 4Gb PCI-e DC HBA for Windows, Linux
HP StorageWorks FC2143 4Gb PCI-X 2.0 HBA for Windows, Linux
HP StorageWorks FC2243 4Gb PCI-X 2.0 DC HBA for Windows, Linux
HP StorageWorks FC1143 4Gb PCI-X 2.0-to-Fibre Channel Host Bus Adapter for
x86, x64 and ia64 Windows and Linux.
HP StorageWorks FC1243Dual Channel 4 Gb PCI-X 2.0-to-Fibre Channel Host Bus
Adapter for x86, x64 and ia64 Windows and Linux.
HP-UX PCI-X single-channel, 4Gb fibre channel adapter
HP-UX PCI-X dual-port, 4Gb fibre channel adapter
HP QLE220 4/2 Gb, 32-Bit/133 MHz PCI-e Fibre Channel Host Bus Adapter
NOTE: This is a single channel HBA ONLY for use with the MSA1000 Small Business
SAN G2 Kit
Fibre Channel Cables for Use 2 Gb Fibre Channel cables when connecting the MSA Fibre Channel I/O
2 or 4Gb Infrastructure
Module, MSA Hub 2/3 or the MSA SAN Switch 2/8 to an HBA
2 m LC-LC Multi-Mode Fibre Channel Cable
5 m LC-LC Multi-Mode Fibre Channel Cable
15 m LC-LC Multi-Mode Fibre Channel Cable
30 m LC-LC Multi-Mode Fibre Channel Cable
50 m LC-LC Multi-Mode Fibre Channel Cable
MSA Controller
management cable
One ships standard. Orderable through HP Store or Service if original is lost
DA - 12624
North America — Version 6 — October 5, 2007
A7538A
A6826A
A6795A
AB465A
A9784A
A9782A
DS-A5132-AA
DS-A5134-AA
A8002A
A8003A
AE311A
AE312A
AD167A
AD168A
AE369A
AB429A
AB378A
AB379A
AG527A
221692-B21
221692-B22
221692-B23
221692-B26
221692-B27
316131-001
Page 23
QuickSpecs
HP StorageWorks 1000 Modular Smart Array QuickSpec
for Intel, AMD, PA-RISC
Configuration Information
Step 5 – Choose Hard Drives & StorageWorks Enclosures
Hard Drives
72.8 GB Pluggable Ultra320 Universal Hard Drive, 10,000 rpm (1")
Up to 14 per MSA30 enclosure
146.8 GB Pluggable Ultra320 Universal Hard Drive, 10,000 rpm (1")
Up to 14 per MSA30 enclosure
300 GB Pluggable Ultra320 Universal Hard Drive, 10,000 rpm (1")
Up to 14 per MSA30 enclosure
36.4 GB Pluggable Ultra320 Universal Hard Drive, 15,000 rpm (1")
Up to 14 per MSA30 enclosure
72.8 GB Pluggable Ultra320 Universal Hard Drive, 15,000 rpm (1")
Up to 14 per MSA30 enclosure
146.8 GB Pluggable Ultra320 Universal Hard Drive, 15,000 rpm (1")
Up to 14 per MSA30 enclosure
HP 300GB Pluggable Ultra320 Universal Hard Drive, 15,000 rpm (1")
Up to 14 per MSA30 enclosure
NOTE: All Ultra320 Universal Hard Drives are backward compatible to U2 or U3
speeds.
NOTE: For complete compatibility information, refer to the HP SCSI Hard Drive
Compatibility table located at http://www.hp.com/go/msa1000.
StorageWorks Enclosures The MSA1000 cabinet holds fourteen 1" Universal Drives. Add one StorageWorks
Enclosure to increase capacity up to 28 drives. Add two HP StorageWorks Enclosures
to increase capacity up to the maximum of 42 drives.
MSA30 single bus enclosure
NOTE: Maximum of two can be connected to the MSA1000.
MSA30 dual bus enclosure
NOTE: Maximum of one can be connected to the MSA1000.
286714-B22
286716-B22
350964-B22
286776-B22
286778-B22
347708-B22
411089-B22
302969-B21
302970-B21
Step 6 – Choose Rack Options
Rack Cabinet, Customer Assembled
5642 - 5000 Series rack
14U rack
HP S10614 Rack with Shock Pallet
Rack Cabinets 10622 G2
10622 G2 Universal Rack w/Shock Pallet
10622 G2 Universal Rack w/Standard Pallet
Rack Cabinets under 10636 G2
10636 G2 (36U) Rack Cabinet - Pallet
10636 G2 (36U) Rack Cabinet - Shock Pallet*
10636 G2 (36U) Rack Cabinet - Crated
10636 G2 (36U) Rack Cabinet, with Extension - Shock Pallet*
Rack Cabinets 10642 G2
10642 G2 (42U) Rack Cabinet - Pallet
10642 G2 (42U) Rack Cabinet - Shock Pallet*
DA - 12624
North America — Version 6 — October 5, 2007
358254-B21
292302-B22
AF022A
AF021A
AF011A
AF012A
AF013A
AF014A
AF001A
AF002A
Page 24
HP StorageWorks 1000 Modular Smart Array QuickSpec
for Intel, AMD, PA-RISC
QuickSpecs
Configuration Information
10642 G2 (42U) Rack Cabinet - Crated
10642 G2 (42U) Rack Cabinet, with Extension - Shock Pallet*
Rack Cabinets 10842 G2
10842 G2 Universal Rack w/Shock Pallet
10842 G2 Universal Rack w/Standard Pallet
Rack Cabinets 10647 G2
10647 Rack G2 Pallet
For units that are factory installed
10622 G2 Universal Rack w/Shock Pallet
10636 G2 (36U) Rack Cabinet - Shock Pallet*
10636 G2 (36U) Rack Cabinet, with Extension - Shock Pallet*
10642 G2 (42U) Rack Cabinet - Shock Pallet*
AF003A
AF004A
10642 G2 (42U) Rack Cabinet, with Extension - Shock Pallet*
10842 G2 Universal Rack w/Shock Pallet
HP Modular Cooling System CTO ready
Rail Kit for mounting in a M-Series rack
AF004A
AF042A
AF098A
313877-B21
AF042A
AF041A
AF031A
AF022A
AF012A
AF014A
AF002A
Step 7 – Choose HP Care Pack Services
Hardware Product
Services
9x5, Next Business Day, On-Site Coverage, 3 years
9x5, 4-Hour Response, On-Site Coverage, 3 years
24x7, 4-Hour Response, On-Site Coverage, 3 years
9x5, Next Business Day, On-Site Coverage, 5 years
9x5, 4-Hour Response, On-Site Coverage, 5 years
24x7, 4-Hour Response, On-Site Coverage, 5 years
Hardware Installation
Fixed Price Care Pack Part Numbers:
1 Yr Same Day 24x7/Onsite
1 Yr Same Day 13x5/Onsite
1 Yr Same Day 6 hr CTR
3 Yr next Day/Onsite
3 Yr 13x5 Same Day/Onsite
3 Yr 24x7 Same Day/Onsite
3 Yr 6 hr CTR
4 Yr 13x5 Same Day/Onsite
4 Yr 24x7 Same Day/Onsite
5 Yr 13x5 Same Day/Onsite
5 Yr 24x7 Same Day/Onsite
Hardware Installation
Installation and Startup
Flexible Care Pack Part Numbers:
Support – MSA1000, 1 Yr ND Hardware
Support – MSA1000, 3 Yr ND Hardware
Support – MSA1000, 1 Yr 4h 13x5 Hardware
DA - 12624
North America — Version 6 — October 5, 2007
103840-002
402165-002
402164-002
170183-002
170185-002
170187-002
402162-002
UC761A/E
UC772A/E
UC773A/E
U6355A/E
U6356A/E
U6357A/E
U9934A/E
U9398A/E
U9399A/E
U9400A/E
U9401A/E
U4368A/E
UA868A/E
HA101A1-6FG
HA101A3-6FG
HA103A1-6FG
Page 25
HP StorageWorks 1000 Modular Smart Array QuickSpec
for Intel, AMD, PA-RISC
QuickSpecs
Configuration Information
Support – MSA1000, 3 Yr 4h 13x5 Hardware
Support – MSA1000, 1 Yr 4h 24x7 Hardware
Support – MSA1000, 3 Yr 4h 24x7 Hardware
Support – MSA1000, 1 Yr 6 hr CTR
Support – MSA1000, 3 Yr 6 hr CTR
Support – MSA1000, 1 Yr Support Plus
Support – MSA1000, 3 Yr Support Plus
Support – MSA1000, 1 Yr Support Plus 24
Support – MSA1000, 3 Yr Support Plus 24
Support – MSA1000, 1 Yr Proactive 24
Support – MSA1000, 3 Yr Proactive 24
Support – MSA1000, 1 Yr Critical Service
Support – MSA1000, 3 Yr Critical Service
HA103A3-6FG
HA104A1-6FG
HA104A3-6FG
HA105A1-6FG
HA105A3-6FG
HA109A1-6FG
HA109A3-6FG
HA110A1-6FG
HA110A3-6FG
HA111A1-6FG
HA111A3-6FG
HA112A1-6FG
HA112A3-6FG
Configuration Examples
Two Node Redundant Cluster Solution (Intel based servers)
Quantity
1
1
2
4
4
1
14
Description
HP StorageWorks Modular Smart Array 1000
Additional MSA1000 Controller
MSA Hub 2/3
Host Adapter (appropriate model for operating system)
2 m LC-LC Multi-Mode Fibre Channel Cable
ProLiant Cluster HA/F200 for MSA1000 (includes Secure Path for two servers)
36.4 GB Pluggable Ultra320 Universal Hard Drive, 15K
Part Number
201723-B22
218231-B22
286763-B21
221692-B21
364026-B21
286776-B21
4 Host, 6TB, Redundant SAN Solution (Intel based servers)
Quantity
1
1
2
2
8
8
4
2
42
Description
HP StorageWorks Modular Smart Array 1000
Additional MSA1000 Controller
256 MB Cache Modules for Controller (one additional for each controller)
MSA SAN Switch 2/8 (Includes four 2 Gb SFP transceivers)
Host Adapter (appropriate model for operating system)
2 m LC-LC Multi-Mode Fibre Channel Cable
Secure Path Workgroup Edition (1 license per server), appropriate for operating
system
HP StorageWorks Enclosure MSA30
146.8 GB Pluggable Ultra320 Universal Hard Drive, 10,000 rpm (1")
DA - 12624
North America — Version 6 — October 5, 2007
Part Number
201723-B22
218231-B22
254786-B21
288247-B21
221692-B21
190209-001
286716-B22
Page 26
QuickSpecs
HP StorageWorks 1000 Modular Smart Array QuickSpec
for Intel, AMD, PA-RISC
Related Options
Secure Path v3.0C for
NetWare Workgroup
Edition
Secure Path v3.0C for NetWare Workgroup Edition one license
Secure Path v3.0C for NetWare Workgroup Edition five licenses
Secure Path v3.0C for NetWare Workgroup Edition 10 licenses
Secure Path v3.0C for NetWare Workgroup Edition 25 licenses
Secure Path v3.0C for NetWare Workgroup Edition 50 licenses
NOTE: Refer to http://www.hp.com/go/securepath for the latest Secure Path
parameters for NetWare.
Secure Path v4.0C for
Windows Workgroup
Edition (including
Windows Server
2003/32bit and 64-bit)
(Package includes separate programs for both the MSA1000 and the RA4000 and
RA41000 solutions.)
Secure Path v4.0C for Windows Workgroup one license
Secure Path v4.0C for Windows Workgroup Edition five licenses
Secure Path v4.0C for Windows Workgroup Edition 10 licenses
Secure Path v4.0C for Windows Workgroup Edition 25 licenses
Secure Path v4.0C for Windows Workgroup Edition 50 licenses
Secure Path v4.0C for Windows Workgroup Edition Upgrade License
Secure Path v4.0C for Windows Workgroup Edition for ProLiant BL line 8 licenses
NOTE: Refer to http://www.hp.com/go/securepath for the latest Secure Path
parameters for Windows.
Secure Path v3.0C for
Secure Path v3.0C for Linux Workgroup Edition one license
Linux Workgroup Edition Secure Path v3.0C for Linux Workgroup Edition five licenses
Secure Path v3.0C for Linux Workgroup Edition 10 licenses
Secure Path v3.0C for Linux Workgroup Edition for ProLiant BL line 8 licenses
Secure Path v3.0C for Linux Workgroup Edition 25 licenses
Secure Path v3.0C for Linux Workgroup Edition 50 licenses
NOTE: Refer to http://www.hp.com/go/securepath for the latest Secure Path
parameters for Linux.
Backup and Restore
Software
VERITAS NetBackup for Windows
VERITAS Backup Exec for Windows
HP Data Protector
Computer Associates BrightStor Enterprise Backup
NOTE: See Implementation Blueprint for configuration and installation instructions for
all backup and restore software.
ProLiant Cluster for
MSA1000
ProLiant Cluster Starter kit (no Secure Path)
ProLiant Cluster F200 for the Entry Level SAN
DA - 12624
North America — Version 6 — October 5, 2007
222411-B22
231324-B22
231325-B22
231326-B22
231327-B22
213076-B26
231316-B26
231317-B26
231318-B26
231319-B26
261715-B24
325634-B23
T3581A
T3582A
T3584A
T3583A
T3585A
T3586A
364023-B21
364026-B21
Page 27
HP StorageWorks 1000 Modular Smart Array QuickSpec
for Intel, AMD, PA-RISC
QuickSpecs
Technical Specifications
Modular Smart Array
1000 (MSA1000)
LED Indicators on Front
(3)
Power
Fault detected in one or more sub-systems
Fault in Enclosure Management
LED Indicators for Drive Drive Access (center)
Modules (3)
Online (left)
Drive Failure (right)
LED Indicators on Rear
Power Supply/Blower Assembly Fault (1)
Panel (4)
EMU (3) Power, A bus, B bus
Interface
Ultra3 SCSI to Hard Drives
2 Gb Fibre Channel to Hosts
Maximum Number of
Fourteen, 1-inch HP Ultra2, Ultra3 or Ultra 320 Universal Hard Drives
Drives
(msa1000 Cabinet); expandable to 42 using two additional HP
StorageWorks 4200/4300 Enclosures
Temperature Range
50° to 95° F (10° to 35° C), up to 8000’
Operating
-22° to 122° F (-30° to 50° C)
Shipping
NOTE: Derated 1°C per 1,000 feet of elevation
to 10,000 ft.
Relative Humidity
10% to 90%
Operating
Up to 95%
Non-operating
Input Power Requirements Rated Input Voltage
100 to 240 VAC
50 to 60 Hz
Rated Input Frequency
6 A Max
Rated Input Current
549 W*
Input Power (max)
The supply will handle 90Vrms - 254 Vrms (100 - 240 V, +6%, -10%)
Frequency is 47 - 63 Hz
Heat Dissipation (max)
1876 Btu/hr*
NOTE: Input Power and Heat Dissipation specifications are maximum values
and apply to worst-case conditions at full rated power supply load. The
power/heat dissipation for your installation will vary depending on the
equipment configuration.
4U Rack Form Factor
MSA1000 Cabinet
Dimensions (H x W x D) 6.9 x 19 x 20.5 in (17.5 x 48.3 x 52.1 cm)
Net 55 to 85 lb (24.95 to 38.56 kg)
Weight
Shipping Packaging
28.5 x 14.81 x 33.13 in (72.4 x 37.6 x 84.1 cm)
Dimensions (L x W x D)
75 to 105 lb (34.02 to 47.63 kg)
Weight (Gross)
User Interface
Controller display with Status Indicators (2) and push buttons (4) on front of
controller
Electrical Interface
LVD (Low Voltage Differential)
Protocol Support
Wide Ultra3 SCSI
SCSI Ports
4-channel: 2 internal, 2 external
Drives Supported
Up to 42 drives
Maximum Capacity
12TB (42 drives x 300GB)
Logical Drives (LUN)
Up to 32 Logical Drives
DA - 12624
North America — Version 6 — October 5, 2007
Page 28
HP StorageWorks 1000 Modular Smart Array QuickSpec
for Intel, AMD, PA-RISC
QuickSpecs
Technical Specifications
Maximum Logical Drive
size
Modular SAN Array 1000 User Interface
Controller
(218231-B22)
Electrical Interface
Protocol Support
SCSI Ports
Drives Supported
Maximum Capacity
Logical Drives
RAID Support
2.0TB
Controller Display with Status Indicators (2) and Push Buttons (4)
Status Indicators on front of Controller (16)
LVD (Low Voltage Differential)
Wide Ultra3 SCSI
4-channel: 2 external/2 Internal
Up to 42 drives
12TB (42 drives x 300GB)
Up to 32 logical drives
RAID ADG (Advanced Data Guarding)
RAID 5 (Distributed Data Guarding)
RAID 1+0 (Striping & Mirroring)
RAID 0 (Striping)
Cache Memory
Up to 512 MB Read/Write (256 MB modules). If redundant controllers are
used they must have equally configured cache
ECC protection, battery-backed, and removable
Standard as of November 19, 2002: 256 MB cache memory (single
module)
Cache Batteries
Enables transportable cache; removable for easy replacement
Upgradeable Firmware
2 MB flashable ROM
Disk Drive and Enclosure HP Ultra 320, Ultra3, and Ultra2 SCSI 1-inch Universal drives
Protocol Support
17 x 12.5 x 7.75 in (43.2 x 31.75 x 19.7 cm)
Packaging
Dimensions (L x W x D)
6 lb (2.72 kg)
Weight (Gross)
Modular SAN Array Fibre Connector Type
Channel I/O Module
Number of Fibre Channel
(218960-B21)
Ports
Bandwidth
Operation Modes
Protocols Supported
Packaging
DA - 12624
LC
One 2 Gb Fibre Channel Port using removable Small-Form-FactorPluggable Transceiver (SFP)
200 MB/s
Fibre Channel Class 2 and 3 connectionless service
Fibre Channel
17 x 12.5 x 7.75 in (43.2 x 31.75 x 19.7 cm)
Dimensions (L x W x D)
6 lb (2.72 kg)
Weight (Gross)
North America — Version 6 — October 5, 2007
Page 29
HP StorageWorks 1000 Modular Smart Array QuickSpec
for Intel, AMD, PA-RISC
QuickSpecs
Technical Specifications
MSA SAN Switch 2/8
(288247-B21)
Performance
Interoperability
Switch bandwidth
Maximum frame size
Port types
Media types
Classes of service
Management access
Management
Security
Supported software
Fabric services
Diagnostics
Dimensions (h x w x d)
Shipping
Humidity range
Environment
Connector Type
Protocol
Data Transfer Method
Maximum Transfer Rate
Packaging
DA - 12624
2.125 Gbit/sec line speed, full duplex ;1.063 Gbit/sec line speed, full
duplex; Auto-sensing of 1 Gbit/sec and 2 Gbit/sec port speeds; optionally
programmable to fixed port speed; Speed matching between 1 Gbit/sec and
2 Gbit/sec ports Aggregate bandwidth 64 Gbit/sec end to end Fabric
latency <2.1 µsec with no contention, cut-through routing at 2 Gbit/sec
All HP StorageWorks B-series switches
32 Gbit/sec end to end
2112-byte payload
8 ports universal (one internal, seven external), FL_Port, F_Port, and E_Port;
self-discovery based on switch type (U_Port)
Small form-factor pluggable (SFP) four included standard; short wavelength
(SWL) up to .31 mi (500m), long wavelength (LWL) up to 21 mi ( 35 km);
distance depends on fiber-optic cable and port speed
Class 2, Class 3, Class F (inter-switch frames)
10/100 Ethernet port (RJ-45); Serial port (RS-232)
Advanced Web Tools included; Fabric Manager (optional) Management
access In-band via Management Server.
Fabric security for configuration management, SAN access, and
authentication/authorization
Telnet, SNMP, WEBTOOLS, Zoning, Fabric Watch, Extended Fabrics,
Remote Switch, Trunking, Advanced Performance Monitoring
Simple Name Server, Registered State Change Notification (RSN), Alias
Server (multicast); and Zoning, WEB TOOLS. Optional QuickLoop, Fabric
Watch, Extended Fabrics, and Remote Switch, Trunking, Advanced
Performance Monitoring
Diagnostics POST and embedded online/offline diagnostics
SAN Switch 2/8: 7.75 x 12.5 x 17 in (19.68 x 31.75 x 43.18 cm)
6 lb (2.72.kg)
5% to 85% non-condensing at 104° F (40° C)
32° F to 104° F
Temperature
Operating
(0° C to 40° C)
-31° F to 147° F
Non-operating
(-25° C to 70° C)
0.5 G p-p, 5-500 Hz
Vibration
Operating
2.0 G p-p, 5-500 Hz
Non-operating
LC
SCSI, IP
64-bit/66 MHz PCI
200 MB
11 x 8.5 x 3 in (27.9 x 21.6 x 7.6 cm)
Dimensions (L x W x D)
1 lb (0.45 kg)
Weight (Gross)
North America — Version 6 — October 5, 2007
Page 30
HP StorageWorks 1000 Modular Smart Array QuickSpec
for Intel, AMD, PA-RISC
QuickSpecs
Technical Specifications
Multi-Mode Fibre
Channel Cables Kits
(218960-B21)
Cable Type
Available Cable Lengths
Packaging
LC-LC (2 Gb to 2 Gb connections) and LC-SC (2 Gb to 1 Gb connections)
50 Micron multi-mode Fiber
6.5 ft, 16.4 ft, and 49.2 ft (2 m, 5 m, and 15 m)
11.5 x 9 x 1.5 in (29.2 x 22.8 x 3.8 cm)
Dimensions (L x W x D)
0.75 to 1 lb (0.34 to 0.45 kg)
Weight (Gross)
© Copyright 2007 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel is a US registered trademark of Intel
Corporation. Unix is a registered trademark of The Open Group.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
For hard drives, 1 GB = 1 billion bytes. Actual formatted capacity is less.
DA - 12624
North America — Version 6 — October 5, 2007
Page 31
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
