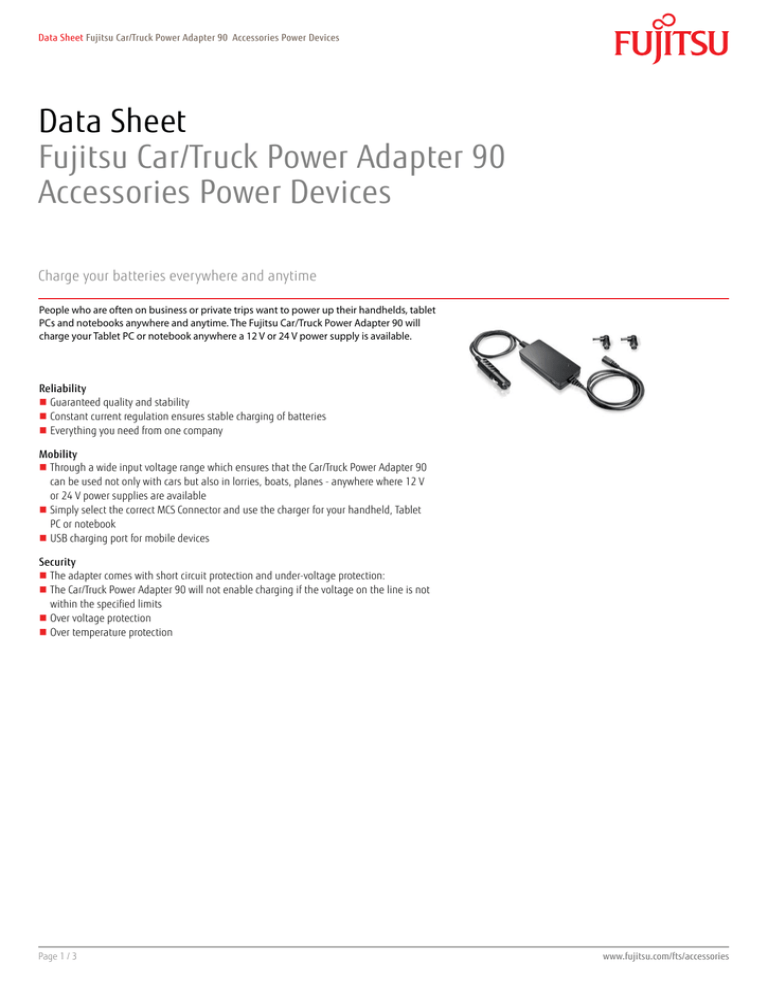

Data Sheet
Fujitsu Car/Truck Power Adapter 90
Accessories Power Devices
Charge your batteries everywhere and anytime
People who are often on business or private trips want to power up their handhelds, tablet
PCs and notebooks anywhere and anytime. The Fujitsu Car/Truck Power Adapter 90 will
charge your Tablet PC or notebook anywhere a 12 V or 24 V power supply is available.
Reliability
„„ Guaranteed quality and stability
„„ Constant current regulation ensures stable charging of batteries
„„ Everything you need from one company
Mobility
„„ Through a wide input voltage range which ensures that the Car/Truck Power Adapter 90
can be used not only with cars but also in lorries, boats, planes - anywhere where 12 V
or 24 V power supplies are available
„„ Simply select the correct MCS Connector and use the charger for your handheld, Tablet
PC or notebook
„„ USB charging port for mobile devices
Security
„„ The adapter comes with short circuit protection and under-voltage protection:
„„ The Car/Truck Power Adapter 90 will not enable charging if the voltage on the line is not
within the specified limits
„„ Over voltage protection
„„ Over temperature protection
Page 1 / 3
www.fujitsu.com/fts/accessories
Data Sheet Fujitsu Car/Truck Power Adapter 90 Accessories Power Devices
Car/Truck Power Adapter 90
Charger
Color
Input characteristics
Output characteristics
Connector and Cable Specification
Black
Voltage range: 11 - 32VDC
Input fuse 12A (fix)
Protection: Reverse polarity, Under voltage protection, over temperature protection
Convection cooled
Operating temperature: -20°C to 40°C at max 2000m above sea level
Non operating temperature: -40°C to 85°C at max. 15000m above sea level
Humidity: 5 to 95% r.H., non condensing
Output1: Voltge range 10 - 24VDC nominal / 85W max.
Constant current, 6A max. (current limitation)
Protection: Short circuit, over current protection, over voltage
protection, over temperature protection
Output USB:5VDC nominal / 1A max / 5W max
Protection: Short circuit, over current protection
Efficiency: typical 96% at 100% load
Input Connector: Cigarette lighter adapter with multiple connector system
Input cable length: 100cm
Output Connector:
Typ C01 for 16V pin length:10 +- 0.3 mm; outer diameter: 6.5mm
Typ C03 for 19V pin length:14.2 + 0.5mm; outer diameter: 5.5mm
Typ C05 for 19V pin length:9.6 +-0.3 mm; outer diameter: 3.4mm
Output cable length: 100cm
Output 2: USB receptacle, type A
Europe
Compliance link
https://sp.ts.fujitsu.com/sites/certificates/
Miscellaneous
Dimensions (W x D x H)
Weight
115 x 53.7 x 21.5 mm
250g w/o cables and connectors
Order code
S26391-F2613-L610
