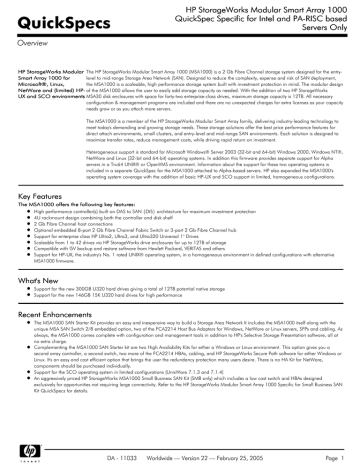

QuickSpecs
QuickSpecs
HP StorageWorks Modular Smart Array 1000
QuickSpec Specific for Intel and PA-RISC based
Servers Only
Overview
HP StorageWorks Modular The HP StorageWorks Modular Smart Array 1000 (MSA1000) is a 2 Gb Fibre Channel storage system designed for the entrySmart Array 1000 for
level to mid-range Storage Area Network (SAN). Designed to reduce the complexity, expense and risk of SAN deployment,
Microsoft®, Linux,
the MSA1000 is a scaleable, high performance storage system built with investment protection in mind. The modular design
NetWare and (limited) HP- of the MSA1000 allows the user to easily add storage capacity as needed. With the addition of two HP StorageWorks
UX and SCO environments MSA30 disk enclosures with space for forty-two enterprise-class drives, maximum storage capacity is 12TB. All necessary
configuration & management programs are included and there are no unexpected charges for extra licenses as your capacity
needs grow or as you attach more servers.
The MSA1000 is a member of the HP StorageWorks Modular Smart Array family, delivering industry-leading technology to
meet today's demanding and growing storage needs. These storage solutions offer the best price performance features for
direct attach environments, small clusters, and entry-level and mid-range SAN environments. Each solution is designed to
maximize transfer rates, reduce management costs, while driving rapid return on investment.
Heterogeneous support is standard for Microsoft Windows® Server 2003 (32-bit and 64-bit) Windows 2000, Windows NT®,
NetWare and Linux (32-bit and 64-bit) operating systems. In addition this firmware provides separate support for Alpha
servers in a Tru64 UNIX® or OpenVMS environment. Information about the support for these two operating systems is
included in a separate QuickSpec for the MSA1000 attached to Alpha-based servers. HP also expanded the MSA1000's
operating system coverage with the addition of basic HP-UX and SCO support in limited, homogeneous configurations.
Key Features
The MSA1000 offers the following key features:
High performance controller(s) built on DAS to SAN {DtS} architecture for maximum investment protection
4U rackmount design combining both the controller and disk shelf
2 Gb Fibre Channel host connections
Optional embedded 8-port 2 Gb Fibre Channel Fabric Switch or 3-port 2 Gb Fibre Channel hub
Support for enterprise class HP Ultra2, Ultra3, and Ultra320 Universal 1" Drives
Scaleable from 1 to 42 drives via HP StorageWorks drive enclosures for up to 12TB of storage
Compatible with ISV backup and restore software from Hewlett Packard, VERITAS and others
Support for HP-UX, the industry's No. 1 rated UNIX® operating system, in a homogeneous environment in defined configurations with alternative
MSA1000 firmware.
What's New
Support for the new 300GB U320 hard drives giving a total of 12TB potential native storage
Support for the new 146GB 15K U320 hard drives for high performance
Recent Enhancements
The MSA1000 SAN Starter Kit provides an easy and inexpensive way to build a Storage Area Network It includes the MSA1000 itself along with the
unique MSA SAN Switch 2/8 embedded option, two of the FCA2214 Host Bus Adapters for Windows, NetWare or Linux servers, SFPs and cabling. As
always, the MSA1000 comes complete with configuration and management tools in addition to HP's Selective Storage Presentation software, all at
no extra charge.
Complementing the MSA1000 SAN Starter kit are two High Availability Kits for either a Windows or Linux environment. This option gives you a
second array controller, a second switch, two more of the FCA2214 HBAs, cabling, and HP StorageWorks Secure Path software for either Windows or
Linux. It's an easy and cost efficient option that brings the user the redundancy protection many users desire. There is no HA Kit for NetWare,
components should be purchased individually.
Support for the SCO operating system in limited configurations (UnixWare 7.1.3 and 7.1.4)
An aggressively priced HP StorageWorks MSA1000 Small Business SAN Kit (SMB only) which includes a low cost switch and HBAs designed
exclusively for opportunities not requiring large connectivity. Refer to the HP StorageWorks Modular Smart Array 1000 Specific for Small Business SAN
Kit QuickSpecs for details.
DA - 11033
Worldwide — Version 22 — February 25, 2005
Page 1
QuickSpecs
HP StorageWorks Modular Smart Array 1000
QuickSpec Specific for Intel and PA-RISC based
Servers Only
MSA1000 Highlights
High Levels of
Performance, Scalability,
and Functionality
Performance – The MSA1000 and its components have been designed using the latest industry standard 2 Gb
interconnects and Fibre Channel technology. Performance tests indicate a data transmission rate of up to 30,000
IOPS and bandwidth of up to 200 MB per second. (Single MSA1000 Controller)
Modular Chassis – The modular design of the MSA1000 cabinet supports up to fourteen 1" Universal hard drives,
redundant controllers, 2 Gb embedded fabric switches or hubs, fans and power supplies in a 4U rackmount cabinet.
Scalability – The MSA1000 is easily expanded. The MSA1000 cabinet scales to 4 TB using fourteen 300 GB, 1" HP
Universal hard drives. By simply adding additional StorageWorks disk Enclosures (two enclosures max), the
MSA1000 scales to 12 TB using forty-two 300 GB 1" HP Universal hard drives - all within 10U of rack space.
MSA SAN Switch 2/8 – The optional MSA SAN Switch 2/8, which can be installed within the MSA1000 cabinet,
offers 2 Gb full fabric performance at an attractive price. A second MSA SAN Switch 2/8 can be installed for
redundancy. There are seven pluggable ports available (four SFPs are included). The eighth port is directed internally
to the controller.
MSA Hub 2/3 – The optional MSA Hub 2/3, which can be installed within the MSA 1000, offers 2 Gb
performance. With two ports accessible by the user, the MSA Hub 2/3 is the ideal interconnect for low-cost 2-node
clustering or simply attaching two servers. A second MSA Hub 2/3 can be installed for redundancy. This hub ships
with two SFPs included. Not available for use in Alpha environments.
Hot Plug Expansion and Replacement Support – The MSA1000 supports hot plug expansion and
replacement of hard drives, redundant controllers, fabric switches or hubs for simple, fast installation and
maintenance. Fans and power supplies are also hot plug replaceable.
Advanced Data Guarding (RAID ADG) Fault Tolerance – This is the highest level of fault tolerance. It
allocates two sets of parity data across drives and allows simultaneous write operations. This level of fault tolerance
can withstand two simultaneous drive failures without downtime or data loss.
DtS Architecture
(Direct Attach to SAN)
Data Migration
DtS (Direct Attach to SAN) architecture is an exclusive MSA1000 feature that provides a quick and easy way to migrate
stored data, disks and enclosures protected by most Smart Array controllers to a MSA1000 storage system.
Data that is currently stored on 1" Universal disk drives using recent HP Smart Array controllers, as well as data on a RA4100
or an MSA500 can easily be migrated to the MSA1000. Simply remove the drives from the older systems and insert them into
the MSA1000. All configuration information and data will be preserved allowing migration to be completed in minutes, not
hours or days. Refer to the MSA1000 DtS Data Migration White Paper for a list of compatible Smart Array controllers and
further details.
Broad Server, Operating
System and FC
Interconnect support
The modular and scalable design of the MSA1000 provides an extremely flexible platform. You can buy what you need today
and purchase additional capacity and performance as your data storage needs grow, instead of making a large up-front
investment. Additional drives, controllers, cache, fabric switches and storage enclosures can easily be added, as your storage
needs change.
Fabric Support for 1 Gb and 2 Gb Infrastructure – The MSA1000 supports both 1 Gb and 2 Gb Fibre
Channel fabrics to ensure that your investment in 1 Gb infrastructure is protected.
Optional embedded interconnects – Both the MSA SAN Switch 2/8 and the MSA Hub 2/3 require no rack
space as they are installed in the MSA1000's chassis. This not only saves valuable rack space (up to 2U saved) but
also eliminates some of the cabling needed with external interconnects. The MSA SAN Switch 2/8 ships with 4 SFPs
installed and the MSA Hub 2/3 ships with 2 SFPs.
Universal Hard Drive – Since the MSA1000 supports HP Universal 1" Ultra2, Ultra3 and Ultra320 drives, your
investment in SCSI technology is protected and cost is minimized as you add new drives. Sharing of a common
universal drive form factor between your servers and storage can significantly reduce needs for hardware and spare
inventory, and offer overall reduction in storage management and business costs.
Pre-Failure Warranty – Drives installed in an MSA1000 and monitored under Insight Manager are supported by
a Pre-Failure (replacement) Warranty.
NOTE: Pre-Failure Warranty allows for the replacement of designated drives in an MSA1000 before they actually
fail when using Insight Manger on ProLiant servers.
NOTE: Some operating systems may not support all of these features.
Multi-platform Intel®-based
Intel based Server Support – The MSA1000 offers Multi-platform Intel-based (x86) server
support to allow a broad range of Intel-based servers to take advantage of the MSA1000's scalability, flexibility and
connectivity, and supports ACU and Insight Manager. When used with a ProLiant server, the MSA1000 also provides
unparalleled integration with the MSA1000 Support CD and Pre-Failure Warranty support.
Alpha server support – The MSA1000 also supports Alpha-based servers operating in a Tru64 UNIX or OpenVMS
environment. Refer to the HP StorageWorks Modular Smart Array 1000 Specific for Tru64 UNIX or OpenVMS Only
QuickSpecs for details.
HP-UX PA-Risc and Itanium-based server support – In April of 2004 HP announced basic MSA1000 HPUX support in limited, homogeneous configurations. Coverage extends to HP-UX 11.11, and 11.23 and a wide-
DA - 11033
Worldwide — Version 22 — February 25, 2005
Page 2
QuickSpecs
HP StorageWorks Modular Smart Array 1000
QuickSpec Specific for Intel and PA-RISC based
Servers Only
MSA1000 Highlights
ranging list of Integrity and HP9000 servers.SCO UnixWare - SCO UnixWare 7.1.3 with Maintenance Pack 3 and
7.1.4 are supported in limited, single controller 2-node homogeneous configurations. The ProLiant servers supported
with MSA1000 for SCO UnixWare are ML 370G3, ML 530G2, ML 570G2, DL 380G3, DL 760G2. Future versions
of the listed hardware will be supported. Connections are made with the single or dual channel StorageWorks
FCA2214 HBA (driver: qlc2300 v8.0.2 FW: 1.33) and supports the FC I/O module, the MSA SAN Switch 2/8 or the
MSA Hub 2/3.
Integrated Configuration and Management Tools – The MSA1000 utilizes a standard, integrated set of
management and utility software. These tools consistently lower the cost of ownership by reducing training and
technical expertise necessary to install and maintain the MSA1000.
The MSA1000 comes with/supports the following configuration and management tools depending on what operating
system:
Configuration
Array Configuration Utility (ACU). ACU is a browser-based disk configuration
(solution chosen as appropriate
utility that lets you view, set up, and configure the array controllers and storage
for operating system)
systems.
Command Line Interface (CLI)
Management/Health
Insight Manager (IM)
(solution chosen as appropriate
EMS Used in conjunction with HP-UX servers
for operating system)
Array Diagnostics Utility (ADU) This utility collects information about the array
controllers in the system and generates a list of potential problems it has identified.
It produces a report that can be saved to a diskette and analyzed by support
technicians to aid in problem resolution.
The MSA1000 Support Software CD is a bootable media that enables a server
ACU/ADU Bootable Utility
(solution chosen as appropriate
to boot into a Linux shell and launch the ACU allowing the user to configure the
for operating system)
MSA1000 storage or generate a diagnostic report without requiring a pre-installed
operating system or drivers.
Compatibility
Servers
Supports most 32-bit ProLiant servers including BL20p G2, BL20p G3, BL30p, BL40p,
DL145, DL320, DL320 G2, DL360 G2, DL360 G3, DL360 G4, DL380 G2, DL380 G3,
DL380 G4, DL560, DL580, DL580 G2, DL585, DL740, DL760, DL760 G2, ML350 G3,
ML350 G4, ML370 G2, ML370 G3, ML530 G2, ML570, and ML570 G2.
Certification of new ProLiant models is ongoing.
Supports most multi-vendor industry standard 32-bit Intel-based (x86) servers.
Supports most 64-bit Integrity and PA-RISC servers
Also supports specific Alpha servers running Tru64 UNIX or OpenVMS.
SCO supported is extended to ML370 G3, ML530 G2, ML570 G2, DL380 G3 & DL760
G2.
DA - 11033
Worldwide — Version 22 — February 25, 2005
Page 3
HP StorageWorks Modular Smart Array 1000
QuickSpec Specific for Intel and PA-RISC based
Servers Only
QuickSpecs
Models
HP StorageWorks Modular MSA1000, with 256 MB cache
Smart Array 1000
MSA1000 Controller, with 256 MB cache
218231-B22
256 MB Cache Module upgrade for Controller
254786-B21
MSA Fibre Channel I/O Module
218960-B21
MSA Hub 2/3 (integrated) ships with 2 SFPs installed
286763-B21
MSA SAN Switch 2/8 (integrated) ships with 4 SFPs installed
288247-B21
HP StorageWorks MSA1000 SAN Starter Kit (Windows or Linux compatible)
Also now can support NetWare (no HA Kit for NetWare available, redundant components wil need to
be ordered separately, including Secure Path)
NOTE: Includes (1) MSA1000 (1) MSA SAN Switch 2/8 (2) FCA2214 + cables.
353803-B22
HP StorageWorks MSA1000 High Availability Upgrade Kit for Windows (for SAN Starter Kit)
NOTE: Includes (1) redundant controller; (1) MSA SAN Switch 2/8; (2) FCA2214 HBAs; cables plus a
ProLiant HA/F200 kit with Secure Path for two servers. Designed as an upgrade for the MSA1000 SAN
Starter Kit.
353804-B21
HP StorageWorks MSA1000 High Availability Upgrade Kit for Linux ((for SAN Starter Kit)
NOTE: Includes (1) redundant controller; (1) MSA SAN Switch 2/8; (2) FCA2214 HBAs; cables plus
Secure Path for Linux Workgroup Edition for two servers. Designed as an upgrade for the MSA1000
SAN Starter Kit.
353805-B21
FCA2214 Host Adapter (Linux, NetWare, SCO & 32-bit Windows)
281541-B21
FCA2214DC dual channel Host Adapter (Linux, NetWare, SCO & 32-bit Windows)
321835-B21
Windows 32-bit single channel PCI-X (Windows Server 2003, W2K)
Windows 32-bit dual channel PCI-X (Windows Server 2003, W2K)
A7388A
A7387A
FCA2404 Host Adapter PCI-X (32-bit Windows including NT)
305573-B21
FCA2404DC dual channel Host Adapter PCI-X (32-bit Windows including NT)
323264-B21
Host Adapter for Windows Server 2003 64-bit, Integrity servers, single channel 2 Gb PCI-X
AB467A
Host Adapter for Windows Server 2003 64-bit, Integrity servers, dual channel 2 Gb PCI-X
AB466A
Host Adapter for 64-bit Linux, Integrity servers
A6826A
HP-UX HBA: PCI 2GB Fibre Channel Adapter
A6795A
HP-UX HBA: PCI-X Dual Channel 2Gb Fibre Channel
A6826A
HP-UX HBA: PCI-X 2Gb Fibre Channel/1000Base-SX
A9782A
HP-UX HBA: PCI-X 2Gb Fibre Channel/1000Base-T
A9784A
Tru64 UNIX, FCA2684 - HP StorageWorks 2 Gb, Single Channel, 133 MHz PCI-X-to-Fibre Channel Host Bus
OpenVMS ONLY Adapter for Tru64 UNIX and future support for OpenVMS
DS-A5132-AA
FCA2684DC - HP StorageWorks 2 Gb, Dual Channel, 133 MHz PCI-X-to-Fibre Channel Host Bus
Adapter for Tru64 UNIX and future support of OpenVMS
DS-A5134-AA
FCA2384 2 Gb PCI-X Host Adapter (OpenVMS/Tru64 UNIX)
302784-B21
DS-KGPSA-EA
2 Gb SFP SW Transceiver Kit
221470-B21
Modular Smart Array 30 (MSA30) drive enclosure, single bus
302969-B21
Modular Smart Array 30 (MSA30) drive enclosure, dual bus
302970-B21
HP StorageWorks Secure Path v4.0C for Windows Workgroup Edition
213076-B26
HP StorageWorks Secure Path v3.0C for NetWare Workgroup Edition
222411-B22
Secure Path v3.0C for Linux Workgroup Edition
MSA1000 Small Business
SAN Kit
(Windows and Linux 32-bit
servers only)
201723-B22
T3581A
ProLiant Cluster Starter Kit for the Entry Level SAN for Windows 2000 and Windows 2003 (dual server,
single path)
364023-B21
ProLiant Cluster HA/F200 for Entry Level SAN, Windows 2000 and Windows 2003 (dual server,
redundant path)
364026-B21
HP StorageWorks MSA1000 Small Business SAN Kit
NOTE: Includes (1) MSA1000; (1) 2/8q FC Switch; (2) FC HBA's (PN A7523A) + cables.
The MSA1000 SMB Kit is not designed to connect to any other StorageWorks SAN or interconnect. See
the MSA1000 SMB link at http://www.hp.com/go/msa1000 for additional details.
For use with the MSA1000 HP StorageWorks MSA1000 Small Business HA Upgrade Kit for Windows and Linux
DA - 11033
Worldwide — Version 22 — February 25, 2005
A7450A
A7452A
Page 4
QuickSpecs
HP StorageWorks Modular Smart Array 1000
QuickSpec Specific for Intel and PA-RISC based
Servers Only
Models
SMB Kit only
NOTE: Includes (1) redundant controller; (1) Fibre Channel I/O Module (1) 2/8q FC Switch; (2) FC
HBA's (PN A7523A); and cables.
It may only be used with the MSA1000 SMB Kit (A7450A)
2 Gb, 32-Bit/133 MHz PCI-X-to-Fibre Channel Host Bus Adapters
NOTE: This is a single channel HBA for Windows 2000, Windows 2003, and Linux. It may only be
used with the MSA1000 SMB Kit (A7450A)
DA - 11033
Worldwide — Version 22 — February 25, 2005
A7523A
Page 5
QuickSpecs
HP StorageWorks Modular Smart Array 1000
QuickSpec Specific for Intel and PA-RISC based
Servers Only
MSA1000 Components
With the following components, your storage capacity and performance can be scaled to new levels:
HP StorageWorks Modular The 4U cabinet houses up to fourteen 1" Universal hot pluggable Ultra2, Ultra3, and/or Ultra320 drives. Each MSA1000
Smart Array 1000
includes the following standard components: (1) MSA1000 Controller, (1) MSA Fibre Channel I/O Module with a single
SFP, dual hot pluggable fans/power supplies and power cables, documentation and a support software CD.
The modular design of the MSA1000 makes it possible to add redundant controllers, redundant single port Fibre Channel
I/O Modules, 3-port hub, or embedded fabric switch and storage expansion enclosures. Additional storage enclosures may
be added without power cycling the MSA1000.
MSA1000 Controller
The MSA1000 Controller is an integrated RAID controller with an LCD/LED status display and 256 MB read/write batterybacked cache (expandable to 512 MB per controller). One MSA1000 Controller is included with the MSA1000; a redundant
MSA1000 Controller is an option. Purchase of Secure Path software or use of Microsoft's MPIO or the QLogic Failover
Solution for Linux is a requirement if a second controller is chosen.
Redundant controller support with mirrored cache
Key Features
Fabric, Private Loop & Public Loop Support
Auto Negotiated F, FL & L Port Login
RAID 0, 1, 1+0, 5 and ADG
2 Gb/1 Gb Frequency Agile
Primary & Secondary Inter-Controller Link (ICL)
Host based configuration via ACU (OS dependent)
Optionally configurable with Command Line Interface (CLI)
Remote configuration and monitoring via ACU (offline and remote) & Insight
Manager (OS dependent)
Presentation: allows multiple hosts to access a single
MSA1000 Controller
Selective Storage Presentation
Management Features
MSA1000 storage system. Host access can be defined all the way down to a logical
volume level.
Online RAID Level Migration:
Migration allows for online post-configuration change to
RAID level without destroying data or volume information.
Online Capacity Expansion:
Expansion : lets you add storage to an operational
MSA1000-reducing expensive server downtime.
Global Online Spare:
Spare reduces the risk of data loss by facilitating automatic
rebuilds after a drive failure.
Several fault tolerant configurations which keep data available and servers running while
Fault Tolerance
drives are being replaced are supported including:
Fault Recovery
Advanced Data Guarding (RAID ADG): Allocates the equivalent of two parity
drives across multiple drives and allows simultaneous write operations.
Distributed Data Guarding (RAID 5): Allocates parity data across multiple drives
and allows simultaneous write operations.
Drive Mirroring (RAID 1, (1+0 Striped Mirroring)): Allocates half of the drive array
to data and the other half to mirrored data, providing two copies of every file.
Minimizes downtime, reconstructs data, and facilitates a quick recovery from drive failure:
Online Spares: If a failure occurs, recovery begins with an online spare and data is
reconstructed automatically. Multiple online spares can be assigned per array and
used across multiple arrays. It is also possible to assign different online spares
across different arrays.
Array Accelerator: Onboard, battery-backed cache memory protects data in the
event of a power failure. In the unlikely event of a controller failure, the batterybacked cache will save critical user data for up to three days.
MSA Fibre Channel I/O
Module
Provides a single 2 Gb Fibre Channel connection per controller from the host side into the MSA1000. The MSA Fibre
Channel I/O Module includes one 2 Gb, Short Wave, Small-Form-Factor-pluggable Transceiver (SFP). A second MSA Fibre
Channel I/O Module can be installed for redundancy when a redundant controller is used.
The single I/O module can be used in a direct connect configuration (no switch or hub) in Windows, Linux, NetWare, SCO
and HP-UX only.
DA - 11033
Worldwide — Version 22 — February 25, 2005
Page 6
QuickSpecs
HP StorageWorks Modular Smart Array 1000
QuickSpec Specific for Intel and PA-RISC based
Servers Only
MSA1000 Components
MSA SAN Switch 2/8
(embedded)
The optional MSA SAN Switch 2/8 offers low price per port and full scalability, doing so while taking zero rack space, even
in a redundant configuration. This second generation integrated switch option offers the customer more ports than our
previous offering and is a full member of the HP SAN Switch family, assuring interoperability from the smallest to the largest
SAN configuration. The HP StorageWorks MSA SAN Switch 2/8 can be used by the true entry-level customer looking for a
very inexpensive switch based on cost per port. This same switch can be attractive to the larger customer who must have the
interoperability with their other external B-Series SAN switch products from HP and especially appreciates the rack space
saving characteristics.
(The MSA SAN Switch 2/8 replaced the obsolete MSA Fabric Switch 6 option.)
Eight 2 Gb ports: 1 to controller, 7 user accessible
Key Features
Product ships with 4 SFPs installed
No E-port restriction, accepts all optional software
Interoperates with external HP B-Series SAN Switch 2 Gb switches
Configuration and management methodology common with SAN Switch product
line, same methods as installed base of 40,000+ HP 1 and 2Gb SAN Switches
MSA Hub 2/3
(embedded)
The HP StorageWorks MSA Hub 2/3 is a low-cost interconnect designed for clustering or low cost, high speed attachment of
two servers to the MSA1000. The MSA Hub 2/3 is a 3-port Fibre Channel Arbitrated Loop hub that is mounted on a blade
that easily installs inside the MSA1000 storage unit, saving valuable rack space. Two of these hubs may be installed for
redundancy within the MSA1000. The MSA Hub 2/3 is not cascadable. It is not certified for Alpha environments.
The hub presents the user with two SFP ports for simple direct attachment to two single or clustered servers without having to
purchase an external interconnect device. It offers the most cost-effective solution for a user to enable a clustered server
environment.
High Performance: supports MSA1000 with a 2 Gb interconnect capable of up to 200 MB throughput
Low Cost: supports the entry-level SAN array with the most cost effective option for 2-node clustering
Compact: installs in the MSA1000, replacing the I/O module, saving valuable rack space
Complete: comes with two SW SFPs - no need for further investment
Not qualified with servers utilizing Tru64 UNIX or OpenVMS operating systems.
2 Gb Small Form Factor
pluggable (SFP) SW
Transceiver Kit
2 Gb Small-Form-Factor-pluggable (SFP) SW Transceivers are industry standard connection devices, which hot plug into 2
Gb infrastructure components such as 2 Gb Fabric Switches. HP StorageWorks 2 Gb SFP SW Transceivers support distances
up to 300 meters at 2 Gb and 500 meters at 1 Gb using multi-mode fiber optic cable.
Multi-Mode Fibre Channel Multi-Mode Fibre Channel cables provide a thin, flexible cabling solution that is immune to electromagnetic interference.
Cables
HP offers cables to connect the MSA1000 to both 2 Gb and 1 Gb Fibre Channel infrastructures. LC to LC cables are used
when connecting the MSA1000 to other 2 Gb Fibre Channel components because both connections will utilize small form
factor transceivers. LC to SC cables are used when connecting the MSA1000 to 1 Gb Fibre Channel components. 1 Gb
components use the larger GBIC style transceivers.
DA - 11033
Worldwide — Version 22 — February 25, 2005
Page 7
QuickSpecs
HP StorageWorks Modular Smart Array 1000
QuickSpec Specific for Intel and PA-RISC based
Servers Only
Software Components
The MSA1000 utilizes a single, consistent set of utility software for storage and RAID management, setup, configuration and troubleshooting. This
consistency reduces the cost of ownership by reducing the training and technical expertise necessary to install and maintain your HP storage solution.
Provides a graphical view of HP drive array configurations
Array Configuration Utility
(solution chosen as appropriate
Easy to use Wizards for configuration
for operating system)
ACU supports on-line configuration
Web Based ACU supports On-Line, Remote Web Based and Off-line configuration
Runs online on Microsoft Windows NT 4.0 and Microsoft Windows 2000 and 2003
Selective Storage
Presentation (SSP)
Built-in to MSA1000 Controller firmware and controlled via ACU
Allows setting of access rights to the MSA1000 storage by hosts
Access control can be set up to a logical volume level using the Array Controller Utility
Insight Manager
(solution chosen as appropriate
for operating system)
Powerful storage, server and server option management tool
Monitor storage from a remote central location
Browser based System Insight Mananger provides full access from anywhere on the Intranet, eliminating the need for
a dedicated Insight Manager management console
HP OpenView storage
virtual replicator
(Microsoft environments)
Storage Virtual Replicator combines a rich set of innovative capabilities that enhances and simplifies storage management
for Windows Server 2003 and Windows 2000 environments. Through virtualization, online volume growth, snapshot and
management features, the software complements the capabilities within the operating system. HP OpenView Storage Virtual
Replicator enables storage consolidation and local volume replication within the pools.
Support for Windows 2000 and Windows Server 2003
Key Features
Virtualization - multiple storage arrays can be consolidated into a pool of disk
space for individual or clustered systems to use. Multiple virtual disks, up to 2
terabyte in size, can be created from a pool for users and their applications. Existing
storage units with production data can be imported into a pool. The data partition
is preserved as a virtual disk and unused capacity is added to the pool.
Online volume growth - Enables easy, non-disruptive growth for Windows
2000 or and Windows Server 2003 with zero downtime. Allows a system
administrator to grow an existing volume on virtual disks and Windows 2000 basic
disk. The system will remain online, and the data on the volume will remain intact.
Snapshots - Instant, point-in-time snapshots for backup, online restore, testing or
data mining. Enable instant creation of multipurpose virtual replicas of production
data without the requirement of a physical copy Snapshots identical to ordinary
physical disks, with both read and write capability. Snapshots can remain online for
restore operations, testing, and data mining. Full interoperability with the Windows
Server 2003 Volume Shadow-copy Service (VSS).
Full cluster-aware
Command line interface for scripting
Scheduling wizards for repetitive operations
Please refer to the Optional Software section of this document or visit
http://www.hp.com/go/msa1000 for additional details.
OS Support
Microsoft Windows Server 2003 (32 & 64-bit)
Microsoft Windows 2000 Server and Advanced Server (sp3)
Microsoft Windows NT 4.0 Server and Enterprise Edition (sp6a)
NetWare 5.1, 6 and 6.5
Red Hat Linux Enterprise Advanced Server 2.1 and Enterprise Linux 3.0 (32 & 64-bit)
SuSE Linux SLES 8 (32 & 64-bit )
Please refer to compatibility matrix at http://www.hp.com/go/msa1000 for complete configuration support on the
above operating systems.
Tru64 UNIX or OpenVMS supported in homogeneous environments only.
HP-UX 11.11, and 11.23 homogeneous environments only. (limited single controller homogeneous configurations)
SCO UnixWare 7.1.3, UnixWare 7.1.4 (limited single controller homogeneous configurations) The MSA SAN Switch
2/8 and the MSA Hub 2/3 are supported.
DA - 11033
Worldwide — Version 22 — February 25, 2005
Page 8
HP StorageWorks Modular Smart Array 1000
QuickSpec Specific for Intel and PA-RISC based
Servers Only
QuickSpecs
Software Components
HP-UX Phase 1 support
The first phase of MSA1000 for HP-UX supports single controller configurations only. This support is enabled by upgrading
the controller firmware of the MSA1000 to an alternative version, available free of charge at the MSA1000 web page at
http://www.hp.com/go/msa1000. Initially HP-UX support is of a homogeneous nature. Command Line Interface (CLI) is
used for configuration and Event Monitoring Service (EMS) for monitoring. Root/Boot/Dump/Swap/Install is also supported.
PV Links is supported for multi (HBA) path / single controller (2 HBAs) configurations.
Command Line Interface (CLI) is used for configuration and Event Monitoring Service (EMS) for monitoring.
Root/Boot/Dump/Swap/Install is also supported.
PV Links is supported for multi (HBA) path / single controller (2 HBAs) configurations.
Fabric, hub and direct Connect are supported
HP-UX 11.11 & 11.23, PA-RISC and Itanium
SCO UnixWare and
OpenServer
HP's MSA1000 SAN solution is available today to run on SCO UnixWare 7.1.3 and 7.1.4 and SCO OpenServer 5.0.7. The
MSA1000 with a single controller may be connected to a ProLiant server with SCO UnixWare in one of the below described
manners:
Direct Attach
Through an internal Hub
Through an internal switch
The StorageWorks FCA2214 and the FCA2214DC are the approved HBAs.
Software Certifications
Microsoft Cluster Server Certification
HP Serviceguard for Linux
Hewlett Packard Data Protector
VERITAS Backup Exec and NetBackup
Legato NetWorker for Windows
Computer Associates BrightStor Enterprise Backup
SteelEye LifeKeeper for Linux Certification
Please refer to compatibility matrix at http://www.hp.com/go/msa1000 for complete configuration support.
DA - 11033
Worldwide — Version 22 — February 25, 2005
Page 9
QuickSpecs
HP StorageWorks Modular Smart Array 1000
QuickSpec Specific for Intel and PA-RISC based
Servers Only
Optional Software
HP StorageWorks Secure
Path
HP StorageWorks Secure Path is a family of high availability multi-pathing software products providing continuous data
access from the HP RAID Array to host servers running the Windows Server 2003, Windows 2000, Windows NT, Linux and
NetWare operating systems.
Redundant hardware, advanced RAID technology and Secure Path's automated failover capability are used to enhance fault
tolerance and availability. Secure Path effectively eliminates controllers, disk drives, interconnect hardware and host bus
adapters as single points of failure in the storage subsystem.
The attachment of non-Secure Path (single HBA) servers to an MSA1000 with dual controllers that has servers with Secure
Path (dual HBA) attached is supported where the operating systems are Windows or NetWare. Users must realize that in
event of a controller fail-over (failure of active controller) the single path servers will lose access to their data on the
MSA1000.
NEW - Secure Path can now support up to an 8-node cluster in Windows Server 2003.
NOTE: If Secure Path for Linux is used on any node or cluster attached to an MSA1000, all nodes must also have Secure
Path installed, regardless of operating systems.
NOTE: refer to http://www.hp.com/go/securepath for the latest Secure Path parameters.
Maintains connections to storage
Key Features
Monitors I/O paths and alerts on significant events
Stand alone Configurations
Used in
Cluster configurations
SAN configurations
MSA1000 utilization of
HP supports additional high availability multi-pathing capabilities within various operating systems and through thirdIndustry Standard fail-over party vendors, providing continuous data access from HP's RAID MSA1000 to host servers. Options are available for servers
solutions
running the Windows and Linux, operating systems. More information and the explanation of restrictions are available at
http://h18006.www1.hp.com/products/sanworks/multipathoptions/index.html
Microsoft Windows 2000 and 2003 (32 bit EE and 64 bit EE only)can utilize the HP MPIO Basic Failover v1.0 for
MSA Arrays, a DSM available for free download at the above site.
Linux industry standard failover for the MSA1000 is available at no charge within the FCA2214 HBA device driver
from QLogic.
MSA1000 clustering
Clustering is rapidly gaining in popularity as users desire a high level of data availability. Many of the old cluster restrictions
that were the product of both hardware and operating systems have been overcome. While there still remain configuration
limits, the result is a new high degree of flexibility both in number of clusters, mixing clusters with single nodes, and the
integration of dissimilar operating systems.
For example you may mix three Microsoft (Windows Server 2003, Windows 2000, or Windows NT) clusters and other
individual servers, even doing so in a heterogeneous server operating system environment. Windows Server 2003 allows a
single cluster of up to eight nodes, now with Secure Path protection.
Single-path (single controller, non-Secure Path) NetWare clustering has been successfully tested up to a 12-node cluster.
NetWare clusters employing Secure Path (dual controller, dual HBAs) are limited to six nodes. Multiple NetWare clusters
(and single servers) may have concurrent access with no limitation inherent to the MSA1000. Likewise up to a 16-node Linux
cluster (single controller, non-Secure Path) utilizing SteelEye LifeKeeper for Linux clustering software has been tested and is
supported. Presently a Linux/Secure Path configuration is limited to a two-node cluster. Refer to
http://www.hp.com/go/securepath for any restriction on Linux with Secure Path.
The MSA1000 has the ability to be configured with thirty-two LUNs. Best practices would dictate generally no more than
sixteen servers accessing a single MSA1000. More commonly, users have had an average of five to eight nodes. This can be
any combination of hosts or clusters with different operating systems while holding fast to the guidelines and limits
described in the above paragraphs. Performance within these guidelines is heavily dependent on the actual number of end
users and types of applications being employed.
For more information, click on the link: http://.www.hp.com/enterprise/highavailability/index.html.
DA - 11033
Worldwide — Version 22 — February 25, 2005
Page 10
QuickSpecs
HP StorageWorks Modular Smart Array 1000
QuickSpec Specific for Intel and PA-RISC based
Servers Only
Optional Software
ProLiant Cluster F200 for
the Entry Level SAN
(Microsoft)
The ProLiant Cluster F200 for the Entry Level SAN is designed to assist in simplifying the configuration of cluster
solutions that provide high levels of data and applications availability in the Microsoft Windows Operating System
environment through clustering to provide no-single-point-of-failure. The ProLiant Cluster F200 for the Entry Level
SAN supports a two-node cluster based on Microsoft Windows 2000 Advanced Server and two to eight-nodes cluster
based on Microsoft Windows Server 2003 Enterprise Edition operating system, the StorageWorks Modular Smart Array
1000 (MSA1000) and MSA1500 cs, or Raid Array RA4100 and ProLiant Servers. This solution also supports
StorageWorks Secure Path management software.
HP ProLiant Cluster HA/F200 for Entry Level SAN (Microsoft)
364026-B21
HP Serviceguard for Linux HP Serviceguard is a high availability solution that leverages the strength of HP's experience in the HA business, bringing
the best-in-class mission critical technologies to the Linux environment and ProLiant and Integrity servers. HP Serviceguard
provides critical applications the high availability that enterprise customers require for 24x7 business operations. It is
designed to protect applications from a wide variety of software and hardware failures, monitoring the health of each server
(node) and quickly responding to failures including system processes, system memory, LAN media and adapters, and
application processes. Serviceguard enables customers to cluster HP ProLiant and Integrity server families with shared
storage from HP Modular Smart Array 500 to HP StorageWorks XP disk arrays in a 2-node SCSI or 2 to 16-node Fibre
Channel configuration.
Please refer to the HP ProLiant High Availability web site under Linux clustering for ProLiant for the latest information on
Serviceguard for Linux: http://www.hp.com/servers/proliant/highavailability/serviceguard
For general Serviceguard information (HP-UX and Linux), please refer to: http://www.hp.com/go/serviceguard
HP Serviceguard for Linux ProLiant Cluster (per 2-node cluster)
305199-B24
HP Serviceguard for Linux (per 32-bit server)
307754-B24
HP ProLiant Clusters for
NetWare
HP supports a broad range of solutions for NetWare Cluster services including configurations featuring the MSA1000 and
optionally with HP StorageWorks Secure Path. These solutions provide high availability and maximum resource utilization
for NetWare environments from small file sharing implementations to enterprise business computing. Single-path (single
controller, non-Secure Path) NetWare clusters of up to 12-nodes have been successfully tested. Presently 2-node NetWare
clusters with Secure Path have been tested and approved with larger NetWare cluster testing planned. Multiple NetWare
clusters are allowed.
NOTE: Refer to http://www.hp.com/go/securepath for the latest Secure Path for NetWare parameters.
HP ProLiant Parallel
Database Clusters for
Oracle on MSA1000
The HP Parallel Database Clusters (PDC) for Windows and Linux provide the industry's leading platform for deployment of
Oracle 9i Real Application Clusters. The PDC is a multi-node (up to six in Microsoft environments and up to four with
Linux)) shared-storage clustering environment that enables industry standard Windows and Linux platforms to deliver
performance previously limited to very large SMP (16 to 32 processor) environments. Every server node in the cluster has
concurrent read-write access to the common shared database residing on the MSA1000 storage SAN. The multi-node
architecture is inherently highly available, loss of any single node results in some degradation of performance but the
database remains active and accessible. When optimally integrated with Oracle load balancing and transparent
application reconnect features, clients are completely insulated from the loss of a server resource or an Oracle instance
failure on a node. To complement the high availability of the server cluster in a Windows environment, the Parallel
Database Cluster integrates HP StorageWorks Secure Path for fully redundant access to the database in the even of any
failure in SAN connectivity. Secure Path for Linux will be available at a later date. Combined, the Oracle clustering
technology and HP platform technology deliver cost effective and highly available enterprise solutions for database
applications.
For more specific information concerning configuration, interconnect options, and dual path software refer to the
HP/Oracle site at http://h18000.www1.hp.com/solutions/enterprise/highavailability/oracle/index.html.
DA - 11033
Worldwide — Version 22 — February 25, 2005
Page 11
QuickSpecs
HP StorageWorks Modular Smart Array 1000
QuickSpec Specific for Intel and PA-RISC based
Servers Only
Optional Software
HP OpenView Storage
Mirroring
HP OpenView Storage Mirroring (SM) is cost effective host-based software product for remote storage replication over IP
networks. Storage Mirroring provides near real-time full application or file recovery up to the last byte replication. SM is an
excellent choice for low bandwidth; low storage volume changes and meets business recovery goals within minutes or hours.
The immediate return on investment is realized in the reduced management cost associated with branch or small offices
networks.
Supports Microsoft Windows 2000/NT/2003servers
Application aware and supported with Exchange, SQL and Oracle
Host-based remote replication for TCP/IP networks
Data distribution one-to-many or 'fan-out' to multiple destinations
Data migration utility for transferring large data projects
Cost effective investment for a high return on business continuance
Provides a cost effective solution to gain a competitive advantage position
for more information visit http://h18006.www1.hp.com/products/storage/software/sm/index.html
DA - 11033
Worldwide — Version 22 — February 25, 2005
Page 12
HP StorageWorks Modular Smart Array 1000
QuickSpec Specific for Intel and PA-RISC based
Servers Only
QuickSpecs
Configure to Order Program Information
HP introduces the new Configure to Order program on a limited basis. It is not yet available in all areas. The MSA1000 and its options may or may not be
factory installed in a rack with add-on controllers, switches, hubs, MSA30 enclosures and hard drives. The MSA1000 may be integrated with 64-bit Integrity
and PA-RISC servers or ProLiant or as standalone storage.
Configure to Order
Products Approved for CTO
CTO SKUS
Modular SAN Array 1000
201723-B22 #0D1
HP MSA1000 Controller 256 cache ALL
218231-B22 #0D1
256 MB Cache Upgrade
254786-B21 #0D1
2 Gb FC Port Kit
218960-B21 #0D1
MSA SAN Switch 2/8 ALL
288247-B21 #0D1
MSA1000 Embedded 3-port Hub
286763-B21 #0D1
MSA30 U320 Enclosure, single bus
302969-B21 #0D1
300 GB Pluggable Ultra320 Universal Hard Drive, 10,000 rpm (1")
350964-B22 #0D1
146 GB 10K U320 Pluggable Hard Drive WW
286716-B22 #0D1
72 GB 10K U320 Pluggable Hard Drive WW
286714-B22 #0D1
72 GB 15K U320 Pluggable Hard Drive WW
286778-B22 #0D1
36 GB 15K U320 Pluggable Hard Drive WW
286776-B22 #0D1
2m LC-LC multimode FC cable
221692-B21 #0D1
5m LC-LC multimode FC cable
221692-B22 #0D1
15M LC-LC multimode FC cable
221692-B23 #0D1
30M LC-LC multimode FC cable
221692-B26 #0D1
50M LC-LC multimode FC cable
221692-B27 #0D1
42U EVA cab 60Hz
338042-B21
42U EVA cab 50Hz
338043-B21
36U EVA cab 60Hz
338044-B21
36U EVA cab 50Hz
338045-B21
22U EVA cab 60Hz
338046-B21
22U EVA cab 50Hz
338047-B21
HP9000 Std Rack System E25
A4900A
HP Rack System/E, 33U, quartz color
A4901A
HP Rack System/E, 33U, graphite color
A4901D
HP Rack System/E, 41U, quartz color
A4902A
HP Rack System/E, 41U, graphite color
A4902D
Rack 10642 42U Shock ALL
245161-B22
Rack 10636 36U Shock ALL
245162-B22
DA - 11033
Worldwide — Version 22 — February 25, 2005
Page 13
QuickSpecs
HP StorageWorks Modular Smart Array 1000
QuickSpec Specific for Intel and PA-RISC based
Servers Only
Service and Support, HP Care Pack, and Warranty Information
Warranty
Three-year Limited Warranty for MSA1000, Fibre Channel Cables and SFP Transceivers; 3 years parts exchange; 1 year
labor; 1 year on-site; next business day response. Options for the MSA1000 carry their own warranty. Refer to HP's Limited
Warranty Statement for further details.
Products included in various Kits carry their own individual warranties.
Warranty Upgrade
Options
Response – Upgrade on-site response from next business day to same day 4 hours
Coverage – Extend hours of coverage from 9 hours x 5 days to 24 hours x 7 days
Duration – Select duration of coverage for a period of 1, 3, or 5 years
Storage Service Packages
HP Care Pack is defined as an upgrade to the product warranty attribute, available for a specific duration and
hours of coverage.
HP Care Pack is not available for less than the product's warranty duration.
HP Care Pack is available for sale anytime during the warranty period for most products, but the commencement
date will be the same as the Warranty Start Date (delivery date to end user customer). Proof of purchase may be
required.
HP Care Pack services are prepaid.
For additional information on Product Services and HP Care Pack, as well as orderable part numbers, please refer to the
URL: http://www.hp.com/hps/carepack/.
If you have specific questions about availability or how to obtain services contact your local HP representative. Contact
information for your local area can be found at:
http://www.hp.com/services.
DA - 11033
Worldwide — Version 22 — February 25, 2005
Page 14
HP StorageWorks Modular Smart Array 1000
QuickSpec Specific for Intel and PA-RISC based
Servers Only
QuickSpecs
Service and Support, HP Care Pack, and Warranty Information
Software Product Services
Software product services
Product support provides the customer access to HP's experienced technical support
resources, as well as access to HP's Information Services database for support on a variety of multi-vendor/multiplatform
software products. Product support includes escalation and problem coordination with the appropriate engineering group.
HP Services offer a variety of options to allow you to tailor your product service to meet the needs of your organization. Basic
warranty on products can be uplifted from day one to ensure you receive the service you need when you need it.
Warranty and support
HP warrants only that the software media will be free of physical defects for a period of ninety (90) days from delivery.
The following services are offered as HP Care Pack Services at the time of software product order:
Software Technical Support 24 x 7 (1 and 3 years) is available 24 hours per day, Monday through Sunday, including
holidays (includes phone-in software technical support 24 x 7 and software product and documentation updates).
Installation Service (software installation) and Installation and Startup Service (software installation, configuration,
startup testing and knowledge transfer).
HP Care Pack services must be ordered with the product and are prepaid.
For tailored support contracts based on personalized statement of work contact your local support center via
http://www.HP.com/support.
Secure Path software services
Software product services included with Secure Path: One year of Software Technical Support 24 x 7 HP Care Pack
Services (includes phone-in software technical support 24 x 7 and software product and documentation updates).
HP Care Pack services are available to upgrade the one year of Software Technical Support 24 x 7 included with the
Secure Path product to 3 full years.
Installation service (software installation)
For additional software product services information for North American HP Care Pack services, as well as orderable part
numbers, please refer to the URLs listed below:
All storage services: http://www.hp.com/hps/storage/.
All HP Care Pack Services: http://www.hp.com/hps/carepack/storage/cp_networked.html.
Software Support HP Care Pack Services: http://www.hp.com/hps/carepack/software/cp_storage.html.
Installation and Startup Services: http://www.hp.com/hps/storage/ns_implementation.html.
If you have specific service questions contact your local HP representative. Contact information for your local area can be
found at: http://www.compaq.com/support.
Maintenance releases, bug fixes and software patches are available at:
http://www.compaq.com/support/sanworks.
Hardware Product Services
Installation services that include basic installation and Installation and Startup
On-site maintenance (includes warranty support)
Response time upgrades during the warranty period
Post-warranty coverage
RAID setup and performance consulting via statement of work
Migration service consulting via statement of work
Environmental, Mission Critical Services
For additional hardware installation and maintenance information, please refer to the URLs listed below:
http://h18005.www1.hp.com/services/carepaq/us/install/
http://h18005.www1.hp.com/services/carepaq/us/hardware/.
DA - 11033
Worldwide — Version 22 — February 25, 2005
Page 15
QuickSpecs
HP StorageWorks Modular Smart Array 1000
QuickSpec Specific for Intel and PA-RISC based
Servers Only
Service and Support, HP Care Pack, and Warranty Information
Array Installation and
Startup Services
The HP installation and startup for HP StorageWorks Disk Arrays service package provides installation and configuration of
HP StorageWorks Disk Array products. Service highlights include:
Service planning
Installation and Startup provides installation, Virtual Disk Design and configuration of the MSA1000. This includes:
Service planning
Service deployment
Installation Verification Testing (IVT) required for this service
Customer orientation session
Please contact your local HP sales organization for further details.
DA - 11033
Worldwide — Version 22 — February 25, 2005
Page 16
HP StorageWorks Modular Smart Array 1000
QuickSpec Specific for Intel and PA-RISC based
Servers Only
QuickSpecs
Service and Support, HP Care Pack, and Warranty Information
Hardware Product Services 9x5, Next Business Day, On-Site Coverage, 3 years
FM-FCXHW-36
103840-002
9x5, 4-Hour Response, On-Site Coverage, 3 years
FM-FC4HR-36
402165-002
24x7, 4-Hour Response, On-Site Coverage, 3 years
FM-FC724-36
402164-002
9x5, Next Business Day, On-Site Coverage, 5 years
FM-FCXHW-60
170183-002
9x5, 4-Hour Response, On-Site Coverage, 5 years
FM-FC4HR-60
170185-002
24x7, 4-Hour Response, On-Site Coverage, 5 years
FM-FC724-60
170187-002
Hardware Installation
FM-FCINS-IN
402162-002
Fixed Price Care Pack Part Numbers:
3 Yr next Day/Onsite
U6355A/E
3 Yr Same Day/Onsite
U6356A/E
3 Yr 7x24/Onsite
U6357A/E
3 Yr 6 hr CTR
U9934A/E
4 Yr Same Day/Onsite
U9398A/E
4 Yr 7x24/Onsite
U9399A/E
5 Yr Same Day/Onsite
U9340A/E
5 Yr 7x24/Onsite
U93401A/E
Hardware Installation
U4368A/E
Flexible Care Pack Part Numbers:
Support – MSA1000, 1 Yr ND Hardware
HA101A1-6FG
Support – MSA1000, 3 Yr ND Hardware
HA101A3-6FG
Support – MSA1000, 1 Yr 4h 13x5 Hardware
HA103A1-6FG
Support – MSA1000, 3 Yr 4h 13x5 Hardware
HA103A3-6FG
Support – MSA1000, 1 Yr 4h 2x7 Hardware
HA104A1-6FG
Support – MSA1000, 3 Yr 4h 24x7 Hardware
HA104A3-6FG
Support - MSA1000, 1 Yr 6 hr CTR
HA105A1-6FG
Support - MSA1000, 3 Yr 6 hr CTR
HA105A3-6FG
Support – MSA1000, 1 Yr Support Plus
HA109A1-6FG
Support – MSA1000, 3 Yr Support Plus
HA109A3-6FG
Support – MSA1000, 1 Yr Support Plus 24
HA110A1-6FG
Support – MSA1000, 3 Yr Support Plus 24
HA110A3-6FG
Support – MSA1000, 1 Yr Proactive 24
HA111A1-6FG
Support – MSA1000, 3 Yr Proactive 24
HA111A3-6FG
Support - MSA1000, 1 Yr Critical Service
HA112A1-6FG
Support - MSA1000, 3 Yr Critical Service
HA112A3-6FG
DA - 11033
Worldwide — Version 22 — February 25, 2005
Page 17
HP StorageWorks Modular Smart Array 1000
QuickSpec Specific for Intel and PA-RISC based
Servers Only
QuickSpecs
Configuration Information
Step 1 – Order Required Items
HP StorageWorks Modular Smart Array 1000
201723-B22
Includes:
(1) MSA1000 Controller with 256 MB cache
(1) MSA Fibre Channel I/O Module with 2 Gb SFP SW Transceiver
Redundant Hot Pluggable Power Supply/blower assemblies
Universal Rackmounting Kit
MSA1000 Support CD & Documentation
Serial cable
(2) Power cables
NOTE: Fibre Channel cables are ordered separately.
Step 2 – Choose Optional Non-Redundant MSA1000 System Options
MSA SAN Switch 2/8 (integrated) (Includes four 2Gb SFPs)
288247-B21
MSA Hub 2/3 (integrated) (Includes two 2 Gb SFP transceivers)
286763-B21
NOTE: The MSA SAN Switch 2/8 has a total of eight Fibre Channel ports. There are seven ports
accessible by the user and the eighth is internal to the controller. Four SFPs are shipped installed in
the Switch.
The MSA Hub 2/3 has two external Fibre Channel ports, both of which already have 2 Gb transceivers
installed. (Not supported with Tru64 UNIX or OpenVMS).
DA - 11033
Worldwide — Version 22 — February 25, 2005
Page 18
QuickSpecs
HP StorageWorks Modular Smart Array 1000
QuickSpec Specific for Intel and PA-RISC based
Servers Only
Configuration Information
Step 3 – Choose Redundant MSA1000 System Options
MSA1000 Controller
218231-B22
256 MB Cache Modules for Controller (one additional for each controller)
254786-B21
HP StorageWorks Secure Path (appropriate model for the operating system)
NOTE: Redundant configurations require two Host Adapters per server, an additional controller and
an I/O module, an MSA SAN Switch 2/8 or an MSA Hub 2/3 (for Windows or NetWare), and Secure
Path software for each server. An industry standard fail-over solution such as Microsoft's MPIO for
Windows or the QLogic solution for Linux may be employed. For Microsoft ProLiant Clusters, Secure
Path software can be substituted with the ProLiant Clusters HA/F200 kit.
Mixing of the MSA Fibre Channel I/O Modular and the MSA SAN Switch 2/8 or the MSA Hub 2/3 is
not supported. When configuring the MSA1000 for redundant controllers use either two MSA Fibre
Channel I/O Modules, two MSA Hub 2/3s, or two MSA SAN Switch 2/8s.
MSA Fibre Channel I/O Module (Includes one 2 Gb SFP transceiver)
218960-B21
MSA SAN Switch 2/8 (integrated) (Includes four 2 Gb SFP transceivers)
288247-B21
MSA Hub 2/3 (integrated) (Includes two 2 Gb SFP transceivers)
286763-B21
DA - 11033
Worldwide — Version 22 — February 25, 2005
Page 19
HP StorageWorks Modular Smart Array 1000
QuickSpec Specific for Intel and PA-RISC based
Servers Only
QuickSpecs
Configuration Information
Step 4 – Choose Supported Options For 2 Gb or 1 Gb Infrastructure
2 Gb Fibre Channel
Transceiver (SFP)
2 Gb SFP SW Transceiver Kit
2 Gb Fibre Channel
HP StorageWorks MSA SAN Switch 2/8 (embedded option for MSA1000 only)
Fabric "B-Series" family of NOTE: Includes four 2Gb SFP transceivers.
switches
HP StorageWorks SAN Switch 2/8V
221470-B21
288247-B21
AA979A
HP StorageWorks SAN Switch 2/8V Power Pack
AA980A
HP StorageWorks SAN Switch 2/16V
AA978A
HP StorageWorks SAN Director 2/128
AA981A
HP StorageWorks SAN Director 2/128 Power Pack
AA982A
HP StorageWorks core 2/64
332177-B22
HP StorageWorks core 2/64 Power Pack
332178-B22
HP StorageWorks SAN Switch 2/32
240603-B21
HP StorageWorks SAN Switch 2/32 Power Pack
333764-B21
HP StorageWorks SAN Switch 2/16N
AA990A
HP StorageWorks SAN Switch 2/16N Power Pack
AA977A
HP StorageWorks SAN Switch 2/16
322118-B21
HP StorageWorks SAN Switch 2/16 Power Pack
322119-B21
HP StorageWorks SAN Switch 2/16-EL
334181-B21
HP StorageWorks SAN Switch 2/8 Power Pack
322121-B21
HP StorageWorks SAN Switch 2/8-EL
322120-B21
DA - 11033
Worldwide — Version 22 — February 25, 2005
Page 20
HP StorageWorks Modular Smart Array 1000
QuickSpec Specific for Intel and PA-RISC based
Servers Only
QuickSpecs
Configuration Information
2 Gb Fibre Channel
Fabric "M-Series" family
of switches
HP StorageWorks Director 2/140
NOTE: 64-ports active. Ships with 64 SFPs
316093-B21
HP StorageWorks Director 2/64
NOTE: 32 active ports. Ships with 32 SFPs
286809-B21
HP StorageWorks Edge Switch 2/32
NOTE: 16 active ports. Ships with 16 SFPs
286810-B21
8-FlexPort upgrade for Edge 2/32
302660-B21
HP StorageWorks Edge Switch 2/24
NOTE: 8 ports active. Ships with 8 SFPs
316095-B21
8-FlexPort upgrade for Edge 2/24
316096-B21
HP StorageWorks Edge Switch 2/12
NOTE: 4 ports active. Ships with 4 SFPs
348406-B21
4-FlexPort upgrade for Edge 2/24
348407-B21
2 Gb Fibre Channel
Cisco MDS 9506 Multilayer Director w/0SFPs
Fabric "C-Series" family of Cisco MDS 9509 Multilayer Director w/0 SFPs
switches
Cisco MDS 9216 Multilayer Fabric Switch w/16 SFPs
A7471A
A7462A
A7473A
Cisco MDS 9120 Fabric Switch w/0 SFPs
A7426A
Cisco MDS 9140 Fabric Switch w/0 SFPs
A7427A
NOTE: Cisco Directors and switches not yet certified with HP-UX for the MSA1000
For "C-Series" information refer to: http://hp.com/go/SAN.
2 Gb Fibre Channel
Integrated Hub
MSA Hub 2/3 (integrated option, comes complete with two SFPs)
NOTE: Not for use with ProLiant Blade servers, Tru64 UNIX or OpenVMS.
286763-B21
2 Gb Fibre Channel HBAs FCA2214 Host Adapter (Linux, Microsoft, NetWare 32-bit ) single channel
281541-B21
FCA2214DC Host Adapter (Linux, Microsoft, NetWare 32-bit) dual channel
Windows 32-bit single channel PCI-X (Windows Server 2003, W2K)
Windows 32-bit dual channel PCI-X (Windows Server 2003, W2K)
321835-B21
A7388A
A7387A
FCA2404 Host Adapter PCI-X (32-bit Windows NT)
305573-B21
FCA2404DC dual channel Host Adapter PCI-X (32-bit Windows NT)
323264-B21
Windows 64-bit, single channel, 64-Bit/133 MHz PCI-X to FC HBA
AB467A
Windows 64-bit, dual channel, 64-Bit/133 MHz PCI-X to FC HBA
AB466A
Host Adapter for 64-bit Linux, Integrity servers
A6826A
HP-UX HBA: PCI 2 GB Fibre Channel Adapter
A6795A
HP-UX HBA: PCI-X Dual Channel 2 Gb Fibre Channel
A6826A
HP-UX HBA: PCI-X 2 Gb Fibre Channel/1000Base-SX
A9782A
HP-UX HBA: PCI-X 2 Gb Fibre Channel/1000Base-T
A9784A
HP-UX HBA: PCI-X 2 Gb Fibre Channel/1000Base-T
A9784A
Tru64 UNIX, FCA2684 - HP StorageWorks 2 Gb, Single Channel, 133 MHz PCI-X-to-Fibre Channel Host Bus
OpenVMS ONLY Adapter for Tru64 UNIX and future support for OpenVMS
DS-A5132-AA
FCA2684DC - HP StorageWorks 2 Gb, Dual Channel, 133 MHz PCI-X-to-Fibre Channel Host Bus
Adapter for Tru64 UNIX and future support of OpenVMS
DS-A5134-AA
FCA2384 2 Gb PCI-X Host Adapter (OpenVMS/Tru64 UNIX)
302784-B21
DS-KGPSA-EA
DA - 11033
Worldwide — Version 22 — February 25, 2005
Page 21
QuickSpecs
HP StorageWorks Modular Smart Array 1000
QuickSpec Specific for Intel and PA-RISC based
Servers Only
Configuration Information
Fibre Channel Cables for Use 2 Gb Fibre Channel cables when connecting the MSA Fibre Channel I/O Module, MSA Hub 2/3
2 Gb Infrastructure
or the MSA SAN Switch 2/8 to an HBA
2 m LC-LC Multi-Mode Fibre Channel Cable
221692-B21
5 m LC-LC Multi-Mode Fibre Channel Cable
221692-B22
15 m LC-LC Multi-Mode Fibre Channel Cable
221692-B23
30 m LC-LC Multi-Mode Fibre Channel Cable
221692-B26
50 m LC-LC Multi-Mode Fibre Channel Cable
221692-B27
Fibre Channel Cables for Use 1 Gb Fibre Channel cables when connecting the MSA Fibre Channel I/O Module and any
1 Gb Fabric Switches and HBA(s) to 1 Gb fabric switches.
Hub
2 m LC-SC Multi-Mode Fibre Channel Cable
221691-B21
5 m LC-SC Multi-Mode Fibre Channel Cable
221691-B22
15 m LC-SC Multi-Mode Fibre Channel Cable
221691-B23
30 m LC-SC Multi-Mode Fibre Channel Cable
221691-B26
50 m LC-SC Multi-Mode Fibre Channel Cable
221691-B27
Step 5 – Choose Hard Drives & StorageWorks Enclosures
Hard Drives
72.8 GB Pluggable Ultra320 Universal Hard Drive, 10,000 rpm (1")
286714-B22
146.8 GB Pluggable Ultra320 Universal Hard Drive, 10,000 rpm (1")
286716-B22
300 GB Pluggable Ultra320 Universal Hard Drive, 10,000 rpm (1")
350964-B22
36.4 GB Pluggable Ultra320 Universal Hard Drive, 15,000 rpm (1")
286776-B22
72.8 GB Pluggable Ultra320 Universal Hard Drive, 15,000 rpm (1")
286778-B22
146.8 GB Pluggable Ultra320 Universal Hard Drive, 15,000 rpm (1")
347708-B22
NOTE: All Ultra320 Universal Hard Drives are backward compatible to U2 or U3 speeds.
NOTE: For complete compatibility information, refer to the HP SCSI Hard Drive Compatibility table
located at http://www.hp.com/go/msa1000.
StorageWorks Enclosures
The MSA1000 cabinet holds fourteen 1" Universal Drives. Add one StorageWorks Enclosure to
increase capacity up to 28 drives. Add two HP StorageWorks Enclosures to increase capacity up to the
maximum of 42 drives.
MSA30 single bus enclosure
NOTE: Maximum of two can be connected to the MSA1000.
302969-B21
MSA30 dual bus enclosure
NOTE: Maximum of one can be connected to the MSA1000.
DA - 11033
Worldwide — Version 22 — February 25, 2005
Page 22
HP StorageWorks Modular Smart Array 1000
QuickSpec Specific for Intel and PA-RISC based
Servers Only
QuickSpecs
Configuration Information
Step 6 – Choose Rack Options
10647 (47U) Rack Cabinet - Pallet
245160-B21
10647 (47U) Rack Cabinet - Crated
245160-B23
10642 (42U) Rack Cabinet - Pallet
245161-B21
10642 (42U) Rack Cabinet - Shock Pallet
NOTE: It is mandatory to use a shock pallet in order to ship racks with equipment installed.
245161-B22
10642 (42U) Rack Cabinet - Crated
245161-B23
10636 (36U) Rack Cabinet - Pallet
245162-B21
10636 (36U) Rack Cabinet - Shock Pallet
NOTE: It is mandatory to use a shock pallet in order to ship racks with equipment installed.
245162-B22
10636 (36U) Rack Cabinet - Crated
245162-B23
10622 (22U) Rack Cabinet - Pallet
245163-B21
10622 (22U) Rack Cabinet - Shock Pallet
NOTE: It is mandatory to use a shock pallet in order to ship racks with equipment installed.
245163-B22
10622 (22U) Rack Cabinet - Crated
245163-B23
S10614 (14U) Rack Cabinet - Shock Pallet
NOTE: It is mandatory to use a shock pallet in order to ship racks with equipment installed.
292302-B22
Rail Kit for mounting in a M-Series rack
313877-B21
Step 7 – Choose HP Care Pack Services
HP Care Pack Options
9x5, Next Business Day, On-Site Coverage, 3 years (6-3)
9x5, Next Business Day, On-Site Coverage, 3 years (2-5-2)
9x5, 4-Hour Response, On-Site Coverage, 3 years (6-3)
9x5, 4-Hour Response, On-Site Coverage, 3 years (2-5-2)
24x7, 4-Hour Response, On-Site Coverage, 3 years (6-3)
24x7, 4-Hour Response, On-Site Coverage, 3 years (2-5-2)
9x5, Next Business Day, On-Site Coverage, 5 years (6-3)
9x5, Next Business Day, On-Site Coverage, 5 years (2-5-2)
9x5, 4-Hour Response, On-Site Coverage, 5 years (6-3)
9x5, 4-Hour Response, On-Site Coverage, 5 years (2-5-2)
24x7, 4-Hour Response, On-Site Coverage, 5 years (6-3)
24x7, 4-Hour Response, On-Site Coverage, 5 years (2-5-2)
Hardware Installation (6-3)
103840-002
FM-FCXHW-36
402165-002
FM-FC4HR-36
402164-002
FM-FC724-36
170183-002
FM-FCXHW-60
170185-002
FM-FC4HR-60
170187-002
FM-FC724-60
402162-002
Hardware Installation (2-5-5)
FM-FCINS-IN
Configuration Examples
Two Node Redundant Cluster Solution (Intel based servers)
Quantity
Description
Part Number
1
HP StorageWorks Modular Smart Array 1000
201723-B22
1
Additional MSA1000 Controller
218231-B22
2
MSA Hub 2/3
286763-B21
4
Host Adapter (appropriate model for operating system)
4
2 m LC-LC Multi-Mode Fibre Channel Cable
221692-B21
1
ProLiant Cluster HA/F200 for MSA1000 (includes Secure Path for two servers)
252409-B24
14
36.4 GB Pluggable Ultra320 Universal Hard Drive, 15K
286776-B21
DA - 11033
Worldwide — Version 22 — February 25, 2005
Page 23
HP StorageWorks Modular Smart Array 1000
QuickSpec Specific for Intel and PA-RISC based
Servers Only
QuickSpecs
Configuration Information
4 Host, 6TB, Redundant SAN Solution (Intel based servers)
Quantity
Description
Part Number
1
HP StorageWorks Modular Smart Array 1000
201723-B22
1
Additional MSA1000 Controller
218231-B22
2
256 MB Cache Modules for Controller (one additional for each controller)
254786-B21
2
MSA SAN Switch 2/8 (Includes four 2 Gb SFP transceivers)
288247-B21
8
Host Adapter (appropriate model for operating system)
8
2 m LC-LC Multi-Mode Fibre Channel Cable
4
Secure Path Workgroup Edition (1 license per server), appropriate for operating system
2
HP StorageWorks Enclosure MSA30
190209-001
42
146.8 GB Pluggable Ultra320 Universal Hard Drive, 10,000 rpm (1")
286716-B22
DA - 11033
Worldwide — Version 22 — February 25, 2005
221692-B21
Page 24
HP StorageWorks Modular Smart Array 1000
QuickSpec Specific for Intel and PA-RISC based
Servers Only
QuickSpecs
Related Options
Storage Virtual Replicator 1 System LTU
v4.1
3 System LTU
(Microsoft operating systems)
5 System LTU
Secure Path v3.0C for
NetWare Workgroup
Edition
T3593A
T3598A
T3597A
10 System LTU
T3594A
Base Media and Documentation Kit (license required)
T3591A
1 System LTU upgrade:
T3599A
3 System LTU upgrade:
T3604A
5 System LTU upgrade:
T3603A
10 System LTU upgrade:
T3600A
Upgrade Media and documentation kits:
T3592A
Secure Path v3.0C for NetWare Workgroup Edition one license
222411-B22
Secure Path v3.0C for NetWare Workgroup Edition five licenses
231324-B22
Secure Path v3.0C for NetWare Workgroup Edition 10 licenses
231325-B22
Secure Path v3.0C for NetWare Workgroup Edition 25 licenses
231326-B22
Secure Path v3.0C for NetWare Workgroup Edition 50 licenses
231327-B22
NOTE: Refer to http://www.hp.com/go/securepath for the latest Secure Path parameters for NetWare.
Secure Path v4.0C for
Windows Workgroup
Edition (including Windows
Server 2003/32bit and 64-bit)
(Package includes separate programs for both the MSA1000 and the RA4000 and RA41000
solutions.)
Secure Path v4.0C for Windows Workgroup one license
213076-B26
Secure Path v4.0C for Windows Workgroup Edition five licenses
231316-B26
Secure Path v4.0C for Windows Workgroup Edition 10 licenses
231317-B26
Secure Path v4.0C for Windows Workgroup Edition 25 licenses
231318-B26
Secure Path v4.0C for Windows Workgroup Edition 50 licenses
231319-B26
Secure Path v4.0C for Windows Workgroup Edition Upgrade License
261715-B24
Secure Path v4.0C for Windows Workgroup Edition for ProLiant BL line 8 licenses
325634-B23
NOTE: Refer to http://www.hp.com/go/securepath for the latest Secure Path parameters for
Windows.
Secure Path v3.0C for
Linux Workgroup Edition
Secure Path v3.0C for Linux Workgroup Edition one license
T3581A
Secure Path v3.0C for Linux Workgroup Edition five licenses
T3582A
Secure Path v3.0C for Linux Workgroup Edition 10 licenses
T3584A
Secure Path v3.0C for Linux Workgroup Edition for ProLiant BL line 8 licenses
T3583A
Secure Path v3.0C for Linux Workgroup Edition 25 licenses
T3585A
Secure Path v3.0C for Linux Workgroup Edition 50 licenses
T3586A
NOTE: Refer to http://www.hp.com/go/securepath for the latest Secure Path parameters for Linux.
DA - 11033
Worldwide — Version 22 — February 25, 2005
Page 25
HP StorageWorks Modular Smart Array 1000
QuickSpec Specific for Intel and PA-RISC based
Servers Only
QuickSpecs
Related Options
Qlogic Failover Driver for Provides a single multi-path solution for Linux
Linux
Qlogic driver version 7.00.03 for Red Hat Linux v3.0 U1
Supported on HP FCA2214 (281541-B21); FCA2214DC (321835-B21) and HBA for 64-bit Linux, Integrity Servers
(A6826A) Host Bus Adapters
Offers static load balancing
Presently does not offer support for mixing with other path-failover methods
For more information visit http://www.qlogic.com or
http://h18006.www1.hp.com/products/sanworks/multipathoptions/index.html
Windows MPIO Failover
Provides a single multi-path solution for Windows
Microsoft Windows 2000 and Windows Server 2003 (32bit and 64bit) operating systems
DSM driver is required from HP for operation and configuration:
http://h18006.www1.hp.com/products/sanworks/multipathoptions/index.html
Co-existence of MPIO with Secure Path on same server is not supported
Presently does not offer support for mixing with other path-failover methods
For more information visit http://www.microsoft.com or
http://h18006.www1.hp.com/products/sanworks/multipathoptions/index.html
Backup and Restore
Software
VERITAS NetBackup for Windows
VERITAS Backup Exec for Windows
HP Data Protector
Computer Associates BrightStor Enterprise Backup
See Implementation Blueprint for configuration and installation instructions for all backup and
restore software.
ProLiant Cluster for
MSA1000
ProLiant Cluster Starter kit (no Secure Path)
364023-B21
ProLiant Cluster F200 for the Entry Level SAN
364026-B21
ProLiant Cluster F200 for the Entry Level SAN (Japan)
364026-291
DA - 11033
Worldwide — Version 22 — February 25, 2005
Page 26
HP StorageWorks Modular Smart Array 1000
QuickSpec Specific for Intel and PA-RISC based
Servers Only
QuickSpecs
Technical Specifications
Modular Smart Array 1000 LED Indicators on Front
(MSA1000)
(3)
Power
Fault detected in one or more sub-systems
Fault in Enclosure Management
LED Indicators for Drive
Modules (3)
Drive Access (center)
Online (left)
Drive Failure (right)
LED Indicators on Rear
Panel (4)
Power Supply/Blower Assembly Fault (1)
Interface
Ultra3 SCSI to Hard Drives
EMU (3) Power, A bus, B bus
2 Gb Fibre Channel to Hosts
Maximum Number of
Drives
Fourteen, 1-inch HP Ultra2, Ultra3 or Ultra 320 Universal Hard Drives (msa1000
Cabinet); expandable to 42 using two additional HP StorageWorks 4200/4300 Enclosures
Temperature Range
Operating
Shipping
50° to 95° F (10° to 35° C)
-22° to 122° F (-30° to 50° C)
NOTE: Derated 1°C per 1,000 feet of elevation to
10,000 ft.
Relative Humidity
Operating
10% to 90%
Non-operating
Up to 95%
Input Power Requirements Rated Input Voltage
Heat Dissipation (max)
100 to 240 VAC
Rated Input Frequency
50 to 60 Hz
Rated Input Current
6 A Max
Input Power (max)
549 W*
1876 Btu/hr*
NOTE: Input Power and Heat Dissipation specifications are maximum values and apply
to worst-case conditions at full rated power supply load. The power/heat dissipation for
your installation will vary depending on the equipment configuration.
MSA1000 Cabinet
4U Rack Form Factor
Shipping Packaging
Dimensions (H x W x D)
6.9 x 19 x 20.5 in (17.5 x 48.3 x 52.1 cm)
Weight
Net 55 to 85 lb (24.95 to 38.56 kg)
Dimensions (L x W x D)
28.5 x 14.81 x 33.13 in (72.4 x 37.6 x 84.1 cm)
Weight (Gross)
75 to 105 lb (34.02 to 47.63 kg)
User Interface
Controller display with Status Indicators (2) and push buttons (4) on front of controller
Electrical Interface
LVD (Low Voltage Differential)
Protocol Support
Wide Ultra3 SCSI
SCSI Ports
4-channel: 2 internal, 2 external
Drives Supported
Up to 42 drives
Maximum Capacity
12TB (42 drives x 300GB)
Logical Drives (LUN)
Up to 32 Logical Drives
Maximum Logical Drive
size
2.0TB
DA - 11033
Worldwide — Version 22 — February 25, 2005
Page 27
HP StorageWorks Modular Smart Array 1000
QuickSpec Specific for Intel and PA-RISC based
Servers Only
QuickSpecs
Technical Specifications
Modular SAN Array 1000
Controller
(218231-B22)
User Interface
Controller Display with Status Indicators (2) and Push Buttons (4)
Status Indicators on front of Controller (16)
Electrical Interface
LVD (Low Voltage Differential)
Protocol Support
Wide Ultra3 SCSI (160 MB/s per channel)
SCSI Ports
4-channel: 2 external/2 Internal
Drives Supported
Up to 42 drives
Maximum Capacity
12TB (42 drives x 300GB)
Logical Drives
Up to 32 logical drives
RAID Support
RAID ADG (Advanced Data Guarding)
RAID 5 (Distributed Data Guarding)
RAID 1+0 (Striping & Mirroring)
RAID 0 (Striping)
Cache Memory
Up to 512 MB Read/Write (256 MB modules). If redundant controllers are used they must
have equally configured cache
ECC protection, battery-backed, and removable
Standard as of November 19, 2002: 256 MB cache memory (single module)
Modular SAN Array Fibre
Channel I/O Module
(218960-B21)
Cache Batteries
Up to three days of redundant battery life, removable for easy replacement
Upgradeable Firmware
2 MB flashable ROM
Disk Drive and Enclosure
Protocol Support
HP Ultra 320, Ultra3, and Ultra2 SCSI 1-inch Universal drives
Packaging
Dimensions (L x W x D)
17 x 12.5 x 7.75 in (43.2 x 31.75 x 19.7 cm)
Weight (Gross)
6 lb (2.72 kg)
Connector Type
LC
Number of Fibre Channel One 2 Gb Fibre Channel Port using removable Small-Form-Factor-Pluggable Transceiver
Ports
(SFP)
Bandwidth
200 MB/s
Operation Modes
Fibre Channel Class 2 and 3 connectionless service
Protocols Supported
Fibre Channel
Packaging
Dimensions (L x W x D)
17 x 12.5 x 7.75 in (43.2 x 31.75 x 19.7 cm)
Weight (Gross)
6 lb (2.72 kg)
DA - 11033
Worldwide — Version 22 — February 25, 2005
Page 28
HP StorageWorks Modular Smart Array 1000
QuickSpec Specific for Intel and PA-RISC based
Servers Only
QuickSpecs
Technical Specifications
MSA SAN Switch 2/8
(288247-B21)
Performance
2.125 Gbit/sec line speed, full duplex ;1.063 Gbit/sec line speed, full duplex; Auto-sensing
of 1 Gbit/sec and 2 Gbit/sec port speeds; optionally programmable to fixed port speed;
Speed matching between 1 Gbit/sec and 2 Gbit/sec ports Aggregate bandwidth 64
Gbit/sec end to end Fabric latency <2.1 µsec with no contention, cut-through routing at 2
Gbit/sec
Interoperability
SAN Switch 2/8-EL, SAN Switch 2/16-EL, SAN Switch 2/32, SAN Switch 2/64, SAN Switch
8, SAN Switch 16, SAN Switch 8-EL, SAN Switch 16-EL, Integrated/32, Integrated/64
Switch bandwidth
32 Gbit/sec end to end
Maximum frame size
2112-byte payload
Port types
8 ports universal (one internal, seven external), FL_Port, F_Port, and E_Port; self-discovery
based on switch type (U_Port)
Media types
Small form-factor pluggable (SFP) four included standard; short wavelength (SWL) up to
.31 mi (500m), long wavelength (LWL) up to 21 mi ( 35 km); distance depends on fiberoptic cable and port speed
Classes of service
Class 2, Class 3, Class F (inter-switch frames)
Management access
10/100 Ethernet port (RJ-45); Serial port (RS-232)
Management
Advanced Web Tools included; Fabric Manager (optional) Management access In-band
via Management Server.
Security
Fabric security for configuration management, SAN access, and
authentication/authorization
Supported software
Telnet, SNMP, WEBTOOLS, Zoning, Fabric Watch, Extended Fabrics, Remote Switch,
Trunking, Advanced Performance Monitoring
Fabric services
Simple Name Server, Registered State Change Notification (RSN), Alias Server (multicast);
and Zoning, WEB TOOLS. Optional QuickLoop, Fabric Watch, Extended Fabrics, and
Remote Switch, Trunking, Advanced Performance Monitoring
Diagnostics
Diagnostics POST and embedded online/offline diagnostics
Dimensions (h x w x d)
SAN Switch 2/8: 7.75 x 12.5 x 17 in (19.68 x 31.75 x 43.18 cm)
Shipping
6 lb (2.72.kg)
Humidity range
5% to 85% non-condensing at 104° F (40° C)
Environment
Temperature
Vibration
Multi-Mode Fibre
Channel Cables Kits
(218960-B21)
Connector Type
LC
Protocol
SCSI, IP
Data Transfer Method
64-bit/66 MHz PCI
Operating
32° F to 104° F
(0° C to 40° C)
Non-operating
-31° F to 147° F
(-25° C to 70° C)
Operating
0.5 G p-p, 5-500 Hz
Non-operating
2.0 G p-p, 5-500 Hz
Maximum Transfer Rate
200 MB
Packaging
Dimensions (L x W x D)
11 x 8.5 x 3 in (27.9 x 21.6 x 7.6 cm)
Weight (Gross)
1 lb (0.45 kg)
Cable Type
LC-LC (2 Gb to 2 Gb connections) and LC-SC (2 Gb to 1 Gb connections) 50 Micron
multi-mode Fiber
Available Cable Lengths
6.5 ft, 16.4 ft, and 49.2 ft (2 m, 5 m, and 15 m)
Packaging
Dimensions (L x W x D)
11.5 x 9 x 1.5 in (29.2 x 22.8 x 3.8 cm)
Weight (Gross)
0.75 to 1 lb (0.34 to 0.45 kg)
DA - 11033
Worldwide — Version 22 — February 25, 2005
Page 29
HP StorageWorks Modular Smart Array 1000
QuickSpec Specific for Intel and PA-RISC based
Servers Only
QuickSpecs
Technical Specifications
© Copyright 2001-2005 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel is a US registered trademark of Intel Corporation. Unix is a registered
trademark of The Open Group.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein
should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
DA - 11033
Worldwide — Version 22 — February 25, 2005
Page 30
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
