Overview

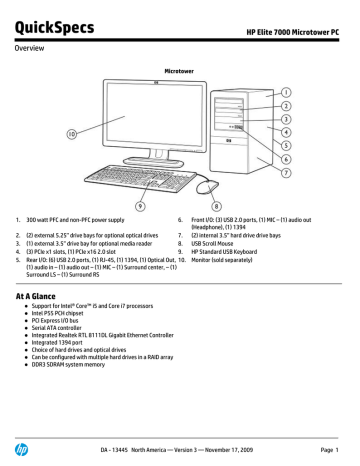

Microtower

HP Elite 7000 Microtower PC

1. 300 watt PFC and non-PFC power supply

2. (2) external 5.25” drive bays for optional optical drives

3. (1) external 3.5” drive bay for optional media reader

6.

Front I/O: (3) USB 2.0 ports, (1) MIC – (1) audio out

(Headphone), (1) 1394

7.

8.

(2) internal 3.5” hard drive drive bays

USB Scroll Mouse

4. (3) PCIe x1 slots, (1) PCIe x16 2.0 slot 9.

HP Standard USB Keyboard

5. Rear I/O: (6) USB 2.0 ports, (1) RJ-45, (1) 1394, (1) Optical Out,

(1) audio in – (1) audio out – (1) MIC – (1) Surround center, – (1)

Surround LS – (1) Surround RS

10. Monitor (sold separately)

At A Glance

Support for Intel® Core™ i5 and Core i7 processors

Intel P55 PCH chipset

PCI Express I/O bus

Serial ATA controller

Integrated Realtek RTL 8111DL Gigabit Ethernet Controller

Integrated 1394 port

Choice of hard drives and optical drives

Can be configured with multiple hard drives in a RAID array

DDR3 SDRAM system memory

DA - 13445 North America — Version 3 — November 17, 2009 Page 1

QuickSpecs

HP Elite 7000 Microtower PC

Standard Features and Configurable Components (availability may vary by country)

Processor and Speed

One of the following

Intel Core i5 Processors:

Intel Core i5-750 Processor (2.66GHz, 8MB L2 cache)

Intel Core i7 Processors:

Intel Core i7-860 Processor (2.8GHz, 8MB L2 cache)

Intel Core i7-870 Processor (2.93GHz, 8MB L2 cache)

NOTE: Intel processor numbers are not a measure of performance. Processor numbers differentiate features within each processor family, not across different processor families.

Operating Systems and

Application Software

(availability varies by region)

Genuine Windows 7 Professional Edition 32 *

Genuine Windows 7 Professional Edition 64 *

Windows XP Professional (available through downgrade rights from Genuine Windows 7

Professional) *+

Genuine Windows 7 Home Premium Edition 32 *

Genuine Windows 7 Home Basic Edition 32 *

Genuine Windows Vista Business 32 **

Windows XP Professional (available through downgrade rightsfrom Genuine Windows Vista

Business) **++

Novell SUSE Linux Enterprise Desktop 11 †

FreeDOS

Certified:

Red Hat Enterprise Linux†

Novell SUSE Linux Enterprise Desktop†

NOTE: Windows XP Mode, available as a separate download for Windows 7 Professional, works with virtualization software such as Windows Virtual PC to run older Windows XP business software on the

Windows 7 desktop.

* Offered when Windows 7 is generally available. System may require upgraded and/or separately purchased hardware and/or a DVD drive to install the Windows 7 software and take full advantage of

Windows 7 functionality. See: http://www.microsoft.com/windows/windows-7/ for details.

** Certain Windows Vista product features require advanced or additional hardware. See: http://www.microsoft.com/windowsvista/getready/hardwarereqs.mspx

and: http://www.microsoft.com/windowsvista/getready/capable.mspx

for details. Windows Vista Upgrade

Advisor can help you determine which features of Windows Vista will run on your computer. To download the tool, visit: http://www.windowsvista.com/upgradeadvisor .

+ Windows 7 Professional disk may also be included for future upgrade if desired. To qualify for this downgrade an end user must be a business (including governmental or educational institutions) and is expected to order annually at least 25 customer systems with the same custom image.

++ Windows Vista Business disk may also be included for future upgrade if desired. To qualify for this downgrade an end user must be a business (including governmental or educational institutions) and is expected to order annually at least 25 customer systems with the same custom image.

† The following features are not supported by Linux:

DA - 13445 North America — Version 3 — November 17, 2009 Page 2

QuickSpecs

HP Elite 7000 Microtower PC

Standard Features and Configurable Components (availability may vary by country)

Integrated 1394 port

Intel Gigabit CT Desktop NIC

LSI PCIe x1 56K International SoftModem

HP Wireless 802.11 b/g/n PCIe x1 Card

NVIDIA GeForce G210 HDMI PCIe x16 graphics card

NVIDIA GeForce GT230 (1.5GB) PCIe x16 graphics card

ATI Radeon HD 4550 (256MB DH) PCIe x16 graphics card

ATI Radeon HD 4650 (1GB DH ) PCIe x16 graphics card

Belkin USB to serial adapter

22-in-1 Media Reader

Microsoft Office 2007 Basic

Microsoft Office 2007 Small Business

Microsoft Office 2007 Professional

HP Backup and Recovery Manager

Intel Matrix Storage Manager

Mozilla Firefox for HP Virtual Solutions

Roxio Easy Media Creator 10 *

Intervideo WinDVD 8 *

McAfee Total Protection Anti-Virus **

PDF Complete

* Supporting software available with certain optical drive configurations

** 60 day trial period for McAfee Total Protection for Small Business software. Internet access required to receive updates. First update included. Subscription required for updates thereafter.

Internal Storage

(3.5-inch SATA)

Hard Drives

160 GB Hard Drive

8MB cache, 7,200 RPM, 3.0 GB/s, NCQ, Smart IV

500 GB Hard Drive

16MB cache, 7,200 RPM, 3.0 GB/s, NCQ, Smart IV

1 TB Hard Drive

16MB cache, 7,200 RPM, 3.0 GB/s, NCQ, Smart IV

Solid State Drive

64-GB Solid State Drive

DA - 13445 North America — Version 3 — November 17, 2009 Page 3

QuickSpecs

HP Elite 7000 Microtower PC

Standard Features and Configurable Components (availability may vary by country)

System Memory

1-GB DDR3 Synch DRAM PC3-10600 (1333-MHz) Non-ECC (1 x 1GB)

2-GB DDR3 Synch DRAM PC3-10600 (1333-MHz) Non-ECC (2 x 1GB)

2-GB DDR3 Synch DRAM PC3-10600 (1333-MHz) Non-ECC (1 x 2GB)

3-GB DDR3 Synch DRAM PC3-10600 (1333-MHz) Non-ECC (3 x 1GB)

4-GB DDR3 Synch DRAM PC3-10600 (1333-MHz) Non-ECC (4 x 1GB)

4-GB DDR3 Synch DRAM PC3-10600 (1333-MHz) Non-ECC (1 x 4GB)

4-GB DDR3 Synch DRAM PC3-10600 (1333-MHz) Non-ECC (2 x 2GB)

6-GB DDR3 Synch DRAM PC3-10600 (1333-MHz) Non-ECC (3 x 2GB)

8-GB DDR3 Synch DRAM PC3-10600 (1333-MHz) Non-ECC (4 x 2GB)

8-GB DDR3 Synch DRAM PC3-10600 (1333-MHz) Non-ECC (2 x 4GB)

NOTE: For systems configured with more than 3 GB of memory and a 32-bit operating system, all memory may not be available due to system resource requirements. Addressing memory above 4 GB requires a 64bit operating system.

Removable Storage

One or more of the following (see Storage section below)

Media Reader

HP 22-in-1 Media Reader and additional USB 2.0 port

Optical Drives (Serial ATA)

SATA DVD-ROM Drive

SATA SuperMulti LightScribe DVD Writer Drive

HP SATA Blu-ray Writer

Input Devices

Audio/Visual

Keyboard – One of the following

HP USB Standard Keyboard

HP USB Mini Keyboard

HP Washable Keyboard

HP USB Smartcard Keyboard

HP 2.4 GHz Wireless Keyboard and Mouse

Mouse – One of the following

USB 2-Button Optical Scroll Mouse

USB 2-Button Laser Mouse

Realtek ALC888S High Definition audio codec

3D audio compliant with AC'97 Rev. 2.3 and HD Audio compatible

HP Thin USB Powered Speakers

HP USB 2.0MP Business Webcam

DA - 13445 North America — Version 3 — November 17, 2009 Page 4

QuickSpecs

HP Elite 7000 Microtower PC

Standard Features and Configurable Components (availability may vary by country)

Communication

Integrated Realtek RTL8111DL Gigabit Ethernet Controller

Intel Gigabit CT Desktop NIC

LSI PCIe x1 56K International SoftModem

HP Wireless 802.11 b/g/n PCIe x1 Card (full height)

Graphics

NVIDIA GeForce G210 HDMI PCIe x16 Graphics Card

NVIDIA GeForce GT230 1.5GB PCIe x16 Graphics Card

ATI Radeon HD 4550 Dual Head PCIe x16 Graphics Card

ATI Radeon HD 4650 1GB PCIe x16 Graphics Card

Belkin USB to serial adapter

Miscellaneous

DA - 13445 North America — Version 3 — November 17, 2009 Page 5

QuickSpecs

System Details

Base Unit

HP Elite 7000 Microtower PC

MT: Micro ATX Microtower chassis, including power supply and front bezel; five (5) drive bays and four expansion slots

Active type heatsink

92 x 92 x 25 mm chassis fan for Microtower chassis

System board with Intel P55 PCH chipset, RTL8111DL Gigabit Ethernet controller and Realtek audio,

(3) PCI Express x1 slots, (1) PCI Express x16 slot, (4) DDR3 DIMM memory slots, (4) Serial ATA data connectors, (10) USB Ports (see USB support below), 1394 Firewire, Optical Out

Power cord

Slots

Bays

PCI

PCI Express x1 slots

(3) full-height (4.34”), length (6.6”), Max power per slot 10W

PCI Express x16 2.0 slot (for graphic cards)

(1) full-height (4.34”), length (9.5”), Max power per slot 75W

Four (4) DDR3 SDRAM DIMM slots (8 GB maximum memory support)

Memory Expansion

NOTE: For systems configured with more than 3 GB of memory and a 32-bit operating system, all memory may not be available due to system resource requirements. Addressing memory above 4 GB requires a 64bit operating system.

Internal

External

Two (2) 3.5-inch

Two (2) 5.25-inch; One (1) 3.5-inch

USB Support

Other Ports

EHCI high-speed USB 2.0 controller

Three (3) front ports; six (6) rear ports, five (5) internal ports on system board

Front:

(1) audio out; (1) microphone in, (1) 1394 port

Rear:

(1) Digital Out

(1) audio in, (1) audio out; (1) microphone in, (1) surround rear, (1) surround side,

(1) center/sub

(1) RJ-45 network port

(1) 1394 port

(6) USB ports

Weight & Dimensions Chassis Dimensions

(H x W x D)

Packaged Dimensions

(L x W x H)

System Weight

Shipping Weight

15.14 x 7.27 x 16.36 in

385 x 185 x 416 mm

19.13 x 21.875 x 10.13 in

490 x 556 x 257 mm

22.4 lb (10.2 kg)

30.8 lb (14.0 kg)

DA - 13445 North America — Version 3 — November 17, 2009 Page 6

QuickSpecs

HP Elite 7000 Microtower PC

System Details

Technology and Features Memory Type

Hard Drive Interfaces

Supported

PC3-10600 DDR3 (1333 MHz) non-ECC

Up to 8 GB system memory standard

NOTE: For systems configured with more than 3 GB of memory and a 32-bit operating system, all memory may not be available due to system resource requirements. Addressing memory above 4 GB requires a 64bit operating system.

Serial ATA

RAID Redundant Array of Independent Drives

RAID 0,1 are the RAID configurations that HP Elite 7000 Microtower PC products offer as factory configurations. The pre-configured systems:

Are complete RAID systems and have both drives installed.

Have the necessary Option ROM configuration.

Are pre-loaded and pre-installed with all required Intel software.

Include a preinstalled operating system that is in mirrored mode out of the box.

SMART Technology

*

(Self-Monitoring, Analysis and Reporting Technology)

Allows hard drives to monitor their own health and to raise flags if imminent failures were predicted

Predicts failures before they occur. Tracks fault prediction and failure indication parameters such as re-allocated sector count, spin retry count, calibration retry count

By avoiding actual hard drive failures, SMART hard drives act as "insurance" against unplanned user downtime and potential data loss from hard drive failure

IOEDC: I/O Error Detection Circuitry

Detects errors in Read/Write buffers on HDD cache RAM

Interface in F10 setup provides confirmation of SMART support.

* This feature is inoperable when a RAID configuration is enabled.

Chassis Front Panel

Cooling Solutions

Supported

Slots Supported

Front I/O

Rear I/O

Drive Bays (MT)

Internal Speaker

Power button

Power On LED

HDD Activity LED

Power Supply Fan (variable speed)

Active heatsink (variable speed)

Chassis fan (variable speed) (MT only)

(3) PCI Express x1 slots, (1) PCI Express x16 slot

Three (3) USB 2.0 ports, 1394, Headphone, Mic

Standard Micro ATX I/O connectors, including six (6) USB 2.0 ports

Two (2) 5.25-inch (13.335 cm) half height external

One (1) 3.5-inch (8.89 cm) half height external

Two (2) 3.5-inch (8.89 cm) half height internal

Not supported

DA - 13445 North America — Version 3 — November 17, 2009 Page 7

QuickSpecs

System Details

Security

HP Elite 7000 Microtower PC

Power Supply

Unit Environment and

Operating Conditions

General Unit Operating Guidelines

Keep the computer away from excessive moisture, direct moisture and the extremes of heat and cold, to ensure that unit is operated within the specified operating range.

Leave a 4 in (10.2 cm) clearance on all vented sides of the computer to permit the required airflow.

Never restrict airflow into the computer by blocking any vents or air intakes.

Do not stack computers on top of each other or place computers so near each other that they are subject to each other's re-circulated or preheated air.

Occasionally clean the air vents on the front, back, and any other vented side of the computer. Lint, dust and other foreign matter can block the vents and limit the airflow.

If the computer is to be operated within a separate enclosure, intake and exhaust ventilation must be provided on the enclosure, and the same operating guidelines listed above will still apply.

Temperature Range Operating

41° to 95° F (5° to 35° C)

Relative Humidity

Non-operating

Operating

Non-operating

–22° to 140° F (–30° to 60° C)

15% to 80% (non-condensing at ambient)

90% (non-condensing at ambient)

Maximum Altitude

(unpressurized)

Operating

Non-operating

7500 ft (2286 m)

15,000 ft (4572 m)

NOTE: Operating temperature is de-rated 1.0 deg C per 1000 ft (300 m) to 7500 ft (2286 m) for MT and

10000 ft (3000m) for SFF above sea level, no direct sustained sunlight. Maximum rate of change is 7.5 deg

C/Hr for MT and 10 deg C/Hr for SFF. The upper limit may be limited by the type and number of options installed.

System Board

Padlock loop

Support for chassis padlocks and cable lock devices

Kensington Lock Support

MT: 300-watt ATX Power Supply – PFC/non-PFC with a 115v/230v line switch

(varies by country/region)

Processor

PWM

Chipset

Super I/O

Socket LGA1156 industry standard Micro ATX form factor

Intel Core i5 or Core i7 processors

Intersil ISL6338 – 3 phase

Intel P55 PCH Chipset

N/A

Memory Bus Frequency

1333 MHz

Memory

DDR3 SDRAM

Clock Generator

4 x DIMM slots

N/A

Audio

LOM

Storage

Realtek ALC888S HD Audio compatible codec with two channel audio 3D audio compliant with AC'97 rev. 2.3

Realtek RTL8111DL Gigabit Ethernet

Four Serial ATA interfaces

DA - 13445 North America — Version 3 — November 17, 2009 Page 8

QuickSpecs

System Details

HP Elite 7000 Microtower PC

Expansion Slots

BIOS

3 x PCI Express x1 slots

1 x PCI Express x16 slot

SPI FLASH ROM

Industrial Standard

Rear Side I/O Ports

PCIe compliant

USB 2.0

6 x USB 2.0 ports

1 x RJ-45 10/100 port

1 x 1394 port

1 x Digital Out

6 x audio ports

On Board I/O Interfaces

1 x ATX power connector

1 x +12V power connector

1 x Front panel connector, Switch, LED (ON/Flash/OFF)

2 x Fan headers for CPU, chassis, with voltage/fan speed control

2 x header (1 -2x5, 1-1x5) to support 3 USB 2.0 ports at front side

1 x header (1 – 2x5) to support USB Card Media Reader

3 x headers (1 –1x5) to support additional USB devices

1 x header 2x5 to support 2 front (Headphone/Mic) audio ports

Board Size

Additional Features

1 x header 2x5 to support 1 front IEEE 1394

Micro-ATX, PCB Size: 9.6 x 9.6 in (24.38 x 24.38 cm)

4-layer PCB with green color

Bootable without keyboard, mouse or monitor

Keyboard/mouse/USB wake up

Support S3, S4 and S5

ACPI status

Hardware monitor capability

CPU fan speed control

Network Interface

Integrated Realtek RTL8111DL Gigabit NIC

Intel Gigabit CT Desktop NIC (optional)

Wireless 802.11b/g/n PCIe Card (full height bracket)

Wireless

DA - 13445 North America — Version 3 — November 17, 2009 Page 9

QuickSpecs

System Details

Power Supply

HP Elite 7000 Microtower PC

ATX Power Supply – Passive PFC

Passive Power Factor Correction (PFC/NPFC) – with line switch set to 230V – No PFC in 115V line switch position

90 to 140VAC, or 180 to 264VAC operating voltage range

100 to 127VAC, or 200 to 240VAC rated voltage range

50–60 Hz rated line frequency

47–63 Hz operating line frequency range

300 watt maximum rated power

80-mm power supply fan – variable speed for optimum acoustics

Power Conservation

'Energy Saver'

APM 1.2 support

Screen blanking

Hard drive 'Idle' mode

System Idle mode

~2 watt power consumption in ES mode - suspend to RAM (S3) (instantly available PC)

Processor/Cache memory power-down (S3)

S5 Max Power Savings (<1W) for Eup Lot 6 compliance

System Environmental

Specs

Values are subject to change without notification and are for reference only.

Performance of system, options, and ancillary equipment will vary depending on the system configuration.

Levels presented do not account for non-HP/Compaq installed hardware.

Ambient Air Temperature Operating

Storage

MT: Operating 41° to 95°F (5 to 35°C) (Test 0 to

104°F (40°C));

SFF: 50° to 95°F (10° to 35°C) at sea level with an altitude de-rating of 1.0°C per every 1000 ft (300 m) above sea level to a maximum of 10,000 ft

(3000 m), no direct sustained sunlight. Maximum rate of change is 77°F/Hr (25°C/Hr). The upper limit may be limited by the type and number of options installed.

MT: Storage: 90% RH @ 60°C for 12 hours (Noncondensing)

SFF: -22° to 140°F (-30° to 60°C) - Maximum rate of change: 410°F/Hr (210°C/Hr).

Humidity Operating

Altitude

Storage

Operating

Non-Operating

15% to 80% relative humidity (Rh), 35°C noncondensing

90% relative humidity (Rh), 60°C for

12 hours, non-condensing).

0 to 7,500 feet (0 to 2286 meters) – This value may be limited by the type and number of options installed.

0 to 15,000 feet (0 to 4572 meters)

DA - 13445 North America — Version 3 — November 17, 2009 Page 10

QuickSpecs

System Details

Shock

Service and Support

HP Elite 7000 Microtower PC

Vibration

Listed are the levels of shock the product can withstand with No damage being incurred. The values represent peak input acceleration during an 2~3 ms half-sine shock pulse, 11 ms trapezoidal shock pulse.

Non-Operating

35G's (Half-sine Shock)

35G's (Trapezoidal Shock)

Listed are the levels of vibration the product can withstand with No damage being incurred. The values represent a flat random vibration input acceleration profile across the given frequency range.

Operating

Non-Operating

MT: Random Operating: ~0.21Grms (5-500 Hz)

Swept Sine: 0.5g (5-500Hz) 5 min. dwell at 4 resonance's 5Hz to 300Hz, (0.25G's nominal).

SFF: Random vibration at [email protected]²/Hz,

[email protected]²/Hz, [email protected]²/Hz,

[email protected]²/Hz

5Hz to 300Hz, (0.25G's nominal).

MT: ~2.09Grms (5-500Hz), Non-Operational

SFF: Random vibration at 0.008G²/Hz,

10Hz to 500Hz, (2 Grms nominal).

On-site Warranty

Note 1

: One-year (1-1-1) limited warranty delivers one year of on-site, next businessday

Note 2

service for parts and labor and includes free telephone support

Note 3

24 x 7. Global coverage

Note

2

ensures that any product purchased in one country and transferred to another non-restricted country will remain fully covered under the original warranty and service offering. One-year onsite and labor are not available in all countries.

NOTE 1: Terms and conditions may vary by country. Certain restrictions and exclusions apply. Other warranty variations may be offered in your region.

NOTE 2: On-site service may be provided pursuant to a service contract between HP and an authorized HP third-party provider, and is not available in certain countries. Global service response times are based on commercially reasonable best effort and may vary by country.

NOTE 3: Technical telephone support applies only to HP-configured Compaq and third-party HP-qualified hardware and software. Toll-free calling and 24 x 7 support may not be available in some countries.

DA - 13445 North America — Version 3 — November 17, 2009 Page 11

QuickSpecs

After-Market Options (availability may vary by country)

Communications NICs

Intel Gigabit CT Desktop NIC PCIe x1

Wireless LAN

HP Wireless 802.11/b/g/n PCIe x1

Modems

LSI PCIe x1 56K International SoftModem

Hard Disk Drives

HP 500-GB SATA 3.0-Gb/s Hard Drive

HP 250-GB SATA 3.0-Gb/s Hard Drive

HP 160-GB SATA 3.0-Gb/s Hard Drive

External Storage Devices HP 250-GB Pocket Media Drive

22-in-1 Media Reader

Removable Storage

Devices

Input Devices

Memory

Audio/Visual

Graphics

HP USB Standard Keyboard

HP Washable Keyboard

HP Mini Keyboard

HP 2.4 GHz Wireless Keyboard and Mouse

HP USB 2-Button Optical Scroll Mouse

HP USB 2-Button Laser Mouse

HP 1-GB PC3-10600 (DDR3 1333-MHz) DIMM

HP 2-GB PC3-10600 (DDR3 1333-MHz) DIMM

HP 4-GB PC3-10600 (DDR3 1333-MHz) DIMM

HP Thin USB Powered Speakers

HP USB 2.0MP Business Webcam

ATI Radeon HD 4550 Dual Head PCIe x16 Graphics Card

ATI Radeon HD 4650 PCIe x16 Graphics Card

NVIDIA GeForce G210 HDMI SH PCIe x16 Graphics Card

HP Elite 7000 Microtower PC

FH969AA

FH971AA

FH970AA

KW347AA

PY278AA

PY277AA

FE477AA

FX273AA

DT528A

VF097AA

AS601AA

NB896AA#xxx

DC172B

GW405AA

AT023AA

AT024AA

VH638AA

KK912AA

NX252AA

AT042AA

AR956AA

VN565AA

DA - 13445 North America — Version 3 — November 17, 2009 Page 12

QuickSpecs

After-Market Options (availability may vary by country)

Optical Drives

HP SATA DVD-ROM Drive

HP SATA SuperMulti LightScribe DVD Writer Drive

HP SATA Blu-ray Writer (black)

Security

HP Business PC Security Lock Kit

Security Cable with Kensington Lock

HP USB Smartcard Keyboard

Belkin Serial to USB adapter

Miscellaneous

Accessories

HP Elite 7000 Microtower PC

AH047AA

GF343AA

AR482AA

PV606AA

PC766A

ED707AA

EM449AA

DA - 13445 North America — Version 3 — November 17, 2009 Page 13

QuickSpecs

Memory

HP Elite 7000 Microtower PC

DDR3 SYNCH DRAM NON-ECC MEMORY

The Intel P55 chipset supports non-ECC DDR3 memory up to PC3-16000 (1333-MHz). Memory upgrades are accomplished by adding single or multiple DIMMs of the same or varied sizes. This chart does not represent all possible memory configurations.

CAUTION: You must shut down the computer and disconnect the power cord before adding or removing memory modules. Regardless of the power-on state, voltage is always supplied to the memory modules as long as the computer is plugged in to an active AC outlet.

Adding or removing memory modules while voltage is present may cause irreparable damage to the memory modules or system board.

HP recommends dual-channel symmetric configurations for maximum performance.

For best performance, add the same amount of total memory to each channel and do not mix speeds. For dual-channel symmetric performance, the total amount of memory in each channel must be equal. If speeds are mixed, speed will default to the slowest DIMM.

STANDARD MEMORY

1-GB, 2-GB or 4GB DDR3 SYNCH DRAM

OPTIONAL MEMORY UPGRADES

Supports up to 8-GB of DDR3 SYNCH DRAM. Not all memory configurations possible are represented below.

NOTE: For systems configured with more than 3 GB of memory and a 32-bit operating system, all memory may not be available due to system resource requirements. Addressing memory above 4 GB requires a 64-bit operating system.

DIMM Size Slot 1 (Black) Slot 2 (Blue) Slot 3 (Black) Slot 4 (Blue)

1-GB

2-GB (dual-channel symmetric)

4-GB (dual-channel symmetric)

4-GB (dual-channel symmetric)

8-GB (dual-channel symmetric)

1-GB

1-GB

2-GB

2-GB

1-GB

1-GB

1-GB

2-GB

2-GB

1-GB

2-GB

1-GB

2-GB

DA - 13445 North America — Version 3 — November 17, 2009 Page 14

QuickSpecs

Storage

HP Elite 7000 Microtower PC

Drive Support

Media Reader

CD-ROM Drives

DVD-ROM Drives

DVD+/-RW Drives

3.5” Serial ATA Devices

HP Elite 7000 Microtower PC

Maximum Quantity Supported Position Supported

2

2

1

2

2

3

1, 2

1, 2

1, 2

4, 5

Controller

Internal USB 2.0 port

SATA

SATA

SATA

SATA

DA - 13445 North America — Version 3 — November 17, 2009 Page 15

QuickSpecs

Technical Specifications - Audio

Integrated Realtek

ALC888S Audio

Type

HD Audio compatible codec

Sampling

Audio Jacks

Power Support

Other

HP Elite 7000 Microtower PC

Integrated

Yes

2-channel

Supports 48/96 KHz

Mic-In

Line-In

Line-Out / Headphone Out

Center/Sub

Surround Side

Surround Rear

Digital: 3.3V

Analog: 5V

Meets performance requirements for audio on PC99/2001 systems

High-performance DACs with 97dB SNR(A-Weighting)

ADCs with 90dB NR(A-Weighting)

DA - 13445 North America — Version 3 — November 17, 2009 Page 16

QuickSpecs

Technical Specifications - Communications

Integrated Realtek

RTL8111DL Gigabit

Ethernet Controller

HP Elite 7000 Microtower PC

Connector

Controller

Memory

Data rates supported

Compliance

Bus architecture

Data transfer mode

RJ-45

RTL 8111DL

N/A

10/100/1000 Mbps

IEEE 802.3 compliant, 802.3x flow control

PCI Express 1.1

Bus-master DMA

Hardware certifications

FCC, B, CE, TUV- cTUVus Mark Canada and United States, TUV- GS Mark for

European Union

Power requirement

588.5mW – 1000mbps

322.3mW – 100mbps

278.3mW – 10mbps

S3 – 195.8mW

Boot ROM support

Network transfer rate

Yes

10BASE-T (half-duplex) 10 Mbps

Environmental

10BASE-T (full-duplex) 20 Mbps

100BASE-TX (half-duplex) 100 Mbps

100BASE-TX (full-duplex) 200 Mbps

1000BASE-T (full-duplex) 2000 Mbps (actual rate limited by PCI Bus)

Operating temperature

32° to 120°F (0° to 48.89° C)

Operating humidity

85% at 120°F (48.89° C)

Dimensions

68Pin QFN (9mm x 9mm x 0.85mm)

Management capabilities WOL, PXE, (WOL supported from S1, S3, S4 states only. Not supported from

S5 state).

Intel Gigabit CT Desktop

NIC

Connector

Controller

Memory

Data rates supported

Compliance

RJ-45

Intel WG82574L Gigabit Ethernet Controller

Integrated Dual 48K configurable transmit receive FIFO Buffers

10/100/1000 Mbps

Bus architecture

Data path width

IEEE 802.1P, 802,1Q, 802.2, 802.3, 802.3AB and 802.3u compliant, 802.3x

flow control

PCI-E 1.0a

X1, 250 MB/s, Bi-directional interface

Data transfer mode

Bus-master DMA

Hardware certifications

FCC, B, CE, TUV- cTUVus Mark Canada and United States, TUV- GS Mark for

European Union

Power requirement

Aux 3.3V, 3.0 Watts in 1000base-T and 2.0 Watts in 100Base-T

Boot ROM support

Yes

DA - 13445 North America — Version 3 — November 17, 2009 Page 17

QuickSpecs

HP Elite 7000 Microtower PC

Technical Specifications - Communications

Network transfer rate

Environmental

10BASE-T (half-duplex) 10 Mbps

10BASE-T (full-duplex) 20 Mbps

100BASE-TX (half-duplex) 100 Mbps

100BASE-TX (full-duplex) 200 Mbps

1000BASE-T (full-duplex) 2000 Mbps (actual rate limited by PCI Bus)

Operating temperature

32° to 131°F (0° to 55° C)

Operating humidity

Dimensions

Management capabilities WOL, PXE, DMI, WFM 2.0

85% at 131° F (55° C)

4.75 x 2.25 x 0.8 in (12.1 x 5.7 x 2.0 cm)

HP Wireless 802.11b/g/n

PCIe

Dimensions (L x H)

Weight

Controller

System interface

Network standard

Frequency band

3.3 x 4.7 inches (8.5 x 12 cm)

0.08 pounds (40 g)

Ralink RT2790

PCIExpress x1

802.11 b/g/n

2.400 - 2.497 GHz

Operating temperature

14° to 149°F, operating (-10° to 65°C, operating)

Storage temperature

-40° to 176°F, non-operating (-40° to 80°C, non-operating)

Humidity

Operating voltage

Power consumption

Output power

(approximately)

10-90% operating

5-95% non-operating

3.3V +/- 9%

12V +/- 8%

Platform/WLAN Mode

Maximum Power

Consumption

Transmit Only

Transmit Packet or Active

Scanning

Receive Only Mode or Idle without IEEE PSP mode enabled

Idle, with IEEE PSP mode enabled

Transmit Disabled (turned off in software)

Platform in S3 or S4

(power removed from Low

Profile PCI Express Card)

802.11b modes

+19 dBm +/- 1.0 dB maximum

Power Consumption

10 Watts

4 Watts maximum averaged power over 1 second

1000 mA peak current for 100 microseconds or longer

3 Watts maximum averaged over 1 second

1.0 Watts maximum averaged over 1 second

50 mW maximum, averaged over 1 second

5 mW maximum, averaged over 1 second

802.11g modes

+17 dBm +/- 1.0 dB maximum

EWC modes

+17 dBm +/- 1.0 dB maximum (total power in all transmit chains)

DA - 13445 North America — Version 3 — November 17, 2009 Page 18

QuickSpecs

HP Elite 7000 Microtower PC

Technical Specifications - Communications

Receive sensitivity

Data transfer rate

Mode Data rate

802.11b

802.11b

802.11g

802.11g

802.11g

802.11g

EWC (2.4 GHz)

EWC (2.4 GHz)

EWC (2.4 GHz)

EWC (2.4 GHz)

EWC (2.4 GHz)

EWC (2.4 GHz)

Data Rate (MCS)

1 Mbps (802.11 b)

2 Mbps (802.11 b)

5.5 Mbps (802.11 b)

11 Mbps (802.11 b)

12 Mbps (802.11 g)

18 Mbps (802.11 g)

24 Mbps (802.11 g)

36 Mbps (802.11 g)

48 Mbps (802.11 g)

1.4 Mbps

3.5 Mbps

5.9 Mbps

6 Mbps

9 Mbps

12 Mbps

18 Mbps

21 Mbps

54 Mbps (802.11 g) 22.5 Mbps

6.5 Mbps (20 MHz EWC) 4.5 Mbps

13 Mbps (20 MHz EWC) 9 Mbps

19.5 Mbps (20 MHz EWC) 13.5 Mbps

26 Mbps (20 MHz EWC)

39 Mbps (20 MHz EWC)

18 Mbps

27 Mbps

52 Mbps (20 MHz EWC) 36 Mbps

58.5 Mbps (20 MHz EWC) 40 Mbps

65 Mbps (20 MHz EWC)

78 Mbps (20 MHz EWC)

45 Mbps

54 Mbps

104 Mbps (20 MHz EWC) 72 Mbps

117 Mbps (20 MHz EWC) 81 Mbps

130 Mbps (20 MHz EWC) 91 Mbps

13.5 Mbps (40 MHz EWC) 8 Mbps

27 Mbps (40 MHz EWC) 16 Mbps

40.5 Mbps (40 MHz EWC) 24 Mbps

54 Mbps (40 MHz EWC)

81 Mbps (40 MHz EWC)

32 Mbps

48 Mbps

1 Mbps

11 Mbps

6 Mbps

18 Mbps

48 Mbps

54 Mbps

6.5 Mbps

54 Mbps

81 Mbps

162 Mbps

270 Mbps

300 Mbps

Minimum Throughput

700 kbps

Sensitivity

-94 dBm

-85 dBm

-91 dBm

-85 dBm

-75 dBm

-72 dBm

-87 dBm

-82 dBm

-78 dBm

-74 dBm

-68 dBm

-64 dBm

DA - 13445 North America — Version 3 — November 17, 2009 Page 19

QuickSpecs

HP Elite 7000 Microtower PC

Technical Specifications - Communications

Security

Antenna

Certifications

Certifications for use by country

108 Mbps (40 MHz EWC) 64 Mbps

121.5 Mbps (40 MHz EWC) 72 Mbps

135 Mbps (40 MHz EWC) 81 Mbps

IEEE and WiFi compliant 64 / 128 bit WEP encryption

AES: CCM

802.1x authentication

WPA: 802.1x. WPA-PSK and TKIP

WPA2 certification

IEEE 802.11i

Cisco Certified Extensions, all versions through V5

HP part number 497792-001

Wi-Fi certified

United States, Canada, Peru, Taiwan

LSI PCIe x1 56K

International SoftModem

Data Transmission

Data Speeds

Data Standards

Upgradeability

Video

Technology speeds: 56,000 Kbps maximum downstream data, controllerless

NOTE: 56 Kbps technology refers to download speeds only and requires compatible modems at server sites. Other conditions may limit modem speed.

FCC limitations allow a maximum of 53 Kbps during download transmissions.

(Upload only) 33,600/31,200/28,800/26,400/21,600/19,200/

16,800/14,400/12,000/9,600/7,200/4,800/2,400/1,200/300

ITU-T V.90, ITU-T, ITU-T V.34, V.44, V.42, V.42bis21, V.32bis, Bell 212A, and

Bell 103

14,400/12,000/9,600/7,200/4,800/2,400/1,200/300 b/s

Fax Speeds

Fax Mode Capabilities

Error Correction and Data

Compression

Power Management

ITU-T T.31 class 1 FAX, V. 17, V.29, V.27ter, and V.21 Channel 2

V.44, 42bis, V.42 and MNP2-5

PCI Bus Power Management Interface Specification (PCI-PM) Revision 1.2,

Appendix A. D0, D3hot, and D3cold. Wake on Ring state when in D3cold. If the power management event (PME) feature is enabled in D3cold, a modem can wake the system via WAKE# (WAKEN) or beacon. Meets PCI Express 1.1

standard.

Driver upgradeable for future enhancements

ITU-T V.80 video ready interface

Other

TIA/EIA 602 standard AT command set

Integrated DTE interface with speeds of up to 115.2 Kbps, parallel 16550a

UART-compatible interface

Optional ring wakeup signal

Operating Temperature

32° to 158° F (0° to 70° C)

Operating Humidity

Power

20% to 90%, non-condensing

Requires a 3.3-V auxiliary power rail on PCI express bus

Uses only one PCI express load (i.e., one grant/request pair), one shared IRQ, one electrical load

DA - 13445 North America — Version 3 — November 17, 2009 Page 20

QuickSpecs

HP Elite 7000 Microtower PC

Technical Specifications - Communications

Chipset

Dimensions (L X H)

Connection

Other Features

Safety

EMC

Telecom

Other

LSI SV92EX - Integrated PCI interface with 3.3-V tolerant buffers and CardBus support

Complies with PCI express low profile specifications-6.7 x 2.3 in (17.0 x 5.8

cm) and supports high- and low-profile brackets

Single RJ-11 connector

Digital line protection, call progress monitoring via on-board piezo device, support for high profile and low profile brackets, PnP ID support

UL recognized to UL 1950, 3rd edition (U.S. and Canada); IEC 950 (TUV, NEMKO,

DEMKO, SEMKO); CE Mark, EC 950 (TUV, NEMKO, DEMKO, SEMKO, CE mark

FCC Part 15, IC ES003, EN 55022, 3rd edition, EN 55024, annex A, EN 61000-4-

6, EN 61000-4-8

FCC Part 68, IC-CS-03 (Canada); Worldwide PTT approvals

Not available in Korea or the Republic of South Africa.

The SV92EX device is packaged in a 32-pin micro leadless chip carrier (MLCC).

The SV92EX is fully compliant with the PCI Express revision 1.1 specification.

WHQL approved; ASPM compliant.

DA - 13445 North America — Version 3 — November 17, 2009 Page 21

QuickSpecs

Technical Specifications - Graphics

HP Elite 7000 Microtower PC

NVIDIA GeForce GT230

1.5GB PCIe x16

Graphics Card

Bus type

Input/Output connectors

Board display options

Board configuration

PCI Express (x16 lanes)

DVI, VGA and HDMI

Supports two displays through any combination of two of the three output ports.

Specification Description

Graphics Chip

Core clock

Memory clock

Frame buffer

85 Hz

NVIDIA GeForce GT230

550 MHz

500 MHz

768MB DDR2

Maximum vertical refresh rate

Display support

Display max resolution

Integrated 400 MHz RAMDAC

2048 x 1536 (analog), 2560x1600 (digital)

NVIDIA GeForce GT230 768MB PCIe x16 Graphics Controller display resolutions and refresh rates

NOTE: Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP.

Resolution

640x480

800x600

1024x768

1280x720

1280x1024

1440x900

1600x1200

1680x1050

Maximum Refresh Rate (Hz)

Analog Connection Digital Connection

85

85

85

85

85

75

85

75

60

60

60

60

60

60

60

60

1920x1080

1920x1200

1920x1440

85

85

85

60-R

*

60-R

N/A

2048x1536

2560x1600

75

N/A

N/A

60

**

* Max HDMI resolution is 1080p

** Only supported when using a dual-link DVI connection

NOTE: 60-R denotes reduced blanking timings are used on single-link DVI connections and may be used with other digital connections

Languages supported

Maximum power

Compliance standards

24 languages: English, Arabic, Chinese Simplified, Chinese Traditional,

Czechoslovakian, Danish, Dutch, Finnish, French, German, Greek, Hebrew,

Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian,

Spanish, Swedish, Thai, Turkish

70W

EMC Emissions: a. CISPR22: 1997/EN 55022:1998 - Class B - Limits and methods of measurement of radio disturbance characteristics of Information Technology Equipment

DA - 13445 North America — Version 3 — November 17, 2009 Page 22

QuickSpecs

Technical Specifications - Graphics

HP Elite 7000 Microtower PC

EMC Immunity:

CISPR 24:1997/EN 55024:1998 - Information Technology Equipment - Immunity

Characteristics - Limits and Methods of Measurement.

ATI Radeon HD 4550 Dual

Head PCIe x16 Graphics

Card

Input/Output connectors

Board display options

Board configuration

DMS-59

S-video connector

Supports two displays via included DMS-59 to dual VGA cable or 2 DVI monitors via optional DMS-59 to dual DVI cable kit part number: DL139A. 4pin mini-DIN S-video connector for TV output

Specification Description

Graphics Chip

Core clock

Memory clock

Frame buffer

Bus type

PCI Express (x16 lanes)

Maximum vertical refresh rate 85 Hz

RV710

600 MHz

800 MHz

256 MB DDR2, 64 bit wide

Display support

Integrated 400 MHz RAMDAC

Display max resolution

1900 x 1200 digital, 2048 x 1536 analog

ATI Radeon HD 4550 DH PCIe x16 Graphics Card display resolutions and refresh rates

NOTE: Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP.

Resolution Maximum Refresh Rate (Hz)

640x480

800x600

1024x768

1280x720

1280x1024

1440x900

1600x1200

1680x1050

1920x1080

1920x1200

1920x1440

Analog Connection

85

85

85

85

85

75

85

75

85

85

85

Digital Connection

60

60

60

60

60

60

60

60

60-R

60-R

N/A

2048x1536

2560x1600

75

N/A

N/A

N/A

NOTE: 60-R denotes reduced blanking timings are used on single-link DVI connections and may be used with other digital connections.

Languages supported

Core power

Compliance standards

24 languages: English, Arabic, Chinese Simplified, Chinese Traditional,

Czechoslovakian, Danish, Dutch, Finnish, French, German, Greek, Hebrew,

Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese,

Russian, Spanish, Swedish, Thai, Turkish

21 W

EMC Emissions: a) FCC Part 15, Subpart B – Unintentional Radiators, Class B Computing

Devices for Home & Office Use

DA - 13445 North America — Version 3 — November 17, 2009 Page 23

QuickSpecs

Technical Specifications - Graphics

HP Elite 7000 Microtower PC

b) CISPR22: 1997/EN 55022:1998 – Class B – Limits and methods of measurement of radio disturbance characteristics of Information

Technology Equipment c) Canadian Standard ICES-003 is equivalent to CISPR22 d) Taiwanese Standard BSMI e) Japanese VCCI f) Australian C-Tick g) Korean (KCC)

EMC Immunity:

CISPR 24:1997/EN 55024:1998 – Information Technology Equipment -

Immunity Characteristics – Limits and Methods of Measurement.

ATI Radeon HD 4650 1 GB

PCIe x16 Graphics Card

Bus type

PCI Express (x16 lanes)

Maximum vertical refresh rate 85 Hz

Display support

Integrated 400 MHz RAMDAC

Display max resolution

2560 x 1600 digital, 2048 x 1536 analog

ATI Radeon HD 4650 1 GB PCIe x16 Graphics Card display resolutions and refresh rates

NOTE: Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP.

Resolution

640x480

800x600

1024x768

1280x720

1280x1024

Maximum Refresh Rate (Hz)

Analog Connection Digital Connection

85

85

85

85

85

60

60

60

60

60

1440x900

1600x1200

1680x1050

1920x1080

1920x1200

1920x1440

2048x1536

2560x1600

75

85

75

85

85

85

75

N/A

60

60

60

60-R

60-R

N/A

N/A

60 **

*

* Max HDMI resolution is 1080p

** Only supported when using a dual-link DVI connection

NOTE: 60-R denotes reduced blanking timings are used on single-link DVI connections and may be used with other digital connections.

Board display options

Board configuration

Supports two displays through any combination of two of the three output ports.

Specification Description

Graphics Chip

Core clock

Memory clock

Frame buffer

RV730Pro

600MHz

500 MHz

1 GB DDR2, 128 bit wide

DA - 13445 North America — Version 3 — November 17, 2009 Page 24

QuickSpecs

Technical Specifications - Graphics

Maximum power

Languages supported

Compliance standards

HP Elite 7000 Microtower PC

55 W

24 languages: English, Arabic, Chinese Simplified, Chinese Traditional,

Czechoslovakian, Danish, Dutch, Finnish, French, German, Greek, Hebrew,

Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese,

Russian, Spanish, Swedish, Thai, Turkish

EMC Emissions: a) CISPR22: 1997/EN 55022:1998 – Class B – Limits and methods of measurement of radio disturbance characteristics of Information

Technology Equipment

EMC Immunity:

CISPR 24:1997/EN 55024:1998 – Information Technology Equipment –

Immunity Characteristics – Limits and Methods of Measurement.

DA - 13445 North America — Version 3 — November 17, 2009 Page 25

QuickSpecs

Technical Specifications - Input Devices

HP USB Standard

Keyboard

HP Elite 7000 Microtower PC

Physical characteristics

Electrical

Mechanical

Environmental

Keys

Dimensions (L x W x H)

Weight

Operating voltage

104, 105, 106, 107, 109 layout (depending upon country)

18.0 x 6.4 x 0.98 in (45.8 x 16.3 x 2.5 cm)

2 lb (0.9 kg) minimum

Power consumption

ESD

EMI - RFI

+ 5VDC ± 5%

50-mA maximum (with three LEDs ON)

CE level 4, 15-kV air discharge

MicrosoftPC 99 - 2001

Languages

Keycaps

Switch actuation

Conforms to FCC rules for a Class B computing device

Functionally compliant

38 available

Low-profile design

55-g nominal peak force with tactile feedback

Switch life

Switch type

20 million keystrokes (using Hasco modified tester)

Contamination-resistant switch membrane

Key-leveling mechanisms For all double-wide and greater-length keys

Cable length

Microsoft PC 99 - 2001

6 ft (1.8 m)

Mechanically compliant

Acoustics

43-dBA maximum sound pressure level

Operating temperature

50° to 122° F (10° to 50° C)

Non-operating temperature

-22° to 140° F (-30° to 60° C)

Operating humidity

10% to 90% (non-condensing at ambient)

Non-operating humidity

20% to 80% (non-condensing at ambient)

Operating shock

40 g, six surfaces

Non-operating shock

Operating vibration

80 g, six surfaces

2-g peak acceleration

Non-operating vibration 4-g peak acceleration

Drop (out of box)

Drop (in box)

26 in (66 cm) on carpet, six-drop sequence

42 in (107 cm) on concrete, 16-drop sequence

Approvals

UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC

Ergonomic compliance

ANSI HFS 100, ISO 9241-4, and TUVGS

HP USB Smartcard

Keyboard

Physical characteristics

Keys

Form factor

104, 105, 106, 107, 109 layout (depending upon country)

USB basic Smart Card keyboard

Colors

Carbonite/Silver

Dimensions (H x W x D) 18.2 x 6.3 x 1.3 in (46.3 x 16.1 x 3.3 cm)

DA - 13445 North America — Version 3 — November 17, 2009 Page 26

QuickSpecs

Technical Specifications - Input Devices

HP Elite 7000 Microtower PC

Electrical

Mechanical

Environmental

Approvals

SMARTCARD function

Weight

Operating voltage

Power consumption

System interface

2 lb (0.9 kg) minimum

+ 5VDC ± 5%

100-mA maximum (with four LEDs ON)

USB Type A plug connector

ESD

EMI - RFI

Microsoft PC 99 - 2001

Languages

Keycaps

CE level 4, 15-kV air discharge

Conforms to FCC rules for a Class B computing device

Functionally compliant

30+ available

Low-profile design

Switch actuation

Switch life

55 g nominal peak force with tactile feedback

20 million keystrokes (using Hasco modified tester)

Contamination-resistant membrane

Switch type

Key-leveling mechanisms For all double-wide and greater-length keys

Cable length

6 ft (1.8 m)

Microsoft PC 99 - 2001

Mechanically compliant

Acoustics

43-dBA maximum sound pressure level

Operating temperature

50° to 122° F (10° to 50° C)

Non-operating temperature

-22° to 140° F (-30° to 60° C)

Operating humidity

10% to 90% (non-condensing at ambient)

Non-operating humidity

20% to 80% (non-condensing at ambient)

Operating shock

Non-operating shock

Operating vibration

40 g, six surfaces

80 g, six surfaces

2-g peak acceleration

Non-operating vibration 4-g peak acceleration

Drop (out of box) 26 in (66 cm) on carpet, six-drop sequence

Drop (in box) 42 in (107 cm) on concrete, 16-drop sequence

CE-Mark, UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC, JITC,

EMV2000, USB-IF, FIPS 201

Support

All ISO 7816 smart cards

Interface

Chipset

Reads from and writes to all ISO7816-1, 2, 3, 4 memory and microprocessor smart cards (T=0,

T=1)

SCM STCII

Standard APIs supported PC/SC, EMV2000, SET

DA - 13445 North America — Version 3 — November 17, 2009 Page 27

QuickSpecs

Technical Specifications - Input Devices

HP Elite 7000 Microtower PC

Power

Power consumption

Communication

Landing mechanism

Interface modes

Reader performance interface

Electro-magnetic standards

USB Port

Short circuit detection (protects smart card and reader)

Power supply compliant with ISO7816 and EMV

(5V, 60 mA)

Supports 3-V and 5-V cards

250-mA maximum draw (50 mA for the keyboard with three LEDs ON and 200-mA maximum startup current using a high-current, 60-mA smart card)

From card

Programmable from

9,600 baud to 115,200 baud

From computer

Up to 38,400 baud

Contact device

Friction contact

Card insertions rating

Up to 100,000 insertion cycles

USB communications through USB port

SCM protocol

Automatic card insertion/removal detection

USB connection

Europe

USA

89/336/CEE guideline

USAFCC part 15

HP USB 2-Button Laser

Mouse

Scroll Wheel

24

Maximum Rotation Speed 48 rats/sec

Switch Type

Switch Life

Environmental

wheel

Button - 3,000,000

Wheel - 1,000,000 times

Tilt switch - 500,000 times

Operating Temperature

32° to 104° F (0° to 40° C)

Electrical

Non-operating

Temperature

Operating Humidity

-4° to 140° F (-20° to 60° C)

10% to 90% (non-condensing at ambient)

Non-operating Humidity 20% to 80% (non-condensing at ambient)

Operating Shock

Non-operating Shock

Operating Vibration

40 g, six surfaces

80 g, six surfaces

2-g peak acceleration

Non-operating Vibration 4-g peak acceleration

Operating Voltage

+ 5VDC ± 5%

Power Consumption

MTBF

> 150,000 hrs

DA - 13445 North America — Version 3 — November 17, 2009 Page 28

QuickSpecs

Technical Specifications - Input Devices

HP Elite 7000 Microtower PC

Mechanical

Regulatory Approvals

ESD

EMI-RFI

PC98

Resolution

Tracking Speed

Acceleration

IEC-61000-4-2 criteria B, Contact discharge: +/-

4kV, Air discharge: +/- 8kV

FCC Class B

PC 99 Compliant

800dpi

25 cm/sec

0.5mm

Switch Actuation

Switch Life

0.6N (60gf)

Button - 3,000,000

Wheel - 1,000,000 times

Tilt switch - 500,000 times

1850mm

Cable Length

PC98-99

PC99 compliant

UL60950-1, UL 94, UL 746 (A-E), UL 796

TUV/GS: EN 60950-1, EN 60825-1

FCC Class B, UL 1950, cUL, TUV GS, CE, C-tick, VCCI, BSMI, RRL

HP USB Optical Scroll

Mouse

Dimensions (H x L x W)

Weight

Cable length

1.5 x 4.5 x 2.5 in (3.8 x 11.6 x 6.3 cm)

0.27 lb (0.12 kg)

72.8 in (185 cm)

DA - 13445 North America — Version 3 — November 17, 2009 Page 29

QuickSpecs

Technical Specifications - Hard Drives

3.5” 7200 RPM Serial ATA

Hard Drives

500 GB

160 GB

HP Elite 7000 Microtower PC

Capacity

Height

Width

500,107,862,016 bytes

1 in (2.54 cm)

Media diameter: 3.5 in (8.89 cm)

Physical size: 4 in (10.2 cm)

Serial ATA (3.0 Gb/s)

Up to 3 Gb/s

Interface

Synchronous Transfer

Rate (Maximum)

Buffer

Seek Time (typical reads, includes controller overhead, including settling)

Rotational Speed

16 MB

Single Track

Average

Full-Stroke

7,200 rpm

Logical Blocks

976,773,168

Operating Temperature

41° to 131° F (5° to 55° C)

2.0 ms

11 ms

21 ms

Capacity

Height

160,041,885,696 bytes

1 in (2.54 cm)

Width

Interface

Synchronous Transfer

Rate (Maximum)

Buffer

Media diameter: 3.5 in (8.89 cm)

Physical size: 4 in (10.2 cm)

Serial ATA (3.0 Gb/s)

Up to 3 Gb/s

Seek Time (typical reads, includes controller overhead, including settling)

Rotational Speed

8 MB

Single Track

Average

Full-Stroke

Logical Blocks

7,200 rpm

312,581,808

Operating Temperature

41° to 131° F (5° to 55° C)

0.9 ms

9.3 ms

18 ms

DA - 13445 North America — Version 3 — November 17, 2009 Page 30

QuickSpecs

HP Elite 7000 Microtower PC

Technical Specifications - Hard Drives

Solid State Drive 64 GB Capacity

NAND Flash Memory

Interface type

Dimensions-external

(W x H x D)

Weight

Internal transfer rate

64 GB

Multi Level Cell (MLC) with wear leveling controller

SATA 3Gb/sec

2.74 x 0.37 x 4 in (6.98 x 0.95 x 10.2 cm)

Host transfer rate

Power

0.14 lb (65 g)

Write speed

Read speed

Up to 220 MB/s

Up to 120 MB/s

Ultra DMA mode

Up to 150 MB/s

DC power requirement

5 VDC 5%-100 mV ripple p-p

Total power consumption <1.12Watt

Environmental

(all conditions, noncondensing)

Temperature (operating) 32° to 158° F (0° to 70° C)

Relative Humidity

(operating)

5% to 95%

Maximum Wet Bulb

Temperature (operating)

84° F (29° C)

Regulations

UL, CSA, EN 60950-2000, CISPR Pub 22 Class B, CNS 13438,

AS/NZS CISPR 22:2002 Class B, R1113 and C1172 Class B

NOTE: For solid state disk drives, GB means 1 billion bytes. 16GB is the unformatted capacity of this drive before a portion of the drive is reserved for flash management features. Actual capacity varies by content and will be less than 15.8GB.

DA - 13445 North America — Version 3 — November 17, 2009 Page 31

QuickSpecs

Technical Specifications - Optical Storage

SATA DVD-ROM Drive

HP Elite 7000 Microtower PC

Height

Orientation

Interface type

5.25-inch, half-height, tray-load

Either horizontal or vertical

SATA/ATAPI

Disc capacity

Single layer: Up to 4.7 GB (6 times capacity of CD-ROM)

Double layer: Up to 8.5 GB (12 times capacity of CD-ROM)

Dimensions (W x H x D) 5.9 x 1.7 x 8.0 in (15.0 x 4.4 x 20.3 cm)

Weight (max) 2.6 lb (1.2 kg)

Read speeds

Up to 8X

Removable Storage -

Media Compatibility -

DVD-ROM

DVD+R/-R/+RW/

-RW/+R DL /-R DL

DVD-ROM

DVD-RAM

CD-ROM, CD-R

CD-RW

Media

CD-ROM

CD-R

CD-RW

Up to 16X

Up to 4X

Up to 48X

Up to 32X

Read

Yes

Yes

Yes

Write

No

No

No

Access times

(typical reads, including setting)

Power

DVD-ROM

DVD-ROM DL

DVD-RAM

DVD+R

DVD+R DL

DVD+RW

DVD-R

DVD-RW

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

No

No

No

No

No

No

No

No

DVD-R DL

Random

Full Stroke

Cache Buffer

Yes No

DVD: < 140 ms (typical), CD: < 125 ms (typical)

DVD: < 250 ms (seek), CD: < 210 ms (seek)

2 MB (minimum)

Data Transfer Modes

ATA PIO mode 4 (16.7 MB/s); ATA Multi-word DMA mode 2 (16.7 MB/s); ATA UltraDMA Mode 3 (44.4

MB/s -default)

Source

DC Current

SATA DC power receptacle

DC Power Requirement

5 VDC ± 5%-100 mV ripple p-p

12 VDC ± 5%-200 mV ripple p-p

5 VDC - <1000 mA typical, < 1600 mA maximum

12 VDC -< 600 mA typical, < 1400 mA maximum

DA - 13445 North America — Version 3 — November 17, 2009 Page 32

QuickSpecs

Technical Specifications - Optical Storage

Environmental

(all conditions non-condensing)

Temperature

Relative Humidity

Maximum Wet Bulb

Temperature

HP Elite 7000 Microtower PC

41° to 122° F (5° to 50° C)

10% to 90%

86° F (30° C)

HP SATA SuperMulti

LightScribe DVD Writer

Drive

Height

Orientation

Interface type

5.25-inch, half-height, tray-load

Either horizontal or vertical

SATA/ATAPI

Disc capacity

8.5 GB DL or 4.7 GB standard

Dimensions (W x H x D) 5.9 x 1.7 x 8.0 in (15.0 x 4.4 x 20.3 cm)

Weight (max)

Write speeds

2.6 lb (1.2 kg)

DVD-RAM

DVD+R

Up to 12X

Up to 16X

DVD+RW

DVD+R DL

DVD-R DL

DVD-R

DVD-RW

CD-R

Up to 8X

Up to 8X

Up to 8X

Up to 16X

Up to 6X

Up to 48X

Read speeds

CD-RW

DVD-RAM

Up to 32X

Up to 12X

DVD+RW, DVD-RW, DVD+R

DL, DVD-R DL

Up to 8X

DVD-ROM DL

DVD-ROM, DVD+R,

DVD-R

Up to 8X

Up to 16X

CD-ROM, CD-R

CD-RW

Random

Up to 48X

Up to 32X

DVD: < 140 ms (typical), CD: < 125 ms (typical)

Access time

(typical reads, including settling)

Power

Full Stroke

Source

DVD: < 250 ms (seek), CD: < 210 ms (seek)

SATA DC power receptacle

DC Power Requirement

5 VDC ± 5%-100 mV ripple p-p

12 VDC ± 5%-200 mV ripple p-p

DC Current

5 VDC (< 1000 mA typical, 1600 mA maximum)

12 VDC (< 600 mA typical, 1400 mA maximum)

Environmental conditions

(operating - noncondensing)

Temperature

Relative Humidity

Maximum Wet Bulb

Temperature

41° to 122° F (5° to 50° C)

10% to 90%

86° F (30° C)

DA - 13445 North America — Version 3 — November 17, 2009 Page 33

QuickSpecs

Technical Specifications - Optical Storage

HP Elite 7000 Microtower PC

HP SATA Blu-ray Writer

5.25-inch, half-height, tray-load

Orientation

Either horizontal or vertical

Interface type

SATA/ATAPI

Disc capacity

50 GB DL or 25 GB standard

Dimensions (W x H x D) 5.9 x 1.7 x 7.5 in (15.0 x 4.4 x 19.0 cm)

Weight (max) 2.0 lb (907g)

Write speed BD-R

BD-RE

DVD-R

DVD-RW

DVD+R

Single-layer

2x, 4x CLV, 6x CAV

Double-layer

2x, 4x CLV

2.3x

2x, 4x CLV, 8x ZCLV, 8x,

12x PCAV, 16x CAV

1x, 2x, 4x, 6x CLV

2x CLV

2x, 4x CLV

Not supported

2.4x, 4x CLV, 8x ZCLV,

8x, 12x PCAV, 16x CAV

2.4x, 4x CLV

2.4x, 4x, 6x CLV, 8x ZCLV Not supported

DVD+RW

DVD-RAM

CD-R

CD-RW

2x, 3x CLV, 3-5x PCAV

8x,16x CLV, 24x, 32x PCAV, 40x CAV

4x, 10x, 16x CLV, 24x ZCLV

Read speeds BD-ROM

BD-R

BD-RE (SL/DL)

DVD-ROM

DVD-R

DVD-RW

DVD+R

Single-layer

6x CAV

6x CAV

4.8x CAV

16x CAV

12x CAV

10x CAV

12x CAV

DVD+RW

BDMV (AACS Compliant

Disc)

DVD-RAM

10x CAV

4.8x CAV

2x, 3x CLV, 3x-5x PCAV

DVD-Video (CSS Compliant

Disc)

CD-R/RW/ROM

8x CAV

40x / 40x / 40x CAV

Double-layer

4.8x CAV

4.8x CAV

4.8x CAV

8x CAV

8x CAV

Not support

8x CAV

Not support

CD-DA (DAE)

80 mm CD

Sustained Transfer rate BD-ROM

DVD-ROM

CD-ROM

32x CAV

16x CAV

215.79 Mbits/s (6x) max.

16.62 Mbytes/s (16x) max.

6,000 KB/s (40x) max.

DA - 13445 North America — Version 3 — November 17, 2009 Page 34

QuickSpecs

Technical Specifications - Optical Storage

Burst Transfer rate

HP Elite 7000 Microtower PC

1.5Gbps bits/s (10b side)

1.2Gbps bits/s (8b side)

Yes

Multimedia MPC-3 compliant

Access times

(typical reads, including setting)

Power

Environmental

(all conditions non-condensing)

Random

Full Stroke

DVD: < 140 ms (typical), CD: < 125 ms (typical)

DVD: < 250 ms (seek), CD: < 210 ms (seek)

Source

DC Power Requirement

5 VDC ± 5%-100 mV ripple p-p

12 VDC ± 5%-200 mV ripple p-p

DC Current

5 VDC -1000 mA typical, 1600 mA maximum

12 VDC -600 mA typical, 1400 mA maximum

Temperature (operating) 41° to 122° F (5° to 50° C)

Relative Humidity

(operating)

Maximum Wet Bulb

Temperature (operating)

SATA DC power receptacle

10% to 90%

86° F (30° C)

DA - 13445 North America — Version 3 — November 17, 2009 Page 35

QuickSpecs

Technical Specifications - Removable Storage

HP 22-in-1 Media Card

Reader

HP Elite 7000 Microtower PC

USB interface

Advance protocol support

Supported media types

USB 2.0 High-speed device via PCI card or pass -through via internal USB port of system board

Supports hardware ECC (Error Correction Code) function

Supports hardware CRC (Cyclic Redundancy Check) function

Supports MS 4-bit parallel transfer mode

Supports MS-PRO 4-bit parallel transfer mode

Supports SD 4-bit parallel transfer mode

Supports high-speed 50 MHz SD 4-bit card (version 1.1)

Support high-speed 52 MHz MultiMediaCard 8-bit card (version 4.x)

Supports CompactFlash Card Type I (CF I), CompactFlash Card Type II

(CF II),MicroDrive (MD)

Supports 3.3V SmartMedia Card (SM), SmartMedia ROM (SM ROM),

Picture Card

Supports Secure Digital Card (SD), Secure Digital ROM Card (SD ROM), miniSD, MultiMediaCard, Secure MultiMediaCard (Secure

MultiMediaCard), ROM Type MultiMediaCard (MultiMediaCard ROM),

Reduced Size MultiMediaCard (RS MultiMediaCard), MultiMediaCard 4.0

(MultiMediaCard Plus), Reduced Size MultiMediaCard 4.0

(MultiMediaCard Mobile)

Support Memory Stick (MS), Memory Stick ROM (MS ROM), MagicGate

Memory Stick (MG), Memory Stick Select, Memory Stick Duo (MS Duo),

Memory Stick PRO (MS-PRO), Memory Stick PRO Duo (MS PRO Duo)

Mechanical

Length (3.5")

Width (3.5")

124.7 cm

101.6 cm

Environmental

Height (3.5")

Length (5.25)

Width (5.25")

Height (5.25")

Operational environmental extremes

Storage environmental extremes

25.4 cm

171.6 cm

148.9 cm

42.7 cm

Test Parameters/Conditions - Power applied, unit operating on system ±5% nominal supply voltage.

10°C 10% R.H. = 24 hours

10°C 90% R.H. = 24 hours

20°C 90% R.H. = 24 hours

30°C 90% R.H. = 24 hours

40°C 90% R.H. = 24 hours

50°C 90% R.H. = 24 hours

50°C 10% R.H. = 24 hours

Test Parameters/Conditions

60°C @ 80% R.H. for 96 hours

-30°C @ 20% R.H. for 48 hours

No power applied

Delta °C < 1.0°C/min

Delta % R.H. < 1.5% R.H./min

DA - 13445 North America — Version 3 — November 17, 2009 Page 36

QuickSpecs

HP Elite 7000 Microtower PC

Technical Specifications - Removable Storage

Approvals

USB-IF, WHQL, Compliant with USB Mass Storage Class Bulk only Transport

Specification Rev. 1.0, Compliant Intel Front Panel I/O Connectivity Design

Guide V. 1.2

FCC, CE, BSMI, C-Tick, VCCI, MIC, cUL, TUV-T

DA - 13445 North America — Version 3 — November 17, 2009 Page 37

QuickSpecs

Technical Specifications - Environmental Data

HP Elite 7000 Microtower PC

Eco-Label Certifications & declarations

This product has received or is in the process of being certified to the following approvals and may be labeled with one or more of these marks:

System Configuration

Energy Consumption

IT ECO declaration

The configuration used for the Energy Consumption and Declared Noise Emissions data for the Ultra-slim

Desktop model is based on a typically configured product

115 VAC 230 VAC 100 VAC

49.39 W

2.83 W

49.61 W

2.99 W

49.48 W

2.73 W

Normal Operation

Sleep (Energy Star low

power mode)

Off

Heat Dissipation

Normal Operation

Sleep

Off

Declared Noise Emissions

(in accordance with

ISO 7779 and ISO 9296)

System Fan Off

Idle

Fixed Disk

(random writes)

Batteries

*

0.58 W

115 VAC

169 BTU/hr

0.78 W

230 VAC

170 BTU/hr

0.56 W

100 VAC

169 BTU/hr

10 BTU/hr

2 BTU/hr

10 BTU/hr

3 BTU/hr

9 BTU/hr

2 BTU/hr

* Heat dissipation is calculated based on the measured watts, assuming the service level is attained for one hour.

Sound Power

(LWAd, bels)

3.3

3.4

This battery(s) in this product comply with EU Directive 2006/66/EC

Sound Pressure

(LpAm, decibels)

22

23

Additional Information

Batteries used in the product do not contain:

Mercury greater the 5ppm by weight

Cadmium greater than 10ppm by weight

Battery size: CR2032 (coin cell)

Battery type: Li-Metal

This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive -

2002/95/EC.

This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE)

Directive - 2002/96/EC.

This product is in compliance with California Proposition 65 (State of California; Safe Drinking Water and Toxic Enforcement Act of 1986).

Plastics parts weighing over 25 grams used in the product are marked per ISO 11469 and ISO1043.

This product contains 0% post consumer recycled plastic (by wt.)

This product is 91.5% recyclable when properly disposed of at end of life.

Packaging Materials

DA - 13445 North America — Version 3 — November 17, 2009 Page 38

QuickSpecs

Technical Specifications - Environmental Data

HP Elite 7000 Microtower PC

RoHS Compliance

Material Usage

External:

Corrugated 2260 g

Internal:

Polyethylene low density 15 g

Polyethylene low density Foam 115 g

The corrugated paper packaging materials contains at least 38% recycled content.

Hewlett-Packard is committed to compliance with all applicable environmental laws and regulations, including the European Union Restriction of Hazardous Substances (RoHS) Directive. HP's goal is to exceed compliance obligations by meeting the requirements of the RoHS Directive on a worldwide basis. By July 1,

2006, RoHS substances will be virtually eliminated (virtually = to levels below legal limits) for all HP electronic products subject to the RoHS Directive, except where it is widely recognized that there is no technically feasible alternative (as indicated by an exemption under the EU RoHS Directive).

This product does not contain any of the following substances in excess of regulatory limits (refer to the

HP General Specification for the Environment at: http://www.hp.com/hpinfo/globalcitizenship/environment/supplychain/gen_specifications.html

):

Packaging

Asbestos

Certain Azo Colorants

Certain Brominated Flame Retardants - may not be used as flame retardants in plastics

Cadmium

Chlorinated Hydrocarbons

Chlorinated Paraffins

Formaldehyde

Halogenated Diphenyl Methanes

Lead carbonates and sulfates

Lead and Lead compounds

Mercuric Oxide Batteries

Nickel - finishes must not be used on the external surface designed to be frequently handled or carried by the user.

Ozone Depleting Substances

Polybrominated Biphenyls (PBBs)

Polybrominated Biphenyl Ethers (PBBEs)

Polybrominated Biphenyl Oxides (PBBOs)

Polychlorinated Biphenyl (PCB)

Polychlorinated Terphenyls (PCT)

Polyvinyl Chloride (PVC) - except for wires and cables, and certain retail packaging has been voluntarily removed from most applications.

Radioactive Substances

Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)

HP follows these guidelines to decrease the environmental impact of product packaging:

Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging materials.

Eliminate the use of ozone-depleting substances (ODS) in packaging materials.

Design packaging materials for ease of disassembly.

Maximize the use of post-consumer recycled content materials in packaging materials.

Use readily recyclable packaging materials such as paper and corrugated materials.

Reduce size and weight of packages to improve transportation fuel efficiency.

Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards.

End-of-life Management Hewlett-Packard offers end-of-life HP product return and recycling programs in many geographic areas.

DA - 13445 North America — Version 3 — November 17, 2009 Page 39

QuickSpecs

HP Elite 7000 Microtower PC

Technical Specifications - Environmental Data

and Recycling

To recycle your product, please go to: http://www.hp.com/go/reuse-recycle or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

Hewlett-Packard

Corporate Environmental

Information

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/recyclers . These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.

For more information about HP's commitment to the environment:

Global Citizenship Report http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html

Eco-label certifications http://www.hp.com/hpinfo/globalcitizenship/environment/productdesign/ecolabels.html

ISO 14001 certificates: http://www.hp.com/hpinfo/globalcitizenship/environment/operations/envmanagement.html

Copyright © 2009 Hewlett-Packard Development Company, L.P.

All rights reserved. Microsoft, Windows, Windows Vista, and Windows 7 are registered trademarks or trademarks of Microsoft

Corporation in the U.S. and/or other countries. Intel, Core i5, and Core i7 are registered trademarks or trademarks of Intel Corporation in the U.S. and/or other countries. All other product names mentioned herein may be trademarks of their respective companies.

The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

DA - 13445 North America — Version 3 — November 17, 2009 Page 40

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
