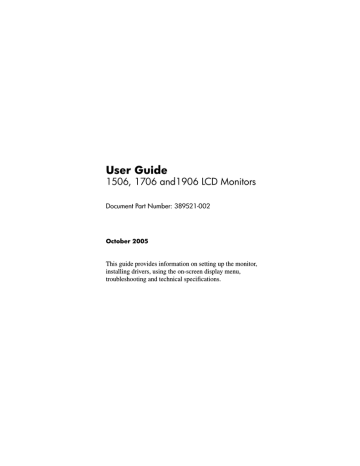

User Guide

1506, 1706 and1906 LCD Monitors

Document Part Number: 389521-002

October 2005

This guide provides information on setting up the monitor, installing drivers, using the on-screen display menu, troubleshooting and technical specifications.

© 2005 Hewlett-Packard Development Company, L.P.

HP, Hewlett Packard, and the Hewlett-Packard logo are trademarks of

Hewlett-Packard Company in the U.S. and other countries.

Compaq and the Compaq logo are trademarks of Hewlett-Packard

Development Company, L.P. in the U.S. and other countries.

Microsoft, Windows, and the Windows logo are trademarks of Microsoft

Corporation in the U.S. and other countries.

All other product names mentioned herein may be trademarks of their respective companies.

Hewlett-Packard Company shall not be liable for technical or editorial errors or omissions contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material. The information in this document is provided “as is” without warranty of any kind, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, and is subject to change without notice. The warranties for Hewlett-Packard products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty.

This document contains proprietary information that is protected by copyright. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of

Hewlett-Packard Company.

Å

WARNING: Text set off in this manner indicates that failure to follow directions could result in bodily harm or loss of life.

Ä

CAUTION: Text set off in this manner indicates that failure to follow directions could result in damage to equipment or loss of information.

User Guide

1506, 1706 and 1906 LCD Monitors

Second Edition (October 2005)

Document Part Number: 389521-002

Contents

1 Product Features

2 Safety and Maintenance Guidelines

Important Safety Information. . . . . . . . . . . . . . . . . . . . . . 2–1

Maintenance Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . 2–2

Cleaning the Monitor. . . . . . . . . . . . . . . . . . . . . . . . . 2–3

Shipping the Monitor. . . . . . . . . . . . . . . . . . . . . . . . . 2–3

3 Setting Up the Monitor

Installing the Monitor Pedestal . . . . . . . . . . . . . . . . . . . . 3–1

Connecting the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . 3–3

Removing the Monitor Base . . . . . . . . . . . . . . . . . . . . . . 3–6

Mounting the Monitor . . . . . . . . . . . . . . . . . . . . . . . . 3–7

Locating the Rating Labels . . . . . . . . . . . . . . . . . . . . . . . 3–8

4 Operating the Monitor

Software and Utilities. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1

The Information File . . . . . . . . . . . . . . . . . . . . . . . . . 4–1

The Image Color Matching File . . . . . . . . . . . . . . . . 4–2

Installing the .INF and .ICM Files . . . . . . . . . . . . . . . . . . 4–2

Installing from the CD. . . . . . . . . . . . . . . . . . . . . . . . 4–2

Downloading from the Worldwide Web . . . . . . . . . . 4–3

Front Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–4

Adjusting Monitor Settings . . . . . . . . . . . . . . . . . . . . . . . 4–5

Using the On-Screen Display . . . . . . . . . . . . . . . . . . 4–6

Adjusting Screen Quality. . . . . . . . . . . . . . . . . . . . . . 4–8

User Guide iii

Contents iv

Optimizing Digital Conversion . . . . . . . . . . . . . . . . . 4–9

Identifying Monitor Conditions . . . . . . . . . . . . . . . . . . . 4–10

Sleep Timer Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–10

HP Display LiteSaver (Available with Select Models) . 4–12

Installing the HP Display LiteSaver Software. . . . . 4–12

sRGB Support (Available with Select Models) . . . . . . . 4–14

Changing the Color Temperature . . . . . . . . . . . . . . 4–15

Installing the sRGB ICM File for Microsoft Windows

2000 and Windows XP . . . . . . . . . . . . . . . . . . . . . . 4–15

A Troubleshooting

Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . A–1

Using the Worldwide Web. . . . . . . . . . . . . . . . . . . . . . . . A–4

Preparing to call Technical Support. . . . . . . . . . . . . . . . . A–5

B Technical Specifications

Recognizing Preset Display Resolutions . . . . . . . . . . . . . B–6

Entering User Modes . . . . . . . . . . . . . . . . . . . . . . . . . B–7

Energy Saver Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . B–7

C Agency Regulatory Notices

Federal Communications

Commission Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–1

Modifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–2

Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–2

Declaration of Conformity for Products Marked with the FCC

Logo (United States Only) . . . . . . . . . . . . . . . . . . . . . . . . C–2

Materials disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–3

Canadian Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–3

Avis Canadien . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–3

European Union Regulatory Notice . . . . . . . . . . . . . . . . . C–3

Disposal of Waste Equipment by Users in Private Household in the European Union . . . . . . . . . . . . . . . . . . . . . . . . . . . C–4

Japanese Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–5

User Guide

Contents

Korean Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–5

ENERGY STAR Compliance . . . . . . . . . . . . . . . . . . . . . C–5

Power Cord Set Requirements . . . . . . . . . . . . . . . . . . . . . C–5

Japanese Power Cord Requirements . . . . . . . . . . . . . C–6

D LCD Monitor Quality and Pixel Policy

User Guide v

Contents vi User Guide

1

Product Features

The flat panel display has an active matrix, thin-film transistor

(TFT), liquid crystal display (LCD). The monitor features include:

1506 Model

15-inch (38.1 cm) viewable area display.

1024 x 768 resolution, plus full-screen support for lower resolutions.

Wide viewing angle to allow viewing from a sitting or standing position, or moving side-to-side.

Tilt adjustment capabilities.

Removable pedestal and VESA 75mm mounting holes for flexible mounting solutions.

Plug and play capability if supported by your system.

On-Screen Display (OSD) adjustments in English, Dutch,

French, German, Italian, Simplified Chinese, and Spanish for ease of set-up and screen optimization.

Software and documentation CD includes an information file

(INF), Image color Matching File (ICM), and product documentation.

Energy Saver feature for Energy Star compliance.

Security lock slot.

AssetControl

User Guide 1–1

Product Features

Compliant with the following regulated specifications:

EPA ENERGY STAR

European Union CE Directives

Swedish MPR II 1990

Swedish TCO

1706 Model

17-inch (43.18 cm) viewable area display.

1280 × 1024 native resolution, plus full-screen support for lower resolutions.

Wide viewing angle to allow viewing from a sitting or standing position, or moving side-to-side.

Tilt adjustment capabilities.

Removable pedestal and VESA 100mm mounting holes for flexible mounting solutions.

Plug and play capability if supported by your system.

On-Screen Display (OSD) adjustments in English, Dutch,

French, German, Italian, Simplified Chinese, and Spanish for ease of set-up and screen optimization.

Software and documentation CD includes an information file

(INF), Image Color Matching file (ICM), and product documentation.

Energy Saver feature for Energy Star compliance.

AssetControl (available with select models).

External stereo speakers (available with select models).

Compliant with the following regulated specifications:

EPA ENERGY STAR

1–2 User Guide

Product Features

European Union CE Directives

Swedish MPR II 1990

Swedish TCO

1906 Model

19-inch (48.3 cm) viewable area display.

1280 x 1024 native resolution, plus full-screen support for lower resolutions.

Wide viewing angle to allow viewing from a sitting or standing position, or moving side-to-side.

Tilt adjustment capabilities.

Removable pedestal and VESA 100mm mounting holes for flexible mounting solutions.

Plug and play capability if supported by your system.

On-Screen Display (OSD) adjustments in English, Dutch,

French, German, Italian, Simplified Chinese, and Spanish for ease of set-up and screen optimization.

Software and documentation CD includes an information file

(INF), Image Color Matching file (ICM), and product documentation.

Energy Saver feature for Energy Star compliance.

AssetControl (available with select models).

External stereo speakers (available with select models).

User Guide 1–3

Product Features

Compliant with the following regulated specifications:

EPA ENERGY STAR

European Union CE Directives

Swedish MPR II 1990

Swedish TCO

1–4 User Guide

2

Safety and Maintenance

Guidelines

Important Safety Information

A power cord is included with your monitor. If another cord is used, use only a power source and connection appropriate for this monitor. For information on the correct power cord set to use with your monitor, refer to the “Power Cord Set Requirements” section in Appendix C.

Å

WARNING: To reduce the risk of electric shock or damage to your equipment, do not disable the power cord grounding feature. This equipment is designed to be connected to a grounded (earthed) power outlet that is easily accessible to the operator. The grounding plug is an important safety feature.

Å

WARNING: For your safety, be sure that the power outlet you plug the power cord into is easily accessible and located as close to the equipment as possible. When you need to disconnect the power to the equipment, unplug the power cord from the power outlet by grasping the plug firmly. Never pull on the cord.

User Guide 2–1

Safety and Maintenance Guidelines

Ä

CAUTION: For the protection of your monitor, as well as your computer, connect all power cords for your computer and its peripheral devices (such as a monitor, printer, scanner) to some form of surge protection device such as a power strip or Uninterruptible

Power Supply (UPS). Not all power strips provide surge protection; the power strips must be specifically labeled as having this ability.

Use a power strip whose manufacturer offers a Damage Replacement

Policy so you can replace your equipment if surge protection fails.

Maintenance Guidelines

To enhance the performance and extend the life of your monitor:

Do not open your monitor cabinet or attempt to service this product yourself. Adjust only those controls that are covered in the operating instructions. If your monitor is not operating properly or has been dropped or damaged, contact your HP authorized dealer, reseller, or service provider.

Use only a power source and connection appropriate for this monitor, as indicated on the label/back plate of the monitor.

Be sure the total ampere rating of the products connected to the outlet does not exceed the current rating of the electrical outlet, and the total ampere rating of the products connected to the cord does not exceed the rating of the cord. Look on the power label to determine the ampere rating (AMPS or A) for each device.

Install your monitor near an outlet that you can easily reach.

Disconnect the monitor by grasping the plug firmly and pulling it from the outlet. Never disconnect the monitor by pulling the cord.

Turn your monitor off when not in use. You can substantially increase the life expectancy of your monitor by using a screen saver program and turning off the monitor when not in use.

2–2 User Guide

Safety and Maintenance Guidelines

Slots and openings in the cabinet are provided for ventilation.

These openings must not be blocked or covered. Never push objects of any kind into cabinet slots or other openings.

Do not drop your monitor or place it on an unstable surface.

Do not allow anything to rest on the power cord. Do not walk on the cord.

Keep your monitor in a well-ventilated area, away from excessive light, heat or moisture.

When removing the monitor base, you must lay the monitor face down on a soft area to prevent it from getting scratched, defaced, or broken.

Cleaning the Monitor

1. Turn off the monitor and the computer.

2. Unplug the monitor from the wall outlet.

3. Clean the monitor plastics with a clean cloth dampened with water.

4. Clean the monitor screen with an antistatic screen cleaner.

Ä

CAUTION: Do not use benzene, thinner, ammonia, or any other volatile substances to clean your monitor or the screen. These chemicals may damage the cabinet finish as well as the screen.

Shipping the Monitor

Keep the original packing box in a storage area. You may need it later if you move or ship your monitor.

User Guide 2–3

Safety and Maintenance Guidelines

2–4 User Guide

3

Setting Up the Monitor

To set up the monitor, ensure that the power is turned off to the monitor, computer system, and other attached devices, then follow the steps below.

Installing the Monitor Pedestal

To install the monitor pedestal:

1. Place the pedestal plate on your desktop or table and check to be sure the arrow on the underside of the plate is facing forward.

Do not install the base if the monitor will be used on a wall, swing arm, or other mounting fixture; instead see the section on

“Mounting the Monitor” in this chapter.

User Guide 3–1

Setting Up the Monitor

2. Using both hands, position the monitor over the pedestal base and press down firmly to lock the pedestal base in place.

When the base locks, it will make a clicking sound. Make sure the pedestal base is securely locked before continuing with the setup.

Inserting the Monitor into the Pedestal Base

3–2 User Guide

Setting Up the Monitor

Connecting the Monitor

1. Place the monitor in a convenient, well-ventilated location near your computer.

2. Connect the monitor signal cable on the back of the monitor to the video connector on the rear panel of the computer.

Å

WARNING: To reduce the risk of electric shock or damage to your equipment:

Do not disable the power cord grounding plug. The grounding plug is an important safety feature.

Plug the power cord into a grounded (earthed) electrical outlet that is easily accessible at all times.

Disconnect power from the monitor by unplugging the power cord from the electrical outlet.

Do not place anything on power cords or cables. Arrange them so that no one may accidentally step on or trip over them. Do not pull on a cord or cable. When unplugging from the electrical outlet, grasp the cord by the plug.

User Guide 3–3

Setting Up the Monitor

3. Connect one end of the power cable to the back of the monitor, and the other end to an electrical wall outlet.

Connecting the Signal and Power Cables

3–4 User Guide

Setting Up the Monitor

4. Adjust the monitor as needed for your comfort using the monitor’s tilt adjustment capability.

Tilting the Monitor

5. Press the power switch to turn on the monitor.

Ä

CAUTION: Burn-in image damage may occur on monitors that display the same static image on screen for a prolonged period of time. To avoid burn-in image damage on your monitor screen, you should always activate a screen saver application or turn off the monitor when it is not in use for a prolonged period of time. Image retention is a condition that may occur on all LCD screens.

User Guide 3–5

Setting Up the Monitor

Removing the Monitor Base

You can remove the monitor base to mount the monitor on a wall, a swing arm, or other mounting fixture. Read the Caution and

Warning statements below before beginning the procedure.

Ä

CAUTION: Before beginning to disassemble the monitor, be sure the monitor is turned off and the power and signal cables are both disconnected. If your monitor has a connected audio cable, disconnect it.

Ä

CAUTION: Do not remove the base from the monitor while the monitor is in the upright position. Lay the front bezel down on a soft area to prevent it from getting scratched, defaced, or broken.

1. Disconnect and remove the signal and power cables from the back of the monitor.

2. Remove the stand cap 1 from the top of the pedestal pillar.

3–6 User Guide

Setting Up the Monitor

3. Remove the three screws 2 as shown in the following illustration.

Removing the Monitor Base

Ä

CAUTION: Ensure that the bottom of the monitor base is positioned over a table or desktop before removing the base from the monitor.

4. Remove the monitor base 3 from the monitor.

Mounting the Monitor

1. Remove the monitor base. Refer to “Removing the Monitor

Base” steps in the previous section.

After the base is removed from the monitor, four threaded mounting holes are exposed on the monitor back panel to be used for mounting purposes. These mounting holes are

100mm apart and are compliant with the Video Electronics

Standards Association (VESA) standard for mounting flat panel displays.

User Guide 3–7

Setting Up the Monitor

Ä

CAUTION: This monitor supports the VESA industry standard

100mm mounting holes. To attach a third party mounting solution to the monitor, four 4mm, 0.7 pitch, and 10mm long screws are required (not provided with the monitor). Longer screws should not be used because they may damage the monitor. It is important to verify that the manufacturer’s mounting solution is compliant with the VESA standard and is rated to support the weight of the monitor display panel. For best performance, it is important to use the power and video cable provided with the monitor.

2. Mount the monitor to a swing arm or other mounting fixture by following the instructions included with the mounting fixture to be used.

Locating the Rating Labels

The rating labels on the monitor provide the spare part number, product number, and serial number. You may need these numbers when contacting HP about your monitor model. The rating labels are located on the left and right sides of the monitor pedestal.

3–8 User Guide

4

Operating the Monitor

Software and Utilities

The monitor includes a CD that contains two files you can install on your computer:

■ an .INF (Information) file an .ICM (Image Color Matching) file

Adobe Reader is supplied on this CD and can be installed from the menu.

If the monitor does not include a CD, the .INF and .ICM files can be downloaded from the HP monitors support Web site. See

“Downloading from the Worldwide Web” in this chapter.

The Information File

The .INF file defines monitor resources used by Microsoft

Windows operating systems to ensure monitor compatibility with the computer’s graphics adapter.

This monitor is Windows Plug and Play compatible and the monitor will work correctly without installing the .INF file.

Monitor Plug and Play compatibility requires that the computer’s graphic card is VESA DDC2 compliant and that the monitor connects directly to the graphics card. Plug and Play does not work through separate BNC type connectors or through distribution buffers/boxes. You may need to install the .INF file if these conditions are not met.

User Guide 4–1

Operating the Monitor

The Image Color Matching File

The .ICM files are data files that are used in conjunction with graphics programs to provide consistent color matching from monitor screen to printer, or from scanner to monitor screen. The

.ICM file contains a monitor color system profile. This file is activated from within graphics programs that support this feature.

The ICM color profile is written in accordance with the

International Color Consortium (ICC) Profile Format specification.

Installing the .INF and .ICM Files

After you determine that you need to update, you can install the

.INF and .ICM files from the CD or download them.

Installing from the CD

To install the .INF and .ICM files on the computer from the CD:

1. Insert the CD in the computer CD-ROM drive. The CD menu displays.

2. View the “INF and ICM Readme” file.

3. Select “Install INF and ICM Files.”

4. Follow the on-screen instructions.

5. After the INF software has been installed, restart Windows.

6. Ensure that the proper resolution and refresh rates appear in the Windows Display control panel.

You may need to install the digitally signed monitor .INF and

.ICM files manually from the CD in the event of an installation error. Refer to the INF and ICM Readme file on the CD.

4–2 User Guide

Operating the Monitor

Downloading from the Worldwide Web

To download the latest version of .INF and .ICM files from the

HP monitors support Web site:

1. Refer to http://www.hp.com/support

and select your country region.

2. Follow the links for your monitor to the support page and download page.

3. Ensure your system meets the requirements.

4. Download the software by following the instructions.

User Guide 4–3

Operating the Monitor

Front Panel Controls

Control

1

2

Menu

– (

Minus button)

3

+ (

Plus button)

4

Power LED

5

Power

Function

Opens, selects or exits the OSD menu.

• Navigates backward through the OSD menu and decreases adjustment levels.

• If the OSD menu is inactive, activates the auto adjustment feature to optimize the screen image.

Navigates forward through the OSD menu and increases adjustment levels.

Fully powered = Green.

Sleep mode = Amber.

Sleep Timer mode = Flashing Amber.

Turns the monitor on or off.

4–4 User Guide

Operating the Monitor

Adjusting Monitor Settings

Use the On-Screen Display (OSD) to adjust the screen image based on your viewing preferences. To access the OSD, do the following:

1. If the monitor is not already on, press the Power switch to turn on the monitor.

2. To access the OSD Menu, press the Menu button on the monitor’s front panel.

User Guide

3. To navigate through the OSD Menu, press the + (Plus) button on the monitor’s front panel to scroll up, or the – (Minus) button to scroll in reverse.

4. To select an item from the OSD Menu, use the + or – buttons to scroll to and highlight your selection, then press the Menu button to select that function.

5. Adjust the item using the + or – buttons on the front panel to adjust the scale.

4–5

Operating the Monitor

6. After adjusting the function, select Save and Return, or

Cancel if you don’t want to save the setting, then select Exit from the Main Menu.

If the buttons remain untouched for 10 seconds while displaying a menu, new adjustments will be discarded and the settings will revert to previous settings and exit the menu.

Using the On-Screen Display

There are two On-Screen Display menus available; one for basic adjustments, and one for advanced adjustments.

To access the Basic OSD Menu, press the menu button on the monitor's front panel.

Basic OSD Menu Levels

Menu Level 1 Menu Level 2

Brightness

Contrast

Auto Adjustment

Advanced Menu

Exit

Adjustment Scale

Adjustment Scale

To access the Advanced OSD Menu, press the menu button again, or select Advanced Menu from the Basic OSD Menu.

After selecting the Advanced Menu from the Basic Menu, the

Advanced Menu remains the default OSD on subsequent power-ups of the monitor until the Basic Menu is selected or

Factory Reset is applied.

4–6 User Guide

Operating the Monitor

The Advanced OSD Menu has up to three sublevels and can be viewed in one of six available languages. The following table provides the menus and their functions at each level:

Level 1

Advanced OSD Menu Levels

Level 2 Level 3

Brightness

Contrast

Image Control

Color

Language

Management

Adjustment Scale

Adjustment Scale

Auto Adjustment “Adjusting” Message

Horizontal Position Adjustment Scale

Vertical Position

Clock

Clock Phase

Cancel

Adjustment Scale

Adjustment Scale

Adjustment Scale

Save and Return

9300 K

6500 K

Custom Color Custom Color

Adjustment sRGB

Cancel

Save and Return

Deutsch

English

Espanol

Francais

Italiano

Nederlands

Simplified Chinese

Cancel

Save and Return

Power Saver

Power On Recall

On / Off Selection

On / Off Selection

Factory

Preset

Y

Y

Y

Y

Y

Y

Y

Y

N

N

N

User Guide 4–7

Operating the Monitor

Advanced OSD Menu Levels (Continued)

Level 1 Level 2 Level 3 Factory

Preset

OSD Control

Mode Display

Power-On Status

Display

Sleep Timer

Serial Number

Vertical Position

OSD Timeout

Cancel

Save and Return

On / Off Selection

On / Off Selection

Timer Set Menu

Displays monitor serial number

Basic Menu

Cancel

Save and Return

Horizontal Position Adjustment Scale

Adjustment Scale

Adjustment Scale

N

N

N

N

N

N

Information

Factory Reset Yes

No

Exit

Adjusting Screen Quality

Allow the monitor to warm up for 20 minutes before performing the following procedures.

The Auto-adjustment feature automatically fine-tunes the image quality each time a new video mode is displayed. If additional image quality improvement is desired, run the Auto-Adjust software on the CD and press the – (Minus) button on the monitor front panel to manually activate the Auto-Adjustment function.

4–8 User Guide

Operating the Monitor

For more precise adjustments, run the Adjustment Pattern provided on the CD and use the Clock and Clock Phase controls

(accessible from the OSD menu) as described in the following section.

Optimizing Digital Conversion

This monitor contains advanced circuitry that allows the flat panel screen to function like a standard monitor. Two controls in the on-screen display can be adjusted to improve image performance: Clock and Clock Phase. Use these controls only when the auto-adjust function does not provide a satisfactory image.

The Clock must first be set correctly since the Clock Phase settings are dependent on the main Clock setting.

Clock—Increase/decrease the value to minimize any vertical bars or stripes visible on the screen background.

Clock Phase—Increase/decrease the value to minimize video distortion or video jitter.

When using the controls, you will obtain the best results by using the Auto-Adjustment pattern application provided on the CD.

When adjusting the Clock and Clock Phase values, if the monitor images become distorted, continue adjusting the values until the distortion disappears. To restore the factory settings, select Yes from the Factory Reset menu in the on-screen display.

User Guide 4–9

Operating the Monitor

Identifying Monitor Conditions

Special messages will appear on the monitor screen when identifying the following monitor conditions:

Input Signal Out of Range— Indicates the monitor does not support the input signal because the resolution and/or refresh rate are set higher than the monitor supports. For 15” monitors, set the resolution and refresh rate to 1024 x 768 at

60 Hz. For 17” and 19” monitors, set the resolution and refresh rate for 1280 x 1024 at 60 Hz. Restart your computer for the new settings to take effect.

Monitor Going to Sleep— Indicates the screen display is entering a sleep mode.

Check Video Cable— Indicates the video cable is not properly connected to the computer.

OSD Lock—The OSD can be enabled or disabled by pressing and holding the Menu button on the front panel for 10 seconds. If the OSD is locked, the warning message “OSD

Lock” displays for ten seconds.

If the OSD is locked, press and hold the Menu button for

10 seconds to unlock the OSD.

If the OSD is unlocked, press and hold the Menu button for 10 seconds to lock the OSD.

Sleep Timer Mode

The Sleep Timer mode is an energy-saving feature that enables you to set a time for the monitor to power on and off at the same time every day. This also extends the life of the backlight bulbs in the monitor. The Sleep Timer has five settings:

Set Current Time

Set Sleep Time

4–10 User Guide

Operating the Monitor

Set On Time

Timer: On/Off

Sleep Now

To set the timer:

1. Press the Menu button on the monitor front panel to display the Advanced Menu.

2. Scroll down and highlight Management.

3. Press the Menu button to select Management.

4. Scroll down and highlight and select Sleep Timer > Set

Current Time.

You must set the current local time before you reset the time for

Sleep Time or On Time. Note that the time is displayed in a 24 hour clock format. For example, 1:15 p.m. displays as 13 hours

15 minutes.

5. Press the Menu button once to enter the adjustment mode for hours.

6. Press the - (Minus) or + (Plus) buttons to adjust the hour.

7. Press the Menu button again to enter the time for minutes.

8. Press the - (Minus) or + (Plus) buttons to adjust the minutes.

9. Press the Menu button to lock in the time chosen.

10. After setting the current time, the highlight automatically skips to Set Sleep Time hours. Repeat steps 6 through 9 to set

Sleep Time.

11. If you do not want to set Sleep Time, press the Menu button twice, then select Save and Return to exit the menu.

12. After setting Sleep Time, the highlight automatically skips to

Set On Time hours. Repeat steps 6 through 9 to set On Time.

User Guide 4–11

Operating the Monitor

13. Set the Timer mode to On to activate the Sleep Timer settings.

14. When you are finished, select Save and Return to exit the menu.

The fifth selection, Sleep Now, turns the monitor backlights off immediately and stays in sleep mode until the next On Time activates or a monitor button is pressed.

HP Display LiteSaver (Available with

Select Models)

HP Display LiteSaver is a software application, available on the

CD, that increases monitor life and saves energy. It allows you to place your monitor into its low power sleep mode at predefined times by shutting down or reducing power to most internal circuits. This helps protect the LCD panel against image retention. Image retention can occur when the monitor is left on while displaying the same image for an extended period of time, leaving a shadow of the image on the screen.

Installing the HP Display LiteSaver Software

1. Insert the CD in the computer CD-ROM Drive. The CD menu displays.

2. Select “Install HP Display LiteSaver Software.”

3. After installing the software, click the HP Display LiteSaver icon in the Windows system tray or right-click the icon and select Configure... from the pop-up menu.

4–12 User Guide

Operating the Monitor

4. Select the following options to configure the HP Display

LiteSaver features:

Configure Options Function

Enable Display LiteSaver

Display Off

Display On

Activity Extension

Enables the HP Display LiteSaver functions; deselect to disable the HP

Display LiteSaver.

Sets the time when the monitor automatically turn off. This does not affect screen saver operation, which has priority over the HP Display

LiteSaver.

Sets the time when the monitor automatically turns on. This does not affect screen saver operation, which has priority over the HP Display

LiteSaver.

Sets the time in minutes before the monitor turns off if there is any keyboard or mouse activity after the

Display Off time is reached. If the keyboard or mouse is used, then HP

Display LiteSaver waits until the set amount of time before turning the display off again. Set to 0 to disable. If disabled, the monitor will turn off as soon as the Display Off time is reached, regardless of keyboard or mouse activity.

Show 1 minute Display Off Notice Displays a popup message in the system tray 1 minute before the monitor is turned off by HP Display

LiteSaver.

Status Shows the time until the monitor is next due to be turned off by HP

Display LiteSaver.

User Guide 4–13

Operating the Monitor

OK

Help

Exit

Configure Options

Cancel

Function

Stores the current settings and minimizes HP Display LiteSaver to the System Tray.

Restores the previous settings and minimizes HP Display LiteSaver to the System Tray. HP Display

LiteSaver will continue to run.

Opens the online help file.

Exits and closes the HP Display

LiteSaver. It will no longer control the monitor power until it is next run.

View “HP Display LiteSaver Readme” on the CD for additional information on how to configure the HP Display LiteSaver.

sRGB Support (Available with Select

Models)

The monitor is designed to support sRGB for color management, which adapts to the color standards used in the image technology industry. Additional information on sRGB is available on http://www.srgb.com/srg.html

(English only).

To take advantage of the sRGB support, you will need to change your monitor’s color temperature to sRGB and install the sRGB color profile (ICM) file.

The sRGB color temperature preset will improve the color accuracy of sRGB images on the computer monitor, but some color variation may still occur.

4–14 User Guide

Operating the Monitor

Changing the Color Temperature

1. Press the Menu button on the front panel of the monitor to launch the Main Menu of the OSD.

2. Select Advanced Menu to access all options in the Main

Menu.

3. Select Color to display the Color Temperature menu.

4. Select sRGB.

5. Select Save and Return to exit the menu.

Installing the sRGB ICM File for Microsoft

Windows 2000 and Windows XP

To complete the following procedure, you must be logged in as an administrator or a member of the administrator’s group. If the computer is connected to a network, network policy settings may prevent you from completing this procedure.

The sRGB ICM file does not support Windows 95 and Windows

NT operating systems

1. Click the Display icon in the Control Panel.

2. In the Display Properties windows, select the Settings tab, then click the Advanced button.

3. Select the Color Management tab, then click the Add button to open the Add Profile Association dialog box.

4. Select the “sRGB Color Space Profile.icm” file, then click the Add button

User Guide 4–15

Operating the Monitor

5. To activate a color profile for your monitor, you must set it as the Default Monitor Profile. Select “sRGB Color Space

Profile,” then click Set as Default button.

6. Click Apply or OK.

4–16 User Guide

A

Troubleshooting

Solving Common Problems

The following table lists possible problems, the possible cause of each problem, and the recommended solutions.

Problem

Screen is blank.

Possible Cause

Power cord is disconnected.

Power switch on front panel of the monitor is turned off.

Master power switch on rear panel of the monitor is turned Off.

Video cable is improperly connected.

Solution

Connect the power cord.

Press the front panel power button.

Turn the master power switch to On.

Screen blanking utility is active.

Connect the video cable properly. Refer to Chapter 3,

Setting Up the Monitor, for more information.

Press any key on the keyboard or move the mouse to inactivate the screen blanking utility.

User Guide A–1

Troubleshooting

Problem

Image appears blurred, indistinct, or too dark.

Possible Cause

Brightness and contrast are too low.

Image is not centered.

Position may need adjustment.

“No Connection,

Check Signal Cable” is displayed on screen.

Monitor video cable is disconnected.

Solution

Press the Auto Adjust button on the front panel. If this does not correct the image, press the Menu button to open the Basic OSD Menu, and adjust the brightness and contrast scales as needed.

Press the Menu button to access the OSD menu.

Select Image Control/

Horizontal Position or

Vertical Position to adjust the horizontal or vertical position of the image.

Connect the 15-pin monitor video cable to the VGA connector on the computer, the DVI-D signal cable to the

DVI connector on the computer, or the VGA to

DVI-I cable to the VGA connector on the computer.

Be sure that the computer power is off while connecting the video cable.

A–2 User Guide

Troubleshooting

Problem

“Out of Range. Set

Monitor to 1280 x

1024 @ 60Hz” is displayed on screen.

Possible Cause

Video resolution and/or refresh rate are set higher than what your monitor supports.

HP Display LiteSaver doesn’t turn off the monitor screen

The Activity Extension time has not elapsed.

Solution

Restart your computer and enter Safe Mode. Change your settings to a supported setting (see “Factory Preset

Display Modes” table in

Appendix B). Restart your computer so that the new settings take effect.

The default Activity

Extension value is set to 10 minutes. The HP Display

LiteSaver will wait to detect no input or movement from the keyboard or mouse for

10 consecutive minutes after the Display Off time has passed, before the monitor enters into low-power mode.

For example, if the Display

Off time is set to 5 minutes from the current time and the

Activity Extension is set to

10 minutes, the HP Display

LiteSaver will not actually turn off the display until 10 minutes of inactivity has elapsed, even though the

Display Off time is 5 minutes from now.

User Guide A–3

Troubleshooting

Problem Possible Cause

The HP Display LiteSaver may not be compatible with your computer system.

Some notebook computers are not compatible and the monitor power can not be controlled.

The monitor is off but it did not seem to enter into a low-power sleep mode.

The monitor’s power saving control is disabled.

Solution

Confirm that the HP Display

LiteSaver is compatible with your system.

1. Right-click on the HP

Display LiteSaver icon in the system tray.

2. Select “Power Off

Display” from the menu.

The monitor screen should turn off if the system is compatible. To turn the monitor back on, wait 5 seconds and move the mouse.

If the monitor did not turn off, then your computer graphics driver is not compatible with the HP

Display LiteSaver software.

Check the monitor’s OSD menu setting for power saving enable/disable controls. The control should be set to enable to allow the monitor to enter into low-power modes.

Using the Worldwide Web

For online access to technical support information, self-solve tools, online assistance, community forums of IT experts, broad multivendor knowledge base, monitoring and diagnostic tools, go to: http://www.hp.com/support.

A–4 User Guide

Troubleshooting

Preparing to call Technical Support

If you cannot solve a problem using the troubleshooting tips in this section, you may need to call technical support. Have the following information available when you call:

The monitor

Monitor model number

Serial number for the monitor

Purchase date on invoice

Conditions under which the problem occurred

Error messages received

Hardware configuration

Hardware and software you are using

User Guide A–5

Troubleshooting

A–6 User Guide

B

Technical Specifications

All performance specifications are provided by the component manufacturers. Performance specifications represent the highest specification of all HP’s component manufacturers’ typical level specifications for performance and actual performance may vary either higher or lower.

Display

Type

Viewable Image Size

Tilt

1506 Flat Panel Monitor

15.0 inches

TFT LCD

38.1 cm

15.0-inch diagonal

--5 to 30 o

7.0 lbs.

38.1 cm

3.20 kg (unpacked) Maximum Weight

(Unpacked)

Dimensions (include pedestal)

Height

Depth

Width

14.0 inches

8.0 inches

13.4 inches

355 mm

203 mm

340 mm

Maximum Graphic Resolution 1024 x 768 (60 Hz)

Text Mode 720 x 400

Dot Pitch

Horizontal Frequency

0.297 (H) x 0.297 (W) mm

30 to 63 kHz

User Guide B–1

Technical Specifications

1506 Flat Panel Monitor (Continued)

Vertical Refresh Rate

Environmental Requirements

Temperature:

Operating Temperature

Non-operating Temperature

50 to 76 Hz

41 to 95

-4 to 140 o o

F

F

5 to 35 o

C

--20 to +60 o

C

20 to 80%

100 – 240 VAC, 50 – 60 Hz

Relative Humidity

Power Source

Altitude:

Operating

Non-operating

Power Consumption

Input Terminal

0 to 12,000 feet

0 to 40,000 feet

<23 watts typical

0 to 3657.6 m

0 to12192 m

15-pin D-type connector with cable included.

B–2 User Guide

Technical Specifications

1706 Flat Panel Monitor

Display

Type

Viewable Image Size

Tilt

Maximum Weight

(Unpacked)

17.0 inches

TFT LCD

17.0-inch diagonal

--5 to 30 o

10.1 lbs.

43.18 cm

43.18 cm

4.60 kg (unpacked)

Dimensions (include pedestal)

Height

Depth

Width

15.6 inches

8.0 inches

14.8 inches

Maximum Graphic Resolution 1280 x 1024 (60 Hz)

395 mm

203 mm

375 mm

Text Mode

Dot Pitch

Horizontal Frequency

Vertical Refresh Rate

Environmental Requirements

Temperature:

Operating Temperature

Non-operating Temperature

Relative Humidity

Power Source

Altitude:

Operating

Non-operating

720 x 400

0.264 (H) x 0.264 (W) mm

30 to 83 kHz

50 to 76 Hz

41 to 95

-4 to 140 o o

F

F

5 to 35 o

C

--20 to +60 o

C

20 to 80%

100 – 240 VAC, 50 – 60 Hz

0 to 12,000 feet

0 to 40,000 feet

0 to 3657.6 m

0 to12192 m

User Guide B–3

Technical Specifications

1706 Flat Panel Monitor (Continued)

Power Consumption <37 watts typical

Input Terminal 15-pin D-type connector with cable included.

B–4 User Guide

Technical Specifications

1906 Flat Panel Monitor

48.3 cm Display

Type

Viewable Image Size

Tilt

Maximum Weight

(Unpacked)

19.0 inches

TFT LCD

19.0-inch diagonal

--5 to 30 o

11.7 lbs.

Dimensions (includes pedestal)

Height

Depth

Width

16.8 inches

8.0 inches

16.6 inches

Maximum Graphic Resolution 1280 x 1024 (60Hz)

48.3 cm

5.30 kg (unpacked)

427 mm

203 mm

422 mm

Text Mode

Dot Pitch

Horizontal Frequency

Vertical Refresh Rate

Environmental Requirements

Temperature:

Operating Temperature

Non-operating Temperature

Relative Humidity

Power Source

Altitude:

Operating

Non-operating

720 x 400

0.294 (H) x 0.294 (W) mm

30 to 83 kHz

50 to 76Hz

41 to 95 o

--4 to 140

F o

F

5 to 35 o

C

--20 to +60 o

C

20 to 80%

100 –- 240 VAC, 50 – 60 Hz

0 to 12,000 feet

0 to 40,000 feet

0 to 3657.6 m

0 to12192 m

User Guide B–5

Technical Specifications

1906 Flat Panel Monitor (Continued)

Power Consumption <37 watts

Input Terminals 15-pin D-type connector with cable included.

9

10

7

8

11

12

Preset

1

2

5

6

3

4

Recognizing Preset Display Resolutions

The display resolutions listed below are the most commonly used modes and are set as factory defaults. This monitor automatically recognizes these preset modes and they will appear properly sized and centered on the screen.

Factory Preset Display Modes

Pixel Format Horz Freq (kHz)

640 x 480 31.5

Vert Freq (Hz)

59.9

640 x 480 37.9

72.8

640 x 480

720 x 400

800 x 600

800 x 600

800 x 600

832 x 624

1024 x 768

1024 x 768

1024 x 768

1152 x 870

46.9

49.7

48.4

56.5

37.5

31.5

37.9

48.1

60.0

68.7

75.0

74.6

60.0

70.1

75.0

70.1

60.3

72.2

75.0

75.1

B–6 User Guide

Technical Specifications

Preset

13

Factory Preset Display Modes (Continued)

Pixel Format Horz Freq (kHz)

1152 x 900 71.7

Vert Freq (Hz)

76.1

14 1280 x 1024 64.0

60.0

15 1280 x 1024 80.0

* Modes 12, 13, 14, and 15 apply to 1706 and 1906 models only

75.0

Entering User Modes

The video controller signal may occasionally call for a mode that is not preset if:

You are not using a standard graphics adapter.

You are not using a preset mode.

If this occurs, you may need to readjust the parameters of the monitor screen by using the on-screen display. Your changes can be made to any or all of these modes and saved in memory. The monitor automatically stores the new setting, then recognizes the new mode just as it does a preset mode. In addition to the 15 factory preset modes, there are four user modes that can be entered and stored.

Energy Saver Feature

When the monitor is in its normal operating mode, the monitor uses less than 40 watts of power and the Power light is green.

The monitor also supports a reduced power state. The reduced power state will be entered into if the monitor detects the absence of either the horizontal sync signal and/or the vertical sync signal.

Upon detecting the absence of these signals, the monitor screen is

User Guide B–7

Technical Specifications blanked, the backlight is turned off, and the Power light is turned amber. When the monitor is in the reduced power state, the monitor will utilize less than 2 watts of power. There is a brief warm up period before the monitor will return to its normal operating mode.

Refer to your computer manual for instructions on setting energy saver features (sometimes called power management features).

The above energy saver feature only works when connected to computers that have energy saver features.

By selecting settings in the monitor’s Energy Saver utility, you can also program the monitor to enter into the reduced power state at a predetermined time. When the monitor’s Energy Saver utility causes the monitor to enter the reduced power state, the

Power light blinks amber.

B–8 User Guide

C

Agency Regulatory Notices

Federal Communications

Commission Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and the receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio or television technician for help.

User Guide C–1

Agency Regulatory Notices

Modifications

The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Hewlett Packard Company may void the user's authority to operate the equipment.

Cables

Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods to maintain compliance with FCC Rules and Regulations.

Declaration of Conformity for Products

Marked with the FCC Logo (United

States Only)

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

For questions regarding your product, contact:

Hewlett Packard Company

P. O. Box 692000, Mail Stop 530113

Houston, Texas 77269-2000

Or, call 1-800-HP-INVENT (1-800 474-6836)

For questions regarding this FCC declaration, contact:

Hewlett Packard Company

P. O. Box 692000, Mail Stop 510101

Houston, Texas 77269-2000

Or, call (281) 514-3333

C–2 User Guide

Agency Regulatory Notices

To identify this product, refer to the Part, Series, or Model number found on the product.

Materials disposal

This HP product contains the following materials that might require special handling at end-of-life:

Mercury in the fluorescent lamp in the display LCD.

Lead in the solder and some component leads.

Disposal of this material can be regulated because of environmental considerations. For disposal or recycling information, please contact your local authorities or the

Electronic Industries Alliance (EIA) (www.eiae.org).

Canadian Notice

This Class B digital apparatus meets all requirements of the

Canadian Interference-Causing Equipment Regulations.

Avis Canadien

Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.

European Union Regulatory Notice

This product complies with the following EU Directives:

Low Voltage Directive 73/23/EEC

EMC Directive 89/336/EEC

User Guide C–3

Agency Regulatory Notices

Compliance with these directives implies conformity to applicable harmonized European standards (European Norms) which are listed on the EU Declaration of Conformity issued by

Hewlett-Packard for this product or product family.

This compliance is indicated by the following conformity marking placed on the product:

Disposal of Waste Equipment by Users in Private Household in the European

Union

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

C–4 User Guide

Japanese Notice

Korean Notice

Agency Regulatory Notices

ENERGY STAR Compliance

Monitors that are marked with the ENERGY STAR Logo meet the requirements of the U.S. Environmental Protection Agency

(EPA) ENERGY STAR program. As an ENERGY STAR Partner,

Hewlett Packard Company has determined that this product meets the ENERGY STAR guidelines for energy efficiency. Specific details on using the Energy Saving features can be found in the energy saver or power management section of the computer manual.

Power Cord Set Requirements

The monitor power supply is provided with Automatic Line

Switching (ALS). This feature allows the monitor to operate on input voltages between 100-120V or 200-240V.

User Guide C–5

Agency Regulatory Notices

The power cord set (flexible cord or wall plug) received with the monitor meets the requirements for use in the country where you purchased the equipment.

If you need to obtain a power cord for a different country, you should purchase a power cord that is approved for use in that country.

The power cord must be rated for the product and for the voltage and current marked on the product's electrical ratings label. The voltage and current rating of the cord should be greater than the voltage and current rating marked on the product. In addition, the cross-sectional area of the wire must be a minimum of 0.75 mm² or 18AWG, and the length of the cord must be between 6 feet

(1.8 m) and 12 feet (3.6 m). If you have questions about the type of power cord to use, contact your HP authorized service provider.

A power cord should be routed so that it is not likely to be walked on or pinched by items placed upon it or against it. Particular attention should be paid to the plug, electrical outlet, and the point where the cord exits from the product.

Japanese Power Cord Requirements

For use in Japan, use only the power cord received with this product.

Ä

CAUTION: Do not use the power cord received with this product on any other products.

C–6 User Guide

User Guide

D

LCD Monitor Quality and Pixel Policy

The TFT monitor uses high-precision technology, manufactured according to HP standards, to guarantee trouble-free performance. Nevertheless, the display may have cosmetic imperfections that appear as small bright or dark spots. This is common to all LCD displays used in products supplied by all vendors and is not specific to the HP LCD. These imperfections are caused by one or more defective pixels or sub-pixels.

A pixel consists of one red, one green, and one blue sub-pixel.

A defective whole pixel is always turned on (a bright spot on a dark background), or it is always off (a dark spot on a bright background). The first is the more visible of the two.

A defective sub-pixel (dot defect) is less visible than a defective whole pixel and is small and only visible on a specific background.

The HP display does not have more than:

3 bright dots.

5 dark dots.

5 total bright and dark dots.

No more than two adjacent (less than 2.5 mm edge-to-edge) defective pixels.

D–1

LCD Monitor Quality and Pixel Policy

To locate defective pixels, the monitor should be viewed under normal operating conditions, in normal operating mode at a supported resolution and refresh rate, from a distance of approximately 50 cm (16 in.).

HP expects that, over time, the industry will continue to improve its ability to produce LCDs with fewer cosmetic imperfections and HP will adjust guidelines as improvements are made.

D–2 User Guide

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
