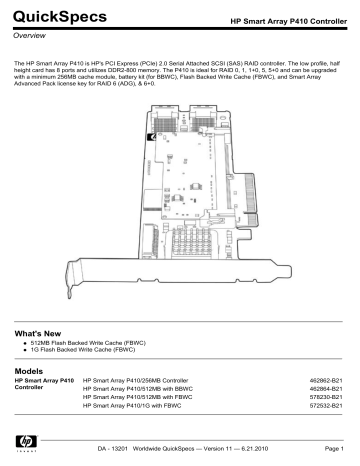

QuickSpecs HP Smart Array P410 Controller Overview

QuickSpecs HP Smart Array P410 Controller Overview

QuickSpecs

Overview

HP Smart Array P410 Controller

The HP Smart Array P410 is HP's PCI Express (PCIe) 2.0 Serial Attached SCSI (SAS) RAID controller. The low profile, half height card has 8 ports and utilizes DDR2-800 memory. The P410 is ideal for RAID 0, 1, 1+0, 5, 5+0 and can be upgraded with a minimum 256MB cache module, battery kit (for BBWC), Flash Backed Write Cache (FBWC), and Smart Array

Advanced Pack license key for RAID 6 (ADG), & 6+0.

What's New

512MB Flash Backed Write Cache (FBWC)

1G Flash Backed Write Cache (FBWC)

Models

HP Smart Array P410

Controller

HP Smart Array P410/256MB Controller

HP Smart Array P410/512MB with BBWC

HP Smart Array P410/512MB with FBWC

HP Smart Array P410/1G with FBWC

DA - 13201 Worldwide QuickSpecs — Version 11 — 6.21.2010

462862-B21

462864-B21

578230-B21

572532-B21

Page 1

QuickSpecs

HP Smart Array P410 Controller

Overview

Upgrade Options

HP Optional Upgrades

512MB BBWC

Battery Kit upgrade

NOTE:

To enable BBWC on the 256MB cache.

512MB Flash Backed Write Cache

1G Flash Backed Write Cache

HP Smart Array Advanced Pack No Media 1-Server license including 1yr 24x7

Technical Support

NOTE:

This part number can be used to purchase a single license or to order multiple licenses with a single activation key. Customers will receive a license entitlement certificate via e-mail. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s).

Include one year of 24x7 HP Software Technical Support Services.

NOTE:

A license key and a minimum of 256MB cache with battery kit or FBWC are required to enable features. For more information go to: http://www.hp.com/go/saap

462967-B21

462969-B21

534916-B21

534562-B21

516471-B21

DA - 13201 Worldwide QuickSpecs — Version 11 — 6.21.2010

Page 2

QuickSpecs

Standard Features

The Smart Array

Advantage

HP Smart Array P410 Controller

HP's innovative design and integration work of the Smart Array family of products creates customer value that is unmatched in the industry. Use of Smart Array products across multiple applications results in a much lower Total Cost of Ownership (TCO) than any other server storage

RAID product. The HP Smart Array family brings an unparalleled return on investment through:

Data Compatibility

among all models of Smart Array controllers allows simple and easy upgrades any time needs for higher performance, capacity, and availability increase. Even successive generations of Smart Array controllers understand the data format of other Smart Array

Controllers.

Consistent Configuration and Management Tools

. All Smart Array products utilize a standard set of management and utility software. These tools minimize Total Cost of Ownership (TCO) by reducing training requirements and technical expertise necessary to install and maintain the HP server storage.

Universal Hard Drive

form factor is for use across multiple HP servers, disk enclosures and storage systems. With compatibility across many enterprise platforms, you are free to deploy and re-deploy these drives to quickly deliver increased storage capacity, migrate data between systems, and easily manage spare drives.

Pre-Failure Warranty

means HP Insight Manager not only reports when a drive is going to fail but allows replacement of failing drives prior to actual failure. For complete details, consult the HP

Support Center or refer to your HP Server documentation.

Key Features

The SA-P410 Controller supports up to 24 drives depending on the server implementation.

Additional drives can be supported with cache and connection to the HP SAS Expander

Card.

Seamless upgrades from past generations and upgrades to next generation HP high performance and high capacity Serial Attached SCSI Smart Array controllers.

6Gb/s SAS technology delivers high performance and data bandwidth and contains full compatibility with 3Gb/s SATA technology.

x8 PCI Express gen 2 host interface technology delivers high performance and data bandwidth up to 2 GB/s maximum bandwidth.

Modular, easy-to-upgrade design lets you optimize performance by upgrading from 40-bit

256MB cache to 72-bit 512MB battery-backed write cache (BBWC) or 72-bit 512MB/1G

Flash Backed Write Cache (FBWC).

Addition of the battery or flash backed cache upgrade enables array expansion, logical drive extension, RAID migration, and stripe size migration.

Additionally, Smart Array Advanced Pack License key enables RAID 6 (ADG), 6+0,

Advanced Capacity Expansion, Mirror Splitting and Recombining in Offline Mode, Drive

Erase, Performance Optimization-Degraded Reads and Read Coalescing (VOD).

Mix-and-match SAS and SATA hard drives, lets you deploy drive technology as needed to fit your computing environment.

Software consistency among all Smart Array family products: Array Configuration Utility

(ACU), Option ROM Configuration for Arrays (ORCA), Systems Insight Manager, Array

Diagnostic Utility (ADU) and SmartStart.

Low-profile PCI Express form factor - ships with a full size bracket for deployment in either a low-profile or full sized slot.

DA - 13201 Worldwide QuickSpecs — Version 11 — 6.21.2010

Page 3

QuickSpecs

Standard Features

Management Features

HP Smart Array P410 Controller

Online array expansion (with BBWC/FBWC upgrade)

Online Advanced Capacity Expansion (with BBWC/FBWC and Smart Array Advanced Pack upgrade)

Online logical drive extension (with BBWC/FBWC upgrade)

Online RAID level migration (with BBWC/FBWC upgrade)

Online strip size migration (with BBWC/FBWC upgrade)

Offline Mirror splitting and recombining (with BBWC/FBWC and Smart Array Advanced Pack upgrade)

Unlimited global online spare assignment

User selectable expand and rebuild priority

User selectable RAID level and stripe size

User selectable read and write cache sizes

Ports

Performance

Native Command

Queuing

Capacity

Eight (8) SAS physical links distributed across 2 internal x4 wide port connectors.

HP's High Performance Architecture sets new boundaries of industry performance expectations!

6Gb/s SAS [(600MB/s bandwidth per physical link)] x8 6Gb/s SAS physical links (compatible with 3Gb/s SATA )

256 MB 40-bit wide DDR2-800MHz cache upgradeable to 512 MB 72-bit wide DDR2-

800MHz battery-backed write cache or 512 MB / 1 G 72-bitwide DDR2 flash backed write cache provides up to 4.2 GB/s maximum bandwidth x8 PCI Express gen 2 host interface provides maximum bandwidth

Gen 2.0

Read ahead caching

Write-back caching (with BBWC/FBWC)

Native Command Queuing (NCQ) is a technology designed to increase performance of SATA hard disk drives by allowing the individual hard disk to internally optimize the order in which received read and write commands are executed. This can reduce the amount of unnecessary going backand-forth on the drive's heads, resulting in increased performance for workloads where multiple simultaneous read/write requests are outstanding, most often occurring in server or storage-type applications. Without NCQ the drive has to process and complete one command at a time. For

NCQ to be enabled, it must be supported and turned on in the controller and in the hard drive itself.

NOTE:

Please see the SATA Hard Drive QuickSpecs for specific SATA hard drive capacities that support NCQ: http://h18000.www1.hp.com/products/quickspecs/11940_div/11940_div.html

Given the increasing need for high performance and rapid capacity expansion, the SA-P410

Controller offers:

Up to 12TB of total internal storage with 24 x 500GB SFF SATA hard drives

Up to 7.2TB of total internal storage 300GB SFF SAS hard drives

DA - 13201 Worldwide QuickSpecs — Version 11 — 6.21.2010

Page 4

QuickSpecs

HP Smart Array P410 Controller

Standard Features

Availability

Provides increased server uptime by providing advanced storage functionality:

Online RAID level migration (between any RAID level/with BBWC/FBWC )

Online stripe size migration

Online array expansion

Online logical drive extension

Online drive firmware upgrade

Unlimited global online spare

Pre-Failure Warranty

Fault Prevention

The following features offer detection of possible failures before they occur, allowing preventive action to be taken:

S.M.A.R.T.: Self Monitoring Analysis and Reporting Technology first developed at HP detects possible hard disk failure before it occurs, allowing replacement of the hard drive before a real failure occurs.

Drive Parameter Tracking monitors drive operational parameters, predicting failure and notifying the administrator.

Dynamic Sector Repairing continually performs background surface scans on the hard disk drives during inactive periods and automatically remaps bad sectors, ensuring data integrity.

Smart Array Cache Tracking monitors integrity of controller cache, allowing pre-failure preventative maintenance.

Fault Tolerance

Keeps data available and server running while a failed drive is being replaced; several fault tolerance configurations are supported including:

RAID 6 with ADG

(Advanced Data Guarding): This is the highest level of fault tolerance. It allocates two sets of parity data across drives and allows simultaneous write operations.

This level of fault tolerance can withstand two simultaneous drive failures without downtime or data loss.

RAID 6+0

: Supported with min of 8 drives, but would have 4 available. Target benefit is to split RAID across the external boxes

NOTE:

RAID 6, 6+0 can be enabled with either

Minimum of 256 MB cache with Battery and Smart Array Advanced Pack License key option upgrades

Minimum of 512 MB BBWC/FBWC and Smart Array Advanced Pack License key option upgrades

RAID 5

(Distributed Data Guarding): This allocates one set of parity data across drives and allows simultaneous write operations. This level of fault tolerance can withstand a single drive failure without downtime or data loss.

RAID5 is available on the SA P410/P410i with a minimum of 256MB cache

RAID 5+0

: This is a RAID 0 array striped across 5 elements. Combines the straight blocklevel striping of RAID 0 with the distributed parity of RAID 5.

RAID 1, 1+0

(Drive Mirroring): This allocates half of the drive array to data and the other half to mirrored data, providing two copies of every file. It is a high-performance RAID.

DA - 13201 Worldwide QuickSpecs — Version 11 — 6.21.2010

Page 5

QuickSpecs

HP Smart Array P410 Controller

Standard Features

Fault Recovery

Minimizes downtime, reconstructs data, and facilitates a quick recovery from drive failure

Recovery ROM: This feature protects the user from a firmware image corruption by storing a redundant copy of the firmware image. If the active firmware image becomes corrupt, the controller will use the redundant firmware image and continue operating.

On-Line Spares: There is no limit to the number of spare drives that can be installed prior to drive failure. If a failure occurs, recovery begins with an On-Line Spare and data is reconstructed automatically.

DRAM ECC detects and corrects data bit errors.

Battery-backed write cache upgrade provides for up to two days of battery power for data cache retention. The data backup duration could be extended anytime the server's auxiliary power is available during system power down.

Flash Backed Write Cache upgrade provides indefinite data retention.

Ease of Use

Consistency and Upgradeability make the Smart Array family unique in the industry:

GUI based configuration, management and diagnostic software tools

Common data format between generations of products

Data migration between servers and external StorageWorks Modular Smart Array enclosures

DA - 13201 Worldwide QuickSpecs — Version 11 — 6.21.2010

Page 6

QuickSpecs

Compatibility

HP Smart Array P410 Controller

Server Compatibility

For up to date compatibility, please see the following URL for complete Smart Array 1Controller compatibility and support information: http://h18006.www1.hp.com/products/servers/proliantstorage/arraycontrollers/index.html

Operating Systems

Microsoft Windows 2003 x64 Edition

Microsoft Windows 2003 x84 Edition

Microsoft Windows 2008 Server x64

Microsoft Windows 2008 Server x84

Novell Open Enterprise Server, NetWare 6.5

Red Hat Enterprise Linux 4 & 5 (x64 & x84)

SUSE Linux Enterprise Server 9 (x64 & x84)

SUSE Linux Enterprise Server 10 (x64 & x84)

SUSE Linux Enterprise Server 11 (x64 & x84)

VMWare

NOTE:

For more Linux OS support & certification information, please visit our the ProLiant &

BladeSystem Server Linux matrix: http://h18004.www1.hp.com/products/servers/linux/hplinuxcert.html

Software Suite

All Smart Array products share a common set of configuration, management and diagnostic tools, including Array Configuration Utility, Array Diagnostic Utility (ADU), and Systems Insight Manager.

This software consistency of tools reduces the cost of training for each successive generation of product and takes much of the guesswork out of troubleshooting field problems. These tools lower the total cost of ownership by reducing training and technical expertise necessary to install and maintain HP server storage.

Systems Insight Manager

Powerful server and server options/storage manager tool

Monitors over 1200 system wide parameters

Configuration/Diagnostic Utilities

HP Array Configuration Utility

(ACU)

Powerful Web based configuration utility for all Smart Array controllers

Provides a graphical view of HP drive array configurations

Allows for management of multiple arrays over a secure internet connection from anywhere in the world

Easy to use Wizards for configuration

Runs offline for all supported Operating Systems and runs online for Windows and Linux.

For online configuration of NetWare, use CPQONLIN

HP Option ROM Configuration for Arrays

(ORCA)

A simple method for managing logical drives during system power up by pressing F8 during

POST

Allows the ability to create arrays, logical drives, and assign an online spare drive

Allows the ability to view and delete logical drives

Allows the ability to select the boot controller

For advanced array configurations use ACU

HP Array Diagnostic Utility

(ADU)

In depth diagnostic and reporting utility for all Smart Array controllers

Runs offline for all supported Operating Systems, and runs online for Windows and Linux

DA - 13201 Worldwide QuickSpecs — Version 11 — 6.21.2010

Page 7

QuickSpecs

Service and Support, HP Care Pack, and Warranty Information

HP Smart Array P410 Controller

Warranty

The warranty for this device is 3-years parts only.

Pre-Failure Warranty

: Drives attached to the Smart Array Controller and monitored under Insight

Manager are supported by a Pre-Failure (replacement) Warranty. For complete details, consult the HP Support Center or refer to your HP Server Documentation.

Software Product

Services

Standalone telephone support

Rights to new license version

Media and documentation updates

Hardware Product

Services

Installation services

On-site maintenance (includes warranty support)

Response time upgrades during the warranty period

Post-warranty coverage

NOTE:

For additional hardware installation and maintenance information, please refer to the URL: http://www.hp.com/hps/hardware/

Warranty Upgrade

Options

Response - Upgrade on-site response from next business day to same day 4 hours

Coverage - Extend hours of coverage from 9 hours x 5 days to 24 hours x 7 days

Duration - Select duration of coverage for a period of 1, 3, or 5 years

Warranty upgrade options can come in the form of Care Packs, which are sold at the HP System level this product attaches too.

HP Care Pack

Information

HP Care Pack is defined as an upgrade to the product warranty attribute, available for a specific duration and hours of coverage. Care Packs for this option is sold at the system level this option attaches too.

HP Care Pack is not available for less than the product's warranty duration.

HP Care Pack is available for sale anytime during the warranty period for most products, but the commencement date will be the same as the Warranty Start Date (delivery date to end user customer). Proof of purchase may be required.

HP Care Pack services are prepaid.

NOTE:

For additional HP Care Pack (hardware & software) information, as well as orderable part numbers, please refer to the URL: http://www.hp.com/hps/carepack/

DA - 13201 Worldwide QuickSpecs — Version 11 — 6.21.2010

Page 8

QuickSpecs

Related Options

HP Smart Array P410 Controller

NOTE:

This is a list of supported options. Some may be discontinued.

HP Hard Drives NOTE:

The components of a storage subsystem (e.g. the drive, the

HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.

NOTE:

Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives

HP 300GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty

Hard Drive

HP 300GB 3G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty

Hard Drive

HP 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty

Hard Drive

HP 146GB 3G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty

Hard Drive

HP 146GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty

Hard Drive

HP 146GB 3G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty

Hard Drive

HP 72GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty

Hard Drive

HP 72GB 3G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty

Hard Drive

SAS Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives

HP 600GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty

Hard Drive

HP 450GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty

Hard Drive

HP 450GB 3G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty

Hard Drive

HP 300GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty

Hard Drive

HP 300GB 3G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty

Hard Drive

HP 146GB 3G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty

Hard Drive

HP 72GB 15K rpm Hot Plug SAS 3.5 Dual Port Hard Drive

SAS Non-Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives

HP 600GB 6G SAS 15K rpm LFF (3.5-inch) Non-hot Plug Dual Port Enterprise

3yr Warranty Hard Drive

HP 450GB 6G SAS 15K rpm LFF (3.5-inch) Non-hot Plug Dual Port Enterprise

3yr Warranty Hard Drive

HP 450GB 3G SAS 15K rpm LFF (3.5-inch) Non-hot Plug Dual Port Enterprise

3yr Warranty Hard Drive

HP 300GB 6G SAS 15K rpm LFF (3.5-inch) Non-hot Plug Dual Port Enterprise

3yr Warranty Hard Drive

HP 300GB 3G SAS 15K rpm LFF (3.5-inch) Non-hot Plug Dual Port Enterprise

3yr Warranty Hard Drive

HP 146GB 3G SAS 15K rpm LFF (3.5-inch) Non-hot Plug Dual Port Enterprise

3yr Warranty Hard Drive

507127-B21

492620-B21

512547-B21

504062-B21

507125-B21

418367-B21

512545-B21

418371-B21

516828-B21

516816-B21

454232-B21

516814-B21

416127-B21

384854-B21

384852-B21

516830-B21

516826-B21

454234-B21

516824-B21

417950-B21

417855-B21

DA - 13201 Worldwide QuickSpecs — Version 11 — 6.21.2010

Page 9

QuickSpecs

Related Options

HP Smart Array P410 Controller

SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives

HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty

Hard Drive

SAS Hot Plug LFF (3.5-inch) Midline (MDL) Drives

HP 2TB 6G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard

Drive

HP 1TB 6G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard

Drive

HP 1TB 3G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard

Drive

HP 750GB 3G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty

Hard Drive

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/12244_div/12244_div.html

(Worldwide)

SATA Hot Plug SFF (2.5-inch) Midline (MDL) Drives

HP 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1yr Warranty Hard Drive

HP 160GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1yr Warranty Hard Drive

SATA Non-Hot Plug SFF (2.5-inch) Midline (MDL) Drives

HP 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Non-hot Plug Midline 1yr

Warranty Hard Drive

HP 160GB 3G SATA 7.2K rpm SFF (2.5-inch) Non-hot Plug Midline 1yr

Warranty Hard Drive

SATA Hot Plug LFF (3.5-inch) Midline (MDL) Drives

HP 2TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive

HP 1TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive

HP 750GB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive

HP 500GB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive

HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive

SATA Non-Hot Plug LFF (3.5-inch) Midline (MDL) Drives

HP 2TB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty

Hard Drive

HP 1TB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty

Hard Drive

HP 750GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty

Hard Drive

HP 500GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty

Hard Drive

HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty

Hard Drive

SATA Hot Plug SFF (2.5-inch) Entry (ETY) Drives

HP 250GB 3G SATA 5.4K rpm SFF (2.5-inch) Entry 1yr Warranty Hard Drive

HP 120GB 1.5G SATA 5.4K rpm SFF (2.5-inch) Entry 1yr Warranty Hard Drive

SATA Non-Hot Plug SFF (2.5-inch) Entry (ETY) Drives

HP 250GB 3G SATA 5.4K rpm SFF (2.5-inch) Non-hot Plug Entry 1yr Warranty

Hard Drive

HP 120GB 1.5G SATA 5.4K rpm SFF (2.5-inch) Non-hot Plug Entry 1yr

Warranty Hard Drive

SATA Hot Plug LFF (3.5-inch) Entry (ETY) Drives

507610-B21

507616-B21

507614-B21

461137-B21

461135-B21

507750-B21

530888-B21

507753-B21

530891-B21

507632-B21

454146-B21

458930-B21

458928-B21

458926-B21

507774-B21

507772-B21

462595-B21

458941-B21

458939-B21

460355-B21

458924-B21

460357-B21

459357-B21

DA - 13201 Worldwide QuickSpecs — Version 11 — 6.21.2010

Page 10

QuickSpecs

Related Options

HP Smart Array P410 Controller

HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Entry 1yr Warranty Hard Drive

HP 160GB 3G SATA 7.2K rpm LFF (3.5-inch) Entry 1yr Warranty Hard Drive

SATA Non-Hot Plug LFF (3.5-inch) Entry (ETY) Drives

HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Entry 1yr Warranty

Hard Drive

HP 160GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Entry 1yr Warranty

Hard Drive

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/13021_div/13021_div.html

(Worldwide)

SATA Hot Plug Midline (MDL) Solid State Drives

HP 60GB 3G SATA SFF (2.5-inch) Midline 1yr Warranty Solid State Drive

HP 120GB 3G SATA SFF (2.5-inch) Midline 1yr Warranty Solid State Drive

SATA Hot Plug 3.5" Midline (MDL) Solid State Drives

HP 60GB 3G SATA LFF (3.5-inch) Midline 1yr Warranty Solid State Drive

HP 120GB 3G SATA LFF (3.5-inch) Midline 1yr Warranty Solid State Drive

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/13415_div/13415_div.html

(Worldwide)

NOTE:

Go to the HP Hard Drive Compatibility table for complete drive compatibility information ( http://www.hp.com/products/harddiskdrives ). Using hard drives in unsupported configurations will result in voiding the warranty and could result in damage to the drive and/or loss of data.

571230-B21

458945-B21

571232-B21

458947-B21

572071-B21

572073-B21

570761-B21

570763-B21

HP Tape Backup NOTE:

For the complete range of StorageWorks tape drives, autoloaders, libraries and media see: http://www.hp.com/go/tape .

NOTE:

For tape drives mounted in an internal peripheral bay an internal SAS cable is used to connect the tape drive to the P410 controller. For external

(desktop) tape drives, tape drives in Rack-Mount Kits, tape autoloaders and tape libraries a split SAS cable is used with the external cable routed from the P410 controller through an unoccupied server PCI expansion slot to the tape drive.

SAS Tape Drives

HP StorageWorks DAT 160 SAS Internal Tape Drive

HP StorageWorks DAT 160 SAS External Tape Drive

HP StorageWorks DAT 320 SAS Internal Tape Drive

HP StorageWorks DAT 320 SAS External Tape Drive

HP StorageWorks LTO-2 Ultrium 448 SAS Internal Tape Drive

HP StorageWorks LTO-2 Ultrium 448 SAS External Tape Drive

HP StorageWorks LTO-3 Ultrium 920 SAS Internal Tape Drive

HP StorageWorks LTO-3 Ultrium 920 SAS External Tape Drive

HP StorageWorks LTO-4 Ultrium 1760 SAS Internal Tape Drive

HP StorageWorks LTO-4 Ultrium 1760 SAS External Tape Drive

HP StorageWorks 1U SAS Rack-mount kit with one LTO-4 Ultrium 1760

HP StorageWorks LTO-4 Ultrium 1840 SAS Internal Tape Drive

HP StorageWorks LTO-4 Ultrium 1840 SAS External Tape Drive

SAS Rack-mount Tape Drive Enclosures

Q1587A

Q1588A

AJ830A

AJ828A

DW085A

DW086A

EH847A

EH848A

EH919A

EH920A

EH946A

EH860A

EH861A

DA - 13201 Worldwide QuickSpecs — Version 11 — 6.21.2010

Page 11

QuickSpecs

Related Options

HP Smart Array P410 Controller

HP StorageWorks 1U SAS Rack-Mount Kit

NOTE:

The 1U SAS Rack-Mount Kit can support up to (2) half-height tape drives and is compatible with the DAT 160 SAS, LTO-2 Ultrium 448 SAS, LTO-3

Ultrium 920 SAS and LTO-4 Ultrium 1760 SAS tape drives.

HP StorageWorks 3U SAS Rack-mount Kit

NOTE:

The 3U Rack-mount Kit can support up to (2) full-height or (4) half-height tape drives and compatible with multiple SAS tape drives including DAT 160

SAS, LTO-2 Ultrium 448 SAS, LTO-3 Ultrium 920 SAS, LTO-4 Ultrium 1760 SAS and LTO-4 Ultrium 1840 SAS tape drives.

SAS Tape Autoloaders

HP StorageWorks 1/8 G2 LTO-4 Ultrium 1760 SAS Autoloader

HP StorageWorks 1/8 G2 LTO-3 Ultrium 920 SAS Autoloader

SAS Tape Libraries

HP StorageWorks MSL2024 1 LTO-4 Ultrium 1760 SAS Drive Library

HP StorageWorks MSL2024 1 LTO-3 Ultrium 920 SAS Drive Library

HP StorageWorks MSL4048 1 LTO-4 Ultrium 1760 SAS Drive Library

HP StorageWorks MSL4048 1 LTO-3 Ultrium 920 SAS Drive Library

HP StorageWorks MSL8096 2 LTO-4 Ultrium 1760 SAS Drive Library

HP StorageWorks MSL8096 2 LTO-3 Ultrium 920 SAS Drive Library

SAS Cables for Tape Drives

1 meter internal SAS SFF8087, split to 1 x internal SFF8087 + 1 x SFF8482 cable

NOTE:

Use this cable to connect HP StorageWorks Ultrium 448, 920, 960, 1760 and1840 SAS internal tape drives to Mini-SAS (SFF8087) ports. This replaces the existing cable connecting the HBA/controller to the disk backplane. This replacement cable has three channels for disks and 1 channel for the tape drive

(SFF8482 port).

4 meter internal Mini-SAS (SFF8087), split to 3 x internal Mini-SAS (SFF8087) +

1x SFF8088

NOTE:

This split cable connects internally to SAS Hard Drive Cage (3 channels) and externally to the tape drive (1channel) with other connector attaching to the controller. The external cable, for the drive, requires a PCI slot to exit the server.

AE459A

AG576A

AG452A

AK377A

AH558A

AK378A

AH559A

AK380A

AH560A

AK382A

AH561A

AP746A

HP Cable Options SAS to Mini SAS Cables

Mini-SAS to Mini-SAS, 28.00"

Mini-SAS to Mini-SAS, 33.00"

Mini-SAS to SFF8484, 18.00"

Mini-SAS to SFF8484, 24.00"

Mini-SAS to SFF8484, 32.00"

Mini-SAS to SFF8484, 35.00"

Additional Cables

HP 15 POS 24in SFP Battery Cable Assy

496013-B21

496014-B21

496015-B21

496015-B21

496016-B21

496016-B21

496029-B21

DA - 13201 Worldwide QuickSpecs — Version 11 — 6.21.2010

Page 12

QuickSpecs

Technical Specifications

HP Smart Array P410 Controller

Dimensions

(not including bracket)

Low Profile PCIe Form Factor

7.5 in x 9.5 in x 2.25 in (19.05 cm x 24.13 cm x 5.72 cm)

6Gb/s SAS (Serial Attached SCSI)

Disk Drive and

Enclosure Interface -

Transfer rate

SAS Connectors

3Gb/s SATA (Serial ATA)

2 internal (Mini-SAS) x8 wide port connectors

Cache Memory Speed

DDR2-800MHz with 40 or 72-bit wide bus provides up to 4.2 GB/s maximum bandwidth.

Server Interface

x8 5G PCIe 2.0 provides 4GB/s maximum bandwidth

SAS Speed

Cache Memory

Logical Drives

Supported

Host Memory

Addressing

RAID Support

x8 6Gb/s SAS provides 4.8GB/s maximum bandwidth

40-bit 256MB ECC protected cache (72-bit 512MB BBWC or 72-bit 512MB and 1G FBWC module upgrades available); transportable with battery-backed or flash upgrade

Zero Memory, Up to 2 logical volumes

256MB cache and greater, Up to 64 logical volumes

64-bit, supporting greater than 4GB server memory space

RAID 6, 6+0 (Advanced Data Guarding)

NOTE:

RAID 6, 6+0 can be enabled with either

Minimum of 256 MB cache, Battery kit and Smart Array Advanced Pack License key option upgrades

Minimum of 512 MB BBWC/FBWC and Smart Array Advanced Pack License key option upgrades

RAID 5, 5+0 (Distributed Data Guarding)

NOTE:

A minimum or 256 MB cache is required to enable RAID 5, 5+0 support of the Smart Array

P410i

RAID 1+0 (Striping & Mirroring)

RAID 0 (Striping)

Upgradeable Firmware

Upgradeable Firmware with recovery ROM feature

Environment-friendly

Products and

Approach

End-of-life

Management and

Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hp.com/go/green . To recycle your product, please go to: http://www.hp.com/go/green or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/green . These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.

© Copyright 2010 Hewlett-Packard Development Company, L.P.

The information contained herein is subject to change without notice. Microsoft and Windows are registered trademarks or trademarks of Microsoft Corporation in the U.S. and/or other countries. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.

DA - 13201 Worldwide QuickSpecs — Version 11 — 6.21.2010

Page 13

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
