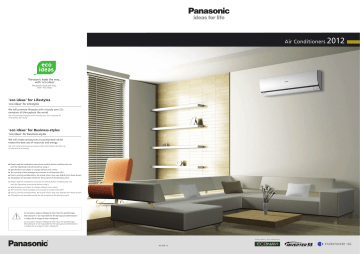

2012 Air Conditioners 'eco ideas' for Lifestyles 'eco ideas' for Business-styles

2012 Air Conditioners 'eco ideas' for Lifestyles 'eco ideas' for Business-styles

Panasonic leads the way...

with 'eco ideas'

Panasonic leads the way...

with 'eco ideas'

'eco ideas' for Lifestyles

'eco ideas' for Lifestyles

We will promote lifestyles with virtually zero CO

2 emissions all throughout the world

We will promote lifestyles with virtually zero CO

2

emissions all throughout the world

'eco ideas' for Business-styles

'eco ideas' for Business-styles

We will create and pursue a business-style which makes the best use of resources and energy

We will create and pursue a business-style whichmakes the best use of resources and energy

Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it.

Specifications are subject to change without prior notice.

The contents of this catalogue are accurate as of December 2011.

Due to printing considerations, the actual colours may vary slightly from those shown.

All graphics are provided merely for the purpose of illustrating a point.

Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it.

Specifications are subject to change without prior notice.

The contents of this catalogue are accurate as of December 2011.

Due to printing considerations, the actual colours may vary slightly from those shown.

All graphics are provided merely for the purpose of illustrating a point.

Do not add or replace refrigerant other than the specified type.

Manufacturer is not responsible for the damage and deterioration in safety due to usage of other refrigerant.

Do not add or replace refrigerant other than the specified type.

Manufacturer is not responsible for the damage and deterioration in safety due to usage of other refrigerant.

AC-KSA-12

Air Conditioners

2012

2

ONE TOUCH

TO CHANGE THE FUTURE

ONE TOUCH TO CHANGE THE FUTURE

Every little effort can add up to make a big difference. Our choices and behaviours have a ripple effect that reaches across the world today, and on to our future generations. All it takes is just one touch of a button to change the future.

Every little effort can add up to make a big difference. Our choices and behaviours have a ripple effect that reaches across the world today, and on to our future generations. All it takes is just one touch of a button to change the future.

INDEX/

INDEX

Tropical Inverter/

Tropical Inverter

Cooling Innovation /

Cooling Innovation

Product Line-up /

Product Line-up

4 - 5

6 - 9

10 - 11

Super Tropical Heat Pump/

Super Tropical Heat Pump

Eco Clean Life Innovation /

Eco Clean Life Innovation

12 - 13

14 - 15

16 - 17

18 - 23 Product Line-up /

Product Line-up

Super Tropical Cooling Only/

Super Tropical Cooling Only

Eco Intelligence with Design /

Eco Intelligence with Design

Product Line-up /

Product Line-up

24 - 25

26 - 27

28 - 29

30 - 33

Features Comparison and Explanation/

Features Comparison and Explanation

34 - 35

Sunlight Detection/

Sunlight Detection

36 - 37

Technical Explanation/

Technical Explanation

Technical Explanation/

Technical Explanation

Technical Explanation/

Technical Explanation

Technical Explanation/

Technical Explanation

Technical Explanation/

Technical Explanation

Technical Explanation/

ECO PATROL Technical Explanation

Outdoor Unit Technical Explanation/

Outdoor Unit Technical Explanation

Model Line-up/

Model Line-up

38

39

40 - 42

43

44 - 45

46 - 47

48 - 49

50 - 51

3

TROPICAL INVERTER

TROPICAL INVERTER

4

The Inverter – Ready to Revolutionize

Air Conditioning in Desert Climates

Severe outside temperatures, fine sand particles from the desert in the unit… Under these desert conditions, the use of inverter air conditioners was never before possible.

Panasonic has changed that. Various innovative technologies now enable stable inverter controlled air conditioning, even in desert climates. Be sure to experience for yourself the new dimension of inverter power and comfort, as well as the superb energy saving operation.

The Inverter – Ready to Revolutionize

Air Conditioning in Desert Climates

Severe outside temperatures, fine sand particles from the desert in the unit… Under these desert conditions, the use of inverter air conditioners was never before possible.

Panasonic has changed that. Various innovative technologies now enable stable inverter controlled air conditioning, even in desert climates. Be sure to experience for yourself the new dimension of inverter power and comfort, as well as the superb energy saving operation.

New Industry First! /

New Industry First!

Cooling Innovation in Power and Eco-Operation for DESERT Climates

Cooling Innovation in Power and Eco-Operation for DESERT Climates

55

ºC Ambient Cooling

Inverter control in the desert climate is now possible thanks to unique, innovative technologies.

The result is a new dimension in air conditioning that lets you enjoy more powerful cooling than ever, a stable room temperature, and outstanding energy saving performance.

Inverter control in the desert climate is now possible thanks to unique, innovative technologies. The result is a new dimension in air conditioning that lets you enjoy more powerful cooling than ever, a stable room temperature, and outstanding energy saving performance.

ECONAVI features intelligent Human Activity

Sensor and new technologies that can detect and reduce waste by optimising air conditioner operation according to room conditions. With just one touch of a button, you can save energy efficiently with uninterrupted cooling, comfort and convenience.

ECONAVI features intelligent Human Activity Sensor and new technologies that can detect and reduce waste by optimising air conditioner operation according to room conditions. With just one touch of a button, you can save energy efficiently with uninterrupted cooling, comfort and convenience.

Cooling is possible even when the outside temperature is 55ºC. Featuring a highly durable compressor and fan motor to maintain room comfort even under the hottest conditions.

Cooling is possible even when the outside temperature is 55ºC.

Featuring a highly durable compressor and fan motor to maintain room comfort even under the hottest conditions.

5

TROPICAL INVERTER

TECHNOLOGY

TROPICAL INVERTER TECHNOLOGY

6

EXCEPTIONAL ENERGY-SAVING PERFORMANCE

EXCEPTIONAL ENERGY-SAVING PERFORMANCE

Reduces Electricity Consumption/

Reduces Electricity Consumption

Panasonic Tropical Inverter air conditioners give you exceptional energy savings of up to 30% in the cooling mode, while ensuring you stay comfortable at all times. Unlike a conventional non-inverter air conditioner, which consumes a lot of energy, a

Tropical Inverter air conditioner reduces wasteful operation and electric consumption.

Panasonic Tropical Inverter air conditioners give you exceptional energy savings of up to 30% in the cooling mode, while ensuring you stay comfortable at all times. Unlike a conventional non-inverter air conditioner, which consumes a lot of energy, a

Tropical Inverter air conditioner reduces wasteful operation and electric consumption.

Electricity Consumption Comparison

Electricity Consumption Comparison

Non-Inverter

Non-Inverter

30%

*¹ down

down

Inverter

Inverter

Up To

Up To

30

%

ENERGY SAVINGS

ENERGY SAVINGS

Comparison of 2 HP Inverter model and 2 HP Non-Inverter model (cooling)/ Outside temperature:35’C/24’C, Remote setting temperature: 25’C with Fan speed (High) /Vertical Airflow direction: Auto, Horizontal Airflow direction: Front

Total power consumption amount are measured for 8 hours from starting. At Panasonic Amenity Room ( size:26.6m2)

This is the maximum energy saving value, and the effect differs according to conditions in installation and usage.

Comparison of 2 HP Inverter model and 2 HP Non-Inverter model (cooling)/ Outside temperature:35’C/24’C, Remote setting temperature: 25’C with Fan speed (High) /Vertical Airflow direction: Auto, Horizontal Airflow direction: Front

Total power consumption amount are measured for 8 hours from starting. At Panasonic Amenity Room ( size:26.6m2)

This is the maximum energy saving value, and the effect differs according to conditions in installation and usage.

Non-Inverter Model

(2HP)

Non-Inverter Model

Tropical Inverter Model

(2HP)

Inverter Cooling Model

Performance Comparison /

Performance Comparison

Non-Inverter/

Non-Inverter

Room temperature

Room temperature

Big temperature fluctuations

Big temperature fluctuations

Set temperature

Set temperature

ON

ON

Inverter/

Inverter

Room temperature

Room temperature

Little temperature fluctuations

Little temperature fluctuations

ON

ON

Legend:/

Legend:

Output power/

Output power

OFF

OFF

ON

ON

OFF

OFF

ON

ON

Time/

Time

Set temperature

Set temperature

Time/

Time

Temperature

Temperature

At the start up of an air conditioner’s operation, powerful operation is required to reach the set temperature. After the set temperature is reached, less power is required to maintain it. A conventional non-Inverter air conditioner can only operate at a constant speed which is too powerful to maintain the set temperature. Thus, in attempting to achieve this, it switches the compressor ON and OFF repeatedly. This results in wider temperature fluctuations leading to wasteful consumption of energy. The Tropical Inverter air conditioner varies the rotation speed of the compressor. This provides a highly precise method of maintaining the set temperature.

At the start up of an air conditioner’s operation, powerful operation is required to reach the set temperature. After the set temperature is reached, less power is required to maintain it. A conventional non-Inverter air conditioner can only operate at a constant speed which is too powerful to maintain the set temperature. Thus, in attempting to achieve this, it switches the compressor ON and OFF repeatedly. This results in wider temperature fluctuations leading to wasteful consumption of energy.

The Tropical Inverter air conditioner varies the rotation speed of the compressor. This provides a highly precise method of maintaining the set temperature.

THE OTHER ADVANTAGES OF TROPICAL INVERTER AIR CONDITIONERS

THE OTHER ADVANTAGES OF TROPICAL INVERTER AIR CONDITIONERS

Constant Comfort/

Constant Comfort

Precise temperature control with a wide power output range enables an inverter air conditioner to meet different room occupancy levels – thus ensuring constant comfort.

Precise temperature control with a wide power output range enables an inverter air conditioner to meet different room occupancy levels – thus ensuring constant comfort.

Minimum Power

Minimum Power

Compressor rotation speed: SLOW

Compressor rotation speed: SLOW

Medium Power

Medium Power

Maximum Power

Maximum Power

Compressor rotation speed: HIGH

Compressor rotation speed: HIGH

3,410Btu/h

When not required, the unit operates at low power to save energy.

When not required, the unit operates at low power to save energy.

18,800Btu/h

Normal Condition

Normal Condition

Graph shows the 2.0HP Inverter model’s wide power output range during cooling.

Graph shows the 2.0Hp Inverter model’s wide power output range during cooling.

22,200Btu/h

When required, the unit operates at full power.

When required, the unit operates at full power.

Quick Cooling/

Quick cooling

Tropical Inverter air conditioners can operate with higher power during the start up period to cool the room 1.5 times faster than non-Inverter models.

Tropical Inverter air conditioners can operate with higher power during the start up period to cool the room 1.5 times faster than non-Inverter models.

Comparison of Cooling Speed

Comparison of Cooling Speed

1.5

Times faster

Times faster

Test condition: Comparison of 2 HP Inverter model and 2 HP

Non-Inverter model (cooling)/

Outside temperature:35’C, Remote setting temperature: 25’C

The effect differs according to conditions in installation and usage.

Test condition: Comparison of 2 HP Inverter model and 2 HP Non-Inverter model (cooling)/

Outside temperature:35’C, Remote setting temperature: 25’C

The effect differs according to conditions in installation and usage.

Starting

Temperature

Starting

Temperature

Set Temperature

Set Temperature

Quick

Quick

Non-Inverter model

Non-Inverter model

Inverter model

Inverter model

7

TROPICAL INVERTER

TECHNOLOGY

TROPICAL INVERTER TECHNOLOGY

8

UNIQUE AUTO-COOLING SYSTEM IN THE OUTDOOR UNIT

UNIQUE AUTO-COOLING SYSTEM IN THE OUTDOOR UNIT

A tightly sealed electrical component box prevents fine sand particles from getting in to protect the high-precision inverter circuit. And an original Auto-Cooling

System* prevents the temperature inside the box from rising due to heat generated by the circuit board.

*7 patents in japan, 1 patent in malaysia

A tightly sealed electrical component box prevents fine sand particles from getting in to protect the high-precision inverter circuit. And an original Auto-Cooling System* prevents the temperature inside the box from rising due to heat generated by the circuit board.

*7 patents in japan, 1 patent in malaysia

Tightly Sealed Electrical Component Box

Tightly Sealed Electrical Component Box

Inverter electronic circuit

Inverter electronic circuit

8

patents* applied for

Cooling fan

Cooling fan

Conventional Inverter /

Conventional Inverter

Capillary tube

Capillary tube

Evaporator

Evaporator

Cool air

Cool air

The fan sends cool air to cool the circuit board.

The fan sends cool air to cool the circuit board.

The new outdoor unit design uses cool refrigerant and a fan to prevent the temperature of the electronic circuit rising.

The new outdoor unit design uses cool refrigerant and a fan to prevent the temperature of the electronic circuit rising.

Tropical Inverter /

Tropical Inverter

Auto-Cooling System /

Auto-Cooling System

Circuit board

Circuit board

Cooling fan

Cooling fan

Temperature sensor

Temperature sensor

Cool air /

Cool air

Evaporator /

Evaporator

Capillary tube

Capillary tube

Compressor /

Compressor

Compressor /

Compressor

AUTO-COOLING SYSTEM PERFORMANCE FIELD TEST RESULTS

AUTO-COOLING SYSTEM PERFORMANCE FIELD TEST RESULTS

Tests of the Auto-Cooling System's performance under regular home conditions were conducted in the Middle East (Kuwait). Even during the day, when the outside air temperature was close to

50

℃, the Auto-Cooling System effectively prevented the temperature inside the electrical component box from rising excessively.

Tests of the Auto-Cooling System's performance under regular home conditions were conducted in the Middle East (Kuwait). Even during the day, when the outside air temperature was close to 50

, the Auto-Cooling System effectively prevented

the temperature inside the electrical component box from rising excessively.

Auto-Cooling System /

Auto-Cooling System

Without the Auto-Cooling System /

Without the Auto-Cooling System

55

50

45

40

35

75

70

65

60

30

25

0

Circuit board temperature

Circuit board temperature

4

Outdoor temperature

Outdoor temperature

8 12

Time ( o clock) /

Time ( o’clock)

16 20 24

Even during the hottest part of the day, the temperature inside the electrical component box remained the same as the outside air temperature. Hardly any damage to the control system.

Even during the hottest part of the day, the temperature inside the electrical component box remained the same as the outside air temperature. Hardly any damage to the control system.

55

50

45

40

35

75

70

65

60

30

25

0

Circuit board temperature

Circuit board temperature

4 8

Outdoor temperature

Outdoor temperature

12

Time ( o’clock)

16 20

The temperature inside the electrical component box became higher than the outside air temperature, and reached close to 80

℃ during the day. Significant damage to the control system.

The temperature inside the electrical component box became higher than the outside air temperature, and reached close to 80

during the day. Significant damage to the control system.

24

Sand Damage in Desert Climate Regions

Sand Damage in Desert Climate Regions

Sand blown in from the desert is extremely fine and can result in damage if it enters electronic circuit in the inverter. However, shielding the inverter circuit board prevents heat from escaping, causing the internal temperature to rise too high and damage the inverter control system. This problem was solved with the development of the innovative Auto-Cooling System.

Sand blown in from the desert is extremely fine and can result in damage if it enters electronic circuit in the inverter. However, shielding the base of the inverter prevents heat from escaping, causing the internal temperature to rise too high and damage the inverter control system. This problem was solved with the development of the innovative Auto-Cooling System.

Sand damage to the outdoor unit

Sand damage to the outdoor unit

Fine sand can also get inside the outdoor unit.

Fine sand can also get inside the outdoor unit.

Outdoor unit featuring the Auto-Cooling System

Outdoor unit featuring the Auto-Cooling System

Sand doesn't get into electronic components

Sand doesn't get into electronic components

9

10

PRODUCT

LINE-UP

PRODUCT LINE-UP

DUAL

Ambient

NEW

NEW

CS-K18NKS CS-K24NKS

CS-K18NKS | CS-K24NKS

Tropical Inverter ¦ Deluxe

Tropical Inverter ¦ Deluxe

Cooling Models

Cooling Models

Ambient

Wireless

Wireless

30

CS-K24NKS

(Random)

(Random)

20

CS-K18NKS

SPECIFICATIONS

SPECIFICATIONS

Model

Model

(60Hz)

CS-K18NKS

(CU-K18NKS)

18,800 (3,410-22,200) / 16,400

Cooling Capacity T1 / T3

Cooling Capacity T1 / T3

EER T1 /

EER T1 / T3

T3

Electrical Data T1 /

Electrical Data T1 / T3

T3

Voltage

Voltage

Running Current

Running Current

Power Input

Power Input

Btu/h kW

Btu/hW

V

A

W

5.50 (1.00-6.50) / 4.80

10.60 / 8.00

220

8.5 / 9.6

1,770 (240-2,100) / 2,050

Moisture Removal

Moisture Removal

Air Circulation (Indoor/Hi)

Air Circulation (Indoor/Hi)

Dimensions

Dimensions

Height

Height

Width

Width

L/h

Pt/h m³/min.

ft³/min.

mm inch mm

3.0

6.3

17.0

600

290 (695)

11-7/16 (27-3/8)

1,070 (875)

42-5/32 (34-15/32)

Net Weight

Net Weight

Depth

Depth

inch mm inch kg lb

240 (320)

9-15/32 (12-5/8)

12 (46)

26 (101)

Liquid Side

Liquid Side

mm inch

ø 6.35

1/4

Refrigerant Pipe Diameter

Refrigerant Pipe Diameter

Pipe Extension

Pipe Extension

mm

Gas Side

Gas Side

inch

Chargeless Pipe Length

Chargeless Pipe Length

Maximum Pipe Length

Maximum Pipe Length

Maximum Elevation Length

Maximum Elevation Length

Additional Refrigerant Gas*

Additional Refrigerant Gas*

m m m g/m

ø 12.70

1/2

7.5

20

15

20

Indoor/

Indoor

Power Supply

Power Supply

Caution (Important) Please do not use copper pipes that are less than 0.6mm in thickness.

Caution (Important) Please do not use copper pipes that are less than 0.6mm in thickness.

* When pipes are not extended from the standard pipe length, the required amount of refrigerant is already in the unit.

* When pipes are not extended from the standard pipe length, the required amount of refrigerant is already in the unit.

OUTDOOR

OUTDOOR

CU-K18NKS

CU-K24NKS

( ): Outdoor Unit/

Outdoor Unit

CS-K24NKS

(CU-K24NKS)

22,500 (7,160-27,300) / 20,100

6.60 (2.10-8.00) / 5.90

10.35 / 7.80

220

10.5 / 12.3

2,170 (400-2,900) / 2,570

3.7

7.8

19.7

695

290 (695)

11-7/16 (27-3/8)

1,070 (875)

42-5/32 (34-15/32)

240 (320)

9-15/32 (12-5/8)

12 (54)

26 (119)

ø 6.35

1/4

ø 15.90

5/8

7.5

30

20

30

Indoor/

Indoor

Rating Conditions

Rating Conditions

Inside air temperature

Inside air temperature

Outside air temperature

Outside air temperature

Cooling /

Cooling

T 1

27˚C DB

19˚C WB

35˚C DB

24˚C WB

T 3

29˚C DB

19˚C WB

46˚C DB

24˚C WB

11

SUPER TROPICAL

HEAT PUMP

SUPER TROPICAL HEAT PUMP

12

Living an eco lifestyle doesn’t mean you need to compromise on comfort.

Panasonic's ECONAVI automatically detects and reduces waste of electricity without any troublesome setting.

And for a cleaner living environment, there's new nanoe-G technology that helps purify the air as well as your surroundings.

Together, these breakthrough technologies define what Panasonic’s Eco Clean

Life Innovation is all about – innovations that improve your environment while making life as comfortable as possible.

Living an eco lifestyle doesn’t mean you need to compromise on comfort.

Panasonic's ECONAVI automatically detects and reduces waste of electricity without any troublesome setting.

And for a cleaner living environment, there's new nanoe-G technology that helps purify the air as well as your surroundings.

Together, these breakthrough technologies define what Panasonic’s Eco Clean Life Innovation is all about – innovations that improve your environment while making life as comfortable as possible.

Panasonic Air Conditioners

- in the pursuit of

Eco Clean Life

Innovation

Panasonic Air Conditioners - in the pursuit of Eco Clean Life Innovation

55

ºC Ambient Cooling

ECONAVI features intelligent Human Activity Sensor and new Sunlight Sensor technologies that can detect and reduce waste by optimising air conditioner operation according to room conditions. With just one touch of a button, you can save energy efficiently with uninterrupted cooling, comfort and convenience.

ECONAVI features intelligent Human Activity Sensor and new

Sunlight Sensor technologies that can detect and reduce waste by optimising air conditioner operation according to room conditions.

With just one touch of a button, you can save energy efficiently with uninterrupted cooling, comfort and convenience.

nanoe-

G utilises nano-technology fine particles to purify the air in the room. It works effectively on airborne and adhesive micro-organisms such as bacteria, viruses and mould thus ensuring a cleaner living environment.

nanoe-

G

utilises nano-technology fine particles to purify the air in the room. It works effectively on airborne and adhesive micro-organisms such as bacteria, viruses and mould thus ensuring a cleaner living environment.

Cooling is possible even when the outside temperature is 55ºC, featuring a highly durable compressor and fan motor to maintain room comfort even under the hottest conditions.

Cooling is possible even when the outside temperature is 55ºC, featuring a highly durable compressor and fan motor to maintain room comfort even under the hottest conditions.

13

WITH INTELLIGENT ECO SENSORS/

WITH INTELLIGENT ECO SENSORS

Super Tropical Heat Pump

Super Tropical Heat Pump

ECONAVI with intelligent eco sensors now has 4 abilities to detect and reduce energy waste. You can now enjoy a higher maximum energy savings of up to 35%*¹ on cooling mode and up to 45%*² on heating mode.

ECONAVI with intelligent eco sensors now has 4 abilities to detect and reduce energy waste. You can now enjoy a higher maximum energy savings of up to 35%*¹ on cooling mode and up to 45%*² on heating mode.

During Cooling

During Cooling

Up To

Up To

35

%

ENERGY

SAVINGS

ENERGY

SAVINGS

*¹Comparison of 1.5 HP non-inverter model available in the Middle East with ECONAVI dual sensor ON and OFF (Cooling)

ECONAVI dual sensor ON, Outside temperature: 35ºC/24ºC, Remote setting temperature: 23ºC with Fan Speed (High),

Vertical Airflow direction: Auto, Horizontal Airflow direction: ECONAVI Mode, Setting temperature goes up 2ºC in total,

1ºC controlled by ECONAVI activity level detection and another 1ºC controlled by ECONAVI light intensity detection.

ECONAVI dual sensor OFF, Outside temperature: 35ºC/24ºC, Remote setting temperature: 23ºC with Fan Speed (High)

Vertical Airflow direction: Auto, Horizontal Airflow direction: Front

Total power consumption amount are measured for 1 hour in stable condition. At Panasonic Amenity Room (size:16.6m²)

This is the maximum energy savings value, and the effect differs according to conditions in installation and usage.

*¹Comparison of 1.5 HP non-inverter model available in the Middle East with ECONAVI dual sensor ON and OFF (Cooling)

ECONAVI dual sensor ON, Outside temperature: 35ºC/24ºC, Remote setting temperature: 23ºC with Fan Speed (High)

Vertical Airflow direction: Auto, Horizontal Airflow direction: ECONAVI Mode, Setting temperature goes up 2ºC in total,

1ºC controlled by ECONAV0el detection and another 1ºC controlled by ECONAVI light intensity detection.

ECONAVI dual sensor OFF, Outside temperature: 35ºC/24ºC, Remote setting temperature: 23ºC with Fan Speed (High)

Vertical Airflow direction: Auto, Horizontal Airflow direction: Front

Total power consumption amount are measured for 1 hour in stable condition. At Panasonic Amenity Room (size:16.6m²)

This is the maximum energy savings value, and the effect differs according to conditions in installation and usage.

14

During Heating

During Heating

Up To

Up To

45

%

*

2

ENERGY

SAVINGS

ENERGY

SAVINGS

*²Comparison of 1.5 HP non-inverter model available in the Middle East between with ECONAVI dual sensor ON and OFF (Heating)

ECONAVI dual sensor ON, Outside temperature: 2ºC/1ºC, Remote setting temperature: 26ºC with Fan Speed (High),

Vertical Airflow direction: Auto, Horizontal Airflow direction: ECONAVI Mode, Setting temperature goes down 3ºC in total,

1ºC controlled by ECONAVI activity level detection and another 1’C controlled by ECONAVI light intensity detection.

ECONAVI dual sensor OFF, Outside temperature: 2ºC/1ºC, Remote setting temperature: 26ºC with Fan Speed (High),

Vertical Airflow direction: Auto, Horizontal Airflow direction: Front

Total power consumption amount are measured for 1 hour in stable condition. At Panasonic Amenity Room ( size:16.6m²)

This is the maximum energy savings value, and the effect differs according to conditions in installation and usage.

*²Comparison of 1.5 HP non-inverter model available in the Middle East between with ECONAVI dual sensor ON and OFF (Heating)

ECONAVI dual sensor ON, Outside temperature: 2ºC/1ºC, Remote setting temperature: 26ºC with Fan Speed (High),

Vertical Airflow direction: Auto, Horizontal Airflow direction: ECONAVI Mode, Setting temperature goes down 3ºC in total,

1ºC controlled by ECONAVI activity level detection and another 1’C controlled by ECONAVI light intensity detection.

ECONAVI dual sensor OFF, Outside temperature: 2ºC/1ºC, Remote setting temperature: 26ºC with Fan Speed (High), Vertical Airflow direction:

Auto, Horizontal Airflow direction: Front

Total power consumption amount are measured for 1 hour in stable condition. At Panasonic Amenity Room ( size:16.6m²)

This is the maximum energy savings value, and the effect differs according to conditions in installation and usage.

SUNLIGHT DETECTION

SUNLIGHT DETECTION

NEW

NEW

Sunlight Detection/

Sunlight Detection

ECONAVI detects changes in sunlight intensity in the room and judges whether it is sunny or cloudy/night and reduces the waste of cooling under less sunlight conditions.

ECONAVI detects changes in sunlight intensity in the room and judges whether it is sunny or cloudy/night and reduces the waste of cooling under less sunlight conditions.

HUMAN ACTIVITY DETECTION

HUMAN ACTIVITY DETECTION

Area Search/

Area Search

ECONAVI detects human movements and reduces the waste of cooling the unoccupied area of the room.

ECONAVI detects human movements and reduces the waste of cooling the unoccupied area of the room.

Activity Detection/

Activity Detection

ECONAVI detects changes in activity levels and reduces the waste of cooling with unnecessary power.

ECONAVI detects changes in activity levels and reduces the waste of cooling with unnecessary power.

Absence Detection/

Absence Detection

ECONAVI detects human absence in the room and reduces the waste of cooling an empty room.

ECONAVI detects human absence in the room and reduces the waste of cooling an empty room.

Sunny

Sunny

Cloudy/Night

Cloudy/Night

15

AIR PURIFYING SYSTEM nanoe-G

AIR PURIFYING SYSTEM

NEW

NEW

Panasonic air conditioners now come with a new air purifying system called nanoe-

G

which utilises nano technology fine particles consisting of ions and radicals to purify the air in the room. It works effectively on airborne and adhesive micro-organisms such as bacteria, viruses and mould thus ensuring a cleaner living environment.

Panasonic air conditioners now come with a new air purifying system called nanoe-

G which utilises nano technology fine particles consisting of ions and radicals to purify the air in the room. It works effectively on airborne and adhesive micro-organisms such as bacteria, viruses and mould thus ensuring a cleaner living environment.

AIRBORNE/

AIRBORNE

nanoe-

G is able to remove 99%*¹ of bacteria, viruses and mould in the air.

nanoe-

G

is able to remove 99%*¹ of bacteria, viruses and mould in the air.

3.

nanoe-

G

brings micro-organisms back into the filter.

nanoe-

G

brings micro-organisms back into the filter.

Suppr Tropical Heat Pump

Suppr Tropical Heat Pump

ADHESIVE/

ADHESIVE

nanoe-

G

is able to deactivate 99%*² of adhesive micro-organisms such as bacteria, viruses and inhibits mould growth on surfaces and fabrics.

nanoe-

G

is able to deactivate 99%*² of adhesive micro-organisms such as bacteria, viruses and inhibits mould growth on surfaces and fabrics.

1.

3 trillion*³ nanoe-

G fine particles released from the generator.

3 trillion*³ nanoe-

G

fine particles released from the generator.

2.

nanoe-

G

catches micro-organisms.

nanoe-

G

catches micro-organisms.

Harmful micro-organisms

Harmful micro-organisms

Bacteria

Bacteria

Viruses

Viruses

Mould

Mould

16

The effectiveness of/

The effectiveness of

Removes

Removes

99

%

BACTERIA,

VIRUSES

and

MOULD

BACTERIA,

VIRUSES and

MOULD

*¹Airborne Removal was certified by Kitasato Research Center for Environmental Science

• KRCES-Bio. Test Report no. : 23_0182

Bacteria : Staphylococcus aureus (NBRC 12732)

• KRCES-Env. Test Report no. : 22_0008

Virus : Escherichia coli phage (øX-174 ATCC 13706-B1)

: Influenza (H1N1) 2009 virus

• KRCES-Env. Test Report no. : 23_0140

Mould : Penicillium pinophilum (NBRC 6345)

All results are based on specific testing conditions.

All tests are not demonstrated under actual usage situation.

*¹ Airborne Removal was certified by Kitasato Research Center for Environmental Science

• KRCES-Bio. Test Report no. : 23_0182

Bacteria : Staphylococcus aureus (NBRC 12732)

• KRCES-Env. Test Report no. : 22_0008

Virus : Escherichia coli phage (øX-174 ATCC 13706-B1)

: Influenza (H1N1) 2009 virus

• KRCES-Env. Test Report no. : 23_0140

Mould : Penicillium pinophilum (NBRC 6345)

All results are based on specific testing conditions. All tests are not demonstrated under actual usage situation.

*³ 3 trillion is the simulated number of nanoe-

G

fine particles under the mentioned conditions. Actual measured nanoe-

G

fine particles at the centre of the room (13m

2

):100k/cc calculated number of nanoe-

G

fine particles in the entire room assuming they are evenly distributed.

All results are based on specific testing conditions.

All tests are not demonstrated under actual usage situation.

*³ 3 trillion is the simulated number of nanoe-

G

fine particles under the mentioned conditions. Actual measured nanoe-

G

fine particles at the centre of the room (13m²):100k/cc calculated number of nanoe-

G

fine particles in the entire room assuming they are evenly distributed.

All results are based on specific testing conditions. All tests are not demonstrated under actual usage situation.

*² Adhesive Deactivation was certified by Japan Food Research Laboratories

• Test Report no. : 11047933001-02

Bacteria :

Staphylococcus

aureus (NBRC 12732)

• Test Report no. : 11073649001-02

Virus : Bacteriophage (Phi X 174 NBRC 103405)

• Test Report no. : 11047937001-02

Mould : Cladosporium cladosporioides (NBRC 6348)

All results are based on specific testing conditions.

All tests are not demonstrated under actual usage situation.

*² Adhesive Deactivation was certified by Japan Food Research Laboratories

• Test Report no. : 11047933001-02

Bacteria : Staphylococcus aureus (NBRC 12732)

• Test Report no. : 11073649001-02

Virus : Bacteriophage (Phi X 174 NBRC 103405)

• Test Report no. : 11047937001-02

Mould : Cladosporium cladosporioides (NBRC 6348)

All results are based on specific testing conditions. All tests are not demonstrated under actual usage situation.

Deactivates

Deactivates

99

%

BACTERIA and

VIRUSES

BACTERIA and VIRUSES

Inhibits MOULD Growth

Inhibits MOULD Growth

*

17

18

PRODUCT

LINE-UP

PRODUCT LINE-UP

Super Tropical Heat Pump ¦ Deluxe Type

Super Tropical Heat Pump ¦ Deluxe Type

Heat-pump Model

Heat-pump Model

NEW

NEW

CS-A18NKS | CS-A24NKS

Wireless

Wireless

(Random)

(Random)

SPECIFICATIONS/

SPECIFICATIONS

Model

Model

Cooling/ Heating Capacity

Cooling/ Heating Capacity

T1 / T3

H1

T1 / T3

H1

Electrical Data

Electrical Data

T1 / T3

H1

Voltage

Voltage

Running Current

Running Current

Moisture Removal

Moisture Removal

Air Circulation (Indoor/Hi)

Air Circulation (Indoor/Hi)

(60Hz)

Btu/h kW

Btu/hW

V

A

W

L/h

Pt/h m³/min.

ft³/min.

Dimensions

Dimensions

Net Weight

Net Weight

Refrigerant

Pipe Diameter

Refrigerant

Pipe Diameter

Pipe Extension

Pipe Extension

Height

Height

mm inch mm

Width

Width

Depth

Depth

lb

Liquid Side

Liquid Side

mm inch mm

Gas Side

Gas Side

inch

Chargeless Pipe Length

Chargeless Pipe Length

Maximum Pipe Length

Maximum Pipe Length

Maximum Elevation Length

Maximum Elevation Length

m m m

Additional Refrigerant Gas*

Additional Refrigerant Gas*

g/m inch mm inch kg

Power Supply

Power Supply

CS-A18NKS

(CU-A18NKS)

16,000 / 14,300

18,400

4.70 / 4.20

5.40

9.35 / 7.00

11.15

220

7.9 / 9.4

7.6

1,710 / 2,040

1,650

0.6

1.3

15.3

16.0

540

565

290 (750)

11-7/16 (29-17/32)

1,070 (875)

42-5/32 (34-15/32)

240 (345)

9-15/32 (13-19/32)

12 (53)

26 (117)

ø 6.35

1/4

ø 12.70

1/2

7.5

25

20

20

Indoor/ Indoor

* When pipes are not extended from the standard pipe length, the required amount of refrigerant is already in the unit.

* When pipes are not extended from the standard pipe length, the required amount of refrigerant is already in the unit.

OUTDOOR/

OUTDOOR

CU-A18NKS

CU-A24NKS

Rating Conditions

Rating Conditions

Inside air temperature

Inside air temperature

Outside air temperature

Outside air temperature

Cooling/

Cooling

Heating/

Heating

( ): Outdoor Unit/

Outdoor Unit

CS-A24NKS

(CU-A24NKS)

20,500 / 17,400

25,200

6.00 / 5.10

7.40

7.80 / 5.70

9.15

220

12.1 / 14.1

12.7

2,630 / 3,040

2,750

1.0

2.1

17.4

18.2

614

642

290 (750)

11-7/16 (29-17/32)

1,070 (875)

42-5/32 (34-15/32)

240 (345)

9-15/32 (13-19/32)

12 (63)

26 (139)

ø 6.35

1/4

ø 15.88

5/8

7.5

25

20

30

Indoor/ Indoor

Cooling /

Cooling

T 1

27˚C DB

19˚C WB

35˚C DB

24˚C WB

T 3

29˚C DB

19˚C WB

46˚C DB

24˚C WB

Heating /

Heating

H 1

20˚C DB

7˚C DB

6˚C WB

19

20

PRODUCT

LINE-UP

PRODUCT LINE-UP

NEW

NEW

CS-PA18NKS | CS-PA24NKS

SPECIFICATIONS/

SPECIFICATIONS

Model

Model

Cooling/ Heating Capacity

Cooling/ Heating Capacity

T1 / T3

H1

EER/ COP

EER/ COP

T1 / T3

H1

Voltage

Voltage

Electrical Data

Electrical Data

T1 / T3

H1

Running Current

Running Current

Power Input

Power Input

Moisture Removal

Moisture Removal

Air Circulation (Indoor/Hi)

Air Circulation (Indoor/Hi)

(60Hz)

Btu/h kW

Btu/hW

V

A

W

L/h

Pt/h m³/min.

ft³/min.

Height

Height

mm inch mm

Dimensions

Dimensions

Width

Width

Depth

Depth

Net Weight

Net Weight

Refrigerant

Pipe Diameter

Refrigerant

Pipe Diameter

Pipe Extension

Pipe Extension

lb mm

Liquid Side

Liquid Side

inch mm

Gas Side

Gas Side

inch

Chargeless Pipe Length

Chargeless Pipe Length

Maximum Pipe Length

Maximum Pipe Length

Maximum Elevation Length

Maximum Elevation Length

Additional Refrigerant Gas*

Additional Refrigerant Gas*

m m m g/m inch mm inch kg

Power Supply

Power Supply

CS-PA18NKS

(CU-PA18NKS)

16,000 / 14,300

18,400

4.70 / 4.20

5.40

9.25 / 6.90

10.95

220

8.0 / 9.6

7.7

1,730 / 2,080

1,680

0.6

1.3

15.3

16.0

540

565

290 (750)

11-7/16 (29-17/32)

1,070 (875)

42-5/32 (34-15/32)

240 (345)

9-15/32 (13-19/32)

12 (53)

26 (117)

ø 6.35

1/4

ø 12.70

1/2

7.5

25

20

20

Indoor/

Indoor

* When pipes are not extended from the standard pipe length, the required amount of refrigerant is already in the unit.

* When pipes are not extended from the standard pipe length, the required amount of refrigerant is already in the unit.

OUTDOOR/

OUTDOOR

CU-PA18NKS/

CU-PA24NKS

Super Tropical Heat Pump ¦ Standard Type

Super Tropical Heat Pump ¦ Standard Type

Heat-pump Model

Heat-pump Model

(Optional)

(Optional)

Wireless

Wireless

(Random)

(Random)

Rating Conditions

Rating Conditions

Inside air temperature

Inside air temperature

Outside air temperature

Outside air temperature

Cooling/

Cooling

Heating/

Heating

( ): Outdoor Unit/

Outdoor Unit

CS-PA24NKS

(CU-PA24NKS)

20,500 / 17,400

24,900

6.00 / 5.10

7.30

7.70/ 5.65

8.90

220

12.2 / 14.2

12.8

2,670 / 3,080

2,790

1.0

2.1

17.4

18.2

614

642

290 (750)

11-7/16 (29-17/32)

1,070 (875)

42-5/32 (34-15/32)

240 (345)

9-15/32 (13-19/32)

12 (63)

26 (139)

ø 6.35

1/4

ø 15.88

5/8

7.5

25

20

30

Indoor/

Indoor

Cooling /

Cooling

T 1

27˚C DB

19˚C WB

35˚C DB

24˚C WB

T 3

29˚C DB

19˚C WB

46˚C DB

24˚C WB

Heating /

Heating

H 1

20˚C DB

7˚C DB

6˚C WB

21

22

PRODUCT

LINE-UP

PRODUCT LINE-UP

NEW

NEW

CS-YA18NKS | CS-YA24NKS

SPECIFICATIONS/

SPECIFICATIONS

Model

Model

Cooling/ Heating Capacity

Cooling/ Heating Capacity

T1 / T3

H1

EER/ COP

EER/ COP

T1 /

H1

Electrical Data

Electrical Data

T1 / T3

H1

Voltage

Voltage

Running Current

Running Current

T3

Moisture Removal

Moisture Removal

Air Circulation (Indoor/Hi)

Air Circulation (Indoor/Hi)

(60Hz)

Btu/h kW

Btu/hW

V

A

W

L/h

Pt/h m³/min.

ft³/min.

Height

Height

mm inch mm

Dimensions

Dimensions

Width

Width

Depth

Depth

Net Weight

Net Weight

Refrigerant

Pipe Diameter

Refrigerant

Pipe Diameter

Pipe Extension

Pipe Extension

lb mm

Liquid Side

Liquid Side

inch

Gas Side

Gas Side

mm inch

Chargeless Pipe Length

Chargeless Pipe Length

Maximum Pipe Length

Maximum Pipe Length

Maximum Elevation Length

Maximum Elevation Length

Additional Refrigerant Gas*

Additional Refrigerant Gas*

m m m g/m inch mm inch kg

Power Supply

Power Supply

CS-YA18NKS

(CU-YA18NKS)

16,000 / 14,300

18,100

4.70 / 4.20

5.30

9.20 / 6.75

10.65

220

8.1 / 9.7

7.8

1,740 / 2,120

1,700

0.6

1.3

15.3

16.0

540

565

290 (750)

11-7/16 (29-17/32)

1,070 (875)

42-5/32 (34-15/32)

240 (345)

9-15/32 (13-19/32)

12 (53)

26 (117)

ø 6.35

1/4

ø 12.70

1/2

7.5

15

10

20

Indoor/

Indoor

* When pipes are not extended from the standard pipe length, the required amount of refrigerant is already in the unit.

* When pipes are not extended from the standard pipe length, the required amount of refrigerant is already in the unit.

OUTDOOR/

OUTDOOR

CU-YA18NKS

CU-YA24NKS

Super Tropical Heat Pump ¦ Basic Type

Super Tropical Heat Pump ¦ Basic Type

Heat-pump Model

Heat-pump Model

(Optional)

(Optional)

(Random)

(Random)

Wireless

Wireless

Rating Conditions

Rating Conditions

Inside air temperature

Inside air temperature

Outside air temperature

Outside air temperature

Cooling/

Cooling

Heating/

Heating

( ): Outdoor Unit/

Outdoor Unit

CS-YA24NKS

(CU-YA24NKS)

20,500 / 17,400

24,900

6.00 / 5.10

7.30

7.60 / 5.60

8.75

220

12.4 / 14.3

13.0

2,700 / 3,120

2,840

1.0

2.1

17.4

18.2

614

642

290 (750)

11-7/16 (29-17/32)

1,070 (875)

42-5/32 (34-15/32)

240 (345)

9-15/32 (13-19/32)

12 (63)

26 (139)

ø 6.35

1/4

ø 15.88

5/8

7.5

15

10

30

Indoor/

Indoor

Cooling /

Cooling

T 1

27˚C DB

19˚C WB

35˚C DB

24˚C WB

T 3

29˚C DB

19˚C WB

46˚C DB

24˚C WB

Heating /

Heating

H 1

20˚C DB

7˚C DB

6˚C WB

23

SUPER TROPICAL

COOLING ONLY

SUPER TROPICAL COOLING ONLY

24

Nature is never wasteful and always strives to achieve perfect balance.

These are two aspects of Nature that have inspired the design of Panasonic’s new range of air conditioners. Not only have we adopted Nature’s gentle, flowing curves, but we have also emulated its intuitive intelligence by using minimal energy to assure you of a consistent supply of cool, clean and healthy air.

Nature is never wasteful and always strives to achieve perfect balance. These are two aspects of Nature that have inspired the design of Panasonic’s new range of air conditioners. Not only have we adopted Nature’s gentle, flowing curves, but we have also emulated its intuitive intelligence by using minimal energy to assure you of a consistent supply of cool, clean and healthy air.

Eco Intelligence

with Design

ECO INTELLIGENCE with Design

Responds intuitively to the level of human presence and activity in the room to adjust coolness for maximumcomfort and maximum savings.

Responds intuitively to the level of human presence and activity in the room to adjust coolness for maximumcomfort and maximum savings.

-ion

Air Purifying System

Alerts you to changes in the degree of air cleanliness and activates the air purifying function for cleaner, healthier air.

Alerts you to changes in the degree of air cleanliness and activates the air purifying function for cleaner, healthier air.

Cooling is possible even when the outside temperature is 55ºC, featuring a highly durable compressor and fan motor to maintain room comfort even under the hottest conditions.

Cooling is possible even when the outside temperature is 55ºC, featuring a highly durable compressor and fan motor to maintain room comfort even under the hottest conditions.

25

TECHNOLOGY

ECO PATROL TECHNOLOGY

ENJOY UNINTERRUPTED COOLING AND ENERGY SAVINGS

ENJOY UNINTERRUPTED COOLONG AND ENERGY SAVINGS

For those who welcome energy savings without having to give up uninterrupted cooling, the Eco Patrol is the answer.

As soon as it is activated via remote control, Eco Patrol’s sensor intuits the level of human presence or activity in a room and adjusts the temperature accordingly. Saving you the hassle of having to remember to turn the air conditioner on or off, the temperature up or down – while saving you maximum 20% in electricity costs.

For those who welcome energy savings without having to give up uninterrupted cooling, the Eco Patrol is the answer.

As soon as it is activated via remote control, Eco Patrol’s sensor intuits the level of human presence or activity in a room and adjusts the temperature accordingly. Saving you the hassle of having to remember to turn the air conditioner on or off, the temperature up or down – while saving you maximum 20% in

electricity costs.

26

MAXIMUM 20% ENERGY SAVINGS

MAXIMUM 20% ENERGY SAVINGS

The energy-saving benefit of Eco Patrol is maximised when the air conditioner is left switched on in a room that is used intermittently. For example, when the room is empty for two hours, the air conditioner self-adjusts to raise the temperature by 2°C for maximum 20% energy savings. When someone re-enters, the air conditioner reverts to the set temperature to provide uninterrupted cooling.

The energy-saving benefit of Eco Patrol is maximised when the air conditioner is left switched on in a room that is used intermittently. For example, when the room is empty for two hours, the air conditioner self-adjusts to raise the temperature by 2°C for maximum 20% energy savings. When someone re-enters, the air conditioner reverts to the set temperature to provide uninterrupted cooling.

SAVE

Up To

20

%

*

ENERGY SAVINGS

ENERGY SAVINGS

Non-Inverter model

Non-Inverter model

* Derived from comparison between a non-Inverter model with Eco Patrol and a non-Inverter model without Eco Patrol – both operating in an empty room for two hours.

* Derived from comparison between a non-Inverter model with Eco Patrol and a non-Inverter model without Eco Patrol – both operating in an empty room for two hours.

Super Tropical Cooling Only

Super Tropical Cooling Only

ECO PATROL’S OPERATION

ECO PATROL’S OPERATION

Eco Patrol optimises operation as cooling requirements change.

Eco Patrol optimises operation as cooling requirements change.

DETECTION

DETECTION

Senses human presence and activity level

Senses human presence and activity level

ANALYSIS

ANALYSIS

Records if there are any changes

Records if there are any changes

ADJUSTMENT

ADJUSTMENT

Increases or decreases power accordingly

Increases or decreases power accordingly

MAXIMUM

COMFORT

MAXIMUM

COMFORT

When the activity level goes up...

When the activity level goes up...

Higher-power operation provides uninterrupted cooling

Higher power operation provides uninterrupted cooling

MAXIMUM

SAVINGS

MAXIMUM

SAVINGS

When everyone leaves...

When everyone leaves...

Lower-power operation saves energy

Lower power operation saves energy

Applicable Models : CS-C18KKS, CS-C24KKS /

Applicable Models : CS-C18KKS, CS-C24KKS

27

-ion

AIR PURIFYING SYSTEM WITH PATROL SENSOR/

AIR PURIFYING SYSTEM WITH PATROL SENSOR

A Panasonic air conditioner can purify the air as it cools !

Panasonic air conditioner can purify the air as it cools!

3.

Dust particles are negatively charged

Dust particles are negatively charged

4.

Dust particles are trapped by positively charged e-ion filter

Dust particles are trapped by positively charged e-ion filter

1.

Detects dust

Detects dust

2.

e-ions catch and deactivates micro-organisms in dust

e-ions catch and deactivates micro-organisms in dust

Harmful micro-organisms

Harmful micro-organisms

Bacteria

Bacteria

Viruses

Viruses

* 3 trillion is the simulated number of active e-ions under the mentioned conditions.

Actual measured active e-ions at the centre of the room (13m2):100k/cc calculated number of active e-ions in the entire room assuming they are evenly distributed

* 3 trillion is the simulated number of active e-ions under the mentioned conditions.

Actual measured active e-ions at the centre of the room (13m2):100k/cc calculated number of active e-ions in the entire room assuming they are evenly distributed

3 trillion e-ions released*

3 trillion e-ions released*

Panasonic air conditioners come with an in-built air purifying system. Whether the air conditioner is switched on or off, one touch of a button activates the function. As soon as the Patrol Sensor detects the level of dust particles in the air has reached an unhealthy level, e-ions are released to clean the air of dust and harmful micro-organisms – so you can breathe easy in a cleaner and healthier environment!

Panasonic air conditioners come with an in-built air purifying system.

Whether the air conditioner is switched on or off, one touch of a button activates the function. As soon as the Patrol Sensor detects the level of dust particles in the air has reached an unhealthy level, e-ions are released to clean the air of dust and harmful micro-organisms – so you can breathe easy in a cleaner and healthier environment!

CLEAN AIR 24 HOURS A DAY /

CLEAN AIR 24 HOURS A DAY

PATROL SENSOR /

PATROL SENSOR

The sensor colour changes to indicate the level of dust in the air.

The sensor colour changes to indicate the level of dust in the air.

PATROL SENSOR PATROL SENSOR PATROL SENSOR PATROL SENSOR

28

Monitors dust particles in the air

Monitors dust particles in the air

Detects dust and activates air purification

Detects dust and activates air purification

e-ions clean the air

e-ions clean the air

Once the air is clean, monitoring resumes

Once the air is clean, monitoring resumes

Super Tropical Cooling Only

Super Tropical Cooling Only

-ion

HEALTHIER ENVIRONMENT /

HEALTHIER ENVIRONMENT

e-ion Action

e-ion Action

• Active e-ions can deactivate

airborne micro-organisms.

• Active e-ions can deactivate

airborne micro-organisms.

Removal performance /

Removal performance

(%)

100

80

60

40

20

0

0 10

Without air purification

Without air purification

With air purification

With air purification

20 30 40 50

Mould

Eradication

Mould Eradication

3.5

*

1

Times faster

Times faster

60

Time(min.)

Time(min.)

Deactivation was certified by Japan Food Research Laboratories

• Test report number: No. 10057764001-02

Bacteria: Staphylococcus aureus subsp. aureus (NBRC12732)

• Test report number: No. 10057770001-02

Bacteria: Escherichia coli (NBRC3972)

• Test report number: No. 204101750-001

Virus: Influenza virus A

*1 Test report number: No. 304110078-001

Test method: The e-ion Air Purifying System was operated in a test

room (10m 2 ) and changes in airborne mould and bacteria were

measured by means of the Air Sampler Method (MAS100)

Deactivation was certified by Japan Food Research Laboratories

• Test report number: No. 10057764001-02

Bacteria: Staphylococcus aureus subsp. aureus (NBRC12732)

• Test report number: No. 10057770001-02

Bacteria: Escherichia coli (NBRC3972)

• Test report number: No. 204101750-001

Virus: Influenza virus A

*1 Test report number: No. 304110078-001

Test method: The e-ion Air Purifying System was operated in a test

room (10m 2 ) and changes in airborne mould and bacteria were

measured by means of the Air Sampler Method (MAS100)

Deactivating mechanism /

Deactivating mechanism

Active e-ion stick to the surface of bacteria.

Active e-ion stick to the surface of bacteria.

OH radicals work on the cell wall.

OH radicals work on the cell wall.

The same applies to viruses /

The same applies to viruses

(%)

100

80

60

40

20

0

0

Without air purification

Without air purification

With air purification

With air purification

10 20 30 40

The bacteria is deactivated.

The bacteria is deactivated.

Bacteria

Eradication

Bacteria eradication

6

*

1

Times faster

Times faster

50 60

Time(min.)

Time(min.)

FASTER PURIFICATION /

FASTER PURIFICATION

e-ion Filter Charges

& Captures

e-ion Filter Charges & Captures

• When positively charged, the filter

attracts negatively charged dust

particles and traps them in its fine

micro-mesh.

• When positively charged, the filter attracts negatively charged dust particles and traps them in its fine micro-mesh.

* Panasonic has applied for 8 patents related to e-ion

Air Purifying technology (As of August, 2009)

*

1

After 5 cigarettes were smoked in a room

(approximately 20m3), air conditioner operation was started and the decrease in particulate concentration was measured with a dust meter

* Panasonic has applied for 8 patents related to e-ion

Air Purifying technology (As of August, 2009)

*

1

After 5 cigarettes were smoked in a room

(approximately 20m3), air conditioner operation was started and the decrease in particulate concentration was measured with a dust meter

Conventional

Air Purifying

Conventional

Air Purifying

e-ion Air

Purifying System

Time elapsed

Time elapsed

3 minutes

3 minutes

4 minutes

4 minutes

8 patents* applied for

8 patents* applied for

5 minutes

5 minutes

About

5.8

Virtually all smoke is gone

Virtually all smoke is gone

times* 1 more efficient

About 5.8 times *

1 more efficient

MORE EFFECTIVE CAPTURE /

MORE EFFECTIVE CAPTURE

Bigger, Finer e-ion Filter

Bigger, Finer e-ion Filter

• A finer mesh covering a wider area

enables the e-ion filter to capture even

the smallest particles more effectively.

• A finer mesh covering a wider area enables

the e-ion filter to capture even the smallest

particles more effectively.

Conventional filter /

Conventional filter

e-ion filter /

e-ion filter

50

%

Finer

Finer

Also captures microscopic dust

(100~1,000µm)

Also captures microscopic dust

(100~1,000µm)

29

30

PRODUCT

LINE-UP

PRODUCT LINE-UP

Super Tropical

Cooling Only

¦ Deluxe Type

Super Tropical Cooling only ¦ Deluxe Type

Cooling Models

Cooling Models

CS-C18KKS | CS-C24KKS

SPECIFICATIONS/

SPECIFICATIONS

Model

Model

(60Hz)

Cooling Capacity

Cooling Capacity

EER

EER

Electrical Data

Electrical Data

Moisture Removal

Moisture Removal

T1 / T3

Air Circulation (Indoor/Hi)

Air Circulation (Indoor/Hi)

Dimensions

Dimensions

Net Weight

Net Weight

Refrigerant Pipe Diameter

Refrigerant Pipe Diameter

Pipe Extension

Pipe Extension

T1 /

T1 /

T3

T3

Voltage

Voltage

Running Current

Running Current

Power Input

Power Input

Height

Height

Width

Width

Pt/h m³/min.

ft³/min.

Depth

Depth

mm inch kg lb mm

Liquid Side

Liquid Side

inch mm

Gas Side

Gas Side

inch

Chargeless Pipe Length

Chargeless Pipe Length

Maximum Pipe Length

Maximum Pipe Length

Maximum Elevation Length

Maximum Elevation Length

Additional Refrigerant Gas*

Additional Refrigerant Gas*

m m m g/m mm inch mm inch

Btu/h kW

Btu/hW

V

A

W

L/h

Power Supply

Power Supply

* When pipes are not extended from the standard pipe length, the required amount of refrigerant is already in the unit.

* When pipes are not extended from the standard pipe length, the required amount of refrigerant is already in the unit.

CS-C18KKS

(CU-C18KKS)

17,400 / 15,000

5.10 / 4.40

10.30 / 7.65

220

7.8 / 9.1

1,690 / 1,960

0.7

1.5

15.8

558

290 (750)

11-7/16 (29-17/32)

1,070 (875)

42-5/32 (34-15/32)

235 (345)

9-9/32 (13-19/32)

12 (48)

26 (106)

ø 6.35

1/4

ø 12.70

1/2

10

25

20

20

Indoor/ Indoor

OUTDOOR/

OUTDOOR

CU-C18KKS

CU-C24KKS

(Random)

(Random)

Wireless

Wireless

( ): Outdoor Unit/

Outdoor Unit

CS-C24KKS

(CU-C24KKS)

22,200 / 19,100

6.50 / 5.60

8.65 / 6.35

220

11.9 / 13.9

2,560 / 3,000

1.3

2.7

18.2

642

290 (750)

11-7/16 (29-17/32)

1,070 (875)

42-5/32 (34-15/32)

235 (345)

9-9/32 (13-19/32)

12 (56)

26 (123)

ø 6.35

1/4

ø 15.88

5/8

10

25

20

30

Indoor/ Indoor

Rating Conditions

Rating Conditions

Inside air temperature

Inside air temperature

Outside air temperature

Outside air temperature

Cooling /

Cooling

T 1

27˚C DB

19˚C WB

35˚C DB

24˚C WB

T 3

29˚C DB

19˚C WB

46˚C DB

24˚C WB

31

PRODUCT

LINE-UP

PRODUCT LINE-UP

Super Tropical

Cooling Only

¦ Basic Type

Super Tropical Cooling only ¦ Basic Type

Cooling Models

Cooling Models

(Optional)

(Optional)

Wireless

Wireless

CS-PC18MKS | CS-PC24MKS

(Random)

(Random)

PC18/PC24 PC30

CS-PC30MKS

SPECIFICATIONS/

SPECIFICATIONS

Model

Model

(60Hz)

Cooling Capacity

Cooling Capacity

EER

EER

Electrical Data

Electrical Data

Moisture Removal

Moisture Removal

Dimensions

Dimensions

Net Weight

Net Weight

T1 / T3

Refrigerant Pipe Diameter

Refrigerant Pipe Diameter

Pipe Extension

Pipe Extension

T1 /

T1 /

Air Circulation (Indoor/Hi)

Air Circulation (Indoor/Hi)

T3

T3

Voltage

Voltage

Running Current

Running Current

Power Input

Power Input

Height

Height

Width

Width

Depth

Depth

inch kg lb

Liquid Side

Liquid Side

mm inch mm

Gas Side

Gas Side

inch

Chargeless Pipe Length

Chargeless Pipe Length

Maximum Pipe Length

Maximum Pipe Length

Maximum Elevation Length

Maximum Elevation Length

Additional Refrigerant Gas*

Additional Refrigerant Gas*

m m m g/m mm inch mm inch mm

Btu/h kW

Btu/hW

V

A

W

L/h

Pt/h m³/min.

ft³/min.

Power Supply

Power Supply

* When pipes are not extended from the standard pipe length, the required amount of refrigerant is already in the unit.

* When pipes are not extended from the standard pipe length, the required amount of refrigerant is already in the unit.

CS-PC18MKS

(CU-PC18MKS)

17,100 / 14,700

5.0 / 4.3

9.25/ 6.85

220

8.5 / 10.0

1,850 / 2,150

0.7

1.5

16.2

572

290 (695)

11-7/16 (27-3/8)

1,070 (875)

42-5/32 (34-15/32)

235 (320)

9-9/32 (12-5/8)

12 (47)

26 (104)

ø 6.35

1/4

ø 12.70

1/2

7.5

25

20

20

Indoor/ Indoor

32

OUTDOOR/

OUTDOOR

CU-PC18MKS

CU-PC24MKS

CU-PC30MKS

Wireless

Wireless

CS-PC24MKS

(CU-PC24MKS)

21,800 / 18,800

6.4 / 5.5

8.05 / 5.90

220

12.5 / 14.8

2,700 / 3,200

1.2

2.5

18.7

660

290 (695)

11-7/16 (27-3/8)

1,070 (875)

42-5/32 (34-15/32)

235 (320)

9-9/32 (12-5/8)

12 (54)

26 (119)

ø 6.35

1/4

ø 15.88

5/8

7.5

25

20

30

Indoor/ Indoor

Rating Conditions

Rating Conditions

Inside air temperature

Inside air temperature

Outside air temperature

Outside air temperature

( ): Outdoor Unit/

Outdoor Unit

CS-PC30MKS

(CU-PC30MKS)

29,700 / 24,900

8.70 / 7.30

8.10 / 6.00

220

16.8 / 19.0

3,650 / 4,150

5.2

11.0

20.1

710

340 (795)

13-13/32 (31-5/16)

1,150 (900)

45-9/32 (35-7/16)

290 (320)

11-7/16 (12-5/8)

18 (70)

40 (154)

ø 9.52

3/8

ø 15.88

5/8

7.5

30

20

30

Outdoor/ Outdoor

Cooling /

Cooling

T 1

27˚C DB

19˚C WB

35˚C DB

24˚C WB

T 3

29˚C DB

19˚C WB

46˚C DB

24˚C WB

PRODUCT

LINE-UP

PRODUCT LINE-UP

CS-YC18MKS | CS-YC24MKS

SPECIFICATIONS/

SPECIFICATIONS

Model

Model

(60Hz)

Cooling Capacity

Cooling Capacity

EER

EER

Electrical Data

Electrical Data

Moisture Removal

Moisture Removal

T1 / T3

Air Circulation (Indoor/Hi)

Air Circulation (Indoor/Hi)

Dimensions

Dimensions

Net Weight

Net Weight

Refrigerant Pipe Diameter

Refrigerant Pipe Diameter

Pipe Extension

Pipe Extension

T1 /

T1 /

T3

T3

Voltage

Voltage

Running Current

Running Current

Power Input

Power Input

Height

Height

Width

Width

Pt/h m³/min.

ft³/min.

Depth

Depth

mm inch kg lb mm

Liquid Side

Liquid Side

inch

Gas Side

Gas Side

mm inch

Chargeless Pipe Length

Chargeless Pipe Length

Maximum Pipe Length

Maximum Pipe Length

Maximum Elevation Length

Maximum Elevation Length

Additional Refrigerant Gas*

Additional Refrigerant Gas*

m m m g/m mm inch mm inch

Btu/h kW

Btu/hW

V

A

W

L/h

Power Supply

Power Supply

* When pipes are not extended from the standard pipe length, the required amount of refrigerant is already in the unit.

* When pipes are not extended from the standard pipe length, the required amount of refrigerant is already in the unit.

CS-YC18MKS

(CU-YC18MKS)

17,100 / 14,700

5.0 / 4.3

9.05 / 6.70

220

8.7 / 10.2

1,890 / 2,190

0.7

1.5

16.2

579

290 (695)

11-7/16 (27-3/8)

1,070 (875)

42-5/32 (34-15/32)

220 (320)

8-11/16 (12-5/8)

12 (47)

26 (104)

ø 6.35

1/4

ø 12.70

1/2

7.5

15

10

20

Indoor/ Indoor

OUTDOOR/

OUTDOOR

CU-YC18MKS

CU-YC24MKS

Super Tropical

Cooling Only

¦ Standard Type

Super Tropical Cooling only ¦ Standard Type

Cooling Models

Cooling Models

Wireless

Wireless

(Random)

(Random)

( ): Outdoor Unit/

Outdoor Unit

CS-YC24MKS

(CU-YC24MKS)

21,800 / 18,800

6.4 / 5.5

7.95 / 5.80

220

12.7 / 15.0

2,740 / 3,240

1.2

2.5

18.7

660

290 (695)

11-7/16 (27-3/8)

1,070 (875)

42-5/32 (34-15/32)

220 (320)

8-11/16 (12-5/8)

12 (54)

26 (119)

ø 6.35

1/4

ø 15.88

5/8

7.5

15

10

30

Indoor/ Indoor

Rating Conditions

Rating Conditions

Inside air temperature

Inside air temperature

Outside air temperature

Outside air temperature

Cooling /

Cooling

T 1

27˚C DB

19˚C WB

35˚C DB

24˚C WB

T 3

29˚C DB

19˚C WB

46˚C DB

24˚C WB

33

34

FEATURES

COMPARISON AND EXPLANATION

FEATURES COMPARISON AND EXPLANATION

Features Comparison/

Features Comparison

Split Type

Split Type

Tropical Inverter

Tropical Inverter

CS-K18NKS

CS-K24NKS

Super Tropical Heat Pump

Super Tropical Heat Pump

CS-A18NKS

CS-A24NKS

CS-PA18NKS

CS-PA24NKS

CS-YA18NKS

CS-YA24NKS

Cooling Models

Cooling Models

Heat Pump Models

Heat Pump Models

nanoe-

G

nanoe-

G

Super Alleru buster filter

Super Alleru buster filter

Anti-Bacterial Filter

Anti-Bacterial Filter

Advanced+Plus e-ion Air Purifying System

Advanced+Plus e-ion Air Purifying System

Patrol Sensor

Patrol Sensor

Eco Patrol

Eco Patrol

Odour-Removing Function

Odour-Removing Function

Removable, Washable Panel

Removable, Washable Panel

ECONAVI dual sensor

ECONAVI dual sensor

ECONAVI mono sensor

ECONAVI mono sensor

AUTOCOMFORT dual sensor

AUTOCOMFORT dual sensor

AUTOCOMFORT mono sensor

AUTOCOMFORT mono sensor

Inverter Control

Inverter Control

55˚C Ambient Cooling

55˚C Ambient Cooling

Quiet Mode

Quiet Mode

Powerful Mode

Powerful Mode

Soft Dry Operation Mode

Soft Dry Operation Mode

Personal Airflow Creation

Personal Airflow Creation

Airflow Direction Control (Up & Down)

Airflow Direction Control (Up & Down)

Manual Horizontal Airflow Direction Control

Manual Horizontal Airflow Direction Control

Auto Changeover Mode (Heat pump)

Auto Changeover Mode (Heat pump)

Automatic Operation Mode (Cooling)

Automatic Operation Mode (Cooling)

Hot Start Control

Hot Start Control

24-Hour Dual ON & OFF Real Setting Timer

24-Hour Dual ON & OFF Real Setting Timer

24-Hour ON & OFF Real Setting Timer

24-Hour ON & OFF Real Setting Timer

12-Hour ON & OFF Setting Timer

12-Hour ON & OFF Setting Timer

LCD Wireless Remote Control

LCD Wireless Remote Control

(Random)

(Random)

Random Auto Restart (32 Restart Patterns)

Random Auto Restart (32 Restart Patterns)

Blue Fin Condenser

Blue Fin Condenser

Long Piping

(Numbers indicate the maximum pipe length)

Long Piping

(Numbers indicate the maximum pipe length)

Top-Panel Maintenance Access

Top-Panel Maintenance Access

Self-Diagnostic Function

Self-Diagnostic Function

20m (K18)

30m (K24)

25m

(Optional)

(Optional)

25m

(Optional)

(Optional)

(54 ºC)

15m

Super Tropical Cooling Only

Super Tropical Cooling Only

CS-C18KKS

CS-C24KKS

CS-PC18MKS

CS-PC24MKS

CS-PC30MKS

CS-YC18MKS

CS-YC24MKS

25m

(Optional)

(Optional)

25m (PC18/PC24)

30m (PC30)

15m

Features Explanation/

Features Explanation

nanoe

-

G nanoe-

G

works effectively on airborne and adhesive micro-organisms such as bacteria, viruses and mould ensuring a cleaner living environment. see page 16-17 / 44-45

see page 16-17 / 44-45 nanoe-

G nanoe-

G

works effectively on airborne and adhesive micro-organisms such as bacteria, viruses and mould ensuring a cleaner living environment.

SUPER Alleru-Buster Filter

The SUPER Alleru-Buster Filter combines three defensive actions in one – anti-allergen, anti-virus and anti-bacteria protection – to keep the air cool and clean.

SUPER Alleru-Buster Filter

The SUPER Alleru-Buster Filter combines three defensive actions in one – anti-allergen, anti-virus and anti-bacteria protection – to keep the air cool and clean.

Anti-Bacterial Filter

The Anti-Bacterial Filter combines three effects in one: anti-allergen, anti-virus and anti-bacteria protection to provide clean air.

Anti-Bacterial Filter

The Anti-Bacterial Filter combines three effects in one: anti-allergen, anti-virus and anti-bacteria protection to provide clean air.

ECONAVI dual sensor

Detects and reduces waste for more energy savings.

ECONAVI dual sensor

Detects and reduces waste for more energy savings.

see page 14-15 / 36-41

see page 14-15 / 36-41

ECONAVI mono sensor

ECONAVI mono sensor

see page 14-15 / 42

see page 14-15 / 42

AUTOCOMFORT dual sensor

AUTOCOMFORT dual sensor

see page 14-15 / 39

see page 14-15 / 39

AUTOCOMFORT mono sensor

AUTOCOMFORT mono sensor

see page 14-15 / 43

see page 14-15 / 43

Inverter Control

Inverter Control

see page 6-7 / 8-9

see page 6-7 / 8-9

24-Hour Dual ON & OFF Real Setting Timer

This feature enables you to preset two different sets of start/stop operation timer (hour and minute) within a

24-hour time frame.

24-Hour Dual ON & OFF Real Setting Timer

This feature enables you to preset two different sets of start/stop operation timer (hour and minute) within a 24-hour time frame.

Cleaner Air/

Cleaner Air

Advanced+Plus e-ion Air Purifying System e-ions are shot out to catch dust and deactivate airborne bacteria and mould. The positively-charged e-ion filter attracts dust to thoroughly clean the room.

Advanced+Plus e-ion Air Purifying System e-ions are shot out to catch dust and deactivate airborne bacteria and mould. The positively charged e-ion filter attracts dust to thoroughly clean the room.

see page 28-29

see page 28-29

Patrol Sensor

The sensor's color changes depending on the dirt level, providing easy-to-understand visual confirmation of operation status to put your mind at ease.

Patrol Sensor

The sensor's color changes depending on the dirt level, providing easy-to-understand visual confirmation of operation status to put your mind at ease.

see page 28-29

see page 28-29

Eco Patrol

Eco Patrol detects human presence and activity levels. It then adjusts temperature and fan speed settings accordingly.

Eco Patrol

Eco Patrol detects human presence and activity levels. It then adjusts temperature and fan speed settings accordingly.

see page 26-27 / 46-47

see page 26-27 / 46-47

Comfort/

Comfort

55˚C Ambient Cooling

55˚C Ambient Cooling

see page 48

see page 48

Quiet Mode

Quiet Mode

Powerful Mode

Powerful Mode

Soft Dry Operation Mode

Starts with cooling to dehumidify, then provides continuous breeze at a low frequency to keep a room dry without much change to the temperature.

Soft Dry Operation Mode

Starts with cooling to dehumidify, then provides continuous breeze at a low frequency to keep a room dry without much change to the temperature.

Personal Airflow Creation

Vertical and horizontal airflow patterns can be combined as desired to achieve optimum comfort, with operation possible by remote even from a distance.

Personal Airflow Creation

Vertical and horizontal airflow patterns can be combined as desired to achieve optimum comfort, with operation possible by remote even from a distance.

Convenience/

Convenience

24-Hour ON & OFF Real Setting Timer

The exact operating time (hour and minute) of the air conditioner can be set in advance. From here on, the unit will operate in accordance to these preset hours every day until the system is reset.

24-Hour ON & OFF Real Setting Timer

The exact operating time (hour and minute) of the air conditioner can be set in advance. From here on, the unit will operate in accordance to these preset hours every day until the system is reset.

Random Auto Restart

Random Auto Restart

Blue Fin Condenser

Blue Fin Condenser

see page 49

see page 49

Reliability/

Reliability

(Random)

(Random)

Long Piping

Long Piping

Top-Panel Maintenance Access

Top-Panel Maintenance Access

OPTIONAL ACCESSORY/

OPTIONAL ACCESSORY

Replacement SUPER alleru-buster filter

Replacement SUPER alleru-buster filter

CZ-SA13P

CS-PC18MKS

CS-PC24MKS

CS-PC30MKS

Anti-Bacterial Filter

Anti-Bacterial Filter

Odour-Removing Function

With this function, there's no unpleasant odour when the unit starts up. That's because the fan remains off momentarily, while the source of the odour inside the air conditioner is suppressed.

The unit must be in cool or dry mode and the fan speed must be set to automatic.

Odour-Removing Function

With this function, there's no unpleasant odour when the unit starts up. That's because the fan remains off momentarily, while the source of the odour inside the air conditioner is suppressed.

The unit must be in cool or dry mode and the fan speed must be set to automatic.

Removable, Washable Panel

Removable, Washable Panel

Airflow Direction Control (Up & Down)

Airflow Direction Control (Up & Down)

Manual Horizontal Airflow Direction Control

Manual Horizontal Airflow Direction Control

Auto Changeover Mode (Heat pump)

Auto Changeover Mode (Heat pump)

Automatic Operation Mode (Cooling)

Automatic Operation Mode (Cooling)

Hot Start Control

On the start of the heating cycle and after the defrost cycle, the indoor fan will start up once the indoor heat exchanger is warm.

Hot Start Control

On the start of the heating cycle and after the defrost cycle, the indoor fan will start up once the indoor heat exchanger is warm.

12-Hour ON & OFF Setting Timer

12-Hour ON & OFF Setting Timer

LCD Wireless Remote Control

LCD Wireless Remote Control

Self-Diagnostic Function

Should a malfunction occur, the unit diagnoses the problem and shows the corresponding alphanumeric code. This allows for quicker servicing.

Self-Diagnostic Function

Should a malfunction occur, the unit diagnoses the problem and shows the corresponding alphanumeric code. This allows for quicker servicing.

CZ-SA22P

CS-PA18NKS

CS-PA24NKS

CS-YA18NKS

CS-YA24NKS

35

TECHNICAL EXPLANATION/

TECHNICAL EXPLANATION

NEW SUNLIGHT DETECTION (COOLING)

NEW SUNLIGHT DETECTION (COOLING)

ECONAVI detects changes in sunlight intensity in the room and judges whether it is sunny or cloudy/night. It reduces the waste of cooling under less sunlight conditions.

ECONAVI detects changes in sunlight intensity in the room and judges whether it is sunny or cloudy/night. It reduces the waste of cooling under less sunlight conditions.

SUNNY

SUNNY

DETECT

DETECT

REDUCE WASTE

REDUCE WASTE

36

Set Temperature

Set Temperature

2 3°C

ECONAVI is switched on when it is SUNNY.

ECONAVI is switched on when it is SUNNY.

Set Temperature

Set Temperature

2 3°C

Energy

Wasted!

Energy Wasted!

ECONAVI detects less cooling power is required.

ECONAVI detects less cooling power is required.

When weather changes from sunny to cloudy/night, ECONAVI detects less sunlight intensity and determines less cooling power is required.

If cooling power remains the same, energy will be wasted. ECONAVI detects this waste and reduces cooling power by an amount equivalent to increasing the set temperature by 1 degree Celsius.

When weather changes from sunny to cloudy/night, ECONAVI detects less sunlight intensity and determines less cooling power is required. If cooling power remains the same, energy will be wasted. ECONAVI detects this waste and reduces cooling power by an amount equivalent to increasing the set temperature by 1 degree Celsius.

Cooling Power equivalent to

Cooling Power equivalent to

2 4°C

Waste

Reduced!

Waste Reduced!

Set temperature remain unchanged.

ECONAVI reduces cooling power by an amount equivalent to increasing the set temperature by 1 degree Celsius.

Set temperature remain unchanged. ECONAVI reduces cooling power by an amount equivalent to increasing the set temperature by 1 degree Celsius.

How does ECONAVI Sunlight (cooling) Sensor works?

How does ECONAVI Sunlight (cooling) Sensor works?

SUNNY when ECONAVI (cooling) is switched on

SUNNY when ECONAVI (cooling) is switched on

COOLING

COOLING

SUNNY

SUNNY

CLOUDY

CLOUDY

+2°C

Set Temperature

Set Temperature

-1°C

Judgment Time

Judgment Time

+1°C

1 Hour

1 Hour

20min.

20min.

Legend:

Legend:

Set Temperature

Set Temperature

Cooling Power

Cooling Power

Remark: Set temperature on remote control display remains unchanged.

Remark: Set temperature on remote control display remains unchanged.

NIGHT

NIGHT

SUNNY

SUNNY

Shift Speed 0.33deg/ 20min

Shift Speed 0.33deg/ 20min

1 Hour

1 Hour

20min.

20min.

Remark:

When ECONAVI is switched on during cloudy/night, the temperature will be maintained at the set temperature. Only when the sensor detects a change from sunny to cloudy/night, it will adjust cooling power accordingly.

Remark:

When ECONAVI is switched on during cloudy/night, the temperature will be maintained at the set temperature. Only when the sensor detects a change from sunny to cloudy/night, it will adjust cooling power accordingly.

COOLING

COOLING

+2°C

Set Temperature

Set Temperature

Judgment

Time

-1°C

Judgment Time

CLOUDY/ NIGHT when ECONAVI (cooling) is switched on

CLOUDY/ NIGHT when ECONAVI (cooling) is switched on

CLOUDY

CLOUDY

NIGHT

NIGHT

SUNNY

SUNNY

CLOUDY

CLOUDY

NIGHT

NIGHT

Legend:

Legend:

Set Temperature

Set Temperature

Cooling Power

Cooling Power

Remark: Set temperature on remote control display remains unchanged.

Remark: Set temperature on remote control display remains unchanged.

NEW SUNLIGHT DETECTION (HEATING)

NEW SUNLIGHT DETECTION (HEATING)

ECONAVI detects changes in sunlight intensity in the room and judges whether it is sunny or cloudy/night. It reduces the waste of heating under more sunlight conditions.

ECONAVI detects changes in sunlight intensity in the room and judges whether it is sunny or cloudy/night. It reduces the waste of heating under more sunlight conditions.

CLOUDY/ NIGHT

CLOUDY/ NIGHT

DETECT

DETECT

REDUCE WASTE

REDUCE WASTE

Set Temperature

Set Temperature

2 6°C

ECONAVI is switched on when it is CLOUDY/NIGHT.

ECONAVI is switched on when it is CLOUDY/NIGHT.

Set Temperature

Set Temperature

2 6°C

Energy

Wasted!

Energy Wasted!

ECONAVI detects less heating power is required.

ECONAVI detects less heating power is required.

When weather changes from cloudy/night to sunny, ECONAVI detects more sunlight intensity and determines less heating power is required.

If heating power remains the same, energy will be wasted. ECONAVI detects this waste and reduces heating power by an amount equivalent to decreasing the set temperature by 1degree Celsius.

When weather changes from cloudy/night to sunny, ECONAVI detects more sunlight intensity and determines less heating power is required. If heating power remains the same, energy will be wasted. ECONAVI detects this waste and reduces heating power by an amount equivalent to decreasing the set temperature by 1degree Celsius.

Heating Power equivalent to

Heating Power equivalent to

2 5°C

Waste

Reduced!

Waste Reduced!

Set temperature remain unchanged.

ECONAVI reduces heating power by an amount equivalent to decreasing the set temperature by 1 degree Celsius.

Set temperature remain unchanged. ECONAVI reduces heating power by an amount equivalent to decreasing the set temperature by 1 degree Celsius.

How does ECONAVI Sunlight (heating) Sensor works?

How does ECONAVI Sunlight (heating) Sensor works?

CLOUDY/ NIGHT when ECONAVI (heating) is switched on

CLOUDY/ NIGHT when ECONAVI (heating) is switched on

HEATING

HEATING

CLOUDY

CLOUDY

NIGHT

NIGHT

SUNNY

SUNNY

CLOUDY

CLOUDY

+2°C

Set Temperature

Set Temperature

Judgment Time

20min.

20min.

30min.

30min.

-1°C

1 Hour

1 Hour

Legend:

Legend:

Set Temperature

Set Temperature

Heating Power

Heating Power

Remark: Set temperature on remote control display remains unchanged.

Remark: Set temperature on remote control display remains unchanged.

20min.

20min.

1 Hour

1 Hour

NIGHT

NIGHT

Remark:

When ECONAVI is switched on during sunny day, sunlight sensor will initialize sunlight intensity for 30 min. If judgments is Sunny, the sensor will reduce heating power by an amount equivalent to decreasing set temperature by 1 degree Celsius.

Remark:

When ECONAVI is switched on during sunny day, sunlight sensor will initialize sunlight intensity for 30 min. If judgments is Sunny, the sensor will reduce heating power by an amount equivalent to decreasing set temperature by 1 degree Celsius.

HEATING

HEATING

+2°C

Set Temperature

Set Temperature

Judgment

Time

-1°C

Judgment Time

SUNNY when ECONAVI (heating) is switched on

SUNNY when ECONAVI (heating) is switched on

SUNNY

SUNNY

CLOUDY

CLOUDY

NIGHT

NIGHT

SUNNY

SUNNY

Shift Speed 0.33deg/ 20min

Shift Speed 0.33deg/ 20min

Legend:

Legend:

Set Temperature

Set Temperature

Heating Power

Heating Power

Remark: Set temperature on remote control display remains unchanged.

Remark: Set temperature on remote control display remains unchanged.

37

TECHNICAL EXPLANATION/

TECHNICAL EXPLANATION

38

HUMAN ACTIVITY DETECTION

HUMAN ACTIVITY DETECTION

Area Search/

Area Search

DETECT

DETECT

REDUCE WASTE

REDUCE WASTE

ECONAVI detects human movements and reduces the waste of cooling the unoccupied area of the room.

ECONAVI detects human movements and reduces the waste of cooling the unoccupied area of the room.

Activity Detection/

Activity Detection

Energy

Wasted!

Energy Wasted!

Only one person in the room.

Detects wasted cooling area.

Only one person in the room. Detects wasted cooling area.

DETECT

DETECT

Waste

Reduced!

Waste Reduced!

Reduces cooling the unoccupied area of the room.

Reduces cooling the unoccupied area of the room.

REDUCE WASTE

REDUCE WASTE

ECONAVI detects changes in activity levels and reduces the waste of cooling with unnecessary power.

ECONAVI detects changes in activity levels and reduces the waste of cooling with unnecessary power.

Energy

Wasted!

Energy

Wasted!

Waste

Waste

Reduced!

Reduced!

Waste

Reduced!

Level of activity is decreased.

Detects low activity.

Level of activity is decreased. Detects low activity.

Reduces cooling power by an amount equivalent to increasing the set temperature by 1 degree Celsius.

Reduces cooling power by an amount equivalent to increasing the set temperature by 1 degree Celsius.

REDUCE WASTE

REDUCE WASTE

Absence Detection/

Absence Detection

ECONAVI detects human absence in the room and reduces the waste of cooling an empty room.

ECONAVI detects human absence in the room and reduces the waste of cooling an empty room.

DETECT

DETECT

Energy

Wasted!

Energy

Wasted!

Waste

Reduced!

Waste

Reduced!

No one is in the room.

Detects absence.

No one is in the room. Detects absence.

Gradually reduces cooling power by an amount equivalent to increasing the set temperature by 2 degrees Celsius.

Gradually reduces cooling power by an amount equivalent to increasing the set temperature by 2 degrees Celsius.

How does ECONAVI Human Activity works?

How does ECONAVI Human Activity works?

Enter Room

Enter Room

2

Present/

Present

Low

Low

3

High

High

Normal

Normal

4

Absent/

Absent

Exit Room

Exit Room

Out

Out

5

Low Activity Detection

Low Activity Detection

1

Human Presence / Absence

Human Presence / Absence

+2°C

Set Temperature

Set Temperature

-1°C

-2°C

Fan Speed

Fan Speed

20min.

20min.

+1°C

-2°C

Set Speed

Set Speed

Set Speed

Set Speed

Cooling/

Cooling

Heating/

Heating

Legend:

Legend:

Set Temperature

Set Temperature

Cooling Power

Cooling Power

Remark: Set temperature on remote control display remains unchanged

Remark: Set temperature on remote control display remains unchanged.

Heating Power

heating Power

20min.

20min.

+2°C

-2°C

1 Hour

1 Hour

Max Medium Fan

Max Medium Fan

Set Speed

Set Speed

TECHNICAL EXPLANATION/

TECHNICAL EXPLANATION

AUTOCOMFORT PROVIDES COMFORT

AUTOCOMFORT PROVIDES COMFORT

AUTOCOMFORT dual sensor is used to provide comfort.

High Activity Detection detects when the level of activity increases, and automatically increases cooling power by an amount equivalent to decreasing the set temperature by 1 degree Celsius to improve comfort. This is explained in the following scenario:

AUTOCOMFORT dual sensor is used to provide comfort. High Activity

Detection detects when the level of activity increases, and automatically increases cooling power by an amount equivalent to decreasing the set temperature by 1 degree Celsius to improve comfort. This is explained in the following scenario:

High Activity Detection/

High Activity Detection

DETECT

DETECT

IMPROVE COMFORT

IMPROVE COMFORT

ECONAVI High Activity Detection can detect changes in activity levels to adjust cooling power to improve comfort.

Comfort Reduced!

Comfort Reduced!

Comfort Improved!

Comfort Improved!

ECONAVI High Activity Detection can detect changes in activity levels to adjust cooling power to improve comfort.

Level of activity increased.

Detects high activity.

Level of activity increased.

Detects high activity.

Increases cooling power by an amount equivalent to decreasing the set temperature by 1 degree Celsius.

Increases cooling power by an amount equivalent to decreasing the set temperature by 1 degree Celsius.

How does AUTOCOMFORT High Activity Detection works?

How does AUTOCOMFORT High Activity Detection works?

Enter Room

Enter Room

2

High

High

Normal

Normal

4

Absent/

Absent

Exit Room

Exit Room

Out

Out

5

Low / High Activity Detection

Low/ High Activity Detection

1

Human Presence / Absence

Human Presence / Absence

Present/

Present

Low

Low

3

+2°C

Set Temperature

Set Temperature

-1°C

-2°C

Fan Speed

Fan Speed

+1 Tap up*

+1 Tap up*

Legend:

Legend:

Set Speed

Set Speed

Cooling/

Cooling

Set Speed

Set Speed

Heating/

Heating

Set Temperature

Set Temperature

20min.

20min.

+2°C

+1°C

20min.

20min.

+0.3°C

-1°C

-2°C

-2°C

1 Hour

1 Hour

Set Speed

Set Speed

+1 Tap up

+1 Tap up

Set Speed

Set Speed

Set Speed

Set Speed

Set Speed

Set Speed

Max Medium Fan

Max Medium Fan

Set Speed

Set Speed

* Conditions to change back to fan speed: 1) Set temperature is acheived. 2) 15 minutes after enetring the room.

* Conditions to change back to fan speed: 1) Set temperature is acheived. 2) 15 minutes after enetring the room.

Cooling Power

Cooling Power

Remark: Set temperature on remote control display remains unchanged.

Remark: Set temperature on remote control display remains unchanged.

Heating Power

heating Power

Remark:

AUTOCOMFORT dual sensor consumes more energy during high activity level.

Tips on how to select ECONAVI dual sensor or AUTOCOMFORT dual sensor:

• ECONAVI dual sensor - To enjoy energy savings exclusively.

• AUTOCOMFORT dual sensor - To enjoy comfort or energy savings depending on situations.

Remark:

AUTOCOMFORT dual sensor consumes more energy during high activity level.

Tips on how to select ECONAVI dual sensor or AUTOCOMFORT dual sensor:

• ECONAVI dual sensor - To enjoy energy savings exclusively.

• AUTOCOMFORT dual sensor - To enjoy comfort or energy savings depending on situations.

39

TECHNICAL EXPLANATION/

TECHNICAL EXPLANATION

ECONAVI INTELLIGENT SENSORS

ECONAVI INTELLIGENT SENSORS

ECONAVI Intelligent Sensors are able to monitor sunlight intensity, human movements, activity levels and human absence to detect unconscious waste of energy and automatically adjusts cooling power to save energy efficiently with uninterrupted cooling comfort and convenience.

ECONAVI Intelligent Sensors are able to monitor sunlight intensity, human movements, activity levels and human absence to detect unconscious waste of energy and automatically adjusts cooling power to save energy efficiently with uninterrupted cooling comfort and convenience.

Sunlight Sensor

Sunlight Sensor

Detects changes in Sunlight

Intensity

Detects changes in

Sunlight Intensity

Human Activity Sensor

Human Activity Sensor

Detects human movements, changes in activity levels and human absence.

Detects human movements, changes in activity levels and human absence.

HIGH-PRECISION SENSING

HIGH-PRECISION SENSING

All objects emit infrared rays which, although invisible, can be detected as heat by ECONAVI’s Human Activity Sensor if it is within the detection zone. When an object moves within its detection zone, ECONAVI compares the object’s temperature with the room temperature to determine if it is human, and level of activity based on its movement.

All objects emit infrared rays which, although invisible, can be detected as heat by ECONAVI’s Human Activity Sensor if it is within the detection zone. When an object moves within its detection zone, ECONAVI compares the object’s temperature with the room temperature to determine if it is human, and level of activity based on its movement.

40

Detecting Human Presence

Detecting Human Presence

Difference in temperatures

Difference in temperatures

Movement

Movement

Difference in temperatures

Difference in temperatures

Movement

Movement

Difference in temperatures

Difference in temperatures

Movement

Movement

When there is no movement for over 20min.

When there is no movement for over 20min.

Determining the Level of Human Activity

Determining the Level of Human Activity

Scale

Scale

Frequency

Frequency

Speed of Movement

Speed of Movement

A highly precise conclusion is reached through a complex algorithm

A highly precise conclusion is reached through a complex algorithm

Concludes nobody is present Concludes nobody is present Concludes somebody is present

Concludes nobody is present Concludes nobody is present Concludes somebody is present

High

High

Normal

Normal

Concludes Level of Activity High or Normal

Concludes Level of Activity High or Normal

DIFFERENTIATING OBJECTS

DIFFERENTIATING OBJECTS

ELECTRICAL PRODUCTS

ELECTRICAL PRODUCTS

Difference in temperatures

Difference in temperatures

+

Movement

Movement

Concludes it is not human

Concludes it is not human

SMALL INSECTS

SMALL INSECTS

Difference in temperatures

Difference in temperatures

+

Movement

Movement

Concludes it is not human

Concludes it is not human

Both changes may be detected, but they are too small to have any effect on the sensor.

Both changes may be detected, but they are too small to have any effect on the sensor.

A ROLLING BALL

A ROLLING BALL

Difference in temperatures

Difference in temperatures

+

Movement

Movement

PETS

PETS

Difference in temperatures

Difference in temperatures

+

Movement

Movement

From the difference in temperatures and the nature of the object’s movement, ECONAVI can determine if it’s human*.

From the difference in temperatures and the nature of the object’s movement,

ECONAVI can determine if it’s human*.

Concludes it is not human

Concludes it is not human

Concludes it is not human

Concludes it is not human

*The sensor may deem pets as humans, unless it moves within the detection zone at speeds that are not humanly possible.

*The sensor may deem pets as humans, unless it moves within the detection zone at speeds that are not humanly possible.

COVERAGE CAPABILITIES

COVERAGE CAPABILITIES

Human Activity Sensor covers a wider area due to its improved area detection function.

Human Activity Sensor covers a wider area due to its improved area detection function.

The entire room is divided into 3 detection areas

The entire room is divided into 3 detection areas

Horizontal sensing area

Horizontal sensing area

Vertical sensing area

Vertical sensing area

7m

2m

7m

120º

Remark: Applicable for dual sensor.

Remark: Applicable for dual sensor.

SENSOR DETECTION PRINCIPLE

SENSOR DETECTION PRINCIPLE

Human Activity Sensor detects human activity level and directs airflow to occupied or high activity zone. LED indicators indicating ECONAVI is detecting and functioning.

Human Activity Sensor detects human activity level and directs airflow to occupied or high activity zone. LED indicators indicating ECONAVI is detecting and functioning.

Detection Area/

Detection Area

Detection Area/

Detection Area

Detection Area/

Detection Area

Detection Area/

Detection Area

1 2 3 1 2 3

1 2 3

1

Remark: When detecting any change in movements, there will be a time delay between the LED indicator lighting up and a change of airflow direction.

This is to avoid over-sensitive louver movements which will not contribute to energy savings.

Remark: When detecting any change in movements, there will be a time delay between the LED indicator lighting up and a change of airflow direction.

This is to avoid over-sensitive louver movements which will not contribute to energy savings.

2

3

41

TECHNICAL EXPLANATION/

TECHNICAL EXPLANATION

TECHNICAL EXPLANATION/

TECHNICAL EXPLANATION

42

ECONAVI HUMAN ACTIVITY DETECTION

ECONAVI HUMAN ACTIVITY DETECTION

With the ECONAVI mono sensor, the air conditioner can detect wasted energy and automatically selects optimum energy saving operation based on two factors - Low

Activity Detection and Absence Detection. ECONAVI mono sensor gives you energy savings up to 20%*¹*².

With the ECONAVI mono sensor, the air conditioner can detect wasted energy and automatically selects optimum energy saving operation based on two factors - Low Activity Detection and Absence Detection.

ECONAVI mono sensor gives you energy savings up to 20%*¹*².

Angle of detection

Angle of detection

90º

Remark: Applicable for mono sensor.

Remark: Applicable for mono sensor.

How does ECONAVI Human Activity works?

How does ECONAVI Human Activity works?

Enter Room

Enter Room

2

High

High

Normal

Normal

4

Absent/

Absent

Exit Room

Exit Room

Out

Out

5

Low Activity Detection

Low Activity Detection

1

Human Presence / Absence

Human Presence / Absence

Present/

Present

Low

Low

3

+2°C

Set Temperature

Set Temperature

-1°C

-2°C

Fan Speed

Fan Speed

+0.3°C

30min.

30min.

Set Speed

Set Speed

Cooling/

Cooling

Legend:

Legend:

Set Temperature

Set Temperature

Cooling Power

Cooling Power

Remark: Set temperature on remote control display remains unchanged.

Remark: Set temperature on remote control display remains unchanged.

30min.

30min.

2 Hours

2 Hours

Max Medium Fan

Max Medium Fan

+2°C

During Cooling

During Cooling

Up To

Up To

20

%

ENERGY

SAVINGS

ENERGY

SAVINGS

*¹ Comparison of non-inverter 1.5HP models available in the Middle East between with ECONAVI mono sensor ON and OFF

ECONAVI mono sensor ON, Outside temperature: 35ºC/24ºC, Remote setting temperature: 25ºC with Fan Speed (High)

Airflow direction: Auto, Setting temperature goes up 2ºC controlled by ECONAVI absence detection

ECONAVI mono sensor OFF, Outside temperature: 35ºC/24ºC, Remote setting temperature: 25ºC with Fan Speed (High) with Fan Speed (High), Airflow direction: Auto

Total power consumption amount are measured for 1 hour in stable condition. At Panasonic Amenity Room ( size:16.6m²).

This is the maximum energy savings value, and the effect differs according to conditions in installation and usage.

*¹ Comparison of non-inverter 1.5HP models available in the Middle East between with ECONAVI mono sensor ON and OFF

ECONAVI mono sensor ON, Outside temperature: 35ºC/24ºC, Remote setting temperature: 25ºC with Fan Speed (High)

Airflow direction: Auto, Setting temperature goes up 2ºC controlled by ECONAVI absence detection

ECONAVI mono sensor OFF, Outside temperature: 35ºC/24ºC, Remote setting temperature: 25ºC with Fan Speed (High) with Fan Speed (High), Airflow direction: Auto

Total power consumption amount are measured for 1 hour in stable condition. At Panasonic Amenity Room ( size:16.6m²)

This is the maximum energy savings value, and the effect differs according to conditions in installation and usage.

AUTOCOMFORT PROVIDES COMFORT

AUTOCOMFORT PROVIDES COMFORT

AUTOCOMFORT mono sensor is used to provide comfort.

High Activity Detection detects when the level of activity increases, and automatically increases cooling power by an amount equivalent to decreasing the set temperature by 1 degree Celsius to improve comfort.

AUTOCOMFORT mono sensor is used to provide comfort. High Activity

Detection detects when the level of activity increases, and automatically increases cooling power by an amount equivalent to decreasing the set temperature by 1 degree Celsius to improve comfort.

How does AUTOCOMFORT High Activity Detection works?

How does AUTOCOMFORT High Activity Detection works?

Enter Room

Enter Room

2

High

High

Normal

Normal

4

Absent/

Absent

Exit Room

Exit Room

Out

Out

5

Low / High Activity Detection

Low/ High Activity Detection

1

Human Presence / Absence

Human Presence / Absence

Present/

Present

Low

Low

3

+2°C

+2°C

Set Temperature

Set Temperature

-1°C

-2°C

Fan Speed

Fan Speed

+1 tap up*

+1 tap up*

Cooling/

Cooling

30min.

30min.

+0.3°C

30min.

30min.

Set Speed

Set Speed

+1 tap up

+1 tap up

Set Speed

Set Speed

2 Hours

2 Hours

Max Medium Fan

Max Medium Fan

*Conditions to change back to set fan speed: 1) Set temperature is achieved. 2) 15 minutes after entering the room.

* Conditions to change back to set fan speed: 1) Set temperature is achieved. 2) 15 minutes after entering the room.

Legend:

Legend:

Set Temperature

Set Temperature

Cooling Power

Cooling Power

Remark: Set temperature on remote control display remains unchanged.

Remark: Set temperature on remote control display remains unchanged.

Remark:

AUTOCOMFORT mono sensor consumes more energy during high activity level.

Tips on how to select ECONAVI mono sensor or AUTOCOMFORT mono sensor:

• ECONAVI mono sensor - To enjoy energy savings exclusively.

• AUTOCOMFORT mono sensor - To enjoy comfort or energy savings depending on situations.

Remark:

AUTOCOMFORT mono sensor consumes more energy during high activity level.

Tips on how to select ECONAVI mono sensor or AUTOCOMFORT mono sensor:

• ECONAVI mono sensor - To enjoy energy savings exclusively.

• AUTOCOMFORT mono sensor - To enjoy comfort or energy savings depending on situations.

43

TECHNICAL EXPLANATION/

TECHNICAL EXPLANATION

44

The effectiveness of nanoe-

G

air purifying technology has been certified and proven by Kitasato Research Center for Environmental Science and

Japan Food Research Laboratories. The test reports listed below illustrate validation data for the nanoe-

G

air purifying system.

The effectiveness of nanoe-

G

air purifying technology has been certified and proven by

Kitasato Research Center for Environmental Science and Japan Food Research Laboratories.

The test reports listed below illustrate validation data for the nanoe-

G

air purifying system.

TESTING INSTITUTE: KITASATO RESEARCH CENTER

FOR ENVIRONMENTAL SCIENCE

TESTING INSTITUTE: KITASATO RESEARCH CENTER FOR ENVIRONMENTAL SCIENCE

Category Target Substance

Category Target Substance

Bacteria

Bacteria

Virus

Virus

Mould

Mould

Substance Name

Substance Name

Staphylococcus aureus

(NBRC 12732)

Staphylococcus aureus

(NBRC 12732)

Escherichia coli phage

(øX-174 ATCC 13706-B1)

Escherichia coli phage

(øX-174 ATCC 13706-B1)

Influenza (H1N1) 2009 virus

Influenza (H1N1) 2009 virus

Penicillium pinophilum

(NBRC 6345)

Penicillium pinophilum

(NBRC 6345)

Effectiveness

Effectiveness

99%

99%

99%

99%

99%

99%

99%

99%

99%

99%

Test Report no

Test Report no

Method

Method

Result

Result

KRCES-Bio.

Test Report No. 23_0182

KRCES-Bio.

Test Report No. 23_0182

The AC with nanoe-

G

was operated in a test room (25m³) and aerosol was collected and bacterial count was calculated.

The AC with nanoe-

G

was operated in a test room (25m³) and aerosol was collected and bacterial count was calculated.

99% removal from the air after

150 minutes of operation

99% removal from the air after 150 minutes of operation

KRCES-Env.

Test Report No. 22_0008

KRCES-Env.

Test Report No. 22_0008

The AC with nanoe-

G

was operated in a test room (25m³) and airborne phages were collected and phage count of the collected air was calculated.

The AC with nanoe-

G

was operated in a test room (25m³) and airborne phages were collected and phage count of the collected air was calculated.

99% removal from the air after

120 minutes of operation

99% removal from the air after 120 minutes of operation

KRCES-Env.

Test Report No. 22_0008

KRCES-Env.

Test Report No. 22_0008

KRCES-Env.

Test Report No. 22_0008

KRCES-Env.

Test Report No. 22_0008

KRCES-Bio.

Test Report No. 23_0140

KRCES-Bio.

Test Report No. 23_0140

nanoe-

G

was operated in a test chamber (200 Litre) and the phages were collected and phage count of the collected air was calculated.

nanoe-

G

was operated in a test chamber (200

Litre) and the phages were collected and phage count of the collected air was calculated.

99% removal from the air after 5 minutes of operation

99% removal from the air after 5 minutes of operation

nanoe-

G was operated in a test chamber (200 Litre) and the influenza viruses were collected and the virus titers were calculated by the Reed and

Muench method.

nanoe-

G

was operated in a test chamber (200

Litre) and the influenza viruses were collected and the virus titers were calculated by the

Reed and Muench method.

99% removal from the air after

5 minutes of operation

99% removal from the air after 5 minutes of operation

In view of health hazard associated with spatial distribution of Influenza (H1N1) 2009 virus, nanoe-

G

removal effectiveness cannot be tested in large test room (25m³).

When tested in 200 Litre chamber, nanoe-

G

was able to decrease Influenza (H1N1) 2009 virus (99%) when it was operated for 5 minutes. Additionally when tested in larger test room (25m³), nanoe-

G

can remove 99.5% of Coli phage virus when operated for 120 minutes.

It was validated that evaluation on the influenza virus could be speculated from the results on the phage according to the test results in a 200 Litre test chamber. It appeared that the air-conditioners in a larger test room (25m³) would be able to remove the influenza virus as effectively as the phage.

In view of health hazard associated with spatial distribution of Influenza (H1N1) 2009 virus, nanoe-G removal effectiveness cannot be tested in large test room (25m³).

When tested in 200 Litre chamber, nanoe-G was able to decrease Influenza (H1N1)

2009 virus (99%) when it was operated for 5 minutes. Additionally when tested in larger test room (25m³), nanoe-G can remove 99.5% of Coli phage virus when operated for 120 minutes.

It was validated that evaluation on the influenza virus could be speculated from the results on the phage according to the test results in a 200 Litre test chamber. It appeared that the air-conditioners in a larger test room (25m³) would be able to remove the influenza virus as effectively as the phage.

The AC with nanoe-

G

was operated in a test room (25m³) and aerosol was collected and fungal spores count was calculated.

The AC with nanoe-

G

was operated in a test room (25m³) and aerosol was collected and fungal spores count was calculated.

99% removal from the air after 90 minutes of operation

99% removal from the air after 90 minutes of operation

Remark: All results are based on specific testing conditions. All tests are not demonstrated under actual usage situation.

Remark: All results are based on specific testing conditions. All tests are not demonstrated under actual usage situation.

TESTING INSTITUTE: JAPAN FOOD RESEARCH LABORATORIES

TESTING INSTITUTE: JAPAN FOOD RESEARCH LABORATORIES

Category Target Substance

Category Target Substance

Substance Name

Substance Name

Bacteria

Bacteria

Staphylococcus aureus

(NBRC 12732)

Staphylococcus aureus

(NBRC 12732)

Effectiveness

Effectiveness

Test Report no

Test Report no

99%

99%

Test Report No.

11047933001-02

Test Report No.

11047933001-02

Virus

Virus

Bacteriophage

(Phi X 174 NBRC 103405)

Bacteriophage

(Phi X 174 NBRC 103405)

99%

99%

Test Report No.

11073649001-02

Test Report No.

11073649001-02

Method

Method

The AC with nanoe-

G was operated in a test space (10m³) and viable cells were counted by pour plate method.

The AC with nanoe-

G

was operated in a test space (10m³) and viable cells were counted by pour plate method.

Result

Result

99% inactivation after 24 hour operation of nanoe-

G

(compared to the original condition/ ventilation mode).

99% inactivation after 24 hour operation of nanoe-

G

(compared to the original condition/ ventilation mode).

nanoe-

G

was operated in a test box (90 Litre) and phage infectivity titer was determined by plaque technique.

nanoe-

G

was operated in a test box (90 Litre) and phage infectivity titer was determined by plaque technique.

99% inactivation after 120 minutes operation of nanoe-

G

(compared to non-operation)

99% inactivation after 120 minutes operation of nanoe-

G

(compared to non-operation)

Mould

Mould

Cladosporium cladosporioides

(NBRC 6348)

Cladosporium cladosporioides

(NBRC 6348)

Inhibit

Mould

Growth

Inhibit

Mould

Growth

Test Report No.

11047937001-02

Test Report No.

11047937001-02

nanoe-

G

was operated in a test box (1m³) and colonies on the plate were counted.

nanoe-

G

was operated in a test box (1m³) and colonies on the plate were counted.

The growth of the subject was inhibited. (>85% after 7 days)

The growth of the subject was inhibited.

(>85% after 7 days)

Remark: All results are based on specific testing conditions. All tests are not demonstrated under actual usage situation.

Remark: All results are based on specific testing conditions. All tests are not demonstrated under actual usage situation.

45

TECHNOLOGY EXPLANATION

ECO PATROL TECHNOLOGY EXPLANATION

MONITORING HUMAN PRESENCE AND ACTIVITY LEVEL FOR MAXIMUM COMFORT AND MAXIMUM SAVINGS

MONITORING HUMAN PRESENCE AND ACTIVITY LEVEL FOR MAXIMUM COMFORT AND MAXIMUM SAVINGS

1 2 3

Activity Level

Activity Level

4 5

+2°C

+1°C

Set Temperature

Set Temperature

-1°C

Fan Speed

Fan Speed

Set Fan Speed

Set Fan Speed

Comfortable and Consistent Cooling

Comfortable and Consistent Cooling

HIGH-PRECISION SENSING/

HIGH-PRECISION SENSING

All objects emit infrared rays which, although invisible, can be detected as heat by Eco Patrol’s sensor if it is within the detection zone. When an object moves within its detection zone, Eco Patrol compares the object’s temperature with the room temperature to determine if it is human, and level of activity based on its movement.

Detecting Human Presence

Detecting Human Presence

All objects emit infrared rays which, although invisible, can be detected as heat by Eco Patrol’s sensor if it is within the detection zone. When an object moves within its detection zone, Eco Patrol compares the object’s temperature with the room temperature to determine if it is human, and level of activity based on its movement.

Determining the Level of Human Activity

Determining the Level of Human Activity

Difference in temperatures

Difference in temperatures

Movement

Movement

46

Concludes nobody is present

Concludes nobody is present

Difference in temperatures

Difference in temperatures

Movement

Movement

When there is no movement for over 30min.

Difference in temperatures

Difference in temperatures

Movement

Movement

When there is no movement for over 30min.

Concludes nobody is present

Concludes nobody is present

Concludes somebody is present

Concludes somebody is present

Scale

Scale

Frequency

Frequency

Speed of Movement

Speed of Movement

A highly precise conclusion is reached through a complex algorithm.

A highly precise conclusion is reached through a complex algorithm.

High

High

Normal

Normal

Concludes Level of Activity High or Normal /

Concludes Level of Activity High or Normal

+2°C

-1°C

2 Hours

2 Hours

Fan Speed +1 tap up

Fan Speed +1 tap up

Set Fan Speed

Set Fan Speed

Judgement (30min.)

Judgement (30min.)

Medium Fan Speed

Medium Fan Speed

Maximum 20% Energy Savings

Maximum 20% Energy Savings

DIFFERENTIATING OBJECTS /

DIFFERENTIATING OBJECTS

Eco Patrol’s sensor technology uses factors such as speed, frequency and temperature of every object to determine if it is human.

Eco Patrol’s sensor technology uses factors such as speed, frequency and temperature of every object to determine if it is human.

Electrical products /

Electrical products

Difference in temperatures

Difference in temperatures

+

Movement/

Movement

Concludes it is not human.

Concludes it is not human.

A rolling ball /

A rolling ball

Difference in temperatures

Difference in temperatures

+

Movement/

Movement

Concludes it is not human.

Concludes it is not human.

Pets /

Pets

Difference in temperatures

Difference in temperatures

+

Movement/

Movement

Possibility to conclude it is human*.

Possibility to conclude it is human*.

From the difference in temperatures and the nature of the object’s movement, Eco Patrol can determine if it’s human*.

From the difference in temperatures and the nature of the object’s movement, Eco

Patrol can determine if it’s human*.

*The sensor may deem pets as humans, unless it moves within the detection zone at speeds that are not humanly possible.

*The sensor may deem pets as humans, unless it moves within the detection zone at speeds that are not humanly possible.

Small insects /

Small insects

Difference in temperatures

Difference in temperatures

+

Movement/

Movement

Both changes may be detected, but they are too small to have any effect on the sensor.

Both changes may be detected, but they are too small to have any effect on the sensor.

Concludes it is not human.

Concludes it is not human.

Applicable Models : CS-C18KKS, CS-C24KKS /

Applicable Models : CS-C18KKS, CS-C24KKS

ECO PATROL’S COVERAGE CAPABILITIES/

ECO PATROL’S COVERAGE CAPABILITIES

Eco Patrol’s high-precision sensor can detect any moving object within its detection zone.

Eco Patrol’s high-precision sensor can detect any moving object within its detection zone.

90˚

2m

Angle of detection /

Angle of detection

7m Area of detection /

Area of detection

47

OUT DOOR UNIT

TECHNICAL EXPLANATION

OUT DOOR UNIT TECHNICAL EXPLANATION

Super Tropical Compressor

Super Tropical Compressor

Why Panasonic? /

Why Panasonic?

The performance and quality of air conditioning greatly depends on compressor, the heart of air conditioning. Panasonic has been supplying Super

Tropical compressor for improvement of living environment since 2001. This compressor has a high efficiency compared to reciprocating type compressors and therefore achieves high efficiency under high load conditions.

The performance and quality of air conditioning greatly depends on compressor, the heart of air conditioning.

Panasonic has been supplying Super Tropical compressor for improvement of living environment since 2001. This compressor has a high efficiency compared to reciprocating type compressors and therefore achieves high efficiency under high load conditions.

All models except for CU-YA18NKS, YA24NKS, YC18MKS, YC24MKS

All models except for CU-YA18NKS, YA24NKS, YC18MKS, YC24MKS

More

Durable

More Durable

Powerful Cooling Even at 55ºC

Powerful Cooling Even at 55ºC

Cooling is possible even when the outside temperature is

55˚C. In consideration of the severe temperature conditions in desert regions of the Middle East, units feature a highly durable compressor and fan motor to maintain room comfort even under the hottest conditions.

Cooling is possible even when the outside temperature is 55ºC. In consideration of the severe temperature conditions in desert regions of the Middle East, units feature a highly durable compressor and fan motor to maintain room comfort even under the hottest conditions.

All models except for CU-YA18NKS, YA24NKS, YC18MKS, YC24MKS

All models except for CU-YA18NKS, YA24NKS, YC18MKS, YC24MKS

48

More Reliable

More Reliable

A total sales of more than 4 million units of Panasonic Super Tropical compressors since 2001, with the world's highest reliability and quality, have been supplied to more than 25 companies and 10 countries.

A total sales of more than 4 million units of Panasonic Super Tropical compressors since 2001, with the world's highest reliability and quality, have been supplied to more than 25 companies and 10 countries.

More Powerful

More Powerful

The powerful motor allows smooth starting at extremely low voltage condition. And it can be operative under much voltage fluctuation.

The powerful motor allows smooth starting at extremely low voltage condition. And it can be operative under much voltage fluctuation.

More Quiet

More Quiet

Extremely quiet operation sound is operated by low noise muffler.

Extremely quiet operation sound is operated by low noise muffler.

Blue Fin Condenser

Blue Fin Condenser

Lasts Longer /

Lasts Longer

An air conditioner's performance depends largely on its condenser, which can take a beating from exposure to salty air, wind, dust and other corrosive factors. Panasonic has found a way to extend the life of its condensers, using a layer of original anti-rust coating. This special coating lets you enjoy more years of reliable comfort plus extra economy over the long run.

An air conditioner's performance depends largely on its condenser, which can take a beating from exposure to salty air, wind, dust and other corrosive factors. Panasonic has found a way to extend the life of its condensers, using a layer of original anti-rust coating.

This special coating lets you enjoy more years of reliable comfort plus extra economy over the long run.

Special Coating Layer

(Fin Cross-section)

Special Coating Layer (Fin Cross-section)

Water Air Salt content

Water Air Salt content

Cyclic Corrosion Test Results

Cyclic Corrosion Test Results

Blue Fins

Blue Fins

Non Blue Fins

Non Blue Fins

Front View

Front View

Base material

Base material

Corrosion-resistant layer

Corrosion-resistant layer

Side View

Side View

Test Proven – Exceptional Durability

Test Proven – Exceptional Durability

Panasonic's condenser boasts outstanding resistance against corrosion. This special coating assures longer condenser life for years of reliable comfort.

Note: According to Panasonic test results.

Panasonic's condenser boasts outstanding resistance against corrosion.

This special coating assures longer condenser live for years of reliable comfort.

Note: According to Panasonic test results.

49

MODEL

LINE-UP

MODEL LINE-UP

Tropical Inverter

Tropical Inverter

NEW

NEW

Super Tropical Heat Pump

Super Tropical Heat Pump

NEW

NEW

Super Tropical Cooling Only

Super Tropical Cooling Only

50

-ion

Air Purifying System

page 4-11 page 12-23 page 24-33

Capacity (Btu/h)/

Capacity (Btu/h)

SUPER DELUXE

TYPE

SUPER DELUXE

TYPE

NEW

NEW

18,000

CS-K18NKS

(CU-K18NKS)

NEW

NEW

24,000

CS-K24NKS

(CU-K24NKS)

28,000 page 10-11

DELUXE

TYPE

DELUXE

TYPE

STANDARD

TYPE

STANDARD

TYPE

BASIC

BASIC

TYPE

TYPE

NEW

NEW

NEW

NEW

CS-A18NKS

(CU-A18NKS)

CS-PA18NKS

(CU-PA18NKS)

CS-YA18NKS

(CU-YA18NKS)

NEW

NEW

CS-A24NKS

(CU-A24NKS)

CS-PA24NKS

(CU-PA24NKS)

NEW

NEW

CS-YA24NKS

(CU-YA24NKS)

DELUXE

TYPE

DELUXE

TYPE

CS-C18KKS

(CU-C18KKS)

CS-C24KKS

(CU-C24KKS)

STANDARD

TYPE

STANDARD

TYPE

CS-PC18MKS

(CU-PC18MKS)

CS-PC24MKS

(CU-PC24MKS)

BASIC

TYPE

BASIC

TYPE

CS-PC30MKS

(CU-PC30MKS) page 18-19 page 20-21 page 22-23

-ion

Air Purifying System

page 30-31 page 32

CS-YC18MKS

(CU-YC18MKS)

CS-YC24MKS

(CU-YC24MKS)

( ): Outdoor Unit/

Outdoor Unit

Cooling Models/

Cooling Models

page 33

Heating Models/

Heating Models

51

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
