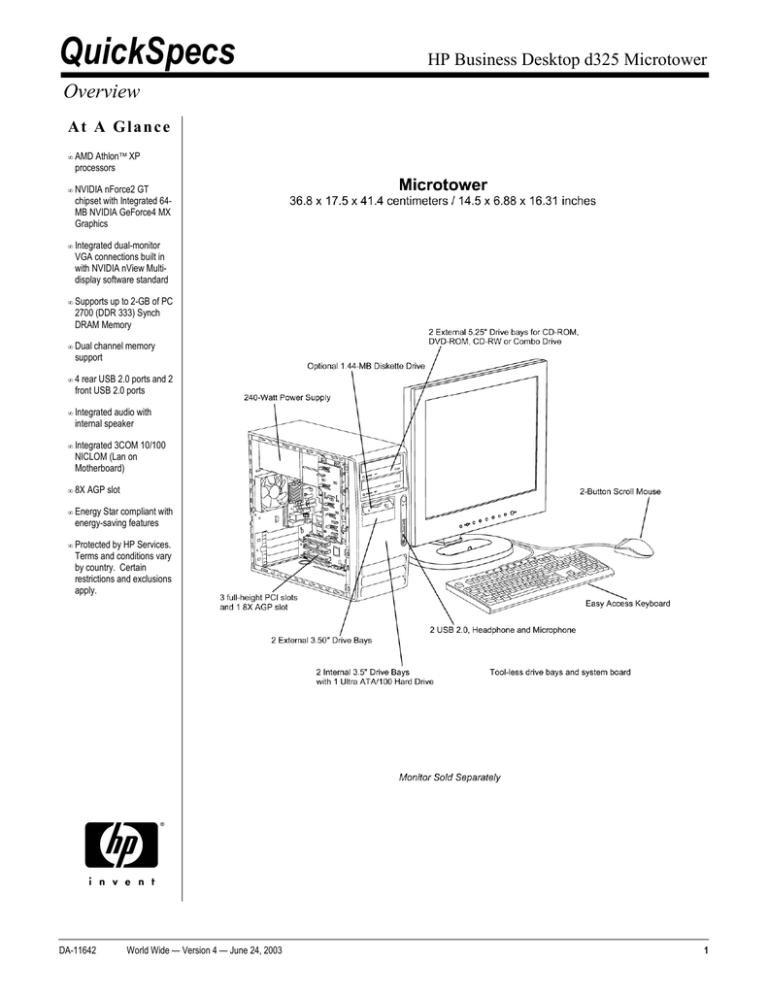

Overview

A t A G l a n c e

AMD Athlon

 XP processors

NVIDIA nForce2 GT chipset with Integrated 64-

MB NVIDIA GeForce4 MX

Graphics

Integrated dual-monitor

VGA connections built in with NVIDIA nView Multidisplay software standard

Supports up to 2-GB of PC

2700 (DDR 333) Synch

DRAM Memory

Dual channel memory support

4 rear USB 2.0 ports and 2 front USB 2.0 ports

Integrated audio with internal speaker

Integrated 3COM 10/100

NICLOM (Lan on

Motherboard)

8X AGP slot

Energy Star compliant with energy-saving features

Protected by HP Services.

Terms and conditions vary by country. Certain restrictions and exclusions apply.

HP Business Desktop d325 Microtower

DA-11642 World Wide — Version 4 — June 24, 2003

1

QuickSpecs

HP Business Desktop d325 Microtower

Standard Features – Select Models

(localized by Regions)

Model Key

Example:

Pre-Configured Models

DA-11642 World Wide — Version 4 — June 24, 2003

2

QuickSpecs

Standard Features – Custom Components

Processor and Speed

-

One of the following

AMD Athlon Processors

AMD Athlon XP 2600+ (2.13-GHz)

AMD Athlon XP 2400+ (2.00-GHz)

AMD Athlon XP 2200+ (1.80-GHz)

AMD Athlon XP 2800+ (2.08-GHz)

AMD Athlon XP 3000+ (2.17-GHz)

HP Business Desktop d325 Microtower

Front Side Bus

266-MHz

266-MHz

266-MHz

333-MHz

333-MHz

Hard Drives

Removable Storage

40-GB 7200 rpm SMART III Ultra ATA/100

40-GB 5400 rpm SMART III Ultra ATA/100

80-GB 7200 rpm SMART III Ultra ATA/100

80-GB 5400 rpm SMART III Ultra ATA/100

Standard Memory - One of the following 128-MB DDR Synch DRAM PC2100 (266-MHz) Non ECC (1 x 128 DIMM)

256-MB DDR Synch DRAM PC2100 (266-MHz) Non ECC (1 x 256 DIMM)

512-MB DDR Synch DRAM PC2100 (266-MHz) Non ECC (1 x 512 DIMM)

128-MB DDR Synch DRAM PC2700 (333-MHz) Non ECC (1 x 128 DIMM)

256-MB DDR Synch DRAM PC2700 (333-MHz) Non ECC (1 x 256 DIMM)

256-MB DDR Synch DRAM PC2700 (333-MHz) Non ECC (2 x 128 DIMM)

512-MB DDR Synch DRAM PC2700 (333-MHz) Non ECC (1 x 512 DIMM)

512-MB DDR Synch DRAM PC2700 (333-MHz) Non ECC (2 x 256 DIMM)

1-GB DDR Synch DRAM PC2700 (333-MHz) Non ECC (2 x 512 DIMM)

Optional 1.44-MB Diskette Drive

Zip 250 Drive (available in 3.5” and 5.25”)

64-MB, or 128-MB Drive Keys

Standard L2 Cache

256-KB ECC

256-KB ECC

256-KB ECC

512-KB ECC

512-KB ECC

Optical Storage - One of the following

Keyboard

Mouse

Modem

Audio

NIC

Graphics

48X Max CD-ROM Drive

52X Max CD-ROM Drive (Asia only)

48X/24X/48X CD-RW Drive

16X/40X DVD-ROM with +R Read

NOTE: All DVD devices will be restricted to 256-MB or more system memory.

PS/2 Easy Access Keyboard

PS/2 2-Button Scroll Mouse

USB Optical Scroll Mouse

Lucent V.90 56K Win Modem

Integrated Soundmax AC97 audio with premium internal speaker

Integrated 3Com 3C920B-EMB Fast Ethernet Controller

Intel Pro 1000 MT NIC FH PCI adapter

HP Gigabit by Broadcom Full Height PCI management adapter

NVIDIA nForce2 GT chipset with Integrated NVIDIA GeForce4 MX 64-MB Graphics

NVIDIA Quadro4 100nvs 32MB DDR FH AGP dual head VGA

NVIDIA GeForce4 MX-440-8 64MB DDR FH 8X AGP VGA w/TV-out

3

DA-11642 World Wide — Version 4 — June 24, 2003

QuickSpecs

Standard Features – Custom Components

Operating System – One of the following

HP Business Desktop d325 Microtower

Microsoft Windows XP Home SP1

Microsoft Windows 2000 SP3

Microsoft Windows XP Professional SP1

Mandrake Linux 9.1 (only available in selected languages)

NOTE: Mandrake Linux 9.1 not available with dual optical storage device configurations, the Quadro4 100nvs graphics cards, Zip drives, wireless keyboards, or wireless mice.

Software (Microsoft Windows system only)

Norton AntiVirus 2003

Microsoft Works 2003 (US only)

Microsoft Office XP Small Business Edition (select languages)

Microsoft Office XP Professional (select languages)

Roxio EZ CD Creator 5.3 (included with all re-writeable optical drives)

CorelWordPerfect (US English only) (on CD)

Intervideo WinDVD (included with all DVD drives)

MyDVD Suite (included on CD with all DVD +R/+RW drives)

HP Restore Plus! Kit / OS CD

Dantz Restrospect Backup (included on CD with all re-writeable optical drives)

Open Office Productivity Suite on CD (LA only)

Downloadable from HP Intelligent Manageability at: http://h18000.www1.hp.com/im/

Intelligent Manageability

DA-11642 World Wide — Version 4 — June 24, 2003

4

QuickSpecs

Standard Features – Base Unit Details

Base Unit Contents

HP Business Desktop d325 Microtower

Chassis

AMD processor, heatsink

System board with NVIDIA nForce2 GT chipset

(2) ATA Cables

Optional diskette drive with cable

Audio cable

Quick Setup Poster

Product Documentation on CD

HP OS CD and HP Restore CD

Warranty card

Power Cord

PS/2 Easy Access Keyboard

PS/2 Scroll Mouse or USB Optical Mouse (North America)

Expansion Capability

Memory Expansion Slots

(Non-ECC)

Maximum Memory

2 DIMM slots

2-GB (1-GB per slot maximum)

Slots

PCI

AGP

3 full-height, full-length

1 full-height, full length 8X AGP

Bays

Internal

External

Total Bays = 6

(2) 3.5-inch hard drive bays

(2) full-length 5.25-inch

(2) full-length 3.5-inch

Wireless Support

PCI card or external USB

USB Support

(2) Front USB 2.0 Ports

(4) Rear USB 2.0 Ports

NOTE: 2 USB ports can be high-speed, (USB 2.0), and divide the total possible 480Mb/s bandwidth. The remaining 4 ports, if used at the same time, are USB

1.1 and divide up a total of 12Mb/s between them.

Interfaces (Legacy)

Parallel Port

Serial Port

PS/2 Keyboard

PS/2 Mouse

VGA Adapter

1

1

2

1

1

Chassis Dimensions (H x W x D) 14.5 x 6.88 x 16.31 inches (36.8 x 17.5 x 41.4 cm)

Chassis Weight

System Weight 23.8 lbs (10.92 kg)

Packaged Unit Dimensions (H x W x D) 23.5 x 13.0 x 23.2 inches (60 x 33.02 x 59 cm)

Packaged Unit Weight

32.5 lbs (14.71 kg)

5

DA-11642 World Wide — Version 4 — June 24, 2003

QuickSpecs

Standard Features – Base Unit Details

System Memory

HP Business Desktop d325 Microtower

Type/Speed

Maximum Memory

Memory Parity

DDR Synch DRAM PC2700 (333-MHz) Non-ECC and DDR Synch DRAM

PC2100 (266-MHz) Non-ECC

2 GB (1 GB per slot maximum)

Not Needed for non-ECC

ECC Memory Not Supported by chipset

Serial Presence Detect Support Supported

Dual channel memory Support Yes. Requires two equal size and type memory modules

Supported Features

AMD Athlon XP

Processor

CPU Bus Speed Supported

AMD Athlon XP

333 or 266-MHz FSB

Memory Type Supported

Memory Speed Supported

DDR (ECC not supported by Chipset)

DDR Synch DRAM PC2700 (333 MHz) or PC2100 (266-MHz) Non-ECC

Serial Presence Detect Support Yes

Hard Drive Interfaces Supported SMART III Ultra ATA/100/66/33

Hard Drive Controller (PCI)

Supported

SMART III Ultra ATA/100/66/33

Coprocessor

CPU Socket Type/Number

CPU Package

Front Side Bus Speed

Integrated

Socket A

FC-PGA

333 or 266-MHz

Standard L2 Cache 512-KB ECC or 256-KB ECC, depending on processor

L2 Cache Architecture / Speed Full core clock speed

Cache Upgradeable To Not upgradeable - Integrated into Processor

System Board

DA-11642

Architecture

Chipset

I/O Controller

System Board Form Factor

Athlon XP / PCI / AGP 4X and 8X

NVIDIA nForce2 GT chipset

SMSC LPC47B367 Super I/O

Standard uATX

Processor Socket - 462 Pin ZIF Yes

DIMM Connectors (2.5V) Yes (2)

AGP Connector (1.5V)

Integrated AGP Graphics

PCI Connectors

Flash ROM

Audio

CD ROM IN (Audio)

Yes (1) 8X AGP

Yes

Yes (3 on system board)

Yes

Yes

Yes

Clear CMOS

CPU Fan Header

Chassis Fan Header

Yes

Yes

Yes

Chassis Speaker Header Yes

CMOS Battery Holder - Lithium Yes

Hood Lock Header

Hood Sense Header

Multibay Header

Multport Header

NIC supported features:

Yes

Yes

No

No

WOL (Wake-On-Lan

AOL (Alert-On-LAN

SOS

- alerting

®)

®)

Network based

ASF (Alert Standards

Format)

PXE (Pre-Boot Execution

Environment)

Yes

No

Available in June, 2003

No

Yes

World Wide — Version 4 — June 24, 2003

6

QuickSpecs

Standard Features – Base Unit Details

System Board (continued)

Chassis

HP Business Desktop d325 Microtower

Power Supply Header

Power Switch, Power LED

& Hard Drive LED Header

Password Clear Header

Riser Connector

SCSI LED Header

ACPI-Ready Hardware

Dual-State Power Button

Yes

Yes

Yes

No

No

Advanced Configuration and

Power Management

Interface (ACPI).

It allows the system to wake from a low power mode.

It controls system power consumption, making it possible to place individual cards and peripherals in a low-power or powered-off state without affecting other elements of the system

Power button acts as both an on/off button and suspend-tosleep button

Yes

Yes

Color

System Board Form Factors

Supported

Cooling Solutions Supported

Power Supply Fan

(Variable Speed)

Processor Fan-Heatsink

(Variable Speed)

Chassis Fan

Front I/O

Rear I/O

Internal Speaker

Security Locks Supported

Carbonite/Silver

Standard uATX

Yes

Yes

Yes

Standard Front Headphone, Microphone, and (2) USB 2.0

Standard ATX I/O Connectors (4 USB 2.0, 1 VGA, 1 Audio Out, 1 Audio In, 1

Microphone, 1 Serial, 1 Parallel, 2 PS2, 1 RJ45)

Yes

Kensington Cable Lock (optional)

Hood Cover Security Loop (standard but Lock not included)

Solenoid Hood lock (optional)

Interfaces

I/O Chip

Serial Port / UART Type

Parallel Port

USB

Infrared Port

Network

Keyboard

Mouse

Multibay

Video

Audio

SMSC LPC47B367 Super I/O

One Serial Port

One Parallel Port

6 USB 2.0 ports (4 rear/2 front)

No

RJ-45

Yes (PS2 and USB)

Yes (PS2 and USB)

No

Yes

Yes

7

DA-11642 World Wide — Version 4 — June 24, 2003

QuickSpecs

Standard Features – Base Unit Details

Power Supply

HP Business Desktop d325 Microtower

Power Supply

Full Ranging Input (No Line

Select Switch)

Active Power Factor Correction

(APFC) (Input Current is nearly

1/2 a non-APFC PS)

Passive Power Factor

Correction (PFC)

Operating Voltage Range

Rated Voltage Range

Rated Line Frequency

Operating Line Frequency

Range

Rated Input Current

Maximum Rated Power

Heat Dissipation

PS Fan

Processor Fan

240-watt ATX power supply – PFC 115v/230v line switch

No

No

Yes (with line switch set to 230V - No PFC in 115V line switch position)

90 to 132VAC, or 180 to 264VAC

100 to 127VAC, or 200 to 240VAC

50-60 Hz

47-63 Hz

6A @ 100VAC/3A @ 200VAC

240 watt

Max (369W input): 1260 BTU/hr Typical (75W input): 256 BTU/hr Max (369W input): 317 kg-cal/hr Typical (75W input): 65 kg-cal/hr

92mm fan integrated in power supply - variable speed for optimum acoustics

Variable speed fan http://env-webserver.ccm.cpqcorp.net/EMESC/default.htm

Environmental and Mechanical

Engineering Support Center

Power Conservation ‘Energy Saver’

Supported Operating System

Energy Star Compliant Yes

APM 1.2 Support

Screen Blanking

Hard Disk ‘Idle’ Mode

No

Yes

Yes

System Idle Mode Yes

Cache Memory Power-Down No

Blue Angel Compliant (<5w in

S5--Power Off)

Yes

Power Consumption in ES Mode

- Suspend to RAM (S3)

(Instantly Available PC)

~2W

Yes Processor/Cache Memory

Power-Down (S3)

CD-Rom Spins Down when not in use

Yes

DOS

Windows 3.1

Windows 95

Windows 98

Windows NT 4.X

Windows 2000 / Windows XP

Pro dual-install

Windows 2000

Windows XP Pro

Windows XP Home

Mandrake Linux 9.1

No

No

No

No

No

No

Yes

Yes

Yes

Yes

8

DA-11642 World Wide — Version 4 — June 24, 2003

QuickSpecs

Standard Features – Base Unit Details

Intelligent Manageability

HP Business Desktop d325 Microtower

Intelligent Manageability Home

Page

Insight Management Agent

Plug and Play Ready

Windows 2000

Windows XP Pro

Windows XP Home

Mandrake Linux 9.1

http://h18000.www1.hp.com/im/

Yes (via web download)

Yes

Yes

Yes

No

No

Boot Support

Local Diskette Boot

Network Boot

Yes

Yes (with PXE supported NICs)

ROM Features Description

Instantly Available PC (Suspend to RAM -

S3)

ROM Based F10 Setup

Replicated Setup

Allows for very low power consumption with quick resume time

Allows for reviewing and customizing BIOS settings

Saves BIOS settings to diskette or USB disk-on-key in humanreadable file. Repset.exe utility can then replicate these settings on machines being deployed without entering ROM based F10

Setup

Remote System Installation via F12 (PXE) Allows a new or existing system to boot over the network and

Failsafe Boot Block ROM download software, including the operating system, that is stored on a management server

-----

Emergency ROM Flash Recovery

(BootBlock)

CMOS Archive and CMOS Restore

User is alerted with audible tones and keyboard LEDs only

By holding the power button down, allows the last known good

BIOS settings (from previous restart) to be restored if the system gets into a locked up state after configuration changes are made

----Save and Restore CMOS Setup via

Diskette

Auto Setup when New Hardware Installed System automatically detects addition of new hardware (e.g.

memory, floppy, etc.)

Serial, Parallel, USB Enable/Disable Port

Control

Allows the user to enable or disable serial, parallel or USB ports

Removable Media Write / Boot Control

Remote Boot from Server

Network Server Mode

Prevents the computer from being booted from removable media on supported devices (and can disable writes to media)

Allows a new or existing system to boot over the network and download software, including the operating system, that is stored on a management server

Allows for secured keyboard-less operation on PS/2 devices

Power-On Password

Setup Password

Prevents an unauthorized person from booting up the computer

Prevents an unauthorized person from changing the system configuration

Alerts management console if memory is removed or changed Memory Change Alert (Requires Insight

Management Agent)

Thermal Alert (Requires Insight

Management Agent)

Monitors the temperature within the chassis.

There are three operational states that a computer can experience:

NORMAL – operating under under normal temperature ranges

ALERTED – operation when excessive temperatures are detected. Will raise a flag so that appropriate action can be taken to avoid shutdown or provide for a smoother system shutdown

SHUTDOWN – when excessive temperatures are encountered. Will automatically shutdown the computer without warning before hardware component damage occurs

Supported

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

9

DA-11642 World Wide — Version 4 — June 24, 2003

QuickSpecs

Standard Features – Base Unit Details

HP Business Desktop d325 Microtower

ROM Features (continued)

Cover Removal Alert (Requires Insight

Management Agent for network alerts)

Master Boot Record Security

Description

Assists with asset security and control by notifying the

Network Administrator and end user when the cover has been removed without authorization.

Is an electronic switch residing inside the computer which can be set to any one-of-three modes depending on the amount of control desired:

DISABLED - the user/network administrator does not want

− to be made aware of the computer hood removal

NOTIFY USER – notifies user/network administrator that the hood has been removed, but no action required before re-booting the computer

SETUP PASSWORD – notifies user/network administrator that the hood has been removed and administrator password is required before the computer will continue to boot

Allows for detection of changes to MBR and optional restoration, useful in protecting from viruses

Remote ROM Flash

Power Management

ACPI Ready

Provides secure, fail-safe ROM image management from a central network console

-----

-----

SMBIOS (previously known a DMI)

Keyboard-less Operation

System Management BIOS, previously known as DMI BIOS, for system management information

The system can be operated without a keyboard

Remote ROM Flash

Remote Wakeup / Remote Shutdown

Provides secure, fail-safe ROM image management from a central network console

Allow a system administrator to power on, restart, and power off a client computer from a remote location.

This enables cost-effective power consumption when the administrator needs to distribute software, perform security management, or update the ROM.

----ROM Based Setup (F10) and Start-up

Diagnostics

System Environmental Specs

Acoustics: Advanced Power Management –

On

Seated operator position

Supported

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Idle (Hard drive spinning but not seeking) = 28 dBA

Shock

Operating

(*Using 11-ms half-sine shock pulse)

Non-Operating

(*Using 11-ms half-sine shock pulse)

Vibration

Operating

-----

-----

-----

5 G’s* (with no damage being incurred)

10 G’s*, positive and negative directions front to back axis: 20 G’s* in all other axes

Random vibration at 0.000215 G²/Hz, 10Hz to

300Hz, (0.25G’s nominal)

Non-Operating

----Random vibration at 0.0005 G²/Hz, 10Hz to

500Hz, (0.5G’s nominal)

Relative Humidity

Operating

(maximum wet bulb temp., noncondensing)

Non-operating

(maximum wet bulb temp., noncondensing)

Altitude Max (un-pressurized)

-----

-----

Operating

(Maximum allowable altitude change rate is

1500 ft/min.)

-----

Non-operating

(Maximum allowable altitude change rate is

1500 ft/min)

-----

10% to 90% relative humidity (Rh), 28°C

5% to 95% relative humidity (Rh), 38.7°C

0 to 10,000 feet (3,048 meters) – This value may be limited by the type and number of options installed.

0 to 30,000 ft (9,144 m)

DA-11642 World Wide — Version 4 — June 24, 2003

10

QuickSpecs

Standard Features – Base Unit Details

HP Business Desktop d325 Microtower

Initial Configuration and Deployment Description

Replicated Setup Saves BIOS settings to diskette or USB disk-on-key in humanreadable file. Repset.exe utility can then replicate these settings on machines being deployed without entering ROM based F10

Setup

Support Software CD

HP Software Restore CD

-----

Allows the computer to be restored to its original factory shipping image

Altiris eXpress Solutions (30-day trial version)

A suite of solutions that focus on business needs in four areas, saving time and freeing resources to address other crucial issues:

Deployment & Migration

Software & Operations Management

Inventory & Asset Management

Help Desk & Problem Resolution

PC Transplant Pro (30-day trial version) Makes transferring the files and settings that make your PC

System Software Manager (free) unique – its personality – a quick and intuitive process

A utility that automatically detects and updates BIOS, device drivers, and management agent versions on your networked

PCs

----Novel ZenWorks 2.0

Insight Manager

Insight Management Agent

-----

Provides fault monitoring, alerting, SNMP, DMI, and web agent

Altiris agent

HP Management Solutions Partners

Program

-----

-----

Asset Tracking

Asset Tracking and Security Home Page

-----

Asset Tag

DIMM Serial Presence Detect

Hard drive serial number, model, and manufacturer

Monitor serial number, model & manufacturer

System serial number, model, & manufacturer

Intended to be used as a repository for storing companyspecific property asset numbers for easy tracking

Initially set equal to the system serial number

Stored in a protected section of non-volatile memory which can be accessed and modified with the F10 Setup program

Detects whether or not memory DIMMs are present and their type

Hard drive manufacturer, model, and serial number is stored in the hard drive firmware and reported in ROM based F10 setup

ROM revision levels

System board revision level

Memory Change Alert (Intelligent

Manageability needed to work)

Ownership Tag

System serial number, model, & manufacturer stored in a nonvolatile memory and can be retrieved with management software or viewed in ROM based F10 setup

System ROM revision levels are identified by a version number (xx.yy) and reported in ROM based F10 Setup

Version is stored in an industry standard memory location

(SMBIOS) so that management SW applications can use and report this information

Allows management SW to read the revision level of the system board

Revision level is digitally encoded into the hardware and cannot be modified

Alerts management console if memory is removed or changed

A user defined string stored in a non-volatile memory that is displayed on the BIOS splash screen

Supported

Yes

Yes

Yes http://h18000.www1.hp.com/im/ http://h18000.www1.hp.com/im/swdeploy/dt_ nb.html

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

11

DA-11642 World Wide — Version 4 — June 24, 2003

QuickSpecs

Standard Features – Base Unit Details

HP Business Desktop d325 Microtower

Security Features of Chassis

Solenoid Hood Lock

Hood Sensor

Kensington Lock Support

Cable Lock Provision

Serial, Parallel, USB Enable/Disable

Port Control

Removable Media Write / Boot Control

Power-On Password

Setup Password

SmartCard Reader

Description

-----

-----

-----

Allows the user to physically secure computer hardware from theft via a loop on the chassis. With lock installed, this loop also prevents the hood from being removed.

Allows the user to enable or disable serial, parallel or USB ports and hide them from the operating system

Device which attaches to back of chassis covering external ports and thereby preventing unauthorized access; also aids in cable management

Prevents the computer from being booted from removable media on supported devices (and can disable writes to media)

Prevents an unauthorized person from booting up the computer

Prevents an unauthorized person from changing the system configuration

Security device that prevents system access into the operating system unless the user has the appropriate Smartcard

Fault Notification and Recovery

Fault Management Home Page

SMART Hard Drives, Fault Notification, &

Prefailure Warranty

-----

Allows hard drives to monitor their own health and to raise flags if imminent failures were predicted

Predicts failures before they occur. Tracks fault prediction and failure indication parameters such as re-allocated sector count, spin retry count, calibration retry count

By helping users avoid actual hard drive failures, SMART hard drives act as “insurance” against unplanned user downtime and potential data loss from hard drive failure

Surge Tolerant Full Ranging Power

Supply

Ultra ATA Integrity Monitoring (CRC

Checking)

Withstands power surges up to 2000V

Provides data transfer verification.

Provides proactive notification of hard drive data transmission problems and recommendations for enhancing system performance

Detects all the following errors types:

− single bit errors double bit errors

− an odd number of errors error bursts up to 32-bits long

----ATA RAID Controller Option

System Software Updating

Support Software CD & website

Serviceability Features – System

-----

Dual Color Power LED on Front of

Computer

Blinking Power LED Codes

Diagnostic LED Explanation Table

Emergency ROM Flash Recovery

Indicates normal operations and fault conditions

Allows for easy problem resolution

Number of 1-second blinks (red LED) Diagnosis – followed by a

2 second pause/ repeat:

2 = Processor Thermal Protection Activated

3 = Processor not installed

4 = Power Supply Failure

5 = Memory Error

6 = Video Error

7 = PCA failure (ROM detected failure prior to video)

8 = Invalid ROM, bootblock recover mode

-----

Compaq Diagnostic for Windows Software -----

Compaq Configuration Record Software -----

Supported

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Optional http://h18000.www1.hp.com/im/

Yes

Yes

Yes

No

Yes

Yes

Yes

Yes (Available at http://www.compaq.com/support/techpubs/ illustrated_parts_map )

Yes

Yes

Yes

12

DA-11642 World Wide — Version 4 — June 24, 2003

QuickSpecs

Standard Features – Base Unit Details

HP Business Desktop d325 Microtower

Serviceability Features – System Description

(continued)

Over-Temp Warning on Screen (Requires

IM Agents)

HP OS CD (Restore OS CD)

-----

HP Restore CD (Restores Drivers CD)

Flash ROM

3.3V Aux Power LED on

System PCA

Dual Function 5V Aux Power LED (ON) /

PS_ON LED (OFF) on System PCA

-----

-----

Diagnostic Power Switch LED on board -----

Clear Password Jumper -----

Allows the computer to be restored to its original factory shipping image

Allows the computer to be restored to its original factory shipping image

-----

Clear CMOS Button

CMOS Battery Holder for easy

Replacement

-----

Processor ZIP Socket for easy Upgrade -----

DIMM Connectors for easy Upgrade -----

NIC LEDs (integrated) (Green & Amber) Used to determine NIC status

Supported

Yes

Yes

Yes

Yes

Yes

Yes

Yes (On when power switch pushed)

Yes

Yes

Yes

Yes

Yes

Yes (Green On = Network Activity; Amber

On = 100Base-TX; Amber Off = 10Base-TX)

Serviceability Features

Tool-less PCI Card Removal

Tool-less AGP Card Removal

Dual Color Power and Hard Drive LED

Diagnostic LED Explanation Table

-----

-----

Indicates Normal Operations and Fault Conditions

-----

Yes

Yes

Yes

Yes (Available at http://www.compaq.com/support/techpubs/ill ustrated_parts_map )

Yes

Yes

Emergency ROM Flash Recovery

Smart Cover Sensor (Requires Insight

Management Agent for network alerts)

-----

Assists with asset security and control by notifying the

Network Administrator and end user when the cover has been removed without authorization.

Is an electronic switch residing inside the computer which can be set to any one-of-three modes depending on the amount of control desired:

DISABLED - the network administrator does not want to be made aware of the computer hood removal

NOTIFY USER - notifies network administrator that the hood has been removed, but no administrator action required before re-booting the computer

SETUP PASSWORD – notifies network administrator that the hood has been removed and administrator password is required before re-booting the computer

Remote operated system lock

-----

Solenoid Hood Lock

Green Pull Tabs, and Quick Release

Latches for easy Identification

System memory can be upgraded without removing the system board or any internal components

Tool-less Hood Removal

Tool-less Hard Drive, CD & Diskette

Removal

Eases memory upgrading

Eases entry to the chassis without use of special tools

-----

Tool-less System Board Removal

Industry-standard CD Bay

No special tools required for system board removal or maintenance

-----

Yes

Yes

Yes

Yes (with captive thumbscrews)

Yes

Yes

Yes

13

DA-11642 World Wide — Version 4 — June 24, 2003

QuickSpecs

Standard Features – Base Unit Details

HP Business Desktop d325 Microtower

Serviceability Features – Hard Drives

Description

Drive Self Tests (DPS)

DPS Access through F10 Setup during

Boot

DPS Access through Diagnostics for

Windows

SMART Technology

(Self-Monitoring, Analysis and Reporting

Technology)

SMART I - Drive Failure Prediction

SMART II - Off-Line Data Collection

SMART III - Off-Line Read Scanning with

Defect Reallocation

Drive Protection System

A diagnostic hard drive self test. It scans critical physical components and every sector of the hard drive for physical faults and then reports any faults to the user.

Running independently of the operating system, it can be accessed through a Windows-based diagnostics utility or through the computer's setup procedure. It produces an evaluation on whether the hard disk drive is the source of the problem and needs to be replaced.

The system expands on the Self-Monitoring, Analysis, and

Reporting Technology (SMART), a continuously running systems diagnostic that alerts the user to certain types of failures

Allows hard drives to monitor their own health and to raise flags if imminent failures were predicted

Predicts failures before they occur. Tracks fault prediction and failure indication parameters such as re-allocated sector count, spin retry count, calibration retry count

By helping users avoid actual hard drive failures, SMART hard drives act as “insurance” against unplanned user downtime and potential data loss from hard drive failure

Service and Support

Supported

Yes

Yes

Yes

Yes

Yes

Yes

Yes

On-site Warranty and Service

Note 1

: This three-year, limited warranty and service offering delivers three years of on-site, next business-day

Note 2

service for parts and labor and includes free telephone support

Note 3

24 x 7.

Global coverage

Note 2

ensures that any product purchased in one country and transferred to another, nonrestricted country will remain fully covered under the original warranty and service offering.

NOTE 1: Terms and conditions may vary by country. Certain restrictions and exclusions apply.

NOTE 2: On-site service may be provided pursuant to a service contract between HP and an authorized HP third-party provider, and is not available in certain countries. Global service response times are based on commercially reasonable best effort and may vary by country.

NOTE 3: Technical telephone support applies only to HP-configured, HP and HP-qualified, third-party hardware and software. Toll-free calling and 24 x 7 support may not be available in some countries.

14

DA-11642 World Wide — Version 4 — June 24, 2003

QuickSpecs

After-Market Options

Communications

HP Business Desktop d325 Microtower

Wireless

HP WL215 USB (802.11b)

HP WL215 USB (802.11b)

HP WL210 PCI (802.11b)

802.11 PCI adapter (802.11b) – (full-height and low profile)

Networking

Compaq NetExtreme™ 10/100/1000 Management Gb Adapter

Intel Pro 1000 MT NIC

HP Gigabit by Broadcom Full Height PCI management adapter

Intel 10/100 S Management Adapter

Intel 10/100 S Management Adapter (20-pack)

V.90 56K PCI Win Modem

USB 56K Fax Modem

191810-B22,

AE1, 292

191809-001,

021, 292

266997-B21

212953-B21

212954-B21

239137-xxx

228141-xxx

DC758A

DC758B

DC756A

DC756B

DC193A

DC195A

DC133A

DC134A

DC131A

DC585A

Graphics

2D Single Head Graphics

NVIDIA GeForce4 MX-440-8 64-MB DDR LP 8X AGP VGA w/TV-out

2D Multi-Display Graphics

NVIDIA Quadro4 100NVS 32-MB AGP dualhead with VGA cables

DC663A

DC665A

Hard Drives and Controllers

Input/Output Devices

Memory (DIMMs)

SMART III Ultra ATA/100 Hard Drives with Drive Protection System (DPS)

40-GB 7200 rpm Ultra ATA/100 Hard Drive

80-GB 7200 rpm Ultra ATA/100 Hard Drive

160-GB 7200 rpm Ultra ATA/100 Hard Drive

250-GB 7200 rpm Ultra ATA/100 Hard Drive

Cables

2 Device IDE Cable

201066-B21

250020-B21

260626-B1

Keyboards

PS/2 Easy Access Keyboard (carbonite/silver)

USB Easy Access Keyboard

Wireless Easy Access Keyboard with Wireless/Optical Mouse

USB Easy Access SmartCard Keyboard

Mice

PS/2 2-Button Scroll Mouse (carbonite)

USB 2-Button Scroll Mouse (carbonite)

Wireless Optical Mouse (carbonite)

USB 2-Button Optical Scroll Mouse (carbonite)

333-MHz (PC2700) DDR DIMMs Non-ECC

1-GB DDR Synch DRAM PC2700 (333-MHz) Non-ECC

512-MB DDR Synch DRAM PC2700 (333-MHz) Non-ECC

256-MB DDR Synch DRAM PC2700 (333-MHz) Non-ECC

128-MB DDR Synch DRAM PC2700 (333-MHz) Non-ECC

266-MHz (PC2100) DDR DIMMs Non-ECC

1-GB DDR Synch DRAM PC2100 (266-MHz) Non-ECC

512-MB DDR Synch DRAM PC2100 (266-MHz) Non-ECC

256-MB DDR Synch DRAM PC2100 (266-MHz) Non-ECC

128-MB DDR Synch DRAM PC2100 (266-MHz) Non-ECC

313886-292

313885-292

313884-292

313883-292

313883-292

282435-B21

282434-B21

282433-B21

DC180A

DC181A

DC189A

DC516A

DC183A

DC167B#xxx

DC168B#xxx

DC170B#xxx

DC169B#xxx

DD440B

DD441B

DC210B

DC172B

DC341A

DC340A

DC339A

DC338A

DC166A

DC165A

DC164A

DC163A

15

DA-11642 World Wide — Version 4 — June 24, 2003

QuickSpecs

After-Market Options

Monitors

HP Business Desktop d325 Microtower

Essential Series

Compaq S9500 CRT Monitor (19-inch, Carbon/Silver)

Compaq S7500 CRT Monitor (17-inch, Carbon/Silver)

Compaq S5500 CRT Monitor (15-inch Carbon/Silver)

Compaq TFT1501 Flat Panel Monitor (15-inch, Carbon/Silver, North

America)

Compaq TFT1501 Flat Panel Monitor (15-inch, Carbon/Silver, Outside North

America)

Compaq TFT1701 Flat Panel Monitor (17-inch, Carbon/Silver, North

America)

Compaq TFT1701 Flat Panel Monitor (17-inch, Carbon/Silver, Outside North

America)

Advantage Series

Compaq V7550 CRT Color Monitor (17-inch, Carbon/Silver)

Compaq TFT1720 Flat Panel Monitor (17-inch, Carbon/Silver, North

America)

Compaq TFT1720 Flat Panel Monitor (17-inch, Carbon/Silver, outside North

America)

Compaq FT1720M Flat Panel Monitor (17-inch, (Carbon/Silver, includes speaker, USB port, headphone, North America)

Compaq TFT1720M Flat Panel Monitor (17-inch, (Carbon/Silver, includes speaker, USB port, headphone, outside North America)

Compaq TFT1520 Flat Panel Monitor (17-inch, Carbon/Silver, North

America)

Compaq TFT1520 Flat Panel Monitor (17-inch, Carbon/Silver, outside North

America)

Compaq TFT1520M Flat Panel Monitor (17-inch, (Carbon/Silver includes speaker, USB port, headphone, North America)

Compaq TFT1520M Flat Panel Monitor (17-inch, (Carbon/Silver includes speaker, USB port, headphone, outside North America)

Performance Series

HP P930 CRT Monitor (19-inch, Flat-screen, Carbon/Silver, North America)

HP P930 CRT Monitor (19-inch, Flat-screen, Carbon/Silver, Outside North

America)

HP P1130 CRT Monitor (21-inch, Flat-screen, Carbon/Silver, North America)

HP P1130 CRT Monitor (21-inch, Flat-screen, Carbon/Silver, Outside North

America)

HP L1825 Flat Panel Monitor (18-inch, Carbon/Silver, North America)

HP L1825 Flat Panel Monitor (18-inch, Carbon/Silver, Outside North

America)

HP L2025 Flat Panel Monitor (20-inch, Carbon/Silver, North America)

HP L2025 Flat Panel Monitor (20-inch, Carbon/Silver, Outside North

America)

261615-xxx

261606-xxx

261602-xxx

301042-003

P4825D-xxx

292847-003

P9019A-xxx

261611-xxx

295926-003

D5064D-xxx

301958-003

D5064P-xxx

295925-003

D5063D-xxx

301957-003

D5063P-xxx

302268-003

P909W-xxx

30227-003

P4819-xxx

303486-003

P9021W-xxx

303102-003

P4831W-xxx

Multimedia

Labtec Spin-22 Speakers (carbon)

PC Comm Station Pro (speaker, headphone, wireless keyboard and mouse)

PC Comm Station (speaker and headphone)

246637-001

302002-xxx

304251-008

DC186A

P8815A or

P8815B

P8814A or

P8814B

16

DA-11642 World Wide — Version 4 — June 24, 2003

QuickSpecs

After-Market Options

Optical Drives

HP Business Desktop d325 Microtower

DVD-ROM Drives

16X/40X DVD-ROM with +R Read Drive (carbonite)

CD-ROM Drives

48X Max CD-ROM Drive (carbonite)

CD-RW Drives

48X/24X/48X CD-RW Drive (carbonite)

DVD+RW Drives

4X DVD+R/+RW Drive

Combo Drives

48X Combo Drive CD-RW & DVD-ROM (carbonite)

DC151B

DC143B

DC196B

DC517B

DC197B

Removable Storage

ZIP 250 Drive (carbonite)

ZIP 250 Media 3-Pack

ZIP 750 Drive (carbonite)

ZIP 750 Media 3-Pack

TR5 10/20 GB IDE Tae Drive (carbonite)

217896-B21

DC140B

DC138A

DC518B

DC519A

DC139B

Security

PCI Card

Identix BioTouch USB Fingerprint ID Device

Chassis clamp lock, universal, with cable

Chassis clamp lock, universal, no cable

Kensington Lock

Solenoid Lock

Hi Speed USB 2.0 PCI Card (Qualified on the d325 for use in North America only)

1394 Firewire PCI Card

240238-B21

294316-B21

252076-B21

287636-B21

DE818A

DE817A

DC368A

DE618A

287636-B21

DE471A

USB Storage Options

16-MB USB Drive Key (Carbonite) "New Disk-On-Key ID"

32-MB USB Disk-On-Key (Carbon)

64-MB USB Disk-On-Key (Carbon)

64-MB USB Drive Key (Carbonite) "New Disk-On-Key ID"

128-MB USB Disk-On-Key (Carbon)

128-MB USB Drive Key (Carbonite) "New Disk-On-Key ID"

1.44-MB USB Floppy Drive - External (Carbon)

301993-B21

DC192B

DC142A

DC191A

DC191B

DC190A

304707-B21

DC190B

DC141A

17

DA-11642 World Wide — Version 4 — June 24, 2003

QuickSpecs

Memory

NVIDIA nForce2 GT chipset

HP Business Desktop d325 Microtower

DDR SYNCH DRAM DIMM N

ON

-ECC M

EMORY

The HP business desktop d325 PC has two memory DIMM slots and supports dual channel memory configurations. It is not necessary to add memory in pairs or kits, but for best performance, memory should be added in pairs and should be the same type. For example, 2x128-MB memory modules will perform better on some applications than 1x256-MB memory module because of the dual channel memory support on the d325.

S

TANDARD

M

EMORY

Configurations can be selected with a 128-MB, 256-MB, 512-MB, 1024-MB, or 2048-MB memory. Memory types supported include PC2100

(DDR266) and PC2700 (DDR333).

Various combinations of single-DIMM (for future upgradeability) and double-DIMM (for enhanced dual-channel memory performance) will be offered.

Other “mis-matched” memory combinations, such as 384MB (using 1x128-MB and 1x256-MB) will not be offered due to performance limitations of the d325. In these mis-matched configurations, the maximum operation speed is determined by slowest DIMM. After installing a mis-matched configuration, the following message will appear on the screen: “217 Memory DIMM Configuration Warning: Installed memory DIMM configuration is unbalanced. Multiple DIMMs installed of unequalsize. For best performance, use a balanced DIMM configuration.”

Memory Configuration

128-MB DDR266

256-MB DDR266

256-MB DDR266

128-MB DDR333

256-MB DDR333

256-MB DDR333

512-MB DDR333

512-MB DDR333

Slot 1

128-MB

128-MB

256-MB

128-MB

128-MB

256-MB

256-MB

512-MB

Slot 2

Empty

128-MB

Empty

Empty

128-MB

Empty

256-MB

Empty

NOTE: It is not necessary to add memory in pairs or kits. Memory upgrades are accomplished by adding single or multiple DIMMs of the same or varied sizes. This chart does not represent all possible memory configurations.

DA-11642 World Wide — Version 4 — June 24, 2003

18

QuickSpecs

Storage

HP Business Desktop d325 Microtower

M

I C R O T O W E R

Diskette Drives

Tape Drive

CD-ROM Drives

DVD-ROM Drives

CD-RW Drives

Combo Drives

SMART III Ultra ATA Hard Drives

Quantity Supported Position Supported

2

2

2

2

2

2

2

3, 4

1, 2

1, 2

1, 2

1, 2

1, 2

5, 6

Controller

Diskette

IDE

IDE

IDE

IDE

IDE

Ultra ATA

DA-11642 World Wide — Version 4 — June 24, 2003

19

.

QuickSpecs

Technical Specifications – Audio

Integrated ADI 1981A Audio

HP Business Desktop d325 Microtower

Type

Integrated

AC97 Stereo Codec

OPL3 FM Synthesis Support

Sound Blaster Compatibility

Audio Jacks

Yes

Yes

Yes

Mic-In (20-K ohm Input Impedance)

Line-In (12-K ohm Input Impedance)

Line-Out * (less than 800 ohms Output Impedance, expects at least a 10-K ohm load)

Headphone-Out (2.5 Ohms Output Impedance, expects at least a 32 ohm load)

NOTE: *Internal Speaker Amplifier is for Internal Speaker only. External Speakers need to be powered externally.

Sampling

7 kHz – 48 kHz

Compression

ADPCM, ESPCM

Wavetable Syntheses

(software)

Yes

3D Positional Sound

No

Analog Audio Number of Channels on

Line-Out (mono/stereo)

Stereo (Left & Right channels)

Internal Audio Speaker Power

Rating

3W

Internal Speaker

Yes

Internal Tuned Port Speaker

Yes

Hardware Equalizer for

Internal Speaker

5 Band EQ

External Speaker Jack

(Line-Out)

Yes

20

DA-11642 World Wide — Version 4 — June 24, 2003

QuickSpecs

Technical Specifications – Communications

HP Business Desktop d325 Microtower

Integrated 3Com 3C920B-EMB Fast

Ethernet Controller

Manufacturer

Connector

Bus

Media

Management capabilities

Configuration

Environmental operating requirements

3Com

RJ-45

32-bit PCI

10BASE-T/100BASE-TX

ACPI, WOL and DMI 2.0, PXE 2.0, WfM 2.0, SOS alerting

Network transfer rate

10BaseT (half-duplex) 10 Mbps

10BaseT (full-duplex) 20 Mbps

100BaseTX (half-duplex) 100 Mbps

100BaseTX (full-duplex) 200 Mbps

Data interface

PCI, 32-bit bus mastering

I/O address

Automatic I/O address

Interrupt level

Dimensions

Automatic IRQ setup

Standards compliance

LED indicators

PCI 2.2, PC’99, RWU

Drivers

Microsoft Windows Me, Microsoft Windows

2000, Microsoft Windows 9x, Microsoft

Windows NT, Windows XP, Linux

Yes, PME

Remote wakeup

Operating distance

Power management

10BASE-T/100BASE-TX up to 100 meters

(328 feet)

Proactive alert technology

No

Temperature

32

°

to 131

°

Humidity (non-condensing)

10% to 90%

F (0

°

to 55

°

C)

ACPI

Network management

Power

Any SNMP management medium including

3Com DynamicAccess® boot services, and

3Com DynamicAccess Managed PC Boot

Agent

+ 3.3 V, 340 mA

100-Mbps link, 10-Mbps link, activity

4.7 x 2.2 inches (12.0 x 5.6 cm)

21

DA-11642 World Wide — Version 4 — June 24, 2003

QuickSpecs

Technical Specifications – Communications

HP Business Desktop d325 Microtower

Intel Pro 1000 MT NIC

Connector

Controller

Memory

Data rates supported

Compliance

Bus architecture

Data path width

Data transfer mode

Hardware certifications

Power requirement

Boot ROM support

Network transfer rate

Environmental

Dimensions

Operating system driver support

Management capabilities

RJ-45

Intel 82540EM Gigabit Controller

Integrated 96Kb frame buffer memory

10/100/1000 Mbps

IEEE 802.1A, 802.1P, 802.1P, 802.1Q, 802.2, 802.3, 802.3AB and 802.3u

compliant, 802.3x flow control

PCI 2.2

32-bit, 33/66 MHz bus interface

Bus-master DMA

FCC, B, CE, TUV- cTUVus Mark Canada and United States, TUV- GS Mark for

European Union

5V_PCI with 4.75V to 5.25V operating range

Yes

10BASE-T (half-duplex) 10 Mbps

10BASE-T (full-duplex) 20 Mbps

100BASE-TX (half-duplex) 100 Mbps

100BASE-TX (full-duplex) 200 Mbps

1000BASE-T, 1000 Mbps

Operating temperature

Operating humidity

32

°

to 131

°

F (0

°

to 55

°

C)

85% at 131

°

F (55

°

C)

4.7 x 4.7 x 0.8 inches (12.1 x 12.1 x 1.9 cm)

Microsoft Windows NT 4.0, Microsoft Windows 98, Microsoft 2000, Microsoft XP,

Linux 2.2, Linux 2.4

ACPI, WOL and DMI 2.0, PXE 2.0, WfM 2.0, Intel PROset II utility

DA-11642 World Wide — Version 4 — June 24, 2003

22

QuickSpecs

Technical Specifications – Communications

HP Business Desktop d325 Microtower

Broadcom NetXtreme Gigabit

Ethernet

Connector

Controller

Memory

Data rates supported

Compliance

Bus architecture

Data path width

Data transfer mode

Hardware certifications

Power requirement

Boot ROM support

Network transfer rate

Environmental

Dimensions

Operating system driver support

Management capabilities

Alerting

RJ-45

Broadcom 5782 PCI LAN Controller

Integrated 96Kb frame buffer memory

10/100/1000 Mbps

IEEE 802.1A, 802.1P, 802.1P, 802.1Q, 802.2, 802.3, 802.3AB and 802.3u

compliant, 802.3x flow control

PCI 2.2

32-bit, 33/66 MHz bus interface

Bus-master DMA

FCC, B, CE, TUV- cTUVus Mark Canada and United States, TUV- GS Mark for

European Union

1.48 watts @ +3.3V AUX supply with 5V tolerance

Yes

10BASE-T (half-duplex) 10 Mbps

10BASE-T (full-duplex) 20 Mbps

100BASE-TX (half-duplex) 100 Mbps

100BASE-TX (full-duplex) 200 Mbps

1000BASE-T, 1000 Mbps

Operating temperature

Operating humidity

32

°

to 131

°

F (0

°

to 55

°

C)

85% at 131

°

F (55

°

C)

4.7 x 2.0 x 0.08 inches (12 x 5 x 1.9 cm)

Microsoft Windows NT 4.0, Microsoft Windows 98, Microsoft 2000, Microsoft XP,

Linux 2.2, Linux 2.4

ACPI, WOL and DMI 2.0, PXE 2.0, WfM 2.0, Broadcom mgmt utility

ASF 1.0

23

DA-11642 World Wide — Version 4 — June 24, 2003

QuickSpecs

Technical Specifications – Communications

HP Business Desktop d325 Microtower

Lucent V.90 56K PCI Win Modem Data Transmission

.

V.90/K56flex technology speeds: 56,000 Kbps maximum downstream data, controllerless

NOTE: 56 Kbps technology refers to download speeds only and requires compatible modems at server sites.

Other conditions may limit modem speed. FCC limitations allow a maximum of 53 Kbps during download transmissions

Data Speeds

Data Standards

Fax speeds

Fax mode capabilities

Error Correction and Data

Compression

Power Management

(Upload only) 33,600 / 31,200 / 28,800 / 26,400 / 21,600 / 19,200 / 16,800 /

14,400 / 12,000 / 9,600 / 7,200 / 4,800 / 2,400 / 1,200 / 300

ITU V.90, ITU-T, V.34bis, V.22bis, V.22bis, V.21, V.23, Bell 212A, and Bell 103

14,400 / 12,000 / 9,600 / 7,200 / 4,800 / 2,400 / 1,200 / 300 b/s

Group3 FAX, V. 17, V.29, V.27ter, and V.21 Channel 2, Class 1

V.44 (software upgradeable), 4.2bis, V.42 and MNP2-5

Upgradability

Video

Other

Operating temperature

Operating humidity

Power

Chipset

Dimensions (L X H)

Connection

Other features

Safety

EMC

Telecom

Health

Other

APM and ACPI states D0, D1, D2, and D3; meets PCI 2.2 requirements and

PC'99 requirements

Software driver upgradeable for v.92 and future enhancements

ITU-T V.80 video ready interface

TIA/EIA 602 standard AT command set

Integrated DTE interface with speeds of up to 115.2 Kbps, parallel 16550a

UART-compatible interface

Optional ring wakeup signal

32

°

to 104

°

F/0

°

to 40

°

C

20% to 80%, non-condensing

Requires a 3.3-V auxiliary power rail on PCI bus

Uses only one PCI load (i.e., one grant/request pair), one shared IRQ, one electrical load

Agere Systems 1648C (Mars 3.2)—Integrated PCI interface with 5-V tolerant buffers and CardBus support

Complies with PCI low profile specifications—6.7 x 2.3 inches (17.0 x 5.8 cm) and supports high- and low-profile brackets

Dual, parallel RJ-11 support with auxiliary Tip/Ring connector

Digital line protection, call progress monitoring via on-board piezo device, transformer-based DAA design, support for high profile and low profile brackets,

PnP ID supports via external EEPROM

UL recognized to UL 1950, 3rd edition (U.S. and Canada); IEC 950 (TUV,

NEMKO, DEMKO, SEMKO); CE Mark, EC 950 (TUV, NEMKO, DEMKO,

SEMKO, CE mark

FCC Part 15, IC ES003, EN 55022, 3rd edition, EN 55024, annex A, EN 61000-

4-6, EN 61000-4-8

FCC Part 68, IC-CS-03 (Canada); Worldwide PTT approvals

Bare PCB material compliant to 94V-0 or better (marked as such), Microsoft

Windows Me health compliant

PC'99 compliant, PCI version 2.2, WHQL approved; support for ACPI revision

1.1

24

DA-11642 World Wide — Version 4 — June 24, 2003

QuickSpecs

Technical Specifications – Graphics

HP Business Desktop d325 Microtower

Integrated NVIDIA GeForce4 MX

64-MB Graphics

3D/2D Controller

VGA Controller

Integrated GeForce4 MX Graphics Processing Unit (GPU)

Integrated

Bus Type

AGP8X for external graphics cards (Internal graphics is disabled if external AGP

Graphics card is installed)

Integrated 300-MHz DAC

RAMDAC

Memory

Memory (Shared)

Memory Bandwidth

(Max Shared)

Triangles/Second (Max)

Graphics memory is shared with system memory. Graphics memory usage can vary from 16 – 128MB depending on the amount of system memory installed and system BIOS settings.

16-128MB DDR

5.3 GB/second

Fill Rate (Max)

Controller Clock Speed

Overlay Planes

Max Color Depth

Maximum Vertical Refresh

Rate

Multi-display Support

Operating Systems

Graphics API Support

Resolutions

Supported

24 million

760 Million texels/second

200 MHz

Support is fully compliant with Microsoft standard API such as Direct Draw and

Direct Show.

32-bits/pixel

85 Hz at 1920x1200, 75 Hz at 1920x1440, 60 Hz at 2048x1536

Yes. Two VGA ports integrated in system motherboard.

Microsoft Windows XP and Windows 2000

Complete Microsoft DirectX

support, including DirectX 8.1; complete OpenGL

1.3 support. Compatible with DirectX 9.

NVIDIA Shading Rasterizer with 24 of 26 DX8 pixel shading functions and full set of OpenGL1.3 pixel combiner operations in hardware.

Resolution Maximum Refresh

Rate (Hz)

Resolution Maximum Refresh

Rate (Hz)

320 x 200

320 x 240

400 x 300

480 x 360

512 x 384

640 x 400

640 x 480

800 x 600

1024 x 768

75

75

85

85

75

75

75

85

85

1280 x 1024

1600 x 900

1600 x 1200

1920 x 1200

1920 x 1440

2048 x 1536

85

75

60

85

85

85

25

DA-11642 World Wide — Version 4 — June 24, 2003

QuickSpecs

Technical Specifications – Graphics

NVIDIA GeForce4 MX 440 Graphics

Controller

HP Business Desktop d325 Microtower

3D/2D Controller

VGA Controller

NV18 128-bit Graphics Processing Unit (GPU)

Integrated

Bus Type

AGP8X

RAMDAC

Memory

Controller Clock Speed

350-MHz DAC

64-MB 128-bit DDR frame buffer memory

275 MHz

Overlay Planes

1

Stencil Planes

Alpha Planes

Z-buffer

8-bit

8-bit

32-bit

Total Bits/Pixel

32-bits/pixel

Maximum Vertical Refresh

Rate

Maximum Colors

Multi-display Support

Operating Systems

Graphics API Support

Resolutions

Supported

75 Hz at 2048 x 1536

32-bit color

Includes support for one CRT and TV simultaneously (VGA and S-Video connectors)

Microsoft Windows XP and Windows 2000

Complete Microsoft DirectX

1.3 support

support, including DirectX 8.1; complete OpenGL

Resolution Maximum Refresh

Rate (Hz)

Resolution Maximum Refresh

Rate (Hz)

320 x 200

320 x 240

400 x 300

480 x 360

512 x 384

640 x 400

640 x 480

800 x 600

1024 x 768

75

85

85

85

85

75

75

75

75

1152 x 864

1280 x 960

1280 x 1024

1600 x 900

1600 x 1200

1920 x 1080

1920 x 1200

1920 x 1440

2048 x 1536

85

85

85

75

60

85

85

85

85

26

DA-11642 World Wide — Version 4 — June 24, 2003

QuickSpecs

Technical Specifications – Hard Drives

7200 rpm SMART III Ultra

ATA/100 Hard Drives

80-GB Capacity

Rotational Speed

Interface

Height

Width

Transfer Rate Synchronous

(Maximum)

Seek Time (typical reads, including settling)

Physical Configuration

Operating Temperature

HP Business Desktop d325 Microtower

80,000 MB

7200 rpm

Ultra ATA/100

1 in/25.4 mm

3.5 in/88.9 mm

100 MB/s

Single Track

Average

Full-Stroke

Logical Blocks

41

°

to 131

°

F/5

°

to 55

°

C

1.2 ms (2.7 ms quiet seek)

8 ms (10.1 ms quiet seek)

18 ms (21.1 ms quiet seek)

157,278,240

5400 rpm SMART III Ultra

ATA/100 Hard Drives

40-GB

80-GB

40-GB

Capacity

Rotational Speed

Interface

Height

Width

Transfer Rate Synchronous

(Maximum)

Seek Time (typical reads, including settling)

Physical Configuration

Operating Temperature

Capacity

Rotational Speed

Interface

Height

Width

Transfer Rate Synchronous

(Maximum)

Seek Time (typical reads, including settling)

Physical Configuration

Operating Temperature

Capacity

Rotational Speed

Interface

Transfer Rate Synchronous

(Maximum)

Height

Width

Seek Time (typical reads, including settling)

Physical Configuration

Operating Temperature

40,000 MB

7200 rpm

Ultra ATA/100

1 in/25.4 mm

3.5 in/88.9 mm

100 MB/s

Single Track

Average

Full-Stroke

Logical Blocks

41

°

to 131

°

F/5

°

to 55

°

C

1.2 ms (2.7 ms quiet seek)

8 ms (10.1 ms quiet seek)

18 ms (21.1 ms quiet seek)

78,165,360

80,000 MB

5400 rpm

Ultra ATA/100

1 in/25.4 mm

3.5 in/88.9 mm

100 MB/s

Single Track

Average

Full-Stroke

Logical Blocks

41

°

to 131

°

F/5

°

to 55

°

C

1.2 ms (2.7 ms quiet seek)

8 ms (10.1 ms quiet seek)

18 ms (21.1 ms quiet seek)

78,165,360

40,000 MB

5400 rpm

Ultra ATA/100

66 MB/s

1 in/25.4 mm

3.5 in/88.9 mm

Single Track

Average

Full-Stroke

Logical Blocks

41

°

to 131

°

F/5

°

to 55

°

C

1.5 ms (2.9 ms quiet seek)

10.5 ms (12.4 ms quiet seek)

23 ms (23 ms quiet seek)

39,102,336

27

DA-11642 World Wide — Version 4 — June 24, 2003

QuickSpecs

HP Business Desktop d325 Microtower

Technical Specifications – Input/Output Devices

Easy Access Keyboard (PS/2 or USB) Dimensions (HxWxD)

Weight

Electrical

Mechanical

Environmental

1.4 x 18.3 x 6.3 in/36 x 465 x160 mm

Approximately 2 lbs/0.9 kg

Operating Voltage

Power Consumption

+

5VDC

±

5%

50 mA maximum (with 3 LEDs on)

System Interface

ESD

EMI-RFI

PC98

Languages

Keycaps

Switch Actuation

Switch Life

PS/2 mini-din connector

CE level 4, 15 kV air discharge

Conforms to FCC rules for a Class B computing device

Functionally compliant

30

+

available

Low-profile design

55 g nominal peak force with tactile feedback

20 million keystrokes (using Hasco modified tester)

Contamination resistant membrane

For all double wide and greater length keys

Switch Type

Key Leveling Mechanism

Cable Length

PC98-99

Acoustics

Operating Temperature

6 ft/1.8 m

Mechanically compliant

Non-operating Temperature

Operating Humidity

Non-operating Humidity

Operating Shock

50 dBA maximum sound pressure level

50

°

to 122

°

F/10

°

to 50

°

C

22

°

to 140

°

F/

30

°

to 60

°

C

10% to 90% (non condensing at ambient)

20% to 80% (non condensing at ambient)

40 g, 6 surfaces

Non-operating Shock

Operating Vibration

Non-operating Vibration

80 g, 6 surfaces

2 g peak acceleration

4 g peak acceleration

28

DA-11642 World Wide — Version 4 — June 24, 2003

QuickSpecs

HP Business Desktop d325 Microtower

Technical Specifications – Input/Output Devices

2-Button Scroll Mouse (PS/2 or USB)

Scroll Wheel

Maximum Rotation Speed

Switch Type

Switch Life

Mechanical Life

Environmental

Electrical

Mechanical

Regulatory Approvals

8 mm

30 mm/s

Light force micro-switch

1 million operations

Minimum 200,000 revolutions

Operating Temperature

Non-operating Temperature

Operating Humidity

Non-operating Humidity

Operating Shock

50

°

to 122

°

F/10

°

to 50

°

C

22

°

to 140

°

F/

30

°

to 60

°

C

10% to 90% (non condensing at ambient)

20% to 80% (non condensing at ambient)

40 g, 6 surfaces

Non-operating Shock

Operating Vibration

Non-operating Vibration

Operating Voltage

80 g, 6 surfaces

2 g peak acceleration

4 g peak acceleration

+

5VDC

±

10%

15mA

PS/2 mini-din connector

Power Consumption

System Consumption

ESD

EMI-RFI

PC98

Resolution

Tracking Speed

Acceleration

CE level 4, 15 kV air discharge

Conforms to FCC rules for a Class B computing device

Functionally compliant

400

±

20% DPI

10 in/s maximum

100 in/s

Switch Actuation

Switch Life

Cable Length

PC98-99

85 g nominal peak force

1,000,000 operations (using Hasco modified tester)

2 m

Mechanically compliant

UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BCIQ, C-Tick

USB Optical Scroll Mouse

Dimensions (H x L x W)

Weight

Cable length

System requirements

1.5 x 4.5 x 2.5 in/3.8 x 11.6 x 6.3 cm

0.27 lb/0.12 kg

72.8 in/185 cm

IBM-compatible PC

Microsoft

Windows

95, 98, 2000, Me, and XP

Available USB port

29

DA-11642 World Wide — Version 4 — June 24, 2003

QuickSpecs

Technical Specifications – Optical Storage

48X Max CD-ROM Drive Interface

Data Buffer

Data Transfer Rate

Disk Rotation Technology

Access Time (ms)

Average Access Time

Cache Buffer

(standard/maximum)

Disk Formats Read

Disk Formats Written

Disk Capacity (CD)

Block Size

HP Business Desktop d325 Microtower

ATAPI IDE

16.6 Mbps

Sustained—150 Kbps minimum

(audio)

CAV (Constant Angular Velocity)

Variable (CD)—3,000 to 7,200 Kbps

Random: <100 ms

< 80 ms

Full-stroke seek: <150 ms

128 KB

Diameter

Thickness

Track Pitch

Audio Output Level

Startup Time

Operating Conditions

Dimensions (H x W x D, maximum)

Weight

Multi-session Photo CD, multi-read CD-ROM, CD text, audio CD, CD-I, CD-RW,

CD-R, CD-Extra, CD-ROM XA

None

650 MB

Mode 1—2,048 bytes

Mode 2—2,340/2,336 bytes

CD-DA—2,352 bytes

CD-XA—2,328 bytes

12 cm; 8 cm

1.2 mm

1.6 µm

Line-out—0.7 V @ 47 Kohm Headphone—0.6 V @ 32 ohm

<7 seconds (typical); < 30 seconds with multi-session

Temperature 41° to 113° F (5° to 45° C)

Relative Humidity 10% to 80%

1.7 x 5.9 x 8.2 inches (4.3 x 15.0 x 20.8 cm)

2.6 lbs (1200 g)

XP.

Windows

NT 4.0, Microsoft Windows 2000, and Microsoft Windows

None

MPEG Playback Graphics

Solution Support

30

DA-11642 World Wide — Version 4 — June 24, 2003

QuickSpecs

Technical Specifications – Optical Storage

48X/24X/48X CD-RW Drive

HP Business Desktop d325 Microtower

Orientation

Disc Loading Mechanism

Either horizontal or vertical

Half-height, tray load

Interface Type

ATAPI IDE

Dimensions—external

(W x H x D)

7.99 x 5.88 x 1.71 in/203 x 149.5 x 43.5 mm

Weight

2.6 lb/1.2 kg

Disc Diameter

12 cm, 8 cm

Disc Thickness

1.2 mm

Track Pitch

1.6

µ m

Disc Center Hole Diameter

15 mm

Reference Scanning Velocity 1.2 m/s

Recording/Playing Time

80 minutes with CD-R media

Read Only Disc Parameters

Writeable Disc Parameters

Formats and Modes Supported CD-ROM—Mode 1; CD-ROM XA—Mode 2

(forms 1 and 2); CD digital audio; CD Extra;

CD-I—Mode 2 (forms 1 and 2) and CD-I-

Ready; Photo CD (single and multi-session); video CD

Capacity 185 MB (Mode 2, 8cm); 540 MB (Mode 1, 12 cm); 650 MB (Mode 2, 12 cm); 700 MB (Mode

2, 12 cm)

Block Size

Disc Type

Mode 1—2,048 and 2,352 bytes; mode 2, form

1—2,048; 2,328; 2,336; 2,340 and 2,352 bytes; mode 2, form 2—2,328; 2,336; 2,340 and 2,352 bytes; CD-DA—2,352 and 2,368 bytes

CD-R and CD-RW

Access Times (typical)

Data Transfer Rates

Write Methods Disc at Once, Track at Once, Session at Once,

Variable Packet, Fixed Packet

Format and Modes Supported CD-ROM (mode 1); CD-ROM XA (mode 2, forms 1 and 2); CD digital audio, CD-I (mode 2, forms 1 and 2); video CD

Capacity 185 MB (Mode 2, 8cm); 540 MB (Mode 1, 12 cm); 650 MB (Mode 2, 12 cm); 700 MB (Mode

2, 12 cm)

Block Size Mode 1—2,048 bytes; mode 2, form 1—2,048 and 2,352 bytes; mode 2, form 2—2,352 bytes;

CD-DA —2,352 bytes

< 120 ms Random

Full Stroke

Sustained

Variable

< 200 ms

CD-R write—1,800 KB/s (12X)

CD-R write—2400 KB/s (16X)

CD-RW write (1-4X media) —600 KB/s (4X)

CD-RW write (4-10X media) —1,500 KB/s

(10X)

CD-RW write (4-12X media) —1,800 KB/s

(12X)

CD-RW read—3,600 KB/s (24X)

Digital audio extraction (minimum) —7,200

KB/s (48X)

CD-RW write—2,400 to 3,600 KB/s

(16X to 24X)

CD-RW write—2,400 to 4,800 KB/s

(16X to 32X)

CD-RW write—2,400 to 6,000 KB/s

(16X to 40X)

CD-RW write—2,400 to 7,200 KB/s

(16X to 48X)

CD-ROM, CD-R read—1,500 to 7,200 KB/s

(10X to 48X)

31

DA-11642 World Wide — Version 4 — June 24, 2003

QuickSpecs

Technical Specifications – Optical Storage

HP Business Desktop d325 Microtower

48X/24X/48X CD-RW Drive (continued) Data Transfer Modes

Cache Buffer

Start-up Time (single)

ATA PIO mode 4 (16.7MB/s) ; ATA multi-word DMA mode 2 (16.7 MB/s); ATA

UltraDMA mode 0 (16.7 MB/s) ;ATA UltraDMA mode 1 (24 MB/s) ; ATA

UltraDMA mode 2 (33 MB/s) – default.

2 MB (minimum)

< 7 seconds typical

Start-up Time (multi-session) < 30 seconds typical

Stop Time

< 4 seconds

Power

Source

DC power requirement

DC current

Four-pin, DC power receptacle

5 VDC

±

5%—100 mV ripple p-p

12 VDC

±

5%—200 mV ripple p-p

5 VCD < 1A (typical)

< 1200 mA (maximum)

12 VCD < 600 mA (typical)

< 1.2A (maximum)

Total Drive Power

(Standby mode)

< 2.5 watt

Audio Output Level

0.7 Vrms

Configuration Jumper Block Master, slave and cable select modes

Data Interface Connector

50-pin IDE interface

Environmental

(all conditions, non-condensing)

Temperature (operating) Operating 41

°

to 122

°

F (5

°

to 50

°

C)

Relative Humidity (operating) 10% to 85%

Maximum Wet Bulb

Temperature (operating)

84

°

F (29

°

C)

DA-11642 World Wide — Version 4 — June 24, 2003

32

QuickSpecs

Technical Specifications – Optical Storage

HP Business Desktop d325 Microtower

16X/40X DVD-ROM with +R Read

Drive

Height

5.25-in, half-height

Interface Type

ATAPI

Dimensions– External,

Excluding Bezel (W x H)

5.88 x 1.71 in (149.5 x 43.5 mm)

Disc Diameter

12 cm, 8 cm

Disc Thickness

1.2 mm

Track Pitch

1.6 µm (CD), 0.74 µm (DVD)

Disc Center Hole Diameter

15 mm

Disc Formats

Disc Capacity

DVD-ROM (single and dual layer); DVD-video; DVD-R version 1.0 and 2.0; DVD-

RW version 1.0 and 1.1; DVD-R multi-border; DVD+RW; DVD+R ; CD-ROM

Mode 1 and 2; CD-DA; CD-ROM XA Mode 2, Form 1 and 2; CD-extra; CD-text;

CD-I Mode 2, Form 1 and 2; CD-I ready; video CD, CD-bridge; PhotoCD (single and multi-session); CD-R; CD-RW

DVD-ROM

4.7 GB (DVD-5), 8.54 GB (DVD-9), 9.4 GB

(DVD-10), 3.95 GB (DVD-R version 1.0), 4.7

GB (DVD-R version 2.0), 4.7 GB (DVD-RW version 1.0 and 1.1), 4.7 GB (DVD+RW), 4.7G

(DVD+R)

CD-ROM 540 MB (Mode 1, 12 cm), 640 MB (Mode 2, 12 cm), 700 MB (80 minimum CD-R and CD-RW),

180 MB (8 cm)

Block Size (bytes)

Access Times

DVD-ROM – 2048; CD-ROM Mode 0 – 2352; CD-ROM Mode 1 – 2352, 2340,

2336, 2048; CD-ROM Mode 2 – 2352, 2340, 2336, 2048

DVD-ROM Single Layer

(typical reads, including settling) CD-ROM Mode 1

< 120 ms

< 90 ms

Full Stroke DVD < 240 ms (seek)

Data Transfer Rates

Full Stroke CD < 160 ms (seek)

2600 – 6000 KB/s (40X CAV CD-ROM mode)

8100 – 21,600 KB/s (16X CAV DVD-ROM mode)

Data Transfer Modes

Power

PIO Mode 4 (16.6 MB/s); Multi-word DMA mode 2 (16.6 MB/s); UltraDMA Mode

3 (44.4 MB/s)

Source Four-pin, DC power receptacle

DC Power Requirement

DC Current

5 VDC

±

5% – 100 mV ripple p-p

12 VDC

±

5% – 200 mV ripple p-p

5 VDC – <800 mA typical, < 1000 mA maximum

12 VDC – < 870 mA typical

Audio Output Level

0.7 Vrms (typical)

Configuration Jumper Block Master, slave, and cable select modes

Data Interface Connector

40-pin, shrouded and keyed, flat ribbon

Environmental

(all conditions non-condensing)

Temperature (operating) 41

°

to 122

°

F (5

°

to 50

°

C)

Relative Humidity (operating) 10% to 85%

Maximum Wet Bulb

Temperature (operating)

86

°

F (30

°

C)

Certifications, Approvals

MMC II support, multi-read certification, Microsoft WHQL certification, ACA

AS/NZS 3548 class B, CNS 13438, C.I.S.P.R. Pub 22, TUV or VDE EN60950,

EN 55022, EN55024, SEMKO, NEMKO, DEMKO, FIMKO, EN 60825-1, UL

60950, and CSA C22.2 60950-2000.

Operating Systems Supported Microsoft Windows NT, Microsoft Windows 2000, and Microsoft Windows XP.

33

DA-11642 World Wide — Version 4 — June 24, 2003

QuickSpecs

Technical Specifications – Removable Storage

HP Business Desktop d325 Microtower

1.44-MB Diskette Drive

LED Indicators (front panel)

3.5 in.

Read/Write Capacity per

diskette (high/low density)

Green

Drive Supported

1.44 MB/720 KB

Drive Height

One

Drive Rotation

Transfer Rate (high/low)

Bytes/Sector

Sectors/Track (high/low)

Tracks/Side (high/low)

One-third

300 rpm

500/250 Kb/s

512

18/9

Access Times

80/80

Track-to-Track (high/low)

Average (high/low)

Settling Time

Latency Average

3/6 ms

169/94 ms

15 ms

100 ms

USB Drive Key

Zip 250 Drive

Dimensions (HxWxD)

Weight

USB Specification

Transfer Rate

Storage Media

Power Supply

Capacity

0.9 x 0.6 x 3.2 inches(2.3 x 1.5 x 8.2 cm)

0.05 lb (0.02 kg)

1.1

Read-1023 KB/Sec; Write-850 KB/Sec

Solid state flash memory, no moving parts

USB Bus-powered, no external power required

64MB and 128MB

Interface

Media format supported

Media capacity

Access time

Drive rotational speed

Size

ATAPI IDE

Zip disk

250 MB

29 ms (average)

2,941 rpm

Fits into a 5.25-inch bay (with bracket)

Maximum sustained

Data transfer rate

Operating conditions

Temperature

Humidity

2.4 Mbps

1.4 Mbps

1.4 Mbps (100 MB), 2.4 MB/s (250 MB)

0.3 Mbps (100 MB), 2.4 MB/s (250 MB)

11.1 Mbps

50° to 125° F (10° to 51.5° C)

20% to 80%

Compatible operating system Microsoft Windows 2000 and Windows NT 4.0

HP recommends Microsoft® Windows® XP Professional for Business

© Copyright 2003 Hewlett-Packard Development Company, L.P.

The information contained herein is subject to change without notice.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Intel, the Intel Inside Logo, and Pentium are registered trademarks of Intel Corporation.

Microsoft, MS, Windows and Windows NT are registered trademarks of the Microsoft Corporation in the U.S. and other countries.

Other product names mentioned herein may be trademarks and/or registered trademarks of their respective companies.

World Wide — Version 4 — June 24, 2003

34

DA-11642

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
