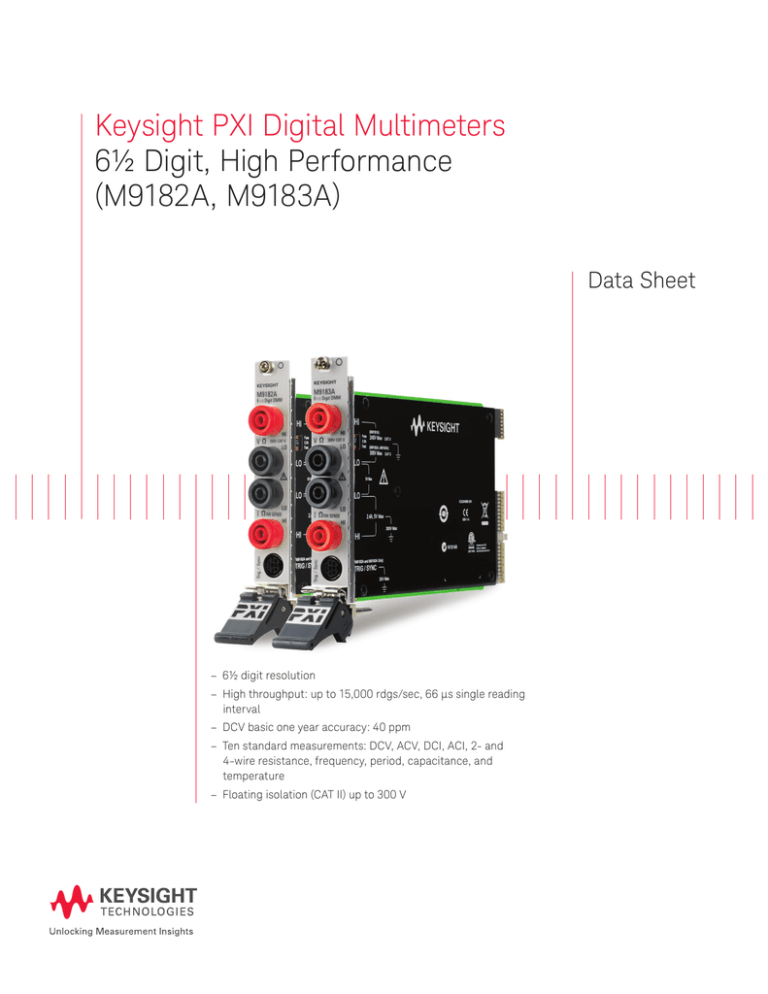

Keysight PXI Digital Multimeters

6½ Digit, High Performance

(M9182A, M9183A)

Data Sheet

– 6½ digit resolution

– High throughput: up to 15,000 rdgs/sec, 66 µs single reading interval

– DCV basic one year accuracy: 40 ppm

– Ten standard measurements: DCV, ACV, DCI, ACI, 2- and

4-wire resistance, frequency, period, capacitance, and temperature

– Floating isolation (CAT II) up to 300 V

02 | Keysight | PXI Digital Multimeters, 6.5 Digit High, Performance (M9182A, M9183A) - Data Sheet

Overview

Keysight’s M9182A and M9183A 6½ digit high performance PXI digital multimeters (DMMs) offer fast throughput, flexible measurements, and trustworthy results. The M9182A provides ten built-in measurement types with all the accuracy and stability you would expect from 6½ digit DMM. The M9183A provides the same capabilities as the M9182A, with market-leading measurement speed of up to 15,000 readings per second, additional ranges, and a

DC source.

Industries and Applications

– Aerospace and defense

– Automotive electronics test

– Industrial electronics test

– Medical device test

– Semiconductor and component test

Features

– 6½ digit resolution

– Up to 15,000 readings per second, 66 µs single reading interval time (M9183A)

– Up to 4,500 readings per second, 222 µs single reading interval time (M9182A)

– Basic 1 year DCV accuracy of 40 ppm

– DCV, ACV, DCI, ACI, 2- and 4-wire resistance, frequency, period, capacitance, and temperature

– Pulse width, duty cycle, and totalizer/event counter (M9183A)

– DC voltage and current source (M9183A)

– External trigger in and DMM out, to synchronize with external multiplexers and instruments

– Analog threshold trigger with pre- and post- levels for measuring the correct signal

– Floating isolation (CAT II) to 300 V

– Software drivers to support most common programming environments

– Chassis connector compatibility: PXI-1 (J-1 only), PXIe hybrid slot

Customer Values

– Measurements you can trust

– Higher test throughput due to the lowest latency

– Application development in the environment of your choice reduces development time

– Customer supportable calibration procedures as well as calibration services available from Keysight

PXI-DMM M918xA Feature Summary

All three products are 6½ digit PXI DMMs that take DCV, ACV, DCI,

ACI, 2- and 4-wire resistance measurements.

DMM

M9181A*

M9182A

M9183A

Description

Basic features

PXI DMM

High performance

PXI DMM

Enhanced performance

PXI DMM

DCV basic 1 year accuracy

90 ppm

40 ppm

40 ppm

Maximum reading rate at

4½ digits

150 rdgs/sec

4,500 rdgs/sec

Other measurements

None

Temperature, capacitance, frequency, period

15,000 rdgs/sec Temperature, capacitance, frequency, period, offset compensated Ω, pulse width, duty cycle, totalizer/event counter

Triggering

Immediate

Immediate, analog threshold, PXI trigger bus, external

Immediate, analog threshold, PXI trigger bus, external

* This table and more information about the M9181A can be found in the M9181A data sheet, literature number 5990-9035EN.

DC source

n/a n/a

± 10 V

± (1.2 µA to

12 mA)

03 | Keysight | PXI Digital Multimeters, 6.5 Digit High, Performance (M9182A, M9183A) - Data Sheet

Easy Setup… Test… and Maintenance

Hardware Platform

Compliance

The M9182A and M9183A 6½ digit DMMs are PXI compliant, using either a cPCI (J1),

PXI-1 (J1) or PXIe Hybrid slot. Designed to benefit from fast data interfaces, an M9182A or M9183A DMM can be integrated with other test and automation modules in a PXI,

CompactPCI, or Hybrid chassis. The PXI format offers high performance in a small, rugged package. It is an ideal deployment platform for many automated test systems.

A wide array of complementary PXI products are currently available. Products from

Keysight include switches, multiplexers, digitizers, waveform generators, and local oscillators.

Software Platform

IO Libraries Suite

Keysight IO Libraries Suite offers fast and easy instrument connections. IO Libraries Suite

16.1 supports PXI, helping you display all of the modules in your system, view information about installed software and allows you to more easily find the right driver and start module soft front panels directly with Keysight Connection Expert.

National Instruments IO libraries are also supported, and may be used along with

Keysight IO libraries.

Drivers

Keysight’s digital multimeters come complete with software drivers for Windows XP,

Windows Vista, and Windows 7 (32 and 64 bit). These software drivers work in the most popular test and measurement development environments including: LabVIEW, Visual

Studio (C, C++, C#, Visual Basic), MATLAB, and VEE.

Easy Software Integration

Application code examples are included for LabVIEW, Visual Basic, C/C++, C#, and

MATLAB – demonstrating DMM set up and basic functionality. These application code examples can be used to help you integrate the DMM module into your measurement system.

Soft Front Panel

The soft front panel provides easy to use instrument control. The M9182A and M9183A graphical user interface guides developers through module setup so users can quickly configure the DMM.

One notable feature of the soft front panel is the Driver Call Log which allows the user to see the driver calls for each button pushed. The user can then incorporate the driver calls into the their application program – enabling fast and easy program development.

Calibration

Each M9182A and M9183A DMM is factory calibrated and shipped with an ISO-9002,

NIST-traceable calibration certificate.

Calibration is required once per year. A documented calibration process allows you to do in-rack calibration using standard calibration sources. Alternatively, Keysight and 3rd party calibration labs offer calibration services for the M9182A and M9183A DMMs.

Figure 1. M9183A soft front panel

04 | Keysight | PXI Digital Multimeters, 6.5 Digit High, Performance (M9182A, M9183A) - Data Sheet

Technical Specifications and Characteristics

M9182A and M9183A: Accuracy specifications ±(% of reading + % of range)

1,2

Function

DC voltage

Range 3 Frequency

24 hour

23 °C ± 1 °C

True RMS,

AC voltage

4,5

(Fast RMS off)

200.0000 mV

2.000000 V

20.00000 V

200.0000 V

300.0000 V

200.0000 mV

6

10 Hz - 20 Hz

20 Hz - 47 Hz

47 Hz - 10 kHz

10 kHz - 50 kHz

50 kHz - 100 kHz

0.0030 + 0.0005

0.0020 + 0.0002

0.0040 + 0.0006

0.0030 + 0.0002

0.0130 + 0.0002

3.00 + 0.18

0.37 + 0.08

0.13 + 0.05

0.25 + 0.08

1.90 + 0.18

2.000000 V

20.00000 V

10 Hz - 20 Hz

20 Hz - 47 Hz

47 Hz - 10 kHz

10 kHz - 50 kHz

50 kHz - 100 kHz

10 Hz - 20 Hz

20 Hz - 47 Hz

47 Hz - 10 kHz

10 kHz - 50 kHz

50 kHz - 100 kHz

3.00 + 0.10

0.37 + 0.07

0.05 + 0.05

0.32 + 0.06

1.90 + 0.08

3.00 + 0.07

0.37 + 0.06

0.06 + 0.05

0.18 + 0.09

1.30 + 0.15

200.0000 V

& 300.0000 V

True RMS,

AC voltage

4,5

(Fast RMS on)

200.0000 mV

2.000000 V

20.00000 V

200.0000 V

& 300.0000 V

6

10 Hz - 20 Hz

20 Hz - 47 Hz

47 Hz - 10 kHz

10 kHz - 50 kHz

50 kHz - 100 kHz

350 Hz - 800 Hz

800 Hz - 10 kHz

10 kHz - 50 kHz

50 kHz - 100 kHz

350 Hz - 800 Hz

800 Hz - 10 kHz

10 kHz - 50 kHz

50 kHz - 100 kHz

350 Hz - 800 Hz

800 Hz - 10 kHz

10 kHz - 50 kHz

50 kHz - 100 kHz

350 Hz - 800 Hz

800 Hz - 10 kHz

10 kHz - 50 kHz

50 kHz - 100 kHz

3.00 + 0.07

0.43 + 0.06

0.07 + 0.05

0.28 + 0.07

1.30 + 0.09

0.60 + 0.08

0.13 + 0.05

0.55 + 0.08

5.30 + 0.18

0.93 + 0.07

0.07 + 0.05

0.62 + 0.06

5.10 + 0.08

0.93 + 0.06

0.07 + 0.05

0.31 + 0.09

2.00 + 0.15

1.00 + 0.06

0.07 + 0.05

0.34 + 0.07

2.50 + 0.09

1.00 + 0.09

0.08 + 0.06

0.70 + 0.08

5.30 + 0.10

1.00 + 0.08

0.07 + 0.07

0.35 + 0.13

2.40 + 0.20

1.10 + 0.08

0.08 + 0.08

0.50 + 0.10

3.20 + 0.13

3.20 + 0.13

0.40 + 0.09

0.07 + 0.06

0.35 + 0.08

2.10 + 0.10

3.30 + 0.10

0.40 + 0.08

0.07 + 0.07

0.22 + 0.13

1.50 + 0.20

3.30 + 0.08

0.45 + 0.08

0.09 + 0.08

0.32 + 0.10

2.40 + 0.13

0.70 + 0.10

0.15 + 0.06

0.63 + 0.12

5.60 + 0.20

1 year

23 °C ± 5 °C

0.0050 + 0.0010

0.0040 + 0.0003

0.0070 + 0.0008

0.0050 + 0.0003

0.0250 + 0.0003

3.20 + 0.22

0.40 + 0.10

0.15 + 0.06

0.27 + 0.12

2.00 + 0.20

0.96 + 0.08

0.08 + 0.06

0.65 + 0.07

5.20 + 0.09

0.96 + 0.07

0.07 + 0.06

0.33 + 0.11

2.20 + 0.18

1.10 + 0.07

0.07 + 0.07

0.45 + 0.08

2.80 + 0.12

3.10 + 0.11

0.38 + 0.08

0.06 + 0.06

0.33 + 0.07

2.00 + 0.09

3.10 + 0.08

0.38 + 0.07

0.07 + 0.06

0.20 + 0.11

1.40 + 0.18

3.10 + 0.08

0.44 + 0.07

0.08 + 0.07

0.30 + 0.08

1.60 + 0.12

0.65 + 0.09

0.14 + 0.06

0.60 + 0.10

5.40 + 0.19

90 day

23 °C ± 5 °C

0.0040 + 0.0008

0.0030 + 0.0002

0.0050 + 0.0007

0.0040 + 0.0001

0.0230 + 0.0003

3.10 + 0.19

0.38 + 0.09

0.14 + 0.06

0.26 + 0.10

1.95 + 0.19

05 | Keysight | PXI Digital Multimeters, 6.5 Digit High, Performance (M9182A, M9183A) - Data Sheet

Technical Specifications and Characteristics

(continued)

M9182A and M9183A: Accuracy specifications ±(% of reading + % of range)

1,2

Function

Resistance 7

Range 3

Frequency, test current or burden voltage

24 hour

23 °C ± 1 °C

DC current

20.00000 Ω

(M9183A only)

200.0000 Ω

2.000000 kΩ

20.00000 kΩ

200.0000 kΩ

2.000000 MΩ

20.00000 MΩ

200.0000 MΩ

(M9183A , 2-wire only)

200.0000 nA

(M9183A only)

2.000000 µA

(M9183A only)

20.00000 µA

(M9183A only)

200.0000 µA

(M9183A only)

2.000000 mA

20.00000 mA

200.0000 mA

2.000000 A

10 mA

1 mA

1 mA

100 µA

10 µA

1 µA

100 nA

4 nA

< 100 µV

< 100 µV

< 100 µV

< 2.5 mV

< 25 mV

< 250 mV

< 55 mV

< 520 mV

0.004 + 0.004

0.004 + 0.002

0.003 + 0.002

0.003 + 0.002

0.006 + 0.002

0.018 + 0.002

0.120 + 0.002

0.800 + 0.013

0.130 + 0.020

0.050 + 0.004

0.050 + 0.002

0.052 + 0.100

0.020 + 0.015

0.020 + 0.002

0.020 + 0.025

0.100 + 0.003

True RMS,

AC current

8

2.000000 mA

9

20.00000 mA

10 Hz - 20 Hz

20 Hz - 47 Hz

47 Hz - 1 kHz

1 kHz - 10 kHz

10 Hz - 20 Hz

20 Hz - 47 Hz

47 Hz - 1 kHz

1 kHz - 10 kHz

2.70 + 0.20

0.90 + 0.20

0.04 + 0.08

0.12 + 0.20

1.80 + 0.15

0.60 + 0.15

0.07 + 0.05

0.21 + 0.15

200.0000 mA

Frequency or period

10, 14

2.000000 A

200 mV to 300 V

10 Hz - 20 Hz

20 Hz - 47 Hz

47 Hz - 1 kHz

1 kHz - 10 kHz

10 Hz - 20 Hz

20 Hz - 47 Hz

47 Hz - 1 kHz

1 kHz - 10 kHz

1Hz - 20 Hz

20 Hz - 130 Hz

130 Hz - 640 Hz

640 Hz - 2.5 kHz

2.5 kHz - 40 kHz

40 kHz - 200 kHz

200 kHz - 300 kHz

1.80 + 0.20

0.60 + 0.20

0.15 + 0.08

0.30 + 0.15

1.80 + 0.20

0.66 + 0.30

0.30 + 0.19

0.40 + 0.20

0.08 + 0.01

0.03 + 0.01

0.03 + 0.01

0.03 + 0.01

0.03 + 0.01

0.05 + 0.01

0.07 + 0.01

90 day

23 °C ± 5 °C

0.009 + 0.004

0.010 + 0.002

0.008 + 0.002

0.008 + 0.002

0.010 + 0.002

0.030 + 0.003

0.130 + 0.003

1.000 + 0.015

2.70 + 0.20

0.90 + 0.20

0.17 + 0.09

0.35 + 0.18

2.50 + 0.23

0.80 + 0.30

0.33 + 0.19

0.45 + 0.23

0.08 + 0.01

0.03 + 0.01

0.03 + 0.01

0.03 + 0.01

0.03 + 0.01

0.05 + 0.01

0.07 + 0.01

0.160 + 0.023

0.080 + 0.003

0.080 + 0.003

0.070 + 0.150

0.030 + 0.020

0.035 + 0.003

0.030 + 0.030

0.150 + 0.004

2.90 + 0.20

0.90 + 0.20

0.08 + 0.15

0.14 + 0.20

2.60 + 0.15

0.90 + 0.15

0.15 + 0.10

0.30 + 0.20

1 year

23 °C ± 5 °C

0.014 + 0.005

0.013 + 0.003

0.012 + 0.002

0.012 + 0.002

0.016 + 0.003

0.040 + 0.004

0.200 + 0.003

1.300 + 0.025

2.80 + 0.20

1.00 + 0.20

0.20 + 0.11

0.40 + 0.20

2.70 + 0.25

0.90 + 0.30

0.35 + 0.20

0.50 + 0.25

0.08 + 0.01

0.03 + 0.01

0.03 + 0.01

0.03 + 0.01

0.03 + 0.01

0.05 + 0.01

0.07 + 0.01

0.170 + 0.030

0.210 + 0.008

0.130 + 0.004

0.100 + 0.200

0.040 + 0.028

0.045 + 0.003

0.040 + 0.040

0.200 + 0.005

2.90 + 0.20

1.00 + 0.20

0.12 + 0.20

0.22 + 0.20

2.80 + 0.15

1.00 + 0.15

0.16 + 0.15

0.40 + 0.20

06 | Keysight | PXI Digital Multimeters, 6.5 Digit High, Performance (M9182A, M9183A) - Data Sheet

Technical Specifications and Characteristics

(continued)

M9182A and M9183A: Accuracy specifications ±(% of reading + % of range)

1,2

Function Range

Full scale reading or resolution

24 hour

23 °C ± 1 °C

Single shot duty cycle

11

[M9183A only]

Single shot pulse width

12, 14

[M9183A only]

Capacitance 13

2 - 100 Hz

100 Hz - 1 kHz

1 - 10 kHz

14 μs - 62.5 ms

0.02 %

0.20 %

2.00 %

1 µs

0.03 ± 0.03

0.03 ± 0.30

0.03 ± 3.00

.01 ± 4 µs

[M9183A and

M9182A]

1000.0 pF

10.000 nF

100.00 nF

1.0000 µF

10.000 µF

100.00 µF

1.0000 mF

10.000 mF

1199.9 pF

11.999 nF

119.99 nF

1.1999 µF

11.999 µF

119.99 µF

1.1999 mF

11.999 mF

1.00 + 0.10

1.20 + 0.05

1.00 + 0.10

1.00 + 0.10

1.00 + 0.10

1.00 + 0.10

1.20 + 0.10

2.00 + 0.10

90 day

23 °C ± 5 °C

0.03 ± 0.03

0.03 ± 0.30

0.03 ± 3.00

01 ± 4 µs

1.00 + 0.10

1.20 + 0.05

1.00 + 0.10

1.00 + 0.10

1.00 + 0.10

1.00 + 0.10

1.20 + 0.10

2.00 + 0.10

1 year

23 °C ± 5 °C

0.03 ± 0.03

0.03 ± 0.30

0.03 ± 3.00

01 ± 4 µs

1.00 + 0.10

1.20 + 0.05

1.00 + 0.10

1.00 + 0.10

1.00 + 0.10

1.00 + 0.10

1.20 + 0.10

2.00 + 0.10

1. Specifications are for 1 hour warm up, within 1 hour self-cal, aperture ≥ 0.5 sec. Slow AC filter for AC measurements only.

2. For temperatures outside the range of 23 °C ± 5 °C, but within 0 °C to 50 °C, add 0.1 × accuracy specification per °C.

3. 20% over range on all ranges except 300 V range, 10% over range for 300 V range.

4. Minimum input specified: 5 mV or 1% of range, whichever is larger.

5. Signal is limited to 8x106 Volt Hz product. For example, at 32 kHz, the highest input is 250 V.

6. For inputs from 5 mV to 15 mV, add 100 µV to the specification.

7. Specifications are for 4-wire resistance measurements, for 2-wire, add 1 mΩ additional error to the specification; for offset compensated

ohms (M9183A only), add 0.02% of range.

8. Minimum input specified: 60 µA or 1.5% of range, whichever is larger; for inputs < 5% of full scale, add 0.02% of range.

9. For inputs from 60 to 120 µA, add 10 µA to the specification; for inputs < 5% of full scale, add 0.1% of range.

10. Minimum amplitude greater of: 100 mV, or 5 % of range for 1 Hz to 2.5 kHz, or 25 % of range for 2.5 kHz to 200 kHz , or 40% of range for

200 kHz to 300 kHz..

11. Specifications are % of reading (0.03) ± adder.

12. Specifications are % of reading + time.

13. Specifications apply to input signals ≥ 5% of range.

14. Maximum wait time for duty cycle and period is 5 seconds.

Definitions for Specifications

Specification (spec): Represents warranted performance of a calibrated instrument that has been stored for a minimum of two hours within the operating temperature range of 0 to 55

°C, unless otherwise stated, and after a one hour warm-up period. The specifications include measurement uncertainty. Data represented in this document are specifications unless otherwise noted.

Typical (typ): Represents characteristic performance, which 80% of the instruments manufactured will meet. This data is not warranted, does not include measurement uncertainty, and is valid only at room temperature (approximately 25 °C).

Nominal (nom): The expected mean or average performance, or an attribute whose performance is by design, such as the 50 Ω connector. This data is not warranted and is measured at room temperature (approximately 25 °C).

Measured (meas): An attribute measured during the design phase for purposes of communicating expected performance, such as amplitude drift vs. time. This data is not warranted and is measured at room temperature (approximately 25 °C).

Note: All graphs contain measured data from several units at room temperature unless otherwise noted.

07 | Keysight | PXI Digital Multimeters, 6.5 Digit High, Performance (M9182A, M9183A) - Data Sheet

Technical Specifications and Characteristics

(continued)

M9182A and M9183A Sensitivity (nom)

Function

DCV

ACV

Resistance (M9183A)

Resistance (M9182A)

DCI (M9183A)

DCI (M9182A)

ACI

Capacitance

Lowest Range

200.0000 mV

200.0000 mV

20.00000 Ω

200.0000 Ω

200.0000 nA

2.000000 mA

2.000000 mA

1000.0 pF

Sensitivity

0.1 µV

0.1 µV

10 µΩ

100 µΩ

0.1 pA

10 nA

1 nA

0.1 pF

M9182A and M9183A temperature accuracy (spec) 1

Temperature function

RTD temperature measurement

2,3

Type

pt385

R

0

(Ω)

100 Ω, 200 Ω

Cu (Copper)

500 Ω, 1 kΩ

Less than 12 Ω

Sensitivity

0.01 °C

0.01 °C

0.01 °C

Range/max temperature

-150 to 650 °C

-150 to 650 °C

-100 to 200 °C

Higher than 90 Ω 0.01 °C

Thermocouple temperature measurement

4,5

Thermistor

3

B

N

R

S

E

J

K

T

2.25 kΩ

5 kΩ

10 kΩ

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

NA

0.01 °C

0.01 °C

0.01 °C

0.01 °C

0.01 °C

0.01 °C

0.01 °C

0.01 °C

0.01 °C

0.01 °C

0.01 °C

1. Specifications are for one hour warm up, within one hour self-cal, aperture ≥ 0.5 sec.

2. 4-wire RTD measurement, R0 variable 1 Ω to 7 k Ω.

3. For total measurement accuracy, add temperature probe error.

4. For total measurement accuracy, add thermocouple error and cold junction compensation.

5. DMM linearization temperature range may be greater than that of the thermocouple device.

-100 to 200 °C

2200 °C

1200 °C

2000 °C

3000 °C

3000 °C

2700 °C

3500 °C

550 °C

-80 to 150 °C

-80 to 150 °C

-80 to 150 °C

1 year

23 °C ± 5 °C

± 0.06 °C

± 0.03 °C

± 0.18 °C at ≤ 20 °C

± 0.05 °C otherwise

± 0.10 °C at ≤ 20 °C

± 0.05 °C otherwise

± 0.38 °C

± 0.035 °C

± 0.06 °C

± 0.07 °C

± 0.10 °C

± 0.25 °C

± 0.35 °C

± 0.06 °C

± 0.1 °C

± 0.1 °C

± 0.1 °C

08 | Keysight | PXI Digital Multimeters, 6.5 Digit High, Performance (M9182A, M9183A) - Data Sheet

Technical Specifications and Characteristics

(continued)

Source-Measure [(spec) unless otherwise stated)]

M9183A source DC voltage, measure DC voltage

Parameter

DC voltage source (output) range

DC source sink current at 5 V output

DAC resolution (nom)

DC voltage source accuracy 1 Year, 23°± 5° C

Settling time (typ)

Source resistance (nom)

Closed Loop

+10 to -10 V

5 mA

18 bits /12 bits

0.01% ± 0.001%

100 ms/1 ms

200 ohms

M9183A source DC voltage, measure DC current

DC voltage source (output) range

DC current measurement range

Voltage resolution (nom)

Voltage source accuracy 1 Year, (23 °C ± 5 °C)

1,2,3,4

Settling time (typ)

DC current measurement accuracy

-10.000 to +10.000 V

0 to ± 20 mA

5 mV

2.0% ± 0.4%

100 ms

0.1% + 0.005%

Open Loop

+10 to -10 V

5 mA

12 bits

0.5% ± 0.2%

1 ms

200 ohms

–10 V

–V

20 mA

+I

10 mA Sourch 1st

Quadrant

–5 V

Sourch 3rd

Quadrant

–10 mA

5 V

–I

–20 mA

10 V

+V

Source DC voltage

Measure DC current

M9183A source DC current, measure DC voltage

DC voltage measurement range

Current output

< 1.25 µA

< 12.5 µA

Compliance voltage

4.2 V

4.2 V

< 125 µA

< 1.25 mA

< 12.5 mA

4.2 V

4.2 V

1.2 V

0 to ± 2.0 V

Minimum Level

10 nA

50 nA

100 nA

1 µA

10 µA

Source Accuracy 1 year, (23 °C ± 5 °C)

1% + 1%

1% + 1%

1% + 0.5%

1% + 0.5%

1% + 0.5%

1. Specifications are for one hour warm up, within one hour self-cal, slow AC filter.

2. For temperatures outside the range of 23 °C ± 5 °C, but within 0 °C to 50 °C, add 0.1 × accuracy specification per °C.

3. Repetitive reading at an aperture of 133 ms or higher.

4. If DCV source > 6 V, then add current * 4 ohms; if DCV source > 8 V, then add current * 30 ohms.

1,2,3

09 | Keysight | PXI Digital Multimeters, 6.5 Digit High, Performance (M9182A, M9183A) - Data Sheet

Technical Specifications and Characteristics

(continued)

Triggering Characteristics

The M9182A and M9183A have advanced triggering capabilities that exceed those found on other digital multimeters. Advanced triggering enables you to obtain the signal you need and accurately measure it, in a variety of applications.

External hardware trigger

Trigger input voltage level range (at DIN 7 connector)

Minimum trigger pulse width

Trigger input impedance

Edge

+3 to +15 V activates the trigger

Aperture + 50 µs

3 kΩ

Selectable positive or negative edge

PXI bus trigger inputs

Trigger input voltage level range (via PXI backplane)

Minimum trigger pulse width

Edge

Trigger features

Trigger sources

Trigger delay

[Auto delay (default delay) ensures 1st reading accuracy in most configurations)

Reading storage

Multi Sample Mode

(DCV and DCI functions only)

CMOS level (see PXI standard)

Aperture + 50 µs

Selectable positive or negative edge

Measurement delay

Resolution

Aperture range

Maximum read interval range

Reading per trigger

Trigger sources

Immediate, PXI trigger , external DIN connector, analog threshold trigger source

50 µs to 15 s

1 µs to 65 ms and 16 µs above 65 ms

Circular buffer - 80 readings

2.5 µs to 160 ms (M9183A)

130 µs to 160 ms (M9182A)

1sec for aperatures ≥ 625 µs, else 65 ms

Up to 80 readings (maximum of 78 pretriggers or a maximum of 80 post triggers)

PXI trigger, external DIN connector, and analog threshold (accuracy within 5% of range)

10 | Keysight | PXI Digital Multimeters, 6.5 Digit High, Performance (M9182A, M9183A) - Data Sheet

Measurement Characteristics

Resolution vs. Aperture and Reading Rate for DCV, DCI, Ω

Measurement aperture

10 ms

625 µs

130 µs

2.5 µs

Maximum readings per second

98

1,200

4,500

15,000

(M9183A only)

1

Resolution

6½ digits (22 bits)

5½ digits (18 bits)

4½ digits (14 bits)

4½ digits (14 bits)

1. 15,000 readings/second represent a typical maximum with a measurement aperture of 2.5 µs.

Results will vary, depending on what PC hardware, PXI hardware, and driver are used.

Transaction Speed

Transactional I/O speed is a single reading measurement. This is important when you are taking many single measurements with the DMM. The M9183A delivers the highest transactional measurement speed in its class. These fast readings, up to 15,000 readings per second with a read interval rate of 66 µs, provides the lowest latency, translating into higher test-system throughput and lower cost of test per unit tested.

Variable delay can be programmed to allow fully settled readings in most configurations.

System Reading and Throughput Rates

Switching ranges within a function

DCV

Resistance (2-wire or 4-wire)

DCI (200 mA or 2 A to any other range)

DCI (all other ranges)

Capacitance

Aperture (A)

A ≤ 20 ms

A > 20 ms

A < 33 ms

A ≥ 33 ms

A ≤ 40 ms

A > 40 ms

All apertures

All apertures

Switch between functions

DCV

Resistance to DCI

DCV to capacitance

Resistance to capacitance

Aperture (A)

A < 16 ms

A ≥ 16 ms

A < 16.66 ms

16.66 ms ≤ A < 40 ms

40 ms < A < 66.66 ms

A ≥ 66.66 ms

A < 33.33 ms

A ≥ 33.33 ms

A ≤ 33.33 ms

33.33 ms < A < 80 ms

80 ms ≤ A < 160 ms

A ≥ 160 ms

Range change time (ms)

(A × 0.2) + 15

A + 15.6

(A × 0.05) + 15.5

A + 13

4.2

15.7

1

12

Function change time (ms)

15.6

A + 25

7.8

A × 0.65

7.8

(A × 0.51) + 45

23.4

(A × 0.65) + 50

23.4

(A × 2) + 35

23.4

160

Aperture reading rate

(< 1 NPLC)

16,000

14,000

12,000

10,000

8,000

6,000

4,000

2,000

-

10 mS 625 µS

M9182A

130 µS 2.5 µS

M9183A

Overhead

Command

Reception &

Processing

Read Interval

Delay

Variable Delay

Aperture

Integrate & Convert

Overhead

Process &

Transmit Data

Time frame of a single measurement

Minimum read interval = 66 µs (M9183A)

Minimum read interval = 222 μs (M9182A)

11 | Keysight | PXI Digital Multimeters, 6.5 Digit High, Performance (M9182A, M9183A) - Data Sheet

Measurement Characteristics

(continued)

DC voltage

Measurement method

Input resistance

Input isolation

Input overvoltage protection

DCV noise rejection

Delta-sigma A/D conversion

200 mV, 2.0 V ranges: >10 GΩ with typical leakage of < 50 pA;

20 V, 200 V, 300 V ranges: 10.0 MΩ

330 VDC, 250 VAC from Earth ground

330 VDC all ranges

Normal mode rejection at 50, 60, or 400 Hz ± 0.5%; > 95 dB (apertures ≥ 0.160 s); CMRR (1 kΩ lead imbalance) ≥ 120 dB

True RMS AC voltage

Measurement method

Crest factor

Input impedance

Settling time

Peak input

Input overvoltage protection

ACV noise rejection

AC coupled (10 Hz to 100 kHz) true RMS — measures the AC component of an input waveform that consists of AC and DC components.

Maximum crest factor of 4 at full scale, 7 at 10% of range

1 MΩ, in parallel with < 300 pF

< 0.5 sec to within 0.1% of final value

Fast RMS: < 0.05 sec to within 0.1% of final value

8 x 10 6 volt Hz product (example: 250 V @ 32 kHz)

330 VAC all ranges

Common mode rejection at 50 Hz or 60 Hz; 1 kΩ imbalance in either lead

> 60 dB

Resistance

Measurement method

Offset compensation (M9183A only)

Maximum test voltage

Maximum lead resistance (4-wire)

Input protection

DC current

Shunt resistance

Input protection

True RMS AC current

Measurement method

Shunt resistance

Input protection

Selectable 2-wire or 4-wire. Current source referenced to LO output

All ranges, use with apertures > 5 ms

Voffset + (I*R) < 2.2 V for ranges ≥ 2 kΩ

Voffset + (I*R) < 0.22 V for ranges < 2 kΩ

240 mV for 20 Ω and 200 Ω ranges; 2.4 V for 20 kΩ to 20 MΩ ranges;

1.0 V for 200 MΩ range (M9183A only)

50 kΩ for 200 kΩ, 2.0 MΩ, and 20 MΩ ranges; 5 kΩ for 20 kΩ range

500 Ω for 200 Ω and 2 kΩ ranges; 50 Ω for 20 Ω range

330 V on all ranges

10 Ω for 2 mA and 20 mA, 0.1 Ω for 200 mΩ and 2 A;

Virtual zero shunt for 200 μA, 20 μA, 2 μA, and 200 nA range (M9183A only)

Protected with 2.5 A, 250 V fast blow fuse

AC coupled true RMS measurement (measures the AC component only.) analog RMS DC converter.

10 Ω for 2 mA and 20 mA, 0.1 Ω for 200 mA and 2 A

Protected with 2.5 A, 250 V fast blow fuse

12 | Keysight | PXI Digital Multimeters, 6.5 Digit High, Performance (M9182A, M9183A) - Data Sheet

Measurement Characteristics

(continued)

Frequency and period

Measurement method

Input impedance

Sensitivity (130 Hz)

Direct (conventional) counting

1 MΩ with < 300 pF

.001 Hz

Totalizer (M9183A only)

Active edge polarity

Maximum count

Allowed rate

Threshold

Accuracy

Capacitance

Measurement method

Connection type

Positive or negative transition

10,000,000,000

1 to 30,000 events per second

Set threshold DAC

±2 counts

Differential charge balance: variable currents used to stimulate dV/dt response.

2-wire

Environmental and physical characteristics

Temperature range

Relative humidity

Connectors

Safety

EMC

Warm-up time

Operating -10° to 55 °C

Non-operating -40 ° to +85 °C

Operating to 80% at 40 °C

Storage to 95% at 40 °C

V HI*, 2-wire Ω IN, DCV OUT

V LO*, 2-wire Ω IN, DCV OUT

I HI*, 4-wire Ω IN

I LO*, 4-wire Ω IN

Sync OUT

External Trigger IN

Trigger and Sync common

Complies with IEC 61010-1, CAT II 300 V, pollution degree 2

Complies with EN61326-1 Industrial

Environment

1 hour

Sheathed banana jack

Sheathed banana jack

Sheathed banana jack

Sheathed banana jack

DIN 7, pin 2

DIN 7, pin 7

DIN 7, pin 4

* Do not connect the V HI and V LO or I HI and I LO connectors to anything when the measurement function does not utilize those connectors.

Physical characteristics

Dimensions 3U/1-slot PXI/CompactPCI standard

Weight 0.5 kg (1 lb.)

Power dissipation:

+5 V

300 mA

Total power

1.5 W max

13 | Keysight | PXI Digital Multimeters, 6.5 Digit High, Performance (M9182A, M9183A) - Data Sheet

Configuration

Hardware

Model

M9182A

M9183A

DMM units include:

Description

PXI 6½ digit multimeter, high performance

PXI 6½ digit multimeter, enhanced performance

Getting started guide, software drivers, user and service documentation (on CD ROM), Keysight I/O libraries

Software

Model

Supported Operating Systems

Standard Compliant Drivers

Supported Application Development

Environments (ADE)

Keysight IO Libraries

Description

Microsoft Windows XP (32-bit), Microsoft Windows Vista (32/64-bit), Microsoft Windows 7 (32/64-bit)

IVI-C, IVI-COM, LabVIEW

VisualStudio (VB.NET, C#, C/C++), LabVIEW, MATLAB, VEE

Includes: VISA Libraries, Keysight Connection Expert, IO Monitor

Calibration and Warranty

Advantage services: calibration and warranty

Keysight Advantage Services is committed to your success throughout your equipment’s lifetime.

Calibration

R-50C-011-3 Yearly calibration, for 3 years

R-50C-011-5 Yearly calibration, for 5 years

R-50C-021-3 Yearly ANSI Z540-1-1994 calibration, for 3 years

R-50C-021-5 Yearly ANSI Z540-1-1994 calibration, for 5 years

Warranty

Standard warranty is 1 year

R-51B-001-3C 1 year return-to-Keysight warranty extended to 3 years

R-51B-001-5C 1 year return-to-Keysight warranty extended to 5 years

Accessories

Model

34138A

Description

Test lead set

Related products

Model

M9018A

M9021A

M9036A

M9101A

M9103A

M9120A

M9121A

M9181A

Description

18-slot PXIe chassis

PCIe cable interface to an external system controller

Embedded controller

PXI high-density multiplexer, 64 channels, reed relays

PXI high-density multiplexer, 99 channels, armature relays

PXI high-density matrix switch, 4x32, armature relays

PXI high-density matrix switch, 4x64, reed relays

PXI digital multimeter, 6½ digit, basic features

14 | Keysight | PXI Digital Multimeters, 6.5 Digit, High Performance (M9182A, M9183A) - Data Sheet myKeysight www.keysight.com/find/mykeysight

A personalized view into the information most relevant to you.

www.pxisa.org

PCI eXtensions for Instrumentation (PXI) modular instrumentation delivers a rugged, PC-based high-performance measurement and automation system.

Three-Year Warranty www.keysight.com/find/ThreeYearWarranty

Keysight’s commitment to superior product quality and lower total cost of ownership. The only test and measurement company with three-year warranty standard on all instruments, worldwide.

Keysight Assurance Plans www.keysight.com/find/AssurancePlans

Up to five years of protection and no budgetary surprises to ensure your instruments are operating to specification so you can rely on accurate measurements.

www.keysight.com/go/quality

Keysight Technologies, Inc.

DEKRA Certified ISO 9001:2008

Quality Management System

Keysight Infoline www.keysight.com/find/service

Keysight’s insight to best in class information management. Free access to your Keysight equipment company reports and e-library.

Keysight Channel Partners www.keysight.com/find/channelpartners

Get the best of both worlds: Keysight’s measurement expertise and product breadth, combined with channel partner convenience.

www.keysight.com/find/modular www.keysight.com/find/pxi-switch

For more information on Keysight

Technologies’ products, applications or services, please contact your local Keysight office. The complete list is available at: www.keysight.com/find/contactus

Americas

Canada

Brazil

Mexico

United States

(877) 894 4414

55 11 3351 7010

001 800 254 2440

(800) 829 4444

Asia Pacific

Australia

China

Hong Kong

India

Japan

Korea

Malaysia

Singapore

Taiwan

Other AP Countries

1 800 629 485

800 810 0189

800 938 693

1 800 11 2626

0120 (421) 345

080 769 0800

1 800 888 848

1 800 375 8100

0800 047 866

(65) 6375 8100

Europe & Middle East

Austria

Belgium

Finland

France

Germany

Ireland

Israel

Italy

Luxembourg

Netherlands

Russia

Spain

Sweden

Switzerland

United Kingdom

0800 001122

0800 58580

0800 523252

0805 980333

0800 6270999

1800 832700

1 809 343051

800 599100

+32 800 58580

0800 0233200

8800 5009286

800 000154

0200 882255

0800 805353

Opt. 1 (DE)

Opt. 2 (FR)

Opt. 3 (IT)

0800 0260637

For other unlisted countries: www.keysight.com/find/contactus

(BP-04-23-15)

This information is subject to change without notice.

© Keysight Technologies, 2012 – 2014

Published in USA, August 2, 2014

5990-7580EN www.keysight.com

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
