BIJ1200 Firmware Upgrade Instruction

BIJ1200 Firmware Upgrade Instruction

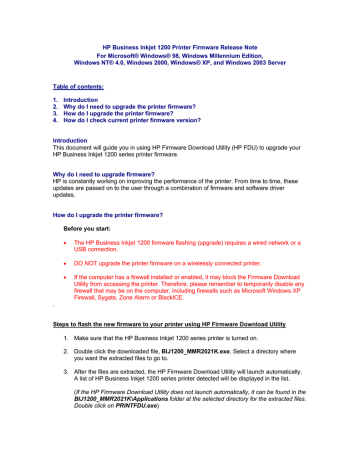

HP Business Inkjet 1200 Printer Firmware Release Note
For Microsoft® Windows® 98, Windows Millennium Edition,
Windows NT® 4.0, Windows 2000, Windows® XP, and Windows 2003 Server
Table of contents:
1.
2.
3.
4.
Introduction
Why do I need to upgrade the printer firmware?
How do I upgrade the printer firmware?
How do I check current printer firmware version?
Introduction
This document will guide you in using HP Firmware Download Utility (HP FDU) to upgrade your
HP Business Inkjet 1200 series printer firmware.
Why do I need to upgrade firmware?
HP is constantly working on improving the performance of the printer. From time to time, these
updates are passed on to the user through a combination of firmware and software driver
updates.
How do I upgrade the printer firmware?
Before you start:
•
The HP Business Inkjet 1200 firmware flashing (upgrade) requires a wired network or a
USB connection.
•
DO NOT upgrade the printer firmware on a wirelessly connected printer.
•
If the computer has a firewall installed or enabled, it may block the Firmware Download
Utility from accessing the printer. Therefore, please remember to temporarily disable any
firewall that may be on the computer, including firewalls such as Microsoft Windows XP
Firewall, Sygate, Zone Alarm or BlackICE.
.
Steps to flash the new firmware to your printer using HP Firmware Download Utility
1. Make sure that the HP Business Inkjet 1200 series printer is turned on.
2. Double click the downloaded file, BIJ1200_MMR2021K.exe. Select a directory where
you want the extracted files to go to.
3. After the files are extracted, the HP Firmware Download Utility will launch automatically.
A list of HP Business Inkjet 1200 series printer detected will be displayed in the list.
(If the HP Firmware Download Utility does not launch automatically, it can be found in the
BIJ1200_MMR2021K\Applications folder at the selected directory for the extracted files.
Double click on PRINTFDU.exe)
Note: If the Wired network printer you wish to upgrade is not displayed in the detected
printer list, click on the Find Printers on Network button to scan for printers connected
via the wired network.
4. Click on the checkboxes on the left to select one or multiple HP Business Inkjet 1200
series printer you wish to upgrade. (See Figure 1)
Figure 1: Selecting the HP Business Inkjet 1200 series printer(s)
5. Click on the Download button to start the firmware flashing process.
CAUTION! Do not interrupt the printer during the upgrading process. Printer may be
damage if power is interrupted during the firmware upgrading process.
Note: During the firmware flashing process, the printhead LED, Ink Cartridge LED, Door
Open LED and Out of Paper LED will always be on. The color LED will blink in sequence.
6. When the printer has complete the flashing process, all LED will blink once and the
printer will reboot itself or turn off.
Note: For 1200dtwn, printer will be turned off after a successful firmware flash. For
1200d, 1200dn, 1200dtn printer will be turned on automatically after a successful
firmware flash.
How do I check current printer firmware version?
You can print a configuration page or use the toolbox to check current printer firmware version.
Toolbox
1. Click Start; select All Programs> HP> HP Business Inkjet 1200 Series > HP Business
Inkjet 1200 Series Toolbox.
2. On the Information tab, click Printer Hardware. The current firmware version will
appear in the Printer information dialog box and it should reflect the new firmware version
MMR2021K.
Printing a Configuration page
1. Turn on the HP Business Inkjet 1200 series printer
2. Press the CONFIGURATION PAGE button once
Copyright
© 2006 Copyright Hewlett-Packard Development Company, L.P.
Reproduction, adaptation or translation without prior written permission is prohibited, except as
allowed under the copyright laws.
The information contained herein is subject to change without notice.
The only warranties for HP products and services are set forth in the express warranty
statements accompanying such products and services. Nothing herein should be construed as
constituting an additional warranty. HP shall not be liable for technical or editorial errors or
omissions contained herein.
