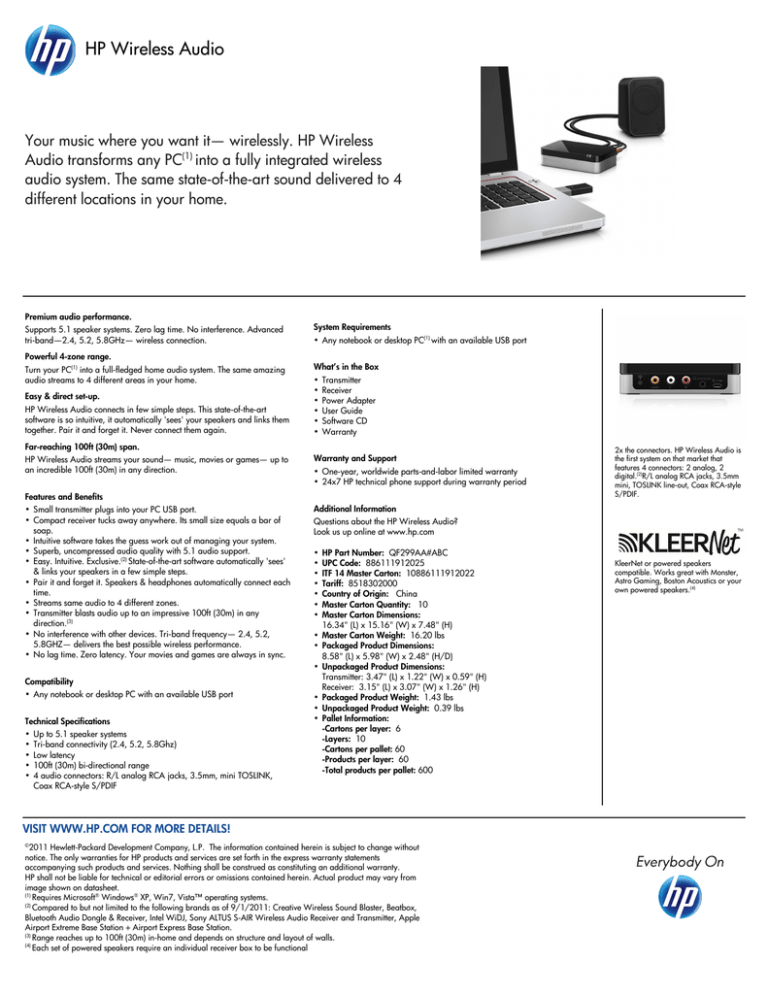

HP Wireless Audio_Datasheet

HP Wireless Audio_Datasheet
HP Wireless Audio
Your music where you want it— wirelessly. HP Wireless
Audio transforms any PC(1) into a fully integrated wireless
audio system. The same state-of-the-art sound delivered to 4
different locations in your home.
Premium audio performance.
Supports 5.1 speaker systems. Zero lag time. No interference. Advanced
tri-band—2.4, 5.2, 5.8GHz— wireless connection.
System Requirements
• Any notebook or desktop PC(1) with an available USB port
Powerful 4-zone range.
Turn your PC(1) into a full-fledged home audio system. The same amazing
audio streams to 4 different areas in your home.
Easy & direct set-up.
HP Wireless Audio connects in few simple steps. This state-of-the-art
software is so intuitive, it automatically 'sees' your speakers and links them
together. Pair it and forget it. Never connect them again.
What’s in the Box
•
•
•
•
•
•
Transmitter
Receiver
Power Adapter
User Guide
Software CD
Warranty
Far-reaching 100ft (30m) span.
HP Wireless Audio streams your sound— music, movies or games— up to
an incredible 100ft (30m) in any direction.
Warranty and Support
• One-year, worldwide parts-and-labor limited warranty
• 24x7 HP technical phone support during warranty period
Features and Benefits
• Small transmitter plugs into your PC USB port.
• Compact receiver tucks away anywhere. Its small size equals a bar of
soap.
• Intuitive software takes the guess work out of managing your system.
• Superb, uncompressed audio quality with 5.1 audio support.
• Easy. Intuitive. Exclusive.(2) State-of-the-art software automatically 'sees'
& links your speakers in a few simple steps.
• Pair it and forget it. Speakers & headphones automatically connect each
time.
• Streams same audio to 4 different zones.
• Transmitter blasts audio up to an impressive 100ft (30m) in any
direction.(3)
• No interference with other devices. Tri-band frequency— 2.4, 5.2,
5.8GHZ— delivers the best possible wireless performance.
• No lag time. Zero latency. Your movies and games are always in sync.
Additional Information
Questions about the HP Wireless Audio?
Look us up online at www.hp.com
•
•
•
•
•
•
•
•
•
•
Compatibility
• Any notebook or desktop PC with an available USB port
Technical Specifications
•
•
•
•
•
Up to 5.1 speaker systems
Tri-band connectivity (2.4, 5.2, 5.8Ghz)
Low latency
100ft (30m) bi-directional range
4 audio connectors: R/L analog RCA jacks, 3.5mm, mini TOSLINK,
Coax RCA-style S/PDIF
•
•
•
HP Part Number: QF299AA#ABC
UPC Code: 886111912025
ITF 14 Master Carton: 10886111912022
Tariff: 8518302000
Country of Origin: China
Master Carton Quantity: 10
Master Carton Dimensions:
16.34" (L) x 15.16" (W) x 7.48" (H)
Master Carton Weight: 16.20 lbs
Packaged Product Dimensions:
8.58" (L) x 5.98" (W) x 2.48" (H/D)
Unpackaged Product Dimensions:
Transmitter: 3.47" (L) x 1.22" (W) x 0.59" (H)
Receiver: 3.15" (L) x 3.07" (W) x 1.26" (H)
Packaged Product Weight: 1.43 lbs
Unpackaged Product Weight: 0.39 lbs
Pallet Information:
-Cartons per layer: 6
-Layers: 10
-Cartons per pallet: 60
-Products per layer: 60
-Total products per pallet: 600
VISIT WWW.HP.COM FOR MORE DETAILS!
©
2x the connectors. HP Wireless Audio is
the first system on that market that
features 4 connectors: 2 analog, 2
digital.(2)R/L analog RCA jacks, 3.5mm
mini, TOSLINK line-out, Coax RCA-style
S/PDIF.
2011 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without
notice. The only warranties for HP products and services are set forth in the express warranty statements
accompanying such products and services. Nothing shall be construed as constituting an additional warranty.
HP shall not be liable for technical or editorial errors or omissions contained herein. Actual product may vary from
image shown on datasheet.
(1)
Requires Microsoft® Windows® XP, Win7, Vista™ operating systems.
(2)
Compared to but not limited to the following brands as of 9/1/2011: Creative Wireless Sound Blaster, Beatbox,
Bluetooth Audio Dongle & Receiver, Intel WiDJ, Sony ALTUS S-AIR Wireless Audio Receiver and Transmitter, Apple
Airport Extreme Base Station + Airport Express Base Station.
(3)
Range reaches up to 100ft (30m) in-home and depends on structure and layout of walls.
(4)
Each set of powered speakers require an individual receiver box to be functional
KleerNet or powered speakers
compatible. Works great with Monster,
Astro Gaming, Boston Acoustics or your
own powered speakers.(4)
