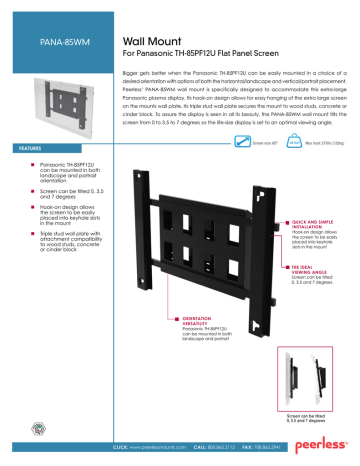

PANA-85WM
Wall Mount
For Panasonic TH-85PF12U Flat Panel Screen
Bigger gets better when the Panasonic TH-85PF12U can be easily mounted in a choice of a
desired orientation with options of both the horizontal/landscape and vertical/portrait placement.
Peerless’ PANA-85WM wall mount is specifically designed to accommodate this extra-large
Panasonic plasma display. Its hook-on design allows for easy hanging of the extra large screen
on the mounts wall plate. Its triple stud wall plate secures the mount to wood studs, concrete or
cinder block. To assure the display is seen in all its beauty, the PANA-85WM wall mount tilts the
screen from 0 to 3.5 to 7 degrees so the life-size display is set to an optimal viewing angle.
Screen size: 85"
FeatureS
Max load: 270lb (122kg)
 Panasonic TH-85PF12U
can be mounted in both
landscape and portrait
orientation
 Screen can be tilted 0, 3.5
and 7 degrees
 Hook-on design allows
the screen to be easily
placed into keyhole slots
in the mount
Quick and Simple
Installation
Hook-on design allows
the screen to be easily
placed into keyhole
slots in the mount
 Triple stud wall plate with
attachment compatibility
to wood studs, concrete
or cinder block
The Ideal
Viewing Angle
Screen can be tilted
0, 3.5 and 7 degrees
Orientation
Versatility
Panasonic TH-85PF12U
can be mounted in both
landscape and portrait
Screen can be tilted
0, 3.5 and 7 degrees
CLICK: www.peerlessmounts.com
CALL: 800.865.2112
FAX: 708.865.2941
WARRANTY: Limited 5-year
Model Numbers
PANA-85WM: Wall Mount for Panasonic TH-85PF12U Flat Panel Screen
Product Specifications
Dimensions (W x H x D)
PRODUCT WEIGHT
Load Capacity
FINISH
AVAILABLE COLORS
39.8" x 57" x 7.7"
(1011 x 1448 x 196mm)
100lb (45kg)
270lb (122kg)
Powder
coat
Matte black
PANA-85WM
Package Specifications
PACKAGE SIZE (W x H x D)
PACKAGE SHIP WEIGHT
PAcKAGE UPC CODE
PACKAGE CONTENTS
735029268154
Wall plate, tilt plate,
support tubes, adapter
brackets and mounting
hardware
37" x 30" x 9.13"
(940 x 762 x 232mm)
PANA-85WM
110lb (50kg)
67.4" x 17.1" x 4.7"
(1712 x 434 x 119mm)
UNITS IN PACKAGE
1
All dimensions = inch (mm)
11.56"
(294 mm)
7°
35"
(889 mm)
27.54"
(699 mm)
57.2"
(1453 mm)
48.5"
(1232 mm)
39.83"
(1012 mm)
7.66"
(195 mm)
Front View
pOrtrait
0° side View
pOrtrait
25.33"
(643 mm)
2"
(51 mm)
7°
48.5"
(1232 mm)
6"
(152 mm)
2.16"
(55 mm)
3.5° - 7° side View
pOrtrait
11.56"
(294 mm)
32"
(813 mm)
16"
(407 mm)
1.98"
(50 mm)
11.64"
(296 mm)
39.83"
(1012 mm)
35"
(889 mm)
4.04"
(103 mm)
35.21"
(894 mm)
rear View
Front View
landscape
0° side View
landscape
3.5° - 7° side View
landscape
A R C H IT E CT S S P E C I F I CAT I O N S
The Panasonic Wall Mount shall be a Peerless model PANA-85WM and shall be located where indicated on the plans. It shall be constructed of heavy gaugecold
rolled steel. It shall feature up to 7° of tilt adjustment. Assembly and installation shall be done according to instructions provided by the manufaturer.
Peerless Industries, Inc.  3215 W. North Avenue  Melrose Park, IL 60160  (800) 865-2112  (708) 865-8870  Fax: (708) 865-2941  www.peerlessmounts.com
Visit peerlessmounts.com to see the full line of Peerless LCD/plasma, projector and TV/monitor mounts. © 2010 Peerless Industries, Inc. All rights reserved.
LIT-0538
