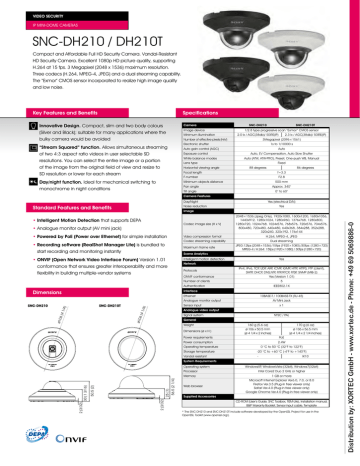

SNC-DH210 / DH210T

SNC-DH210 / DH210T
VIDEO SECURITY
IP MINI-DOME CAMERAS
SNC-DH210 / DH210T
Compact and Affordable Full HD Security Camera. Vandal-Resistant
HD Security Camera. Excellent 1080p HD picture quality, supporting
H.264 at 15 fps. 3 Megapixel (2048 x 1536) maximum resolution.
Three codecs (H.264, MPEG-4, JPEG) and a dual streaming capability.
The “Exmor” CMOS sensor incorporated to realize high image quality
and low noise.
Key Features and Benefits
Specifications
Camera
Innovative Design. Compact, slim and two body colours
(Silver and Black); suitable for many applications where the
bulky camera would be avoided
Image device
Minimum illumination
SNC-DH210
Number of effective pixels (HxV)
3Megapixel (2096×1561)
Electronic shutter
“Stream Squared” function. Allows simultaneous streaming
of two 4:3 aspect ratio videos in user selectable SD
resolutions. You can select the entire image or a portion
of the image from the original field of view and resize to
SD resolution or lower for each stream
SNC-DH210T
1/2.8 type progressive scan “Exmor” CMOS sensor
2.0 lx / AGC(38db)/ 50IRE(IP)
2.3 lx / AGC(38db)/ 50IRE(IP)
1s to 1/10000 s
Auto gain control (AGC)
Exposure control
White balance modes
Auto
Auto, EV Compensation, Auto Slow Shutter
Auto (ATW, ATW-PRO), Preset, One-push WB, Manual
Lens type
Horizontal viewing angle
Fixed
88 degrees
86 degrees
Focal length
f=3.3
F-number
Day/night function. Ideal for mechanical switching to
monochrome in night conditions
F2.8
Minimum objects distance
500 mm
Pan angle
Approx. 340°
Tilt angle
0° to 60°
Camera Features
Day/Night
Noise reduction
Standard Features and Benefits
Yes (electrical D/N)
Yes
t Intelligent Motion Detection that supports DEPA
Codec image size (H x V)
2048×1536 (Jpeg Only), 1920x1080, 1600x1200, 1680x1056,
1440x912, 1280x1024, 1280x960, 1376x768, 1280x800,
1280x720, 1024x768, 1024x576, 768x576, 720x576, 704x576,
800x480, 720x480, 640x480, 640x368, 384x288, 352x288,
320x240, 320x192, 176x144
Video compression format
H.264, MPEG-4, JPEG
t Analogue monitor output (AV mini jack)
t Powered by PoE (Power over Ethernet) for simple installation
Codec streaming capability
t Recording software (RealShot Manager Lite) is bundled to
start recording and monitoring instantly
Maximum frame rate
Dual streaming
JPEG:12fps (2048×1536) /15fps (1920×1080) /30fps: (1280×720)
MPEG-4 / H.264: 15fps (1920×1080) / 30fps (1280×720)
Scene Analytics
Intelligent motion detection
t ONVIF (Open Network Video Interface Forum) Version 1.01
conformance that ensures greater interoperability and more
flexibility in building multiple-vendor systems
Yes
Network
Protocols
ONVIF conformance
IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client),
SMTP, DHCP, DNS,NTP, RTP/RTCP, RTSP, SNMP (MIB-2)
Yes (Version 1.01)
Number of clients
5
Authentication
Interface
Dimensions
Ethernet
Analogue monitor output
10BASE-T / 100BASE-TX (RJ-45)
AV Mini Jack
(4 1
/4)
Sensor input
x1
Analogue video output
Signal system
ø10
6
6 (4
1/4)
SNC-DH210T
ø10
NTSC / PAL
General
Weight
Dimensions (ø x H )
160 g (5.6 oz)
ø 106 x 50.5 mm
(ø 4 1/4 x 2 inches)
170 g (6 oz)
ø 106 x 56.5 mm
(ø 4 1/4 x 2 1/4 inches)
Power requirements
PoE
Power consumption
2.4W
Operating temperature
0 °C to 50 °C (32°F to 122°F)
Storage temperature
-20 °C to +60 °C (-4°F to +140°F)
Vandal resistant
-
IK10
2 (3/32)
56.5 (2 1/4)
25 (1)
50.5 (2)
30 (1 3/16)
System Requirements
2 (3/32)
SNC-DH210
IEEE802.1X
Operating system
Processor
WindowsXP, WindowsVista (32bit), Windows7(32bit)
Intel Core2 Duo 2 GHz or higher
Memory
1 GB or more
Microsoft Internet Explorer Ver6.0, 7.0, or 8.0
Firefox Ver.3.5 (Plug-in free viewer only)
Safari Ver.4.0 (Plug-in free viewer only)
Google Chrome Ver.4.0 (Plug-in free viewer only)
Web browser
Supplied Accessories
CD-ROM (User’s Guide, SNC Toolbox, RSM-Lite), Installation manual,
B&P Warranty Booklet, Sensor input cable, Template
* The SNC-DH210 and SNC-DH210T include software developed by the OpenSSL Project for use in the
OpenSSL Toolkit (www.openssl.org/).
Distribution by: XORTEC GmbH - www.xortec.de - Phone: +49 69 5069886-0
