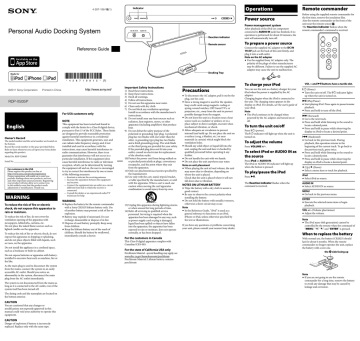

Sony RDP-X500IP Operating instructions
Operations Indicator 4-287-198-15(1) Power source Power management system Reaction indicator After playback of the iPod (or component connected to AUDIO IN jack) has finished, if no operation is performed for about 20 minutes, the unit will automatically turn off. Remote sensor To prepare a power source Personal Audio Docking System Reference Guide Docking Tray ©2011 Sony Corporation Important Safety Instructions Printed in China 1) 2) 3) 4) 5) 6) 7) RDP-X500iP For USA customers only NOTE English Owner’s Record The model number and the serial number are located on the bottom. Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product. Model No. RDP-X500iP Serial No._________________________________ For customers in the USA Please register this product on line at http://www.sony.com/productregistration Proper registration will enable us to send you periodic mailings about new products, services, and other important announcements. Registering your product will also allow us to contact you in the unlikely event that the product needs adjustment or modification. Thank you. WARNING To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. To reduce the risk of fire, do not cover the ventilation opening of the apparatus with newspapers, tablecloths, curtains, etc. Do not place the naked flame sources such as lighted candles on the apparatus. To reduce the risk of fire or electric shock, do not expose this apparatus to dripping or splashing, and do not place objects filled with liquids, such as vases, on the apparatus. Do not install the appliance in a confined space, such as a bookcase or built-in cabinet. Do not expose batteries or apparatus with batteryinstalled to excessive heat such as sunshine, fire or the like. As the main plug is used to disconnect the system from the mains, connect the system to an easily accessible AC outlet. Should you notice an abnormality in the system, disconnect the main plug from the AC outlet immediately. The system is not disconnected from the mains as long as it is connected to the AC outlet, even if the system itself has been turned off. The dating code and the nameplate are located on the bottom exterior. CAUTION You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same type. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10)Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11)Only use attachments/accessories specified by the manufacturer. 12)Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. WARNING Replace the battery for the remote commander with a Sony CR2025 lithium battery only. Use of another battery may present a risk of fire or explosion. Battery may explode if mistreated. Do not recharge, disassemble or dispose of in fire. Dispose of used battery promptly. Keep away from children. Keep the lithium battery out of the reach of children. Should the battery be swallowed, immediately consult a doctor. 13)Unplug this apparatus during lightning storms or when unused for long periods of time. 14)Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. For the customers in Canada This Class B digital apparatus complies with Canadian ICES-003. For the state of California USA only Perchlorate Material –special handling may apply, see www.dtsc.ca.gov/hazardouswaste/perchlorate Perchlorate Material: Lithium battery contains perchlorate To disconnect the AC adaptor, pull it out by the plug, not the cord. Since a strong magnet is used for the speaker, keep credit cards using magnetic coding or spring-wound watches, CRT-based TVs, or projectors, etc., away from the unit to prevent possible damage from the magnet. Do not leave the unit in a location near a heat source such as a radiator or airduct, or in a place subject to direct sunlight, excessive dust, mechanical vibration, or shock. Allow adequate air circulation to prevent internal heat build-up. Do not place the unit on a surface (a rug, a blanket, etc.) or near materials (a curtain) which might block the ventilation holes. Should any solid object or liquid fall into the unit, unplug the unit and have it checked by qualified personnel before operating it any further. Do not handle the unit with wet hands. Do not place the unit anywhere near water. Note on unit placement When playing the unit at loud volume, the unit may move due to vibration, depending on where the unit is placed. Check that the unit is placed where it will not fall down due to vibration. NOTES ON LITHIUM BATTERY Wipe the battery with a dry cloth to assure a good contact. Be sure to observe the correct polarity when installing the battery. Do not hold the battery with metallic tweezers, otherwise a short-circuit may occur. Note In the Reference Guide, “iPod” is used as a general reference to functions on an iPod, iPhone or iPad, unless otherwise specified by the text or illustrations. If you have any questions or problems concerning your unit, please consult your nearest Sony dealer. Before using the supplied remote commander for the first time, remove the insulation film. Aim the remote commander at the front of the unit near the remote sensor . The Reaction indicator flashes when the remote commander’s command is received. Connect the supplied AC adaptor to the DC IN 19.5V jack on the back of this unit firmly, and plug it into a wall outlet. Note on the AC adaptor Use the supplied Sony AC adaptor only. The polarity of the plugs of other manufacturers may be different. Failure to use the supplied AC adaptor may cause the unit to malfunction. To charge your iPod Precautions Remote commander You can use the unit as a battery charger for your iPod when the power is supplied by the AC adaptor. Charging begins when the iPod is connected to the unit. The charging status appears in the display on iPod. For details, see the user’s guide of your iPod. Note The iPod continues to be charged when powered by the AC adaptor and turned on or off. To turn the unit on/off Press / (power). The / indicator will light up when the unit is turned on. To adjust the volume Press VOLUME +/−. To select iPod or AUDIO IN as the source Press iPod or AUDIO IN. The iPod or AUDIO IN indicator will light up when the button is pressed. To play/pause the iPod VOL + and buttons have a tactile dot. / (Power) Turn the unit on/off. The / indicator lights up when the unit is turned on. (Play/Pause) Start playing iPod. Press again to pause/resume playback. Press and hold to turn off the iPod. (Forward) Go to the next track. Press and hold while listening to the sound to locate a desired point. Press and hold in pause while observing the display on iPod to locate a desired point. (Backward) Go back to the previous track. During playback, this operation returns to the beginning of the current track. To go back to the previous track, press twice. Press and hold while listening to the sound to locate a desired point. Press and hold in pause while observing the display on iPod to locate a desired point. (Up)/ (Down) Select a menu item or track for playback. Press . iPod Select iPod as source. The Reaction indicator flashes when the command is received. AUDIO IN Select AUDIO IN as source. MENU Go back to the previous menu. ENTER Execute the selected menu item or begin playback. VOL +/− (Volume plus/minus) Adjust the volume. Note The iPod nano (6th generation) cannot be controlled by the remote when the command of “MENU,” “,” “,” and “ENTER” is pressed. When to replace the battery With normal use, the battery (CR2025) should last for about 6 months. When the remote commander no longer operates the unit, replace the battery with a new one. the side facing up Note If you are not going to use the remote commander for a long time, remove the battery to avoid any damage that may be caused by leakage and corrosion. Playing an iPod Compatible iPod models The compatible iPod models are as follows. Update software of your iPod to the latest version before using it with this unit. iPod touch (4th generation) iPod touch (3rd generation) iPod touch (2nd generation) iPod nano (6th generation)* iPod nano (5th generation) iPod nano (4th generation) iPod nano (3rd generation) iPod classic iPhone 4S iPhone 4 iPhone 3GS iPhone 3G iPad 2 iPad * The iPod nano (6th generation) cannot be controlled by the remote when the command of “MENU,” “,” “,” and “ENTER” is pressed. On copyrights iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad is a trademark of Apple Inc. “Made for iPod,”“Made for iPhone,” and “Made for iPad” mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless performance. To set an iPod on the Docking Tray 1 Press the Docking Tray on the front of the unit to open it. 2 Set your iPod on the Dock connector. Tip The Reaction indicator flashes three times when the volume is set to either maximum or minimum volume. Connecting optional components You can enjoy the sound from an optional component, such as a portable digital music player, through the speakers of this unit. Be sure to turn off the power of each component before making any connections. 1 Firmly connect the line output jack of a 2 3 4 5 portable digital music player (or other component) to the AUDIO IN jack on the back of the unit, using a suitable audio connecting cable (not supplied). Press to turn on the unit. Turn the connected component on. Press AUDIO IN to select the source. Play the connected component. The sound from the connected component is output from the speakers of this unit. Notes The audio connecting cable required depends on the external equipment. Make sure the cable is correct for the external equipment to be connected. If the volume is low, adjust the volume level on the connected equipment first. If the volume is still too low, adjust the volume level on the unit. Additional Information Troubleshooting General The power does not turn on when the AC adaptor is connected. Make sure the AC adaptor is connected to the wall outlet firmly. There is no audio. Adjust VOLUME +/− (VOL +/− on the remote commander). Noise is heard. Ensure that the unit is not in the vicinity of in-use portable phones, etc. Resetting the unit (default setting). Press / to turn on the unit. Remove your iPod from the Dock connector, and then while holding down VOLUME −, hold down /. (Hold both buttons down for at least 5 seconds.) After resetting, the / indicator flashes for 2 seconds. All indicators flash and no buttons can be operated. Remove the AC adaptor and connect it again. iPod There is no audio. Make sure the iPod is connected firmly. Update your iPod to use the latest software beforehand. Make sure the iPod is compatible. Make sure the function for iPod is selected. Operation is not performed. Make sure the iPod is connected firmly. The iPod does not charge. Make sure the iPod is connected firmly. Make sure the AC adaptor is connected firmly. AUDIO IN About App A dedicated dock app for iPod touch, iPhone, and iPad available at Apple App Store. Search for “D-Sappli” and download the free app to find out more about the functions. Features The Sound EQ function allows you to create your own equalizer settings. You can select equalizer presets, or customize settings to your taste. This function is available only when the iPod touch/iPhone/iPad is set on the Dock connector. There is no audio. Make sure the audio connecting cable is connected firmly. Make sure the AUDIO IN function is selected. The sound is low. Confirm the volume of the connected external component. Remote commander The remote commander does not function. Replace the battery in the remote commander with a new one if it is weak. Make sure that you are pointing the remote commander at the remote sensor on the unit. Remove any obstacles in the path of the remote commander and the unit. Make sure the remote sensor is not exposed to strong light such as direct sunlight or fluorescent lamp light. Move closer to the unit when using the remote commander. If the problem persists, consult your nearest Sony dealer. Note If a pop-up message appears on the display of the iPod touch/iPhone/iPad, see “About App.” To close the Docking Tray 1 Remove the iPod from the Dock connector. 2 Press the Docking Tray on the front of the unit until it is locked. To play back Press . The iPod begins to play back. You can operate the connected iPod via this unit or the iPod itself. Notes Remove the case or cover from your iPod before setting it in the Docking Tray to ensure a stable connection. When placing or removing the iPod, hold the iPod at the same angle as that of the connector on this unit, and do not twist or bend the iPod as it may result in connector damage. Do not carry the unit with an iPod set on the Docking Tray. Doing so may cause a malfunction. When placing or removing the iPod, hold the Docking Tray securely. Before disconnecting the iPod, pause playback. If the battery of your iPod is extremely low, charge it for a while before operation. Sony cannot accept responsibility in the event that data recorded to an iPod is lost or damaged when using an iPod connected to this unit. For details of environmental conditions for operating your iPod, check the website of Apple Inc. To adjust the volume Press VOLUME +/− (VOL +/− on the remote commander). D-Sappli includes two timer functions: Music Play Timer and Sleep Timer. The Music Play Timer allows you to play/pause desired music at a desired time. The Sleep Timer allows you to specify a time at which to stop music playback. The Music Play Timer and Sleep Timer work in combination with the power supply of the unit. D-Sappli also includes a clock display enlarge feature. Notes If the App to link with this unit is not downloaded to your iPod touch/iPhone/iPad, a pop-up message prompting you to download D-Sappli may appear repeatedly. Deactivate the App’s link function to stop the pop-up message. To deactivate the App’s link function: Connect the AC adaptor, and then press / to turn on the unit. Remove your iPod touch/iPhone/iPad from the Dock connector, and then press and hold VOLUME − and simultaneously for more than 2 seconds. (The indicator for iPod flashes rapidly when deactivated.) To re-activate the App’s link function, repeat the above steps. The indicator for iPod will flash slowly. When you remove the iPod touch/iPhone/iPad from the docking tray, the Sound EQ function setting will return to the default. When the sound volume is high, the Sound EQ function may not be effective. Specifications AUDIO POWER SPECIFICATIONS POWER OUTPUT AND TOTAL HARMONIC DISTORTION: With 8 ohm loads Satellite channels and with 4 ohm loads Subwoofer channel driven, from 100 Hz - 10,000 Hz; rated 10 watts per channel minimum RMS power, with no more than 10% total harmonic distortion. Section for iPod DC out: 5 V MAX: 2.1 A General Speaker Satellite: 4.8cm (1 15/16 inches) dia. 8Ω Subwoofer: 9.0cm (3 5/8 inches) dia. 4Ω Input AUDIO IN jack (ø 3.5 mm stereo minijack) Power output 15 W + 15 W + 30 W (at no more than 10% harmonic distortion) Power requirements DC IN 19.5 V Dimensions Approx. 401 mm × 176 mm × 160 mm (w/h/d) (15 7/8 inches × 7 inches × 6 3/8 inches) Mass Approx. 3.15 kg (6 lb 15 oz) Supplied accessories Remote commander (1) AC adaptor (1) AC power cord (1)* Reference Guide (this document) (1) Startup Guide (1) CR2025 lithium battery (1) (Pre-installed in the remote commander for trial use) * The supplied AC power cord may differ to the illustration depending on the country. Design and specifications are subject to change without notice.
