Optimus CONCERTMATE 970 User manual
42-4032.fm Page 1 Wednesday, August 11, 1999 4:45 PM

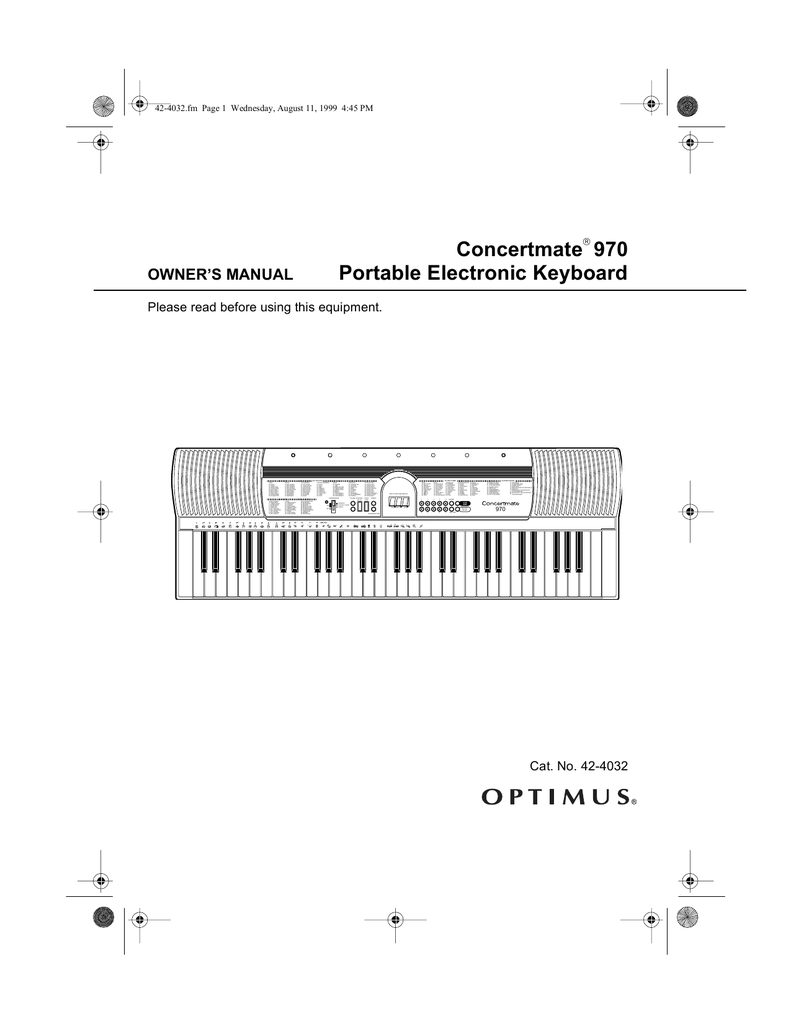

OWNER’S MANUAL
Concertmate
970
Portable Electronic Keyboard
Please read before using this equipment.
970
PIANO
00 PIANO 1
01 PIANO 2
02 HONKY-TONK
03 STUDIO PIANO
04 ELEC PIANO 1
05 ELEC PIANO 2
06 ELEC PIANO 3
07 ELEC PIANO 4
08 HARPSICHORD
09 CLAVELECTRO
ORGAN
10 ELEC ORGAN 1
11 ELEC ORGAN 2
12 ELEC ORGAN 3
13 ELEC ORGAN 4
14 CHURCH ORGAN
15 PIPE ORGAN
16 REED ORGAN
17 ACCORDION
18 BANDONEON
19 HARMONICA
SYNTH-SOUND 2
70 PEARL DROP
71 COSMIC SOUND
72 SOUNDTRACK
73 SPACE PAD
74 SYNTH-SFX
75 SE 1 (VEHICLE)
76 SE 2 (TELEPHONE)
77 SE 3 (SPACE)
78 SE 4 (INVADER)
79 SE 5 (FUNNY)
LAYER
80 STRINGS PIANO
81 STRINGS EP
82 CHOIR EP
83 CHOIR ORGAN
84 STRINGS GUITAR
85 STRINGS HARP
86 BRASS STRINGS
87 VIB PAD
88 12STR GUITAR
89 CHOIR STRINGS
GUITAR/BASS
20 GUT GUITAR
21 ACOUS GUITAR
22 JAZZ GUITAR
23 ELEC GUITAR
24 MUTE GUITAR
25 DIST GUITAR
26 WOOD BASS
27 ELEC BASS
28 SLAP BASS
29 BANJO
SPLIT/PERCUSSION
90 BASS/PIANO
91 BASS/E.PIANO
92 BASS/VIB
93 BASS/G.GUITAR
94 BASS/D.GUITAR
95 STRINGS/PIANO
96 STRINGS/TRUMPET
97 VIBRAPHONE
98 MARIMBA
99 PERCUSSION
100 SOUNDS
STRINGS/ENSEMBLE
30 VIOLIN
31 CELLO
32 HARP
33 STRINGS 1
34 STRINGS 2
35 STRINGS 3
36 SYNTH-STR 1
37 SYNTH-STR 2
38 CHOIR
39 VOICE
BRASS
40 TRUMPET
41 TUBA
42 BRASS SECTION
43 FRENCH HORN 1
44 FRENCH HORN 2
45 BRASS 1
46 BRASS 2
47 SYNTH-BRASS 1
48 SYNTH-BRASS 2
49 SYNTH-BRASS 3
POWER/MODE
ON
OFF
FINGERED
CONCERT CHORD
NORMAL
REED/PIPE
50 SOPRANO SAX
51 ALTO SAX
52 TENOR SAX
53 OBOE
54 CLARINET
55 PICCOLO
56 FLUTE
57 RECORDER
58 FLUTE ENSEMBLE
59 WHISTLE
VOLUME SYNCHRO/
¢ FILL-IN
SYNTH-SOUND 1
60 SYNTH-LEAD 1
61 SYNTH-LEAD 2
62 SYNTH-LEAD 3
63 SYNTH-CALLIOPE
64 SYNTH-PAD 1
65 SYNTH-PAD 2
66 SYNTH-PAD 3
67 GLESS HARMONICA
68 COUNTRY FARM
69 SYNTH-BASS
START/
STOP
TEMPO
¢
⁄
⁄
TRANSPOSE/TUNE
MULTI FUNCTION DISPLAY
SOUND RHYTHM SONG
0
POPS
00 POP FUSION
01 BALLAD
02 POP BALLAD
03 RAP POP
04 SOUL BALLAD
05 FUNKY POP
06 16BEAT
07 8BEAT 1
08 8BEAT 2
09 POPS
ROCK
10 ROCK WALTZ
11 SLOW ROCK
12 SOFT ROCK 1
13 SOFT ROCK 2
14 FOLKIE POP
15 60's SOUL
16 ROCK
17 HEAVY METAL
18 50's ROCK
50 RHYTHMS
JAZZ/DANCE
20 BIG BAND
21 SLOW SWING
22 FOX TROT
23 JAZZ WALTZ
24 ACID JAZZ
25 LATIN FUSION
26 TRANCE
27 DISCO
28 RAP
19 CHICAGO BLUES 29 FUNK
EUROPEAN/LATIN VARIOUS
30 POLKA
31 MARCH
32 SLOW WALTZ
33 WALTZ
34 TANGO
35 BOSSA NOVA
36 SAMBA
40 MERENGUE
41 REGGAE
42 SKA
43 TEX-MEX
44 FOLKLORE
45 COUNTRY
46 SLOW GOSPEL
37 MAMBO
38 RHUMBA
39 CHA-CHA-CHA
47 ADANI
48 BAROQUE
49 ENKA
1 2 3 4 SOUND
00 WHEN YOU WISH
01 TWINKLE TWINKLE
02 ACH DU LIEBER AUGUSTIN
03 AMAZING GRACE
04 ODE TO JOY
05 LONDON BRIDGE
06 LONDONDERRY AIR
07 GREENSLEEVES
08 AULD LANG SYNE
09 JOY TO THE WORLD
20 SONG BANK
10 JINGL BELLS
11
12
O CHRISTMAS TREE
YANKEE DOODLE
13
14
SANTA LUCIA
WHEN THE SAINTS GO MARCHING IN
15
16
ALOHA OE
SPRING FROM "THE FOUR SEASONS"
17
LITTLE BROWN JUG
18 MARCH FROM "THE NUTCRACKER"
19
THE ENTERTAINER
MELODY
ON/OFF
970
5 6 7 8 9 RHYTHM
Cat. No. 42-4032
42-4032.fm Page 2 Wednesday, August 11, 1999 4:45 PM
FEATURES
Your Optimus Concertmate 970 Portable Electronic Keyboard is a state-ofthe-art musical instrument with many exciting features. You can set the keyboard to sound like 100 different musical instruments or sound effects. To accompany your music, the keyboard has 50 rhythms, as well as auto accompaniments and percussion sounds.
Your Concertmate 970’s features include:
20 Juke Box Tunes — let you hear a sample of what you and the Concertmate 970 can do. You can also turn off the melody portion so you can play along with accompaniment.
Fill-In Rhythm — lets you insert a short variation into any auto-rhythm.
Auto Accompaniment — lets you automatically play a preset harmonic pattern to match the selected autorhythm.
Tune Control — lets you adjust the pitch of your keyboard so you can play in tune with other instruments.
Transpose Function — lets you instantly change the key of the music, even while you are playing.
Two Built-In Speakers — provide excellent sound to help make your music come alive.
100 Sounds — let you set your Concertmate 970 to sound like anything from a harpsichord to a honky-tonk piano.
12-Note Polyphonic Sound — lets you play and hear up to 12 notes at the same time so you can play or create almost any type of music.
Tempo Control — lets you speed up or slow down the tempo of any selected music pattern.
50 Auto-Rhythms — give you a steady beat for many styles of music from rhumba to slow rock.
Headphones/Output Jack — lets you connect headphones so you can play without disturbing others, or an external amplifier so you can play for a crowd.
Three Power Options — let you power the keyboard from internal batteries
(not supplied), standard AC power
(with an optional adapter), or your vehicle’s cigarette lighter socket (with an optional adapter) so you can make music almost anywhere.
© 1997 Tandy Corporation.
All Rights Reserved.
Concertmate and Optimus are registered trademarks used by Tandy Corporation.
RadioShack is a trademark used by Tandy Corporation.
2
42-4032.fm Page 3 Wednesday, August 11, 1999 4:45 PM
To fully enjoy the features and functions of this electronic keyboard, please read this manual carefully and completely.
Note: This owner’s manual explains how to use this electronic keyboard. It does not teach music.
We recommend you write your
Concertmate 970’s serial number here. The number is on the bottom of the Concertmate 970.
Serial Number _________________
THE FCC WANTS YOU
TO KNOW
This keyboard complies with the limits for a Class B digital device as specified in Part 15 of
FCC Rules
. These limits provide reasonable protection against radio and TV interference in a residential area. However, your keyboard might cause TV or radio interference even when it is operating properly. To eliminate interference, you can try one or both of the following corrective measures:
• Increase the distance between the keyboard and the radio or TV
• Use outlets on different electrical circuits for the keyboard and the radio or TV
Consult your local RadioShack store or an experienced radio/TV technician if the problem still exists.
3
42-4032.fm Page 4 Wednesday, August 11, 1999 4:45 PM
CONTENTS
Preparation ........................................................................................................... 5
Connecting Power ........................................................................................... 5
Using Batteries .......................................................................................... 5
Using AC Power ........................................................................................ 6
Using Vehicle Battery Power ..................................................................... 6
Connecting Headphones ................................................................................. 7
Listening Safely ......................................................................................... 7
Connecting an External Amplifier .................................................................... 8
Using the Sheet Music Stand .......................................................................... 8
A Look at Your Keyboard .................................................................................... 9
Understanding the Controls ............................................................................. 9
Reading the Display ........................................................................................ 9
Operation ............................................................................................................ 10
Basic Operation ............................................................................................. 10
Using the Juke Box ........................................................................................ 11
Playing Back a Juke Box Tune ............................................................... 11
Playing Along with a Juke Box Tune ....................................................... 11
Using the Preset Sounds ............................................................................... 12
Selecting/Playing a Preset Sound ........................................................... 13
Percussion Sounds ................................................................................. 14
Keyboard Split Sounds ........................................................................... 15
Using the Preset Auto-Rhythms .................................................................... 15
Selecting/Playing an Auto-Rhythm ......................................................... 15
Using SYNCHRO .................................................................................... 16
Using FILL-IN .......................................................................................... 17
Using Auto Accompaniment .......................................................................... 17
Concert Chord ......................................................................................... 17
Standard Fingering ................................................................................. 19
Changing Auto Power Off .............................................................................. 20
Special Features ................................................................................................ 21
Changing Keys .............................................................................................. 21
Tuning the Keyboard ..................................................................................... 22
Troubleshooting ................................................................................................. 23
Care and Maintenance ....................................................................................... 24
Standard Fingering Chord Chart ...................................................................... 25
Specifications ..................................................................................................... 28
Songbook ........................................................................................................... 31
4
42-4032.fm Page 5 Wednesday, August 11, 1999 4:45 PM
PREPARATION
CONNECTING POWER
You can power your Concertmate 970 in any of these ways.
• Internal batteries (see “Using Batteries”)
• Standard AC power using an optional AC adapter (see “Using
AC Power” on Page 6)
• A vehicle’s cigarette lighter socket using an optional DC adapter (see
“Using Vehicle Battery Power” on
Page 6)
Notes:
• Connecting an AC or DC adapter automatically disconnects internal batteries.
• Always disconnect the adapter when you finish using the Concertmate 970.
Using Batteries
Your Concertmate 970 can use six AA batteries (not supplied) for power. For the best performance, we recommend alkaline batteries, such as RadioShack
Cat. No. 23-557.
Cautions:
• Only use fresh batteries of the required size and type.
• Be sure
POWER/MODE
is set to
OFF
while you install batteries.
1. Press the tab on the battery compartment cover, then pull up to remove the cover.
2. Put the batteries in the compartment as indicated by the polarity symbols (+ and –) marked beside the compartment .
+
-
3. Replace the cover.
Notes:
• If you won’t be using the Concertmate 970 with batteries for a week or more, or if you will be using only AC or vehicle battery power, remove the batteries.
• If the Concertmate 970 sounds weak or does not work properly, replace all six batteries. Do not mix old and new batteries.
Caution: Dispose of old batteries promptly and properly.
5
42-4032.fm Page 6 Wednesday, August 11, 1999 4:45 PM
Using AC Power
You can power your Concertmate 970 from standard AC power using a 9-volt
AC adapter (not supplied), such as RadioShack Cat. No. 273-1656.
Cautions:
• You must use an AC adapter that supplies 9 volts and delivers at least 800 milliamps. Its center tip must be set to negative, and its plug must correctly fit the Concertmate 970’s
DC 9V
jack. The recommended adapter meets these specifications. Using an adapter that does not meet these specifications could damage the Concertmate 970 or the adapter.
• Always plug the AC adapter into the Concertmate 970 before you plug it into the AC outlet. Always unplug the AC adapter from the
AC outlet before you unplug it from the Concertmate 970.
• Be sure
POWER/MODE
is set to
OFF
when you connect or disconnect the adapter.
PHONES/
OUTPUT
DC 9V
2. Plug the adapter into a standard
AC outlet.
Using Vehicle Battery Power
You can power your Concertmate 970 from your vehicle’s cigarette lighter socket using a 9-volt DC adapter (not supplied), such as RadioShack Cat.
No. 270-1562.
Cautions:
• You must use a DC adapter that supplies 9 volts and delivers at least 800 milliamps. Its center tip must be set to negative, and its plug must properly fit the Concertmate 970’s
DC 9V
jack. The recommended adapter meets these specifications. Using an adapter that does not meet these specifications could damage the Concertmate 970 or the adapter.
• Always plug the DC adapter into the Concertmate 970 before you plug it into the cigarette lighter socket. Always unplug the DC adapter from the cigarette lighter socket before you unplug it from the Concertmate 970.
• Be sure
POWER/MODE
is set to
OFF
while you connect or disconnect the adapter.
6
1. Insert the adapter’s barrel plug into the
DC 9V
jack on the back of the Concertmate 970.
42-4032.fm Page 7 Wednesday, August 11, 1999 4:45 PM
PHONES/
OUTPUT
DC 9V
PHONES/
OUTPUT
DC 9V
1. Plug the 5.5 mm outer diameter/
2.1 mm inner diameter barrel plug into the cable so it reads – TIP.
2. Set the adapter’s voltage switch to
9 volts.
3. Insert the adapter’s barrel plug into the
DC 9V
jack on the back of the Concertmate 970.
4. Plug the other end of the adapter into the vehicle’s cigarette lighter socket.
CONNECTING
HEADPHONES
To listen to your Concertmate 970 without disturbing others, you can connect a pair of 1 /
4
-inch plug stereo headphones (not supplied). Your local
RadioShack store sells a wide selection of headphones.
To connect a pair of headphones, insert the headphones’ 1 /
4
-inch plug into the
PHONES/OUTPUT
jack on the back of the keyboard.
Note: Connecting headphones disconnects the Concertmate 970’s built-in speakers.
Listening Safely
To protect your hearing, follow these guidelines when you use headphones.
• Set the volume to the lowest setting before you begin listening.
After you begin listening, adjust the volume to a comfortable level.
• Do not listen at extremely high volume levels. Extended highvolume listening can lead to permanent hearing loss.
• Once you set the volume, do not increase it. Over time, your ears adapt to the volume level, so a volume level that does not cause discomfort might still damage your hearing.
7
42-4032.fm Page 8 Wednesday, August 11, 1999 4:45 PM
CONNECTING AN
EXTERNAL AMPLIFIER
To amplify your Concertmate 970’s sound, you can connect it to an external amplifier (not supplied) using an audio cable with a 1 /
4
-inch plug (not supplied).
To connect an external amplifier to your keyboard, insert the cable’s 1 /
4
inch plug into the
PHONES/OUTPUT
jack on the back of the keyboard, and connect the cable’s other end to the amplifier’s input jack(s) (such as AUX
IN or TAPE IN).
USING THE SHEET
MUSIC STAND
To easily view sheet music while playing your Concertmate 970, insert the supplied sheet music stand into the holes on the top back panel.
PHONES/
OUTPUT
DC 9V
Your local RadioShack store sells a full line of amplifiers, speakers, and connection cables.
8
42-4032.fm Page 9 Wednesday, August 11, 1999 4:45 PM
A LOOK AT YOUR KEYBOARD
UNDERSTANDING THE CONTROLS
Speaker 100 SOUNDS List
Display
50 RHYTHMS List
PIANO
00 PIANO 1
01 PIANO 2
02 HONKY-TONK
03 STUDIO PIANO
04 ELEC PIANO 1
05 ELEC PIANO 2
06 ELEC PIANO 3
07 ELEC PIANO 4
08 HARPSICHORD
09 CLAVELECTRO
ORGAN
10 ELEC ORGAN 1
11 ELEC ORGAN 2
12 ELEC ORGAN 3
13 ELEC ORGAN 4
14 CHURCH ORGAN
15 PIPE ORGAN
16 REED ORGAN
17 ACCORDION
18 BANDONEON
19 HARMONICA
SYNTH-SOUND 2
70 PEARL DROP
71 COSMIC SOUND
72 SOUNDTRACK
73 SPACE PAD
74 SYNTH-SFX
75 SE 1 (VEHICLE)
76 SE 2 (TELEPHONE)
77 SE 3 (SPACE)
78 SE 4 (INVADER)
79 SE 5 (FUNNY)
LAYER
80 STRINGS PIANO
81 STRINGS EP
82 CHOIR EP
83 CHOIR ORGAN
84 STRINGS GUITAR
85 STRINGS HARP
86 BRASS STRINGS
87 VIB PAD
88 12STR GUITAR
89 CHOIR STRINGS
GUITAR/BASS
20 GUT GUITAR
21 ACOUS GUITAR
22 JAZZ GUITAR
23 ELEC GUITAR
24 MUTE GUITAR
25 DIST GUITAR
26 WOOD BASS
27 ELEC BASS
28 SLAP BASS
29 BANJO
100 SOUNDS
STRINGS/ENSEMBLE
30 VIOLIN
31 CELLO
32 HARP
33 STRINGS 1
34 STRINGS 2
35 STRINGS 3
36 SYNTH-STR 1
37 SYNTH-STR 2
38 CHOIR
39 VOICE
SPLIT/PERCUSSION
90 BASS/PIANO
91 BASS/E.PIANO
92 BASS/VIB
93 BASS/G.GUITAR
94 BASS/D.GUITAR
95 STRINGS/PIANO
96 STRINGS/TRUMPET
97 VIBRAPHONE
98 MARIMBA
99 PERCUSSION
BRASS
40 TRUMPET
41 TUBA
42 BRASS SECTION
43 FRENCH HORN 1
44 FRENCH HORN 2
45 BRASS 1
46 BRASS 2
47 SYNTH-BRASS 1
48 SYNTH-BRASS 2
49 SYNTH-BRASS 3
ON
OFF
POWER/MODE
FINGERED
CONCERT CHORD
NORMAL
REED/PIPE
50 SOPRANO SAX
51 ALTO SAX
52 TENOR SAX
53 OBOE
54 CLARINET
55 PICCOLO
56 FLUTE
57 RECORDER
58 FLUTE ENSEMBLE
59 WHISTLE
¢
FILL-IN
⁄
SYNTH-SOUND 1
60 SYNTH-LEAD 1
61 SYNTH-LEAD 2
62 SYNTH-LEAD 3
63 SYNTH-CALLIOPE
64 SYNTH-PAD 1
65 SYNTH-PAD 2
66 SYNTH-PAD 3
67 GLESS HARMONICA
68 COUNTRY FARM
69 SYNTH-BASS
START/
STOP
⁄
TRANSPOSE/TUNE
MULTI FUNCTION DISPLAY
SOUND RHYTHM SONG
0
POPS
00 POP FUSION
01 BALLAD
02 POP BALLAD
03 RAP POP
04 SOUL BALLAD
05 FUNKY POP
06 16BEAT
07 8BEAT 1
08 8BEAT 2
09 POPS
ROCK
10 ROCK WALTZ
11 SLOW ROCK
12 SOFT ROCK 1
13 SOFT ROCK 2
14 FOLKIE POP
15 60's SOUL
50 RHYTHMS
JAZZ/DANCE
20 BIG BAND
21 SLOW SWING
22 FOX TROT
23 JAZZ WALTZ
16 ROCK
17 HEAVY METAL
18 50's ROCK
19 CHICAGO BLUES
24 ACID JAZZ
25 LATIN FUSION
26 TRANCE
27 DISCO
28 RAP
29 FUNK
EUROPEAN/LATIN VARIOUS
30 POLKA
31 MARCH
32 SLOW WALTZ
33 WALTZ
40 MERENGUE
41 REGGAE
42 SKA
43 TEX-MEX
34 TANGO
35 BOSSA NOVA
36 SAMBA
37 MAMBO
38 RHUMBA
39 CHA-CHA-CHA
44 FOLKLORE
45 COUNTRY
46 SLOW GOSPEL
47 ADANI
48 BAROQUE
49 ENKA
1 2 3 4 SOUND
MELODY
ON/OFF
00 WHEN YOU WISH
01 TWINKLE TWINKLE
02 ACH DU LIEBER AUGUSTIN
03 AMAZING GRACE
04 ODE TO JOY
05 LONDON BRIDGE
06 LONDONDERRY AIR
07 GREENSLEEVES
08 AULD LANG SYNE
09 JOY TO THE WORLD
20 SONG BANK
10 JINGL BELLS
11
12
O CHRISTMAS TREE
YANKEE DOODLE
13
14
SANTA LUCIA
WHEN THE SAINTS GO MARCHING IN
15
16
ALOHA OE
SPRING FROM "THE FOUR SEASONS"
17
18
LITTLE BROWN JUG
MARCH FROM "THE NUTCRACKER"
19 THE ENTERTAINER
970
5 6 7 8 9 RHYTHM
Speaker
POWER/MODE Selector
VOLUME Buttons
SYNCHRO/FILL-IN Button
START/STOP Button
TEMPO/TRANSPOSE/TUNE Buttons
JUKE BOX Button
MELODY ON/OFF Button
SOUND Button
RHYTHM Button
Number Buttons
READING THE DISPLAY
The Concertmate 970’s display lets you view the keyboard’s sound, rhythm, and juke box settings.
00.
(decimal on the right) — shows the juke box setting. See “Using the Juke Box” on Page 11.
.00
(decimal on the left) — shows the sound setting. See “Using the Preset
Sounds” on Page 12.
0.0
(decimal between the first and second digits) — shows the rhythm setting. See
“Using the Preset Auto-Rhythms” on Page 15
.
9
42-4032.fm Page 10 Wednesday, August 11, 1999 4:45 PM
OPERATION
BASIC OPERATION
ON
OFF
POWER/MODE
FINGERED
CONCERT CHORD
NORMAL
VOLUME SYNCHRO/
FILL-IN
START/
STOP
TEMPO
TRANSPOSE/TU
1. To turn on the Concertmate 970, set
POWER/MODE
to
NORMAL
.
The POWER/MODE indicator lights.
Note: To save power, the keyboard automatically turns off after about 6 minutes if you do not press a key. To turn the keyboard on again, set
POWER/MODE
to
OFF
then back to
NORMAL
. (To cancel the auto power off feature, see “Changing Auto Power Off” on
Page 20.
2. Begin playing the keyboard.
Notes:
• The Concertmate 970 automatically selects the sound PIANO
(No. 00) when you turn the power on. To select a different sound, see “Using the Preset
Sounds” on Page 12.
• To select an auto-rhythm, see
“Using the Preset Auto-
Rhythms” on Page 15.
• To play auto accompaniment, see “Using Auto Accompaniment” on Page 17.
• The scores of the Juke Box songs appear in this Owner’s
Manual (see “Songbook” on
Page 29).
s to increase the sound level or
VOLUME
t to decrease it. The current setting appears on the display.
Notes:
• The volume setting range is between 0 (no sound) and 9
(maximum). Each time you turn on the keyboard, the volume setting is set to 7.
• To quickly change the volume setting, press and hold
VOL-
UME
s or t.
• You can also adjust the volume by pressing either
VOLUME
button once so the current setting appears on the display, then entering the desired volume setting using the number keys
(0-9).
• To return to the default setting of 7, press both
VOLUME
buttons at the same time.
• The volume level differs depending on the sound, accompaniment, or song you selected.
4. To turn off the Concertmate 970, set
POWER/MODE
to
OFF
. The
POWER/MODE indicator turns off.
10
42-4032.fm Page 11 Wednesday, August 11, 1999 4:45 PM
USING THE JUKE BOX
You can sit back and listen to the 20 tunes that come prerecorded in the juke box, or you can turn off a song’s melody and play along on the keyboard.
Playing Back a Juke Box
Tune
MULTI FUNCTION DISPLAY
SOUND RHYTHM SONG
0
00 POP FUSION
01 BALLAD
02 POP BALLAD
03 RAP POP
04 SOUL BALLAD
05 FUNKY POP
06 16BEAT
07 8BEAT 1
08 8BEAT 2
09 POPS
ROCK
10 ROCK WALTZ
11 SLOW ROCK
12 SOFT ROCK 1
13 SOFT ROCK 2
14 FOLKIE POP
15 60's SOUL
16 ROCK
17 HEAVY METAL
18 50's ROCK
19 CHICAGO BLUES
50 RHYTHMS
JAZZ/DANCE
20 BIG BAND
21 SLOW SWING
22 FOX TROT
23 JAZZ WALTZ
24 ACID JAZZ
25 LATIN FUSION
26 TRANCE
27 DISCO
28 RAP
29 FUNK
EUROPEAN/LATIN
30 POLKA
31 MARCH
32 SLOW WALTZ
33 WALTZ
34 TANGO
35 BOSSA NOVA
36 SAMBA
37 MAMBO
38 RHUMBA
39 CHA-CHA-CHA
VARIOUS
40 MERENGUE
41 REGGAE
42 SKA
43 TEX-MEX
44 FOLKLORE
45 COUNTRY
46 SLOW GOSPEL
47 ADANI
48 BAROQUE
49 ENKA
1 2 3 4 SOUND
5 6 7 8 9 RHYTHM
MELODY
ON/OFF
1. Press
JUKE BOX
. The JUKE BOX indicator lights and the number of the current juke box tune appears on the display.
Note: The Concertmate 970 automatically selects the song SERE-
NADE “EINE KLEINE NACHT-
MUSIK” (No. 00) when you turn the power on.
2. Choose a tune from the 20 JUKE
BOX list and enter its 2-digit number on the keypad.
Notes:
• Precede a single-digit number with 0. For example, to select
07 Greensleeves, press
0 7
.
• If you incorrectly enter the first digit, press
JUKE BOX
to clear your entry, then enter the correct digit.
3. Press
START/STOP
to start playing the tune.
VOLUME SYNCHRO/
FILL-IN
START/
STOP
TEMPO
TRANSPOSE/TU
You can change the tune by repeating Step 2 even while a tune is playing.
Note: Each tune plays a different preset sound for the melody, but you can change to another sound even while the tune is playing.
Follow the steps under “Selecting/
Playing a Preset Sound” on
Page 13 to select a different sound.
4. Adjust the volume as desired.
5. To change the tempo, press
TEM-
PO
t or s. The current tempo setting appears on the display.
6. To stop playing the tune, press
START/STOP
again.
To exit the juke box mode, press
JUKE BOX
so the JUKE BOX indicator turns off.
Playing Along with a Juke
Box Tune
Follow these steps to have the Concertmate 970 not play the melody of a juke box tune, so you can!
1. Select the tune you want to play.
11
42-4032.fm Page 12 Wednesday, August 11, 1999 4:45 PM
2. Press
MELODY ON/OFF
to turn off the melody.
SOUND
MELODY
ON/OFF
RHYTHM
3. Press
START/STOP
to start playing the tune.
4. Adjust the tempo and volume as desired.
5. Play along with the tune on the keyboard.
Note: You can turn the melody on or off by repeating Step 2 even while the current tune is playing.
USING THE PRESET
SOUNDS
Your Concertmate 970 can sound like
100 different musical instruments or sound effects. The name and two-digit number of each preset sound is listed on the Concertmate 970’s top panel.
SOUNDS List
PIANO
00 PIANO 1
02 HONKY-TONK
03 STUDIO PIANO
05 ELEC PIANO 2
06 ELEC PIANO 3
07 ELEC PIANO 4
09 CLAVELECTRO
ORGAN
10 ELEC ORGAN 1
12 ELEC ORGAN 3
13 ELEC ORGAN 4
15 PIPE ORGAN
16 REED ORGAN
17 ACCORDION
19 HARMONICA
SYNTH-SOUND 2
70 PEARL DROP
72 SOUNDTRACK
73 SPACE PAD
75 SE 1 (VEHICLE)
76 SE 2 (TELEPHONE)
77 SE 3 (SPACE)
79 SE 5 (FUNNY)
LAYER
80 STRINGS PIANO
82 CHOIR EP
83 CHOIR ORGAN
85 STRINGS HARP
86 BRASS STRINGS
87 VIB PAD
89 CHOIR STRINGS
GUITAR/BASS
20 GUT GUITAR
22 JAZZ GUITAR
23 ELEC GUITAR
25 DIST GUITAR
26 WOOD BASS
27 ELEC BASS
29 BANJO
100 SOUNDS
STRINGS/ENSEMBLE
30 VIOLIN
32 HARP
33 STRINGS 1
35 STRINGS 3
36 SYNTH-STR 1
37 SYNTH-STR 2
39 VOICE
SPLIT/PERCUSSION
90 BASS/PIANO
92 BASS/VIB
93 BASS/G.GUITAR
95 STRINGS/PIANO
96 STRINGS/TRUMPET
97 VIBRAPHONE
99 PERCUSSION
BRASS
40 TRUMPET
42 BRASS SECTION
43 FRENCH HORN 1
45 BRASS 1
46 BRASS 2
47 SYNTH-BRASS 1
49 SYNTH-BRASS 3
REED/PIPE
50 SOPRANO SAX
52 TENOR SAX
53 OBOE
55 PICCOLO
56 FLUTE
57 RECORDER
59 WHISTLE
ON
OFF
POWER/MODE
FINGERED
CONCERT CHORD
NORMAL
VOLUME SYNCHRO/
FILL-IN
SYNTH-SOUND 1
60 SYNTH-LEAD 1
62 SYNTH-LEAD 3
63 SYNTH-CALLIOPE
65 SYNTH-PAD 2
66 SYNTH-PAD 3
67 GLESS HARMONICA
69 SYNTH-BASS
START/
STOP
TEMPO
TRANSPOSE/TUNE
MULTI FUNCTION DISPLAY
SOUND RHYTHM SONG
POPS
00 POP FUSION
02 POP BALLAD
03 RAP POP
05 FUNKY POP
06 16BEAT
08 8BEAT 2
09 POPS
ROCK
10 ROCK WALTZ
12 SOFT ROCK 1
13 SOFT ROCK 2
15 60's SOUL
16 ROCK
18 50's ROCK
19 CHICAGO BLUES
50 RHYTHMS
JAZZ/DANCE
20 BIG BAND
22 FOX TROT
23 JAZZ WALTZ
25 LATIN FUSION
26 TRANCE
28 RAP
29 FUNK
SOUND
EUROPEAN/LATIN
30 POLKA
32 SLOW WALTZ
33 WALTZ
35 BOSSA NOVA
36 SAMBA
38 RHUMBA
39 CHA-CHA-CHA
VARIOUS
40 MERENGUE
42 SKA
43 TEX-MEX
45 COUNTRY
46 SLOW GOSPEL
48 BAROQUE
49 ENKA
00 WHEN YOU WISH
01 TWINKLE TWINKLE
02 ACH DU LIEBER AUGUSTIN
04 ODE TO JOY
06 LONDONDERRY AIR
07 GREENSLEEVES
08 AULD LANG SYNE
09 JOY TO THE WORLD
20 SONG BANK
10 JINGL BELLS
11
12
O CHRISTMAS TREE
14
15
17
18
YANKEE DOODLE
WHEN THE SAINTS GO MARCHING IN
SPRING FROM "THE FOUR SEASONS"
LITTLE BROWN JUG
MARCH FROM "THE NUTCRACKER"
MELODY
ON/OFF
970
RHYTHM
Notes:
• The Concertmate 970 has 12-note
(maximum) polyphonic sound.
This means that you can play up to 12 different notes at the same time with most of the keyboard’s preset sounds. Many of the keyboard’s preset sounds, however, are capable of only 6-note polyphony.
• Most sounds on this keyboard have been recorded and processed using a technique called digital sampling. To ensure a high level of tonal quality, samples are taken in the low, mid, and high ranges and then combined to sound amazingly close to the originals. You might notice very slight differences in volume or sound quality for some sounds when you play them at different positions on the keyboard. This is an unavoidable result of multiple sampling and is not a malfunction.
• Sounds 75–79 (which are sound effects) do not follow the musical scale when played, but change effect as you play them in different octaves on the keyboard.
12
42-4032.fm Page 13 Wednesday, August 11, 1999 4:45 PM
Selecting/Playing a Preset
Sound
1. Press
SOUND
. The SOUND indicator lights and the current sound’s number appears on the display.
MULTI FUNCTION DISPLAY
SOUND RHYTHM SONG
0
00 POP FUSION
01 BALLAD
02 POP BALLAD
03 RAP POP
04 SOUL BALLAD
05 FUNKY POP
06 16BEAT
07 8BEAT 1
08 8BEAT 2
09 POPS
50 RHYTHMS
ROCK
10 ROCK WALTZ
12 SOFT ROCK 1
13 SOFT ROCK 2
14 FOLKIE POP
15 60's SOUL
16 ROCK
17 HEAVY METAL
18 50's ROCK
19 CHICAGO BLUES
JAZZ/DANCE
20 BIG BAND
22 FOX TROT
23 JAZZ WALTZ
24 ACID JAZZ
25 LATIN FUSION
26 TRANCE
27 DISCO
28 RAP
29 FUNK
EUROPEAN/LATIN
30 POLKA
32 SLOW WALTZ
33 WALTZ
34 TANGO
35 BOSSA NOVA
36 SAMBA
37 MAMBO
38 RHUMBA
39 CHA-CHA-CHA
VARIOUS
40 MERENGUE
42 SKA
43 TEX-MEX
44 FOLKLORE
45 COUNTRY
46 SLOW GOSPEL
47 ADANI
48 BAROQUE
49 ENKA
1 2 3 4 SOUND
MELODY
ON/OFF
5 6 7 8 9 RHYTHM
Note: The Concertmate 970 automatically selects the sound
PIANO (No. 00) when you turn the power on.
2. To play a different sound, choose a preset sound from the 100
SOUNDS list and enter its twodigit number on the keypad. As you press the keys, the selected digits appear on the display.
Notes:
• Precede a single-digit number with 0. For example, to select
ELEC PIANO 1, press
0 4
.
• If you incorrectly enter the first digit of the sound, press
SOUND
to clear your entry, then enter the correct digit.
3. Play the keyboard to hear the selected sound.
4. Adjust the volume to the desired level.
5. To select a different sound, repeat
Steps 1 and 2.
13
42-4032.fm Page 14 Wednesday, August 11, 1999 4:45 PM
Percussion Sounds
PERCUSSION (No. 99) lets you play the 35 different percussion sounds shown below. The symbol for each percussion sound appears above each percussion key.
Bass Drum
Side Stick
Acoustic Snare
Hand Clap
Electric Snare
Low Floor Tom
Closed Hi-Hat
High Floor Tom
Pedal Hi-Hat
Low Tom
Open Hi-Hat
Low-Mid Tom
High-Mid Tom
Crash Cymbal 1
High Tom
Ride Cymbal 1
Chinese Cymbal
Ride Bell
Tambourine
Splash Cymbal
Cowbell
Crash Cymbal 2
Claves
Ride Cymbal 2
High Bongo
Low Bongo
Mute High Conga
Open High Conga
Low Conga
High Timbale
Low Timbale
High Agogo
Low Agogo
Cabasa
Maracas
Note: When you select the Fingered or Concert Chord mode, the keys in the lower
1 1 /
2 octaves become the accompaniment keys and do not produce percussion sounds. See “Using Auto Accompaniment” on Page 17.
PIANO
00 PIANO 1
01 PIANO 2
02 HONKY-TONK
03 STUDIO PIANO
04 ELEC PIANO 1
05 ELEC PIANO 2
06 ELEC PIANO 3
07 ELEC PIANO 4
08 HARPSICHORD
09 CLAVELECTRO
SYNTH-SOUND 2
70 PEARL DROP
71 COSMIC SOUND
72 SOUNDTRACK
73 SPACE PAD
74 SYNTH-SFX
75 SE 1 (VEHICLE)
76 SE 2 (TELEPHONE)
77 SE 3 (SPACE)
78 SE 4 (INVADER)
79 SE 5 (FUNNY)
ORGAN
10 ELEC ORGAN 1
11 ELEC ORGAN 2
12 ELEC ORGAN 3
13 ELEC ORGAN 4
14 CHURCH ORGAN
15 PIPE ORGAN
16 REED ORGAN
17 ACCORDION
18 BANDONEON
19 HARMONICA
LAYER
80 STRINGS PIANO
81 STRINGS EP
82 CHOIR EP
83 CHOIR ORGAN
84 STRINGS GUITAR
85 STRINGS HARP
86 BRASS STRINGS
87 VIB PAD
88 12STR GUITAR
89 CHOIR STRINGS
GUITAR/BASS
20 GUT GUITAR
21 ACOUS GUITAR
22 JAZZ GUITAR
23 ELEC GUITAR
24 MUTE GUITAR
25 DIST GUITAR
26 WOOD BASS
27 ELEC BASS
28 SLAP BASS
29 BANJO
100 SOUNDS
STRINGS/ENSEMBLE
30 VIOLIN
31 CELLO
32 HARP
33 STRINGS 1
34 STRINGS 2
35 STRINGS 3
36 SYNTH-STR 1
37 SYNTH-STR 2
38 CHOIR
39 VOICE
BRASS
40 TRUMPET
41 TUBA
42 BRASS SECTION
43 FRENCH HORN 1
44 FRENCH HORN 2
45 BRASS 1
46 BRASS 2
47 SYNTH-BRASS 1
48 SYNTH-BRASS 2
49 SYNTH-BRASS 3
POWER/MODE
SPLIT/PERCUSSION
90 BASS/PIANO
91 BASS/E.PIANO
92 BASS/VIB
93 BASS/G.GUITAR
94 BASS/D.GUITAR
95 STRINGS/PIANO
96 STRINGS/TRUMPET
97 VIBRAPHONE
98 MARIMBA
99 PERCUSSION
ON
OFF
FINGERED
CONCERT CHORD
NORMAL
REED/PIPE
50 SOPRANO SAX
51 ALTO SAX
52 TENOR SAX
53 OBOE
54 CLARINET
55 PICCOLO
56 FLUTE
57 RECORDER
58 FLUTE ENSEMBLE
59 WHISTLE
VOLUME SYNCHRO/
¢ FILL-IN
SYNTH-SOUND 1
60 SYNTH-LEAD 1
61 SYNTH-LEAD 2
62 SYNTH-LEAD 3
63 SYNTH-CALLIOPE
64 SYNTH-PAD 1
65 SYNTH-PAD 2
66 SYNTH-PAD 3
67 GLESS HARMONICA
68 COUNTRY FARM
69 SYNTH-BASS
START/
STOP
TEMPO
¢
⁄ ⁄
TRANSPOSE/TUNE
MULTI FUNCTION DISPLAY
SOUND RHYTHM SONG
0
POPS
00 POP FUSION
01 BALLAD
02 POP BALLAD
03 RAP POP
04 SOUL BALLAD
05 FUNKY POP
06 16BEAT
07 8BEAT 1
08 8BEAT 2
09 POPS
ROCK
10 ROCK WALTZ
11 SLOW ROCK
12 SOFT ROCK 1
13 SOFT ROCK 2
14 FOLKIE POP
15 60's SOUL
16 ROCK
17 HEAVY METAL
18 50's ROCK
19 CHICAGO BLUES
50 RHYTHMS
JAZZ/DANCE
20 BIG BAND
21 SLOW SWING
22 FOX TROT
23 JAZZ WALTZ
24 ACID JAZZ
25 LATIN FUSION
26 TRANCE
27 DISCO
28 RAP
29 FUNK
EUROPEAN/LATIN
30 POLKA
31 MARCH
32 SLOW WALTZ
33 WALTZ
34 TANGO
35 BOSSA NOVA
36 SAMBA
37 MAMBO
38 RHUMBA
39 CHA-CHA-CHA
VARIOUS
40 MERENGUE
41 REGGAE
42 SKA
43 TEX-MEX
44 FOLKLORE
45 COUNTRY
46 SLOW GOSPEL
47 ADANI
48 BAROQUE
49 ENKA
1 2 3 4
SOUND
MELODY
ON/OFF
00 WHEN YOU WISH
01 TWINKLE TWINKLE
02 ACH DU LIEBER AUGUSTIN
03 AMAZING GRACE
04 ODE TO JOY
05 LONDON BRIDGE
06 LONDONDERRY AIR
07 GREENSLEEVES
08 AULD LANG SYNE
09 JOY TO THE WORLD
20 SONG BANK
13
14
15
16
17
18
19
10 JINGL BELLS
11
12
O CHRISTMAS TREE
YANKEE DOODLE
SANTA LUCIA
WHEN THE SAINTS GO MARCHING IN
ALOHA OE
SPRING FROM "THE FOUR SEASONS"
LITTLE BROWN JUG
MARCH FROM "THE NUTCRACKER"
THE ENTERTAINER
970
5 6 7 8 9 RHYTHM
Accompaniment
keyboard
14
42-4032.fm Page 15 Wednesday, August 11, 1999 4:45 PM
Keyboard Split Sounds
The Keyboard Split preset sounds (90-
96) let you play two instrument sounds independently on opposite halves of the keyboard. The instrument listed first in the sound’s name plays on the left half of the keyboard (below middle
C). The instrument listed second plays on the right half of the keyboard (above middle C).
For example, BASS/PIANO (No. 90) plays a bass sound on the left half of the keyboard and a piano sound on the right.
PIANO
00 PIANO 1
02 HONKY-TONK
04 ELEC PIANO 1
05 ELEC PIANO 2
07 ELEC PIANO 4
08 HARPSICHORD
09 CLAVELECTRO
SYNTH-SOUND 2
70 PEARL DROP
72 SOUNDTRACK
74 SYNTH-SFX
75 SE 1 (VEHICLE)
77 SE 3 (SPACE)
78 SE 4 (INVADER)
79 SE 5 (FUNNY)
ORGAN
10 ELEC ORGAN 1
12 ELEC ORGAN 3
14 CHURCH ORGAN
15 PIPE ORGAN
17 ACCORDION
18 BANDONEON
19 HARMONICA
LAYER
80 STRINGS PIANO
82 CHOIR EP
84 STRINGS GUITAR
85 STRINGS HARP
87 VIB PAD
88 12STR GUITAR
89 CHOIR STRINGS
GUITAR/BASS
20 GUT GUITAR
22 JAZZ GUITAR
24 MUTE GUITAR
25 DIST GUITAR
27 ELEC BASS
28 SLAP BASS
29 BANJO
100 SOUNDS
STRINGS/ENSEMBLE
30 VIOLIN
32 HARP
34 STRINGS 2
35 STRINGS 3
37 SYNTH-STR 2
38 CHOIR
39 VOICE
BRASS
40 TRUMPET
42 BRASS SECTION
44 FRENCH HORN 2
45 BRASS 1
47 SYNTH-BRASS 1
48 SYNTH-BRASS 2
49 SYNTH-BRASS 3
POWER/MODE
SPLIT/PERCUSSION
90 BASS/PIANO
92 BASS/VIB
94 BASS/D.GUITAR
95 STRINGS/PIANO
97 VIBRAPHONE
98 MARIMBA
99 PERCUSSION
ON
OFF
FINGERED
CONCERT CHORD
NORMAL
REED/PIPE
50 SOPRANO SAX
52 TENOR SAX
54 CLARINET
55 PICCOLO
57 RECORDER
58 FLUTE ENSEMBLE
59 WHISTLE
VOLUME SYNCHRO/
FILL-IN
SYNTH-SOUND 1
60 SYNTH-LEAD 1
62 SYNTH-LEAD 3
64 SYNTH-PAD 1
65 SYNTH-PAD 2
67 GLESS HARMONICA
68 COUNTRY FARM
69 SYNTH-BASS
START/
STOP
TEMPO
TRANSPOSE/TUNE
MULTI FUNCTION DISPLAY
SOUND RHYTHM SONG
00 POP FUSION
01 BALLAD
02 POP BALLAD
03 RAP POP 04 SOUL BALLAD
05 FUNKY POP
07 8BEAT 1
08 8BEAT 2
09 POPS
10 ROCK WALTZ
11 SLOW ROCK
12 SOFT ROCK 1
13 SOFT ROCK 2 14 FOLKIE POP
15 60's SOUL
17 HEAVY METAL
18 50's ROCK
19 CHICAGO BLUES
50 RHYTHMS
20 BIG BAND
21 SLOW SWING
22 FOX TROT
23 JAZZ WALTZ
25 LATIN FUSION
27 DISCO
28 RAP
29 FUNK
SOUND
30 POLKA
31 MARCH
32 SLOW WALTZ
33 WALTZ 34 TANGO
35 BOSSA NOVA
37 MAMBO
38 RHUMBA
39 CHA-CHA-CHA
40 MERENGUE
41 REGGAE
42 SKA
43 TEX-MEX 44 FOLKLORE
45 COUNTRY
47 ADANI
48 BAROQUE
49 ENKA
00 WHEN YOU WISH
02 ACH DU LIEBER AUGUSTIN
03 AMAZING GRACE
05 LONDON BRIDGE
06 LONDONDERRY AIR
09 JOY TO THE WORLD
20 SONG BANK
10 JINGL BELLS
12
13
14
16
17
YANKEE DOODLE
SANTA LUCIA
WHEN THE SAINTS GO MARCHING IN
SPRING FROM "THE FOUR SEASONS"
18
19
MARCH FROM "THE NUTCRACKER"
THE ENTERTAINER
RHYTHM
MELODY
ON/OFF
970
USING THE PRESET
AUTO-RHYTHMS
Your Concertmate 970 has 50 preset auto-rhythms that provide a steady beat for your music. The name and two-digit number of each preset autorhythm is listed on the Concertmate
970’s top panel.
RHYTHMS List
00 PIANO 1
01 PIANO 2
02 HONKY-TONK
03 STUDIO PIANO 04 ELEC PIANO 1
05 ELEC PIANO 2
07 ELEC PIANO 4
08 HARPSICHORD
09 CLAVELECTRO
70 PEARL DROP
71 COSMIC SOUND
73 SPACE PAD
74 SYNTH-SFX
75 SE 1 (VEHICLE)
76 SE 2 (TELEPHONE)
78 SE 4 (INVADER)
79 SE 5 (FUNNY)
10 ELEC ORGAN 1
11 ELEC ORGAN 2
12 ELEC ORGAN 3
13 ELEC ORGAN 4 14 CHURCH ORGAN
15 PIPE ORGAN
17 ACCORDION
18 BANDONEON
19 HARMONICA
80 STRINGS PIANO
81 STRINGS EP
83 CHOIR ORGAN
84 STRINGS GUITAR
85 STRINGS HARP
86 BRASS STRINGS
88 12STR GUITAR
89 CHOIR STRINGS
20 GUT GUITAR
21 ACOUS GUITAR
22 JAZZ GUITAR
23 ELEC GUITAR 24 MUTE GUITAR
25 DIST GUITAR
27 ELEC BASS
28 SLAP BASS
29 BANJO
100 SOUNDS
30 VIOLIN
31 CELLO
32 HARP
33 STRINGS 1
35 STRINGS 3
37 SYNTH-STR 2
38 CHOIR
39 VOICE
40 TRUMPET
41 TUBA
42 BRASS SECTION
43 FRENCH HORN 1 44 FRENCH HORN 2
45 BRASS 1
47 SYNTH-BRASS 1
48 SYNTH-BRASS 2
49 SYNTH-BRASS 3
POWER/MODE
90 BASS/PIANO
91 BASS/E.PIANO
93 BASS/G.GUITAR
94 BASS/D.GUITAR
95 STRINGS/PIANO
96 STRINGS/TRUMPET
98 MARIMBA
99 PERCUSSION
ON
OFF
FINGERED
CONCERT CHORD
NORMAL
50 SOPRANO SAX
51 ALTO SAX
52 TENOR SAX
53 OBOE 54 CLARINET
55 PICCOLO
57 RECORDER
58 FLUTE ENSEMBLE
59 WHISTLE
VOLUME SYNCHRO/
FILL-IN
60 SYNTH-LEAD 1
61 SYNTH-LEAD 2
62 SYNTH-LEAD 3
63 SYNTH-CALLIOPE 64 SYNTH-PAD 1
65 SYNTH-PAD 2
67 GLESS HARMONICA
68 COUNTRY FARM
69 SYNTH-BASS
START/
STOP
TEMPO
TRANSPOSE/TUNE
MULTI FUNCTION DISPLAY
SOUND RHYTHM SONG
00 POP FUSION
01 BALLAD
03 RAP POP
04 SOUL BALLAD
06 16BEAT
07 8BEAT 1
10 ROCK WALTZ
11 SLOW ROCK
13 SOFT ROCK 2
14 FOLKIE POP
16 ROCK
17 HEAVY METAL
50 RHYTHMS
20 BIG BAND
21 SLOW SWING
23 JAZZ WALTZ
24 ACID JAZZ
26 TRANCE
27 DISCO
30 POLKA
31 MARCH
33 WALTZ
34 TANGO
36 SAMBA
37 MAMBO
40 MERENGUE
41 REGGAE
43 TEX-MEX
44 FOLKLORE
46 SLOW GOSPEL
47 ADANI
SOUND
00 WHEN YOU WISH
02 ACH DU LIEBER AUGUSTIN
04 ODE TO JOY
05 LONDON BRIDGE
06 LONDONDERRY AIR
08 AULD LANG SYNE
09 JOY TO THE WORLD
20 SONG BANK
10 JINGL BELLS
12
14
15
16
17
19
YANKEE DOODLE
WHEN THE SAINTS GO MARCHING IN
ALOHA OE
LITTLE BROWN JUG
MARCH FROM "THE NUTCRACKER"
THE ENTERTAINER
970
RHYTHM
MELODY
ON/OFF
You can play a preset auto-rhythm on the Concertmate 970 in any of the following ways:
• Select and play a rhythm (see
“Selecting/Playing an Auto-
Rhythm”.
• Synchronize the start of a rhythm with your music (see “Using SYN-
CHRO” on Page 16).
• Briefly vary the pattern of a rhythm
(see “Using FILL-IN” on Page 17).
Selecting/Playing an Auto-Rhythm
1. Press
RHYTHM
. The RHYTHM indicator lights and the number of the current auto-rhythm appears on the display.
MULTI FUNCTION DISPLAY
SOUND RHYTHM SONG
0
00 POP FUSION
01 BALLAD
02 POP BALLAD
03 RAP POP
04 SOUL BALLAD
05 FUNKY POP
06 16BEAT
07 8BEAT 1
08 8BEAT 2
09 POPS
1 2
ROCK
10 ROCK WALTZ
11 SLOW ROCK
12 SOFT ROCK 1
13 SOFT ROCK 2
14 FOLKIE POP
15 60's SOUL
16 ROCK
17 HEAVY METAL
18 50's ROCK
19 CHICAGO BLUES
50 RHYTHMS
JAZZ/DANCE
20 BIG BAND
21 SLOW SWING
22 FOX TROT
23 JAZZ WALTZ
24 ACID JAZZ
25 LATIN FUSION
26 TRANCE
27 DISCO
28 RAP
29 FUNK
EUROPEAN/LATIN
30 POLKA
31 MARCH
32 SLOW WALTZ
33 WALTZ
34 TANGO
35 BOSSA NOVA
36 SAMBA
37 MAMBO
38 RHUMBA
39 CHA-CHA-CHA
VARIOUS
40 MERENGUE
41 REGGAE
42 SKA
43 TEX-MEX
44 FOLKLORE
45 COUNTRY
46 SLOW GOSPEL
47 ADANI
48 BAROQUE
49 ENKA
3 4
SOUND
5 6 7 8 9 RHYTHM
MELODY
ON/OFF
Note: The Concertmate 970 automatically selects the rhythm POP
FUSION (No. 00) each time you turn it on.
15
42-4032.fm Page 16 Wednesday, August 11, 1999 4:45 PM
2. To select a different rhythm, choose an auto-rhythm from the
50 RHYTHM list and enter its twodigit number on the keypad.
Notes:
• Precede a single-digit number with 0. For example, to select
FUNKY POP (No. 05), press
0
then
5
.
• If you incorrectly enter the first or second digit of the rhythm, press
RHYTHM
to clear your entry and return to the last selected auto-rhythm.
3. Press
START/STOP
to start the selected auto-rhythm.
4. Adjust the volume to the desired level.
5. To change the auto-rhythm speed, press
TEMPO
t or s. The current tempo setting appears on the display.
Notes:
• You can adjust the tempo to play an auto-rhythm from between 40 to 255 beats per minute.
• To quickly slow down or speed up the tempo, press and hold
TEMPO
t or s.
• You can also adjust the tempo by entering the desired number of beats per minute (040 to
255), using the keypad.
• To reset the tempo to its default
(original) speed, press
TEMPO
s and t at the same time.
6. Play the keyboard to hear the selected preset tone along with the auto-rhythm.
7. To select a different rhythm, repeat Steps 1 and 2.
8. To stop the auto-rhythm, press
START/STOP
again.
Using SYNCHRO
The Concertmate 970’s SYNCHRO feature lets you synchronize the start of an auto-rhythm with the beginning of your music.
After you select and enter an autorhythm, press
SYNCHRO/FILL-IN
, then begin playing the keyboard. The rhythm automatically starts to play when you press any key within the first
1 1 /
2
octaves of the lower end of the keyboard (the first 18 keys from the left side of the keyboard).
PIANO
00 PIANO 1
02 HONKY-TONK
03 STUDIO PIANO
05 ELEC PIANO 2
06 ELEC PIANO 3
08 HARPSICHORD
09 CLAVELECTRO
SYNTH-SOUND 2
70 PEARL DROP
72 SOUNDTRACK
73 SPACE PAD
74 SYNTH-SFX
76 SE 2 (TELEPHONE)
78 SE 4 (INVADER)
79 SE 5 (FUNNY)
ORGAN
10 ELEC ORGAN 1
12 ELEC ORGAN 3
13 ELEC ORGAN 4
15 PIPE ORGAN
16 REED ORGAN
18 BANDONEON
19 HARMONICA
LAYER
80 STRINGS PIANO
82 CHOIR EP
83 CHOIR ORGAN
84 STRINGS GUITAR
86 BRASS STRINGS
88 12STR GUITAR
89 CHOIR STRINGS
GUITAR/BASS
20 GUT GUITAR
22 JAZZ GUITAR
23 ELEC GUITAR
25 DIST GUITAR
26 WOOD BASS
28 SLAP BASS
29 BANJO
100 SOUNDS
STRINGS/ENSEMBLE
30 VIOLIN
32 HARP
33 STRINGS 1
35 STRINGS 3
36 SYNTH-STR 1
38 CHOIR
39 VOICE
SPLIT/PERCUSSION
90 BASS/PIANO
92 BASS/VIB
93 BASS/G.GUITAR
94 BASS/D.GUITAR
96 STRINGS/TRUMPET
98 MARIMBA
99 PERCUSSION
BRASS
40 TRUMPET
42 BRASS SECTION
43 FRENCH HORN 1
45 BRASS 1
46 BRASS 2
48 SYNTH-BRASS 2
49 SYNTH-BRASS 3
ON
POWER/MODE
FINGERED
CONCERT CHORD
NORMAL
OFF
REED/PIPE
50 SOPRANO SAX
52 TENOR SAX
53 OBOE
55 PICCOLO
56 FLUTE
58 FLUTE ENSEMBLE
59 WHISTLE
SYNTH-SOUND 1
60 SYNTH-LEAD 1
62 SYNTH-LEAD 3
63 SYNTH-CALLIOPE
65 SYNTH-PAD 2
66 SYNTH-PAD 3
68 COUNTRY FARM
69 SYNTH-BASS
VOLUME SYNCHRO/
FILL-IN
START/
STOP
TEMPO
TRANSPOSE/TUNE
MULTI FUNCTION DISPLAY
SOUND RHYTHM SONG
POPS
00 POP FUSION
02 POP BALLAD
04 SOUL BALLAD
05 FUNKY POP
07 8BEAT 1
08 8BEAT 2
09 POPS
ROCK
10 ROCK WALTZ
12 SOFT ROCK 1
14 FOLKIE POP
15 60's SOUL
17 HEAVY METAL
18 50's ROCK
19 CHICAGO BLUES
50 RHYTHMS
JAZZ/DANCE
20 BIG BAND
22 FOX TROT
24 ACID JAZZ
25 LATIN FUSION
27 DISCO
28 RAP
29 FUNK
SOUND
EUROPEAN/LATIN
30 POLKA
32 SLOW WALTZ
34 TANGO
35 BOSSA NOVA
37 MAMBO
38 RHUMBA
39 CHA-CHA-CHA
VARIOUS
40 MERENGUE
42 SKA
44 FOLKLORE
45 COUNTRY
47 ADANI
48 BAROQUE
49 ENKA
00 WHEN YOU WISH
02 ACH DU LIEBER AUGUSTIN
03 AMAZING GRACE
04 ODE TO JOY
05 LONDON BRIDGE
07 GREENSLEEVES
20 SONG BANK
10 JINGL BELLS
12
13
YANKEE DOODLE
14
16
17
18
SANTA LUCIA
WHEN THE SAINTS GO MARCHING IN
SPRING FROM "THE FOUR SEASONS"
LITTLE BROWN JUG
MARCH FROM "THE NUTCRACKER"
RHYTHM
MELODY
ON/OFF
970
16
42-4032.fm Page 17 Wednesday, August 11, 1999 4:45 PM
Using FILL-IN
The FILL-IN feature lets you insert a short (1- to 2-measure) variation in the beat pattern of a selected auto-rhythm.
Simply press and release
SYNCHRO/
FILL-IN
while the auto-rhythm is playing.
VOLUME SYNCHRO/
FILL-IN
START/
STOP
TEMPO
The Concertmate 970 inserts a 1- to 2measure variation, then the original rhythm automatically resumes at the end of the current measure.
USING AUTO
TRANSPOSE/TU
ACCOMPANIMENT
The 18 keys on the left side of the keyboard with note labels above them are called accompaniment keys.
PIANO
00 PIANO 1
01 PIANO 2
02 HONKY-TONK
03 STUDIO PIANO
04 ELEC PIANO 1
05 ELEC PIANO 2
06 ELEC PIANO 3
07 ELEC PIANO 4
08 HARPSICHORD
09 CLAVELECTRO
ORGAN
10 ELEC ORGAN 1
11 ELEC ORGAN 2
12 ELEC ORGAN 3
13 ELEC ORGAN 4
14 CHURCH ORGAN
15 PIPE ORGAN
16 REED ORGAN
17 ACCORDION
18 BANDONEON
19 HARMONICA
SYNTH-SOUND 2
70 PEARL DROP
71 COSMIC SOUND
72 SOUNDTRACK
73 SPACE PAD
74 SYNTH-SFX
75 SE 1 (VEHICLE)
76 SE 2 (TELEPHONE)
77 SE 3 (SPACE)
78 SE 4 (INVADER)
79 SE 5 (FUNNY)
LAYER
80 STRINGS PIANO
81 STRINGS EP
82 CHOIR EP
83 CHOIR ORGAN
84 STRINGS GUITAR
85 STRINGS HARP
86 BRASS STRINGS
87 VIB PAD
88 12STR GUITAR
89 CHOIR STRINGS
GUITAR/BASS
20 GUT GUITAR
21 ACOUS GUITAR
22 JAZZ GUITAR
23 ELEC GUITAR
24 MUTE GUITAR
25 DIST GUITAR
26 WOOD BASS
27 ELEC BASS
28 SLAP BASS
29 BANJO
100 SOUNDS
STRINGS/ENSEMBLE
30 VIOLIN
31 CELLO
32 HARP
33 STRINGS 1
34 STRINGS 2
35 STRINGS 3
36 SYNTH-STR 1
37 SYNTH-STR 2
38 CHOIR
39 VOICE
BRASS
40 TRUMPET
41 TUBA
42 BRASS SECTION
43 FRENCH HORN 1
44 FRENCH HORN 2
45 BRASS 1
46 BRASS 2
47 SYNTH-BRASS 1
48 SYNTH-BRASS 2
49 SYNTH-BRASS 3
POWER/MODE
SPLIT/PERCUSSION
90 BASS/PIANO
91 BASS/E.PIANO
92 BASS/VIB
93 BASS/G.GUITAR
94 BASS/D.GUITAR
95 STRINGS/PIANO
96 STRINGS/TRUMPET
97 VIBRAPHONE
98 MARIMBA
99 PERCUSSION
ON
OFF
FINGERED
CONCERT CHORD
NORMAL
REED/PIPE
50 SOPRANO SAX
51 ALTO SAX
52 TENOR SAX
53 OBOE
54 CLARINET
55 PICCOLO
56 FLUTE
57 RECORDER
58 FLUTE ENSEMBLE
59 WHISTLE
SYNTH-SOUND 1
60 SYNTH-LEAD 1
61 SYNTH-LEAD 2
62 SYNTH-LEAD 3
63 SYNTH-CALLIOPE
64 SYNTH-PAD 1
65 SYNTH-PAD 2
66 SYNTH-PAD 3
67 GLESS HARMONICA
68 COUNTRY FARM
69 SYNTH-BASS
VOLUME SYNCHRO/
¢
FILL-IN
START/
STOP
TEMPO
¢
⁄ ⁄
TRANSPOSE/TUNE
MULTI FUN
SOUND
You can set the Concertmate 970 to play two different types of auto accompaniment using the accompaniment keys.
•
Concert Chord
— lets you play chords on the accompaniment keys using chord formations of from one to four notes. The number of keys you press determines the type of chord that plays (see
“Concert Chord” on Page 17).
•
Standard Fingering
— lets you play chords on the accompaniment keys using standard chord formations of three or four notes
(see “Standard Fingering” on
Page 19).
Notes:
• You can use the Concertmate
970’s rhythm controls (
FILL-IN
and
SYNCHRO
) with both types of auto accompaniment.
• After you press the auto accompaniment keys, the Concertmate 970 plays the same chord until you press other keys to play a different chord or you press
START/STOP
.
Concert Chord
The concert chord method lets beginning keyboard players easily select and play a chord.
Accompaniment
Keys
keyboard
17
42-4032.fm Page 18 Wednesday, August 11, 1999 4:45 PM
The number of accompaniment keys you press determines the type of chord that plays. The following table shows the type of chord that plays when you press one, two, three, or four accompaniment keys at the same time.
Number of Keys
Pressed
C D E F G A B C D E F
Chord Type
Major
CD E F G A B C D E F
C D E F G A B C D E F
Minor (m)
Dominant
Seventh (7)
C D E F G A B C D E F
Minor
Seventh
(m7)
The lowest note you play determines the key of the chord. For example, if the lowest note is C, the keyboard plays a C chord.
Note: You can press
any
labeled note(s) to the right of the lowest note in the chord to produce a minor, a dominant seventh, or minor seventh chord.
Follow these steps to start concert chord auto accompaniment.
1. Set
POWER/MODE
to
CONCERT
CHORD
.
ON
OFF
POWER/MODE
FINGERED
CONCERT CHORD
NORMAL
VOLUME SYNCHRO/
FILL-IN
START/
STOP
TEMPO
TRANSPOSE/TU
2. Select and enter an auto-rhythm.
3. To start the auto-rhythm before the auto accompaniment, press
START/STOP
.
To synchronize the start of the selected auto-rhythm with your accompaniment, press
SYNCHRO/
FILL-IN
.
4. Begin the accompaniment at the desired interval by pressing the desired accompaniment key(s).
To play a melody along with the accompaniment, press any key(s) to the right of the accompaniment keys.
5. Adjust the tempo and volume to the desired levels.
6. To change chords without interrupting the rhythm, simply press the auto accompaniment key(s) required to form the new chord.
7. To stop auto accompaniment and the auto-rhythm, press
START/
STOP
.
18
42-4032.fm Page 19 Wednesday, August 11, 1999 4:45 PM
Standard Fingering
The standard fingering method uses standard formations of three or four notes, and lets the experienced musician play a wider variety of accompaniment chords.
You can play the following 15 chord types on your Concertmate 970, in any key, using the standard fingering method.
Major (M) Minor (m) Augmented
(aug)
Suspended
4th (SUS4)
( )
Dominant
7th (7)
( )
Minor 7th
(m7)
( )
Major 7th
(M7)
Minor Half-
Diminished
(m7-5)
Major Half-
Diminished
(M7-5)
Dominant
Suspended
4th (7sus4)
( )
Major 9th
(9)
( )
Minor 9th
(m9)
( )
Minor/Major
7th (mM7)
Diminished Diminished
7th (dim 7)
Notes:
• To produce a 7, m7, M7, mM7, 9, or m9 chord, omit the finger positions shown in parentheses.
• When producing a 7-5 or dim7 chord, the lowest note you play determines the root of the chord. Be sure that your fingering correctly defines the root you want.
• The diagrams above show only one possible fingering position for each chord.
It is possible to play a chord using several different positions. For example, the following three fingering positions produce the same C chord.
19
42-4032.fm Page 20 Wednesday, August 11, 1999 4:45 PM
Note: See “Standard Fingering Chord
Chart” on Page 25 for a list of all the chords you can play on your Concertmate 970 using standard fingering accompaniment.
Follow these steps to start standard fingering auto accompaniment.
1. Set
POWER/MODE
to
FINGERED
.
ON
OFF
POWER/MODE
FINGERED
CONCERT CHORD
NORMAL
VOLUME SYNCHRO/
FILL-IN
START/
STOP
TEMPO
TRANSPOSE/TU
2. Select and enter an auto-rhythm.
3. To start the auto-rhythm before your auto accompaniment, press
START/STOP
.
To synchronize the start of the selected auto-rhythm with your accompaniment, press
SYNCHRO/
FILL-IN
.
4. Begin the accompaniment at the desired interval by pressing at least three accompaniment keys to play the desired chord.
To play a melody along with the accompaniment, press any key(s) to the right of the accompaniment keys.
5. Adjust the tempo and volume to the desired levels.
6. To change chords without interrupting the rhythm, simply press the auto accompaniment keys required to form the new chord.
7. To stop auto accompaniment and the auto-rhythm, press
START/
STOP
.
CHANGING AUTO
POWER OFF
To have the keyboard not automatically turn off during a session, turn the keyboard on while pressing and holding down
SOUND
.
GUITAR/BASS
20 GUT GUITAR
21 ACOUS GUITAR
22 JAZZ GUITAR
24 MUTE GUITAR
25 DIST GUITAR
27 ELEC BASS
28 SLAP BASS
29 BANJO
SPLIT/PERCUSSION
90 BASS/PIANO
91 BASS/E.PIANO
92 BASS/VIB
94 BASS/D.GUITAR
95 STRINGS/PIANO
96 STRINGS/TRUMPET
97 VIBRAPHONE
100 SOUNDS
STRINGS/ENSEMBLE
30 VIOLIN
31 CELLO
32 HARP
34 STRINGS 2
35 STRINGS 3
37 SYNTH-STR 2
38 CHOIR
39 VOICE
ON
BRASS
40 TRUMPET
42 BRASS SECTION
44 FRENCH HORN 2
45 BRASS 1
47 SYNTH-BRASS 1
48 SYNTH-BRASS 2
49 SYNTH-BRASS 3
POWER/MODE
FINGERED
CONCERT CHORD
NORMAL
REED/PIPE
50 SOPRANO SAX
51 ALTO SAX
52 TENOR SAX
54 CLARINET
55 PICCOLO
57 RECORDER
58 FLUTE ENSEMBLE
59 WHISTLE
VOLUME SYNCHRO/
¢
FILL-IN
OFF
⁄
SYNTH-SOUND 1
60 SYNTH-LEAD 1
61 SYNTH-LEAD 2
62 SYNTH-LEAD 3
64 SYNTH-PAD 1
65 SYNTH-PAD 2
67 GLESS HARMONICA
68 COUNTRY FARM
69 SYNTH-BASS
START/
STOP
TEMPO
¢
⁄
TRANSPOSE/TUNE
MULTI FUNCTION DISPLAY
SOUND RHYTHM SONG
0
00 POP FUSION
01 BALLAD
03 RAP POP
04 SOUL BALLAD
06 16BEAT
07 8BEAT 1
10 ROCK WALTZ
11 SLOW ROCK
13 SOFT ROCK 2
14 FOLKIE POP
16 ROCK
17 HEAVY METAL
50 RHYTHMS
20 BIG BAND
21 SLOW SWING
23 JAZZ WALTZ
24 ACID JAZZ
26 TRANCE
27 DISCO
30 POLKA
31 MARCH
33 WALTZ
34 TANGO
36 SAMBA
37 MAMBO
1 2 3 4 SOUND
40 MERENGUE
41 REGGAE
43 TEX-MEX
44 FOLKLORE
46 SLOW GOSPEL
47 ADANI
5 6 7 8 9 RHYTHM
MELODY
ON/OFF
The next time you turn the Concertmate 970 off then back on again, it will automatically turn off after about 6 minutes.
20
42-4032.fm Page 21 Wednesday, August 11, 1999 4:45 PM
SPECIAL FEATURES
CHANGING KEYS
The Concertmate 970 automatically selects the key of middle C each time you turn it on.
For added flexibility as you make music, the Concertmate 970 lets you change (transpose) the musical key in which it plays.
1. Press and hold
SOUND
, then press and release
RHYTHM.
The display shows the current key setting
.
0 1 2 3 4 SOUND
5 6 7 8 9 RHYTHM
MELODY
ON/OFF
Note: The number on the display is the number of “semitones” to which the keyboard is set, compared to its default key. A semitone is a measurement that represents the acoustical interval between the keys of any two keys on the keyboard. For example, the difference between C and C or B and B is one semitone. You can transpose the key down 6 semitones (to an F ) and up 5 semitones (to an F) — a full octave.
2. Within 5 seconds, press
TRANS-
POSE/TUNE
s
or t to raise or lower the key. Each time you press the key, the number on the display increases or decreases by 1 (semitone).
VOLUME SYNCHRO/
FILL-IN
START/
STOP
TEMPO
TRANSPOSE/TU
As you raise the key,
1
is C ,
2
is
D, and so on. As you lower the key, –
1
is B, –
2
is B ,
–3
is A, and so on.
Notes:
• You can also use the number keypad to quickly raise the key. Press the desired semitone value (1 to
5).
• To reset the keyboard to its default key (middle C), press both
TRANSPOSE/TUNE
s and t at the same time.
0
appears on the display.
• You cannot change the key while the juke box mode is turned on.
• The Concertmate 970 automatically resets the key to the default value of 0 (middle C) each time you turn off the keyboard or play the juke box tunes.
• Each preset sound plays within a specified range. If a key change causes a note to exceed its range, the same note sounds in the nearest octave.
• When you select preset sounds
90-96 after changing the key, the keyboard split changes accordingly.
• Changing the key does not affect the PERCUSSION (No. 99) preset sound.
21
42-4032.fm Page 22 Wednesday, August 11, 1999 4:45 PM
TUNING THE KEYBOARD
Although your Concertmate 970 never goes out of tune, it does let you adjust its pitch to match other instruments or musical recordings.
Note: You cannot tune the keyboard while the juke box mode is turned on.
1. Press and hold
SOUND
, then press and release
JUKE BOX
. The display shows the current pitch setting.
0 1 2 3 4 SOUND
MELODY
ON/OFF
5 6 7 8 9 RHYTHM
Note: The number on the display is the number of “cents” to which the keyboard is currently tuned, compared to its default pitch. A cent is the measurement that represents the acoustical interval between two tones. 1200 cents equal 1 octave.
2. Within 5 seconds, repeatedly
TRANSPOSE/TUNE
s or t to raise or lower the keyboard's pitch. Each time you press the key, the number on the display increases or decreases by 1
(cent).
VOLUME SYNCHRO/
FILL-IN
START/
STOP
TEMPO
TRANSPOSE/TU
Notes:
• You can tune the Concertmate
970 to within ±50 cents (101 levels) of its default pitch.
• You can use the number keypad to raise the pitch by entering the desired cent value.
• To reset the keyboard to its default pitch, press both
TRANSPOSE/
TUNE
s and t at the same time.
00
(cents) appears on the display.
The Concertmate 970 automatically resets the tuning pitch to the default value of 00 (cents) each time you turn off the keyboard or play the juke box tunes.
22
42-4032.fm Page 23 Wednesday, August 11, 1999 4:45 PM
TROUBLESHOOTING
If the Concertmate 970 is not performing as it should, these suggestions might help.
If you still cannot solve the problem, take the keyboard to your local RadioShack store for assistance.
Trouble
No sound, even if keys are pressed.
No sound when connected to an external amplifier.
Possible Cause Remedy
The keyboard has turned off automatically.
Set
POWER/MODE
then
ON
again.
to
Volume is turned down.
Turn up the volume
OFF
Headphones are connected.
Disconnect headphones.
Power supply problem.
You are pressing too few accompaniment keys while set to
POWER/MODE
FINGERED
.
is
Check the power supply.
• Are battery symbols
(+/–) facing correctly?
• Are the batteries fresh?
• Is the AC or DC adapter connected properly?
Set
POWER/MODE
to
NOR-
MAL
or
CONCERT CHORD
.
Press 3 or 4 keys to form a chord while
POWER/MODE
is set to
FINGERED
.
Volume is turned down.
Turn up the volume.
Defective connection cord.
Replace the connection cord.
23
42-4032.fm Page 24 Wednesday, August 11, 1999 4:45 PM
CARE AND MAINTENANCE
Your Optimus Concertmate 970 Portable Electronic Keyboard is an example of superior design and craftsmanship. The following suggestions will help you care for your Concertmate 970 so you can enjoy it for years.
Keep the Concertmate 970 dry. If it gets wet, wipe it dry immediately.
Liquids might contain minerals that can corrode the electronic circuits.
Handle the Concertmate 970 gently and carefully. Dropping it can damage circuit boards and cases and can cause the keyboard to work improperly.
Use and store the Concertmate 970 only in normal temperature environments. Temperature extremes can shorten the life of electronic devices, damage batteries, and distort or melt plastic parts.
Keep the Concertmate 970 away from dust and dirt, which can cause premature wear of parts.
Wipe the Concertmate 970 with a damp cloth occasionally to keep it looking new. Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the Concertmate 970.
Modifying or tampering with the Concertmate 970’s internal components can cause a malfunction, might invalidate its warranty, and void your FCC authorization to use it. If your Concertmate 970 is not performing as it should, take it to your local RadioShack store for assistance.
24
42-4032.fm Page 25 Wednesday, August 11, 1999 4:45 PM
STANDARD FINGERING CHORD CHART
Chord
Type
Root
C
C /D
D
D /E
E
F
F /G
G
G /A
A
A /B
B
M m 7 m7 dim7
25
26
42-4032.fm Page 26 Wednesday, August 11, 1999 4:45 PM
F
F /G
G
G /A
A
Chord
Type
Root
C
M7 m7-5 dim aug
C /D
D
D /E
E sus4
42-4032.fm Page 27 Wednesday, August 11, 1999 4:45 PM
F
F /G
G
G /A
A
Chord
Type
Root
7sus4 m add9 mM7 7
C
C /D
D
D /E
E
A /B
B add9
27
42-4032.fm Page 28 Wednesday, August 11, 1999 4:45 PM
SPECIFICATIONS
Number of Keys ................................................................................................... 61
Polyphonic Sound ............................................................................ 12-note (Max.)
Preset Tones ...................................................................................................... 100
Auto-Rhythm ........................................................................................................ 50
Tempo: Adjustable (40–255 Beats Per Minute)
Other: Fill-in and Synchro Start
Accompaniments ............................................................. Concert Chord, Fingered
Juke Box ................................................................................................... 20 Tunes
Transpose .............................................................................. (F ~C~F: half-notes)
Tuning ............................................................... Adjustable A4 = 440 Hz
±
50 cents
Built-in Speakers ........................................................ 4 Inch
×
2 (Output 2W + 2W)
Terminals:
Power Supply ................................................................................. 9V DC Jack
Headphones Stereo Standard Jack .................... Output Impedance: 66 Ohms
Output Voltage: 2.8V (RMS) MAX
Power Sources .............................................. DC: 6 AA batteries (Cat. No. 23-552)
AC: 120V, 60Hz, with AC adapter
Vehicle Battery: 9V with DC adapter
Power Consumption ....................................................................................... 7.7 W
Dimensions (HWD) ........................................................... 3
1
/
2
×
35
×
12
11
/
16
Inches
(90
×
910
×
322 mm)
Weight (Without Batteries) ....................................................................... 8 lb 10 oz
(3.9 kg)
Included Accessory ................................................................... Sheet Music Stand
Specifications are typical; individual units might vary. Specifications are subject to change and improvement without notice.
28
42-4032.fm Page 29 Wednesday, August 11, 1999 4:45 PM
SONGBOOK
SONGS
No.
Title No.
Title
00 Serenade “Eine Kleine Nachtmusik” 10 Jingle Bells
01 Twinkle Twinkle Little Star 11 O Christmas Tree
02 Ach Du Lieber Augustin 12 Yankee Doodle
03 Amazing Grace
04 Ode to Joy
05 London Bridge
13 Santa Lucia
14 When the Saints Go Marching In
15 Aloha Oe
06 Londonderry Air
07 Greensleeves
08 Auld Lang Syne
09 Joy to the World
16 Spring from “The Four Seasons”
17 Little Brown Jug
18 March from “The Nutcracker”
19 The Entertainer
LEVELS OF DIFFICULTY
Easy
Normal
Difficult
Very Difficult
SCORE EXAMPLE
Note: Each score shows the starting beat count and the introductory phrase.
29
42-4032.fm Page 30 Wednesday, August 11, 1999 4:45 PM
NOTES
30
42-4032.fm Page 31 Wednesday, August 11, 1999 4:45 PM
31
42-4032.fm Page 32 Wednesday, August 11, 1999 4:45 PM
6A7
Limited One-Year Warranty
This product is warranted by RadioShack against manufacturing defects in material and workmanship under normal use for one (1) year from the date of purchase from RadioShack company-owned stores and authorized RadioShack franchisees and dealers. In the event of a product defect during the warranty period, take the product and the RadioShack sales receipt as proof of purchase date to any RadioShack store. RadioShack will, at its option, unless otherwise provided by law: (a) correct the defect by product repair without charge for parts and labor; (b) replace the product with one of the same or similar design; or (c) refund the purchase price. All replaced parts and products, and products on which a refund is made, become the property of RadioShack. New or reconditioned parts and products may be used in the performance of warranty service. Repaired or replaced parts and products are warranted for the remainder of the original warranty period. You will be charged for repair or replacement of the product made after the expiration of the warranty period.
This warranty does not cover: (a) damage or failure caused by or attributable to acts of God, abuse, accident, misuse, improper or abnormal usage, failure to follow instructions, improper installation or maintenance, alteration, lightning or other incidence of excess voltage or current; (b) any repairs other than those provided by a RadioShack Authorized Service Facility; (c) consumables such as fuses or batteries; (d) cosmetic damage; (e) transportation, shipping or insurance costs; or (f) costs of product removal, installation, set-up service adjustment or reinstallation.
EXCEPT AS PROVIDED HEREIN, RadioShack MAKES NO EXPRESS WARRANTIES AND ANY
IMPLIED WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE DURATION OF THE WRITTEN
LIMITED WARRANTIES CONTAINED HEREIN. EXCEPT AS PROVIDED HEREIN, RadioShack
SHALL HAVE NO LIABILITY OR RESPONSIBILITY TO CUSTOMER OR ANY OTHER PERSON
OR ENTITY WITH RESPECT TO ANY LIABILITY, LOSS OR DAMAGE CAUSED DIRECTLY OR
INDIRECTLY BY USE OR PERFORMANCE OF THE PRODUCT OR ARISING OUT OF ANY
BREACH OF THIS WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY DAMAGES RESULT-
ING FROM INCONVENIENCE, LOSS OF TIME, DATA, PROPERTY, REVENUE, OR PROFIT OR
ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, EVEN IF RadioShack HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Some states do not allow the limitations on how long an implied warranty lasts or the exclusion of incidental or consequential damages, so the above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
RadioShack Customer Relations, Dept. W, 100 Throckmorton St., Suite 600, Fort Worth, TX 76102
We Service What We Sell
1/97
RadioShack
A Division of Tandy Corporation
Fort Worth, Texas 76102
Printed in Mexico
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
