CQ-VD7200U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

VOLUME

MUTE MENU MODE

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

ENTER

DISC

TRACK/

CHANNEL

In-Dash 7 Inch Wide Color LCD TV/DVD-Video/Receiver

Moniteur/télé couleur de tableau de bord à ÉCL de 7 po

(diagonale)/ récepteur/lecteur DVD-Vidéo

Reproductor de DVD-Video/CD con TV y LCD de 7" de

Anhco a Color para el Tablero del Auto

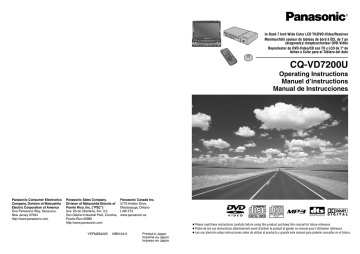

CQ-VD7200U

Operating Instructions

Manuel d’instructions

Manual de Instrucciones

Panasonic Consumer Electronics

Company, Division of Matsushita

Electric Corporation of America

One Panasonic Way, Secaucus,

New Jersey 07094 http://www.panasonic.com

Panasonic Sales Company.

Division of Matsushita Electric of

Puerto Rico, Inc. (“PSC”)

Ave. 65 de Infanteria, Km. 9.5

San Gabriel Industrial Park, Carolina,

Puerto Rico 00985 http://www.panasonic.com

Panasonic Canada Inc.

5770 Ambler Drive,

Mississauga, Ontario

L4W 2T3 www.panasonic.ca

YEFM284225 NB0104-0 Printed in Japan

Imprimé au Japon

Impreso en Japón

TEXT

¡Please read these instructions carefully before using this product and keep this manual for future reference.

¡Prière de lire ces instructions attentivement avant d’utiliser le produit et garder ce manuel pour l’utilisation ultérieure.

¡Lea con atención estas instrucciones antes de utilizar el producto y guarde este manual para poderlo consultar en el futuro.

2

E

N

G

L

I

S

H

Safety Information

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK OR PRODUCT DAMAGE, DO NOT EXPOSE

THIS APPLIANCE TO RAIN, SPLASHING, DRIPPING

OR MOISTURE.

CAUTION!

THIS PRODUCT UTILIZES A CLASS I LASER.

USE OF CONTROLS OR ADJUSTMENTS OR PER-

FORMANCE OF PROCEDURES OTHER THAN THOSE

SPECIFIED HEREIN MAY RESULT IN HAZARDOUS

RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR

YOURSELF. REFER SERVICING TO QUALIFIED PER-

SONNEL.

Laser products:

Wave length: 780 nm

Laser power: No hazardous radiation is emitted with safety protection.

CAUTION:

PLEASE FOLLOW THE LAWS AND REGULATIONS

OF YOUR STATE, PROVINCE OR COUNTRY FOR

INSTALLATION OF THE UNIT.

The following applies only in the U.S.A.

Part 15 of the FCC Rules

FCC Warning:

Any unauthorized changes or modifications to this equipment would void the user's authority to operate this device.

NOTICE:

This product contains lead in some components.

Disposal of these materials may be regulated in your community due to environmental considerations.

For disposal or recycling information please contact your local authorities, or the Electronics Industries

Alliance: <http://www.eiae.org.>

Find the model number and serial number on either the back or bottom of the unit. Please record them in the space below and retain this booklet as a permanent record of your purchase to help with identification in case of theft.

CQ-VD7200U

MODEL NUMBER

SERIAL NUMBER

DATE PURCHASED

FROM

Consignes de sécurité

AVERTISSEMENT:

AFIN DE LIMITER LES RISQUES D’INCENDIE OU

D’ÉLECTROCUTION OU ENCORE D’ENDOMMAGE-

MENT DE L’APPAREIL, N’EXPOSEZ PAS CET

APPAREIL À LA PLUIE, AUX ÉCLABOUSSURES

D’EAU OU À L’HUMIDITÉ.

ATTENTION!

CET APPAREIL EST UN PRODUIT LASER DE LA

CLASSE I.

L’UTILISATION DE COMMANDES OU RÉGLAGES OU

L’EXÉCUTION D’OPÉRATIONS AUTRES QUE CELLES

QUI SONT INDIQUÉES DANS CE DOCUMENT PEU-

VENT RÉSULTER EN UNE EXPOSITION À UN RAYON-

NEMENT DANGEREUX.

N’OUVREZ PAS LES COUVERCLES ET N’ESSAYEZ

PAS D’EFFECTUER VOUS-MÊME DES RÉPARA-

TIONS. ADRESSEZ-VOUS À UN PERSONNEL QUALI-

FIÉ POUR TOUTE RÉPARATION.

Produits laser:

Longueur d’onde: 780 nm

Puissance du laser: Aucune radiation dangereuse n’est émise avec la protection de sécurité.

ATTENTION:

OBSERVEZ LES LOIS ET RÉGLEMENTS DE VOTRE

PROVINCE OU PAYS POUR L’INSTALLATION DE

L’APPAREIL.

Il est recommandé de noter, dans l’espace prévu cidessous, les numéros de modèle et de série inscrits soit à l’arrière soit sous le fond de l’appareil, et de conserver ce manuel comme mémorandum de l’achat afin de permettre l’identification de l’appareil en cas de vol.

CQ-VD7200U

NUMÉRO DE MODÈLE

NUMÉRO DE SÉRIE

DATE DE L’ACHAT

VENDEUR

Información para su seguridad

ADVERTENCIA:

PARA REDUCIR EL PELIGRO DE INCENDIOS Y DE

DESCARGAS ELÉCTRICAS ASÍ COMO DE DAÑOS DEL

PRODUCTO, NO LO EXPONGA A LA LLUVIA, A SALPICA-

DURAS, CONDENSACIÓN DE AGUA NI HUMEDAD.

¡PRECAUCIÓN!

ÉSTE ES UN PRODUCTO LÁSER DE LA CLASE I.

LA UTILIZACIÓN DE CONTROLES, EL HACER

AJUSTES O EL SEGUIR PROCEDIMIENTOS DISTIN-

TOS DE LOS ESPECIFICADOS EN ESTE MANUAL

PODRÍA CAUSAR UNA EXPOSICIÓN PELIGROSA A

LA RADIACIÓN.

NO ABRA LAS CUBIERTAS NI HAGA REPARA-

CIONES USTED MISMO. SOLICITE LOS TRABAJOS

DE SERVICIO AL PERSONAL CALIFICADO.

Productos láser:

Longitud de onda: 780 nm

Potencia láser: Con protección de seguridad no se emite radiación peligrosa.

PRECAUCIÓN:

RESPETE LAS LEYES Y REGULACIONES DE SU ESTADO,

PROVINCIA O PAÍS PARA LA INSTALACIÓN DEL APARA-

TO.

Lo siguiente se aplica solamente a los EE.UU.

Parte 15 de los Reglamentos FCC

Advertencia FCC:

Cualesquier cambios o modificaciones sin autorización a este equipo puede anular la autoridad del usuario para operar este dispositivo.

AVISO:

Este producto contiene plomo en algunos componentes.

La eliminación de estos materiales puede estar reglamentado en su comunidad debido a las consideraciones ambientales.

Para informarse acerca de la eliminación o reciclaje comuníquese con las autoridades locales, o la Alianza de Industrias

Electrónicas: <http://www.eiae.org.>

Busque el número del modelo y el número de serie ya sea en la parte trasera o en el fondo de la unidad.

Sírvase anotar dichos números en el espacio siguiente, y mantenga este librete como una anotación permanente de su compra para ayudar en la identificación en el caso de robo.

NÚMERO DEL MODELO

NÚMERO DE SERIE

FECHA DE COMPRA

NOMBRE DE LA TIENDA

CQ-VD7200U

F

R

A

N

Ç

A

I

S

E

S

P

A

Ñ

O

L

3

CQ-VD7200U CQ-VD7200U

E

N

G

L

I

S

H

Panasonic welcomes you to our ever growing family of electronic product owners. We know that this product will bring you many hours of enjoyment. Our reputation is built on precise electronic and mechanical engineering, manufactured with carefully selected components and assembled by people who take pride in their work.

Once you discover the quality, reliability, and value we have built into this product, you too will be proud to be a member of our family.

Features

Integration of the monitor, TV tuner, FM/AM radio, DVD/Video CD player, and

CD/MP3 player

¡A CD-R and a CD-RW that hold CD-DA data can be reproduced.

¡A CD-ROM, a CD-R and a CD-RW that hold MP3 data can be reproduced.

¡MP3 ID3Tag is supported.

7-inch wide LCD (Liquid Crystal Display) display

Delivers images of high quality and superb color reproduction.

Fully powered display positioning mechanism (except for lateral angle)

Positioning of the display unit is fully power driven. This includes extending the unit, raising it to upright position, adjusting its vertical (tilt) angle and moving it to the front and rear.

The lateral angle to the right and left can be adjusted manually.

GUI (Graphic User Interface)

GUI displays various indications with colorful symbols to enhance visibility, enjoyment, and operability.

Image capture function

Images can be imported from TV, VTR, DVD or Video CD for a wall paper.

Built-in automatic dimmer

The brightness of the screen is automatically adjusted in response to surrounding brightness.

ID code

4-digit ID code for increased security.

External extension terminal

¡Two video input (on the hide-away unit side)

You can connect a car navigation system, VCR, camcorder and rear view camera with this unit if they have video output type terminal.

¡One video output (on the hide-away unit side)

You can connect optional monitor for passengers in the rear seat. For example, you can enjoy a map of the car navigation on the front monitor, and passengers in the rear seat can enjoy DVD movie on the rear monitor at the same time. Moreover, different sounds can be played in the front seat and rear seat in the private mode.

CD changer control function

An optional CD changer (CX-DP880U) can be connected.

Note: Dual CD changers can be connected at once by incorporating with CA-CD55 (option).

¡Please take note that this model does not support CD-DA/SACD hybrid discs.

¡Please take note that this model does not support Sirius satellite radio.

This book refers to the connection to the Panasonic car navigation system that will come on the market in future.

Descriptions regarding the car navigation system are boxed with dotted line.

4

CQ-VD7200U

Contents

¢ Safety Information.................................. 2

¢ Features .................................................. 4

¢ Use This Product Safely ...................... 10

¢ Components/Remote Control Unit

Preparation ........................................... 12

Components, battery installation and battery notes

¢ Name of Controls and Functions........ 13

Name of buttons and its functions

¢ Indications on the Screen.................... 16

The state of the current output appears, OSD (On

Screen Display) on/off

¢ Discs that can be Played Back............ 17

¢ SET-UP : User Settings ........................ 38

Monitor position, navigation set up, rear view camera set up, ID code setting, button operation sound, video control setting, memory clearance,

VTR skip

¢ SET-UP : Display (Screen) Settings.... 44

Dimmer, display adjustment

¢ SET-UP : DVD Settings ........................ 46

Language setting, display aspect and DVD software mode

¢ SET-UP : Clock/date Settings.............. 48

Clock and date setting, calendar display

¢ SET-UP : Capture Function ................. 50

Image capture, Wallpaper, Image Deletion

¢ SET-UP : Sound Settings..................... 54

Bass/treble, balance/fader, subwoofer control

¢ SET-UP : Other Settings ...................... 56

Display change, aspect ratio, rear monitor set up, private mode

E

N

G

L

I

S

H

¢ General .................................................. 18

Power, mode change, volume, mute, loudness, display open/close and monitor position adjustment

¢ TV Tuner ................................................ 20

TV mode, channel setting, direct channel selection, preset channels

¢ VTR ........................................................ 22

VTR1/VTR2 mode, connectable external devices

¢ DVD/Video CD Player ........................... 24

Disc insert/eject, basic operation, chapter/title selection, useful function

¢ CD/MP3 Player ...................................... 28

Disc insert/eject, direct folder selection, basic operation, points to remember when recording an

MP3 disc

¢ Audio Formats ...................................... 32

Audio formats, dynamic range compression

¢ Radio ..................................................... 34

Radio mode, band, tuning, preset station

¢ CD Changer Control............................. 36

CD Changer mode, system expansion, basic operation

¢ Installation Guide ................................. 60

Step-by-step procedures

¢ Electrical Connections......................... 72

Cautions and cable wiring diagram

¢ Troubleshooting ................................... 84

Where to get service help, troubleshooting tips, error display messages and reset switch

¢ Maintenance.......................................... 92

Care of the unit, notes on discs, notes on CD-Rs/

CD-RWs

¢ Definition of Terms............................... 94

¢ Language Code List ............................. 95

¢ Specifications ....................................... 96

CQ-VD7200U

5

E

N

G

L

I

S

H

1

Use This Product Safely

WARNING:

TO AVOID RISK OF SERIOUS INJURY OR POSSIBLE VIOLATION OF LAWS, NOT FOR USE WHERE

VISIBLE TO DRIVER FOR ANY PURPOSE OTHER THAN NAVIGATION OR USE WITH REAR VIEW

CAMERA.

When Driving

¡The driver must not operate the color LCD (liquid crystal display) monitor. Operating the color LCD monitor may lead to carelessness and cause an accident. Stop your vehicle in a safe location when operating the unit.

¡The driver must not watch videos while driving. It may lead to carelessness and cause an accident.

¡Keep the unit at an appropriate sound level. Driving with the sound at a level that prevents you from hearing sounds outside and around the vehicle may cause an accident.

CAUTION:

Follow local rules and regulations for installing monitor and TV antenna.

When Car Washing

Do not expose the product, including the speakers and discs, to water or excessive moisture. This could cause electrical shorts, fire, or other damage.

When Parked

Parking in direct sunlight can produce very high temperatures inside your car. Give the interior a chance to cool down before switching the unit on.

Use the Proper Power Supply

This product is designed to operate with a 12 V DC, negative ground battery system (the normal system in a North

American car.)

Disc Mechanism

Do not insert coins or any small objects. Keep screwdrivers and other metallic objects away from the disc mechanism and disc.

Protect the DVD Software

When you leave the car, be sure to eject the disc from this unit and take it with you.

Use Authorized Servicenters

Do not attempt to disassemble or adjust this precision product. Please refer to the Servicenter list included with this product for service assistance.

For Installation

The product should be installed in a horizontal position with the front end up at a convenient angle, but not more than 30˚.

The user should bear in mind that in some areas there may be restrictions on how and where this unit must be installed.

Consult your dealer for further details.

10

This system is designed so that you cannot see the moving picture while you are driving.

¡Park your car in a safe place and engage the side brake (parking brake) lever before watching the monitor.

¡A rear monitor (option) displays moving picture while driving.

Note:

Be sure to connect the side brake (parking brake) connection lead. ( a page 76)

Cautions:

¡Picture might not be displayed, or it might take more time than usual to display picture at low temperatures.

Also, movement of picture might become labored, or picture quality might deteriorate at low temperatures.

[practicable temperature: 32 °F to 104 °F (0 °C to 40 °C)]

¡Do not touch the LCD (liquid crystal display).

If you touch the LCD, your fingerprints will be visible because the surface of the LCD is specially processed.

¡In some cases, noise is generated. It depends on the position or direction of a mobile phone and a CB transiever, etc. Change the position or direction of the mobile phone and a CB transiever, etc. or keep them away from the unit.

E

N

G

L

I

S

H

2

ID Code

Prior to operating this unit, it is a advisable to assign your 4-digit ID code for security. (Make sure to use four digits for ID code.)

Once the ID code has been set, the unit cannot be operated if the main power supply is disconnected then re-connected. It is electronically locked so that a thief could not use the stolen unit unless that person knows the code you have set.

The ID code operation must be performed only by the person to whom the unit belongs.

Generally, it is not necessary to enter the ID code each time when using the unit if it has never been disconnected from the main power supply (car battery). For the ID code setting procedures, see pages 40-41.

Caution: Record your registered ID code and keep it in a secure location. If you forget it, you will be unable to use the unit. If you cannot operate the unit because you forget the ID code, please consult your nearest Panasonic

Servicenter.

ID Code Input

Enter the ID code after turning on the power and activating the display.

Success

Note: When you fail in entering the ID code, a screen on the right is displayed and the unit beeps three times. Enter a correct ID code.

If you fail to enter the correct ID code three times consecutively, the power is turned off. Turn on the power again and enter a correct ID code in this case.

CQ-VD7200U CQ-VD7200U

E

N

G

L

I

S

H

3

Components/Remote Control Unit Preparation

Components

CQ-VD7200U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

VOLUME

MUTE MENU MODE

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

ENTER

DISC

TRACK/

CHANNEL

1. Display Unit

1

1

6. Speaker*

<EAB507A>

*Do not use it for a center speaker.

2. Hide-away Unit

7. Wiping Cloth

1

1

<YEFX9991793>

1

3. Remote Control

Unit

<YEFX9993009>

8. Operating

XXXXXXXXXXXXXXX

XXXXXXXXXXXXXXXXX

XXXXXXXXXXXXXXXX

OO-OOOOO

1

Instructions

<YEFM284225>

4. Lithium Battery

(CR2025)

1

1 set

9. Warranty Card, etc.

1 set

5. TV Antenna

<YEAA12692A>

<YEAA12693A>

10.

Installation

Hardware

(screws, cords, etc.) ( a page 61)

Note:

¡The number in parenthesis underneath each accessory part name is the part number for maintenance and service.

¡Accessories and their parts numbers are subject to modification without prior notice due to improvements.

Remote Control Unit Preparation

Battery Installation (Inserting/Replacing the Battery)

q Remove the battery holder.

Pull the holder by the position B while pushing position A

Back side in the direction indicated by the arrow.

w Install the battery on the battery holder.

Set a new battery properly with its (

+

) side facing up as shown in the figure.

e Insert the battery holder.

Push the battery holder back into its original position.

Lithium battery

(supplied)

Position B

Battery Notes

Remove and dispose of the old battery immediately.

Battery Information:

¡Battery Type: Panasonic lithium battery (CR2025) (supplied)

Battery holder

¡Battery Life: Approximately 6 months with normal use (at room temperature)

Position A

Caution: Improper use of batteries may cause overheating, an explosion or ignition, resulting in injury or a fire.

¡Do not disassemble or short the battery. Do not throw a battery into a fire.

¡Keep batteries away from children to avoid the risk of accidents.

¡Be careful to observe proper local disposal rules when you dispose of batteries.

12

CQ-VD7200U

Name of Controls and Functions

Display Unit

Dimmer sensor

( a page 44)

Disc slot

Remote control sensor

VOLUME

[MENU]

¡Shows the menu screen. ( a page 38)

¡Shows the rear monitor setting menu.

( a page 58)

[MODE] (POWER)

¡Switches on/off the power. ( a page 18)

¡Changes the modes such as sound and picture. ( a page 18)

MUTE

[}] [{] (VOLUME)

¡Adjusts the sound volume.

( a page 18)

[MUTE]

¡Mutes the sound temporarily. ( a page 18)

¡Compensates bass and treble in the low and middle volume level. (LOUD) ( a page 18)

CQ-VD7200U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

MENU MODE

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

[ ] (OPEN/CLOSE)

¡Opens/closes the monitor.

( a page 18)

[TILT]

¡Shows the monitor position setting menu. ( a page 19)

¡Tilts the monitor forward temporarily. ( a page 19)

[}] [{] (DISC)

¡Searches for TV stations

ENTER

and memorizes them automatically. ( a page 21)

¡Selects a folder or a disc.

( a page 29, 37)

¡Selects (vertically) or adjusts an operation or item.

ENTER

DISC

TRACK/

CHANNEL

[]] [[] (TRACK/CHANNEL)

¡Selects or searches a channel, track, file

ENTER

or frequency.

( a page 20, 29, 34, 37)

¡Sequential transition from one file to the next. ( a page 29)

¡Selects (horizontally) or adjusts an operation or item.

[ENTER]

¡Selects a band.

( a page 34)

¡Searches for broadcast

ENTER

stations and memorizes them automatically.

( a page 35)

¡Determines an operation or item.

[u]

¡Ejects/reloads a disc. ( a page 24, 28)

[ASP] (ASPECT) (P • MODE)

¡Selects the aspect ratio. ( a page 57)

¡Activates/inactivates the private mode.

( a page 59)

E

N

G

L

I

S

H

4

[NAVI] (NAVIGATION)

¡Activates/inactivates the car navigation. ( a page 23, 38)

Note: Refer to “Electrical Connections” for names on the rear of the hide-away unit. ( a page 74-75)

13

CQ-VD7200U

E

N

G

L

I

S

H

5

Name of Controls and Functions

Remote Control

Aim the remote control at the remote control sensor of the display unit and operate it.

(continued)

[NAVI] (NAVIGATION)

¡Activates/inactivates the car navigation. ( a page 23, 38)

[PWR]

¡Switches on/off the power.

( a page 18)

CQ-VD7200U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

VOLUME

MUTE MENU MODE

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

ENTER

DISC

TRACK/

CHANNEL

[MODE]

¡Switches the power on/off. ( a page 18)

¡Changes the modes such as sound and picture. ( a page 18)

[MENU]

¡Shows the menu screen. ( a page 38)

¡Shows the rear monitor setting menu. ( a page 58)

[OSD] (CAPTURE)

¡Displays information about each source on the screen. ( a page 16)

¡Saves your favorite part of playing picture as a freeze-frame picture. ( a page 51)

[DISP]

¡Changes the display.

( a page 56)

[}] [{]

¡Searches for TV stations and memorizes them automatically.

( a page 21)

¡Selects a disc. ( a page 37)

¡Selects (vertically) or adjusts an operation or item.

[]] [[]

¡Selects or searches a channel, frequency or track.

( a page 20, 34, 37)

¡Selects (horizontally) or adjusts an operation or item.

[ENTER]

¡Selects a band. ( a page 34)

¡Searches for broadcast stations and memorizes them automatically.

( a page 35)

¡Determines an operation or item.

[A] (ASPECT) (P • MODE)

¡Selects the aspect ratio. ( a page 57)

¡Activates/inactivates the private mode.

( a page 59)

[}] [{] (VOLUME)

¡Adjusts the sound volume.

( a page 18)

[MUTE]

¡Mutes the sound temporarily.

( a page 18)

¡Compensates bass and treble in the low and middle volume level. (LOUD)

( a page 18)

[0] to [9]

¡Selects a TV channel directly. ( a page 20)

¡Memorizes and recalls broadcast stations. ( a page 35)

¡Random [4], scan [5], repeat [6] for the CD changer mode.

( a page 37)

¡Sets the ID code. ( a page 40)

14

CQ-VD7200U

Remote Control Unit of the DVD/Video CD/CD/MP3 Playback

(Operation only for the remote control)

Meaning of symbols

DVD

VIDEO

VIDEO

CD

CD MP3

Indicates the compatible types of disc.

E

N

G

L

I

S

H

6

[MODE]

DVD

VIDEO

VIDEO

CD

CD

¡Changes the modes such as sound and picture. ( a page 18)

MP3

[DVD] (DVD MENU)

DVD

VIDEO

¡Displays the DVD menu.

(Operations vary according to the disc.) ( a page 26)

V

[TITLE] (TITLE/CHAPTER)

¡Selects the title/chapter.

( a page 26)

[RET] (RETURN)

VIDEO

CD

DVD

VIDEO

¡Returns to the previous display.

( a page 26)

¡Inputs the number again.

( a page 26)

¡Displays the video CD's menu.

( a page 26)

[SUB] (SUB TITLE)

DVD

VIDEO

¡Switching the subtitle language. ( a page 27)

[ANGLE]

¡Switching the angle. ( a page 27)

[AUDIO]

¡Switching the audio language. ( a page 27)

[AUDIO] (ST/MONO)

VIDEO

CD

¡Switches between stereo or monaural sound.

( a page 27)

[

] (STOP)

DVD

VIDEO

VIDEO

CD

CD

¡Stops playback. ( a page 25, 29)

MP3

[

❚❚] (PAUSE)

¡Pause ( a page 25, 29)

[B] (PLAY)

¡Playback ( a page 25, 29)

[s] [d]

¡Goes to beginning. ( a page 25, 29)

¡Fast forward/fast reverse ( a page 25, 29)

¡Sequential transition from one file to the next.

( a page 29)

¡Slow playback [d] ( a page 25)

[}] [{] []] [[]

DVD

VIDEO

¡Selects an operation or item.

VIDEO

CD

[ENTER]

¡Determines an operation or item.

[}] [{]

MP3

¡Selects a folder. ( a page 29)

[ENTER]

¡Changes to the direct folder selection mode. ( a page 28)

[]] [[]

CD

MP3

¡Goes to beginning. ( a page 29)

¡Fast forward/fast reverse. ( a page 29)

¡Sequential transition from one file to the next. ( a page 29)

[DRC]

DVD

VIDEO

¡Compresses the range of the playback level.

( a page 33)

DVD

VIDEO

VIDEO

CD

[REP] (REPEAT)

CD MP3

¡Repeats a playback. ( a page 25, 29)

CD

MP3

[SCRL] (SCROLL)

¡Title scroll. ( a page 29)

[0] to [9]

DVD

VIDEO

VIDEO

CD

¡Selects an item on the menu. ( a page 26)

[0] to [9]

DVD

VIDEO

¡Selects a title or chapter. ( a page 26)

CD

MP3

[4] (RANDOM)

¡Random play. ( a page 29)

CQ-VD7200U

15

E

N

G

L

I

S

H

7

Indications on the Screen

The State of the Current Output Appears

Note: Contents displayed and their positions partly vary with each mode. Refer to the description of each mode for details.

Example:

DVD Mode

(OSD on a see below)

When the car navigation mode is set to ON.

Image•Sound/Mode Display

The current mode appears.

: Image and sound (TV/VTR1•2/DVD/Video CD (VCD))

: Sound (Radio (AM/FM)/CD/MP3/Changer (CH-C))

Disc Indicator

Clock Time

Default: off

( a page 48)

Volume Display

MUTE

or

LOUD

blinks when the

MUTE or LOUD function is set to ON.

Prohibition

Input is not possible because a soundtrack, subtitle language or angle number which was not recorded on the disc has been selected or because the user has attempted to perform an operation which is not supported by the unit.

Mode Display

OSD (On-Screen Display) On/off

You can switch between OSD-ON and OSD-OFF regarding the mode information.

OSD on OSD off

Additional

Information

Channel, source type, various settings, etc.

Information of

Each Mode

Playing elapsed time, title, preset list, etc.

(During playback)

Press [OSD] on the Remote

Control.

Notes:

¡On-Screen Display also appears when operation is made (for 4 seconds).

¡On-Screen Display can be toggled between on and off only in the TV, VTR1/2, DVD and VCD modes. (When the captured image is set as a wallpaper in the CD, MP3, RADIO and CD changer modes, pressing [OSD] switches captured images.)

16

CQ-VD7200U

Discs that can be Played Back

Disc

DVD video

Video CD

CD

CD-R/RW

Mark (logo)

TEXT

Disc size Video format Audio format

LPCM, MPEG1,

MPEG2, dts,

Dolby Digital

NTSC

LPCM, MPEG1

5” (12 cm)

LPCM (CD-DA), dts

Region No.

1

ALL

LPCM (CD-DA),

MP3

Recordable ReWritable

Note: About CD-Rs and CD-RWs, refer to “Notes on CD-Rs/RWs”. ( a page 93)

E

N

G

L

I

S

H

8

Example:

1

1 2

4 6

ALL

Region Management Information

This product is designed and manufactured to respond to the Region Management

Information that is recorded on a DVD disc. If the Region number described on the

DVD disc does not correspond to the Region number of this product, this product cannot play the disc.

The Region number for this product is “1” and “ALL”.

Symbols used on jackets

(Examples of such symbols include)

¡ Number of subtitle languages

2

Screen size (H:V aspect ratio)

¡ 4:3 standard size

4:3

¡

Number of audio tracks

2

¡

Letterbox

LB

( a page 94)

¡

Number of angles

3

The numbers indicate the number of languages, tracks, angles, etc., recorded on the disc.

¡ 16:9 wide size

16:9 LB

: Play back in letterbox format on a standard screen (4:3).

16:9 PS

: Play back in “Pan & Scan” ( a page 94) format on a standard screen (4:3).

Note:

The size of the image that is displayed on the screen depends on the screen mode (“Aspect Ratio” a page 57), and on the screen size for the content on the disc.

The following discs cannot be played back on this product.

¡

DVD-Audio

¡

DVD-ROM

¡

VSD

¡

DVD-R

¡

CVD

¡

DVD-RAM

¡

CD-G

¡

DVD+RW

¡

DVD-RW

¡

CD-ROM (except MP3)

¡

SVCD

¡

CD-RW (except MP3 and CD-DA)

¡

CD-R (except MP3 and CD-DA)

¡

SACD

¡

CDV

¡

Divx Video Discs

¡

¡ photo CD

CD-EXTRA (audio-only playback possible)

¡

Discs recorded in PAL format, others

¡

DVDs with a region number other than “1” or “ALL”

¡

CD-DA/SACD hybrid

¡

Playing back a photo CD disc with this unit could damage the data that is recorded on the disc.

17

CQ-VD7200U

E

N

G

L

I

S

H

9

General

Power

Turn your car's ignition key to ACC or ON position.

ON: press [MODE] (POWER) on the display unit.

Press [PWR] or [MODE] on the remote control.

OFF: press [MODE] (POWER) again for more than

2 seconds on the display unit.

Press [PWR] again or [MODE] again for more than 2 seconds on the remote control.

[ ] (OPEN/CLOSE)

TILT

OPEN/CLOSE

VOLUME

CQ-VD7200U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

MENU

MODE

POW

ER

NAVIGA

TION

NAVI

ASPECT

ASP

P·MODE

[MODE] (POWER)

[MUTE]

[}] [{] (VOLUME)

DISC

TRACK/

CHANNEL

ENTER

[PWR]

(POWER)

[MODE]

[}] [{]

(VOLUME)

[MUTE]

Display Open/Close

OPEN

: press [

]

(OPEN/CLOSE).

CLOSE

: press [

]

(OPEN/CLOSE) again.

(After returning the lateral angle to the neutral position.)

Notes:

¡When the display unit is opened or closed, a loud beep sounds three times.

¡If the unit stops halfway, press [

] (OPEN/CLOSE)

again and draw it all the way in.

¡Opening/closing the display can be done when the power is off.

Warning: Do not touch the unit while the display is moving. Inserting hands, fingers or foreign objects into the unit can cause injuries and damage to the unit.

Mode

Press [MODE] to change the mode.

TV

( a page 20)

VTR1

( a page 22)

CH-C

(CD Changer Control)*

( a page 36)

VTR2

( a page 22)

AM/FM (Radio)

( a page 34)

DVD/VCD(Video CD)/

CD/MP3

( a page 24, 28)

* Selectable only when a CD changer is connected.

Volume

[}] (VOLUME): up

[{] (VOLUME): down

Setting Range : 0 to 40

Note: The sound level for each source is stored in memory.

Mute

MUTE ON: press [MUTE].

MUTE OFF: press [MUTE] again.

Loudness

When listening at low or medium volume, enhance bass and treble tones.

LOUD ON: press and hold [MUTE] for more than 2 seconds.

LOUD OFF: press and hold [MUTE] for more than 2 seconds again.

18

CQ-VD7200U

Monitor Position Adjustment

Cautions:

¡For smooth adjustment, make sure to first return the lateral angle to the neutral position and then adjust the tilt angle.

¡Avoid physical shock on the monitor.

VOLUME

[TILT]

CQ-V

TILT

DISC

ENTE

R

MUTE

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

NAV

IGAT

ION

NAVI

ASPECT

ASP

P.MODE

MODE

POWER

MENU

[}] [{]

[] ] [[ ]

(Adjust)

Tilt Angle/Front-Rear Position

1

Press and hold [TILT] on the display unit for more than 1 second.

2

Press [}], [{], []] or [[] to adjust.

The setup is the same way as the one from MENU. Refer to

“SET-UP : User Settings” for details. ( a page 38)

Notes:

¡Vertical angle (TILT) and front-rear position data are saved in the memory, so when the display unit is drawn out next, it is automatically set at the angle and in the position adjusted before.

¡After adjusting its angle, also adjust the brightness to make it easy for you to watch. ( a page 44)

¡The car model and installation condition may impose some restrictions on the adjustment of the monitor's angle and position.

Caution: Do not interfere with the movement of the monitor. Do not change the position of the unit forcibly.

[}] [{]

[] ] [[ ] (Adjust)

Display Unit Lateral Angle Adjustment

Hold the display unit by the non-slip part on the upper half of it, and adjust its lateral angle.

View from above

E

N

G

L

I

S

H

10

TILT

Caution: There is the danger of your fingers being pinched if you hold the unit by the lower part. Hold the unit by the upper half, and move it carefully without applying undue force.

Folding Down the Display Temporarily

Fold Down: press [TILT] on the display unit.

Raise: press [TILT] again on the display unit.

Note: Even when the unit is off, you can fold down the display temporarily.

Caution: Do not place any object on the display unit, or subject it to undue force.

CQ-VD7200U

19

E

N

G

L

I

S

H

11

TV Tuner

Mode display

It is required to install the supplied antenna to receive TV broadcasts. Refer to the description of

mounting the TV antenna. ( a page 70)

Channel number

[0] to [9]

(Direct channel selection)

Preset channels

CQ-VD7200U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

VOLUME

MUTE MENU

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

[MODE]

DISC

TRACK/

CHANNEL

[] ] [[ ] (CHANNEL)

[}] [{] (Preset memory)

[MODE]

[] ] [[ ] (Channel)

[}] [{] (Preset memory)

1

TV Mode

Press [MODE] to change to TV mode.

2

Channel Setting

[[] (CHANNEL): up

[]] (CHANNEL): down

Press and hold [[] (CHANNEL) or

[]] (CHANNEL) for more than 0.5 seconds.

Seeking will start.

Direct Channel Selection

(Only for remote control)

Enter a channel number by pressing [0] to [9].

Example: Channel Number 17

Press [1] and [7].

Preset Channels

This function can search for channels automatically. Up to 18 channels can be stored.

Press and hold [}] or [{] for more than 2 seconds.

[}]: the search starts from ch. 2 successively.

[{]: the search starts from ch. 69 in reverse successively.

Auto Preset

Memory

* See below

¡A stored channel can be renewed every time you store another channel.

¡The unit may receive a channel that has poor-quality images depending on broadcasting conditions.

¡The search returns to the start position if there is no receivable channel.

* “–” appears if the number of receivable channels is less than 18.

Preset Channel

Calling

Press [}] or [{] to select the channel.

E

N

G

L

I

S

H

12

20

CQ-VD7200U CQ-VD7200U

21

E

N

G

L

I

S

H

13

VTR

Mode display

CQ-VD7200U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

VOLUME

MUTE MENU

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

[MODE]

ENTER

DISC

You can view the images and listen to the sounds from the connected external devices in the VTR1 mode and VTR2 mode respectively.

Example:

VTR1

VTR2

VTR1-IN

CQ-VD7200U

Hide-away Unit

: Camcorder

: Rear View Camera

VTR2-IN

[MODE]

Camcorder

Rear View Camera

VTR1/VTR2 Mode

Press [MODE] to change to VTR1 or VTR2 mode.

Note: You can set up the system so that the VTR mode is not selected (VTR skip). ( a page 42)

(VTR set to either CAMERA INPUT and NAVI INPUT is not skipped even if VTR skip is set to on.)

External Devices Connectable to VTR1/VTR2

Refer to “Electrical Connections” for each external device connection. ( a page 80-81)

E

N

G

L

I

S

H

14

VCR/Camcorder

Select the same mode (VTR1 or VTR2) as the terminal that is connected to a VCR or Camcorder (VTR1-IN or VTR2-IN).

Rear View

Camera

Select the same mode (VTR1 or VTR2) as the terminal that is connected to a rear view camera (VTR1-IN or VTR2-IN).

Note: It can also be set to switch to an image through the rear view camera automatically if the shift lever is put into the reverse position.

( a page 40)

22

CQ-VD7200U

Car Navigation

Select the same mode (VTR1 or VTR2) as the terminal that is connected to a car navigation system (VTR1-IN or VTR2-IN).

Note: It can also be set to switch to an image and sound through the car navigation system only by pressing [NAVI] (NAVIGATION). ( a page 38)

Note: VTR1 and VTR2 terminals are not used for the Panasonic car navigation system (available in future). Refer to

“Electrical Connections” for connection ( a page 72-75) and “Navigation Set Up” for setting. ( a page 38)

CQ-VD7200U

23

I I

S

H

E

N

DVD/Video CD Player

E

VOLUM

CQ-V

D72

00U

TILT

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

NAVIGATION

NAVI

ASPECT

ASP

P.MODE

MODE

POWER

MEN

U

MUTE

[MODE]

[MODE]

[3] (STOP)

[5] (PLAY)

[s] [d]

( a page 25)

[y] (PAUSE)

DVD mode display

Subtitle language/audio language/angle

Disc indicator

[u] (Eject)

(Lights when a disc is in the deck)

DISC

ENTER

[]] [[]

( a page 25)

Label side

[REP] (REPEAT)

Disc Insert

¡The mode that supports the disc is selected, and playback starts.

¡The audio format is automatically identified.

( a page 32)

¡When the menu screen appears, see “DVD Menu/

Video CD Menu” on page 26.

When DVD or Video CD is in the player, press

[MODE] to change to DVD or Video CD player mode and playback starts.

Notes:

¡Do not insert a disc when disc indicator

eject button lights because a disc is already loaded.

¡The power will be turned on automatically when a disc is loaded.

or

¡You can play a disc even if the monitor is closed.

¡The sound may be interrupted for a few moments while the audio format is being identified.

Cautions:

¡Do not use irregularly shaped discs.

¡Do not insert foreign matter into the disc slot.

Disc Eject

Press [u] to stop playback and eject the disc.

(Press [u] again to reload the disc.)

Note: If you leave a disc in the slot for more than 30 seconds after its ejection, the disc will be automatically reloaded after loud beep is energized three times.

Notes:

¡Due to limitations of certain discs, some DVD video and Video CD discs may not operate as described in these Operating Instructions. Refer to the disc jacket for further details.

¡This unit does not support DVD and Video CD karaoke functions.

Video CD mode display

Sound setting

(Stereo/monaural)

Disc indicator

Audio format

( a page 32)

Playing time

Play setting

Chapter number

Title number

Mode display

Mode display Playing time Play setting

24

CQ-VD7200U

DVD

VIDEO

VIDEO

CD

Indicates the compatible types of disc.

Perform these operations (

a

page 25-27) with the remote control.

Operations vary according to the disc. For details, refer to the guide provided with the disc.

Basic Operation

Go to Beginning

DVD

VIDEO

VIDEO

CD

Fast Forward/

Fast Reverse

DVD

VIDEO

VIDEO

CD

Stop

DVD

VIDEO

VIDEO

CD

[d]: next track (chapter)

[s]: beginning of the current track (chapter)

Previous track (chapter) (Press twice.)

Note: When playing a DVD video, there are cases where it is not possible to return to the start of a chapter that spans 2 titles.

( a page 94)

Press and hold

[d]: fast forward

[s]: fast reverse

Release to resume playback.

The speed changes if the button is held down as follows.

Regular speed/1.5 times /10 times/20 times

Press [3] (STOP).

Press [5] (PLAY) again, and play will resume from the point where [3]

(STOP) is pressed. (Continued playback function)

To cancel continued playback, press [3] (STOP) again in the stop mode.

Pause

DVD

VIDEO

VIDEO

CD

Press [y] (PAUSE).

To resume playback, [5] (PLAY) or [y] (PAUSE) again.

Slow

Playback

DVD

VIDEO

VIDEO

CD

Press and hold [d] in the pause mode.

Playback is at about 1/3 normal speed.

To resume normal playback, press [5] (PLAY).

To pause, press [y] (PAUSE) again.

Note: Reverse slow playback is not possible.

Repeat

Play

DVD

VIDEO

VIDEO

CD

Press [REP] (REPEAT).

Press [REP] (REPEAT) again to cancel.

Note: It is possible to press []] [[] on the display unit instead of [s] [d] on the remote control. ( [[] on the display unit cannot be used in place of [d] that is used for slow playback.)

E

N

I I

S

H

25

CQ-VD7200U

I I

S

H

E

N

DVD/Video CD Player

(continued)

Chapter/Title Selection

DVD Menu/

Video CD Menu

Use this menu during playback to select content, audio, subtitle, etc., from a menu (the DVD/Video CD menu) that is unique to each disc.

DVD

VIDEO

VIDEO

CD

q Press [DVD] (DVD MENU) during

DVD playback.

(For the Video CD menu, press [RET]

(RETURN) during playback.) w Press []], [[], [}] or [{] to select the preferred menu.

For the DVD/Video CD with playback control ( a page 94), press [0] to [9] on the remote control.

e Press [ENTER].

To return the previous display, press

[RET] (RETURN).

Example:

MENU DVD

1. SUBTITLE

2. AUDIO

3. ANGLE

Select your favorite music.

1. Love Supremes

2. Impressions

3. In a Sentimental Mood

Number:

Title Menu

If the DVD has multiple titles recorded on it, it is possible to select the preferred title from the title menu to start playback.

DVD

VIDEO

Starting Playback from a Specific

Title/Chapter

DVD

VIDEO

q Press and hold [DVD] (DVD MENU) for more than 2 seconds during playback.

w Press []], [[], [}] or [{] to select the preferred title.

For the DVD with playback control

( a page 94), press [0] to [9] on the remote control.

e Press [ENTER].

Example:

TITLE MENU

Rivers

Lovers

Castles

Woods

To return the previous display, press [RET] (RETURN).

q Press [TITLE] (TITLE/CHAPTER) to select the input mode. The mode changes as shown at right every time [TITLE] (TITLE/CHAPTER) is pressed.

w Press [0] to [9] to input preferred title/chapter number.

To input the number again, press

[RET] (RETURN).

e Press [TITLE] (TITLE/CHAPTER).

Playback will start automatically.

Regular Mode

Chapter Number Input Mode

Title Number Input Mode

“5” lights on pink.

Notes:

¡For the VCD mode, do not press [TITLE] (TITLE/CHAPTER) but press the numerical key to enter a number directly.

¡If no operation is performed for 8 seconds after [TITLE] (TITLE/

CHAPTER) has been pressed, the display returns to the regular mode.

¡If the title/chapter number is pressed and no operation is performed for

2 seconds, the playback will start from the number of the title/chapter entered.

26

CQ-VD7200U

DVD

VIDEO

VIDEO

CD

Indicates the compatible types of disc.

Switching the

Subtitle

Language

DVD

VIDEO

Switching the

Audio

Language

DVD

VIDEO

Switching the

Angle

DVD

VIDEO

Switching between

Stereo and

Monaural

VIDEO

CD

[DVD]

(DVD MENU)

( a page 26)

[SUB]

(SUB TITLE)

[ANGLE]

[AUDIO]

(ST/MONO)

[RET] (RETURN)

( a page 26)

Useful Function

Press [SUB] (SUB TITLE) during playback.

It is possible to change the subtitle language during play if the multiple languages are recorded on the disc.

Note: There may be a brief delay before the subtitles appear.

Press [AUDIO] during playback.

It is possible to change the audio language during play if multiple audio languages are recorded on the disc.

Press [ANGLE] during playback.

For DVDs which contain scenes which have been shot simultaneously from a number of different angles the same scene can be viewed from each of these different angles during play.

Press [AUDIO] (ST/MONO).

It is possible to switch the audio between stereo sound and monaural sound (L or R).

STEREO

: stereo sound

MONO Lch

MONO Rch

: the left channel audio is output on both the left and right speakers.

: the right channel audio is output on both the left and right speakers.

[TITLE]

(TITLE/CHAPTER)

( a page 26)

[]] [[] [}] [{]

(Select)

[ENTER]

( a page 26)

[0] to [9]

(Title/chapter

Number)

( a page 26)

Notes:

¡If no operation is performed for 5 seconds, the display returns to the regular mode.

¡It may not be possible to switch the language unless the unit is at the DVD menu

( a page 26) or is at the DVD settings.

( a page 46)

¡The language on the DVD settings has a priority over when the power is turned on or the disc is loaded. ( a page 46)

¡The number of languages depends on the disc. Some discs have only one language or have no language.

E

N

I I

S

H

27

CQ-VD7200U

E

N

CD/MP3 Player

I I

S

H

E

VOLUM

CQ-V

D72

00U

TILT

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

NAVIG

ATION

NAVI

ASPECT

ASP

P.MODE

MOD

E

POWER

MUTE

[MODE]

DISC

ENTER

[u] (Eject)

(Lights when a disc is in the deck)

[]] [[]

(Track/file)

[}] [{]

(Folder)

[ENTER]

Label side

Disc Insert

The mode that supports the disc is selected, and playback starts.

When a disc is in the player, press [MODE] to change to CD or MP3 player mode and playback starts.

Notes:

¡Do not insert a disc when disc indicator

eject button lights because a disc is already loaded.

¡The power will be turned on automatically when a disc is loaded.

or

¡You can play a disc even if the monitor is closed.

Cautions:

¡Do not use irregularly shaped discs.

¡Do not insert foreign matter into the disc slots.

CD/MP3 mode display

Mode display

Disc indicator

Play setting Track number Play time

[y] (PAUSE)

[3] (STOP)

[MODE]

[] ] [[ ]

(Track/file)

[}] [{] (Folder)

[ENTER]

Total track

Disc title

Track title

Disc Eject

Press [u] to stop playback and eject the disc.

(Press [u] again to reload the disc.)

Note: If you leave a disc in the slot for more than 30 seconds after its ejection, the disc will be automatically reloaded after loud beep is energized three times.

Direct Folder Selection

q Press [ENTER] during playback.

MP3

w Press []], [[], [}] or [{] to select a folder.

[] ] [[] : movement among different levels of trees

[}] [{] : movement in the same tree e Press [ENTER].

[SCRL] (SCROLL)

[REP] (REPEAT)

[5] (PLAY)

[s] [d]

( a page 29)

[4] (RANDOM)

: MP3 files are included

: No MP3 files

Note: It is not possible to display the whole trees and a file list in a folder.

For “Folder selection order/MP3 file playback

order”. ( a page 31)

28

CQ-VD7200U

CD

MP3

Indicates the compatible types of disc.

Basic Operation

Perform these operations with the remote control.

Go to Beginning

CD MP3

[d]: next track/file

[s]: beginning of the current track/file

Previous track/file (Press twice.)

Fast Forward/

Fast Reverse

CD

Press and hold.

[d]: fast forward

[s]: fast reverse

Release to resume playback.

[}]: next folder

[{]: previous folder

When the file list is displayed:

[}]: previous folder

[{]: next folder

Folder

Selection

MP3

Sequential Transition

From One File to the Next

MP3

Title

Scroll

CD

MP3

Stop

CD

MP3

Press and hold.

[[]: forward

[]]: backward

Press [SCRL] (SCROLL).

Press [3] (STOP).

Pause

CD

MP3

Press [y] (PAUSE).

To resume playback, [5] (PLAY) or [y] (PAUSE) again.

Repeat Play

CD

MP3

Press [REP] (REPEAT).

Press [REP] (REPEAT) again to cancel.

Current

File

Press [REP] (REPEAT).

Press [REP] (REPEAT) again to cancel.

Current

Folder

Press and hold [REP] (REPEAT) for more than 2 seconds.

Press and hold [REP] (REPEAT) again to cancel.

Random

Play

CD

MP3

Press [4] (RANDOM).

Press [4] (RANDOM) again to cancel.

All

Files

Press [4] (RANDOM).

Press [4] (RANDOM) again to cancel.

All Files in the

Current Folder

Press and hold [4] (RANDOM) for more than 2 seconds.

Press and hold [4] (RANDOM) again to cancel.

Note: It is possible to press []] [[] on the display unit instead of [s] [d] on the remote control.

CQ-VD7200U

29

E

N

I I

S

H

I I

S

H

E

N

CD/MP3 Player

(continued)

This player allows you to play MP3 files recorded on CD-ROMs, CD-Rs

(Recordable) and CD-RWs (Rewritable).

What is MP3?

MP3, short for MPEG-1 Audio Layer 3, MPEG-2 Audio Layer 3 LSF (Low Sampling Frequency), is a standard for compressing digital video data adopted for video CDs and similar media. It is one of the audio compression systems covered by

MPEG's (Motion Picture Experts Group) digital audio compression standards. What it does is reduce the number of bytes in a song without detracting from the sound quality by eliminating big sound waves within the sound range that is imperceptible to the human ear. This compression allows you to reduce the contents of a conventional music CD by a factor of around 10. This means that you can record the contents of 10 music CDs on a single CD-R or CD-RW. (The figures refer to data recorded on a 650 MB CD-R or CD-RW at a fixed bit rate of 128 kbps and a sampling frequency of 44.1 kHz.)

Points to Remember When Recording an MP3 Disc

Converting (encoding) audio data to an MP3 file

¡It is recommended that you set the bit rate to “128 kbps or more” and “Fixed”.

¡Bit rate 8 kbps of MPEG-2 and sampling frequency 16 kHz of MPEG-2 can not be reproduced.

¡VBR (Variable Bit Rate) is not supported.

¡The playback sound quality differs depending on the encoding software and the bit rate. For details refer to the user manual of your encoding software.

Recording MP3 files on a CD-R/RW

¡Do not record files other than MP3s or unnecessary folders on a disc. If many folders or files other than MP3s are recorded on a disc, it may take some time before playback starts.

¡Use ISO 9660 file system (Extension of the ISO 9660 file systems are included.) ( a

page 31). APPLE HFS file

system is not supported. If they do not conform to ISO 9660 file system, the file may not play normally, or the file or folder names may not be displayed correctly.

¡Make sure to add the “.mp3” extension to each MP3 file name. A file with a different file name extension or none at all will not play.

¡Although Multi session recording is supported, the use of Disc-at-Once is recommended. Make sure to close the session when you finished recording on a disc.

¡A disc recorded by the packet writing software are not supported.

¡A playlist function is not supported. Record files and folders in the order in which you want them to be played.

Some writing software lets you specify the recording order by adding a prefix in the range of “01” - “99”, etc. to the file name. For details refer to the user manual of your writing software.

Notes:

¡You may encounter trouble in playing MP3s or displaying the information of MP3 files recorded with certain writing softwares or CD recorders (CD-R/RW drives).

¡If a disc contains both MP3 and CD-DA, only CD-DA data is reproduced properly. (MP3 files are played but no sound is output).

Warning: Never assign the “.mp3” file name extension to a file that is not in the MP3 format. This may produce noise from the speakers and cause speaker damage and can damage your hearing.

30

CQ-VD7200U

Folder selection order/MP3 file playback order (Example)

2

Root Folder

Current Folder

Folder in the next lower level of tree

1 3 5

: [] ][[ ]

: [}][{]

Root

4

Tree 1

Tree 2

: MP3 files are included : No MP3 files

1

Root

2

3

4

Tree 1

5

Root Folder

(Root Directory) q

Folder Selection

In the order

1 ~ 6 e

6 w

File Selection

In the order

~ q r r

Tree 2 Tree 3

Notes:

¡This unit counts the number of folders irrespective of the presence or absence of MP3 file.

¡If the selected folder does not contain any MP3 files, the nearest MP3 files in the order of playback will be played.

¡Playback order may be different from other MP3 players even if the same disc is used.

¡“ROOT” appears when displaying the root folder’s folder name.

Maximum number of files/folders

¡Maximum number of trees: 8

¡Maximum number of folders: 254 (Root folder is not included.)

¡Maximum number of files: 512

Note: If the number of files and folders exceeds the number mentioned above, successful playback may not be performed.

Supported file systems and file names

Supported file system Displayable folder names and file names

ISO 9660 Level 1/Level 2

Joliet*

Romeo

Apple Extension to ISO 9660

Name files and folders in accordance with the standard of each file system.

Refer to the instructions of writing software for details.

¡This player can display file names of up to 31 ASCII character set in scroll mode.

* Up to 15 letters can be displayed when scrolling in the Joliet system.

According to the standard, “á”, “ç”, etc. can be used. However, this unit can not display those letters.

¡The unit recognizes only ASCII character set. Chinese characters, accented

French characters and accented Spanish characters will be converted into an asterisk.

Note: MP3 encode software and writing software are not supplied to this model.

Copyright

It is prohibited by copyright laws to copy, distribute and deliver copyrighted materials such as music without the approval of copyright holder except for personal use.

No warranty

Above description complies with our investigations as of December 2003. It has no warranty for reproducibility and displayability of MP3.

CQ-VD7200U

31

E

N

I I

S

H

I I

S

H

E

N

Audio Formats

LPCM (Linear PCM)

DVD

VIDEO

VIDEO

CD

CD

In this format, the audio signal is converted to digital data and recorded in two channels without compression. Because the capacity of a DVD video disc is large, it can store more data with better accuracy than a CD.

Note: “LPCM” is displayed only for DVD video discs.

Dolby Digital

DVD

VIDEO

This fully discrete format divides the music signals into 5.1 channels: Front

Left (L), Front Right (R), Center (C), Left Surround (LS), Right Surround (RS) and Subwoofer (SW: 0.1 channel) for recording and playback. The number of channels that are recorded depends on the software. (1 to 5.1 channels)

Surround Format

DVD

VIDEO

P R O • L O G I C

This format records signals from four channels [Front Left (L), Front Right

(R), Center (C), and Monaural Surround (S)] in two channels, decodes those channels through a Dolby Pro Logic decoder, and then outputs the resulting signals in four channels.

DVD

VIDEO

CD

dts

This format requires more data than Dolby Digital, and provides higher quality surround playback.

Similar to Dolby Digital, this fully discrete format divides the music signals into 5.1 channels: Front Left (L), Front Right (R), Center (C), Left Surround

(LS), Right Surround (RS) and Subwoofer (SW: 0.1 channel) for recording and playback.

Notes:

¡Only in cases where the Digital Audio Output (optical) of this product is connected, dts audio will be output. ( a page 82)

¡To output 5.1-channel audio signals, other device must be connected. ( a page 82)

¡DVD-recorded audio data, such as

, will be displayed on the screen. The audio to be actually reproduced may differ from the display on the screen depending on the setting.

DVD

VIDEO

VIDEO

CD

CD

Indicates the compatible types of disc.

[DRC]

(Dynamic Range

Compression)

Producing Audio

That Is Audible at

Low Volumes

(Dynamic Range

Compression)

This function is effective for playback of Dolby

Digital/Dolby Surround DVD video. The words of an actor hardly audible during playback at a low volume, for example, will become easier to listen to by selecting DR COMP MIN.

Press [DRC] to change the setting.

DR COMP OFF

: movie theater mode with no compression.

DR COMP STD

: mode recommended by the software manufacturer for listening at low volume.

DR COMP MIN

: mode with the greatest compression, roughly equivalent to a TV broadcast.

OFF STD MIN

Conversation level

E

N

I I

S

H

32

CQ-VD7200U CQ-VD7200U

33

E

N

I I

S

H

Radio

Mode display

34

Band

Frequency

Stereo indicator

Band list

Preset memory

CQ-VD7200U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

DISC

VOLUME

MUTE MENU

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

[MODE]

[]] [[] (Tuning)

[ENTER] (Band)

[1] to [6]

(Preset memory)

[MODE]

1

Radio Mode

Press [MODE] to change to radio mode.

[]] [[]

(Tuning)

[ENTER]

(Band)

2

Band

Press [ENTER] to change the bands.

FM1

FM2

FM3

AM

Note: The stereo indicator lights during reception of an FM stereo broadcast.

3

Tuning

[[]: up

[]]: down

Press and hold [[] or []] for more than 0.5 seconds, then release. Seeking will start and stops at next available station.

CQ-VD7200U

One-touch Selection of a Station

Up to 6 stations each can be saved in the FM1, FM2, FM3 and AM preset station memories.

Manual Preset

Memory

Select a band and frequency. (step w and e on the previous page)

Press and hold [1] to [6] on the remote control for more than 2 seconds.

The frequency blinks once, and a receiving station is saved in the memory.

E

N

I I

S

H

Select a band. (step w on the previous page)

Press and hold [ENTER] for more than 2 seconds.

Auto Preset

Memory

¡The 6 strongest available stations will be automatically saved in the memory under preset numbers 1 to 6.

¡Once set, the preset stations are sequentially scanned for 5 seconds each.

¡To stop the scanning, press [1] to [6] on the remote control.

Note: New stations overwrite existing saved stations after following this procedure.

Preset Station

Calling

Select a band. (step w on the previous page)

Press [1] to [6] on the remote control.

CQ-VD7200U

35

I I

S

H

E

N

CD Changer Control

Mode display

Play setting

Disc number

Track number

CD changer functions are designed for an optional

Panasonic CD changer unit.

Read the operating instructions for CD changer as well.

Preparation: Connect the CD changer ( a page 78, 79), and load a magazine (disc).

Play time

Total time

Total track

Disc list

VOLUME

MUTE

CQ-VD7200U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

MENU

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

[MODE]

DISC

TRACK/

CHANNEL

[] ] [[ ] (TRACK)

[}] [{] (DISC)

Notes:

¡The power will be turned on automatically when a magazine is loaded.

¡Load a magazine with CDs when “NO MAGAZINE” is displayed.

¡CD text is not supported in CD changer mode.

¡CD changer cannot play MP3 data recoded CD-

R/RW discs.

Caution: Do not use irregularly shaped CDs.

[MODE]

CD Changer Mode

Press [MODE] to change to CD changer mode and playback starts.

[] ] [[ ] (Track)

[}] [{] (Disc)

[1] (CH 1)

[2] (CH 2)

[4] (RANDOM)

[5] (SCAN)

[6] (CH REPEAT)

(Changer repeat)

System Expansion

The use of Dual CD Changer Selector CA-CD55

(option) allows you to make the following connections. ( a Page 79)

Dual changers connection

Two changers can be connected to the terminals of

CA-CD55 respectively.

The changers are arranged as follows.

[1]: CH 1

[2]: CH 2

Basic Operation

Perform these operations with the remote control.

Track Selection

[d] (TRACK): next track

[s] (TRACK): beginning of the current track

Previous track (Press twice.)

Disc Selection

[}] (DISC): next disc

[{] (DISC): previous disc

Fast Forward/

Fast Reverse

Random Play

Press and hold.

[d]: fast forward

[s]: fast reverse

Release to resume playback.

All Tracks

Press [4] (RANDOM).

Press [4] (RANDOM) again to cancel.

All Tracks on the Current Disc

Press and hold [4] (RANDOM) for more than 2 seconds.

Press and hold [4] (RANDOM) again to cancel.

Scan Play

The first 10 seconds of each track will be played.

All Tracks

Press [5] (SCAN).

Press [5] (SCAN) again to cancel.

1st Track on

Each Disc

Press and hold [5] (SCAN) for more than 2 seconds.

Press and hold [5] (SCAN) again to cancel.

Repeat Play

Current Track

Press [6] (CH REPEAT).

Press [6] (CH REPEAT) again to cancel.

Current Disc

Press and hold [6] (CH REPEAT) for more than 2 seconds.

Press and hold [6] (CH REPEAT) again to cancel.

Note: It is possible to press []] [[] on the display unit instead of [s] [d] on the remote control.

E

N

I I

S

H

36

CQ-VD7200U CQ-VD7200U

37

E

N

G

L

I

S

H

29

SET-UP: User Settings

CQ-VD7200U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

DISC

TRACK/

CHANNEL

VOLUME

MUTE

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

[MENU] [MODE]

(End)

[}] [{] []] [[]

(Select)

[ENTER]

1

Menu

Monitor Position

TILT (Tilting angle adjustment)

Default: 3

Setting range: 1 to 5

SLIDE (Front-rear position)

Default: Front

Setting range: Front, Rear

Navigation Set Up

NAVI INPUT (Navigation input)

Selection of the terminal that connects to the car navigation system allows you to switch to images and sounds of the car navigation system by pressing [NAVI] (NAVIGATION).

Default: RGB

NAVI VOLUME (Navigation volume)

Volume adjustment of the car navigation system is executed.

Default: 4

NAVI MUTE (Navigation mute level)

Select the mute level of this unit during the voice guidance from the Panasonic car navigation system (available in future).

Preparation: Connect the navi mute lead.

Note: You can set the navigation mute level when “RGB” is selected on navigation input.

Default: –10 dB

2

Submenu

q Press [MENU] to display the menu.

w Press [[] or []] to select “USER”.

USER

SCREEN

DVD

DATE

CAPTURE

AUDIO

q Press [}] or [{] to select “TILT/SLIDE”.

w Press [ENTER] to set.

TILT/SLIDE

q Press [}] or [{] to select “NAVI SETUP”.

w Press [ENTER] to set.

NAVI SETUP

38

CQ-VD7200U

[MODE]

(End)

[MENU]

[}] [{]

[] ] [[ ]

(Select)

[ENTER]

Notes:

¡Press [MODE] to return to the regular mode.

¡The display returns to the previous one if there is no operation for more than 60 seconds after changing to the setting menu.

E

N

G

L

I

S

H

30

3

Setting

TILT

Tilting angle adjustment

Press [{] or [}] to select the setting.

1 2 3 4 5

[{] [}]

SLIDE

Front-rear position

Press []] or [[] to select the setting.

Front Rear

[]] [[]

FRONT REAR

Notes:

¡For smooth adjustment, make sure to first return the lateral angle to the neutral position and then adjust the tilt angle.

¡Front-rear position “REAR” and tilt angle “5” cannot be selected at the same time.

¡The monitor position setting menu can also be displayed by pressing the [TILT] button on the display unit for more than 1 second. ( a page 19) q Press [}] or [{] to select an item.

w Press [[] or []] to select the setting.

e Press [ENTER] to set.

NAVI INPUT

Navigation input

RGB

VTR1

VTR2

: connected to the RGB input cord, or a car navigation system not connected

: connected to the VTR1-IN

: connected to the VTR2-IN

Note: Make sure to select “RGB” when no car navigation is connected.

NAVI VOLUME

Navigation volume

0

1

: the sound that a car navigation system generates does not come out.

2 3 4 5 : volume level

Low High

NAVI MUTE (dB)

Navigation mute level

0

–10

: unchanged

: decrease 10 dB

–20

: decrease 20 dB

: no sound

CQ-VD7200U

39

E

N

G

L

I

S

H

31

SET-UP: User Settings

(continued)

CQ-VD7200U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

DISC

TRACK/

CHANNEL

VOLUME

MUTE

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

[MENU] [MODE]

(End)

[}] [{] []] [[]

(Select/adjust)

[ENTER]

1

Menu

Rear View Camera Set up

CAMERA INPUT (Rear view camera input)

Selection of the terminal that connects to the rear view camera allows you to view images through the rear view camera automatically when you put the shift lever into the reverse position.

Preparation: Connect the reverse lead.

( a page 81)

Default: OFF

SCALE (Rear view camera scale display)

Images through the rear view camera can be shown in the scale display mode.

Default: OFF

SCALE ADJUST (Scale adjustment)

Default: 0 (width/angle) q Press [MENU] to display the menu.

w Press [[] or []] to select “USER”.

USER

SCREEN

DVD

DATE

ID Code setting

Prior to operating this unit, it is advisable to assign your 4-digit ID code for security.

(Make sure to use four digits for ID code.)

Once the ID code has been set, the unit cannot be operated if the main power supply is disconnected then re-connected. It is electronically locked so that a thief could not use the stolen unit unless that person knows the code you have set.

The ID code operation must be performed only by the person whom the unit belongs to.

Generally, it is not necessary to enter the ID code each time when using the unit if it has not been disconnected from the main power supply (car battery).

CAPTURE

AUDIO

2

Submenu

q Press [}] or [{] to select “CAMERA SETUP”.

w Press [ENTER] to set.

CAMERA SETUP

q Press [}] or [{] to select “ID-CODE”.

w Press [ENTER] to set.

ID-CODE

40

CQ-VD7200U

[MODE]

(End)

[MENU]

[}] [{]

[] ] [[ ]

(Select/adjust)

[ENTER]

Notes:

¡Press [MODE] to return to the regular mode.

¡The display returns to the previous one if there is no operation for more than 60 seconds after changing to the setting menu.

E

N

G

L

I

S

H

32

[0] to [9]

3

Setting

q Press [}] or [{] to select an item.

w Press [[] , []] , [}] or

[{] to select or adjust the setting.

e Press [ENTER] to set.

CAMERA INPUT

Rear view camera input

OFF

VTR1

: unconnected

: connected to the VTR1-IN

VTR2 : connected to the VTR2-IN

Note: Make sure to select “OFF” when no rear view camera is connected.

SCALE

OFF

ON

Rear view camera scale display

: scale display off

: scale display on

SCALE ADJUST

Scale adjustment

Press [[] or []] to adjust the width.

Press [}] or [{] to adjust the angle.

Press [0] to [9] on the remote control to input the ID code.

Caution: Record your registered ID code and keep it in a secure location. If you forget it, you will be unable to use the unit. In case you forget the ID code, please consult your nearest Panasonic Servicenter.

How to set your ID code (for the first time)

q Enter an 4 digit ID code.

w Enter the same 4 digit ID code again.

How to change your ID code

q Enter the preset (old) 4 digit ID code. If the wrong ID code is entered, a new ID code cannot be registered.

w Enter a new 4 digit ID code.

e Enter the new 4 digit ID code again.

How to cancel the known ID code

Note: Should your unit ever require service, cancel your ID code before sending for repair.

q Enter the preset (old) 4 digit ID code. If the wrong ID code is entered, it is not possible to cancel the ID code function.

w Press and hold [ENTER] until “Complete!” is displayed. The ID code cancelling procedure is completed. The unit now works without an ID code.

Note: Refer to ID Code Input regarding how to enter the ID code. ( a page 11)

CQ-VD7200U

41

E

N

G

L

I

S

H

33

SET-UP: User Settings

(continued)

CQ-VD7200U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

DISC

TRACK/

CHANNEL

VOLUME

MUTE

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

[MENU] [MODE]

(End)

[}] [{] []] [[]

(Select)

[ENTER]

1

Menu

Button Operation Sound

Default: ON

Note: The beep sound cannot be silenced when the display opens and closes.

q Press [MENU] to display the menu.

w Press [[] or []] to select “USER”.

Video Control Setting

This “Video Control Setting” is required when you connect a Panasonic car navigation system with a built-in DVD player

(available in future).

Default: VTR1

USER

SCREEN

DVD

Memory Clearance

The state of all of the current memories are returned to default settings.

Caution: Be aware that this setting restores the unit to default settings, so that all the memories and settings that you have set will be eliminated.

DATE

CAPTURE

AUDIO

2

Submenu

q Press [}] or [{] to select “etc”.

w Press [ENTER] to set.

etc

q Press [}] or [{] to select “MEMORY CLEAR”.

w Press [ENTER] to set.

MEMORY CLEAR

42

VTR skip

Default: ON

If a VTR is not used, the VTR mode is skipped when changing the mode.

CQ-VD7200U

q Press [}] or [{] to select “VTR SKIP”.

w Press [ENTER] to set.

VTR SKIP

[MODE]

(End)

[MENU]

[}] [{]

[] ] [[ ]

(Select)

[ENTER]

Notes:

¡Press [MODE] to return to the regular mode.

¡The display returns to the previous one if there is no operation for more than 60 seconds after changing to the setting menu.

E

N

G

L

I

S

H

34

3

Setting

q Press [}] or [{] to select an item.

w Press [[] or []] to select the setting.

e Press [ENTER] to set.

BEEP

OFF

Beep setting

: operation sound (Beep) OFF

ON : operation sound (Beep) ON

VIDEO-CNT

Video control setting

VTR1

VTR2

: connected to the VTR1-IN

: connected to the VTR2-IN

Notes:

¡Select a terminal connected to the DVD output terminal of a Panasonic car navigation system with a built-in DVD player (available in future) through an RCA cord.

¡When you connect a Panasonic car navigation system with a built-in DVD player, connect a video control lead as well. ( a page 72)

NO

YES

: no memory clear.

The display returns to the previous one.

: default settings q Press [[] or []] to select NO or YES.

w Press [ENTER] to set.

q Press [}] or [{] to select an item.

w Press [[] or []] to select the setting.

e Press [ENTER] to set.

VTR 1

OFF

ON

VTR skip

: skip VTR1

: not skip VTR1

VTR 2

OFF

VTR skip

: skip VTR2

ON : not skip VTR2

CQ-VD7200U

43

E

N

G

L

I

S

H

35

SET-UP: Display (Screen) Settings

CQ-VD7200U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

DISC

TRACK/

CHANNEL

VOLUME

MUTE

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

[MENU] [MODE]

(End)

[}] [{] []] [[]

(Select/adjust)

[ENTER]

1

Menu

2

Submenu

Dimmer

Default: AUTO

Display Adjustment

Default: ±0

Setting range: –15 to +15 q Press [MENU] to display the menu.

w Press [[] or []] to select “SCREEN”.

USER

SCREEN

DVD

DATE

CAPTURE

AUDIO

q Press [}] or [{] to select “DIMMER”.

w Press [ENTER] to set.

DIMMER

q Press [}] or [{] to select “PICTURE”.

w Press [ENTER] to set.


44

CQ-VD7200U

[MODE]

(End)

[MENU]

[}] [{]

[] ] [[ ]

(Select/adjust)

[ENTER]

Notes:

¡Press [MODE] to return to the regular mode.

¡The display returns to the previous one if there is no operation for more than 60 seconds after changing to the setting menu.

E

N

G

L

I

S

H

36

3

Setting

q Press [[] or []] to select the setting.

w Press [ENTER] to set.

AUTO

: automatically adjusted according to ambient light intensity.

1 2 3 4

Darker Brighter

CONTRAST

Adjust the image contrast

q Press [}] or [{] to select an item.

w Press [[] or []] to adjust.

BRIGHT

Decrease the contrast between black and white

Adjust the image brightness

Increase the contrast between black and white

Lighten

COLOR

Darken

Adjust the image color depth

TINT

Lighten the depth of color on the display

Adjust the image tone or tint

Deepen the depth of color on the display

Emphasize red in the color image

Emphasize green in the color image

CQ-VD7200U

45

E

N

G

L

I

S

H

37

SET-UP: DVD Settings

CQ-VD7200U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

DISC

TRACK/

CHANNEL

VOLUME

MUTE

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

[MENU] [MODE]

(End)

[}] [{] []] [[]

(Select)

[ENTER]

1

Menu

2

Submenu

46

Language Setting

Default: ENGLISH

Note: This operation allows you to select a language for DVD software on the precondition that the DVD software supports your selecting language.

Display Aspect and DVD

Software Mode

Default: DVD ASPECT...WIDE

LETTERBOX...PAN & SCAN

Note: Screen aspect of the display unit is changed according to the aspect ratio setting

( a page 57) and DVD software's aspect.

CQ-VD7200U

q Press [MENU] to display the menu.

w Press [[] or []] to select “DVD”.

USER

SCREEN

DVD

DATE

CAPTURE

AUDIO

q Press [}] or [{] to select “LANGUAGE”.

w Press [ENTER] to set.

LANGUAGE

q Press [}] or [{] to select “DISPLAY”.

w Press [ENTER] to set.

DISPLAY

[MODE]

(End)

[MENU]

[}] [{]

[] ] [[ ]

(Select)

[ENTER]

Notes:

¡Press [MODE] to return to the regular mode.

¡The display returns to the previous one if there is no operation for more than 60 seconds after changing to the setting menu.

E

N

G

L

I

S

H

38

[0] to [9]

3

Setting

q Press [}] or [{] to select an item.

w Press [[] or []] to select the setting.

e Press [ENTER] to set.

Language code input

q Input the four digit language code pressing the buttons [0] to [9] on the remote control.

w Press [ENTER] to set.

(Language code list a page 95)

MENU

ENG

SPA

DVD menu language

: English

FRE

: Spanish

OTHER

: French

: other language

Input the language code.

SUB TITLE

ENG

SPA

Subtitle language

: English

: Spanish

FRE

OTHER

: French

: other language

Input the language code.

DISP OFF

: subtitle are not displayed.

Note: A disc supporting closed captioning and subtitles may overlap each other on the screen. In this case, turn the subtitle off.

AUDIO

ENG

Audio language

: English

SPA

: Spanish

FRE

OTHER

: French

: other language

Input the language code.

q Press [}] or [{] to select an item.

w Press [[] or []] to select the setting.

e Press [ENTER] to set.

DVD ASPECT

WIDE

Display aspect setting

: plays a video in wide screen (16:9).

NARROW

: plays a video in 4:3 screen.

LETTERBOX

DVD software mode

PAN & SCAN

LETTERBOX

: plays wide-screen video in Pan & Scan mode (in which the left and right edges of the screen are cut off).

: plays wide-screen video in letterbox mode (in which black bands appear at the top and bottom of the screen).

Notes:

¡Set the software setting according to the symbol used on jackets. ( a page 17)

¡DVD software mode setting is ignored if “PAN & SCAN” or “LETTERBOX” is already set in the software.

CQ-VD7200U

47

E

N

G

L

I

S

H

39

SET-UP: Clock/date Settings

CQ-VD7200U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

DISC

TRACK/

CHANNEL

VOLUME

MUTE

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

[MENU] [MODE]

(End)

[}] [{] []] [[]

(Select/adjust)

[ENTER]

1

Menu

2

Submenu

Clock and Date Setting

Default: DISPLAY...OFF

YEAR ADJUST...2003

MONTH ADJUST...1

DAY ADJUST...1

HOUR ADJUST...AM 12

MINUTE ADJUST...00

Notes:

¡The clock starts after the unit returns to the regular mode by pressing [MODE].

¡Perform the setup of Daylight Saving Time manually.

Calendar Display

Note: The calendar is not editable. (e.g.

Holidays cannot be marked.) q Press [MENU] to display the menu.

w Press [[] or []] to select “DATE”.

USER

SCREEN

DVD

DATE

CAPTURE

AUDIO

q Press [}] or [{] to select “CLOCK”.

w Press [ENTER] to set.

CLOCK

q Press [}] or [{] to select “CALENDAR”.

w Press [ENTER] to set.

CALENDAR

48

CQ-VD7200U

[MODE]

(End)

[MENU]

[}] [{]

[] ] [[ ]

(Select/adjust)

[ENTER]

Notes:

¡Press [MODE] to return to the regular mode.

¡The display returns to the previous one if there is no operation for more than 60 seconds after changing to the setting menu.

E

N

G

L

I

S

H

40

3

Setting

DISPLAY

Clock display

OFF : clock display OFF

ON : clock display ON ([12:00] is displayed before adjusting the clock.)

YEAR ADJUST

Year adjustment

q Press [}] or [{] to select an item.

w Press [[] or []] to select or adjust the setting.

e Press [ENTER] to set.

MONTH ADJUST

Month adjustment

DAY ADJUST

Day adjustment

HOUR ADJUST

Hour adjustment

MINUTE ADJUST

Minute adjustment

Press [}]: calendar from the current year to years in future successively

Press [{]: calendar from the current year to years in the past successively

Press [] ]: calendar from the current month to months in the past successively

Press [[ ]: calendar from the current month to months in future successively

CQ-VD7200U

49

E

N

G

L

I

S

H

41

SET-UP: Capture Function

CQ-VD7200U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

DISC

TRACK/

CHANNEL

VOLUME

MUTE

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

[MENU] [MODE]

(End)

[]] [[]

(Select)

[ENTER]

1

Menu

q Press [MENU] to display the menu.

w Press [[] or []] to select “CAPTURE”.

USER

Image Capture

Up to five images can be imported from TV,

VTR, DVD or Video CD (VCD).

Preparation: Show the image on the display that you would like to capture.

Note: Refer to “Wall Paper” and “Display

Change” in the “SET-UP: Other Settings” page to display the imported image on the screen.

( a page 52, 56)

SCREEN

DVD

DATE

CAPTURE

AUDIO

2

Submenu

q Press [}] or [{] to select “CAPTURE”.

w Press [ENTER] to set.

CAPTURE

50

Copyright

It is prohibited by copyright laws to copy, distribute and deliver copyrighted materials such as commercial DVDs/Video

CDs, other published or broadcast material without the approval of copyright holder except for personal use.

Note: A captured image may have some distortion or be otherwise different from the original image due to compression.

CQ-VD7200U

[MODE]

(End)

[MENU]

[}] [{]

[] ] [[ ]

(Select)

[ENTER]

Notes:

¡Press [MODE] to return to the regular mode.

¡The display returns to the previous one if there is no operation for more than 60 seconds after changing to the setting menu.

E

N

G

L

I

S

H

42

3

Setting

q Press [ENTER] to import the image.

w Press [[] or []] to select a save area.

¡You can store five images at maximum.

¡The existing image is replaced with a new image when saving an image in an area. Check the right-hand smaller image on the screen before saving a new one. If you would like to keep the existing image, do not overwrite.

e Press [ENTER] to save the image.

r Image saving completed.

Notes:

¡Do not turn off the unit while saving an image.

¡To capture an image from TV, the broadcasting conditions should be excellent.

[OSD]

(CAPTURE)

Direct Image Capture

(Only for remote control)

If you would like to capture a picture, press and hold [OSD] (CAPTURE) for more than 2 seconds.

Subsequent steps are the same as the steps w described above.

CQ-VD7200U

51

E

N

G

L

I

S

H

43

SET-UP: Capture Function

(continued)

CQ-VD7200U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

DISC

TRACK/

CHANNEL

VOLUME

MUTE

POWER

NAVIGATION

NAVI

ASPECT

P·MODE

[MENU]

[ASP]

[MODE]

(End)

[]] [[]

(Select)

[ENTER]

1

Menu

2

Submenu

Wallpaper

Default: FULL

Captured wallpaper scale selection between full screen and animation section.

Note: Wallpaper is displayable only in the CD,

MP3, radio and CD changer modes.

Image Deletion

(INITIALIZE)

Deletion of saved image.

q Press [MENU] to display the menu.

w Press [[] or []] to select “CAPTURE”.

USER

SCREEN

DVD

DATE

CAPTURE

AUDIO

q Press [}] or [{] to select “WALLPAPER”.

w Press [ENTER] to set.

WALLPAPER

q Press [}] or [{] to select “INITIALIZE”.

w Press [ENTER] to set.

INITIALIZE

52

CQ-VD7200U

[MODE]

(End)

[MENU]

[}] [{]

[] ] [[ ]

(Select)

[ENTER]

Notes:

¡Press [MODE] to return to the regular mode.

¡The display returns to the previous one if there is no operation for more than 60 seconds after changing to the setting menu.

E

N

G

L

I

S

H

44

[A]

3

Setting

q Press [[] or []] to select the setting.

w Press [ENTER] to set.

WALLPAPER

Wallpaper scale

FULL

WINDOW

: full screen

: animation section

Note: When the wallpaper is set to FULL, you can switch the screen to

NORMAL by pressing [ASP] (On remote control unit: Press [A]). To cancel, press [ASP] (or [A]) again.

FULL WINDOW

q Press [[] or []] to select the image to be deleted.

The default image is displayed on the right-hand smaller window.

w Press [ENTER].

e Press [[] or []] to select YES. Press [ENTER].

r The existing image is deleted and the default image is displayed.

Note: Deleted images cannot be recovered.

53

CQ-VD7200U

E

N

G

L

I

S

H

45

SET-UP: Sound Settings

CQ-VD7200U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

DISC

TRACK/

CHANNEL

VOLUME

MUTE

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

[MENU] [MODE]

(End)

[}] [{] []] [[]

(Select/adjust)

[ENTER]

1

Menu

2

Submenu

Bass/Treble

Default: ±0 dB

Setting range: –12 dB to +12 dB (2 dB steps)

Balance/Fader

Default: Center

Setting range: 15 levels for each

54

Subwoofer Control

Subwoofer Volume Level

Default: 4

Setting range: 0 to 7

Subwoofer Low Pass Filter (Cut off frequency)

Select the upper limit frequency of the sound from Subwoofer.

Default: 120 Hz

Setting range: 80 Hz or 120 Hz

CQ-VD7200U

q Press [MENU] to display the menu.

w Press [[] or []] to select “AUDIO”.

USER

SCREEN

DVD

DATE

CAPTURE

AUDIO

Press [}] or [{] to select “TONE”.

TONE

Press [}] or [{] to select “BAL/FAD”.

BAL/FAD

Press [}] or [{] to select “SUB-W”.

SUB-W

[MODE]

(End)

[MENU]

[}] [{]

[] ] [[ ]

(Select/adjust)

[ENTER]

Notes:

¡Press [MODE] to return to the regular mode.

¡The display returns to the previous one if there is no operation for more than 60 seconds after changing to the setting menu.

E

N

G

L

I

S

H

46

3

Setting

q Press [}] or [{] to select an item.

w Press [[] or []] to adjust.

BASS

Bass adjustment

TREBLE

Decrease the bass level.

Treble adjustment

Decrease the treble level.

Increase the bass level.

Increase the treble level.

Press [}]: front enhanced

Press [{]: rear enhanced

Press [[ ]: right enhanced

Press [] ]: left enhanced

LEVEL

Subwoofer volume level

q Press [}] or [{] to select an item.

w Press [[] or []] to select or adjust.

e Press [ENTER] to set.

Down

Note: No sound comes out from Subwoofer when set to level 0.

Up

LPF

120 Hz

Subwoofer low pass filter (Cut off frequency)

: no more than 120 Hz

80 Hz : no more than 80 Hz

CQ-VD7200U

55

E

N

G

L

I

S

H

47

SET-UP: Other Settings

Display Change

Display is changeable only in the CD, MP3, radio and CD changer modes.

Press [DISP] on the remote control to change the display as follows.

Standard display

Default: Standard display

Captured display 1-5 (default)

Press [OSD] on the remote control to change the display as follows.

The following display is also available only in the MP3 mode.

ID3Tag information display

Folder/file lists display

[OSD]

[DISP]

56

CQ-VD7200U

Clock/calendar display

Aspect Ratio

Default: NORMAL

Mode: 4 types

CQ-VD7200U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

VOLUME

MUTE MENU MODE

POWER

NAVIGATION

NAVI

ASPECT

P·MODE

ENTER

DISC

TRACK/

CHANNEL

[ASP] (ASPECT)

Press [ASP] (ASPECT) on the display unit or press [A] (ASPECT) on the remote control to change the aspect ratio as follows.

NORMAL

¡The conventional display image has a 4 to 3 ratio of horizontal to vertical.

¡In this case, a blank area remains on the right and left sides of the display.

FULL

¡The screen is extended horizontally as a whole to the aspect ratio of 16 to 9.

¡The extension ratio is the same at any point of the screen.

ZOOM

¡The screen is fully extended at the normal aspect ratio of 4 to 3.

¡The top and bottom of the screen are slightly cut.

E

N

G

L

I

S

H

48

[A] (ASPECT)

JUST

¡The screen is extended horizontally to the aspect ratio of 16 to 9.

¡The extension ratio increases toward the right and left ends of the screen.

Notes:

¡This adjustment is common to TV, VTR1, VTR2, DVD and video CD mode.

¡You cannot change the aspect in the menu screen and a screen in the CD, MP3, radio and CD changer mode. These are fixed to “FULL” as well as a Navigation image.

¡When the rear view camera is in operation with the transmission gear shift in the reverse position, the image is shown on the “FULL” screen only.

¡In some cases, the picture looks different from the original one due to your selection of aspect.

Cautions:

¡This is to remind you that compression or extension of the screen using the aspect ratio (screen mode) changing function of this product for commercial purpose of profit making or viewing/listening by the public could infringe on the rights of the author protected by the copyright law.

¡If you expand normal picture (4 to 3) by using “JUST”, “ZOOM” or “FULL” aspect to the full of the screen, you might not see the periphery of the picture, or you might see a distorted picture. Therefore, use the “NORMAL” mode to see the original picture as the author intended it.

57

CQ-VD7200U

E

N

G

L

I

S

H

49

SET-UP: Other Settings

(continued)

Rear Monitor Set Up

You can have different picture and sound at the front and rear monitor at the same time.

Default: AUTO

Preparation: Connect another optional rear monitor. (e.g. CY-

VMX6800U)( a page 80)

Rear monitor setting menu q Press and hold [MENU] for more than

2 seconds.

w Press [[] or []] to select the setting.

e Press [ENTER] to set.

CQ-VD7200U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

VOLUME

MUTE

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

DISC

TRACK/

CHANNEL

[MENU] [MODE]

(End)

[]] [[]

[MODE] (End)

[MENU]

[]] [[]

AUTO

TV

DVD

: picture and sound come out. These are in the same mode as the front monitor.

: picture and sound in the TV mode always come out.

: picture and sound in the DVD player mode (disc in the DVD player) always come out.

Only sound in the CD, MP3 player mode.

: picture and sound in the VTR1 mode always come out.

: picture and sound in the VTR2 mode always come out.

VTR1

VTR2

Notes:

¡Press [MODE] to return to the regular mode.

¡The display returns to the previous one with no operation for 60 seconds after changing to the rear monitor setting menu.

¡You can mute the sound from the rear speakers connected to this unit, so that you can have different sound of modes at the front and rear monitor.

( a

See Private Mode on next page)

¡Picture and sound from the car navigation system connected to an RGB input cord are not available at the rear monitor.

Main Unit

Monitor

TV VTR1/VTR2 DVD (VCD, CD, MP3) Radio CD Changer

58

TV

Rear Monitor

VTR1/VTR2 DVD (VCD, CD, MP3)

The rear monitor does not display television picture when the main unit is in the radio mode.

Different types of discs cannot be played back at the same time.

For a CD and MP3, the screen becomes blue.

CQ-VD7200U

Private Mode

You can mute the sounds from the rear speakers if necessary.

Activation of the private mode allows you to enjoy the front monitor and rear monitor (e.g.

CY-VMX6800U) independently with different sources at the same time.

Default: OFF

Press and hold [ASP] (P • MODE) on the display unit or [A] (P • MODE) on the remote control for more than 2 seconds to activate the private mode function or inactivate it in turn.

“P • MODE” indicator lights when the Private Mode is activated.

E

N

G

L

I

S

H

50

CQ-VD7200U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

VOLUME

MUTE MENU MODE

POWER

NAVIGATION

NAVI

ASPECT

P·MODE

ENTER

DISC

TRACK/

CHANNEL

[ASP] (P • MODE)

Private Mode OFF

Radio

Private Mode ON

Radio

[A] (P • MODE)

DVD

Radio

DVD

Mute

It is recommended to use optional Over-head Monitor

(CY-VMX6800U) and headphones supplied to CY-

VMX6800U.

Note: Be sure to set to OFF when you do not use the private mode.

59

CQ-VD7200U

E

N

G

L

I

S

H

51

Installation Guide

WARNING

This installation information is designed for experienced installers and is not intended for non-technical individuals. It does not contain warnings or cautions of potential dangers involved in attempting to install this product.

Any attempt to install this product in a motor car by anyone other than a qualified installer could cause damage to the electrical system and could result in serious personal injury or death.

If your car is equipped with air bag and/or anti-theft systems, specific procedures may be required for connection and disconnection of the battery to install this product.

Before attempting installation of this electronic component, contact your car dealer or manufacturer to determine the required procedure and strictly follow their instructions.

FAILURE TO FOLLOW THE PROCEDURE MAY RESULT IN THE UNINTENDED DEPLOY-

MENT OF AIR BAGS OR ACTIVATION OF THE ANTI-THEFT SYSTEM RESULTING IN DAM-

AGE TO THE VEHICLE AND PERSONAL INJURY.

Overview

This product should be installed by a professional.

However, if you plan to install this product yourself, your first step is to decide where to install it. The instructions in these pages will guide you through the remaining steps:

(Please refer to the “WARNING” statement above).

¡Identify and label the car wires.

¡Connect the car wires to the wires of the power connector.

¡Install the unit.

¡Check the operation of the unit.

Caution: This unit operates with a 12 volt DC negative ground auto battery system only. Do not attempt to use it in any other system. Doing so could cause serious damage.

Before you begin installation, look for the following items which are packed with your unit.

¡Warranty Card …… Fill this out promptly.

¡Panasonic Servicenter for Service Directory ……

Keep for future reference in case the product needs servicing.

¡Installation Hardware …… Needed for installation.

60

Installation Hardware

(For Installation)

No.

q

Trim Plate

Item

w

Mounting Collar e

Mounting Spring r

Rubber Pad

Diagram Qty

1

<YEP9FZ2739>

1

<YEFG012694>

2

<YEFX0052424A>

1 t

Mounting Bolt (M5) y

Flange Nut (M6) u i

Washer Assembling Hex.Bolt

(M5 x 10 mm)

Washer Assembling Hex.Bolt

(M6 x 20 mm)

1

1

1 o Rear Support Strap

1

<YEP9BS1152>

1

<YEFG04019>

2 !0

!1

!2

Binding-Head Screw

(M5 x 6 mm)

Flat-Head Screw

(M5 x 6 mm)

Binding-Head Screw

(M4 x 3 mm)

4

!3

Spacer

!4

Double-Faced Adhesive Tape

(for spacer)

!5

!6

Double-Faced Adhesive Tape

(for speaker)

Clamp (for speaker)

4

<YEP9BS1169>

2

1 set

<YEP9FZ2761>

1

2

<YEP9FZ3040>

4 !7

!8

!9

Binding-Head Screw

(M5 x 8 mm)

Tapping Screw

(ø 6 x 20 mm)

Hex. Nut (M5)

4

4

<YEP9BS1194>

No.

@0

@1

Item

Mounting Bracket

@2

Double-Faced Adhesive Tape

(for hide-away unit)

@3

Velcro Tape

@4

Base Bracket

Antenna Clamp

Diagram Qty

2

<YEFG021010A>

2

<YEFG012424>

2

2

<YEP9FZ3042>

4

@5

Cord Clamp (for antenna) 4

<YEP9FZ3041>

Installation Hardware

(For Wiring )

No.

@6

@7

Item

Power Connector

(for display unit)

Reverse Extension Cord

(for rear view camera)

Diagram Qty

1

1

@8

Clip Connector 1

<YEAJ011723>

@9

Display Unit/Hide-away Unit

Connecting Cord

1

<YEAJ071458>

#0

Power Connector

(for hide-away unit)

1

<YEAJ011666>

#1

Ground Lead 1

<YEAJ09271>

#2

Radio Antenna Extension

Cord

1

<YEAA09141>

Note:

¡The number in parenthesis underneath each accessory part name is the part number for maintenance and service.

¡Accessories and their parts numbers are subject to modification without prior notice due to improvements.

¡Trim Plate q and Mounting Collar w are mounted on the main unit at shipment.

E

N

G

L

I

S

H

52

61

CQ-VD7200U CQ-VD7200U

E

N

G

L

I

S

H

53

Installation Guide

(continued)

Before Installation

Warning

¡Do not install the monitor in a location which obstructs

driving, visibility or which is prohibited by applicable

laws and regulations. If the monitor is installed in a location which obstructs forward visibility or operation of the air bag or other safety equipment or which interferes with operation of the car, it may cause an accident.

Dashboard Specifications

THICKNESS

MIN. 3/16" (4.75 mm)

MAX. 7/32" (5.56 mm)

2-3/32" (53 mm)

7-5/32" (182 mm)

¡Never use bolts or nuts from the car's safety devices for installation. If bolts or nuts from the steering wheel, brakes or other safety devices are used for installation of the monitor, it may cause an accident.

¡Attach the wires correctly. If the wiring is not correctly performed, it may cause a fire or an accident. In particular, be sure to run and secure the lead wire so that it does not get tangled with a screw or the moving portion of a seat rail.

¡Use with 12 volt DC negative ground car. This unit is only for use with a 12 volt DC negative ground car. It cannot be used in large trucks or diesel cars which are

24 volt DC cars. If it is used in the wrong type of car, it may cause a fire or an accident.

Cautions:

¡Use the specified fuse. Be sure to always use the specified fuse. If a fuse other than the specified fuse is used, it may cause a fire or an accident.

¡Do not damage the cord by pinching or pulling it.

Do not pull or damage the cord. If the cord is not treated properly, it will short out or be severed and may cause a fire or an accident.

Required Tools

You’ll need a screwdriver and the following:

12 V DC

Test Bulb

Electrical

Tape

Side-Cut

Pliers

62

CQ-VD7200U

Identify All Leads

The first step in installation is to identify all the car wires you’ll use when hooking up your LCD monitor.

As you identify each wire, we suggest that you label it using masking tape and a permanent marker. This will help avoid confusion when making connections later.

Note: Do not connect the power connector to the display unit until you have made all connections. If there are no plastic caps on the hooking wires, insulate all exposed leads with electrical tape until you are ready to use them.

Identify the leads in the following order.

Power Lead

If your car has a radio or is pre-wired for one:

Cut the connector wires one at a time from the plug (leaving the leads as long as possible) so that you can work with individual leads. Turn the ignition on to the accessory position, and ground one lead of the test bulb to the chassis.

Speakers (not supplied speaker)

Identify the car speaker leads. There are two leads for each speaker, usually color coded.

A handy way to identify the speaker leads and the speaker they are connected with is to test the leads using a 1.5 V

AA battery as follows.

Hold one lead against one pole of the battery and stroke the other lead across the other pole. You will hear a scraping sound in a speaker if you are holding a speaker lead.

If not, keep testing different lead combinations until you have located all the speaker leads. When you label them, include the speaker location for each.

E

N

G

L

I

S

H

54

Touch the other lead of the test bulb to each of the exposed wires from the cut radio connector plug. Touch one wire at a time until you find the outlet that causes the test bulb to light.

Now turn the ignition off and then on. If the bulb also turns off and on, that outlet is the car power lead.

If your car is not wired for an audio unit:

Go to the fuse block and find the fuse port for radio

(RADIO) accessory (ACC) or ignition (IGN).

Battery Lead

If your stereo unit has a yellow lead, you will need to locate the car's battery lead. Otherwise you may ignore this procedure. (The yellow battery lead provides continuous power to maintain a clock or other functions.)

If your car has a radio or is pre-wired for one:

With the ignition and headlights off, identify the car battery lead by grounding one lead of the test bulb to the chassis and checking the remaining exposed wires from the cut radio connector plug.

If your car is not wired for an audio unit:

Go to the fuse block and find the fuse port for the battery, usually marked BAT.

63

CQ-VD7200U

E

N

G

L

I

S

H

55

Installation Guide

(continued)

Connect All Leads

Now that you have identified all the wires in the car, you're ready to begin connecting them to the LCD monitor wires.

The wiring diagram ( a page 72-83) shows the proper wiring and color coding of the leads.

We strongly recommend that you test the unit before making a final installation.

You can set the unit on the floor and make temporary connections to test the unit. Use electrical tape to cover all exposed wires.

Power

Connect the red power lead to the correct car radio wire or to the appropriate fuse port on the fuse block.

If the LCD monitor functions properly with all these connections made, disconnect the wires and proceed to the final installation.

Final Installation

Lead Connections

Connect all wires, making sure that each connection is insulated and secure. Bundle all loose wires and fasten them with tape so they will not fall down later. Now insert the LCD monitor into the mounting collar.

Important: Connect the red power lead last, after you have made and insulated all other connections.

Ground

Connect the black ground lead of the power connector to the metal car chassis.

Speakers (not supplied speaker)

Connect the speaker wires. See the wiring diagram for the proper hookups. Follow the diagram carefully to avoid damaging the speakers and the stereo unit.

The speakers used must be able to handle more than 45 W of audio power. If using an optional audio power, the speakers should be able to handle the maximum amplifier output power. Speakers with low input ratings can be damaged.

Speaker impedance should measure 4–8

Ω, which is typically marked on most speakers. Lower or higher impedance speakers will affect output and can cause both speaker and stereo unit damage.

Congratulations! After making a few final checks, you’re ready to enjoy your new LCD monitor.

Final Checks

1. Make sure that all wires are properly connected and insulated.

2. Make sure that the LCD monitor is securely held in the mounting collar.

3. Turn on the ignition to check the unit for proper operation.

If you have difficulties, consult your nearest authorized professional installer for assistance.

Caution: Never ground the speaker cords. For example, do not use a chassis ground system or a threewire speaker common system. Each speaker must be connected separately using parallel insulated wires. If in doubt about how your car’s speakers are wired, please consult with your nearest professional installer.

Battery

Connect the yellow battery lead to the correct radio wire or to the battery fuse port on the fuse block.

Equipment

Connect any optional equipment according to the instructions furnished with the equipment. Read the operating and installation instructions of any equipment you will connect to this unit.

64

CQ-VD7200U

Precautions

Cautions:

¡We strongly recommend that you wear gloves for installation work to protect yourself from injuries.

¡When bending the mounting tab of the mounting collar with a screwdriver, be careful not to injure your hands and fingers.

¡Disconnect the cable from the negative (–) battery terminal (see caution at right).

¡Unit should be installed in a horizontal position with the front end up at a convenient angle, but less than 30°.

less than 30°

This unit should be professionally installed. In case of difficulty, please consult with your nearest professional installer.

1. This unit only operates in a 12-volt DC negative ground system.

2. Follow the electrical connections carefully ( a page 72-

83). Failure to do so may result in damage to the unit.

3. Connect the power lead after all other connections are made.

4. Be sure to connect the battery lead (yellow) to the positive terminal (+) of the battery or fuse block (BAT) terminal.

5. Insulate all exposed wires to prevent short circuiting.

6. Secure all loose wires after installing the unit.

7. Please carefully read the operating and installation instructions of the respective equipment before connecting it to this unit.

Caution: Please follow the laws and regulations of your state, province or country for installation of the unit.

E

N

G

L

I

S

H

56

Caution: Various settings that have been stored in the memory in other on-board equipment (car navigation etc.) may be lost if the battery terminals are disconnected.

Therefore, we recommend to make a record of or to back up the settings before disconnecting the terminals.

After completing installation of the main unit, set the equipment again according to the record.

Transportation Bracket Removal

Be sure to remove the transportation brackets before use (installation).

Use Binding-Head Screws (M5 x 6 mm) for installation. ( a page 68)

Be careful not to lose these Binding-Head Screws.

Transportation

Bracket

Display Unit

Transportation

Bracket

Binding-Head

Screws

(M5 x 6 mm)

Binding-Head

Screws

(M5 x 6 mm)

CQ-VD7200U

65

66

E

N

G

L

I

S

H

57

Installation Guide

(continued)

Mounting the Display Unit

Installation Procedures

(When using Mounting Collar w)

Note: The car model, installation conditions and combination of the units used may impose some restrictions on opening and closing the monitor as well as on the angle and position to which the monitor can be adjusted.

1

Insert the Mounting Collar w into the dashboard, and

bend the mounting tabs out with a screwdriver.

Fastening the Mounting Collar

The tabs to bent vary depending on the car. Bend them with a screwdriver to fasten the Mounting Collar w securely in the dashboard.

Dashboard

Tab w Mounting Collar

@6

Power Connector

@ 9 Display Unit/Hide-away

Unit Connecting Cord t Mounting Bolt (M5) e Mounting Spring

2

!1 Flat-Head Screw

(M5 x 6 mm)

3

Attach the Mounting Springs e to the display unit.

Establish the rear connection of the unit.

After fixing Power Connector

@6 and Display Unit/Hideaway Unit Connecting Cord

@9

, fix the rear of the unit to the car body by either method (a) or (b) shown at right.

4

Insert the unit into Mounting Collar w

Secure the clamp plate of Mounting Collar w to the hook of Mounting Spring e

.

Clamp plate

5

6

Insert Trim Plate q.

After installation reconnect the negative

(–) battery terminal.

CQ-VD7200U

Method for Fixing the Rear of the Unit

(a) Using the Rear Support Strap o

Drill a hole 6.5 to 7 mm in diameter.

i Washer Assembling Hex.

Bolt (M6 x 20 mm) y Flange Nut

(M6)

Fire wall of car o Rear Support Strap u Washer

Assembling

Hex. Bolt

(M5 x 10 mm)*1

Display Unit

*1: Use M5 x 8 mm size bolt (optional) if bolts other than the supplied ones are to be used.

(b) Using the Rubber Pad r r Rubber Pad t Mounting Bolt (M5)

Display Unit

Bracket

(On car)

E

N

G

L

I

S

H

58

To Remove the Display Unit

q Push the right and left clamp plates outward, one at a time, and pull the display unit toward yourself.

w After removing the right and left clamp plates, pull the unit with both hands till it comes off.

q w

Push here to remove the clamp plates.

CQ-VD7200U

67

E

N

G

L

I

S

H

59

Installation Guide

(continued)

Installation Procedures (When not using Mounting Collar w)

Use the brackets supplied with your car when mounting this unit. The bracket shape and mounting method vary with car manufacturers, car types and manufacturing year. Please consult your nearest dealer or installer.

Select mounting screws according to the hole positions and hole shape of the bracket.

!

Binding-Head Screw (M5 x 6 mm) 2 pieces

Recycle the Binding-Head Screws that fixed the transportation brackets for two more positions.

!

Binding-Head Screw (M4 x 3 mm)

4 pieces

When using these mounting holes

!

Flat-Head Screw (M5 x 6 mm) 4 pieces

Use the supplied Spacer !3 if mounting hole of your car is shaped like below.

Display Unit

!0 Binding-Head Screw

(M5 x 6 mm)

Mounting Hole of a Bracket

(in section)

Bracket

!0 Binding-Head Screw

(M5 x 6 mm)

!3 Spacer

!4 Double-Faced Adhesive Tape

Existing Bracket (L)

(Bracket originally attached to the car)

Mounting the Speaker

Before mounting the speaker, wipe water, dust and oil stains off from the place where the speaker should be mounted to enhance adhesive strength.

!5 Double-Faced

Adhesive Tape

Existing Bracket (R)

!4 Double-Faced

Adhesive Tape

!3 Spacer

Speaker

!6 Clamp

Cautions:

¡Do not install the speaker in a location which obstructs operation of the air bag or other safety equipment.

¡Do not leave a credit card or other magnetic cards near the speaker to avoid damaging the cards.

68

CQ-VD7200U

Mounting the Hide-away Unit

Cautions:

¡Never mount the unit in any of the following locations to avoid damage due to overheating;

1. Near the heater port.

2. Places like the dashboard or rear deck, where it may be exposed to direct sunlight.

¡Do not mount the unit near the door, where it could be exposed to rain.

¡Do not separate the hide-away unit.

Mount the unit on the car carpet by using Velcro Tape @3.

Attach the seal side of the Velcro Tape

@3 to the hide-away unit, then mount the unit on the carpet.

Note: Some carpet materials may not be suitable for this mounting method. In this case, please contact your nearest

Panasonic Servicenter for installation.

@3 Velcro Tape

Unit installation by using the Mounting Brackets @0 and the Base Brackets @1.

!9 Hex. Nut (M5)

@0 Mounting Bracket

!7 Binding-Head Screw

(M5 x 8 mm)

Carpet

Let the bolts of the base bracket pass the carpet.

!8 Tapping Screw (ø 6 x 20 mm)

@1

Base Bracket

@2 Double-Faced Adhesive Tape

Make cuts by using cutter.

Drill for 4.8 mm diameter holes to the chassis.

* Put the tape and the base bracket together with each hole of the tape and bracket connected so that the screw goes in at two positions.

Note: Apply an anticorrosive to the holes and tapping screws.

Caution: You run the risk of interfering with the mounting or causing damage by drilling into the gas tank, a wiring harness, or other component.

CQ-VD7200U

69

E

N

G

L

I

S

H

60

E

N

G

L

I

S

H

61

Installation Guide

(continued)

Mounting the TV Antenna

Cautions:

¡Be sure to install the TV antenna on the inner side of the rear window.

¡Be sure to connect the power lead of the TV antenna to ACC power DC 12 V.

¡Keep the antenna away from the external amplifier and the rear speaker cord as much as possible.

1

Straighten the bent antenna element.

Confirm the adhering positions.

Shorter side

Longer side

Preparations:

Remove the upholstery at the both sides of the rear window to establish a ground.

Affix the antenna temporarily with adhesive tape after confirming the antenna position.

Remove the upholstery.

Observe the following to enhance adherability.

¡Wipe the inner surface of the rear window with a wet and soft cloth along the heating wire. But do not leave water droplets on the glass.

¡When the outside-air temperature is less than 68

° F (20 °C), switch on the rear window defogger or the car heater to warm the surface of the rear window for approx. 5 minutes.

For a hatchback type:

70

Stick the grounding plate skillfully and hold the loose antenna element with the Antenna Clamp

@4 so that the element will not become caught in the hatchback door. Adjust the cord length so that the cord does not interfere with the movement of the hatchback door, and secure the cord with Cord

Clamp

@5

.

CQ-VD7200U

5

Antenna cable identification

To TV antenna connector on the hide-away unit.

Antenna Cord

Power Lead

To ACC power,

+12 V DC.

Ground Lead

To a clean, bare metallic part of the car chassis.

ACC 0.5A

(Fuse 0.5 A)

0.5A

(Red)

(Black)

2

Insert the grounding plate into the antenna body and hold the antenna element with the Antenna Clamp

@4

.

Screw points

Select a suitable screw point for the grounding plate to adhere to a metal part and remove the screw and the terminal cover.

q

Follow the steps below to install the grounding plate.

q Insert the grounding plate into the antenna body.

w Hold the grounding plate with the terminal cover.

e Screw the grounding plate.

r Hold the antenna element with the Antenna Clamp

@4

.

Insert

Grounding

Plate r w e

Screw

Terminal cover r

Caution: Be sure to connect the grounding plate. Otherwise, desensitization will be caused.

3

Peel the sheet from the back of antenna body and affix it. Then, affix the grounding plate on a metal part.

Follow the steps below to affix the antenna securely.

q Affix the antenna body.

w Straighten the antenna element and affix it.

e Put the Antenna Clamp

@4 on the center of the antenna element.

r Adjust the angle and position of the grounding plate and affix it.

E

N

G

L

I

S

H

62

Some models restrict the installation of the TV antenna due to rear window size or open/close of the hatch. Contact your dealer.

4

Cord routing

Hold the cord with a Cord Clamp

@5

.

Route the cord behind the rear seat and affix it with adhesive tape.

Route the cord inside the upholstery and under the carpet.

Adjust r q e w e w

For some models, you cannot straighten the longer element.

No bending

Comfortably curving

Cautions:

¡Avoid contacting the adhesive surface.

¡Do not re-adhere to avoid weakening adherability.

¡Avoid adhering on the heating wire as much as possible.

CQ-VD7200U

71

E

N

G

L

I

S

H

63

Electrical Connections

Wiring Diagram

Accessory used for wiring

No.

Item

@6

Power Connector (for display unit)

@7

Reverse Extension Cord

(for rear view camera)

@8

Clip Connector

@9

Display Unit/Hide-away Unit

Connecting Cord

Q'ty

1

1

1

1

No.

Item

#0

Power Connector (for hide-away unit)

#1

Ground Lead

#2

Radio Antenna Extension Cord

@9

Display Unit/Hide-away Unit Connecting Cord

Q'ty

1

1

1

RGB Input Cord

To the RGB Connector of the Panasonic car navigation system (available in future).

Video Control Lead

To the Video Control Lead of the

Panasonic car navigation system

(available in future).

Side Brake (Parking Brake) Connection

Lead

Be sure to wire the side brake (parking brake) for safety and preventing accidents.

( a page 76)

Reverse Lead

When connecting the rear view camera, use the reverse lead. ( a page 81)

Note: Use a Reverse Extension Cord

@7 if needed.

Power Lead

To ACC power, +12 V DC.

Battery Lead

To the car battery, continuous +12 V DC.

72

Ground Lead

To a clean, bare metallic part of the car chassis.

CQ-VD7200U

Display Unit

(Rear)

Digital Audio Output

Connector (optical)

( a page 82)

VIDEO-CONT

(Green/yellow stripe)

SIDE BRAKE

(Blue/yellow stripe)

REVERSE

(Violet/white stripe)

ACC

(Resistor 220

)

(Red)

BATTERY 5A

(Fuse 5 A)

(Yellow)

(Black)

@6

Power Connector

Caution: Do not insert the power connector into the unit until the wiring is completed.

SPEAKER

Speaker Lead

(Black)

!

@

(Black/green stripe)

Cautions:

¡This unit is designed for use in a car having a 12-volt negative ground battery system.

¡Be sure to insulate any exposed wires from a possible short-circuit from the car chassis. Bundle all cables and keep cable terminals free from touching any metal parts.

¡Note that if your car has a driving computer or a navigation computer, disconnecting the cable from the battery may clear the memory.

¡Install the cords avoiding the spots where the temperature should be extremely high.

Notes:

¡To prevent damage to the unit, be sure to follow the connection diagram below.

¡Be sure to fully plug in the connectors. Secure them with clamps and tape.

¡When game machines are connected, the picture may be unstable.

¡When removing the Power Connector

@6 and Display Unit/Hide-away Unit Connecting Cord

@9

, be sure to press the clip.

¡All other installation methods require the use of dedicated metal fittings. Consult with a qualified servicing engineer or your dealer if other methods are required.

E

N

G

L

I

S

H

64

Hide-away Unit

(Rear)

Note: See next page for hide-away unit electrical connection.

(Black)

(Black/green stripe)

Panasonic

Speaker

Note: Supplied only for operational sound such as a beep.

Do not use it for a center speaker.

Caution: Do not use the supplied speaker for some other units or components.

CQ-VD7200U

73

E

N

G

L

I

S

H

65

Electrical Connections

(continued)

@9

Display Unit/Hide-away

Unit Connecting Cord

TV Antenna

Refer to “Mounting the TV Antenna” for TV antenna connection.

( a page 70)

#1 Ground Lead

To a clean, bare metallic part of the car chassis

Hide-away Unit

(Rear)

Navi Mute Lead

Connect to the Navi Mute Lead of the Panasonic car navigation system (available in future).

#0 Power Connector

NAVI MUTE

(Orange)

Front Speaker Lead (Left)

Front Speaker Lead (Right)

Motor Antenna Relay Control Lead

(To motor antenna) (Max. 0.1 A)

This lead is not intended for use with a switch actuated power antenna.

ANT-CONT MAX 0.1A

(Blue)

Note: The power antenna extends automatically

when the radio mode is selected.

Dual CD Changer Control Lead

TWIN CD C-CONT

(Brown/white stripe)

Rear Speaker Lead (Left)

Rear Speaker Lead (Right)

74

External Amplifier Control

Power Lead

To an external amplifier.

Battery Lead

To the car battery, continuous

+12 V DC.

Power Lead

To ACC power, +12 V DC.

Ground Lead

To a clean, bare metallic part of the car chassis.

CQ-VD7200U

AMP-CONT MAX 0.1A

(Blue/white stripe)

BATTERY 15A

(Yellow)

(Fuse 15 A)

ACC

(Red)

(Resistor 220

)

(Black)

FRONT L

FRONT R

REAR L

REAR R

(Rear)

Ground Terminal

Power Connector

(White)

(White/black stripe)

(Gray)

(Gray/black stripe)

(Green)

(Green/black stripe)

(Violet)

(Violet/black stripe)

@

!

@

!

@

!

@

!

(Left)

To Front

Speaker

(Right)

(Left)

To Rear

Speaker

(Right)

Display Unit/Hide-away Unit Connector

TV Antenna Connector

(TV ANT IN)

E

N

G

L

I

S

H

66

Video Input Terminal 1 (VTR1-IN)

Video Input Terminal 2 (VTR2-IN)

Connect a VCR, camcorder, rear view camera, other brand’s car navigation system, etc. ( a page 80-83)

Video Output Terminal (VIDEO-OUT)

Connect the rear monitor. ( a page 80)

Radio Antenna Connector (RADIO ANT IN)

Note: Use the Radio Antenna Extension

Cord

#2 if necessary.

(Front)

CD Changer Control Connector

(CD

C-IN) ( a page 78, 79)

Pre-Out Connector (Front)

Pre-Out Connector (Rear)

Subwoofer Output Connector (Mono)

To external amplifier

CQ-VD7200U

75

E

N

G

L

I

S

H

67

Electrical Connections

(continued)

Connecting the Side Brake (Parking Brake) Connection Lead

Caution: For safety, be sure to ask your nearest professional installer to do this connection.

Side brake (Parking brake)

Foot brake

Side brake (parking brake) switch

The side brake (parking brake) switch position varies with the car model.

For details on the exact location of the side brake (parking brake) switch in your car, contact your dealer.

SIDE BRAKE

Side Brake (Parking Brake) Connection

Lead (Blue/yellow stripe)

When the side brake (parking brake) lever is engaged, the unit is grounded by the chassis.

@8

Clip Connector

Brake light

Battery

+ —

Car chassis q Attach a Clip Connector

@8 to the end of the side brake (parking brake) connection lead.

Comes up to this point.

w The Clip Connector

@8 is connected to the power source side lead of the side brake (parking brake) lever.

Side Brake (Parking Brake)

Connection Lead

(Blue/yellow stripe)

Power source side lead

76

Color of the Connectors

Color of the connectors used for the connections in pages 78-83.

CQ-VD7200U

Red

White

Yellow

(Not used)

CQ-VD7200U

77

E

N

G

L

I

S

H

68

E

N

G

L

I

S

H

69

Electrical Connections

(continued)

Connection with CD Changer (CX-DP880U)

Note: Refer to the operating instructions for the connected devices, in addition.

CQ-VD7200U

Hide-away Unit

(Front)

(R) (Red)

(L) (White)

CD changer

CX-DP880U

(option)

DIN Cord

Power Connector

(Supplied to CX-DP880U)

Ground Lead (Black)

To a clean, bare metallic part of the car chassis

Battery Lead (Yellow)

To the car battery, continuous +12 V DC

78

CQ-VD7200U

Connection with Dual CD Changer Selector (CA-CD55)

Note: Refer to the operating instructions for the connected devices, in addition.

CD changer

CX-DP880U

(option)

Power Connector

(Supplied to CX-DP880U)

Ground Lead (Black)

To a clean, bare metallic part of the car chassis

Battery Lead (Yellow)

To the car battery, continuous +12 V DC

DIN Cord

RCA Cord

DIN Cord

(Supplied to CA-CD55)

Dual CD Changer

Selector

CA-CD55

(option)

(R)

(Red)

(L)

(White)

CD·C-1

CD·C-2

CQ-VD7200U

Hide-away Unit

(Front)

(R) (Red)

Clip connector

(Option)

CD changer

CX-DP880U

(option)

(R) (Red)

(L) (White)

(L) (White)

RCA Cord

(Supplied to CA-CD55)

TWIN CD·C-CONT

Ground Lead (Black)

To a clean, bare metallic part of the car chassis

Battery Lead (Yellow)

To the car battery, continuous

+12 V DC

RCA Cord

DIN Cord

Power Connector

(Supplied to CX-DP880U)

(R)

(Red)

CQ-VD7200U

(L)

(White)

79

E

N

G

L

I

S

H

70

E

N

G

L

I

S

H

71

Electrical Connections

CQ-VD7200U

Hide-away Unit

(Front)

(continued)

Connection with VCR or Camcorder

Note: Refer to the operating instructions for the connected devices, in addition.

Camcorder

(option)

Video output

Audio

Left Right

(R)

(Red)

(Video)

(Yellow)

(Video)

(L)

(Yellow)

(White)

POWER

INTELLIGENT SYSTEM

(R)

(Red)

BS G-CODE

VCR

(option)

(L)

(White)

RCA Cord (Option)

80

Connection with Rear Monitor

Note: Refer to the operating instructions for the connected devices, in addition.

CQ-VD7200U

Hide-away Unit

(Front)

(R)

(Red)

(L)

(White)

(Video)

(Yellow)

(R)

(Red)

RCA Cord (Option)

(L)

(White)

(Video)

(Yellow)

Over-head Monitor

CY-VMX6800U

(option)

CQ-VD7200U

Connection with Rear View Camera

Note: Refer to the operating instructions for the connected devices, in addition.

CQ-VD7200U

Display Unit (Rear)

Rear View Camera

Control Unit

(option)

Camera Input

E

N

G

L

I

S

H

72

(Video)

(Yellow)

Rear View Camera

(option)

Panasonic

@6

Power Connector

Hide-away Unit

(Front)

RCA Cord (Option)

(Video)

(Yellow)

Connecting the Reverse Lead

If using an optional rear view camera, the reverse lead must be connected.

Connect the reverse lead (violet/white stripe) to the positive (+) lead of the reverse lamp (the lamp with a clear lens that lights when the transmission gear is shifted into the reverse position).

Notes:

¡Connect the reverse lead after cutting the terminal at the end.

¡Use a Reverse Extension Cord @7 if needed.

Reverse lamp

Clip connector

(Option)

Check the reverse lamp.

Take it out of the back of the tail lamp mount.

Battery

Car chassis

REVERSE

Reverse Lead (Violet/white stripe)

Cut here.

P

R

N

D

2

L

Transmission gear

CQ-VD7200U

81

E

N

G

L

I

S

H

73

Electrical Connections

(continued)

Connection with Digital Surround Processor (CY-AC300)

Note: Refer to the operating instructions for the connected devices, in addition.

82

Digital Surround Processor

CY-AC300

Operating Unit

(option)

Operating Unit/Main Unit

Connecting Cord

(Supplied to CY-AC300)

AC30

0

VOL

SO

UR

CE

SE

L

SOURCE

PWR

DIGAT

AL SU

RROU

ND PR

OCES

SOR

MUTE

1 super

bright

multi-colo r display

& 30 w Power

Amplifier

for Center

POSIT

ION

4

DR C

POSI

Speaker

SPAC

E

2

3

SPC

DIMME

R

DIM

DIGIT

AL

PRO LO

GIC

Digital Surround Processor

CY-AC300

(Rear)

(Front)

SUB·W

REAR

FRONT

ANALOG-IN

DIGITAL-IN

(Black/green stripe)

@

Power Connector

(Supplied to CY-AC300)

CENTER

Center Speaker Lead

(Black)

!

(R)

(L) (R) (L) (R) (L) (R)

(L)(White)

External Amplifier

Control Power Cord

AMP-CONT MAX 0.1A

RCA Cord (Option)

(When a two-way cord is used)

RCA Cord

(Option)

(L)(White)

(R)(Red)

RCA Cord

(Option)

(R)(Red)

(L)(White) (R)(Red)

CY-M7052 (Option)

(Top)

CY-M9054 (Option)

(Top)

Amplifier Control Power

Cord (Blue/white stripe)

Amplifier Control Power

Cord (Blue/white stripe)

(Connect to AMP-CONT)

Panasonic

Center Speaker

EAB-CF2

CQ-VD7200U

Subwoofer

(Left)

(Right)

Rear Speaker

(Left) (Right)

Front Speaker

@9

Display Unit/Hide-away Unit Connecting Cord

CQ-VD7200U

Display Unit (Rear)

Notes on handling optical fiber cable:

¡Do not allow the cable to be damaged by getting it caught in the door, placing a heavy object on it, etc.

¡Make sure that the cable is not strained when it is connected.

¡Do not bend the cable sharply.

25 mm or more

Optical Fiber Cable

(CA-LRD60: Option)

(R)(Red)

(L)(White)

Digital Audio Output

Connector (optical)

CQ-VD7200U

Hide-away Unit

@6

Power Connector

E

N

G

L

I

S

H

74

(Front)

#0 Power Connector

CQ-VD7200U

(Rear)

83

E

N

G

L

I

S

H

75

Troubleshooting

Preliminary Steps

Check and take steps as described in the tables below.

If You Suspect Something Wrong

Immediately switch power off.

Disconnect the power cable and check that there is neither smoke nor heat from the unit before asking for repairs. Never try to repair the unit yourself because it is dangerous to do so.

Common

Trouble

Cautions:

¡Do not use the unit if it malfunctions or if there appears to be something wrong.

¡Do not use the unit in an irregular condition, for example, no sound, or if it is emitting smoke or foul smell, as this may cause ignition or electric shock. Immediately stop using it and call the store where you purchased it.

Cause/Step

Car’s ignition switch is not on.

a

Turn your car’s ignition switch to ACC or ON.

No power

Cables are not correctly connected.

a

Connect cables correctly.

Battery cable is not correctly connected.

a

Connect the battery cable to the terminal that is always live.

Accessory cable is not correctly connected.

a

Connect the accessory cable to your car's ACC source.

Grounding wire is not correctly connected.

a

Connect the grounding wire to a metal part of your car.

Fuse is burnt.

a

Call the store where you purchased the unit, or your nearest Panasonic

Servicenter (see the attached sheet) and ask for fuse replacement.

No sound

Only sound, no picture.

The volume is adjusted to zero.

a

Raise the volume.

Mute is set to ON.

a

Set it to OFF.

Cables are not correctly connected.

a

Connect cables correctly.

Condensation (dew) a

Wait for a while before use.

Side brake (parking brake) cord is not correctly connected.

a

Connect the side brake connection lead correctly.

You did not pull the side brake (parking brake) lever.

a

Pull the side brake (parking brake) lever.

84

CQ-VD7200U

Common (Continued)

Trouble

Noise

Picture is not clear.

Cause/Step

A mobile phone is used near the unit.

a

Keep the mobile phone away from the unit.

The unit’s grounding wire is not connected securely.

a

Check the metal areas of the car body (chassis), and connect the grounding wire more securely.

Monitor

Trouble

The tilt angle or the front-rear position of the display is not adjustable.

Cause/Step

There is an obstacle.

a

Install the unit where the unit moves freely.

The monitor does not go back into the unit.

The monitor direction is not proper.

a

Change the monitor direction to the center.

The monitor stops on the way to the home position.

a

Raise the monitor a little and press [ ] (OPEN/CLOSE).

Remote Control

Trouble

Buttons are invalid for operation.

Cause/Step

Battery Poles (+) (–) are reversed.

a

Insert the battery correctly.

Wrong battery.

a

Check the battery.

Battery has run down.

a

Replace the battery.

Remote control is in the wrong direction.

a

Direct the remote control at remote control sensor on the display unit.

E

N

G

L

I

S

H

76

TV

Trouble

Unclear image due to noise

Cause/Step

The intensity of the radio wave is too low.

a

Change the broadcast station.

Connection or installation of the TV antenna has not been performed correctly.

a

Check the connection or installation.

85

CQ-VD7200U

E

N

G

L

I

S

H

77

Troubleshooting

(continued)

DVD video, Video CD, CD, CD-R, CD-RW

Trouble Cause/Step

The disc is upside down.

a

Place the disc in the correction direction, the label side up.

The disc is inside but no sound.

The disc is ejected automatically.

The disc is dirty.

a

Clean the disc, referring to the section on “Notes on Discs”(

a

page 93).

The unit can only play the following types of discs: DVD video, video CD, music

CD and MP3.

CD sound skips, tone quality is low.

The disc is dirty.

a

Clean the disc, referring to the section on “Notes on Discs”(

a

page 93).

Sound skip due to vibration.

The buttons do not work.

The disc is not ejected.

Mounting angle is over 30°.

a

Adjust mounting angle to less than 30°.

Unstable mounting.

a

Mount the unit securely with the mounting parts, referring to the section on installation.

Some operations are not permitted with certain discs.

(Refer to the guide provided with your disc.)

¡Disc is defective.

¡Mechanical trouble.

a

Press [u]. If failure persists, press the reset switch. If normal operation

is not restored, call the store where you purchased the unit or the nearest

Panasonic Servicenter.

DVD video

Trouble

Cannot switch the audio language/subtitle language/angle.

The audio/subtitle language selected in the

DVD settings is not used.

Cause/Step

¡It is not possible to switch if the disc does not have multiple audio languages/subtitle languages/angles recorded on it. (Refer to the guide provided with your disc.)

¡Some discs permit switching through a menu screen.

¡Sometimes, switching angles is possible only with certain scenes.

If audio or subtitles in the languages are not recorded on the disc, the audio or subtitles do not switch to that language. (Some discs permit switching through a menu screen. Refer to the guide provided with your disc.)

86

CD

Trouble

CD text is not displayed normally.

Time is counted but no sound comes out.

Cause/Step

Disc is dirty, or has scratches.

a

Clean the disc, referring to the section on “Notes on Discs”(

a

page 93).

The 1st track of a mix mode disc was reproduced. (Mix mode is a format in which data, except music, is recorded on the 1st track and music data is recorded on other than the 1st track in a session.) a

Play back music data recorded on other than the 1st track.

E

N

G

L

I

S

H

78

MP3

Trouble

No playback.

It takes too long for playback to start.

Poor recording quality, sound skipping

Files are not played in the desired order.

Folder/file name is not displayed correctly.

Cause/Step

The disc does not conform to any of the file systems supported by this player.

a

Insert a disc that conforms to the file systems supported by this player.

(

a

page 31).

The MP3 file is missing the “.mp3” file name extension.

a

Make sure to add the “.mp3” extension to each MP3 file name.

The folders and files recorded on the disc are layered too much.

a

As checking of files takes longer in this case, do not record any unnecessary folders or files other than MP3s on the disc.

(If there are many hierarchies of files and folders, it may take up to 150 seconds to start playback.)

a

The recording quality differs depending on the encoding software used, and on settings such as the bit rate. Set the bit rate within the range specified in the specifications chart (

a

page 96).

It is recommended to set the bit rate to “128 kbps or more” and “Fixed”.

High-speed writing was executed when MP3 data was recorded on the disc.

a

Decrease writing speed as low as possible.

Files or folders are not recorded in the desired playback order.

a

Some writing software lets you specify the recording order by adding a prefix in the range of “01” - “99”, etc. to the file name. For details refer to the user manual of your writing software.

The disc does not conform to the file systems supported by this player.

a

Insert a disc that conforms to the file systems supported by this player.

(

a

page 31).

a

There may be a problem with your writing software or CD recorder (CD-

R/RW drive). For details refer to the user manual of your writing software.

87

CQ-VD7200U CQ-VD7200U

E

N

G

L

I

S

H

79

Troubleshooting

MP3 (Continued)

Trouble

(continued)

Cause/Step

You turned off the ignition switch of the car during playback.

a

Playing another file will return the file playing time to normal.

File playing time is not displayed correctly.

You played a file in which character information had been recorded by use of

ID3Tag 2.0 or later version.

a

A file in which character information was recorded by use of ID3Tag 2.0

or later version may not be reproduced normally. For example, the file playing time may not be displayed correctly.

88

Radio

Trouble

Poor reception of FM stereo and monaural broadcasts.

Cause/Step

Station is too far, or signals are too weak.

a

Select other stations of higher signal level.

The motor antenna relay control lead is not connected correctly.

a

If there is a motor antenna in the car, connect the motor antenna relay control lead to the motor antenna lead that is installed in the car correctly.

The radio antenna is not extended enough.

a

Fully extend the radio antenna.

Car Navigation, VCR, Camcorder, Rear View Camera, Rear Monitor

Trouble Cause/Step

The picture from a car navigation system is not displayed.

The connection of a car navigation system is not correct.

a

Connect it correctly.

Input setting of a car navigation system is not correct.

a

Make the input setting correct.

The picture from a VCR or a camcorder is not displayed.

A VCR or Camcorder is not connected correctly.

a

Connect a VCR or Camcorder correctly.

The picture from a rear view camera is not displayed.

The picture or the sound of the rear monitor is not switchable.

Rear view camera is not connected correctly.

a

Connect a rear view camera correctly.

Input setting of a camera is not correct.

a

Make the input setting correct.

“AUTO” is not selected for the setting of a rear monitor.

a

Select “AUTO” for the setting.

CQ-VD7200U

Display Settings

Trouble

The brightness of the screen is not stable.

The picture is dark.

The picture is whitish.

Something is wrong with the picture. The picture is light in color.

Red, blue, or green spots appears.

Sound Settings

Trouble

No sound from left, right, front, or rear speaker.

Left and right sounds are reversed.

No sound from the subwoofer.

Cause/Step

“AUTO” dimmer is selected.

a

Select one of the dimmer levels from among 1 to 4 to make the dimmer adjustment become free from light intensity.

The screen is not adjusted properly.

a

Make every adjustment of the screen.

E

N

G

L

I

S

H

80

This is a characteristic of liquid crystal panels and is not a problem.

Cause/Step

Cables are not correctly connected.

a

Connect the cables correctly.

The speaker leads are connected in reverse between right and left.

a

Connect the speaker wires to the correct one.

Subwoofer volume level is set to zero. a

Rise the volume of Subwoofer.

Private mode is set to “ON”.

a

Set private mode to “OFF”.

89

CQ-VD7200U

E

N

G

L

I

S

H

81

Troubleshooting

(continued)

Error Display Messages

CD/MP3/DVD/Video CD/CD Changer

Display

- E1 -

Disc is dirty, or is upside down.

a

Check disc.

Cause/Step

- E2 -

- E3 -

- E4 -

NO DISC

NO MAGAZINE

Disc has scratches.

a

Check disc.

No operation by some cause.

a Press [u]. If failure persists, press the reset switch. (Press the reset

switch in the CD changer). If normal operation is not restored, call the store where you purchased the unit or the nearest Panasonic

Servicenter.

The type of the file that is selected is not supported.

a

Check disc.

No disc is in the player.

a

Insert disc into the disc slot.

No magazine is in the changer.

a

Load the changer with CD-loaded magazine.

PAL/NTSC ERROR

An attempt was made to play a PAL disc.

a

Press [u] and check the disc.

REGION ERROR

An attempt was made to play a disc with a region number other than “1” or

“ALL”.

a

Press [u] and check the disc.

Notes:

¡There may be cases when the disc numbers affected by an error are displayed before E1 and E2.

¡Displays and the steps to be taken for errors vary in part from changer to changer. For details, refer to the Operating

Instructions for the changer used.

Maintenance

Your product is designed and manufactured to ensure a minimum of maintenance. Use a dry soft cloth for routine exterior cleaning. Never use benzine, thinner or other solvents.

Product Servicing

If the suggestions in the charts do not solve the problem, we recommend that you take it to your nearest authorized

Panasonic Servicenter. The product should be serviced only by a qualified technician.

Replacing the Fuse

Use fuses of the same specified rating (5 A for display unit, 15 A for hide-away unit). Using different substitutes or fuses with higher rating, or connecting the product directly without a fuse, could cause fire or damage to this unit.

If the replacement fuse fails, contact your nearest Panasonic Servicenter for service.

90

CQ-VD7200U

If the Unit Begins to Malfunction...

Reset switch

Insert a hard, slender stick into the hole and push the switch.

Important

Push the switch only when the unit fails to operate with any buttons. (Stored settings and adjustments are not cleared.)

If the unit fails to return to normal condition, call the nearest Panasonic Servicenter and ask for repairs.

Display Unit Hide-away Unit

E

N

G

L

I

S

H

82

CQ-VD7200U

7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

RESET

MENU MODE

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

ENTER

DISC

TRACK/

CHANNEL

Reset switch

Notes:

¡We recommend that you press both of the reset switches on the Display Unit and the Hide-away Unit one by one in any order.

¡If the ID-CODE has been already set, you will be asked to enter the ID-CODE right after the unit is restarted.

CQ-VD7200U

91

E

N

G

L

I

S

H

83

Maintenance

To Prevent Damage to the System Exterior

Do not apply pesticides, benzine, thinner or other volatile substances to the unit.

The cabinet surface primarily consists of plastic materials.

Do not wipe with benzine, thinner or similar substances because this will result in discoloration or removal of the paint.

When a cloth with a cleansing chemical is used, follow the caution points.

Do not leave the unit in contact with rubber or vinyl products for long periods of time.

Do not use cleaners which have polishing granules because this could damage the surface of the unit.

Alcohol

Thinner

Pesticide

Wax

Tape

Benzine

Adhesive

Tape

Clean Dirt by Wiping Lightly with a Soft Cloth

When the unit is dirty, wipe the surface of the display using the Wiping Cloth (supplied).

Without a Wiping Cloth

When the unit is dirty, wipe with a well-wrung cloth dipped in liquid dish washing detergent (neutral) diluted with water and then go over the same surface with a dry cloth.

(Since there is the possibility of water drops getting inside of the unit, do not directly apply cleanser to the surface.)

Wring well.

Wipe lightly.

Go over the same surface with a dry cloth.

a a

Notes on Discs

How to hold the disc

¡Do not touch the underside of the disc.

¡Do not scratch the disc.

¡Do not bend disc.

¡When not in use, keep disc in the case.

Do not use irregularly shaped discs.

Do not leave discs in the following places:

¡Direct sunlight

¡Near car heaters

¡Dirty, dusty and damp areas

¡On seats and dashboards

Disc cleaning

Use a dry, soft cloth to wipe from the center outward.

<Right>

Label side

Do not use irregularly shaped discs.

<Wrong>

Do not attach any seals or labels to your discs.

Do not write on the disc label in a heavy pen or ballpoint pen.

Notes on CD-Rs/RWs

¡You may have trouble playing back some CD-R/RW discs recorded on CD recorders (CD-R/RW drives), either due to their recording characteristics or dirt, fingerprints, scratches, etc. on the disc surface.

¡CD-R/RW discs are less resistant to high temperatures and high humidity than ordinary music CDs. Leaving them inside a car for extended periods may damage and make playback impossible.

¡The unit may not successfully play back a CD-R/RW that was made by the combination of writing software, a CD recorder (CD-R/RW drive) and a disc if they are incompatible with one another.

¡This player cannot play CD-R/RW discs if the session is not closed.

¡This player cannot play CD-R/RW discs which contain other than CD-DA or MP3 data.

¡Be sure to observe the handling instructions of CD-R/RW discs.

E

N

G

L

I

S

H

84

92

Dish washing soap diluted with water

Note: Do not scratch the screen with your nails or other hard objects. The resulting scratches or marks will obscure the images.

Caution: If water drops or similar wet substances get inside the monitor, it may cause a malfunction.

CQ-VD7200U CQ-VD7200U

93

E

N

G

L

I

S

H

85

Definition of Terms

Digital audio output connector (Optical)

The digital audio output connector (optical) converts electrical signals into optical signals and transfers them to the amplifier. Consequently, it has a number of features including its immunity from electrical interference from external sources and its ability to prevent the generation of noise and its minimal effect on the external environment.

Dolby Digital

This fully discrete format divides the music signals into 5.1 channels: Front Left (L), Front Right (R),

Center (C), Left Surround (LS), Right Surround (RS) and Subwoofer (SW: 0.1 channel) for recording and playback. The number of channels that are recorded depends on the software. (1 to 5.1 channels)

Manufactured under license from Dolby

Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

Confidential unpublished works. Copyright

1992 – 1997 Dolby Laboratories. All rights reserved.

Dolby Pro Logic

This format records signals from four channels [Front

Left (L), Front Right (R), Center (C), and Monaural

Surround (S)] in two channels, decodes those channels through a Dolby Pro Logic decoder, and then outputs the resulting signals in four channels.

dts

This format requires more data than Dolby Digital, and provides higher quality surround playback.

Similar to Dolby Digital, this fully discrete format divides the music signals into 5.1 channels: Front Left

(L), Front Right (R), Center (C), Left Surround (LS),

Right Surround (RS) and Subwoofer (SW: 0.1 channel) for recording and playback.

Manufactured under license from Digital

Theater Systems, Inc. US Pat. No. 5,451,942 and other world-wide patents issues and pending. “DTS” and “DTS Digital Surround” are trademarks of Digital Theater Systems, Inc.

©

1996 Digital Theater Systems, Inc. All rights reserved.

Interactive DVD

An interactive DVD is DVD software which includes multiple angles, multiple plot endings, etc.

Letterbox screen

This refers to a screen on which the playback picture of wide-screen DVDs or Video CDs appears with black bands running along the top and bottom.

LPCM (Linear PCM audio)

In this format, the audio signal is converted to digital data and recorded in two channels without compression. Because the capacity of a DVD video disc is large, it can store more data with better accuracy than a CD.

Pan & Scan screen

This refers to a screen on which the playback picture of wide-screen DVDs or Video CDs is cut off at the left and right sides.

Playback control (Video CD)

If the Video CD has “With Playback Control” or others written on the disc surface or on the jacket, the scenes or information to be viewed (or listened to) can be selected interactively with the screen by looking at the menu shown on the screen.

In these instructions, playback using the menu screen is referred to as the “menu play” for video CDs. This player supports Video CDs with playback control.

Title, Chapter (DVD)

DVDs are divided into some large sections (titles) or some small sections (chapters). Each section is numbered; these numbers are called “Title number” or

“Chapter number”.

Title 1 Title 2

Chapter 1 Chapter 2 …… Chapter 1 ……

Track (Video CD/CD)

Video CDs or CDs are divided into some sections

(tracks). Each section is numbered; these numbers are called “Track number”.

Track 1 Track 2 Track 3 Track

……

94

CQ-VD7200U

Language Code List

Code Language Name

6565 Afar

6566 Abkhazian

6570 Afrikaans

6577 Ameharic

6582 Arabic

6583 Assamese

6588 Aymara

6590 Azerbaijani

6665 Bashkir

6669 Byelorussian

6671 Bulgarian

6672 Bihari

6678 Bengali; Bangla

6679 Tibetan

6682 Breton

6765 Catalan

6779 Corsican

6783 Czech

6789 Welsh

6865 Danish

6869 German

6890 Bhutani

6976 Greek

6978 English

6979 Esperanto

6983 Spanish

6984 Estonian

6985 Basque

7065 Persian

7073 Finnish

7074 Fiji

7079 Faroese

7082 French

7089 Frisian

7165 Irish

7168 Scots Gaelic

7176 Galician

7178 Guarani

7185 Gujarati

7265 Hausa

7273 Hindi

7282 Croatian

7285 Hungarian

How to input the language code, refer to page 46.

Code Language Name

7289 Armenian

7365 Interlingua

7378 Indonesian

7383 Icelandic

7384 Italian

7387 Hebrew

7465 Japanese

7473 Yiddish

7487 Javanese

7565 Georgian

7575 Kazakh

7576 Greenlandic

7577 Cambodian

7578 Kannada

7579 Korean

7583 Kashmiri

7585 Kurdish

7589 Kirghiz

7665 Latin

7678 Lingala

7679 Laothian

7684 Lithuanian

7686 Latvian, Lettish

7771 Malagasy

7773 Maori

7775 Macedonian

7776 Malayalam

7778 Mongolian

7779 Moldavian

7782 Marathi

7783 Malay

7784 Maltese

7789 Burmese

7865 Nauru

7869 Nepali

7876 Dutch

7879 Norwegian

7982 Oriya

8065 Panjabi

8076 Polish

8083 Pashto, Pushto

8084 Portuguese

8185 Quechua

Code Language Name

8277 Rhaeto-Romance

8279 Romanian

8285 Russian

8365 Sanskrit

8368 Sindhi

8372 Serbo-Croatian

8373 Singhalese

8375 Slovak

8376 Slovenian

8377 Samoan

8378 Shona

8379 Somali

8381 Albanian

8382 Serbian

8385 Sundanese

8386 Swedish

8387 Swahili

8465 Tamil

8469 Telugu

8471 Tajik

8472 Thai

8473 Tigrinya

8475 Turkmen

8476 Tagalog

8479 Tonga

8482 Turkish

8484 Tatar

8487 Twi

8575 Ukrainian

8582 Urdu

8590 Uzbek

8673 Vietnamese

8679 Volapük

8779 Wolof

8872 Xhosa

8979 Yoruba

9072 Chinese

9085 Zulu

CQ-VD7200U

95

E

N

G

L

I

S

H

86

E

N

G

L

I

S

H

87

Specifications

Display Unit

General

Power supply

Current consumption

Maximum power output (external speaker)

Compatible speaker impedance

Dimensions (W x H x D)

Weight

: 12 V DC (11 V - 16 V), test voltage 14.4 V, negative ground

: Less than 1.5 A

: 0.7 W

: 8

: 7” x 1-15/16” x 6-5/16” (178 x 50 x 160 mm)

: 5 lbs. 1 oz. (2.3 kg)

Monitor

Liquid crystal panel

Screen dimensions (W x H x D)

Number of pixels

Valid pixel ratio

Display method

Drive method

Light source

Supplied speaker

Impedance

Maximum power input

Digital audio output

Disc

DVD

Video CD

Linear PCM

(48 kHz 16/20/24 bit)

MPEG 1

Linear PCM

: 7” wide

: 6-1/16” x 3-7/16” x 6-15/16” (154 x 87 x 177 mm)

: 336,960 pixels (234 vertical x 480 horizontal x 3)

: Over 99.99%

: Transparent color filter format

: TFT (Thin Film Transistor) active matrix format

: Internal light (Built-in small fluorescent lamp)

: 2 W

Sound recording format

Dolby Digital

DTS*

Optical digital audio output from connector

Dolby Digital bitstream (1 – 5.1 ch)

DTS bitstream (1 – 5.1 ch)

(The analog portion is not output.)

Linear PCM (2 ch)

(48 kHz sampling/16 bit only)

MPEG 1 bitstream

Linear PCM (2 ch) (44.1 kHz sampling/16 bit)

CD

Linear PCM

DTS*

Linear PCM (2 ch) (44.1 kHz sampling/16 bit)

DTS bitstream (1 – 5.1 ch)

(The analog portion is not output.)

MP3

MP3 Linear PCM (2 ch) (32 kHz/44.1 kHz/48 kHz sampling/16 bit)

*DTS only works with optical outputs.

“DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.

96

Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, and 4,819,098, licensed for limited viewing uses only.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

CQ-VD7200U

Hide-away Unit

General

Power supply

Current consumption

Maximum power output

Compatible speaker impedance

Video input signal

Audio input sensitivity

Video output signal

Pre-Amp output voltage

Pre-Amp output impedance

Dimensions (W x H x D)

Weight

: 12 V DC (11 V - 16 V), test voltage 14.4 V, negative ground

: Less than 10 A (during disc playback)

: 45 W x 4 ch (at 16 V)

: 4

: Composite video signal, 1.0 Vp-p (75

Ω)

: 2 Vrms

: Composite video signal, 1.0 Vp-p (75

Ω)

: 4 Vrms

: Less than 60

: 9-5/8” x 1-5/8” x 5-7/8” (245 x 42 x 150 mm)

: 3 lbs. 16 oz. (1.8 kg)

FM stereo radio

Frequency range

Usable sensitivity

Stereo separation

S/N ratio

: 87.9 - 107.9 MHz

: 12 dBf

: 35 dB (1 kHz)

: 70 dB

AM stereo radio

Frequency range

Usable sensitivity

Image rejection ratio

Video section

Signal format

Video output

Region number

: 530 - 1 710 kHz

: 28 dB/µV

: 50 dB

: NTSC (Standard signal format in U.S and Japan)

: 75

Ω, 1 Vp-p

: 1 and ALL

Audio section

Output voltage/Impedance

Distortion

: 4 Vrms/220

Front L/R (1 kHz, 0 dB, PCM input) : 0.04 %

S/N ratio : 90 dB (during CD playback and connected with optical fiber cable)

Above specifications comply with EIA standards.

Note: Specifications and the design are subject to modification without notice due to improvements in technology.

E

N

G

L

I

S

H

88

97

CQ-VD7200U

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
