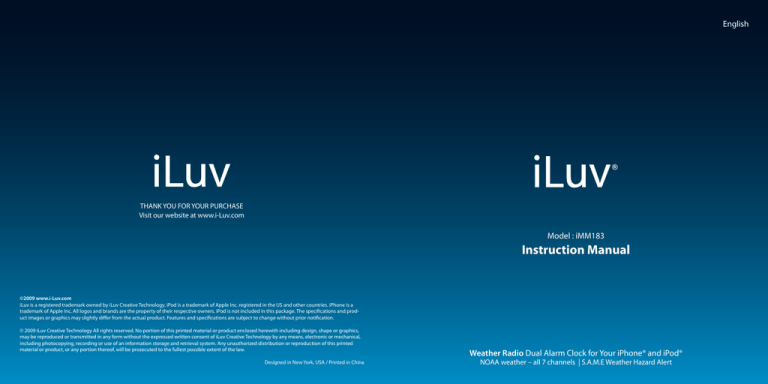

Instruction Manual

THANK YOU FOR YOUR PURCHASE

Visit our website at www.i-Luv.com

©2009 www.i-Luv.com

iLuv is a registered trademark owned by iLuv Creative Technology. iPod is a trademark of Apple Inc. registered in the US and other countries. iPhone is a trademark of Apple Inc. All logos and brands are the property of their respective owners. iPod is not included in this package. The specifications and product images or graphics may slightly differ from the actual product. Features and specifications are subject to change without prior notification.

© 2009 iLuv Creative Technology All rights reserved. No portion of this printed material or product enclosed herewith including design, shape or graphics, may be reproduced or transmitted in any form without the expressed written consent of iLuv Creative Technology by any means, electronic or mechanical, including photocopying, recording or use of an information storage and retrieval system. Any unauthorized distribution or reproduction of this printed material or product, or any portion thereof, will be prosecuted to the fullest possible extent of the law.

Designed in New York, USA / Printed in China

Model : iMM183

Instruction Manual

Weather Radio Dual Alarm Clock for Your iPhone® and iPod®

NOAA weather – all 7 channels | S.A.M.E Weather Hazard Alert

English

1 | iLuv

INTRODUCTION

Congratulations on your purchase of the new iLuv iMM183 for your iPod and/or iPhone. Designed specifically to work with iPod and/or iPhone, this product is uniquely designed with two docks to provide performance that brings out the best in your music. Please keep this manual for future reference.

The iMM183 is designed to receive National Weather Service (NWS) broadcasts, by the Department of

Commerce’s National Oceanic and Aerospace Administration (NOAA) which provides information about weather conditions, forecasts and hazard information 24 hours a day as a public service. iMM183 receives all seven NOAA channels; it has an automatic alert system; in the event of a special warning broadcast, the receiver will automatically activate along with a loud tone; a flashing LED indicator; and an “alert” message on the LCD.

This unit also has an “S.A.M.E Digital Weather/Hazard Alert” feature, providing you with constant monitoring of your localized NWS broadcast. It allows you to receive only messages for the areas concerning you.

For up-to-date information on NOAA and weather frequencies used in your area, check the NOAA

National Weather Service website at: www.nws.noaa.gov/nwr.

To get weather band channel and S.A.M.E code for your area, call 1-888-697-7263, or visit www.nws.noaa.gov/nwr/indexnw.htm

INTRODUCTION

• Powerful built-in speakers allow you to hear your music with depth and clarity

• Treble / Bass control

• Large display; easy to read

• Auxiliary line input for any audio devices with 3.5mm jack

• LCD dimmer level control (8 steps)

Features for your iPhone / iPod

• Two iPod docks let you charge up to two iPod* and/or iPhone at once

• Enjoy rich sound from your iPod / iPhone with jAura acoustic speaker technology

• Choose and play any one of two docked iPod / iPhone

• Plays and charges your iPod / iPhone

• Integrated universal dock for your iPod / iPhone

Digital Dual Alarm Clock

• Digital clock display with dual alarm clock

• Wake to iPod / iPhone, FM radio, or buzzer

• Sleep to iPod / iPhone, FM radio

FM Stereo Radio

• FM stereo

• PLL tuning digital tuning technology

• Programmable presets for 6 radio stations

Weather Band Receiver

• All hazard weather alert system

• SAME decode and alert message display

• Store up to 10 alert messages

• LED warning indicator

*Compatible with any iPod with dock connector

(Excluding 1 st

, 2 nd

, and 3 rd

generation iPod) iMM183 | V10M10_IM_EN_09092009 iLuv | 2

3 | iLuv

TABLE OF CONTENTS

Getting Started

Power Source

Protect your Furniture

Installing the Remote Control Battery

Installing the Dock Adapter

Installing the Backup Batteries

Location of Controls on the Main Unit

Location of Controls on the Remote Control

Location of Indications on the LCD Screen

Operational Instructions

Turning the System ON

Turning the System Off

Select Source

Radio Tuner

Using the iPod Function

Aux Mode

Adjusting the Volume

Setting the Clock

Using the Time Sync Feature

Sleep Mode

Setting the Treble / Bass

Mute Function

Dimmer Setting

Setting the Alarm

Snooze Function

Using the FM Radio

iPhone and iPod Operation

iPhone Function

Menu and Enter

Repeat

14

14

15

16

12

13

14

14

16

17

18

18

18

10

11

11

11

10

10

10

5

5

5

9

7

8

6

6

TABLE OF CONTENTS

Weather Band Operation

Obtaining Weather Channel/County Codes from NOAA

Basic Operation

Programming a Single S.A.M.E. County Code

Programming Multiple S.A.M.E. County Codes

Deleting the County Code

Choosing an Alert (Voice or Siren)

Turning the Alert ON / OFF

Setting the Alert Volume

Selectable Alert Option

Testing the Alert

Reviewing Alerts

Deleting Alerts

LED Indicators

Alert Out Socket

Low Battery indication

No Reception Warning

Maintenance

Troubleshooting Guide

User Safety Guide

21

22

22

22

23

23

23

23

24

24

19

19

20

20

21

21

21

25

27 iMM183 | V10M10_IM_EN_09092009 iLuv | 4

5 | iLuv

GETTING STARTED

Power Source

• This system is designed to operate on AC100V~240V 60/50Hz house current only.

• Connecting this system to any other power source may cause damage to the system and such

damage is not covered by your warranty.

• Main plug is used as the disconnect device, the disconnect device shall remain readily operable.

Note: The system has an AC plug and will only fit into matching AC outlets. This is a safety feature to reduce the possibility of electric shock. If the plug will not fit in your AC outlets, you should have the outlet changed by a qualified, licensed electrician. Do not use an adapter to make the plug fit into your outlet. This defeats the safety feature and could expose you to electric shock.

Protect your Furniture

This model is equipped with non-skid rubber 'feet' to prevent the product from moving when you operate the controls. These 'feet' are made from non-migrating rubber material specially formulated to avoid leaving any marks or stains on your furniture. However certain types of oil based furniture polishes, wood preservatives, or cleaning sprays may cause the rubber 'feet' to soften, and leave marks or a rubber residue on the furniture. To prevent any damage to your furniture we strongly recommend that you purchase small self-adhesive felt pads, available at hardware stores and home improvement centers everywhere, and apply these pads to the bottom of the rubber

'feet' before you place the product on fine wooden furniture.

Installing the Remote Control Battery

The remote control battery has been previously installed and ready for operation for the first time use. When the remote control stops functioning, replace the battery with a new one. To do so, locate the battery compartment and follow the steps below:

1. Slide out the battery holder from the remote control case.

2. Insert a “CR2025” 3V lithium battery making certain to follow the correct polarity. Observe the

corresponding symbols (+/-).

3. Secure battery and push the battery holder back into the remote control until it is fully inserted.

iMM183 | V10M10_IM_EN_09092009

GETTING STARTED

Installing the Dock Adapter

1. How to insert a dock adaptor

a. Please use dock adaptor that came with your iPhone or iPod.

b. Using the correct dock adaptor ensures the proper fit for your iPhone or iPod.

c. Gently push the dock adaptor down into the universal dock.

d. Carefully place your iPhone or iPod into the universal dock. Your iPhone or iPod must not be

in a case or "Skin".

2. How to remove the dock adaptor

• Remove your iPhone or iPod first, then carefully remove the dock adaptor.

Installing the Backup Batteries

This unit operates on 6 X “AA” batteries (not included) for backup. Please note that batteries are important because they provide emergency power for the receiver in the event that the AC power fails.

1. Open the Battery Compartment.

2. Insert 6 "AA" size batteries into the Battery Compartment, making sure that the batteries are installed

with the proper polarity (+/-) are maintained.

Important Note: Backup battery is used for Weather band only, if AC power fails and battery operating,

all other iPod, FM, AUX IN functions are unavailable and the MODE button will be invalid.

Notes on battery use:

• To save battery power, please always use AC adaptor for receiver power supply.

• Load new batteries with their polarities (+/-) aligned correctly.

• Do not apply heat to batteries, or internal short circuit may occur.

• If this unit is not to be used for a long period of time, remove all batteries and store them in a cool and dry place.

• Remove spent batteries immediately and dispose of them.

• Do not use old and new batteries together. Also never use an alkaline battery with a magnesium battery.

Backup battery time is approximately 54 hours.

iLuv | 6

7 | iLuv

GETTING STARTED

Location of Controls on the Main Unit

1. VOLUME knob

2. MODE button

3. AL SET button

4. AL 1 button

5. AL 2 button

6. iPod / iPhone dock

7. SELECT button

8. iPod / iPhone dock

9. SLEEP button

10. BASS/TREBLE button

11. SETUP button

12. ENTER button

6

13. SEARCH knob

14. Speakers

15. POWER AL OFF button

16. SNOOZE/DIMMER button

17. Preset Number (5-6) button

18. LCD display

19. Preset Number (3-4) button

20. AUTO SCAN button

21. Preset Number (1-2) button

22. WEATHER/HAZARD ON/OFF button

23. ALERT button

7 8

5

4

3

2

1

MODE

VOLUME

L

SELECT

R

AL SET AL1 AL2

ALERT 1 - 2

AUTO SCAN SLEEP BASS/TREBLE SETUP

3 - 4 5 - 6

POWER

AL OFF

ENTER

SEARCH

9

10

11

12

13

14

23

22

21

20

19

18

17

16

15

14

GETTING STARTED

Location of Controls on the Main Unit

CONTINUED

EXT. ANTENNA AUX IN

REMOTE CONTROL

ALERT OUT DC 10V, 2A

24. REMOTE CONTROL holder

25. EXT. Antenna jack

26. AUX IN Jack

27. ALERT OUT jack

28. Battery compartment

29. POWER Jack

24 25 26 27 28 29

Location of Controls on the Remote Control

4

5

6

7

8

1

2

3

AL OFF

VOL

MENU SETUP

SELECT

MEMORY

MODE

SLEEP

SNOOZE/DIMMER

MUTE

BASS

TREBLE

9

10

11

12

13

14

15

16

17

18

19

1. POWER AL OFF Button

2. UP Button

3. SKIP /AUTO SCAN Button

4. VOLUME +/- Button

5. iPod Select Button

6. SNOOZE/DIMMER Button

7. MODE Button

8. SLEEP Button

9. MENU Button

10. SETUP Button

11. SELECT Button

12. SKIP /AUTO SCAN Button

13. DOWN Button

14. PLAY/PAUSE Button

15. iPod Select Button

16. MUTE Button

17. BASS TREBLE Button

18. WEATHER/HAZARD Button

19. REPEAT Button iMM183 | V10M10_IM_EN_09092009 iLuv | 8

GETTING STARTED

Location of Indications on the LCD Screen

Alarm 1 Armed

PM Indicator

FM Indicator

ST Indicator

MONO Indicator

WB RSSI Indicator

PLAY, PAUSE

REPEAT,

RANDOM Indicator

Alarm 1 Display FM/iPod/AUX Display

NOAA Indicator

Alarm 2 Armed Alarm 2 Display

VOICE, SIREN

Indicator

TIME SYNC Indicator

ENABLE Indicator

DISABLE Indicator

ALL Indicator

SINGLE Indicator

MULTIPLE Indicator

COUNTY Indicator

Date/Settings, Volume,

Weather, Bass/Treble, Sleep Display

Clock/Radio Frequency/Time Display

KEY, SLEEP, BATTERY,

KHz, MHz Indicator

OPERATIONAL INSTRUCTIONS

Turning the System ON

In standby mode, press POWER /AL OFF Button on the unit or on the remote control.

Turning the System Off

In any working mode, press POWER /AL OFF button on the unit or on the remote control.

Be aware that the dim, alarm setting will still be functional at standby mode.

To turn off alarm sound, press the POWER /AL OFF button on the unit or remote control.

Select Source

Press MODE on main unit or on remote control, to select:

iPod FM AUX iPod…

Radio Tuner

Press MODE on the main unit or remote control, and the "FM" icon will appear on the display.

9 | iLuv iMM183 | V10M10_IM_EN_09092009 iLuv | 10

OPERATIONAL INSTRUCTIONS

Using the iPod Function

When the iPod mode is selected, the “IPOD” icon will appear on the display. If authentication is successful, the unit will automatically play after approximately 3 - 5 seconds.

LCD will show the current track number to be played.

Press SELECT to select “ Dock ” or “ Dock ” on main unit or remote control. When your selection is made “iPod ” or “iPod ” will show on the display.

Aux Mode

When Aux mode is selected, the “AUX” icon will display. Use this mode to play audio devices through the 3.5mm AUX IN jack.

11 | iLuv

Adjusting the Volume

Use the VOLUME knob to adjust the Volume. Display shows “VOLUME: XX” and assigns a numerical value between 0 and 40 (40 is Max).

For example: “VOLUME: 23” may display current volume level. This volume level setting will be stored when the unit is power off. When the unit is powered on, the unit will return to this volume setting.

iMM183 | V10M10_IM_EN_09092009

OPERATIONAL INSTRUCTIONS

Setting the Clock

The default clock setting is 12:00AM.

• In power OFF (Standby) mode, press SETUP on the unit to set the clock,

rotate the SEARCH wheel to select "1. SETUP TIME".

• Press ENTER and "TIME SYNC" will display. Rotate the SEARCH wheel to

select "MANUAL SET".

• Press ENTER to confirm. "SET MONTH" and a flashing number will

display on the screen. Rotate the SEARCH wheel to change the number

of month.

• Press ENTER to confirm. "SET DATE" and a flashing number will display on the screen. In the same way,

set Day > Year > Hour > Minute.

• To exit clock setting mode, Press

SETUP. The time and date will display on the screen.

iLuv | 12

OPERATIONAL INSTRUCTIONS

Using the Time Sync Feature

The iMM183 is equipped with a Time Sync function which sets the time and date on the clock in sync with a docked iPhone or iPod.

• In the power OFF (Standby) mode, press SETUP on the unit and rotate the SEARCH wheel to select "1. SETUP

TIME".

• Press ENTER and "TIME SYNC" will flash on the screen.

Press ENTER to confirm.

• Press SETUP again to exit clock setting, the "TIME SYNC" icon will display on LCD.

• Dock your iPhone or iPod, the unit will start authentication and will sync time/date from docked iPhone or iPod.

• As Time Sync is processing, "TIME SYNC" will flash for approximately one (1) minute on the screen.

• At the end of the Time Sync process, "TIME SYNC" will disappear and "TIME UPDATED" displays on LCD for one (1) second.

• If Time Sync is turned on while your iPhone or iPod is docked, the iMM183 will automatically synchronize time and date from the docked iPhone or iPod.

NOTE:

The iMM183 will automatically synchronize the time and date from a docked iPhone or iPod one time only.

To process Time Sync again, run the Time Sync process following the instructions above.

13 | iLuv

OPERATIONAL INSTRUCTIONS

Sleep Mode

1. In iPod, WB, FM, Aux, you can activate the sleep mode by pressing SLEEP on the main unit.

2. Press SLEEP while the unit is playing or in Standby mode to display the sleep time.

3. Setting: 120->90->60->30->15->OFF ->120…

4. While unit is in sleep mode, press SLEEP to display the amount of sleep time remaining; press

SLEEP again to change sleep time to the next lower increment.

Setting the Treble / Bass

• Press BASS/TREBLE on the main unit or remote control and rotate the SEARCH wheel to adjust.

o EQ access:

i. Treble ->-5 ->-4 ->-3 ->-2->-1->0->+1->+2->+3->4->+5

ii. Bass ->-5 ->-4 ->-3 ->-2->-1->0->+1->+2->+3->4->+5

NOTE: Treble and Bass default setting is "0"

Mute Function

1. In FM, WB, iPod, AUX mode press MUTE on remote control to activate the mute function.

2. “MUTE” will display on the screen.

3. Press MUTE again to resume normal playback.

Dimmer Setting

1. Press SNOOZE / DIMMER during normal operation to adjust the brightness of LCD display.

2. Dimmer grade: 8 levels iMM183 | V10M10_IM_EN_09092009 iLuv | 14

15 | iLuv

OPERATIONAL INSTRUCTIONS

Setting the Alarm

The Alarm 1 and Alarm 2 functions can only be set while the iMM183 is in Standby mode.

1. Press AL SET, the (alarm 1) and (alarm 2) icons will

flash on the screen.

2. Press AL1 or AL2 to select the alarm 1 or alarm 2 to set and

the hour will flash.

3. Rotate the SEARCH wheel to set the hour and press ENTER

to confirm. The minute will flash.

4. Rotate the SEARCH wheel to set the minute and press

ENTER to confirm. “SET WAKE TO” will appear on the screen

and ‘BUZZ” will flash on the screen.

OPERATIONAL INSTRUCTIONS

Setting the Alarm-continued

5. Rotate the SEARCH wheel to select RADIO, iPod , iPod

or BUZZ and press ENTER to confirm. “SET VOLUME” will flash

on the screen.

6. Rotate the

SEARCH wheel to change the volume and press

ENTER to confirm. "DAILY" will flash on the screen.

7. Rotate the SEARCH wheel to select DAILY, WEEKDAYS, WEEK

ENDS, or ONCE, and press ENTER to confirm.

8. Alarm 1 or alarm 2 will be set and activated.

9. Press AL1 or AL2 to turn the alarm function ON or OFF.

Snooze Function

1. Press SNOOZE / DIMMER when the alarm sounds.

2. The alarm will be silenced and come on again.

3. Snooze can be pressed several times during the 1 hour alarm period.

4. Snooze interval time is 9 minutes.

iMM183 | V10M10_IM_EN_09092009 iLuv | 16

17 | iLuv

OPERATIONAL INSTRUCTIONS

Using the FM Radio

Connect the wire antenna to the EXT. ANTENNA jack and extend the wire antenna fully for best reception. Do not strip, alter or attach to other antennas.

Tuning and Listening the Radio

1. Press MODE to select FM radio mode.

2. Rotate the SEARCH wheel to a desired station. Press AUTO SCAN on the unit, or press and

hold SKIP /AUTO SCAN on remote control to search automatically for a clear station.

3. Press volume button or rotate the VOLUME wheel to adjust iMM183 volume up or down.

4. Press access a radio presets, just press any one of the radio preset buttons (preset 6 stations).

5. Press POWER AL OFF again to turn the radio off.

6. When the radio is playing, LCD will display the time as default, press ENTER to temporary display

FM frequency for three (3) seconds.

Programming Radio Presets

The unit has three presets buttons for six presets stations for users to find local stations.

1. Tune to a station you want to save.

2. Press and hold 1-2 to for three (3) seconds, the "MEMORY:

P1" will display on LCD,. The station will automatically be

saved as P1 if no further action is taken after three (3)

seconds.

3. With "P1" flashing, press 1-2 immediately to select P2

memory station. "P2" will flash on LCD. The station will

automatically be saved as P2 if no further action is taken

after three (3) seconds

4. Follow this procedure for each of the radio presets.

Selecting Presets

1. Press 1-2 button to listen to saved Station 1. Press 1-2 again to select P2 preset station.

2. Follow this procedure for each of the radio presets.

3. On the remote control, press UP or DOWN to listen to preset radio (P1 -> P2 -> P3 ->…->P6)

OPERATIONAL INSTRUCTIONS

iPhone and iPod Operation

Selecting the Dock

• Press MODE to select iPod 1 or iPod/ iPhone 2 . “iPod” icon appears.

• If your iPod is detected, “iPOD” will display on the screen (iPhone priority).

• Press AUTO SCAN to begin playback.

Playback

1. To pause playback, press AUTO SCAN . To resume playback, press AUTO SCAN again.

2. Short press / to scroll up or down music of your iPod on remote control.

3. During playback, please hold / on remote control to start high speed search. When the

desired passage is found on remote control, release the button. Normal playback resumes.

4. Press SELECT to select iPod 1 or iPod 2 .

Charging your iPod battery

In standby, iPod, WB, radio, or Aux mode, your iPod will always charge in the dock.

iPhone Function

During playback of music or movies, an incoming call will pause the current file. After the call ends, normal playback will resume.

When there's an incoming call, you should be able to answer while your iPhone is docked. If the answer button is pressed to answer a call and the person on the other line is heard through the unit's speakers, speak through the microphone on your iPhone. When the call ends, regular music playback will resume.

NOTE: If your iPhone is in vibration only mode, the ring tone cannot be heard from the docking speaker. If your iPhone is not in vibration mode, the ring tone can be heard from the docking speaker.

Menu and Enter

• Press MENU on the remote control when your iPhone or iPod is playing to return to the menu.

• You can press UP or DOWN to select, and press ENTER to enter.

Repeat

1. Press REPEAT once on remote control while your iPhone or iPod is playing. The current track will repeat.

2. Press REPEAT twice on remote control while your iPhone or iPod is playing. All tracks will repeat.

iMM183 | V10M10_IM_EN_09092009 iLuv | 18

19 | iLuv

WEATHER BAND OPERATION

Obtaining Weather Channel/County Codes from NOAA

In order to receive alerts, iMM183 must be set to the correct weather channel and county codes)

(FIPS code). To get this information for your area, call the NWS toll free number: 1-888-NWS-SAME

(1-888-697-7263), or visit the website:

www.nws.noaa.gov/nwr/indexnw.htm

In the above website, search the state and county for your area and then write down the channel

(frequency) and SAME # (county code). You may want to obtain the codes for other areas through which you travel. iMM183 can store up to 25 county codes (FIPS code) under the “Programming

Multiple S.A.M.E County Codes” section on the next page.

Basic Operation

1. Extend the antenna to its full length.

2. Program the Weather Channel for Your Desired Area a) Turn the unit off using POWER AL OFF on top of the radio.

b) Press SETUP.

c) Rotate the SEARCH wheel until “2. WB CHANNEL” displays on the LCD screen.

d) Press ENTER and the "CHANNEL: X" will display on LCD.

e) Rotate the SEARCH wheel to manually scroll through the weather channels until you hear

the strongest weather broadcast. f) Press ENTER to save this channel.

g) Press SETUP to exit.

3. Press WEATHER/HAZARD ON/OFF to listen to the weather radio. You are now able to receive

weather alerts for your area and surrounding areas.

CH 1

162.400

CH 2

162.425

Seven channel weather band (MHz)

CH 3

162.450

CH 4

162.475

CH 5

162.500

CH 6

162.525

CH 7

162.550

WEATHER BAND OPERATION

Programming a Single S.A.M.E. County Code

1. Turn off the unit by pressing POWER AL OFF on top of the unit.

2. Press SETUP to open menu options.

3. Rotate the SEARCH wheel to scroll through menu options until “3. COUNTY CODE” is displayed.

4. Press ENTER followed by the SEARCH wheel to scroll through ”ALL”, “SINGLE” or “MULTIPLE”.

5. Choose “SINGLE”, followed by ENTER. ”Code 01” will be displayed and the first digit space will

start blinking.

6. Use the SEARCH wheel to scroll through the digits 0-9. Input the first digit and press ENTER to

confirm that selection and move to the next digit.

7. Continue programming all 6 digits this way. When finished, press ENTER and your entered code

will be saved.

NOTE: The single county code you set will automatically become the “CODE 01” of multiple county codes.

Programming Multiple S.A.M.E. County Codes

1. Press SETUP to open menu options while unit is in standby mode.

2. Rotate the SEARCH wheel to scroll through menu options until “3. COUNTY CODE” is displayed.

3. Press SELECT and then rotate the SEARCH wheel to scroll through “ALL”, “SINGLE” or “MULTIPLE”.

4. Choose “MULTIPLE”, and press ENTER.

5. Use the SEARCH wheel to scroll through code locations 1-25. (You are able to program up to 25

different county codes into your radio).

6. Choose the location you want and press ENTER. The first digit space will start blinking.

7. Use the SEARCH wheel to scroll through the digits 0-9. Input the first digit and press ENTER to

save that selection and move to the next digit.

8. Continue programming all 6 digits this way. When finished, press ENTER and your entered code

will be saved.

9. To program your next code, rotate the SEARCH wheel to go to the next code location. When

you have entered all your desired codes, press SETUP to store your settings.

iMM183 | V10M10_IM_EN_09092009 iLuv | 20

21 | iLuv

WEATHER BAND OPERATION

Deleting the County Code

1. Press SETUP and program the county code following above “Programming a Single S.A.M.E.

County code” and “Programming Multiple S.A.M.E county code” sections.

2. Set all 6 digits to “-- -- -- -- -- --“ (blank).

Choosing an Alert (Voice or Siren)

1. Press SETUP to open menu options in unit standby mode.

2. Rotate the SEARCH wheel until “7. ALERT MODE” is displayed on the screen.

3. Press ENTER and “VOICE” will start blinking on the screen.

4. To choose the voice alert, press ENTER.

5. Once “VOICE” is chosen, the alert will sound for eight (8) seconds followed by 2 to 5 minutes of

weather broadcast.

6. To choose a siren alert, rotate SEARCH wheel until “SIREN” blinks on the screen press ENTER to

save this setting.

7. Once “SIREN” is chosen, alert tones will sound for 2 to 5 minutes or until ALERT is pressed. While

alert tone is sounding, press the WEATHER/HAZARD ON/OFF button to listen the voice broadcasting.

8. During a voice or siren alert, press ALERT on unit, or POWER AL OFF on remote control to stop

the alert.

Turning the Alert ON / OFF

1. To turn the alert on and off, press and hold ALERT for five (5) seconds in power off state until

“ALERT ON” blinks on the screen.

2. Rotate the SEARCH wheel to switch between “ALERT ON” and “ALERT OFF”.

3. Press ENTER to save your selection.

Setting the Alert Volume

1. To set the alert volume, press SETUP when unit is in standby mode.

2. Rotate the SEARCH wheel until “5. SIREN LEVEL” is displayed.

3. Press ENTER and “HIGH”, "MID" or “LOW” will start blinking.

4. Then rotate the SEARCH wheel to choose “HIGH”, "MID" or “LOW” volume.

5. Press ENTER to save your setting.

iMM183 | V10M10_IM_EN_09092009

WEATHER BAND OPERATION

Selectable Alert Option

The receiver can be programmed to only sound the voice or siren alert for select weather emergency messages. Those messages unimportant to you can be programmed to only display a message, minimizing annoyance.

To program the emergency messages you want to silence, follow these steps:

a. Press MENU to open menu options when unit is in standby mode.

b. Rotate the SEARCH wheel until “6. DEFEAT SIREN” displays and press ENTER to confirm.

c. Using the SEARCH wheel, scroll through the different alerts you want to silence.

d. Press ENTER to select alert, rotate the SEARCH wheel to select "ENABLE" or "DISABLE".

e. Press ENTER to confirm your selection and exit the programming option.

Testing the Alert

1. To test the alert function to ensure it is working, press SETUP when unit is in standby mode.

2. Rotate the SEARCH wheel until “4. SIREN TEST” is displayed on the screen.

3. Press ENTER to sound the alert siren.

4. Rotate the SEARCH wheel to sound the different siren: WARNING > WATCH > ADVISORY >

ALARM

5. Press ENTER again to silence the alarm.

Reviewing Alerts

The iMM183 weather receiver can store 10 different alerts/events with overlapping effective time in its memory. If the receiver receives a new alert while a previous alert is still in effect, it automatically displays the new alert message. Rotate the SEARCH wheel to review the past alerts and press ENTER to review the ending time of each alert. If an alert is expired, “EXPIRED” will display on screen after pressing ENTER.

iLuv | 22

23 | iLuv

WEATHER BAND OPERATION

Deleting Alerts

The expired alerts/events can be deleted by pressing ENTER.

1. Rotate SEARCH wheel to review the alerts.

2. Press ENTER to review the ending time of this alert.

3. If an alert/event is expired, press and hold ENTER for two (2) seconds to delete it, "DELETED" will

display on LCD.

4. If an alert/event is still in effect, it can’t be deleted and “CANNOT DELETE” will display on LCD after

press and hold the SELECT button for two (2) seconds.

LED Indicators

The iMM183 features three LED indicators with different colors to express different alert level as follows:

Yellow: Labeled ADVISORY and illuminated when an advisory level alert is received.

Orange: Labeled WATCH and illuminated when a watch level alert is received.

Red: Labeled WARNING and illuminated when a warning level alert is received.

NOTE: The color-coded indicator will remain illuminated until the alert/event expires.

Alert Out Socket

The Alert Out socket is provided on the back of the iMM183. The socket’s output is compatible with home automation alert devices for a loud siren.

Low Battery Indication

• We strongly recommend installing backup batteries even unit works in AC power supply in case

AC power fails.

• When battery is low voltage, the indicator on LCD will appear. Please uninstall the old batteries

and install new batteries when these occur.

iMM183 | V10M10_IM_EN_09092009

WEATHER BAND OPERATION

No Reception Warning

If no alerts are received for 10 days, the LCD will display “NO RECEPTION” every 30 seconds. If this happens, check your county code and channel setting for setting error. If you receive a clear signal from the NWS, try using the “ALL counties” setting to receive all alerts for all counties.

Notes on reception :

The National Weather Service operates a system of weather and hazard alert broadcasts covering a large area of the United States. Currently, only a few areas are not covered. Typical broadcasts are within reception distance of 25-50 miles of the weather station. iMM183 weather receiver can receive broadcasts from up to 50 miles from the weather station, depending on your location and conditions of weather, terrain, etc. If you find reception is not good in your area, try different locations in your home or office to find a spot of improved reception.

Placement near a window usually improves reception.

If a weather broadcast cannot be heard on any of the 7 channels, contact your local NWS office and verify the closest station is on air. Also verify the channel frequencies the station is broadcasting.

If your NWS is transmitting and you are not receiving broadcasts, you may need an external antenna to improve the reception.

Please note : Metal structures are more difficult to receive reception in, because metal interferes with the signal. If you live in a metal structure, you may need an external antenna.

Maintenance

• Place the unit on a level surface away from sources of direct sunlight or excessive heat.

• Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or

other protective material should be placed between it and the furniture.

• Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning

agents, such as Benzine, thinner or similar materials can damage the surface of the unit.

iLuv | 24

25 | iLuv

TROUBLESHOOTING GUIDE

The system does not turn on.

a. The DC adapter may not be connected properly. Check the connection.

b. The power outlet may not function. Try another outlet.

Your iPod/iPhone does not fit into the iPod dock.

a. The installed dock adapter is not the correct one. Check whether a correct dock adapter

is installed.

b. There might be some obstructions on the dock. Check whether there are any obstructions on

the connector and on the dock. If everything is secured, place your iPod/iPhone back into

the dock.

It does not recognize your iPod when docked.

a. Your iPod may not be properly docked. Take your iPod out of the dock, and remove any

obstructions on the connector from the dock and on your iPod. Place your iPod back into

the dock.

b. Your iPod is frozen or locked up. Check whether your iPod operates correctly before placing it

back into the dock. Please refer to the owner’s instruction manual of your iPod.

c. The software of your iPod is outdated. Upgrade the software on your iPod. For the details on

how to upgrade the software on your iPod, please visit the Apple website:

http://www.apple.com.

d. You are using the first or second generation iPod. The system does not recognize first or

second generation iPod. Use the line-in jack/AUX Mode for the first or second generation

of iPod.

Your iPod is not charged even though it is in the dock.

a. Your iPod might not be properly docked. Take your iPod out of the dock, and remove any

obstructions on the connector from the dock and on your iPod. Place your iPod back into

the dock.

b. Your iPod is frozen or locked up. Check whether your iPod operates correctly before placing it

back into the dock. Please refer to the owner’s instruction manual of your iPod.

c. You are using the first, second, or third generation of iPod. First, second, and third generation

of iPod is only charged with the FireWire connection. The FireWire connection is not

supported by the system.

TROUBLESHOOTING GUIDE

When playing music, the sound gets distorted.

a. The volume level on the connected device or the system is set too high. Decrease the volume until the distortion has disappeared.

b. The source sound is distorted. If the original sound source (MP3) on your iPod is poor quality, the distortion and noises are easily noticed with high-power speakers. Try a different audio source like a music CD to test.

The remote control does not operate properly.

a. The installed battery is weak. Replace with a new battery.

b. It is not aimed to the system or too far away from it. Move within 10 feet of the unit and point the remote control toward the system.

iMM183 | V10M10_IM_EN_09092009 iLuv | 26

USER SAFETY GUIDE

WARNING

· TO PREVENT FIRE OR SHOCK HAZARD. DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

· THIS APPLIANCE SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING WATER AND THAT NO

OBJECT FILLED WITH LIQUIDS SUCH AS VASES SHALL BE PLACED ON APPARATUS.

The lightning flash with an arrowhead symbol within an equilateral triangle is intended to alert the user of the presence of un-insulated

“dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to people.

CAUTION

RISK OF ELECTRIC

SHOCK DO NOT OPEN

WARNING: To reduce the risk of electric shock, do not remove cover (or back).

No user-service-able parts inside. Refer servicing to qualified service personnel.

The exclamation point within an equilateral triangle is intended to alert the user of the presence of important operating and maintenance

(servicing) instruction in the literature accompanying the appliance.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions

2. Keep these instructions

3. Heed all warnings

4. Follow all instructions

5. Do not use this apparatus near water

6. Clean only with dry cloth

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug

has two blades with one wider than the other. A grounding type plug has two blades and a

third grounding prong. The wide blade or the third prong are provided for your safety. If the

27 | iLuv

USER SAFETY GUIDE

IMPORTANT SAFETY INSTRUCTIONS - continued

provided plug does not fit into your outlet, consult an electrician for replacement of the

obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience

receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the

manufacturer, or sold with the apparatus. When a cart is used, use

caution when moving the cart/apparatus combination to avoid injury

from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long

periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has

been damaged in any way, such as power-supply cord or plug is damaged, liquid has been

spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or

moisture, does not operate normally, or has been dropped.

15. Grounding or Polarization – This product may be equipped with a polarized alternating-current

line plug (a plug having one blade wider than the other). This plug will fit into the power outlet

only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try

reversing the plug. If the plug should still fail to fit, contact your electrician to replace your

obsolete outlet. Do not defeat the safety purpose of the polarized plug.

Alternate Warnings – This product is equipped with a three-wire grounding-type plug, a plug

having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This

is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to

replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.

16. Ventilation – Slots and openings in the cabinet are provided for ventilation and to ensure

reliable operation of the product and to protect it from overheating, and these openings must

not be blocked or covered. The openings should never be blocked by placing the product on

a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in

installation such as a bookcase or rack unless proper ventilation is provided or the

manufacturer’s instructions have been adhered to.

17. The MAINS plug or an appliance coupler is used as the disconnect device, the disconnect

device shall remain readily operable.

iMM183 | V10M10_IM_EN_09092009 iLuv | 28

29 | iLuv

USER SAFETY GUIDE

IMPORTANT SAFETY INSTRUCTIONS - continued

CLEANING

Always disconnect unit from power supply before attempting to clean it. Use soft cloth moistened with soapy water, and wipe gently. Do not use solvents or abrasive materials.

LASER SAFETY

This unit uses laser technology. Only a qualified professional should remove the cover or attempt to service this device, due to possible eye injury.

CAUTION – CLASS 1 LASER PRODUCT

Use of controls adjustments and/or performance of procedure other than specified herein may result in hazardous radiation exposure.

DANGER

Invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam. CAUTION: HAZAROUS LASER RADIATION WHEN OPEN AND

INTERLOCK DEFEATED.

YOU CAN HELP TO PROTECT THE ENVIRONMENT!

Please remember to respect the local regulations: Hand in the non-working electrical equipment to an appropriate waste disposal center.

FOR USED BATTERIES

Disposed of the used batteries properly. Please follow the local regulations for the battery disposal.

USER SAFETY GUIDE

FCC NOTICE TO A USER IN USA

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4. Consult the dealer or an experienced radio/TV technician for help.

FCC RULES

This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference.

Note: Do not make changes or modify the device in any way. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

iMM183 | V10M10_IM_EN_09092009 iLuv | 30

31 | iLuv

USER SAFETY GUIDE

FCC NOTICE TO A USER IN USA - continued

IMPORTANT NOTES ON HEARING

Your hearing is very important to you and to us, so please take care when operating this equipment. We strongly recommend you to follow the guideline below in order to prevent possible damage or loss of hearing.

If you continuously listen to the loud sounds, your hearing will adapt to continuous loud sounds and will give you the impression that the volume has been reduced. What seems normal to you may in fact be harmful. To guard against this BEFORE YOUR HEAR-

ING ADAPTS, set the volume at a low level and slowly increase the volume level until you can hear comfortably and clearly without distortion. Damage to your hearing is accumulative and is irreversible. Any ringing or discomfort in the ears indicates that the volume is too loud. Once you have established a comfortable listening level, DO

NOT INCREASE THE VOLUME LEVEL FURTHER.

USER SAFETY GUIDE

IC NOTICE TO A USER IN CANADA

Since digital circuitry may cause interference to other radio or television tuners nearby, switch this unit off when not in use or move it away from the affected radio/television tuner.

NOTE: This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the Radio Interference Regulations of Industry Canada. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television operation (which can be determined by turning the equipment off), the user is encouraged to try to correct the interference by one or more of the following measures:

· Reorient or relocate the receiving antenna.

· Increase the separation between the equipment and receiver.

· Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

· Consult the dealer or an experienced radio / TV technician for help.

WARNING!

• The apparatus shall not be exposed to dripping or splashing and that no objects

filled with liquids, such as vases, shall be placed on apparatus.

• Mains plug is used as the disconnect device. It shall remain readily operable and

should not be obstructed during intended use. To be completely disconnected, the

apparatus from supply mains, the mains plug of the apparatus shall be disconnected

from the mains socket outlet completely.

iMM183 | V10M10_IM_EN_09092009 iLuv | 32

33 | iLuv

USER SAFETY GUIDE

ADDITIONAL IMPORTANT INSTRUCTIONS

· Place the apparatus with some distances from the nearby objects or walls for sufficient

ventilations. The ventilation should not be impeded by covering the ventilation openings with

items such as newspapers, table-cloths, curtains, etc.

· No naked flame sources such as lighted candles should be placed on the apparatus.

· Dispose of used batteries properly. Follow the local regulation for the battery disposal.

· Use this apparatus in the moderate climates. It is recommended not to use this apparatus such in

a lighting storm.

SPECIFICATIONS

Radio frequency

FM: 87.5MHz – 108MHz

WB: 162.40-162.55MHz

Connectivity

3.5mm aux. in jack

Power adapter jack

RCA FM antenna jack

Power Requirement

AC100V~240V 60/50Hz Adapter

"AA" size x 6 batteries

Power consumption: ≤22W

Dimensions (W x H x D):

11.2” x 3.4” x 7.2” (284mm x 87mm x 183mm)

Unit weight:

5.31lbs (2.4kg) iMM183 | V10M10_IM_EN_09092009 iLuv | 34

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
