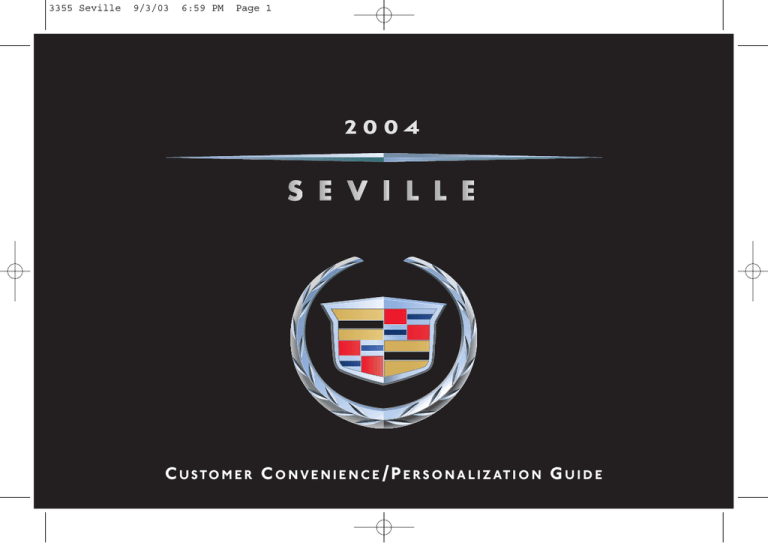

3355 Seville 9/3/03 6:59 PM Page 1

2 0 0 4

C

U S T O M E R

C

O N V E N I E N C E

/ P

E R S O N A L I Z AT I O N

G

U I D E

3355 Seville 9/3/03 6:59 PM Page 2

S E V I L L E

3355 Seville 9/3/03 6:59 PM Page 3

TABLE OF CONTENTS

DRIVER INFORMATION

•Instrument Panel

•Instrument Cluster

AUDIO SYSTEMS

•Radio Controls

•Cassette Player Controls

•Compact Disc (CD) Controls

•Radio Data System Features

•Digital Signal Processing

•Console-Mounted CD Changer

CONVENIENCE FEATURES

•Driver Information Center Controls

•Driver Memory Setting

PERSONALIZATION GUIDE

MAINTENANCE

Refer to Owner Manual for more information.

Driver

Information

Audio Systems Convenience

Features

Personalization

Guide

Maintenance

3355 Seville 9/3/03 6:59 PM Page 4

S E V I L

24

Driver Information

25

1 2 3

23

4 5 6

7

8

L

9

E

22

21

20 19 18 17 16 15 14 13 12 11 10

3355 Seville 9/3/03 6:59 PM Page 5

INSTRUMENT PANEL

1. Analog Instrument Cluster

2. Driver Information Center (DIC)

3. Steering Wheel Audio System

Controls

4. Control Buttons for DIC

5. Air Outlets

6. Hazard Warning Button

7. Audio System

8. Glove Box

9. Passenger-Side Air Bag

10. Litter Container (if equipped)

11. Electronic Climate Controls

12. Shift Lever

13. Heated Front Seat Controls

14. Covered Storage Bin

15. Windshield Wipers/Washer Lever

16. Cruise Control

17. Driver-Side Air Bag/Horn

18. Steering Wheel Voice Recognition

Controls (Phone or Navigation

System, as equipped)

19. Parking Brake Pedal

20. Hood Release

21. Trunk Lock Release

22. Fuel Door Release

23. Turn Signal/Multifunctional Lever

24. Speedometer/Odometer buttons

25. HVAC Steering Wheel Controls

Refer to Owner Manual for more information.

Driver

Information

Audio Systems Convenience

Features

❏ Reviewed with Customer (Please Check Box)

Personalization

Guide

Maintenance

3355 Seville 9/3/03 6:59 PM Page 6

S E V I L

Driver Information

1

23

2 3 4 5

L E

6

7

22 21 20 19 18 17 16 15 14 13 12 11 10 9 8

3355 Seville 9/3/03 6:59 PM Page 7

INSTRUMENT CLUSTER

1. Tachometer

2. PRND321 Indicator

3. Digital Speed Display

4. Turn Signal Indicator

5. Speedometer

6. Fuel Gauge

7. Traction Control System Indicator

8. Air Bag Ready Light

9. Brake System Warning Light

10. Safety Belt Reminder Light

11. Anti-Lock Brake System Indicator

12. Service Engine Soon Light

13. Cruise Control Indicator

Refer to Owner Manual for more information.

Driver

Information

Audio Systems

14. Driver Information Center (DIC) displays the status of many of your vehicle’s systems. The DIC is also used to display driver personalization features and status messages.

15. High Beam Indicator

16. Charging System Light

17. Security Light

18. Oil Pressure Light

19. Engine Coolant Temperature Warning

Light

20. Fog Lamp Indicator

21. Parking Brake Indicator

22. Headlamps Reminder

23. Engine Coolant Temperature Gauge

Convenience

Features

❏ Reviewed with Customer (Please Check Box)

Personalization

Guide

Maintenance

3355 Seville 9/3/03 6:59 PM Page 8

S E V I L

Audio Systems

L E

AM/FM Stereo with Cassette and

Compact Disc Player/RDS/DSP

(if equipped)

AM/FM Stereo with Compact Disc

Player

3355 Seville 9/3/03 6:59 PM Page 9

RADIO CONTROLS

Power and Volume

Press the PWR/VOL knob to turn the radio on/off. Turn the knob to the desired volume setting.

Select Band

Press the BAND button to select AM,

FM1, FM2, WEATHER, XM1 or XM2.

Select Radio, Cassette, or CD

Press the SOURCE button to select

Radio, Cassette or CD. Your choice will be displayed.

Set the Clock

Press and hold the HR or MN button.

Release the button as you get close to the correct hour or minute. Tap the button to set the exact hour or minute.

Tone

Press and release the TONE button to select desired tone control (Bass,

Treble or Midrange). Press the

– LEVEL + button to increase or decrease the Bass, Treble or

Midrange.

Balance/Fade

Press and release the speaker side of the TONE button to select Balance or

Fade control. Press the – LEVEL+ button to adjust the sound to the left/right or front/rear speakers.

Set Stations

The six numbered pushbuttons let you set up to 18 stations (six AM, six

FM1 and six FM2).

Turn the radio on. Select the Band.

Tune in the station.

Press and hold one of the pushbuttons marked 1, 2, 3, 4, 5, 6 until a chime is heard. Repeat for each pushbutton.

Scan the Stations/Preset Stations

Press the SCAN button for less than 2 seconds and the radio will play each station for 5 seconds. Press and release the SCAN button again to stop scanning. Press and hold the

SCAN button for more than 2 seconds to scan each of the preset stations.

Tune/Seek Stations

Press the top of the button to the first position to TUNE a station. Press the bottom of the button to SEEK a station.

PTY (Program Type)

Press to actuate channel category mode and – LEVEL+ to scroll categories. Use TUNE/SEEK or SCAN to search category type stations.

Refer to Owner Manual for more information.

Driver

Information

Audio Systems Convenience

Features

❏ Reviewed with Customer (Please Check Box)

Personalization

Guide

Maintenance

3355 Seville 9/3/03 6:59 PM Page 10

S E V I L L

Audio Systems

CASSETTE PLAYER CONTROLS COMPACT DISC (CD) CONTROLS

Insert Tape

With the radio on, insert the tape into the slot. The tape will begin to play.

Fast Forward Tape

Press the FF arrows of the RW/FF button. Press again to stop.

Rewind Tape

Press the RW arrows of the RW/FF button. Press again to stop.

Eject Tape

Press the upward triangle button to eject the tape.

Select Side

Press the SIDE button to select the cassette side you wish to hear.

Insert CD

With the radio on, insert CD partway into the slot with the label side up.

The player will pull the CD in and begin to play.

Eject the CD

Press the upward triangle button to eject the CD.

Listen to Tracks in Random Order

Press the RDM button.

Listen to Tracks for a Few Seconds

Press the SCAN button to start or stop.

Seek the Next Track

Press the TUNE side of the

TUNE/SEEK button.

Seek the Previous Track

Press the SEEK side of the

TUNE/SEEK button.

Fast Forward CD

Press and hold the FF arrows of the

RW/FF button. Release to stop.

Reverse the CD

Press and hold the RW arrows of the

RW/FF button. Release to stop.

E

3355 Seville 9/3/03 6:59 PM Page 11

RADIO DATA SYSTEM FEATURES

(if equipped)

Your audio system RDS (Radio Data

Systems) provides you with many useful features.

Note: Not all FM stations broadcast

RDS data.

RDS

TA

Depress button. You then have 5 seconds to activate an RDS function.

Receives traffic

MSG

announcements.

Displays current station messages.

Turns on/off program

PTY

type (PTY) seeks or scans.

-Level+

Moves up and down the list of program types.

DIGITAL SIGNAL PROCESSING

(if equipped)

Setting the DSP tone

Press the Digital Signal Processing

(DSP) button to activate one of four audio effects. Press the button again to select TALK, FRONT SEAT,

AMBIANCE or SPACIOUS.

Setting the Level

Press the –LEVEL+ button to adjust the amount of DSP effect.

CONSOLE-MOUNTED CD

CHANGER

(if equipped)

Change a CD (with a 6-CD

Changer option)

Press buttons 1 through 6 to change the CDs loaded in the changer (or press the SIDE button to advance to the next CD). The numbers represent the order of the CDs loaded in the changer.

Note: Read the display before playing a CD.

• A flashing CD symbol indicates the changer is checking the magazine for CDs.

• A non-flashing CD symbol indicates the magazine is loaded with CDs, inserted properly and ready to play.

• An error message may indicate the magazine is not loaded or inserted properly.

Refer to Owner Manual for more information.

Driver

Information

Audio Systems Convenience

Features

❏ Reviewed with Customer (Please Check Box)

Personalization

Guide

Maintenance

3355 Seville 9/3/03 6:59 PM Page 12

S E V I L L E

Convenience Features

DRIVER INFORMATION CENTER

CONTROLS

1. ENG/MET

Press the ENG/MET button to display instrument cluster information in English or metric.

2. DSPL MODE

Turns the digital/analog display feature on/off.

3. RESET TRIP A/B

There are two trip odometers.

Press the A/B portion of the button to select and view the trip odometers.

4. INFO

Press the INFO button up or down to display: OUTSIDE TEMP,

RANGE, AVG ECONOMY, INST

ECONOMY, FUEL USED, AVG

SPEED, TIMER, BATTERY, ENGINE

OIL LIFE.

1 2 3

5. INFO RESET

Press the INFO RESET button to reset to 0.0 the AVG ECONO,

FUEL USED, AVG SPEED, TIMER.

After an oil change, press and hold

INFO RESET to reset the ENGINE

OIL LIFE to 100%.

4 5 6

6. ON/OFF

This button is primarily used during feature programming.

Press the ON/OFF button to start the TIMER feature. Press the INFO

RESET button to stop the TIMER.

3355 Seville 9/3/03 6:59 PM Page 13

DRIVER MEMORY SETTING

(if equipped)

Set Seat and Mirror positions,

Climate Control and Audio System settings, and Power

Tilt/Telescoping Steering Wheel position (if equipped)

With the vehicle in Park (P), adjust the driver’s seat (including seatback recliner, lumbar and head restraint/shoulder belt height adjustments), outside rearview mirror positions, climate control and audio system settings and steering wheel position (if equipped).

1. Press and release the MEMORY

SET button.

2

3

1

exit position.

1. Press and release the MEMORY

SET button.

3. Then, within 5 seconds press and release the EXIT button.

determine whether settings are recalled when the key fob button is pressed or when the key is inserted into the ignition if the vehicle is equipped with optional memory feature.

Recall an EXIT Position

3. Press the EXIT button.

Power Remote Control Mirror

4. Press the LR switch to select the left or right outside mirror.

5. Press the directional button to tilt the mirrors to the desired position.

2. Then, within 5 seconds press and release one of the two numbered buttons that match the number on the back of your remote keyless entry transmitter. Each time a memory button is pressed, a single beep will sound.

Set EXIT Position

With vehicle in PARK (P), adjust the driver’s seat (including recliner), and power tilt and telescoping steering wheel (if equipped) to the desired

Refer to Owner Manual for more information.

Driver

Information

Audio Systems

Recall Memory for Seat and Mirror positions, Climate Control and

Audio System settings and Power

Tilt/Telescope Steering Wheel position (if equipped)

Press the unlock-symbol button on the key fob or press the appropriate numbered button on the driver-side door panel.

Note: DIC Remove Recall/Key in

Recall programming allows you to

Convenience

Features

4

5

❏ Reviewed with Customer (Please Check Box)

Personalization

Guide

Maintenance

3355 Seville 9/3/03 6:59 PM Page 14

S E V I L L

Personalization Guide

Setup

(for vehicles equipped with Memory Package)

Before you begin, if your vehicle is equipped with the Memory Package, it is necessary to adjust and set the following interior comfort and convenience items:

•Driver seat position

•Driver seat exit position

•Steering wheel column position

•Steering wheel exit position

•Outside rearview mirror positions

•Audio settings

•Climate control settings

See your Owner Manual for further information.

Driver 1 :

Driver 2 :

VIN :

E

3355 Seville 9/3/03 6:59 PM Page 15

Programming the Features

DIC = Driver Information Center

RKE = Remote Keyless Entry

With the ignition key ON and the vehicle in PARK

(P), press the appropriate memory button “1” or “2” on the driver’s door trim panel that corresponds to the number on the back of the RKE.

Press INFO until FEATURE PROGRAMMING appears in the DIC, then press ON/OFF to select feature as shown below.

Press INFO RESET to exit programming at any time, and your changes will be saved.

To start programming, press the INFO button until

FEATURE PROGRAMMING appears in the DIC.

Press the ON/OFF button to enter Feature

Programming. Press down on the INFO button to scroll through the menu. To exit, press the INFO

RESET button.

DIC readout on INSTRUMENT CLUSTER

DIC controls located to right of cluster

NOTE: Shaded areas are for vehicles equipped with the Memory Package.

Refer to Owner Manual for more information.

Driver

Information

Audio Systems Convenience

Features

❏ Reviewed with Customer (Please Check Box)

Personalization

Guide

Maintenance

3355 Seville 9/3/03 6:59 PM Page 16

S E V I L L E

Personalization Guide

DRIVER/RKE1 DRIVER/RKE 2

ON OFF ON OFF

■ ■ ■ ■

Remote Recall. If you want the seat and mirror settings activated when UNLOCK is pressed on the

RKE, press INFO until

Remote Recall Memory appears in the DIC, then press ON/OFF to select.

Press the down arrow on INFO to continue.

■ ■ ■ ■

Key in Recall. If you want the seat and mirror settings activated using the ignition key, press INFO until

Key in Recall Memory appears in the DIC, then press ON/OFF to select. Press the down arrow on

INFO to continue.

■ ■ ■ ■

Auto Exit Seat. If you want the driver’s seat to move to the exit position with the ignition key OFF and door open, press INFO until Auto Exit Seat appears in the DIC, then press ON/OFF to select.

Press the down arrow on INFO to continue.

■ ■ ■ ■

Auto Exit Steering Wheel. If you want the steering wheel to move to the exit position with the ignition key OFF and door open, press INFO until Auto Exit

Strg Wheel appears in the DIC, then press ON/OFF to select. Press the down arrow on INFO to continue.

■ ■ ■ ■

Lights Flash at Unlock. If you want the parking lamps to flash twice when UNLOCK is pressed on the RKE, press INFO until Lights Flash at Unlock appears in the DIC, then press ON/OFF to select.

Press the down arrow on INFO to continue.

■ ■ ■ ■

Lights Flash at Lock. If you want the parking lamps to flash once when LOCK is pressed on the RKE, press INFO until Lights Flash at Lock appears in the

DIC, then press ON/OFF to select. Press the down arrow on INFO to continue.

■ ■ ■ ■

Horn Sounds at Lock. If you want the horn to sound once when LOCK is pressed on the

RKE, press INFO until Horn Sounds at Lock appears in the DIC, then press ON/OFF to select. Press the down arrow on INFO to continue.

■ ■ ■ ■

Exterior Lighting. If you want the parking, tail, backup, and high beam lamps illuminated for 20 seconds when UNLOCK is pressed on the RKE (or until the door is opened or the ignition key is turned out of the OFF position), press INFO until Ext Lights at

Unlock appears in the DIC, then press ON/OFF to select. Press the down arrow on INFO to continue.

3355 Seville 9/3/03 6:59 PM Page 17

DRIVER/RKE1 DRIVER/RKE 2

ON OFF ON OFF

■ ■ ■ ■

Doors Lock in Gear. If you want all the doors to lock when the vehicle is shifted out of PARK (P), press INFO until Doors Lock in Gear appears in the

DIC, then press ON/OFF to select. Press the down arrow on INFO to continue.

■ ■ ■ ■

Driver Unlock in Park. If you want the driver’s door to unlock when the vehicle is shifted into

PARK (P), press INFO until Driver Unlock in Park appears in the DIC, then press ON/OFF to select.

Press the down arrow on INFO to continue.

■ ■ ■ ■

Doors Unlock Key Off. If you want all the doors to unlock when the ignition key is turned OFF, press INFO until

Doors Unlock

Key Off appears in the DIC, then press

ON/OFF to select. Press the down arrow on

INFO to continue.

■ ■ ■ ■

Driver Unlock Key Off. If you want the driver’s door to unlock when the ignition key is turned OFF, press INFO until Driver Unlock Key Off appears in the DIC. To turn feature off, press OFF.

■ ■ ■ ■

Doors Unlock in Park. If you want all the doors to unlock when the vehicle is shifted into PARK (P), press INFO until Doors Unlock in Park appears in the DIC, then press ON/OFF to select. Press the down arrow on INFO to continue.

■ ■

Curbview Assist Mirror. If you want the passenger’s outside mirror to tilt when the vehicle is shifted into REVERSE (R), press INFO until Mirror to Curb in Rev appears in the DIC, then press ON/OFF to select. Press the down arrow on INFO to continue.

■ ■

Tire Pressure Display (if equipped). Press down arrow on the INFO button until the TIRE

PRESSURE DISPLAY prompt appears. To turn this feature on, press ON/OFF until ON is displayed in the DIC. To turn the feature off, press ON/OFF until OFF is displayed.

CAUTION: Do not attempt programming the vehicle while driving

Refer to Owner Manual for more information.

Driver

Information

Audio Systems Convenience

Features

❏ Reviewed with Customer (Please Check Box)

Personalization

Guide

Maintenance

3355 Seville 9/3/03 6:59 PM Page 18

S E V I L L

1

2

E

Maintenance

10

9

8

7

6

1. Brake Master Cylinder

2. Coolant Fill

3. Air Filter

4. Transaxle Dipstick

5. Engine Oil Dipstick

6. Engine Oil Fill

Refer to Owner Manual for more information.

4

3

5

7. Power Steering Fluid Fill

8. Fuses/Relay Center

9. Windshield Washer Fluid Fill

10. Remote Positive Terminal

(refer to Owner Manual for jump-starting information)

❏ Reviewed with Customer (Please Check Box)

3355 Seville 9/3/03 6:59 PM Page 19

S E V I L L E

Owner Privileges

To make your ownership experience as satisfying and rewarding as possible, we are proud to provide you with Cadillac’s industry-leading Owner Privileges, designed to accommodate you anytime and anywhere.

ROADSIDE SERVICE

(1-800-882-1112)

Roadside Service provides every Cadillac owner with the advantage of contacting a Cadillac advisor and, when appropriate, a Cadillactrained dealer technician who can provide onsite services (where available):

• Towing

• Battery Jump-Starting

• Lockout Assistance

• Fuel Delivery

Flat Tire Change (covers change only)

TRIP INTERRUPTION – If your trip is interrupted due to a component failure covered under warranty, incidental expenses may be reimbursed including hotel, meals and rental car.

COURTESY TRANSPORTATION – May also be provided for warranted repairs including shuttle service for same day repairs and loaner transportation for overnight repair. Roadside

Service is also available to Cadillac customers beyond the warranty period for a charge.

CUSTOMER ASSISTANCE – (1-800-458-8006)

In Canada, call 1-800-263-3777 (English) or

1-800-263-7854 (French).

Should you need to ask questions, make a comment, or request additional information, the exclusive Cadillac Customer Assistance Center is staffed around the clock with professionals to serve you.

When you call Cadillac Roadside Service or

Customer Assistance, if possible, please provide the phone advisor with:

• Your telephone number

• Your location

• Your Cadillac’s location

• A description of the problem

• Vehicle ID number

• Make and year of your Cadillac

• Delivery date

• Current mileage

This book contains the latest information available to Cadillac at the time of this printing.

Cadillac reserves the right to make changes to the product after that time without further notice.

Seville is a registered trademark of Cadillac

Motor Car Division and General Motors

Corporation.

Copyright 2003 by Cadillac Motor Division.

All rights reserved.

04SEVILLEGTK

3355 Seville 9/3/03 6:59 PM Page 20

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
