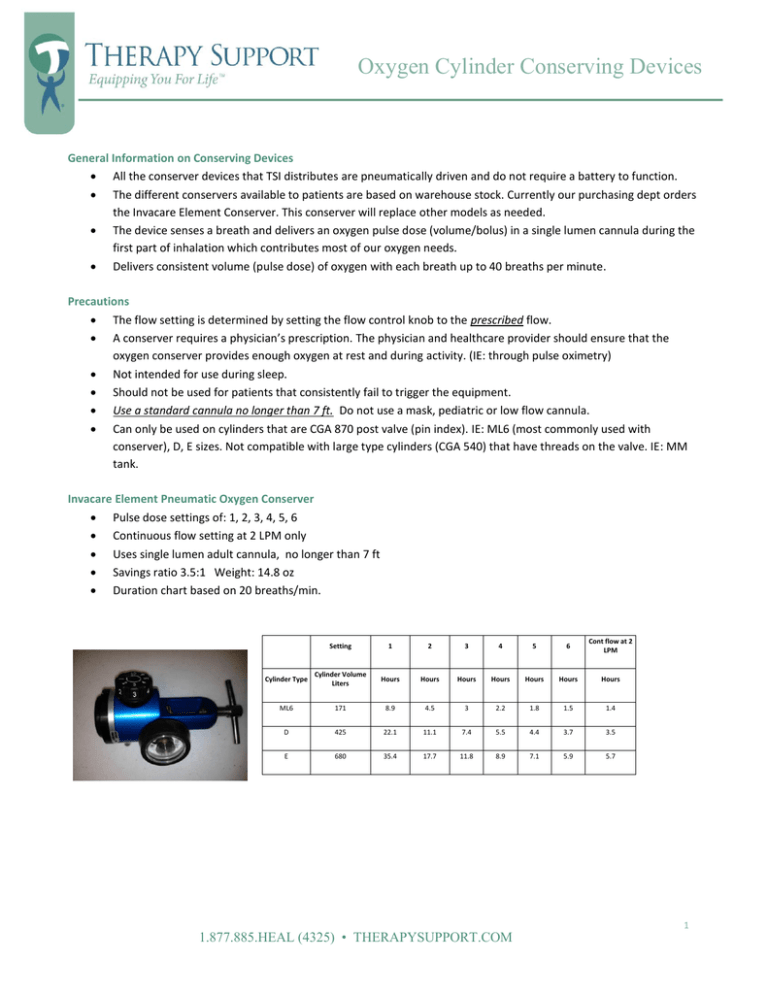

Oxygen Cylinder Conserving Devices

Oxygen Cylinder Conserving Devices
Oxygen Cylinder Conserving Devices
General Information on Conserving Devices
 All the conserver devices that TSI distributes are pneumatically driven and do not require a battery to function.
 The different conservers available to patients are based on warehouse stock. Currently our purchasing dept orders
the Invacare Element Conserver. This conserver will replace other models as needed.
 The device senses a breath and delivers an oxygen pulse dose (volume/bolus) in a single lumen cannula during the
first part of inhalation which contributes most of our oxygen needs.
 Delivers consistent volume (pulse dose) of oxygen with each breath up to 40 breaths per minute.
Precautions
 The flow setting is determined by setting the flow control knob to the prescribed flow.
 A conserver requires a physician’s prescription. The physician and healthcare provider should ensure that the
oxygen conserver provides enough oxygen at rest and during activity. (IE: through pulse oximetry)
 Not intended for use during sleep.
 Should not be used for patients that consistently fail to trigger the equipment.
 Use a standard cannula no longer than 7 ft. Do not use a mask, pediatric or low flow cannula.
 Can only be used on cylinders that are CGA 870 post valve (pin index). IE: ML6 (most commonly used with
conserver), D, E sizes. Not compatible with large type cylinders (CGA 540) that have threads on the valve. IE: MM
tank.
Invacare Element Pneumatic Oxygen Conserver
 Pulse dose settings of: 1, 2, 3, 4, 5, 6
 Continuous flow setting at 2 LPM only
 Uses single lumen adult cannula, no longer than 7 ft
 Savings ratio 3.5:1 Weight: 14.8 oz
 Duration chart based on 20 breaths/min.
Setting
1
2
3
4
5
6
Cont flow at 2
LPM
Cylinder Type
Cylinder Volume
Liters
Hours
Hours
Hours
Hours
Hours
Hours
Hours
ML6
171
8.9
4.5
3
2.2
1.8
1.5
1.4
D
425
22.1
11.1
7.4
5.5
4.4
3.7
3.5
E
680
35.4
17.7
11.8
8.9
7.1
5.9
5.7
1.877.885.HEAL (4325) • THERAPYSUPPORT.COM
1
Oxygen Cylinder Conserving Devices
Responsive Respond C5 Pneumatic Oxygen Conserver
 Pulse dose settings of 1, 2, 2.5, 3, 4, 5
 Continuous flow settings of 2, 3, 4
 Uses a single lumen adult cannula, no longer than 7 ft
 Savings ratio 5:1 Weight 14 oz
 Duration chart based on 20 breaths/min.
Setting
1
2
2.5
3
4
5
Cont
flow @
2 LPM
3 LPM
4 LPM
Cylinder
type
Cylinder
Volume
Liters
Hours
Hours
Hours
Hours
Hours
Hours
Hours
Hours
Hours
ML6
171
13
6.75
5.5
4.5
3.5
2.7
1.4
0.9
.5
D
425
34
17.3
13.7
11.5
8.5
6.9
3.5
2.3
.5
E
680
56
28.5
22.7
18.9
14.5
11.4
5.7
3.5
2.8
Bonsai OXYPneumatic Oxygen Conserver
 Pulse dose settings of 1, 2, 3, 4, 5, 6, 7
 Continuous flow settings of 2 LPM (factory set)
 Uses a single lumen adult cannula, no longer than 7 ft
 Savings ratio 6:1 Weight 14 oz
 Duration chart based on 20 breaths/min.
Setting
1
2
3
4
5
6
7
Cont
flow @
2 LPM
Cylinder
Type
Cylinder
Volume
Liters
Hours
Hours
Hours
Hours
Hours
Hours
Hours
Hours
ML6
171
11
6.5
4.5
3.7
3.1
2.7
2.5
1.4
D
425
27.2
16.1
11.1
9.1
7.7
6.8
6.1
3.5
E
680
43.6
25.8
17.7
14.5
12.3
10.9
9.8
5.7
1.877.885.HEAL (4325) • THERAPYSUPPORT.COM
2
Oxygen Cylinder Conserving Devices
How to use your oxygen conserver
1. Make sure that the conserver is set to the off position before opening the cylinder valve.
2. Open the cylinder valve slowly at least one full turn so the pressure gauge moves slowly as it indicates the
cylinder pressure.
3. Listen for leaks. If a leak is present, close the cylinder, check the seal (washer) for wear. If necessary replace
seal and reinstall regulator/conserver to the cylinder. If the leak persists contact Therapy Support at 877-8854325, DO NOT USE THE EQUIPMENT.
4. Check the oxygen pressure gauge to verify the cylinder pressure.
5. Select the setting on the conserver to your prescribed delivery setting.
6. Place the nasal cannula (no longer than 7 ft.) into position with the prongs in the nostrils and begin breathing.
The conserver will now start to deliver oxygen. The amount of oxygen per pulse is determined by the setting. A sound
may be heard each time the unit delivers a pulse of oxygen. Make sure the tubing in not kinked when placed in the
carrying bag and bag is secured.
7. When finished using the system, close the oxygen supply cylinder valve and continue breathing through the
nasal cannula until no further oxygen is detected.
8. Remove the nasal cannula and turn the selector switch to the off position.
The continuous flow setting is designed for emergency use only. The amount of oxygen delivered when using the
oxygen in the continuous mode will depend on the model that you received (see above). Remember that in the
continuous mode the oxygen will be consumed at a much faster rate. Return to another source before running out of
oxygen.
Troubleshooting
Problem
No flow. Unit does not pulse
Unit flows or pulses continuously.
Possible Cause
Solution
1.
Cylinder valve is closed.
1.
Open the cylinder valve.
2.
Regulator in “Off” position.
2.
Set to prescribed setting.
3.
Cylinder empty.
3.
Replace cylinder.
4.
Oxygen conserving regulator not
sensing breath.
4.
Check position of cannula in nose.
Keep mouth closed.
5.
Oxygen cannula is blocked or
kinked.
5.
Remove kinks. Replace cannula if
necessary.
6.
Using a low flow or pediatric
cannula
6.
Change to standard cannula
1.
Unit is set to the continuous flow
(CF) position(s).
1.
Turn the selector switch to the
appropriate delivery setting.
2.
Unit was not set to “Off” prior to
opening the cylinder valve.
2.
3.
Vent hole is obstructed.
Turn the selector switch to the
“Off”, wait a few moments, then
set at proper delivery setting.
3.
Remove obstructions, such a
labels and resume use as usual.
1.877.885.HEAL (4325) • THERAPYSUPPORT.COM
3
