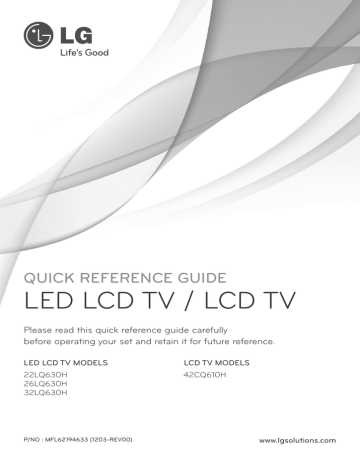

LED LCD TV / LCD TV

QUICK REFERENCE GUIDE

LED LCD TV / LCD TV

Please read this quick reference guide carefully before operating your set and retain it for future reference.

LED LCD TV MODELS

22LQ630H

26LQ630H

32LQ630H

LCD TV MODELS

42CQ610H www.lgsolutions.com

P/NO : MFL62194633 (1203-REV00)

2

IMPORTANT SAFETY INSTRUCTIONS

Always comply with the following precautions to avoid dangerous situations and ensure peak performance of your product.

TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING

TO REDUCE THE RISK OF FIRE AND

ELECTRIC SHOCK, DO NOT EXPOSE THIS

PRODUCT TO RAIN OR MOISTURE.

CAUTION

Do not attempt to modify this product in any way without written authorization from

LG Electronics. Unauthorized modification could void the user’s authority to operate this product.

WARNING: This product contains chemicals known to the State of California to cause cancer.

Wash hands after handling.

y y y y y y y y y y y y y y in accordance with the manufacturer’s instructions.

y y as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

y y polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety.

If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet (Can differ by country).

y y or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

y y by the manufacturer.

y y or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

y y storms or when unused for long periods of time.

y y personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

y y a thunder or lightning storm.

y y not to hang the TV by its power and signal cables.

y y to fall into the product, and do not drop objects onto the screen.

y y vinyl packing out of the reach of children.

Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.

y y

It is recommended that appliances be placed upon a dedicated circuit; that is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner’s manual to be certain. Do not connect too many appliances to the same

AC power outlet as this could result in fire or electric shock. Do not overload wall outlets.

Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized service. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. Do not move the TV with the power cord plugged in. Do not use a damaged or loose power cord. Be sure do grasp the plug when unplugging the power cord. Do not pull on the power cord to unplug the TV.

y y conductive material into the power cord. Do not touch the end of the power cord while it is plugged in.

y y electrical shock, do not expose this product to rain, moisture or other liquids. Do not touch the TV with wet hands. Do not install this product near flammable objects such as gasoline or candles, or expose the TV to direct air conditioning.

y y do not place objects filled with liquids, such as vases, cups, etc. on or over the apparatus

(e.g. on shelves above the unit).

y y

(Except for devices which are not grounded.)

Ensure that you connect the earth ground wire to prevent possible electric shock

(i.e. a TV with a three-prong grounded AC plug must be connected to a three-prong grounded AC outlet). If grounding methods are not possible, have a qualified electrician install a separate circuit breaker. Do not try to ground the unit by connecting it to telephone wires, lightening rods, or gas pipes.

y y

POWER

Mains plug is the disconnecting device. The plug must remain readily operable.

y y wall outlet, it is not disconnected from the

AC power source even if the unit is turned off.

y y way without written authorization from LG

Electronics. Unauthorized modification could void the user’s authority to operate this product.

3

4

y y

(Can differ by country):

If an outdoor antenna is installed, follow the precautions below. An outdoor antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can come in contact with such power lines or circuits as death or serious injury can occur. Be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code (NEC) in the

U.S.A. provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes and requirements for the grounding electrode.

Antenna grounding according to the National

Electrical Code, ANSI/NFPA 70

Ground Clamp

Antenna Lead in Wire

Electric Service

Equipment

Antenna Discharge Unit

(NEC Section 810-20)

Grounding Conductor

(NEC Section 810-21)

Ground Clamps

Power Service Grounding

Electrode System

(NEC Art 250, Part H)

NEC: National Electrical Code

y y

When cleaning, unplug the power cord and wipe gently with a soft cloth to prevent scratching. Do not spray water or other liquids directly on the TV as electric shock may occur. Do not clean with chemicals such as alcohol, thinners or benzine.

y y

Make sure the product is turned off, unplugged and all cables have been removed. It may take 2 or more people to carry larger TVs. Do not press or put stress on the front panel of the TV.

y y

Install your TV where there is proper ventilation. Do not install in a confined space such as a bookcase. Do not cover the product with cloth or other materials while plugged. Do not install in excessively dusty places.

y y from the TV, unplug the power cord and contact an authorized service center.

y y hand or a sharp object such as a nail, pencil or pen, or make a scratch on it.

y y y y

The LCD panel is a high technology product with resolution of two million to six million pixels. In a very few cases, you could see fine dots on the screen while you are viewing the TV. Those dots are deactivated pixels and do not affect the performance and reliability of the TV.

y y

The LCD panel is a high technology product with resolution of two million to six million pixels. In a very few cases, you could see fine dots on the screen while you’re viewing the TV. Those dots are deactivated pixels and do not affect the performance and reliability of the TV.

5

y y

“Cracking” noise: A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to temperature and humidity. This noise is common for products where thermal deformation is required.

Electrical circuit humming/panel buzzing: A low level noise is generated from a highspeed switching circuit, which supplies a large amount of current to operate a product.

It varies depending on the product.

This generated sound does not affect the performance and reliability of the product.

y y openings. When watching the TV for a long period, the ventilation openings may become hot. This does not affect the performance of the product or cause defects in the product.

y y be a small “flicker” when it is turned on. This is normal, there is nothing wrong with TV.

Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots. However, they have no adverse effect on the TV’s performance. Avoid touching the LCD screen or holding your finger(s) against it for long periods of time.

Doing so may produce some temporary distortion effects on the screen.

DISPOSAL (Hg lamp only used in LCD TVs)

The fluorescent lamp used in this product contains a small amount of mercury. Do not dispose of this product with general household waste. Disposal of this product must be carried out in accordance to the regulations of your local authority.

Preventing “Image burn” or “Burn-in” on your TV screen y y y y a long period of time, it will be imprinted and become a permanent disfigurement on the screen. This is “image burn” or “burn-in” and is not covered by the warranty.

y long period of time, image burn may occur on the letterboxed area of the screen.

y for a long period of time (two or more hours for an LCD TV) to prevent image burn.

For USA

NOTE TO CABLE/TV INSTALLER

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National

Electrical Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical.

6

TABLE OF CONTENTS

2 IMPORTANT SAFETY INSTRUCTIONS

6 TABLE OF CONTENTS

6 Additional Information

7 INSTALLATION PROCEdURE

7 ASSEMBLY ANd PARTS

7

8

9

Accessories

Protection Cover

Rear Jack Panel

12 WALL MOUNT INSTALLATION

13 Setting Up the TV

13 - VESA Wall Mounting

14 GENERAL TROUBLESHOOTING

16 OPEN SOURCE SOFTWARE NOTICE

Additional Information

The Owner’s Manual and Commercial Mode

Setup Guide contain detailed information on the advanced features of these TVs. To view the extended documentation, visit our website at: www.lgsolutions.com/products. From the Products page, select TVs, Systems & Solutions, then LCD

TVs, then the applicable TV. Click the Literature

& Downloads tab at the bottom of the TV page, and select the required document(s) from the

Downloads list.

FCC NOTICE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and the receiver.

- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.

Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

INSTALLATION PROCEdURE

1

Open the package and make sure all the accessories are included.

2

Attach the stand to the TV set.

3

Connect an external device to the TV set.

ASSEMBLY ANd PARTS

Accessories

Check your product box for the following items. If an accessory is missing, contact the dealer from whom you purchased the TV. Note: Accessories included may differ from the images below.

(For 22/26/32LQ630H) (For 26LQ630H/42CQ610H)

7

Quick Reference Guide

(For 22/26LQ630H)

기준점

Power Cord

(For 32LQ630H)

A/V adapter cable

(For 42CQ610H)

Protective bracket and screw for power cord x 3

Cable holder

1,5Vcc 1,5Vcc

Protection cover y y y y y y

CAUTION

VO

MUTE

REMO CH

RETURN

MEN

INP

TV

POWE

GUID

POR

TAL

INFO

PIP CH RATIO

PIP CH

PIP SW

TIMER

PIP INPU

FLASHBK

1.5V 1.5V

NOTE y y y y y y with a ferrite core to maintain standards compliance for the product.

y y of product functions.

ὤ㨴㥄

wyv{lj{pvuGjv}ly

ὤ㨴㥄 wyv{lj{pvuGjv}ly

8

Protection Cover

Image shown may differ from your TV.

For 42CQ610H

Install the included PROTECTION COVER over the hole for the stand.

Press the Protection cover into the TV until you hear it click.

ὤ㨴㥄 ὤ㨴㥄

Rear Jack Panel

Image shown may differ from your TV.

For 22LQ630H

10

.

1

.

9 .

6

14

.

4

UPDATE RESET

.

8

PILLOW SPEAKER

11

1

RGB IN (PC)

/DVI IN

2

IN

/ M.P.I.

TV-LINK

12 .

7 .

5 .

3 .

2

For 26/32LQ630H

14

.

1

RESET

UPDATE

10

ANTENNA IN

Healthcare Multimedia System

.

2 .

3 .

4 .

5 .

6 .

7

PILLOW SPEAKER

.

8

AUDIO IN (RGB/DVI

11

12

12

13

.

9

10

13

9

ANTENNA IN

10

ASSEMBLING AND PREPARING

2

ANTENNA IN

For 42CQ610H

10

1

.

3

14

RESET UPDATE

6

PTC SERVICE

(SERVICE ONLY)

SPEAKER OUT

8

12

8

HDMI 2

HDMI

/DVI IN

1

HDMI 2

7

HDMI

/DVI IN

2

HDMI

/DVI IN

1

1

PILLOW SPEAKER

RGB IN (PC)

11

RESET UPDATE

RESET UPDATE

(SERVICE ONLY)

.

9

(SERVICE ONLY)

SPEAKER OUT

8

RS-232C IN

(SERVICE ONLY)

SPEAKER OUT

8

15

PILLOW SPEAKER

PILLOW SPEAKER

RESET UPDATE

PTC SERVICE

(SERVICE ONLY)

SPEAKER OUT

8

HDMI 2

HDMI

/DVI IN

1

PILLOW SPEAKER

AV IN

.

5

AV IN

13

AV IN

GAME

M.P.I

RGB IN (PC)

RS-232C IN

(SERVICE ONLY)

AV IN

Jack

1 Power Cord Socket

2 ANTENNA IN

3 PTC SERVICE

(SERVICE ONLY)

4 CPU SERVICE

(SERVICE ONLY)

5 TV - LINK CFG

6 SPEAKER OUT 8

7 GAME CONTROL

M. P. I.

8 PILLOW SPEAKER

9 AUDIO IN (RGB/DVI)

USB IN q RGB IN (PC) w HDMI/DVI IN e AV (Audio/Video) IN r UPDATE

RESET

?

RS-232C IN

(SERVICE ONLY)

Description

For operation with AC power.

Caution: Never attempt to operate the TV on DC power.

Connect over-the air signals to this jack.

Used for PTC software updates.

Used for CPU software updates.

Computer input for programming Free To Guest services.

For use with external speakers.

Input port for third party game Controllers.

Allows VOD/PPV devices or set-top boxes to control the TV.

Used to connect to pillow speaker.

1/8” headphone jack for analog PC audio input.

Used for viewing multimedia files.

Analog PC Connection. Uses a D-sub 15-pin cable (VGA cable).

Digital Connection.

Supports HD video and Digital audio.

Accepts DVI video using an adapter or HDMI to DVI cable (not included).

Analog composite connection. Supports standard definition video only (480i).

Used for PC/DTV audio input jack.

Software downloads and debug mode enable/ dis-able.

Hardware reset to PTC microcontroller.

Used for software updates.

11

12

WALL MOUNT INSTALLATION

V

Image shown may differ from your TV.

For proper ventilation, allow a clearance of 4 inches on all four sides.

4 inches

4 inches 4 inches

4 inches

y y y y y y

CAUTION

4 inches

Setting Up the TV

Refer to the appropriate section below to mount the TV on its stand or to a wall.

VESA Wall Mounting

NOTE y y performed by a qualified professional installer.

y y brand wall mount bracket when mounting the TV to a wall.

1

Install the protection cover provided with the TV to protect the area where the TV stand would otherwise be located. Press the protection cover into the TV until you hear it click.

2

(Optional) Carefully attach a wall mount bracket to the rear of the TV.

3

Install the wall mount bracket on a solid wall perpendicular to the floor. When you attach the

TV to other building materials, please contact qualified personnel.

CAUTION y y

TV may fall, which could result in severe personal injury.

y y turned on. This may result in personal injury due to electric shock.

Make sure to use a wall mount bracket and screws that meet the VESA standard. Standard dimensions for wall mount kits are shown in the following table.

Model

22/26LQ630H 32LQ630H

VESA

Standard screw

100 x 100

M4

Number of screws 4

200 x 100

M4

4

Wall mount bracket

(optional)

LSW100B, LSW100BG

Model

42CQ610H

VESA

Standard screw

Number of screws 4

200 x 200

M6

Wall mount bracket

(optional)

LSW200B, LSW200BG

13

10 cm

10 cm (4 inch)

10 cm

10 cm

14

GENERAL TROUBLESHOOTING

Installation

Symptom

Cannot direct enter channel number.

y y

Menu item 028 CH. OVERIDE is set to 0, i.e., disabled (recommended setting).

Possible Cause(s) Possible Solution(s)

y y that are active in the TV’s channel lineup can be selected. Set Installer Menu item 028 CH.

OVERIDE to 1 to allow access for direct keypad entry to all channels.

y y is not part of the FTG Channel Map.

y y included in the FTG Channel Map. If necessary, make changes to the FTG Channel Map using the FTG File Manager or the FTG Configuration

Application, as appropriate.

No channels present after setup.

y y y y

Setup procedure, as appropriate. Auto Tuning must be run in order for the channel lineup to be populated. Note for Express Script: You must select “Execute Auto Search” in the Auto

Search screen to run the search. To re-activate the Express Script, set Installer Menu item 117

FACT DEFAULT to 001.

Picture Reception and Sound

Symptom

No picture.

y y

Normal picture, poor or no sound.

y y y y y y y y y y y y y y y y properly.

Possible Cause(s) Possible Solution(s)

y y y y y y y y y y y y y y y y y y sound level.

y y

LEVEL and 027 HOSPITAL MODE are set as required. Also, if applicable, select TV Speaker in the Audio Menu.

Erratic Operation

Symptom

Installer Menu setup.

y y

Possible Cause(s) Possible Solution(s)

y y

Installer Remote

Symptom

Remote doesn’t work.

y y y y y y y y y y y y y y y y y y y y

Possible Cause(s) Possible Solution(s)

y y

TV Mode.

y y y y room.

y y y y y y y y compartment.

y y y y your LG dealer.

y y necessary.

15

OPEN SOURCE SOFTWARE NOTICE

Product Type

Model Number/Range

Commercial TV

LQ630H-UA

CQ610H-UA

Those products identified by the Product Type and Model Range above from LG Electronics, Inc.

(“LGE”) contain the open source software detailed below. Please refer to the indicated open source licences (as are included following this notice) for the terms and conditions of their use.

Component(s)

Linux kernel, busybox, e2fsprogs, gdbserver, jfsutils, mtd-utils, procps, u-boot, udhcpc

DirectFB, gconv, glibc

Nano-x

GPL v2.0

Licence

LGPL v2.1

MPL v1.1

Please be informed that LG Electronics products may contain open source software listed in the tables below.

Component(s) Licence

Apache Jakarta Commons

Net, Apache ORO

ReportGUI

Apache license 1.1

Apache license 2.0

strace BSD license freetype libjpeg

Freetype license

JPEG license

Libcurl, ncurses

Basic compression lib, libpng, tinyxml, zlib

MIT license

The Legion of the Bouncy

Castle

OpenSSL

MIT/X11 style license

OpenSSL license zlib/libpng license

The source code for the above may be obtained free of charge from LGE at http://opensource.

lge.com. LGE will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping and handling) upon email request to [email protected] This offer is valid for three (3) years from the date on which you purchased the product.

The model and serial numbers of the TV are located on the back and/or one side of the TV.

Record them below should you ever need service.

MODEL

SERIAL

Pro:Centric is a trademark of LG Electronics U.S.A., Inc. Pro:Idiom is a registered trademark of Zenith Electronics LLC. b-LAN is a trademark of LodgeNet Interactive Corporation. All other trademarks or registered trademarks are the property of their respective owners.

LG Customer Information Center

For inquires or comments, visit www.lg.com or call:

1-888-865-3026

1-888-542-2623

USA, Commercial User

CANADA

Register your product Online!

www.lg.com

This product qualifies for ENERGY STAR in the

“factory default (Home Use)” setting.

Changing the factory default settings or enabling other features may increase power consumption that could exceed the limits necessary to quality for ENERGY STAR.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
